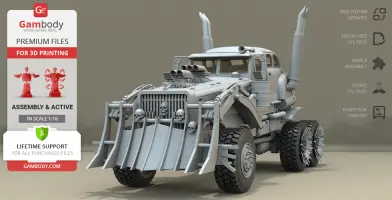

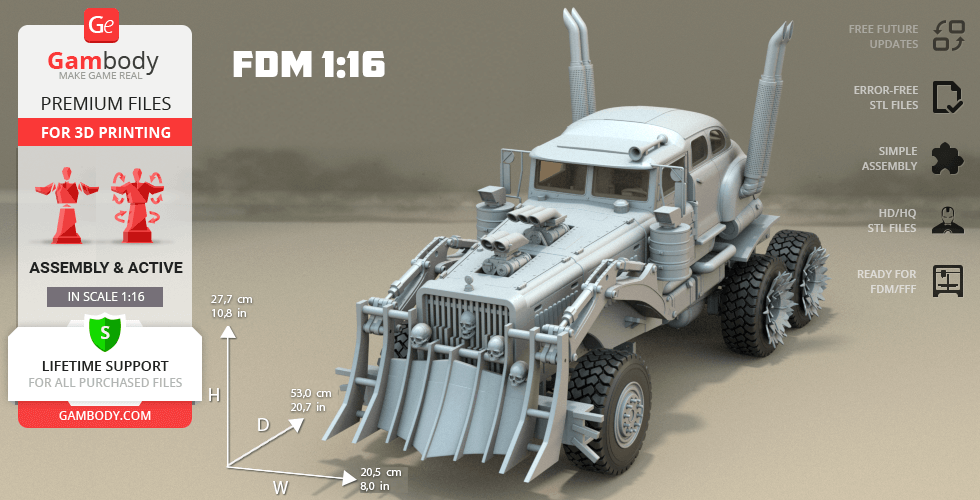

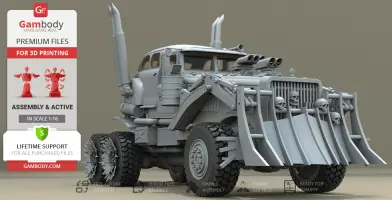

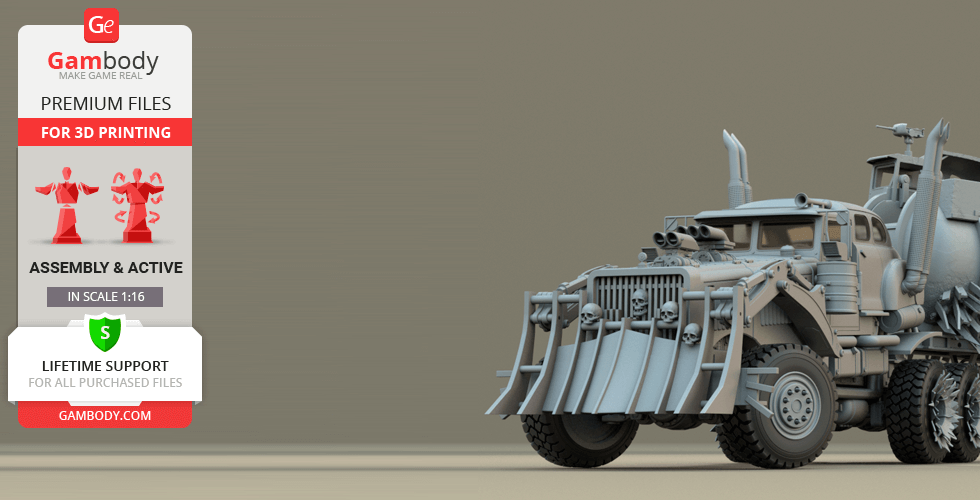

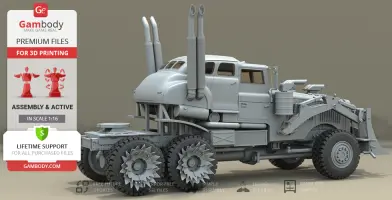

War Rig Truck 3D Printing Model | Assembly + Action

(23)

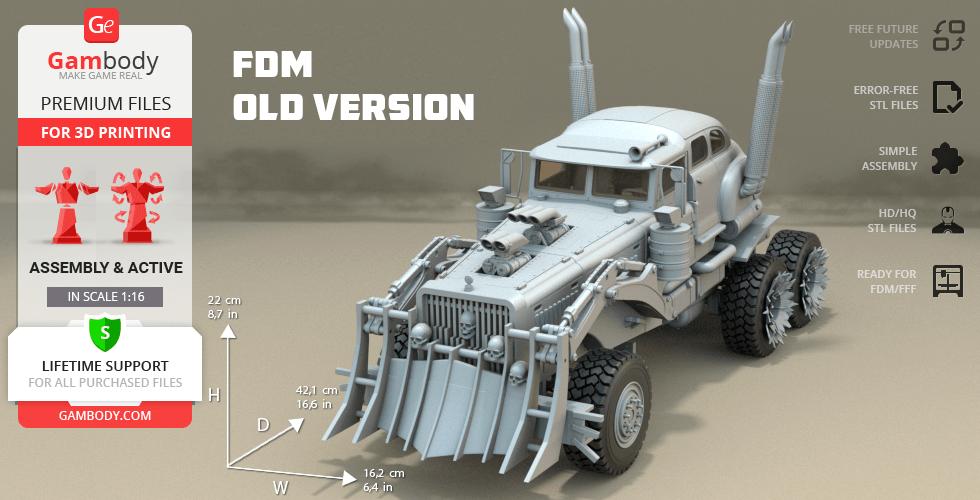

cm: 16.2 w x 42.1 d x 22 h
in: 6.378 w x 16.575 d x 8.661 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

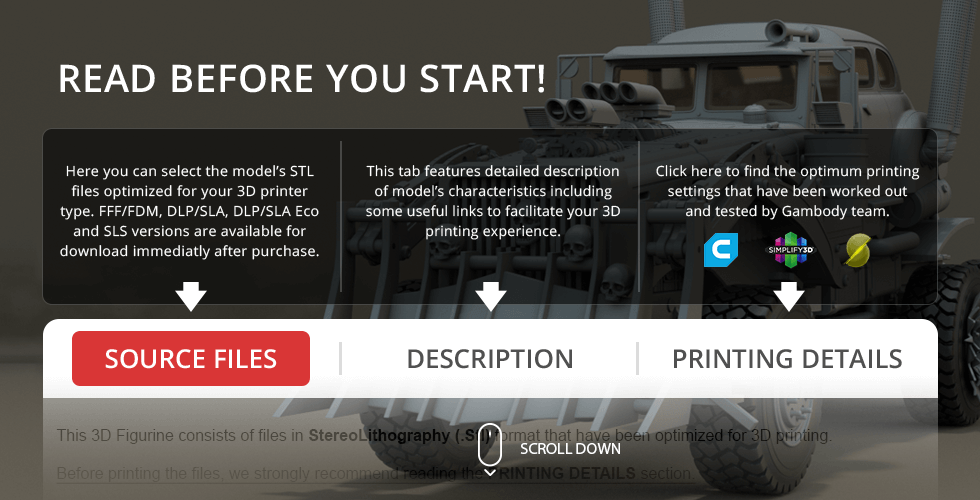

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

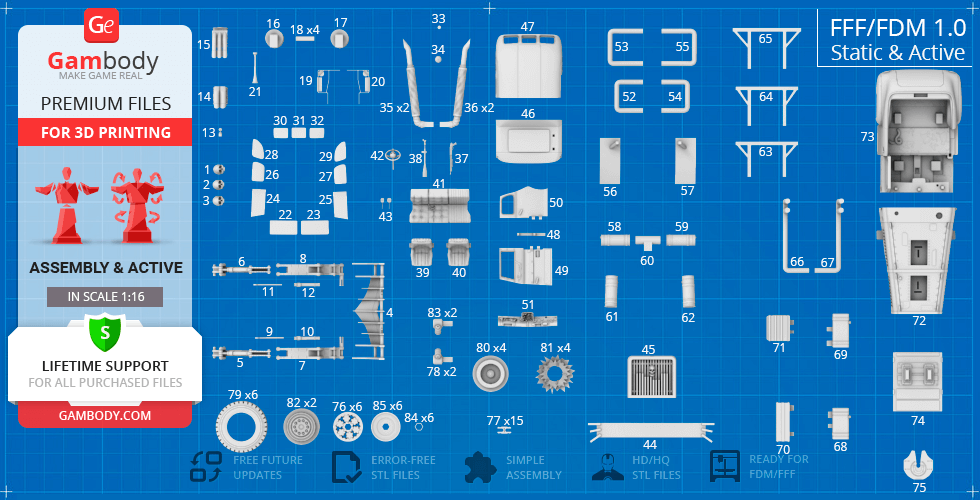

War Rig Truck 3D Printing Model comes in 2 versions for FFF/FDM 3D printers. STL files of each version are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
1_skull_1 (repaired).stl
0.44 MiB 13 min <1 m 9 x 14 x 11 Download

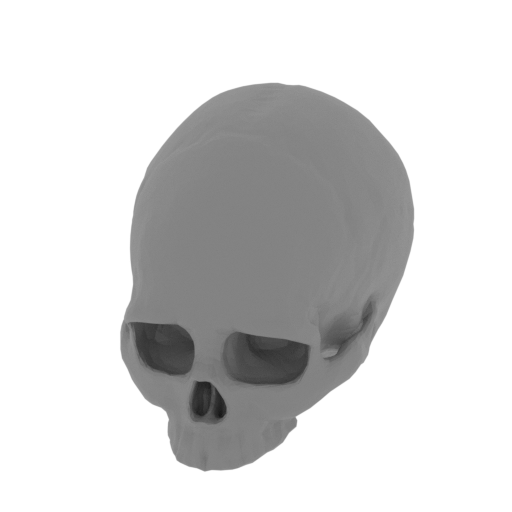

2_skull_2 (repaired).stl
0.44 MiB 13 min <1 m 9 x 14 x 11 Download

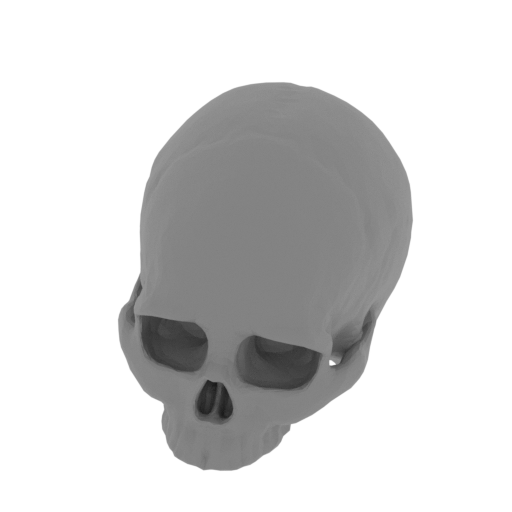

3_skull_3 (repaired).stl
0.44 MiB 13 min <1 m 10 x 14 x 11 Download

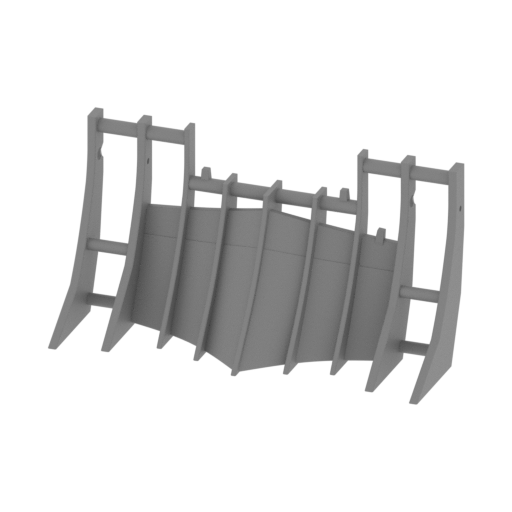

4_plow_base (repaired).st l
2.06 MiB 8 h 50 min 5 m 124 x 43 x 65 Download
5_plow_leg_a_L (repaired) .stl
6.10 MiB 1 h 57 min 1 m 17 x 83 x 21 Download

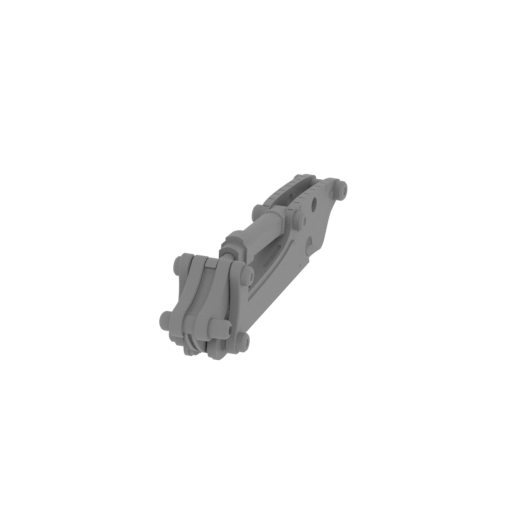

6_plow_leg_a_R (repaired) .stl
6.10 MiB 1 h 57 min 1 m 17 x 83 x 21 Download
7_plow_leg_b_L (repaired) .stl
5.74 MiB 2 h 51 min 2 m 29 x 91 x 34 Download

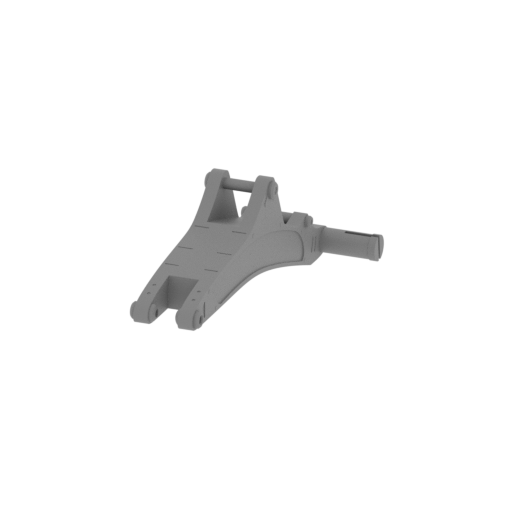

8_plow_leg_b_R (repaired) .stl
5.74 MiB 2 h 51 min 2 m 29 x 91 x 34 Download

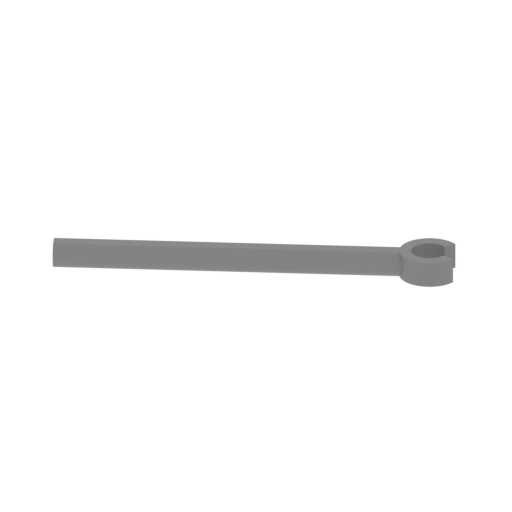

9_plow_piston_in_L (repai red).stl
0.08 MiB 5 min <1 m 37 x 14 x 2 Download
10_plow_piston_out_L (rep aired).stl
0.23 MiB 27 min <1 m 6 x 8 x 34 Download
11_plow_piston_in_R (repa ired).stl
0.08 MiB 5 min <1 m 37 x 14 x 2 Download

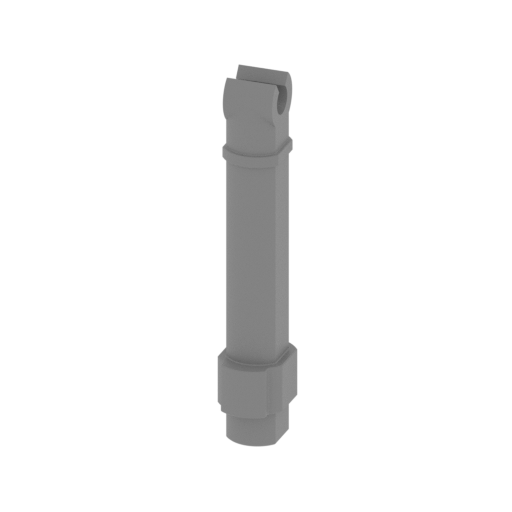

12_plow_piston_out_R (rep aired).stl
0.23 MiB 27 min <1 m 6 x 8 x 34 Download
13_hood_emblem (repaired) .stl
0.25 MiB 4 min <1 m 5 x 5 x 11 Download

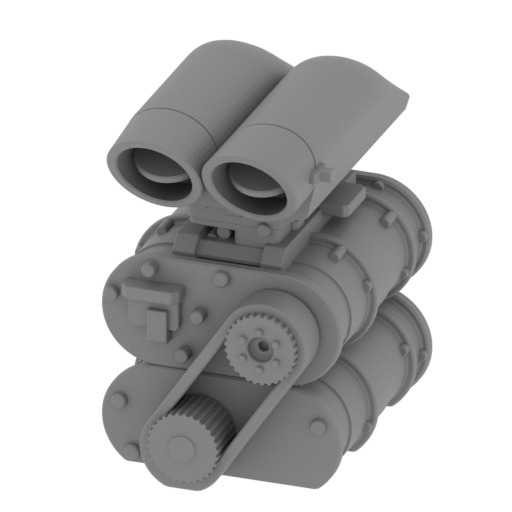

14_engine_a (repaired).st l
2.04 MiB 1 h 57 min 1 m 20 x 29 x 30 Download
15_engine_b (repaired).st l
2.23 MiB 2 h 36 min 1 m 20 x 40 x 30 Download

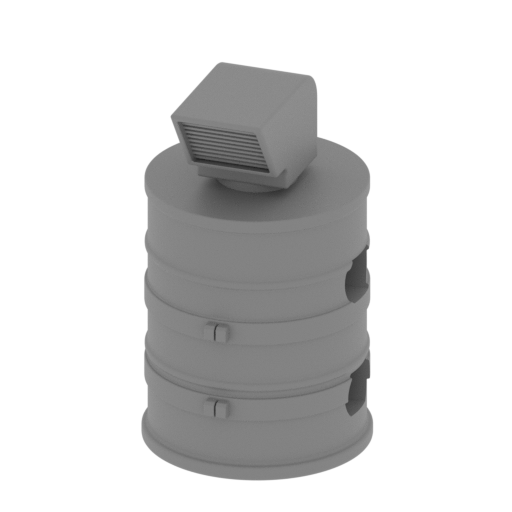

16_filter_R (repaired).st l
1.38 MiB 1 h 30 min 1 m 24 x 25 x 40 Download

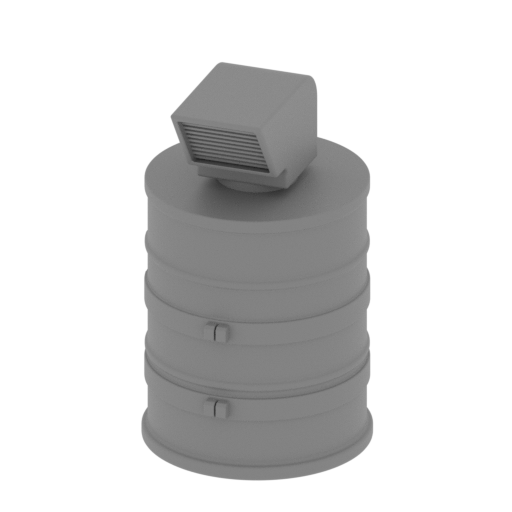

17_filter_L (repaired).st l
1.38 MiB 1 h 29 min 1 m 24 x 25 x 40 Download
18_filter_connector_x4 (r epaired).stl
0.06 MiB 7 min <1 m 24 x 6 x 5 Download

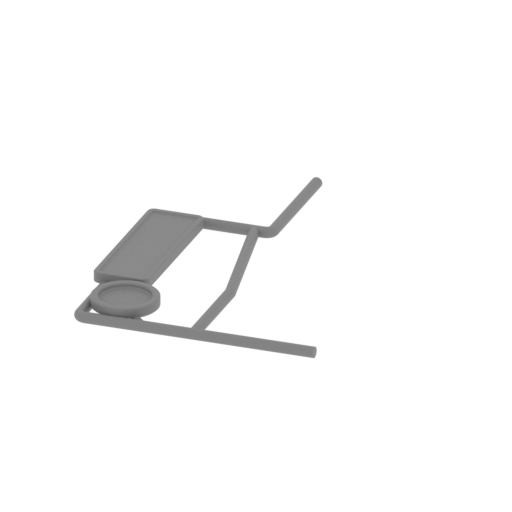

19_mirror_R (repaired).st l
0.48 MiB 9 min <1 m 30 x 44 x 2 Download

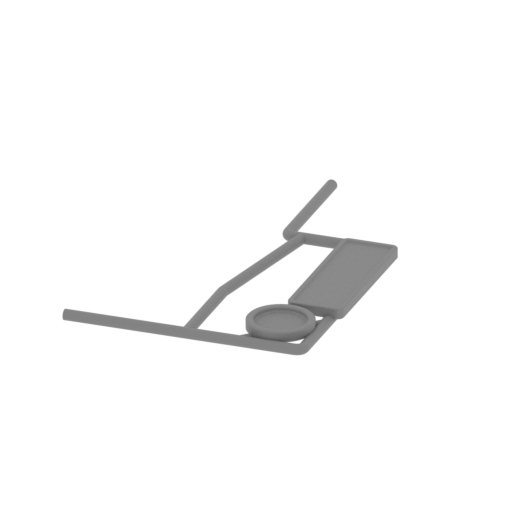

20_mirror_L (repaired).st l
0.48 MiB 9 min <1 m 30 x 44 x 2 Download

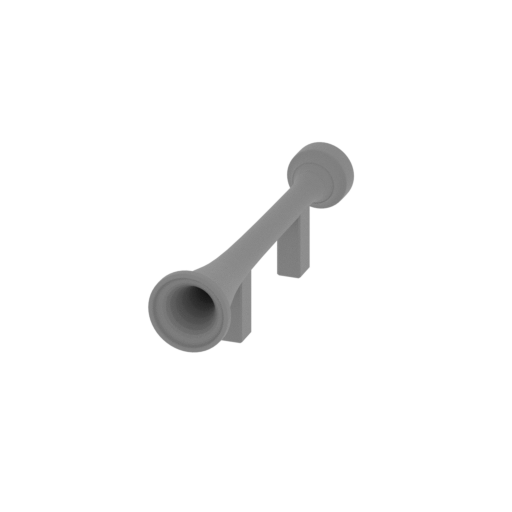

21_klaxon (repaired).stl
0.63 MiB 20 min <1 m 9 x 39 x 13 Download
22_window_front_R (repair ed).stl
0.77 MiB 14 min <1 m 35 x 7 x 18 Download

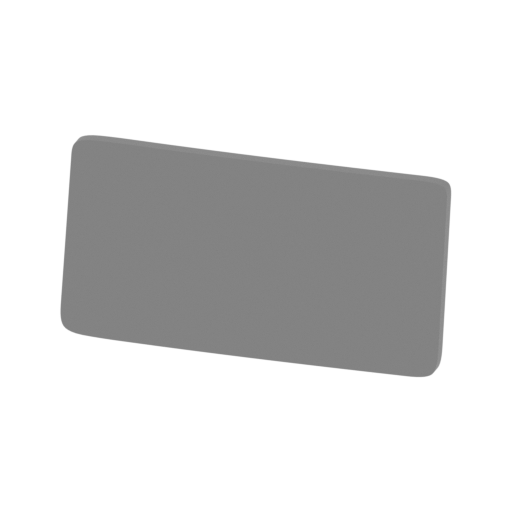

23_window_front_L (repair ed).stl
0.77 MiB 14 min <1 m 35 x 7 x 18 Download

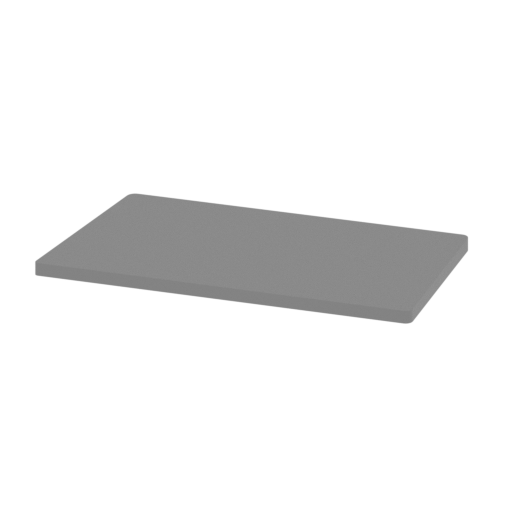

23_window_side_a_L (repai red).stl
0.02 MiB 14 min <1 m 36 x 19 x 1 Download
24_window_side_a_R (repai red).stl
0.02 MiB 14 min <1 m 36 x 19 x 1 Download

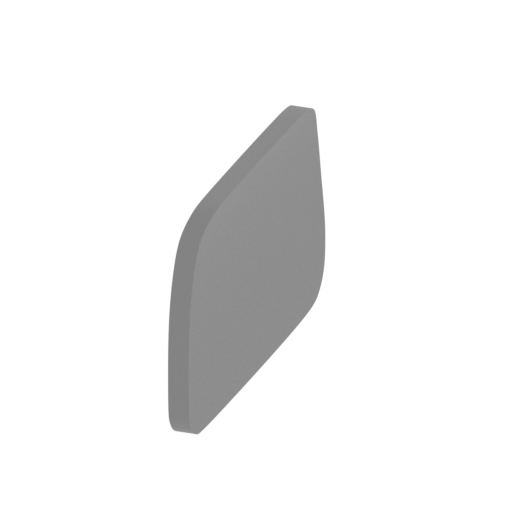

26_window_side_b_R (repai red).stl
0.33 MiB 14 min <1 m 3 x 25 x 16 Download

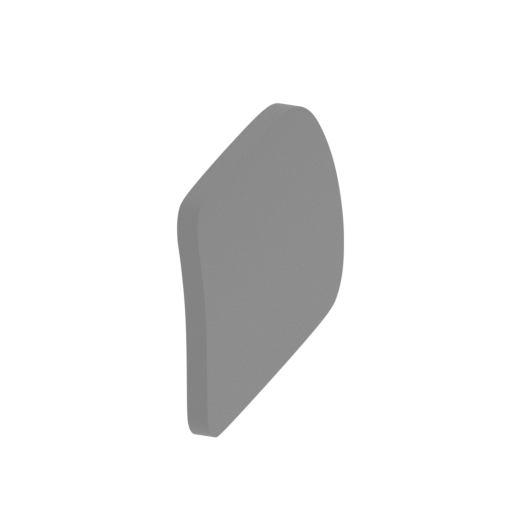

27_window_side_b_L (repai red).stl
0.33 MiB 14 min <1 m 3 x 25 x 16 Download
28_window_side_c_R (repai red).stl
0.21 MiB 13 min <1 m 3 x 25 x 16 Download

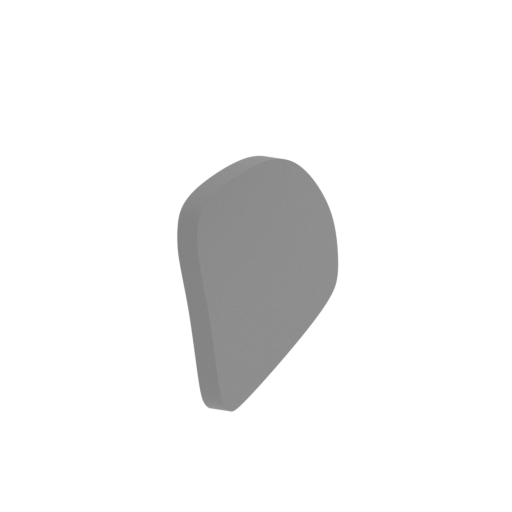

29_window_side_c_L (repai red).stl
0.21 MiB 13 min <1 m 3 x 25 x 16 Download

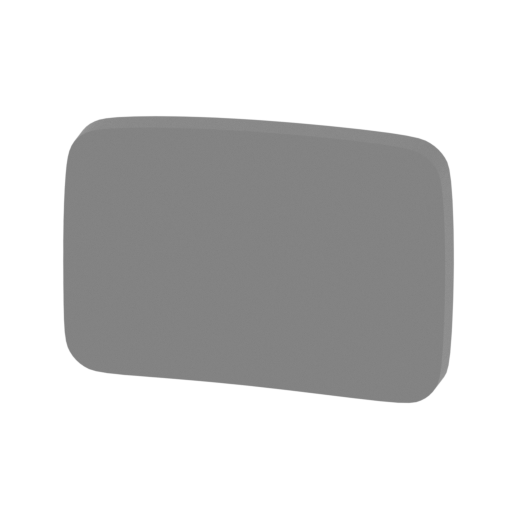

30_window_back_R (repaire d).stl
0.24 MiB 12 min <1 m 19 x 4 x 14 Download

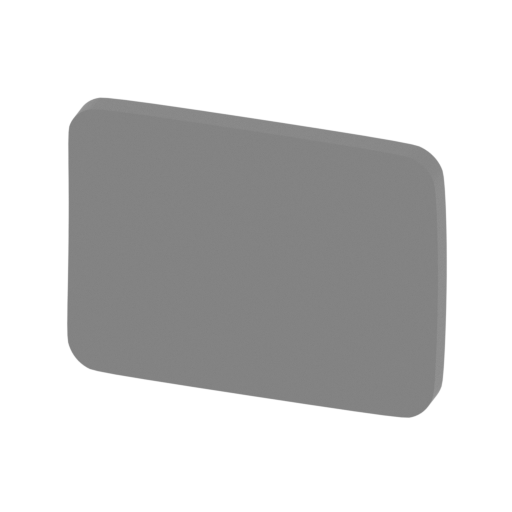

31_window_back_center (re paired).stl
0.15 MiB 14 min <1 m 19 x 2 x 14 Download

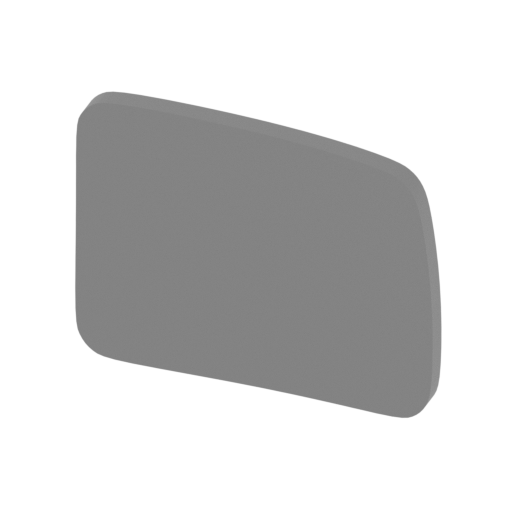

32_window_back_L (repaire d).stl
0.24 MiB 13 min <1 m 19 x 4 x 14 Download

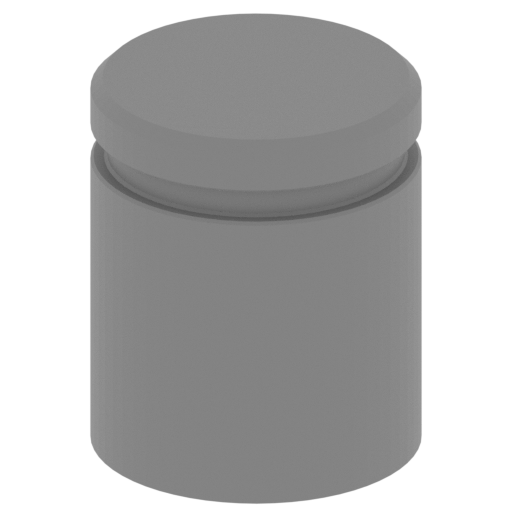

33_hood_pipe_1 (repaired) .stl
0.08 MiB 3 min <1 m 5 x 5 x 6 Download

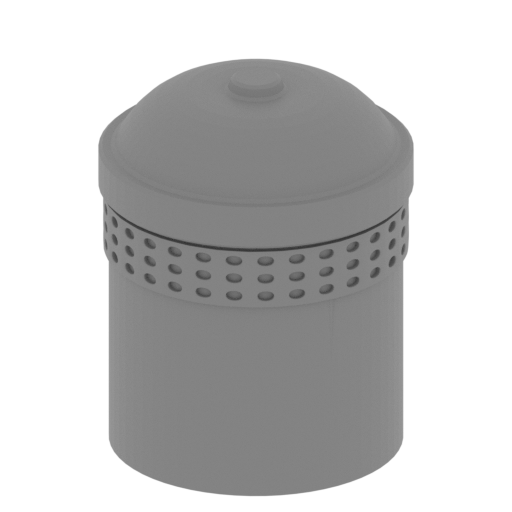

34_hood_pipe_2 (repaired) .stl
1.88 MiB 10 min <1 m 9 x 9 x 11 Download

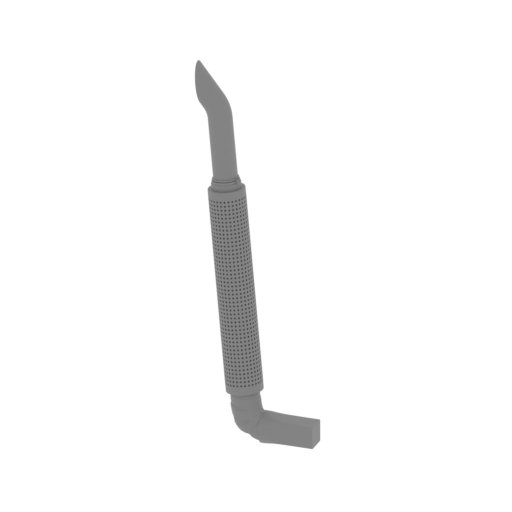

35_exhaust_pipe_R_x2 (rep aired).stl
37.85 MiB 1 h 45 min 1 m 39 x 16 x 113 Download

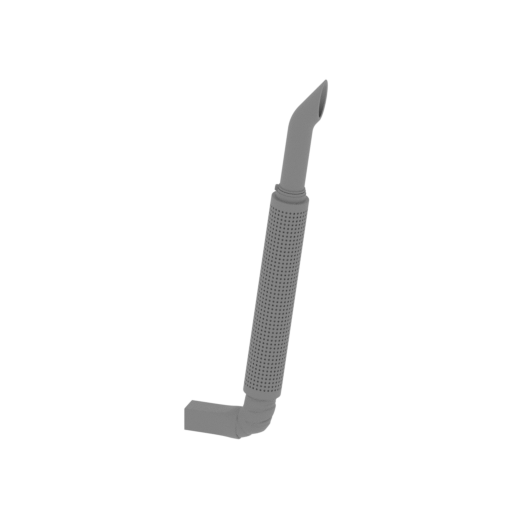

36_exhaust_pipe_L_x2 (rep aired).stl
37.85 MiB 1 h 46 min 1 m 39 x 16 x 113 Download

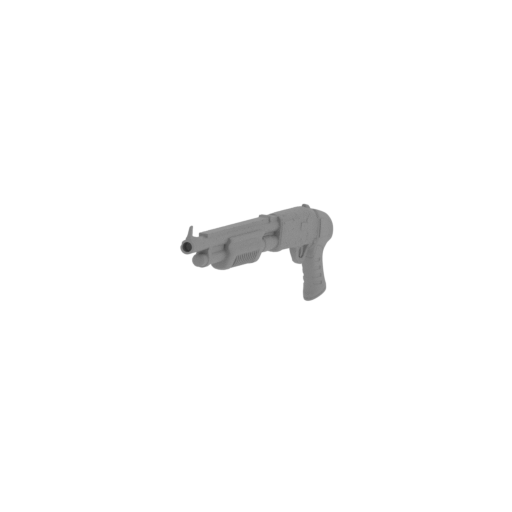

37_shotgun (repaired).stl
2.57 MiB 21 min <1 m 3 x 39 x 22 Download

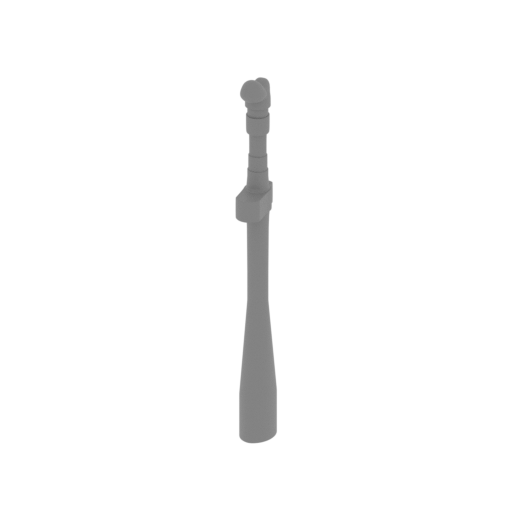

38_gear_knob (repaired).s tl
1.03 MiB 37 min <1 m 4 x 8 x 49 Download
39_seat_front_R (repaired ).stl
13.91 MiB 2 h 45 min 2 m 32 x 37 x 55 Download

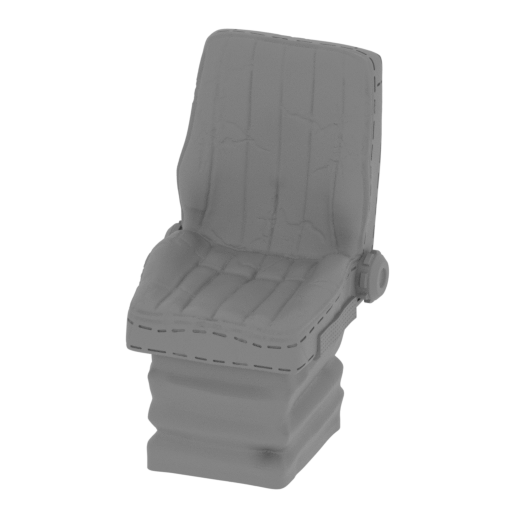

40_seat_front_L (repaired ).stl
13.90 MiB 2 h 47 min 2 m 32 x 37 x 55 Download
41_seat_back (repaired).s tl
14.91 MiB 5 h 43 min 3 m 78 x 47 x 40 Download

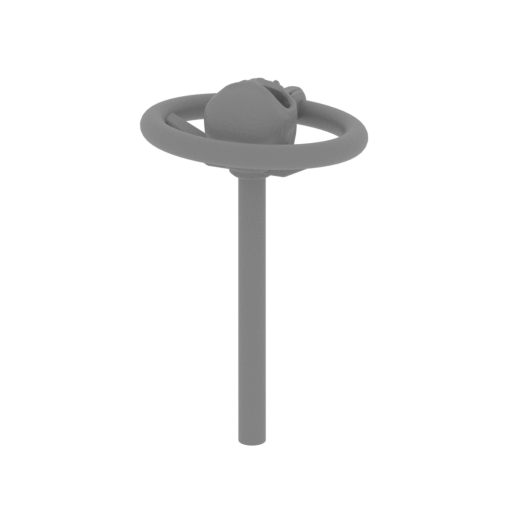

42_steering_wheel (repair ed).stl
0.60 MiB 55 min 1 m 21 x 21 x 35 Download

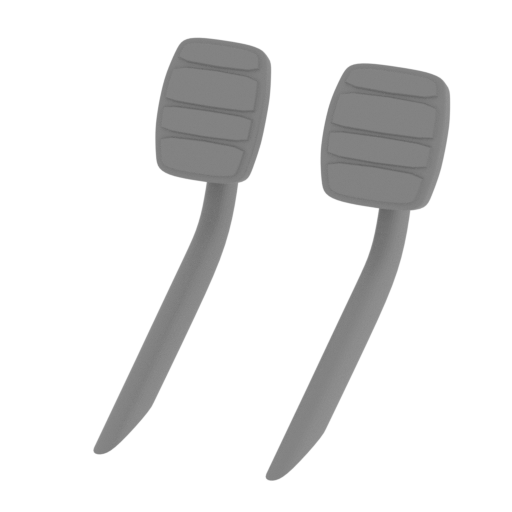

43_pedals (repaired).stl
0.50 MiB 13 min <1 m 14 x 19 x 14 Download

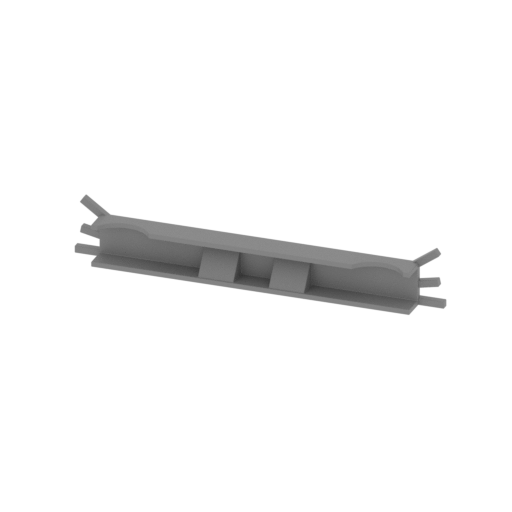

44_bumper (repaired).stl
0.11 MiB 4 h 7 min 3 m 162 x 14 x 26 Download

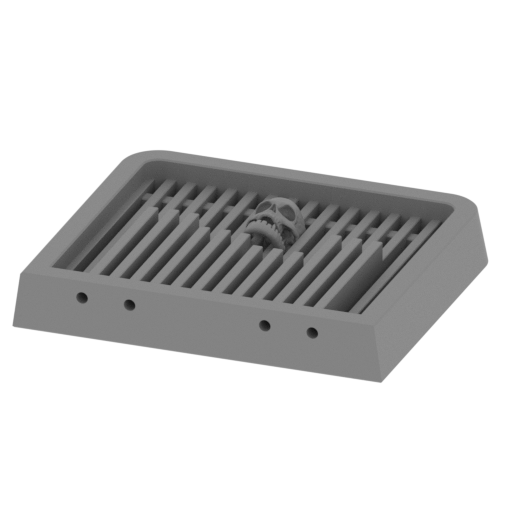

45_grid_front (repaired). stl
0.94 MiB 4 h 38 min 2 m 63 x 54 x 12 Download

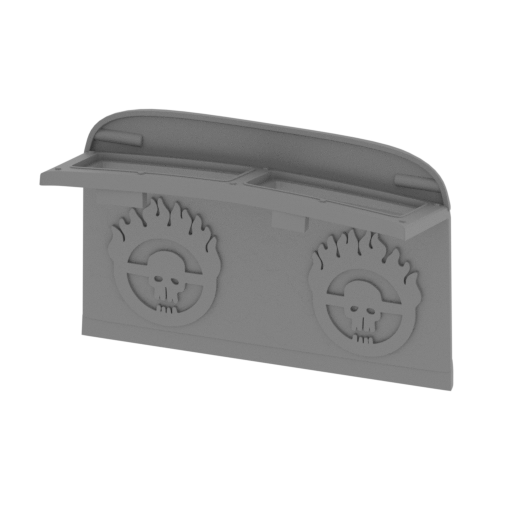

46_roof_a (repaired).stl
9.38 MiB 7 h 50 min 5 m 84 x 41 x 56 Download

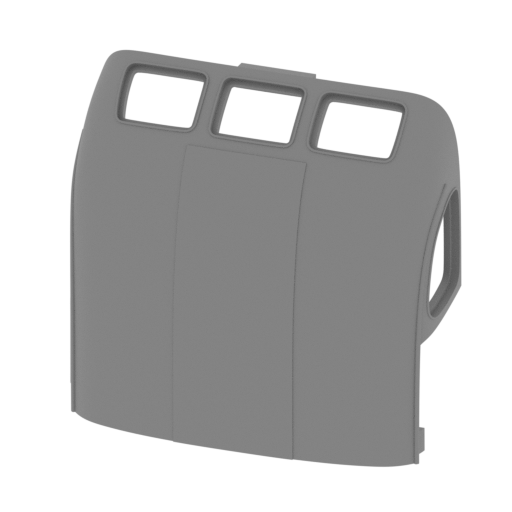

47_roof_b (repaired).stl
20.99 MiB 10 h 3 min 6 m 85 x 30 x 80 Download

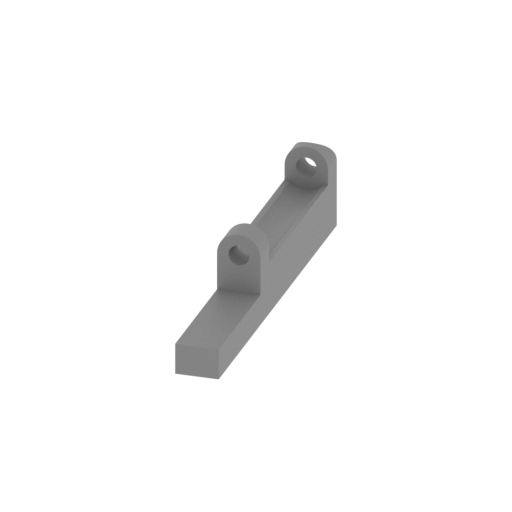

48_pivot (repaired).stl
0.03 MiB 12 min <1 m 6 x 36 x 9 Download

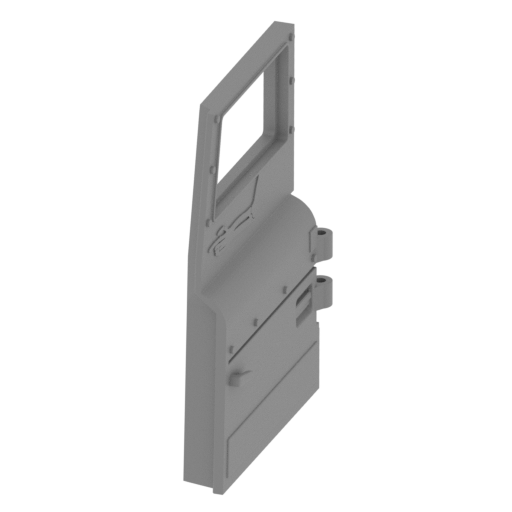

49_door_a (repaired).stl
4.17 MiB 2 h 51 min 2 m 11 x 51 x 67 Download

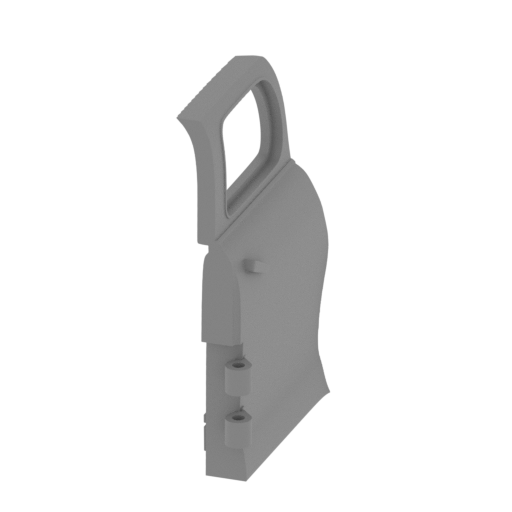

50_door_b (repaired).stl
5.25 MiB 2 h 3 min 1 m 13 x 43 x 61 Download

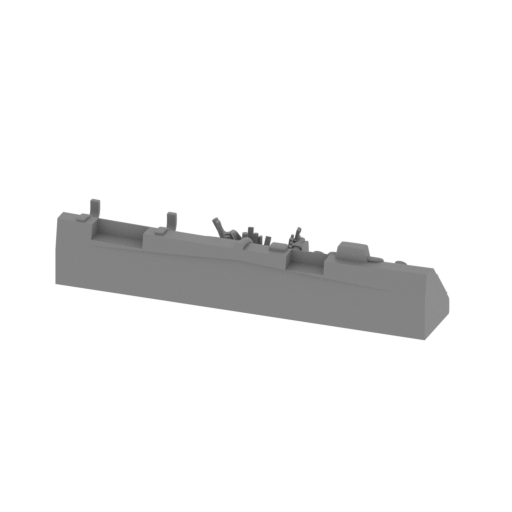

51_dashboard (repaired).s tl
19.84 MiB 1 h 59 min 1 m 76 x 19 x 16 Download

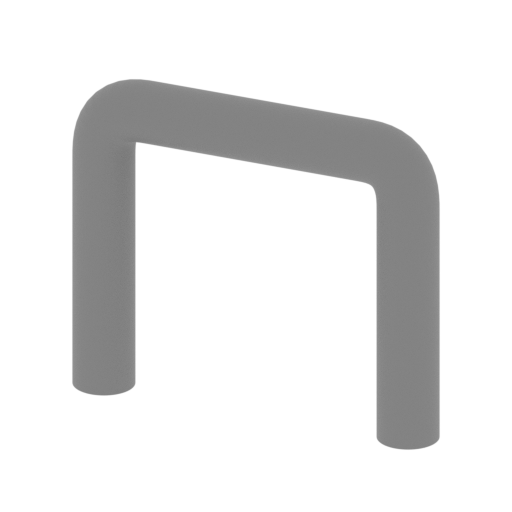

52_body_pipe_a_R (repaire d).stl
0.21 MiB 1 h 1 min 1 m 43 x 9 x 37 Download

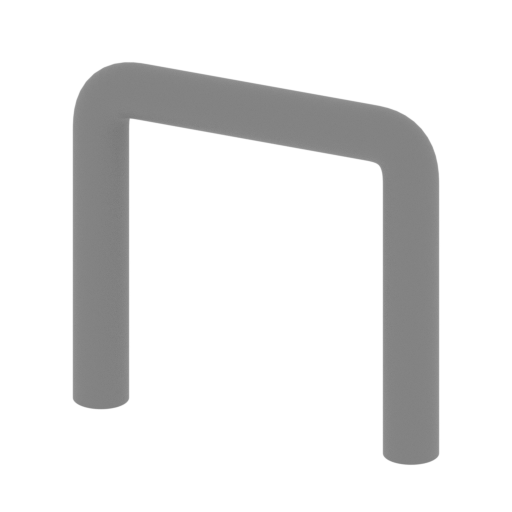

53_body_pipe_b_R (repaire d).stl
0.21 MiB 1 h 21 min 1 m 48 x 9 x 45 Download

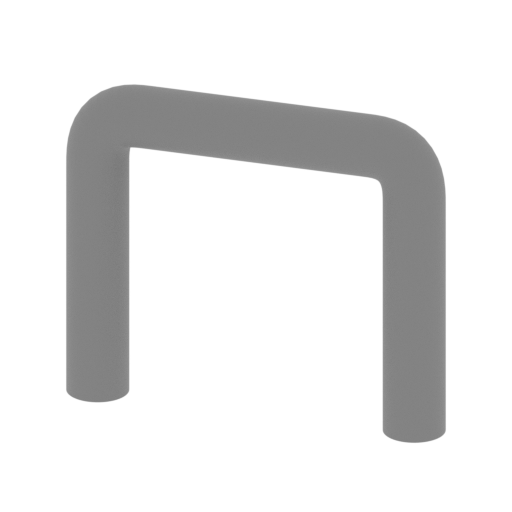

54_body_pipe_a_L (repaire d).stl
0.21 MiB 60 min 1 m 43 x 9 x 37 Download

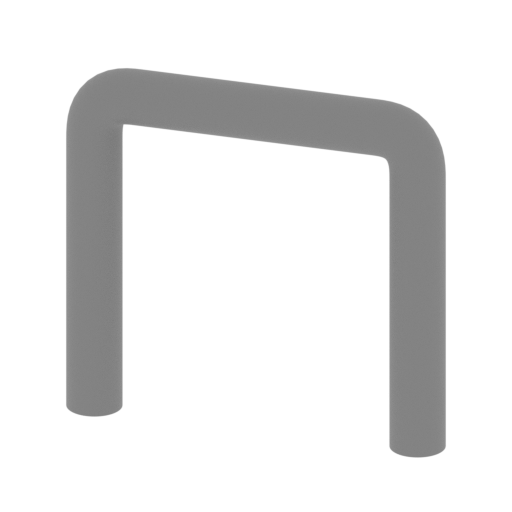

55_body_pipe_b_L (repaire d).stl
0.21 MiB 1 h 21 min 1 m 48 x 9 x 45 Download

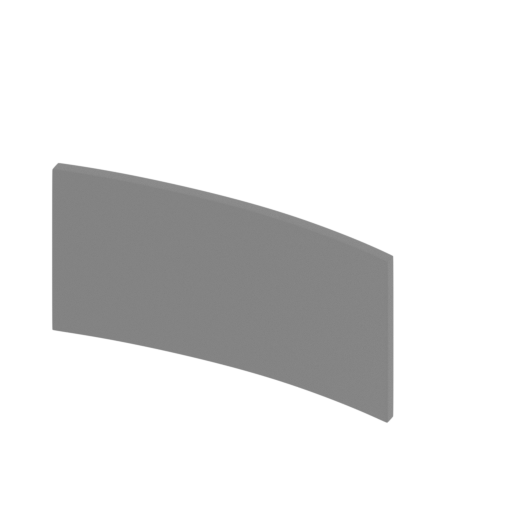

56_wing_R (repaired).stl
0.91 MiB 55 min 1 m 59 x 46 x 27 Download
57_wing_L (repaired).stl
0.92 MiB 56 min 1 m 59 x 46 x 27 Download

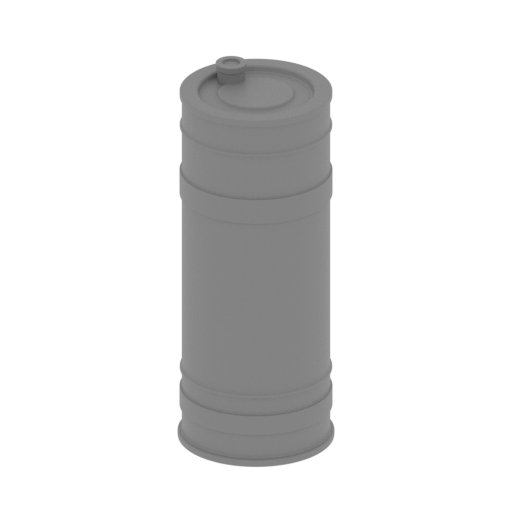

58_barrel_R (repaired).st l
1.43 MiB 42 min <1 m 15 x 15 x 38 Download

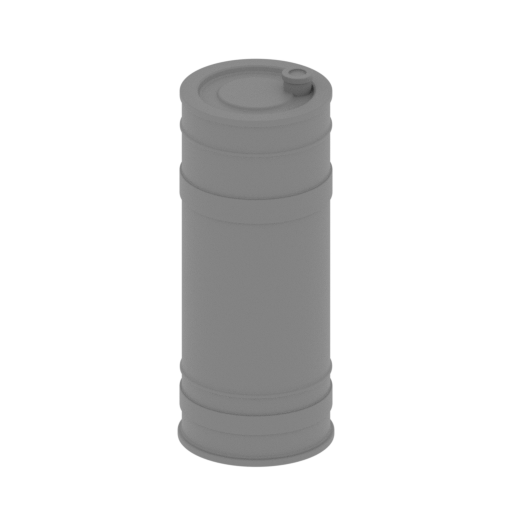

59_barrel_L (repaired).st l
1.43 MiB 42 min <1 m 15 x 15 x 38 Download

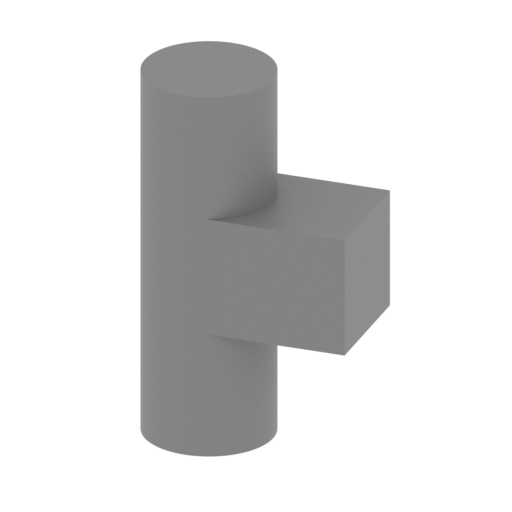

60_barrel_center (repaire d).stl
0.04 MiB 36 min <1 m 19 x 11 x 32 Download
61_barrel_side_R (repaire d).stl
1.41 MiB 1 h 8 min 1 m 18 x 40 x 20 Download

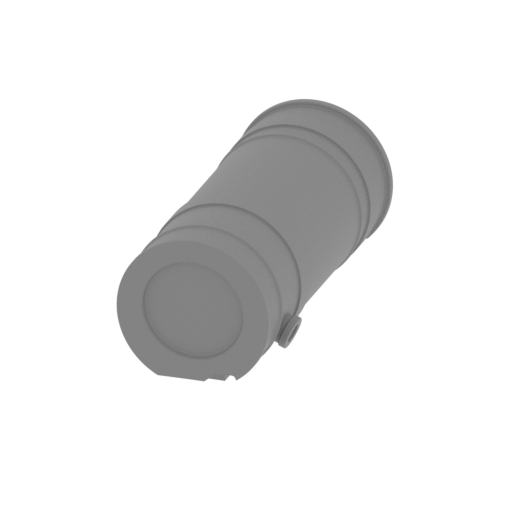

62_barrel_side_L (repaire d).stl
1.41 MiB 1 h 7 min 1 m 18 x 40 x 20 Download
63_beam_a (repaired).stl
0.01 MiB 37 min <1 m 80 x 45 x 4 Download
64_beam_b (repaired).stl
0.01 MiB 40 min <1 m 80 x 50 x 4 Download

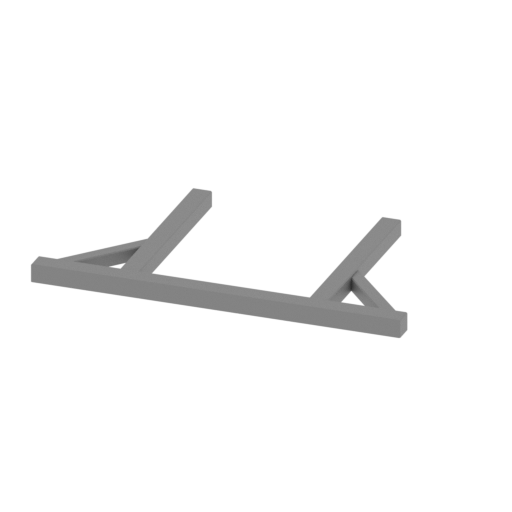

65_beam_c (repaired).stl
0.01 MiB 43 min 1 m 88 x 52 x 4 Download

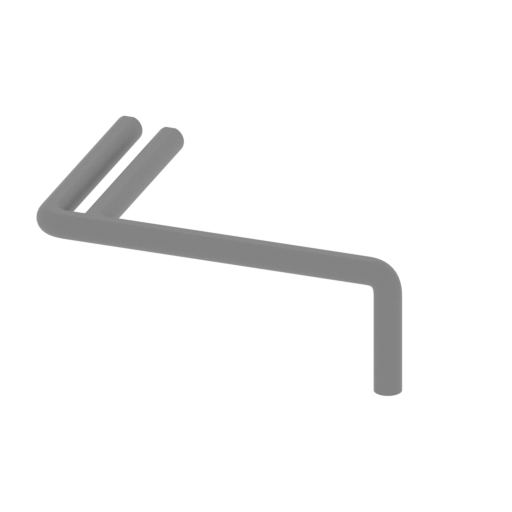

66_side_pipes_R (repaired ).stl
0.25 MiB 3 h 29 min 3 m 95 x 62 x 34 Download

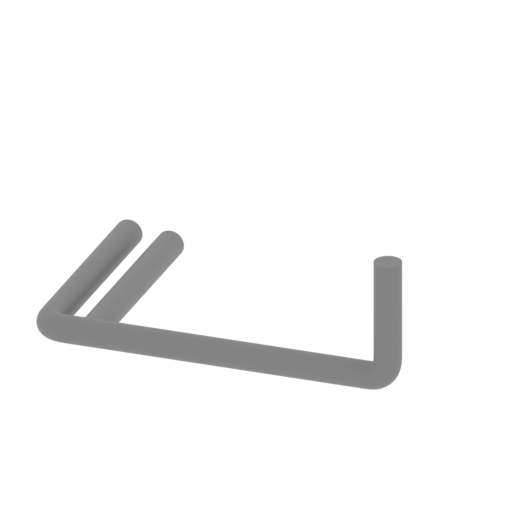

67_side_pipes_L (repaired ).stl
0.25 MiB 1 h 28 min 1 m 95 x 62 x 34 Download
68_box_a (repaired).stl
0.32 MiB 1 h 37 min 1 m 41 x 20 x 29 Download

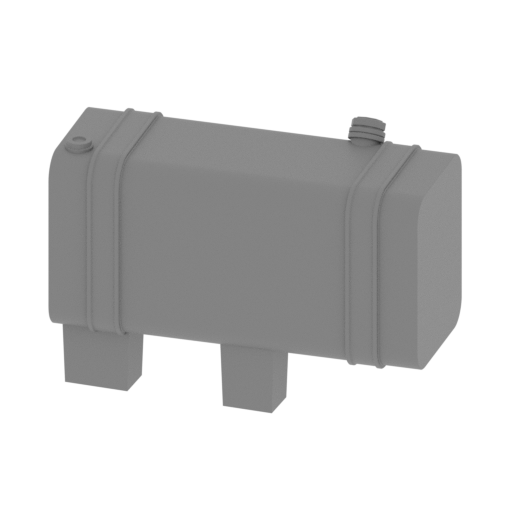

69_box_b (repaired).stl
0.32 MiB 1 h 49 min 1 m 44 x 20 x 31 Download
70_box_c (repaired).stl
4.76 MiB 2 h 11 min 1 m 52 x 20 x 23 Download

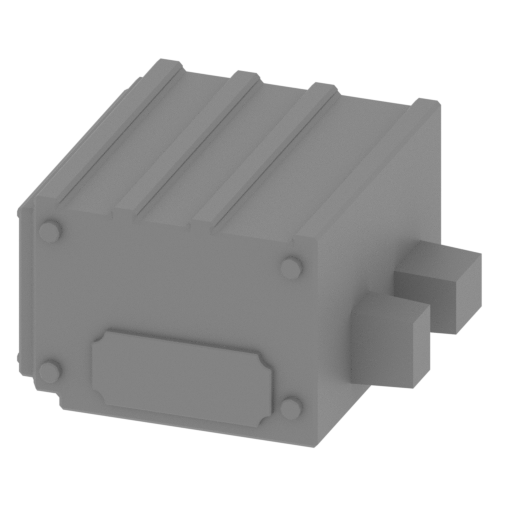

71_box_d (repaired).stl
0.22 MiB 1 h 59 min 1 m 35 x 34 x 21 Download

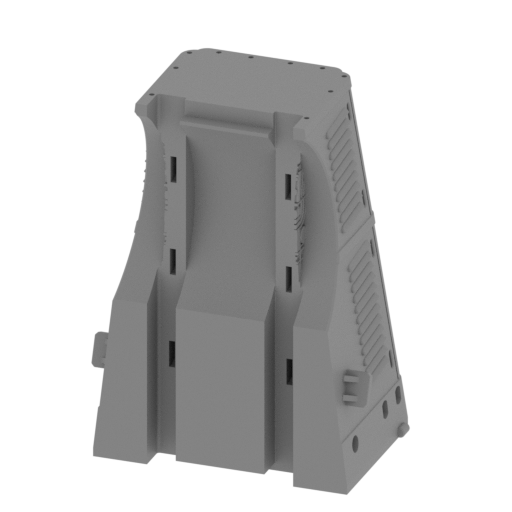

72_forward_body (repaired ).stl
8.49 MiB 41 h 3 min 24 m 101 x 71 x 135 Download
73_main_body (repaired).s tl
73.85 MiB 58 h 12 min 45 m 108 x 156 x 90 Download

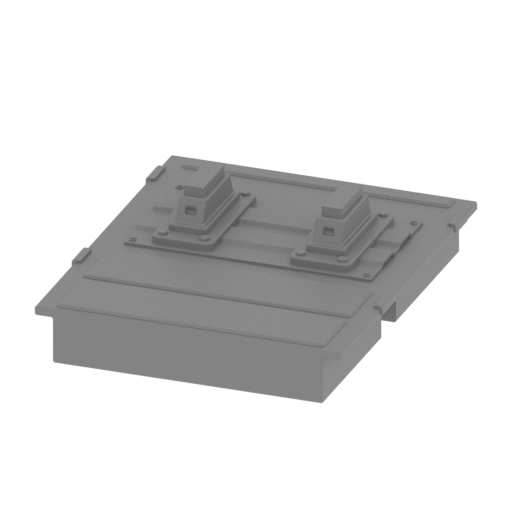

74_plate_a (repaired).stl
0.32 MiB 5 h 11 min 3 m 64 x 76 x 22 Download

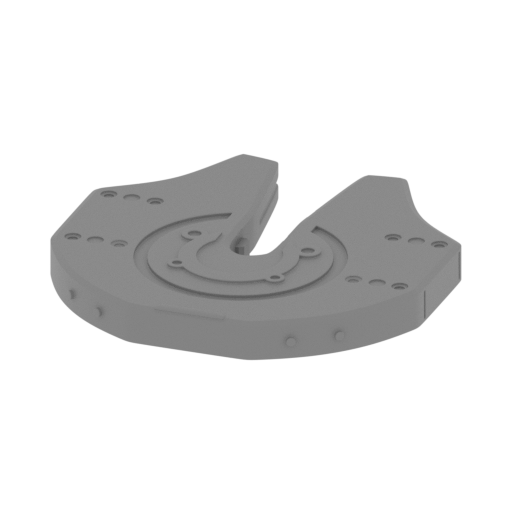

75_plate_b (repaired).stl
5.55 MiB 38 min <1 m 38 x 38 x 4 Download
76_wheel_bearing_x6 (repa ired).stl
0.95 MiB 1 h 43 min 1 m 39 x 39 x 10 Download

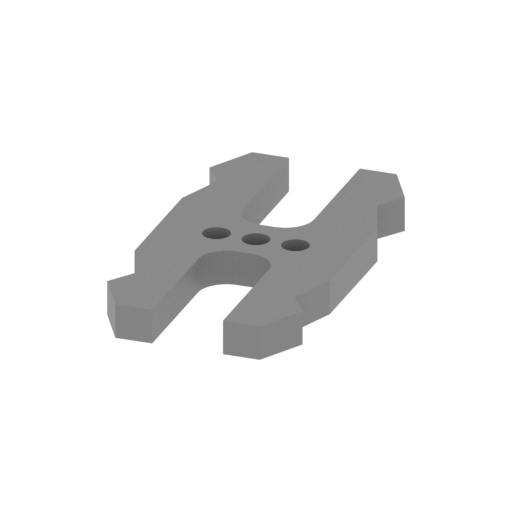

77_Ge_lock_10H_x15 (repai red).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download
78_connector_wheel_back_a _x2 (repaired).stl
0.58 MiB 37 min <1 m 21 x 18 x 26 Download

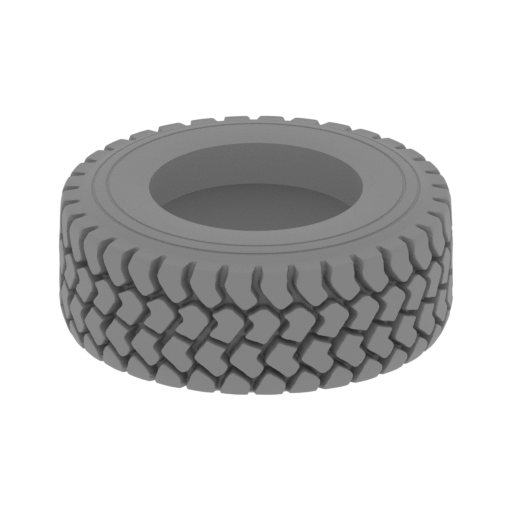

79_tire_x6 (repaired).stl
7.01 MiB 7 h 19 min 4 m 67 x 67 x 27 Download

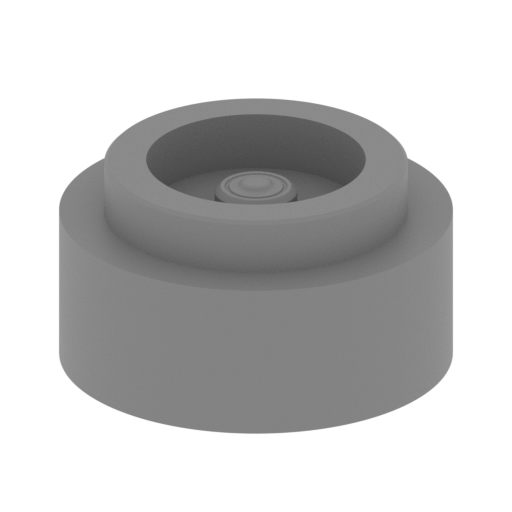

80_disk_back_a_x4 (repair ed).stl
0.79 MiB 3 h 10 min 2 m 47 x 47 x 25 Download

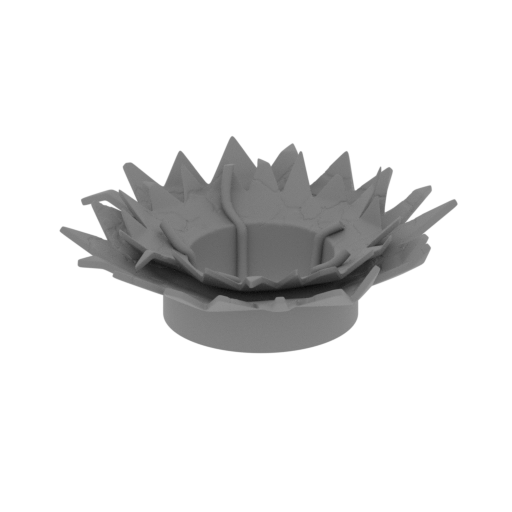

81_disk_back_b_x4 (repair ed).stl
9.57 MiB 2 h 15 min 1 m 52 x 52 x 17 Download

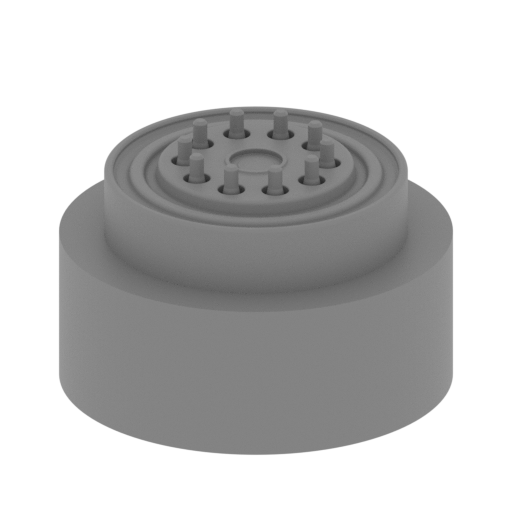

82_disk_front_x2 (repaire d).stl
2.10 MiB 3 h 31 min 3 m 47 x 47 x 31 Download

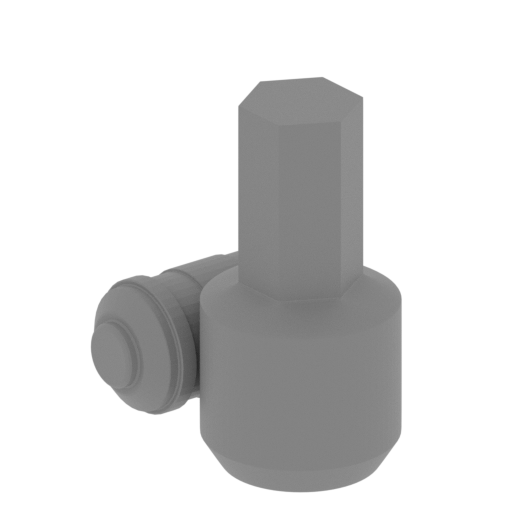

83_connector_wheel_back_b _x2 (repaired).stl
0.58 MiB 37 min <1 m 21 x 18 x 26 Download
84_wheel_cap_a_x6 (repair ed).stl
0.01 MiB 1 min <1 m 10 x 12 x 1 Download

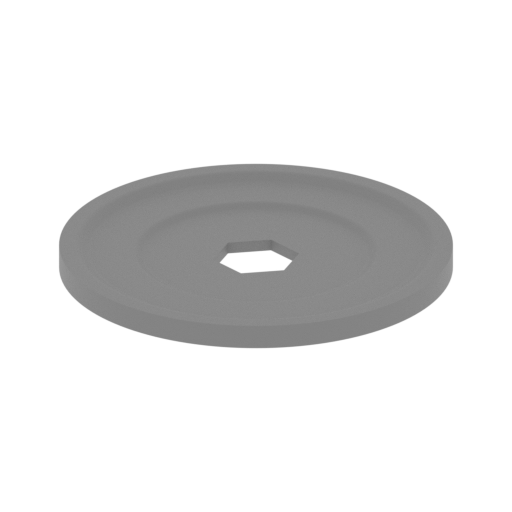

85_wheel_cap_b_x6 (repair ed).stl
0.31 MiB 28 min <1 m 38 x 38 x 2 Download
86_suspension_fornt_a_L ( repaired).stl
2.67 MiB 1 h 23 min 1 m 13 x 21 x 58 Download

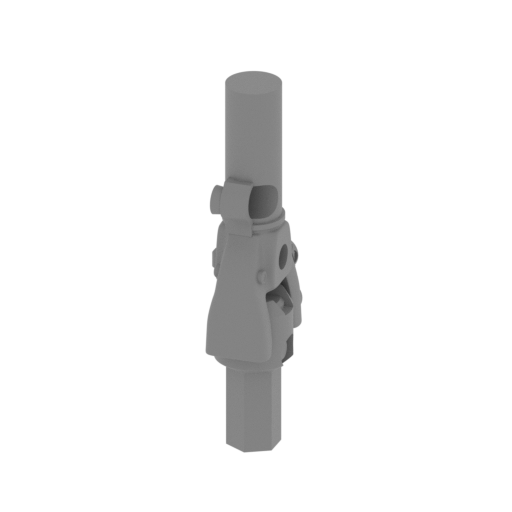

87_suspension_fornt_a_R ( repaired).stl
2.67 MiB 1 h 23 min 1 m 13 x 21 x 58 Download
88_suspension_fornt_b_L ( repaired).stl
0.14 MiB 7 min <1 m 6 x 23 x 6 Download
89_suspension_fornt_b_R ( repaired).stl
0.14 MiB 7 min <1 m 6 x 23 x 6 Download
90_suspension_fornt_c_L ( repaired).stl
0.09 MiB 25 min <1 m 5 x 105 x 5 Download
91_suspension_fornt_c_R ( repaired).stl
0.09 MiB 25 min <1 m 5 x 105 x 5 Download
92_suspension_fornt_d_L ( repaired).stl
0.11 MiB 6 min <1 m 6 x 59 x 3 Download
93_suspension_fornt_d_R ( repaired).stl
0.11 MiB 6 min <1 m 6 x 59 x 3 Download
94_suspension_fornt_e_L ( repaired).stl
0.33 MiB 4 min <1 m 15 x 9 x 6 Download
95_suspension_fornt_e_R ( repaired).stl
0.33 MiB 4 min <1 m 15 x 9 x 6 Download
96_suspension_frame_a (re paired).stl
3.83 MiB 17 h 54 min 12 m 60 x 43 x 119 Download

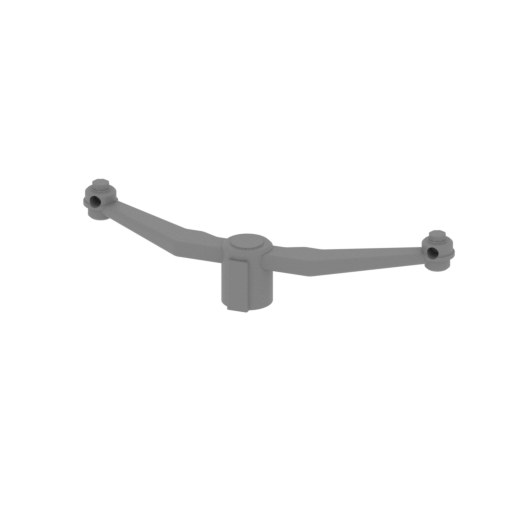

97_suspension_front_cente r (repaired).stl
0.48 MiB 38 min <1 m 70 x 19 x 13 Download

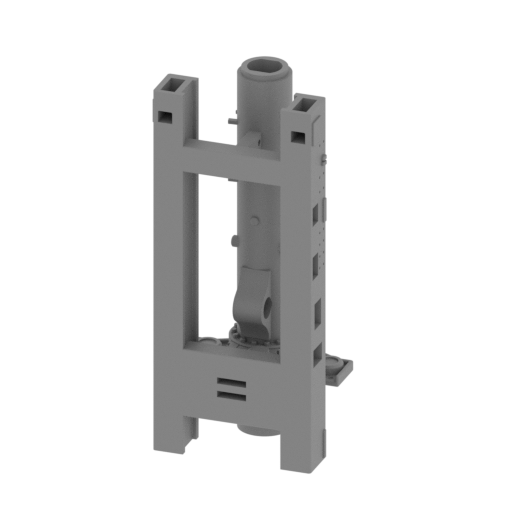

98_suspension_frame_b (re paired).stl
2.96 MiB 14 h 58 min 9 m 55 x 43 x 125 Download

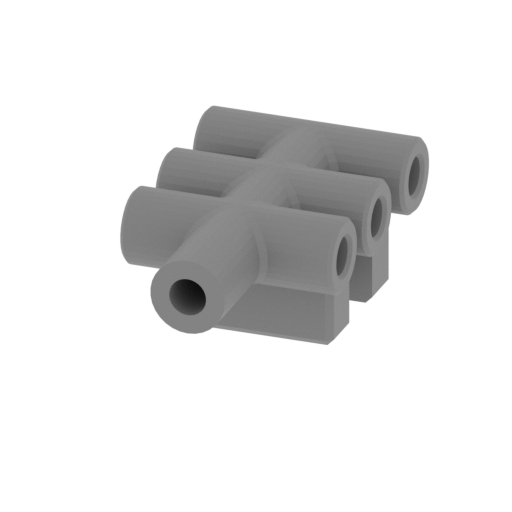

99_suspension_adapter (re paired).stl
0.15 MiB 17 min <1 m 11 x 20 x 8 Download
100_suspension_connector_ a_x4 (repaired).stl
0.00 MiB 17 min <1 m 5 x 10 x 19 Download

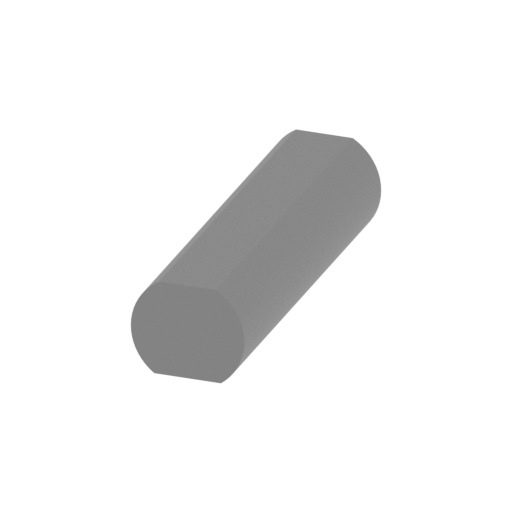

101_suspension_connector_ b_x2 (repaired).stl
0.06 MiB 23 min <1 m 11 x 36 x 9 Download

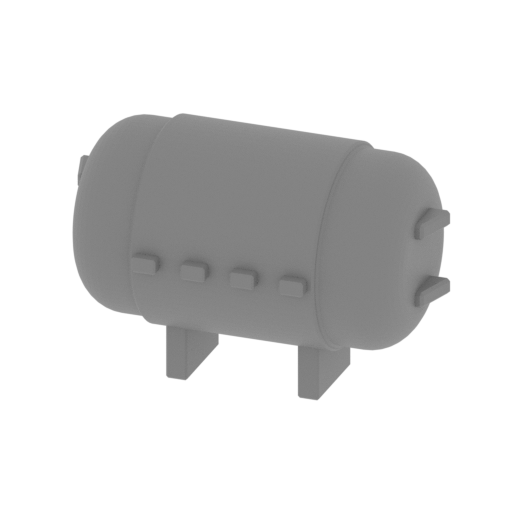

102_suspension_oil_tank ( repaired).stl
0.31 MiB 1 h 27 min 1 m 38 x 22 x 25 Download

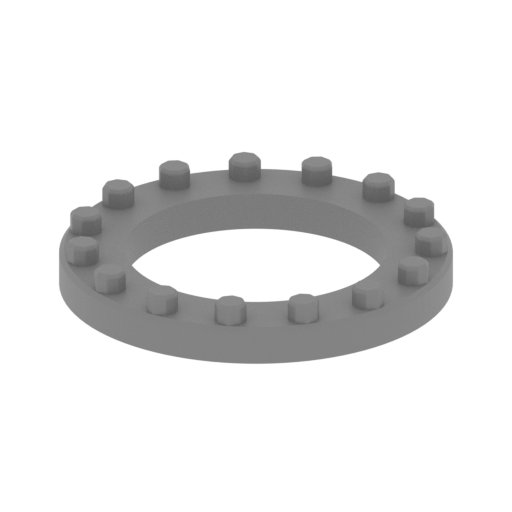

103_suspension_ring (repa ired).stl
0.18 MiB 9 min <1 m 22 x 22 x 3 Download
104_suspension_frame_c (r epaired).stl
4.76 MiB 19 h 33 min 13 m 73 x 43 x 122 Download

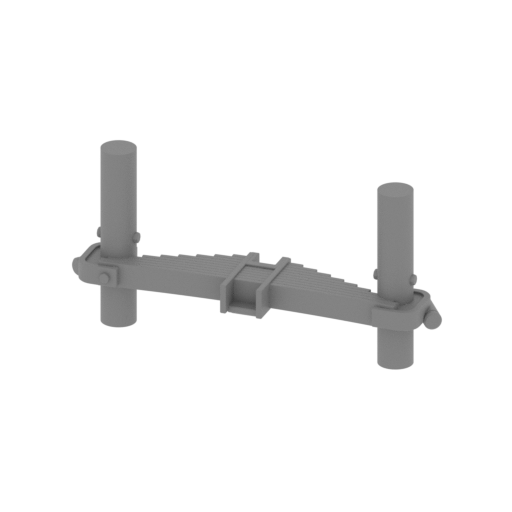

105_suspension_back_R (re paired).stl
2.05 MiB 2 h 46 min 2 m 91 x 21 x 44 Download

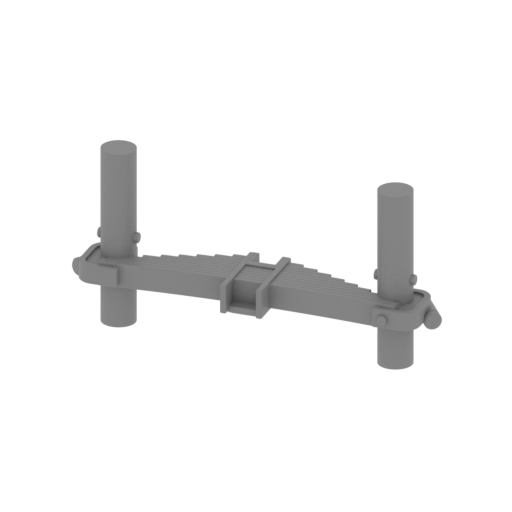

106_suspension_back_L (re paired).stl
2.05 MiB 2 h 48 min 2 m 91 x 21 x 44 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download

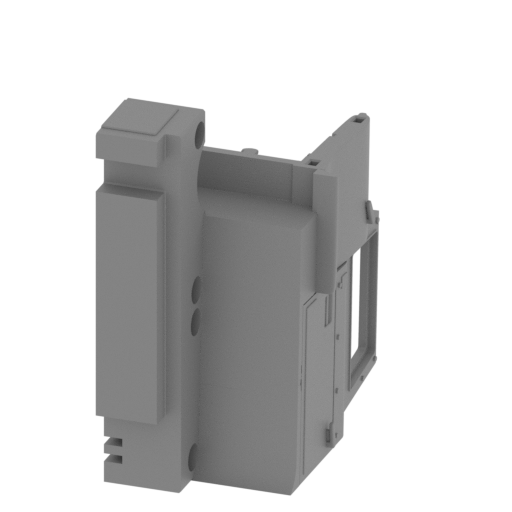

73_1_main_body.stl
35.98 MiB 16 h 3 min 9 m 52 x 90 x 98 Download

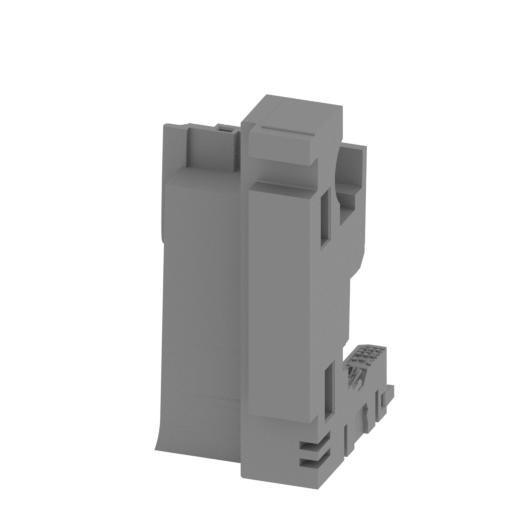

73_2_main_body.stl
22.24 MiB 11 h 28 min 7 m 52 x 62 x 98 Download
73_3_main_body.stl
27.32 MiB 22 h 50 min 16 m 108 x 49 x 78 Download

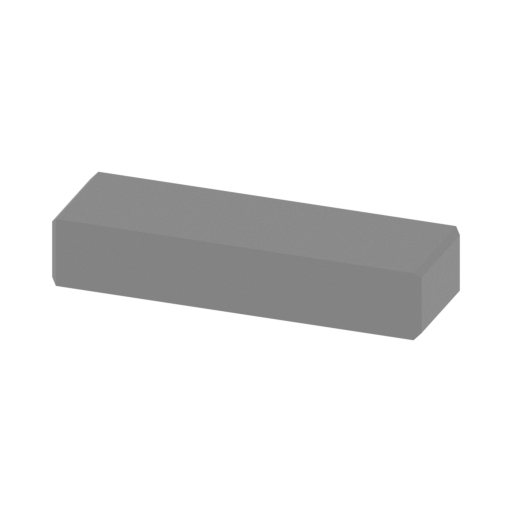

73_4_main_body_pin_x4.stl
0.00 MiB 2 min <1 m 11 x 3 x 2 Download

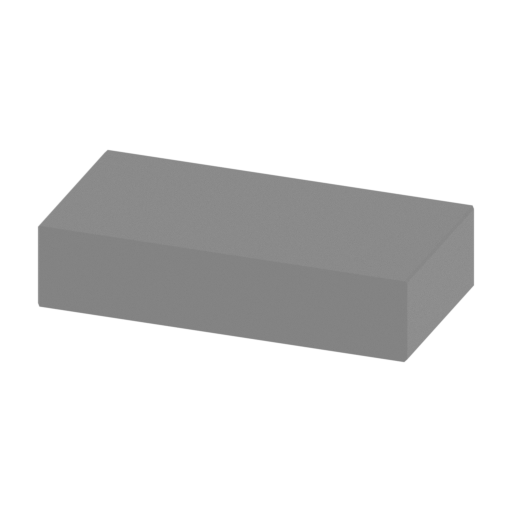

73_5_main_body_pin_x2.stl
0.00 MiB 18 min <1 m 28 x 14 x 6 Download
...

ABOUT THIS 3D MODEL

Mad Max: Fury Road is the fourth installment of the legendary Mad Max franchise that is recognized as one of the best action movies of the passing decade. The thrilling sequence of the action-packed road war and the outstanding visual aesthetics of the movie do not lose sight of the compelling story. The plot revolves around the extraordinary warrior Imperator Furiosa who grows close bonds with Immortan Joe’s Five Wives, helps the women flee his tyrannical grasp and fights off a swarm of War Boys not without the help of Max Rockatansky. In the classic spirit of Mad Max, the dangerous journey across the Wasteland takes place aboard a plethora of bizarre custom vehicles, one of them being the War Rig that Furiosa hijacks from Immortan Joe's vehicular fleet. This impressive all-wheel-drive Truck was based on the Tatra T815 and modified with a custom front built from 1947-48 Chevrolet Fleetmaster Sedan. Inspired by such a monstrous vehicle, our contributing 3D artist decided to recreate the War Rig in the form of a 3D model and dedicated over 120 hours working on the project. The front of the truck is equipped with a massive cowcatcher mounted onto tractor digger arms, two Holley superchargers are placed on top of the hood. The grille of War Rig is decorated with human skulls that are Immortan Joe’s distinctive attributes. Both sides are furnished with a pair of tall exhaust stacks. Just like in its original design, the tractor features two pairs of suicide rear-hinged doors that display the interior design when opened. The hubcaps of the truck are armored with sharpened metal to protect the wheels from attackers and deal damage to the enemy’s vehicles. Such an incredible modified Truck has long become one of the icons of the Mad Max franchise, and with the help of Gambody model for 3D printing, it will be the brightest star of your personal collection! Especially, when there are a fantastic War Rig Tanker and a Fuel Pod to complement this epic Furiosa’s Truck!

ADAPTATION FOR 3D PRINTING

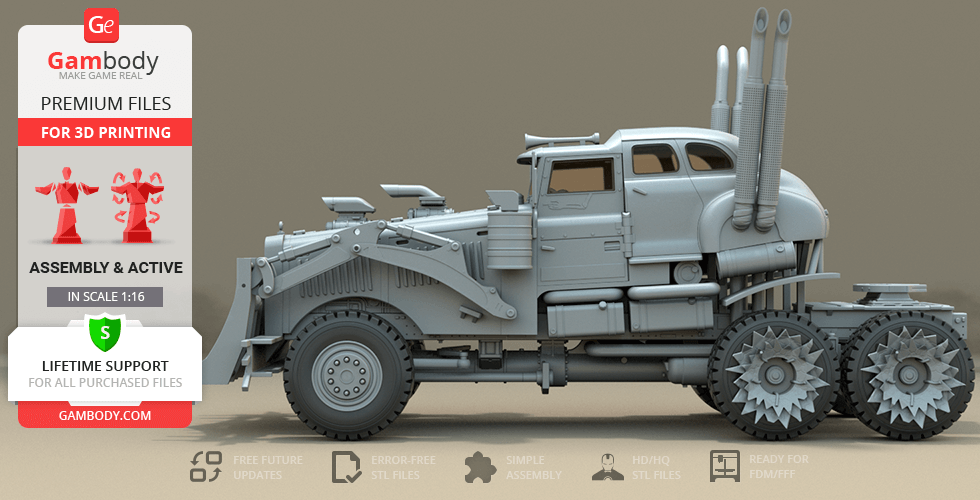

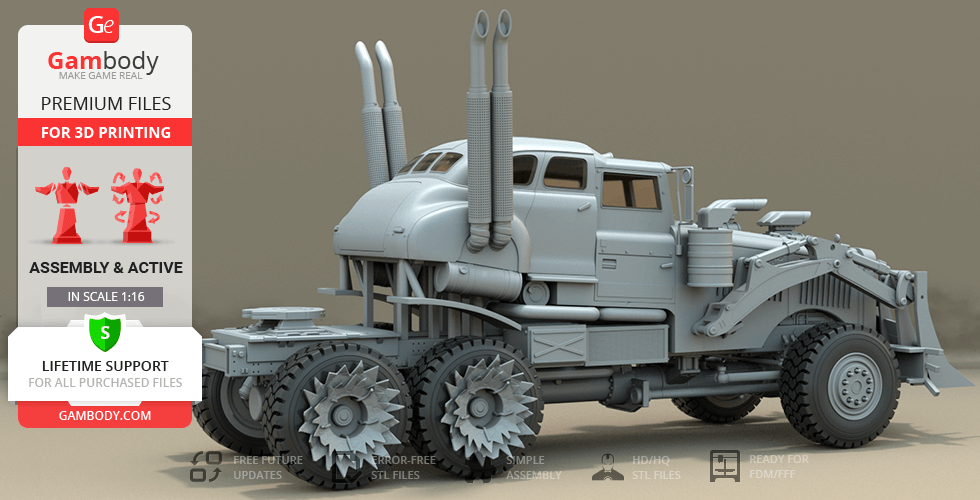

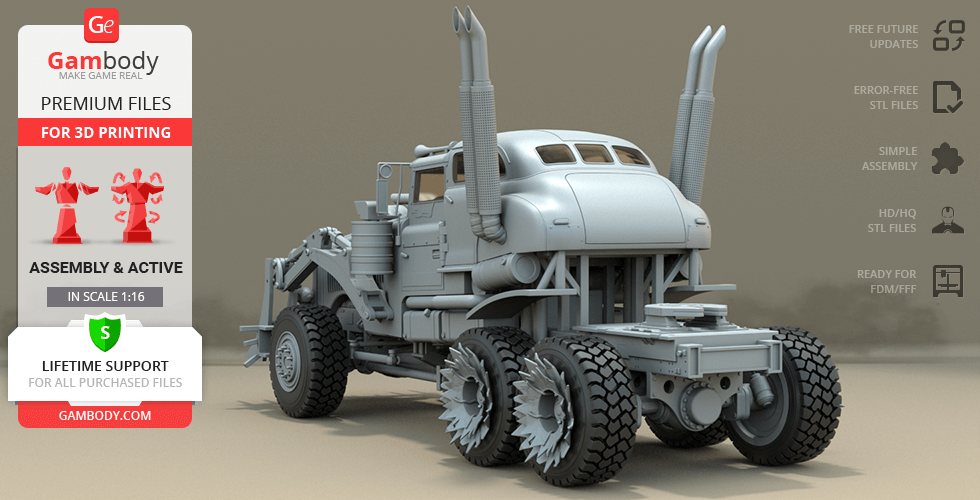

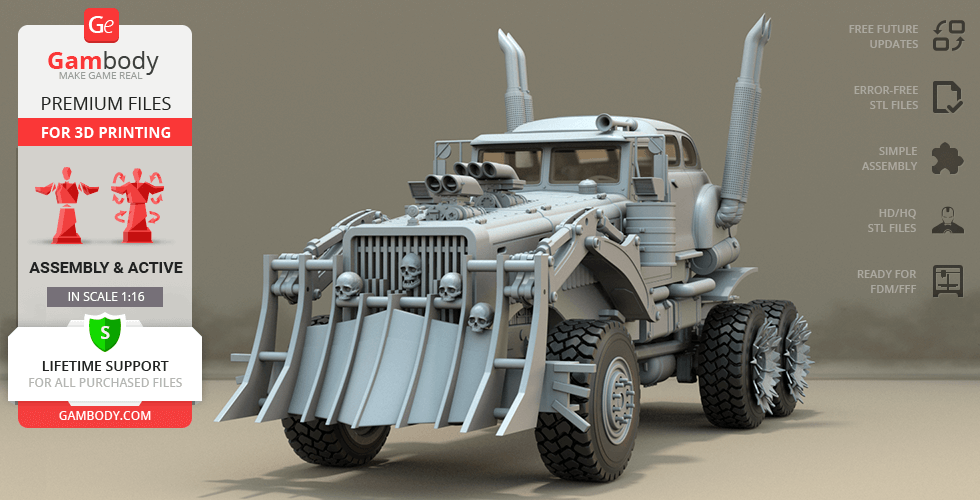

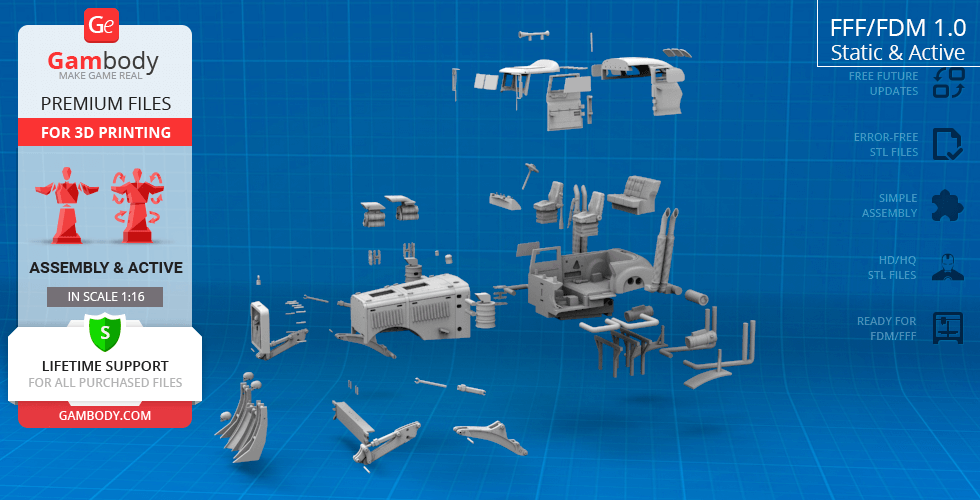

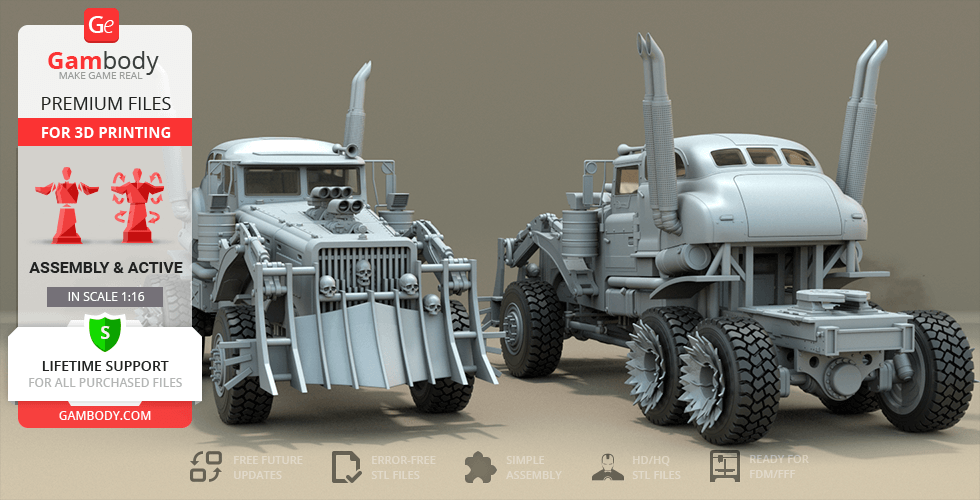

War Rig Truck 3D printing model is a highly-detailed assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 144 hours in total. In order to preserve the accurate likeness of the original Tatra T815, as well as the modified movie War Rig Truck, the model was divided into many parts that are to be assembled as if a real vehicle. Taking into account the willingness of our customers to make their 3D printing projects as true to life as possible, the Gambody team prepared two separate versions of the Truck that differ in the type of the suspension assembly (active or static). Thus, various special mechanisms were introduced into the model to make sure that the parts comprising both suspensions, as well as the details of the frame and the floor pan, are both authentic and highly functional (please, see "Versions' specifications", "Assembly video" and photo preview slider). Moreover, in order to stay true to the Furiosa vehicle's massive size, the model was divided into as many assembly parts as needed to ensure that it will fit any 3D printer's build plate. The cutting of the model was chosen to ensure the cleanest 3D printing result possible and to minimize the amount of material needed to print the generated support, e.g. Truck’s grille, decorative skulls, air horn, seats, fifth wheel, fuel tanks, opening doors, exhaust pipes, stick shift, steering wheel, dashboard, cowcatcher, and many many more parts come as separate STL files. All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. The model's assembly requires additional "pins" to secure the parts of the 3D printed Truck. These pins do not come in STL files but can be made out of short pieces of regular 1.75 PLA. We highly recommend that you watch "Assembly video" in the photo preview section before assembling the War Rig Truck.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the actual length of the War Rig's truck that is 8520 mm. The 3D printing model's chosen scale is 1/16 for the FFF/FDM versions.

VERSIONS' SPECIFICATIONS

Files #1 - 85, as well as the following features, are identical in both FFF/FDM Static 1.0 and FFF/FDM Active 1.0 versions:
- When printed the Truck model stands 277 mm tall, 205 mm wide, 530 mm deep;
- Minimal recommended 3D printer build volume is 220 x 220 x 250 mm;
Assembly kit includes lock 77_Ge_lock_10H_x15 to attach the model's parts securely without glue that needs to be printed 15 times;
- There are some assembly parts that need to be printed multiple times - the number of required copies (x2, x4 etc.) is indicated in the title of the file in "Source files", e.g. file "18_filter_connector_x4" needs to be printed 4 times;

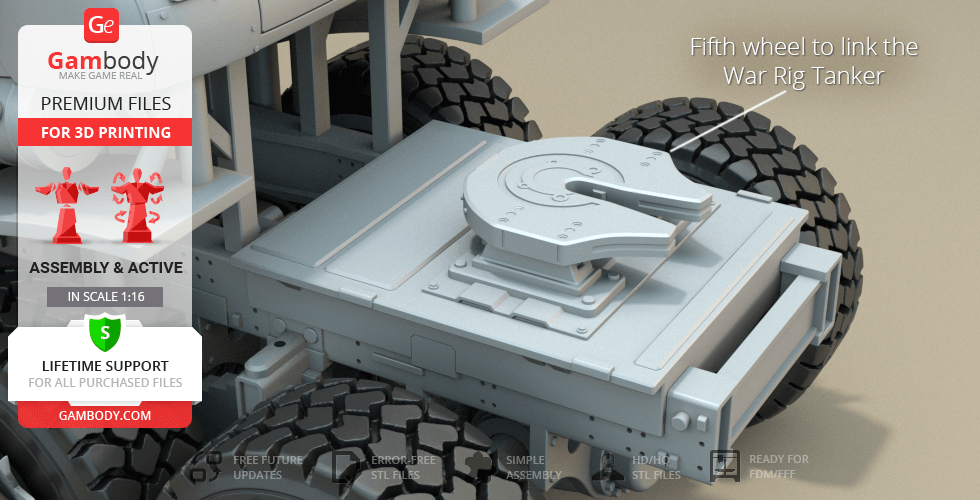

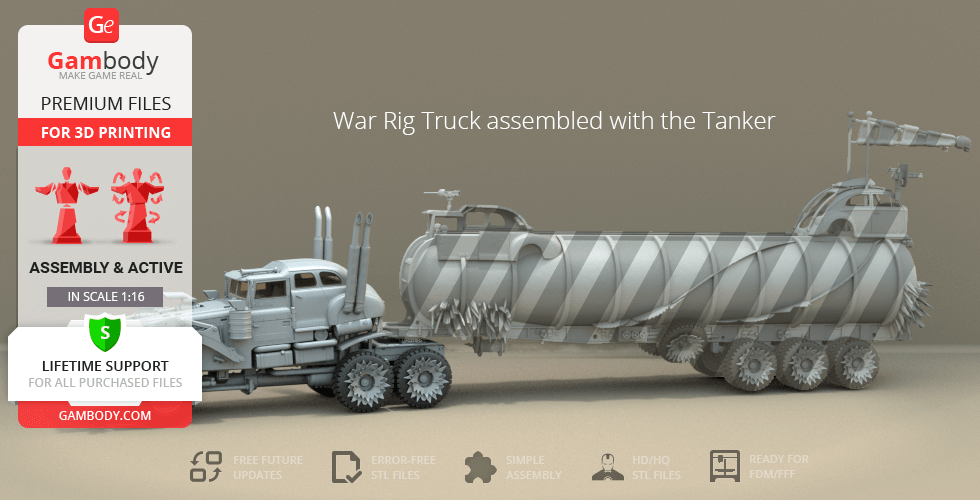

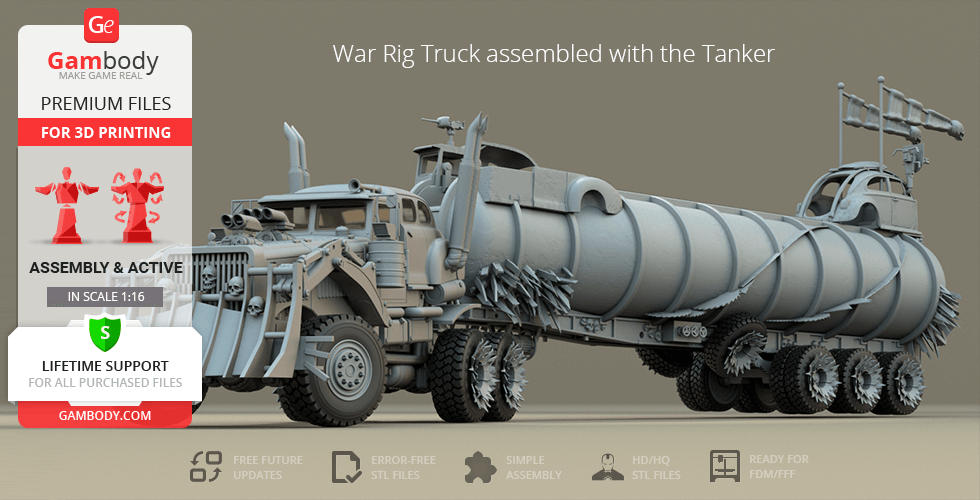

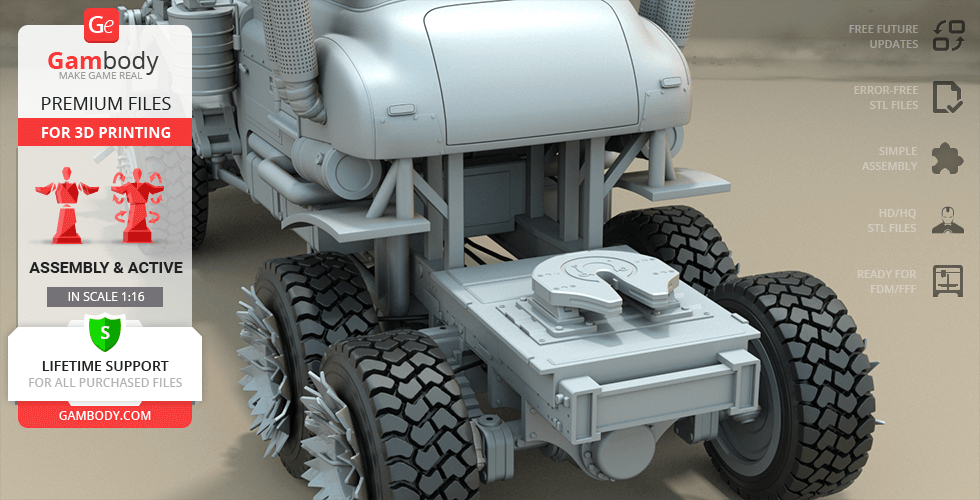

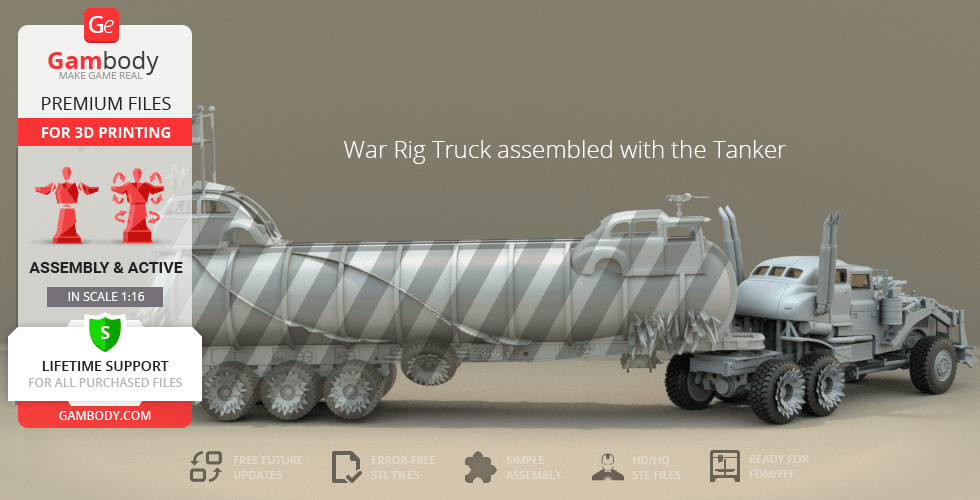

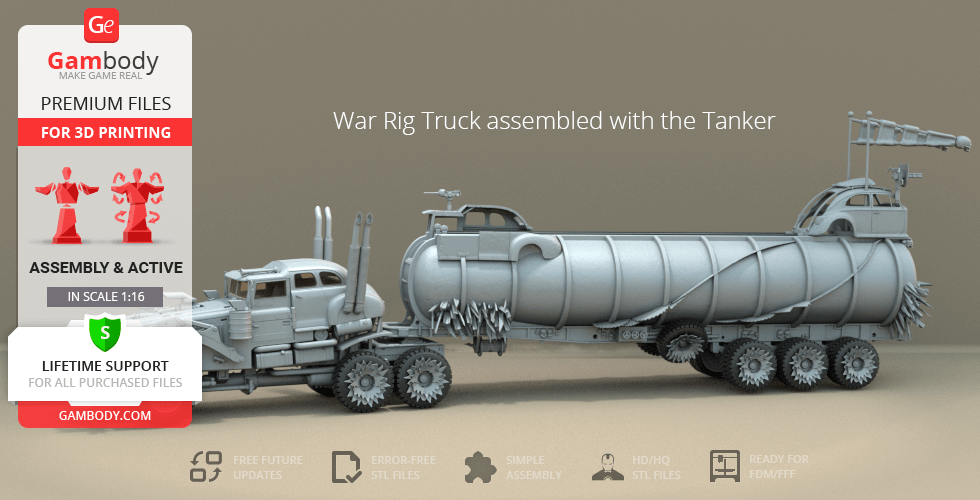

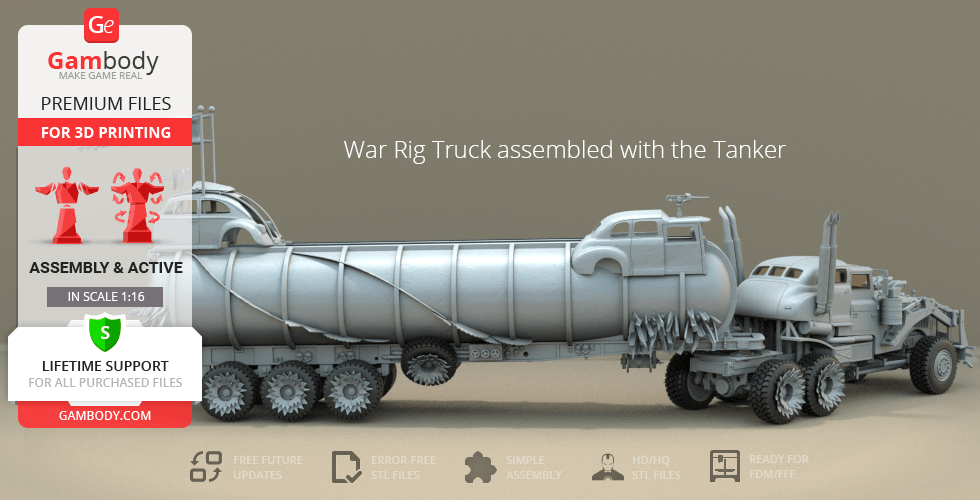

- The fifth wheel to link the War Rig Tanker that comes as a separate item;
- Windscreens of the Rig, as well as all door glasses and quarters, are provided separately to be printed with the transparent filament;

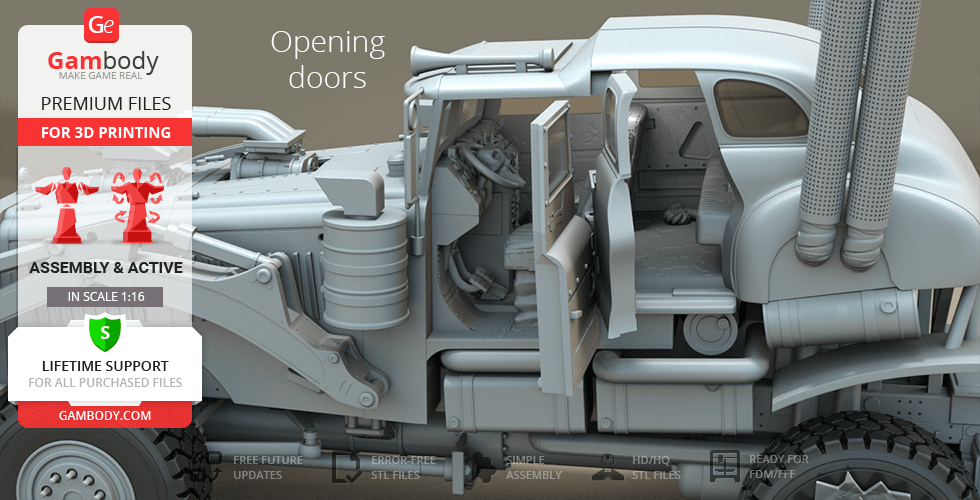

- Driver's suicide door and the door behind it can be opened;

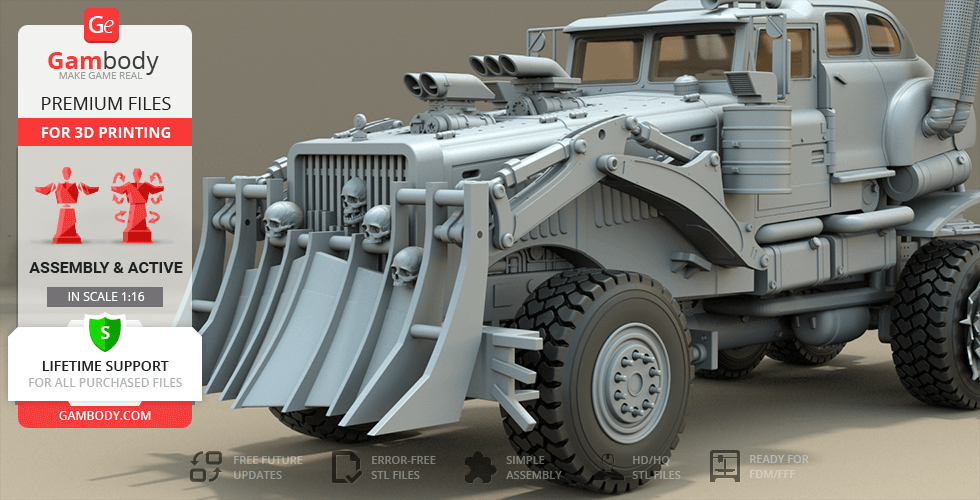

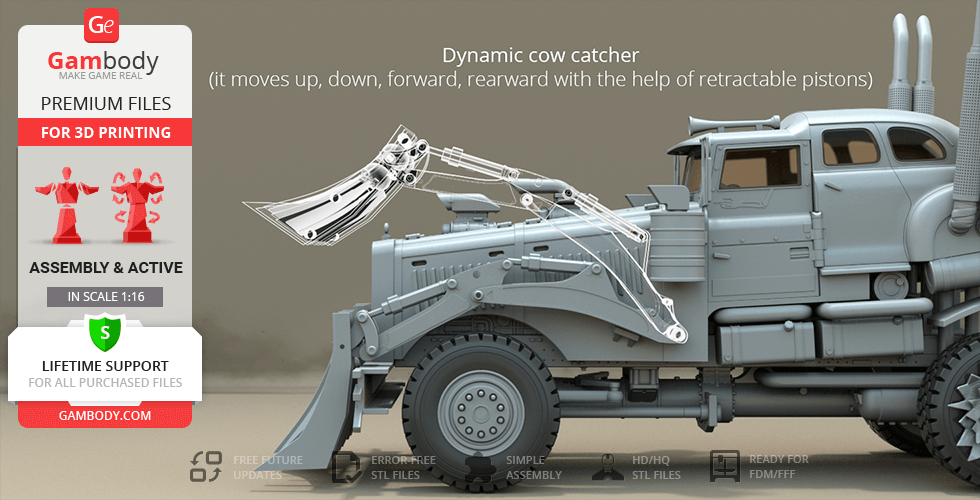

- Articulated cowcatcher can go up, down, forward, rearward with the help of retractable pistons;

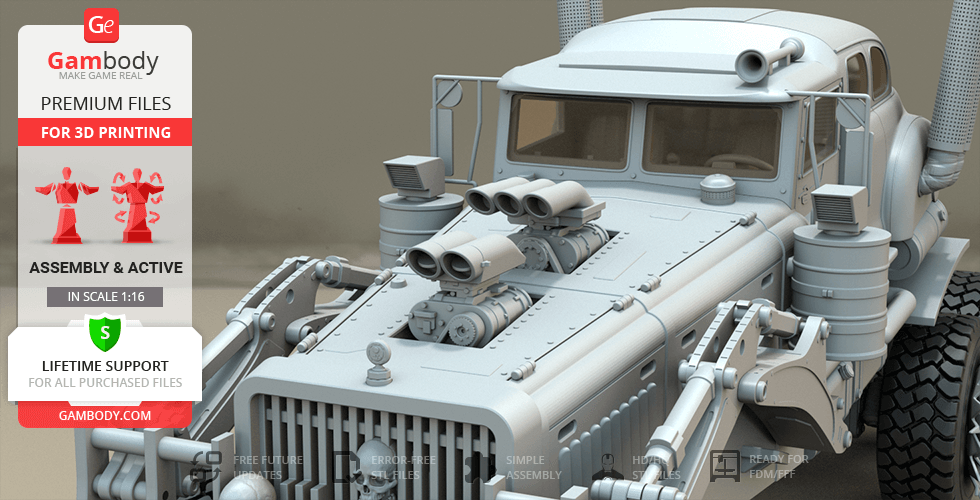

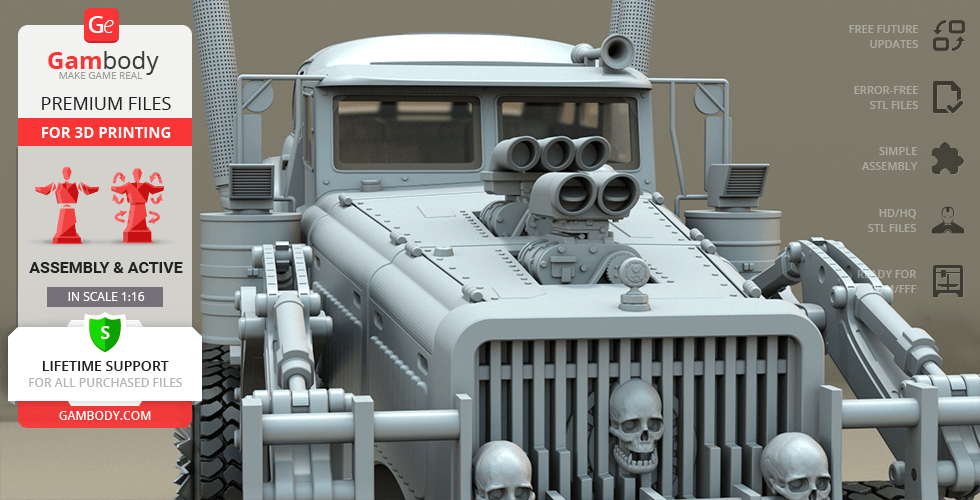

- Highly-detailed superchargers protruding through the bonnet;

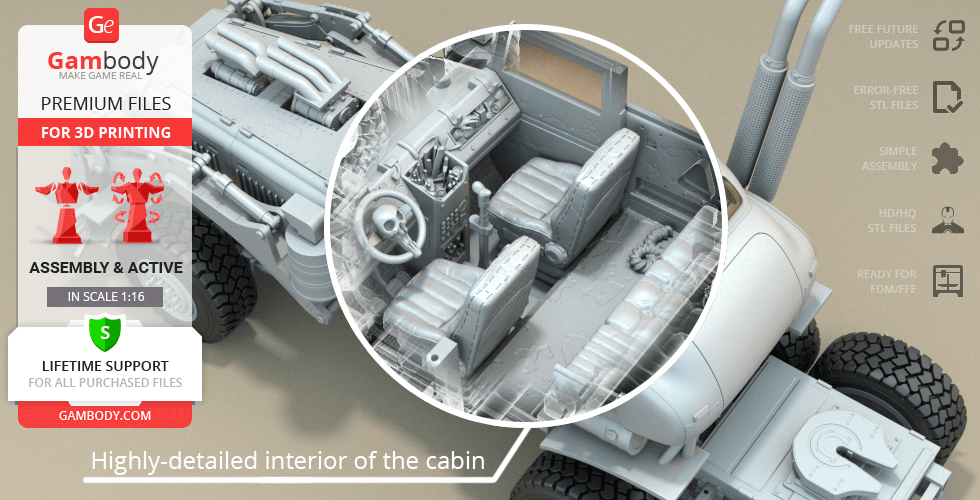

- The incredible detail of the cabin and its interior: a skeleton arm on the driver's door, Immortan's logo on the inside of the roof, stick shift, pedals, console full of switches, a toolbox, braided rugs, a shotgun, etc.;
- Rotating steering wheel with a skull;
- Fantastic attention to detail: air horn on the top of the cabin, massive exhaust pipes, fuel tanks, storage compartments, Motometer emblem on the bonnet, etc.;

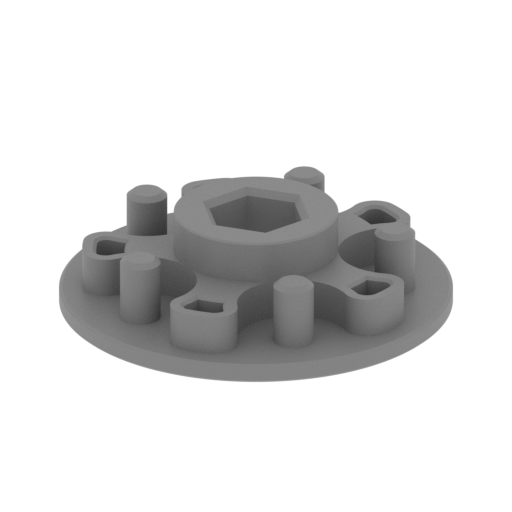

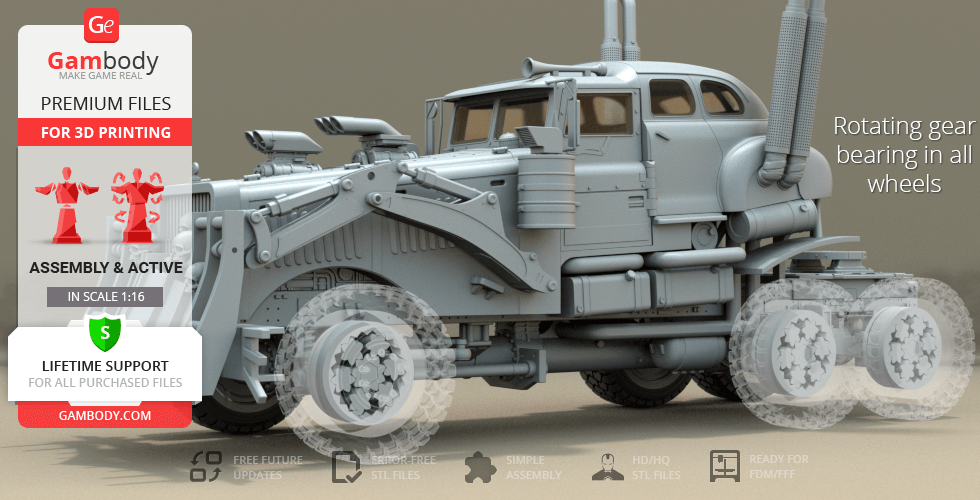

- Rotating gear bearings in all wheels;
Two variants of wheel tyre to choose from: one is meant for plastic filament, the other is hollow for flexible material;
- We recommend that you watch the "Assembly video" before assembling the War Rig Truck;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

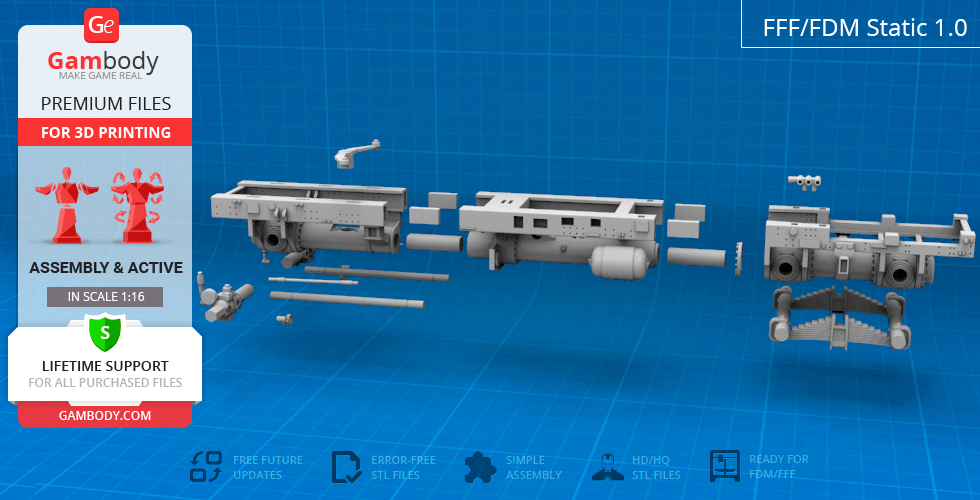

FFF/FDM Static 1.0 version features:
- Contains 106 parts;
- Frame with static suspension;
- A thorough study of the details of the frame and the floor pan assembly of the original Tatra T815;

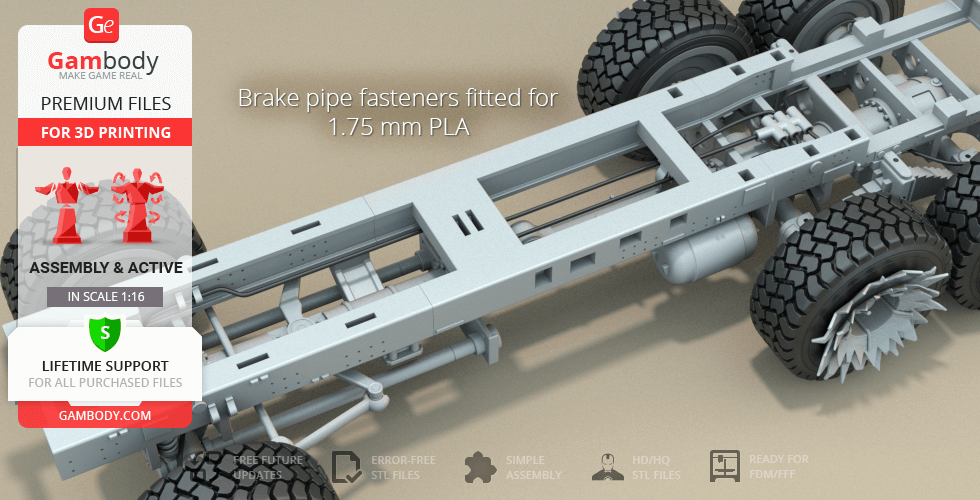

- Brake pipe fasteners fitted for 1.75mm PLA (the brake pipe does not come with STL files);

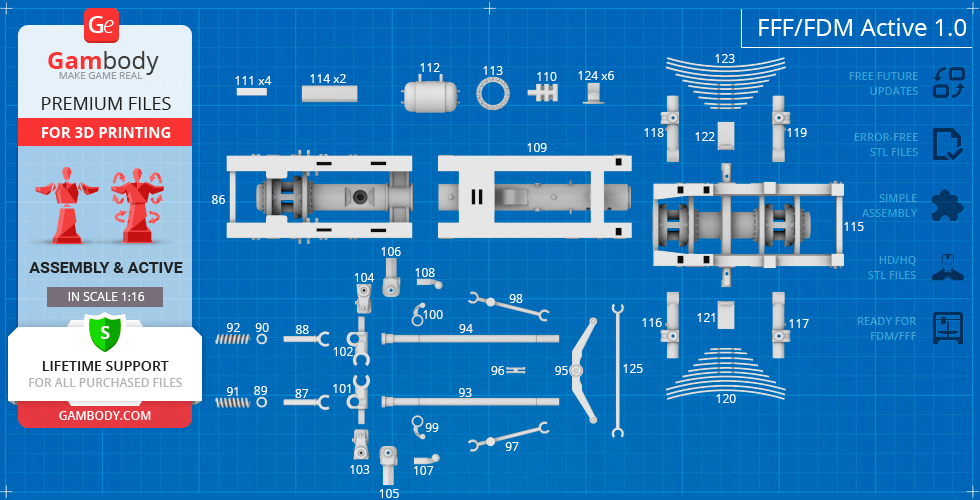

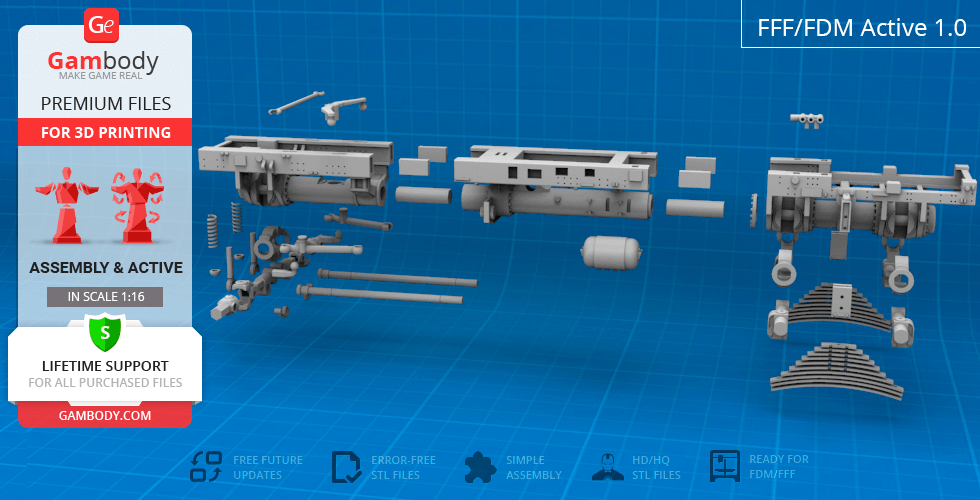

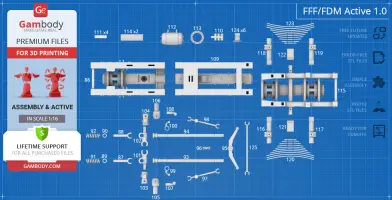

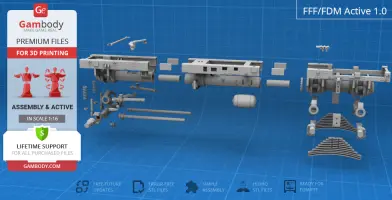

FFF/FDM Active 1.0 version features:
- Contains 125 parts;

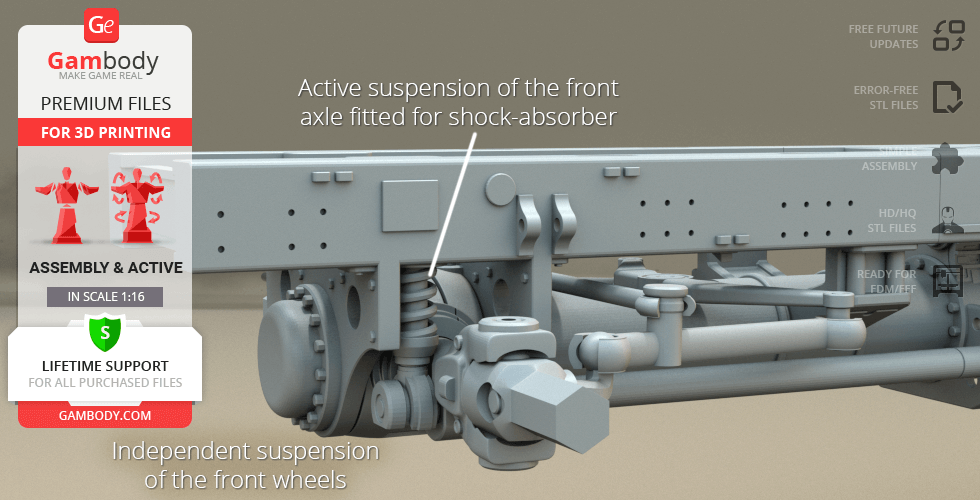

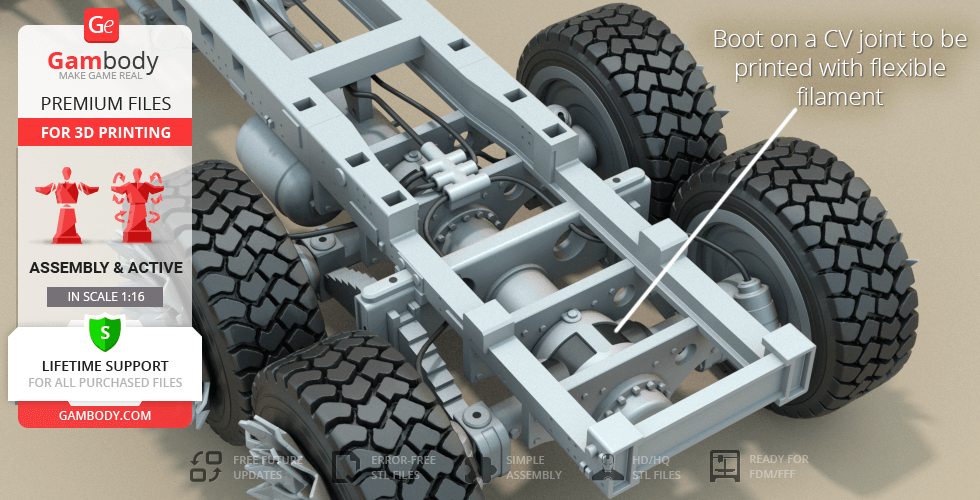

- Frame with active suspension;

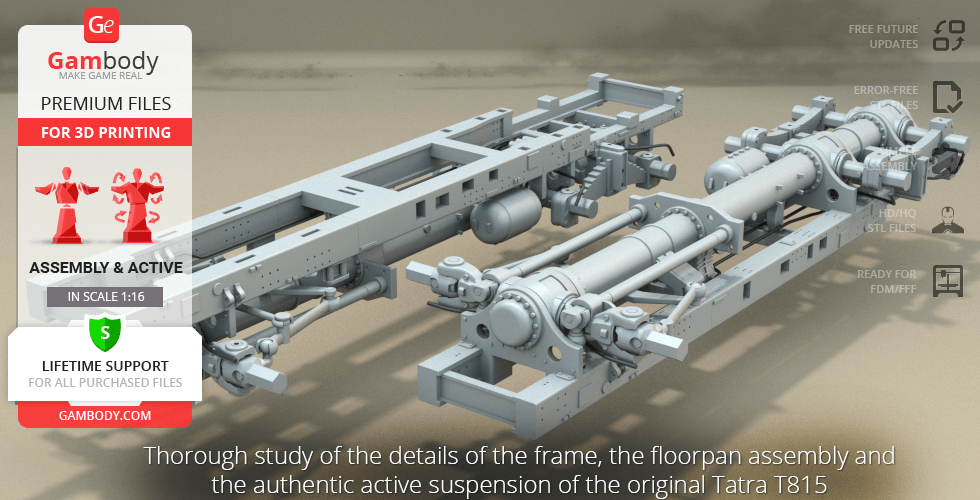

- A thorough study of the details of the frame, the floor pan assembly and the authentic active suspension of the original Tatra T815;
- Brake pipe fasteners fitted for 1.75mm PLA (the brake pipe does not come with STL files);
- Active suspension of the back axle fitted with leaf springs;
Independent suspension of the rear and front wheels;
- Boot on a CV joint comes as a separate part to be printed with flexible filament;
- The front wheels are equipped with a steering rack that allows their simultaneous movement;
- Active suspension of the front axle fitted for shock-absorber (you can also use any iron spring for better effect) and a torsion bar.

FFF/FDM Static (Old) & FFF/FDM Active (Old) versions features:
- Come in approximately 1:20 scale;
- Contain 106 and 125 parts respectively;
- When printed both versions stand 220 mm tall, 162 mm wide, 421 mm deep;
- The initial version of the War Rig model that was uploaded in an incorrect scale;
- These versions' features correspond with the ones of the FFF/FDM Static 1.0 and FFF/FDM Active 1.0 versions.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of War Rig Truck Model for 3D printing which consist of 231 parts;
2 versions of files for this model for FFF/FDM;
- High-poly detailed model of War Rig Truck;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of War Rig Truck for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble War Rig Truck 3D Printing Model at Gambody YouTube channel.

Also, you may like the War Rig Tanker and War Rig Fuel Pod 3D Printing Models, as well as other Vehicle 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
