You will get instant access to the STL files of Dante 3D Printer Files | Assembly after completing your purchase. Simply add the model to your cart and check out using PayPal, credit or debit card, Apple Pay, Google Pay, Alipay, or other available payment methods.
Watch the assembly video for Dante 3D Printer Files | Assembly, and explore more tutorials, behind-the-scenes content, 3D printing timelapses, and painting guides on the official Gambody YouTube channel.
This 3D Miniature consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.
Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

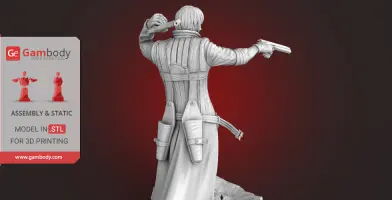

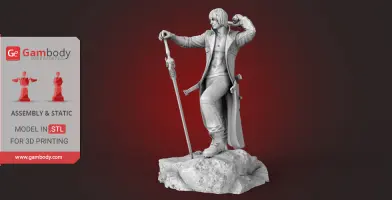

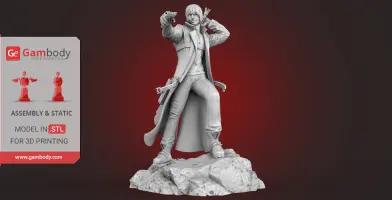

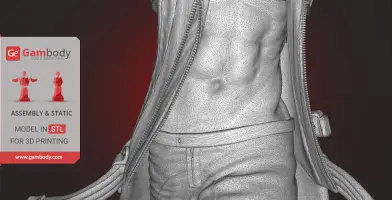

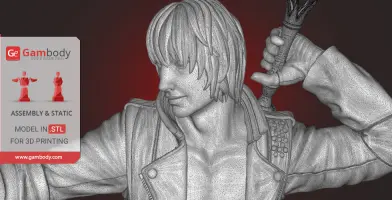

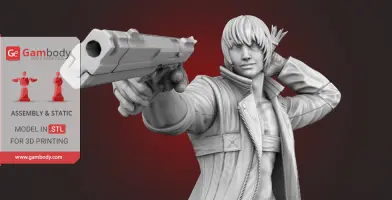

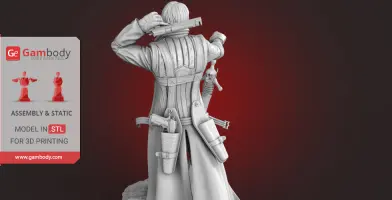

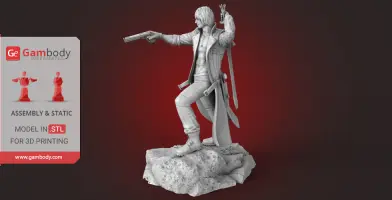

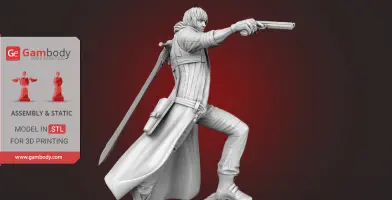

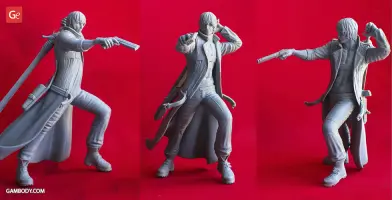

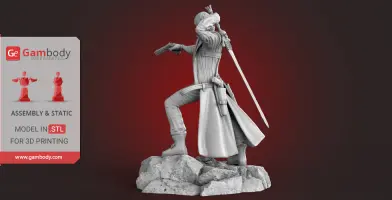

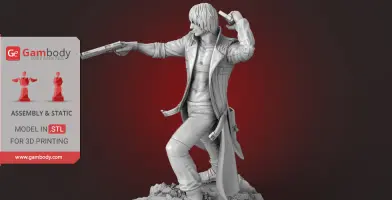

Version 1 and Version 2 are the files for Dante 3D Miniature optimized for 3D printing, the preview pictures of which you see above.
It is recommended:
- to print Version 1 STL files on FDM/FFF 3D printers;
- to print Version 2 STL files on DLP/SLA/SLS 3D printers.
Before printing, take a look at Printing Details for recommended settings and tips to achieve better results.
HISTORY OF DANTE
Dante is the character of the famous game. He is rather frivolous, but never deviates from his positions. He never shows fear and is unperturbed. It can only be serious when the situation requires it. He likes to joke and mock. Because of this, he may seem a callous or even an indifferent character, but in fact, he has a very strong sense of justice because of which he always prefers to fight honestly. For Dante, family and friends are very important. He cared for his mother and, despite disagreements with his brother, always worried about him. In battle, he prefers to give his best not in full force so that everything lasts much longer and is more interesting otherwise he will be bored. Despite the fact that Dante is on the side of people, he rarely takes up the work that poor clients are asked to perform. In fact, Dante, as a rule, refuses any work that he does not like, no matter how much they pay for it. But immediately takes on the work associated with the demons, no matter whether it will be paid or not. But in general, he is not lucky in life. But despite this, he loves to play gambling. In the veins of Dante, there flows the blood of the Legendary Dark Knight of Spard, due to which he possesses enormous power. All these features make this character incredibly interesting both in the game and in the form of a printed model.
ABOUT THIS 3D MINIATURE
Dante 3D Miniature for 3D printing was created in ZBrush. The model is saved in STL files, a format supported by most 3D printers.

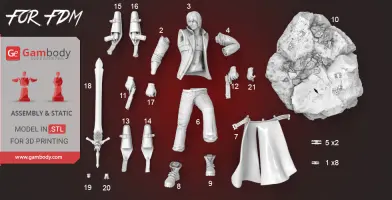

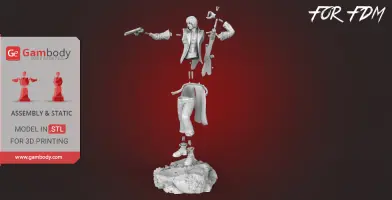

FDM version features:

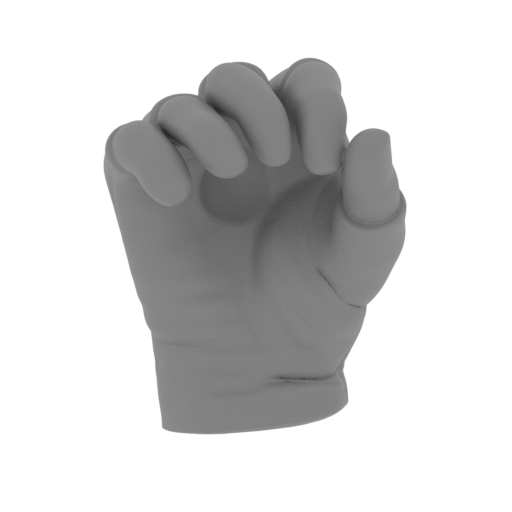

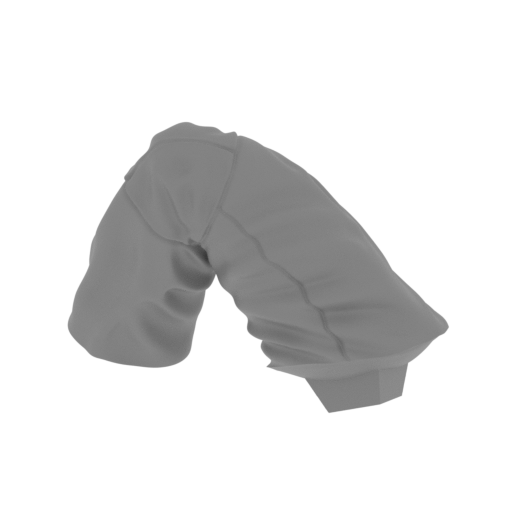

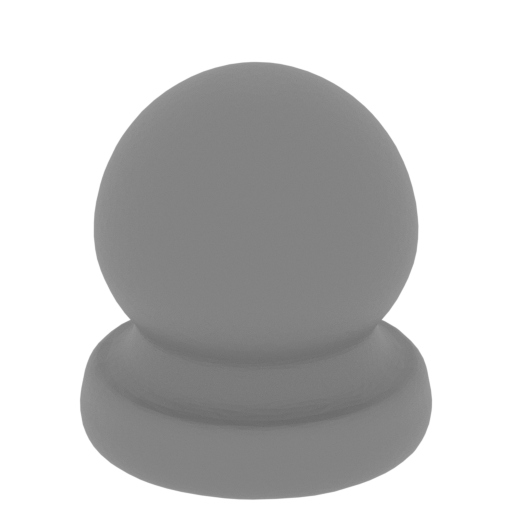

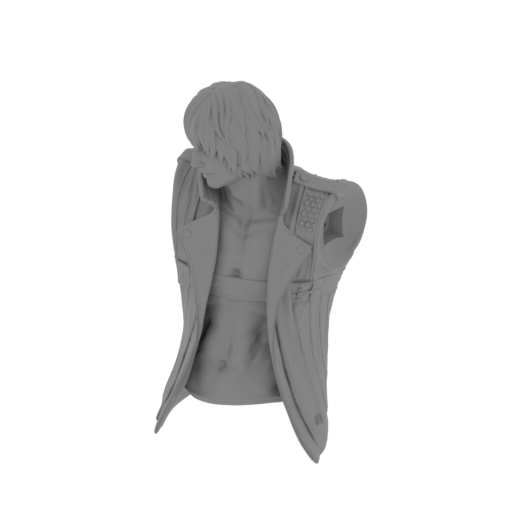

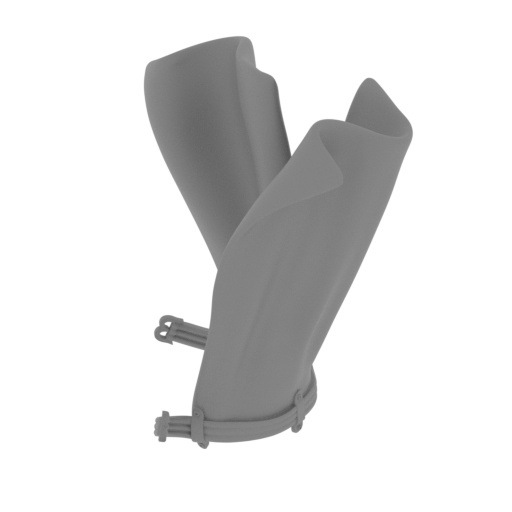

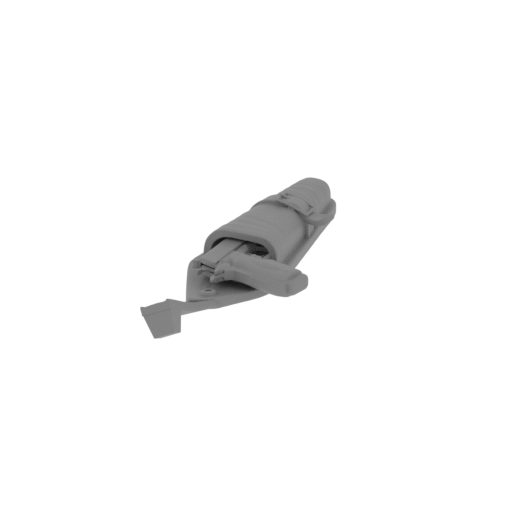

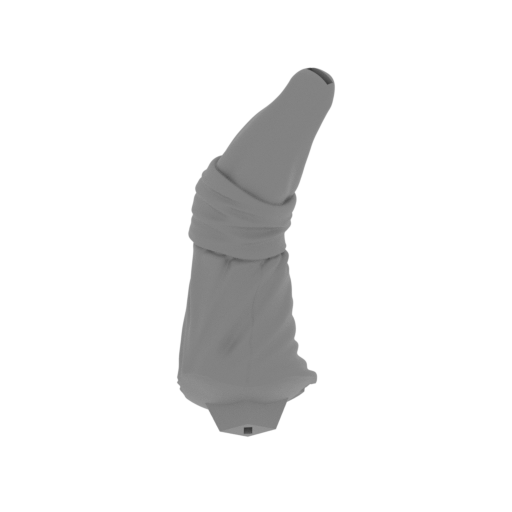

- Contains 21 parts.

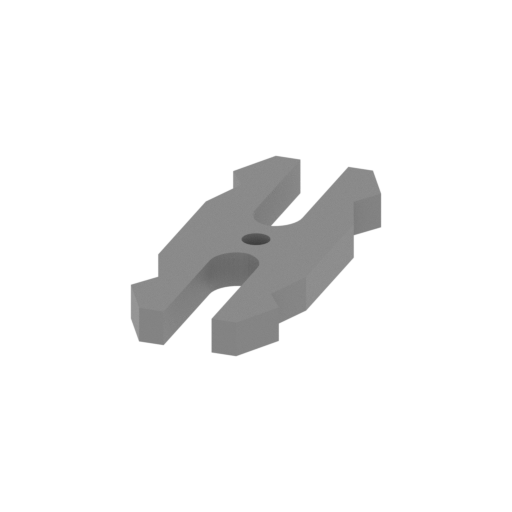

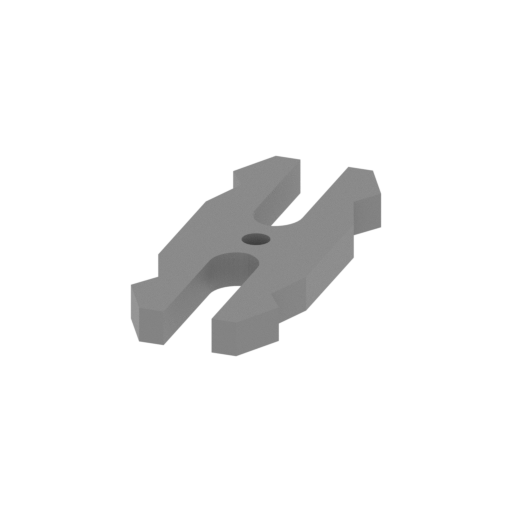

- Made with locks. One part of Lock (1_Ge_lock_7S_70_ (x8)) you need to print 8 times. One part of Lock (5_Ge_lock_7S (x2)) you need to print twice;

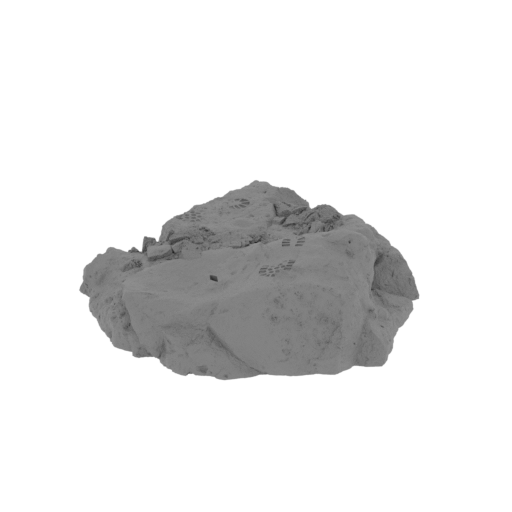

- Made with platform.

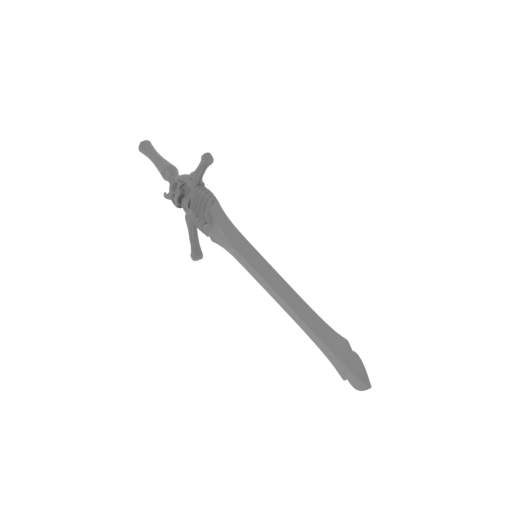

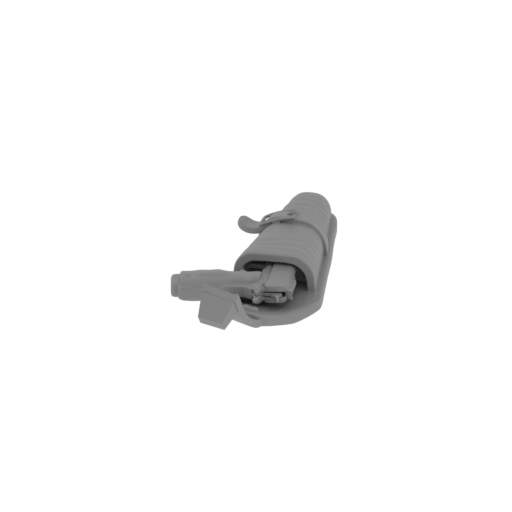

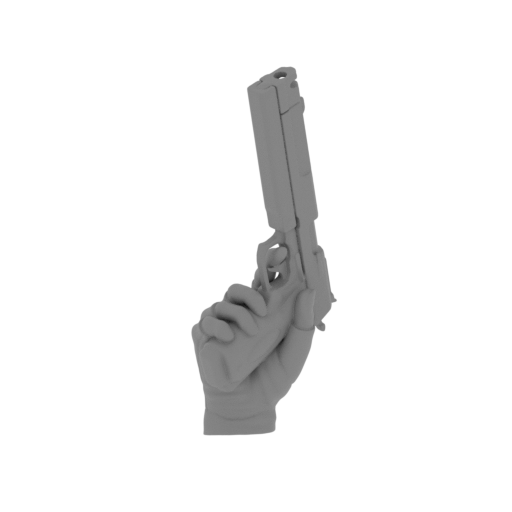

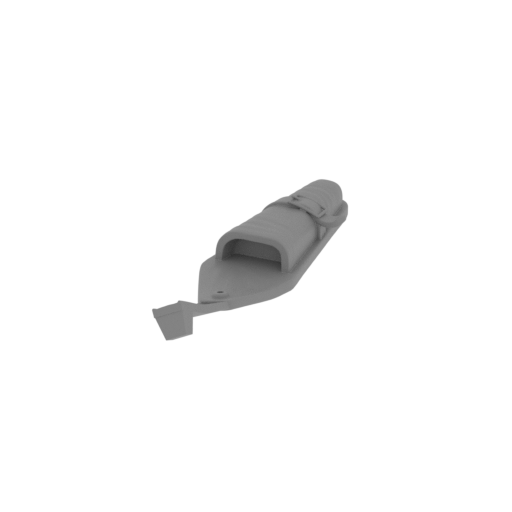

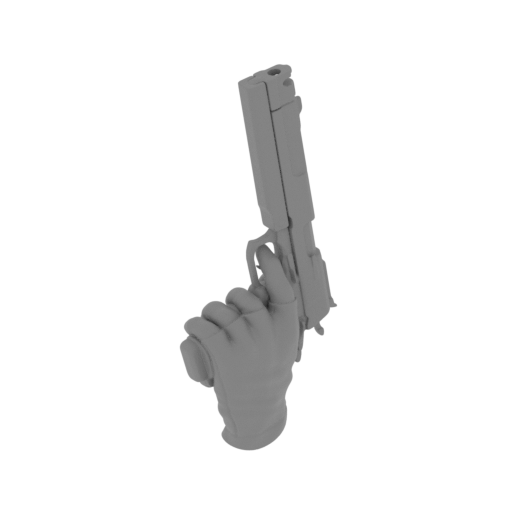

- Contain changeable weapon which you can put in different hands and combine with sword. Contains skirt that you can print with flexible materials;
- All parts are divided in such way that you will print them with the smallest amount of supports.

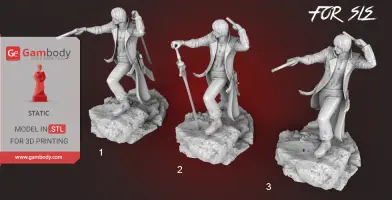

SLS/SLA version features:

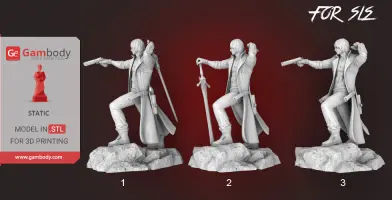

- Same as FDM but smaller and made as 1 part.
All STL files for 3D printing have been checked in Netfabb and no errors were shown.
Note: Before starting 3D printing the model, read the Printing Details for CURA 3.1.0. Software.
There are 21 parts for FFF/FDM version and 1 part for SLS/SLA version.

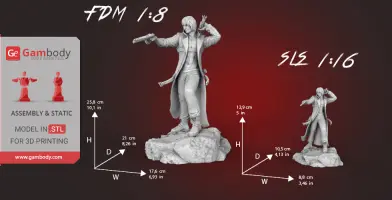

Scale: His tall in life is 1950 mm. Model made as 1/8 scale in FDM version and 1/16 in SLS/SLA version.
FDM version dimensions:
After being printed will stand - 258 mm tall, 176 mm wide, 210 mm deep;
SLS/SLA version dimensions:
After being printed will stand - 129 mm tall, 88 mm wide, 105 mm deep;
- Has only 1 detail, to keep printing costs down.
WHAT WILL YOU GET AFTER PURCHASE?
- STL files of Dante 3D Miniature for 3D printing which consist of 22 parts;
- 2 versions of files for this model for FFF/FDM and SLS/SLA;
- Made with platform;
- Contain changeable weapon which you can put in different hands and combine with sword. Contains skirt that you can print with flexible materials;
- Made with locks for better fixing in FDM version;
- High-poly detailed miniature of Dante;
- Detailed settings that we provide for Cura 3.1.0. for the best print;
- Full technical support from the Gambody Support Team.
Watch the tutorial video on how to assemble Dante 3D Printing Miniature at Gambody YouTube channel.
You can get Model of Dante for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.
Also, you may like other Anime 3D miniatures.
_______
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?
Average customer rating (1 reviews)
5
Ratings breakdown
Click a star rating to filter reviews
Overall experience
Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model To avoid printing issues and achieve the best quality, we highly recommend applying the following settings:
Generic

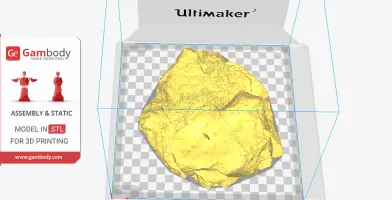

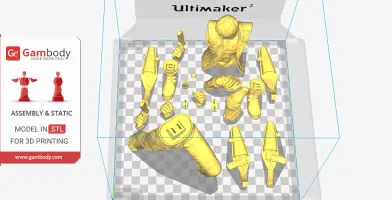

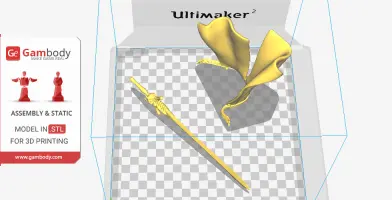

This model was tested in Cura 3.1.0. and printed on an Ultimaker 2 in PLA material.
Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.
To avoid printing problems, we recommend the following settings:
Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Slicing Tolerance: Middle
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
Initial Layer Line Width: 100%
Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
Top Thickness: 0.8 mm
Top Layers: 8
Bottom Thickness: 0.8 mm
Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
Compensate Outer Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1
Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
Nozzle Switch Retract Speed: 20 mm/s
Nozzle Switch Prime Speed: 20 mm/s
Speed
Print Speed: 45 mm/s
Infill Speed: 50 mm/s
Wall Speed: 22.5 mm/s
Outer Wall Speed: 22.5 mm/s
Inner Wall Speed: 45 mm/s
Top/Bottom Speed: 15 mm/s
Support Speed: 45 mm/s
Support Infill Speed: 45 mm/s
Travel Speed: 80 mm/s
Initial Layer Speed: 15 mm/s
Initial Layer Print Speed: 15 mm/s
Initial Layer Travel Speed: 26.6667 mm/s
Skirt/Brim Speed: 15 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2
Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s
Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
Support Top Distance: 0.3 mm
Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°
Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
Brim Line Count: 18
Brim Only on Outside: Check
Mesh Fixes
Union Overlapping Volumes: Check
Maximum Resolution: 0.01 mm
Merged Meshes Overlap: 0.15 mm
Special Modes
Print Sequence: All at Once
Surface Mode: Normal
Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
