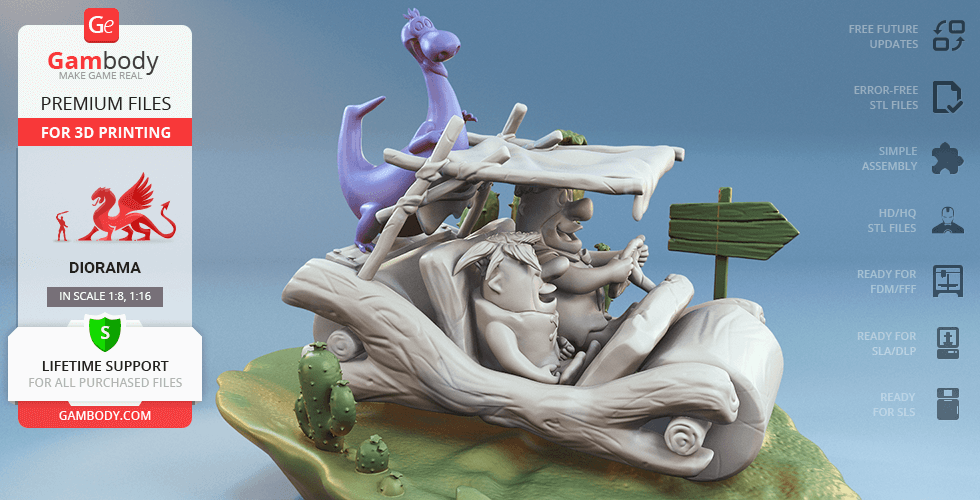

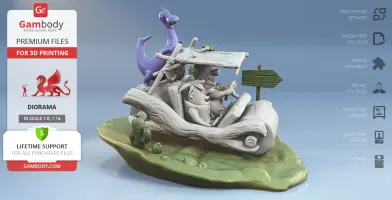

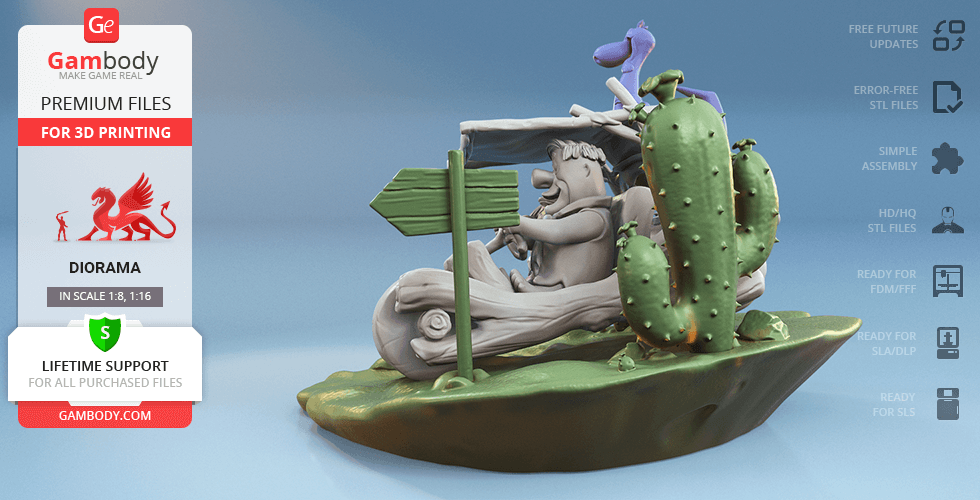

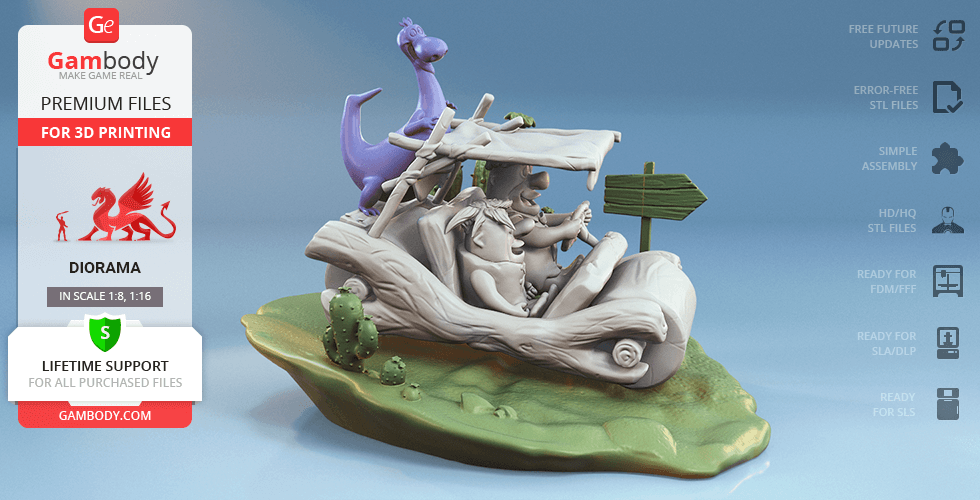

The Flintstones 3D Printing Figurines in Diorama | Assembly

(3)
cm: 38.2 w x 45 d x 31.8 h
in: 15.039 w x 17.717 d x 12.52 h

Source Files

|

Description

|

Printing Details

These 3D Figurines consist of files in StereoLithography (.Stl) format that is optimized for 3D printing.

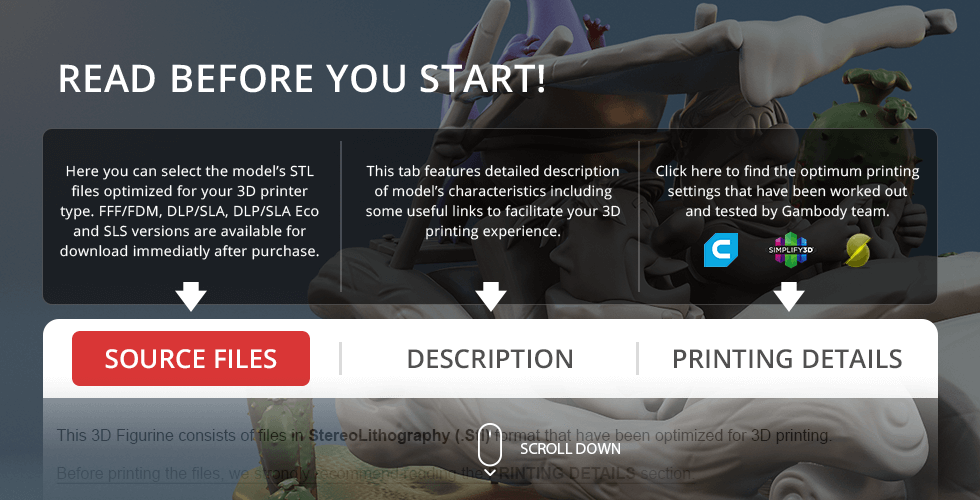

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

- 4 versions of The Flintstones STL files for FFF/FDMDLP/SLA, and SLS - files for each version are available for download after the purchase

- STL files of high-poly The Flintstones 3D Figurines in Diorama for 3D printing consist of 142 parts

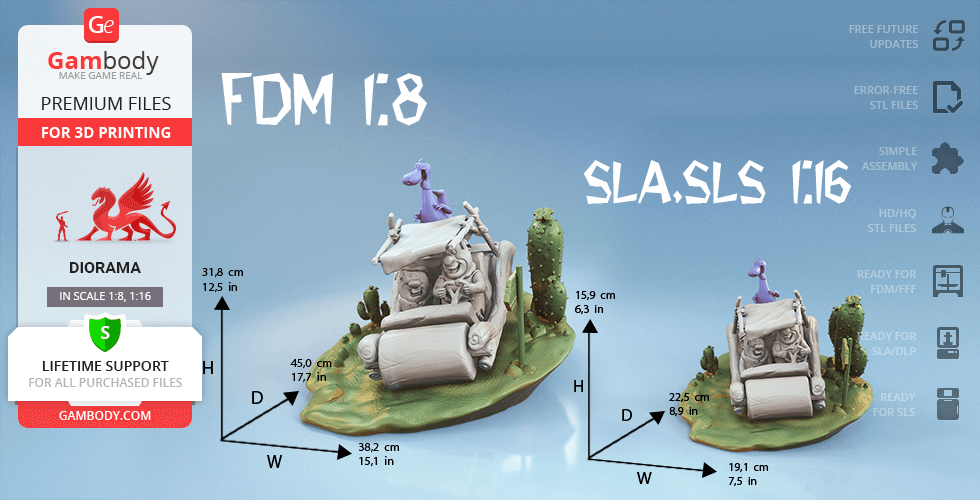

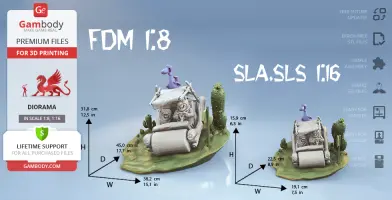

- Sizes:
FFF/FDM: 318 mm tall, 382 mm wide, 450 mm deep​
DLP/SLA/SLS: 159 mm tall, 191 mm wide, 225 mm deep

Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format
- Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

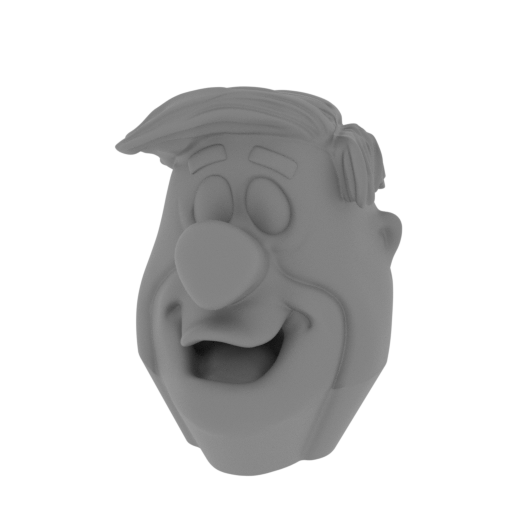

1_Fred_Flintstone_head_FD M(repaired).stl
18.42 MiB 7 h 35 min 4 m 46 x 59 x 67 Download

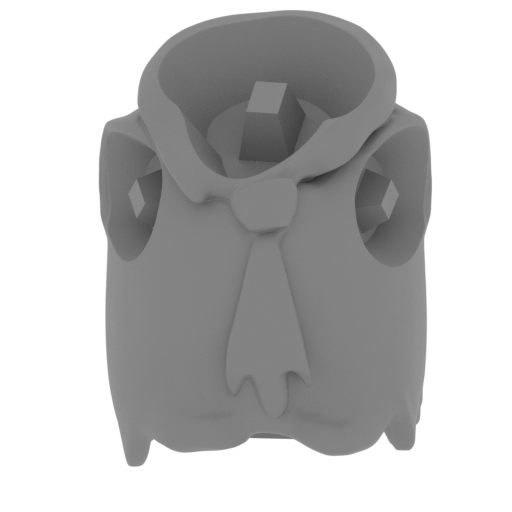

2_Fred_Flintstone_body_FD M(repaired).stl
15.71 MiB 13 h 46 min 8 m 67 x 69 x 76 Download

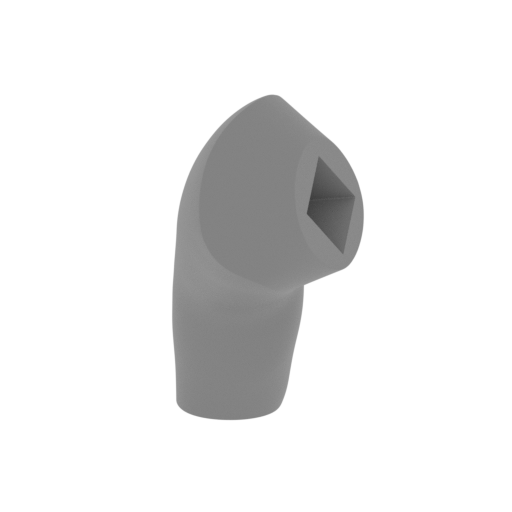

3_Fred_Flintstone_arm_R_F DM(repaired).stl
12.61 MiB 1 h 21 min 1 m 24 x 32 x 44 Download

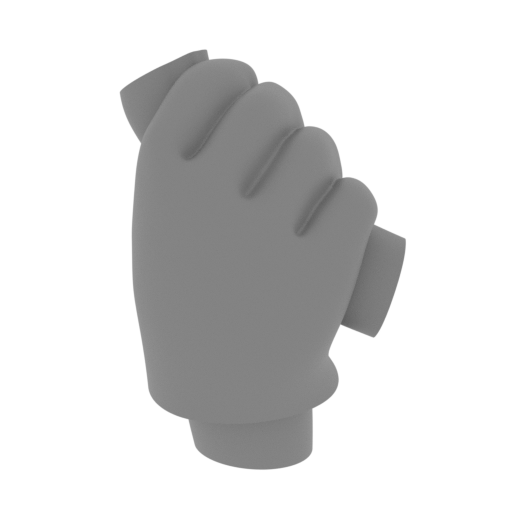

4_Fred_Flintstone_hand_R_ FDM(repaired).stl
9.84 MiB 32 min <1 m 20 x 17 x 25 Download

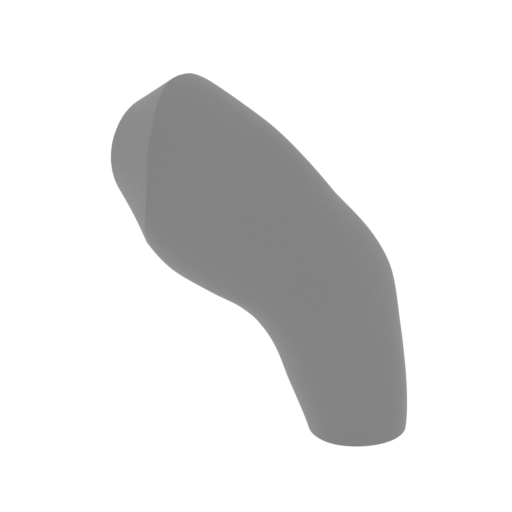

5_Fred_Flintstone_arm_L_F DM(repaired).stl
10.61 MiB 1 h 29 min 1 m 35 x 30 x 51 Download

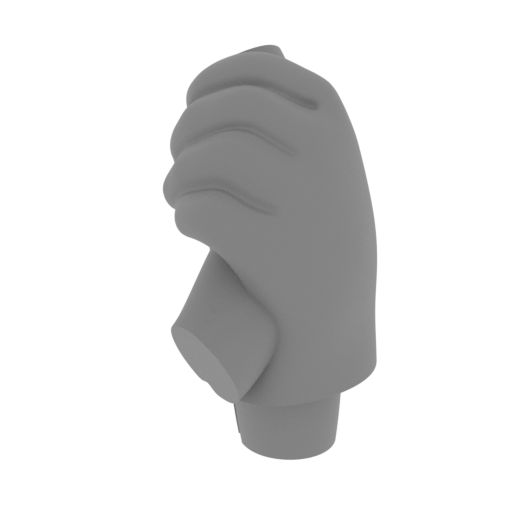

6_Fred_Flintstone_hand_L_ FDM(repaired).stl
9.62 MiB 37 min <1 m 16 x 21 x 27 Download

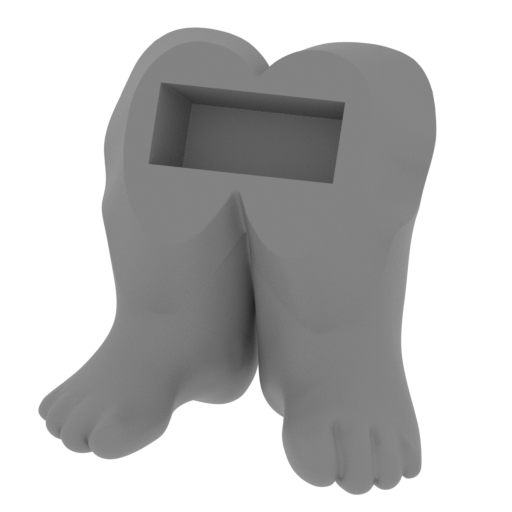

7_Fred_Flintstone_legs_FD M(repaired).stl
12.08 MiB 4 h 8 min 2 m 55 x 48 x 55 Download

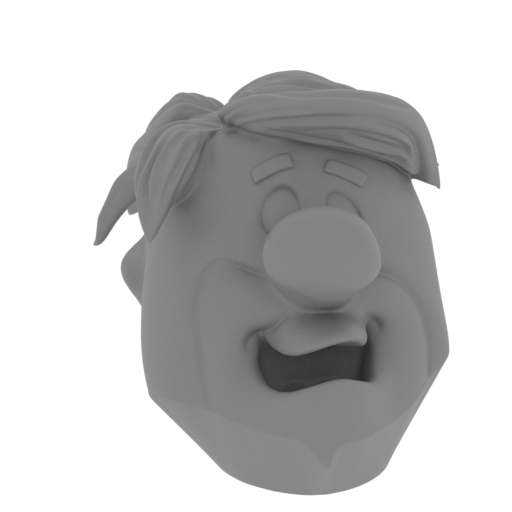

8_Barney_Rubble_head_FDM( repaired).stl
18.93 MiB 7 h 14 min 4 m 57 x 54 x 57 Download

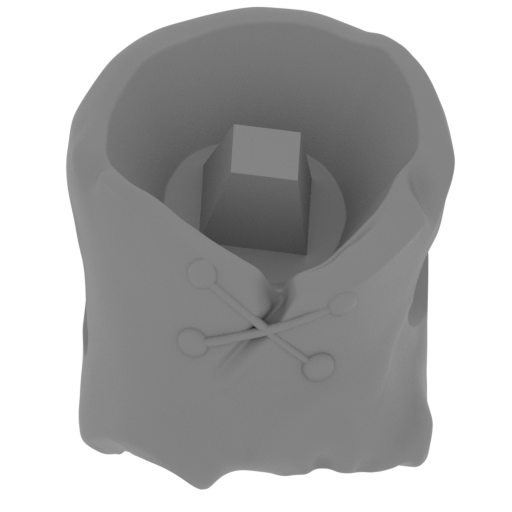

9_Barney_Rubble_body_FDM( repaired).stl
18.46 MiB 7 h 38 min 4 m 55 x 56 x 55 Download

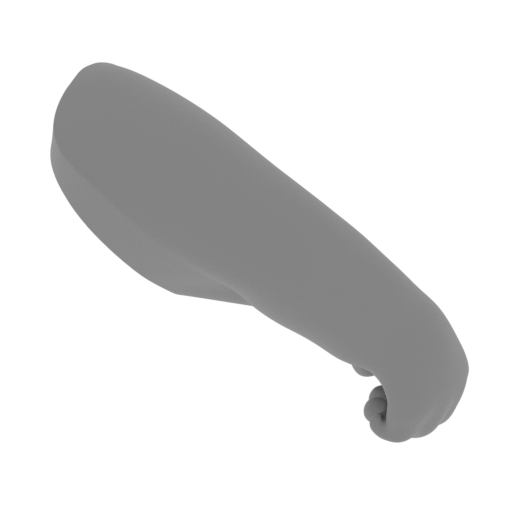

10_Barney_Rubble_arm_R_FD M(repaired).stl
15.61 MiB 1 h 19 min 1 m 40 x 28 x 41 Download

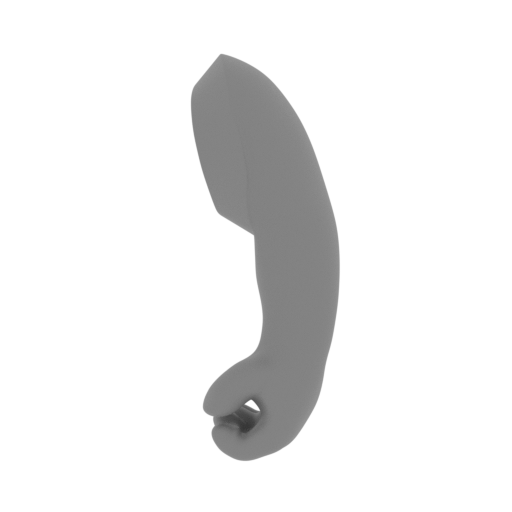

11_Barney_Rubble_arm_L_FD M(repaired).stl
17.12 MiB 1 h 14 min 1 m 22 x 26 x 54 Download
11_Barney_Rubble_arm_L_FD M(repaired).stl
17.12 MiB 1 h 14 min 1 m 22 x 26 x 54 Download

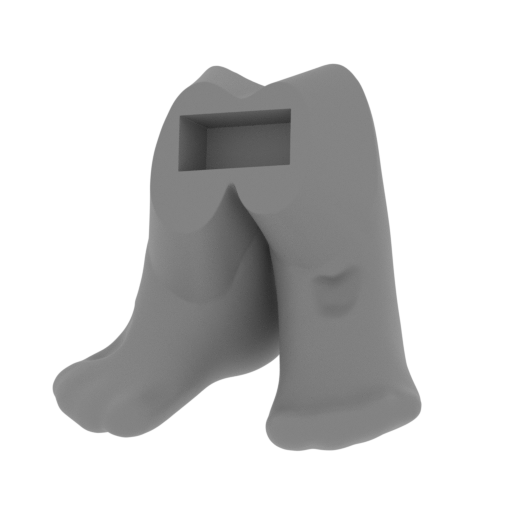

12_Barney_Rubble_legs_FDM (repaired).stl
15.58 MiB 3 h 42 min 2 m 60 x 45 x 51 Download

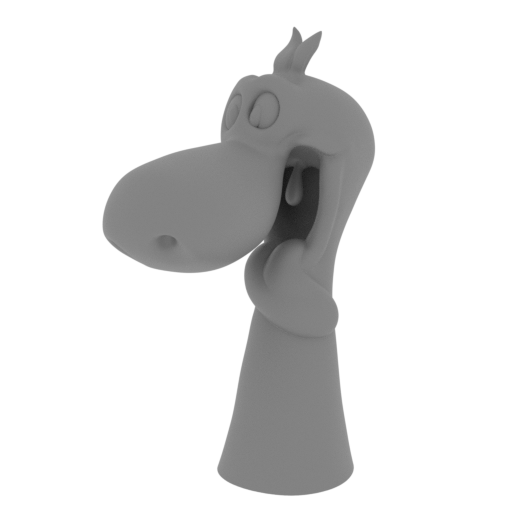

13_Dino_head_FDM(repaired ).stl
18.70 MiB 3 h 53 min 2 m 39 x 50 x 62 Download

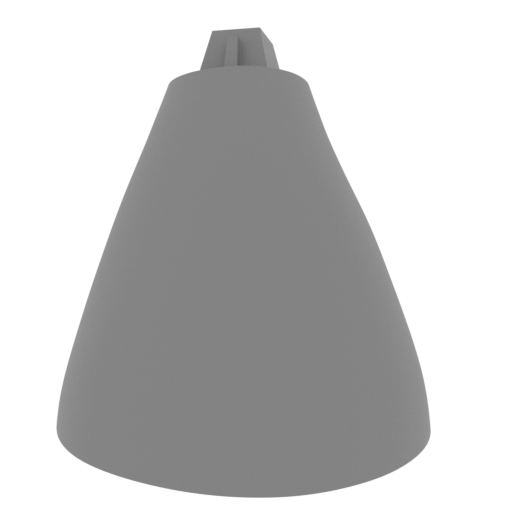

14_Dino_body_1_FDM(repair ed).stl
19.95 MiB 5 h 44 min 3 m 57 x 60 x 54 Download

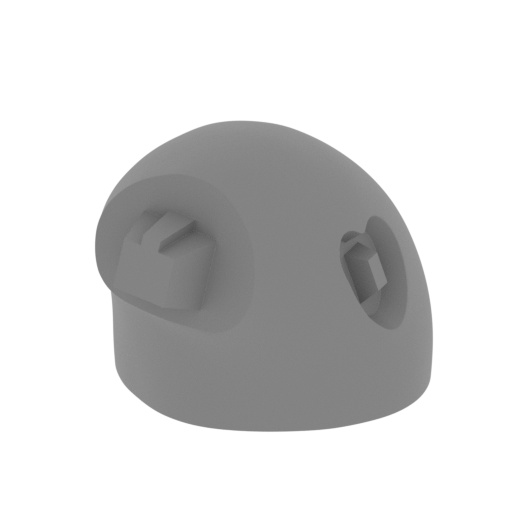

15_Dino_body_2_FDM(repair ed).stl
22.12 MiB 7 h 30 min 4 m 57 x 69 x 50 Download

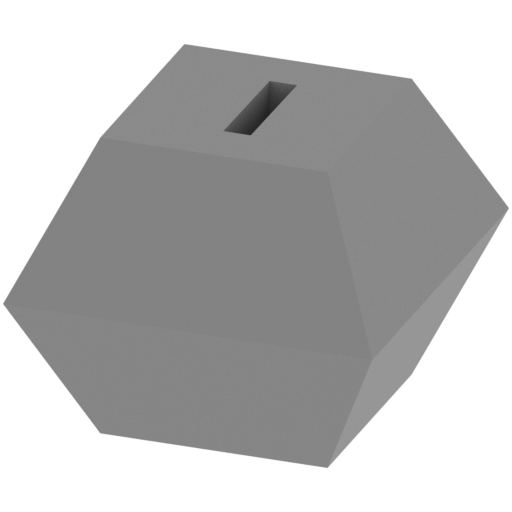

16_Dino_body_connector_FD M(repaired).stl
1.23 MiB 1 h 24 min 1 m 30 x 30 x 24 Download

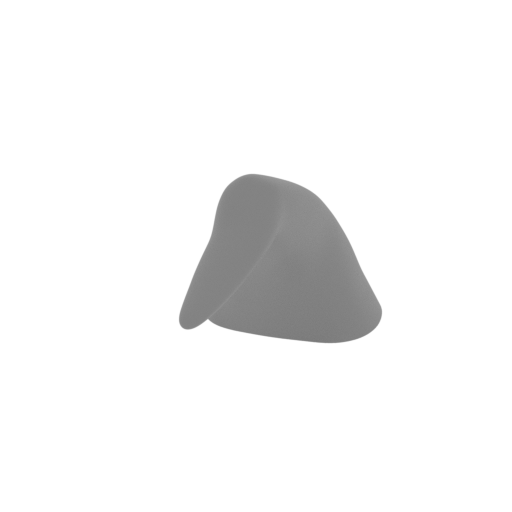

17_Dino_tail_FDM(repaired ).stl
13.15 MiB 2 h 14 min 1 m 32 x 71 x 40 Download

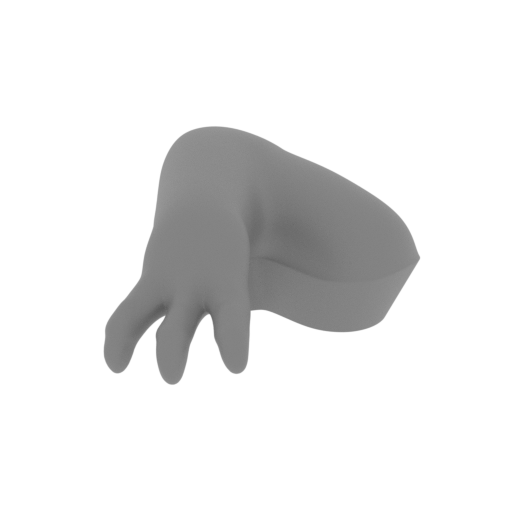

18_Dino_arm_R_FDM(repaire d).stl
12.34 MiB 31 min <1 m 23 x 31 x 13 Download

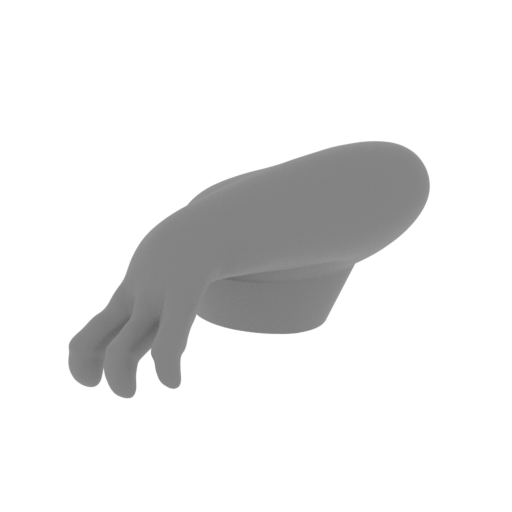

19_Dino_arm_L_FDM(repaire d).stl
13.02 MiB 34 min <1 m 24 x 31 x 17 Download

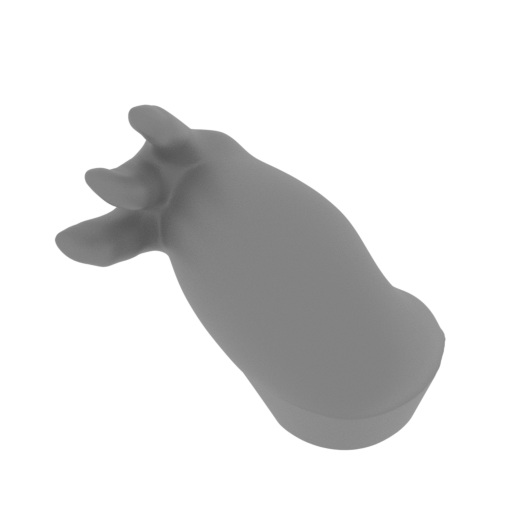

20_Dino_leg_R_FDM(repaire d).stl
12.78 MiB 53 min <1 m 33 x 26 x 25 Download

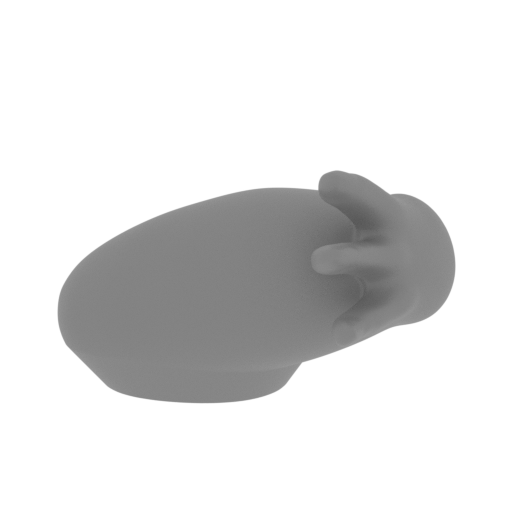

21_Dino_leg_L_FDM(repaire d).stl
13.26 MiB 51 min <1 m 33 x 26 x 24 Download

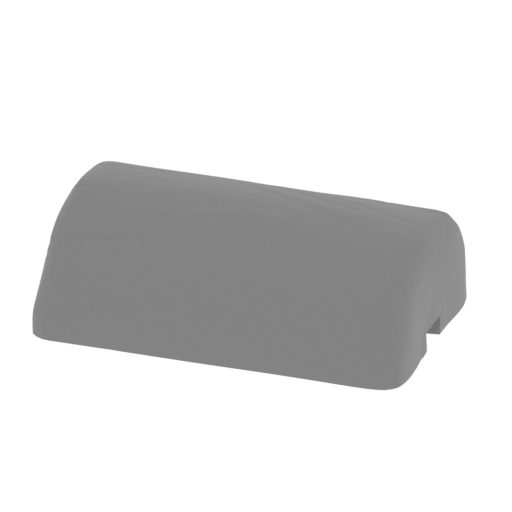

22_car_wheel_front_1_FDM( repaired).stl
17.75 MiB 19 h 51 min 12 m 123 x 80 x 41 Download
23_car_wheel_front_2_FDM( repaired).stl
17.45 MiB 19 h 18 min 12 m 123 x 80 x 40 Download

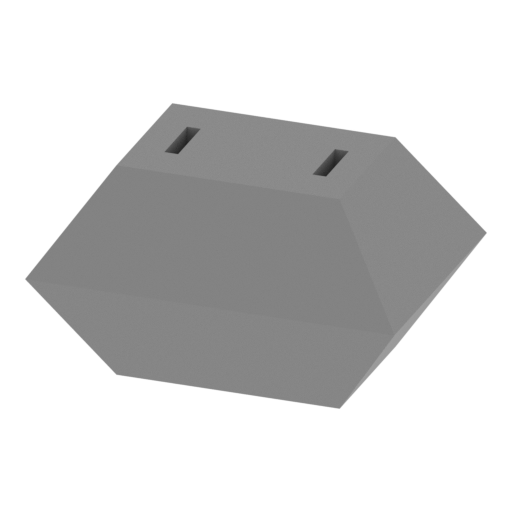

24_car_wheel_front_connec tor_FDM(repaired).stl
1.60 MiB 4 h 5 min 2 m 59 x 40 x 34 Download

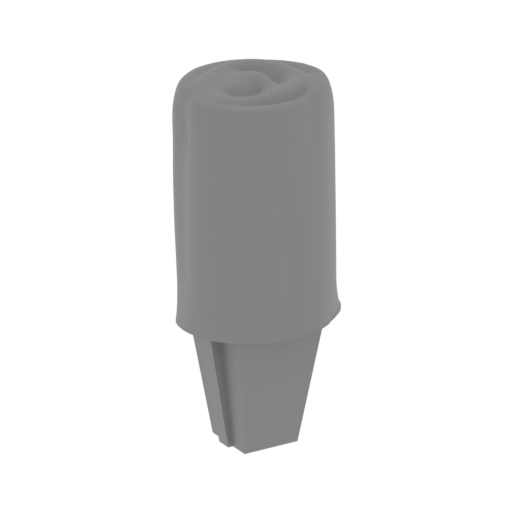

25_car_wheel_front_shaft_ R_FDM(repaired).stl
8.87 MiB 1 h 31 min 1 m 21 x 21 x 50 Download

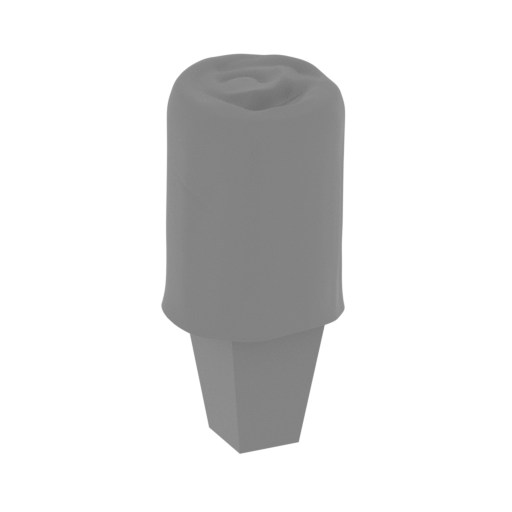

26_car_wheel_front_shaft_ L_FDM(repaired).stl
8.96 MiB 1 h 24 min 1 m 21 x 22 x 46 Download

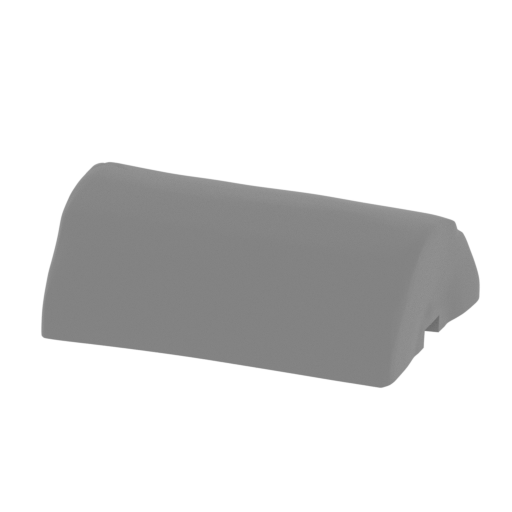

27_car_wheel_rear_1_FDM(r epaired).stl
14.29 MiB 19 h 1 min 11 m 123 x 80 x 40 Download

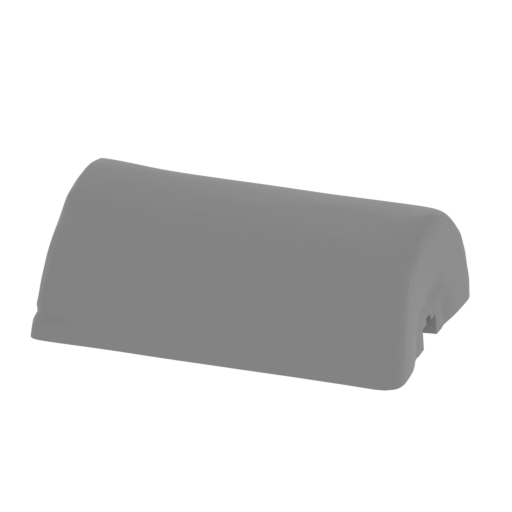

28_car_wheel_rear_2_FDM(r epaired).stl
14.51 MiB 19 h 5 min 11 m 121 x 80 x 41 Download

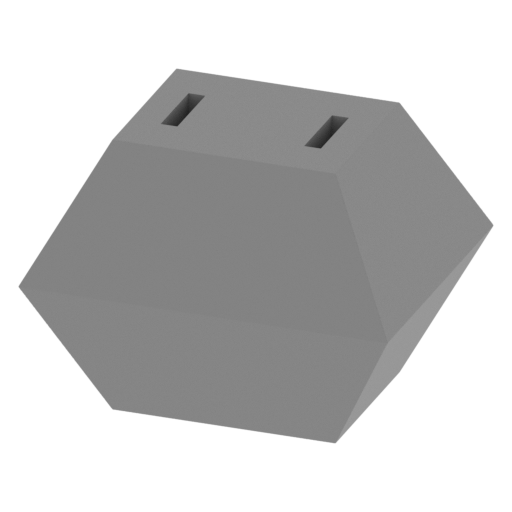

29_car_wheel_rear_connect or_FDM(repaired).stl
2.37 MiB 3 h 31 min 2 m 48 x 38 x 36 Download

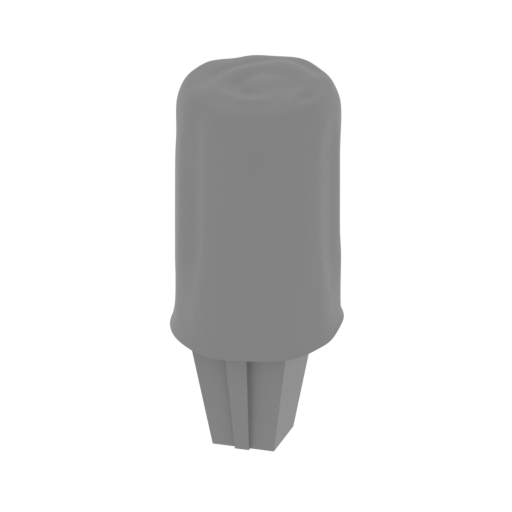

30_car_wheel_rear_shaft_R _FDM(repaired).stl
8.79 MiB 1 h 27 min 1 m 22 x 21 x 49 Download

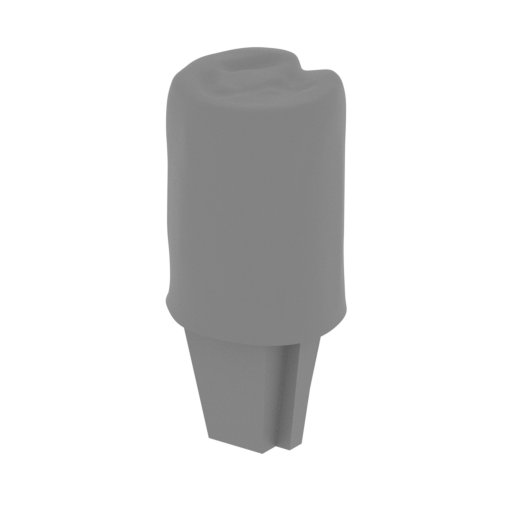

31_car_wheel_rear_shaft_L _FDM(repaired).stl
8.98 MiB 1 h 24 min 1 m 21 x 21 x 46 Download

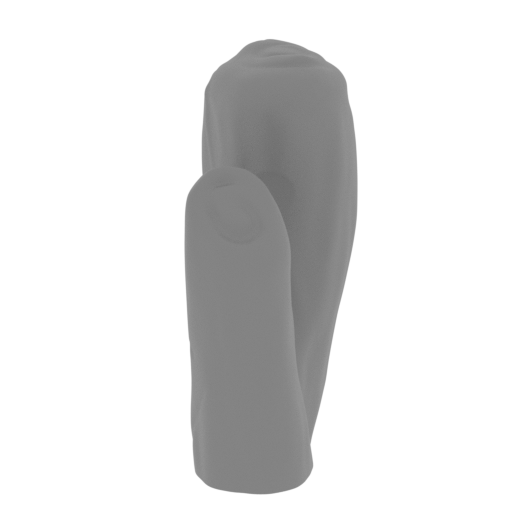

32_car_part_1_FDM(repaire d).stl
14.66 MiB 5 h 21 min 3 m 33 x 66 x 77 Download

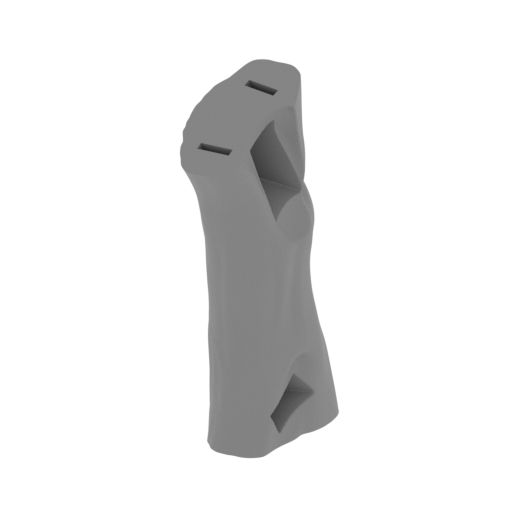

33_car_part_2_FDM(repaire d).stl
14.50 MiB 5 h 14 min 3 m 31 x 56 x 103 Download

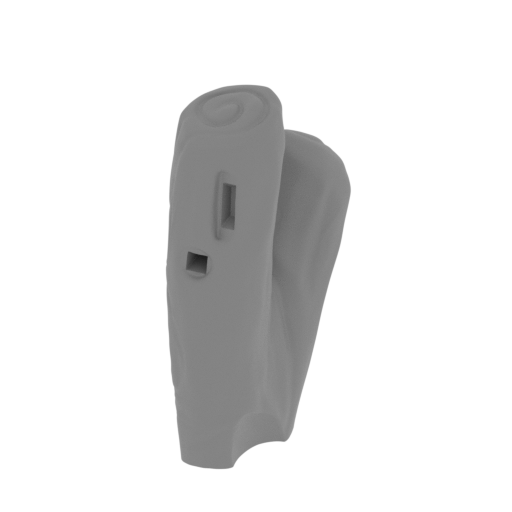

34_car_part_3_FDM(repaire d).stl
11.58 MiB 10 h 35 min 6 m 38 x 83 x 119 Download

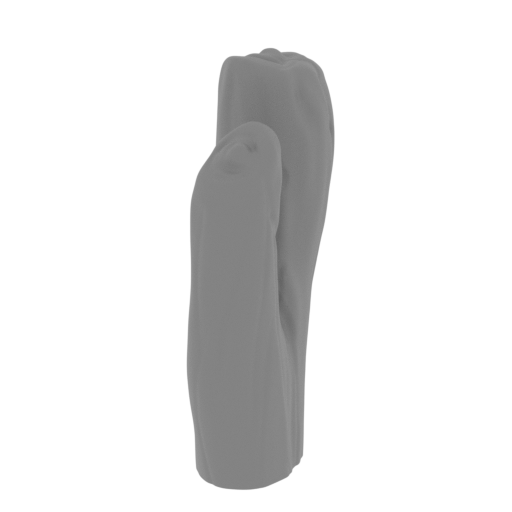

35_car_part_4_FDM(repaire d).stl
13.95 MiB 6 h 19 min 4 m 32 x 68 x 96 Download

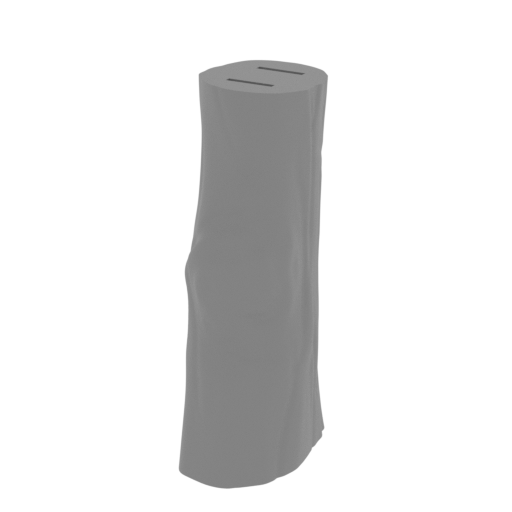

36_car_part_5_FDM(repaire d).stl
11.91 MiB 4 h 9 min 2 m 27 x 53 x 80 Download

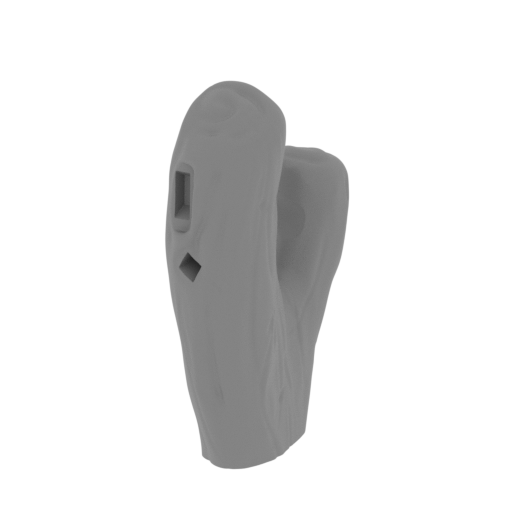

37_car_part_6_FDM(repaire d).stl
11.71 MiB 9 h 29 min 6 m 38 x 78 x 116 Download

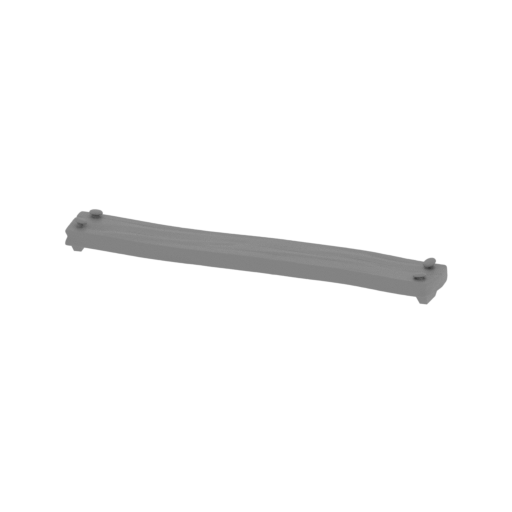

38_car_part_7_FDM(repaire d).stl
15.22 MiB 3 h 47 min 2 m 150 x 23 x 14 Download

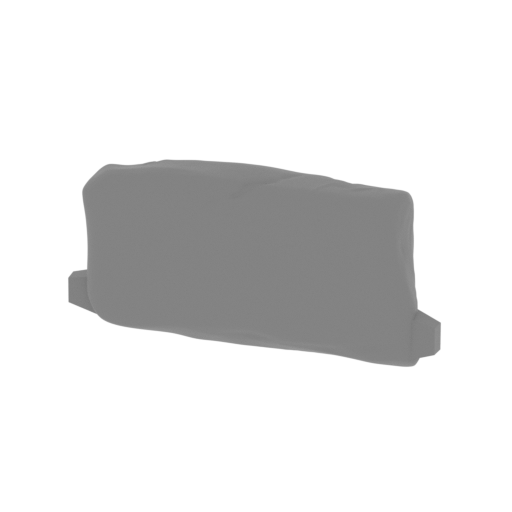

39_car_part_8_FDM(repaire d).stl
14.29 MiB 13 h 53 min 8 m 153 x 25 x 73 Download

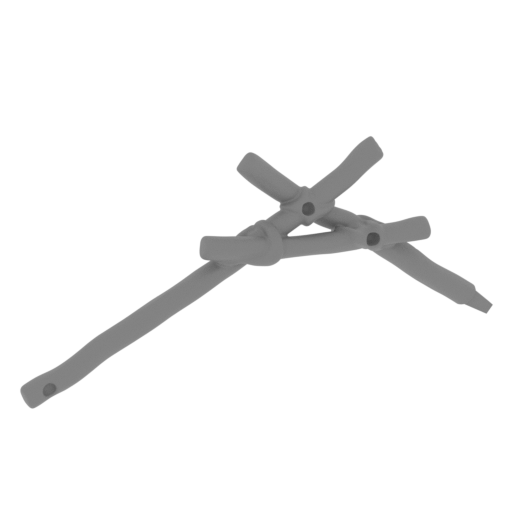

40_roof_1_FDM(repaired).s tl
16.96 MiB 7 h 40 min 5 m 132 x 142 x 82 Download

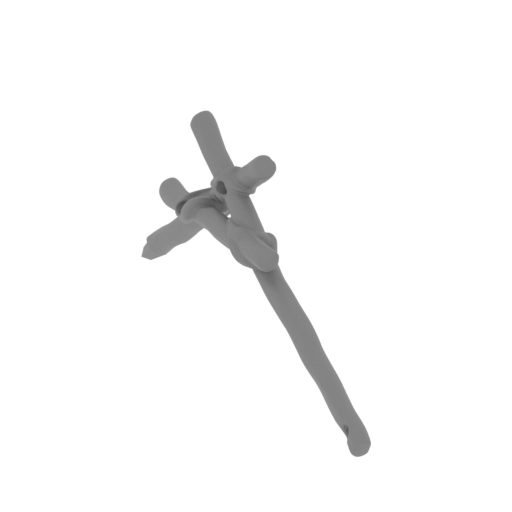

41_roof_2_FDM(repaired).s tl
20.14 MiB 8 h 15 min 6 m 139 x 143 x 82 Download

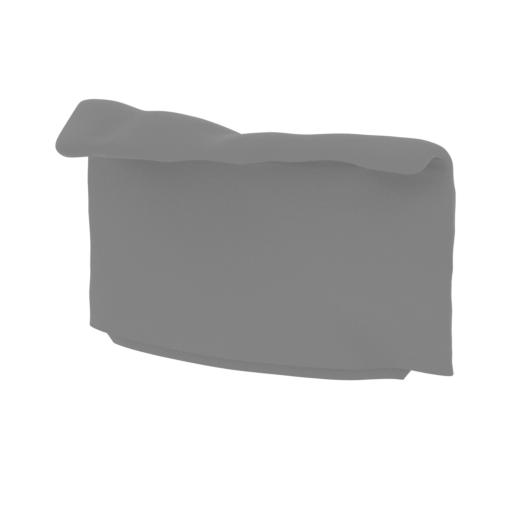

42_roof_3_FDM(repaired).s tl
12.94 MiB 9 h 52 min 7 m 99 x 34 x 69 Download

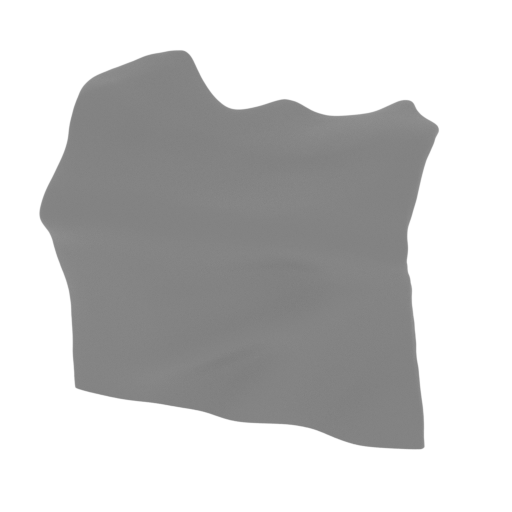

43_roof_4_FDM(repaired).s tl
12.67 MiB 18 h 16 min 14 m 101 x 55 x 84 Download

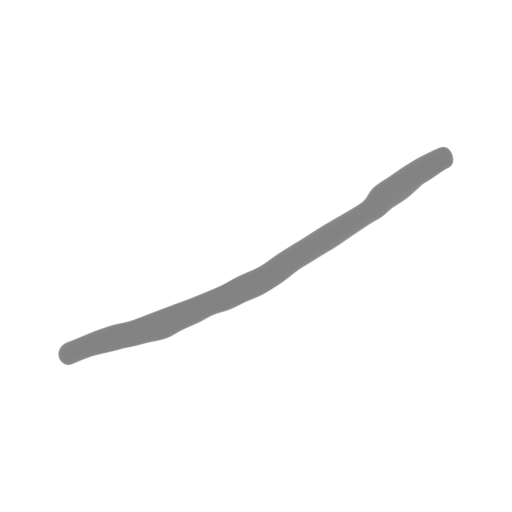

44_roof_5_FDM(repaired).s tl
1.40 MiB 1 h 28 min 1 m 92 x 22 x 62 Download

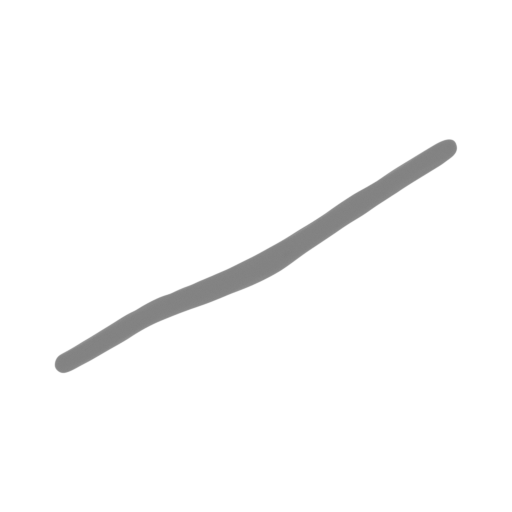

45_roof_6_FDM(repaired).s tl
1.20 MiB 1 h 37 min 1 m 95 x 26 x 66 Download

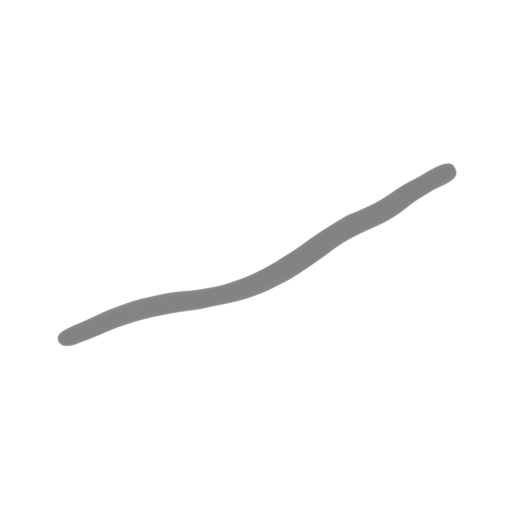

46_roof_7_FDM(repaired).s tl
1.28 MiB 1 h 39 min 1 m 101 x 26 x 58 Download

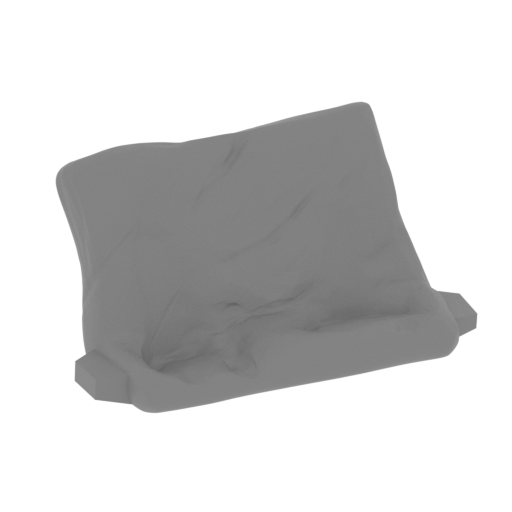

47_car_seat_FDM(repaired) .stl
21.56 MiB 24 h 41 min 14 m 150 x 149 x 80 Download

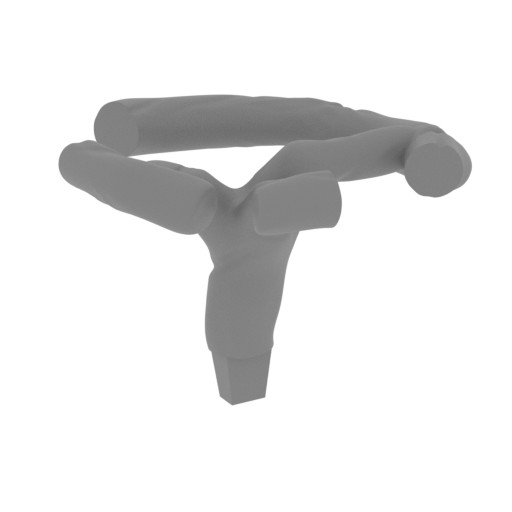

48_car_handlebar_FDM(repa ired).stl
7.32 MiB 2 h 20 min 2 m 46 x 46 x 38 Download

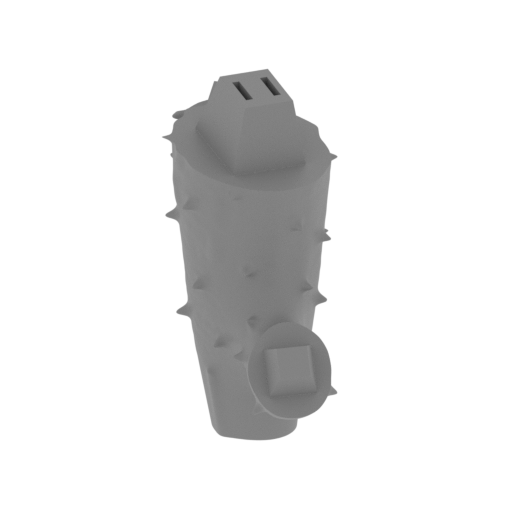

49_cactus_big_1_FDM(repai red).stl
16.55 MiB 14 h 20 min 9 m 68 x 89 x 111 Download

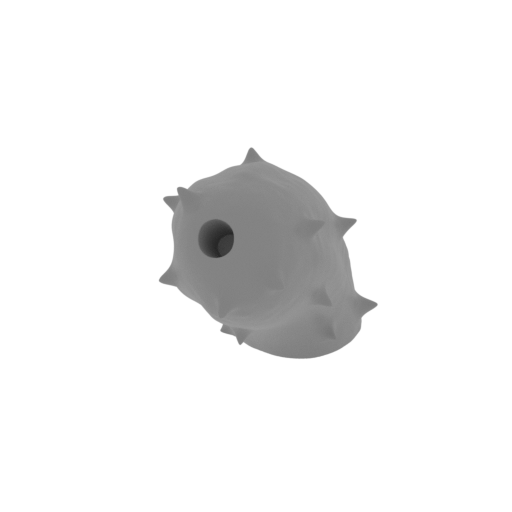

50_cactus_big_2_FDM(repai red).stl
3.83 MiB 4 h 19 min 3 m 37 x 71 x 45 Download

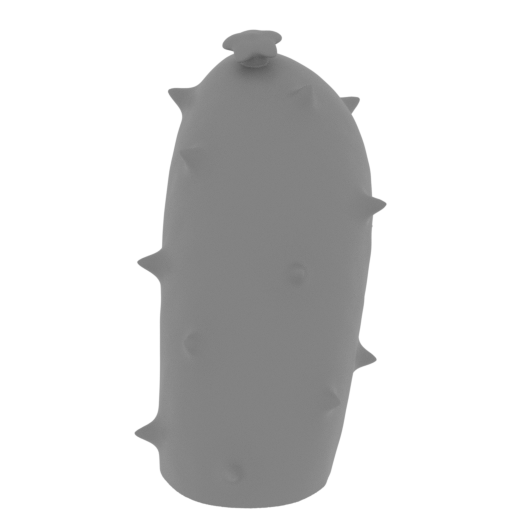

51_cactus_big_3_FDM(repai red).stl
3.59 MiB 3 h 25 min 2 m 36 x 54 x 54 Download

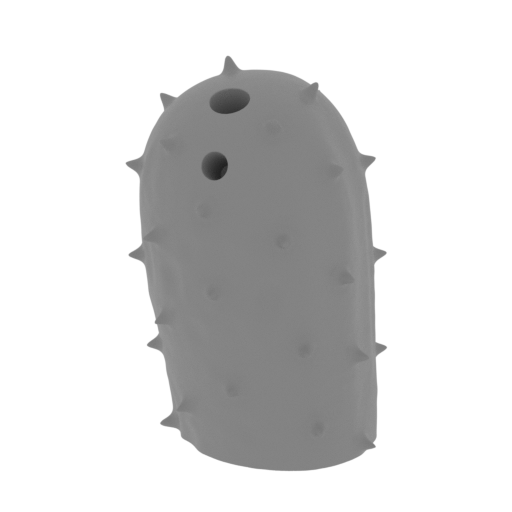

52_cactus_big_4_FDM(repai red).stl
8.03 MiB 12 h 37 min 7 m 59 x 61 x 89 Download

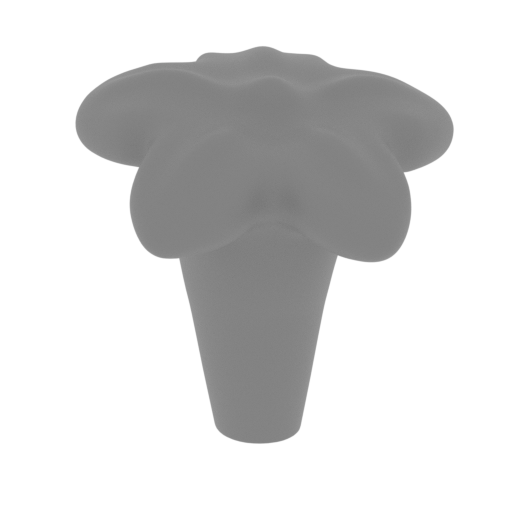

53_flower_1_FDM(repaired) .stl
1.67 MiB 17 min <1 m 14 x 14 x 15 Download

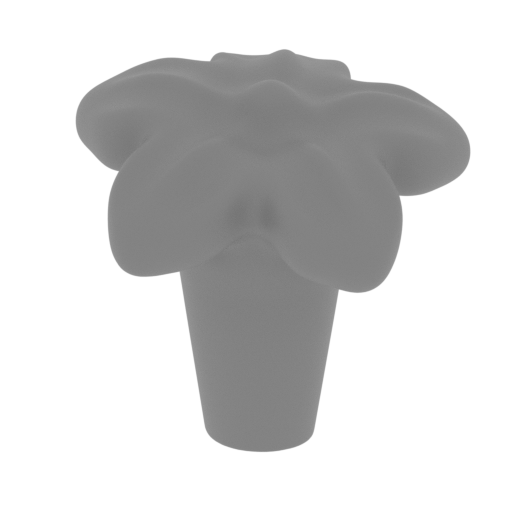

54_flower_2_FDM(repaired) .stl
2.05 MiB 20 min <1 m 16 x 16 x 16 Download

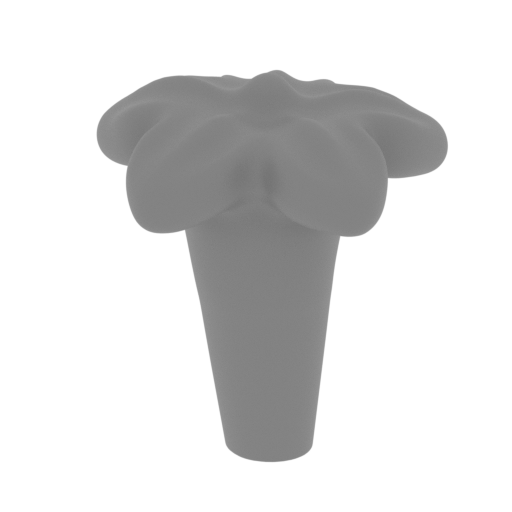

55_flower_3_FDM(repaired) .stl
2.22 MiB 24 min <1 m 16 x 17 x 19 Download

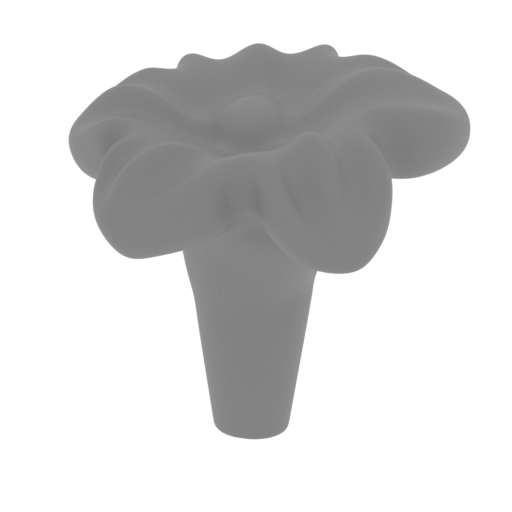

56_flower_4_FDM(repaired) .stl
5.42 MiB 1 h 25 min 1 m 30 x 30 x 29 Download

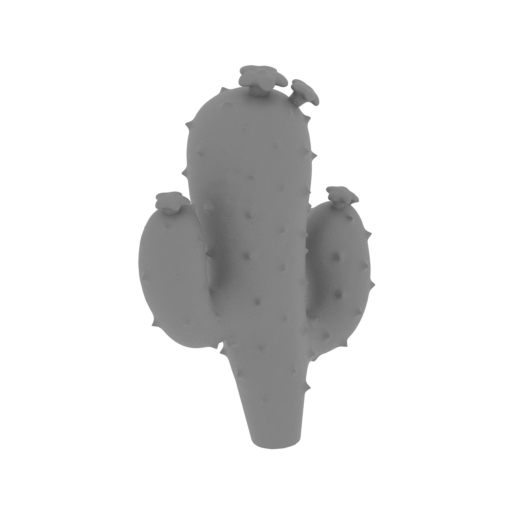

57_cactus_small_FDM(repai red).stl
13.84 MiB 4 h 40 min 3 m 31 x 57 x 75 Download

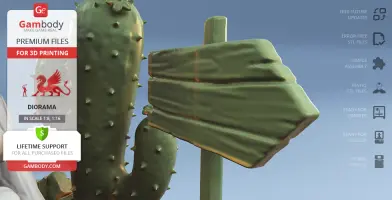

58_signpost_1_FDM(repaire d).stl
13.17 MiB 2 h 56 min 2 m 10 x 96 x 53 Download

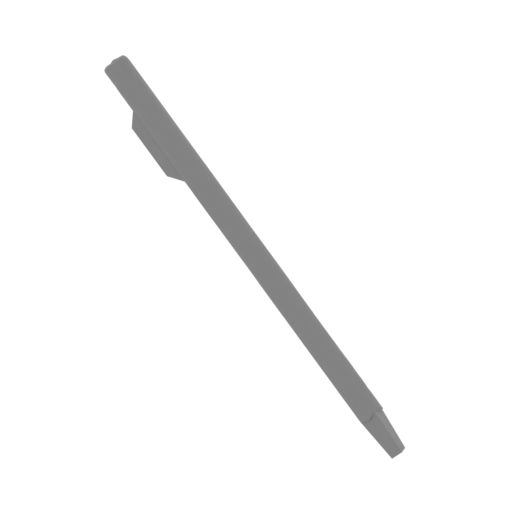

59_signpost_2_FDM(repaire d).stl
6.13 MiB 2 h 20 min 1 m 104 x 10 x 130 Download

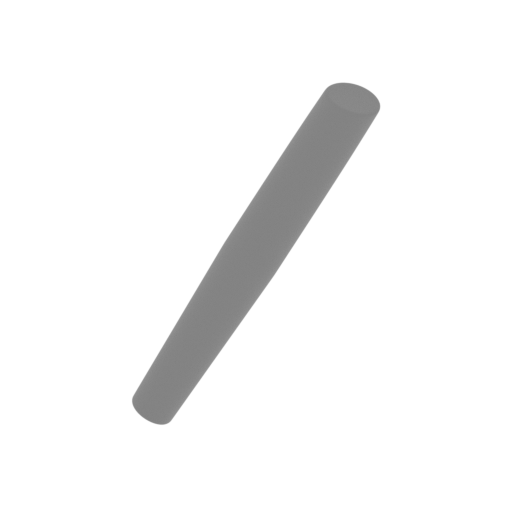

60_car_support_1_FDM(repa ired).stl
0.55 MiB 4 min <1 m 14 x 3 x 21 Download

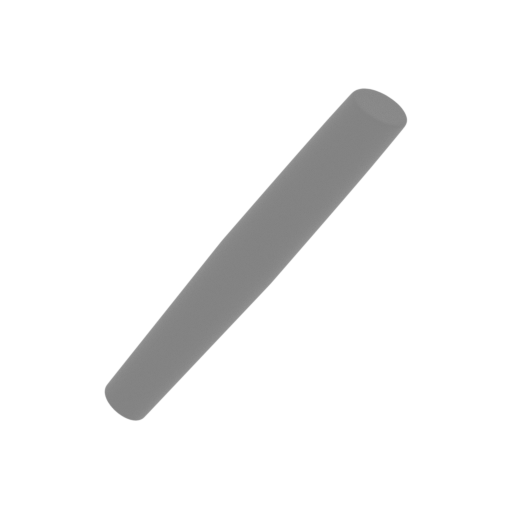

61_car_support_2_FDM(repa ired).stl
0.55 MiB 4 min <1 m 15 x 3 x 19 Download

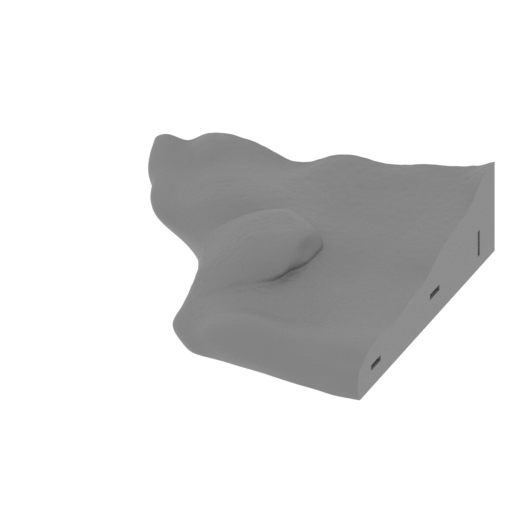

62_platform_1_FDM(repaire d).stl
13.07 MiB 21 h 30 min 12 m 130 x 141 x 35 Download

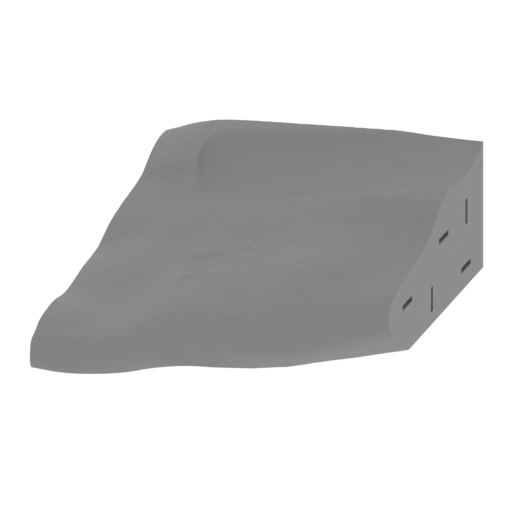

63_platform_2_FDM(repaire d).stl
14.90 MiB 32 h 27 min 18 m 122 x 142 x 50 Download

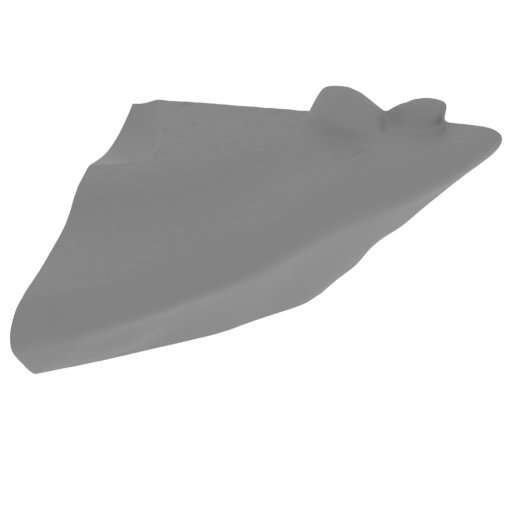

64_platform_3_FDM(repaire d).stl
12.50 MiB 17 h 2 min 9 m 109 x 98 x 65 Download

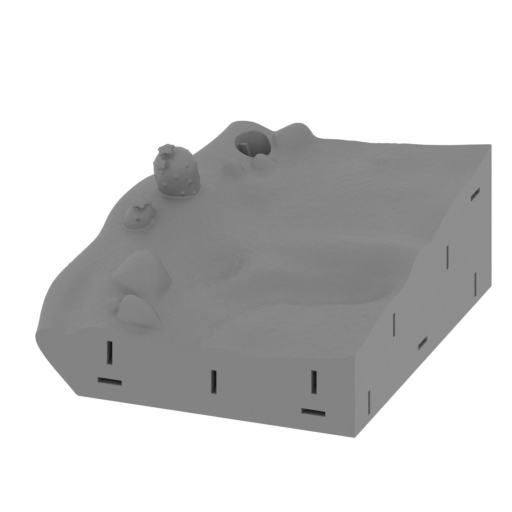

65_platform_4_FDM (repair ed).stl
18.96 MiB 49 h 43 min 28 m 136 x 150 x 67 Download

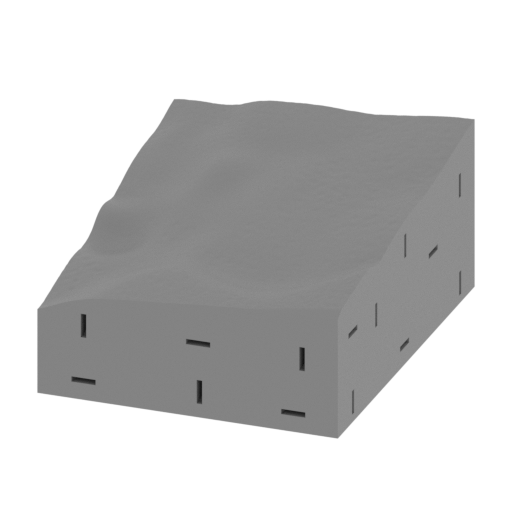

66_platform_5_FDM(repaire d).stl
13.52 MiB 63 h 24 min 37 m 122 x 150 x 70 Download

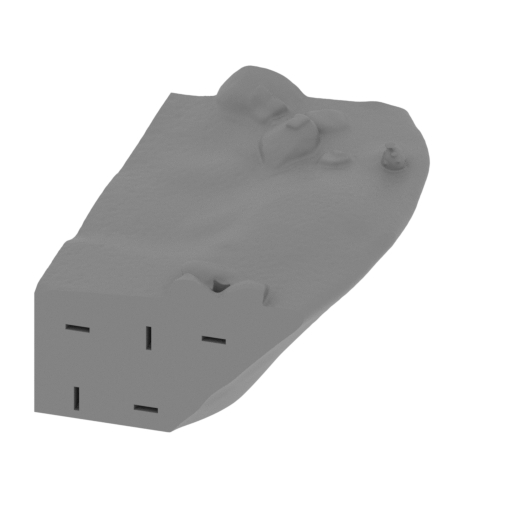

67_platform_6_FDM(repaire d).stl
12.73 MiB 60 h 5 min 34 m 124 x 150 x 86 Download

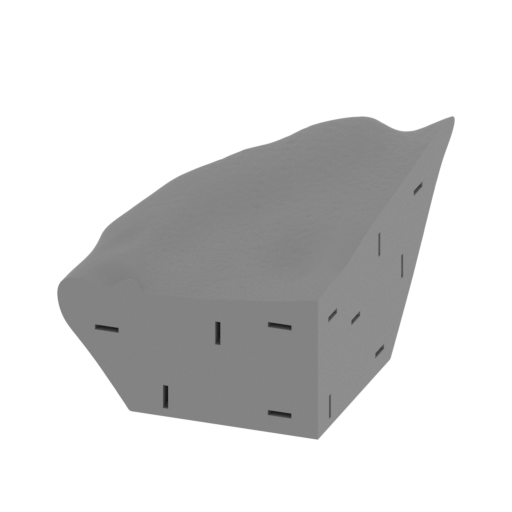

68_platform_7_FDM(repaire d).stl
15.74 MiB 39 h 22 min 24 m 108 x 153 x 75 Download

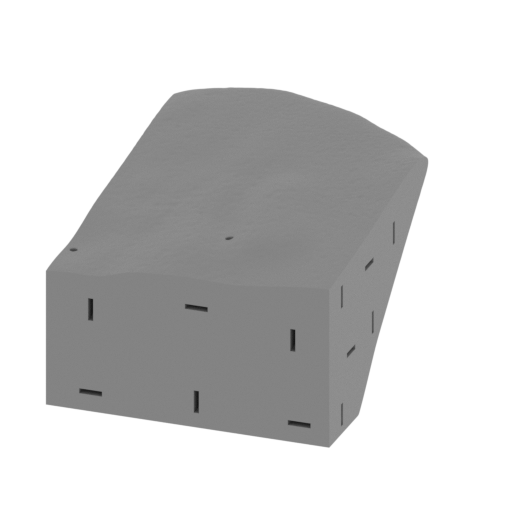

69_platform_8_FDM(repaire d).stl
13.32 MiB 65 h 56 min 39 m 122 x 159 x 83 Download

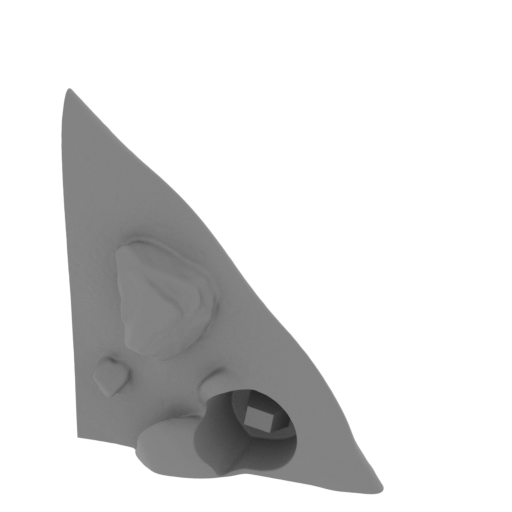

70_platform_9_FDM(repaire d).stl
12.06 MiB 19 h 42 min 11 m 97 x 101 x 115 Download

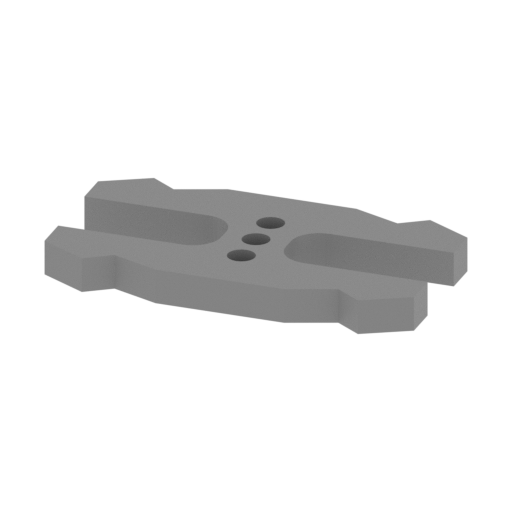

71_ge_lock_10H(x89)_FDM(r epaired).stl
0.03 MiB 4 min <1 m 18 x 10 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

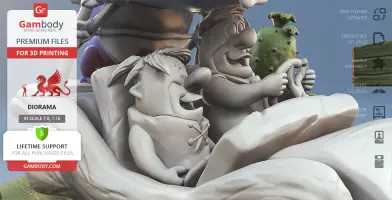

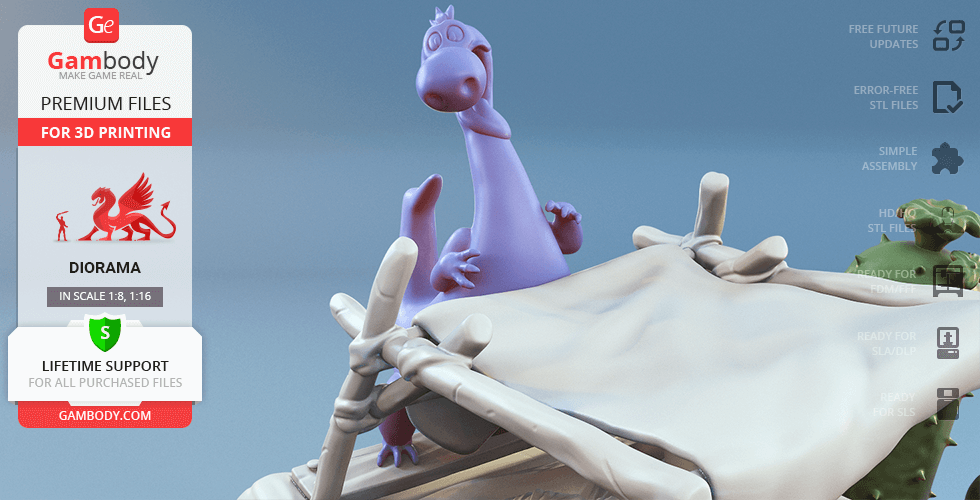

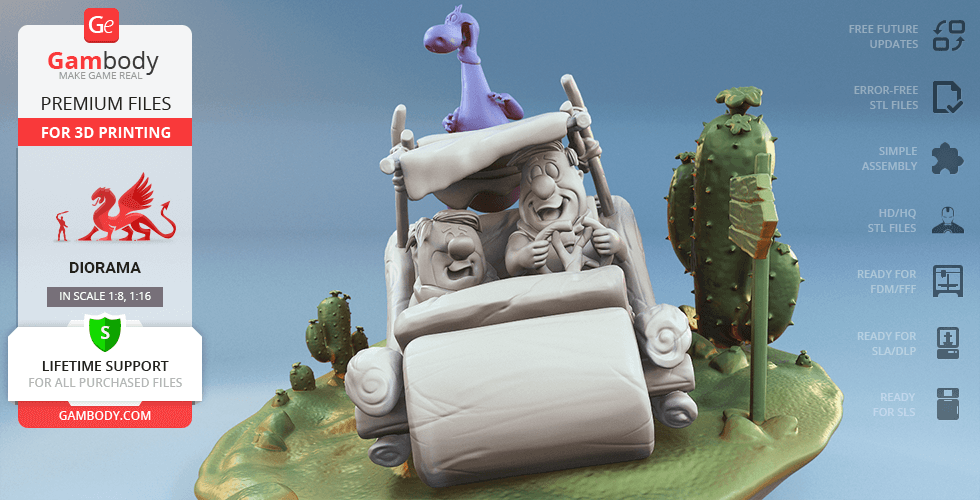

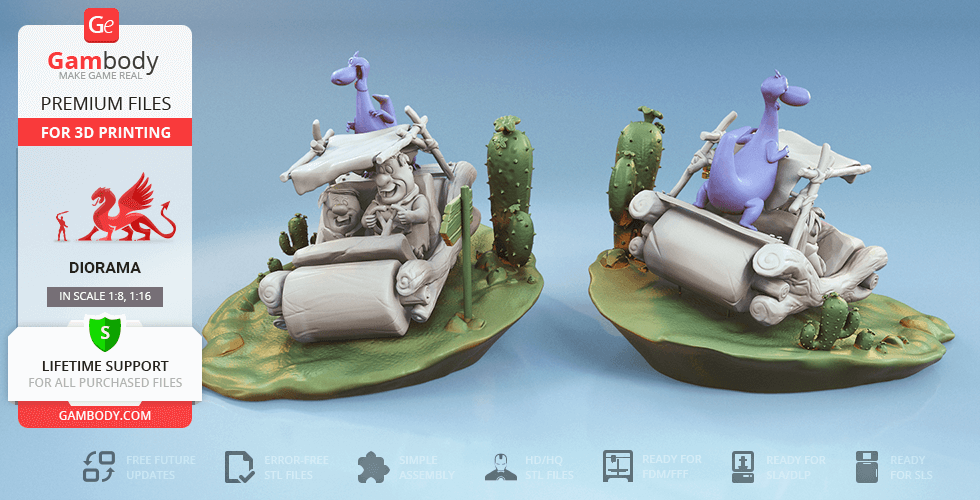

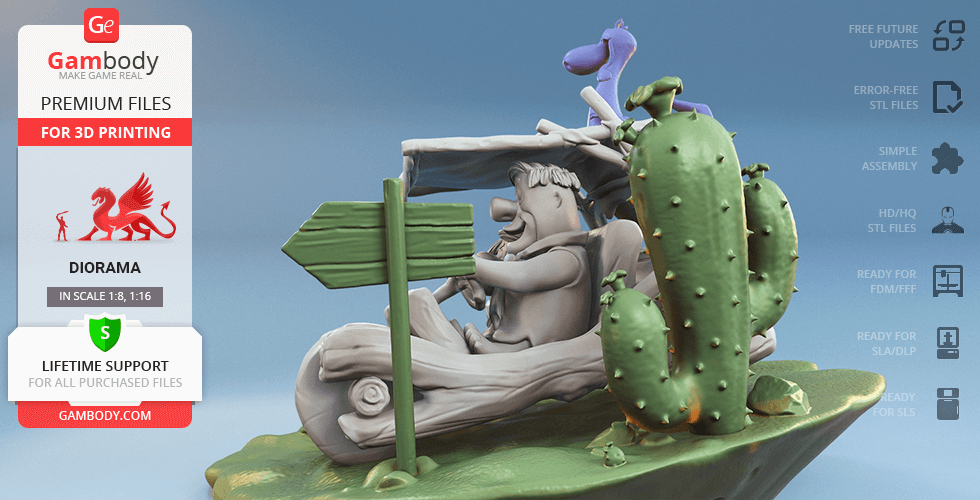

ABOUT THIS 3D FIGURINE

"Yabba-Dabba-Doo!"

The Flintstones is an animated sitcom that was first broadcast in 1960 in America to become one of the longest-running network animated TV series! The sitcom follows the Stone Age life of the next-door neighbours the Flintstones and the Rubbles whose daily activities include a mix of caveman lifestyle and mid-20th-century technology.

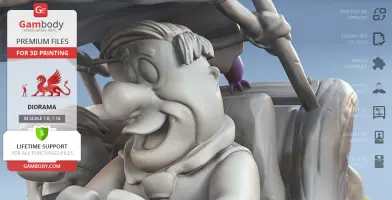

The 3D printing heads of the Flintstones and the Rubbles households are depicted racing Fred’s iconic Canopysaurus vehicle called Flintmobile. The best friends are also accompanied by Dino, the Flintstones' pet dinosaur, who prefers to be seated at the back of the uncomplicated car. The crafty scene for 3D printing is surrounded by tall cacti and there is even a “wooden” road sign for the adventurous characters to find their bearings on the ancient streets of the Bedrock. Who knows, maybe the road sign points directly to your 3D printing collection!

ADAPTATION FOR 3D PRINTING

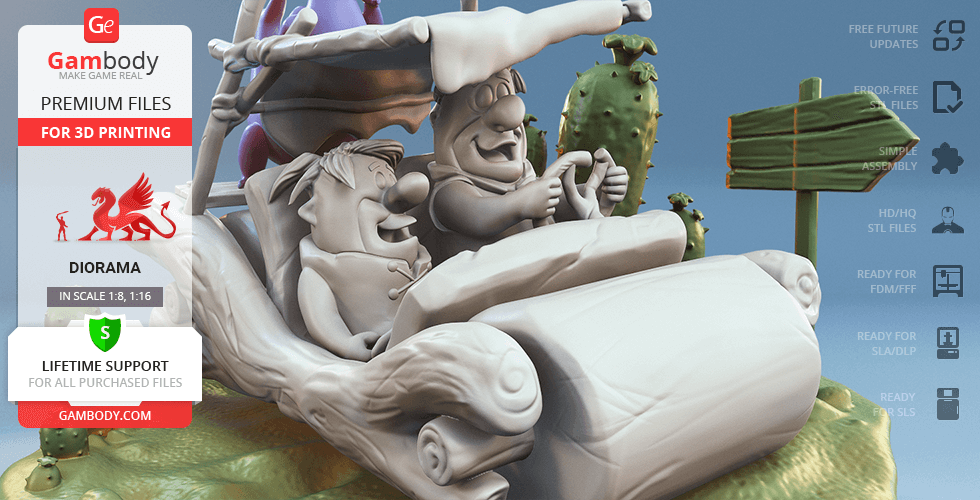

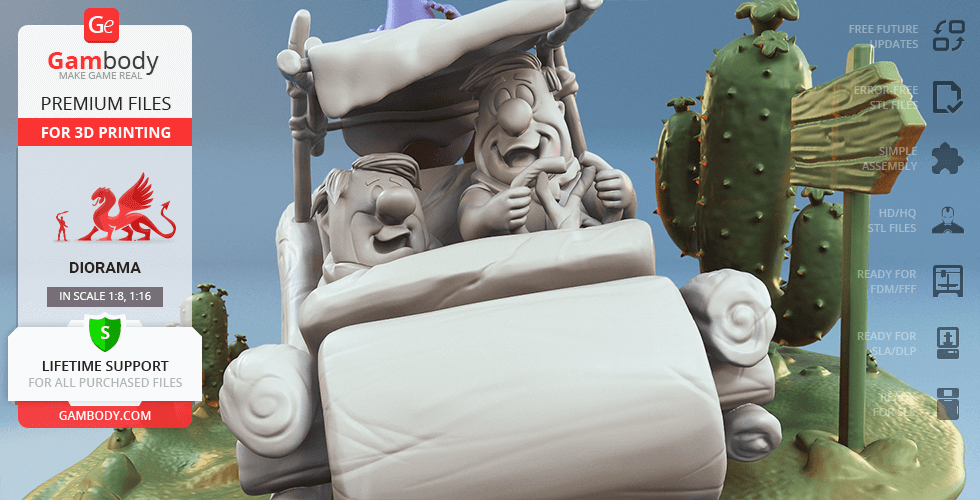

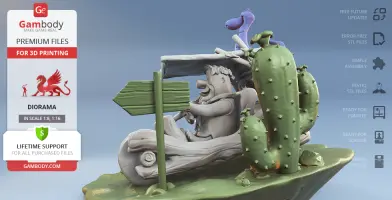

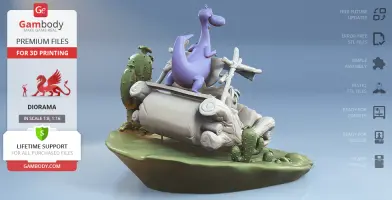

The Flintstones figurines for 3D printing in diorama is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team circa 37 hours. The anatomy and proportions of Fred, Barney and Dino figurines were reviewed during the moderation process for the Stone Age characters to be depicted harmoniously in the intended scene.

The model’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to ensure an excellent quality of the 3D printed result, the diorama was divided into multiple parts, i.e. figurines’ headstorsoshandsfeet, Dino’s tail, Canopysaurus’ steering wheel, wheels, seat, cacti, road sign, etc. are provided as separate parts.

All assembly parts come in STL files of FFF/FDM versions in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners don't face difficulties when placing the parts on a build plate. When downloading any diorama's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from Fred's approximate height which is 1700 mm. The 3D printing model's chosen scale is 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

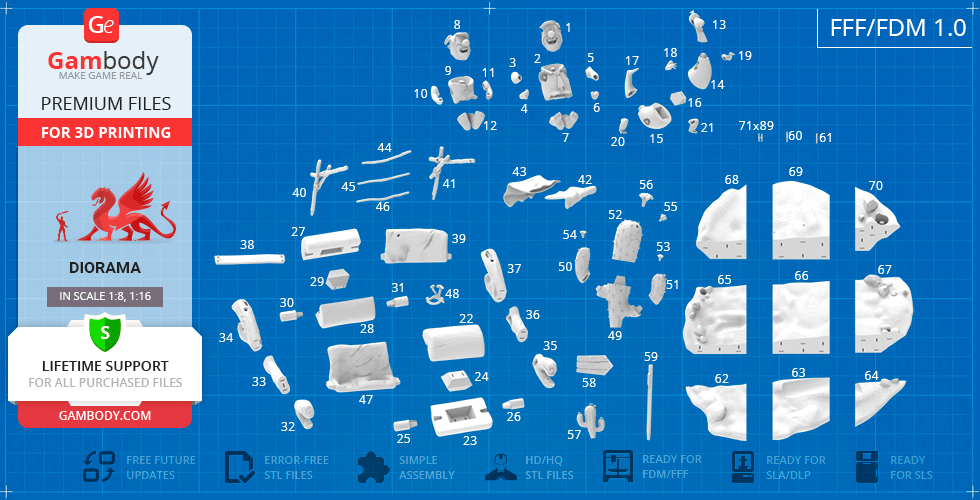

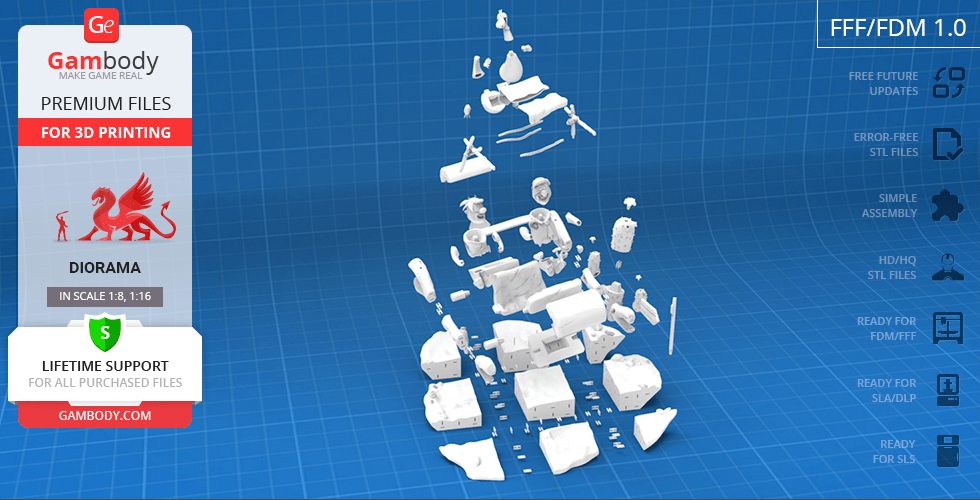

FFF/FDM 1.0 version features:
- Contains 71 parts;
- A printed model is 318 mm tall, 382 mm wide, 450 mm deep​;
- The assembly kit includes lock 71_ge_lock_10H(x89) to attach the model's parts securely without glue that needs to be printed 89 times;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

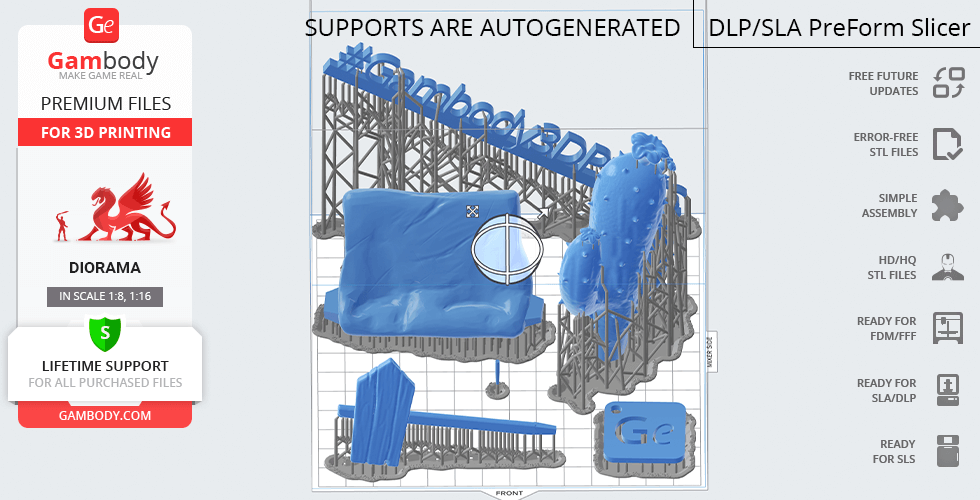

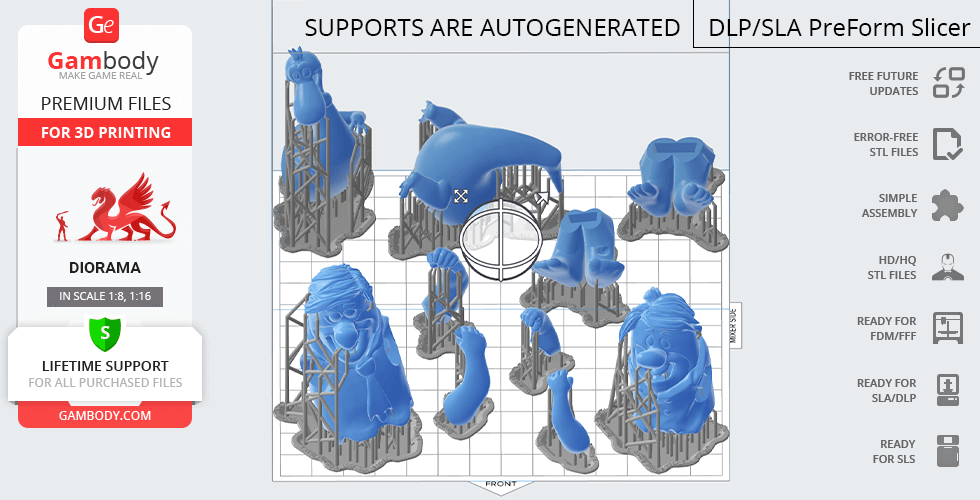

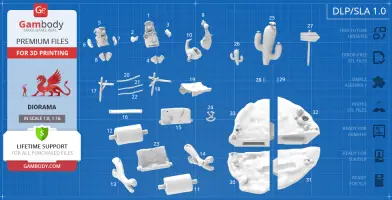

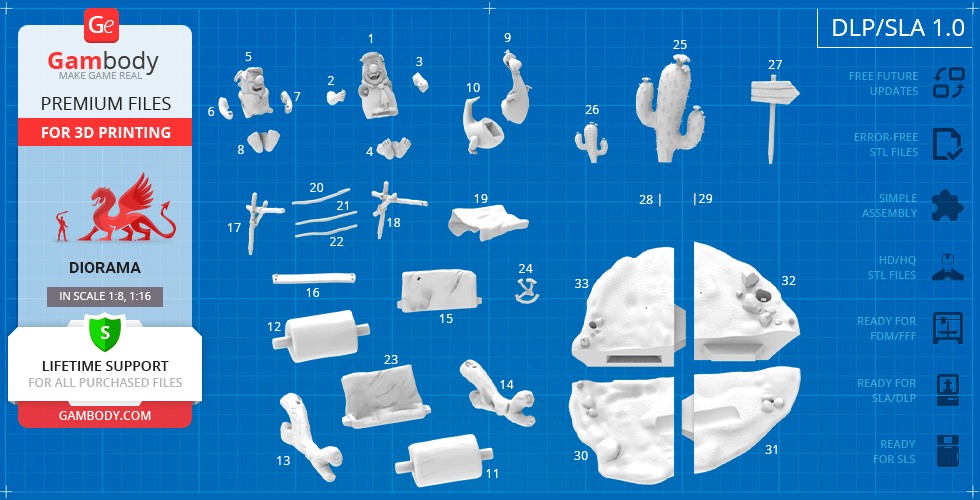

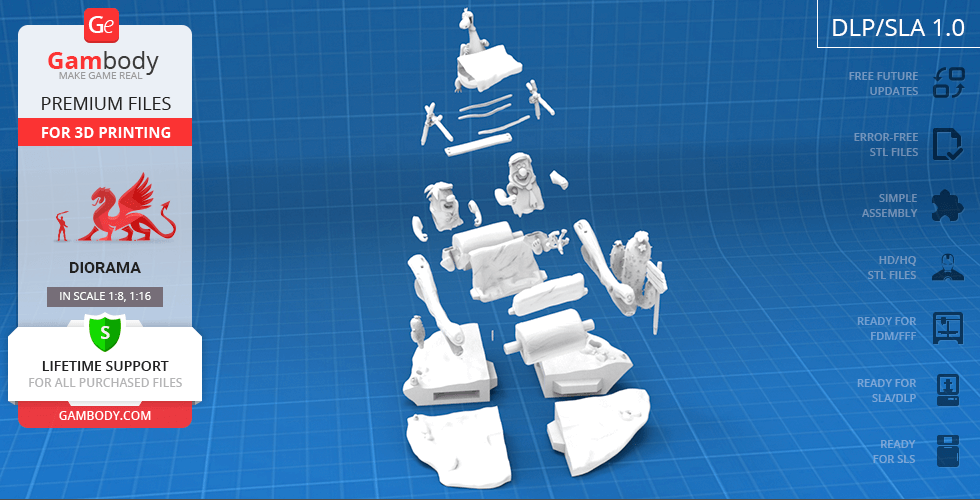

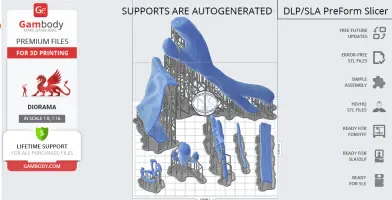

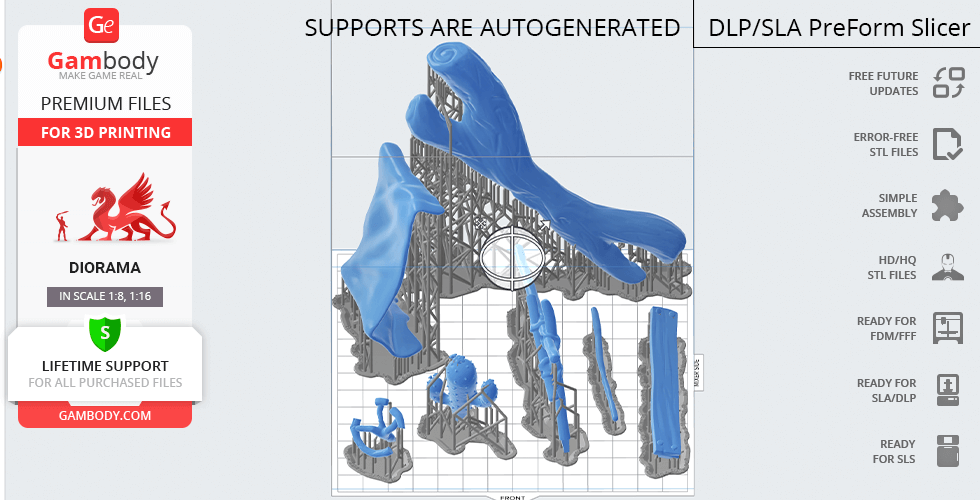

DLP/SLA 1.0 version features:
- Contains 33 parts;
- A printed model is 159 mm tall, 191 mm wide, 225 mm deep;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

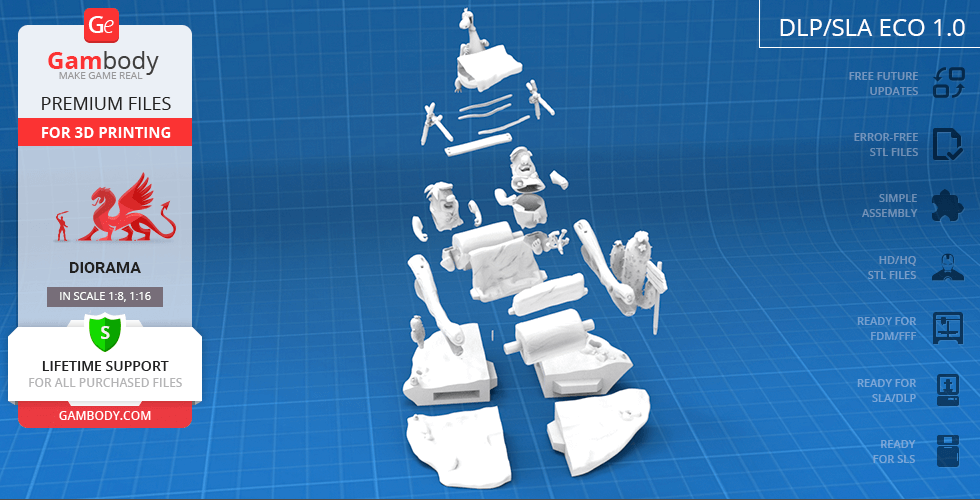

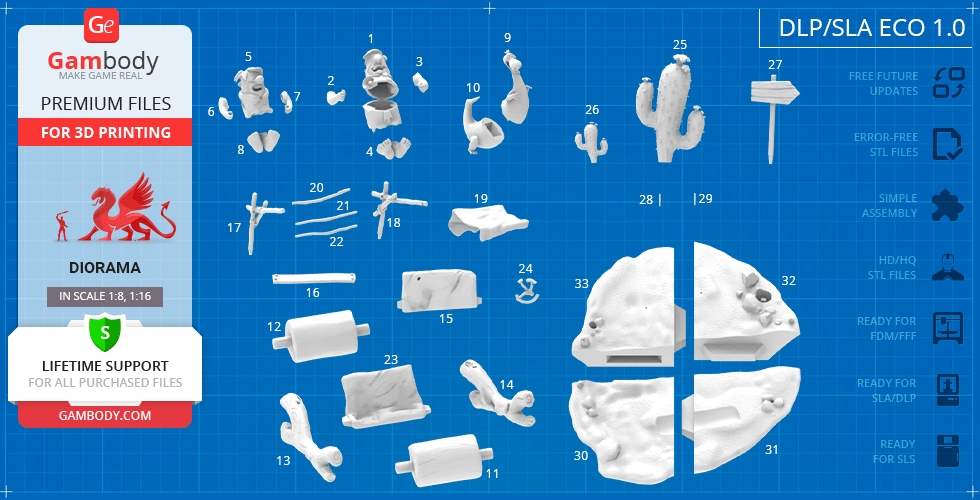

DLP/SLA Eco 1.0 version features:
- Contains 33 parts;
- A printed model is 159 mm tall, 191 mm wide, 225 mm deep;
- Contains some hollowed out parts to save resin.

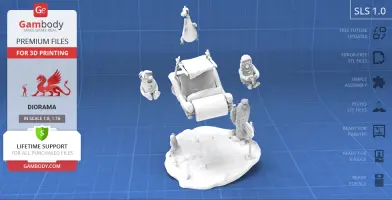

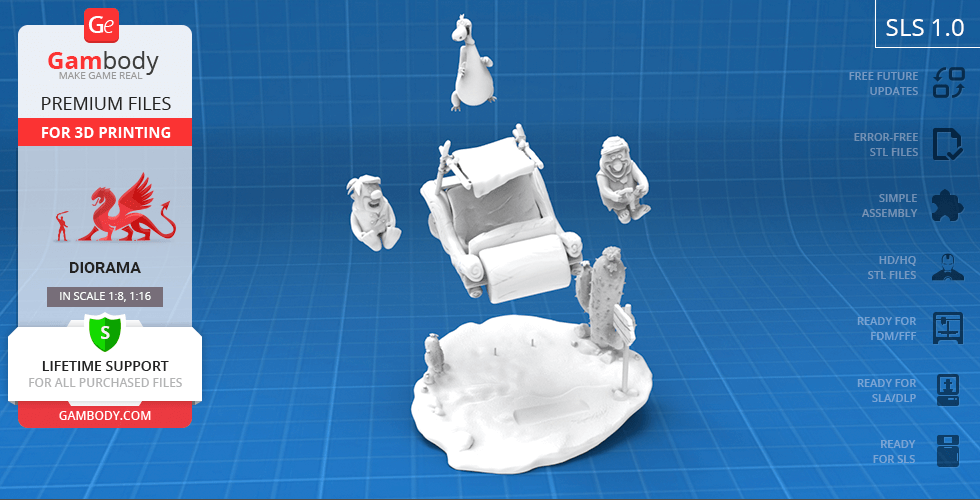

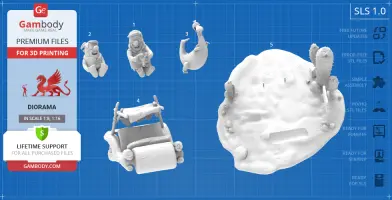

SLS 1.0 version features:
- Contains 5 parts;
- A printed model is 159 mm tall, 191 mm wide, 225 mm deep;
- Made as a solid one-piece Fred, Barney, Dino figurines + a Flintmobile and a solid platform.

You can get the figurines of The Flintstones in Diorama for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble The Flintstones 3D Printing Figurines in Diorama at Gambody YouTube channel.

Also, you may like other Cartoon Models for 3D Printing.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

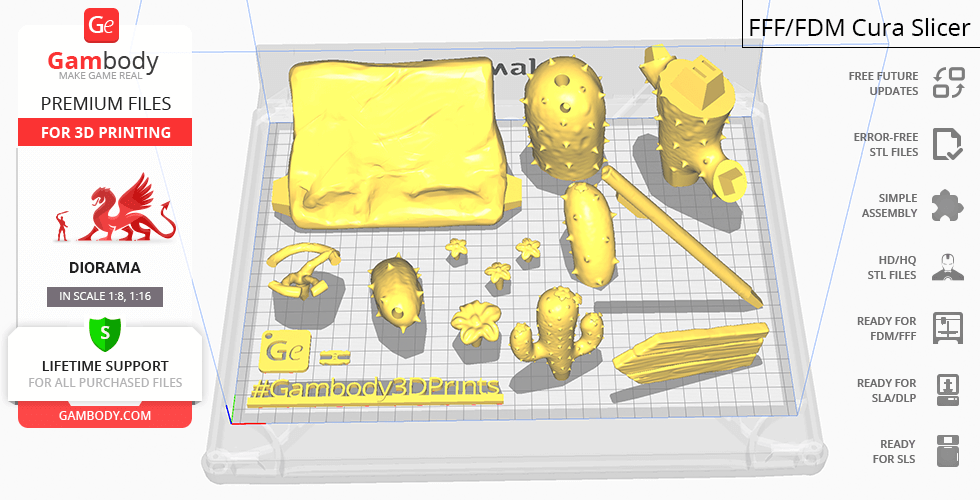

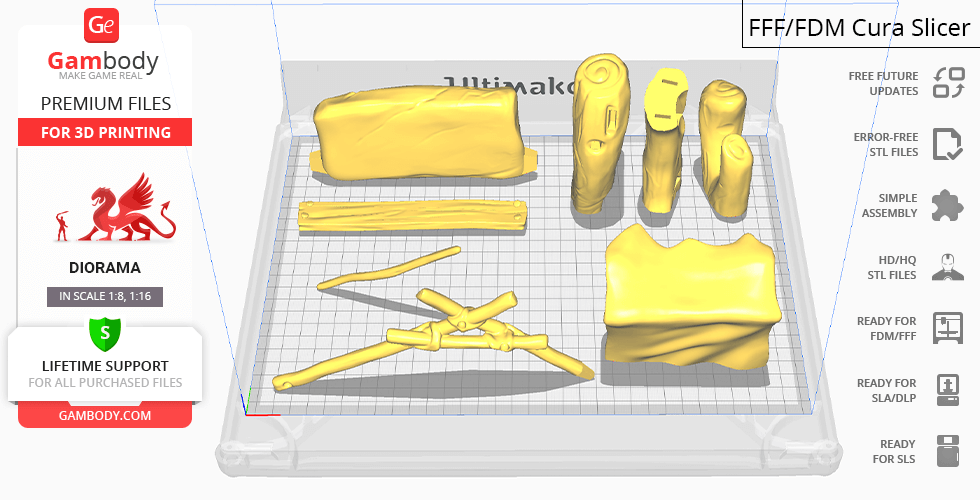

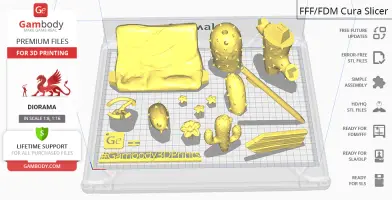

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

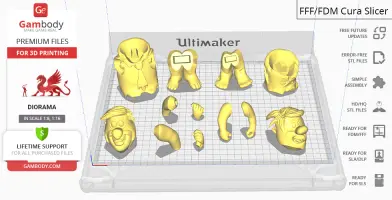

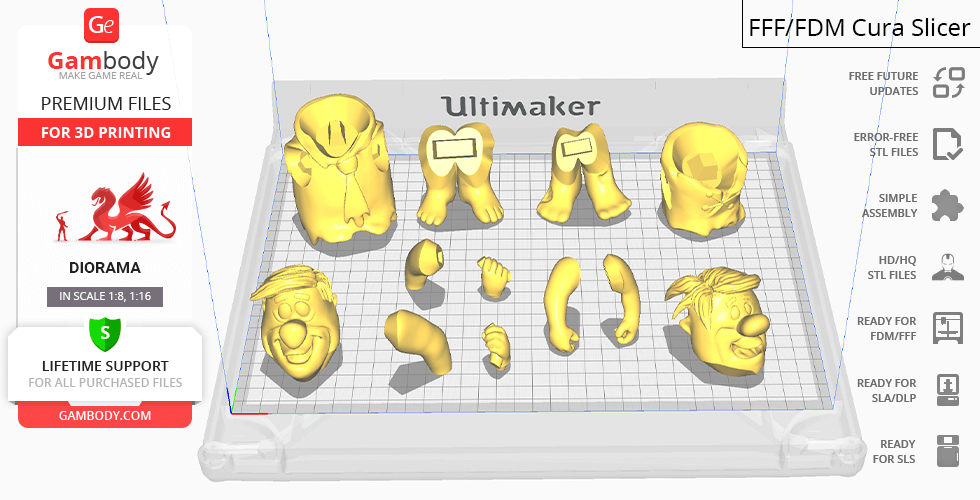

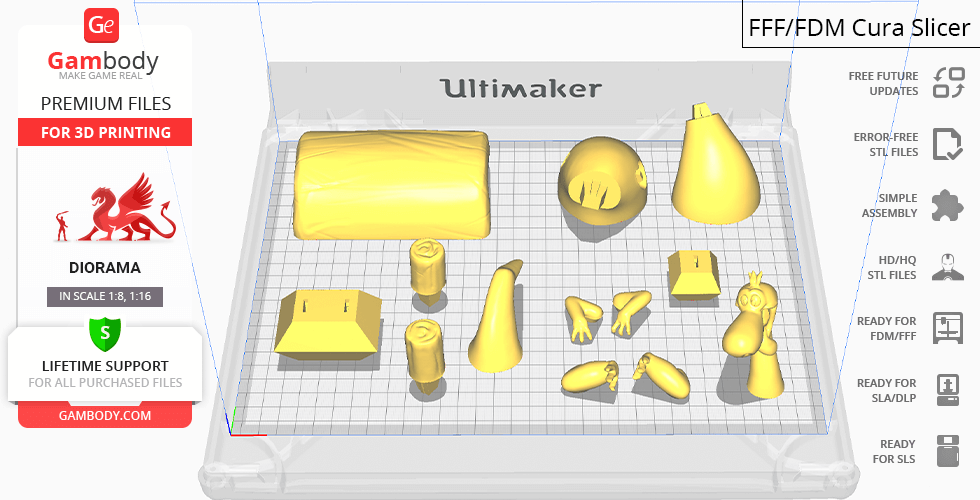

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
