Woody 3D Printing Model | Assembly

(1)
cm: 14.9 w x 13.8 d x 36.4 h
in: 5.866 w x 5.433 d x 14.331 h

Source Files

|

Description

|

Printing Details

This 3D model of Woody consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 2 versions of Woody STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase;
  • STL files of high-poly Woody Model for 3D printing consist of 66 files;
  • Sizes for:
  • FFF/FDM: 364 mm tall, 149 mm wide, 138 mm deep;
  • DLP/SLA: 182 mm tall, 75 mm wide, 69 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

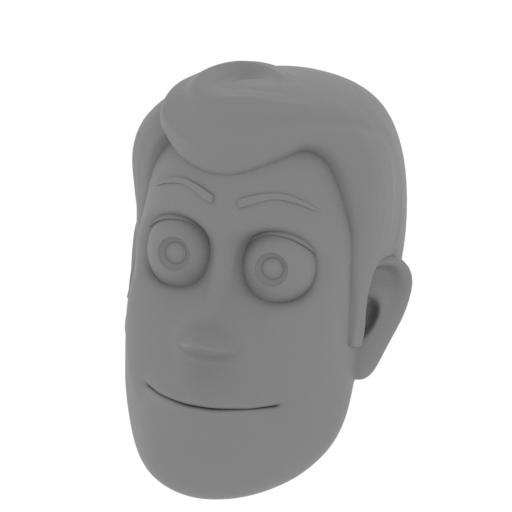

01_head_v1_FDM.stl
16.04 MiB 9 h 38 min 5 m 55 x 70 x 73 Download

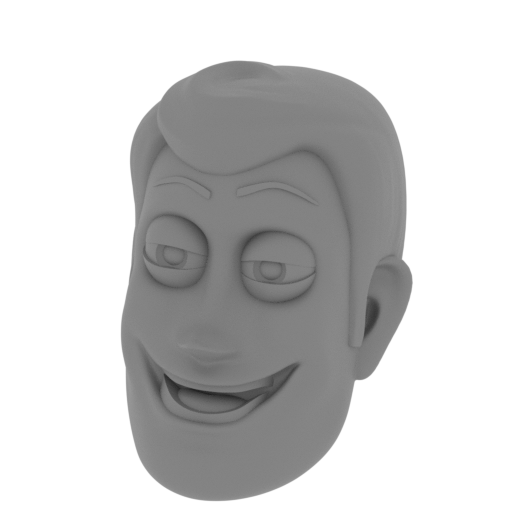

02_head_v2_FDM.stl
15.26 MiB 9 h 46 min 5 m 55 x 69 x 73 Download

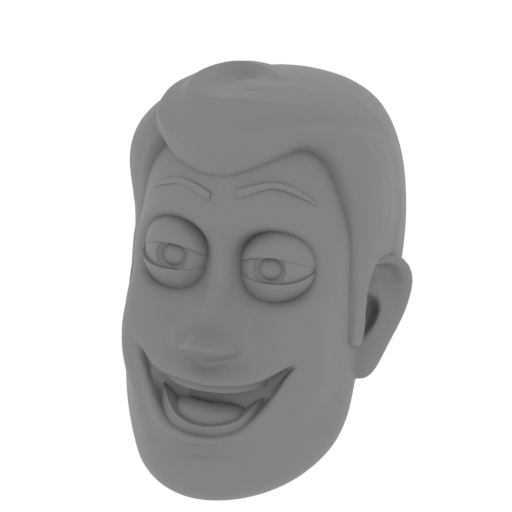

03_head_v3_FDM.stl
15.30 MiB 9 h 46 min 5 m 55 x 69 x 73 Download

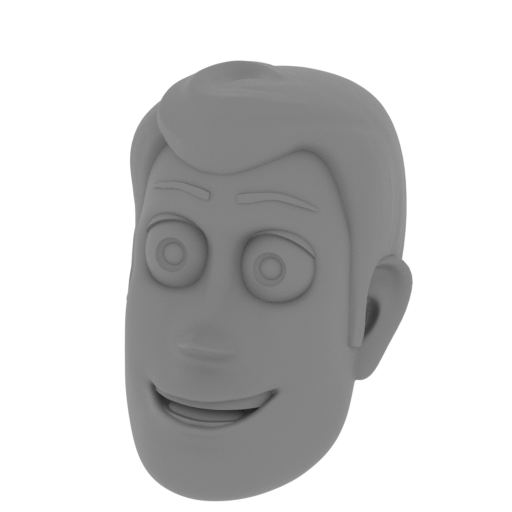

04_head_v4_FDM.stl
15.57 MiB 9 h 34 min 5 m 55 x 70 x 73 Download

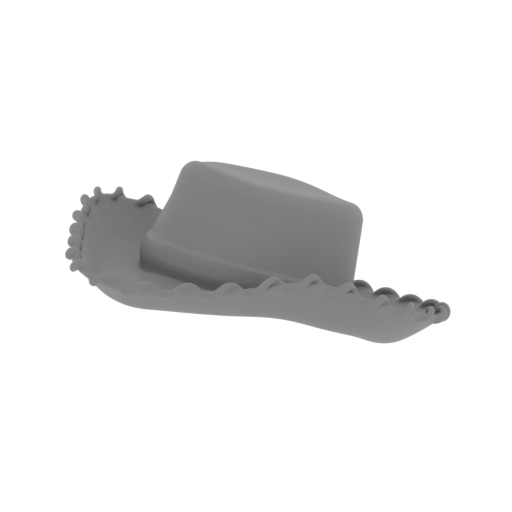

05_hat_FDM.stl
10.47 MiB 14 h 49 min 10 m 101 x 101 x 54 Download

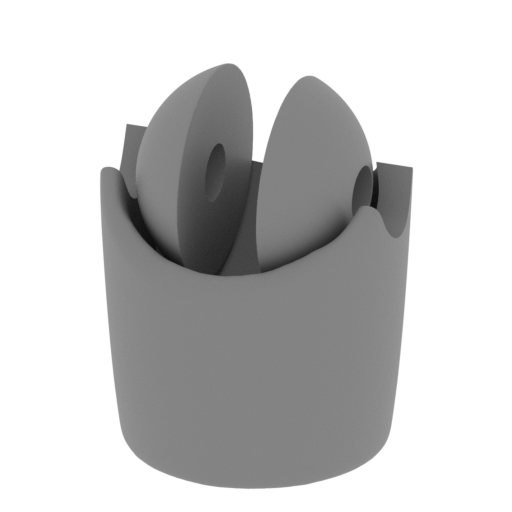

06_body neck.stl
9.68 MiB 1 h 16 min 1 m 25 x 24 x 31 Download

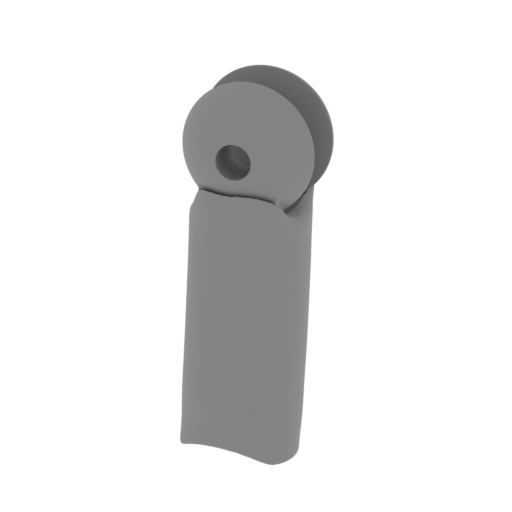

07_shoulder_R_FDM.stl
6.89 MiB 58 min <1 m 15 x 17 x 43 Download

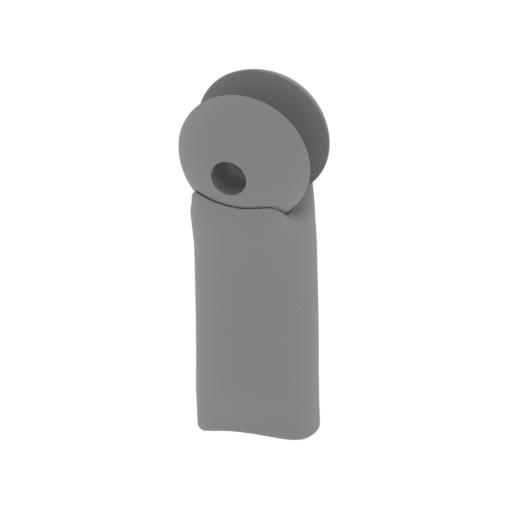

08_shoulder_L_FDM.stl
6.89 MiB 58 min <1 m 15 x 17 x 43 Download

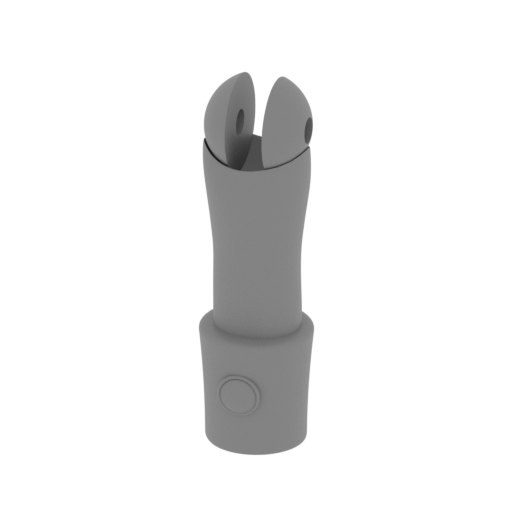

09_arm_R_FDM.stl
10.79 MiB 1 h 36 min 1 m 17 x 18 x 59 Download

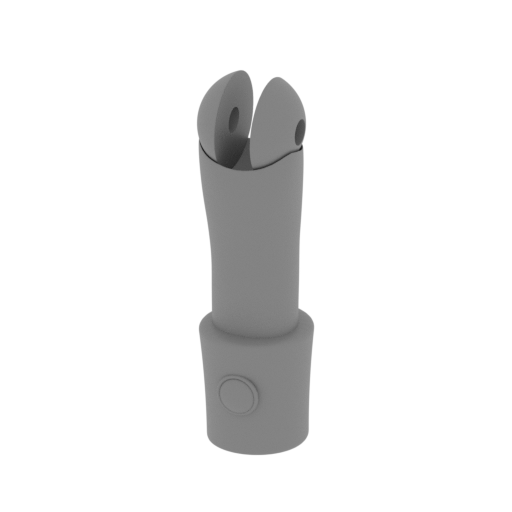

10_arm_L.stl
10.79 MiB 1 h 35 min 1 m 17 x 18 x 59 Download

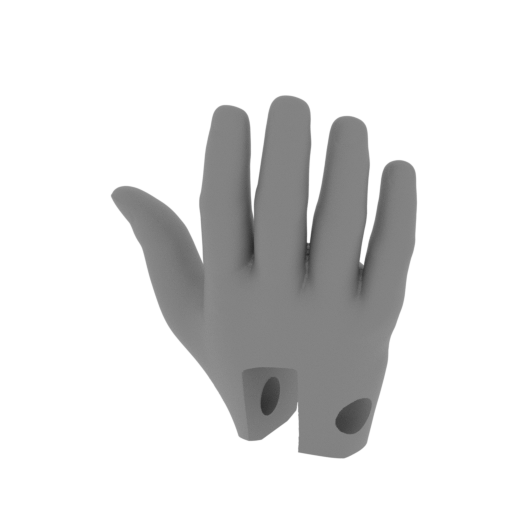

11_hand_R_FDM.stl
10.86 MiB 52 min <1 m 35 x 15 x 41 Download

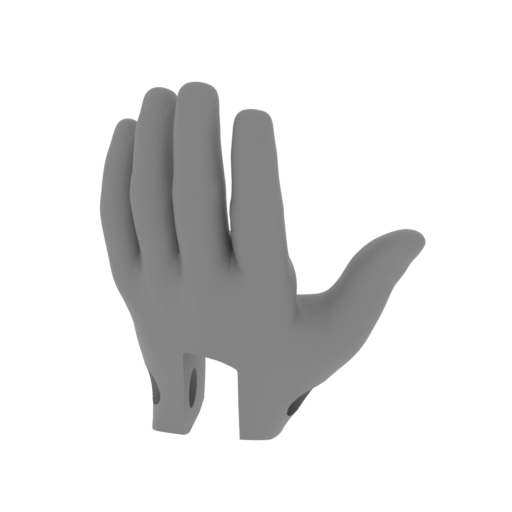

12_hand_L_FDM.stl
10.86 MiB 52 min <1 m 35 x 15 x 41 Download

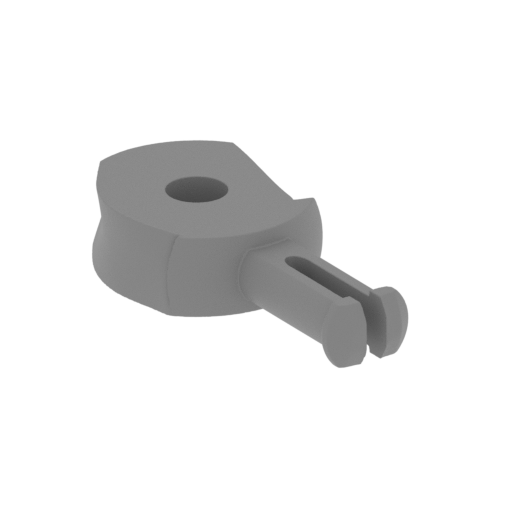

13_hand_connector_R_FDM.s tl
8.57 MiB 12 min <1 m 25 x 22 x 6 Download

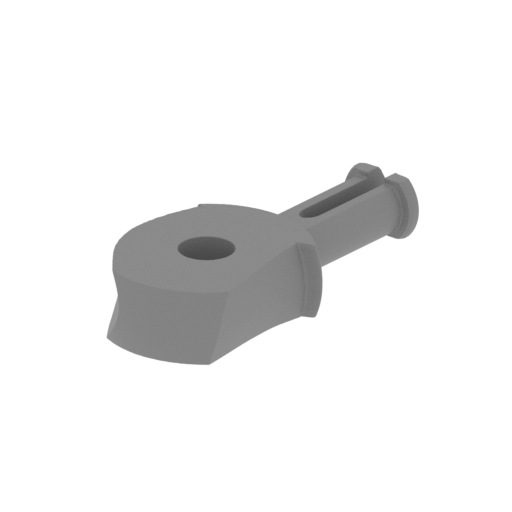

14_hand_connector_L_FDM.s tl
8.57 MiB 12 min <1 m 16 x 28 x 6 Download

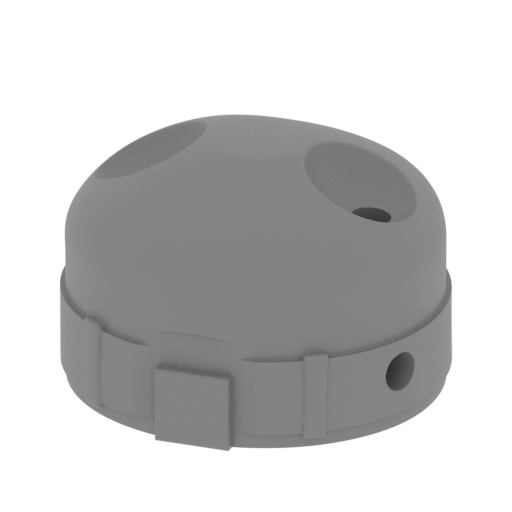

15_pelvis_FDM.stl
30.96 MiB 3 h 28 min 2 m 47 x 45 x 31 Download

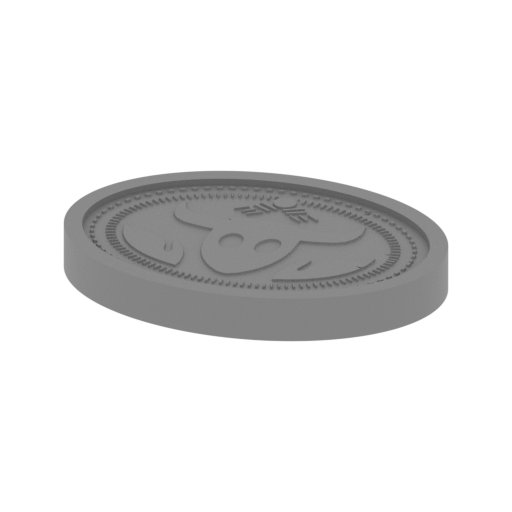

16_belt plate_FDM.stl
5.08 MiB 10 min <1 m 22 x 17 x 3 Download

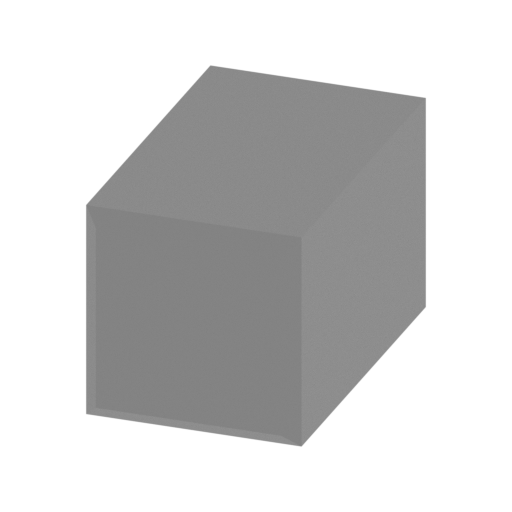

17_pelvis_pin_FDM.stl
0.01 MiB 9 min <1 m 8 x 13 x 8 Download

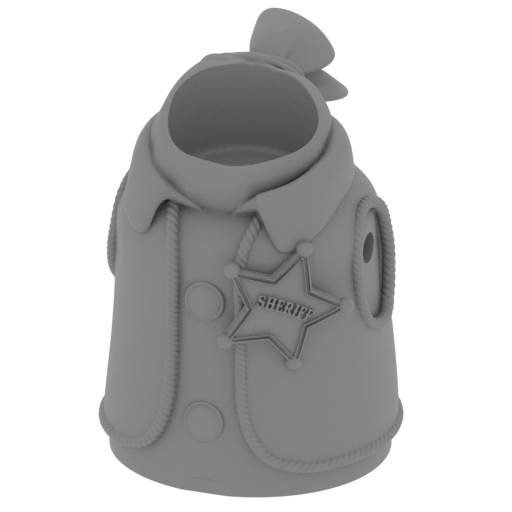

18_body_FDM.stl
36.21 MiB 8 h 12 min 4 m 49 x 55 x 63 Download

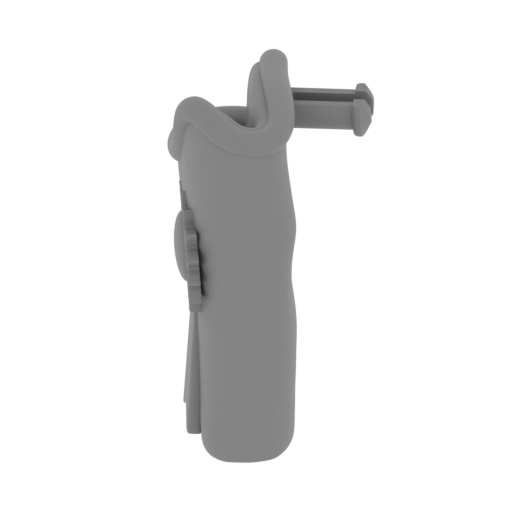

19_holster_FDM.stl
6.31 MiB 1 h 43 min 1 m 24 x 25 x 46 Download

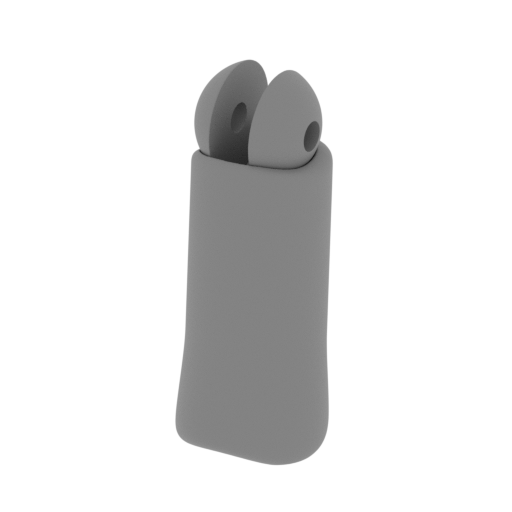

20_leg upper R_FDM.stl
7.93 MiB 1 h 33 min 1 m 20 x 23 x 51 Download

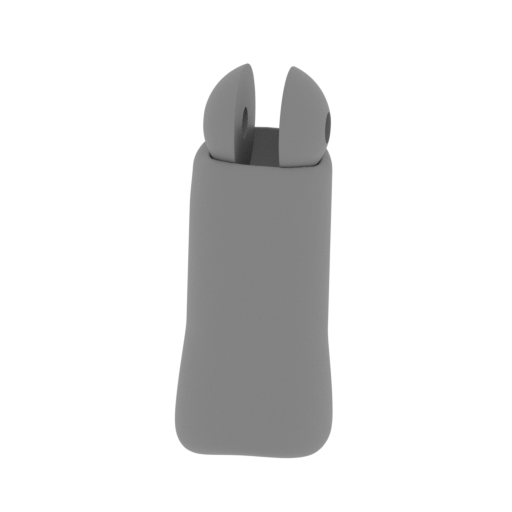

21_leg upper L_FDM.stl
7.93 MiB 1 h 34 min 1 m 20 x 23 x 51 Download

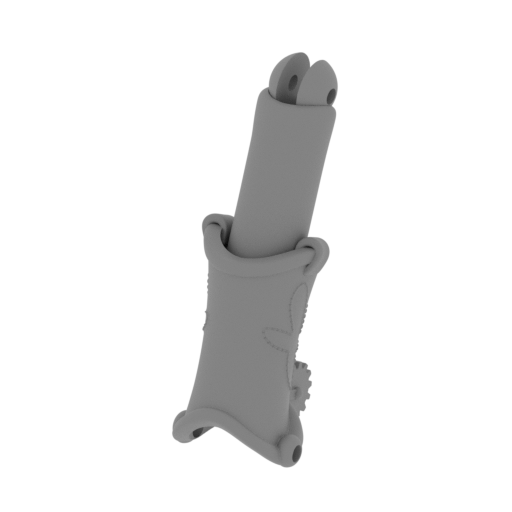

22_leg lower_R_FDM.stl
28.85 MiB 5 h 12 min 3 m 35 x 46 x 94 Download

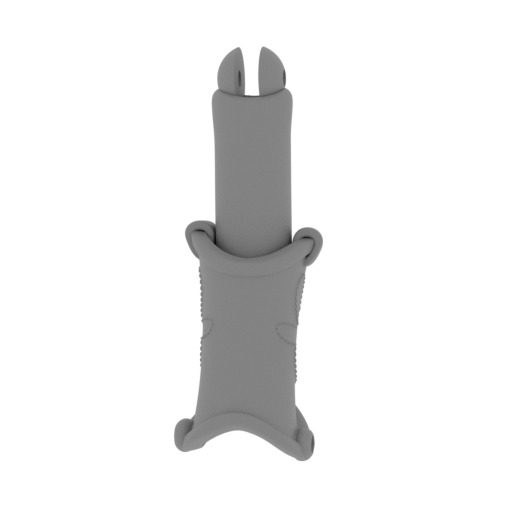

23_leg lower_L_FDM.stl
28.85 MiB 5 h 11 min 3 m 35 x 46 x 94 Download

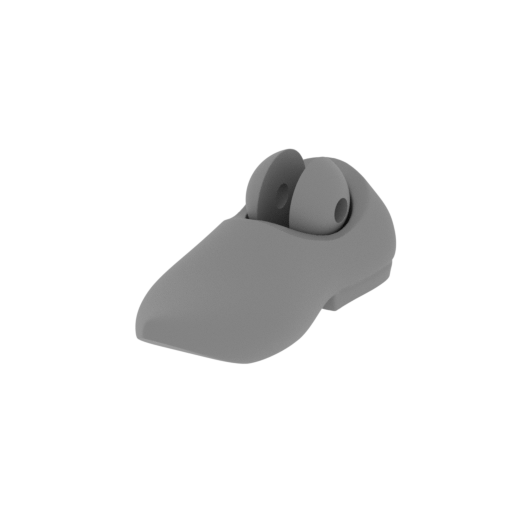

24_foot_R_FDM.stl
5.93 MiB 1 h 55 min 1 m 30 x 62 x 22 Download

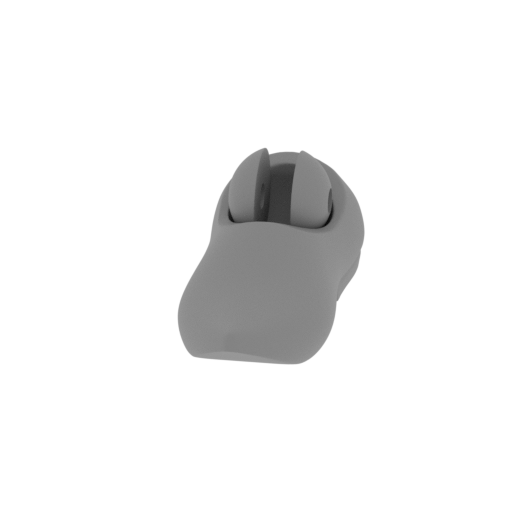

25_foot_L_FDM.stl
5.93 MiB 1 h 55 min 1 m 30 x 62 x 22 Download

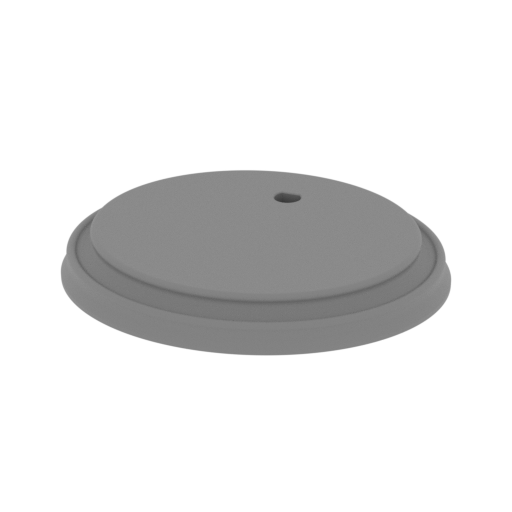

26_stand_FDM.stl
9.54 MiB 19 h 47 min 11 m 149 x 138 x 20 Download

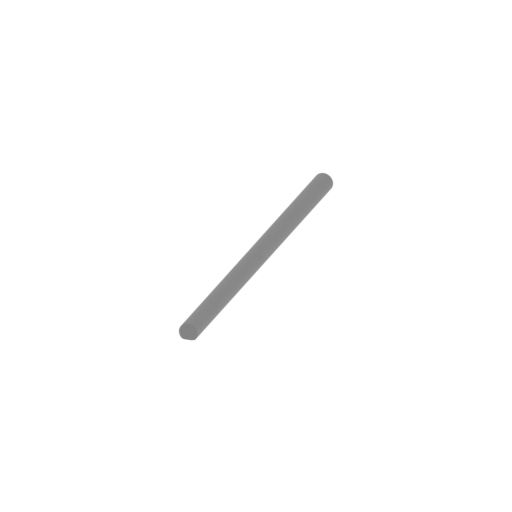

27_standPin_FDM.stl
0.58 MiB 1 h 44 min 1 m 10 x 198 x 9 Download

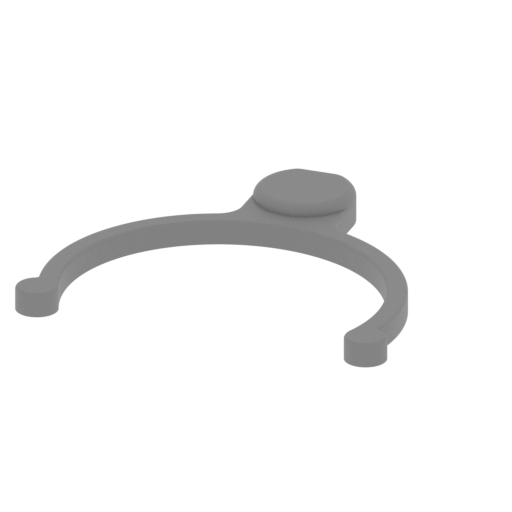

28_stand_holder_FDM.stl
1.21 MiB 25 min <1 m 54 x 49 x 5 Download

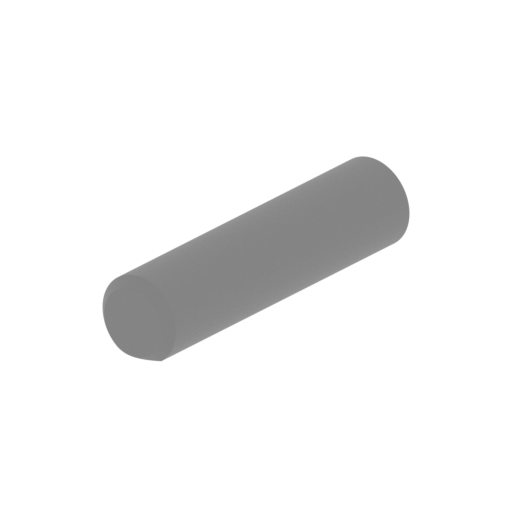

29_pin_1_x11_FDM.stl
0.07 MiB 4 min <1 m 9 x 16 x 4 Download
30_pin_2_FDM.stl
0.08 MiB 5 min <1 m 19 x 5 x 4 Download

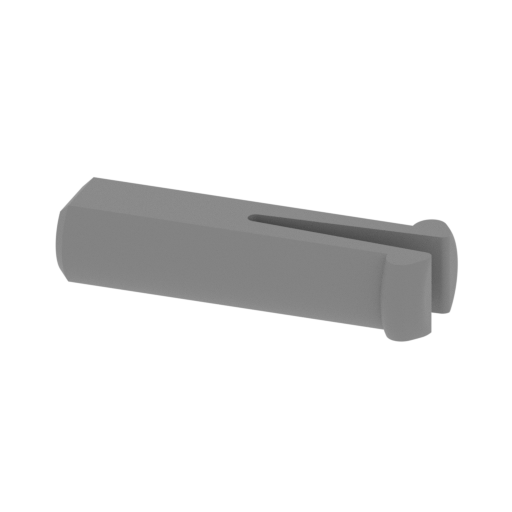

31_pin_3_FDM.stl
0.18 MiB 5 min <1 m 19 x 7 x 4 Download

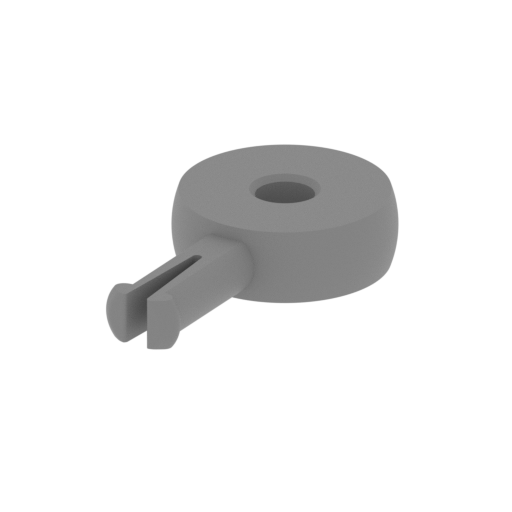

32_connector_1_x11_FDM.st l
0.44 MiB 13 min <1 m 16 x 28 x 6 Download

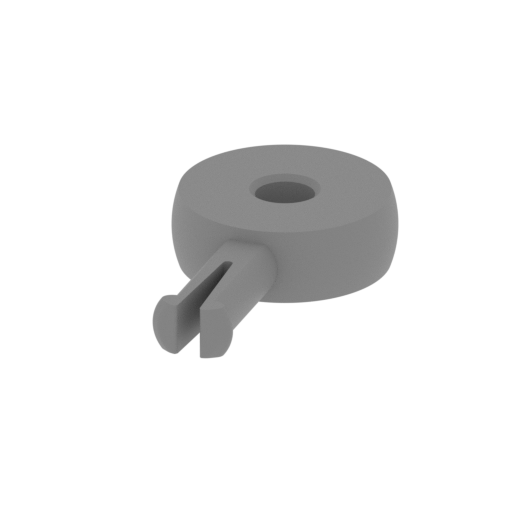

33_connector_2_FDM.stl
0.50 MiB 18 min <1 m 19 x 33 x 6 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D MODEL

The Toy Story is an iconic franchise that centers on a story of toys that, without humans knowing, are secretly living beings. The first entirely computer-animated film impresses not only with its technical innovation but also with a touching story of the main characters. Cowboy doll Woody, the favorite toy of Andy, is smart and passionate, he is a leader among the other toys in the room. But the birthday gift to Andy, a new superhero toy Buzz Lightyear, that is admired by everyone, makes Woody feel jealous and rejected. Together Woody and Buzz get into an adventure where they have to learn to help each other, support and work as a team, and, finally, become friends.

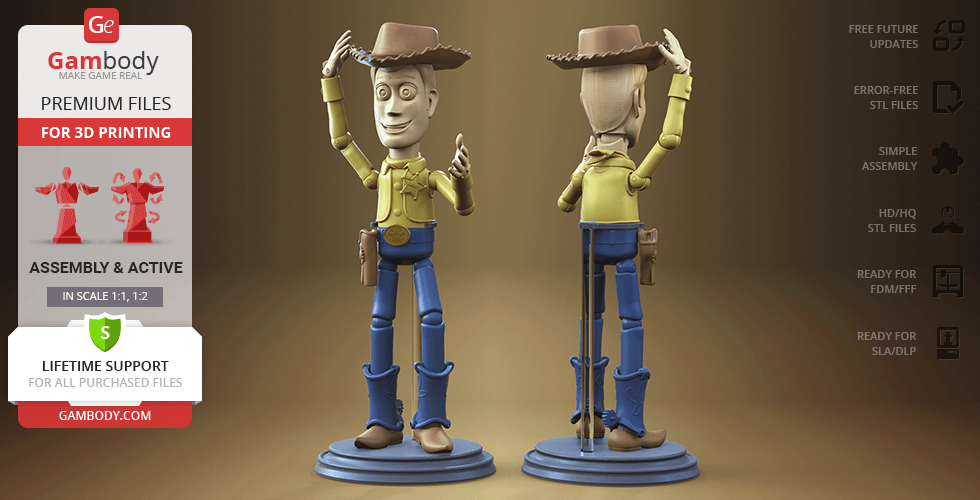

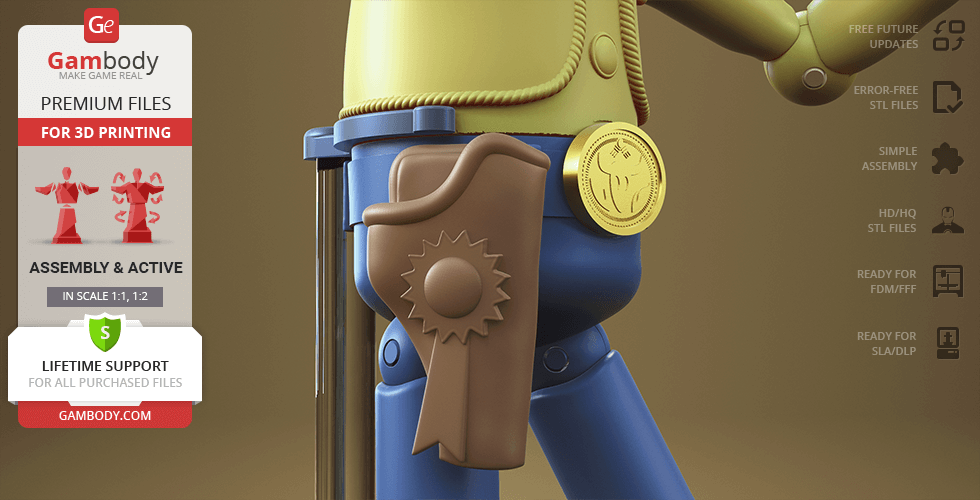

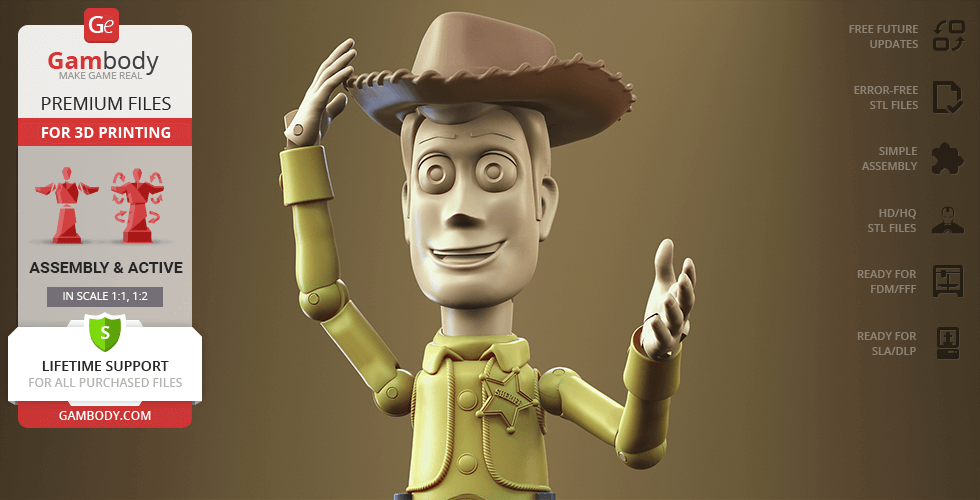

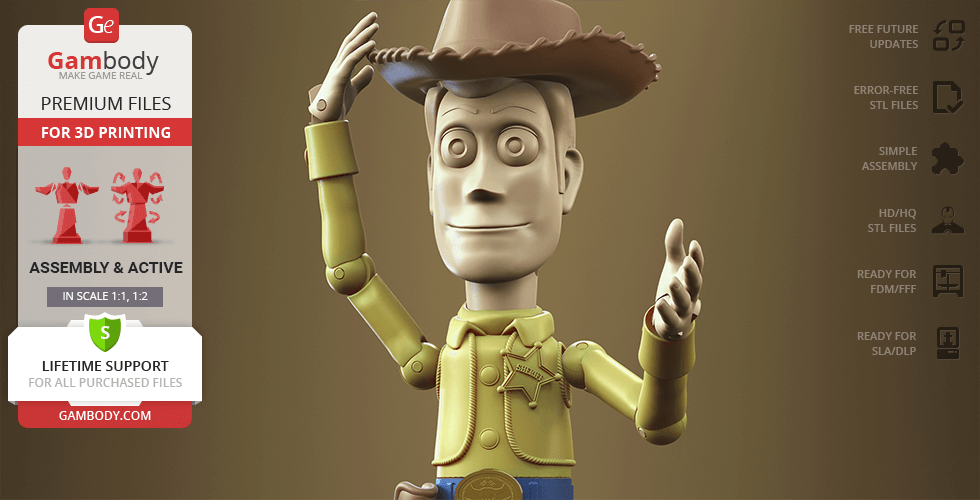

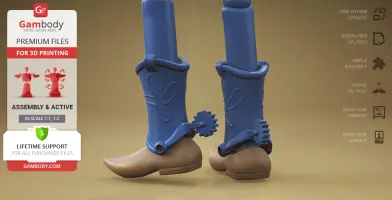

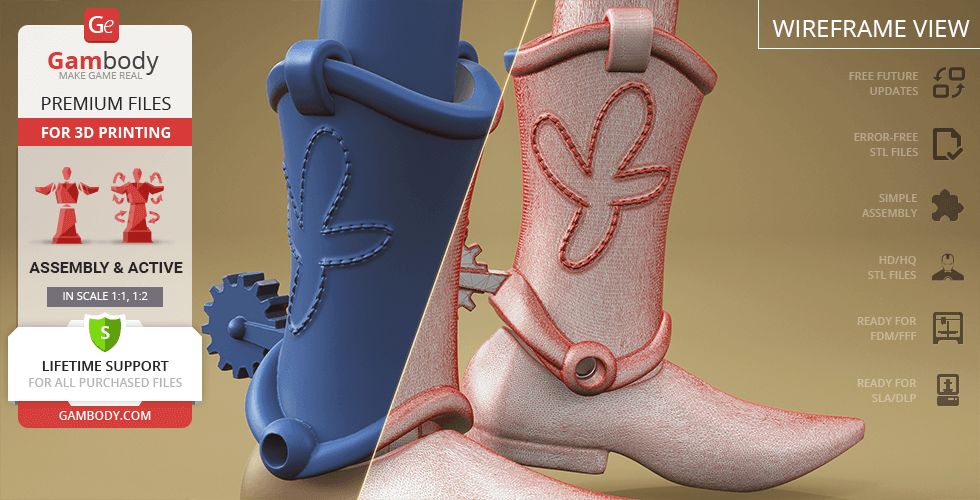

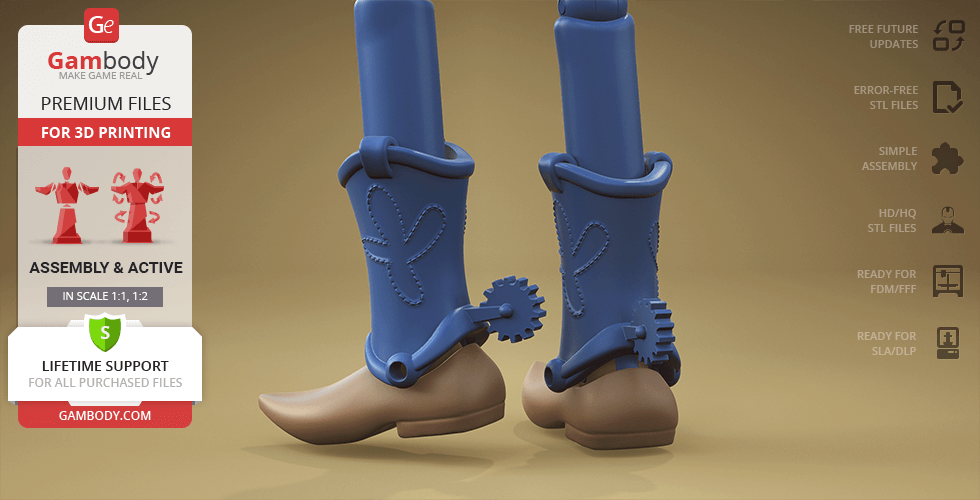

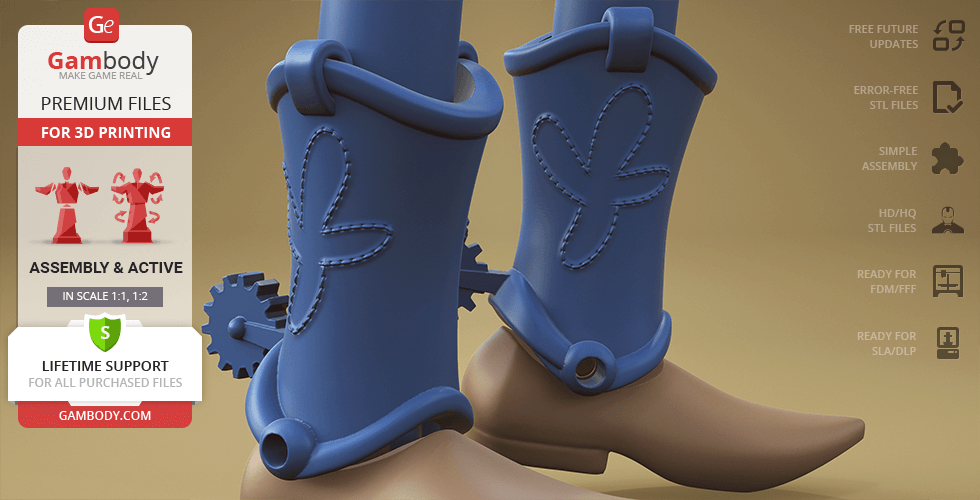

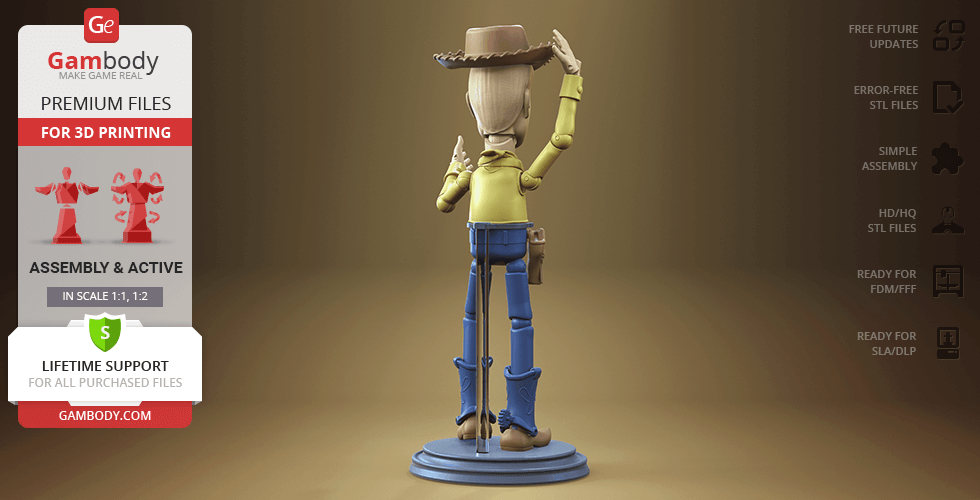

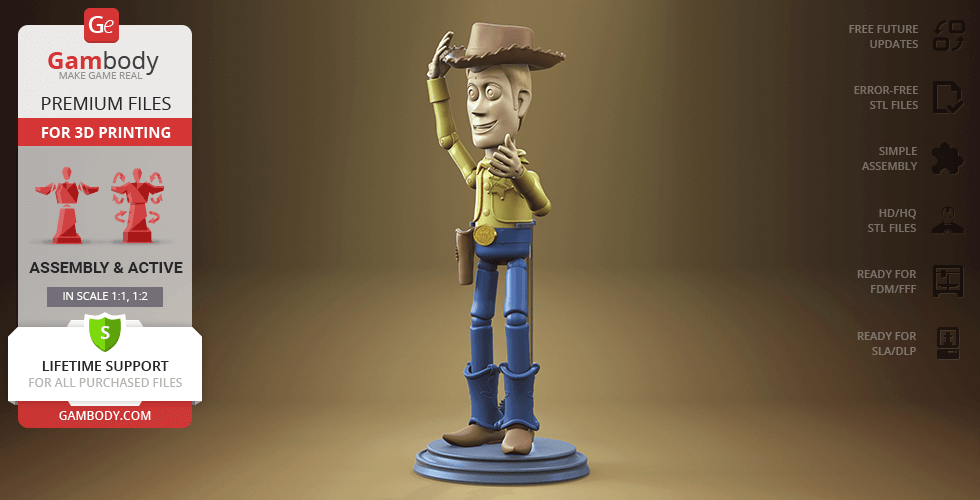

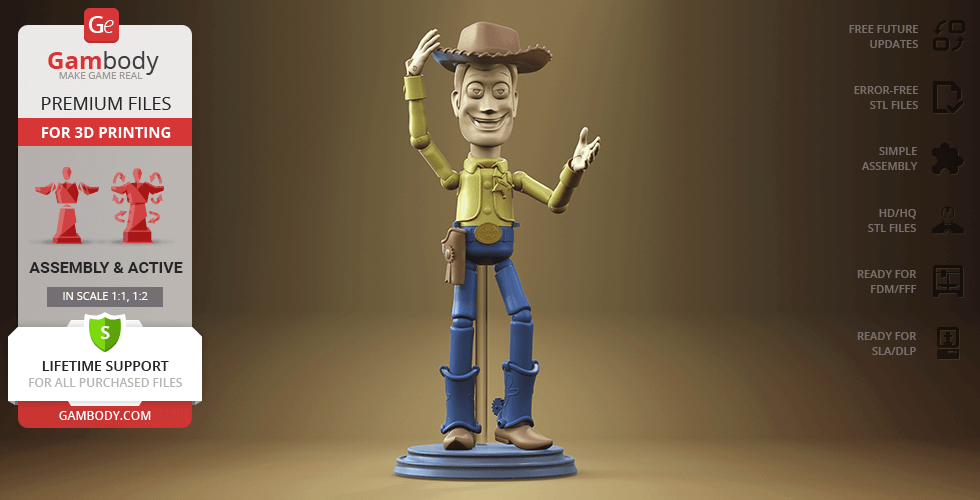

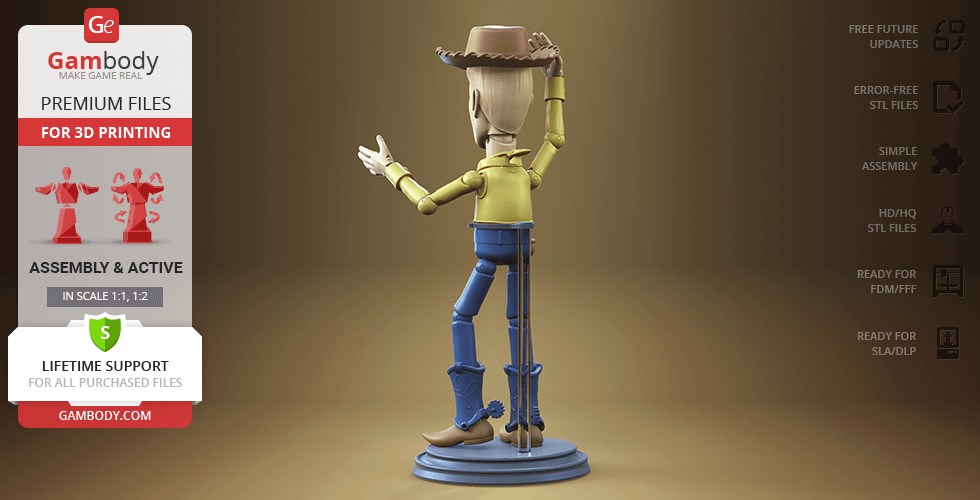

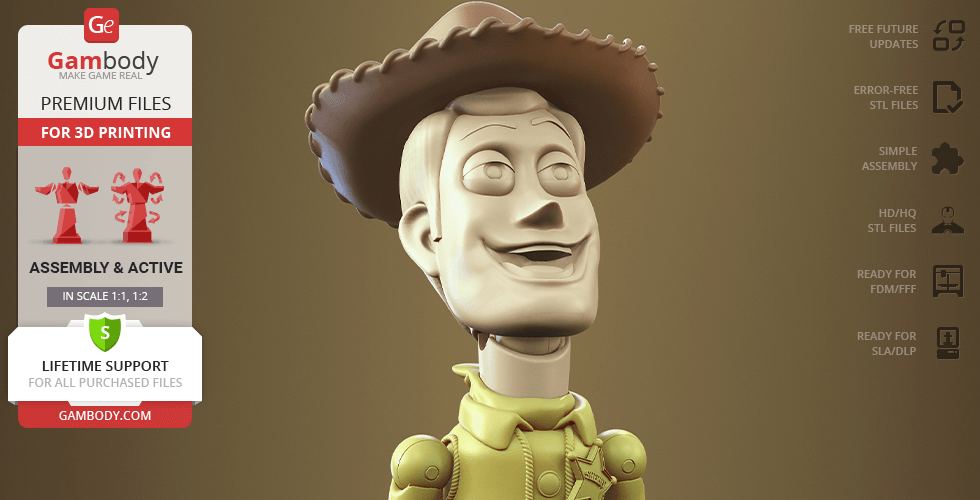

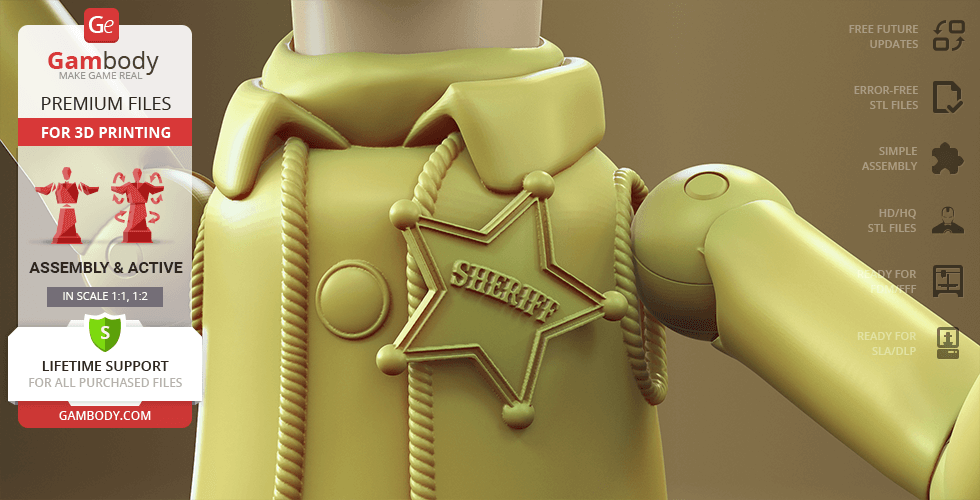

The vintage pull-string cowboy toy with a discerning eye inspired our dedicated 3D artist to develop the design of this great model for 3D printing. Woody is depicted in his cowboy costume: a shirt and a vest with a sheriff badge on it; a holster and a buckle attached to the belt, and, of course, cowboy boots and hat. The head of the model is very recognizable for its oblong shape and big round eyes, alternative versions of the head with various facial expressions are available for Woody 3D printing model. In addition to its bright appearance, the model has a large number of articulated parts. Don’t wait and start printing one of the most famous characters in the history of animated films now!

ADAPTATION FOR 3D PRINTING

The Woody model for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 52 hours in total.

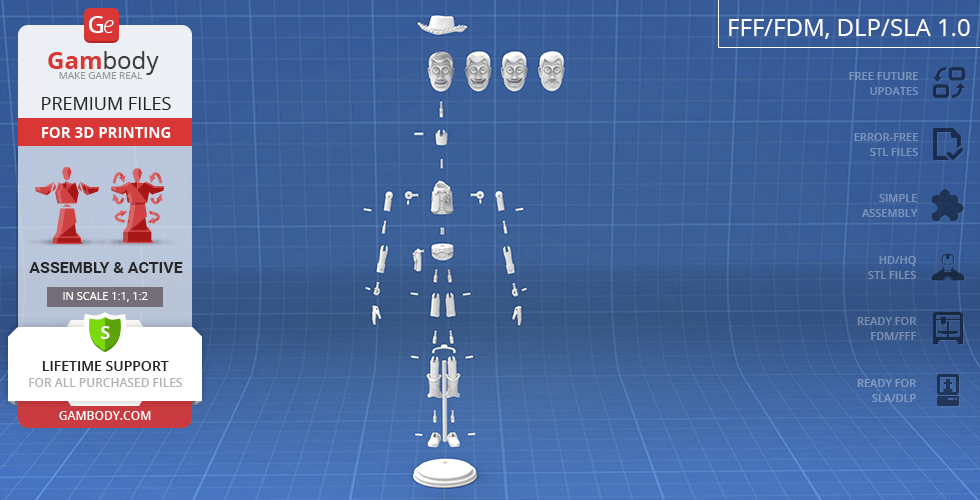

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the doll was divided into convenient assembly parts.

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Woody 3D printing model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

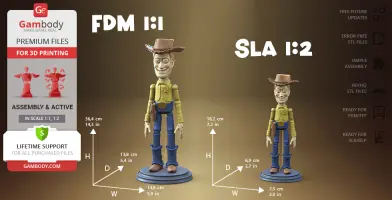

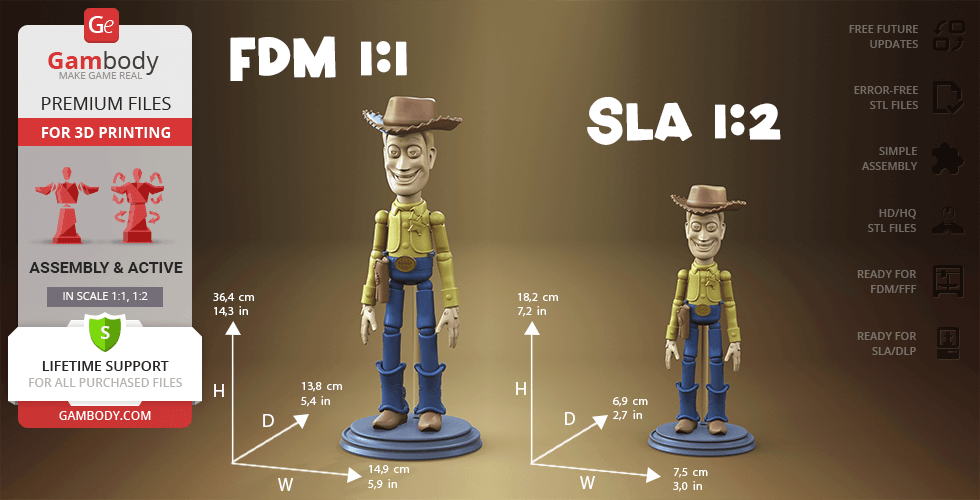

The model’s scale was calculated from the height of the Woody. The 3D printing model’s chosen scales are 1:1 for the FFF/FDM version and 1:2 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

FFF/FDM 1.0 version features:

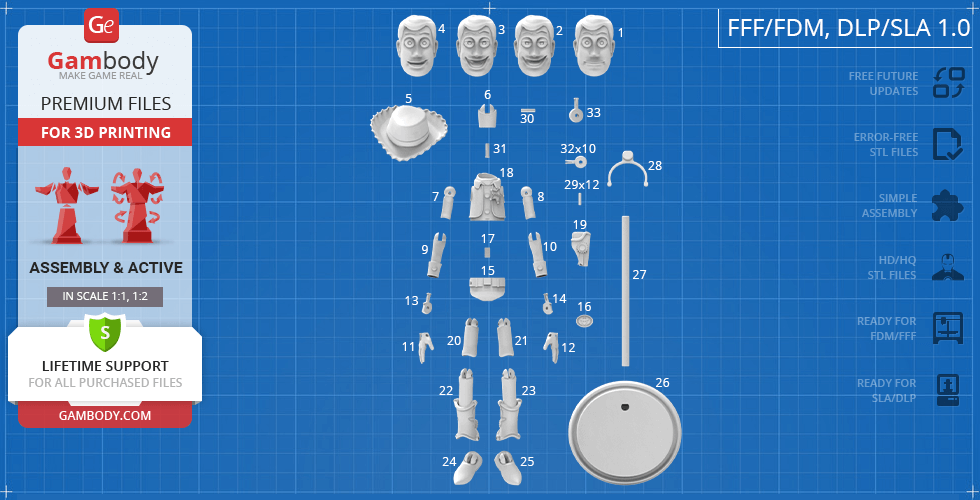

  • Contains 33 parts;
  • A printed model is 364 mm tall, 149 mm wide, 138 mm deep;

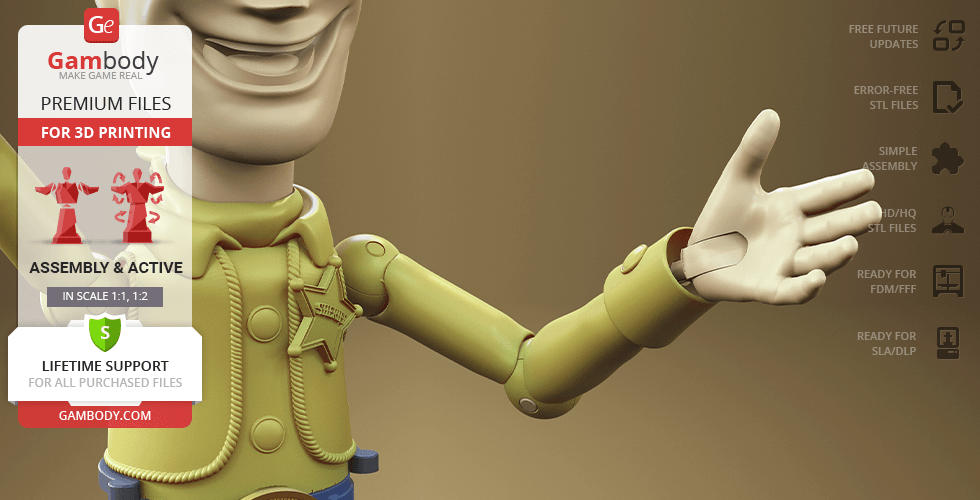

  • Active joints in shoulders, elbows, and wrists;

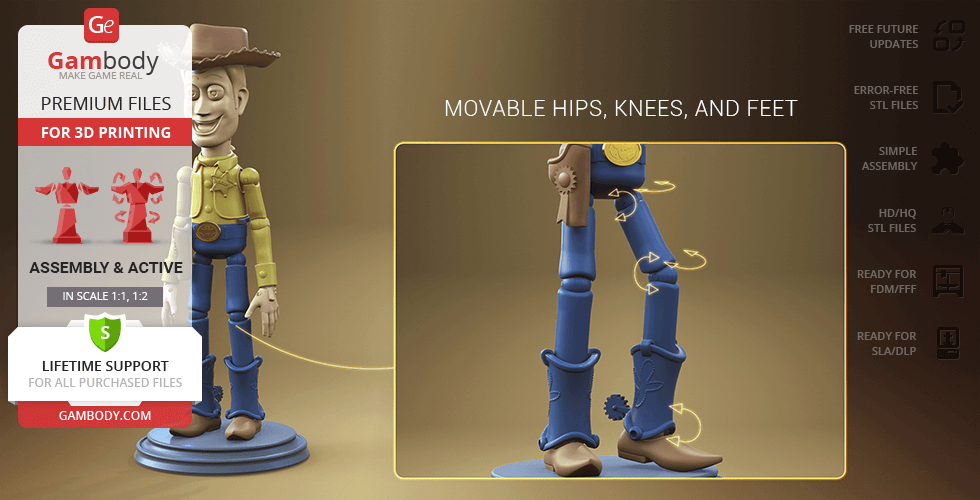

  • Movable hips, knees, and feet;

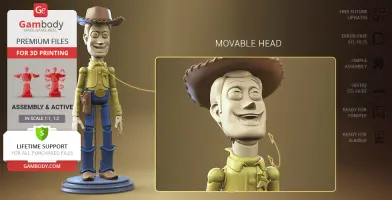

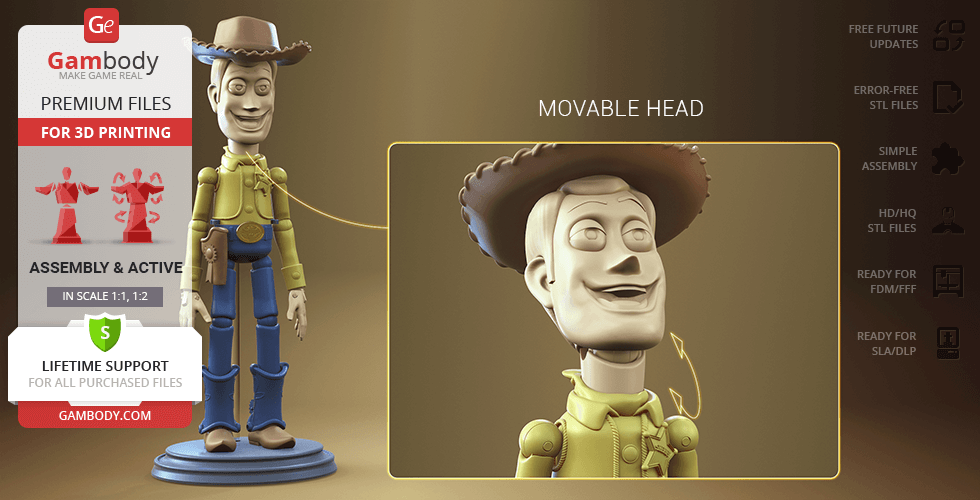

  • Movable head;

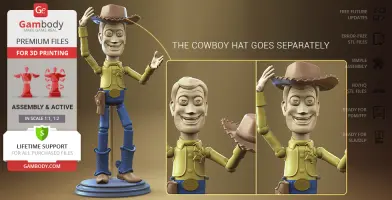

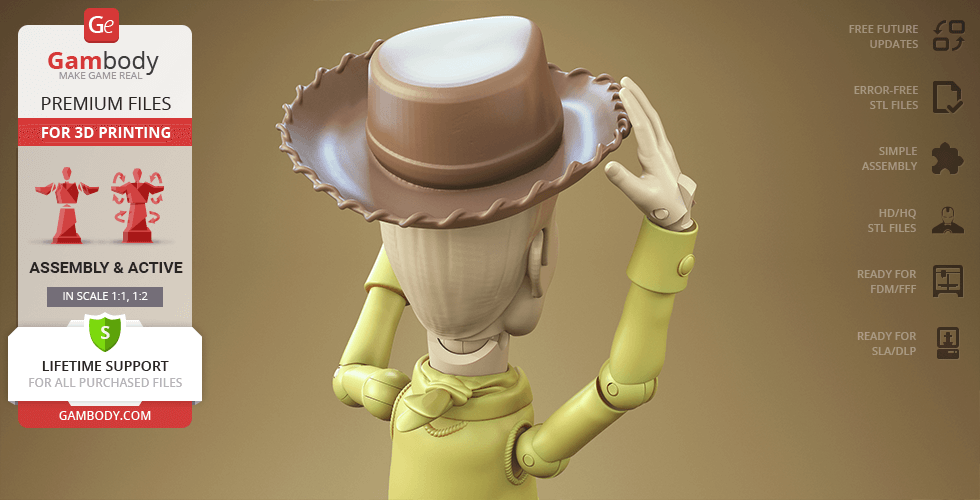

  • The cowboy hat goes separately;

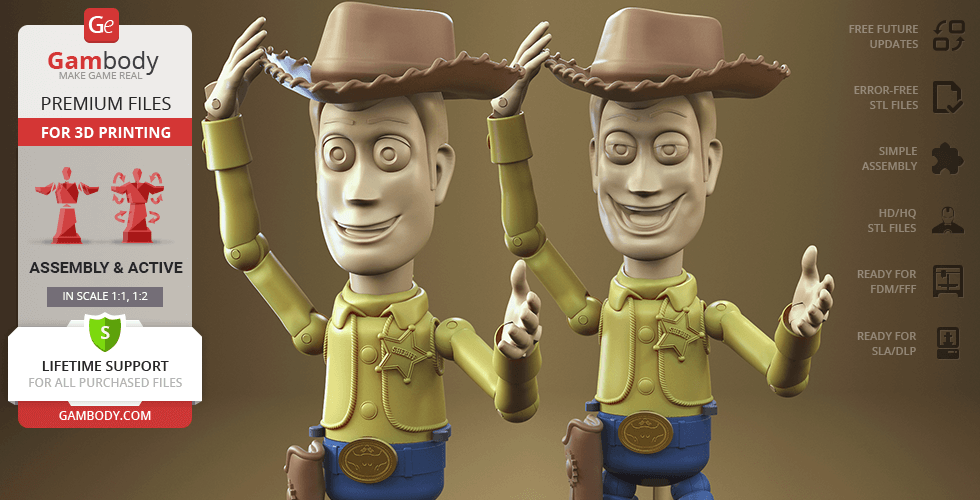

  • 4 variants of the head with optional facial expressions;
  • A stand to fix the model;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA 1.0 version features:

  • Contains 33 parts;
  • A printed model is 182 mm tall, 75 mm wide, 69 mm deep;
  • Active joints in shoulders, elbows, and wrists;
  • Movable hips, knees, and feet;
  • Movable head;
  • The cowboy hat goes separately;
  • 4 variants of the head with optional facial expressions;
  • A stand to fix the model;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the Woody model for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble a Woody 3D Printing Model on Gambody YouTube channel.

Also, you may like Buzz Lightyear 3D Printing Model and other Cartoon 3D Printing Models.

________

FAQ

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

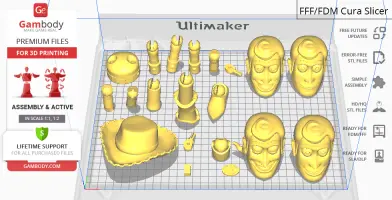

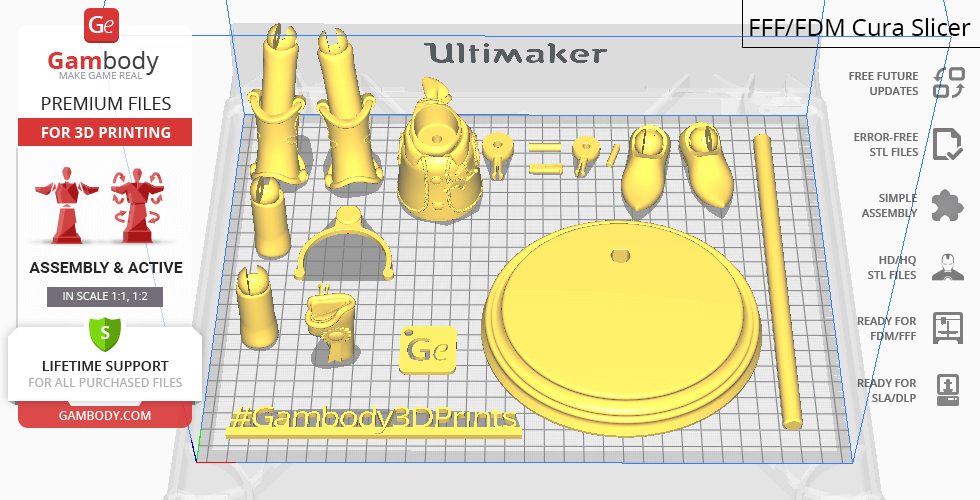

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
