Buzz Lightyear 3D Printing Model | Assembly

(1)
cm: 25.8 w x 13.8 d x 31.2 h
in: 10.157 w x 5.433 d x 12.283 h

Source Files

|

Description

|

Printing Details

This 3D model of Buzz Lightyear consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 2 versions of Buzz Lightyear STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase;
  • STL files of high-poly Buzz Lightyear Model for 3D printing consist of 54 files;
  • Sizes for:
  • FFF/FDM: 312 mm tall, 258 mm wide, 138 mm deep;
  • DLP/SLA: 156 mm tall, 129 mm wide, 69 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

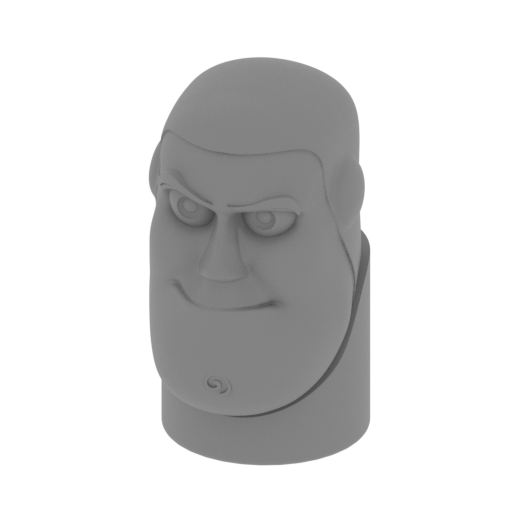

01_head_v01.stl
11.40 MiB 4 h 3 min 2 m 32 x 39 x 57 Download

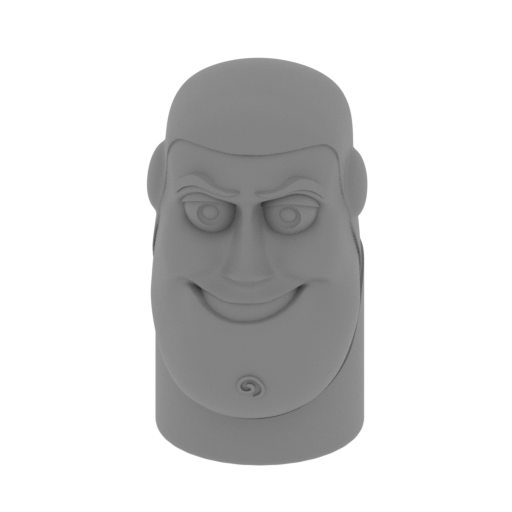

02_head_v02.stl
12.22 MiB 4 h 7 min 2 m 32 x 38 x 57 Download

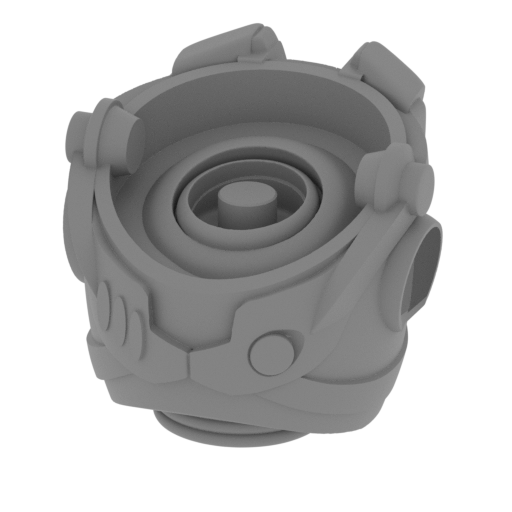

03_body.stl
49.79 MiB 39 h 52 min 23 m 102 x 106 x 93 Download

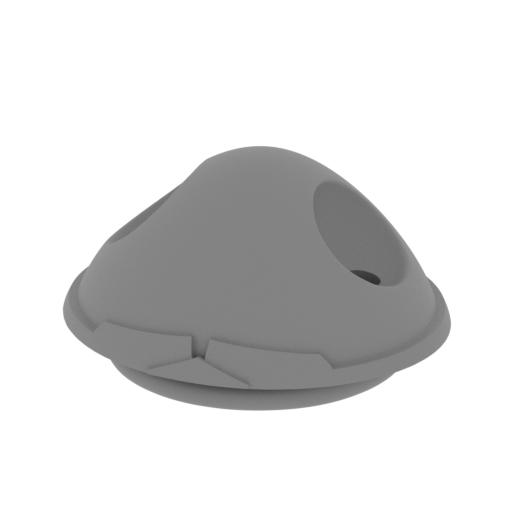

04_hips.stl
15.35 MiB 4 h 38 min 3 m 62 x 55 x 34 Download

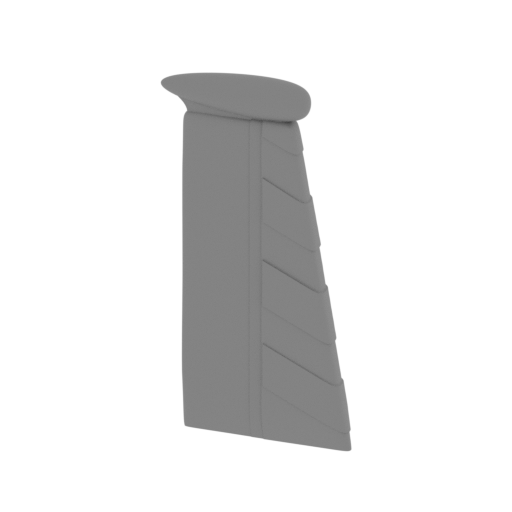

05_wing_R.stl
10.24 MiB 4 h 3 min 2 m 52 x 9 x 100 Download

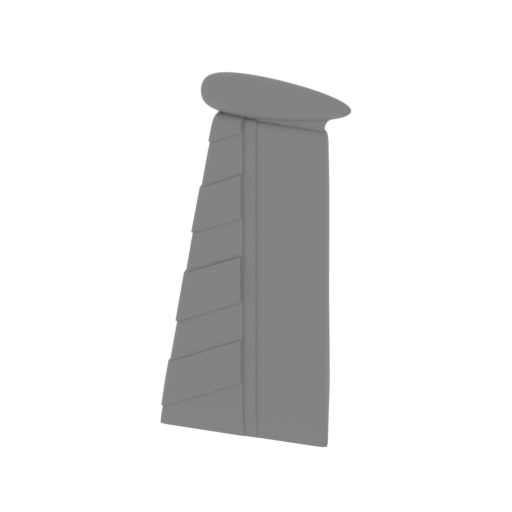

06_wing_L.stl
10.23 MiB 4 h 6 min 2 m 52 x 9 x 100 Download

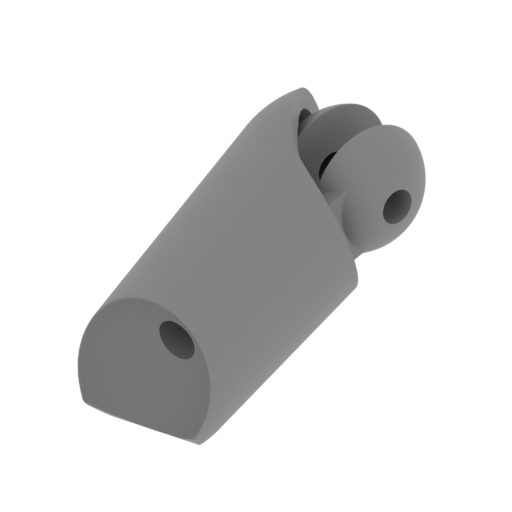

07_upper leg R.stl
13.73 MiB 2 h 27 min 1 m 34 x 50 x 34 Download

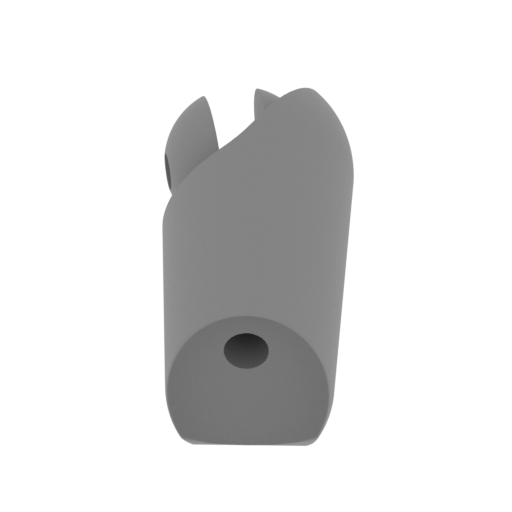

08_upper leg L.stl
13.73 MiB 2 h 27 min 1 m 34 x 50 x 34 Download

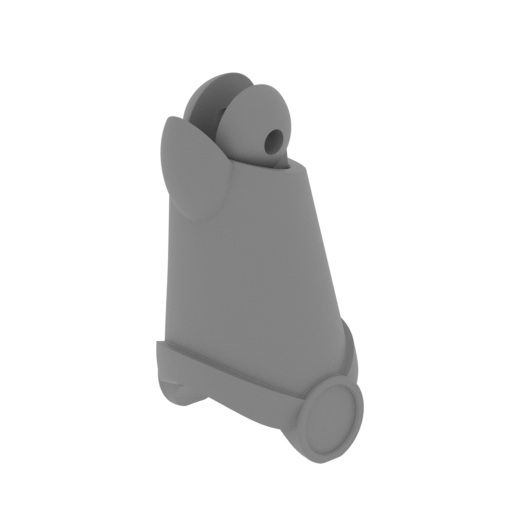

09_lower_leg_R.stl
21.18 MiB 3 h 46 min 2 m 39 x 37 x 69 Download

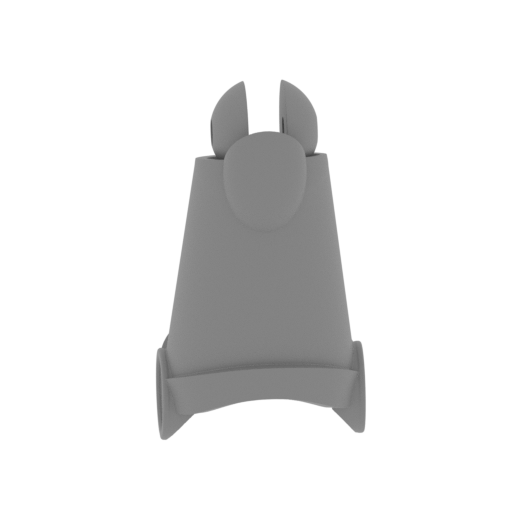

10_lower_leg_L.stl
21.18 MiB 3 h 47 min 2 m 39 x 37 x 69 Download

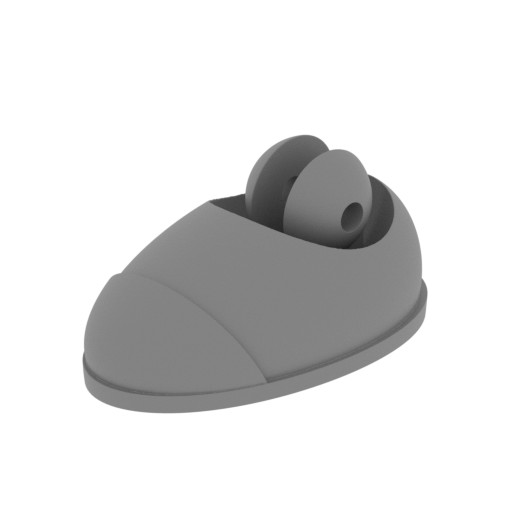

11_feet_R.stl
10.51 MiB 2 h 51 min 2 m 42 x 59 x 29 Download

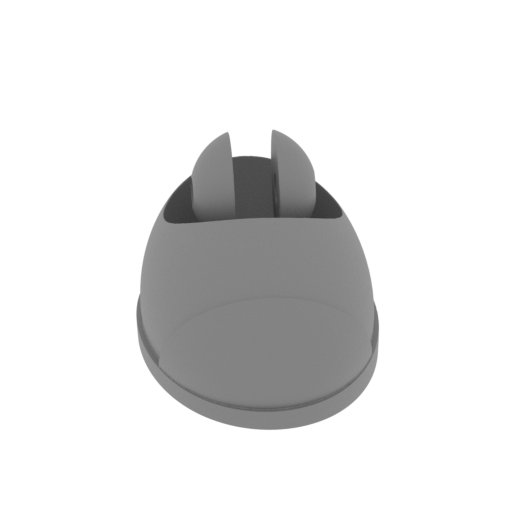

12_feet_L.stl
10.51 MiB 2 h 51 min 2 m 42 x 59 x 29 Download

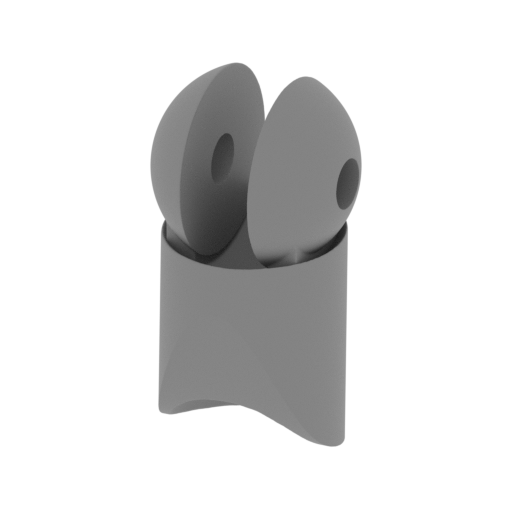

13_shouler_R.stl
4.80 MiB 2 h 8 min 1 m 26 x 25 x 50 Download

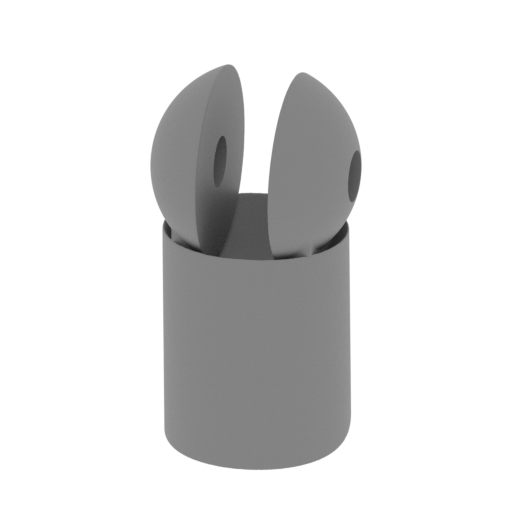

14_shouler_L.stl
4.80 MiB 2 h 9 min 1 m 26 x 25 x 50 Download

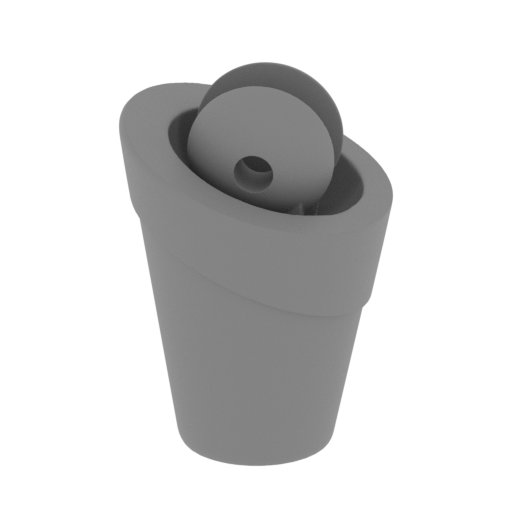

15_arm_R.stl
6.03 MiB 2 h 31 min 1 m 32 x 34 x 47 Download

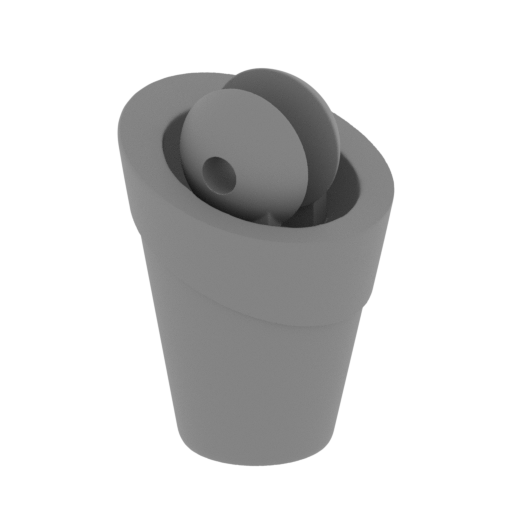

16_arm_L.stl
6.03 MiB 2 h 30 min 1 m 32 x 34 x 47 Download

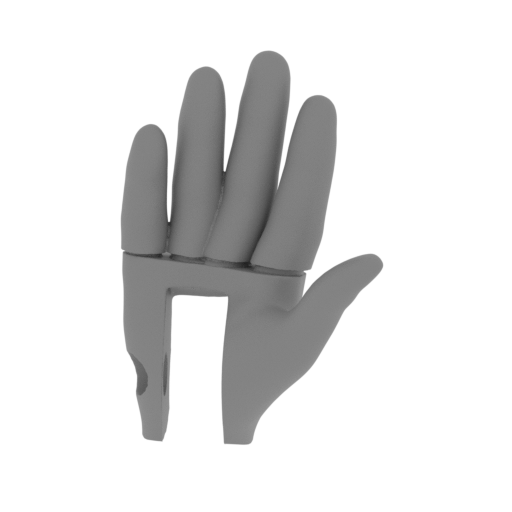

17_hand_R.stl
7.64 MiB 1 h 7 min <1 m 33 x 18 x 44 Download

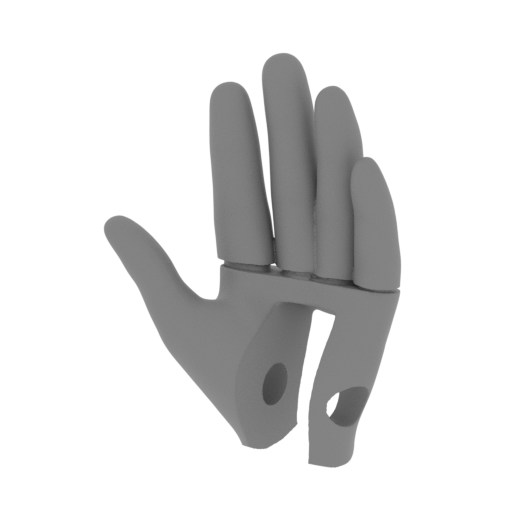

18_hand_L.stl
7.64 MiB 1 h 7 min <1 m 33 x 18 x 44 Download

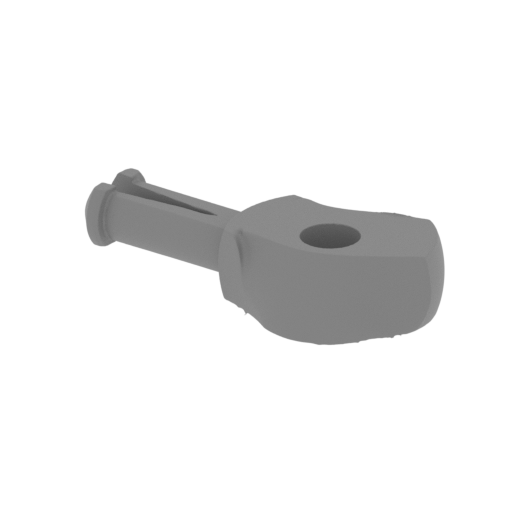

19_wrist connector_R.stl
7.14 MiB 16 min <1 m 33 x 17 x 7 Download

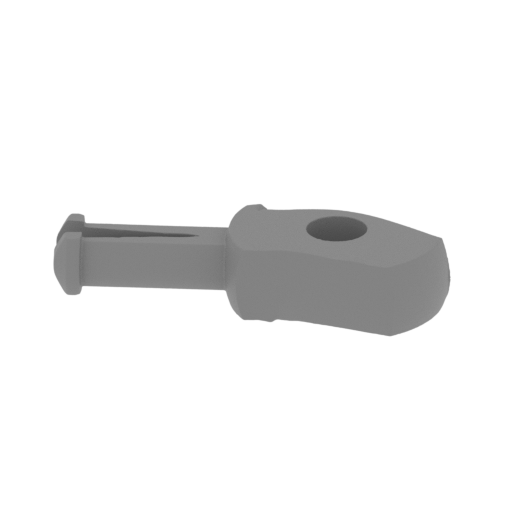

20_wrist connector_L.stl
7.14 MiB 16 min <1 m 33 x 17 x 7 Download

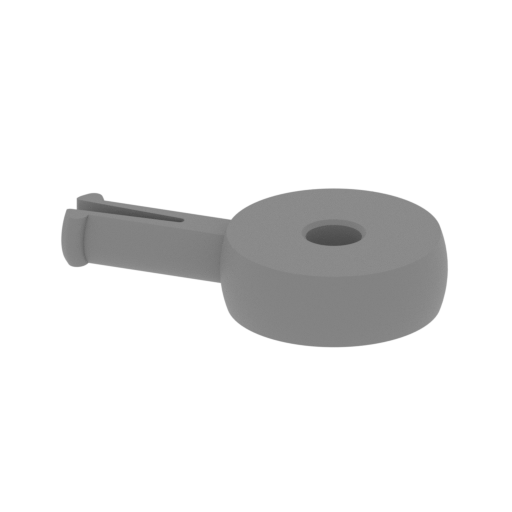

21_shoulder_connector_x2. stl
0.22 MiB 39 min <1 m 46 x 27 x 9 Download

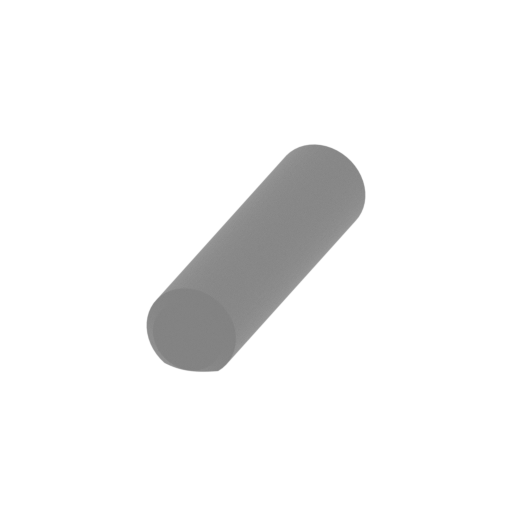

22_shoulder_pin_x2.stl
0.03 MiB 8 min <1 m 6 x 26 x 6 Download

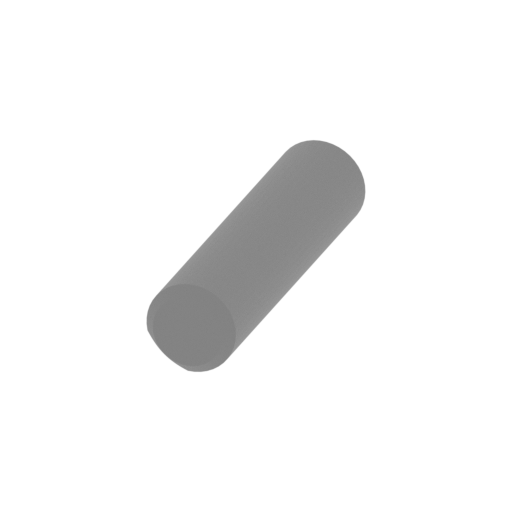

23_pin_x10.stl
0.02 MiB 5 min <1 m 4 x 19 x 4 Download

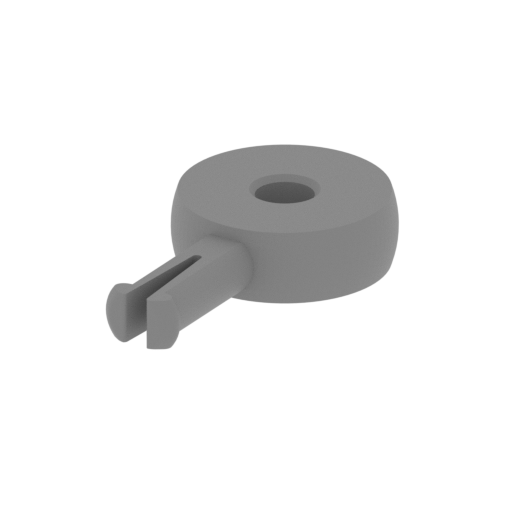

24_connector_1_x8.stl
0.17 MiB 19 min <1 m 19 x 33 x 6 Download

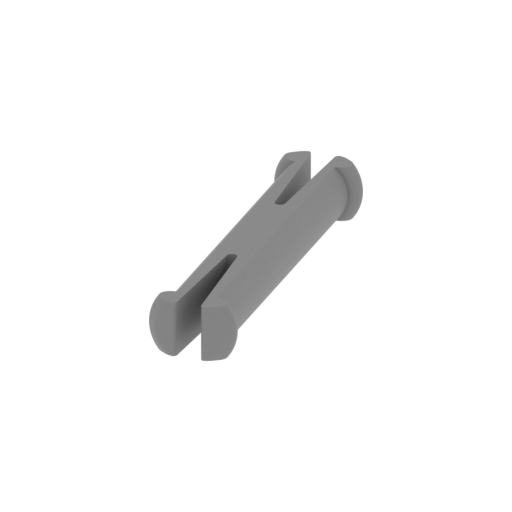

25_connector_2.stl
0.36 MiB 9 min <1 m 7 x 30 x 4 Download

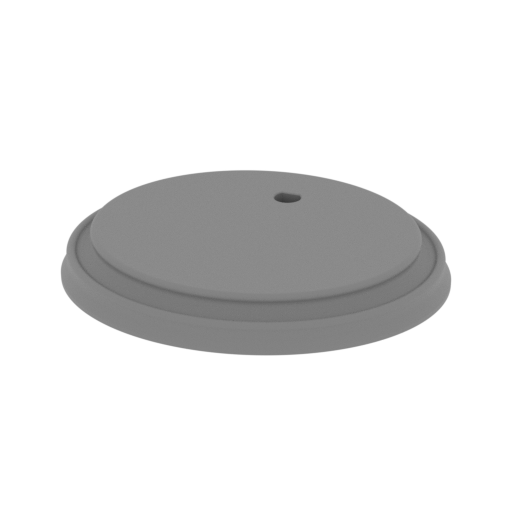

26_stand.stl
9.54 MiB 19 h 46 min 11 m 149 x 138 x 20 Download

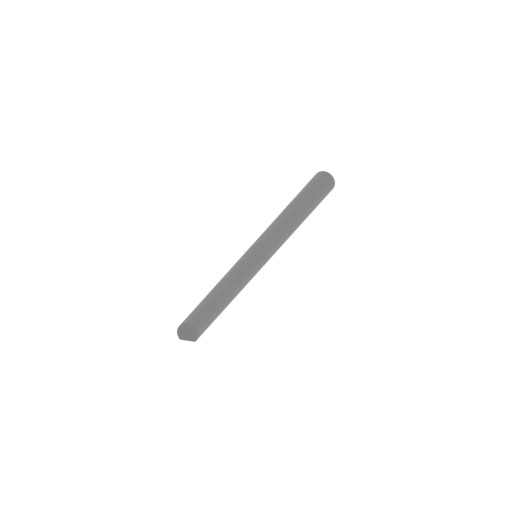

27_stand_pin.stl
0.50 MiB 1 h 34 min 1 m 10 x 175 x 9 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D MODEL

The Toy Story is an iconic franchise that centers on a story of toys that, without humans knowing, are secretly living beings. The first entirely computer-animated film impresses not only with its technical innovation but also with a touching story of the main characters. Smart and determined Woody feels miserable finding out that Buzz Lightyear, a new superhero toy, becomes his owner’s favorite toy. Buzz impresses other toys with its skills and accessories; the hero is unaware he is a toy and believes he is a space ranger sent to stop the Evil Emperor Zurg. After surviving adventures together, Buzz and Woody learn what real friendship is and how important it is to believe in yourself and others.

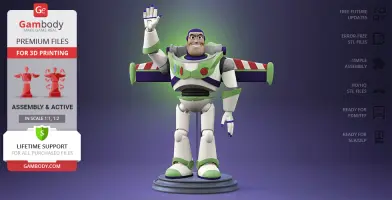

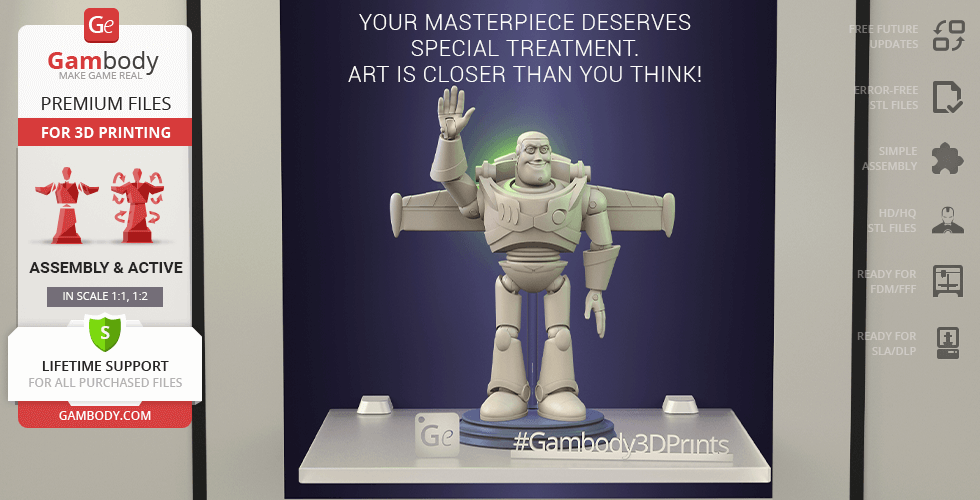

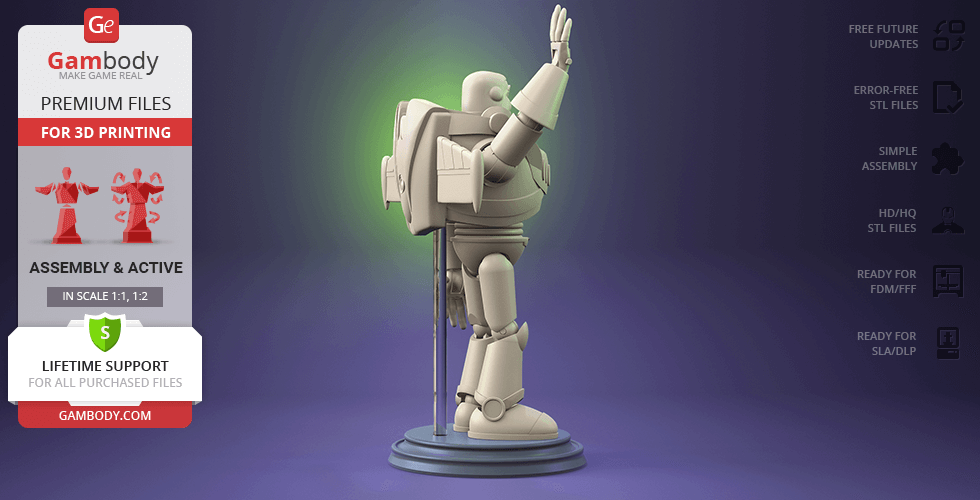

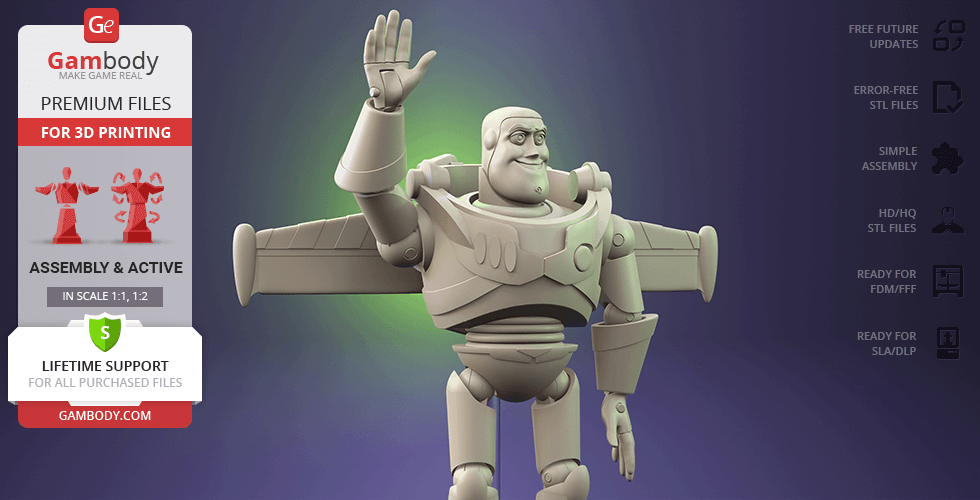

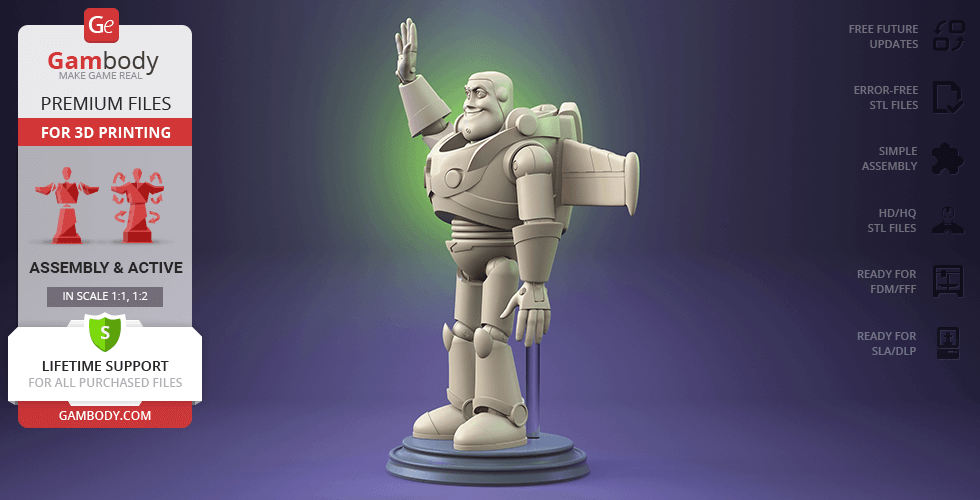

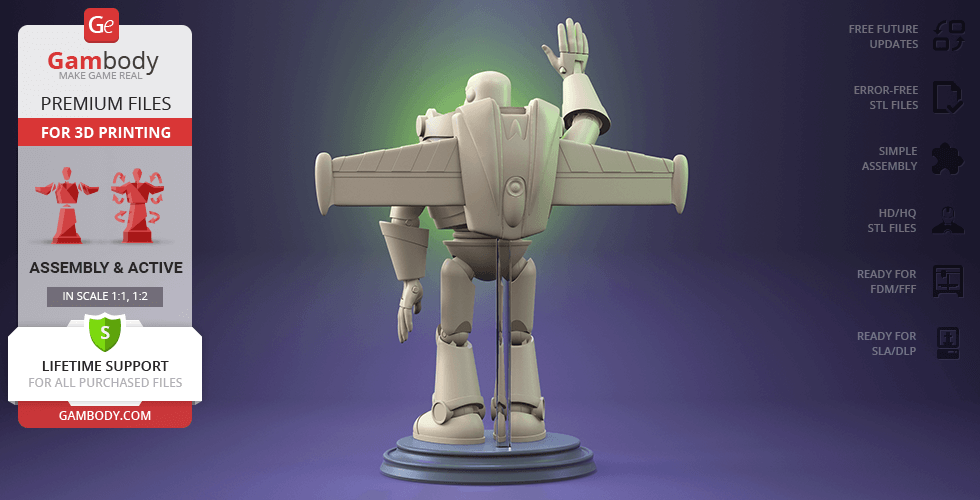

The brave and courageous personality of Buzz inspired our skillful 3D artist to create this great model for 3D printing. The look of the electronic spaceman action figure can not but impress - Buzz is wearing his astronaut suit, the space wing is attached to his back, the head of the hero is covered with a special space helmet. The model is fully active, and you have a range of arms and leg positions to choose from, starting from standing still posture and ending with the famous “To infinity and beyond” posture. With alternative head parts, you have even more options for the display, the idea of creating a clone for your “toy” just as in Toy Story 2 is also worth your attention. Don't wait to 3D print one of the greatest cartoon characters of all time with high-quality STLs from Gambody!

ADAPTATION FOR 3D PRINTING

Buzz Lightyear model for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 58 hours in total.

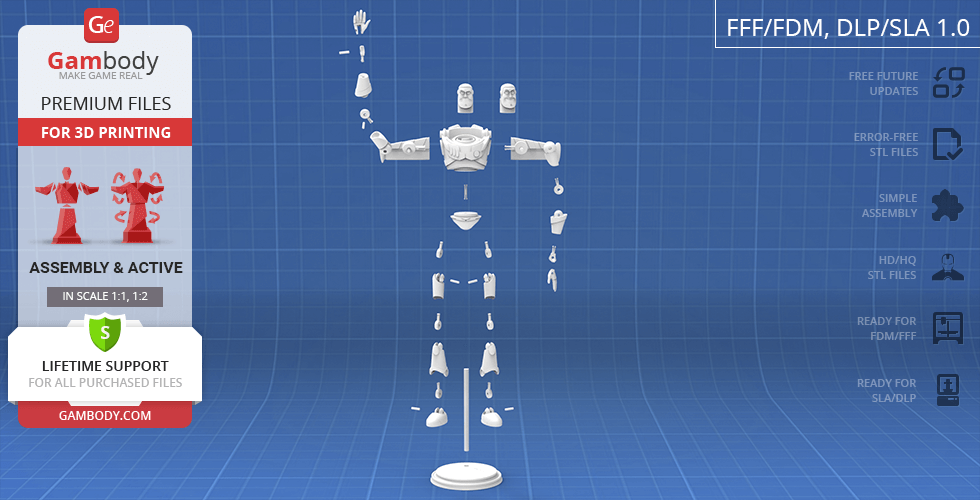

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the hero was divided into convenient assembly parts.

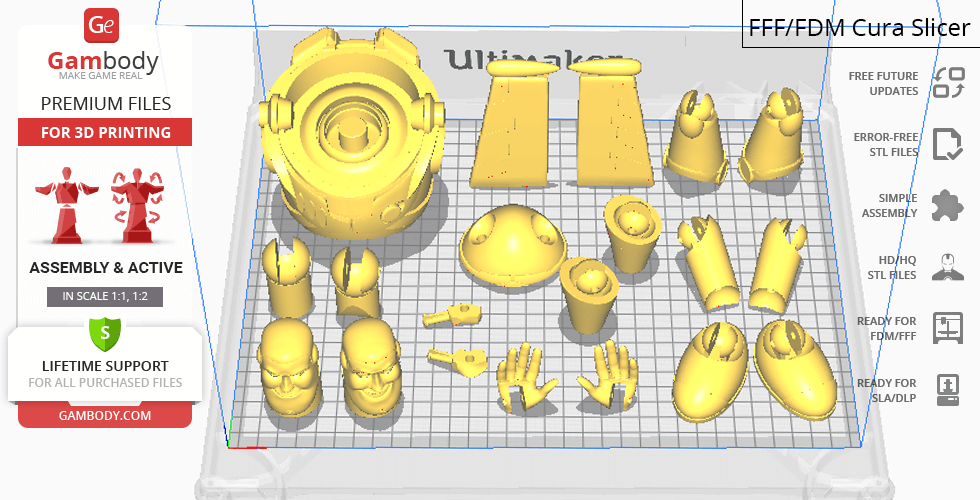

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Buzz Lightyear 3D printing model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

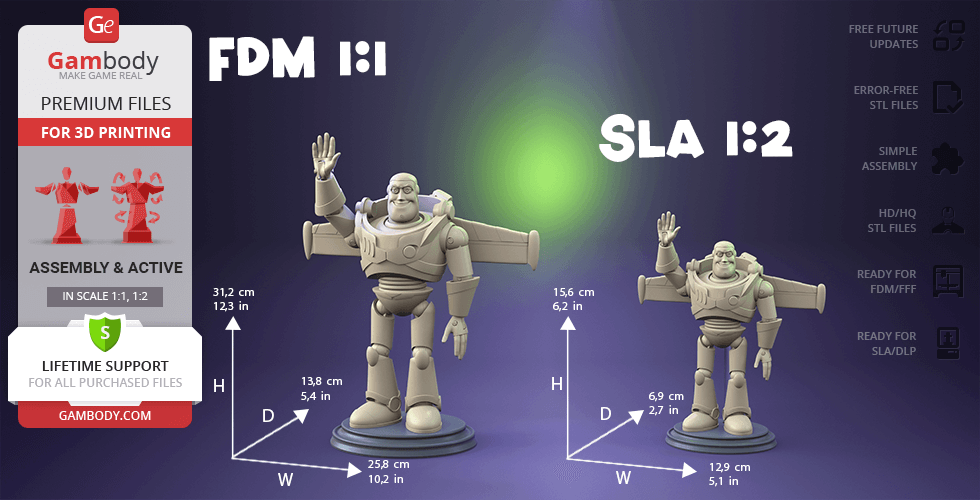

The model’s scale was calculated from the height of the character. The 3D printing model’s chosen scales are 1:1 for the FFF/FDM version and 1:2 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

FFF/FDM 1.0 version features:

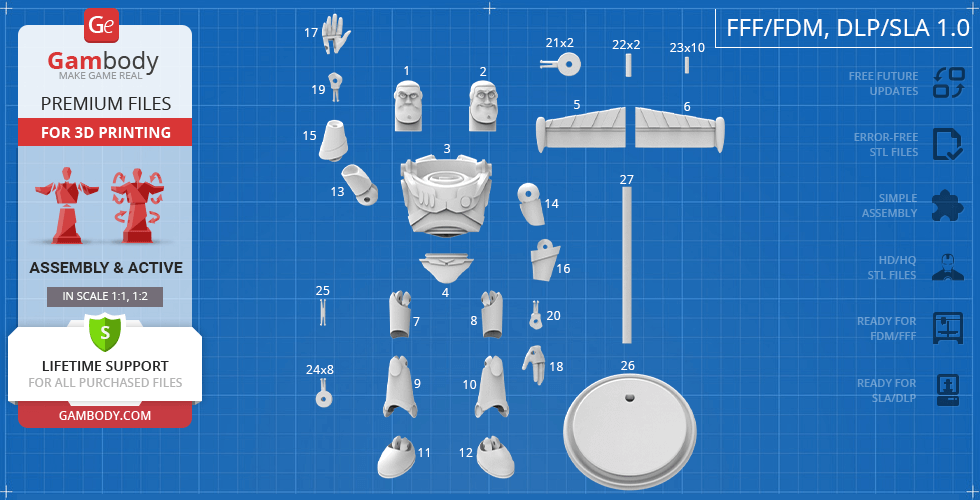

  • Contains 27 parts;
  • A printed model is 312 mm tall, 258 mm wide, 138 mm deep;
  • Active shoulder, elbow, and wrist joints;
  • Active hip, knee, and foot joints;
  • Rotating torso;

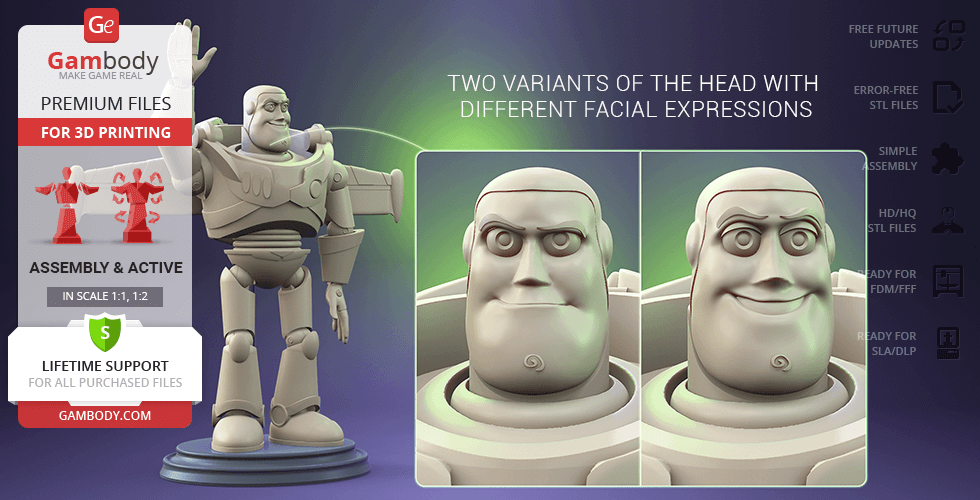

  • Two variants of the head with different facial expressions;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA 1.0 version features:

  • Contains 27 parts;
  • A printed model is 156 mm tall, 129 mm wide, 69 mm deep;
  • Active shoulder, elbow, and wrist joints;
  • Active hip, knee, and foot joints;
  • Rotating torso;
  • Two variants of the head with different facial expressions;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the Buzz Lightyear model for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble a Buzz Lightyear 3D Printing Model on Gambody YouTube channel.

Also, you may like other Cartoons 3D Printing Models and Figurines.

________

FAQ

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

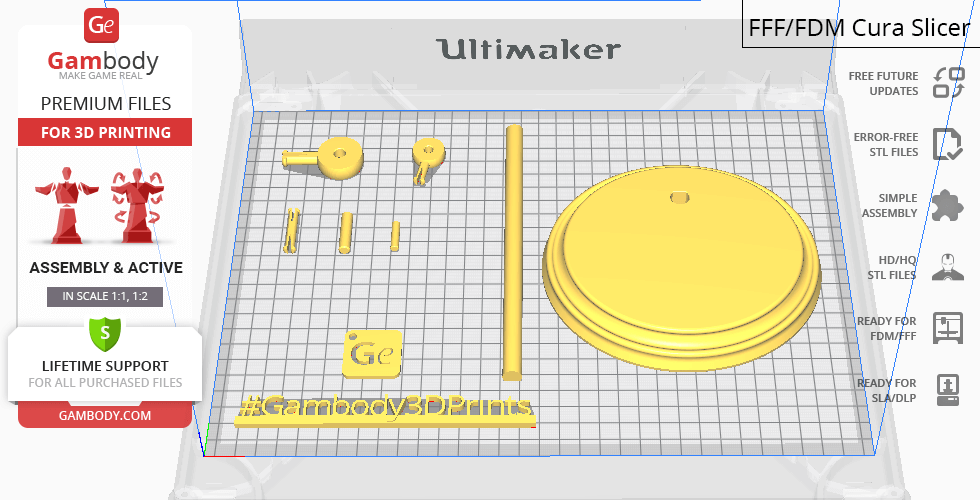

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
