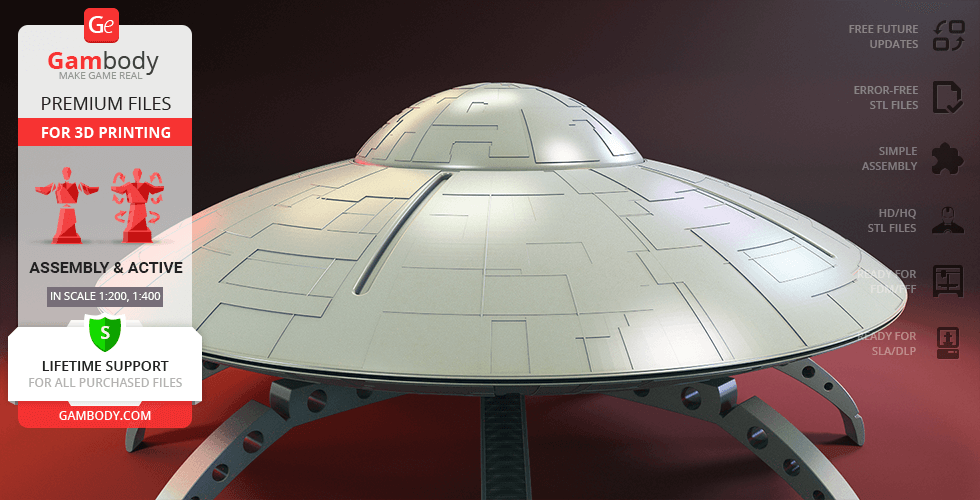

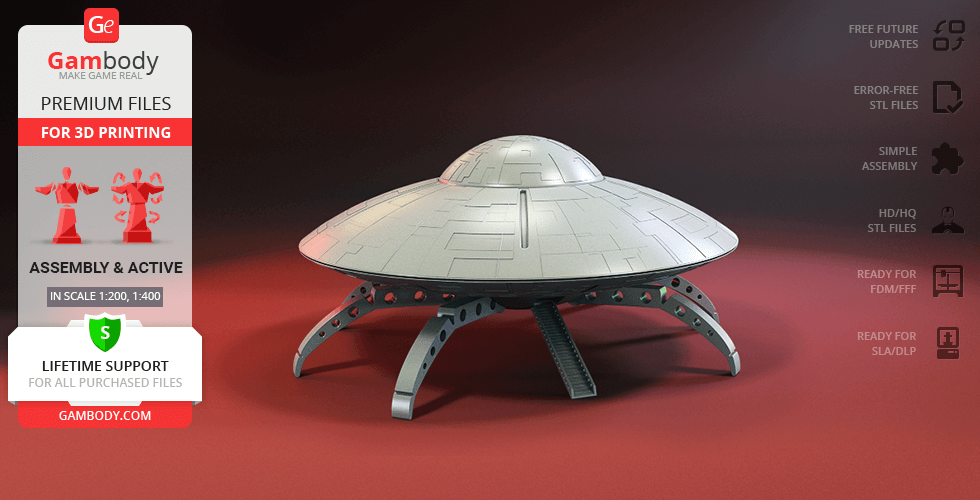

Martian Flying Saucer 3D Printing Model | Assembly + Action

(7)
cm: 25.5 w x 26.4 d x 12.9 h
in: 10.039 w x 10.394 d x 5.079 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

- 2 versions of Martian Flying Saucer STL files for FFF/FDM and DLP/SLA/SLS - files for both versions are available for download after the purchase

- STL files of high-poly Martian Flying Saucer 3D Model for 3D printing consist of 65 parts

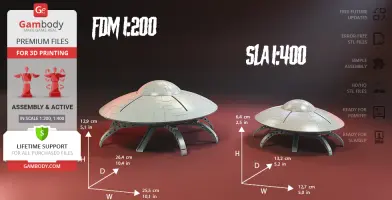

- Sizes:
FFF/FDM: 129 mm tall, 255 mm wide, 264 mm deep
​DLP/SLA/SLS: 64 mm tall, 127 mm wide, 132 mm deep

Assembly Manual for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format
- Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

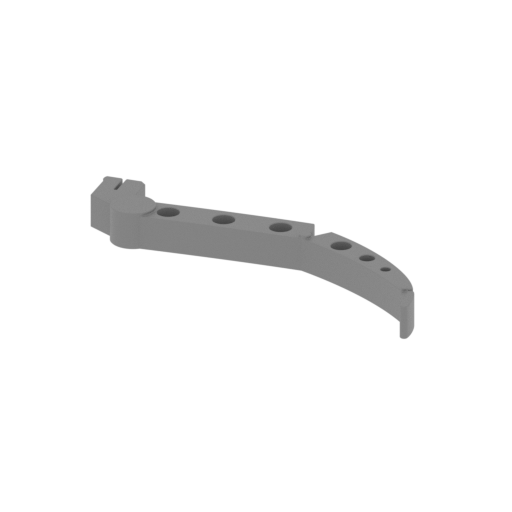

_1_leg_x3_R_FDM (repaired ).stl
1.15 MiB 1 h 33 min 1 m 111 x 55 x 11 Download

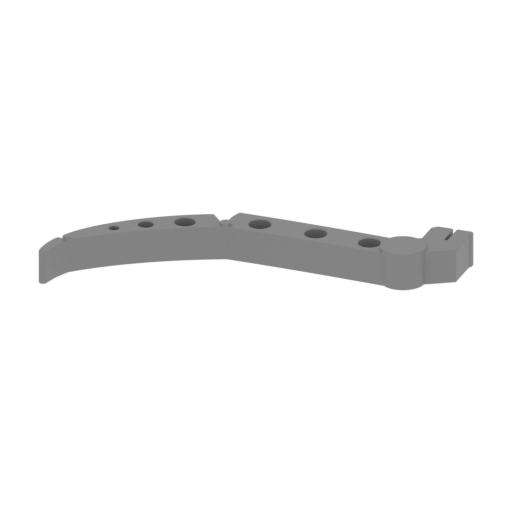

_2_leg_x3_L_FDM (repaired ).stl
1.15 MiB 1 h 32 min 1 m 111 x 55 x 11 Download

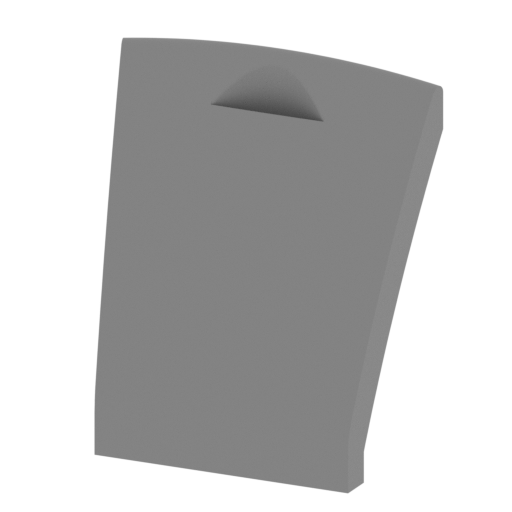

_3_leg_cap_a_FDM (repaire d).stl
0.52 MiB 20 min <1 m 17 x 10 x 20 Download

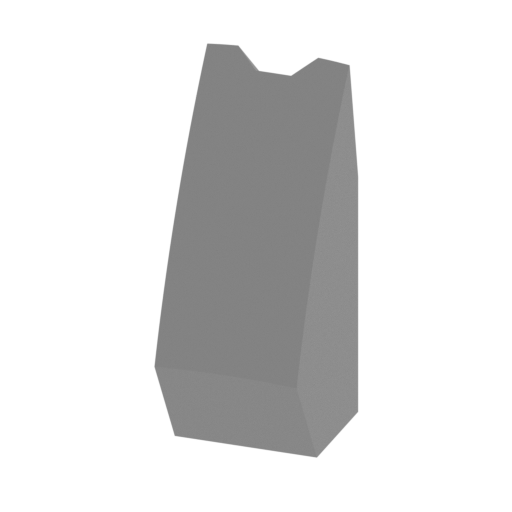

_4_leg_cap_b_x6_FDM (repa ired).stl
0.14 MiB 36 min <1 m 14 x 16 x 36 Download

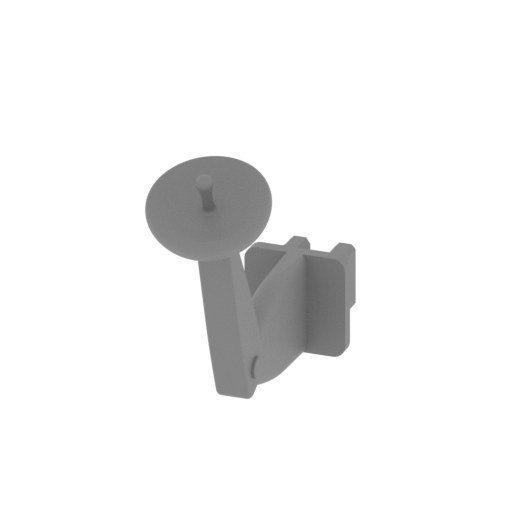

_5_radar_small_FDM (repai red).stl
8.62 MiB 47 min <1 m 14 x 44 x 34 Download

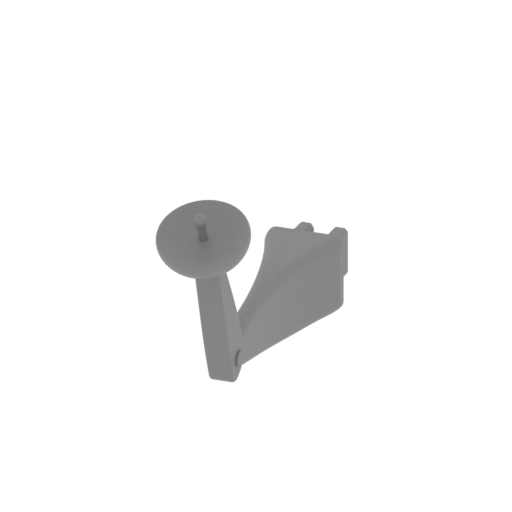

_6_radar_big_FDM (repaire d).stl
8.69 MiB 55 min <1 m 14 x 59 x 34 Download

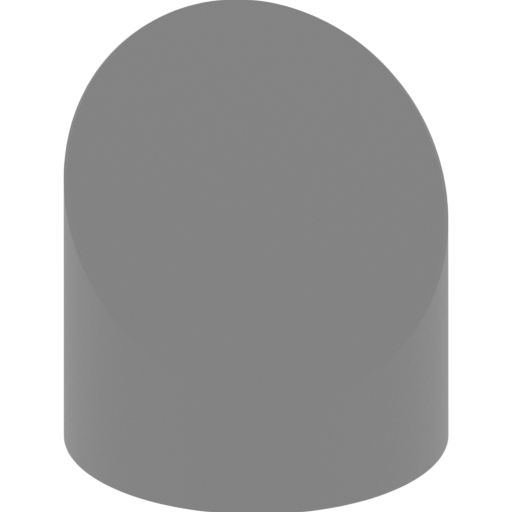

_7_button_a_FDM (repaired ).stl
0.17 MiB 9 min <1 m 10 x 10 x 10 Download

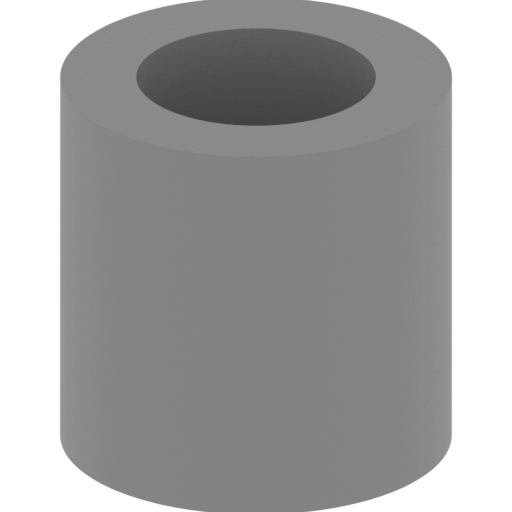

_8_button_b_FDM (repaired ).stl
0.11 MiB 8 min <1 m 10 x 10 x 10 Download

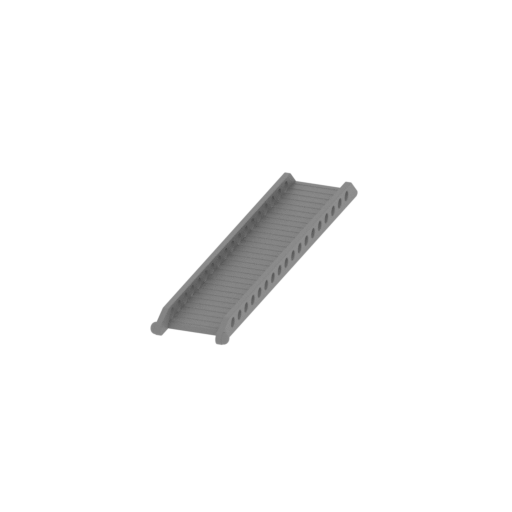

_9_airstair_FDM (repaired ).stl
12.67 MiB 37 min <1 m 16 x 75 x 4 Download

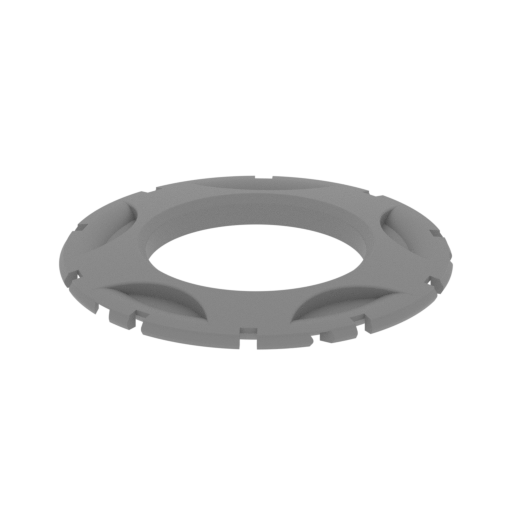

_10_bottom_cap_body_FDM ( repaired).stl
4.06 MiB 43 min <1 m 45 x 45 x 3 Download

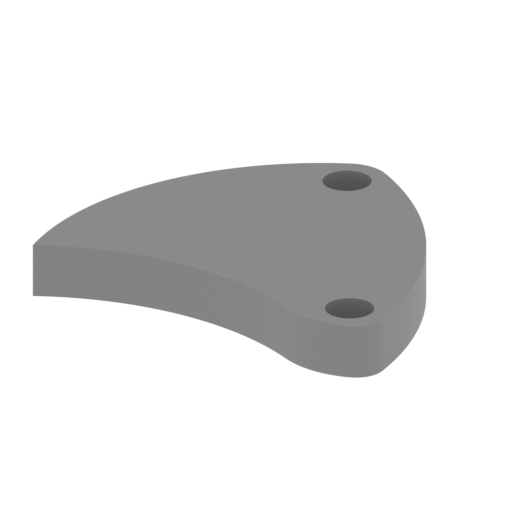

_11_bottom_cap_x6_FDM (re paired).stl
0.10 MiB 5 min <1 m 16 x 15 x 2 Download

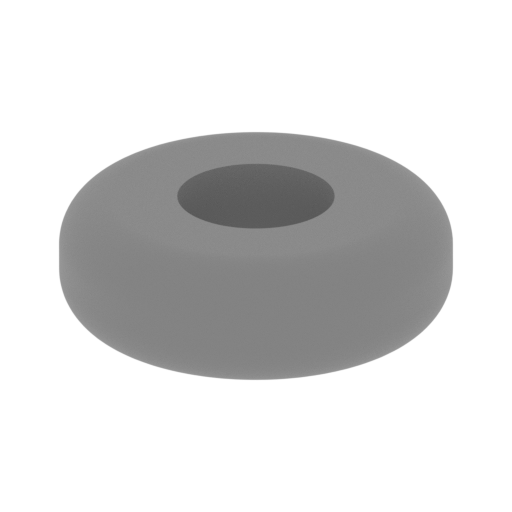

_12_wheel_big_x5_FDM (rep aired).stl
0.99 MiB 8 min <1 m 15 x 15 x 5 Download

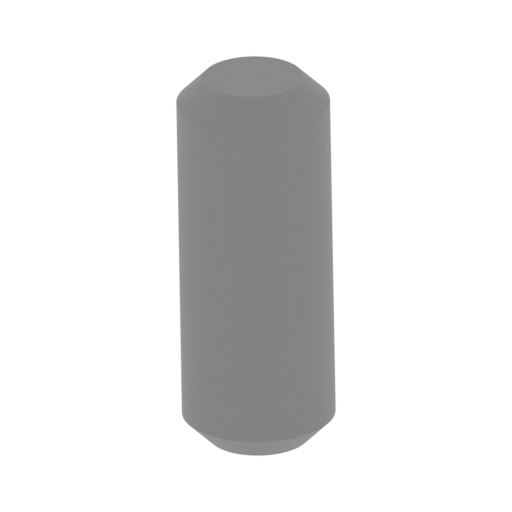

_13_wheel_big_pin_x5_FDM (repaired).stl
0.08 MiB 9 min <1 m 6 x 6 x 15 Download

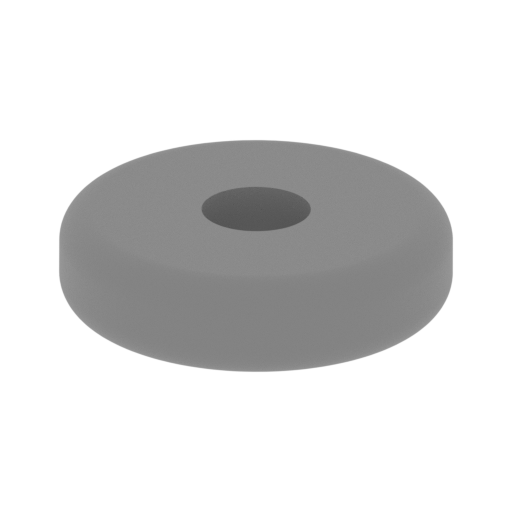

_14_wheel_mid_x4_FDM (rep aired).stl
0.80 MiB 4 min <1 m 12 x 12 x 3 Download

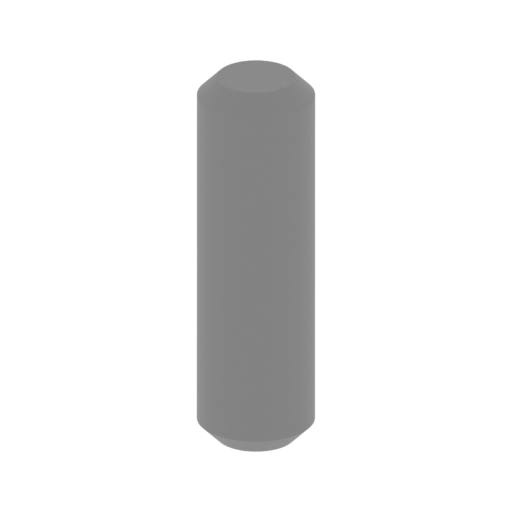

_15_wheel_mid_pin_x4_FDM (repaired).stl
0.06 MiB 3 min <1 m 3 x 3 x 10 Download

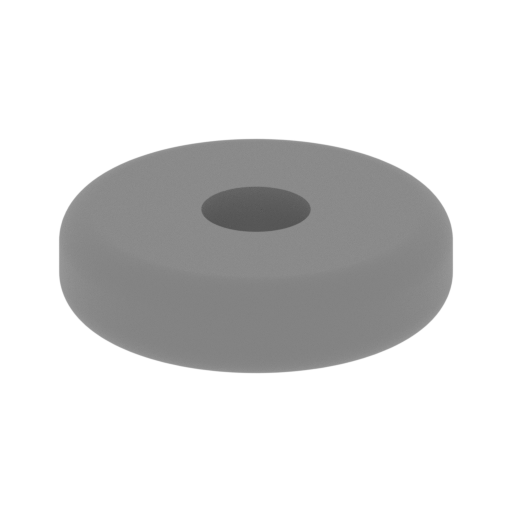

_16_wheel_small_x3_FDM (r epaired).stl
0.80 MiB 4 min <1 m 12 x 12 x 3 Download
_17_wheel_small_pin_x3_FD M (repaired).stl
0.05 MiB 2 min <1 m 3 x 3 x 8 Download

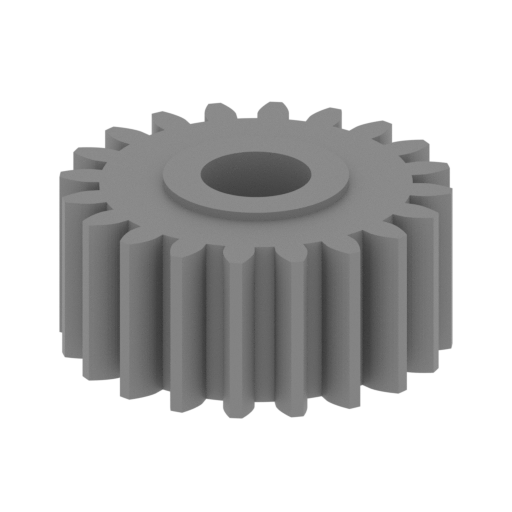

_18_gear_a_x5_FDM (repair ed).stl
0.68 MiB 29 min <1 m 22 x 22 x 10 Download

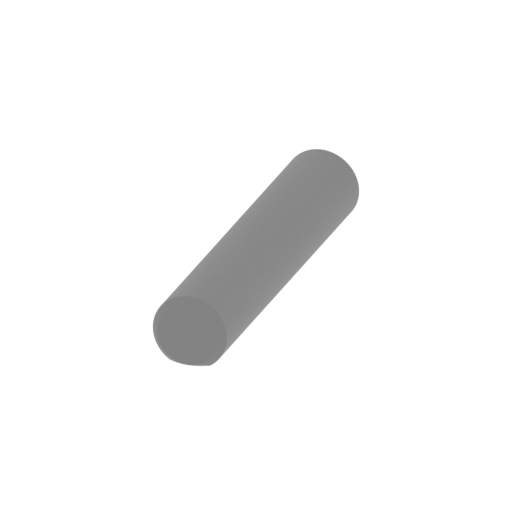

_19_gear_a_pin_x5_FDM (re paired).stl
0.14 MiB 9 min <1 m 6 x 30 x 6 Download

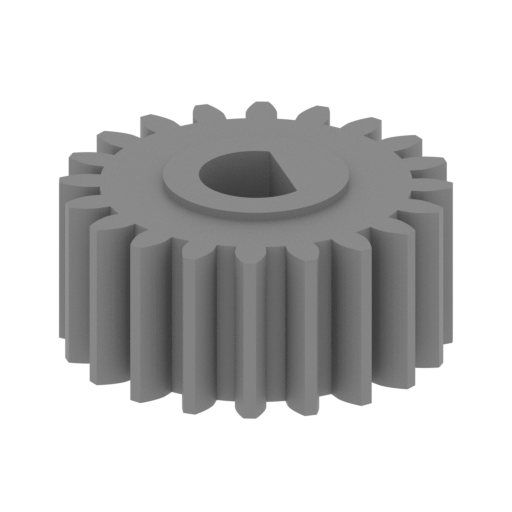

_20_gear_b_FDM (repaired) .stl
0.67 MiB 29 min <1 m 22 x 22 x 10 Download

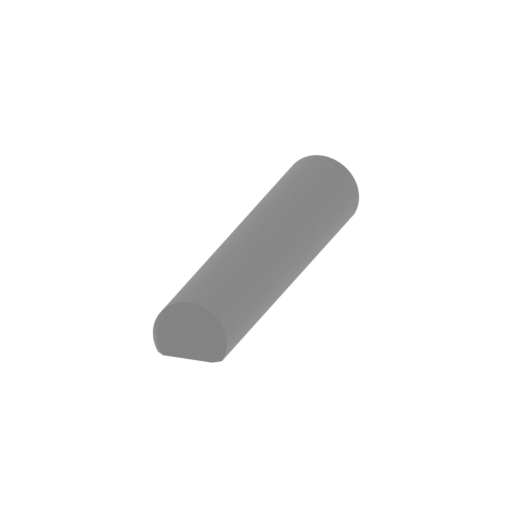

_21_gear_b_pin_FDM (repai red).stl
0.11 MiB 8 min <1 m 6 x 30 x 5 Download

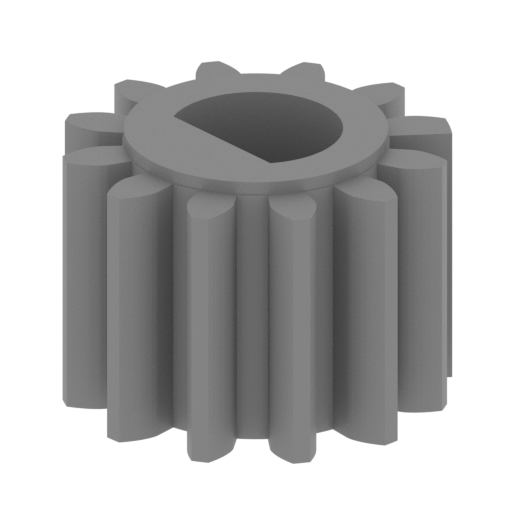

_22_gear_c_FDM (repaired) .stl
0.36 MiB 13 min <1 m 14 x 14 x 10 Download

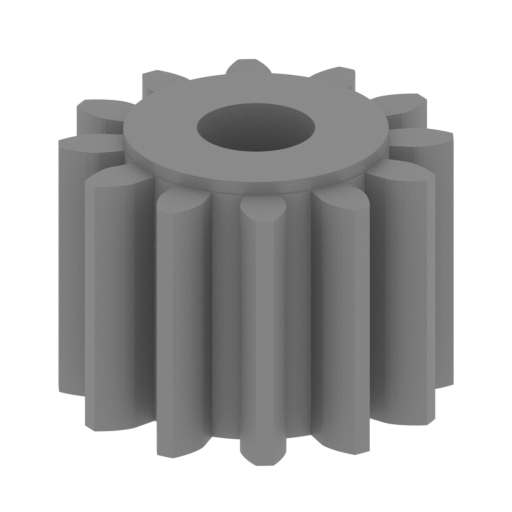

_23_gear_d_FDM (repaired) .stl
0.39 MiB 13 min <1 m 14 x 14 x 10 Download

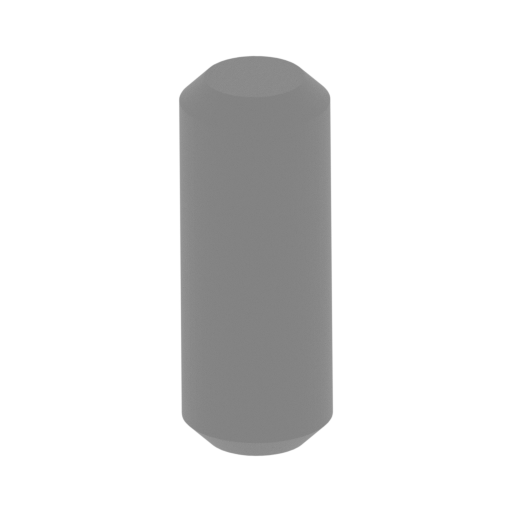

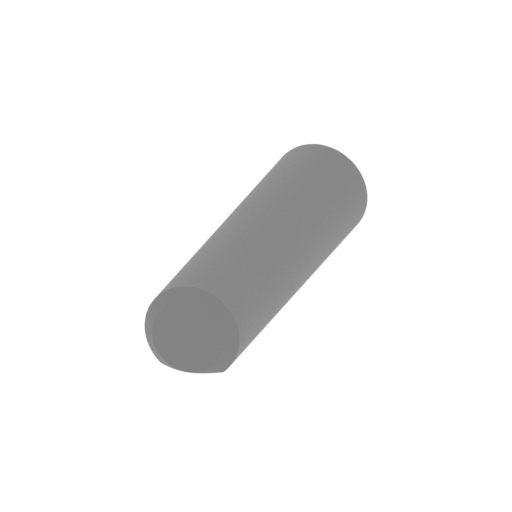

_24_gear_d_pin_FDM (repai red).stl
0.09 MiB 4 min <1 m 4 x 16 x 4 Download

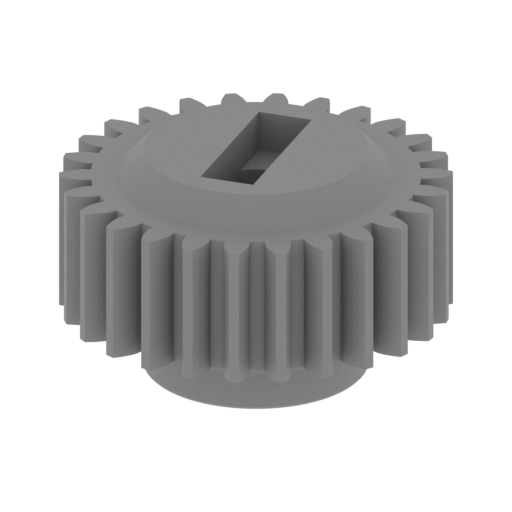

_25_gear_e_FDM (repaired) .stl
0.52 MiB 1 h 5 min 1 m 28 x 28 x 17 Download

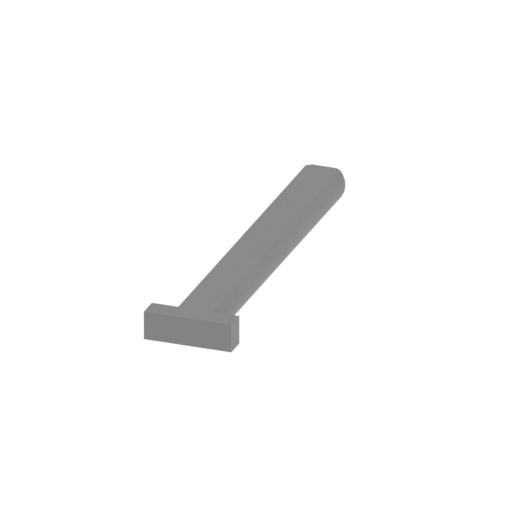

_26_gear_e_pin_FDM (repai red).stl
0.10 MiB 12 min <1 m 12 x 50 x 4 Download

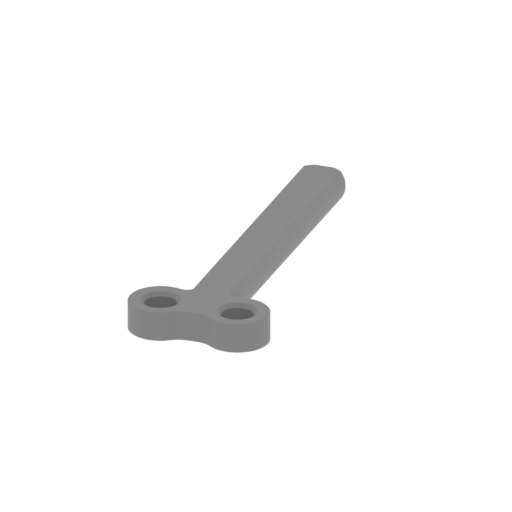

_27_gear_e_key_FDM (repai red).stl
0.60 MiB 15 min <1 m 18 x 48 x 4 Download

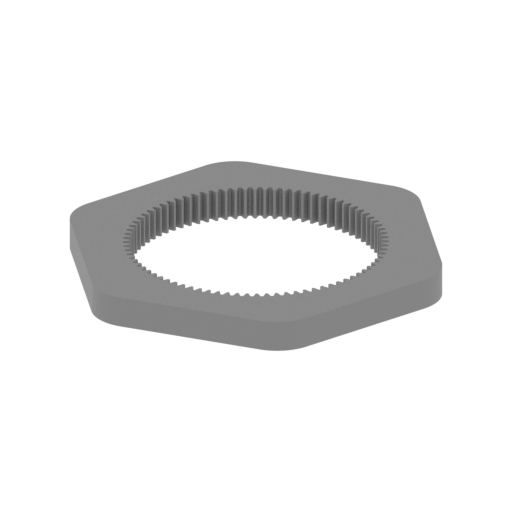

_28_gear_f_x2_FDM (repair ed).stl
0.39 MiB 8 h 34 min 3 m 125 x 114 x 10 Download

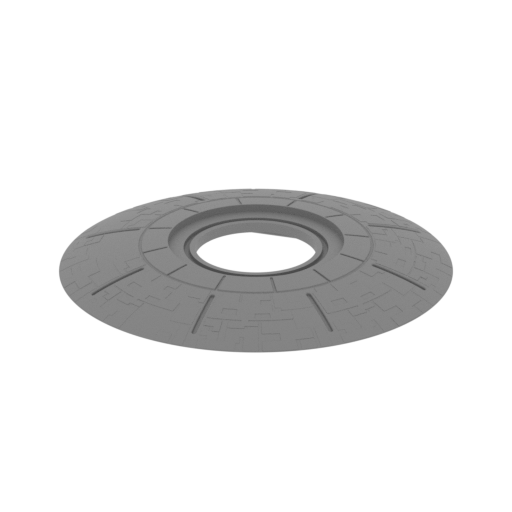

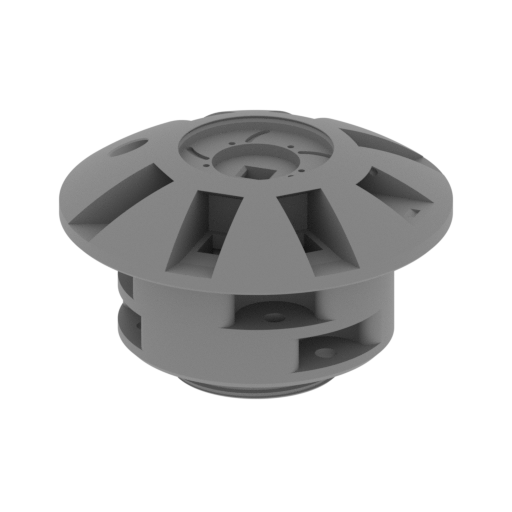

_29_body_bot_a (repaired) .stl
12.20 MiB 41 h 47 min 31 m 111 x 111 x 67 Download

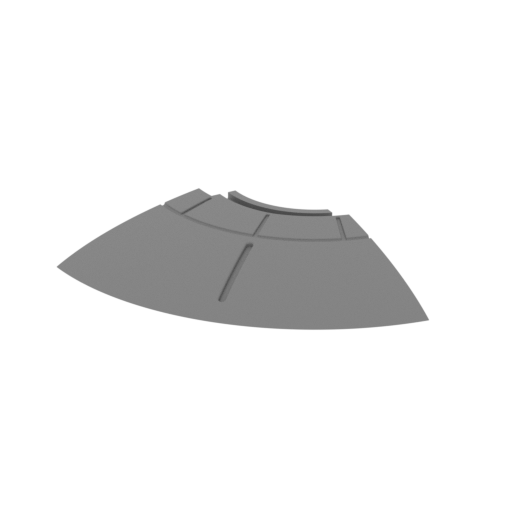

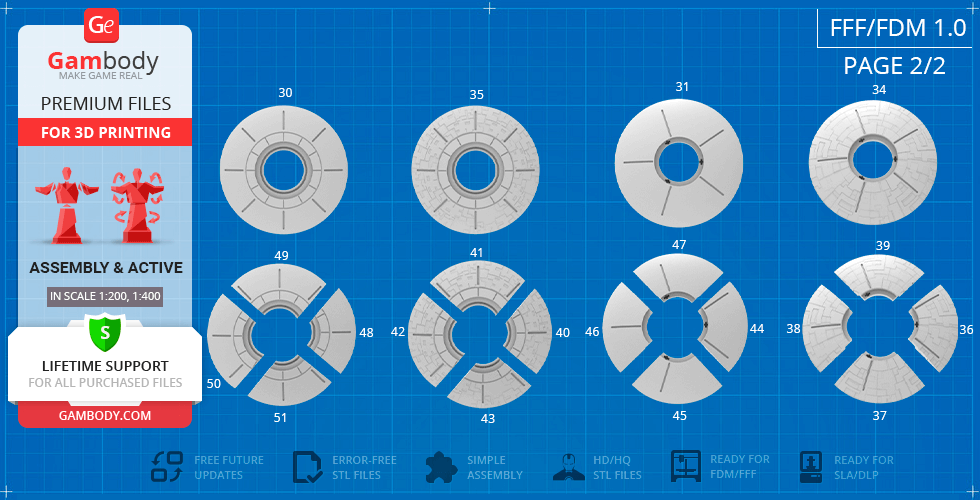

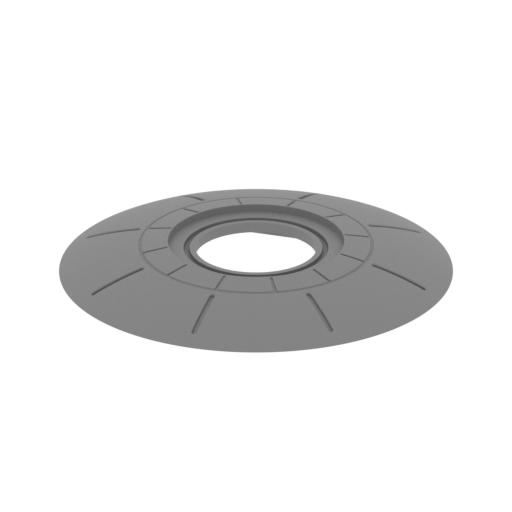

_30_body_clear_full_bot_b (repaired).stl
29.12 MiB 52 h 51 min 30 m 254 x 254 x 22 Download

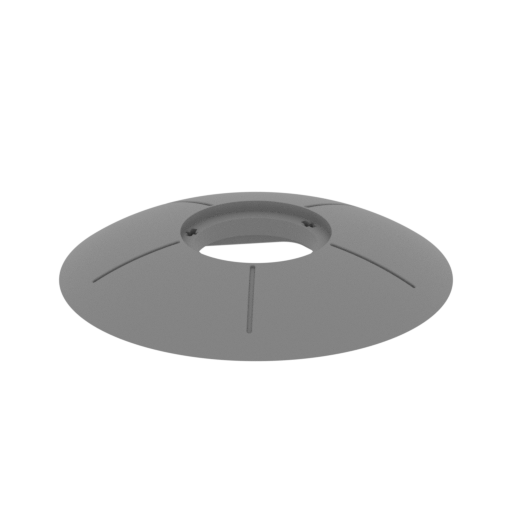

_31_body_clear_full_top_a (repaired).stl
15.15 MiB 66 h 18 min 39 m 255 x 255 x 34 Download

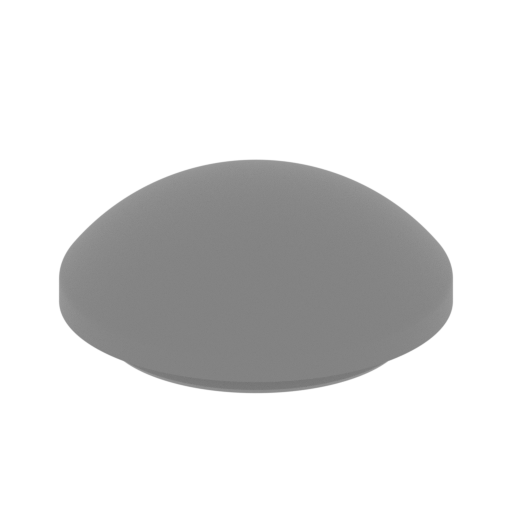

_32_body_clear_full_top_b (repaired).stl
9.72 MiB 15 h 54 min 10 m 98 x 98 x 41 Download

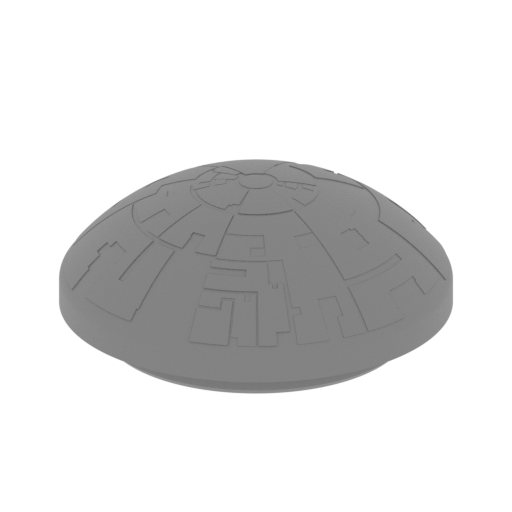

_33_body_pattern_top_b (r epaired).stl
12.14 MiB 16 h 7 min 10 m 98 x 98 x 41 Download
_34_body_pattern_top_a (r epaired).stl
22.59 MiB 66 h 59 min 40 m 255 x 255 x 35 Download
_35_body_pattern_bot_b (r epaired).stl
32.74 MiB 54 h 3 min 30 m 254 x 254 x 22 Download

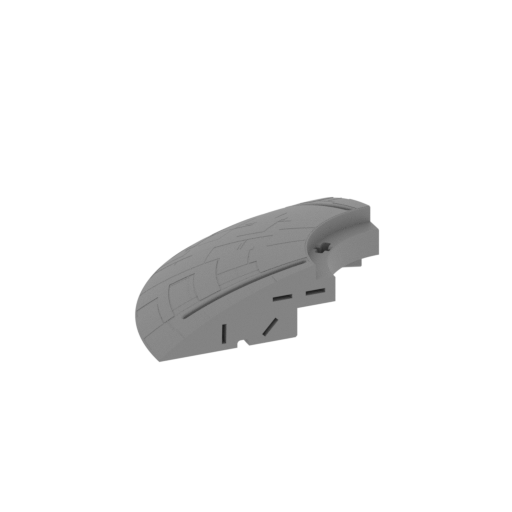

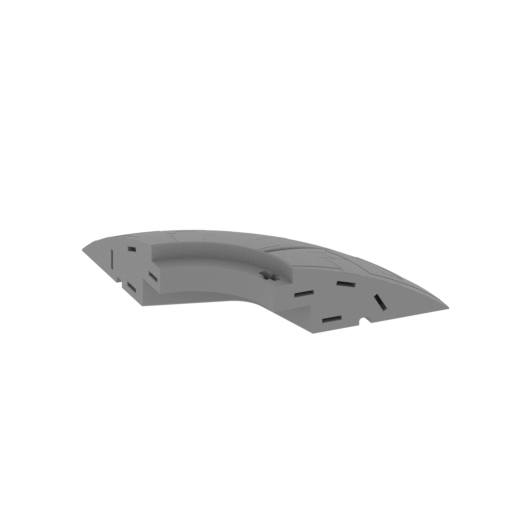

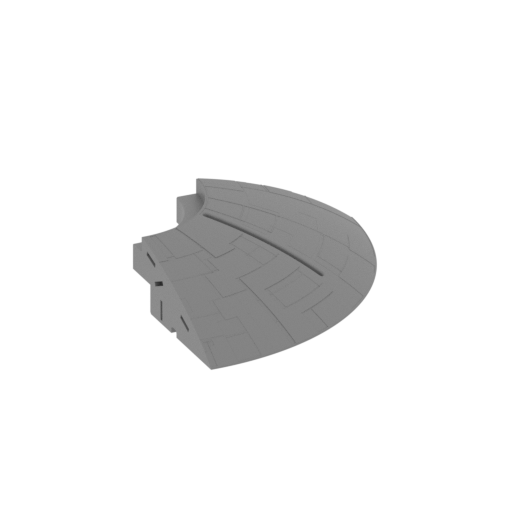

_36_body_pattern_top_a_cu t_1 (repaired).stl
6.60 MiB 18 h 4 min 11 m 100 x 180 x 35 Download
_37_body_pattern_top_a_cu t_2 (repaired).stl
5.89 MiB 18 h 5 min 11 m 180 x 100 x 35 Download
_38_body_pattern_top_a_cu t_3 (repaired).stl
5.59 MiB 18 h 3 min 11 m 100 x 180 x 35 Download

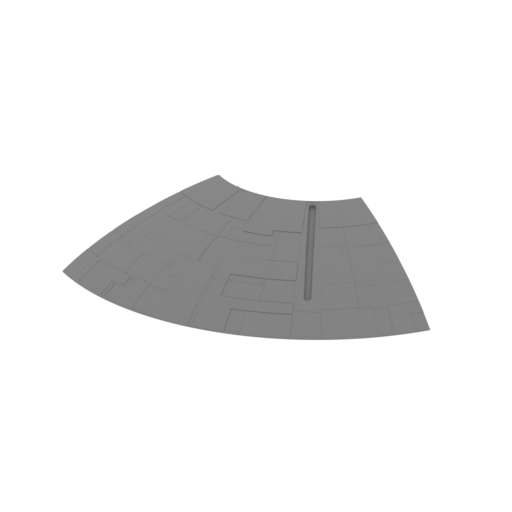

_39_body_pattern_top_a_cu t_4 (repaired).stl
6.13 MiB 18 h 1 min 11 m 180 x 100 x 35 Download
_40_body_pattern_bot_b_cu t_1 (repaired).stl
7.40 MiB 12 h 54 min 7 m 170 x 97 x 22 Download

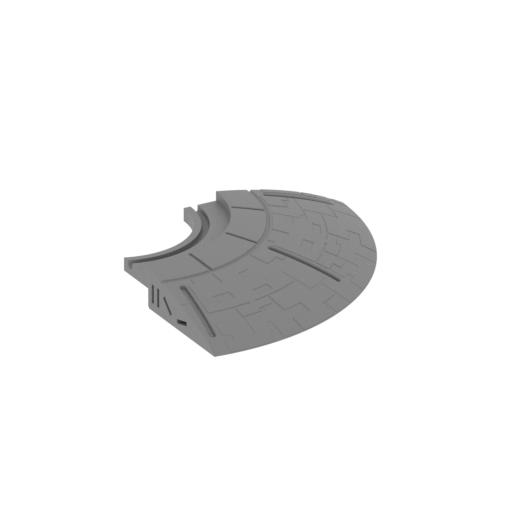

_41_body_pattern_bot_b_cu t_2 (repaired).stl
10.34 MiB 16 h 15 min 9 m 108 x 189 x 22 Download

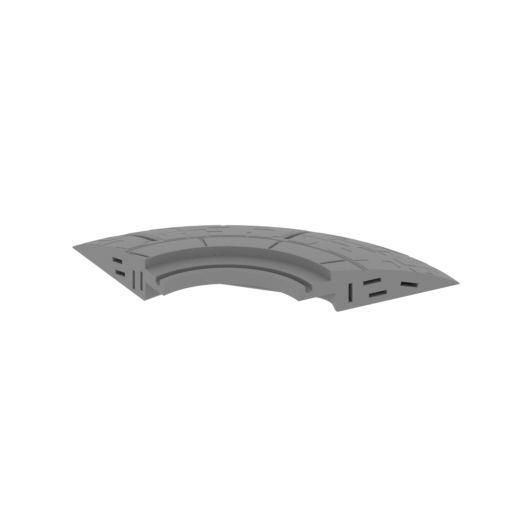

_42_body_pattern_bot_b_cu t_3 (repaired).stl
9.52 MiB 16 h 4 min 9 m 188 x 114 x 22 Download

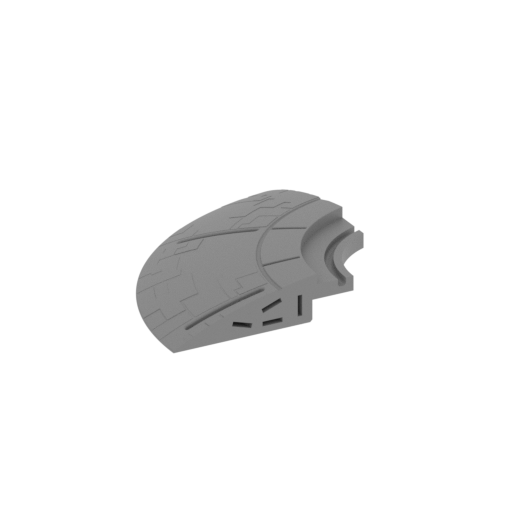

_43_body_pattern_bot_b_cu t_4 (repaired).stl
6.99 MiB 12 h 58 min 7 m 102 x 168 x 22 Download

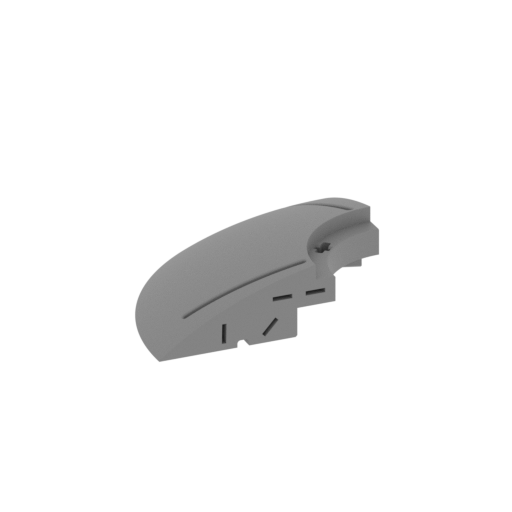

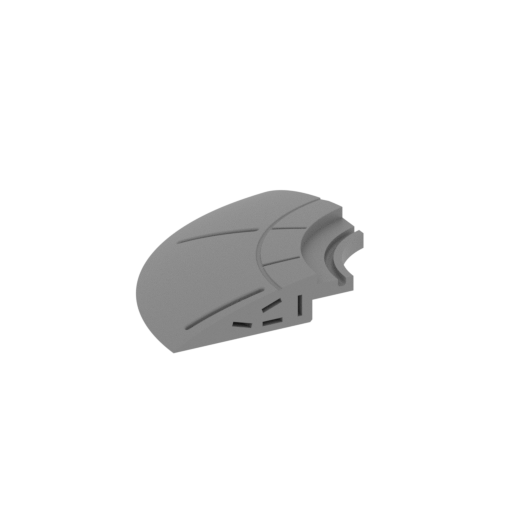

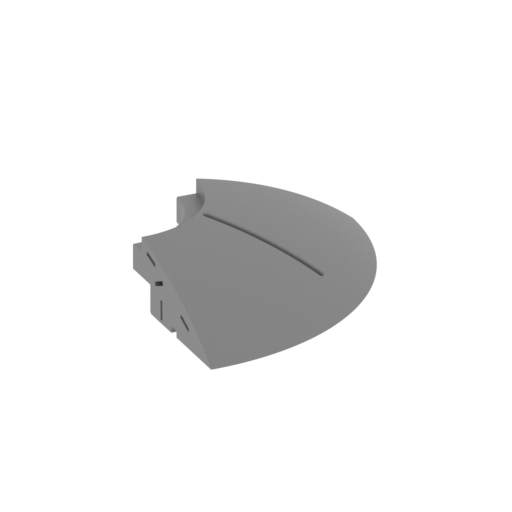

_44_body_clear_top_a_cut_ 1 (repaired).stl
4.63 MiB 17 h 50 min 11 m 100 x 180 x 34 Download

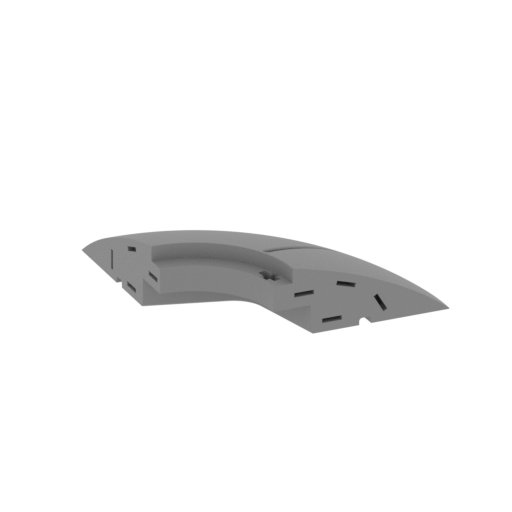

_45_body_clear_top_a_cut_ 2 (repaired).stl
3.97 MiB 17 h 49 min 10 m 180 x 100 x 34 Download
_46_body_clear_top_a_cut_ 3 (repaired).stl
3.39 MiB 17 h 41 min 11 m 100 x 180 x 34 Download

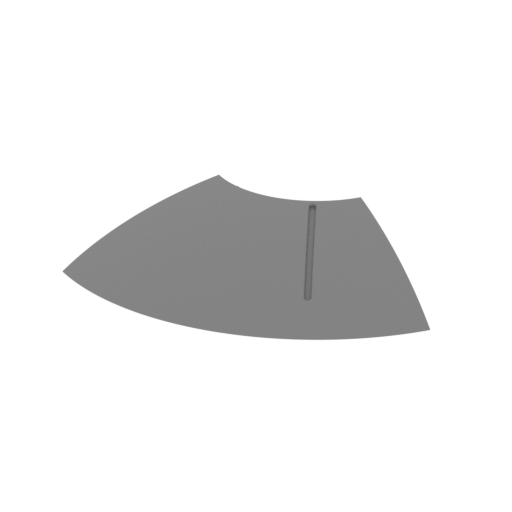

_47_body_clear_top_a_cut_ 4 (repaired).stl
3.88 MiB 17 h 43 min 10 m 180 x 100 x 34 Download
_48_body_clear_bot_b_cut_ 1 (repaired).stl
6.45 MiB 12 h 39 min 7 m 170 x 97 x 22 Download

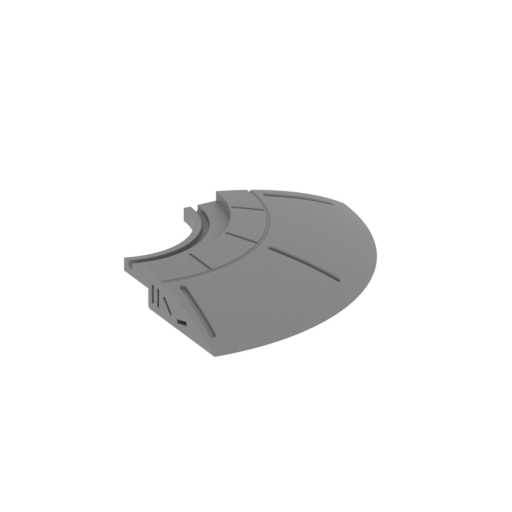

_49_body_clear_bot_b_cut_ 2 (repaired).stl
9.19 MiB 15 h 58 min 9 m 108 x 189 x 22 Download
_50_body_clear_bot_b_cut_ 3 (repaired).stl
8.27 MiB 15 h 50 min 9 m 188 x 114 x 22 Download
_51_body_clear_bot_b_cut_ 4 (repaired).stl
6.08 MiB 12 h 46 min 7 m 102 x 168 x 22 Download

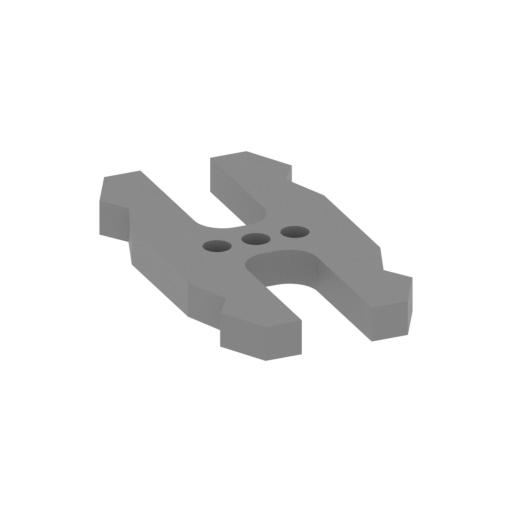

_52_Ge_lock_10H_x32 (repa ired).stl
0.03 MiB 4 min <1 m 18 x 18 x 2 Download

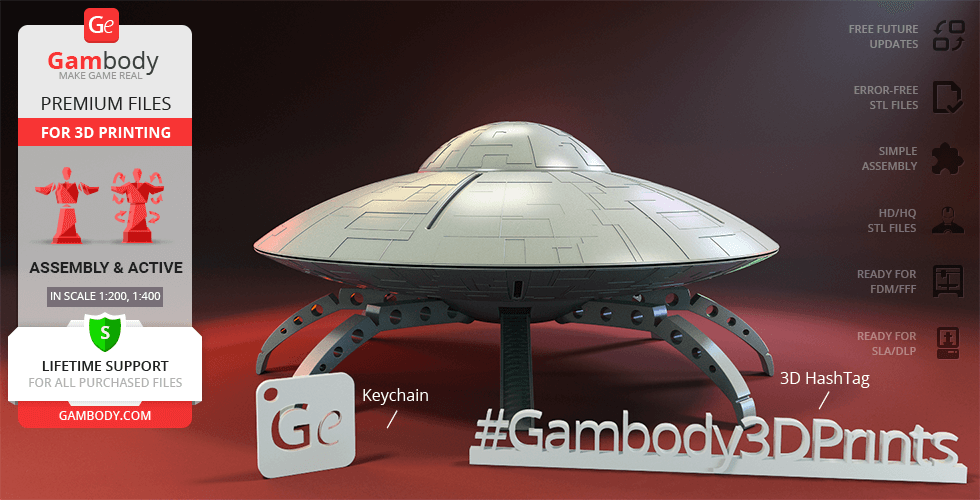

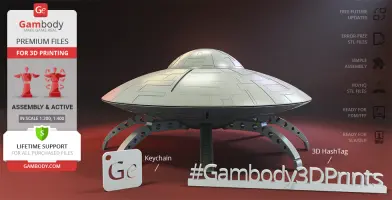

Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D MODEL

"We come in peace!"

Mars Attacks! is a 1996 anti-blockbuster masterpiece that vividly demonstrates the chaotic scenario of the possible alien invasion of Earth by Martians. The large-brained devilish little Martians arrive in Nevada on their Flying Saucer and almost instantly get down to conquering the nice planet by brutally murdering the movie’s all-star cast.

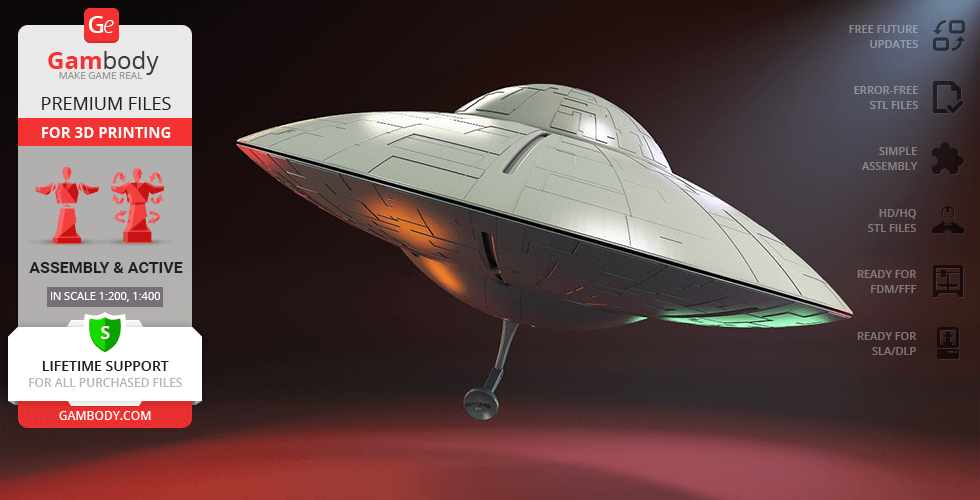

Thanks to the effort of our talented contributing 3D artist, the armed Martian figurine from Gambody's catalogue finally receives its very own Flying Saucer! The Martian Flying Saucer for 3D printing has the recognisable appearance of UFOs portrayed throughout media. However, with the efforts of the author of the model and Gambody’s team, the Martian’s craft now boasts some brilliant features you are about to witness!

ADAPTATION FOR 3D PRINTING

Martian Flying Saucer for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 40 hours in total. For your 3D printed UFO to boast unexpected articulation, our team introduced special mechanisms inside the Saucer and provided means for your Martian craft to be displayed in several scenarios.

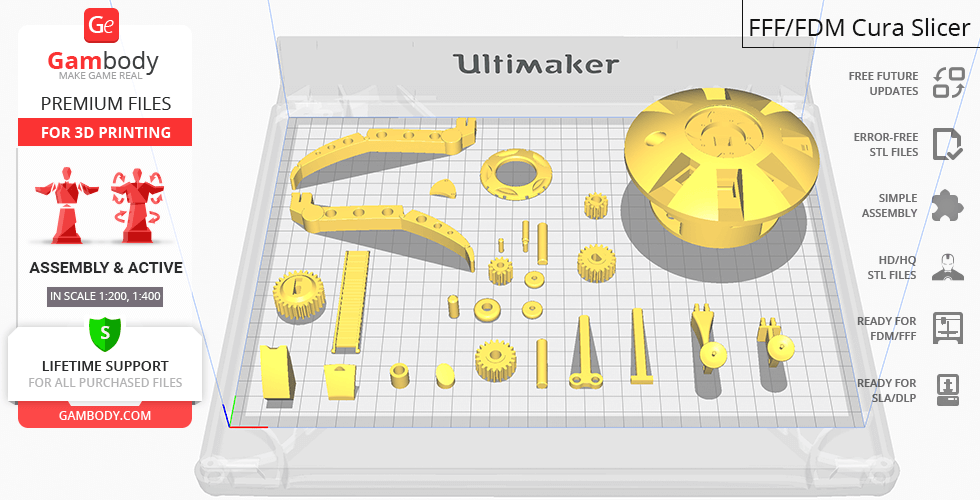

All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the Martian Flying Saucer model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the approximate diameter of the Mars Attacks! Flying Saucer which is 52000 mm. The 3D printing model's chosen scale is 1:200 for the FFF/FDM version and 1:400 for the DLP/SLA/SLS version.

VERSIONS' SPECIFICATIONS

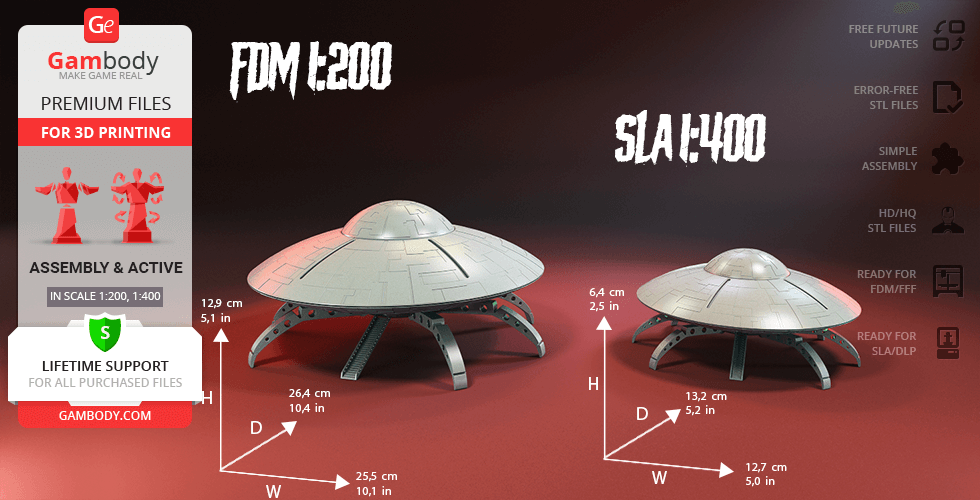

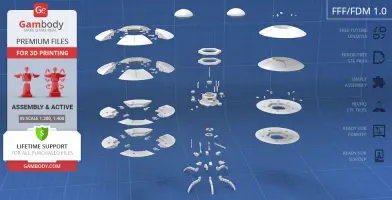

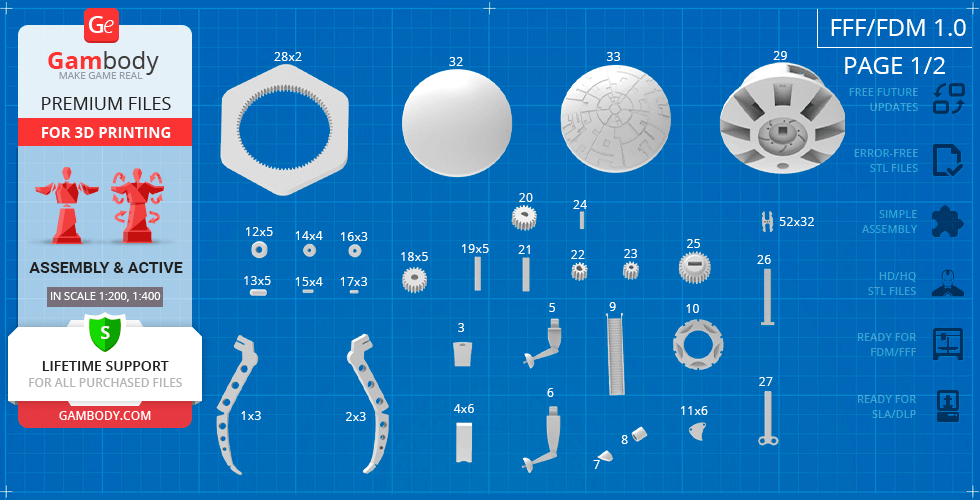

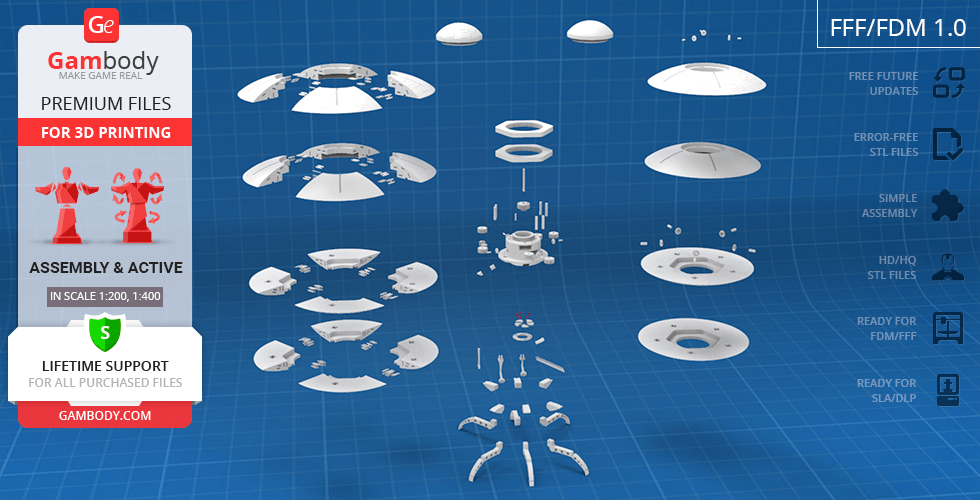

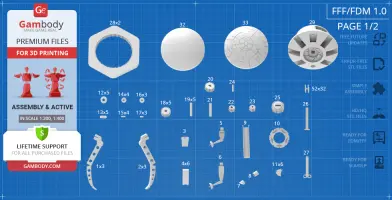

FFF/FDM 1.0 version features:
- Contains 52 parts;
- A printed model is 129 mm tall, 255 mm wide, 264 mm deep;
- The assembly kit includes lock 52_Ge_lock_10H_x32 to attach the model's parts securely without glue that needs to be printed 32 times;

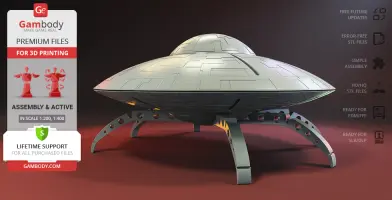

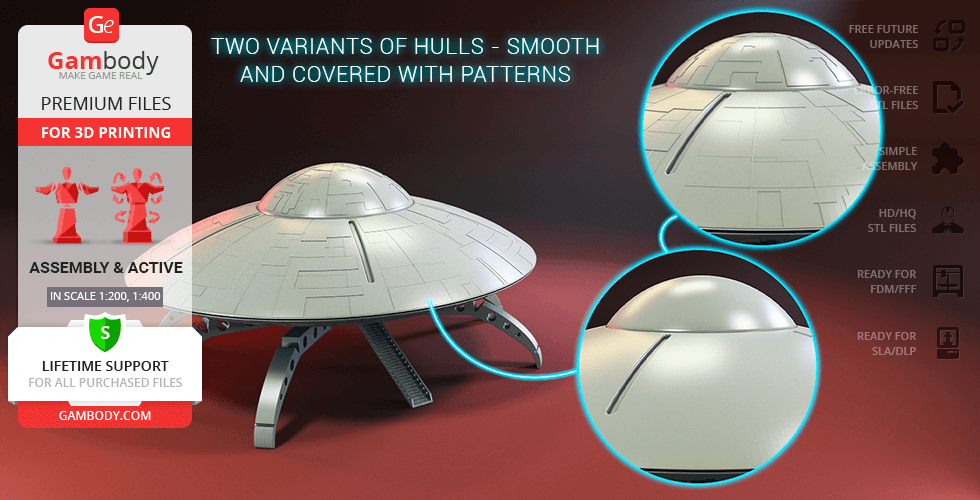

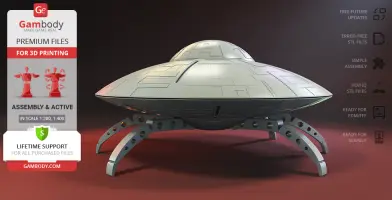

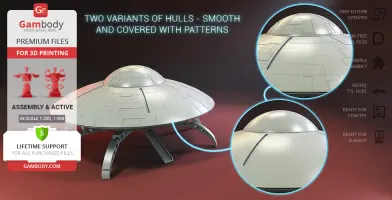

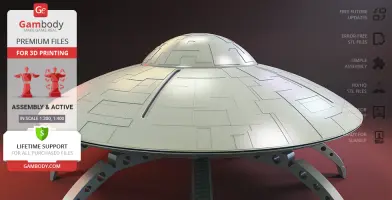

- There are two variants of hulls to choose from - with smooth surface and covered with patterns;

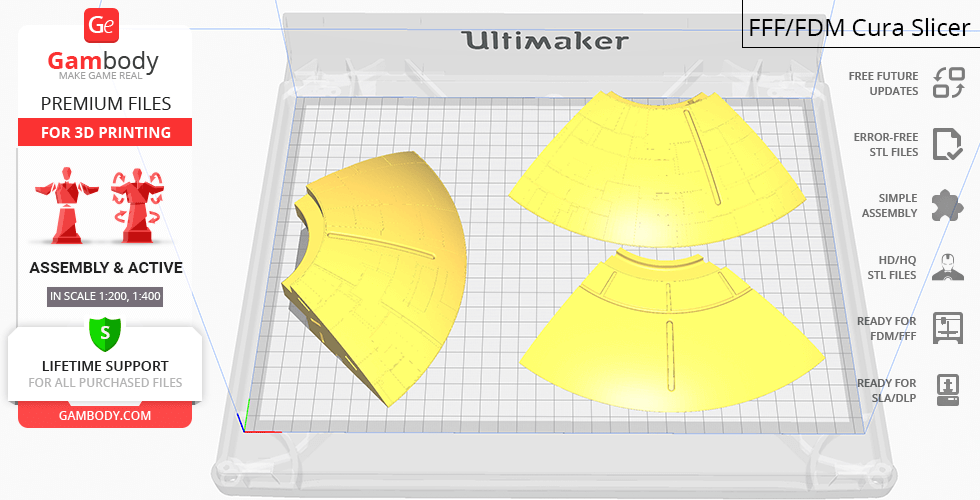

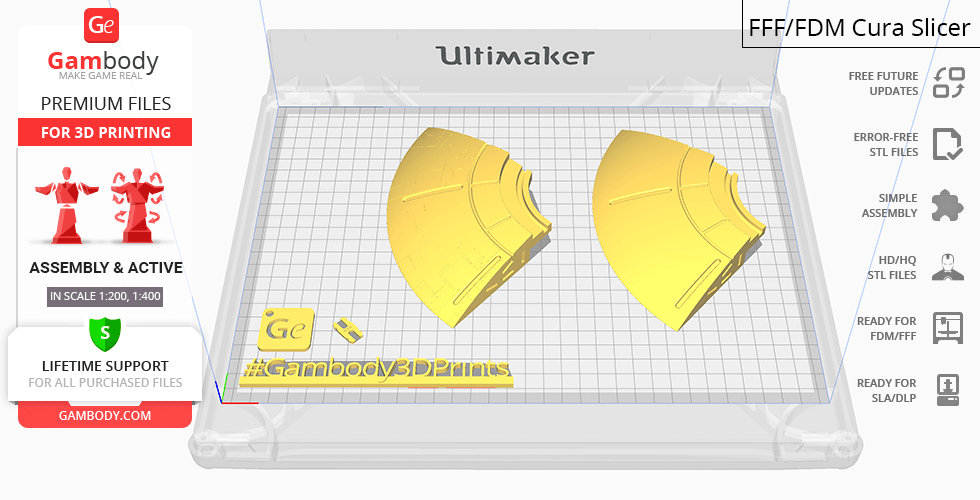

- You may choose to print either solid or split version of hulls depending on the dimensions of your 3D printer's build plate;

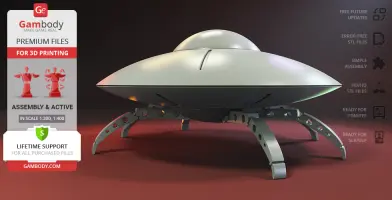

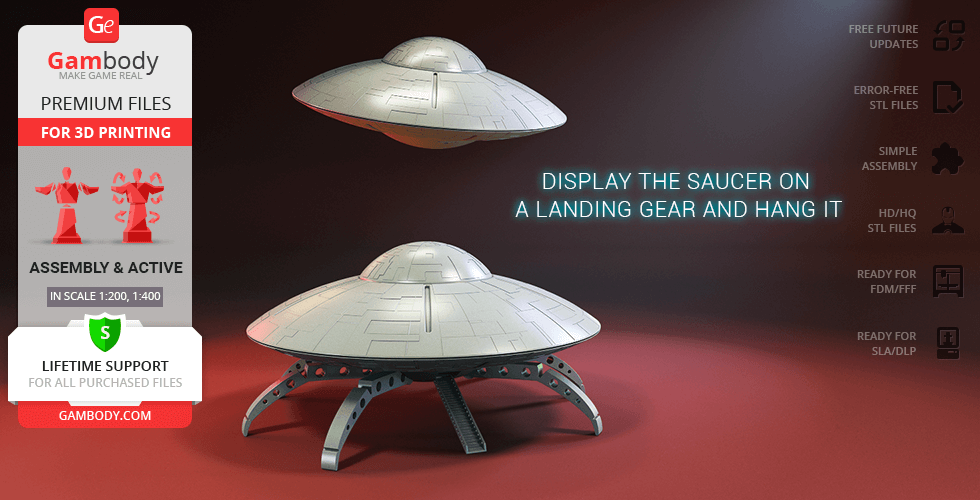

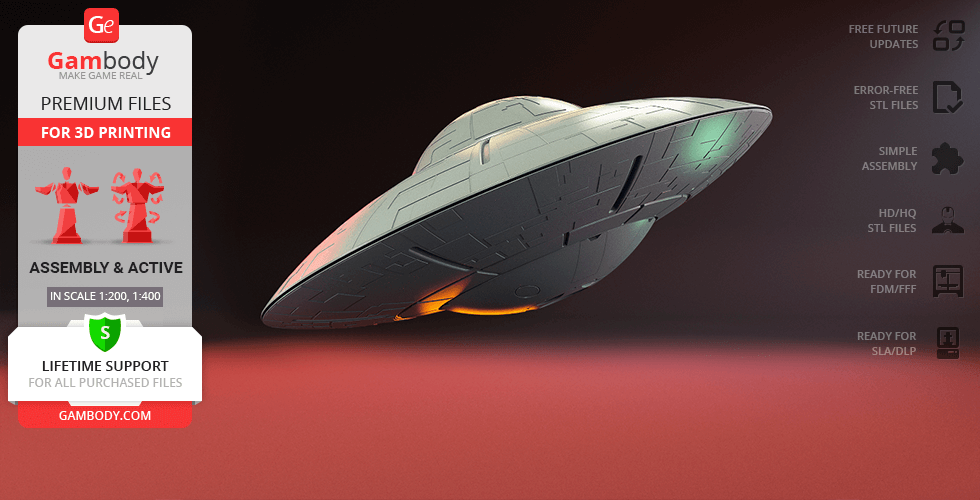

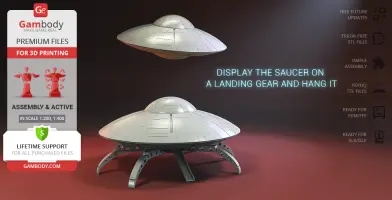

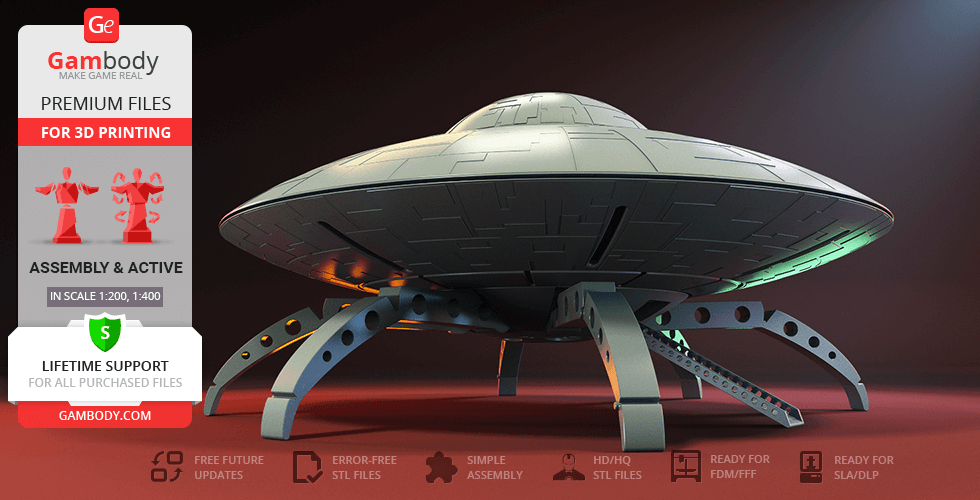

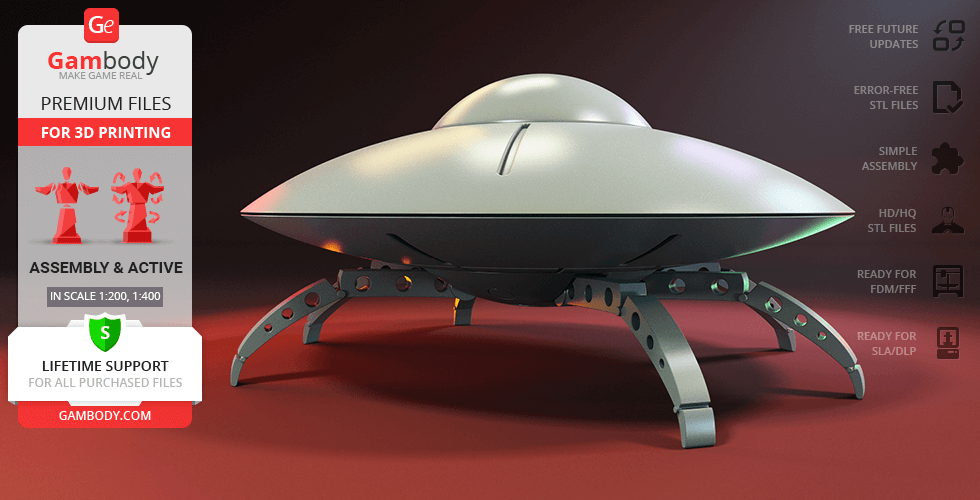

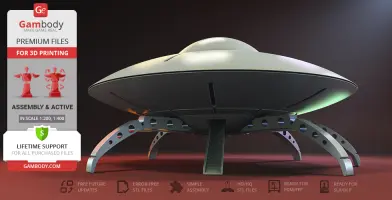

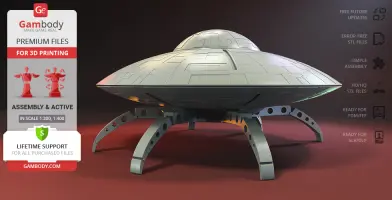

- Assemble the Saucer with the landing gear or hang it "closed" by concealing the landing gear slots with special caps;

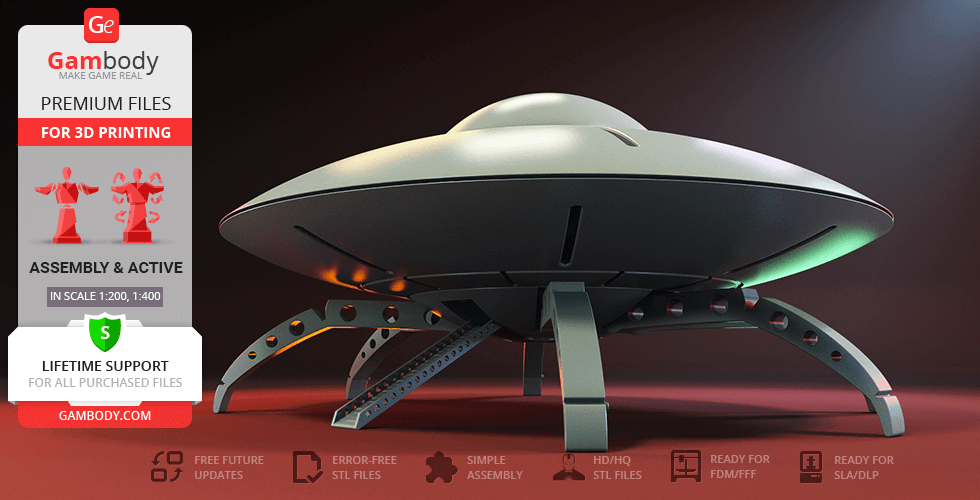

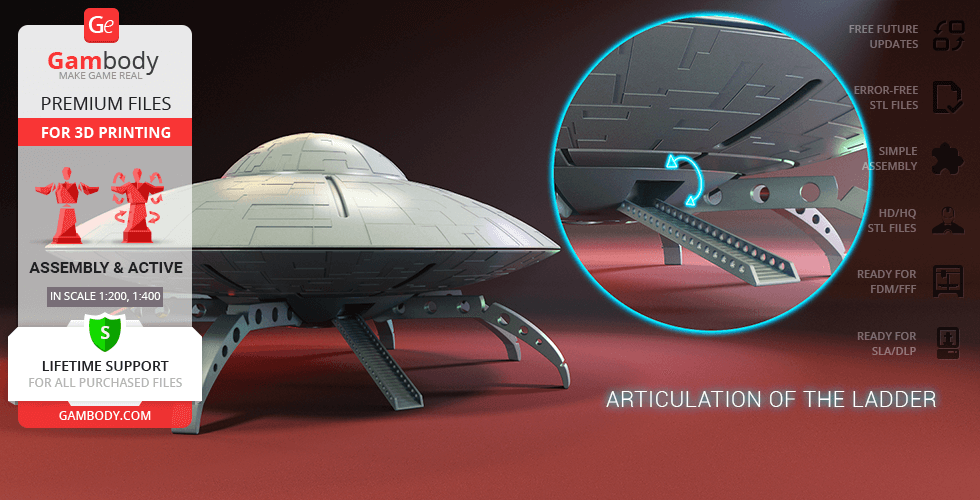

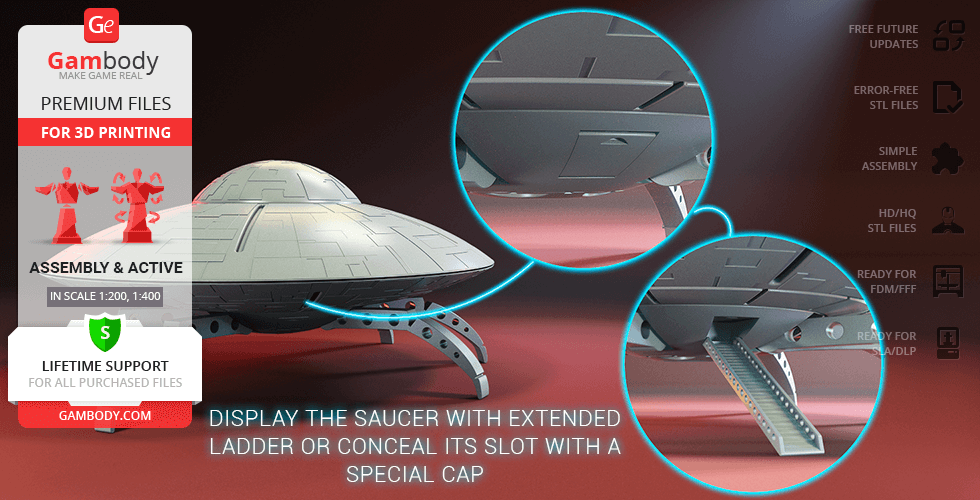

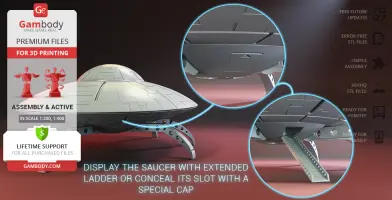

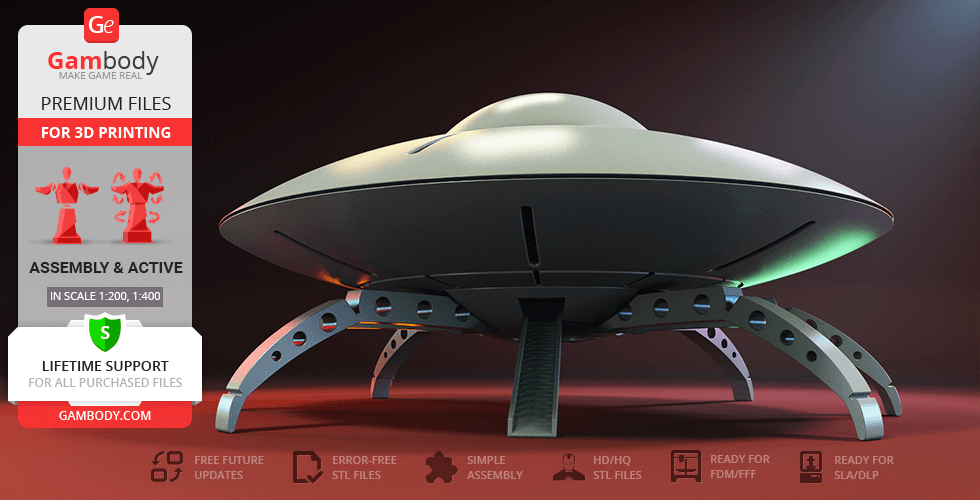

- You may display the model with an extended ladder or you may conceal its slot with a special cap;

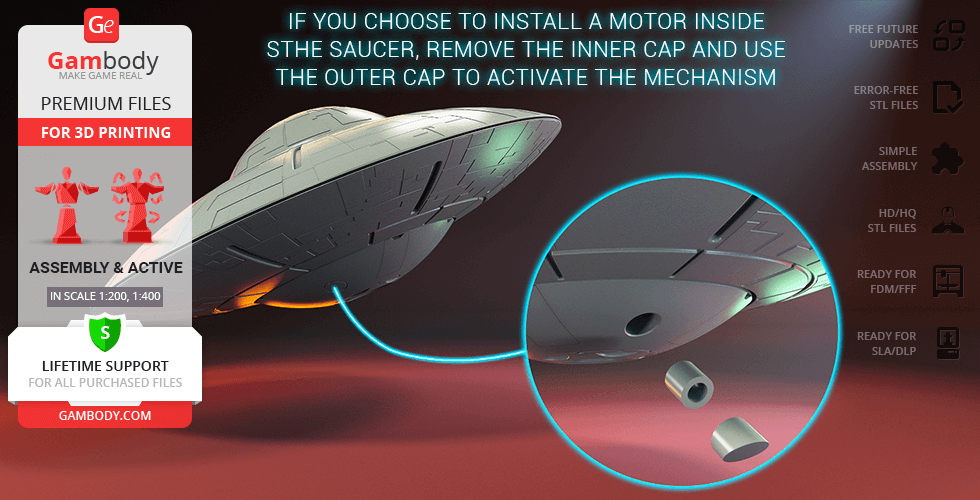

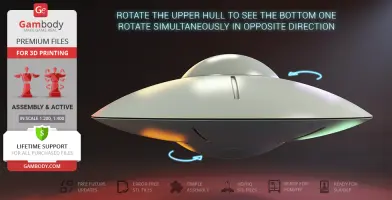

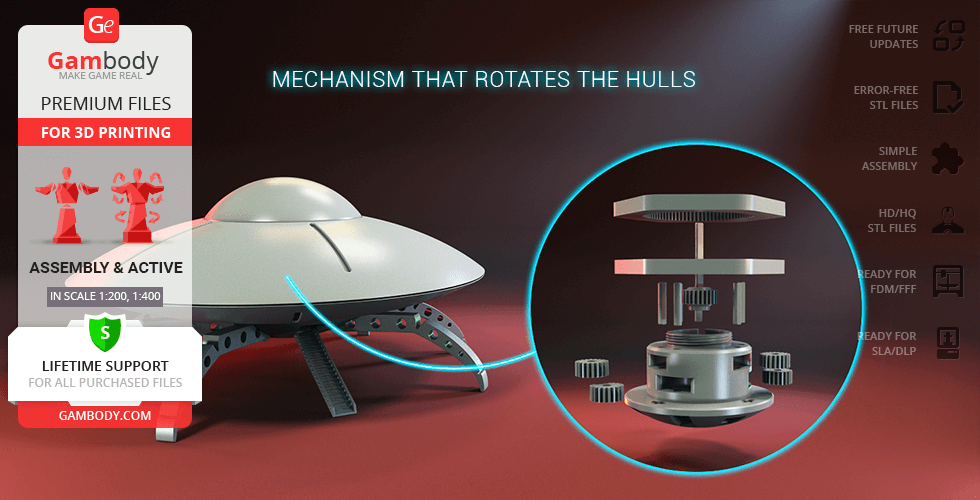

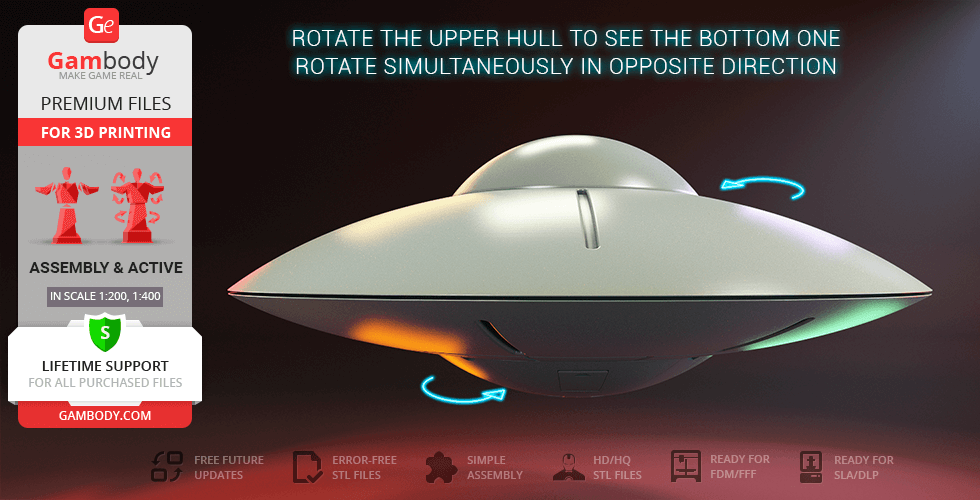

- There is a mechanism inside the Saucer that allows simultaneous rotation of the hulls in the opposite directions (rotate the upper hull to see the bottom one rotate simultaneously in the opposite direction);

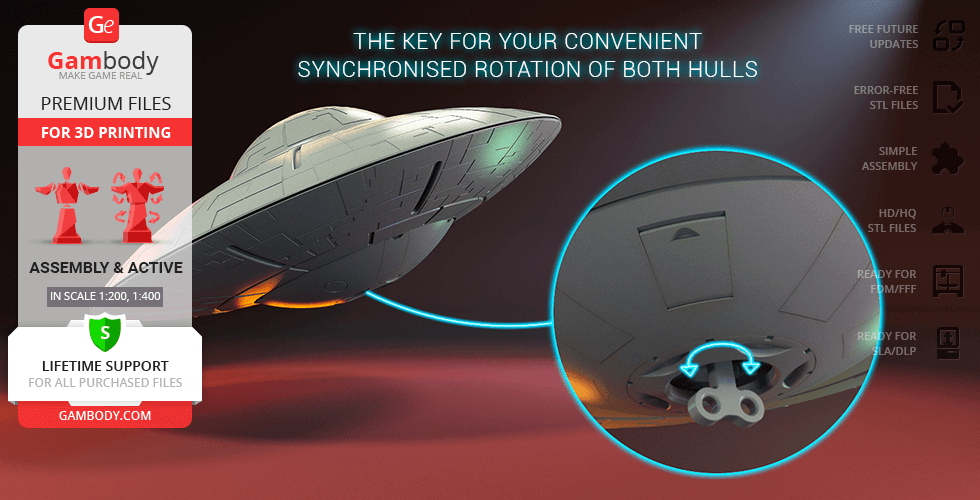

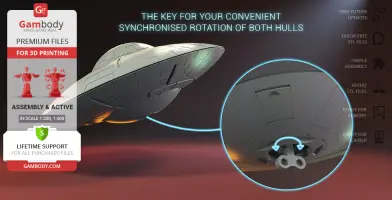

- The assembly kit includes a special key for your convenient synchronised rotation of both hulls via the bottom hatch;

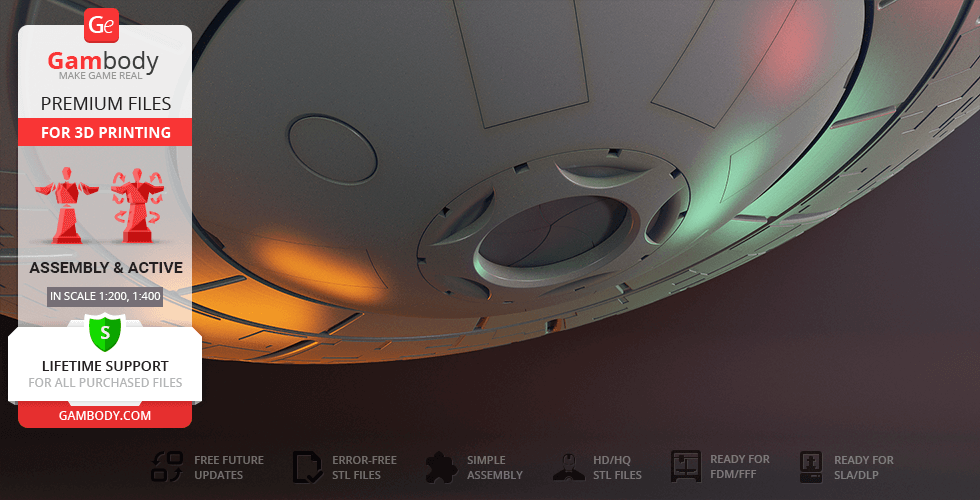

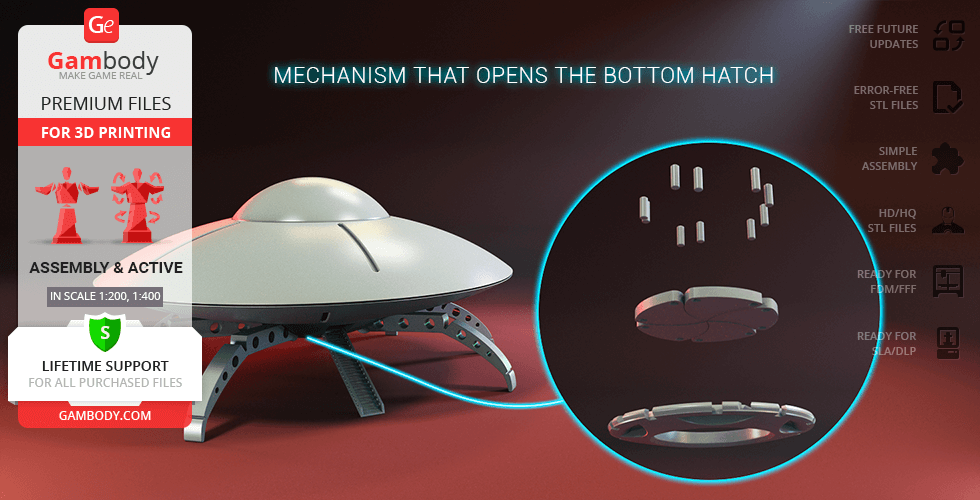

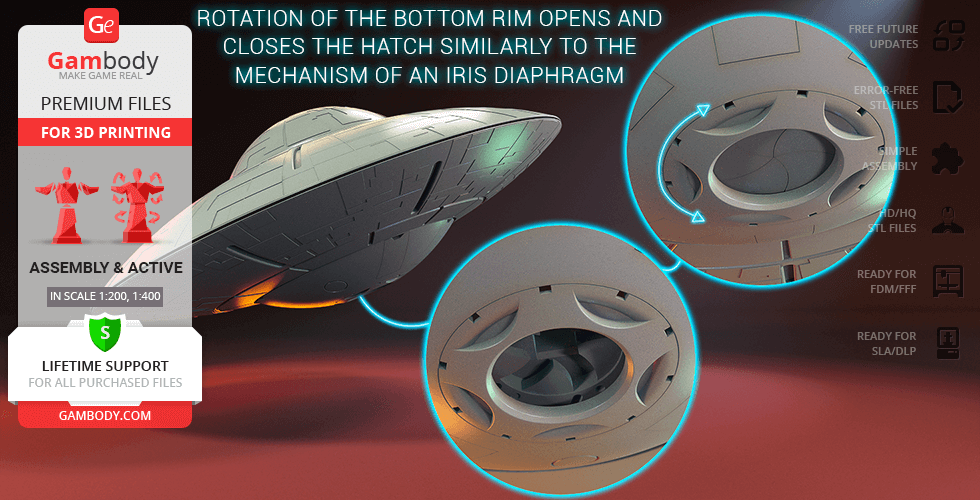

- Rotation of the bottom rim opens and closes the hatch similarly to the mechanism of an iris diaphragm;
- The assembly of "iris blades" requires additional “pins” that do not come in STL files but can be made out of short pieces of regular 1.75 PLA;

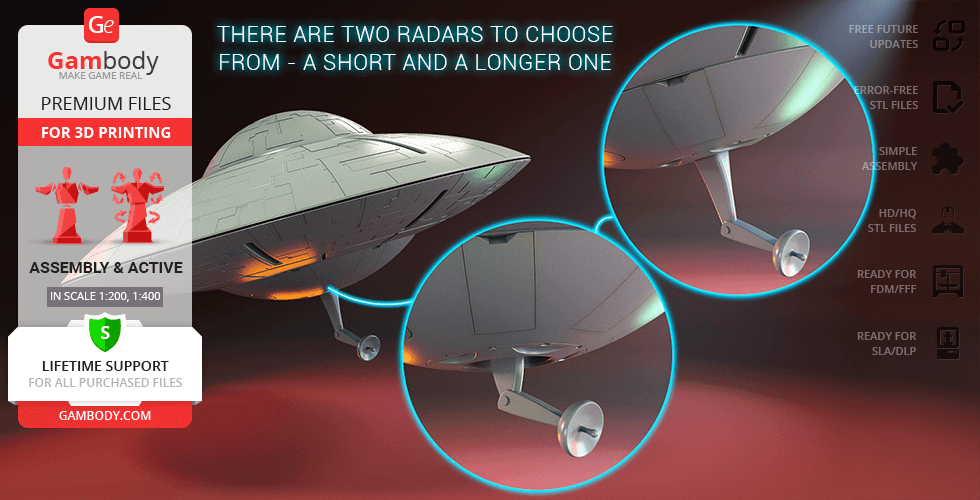

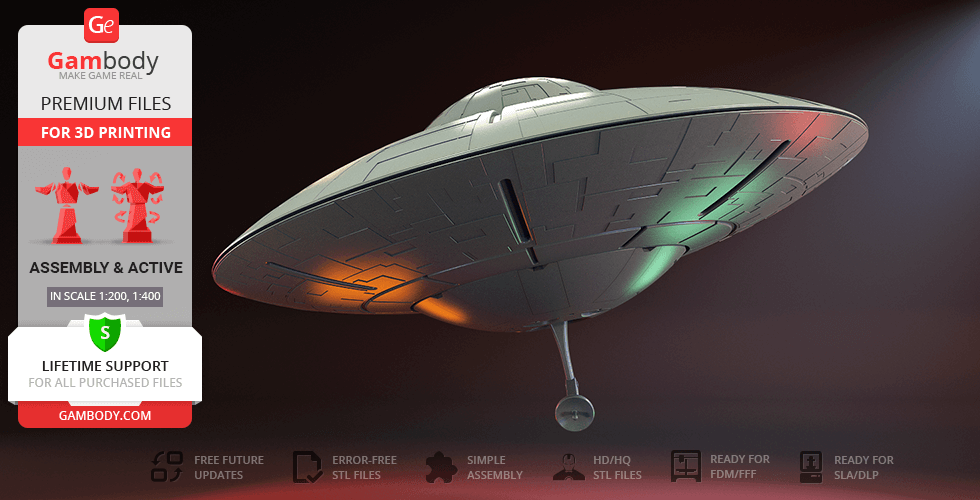

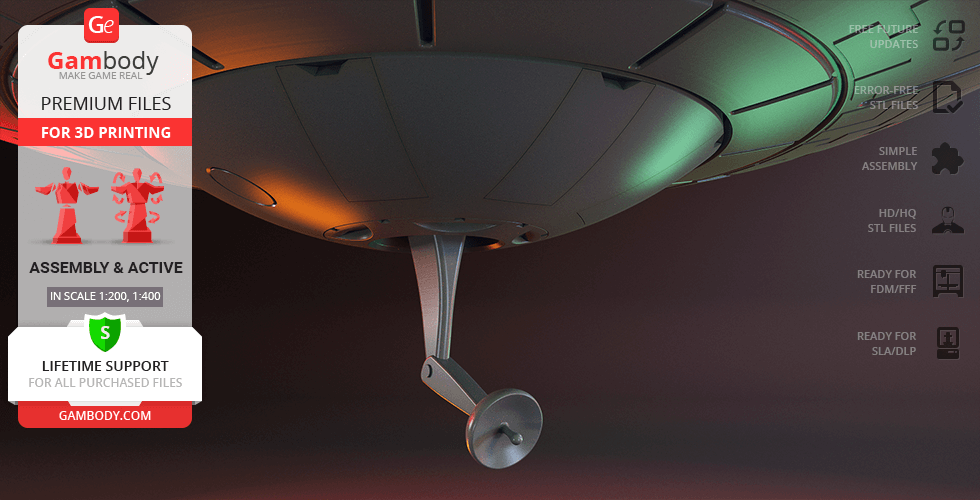

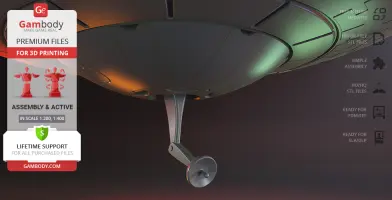

- There are two radars to choose from - a short and a longer one (depends on your display choice - with or without landing gear);

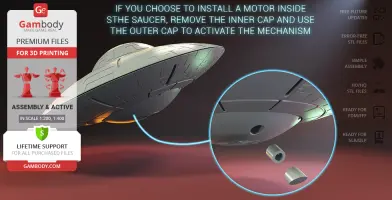

- The assembly kit includes a two-part "button". If you choose to install a motor inside the Saucer, remove the inner part of the button and use the outer part as a cap to activate the motor mechanism;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

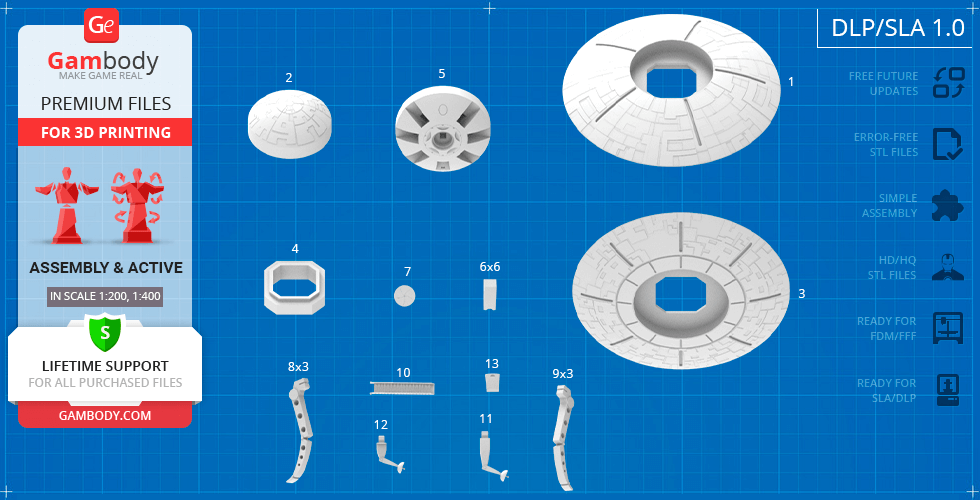

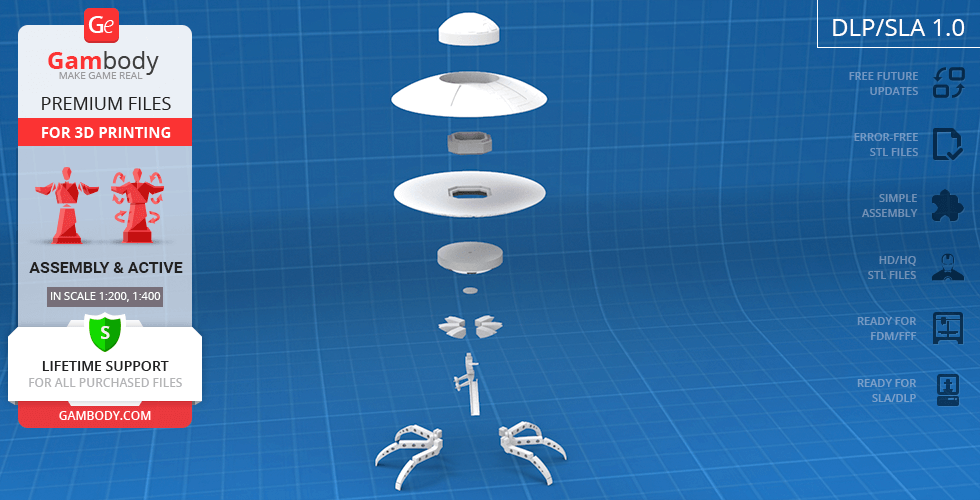

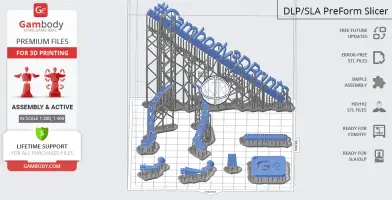

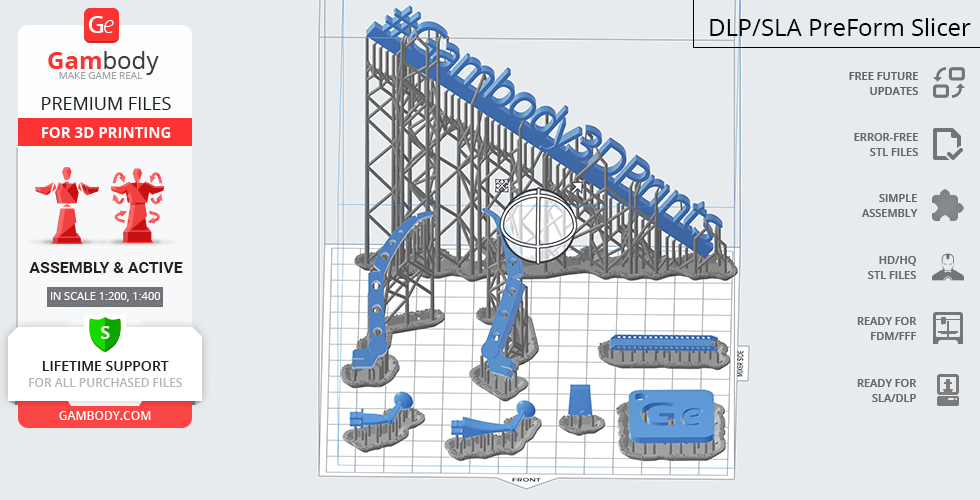

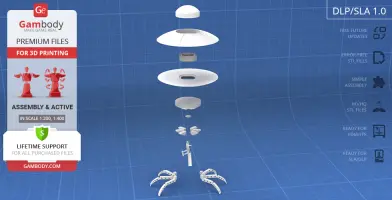

DLP/SLA 1.0 version features:
- Contains 13 parts;
- A printed model is 64 mm tall, 127 mm wide, 132 mm deep;
- Comprises only one patterned variant of hulls;

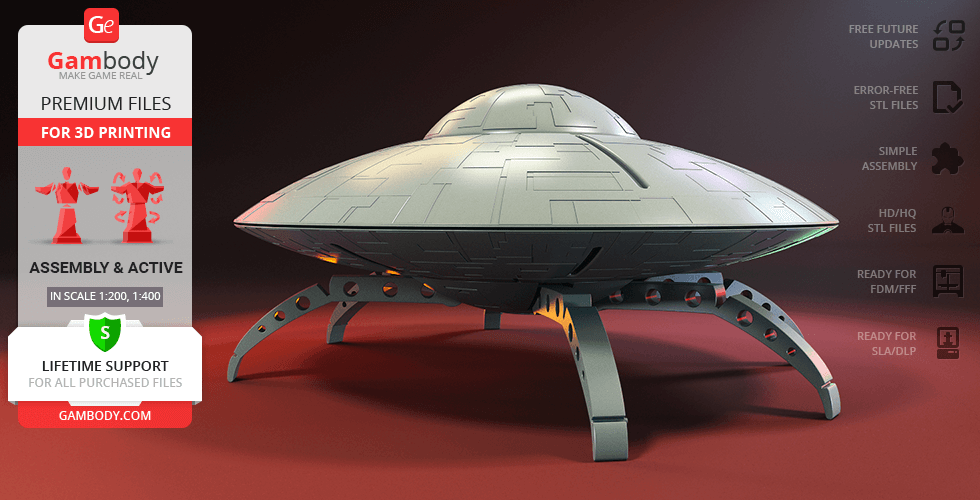

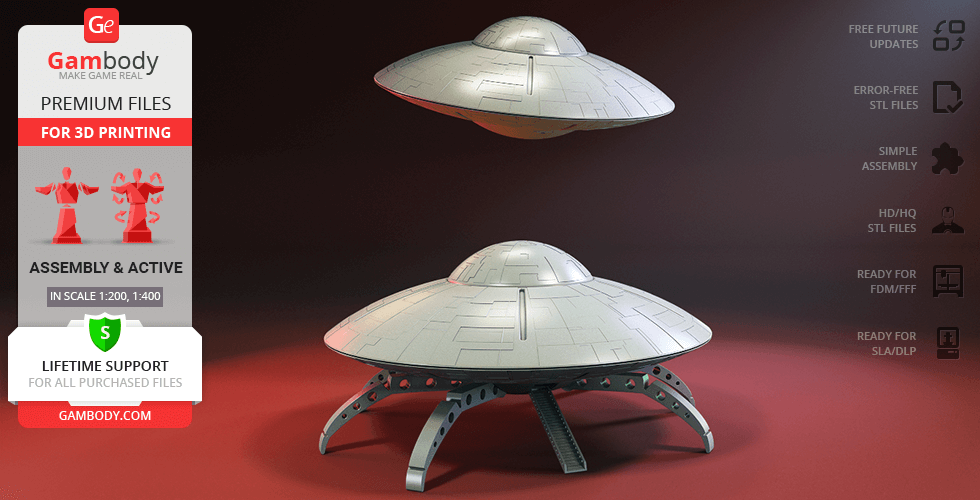

- Assemble the Saucer with the landing gear or hang it "closed" by concealing the landing gear slots with special caps;
- You may display the model with an extended ladder or you may conceal its slot with a special cap;
- There are two radars to choose from - a short and a longer one (depends on your display choice - with or without landing gear);

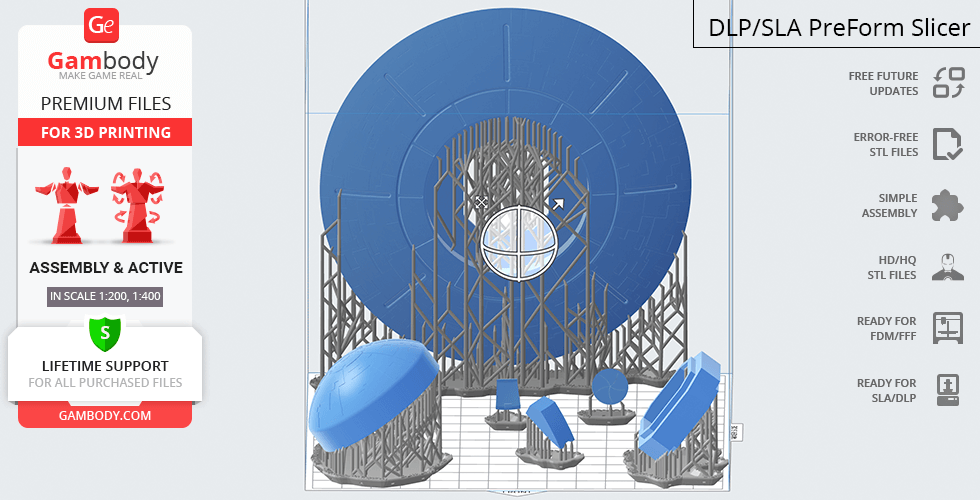

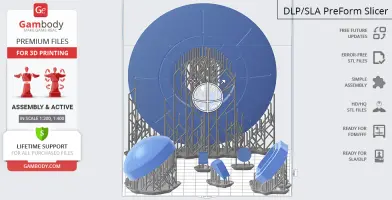

- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the model of Martian Flying Saucer for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Martian Flying Saucer 3D Printing Model at Gambody YouTube channel.

Also, you may like Martian 3D Printing Figurine, as well as other Space Ships 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

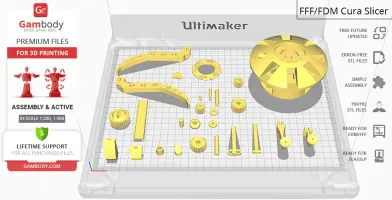

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90Ëš
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments
