Megathron 3D Printing Model | Assembly

(13)
cm: 22.7 w x 54.4 d x 19.7 h
in: 8.937 w x 21.417 d x 7.756 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Megathron 3D Printing Model comes in 2 versions for each 3D printer type (FFF/FDM and SLS). Files for each version are available for download after the purchase.

Detailed information about this model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

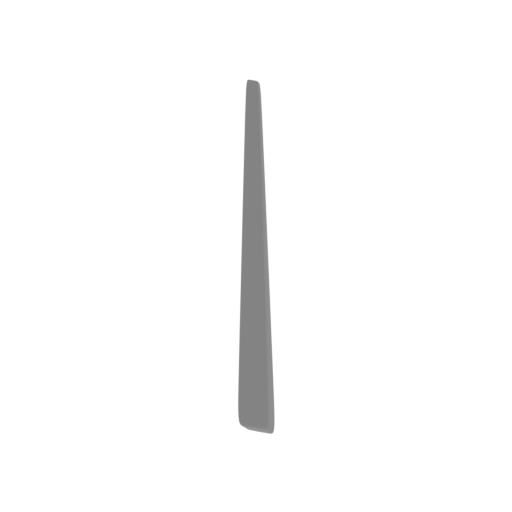

1_pin_1_R (repaired).stl
0.07 MiB 10 min <1 m 4 x 3 x 48 Download
2_pin_2_R (repaired).stl
0.06 MiB 6 min <1 m 4 x 2 x 34 Download

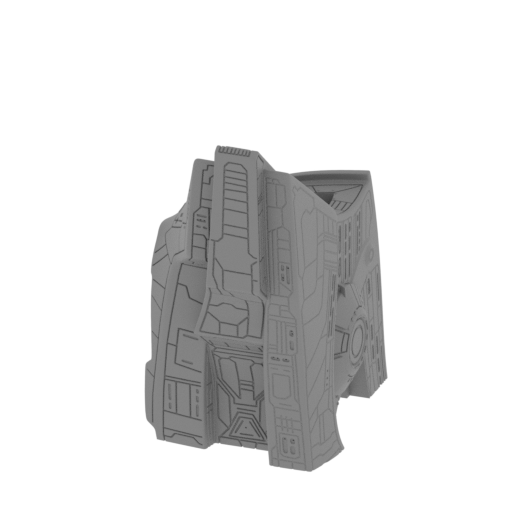

3_nose_hull_1_R (repaired ).stl
41.77 MiB 59 h 17 min 38 m 81 x 142 x 157 Download

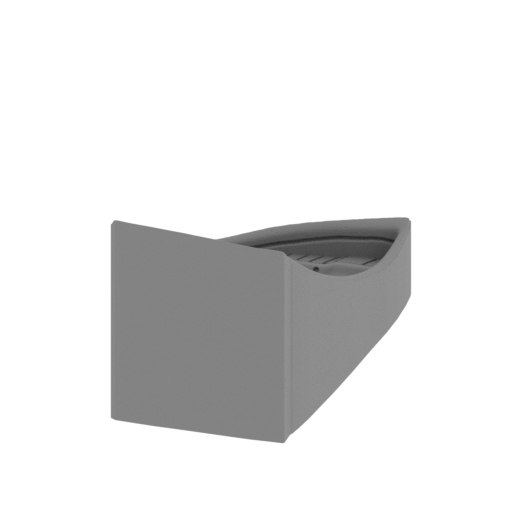

4_nose_cap_front_R (repai red).stl
2.46 MiB 2 h 43 min 1 m 32 x 60 x 33 Download

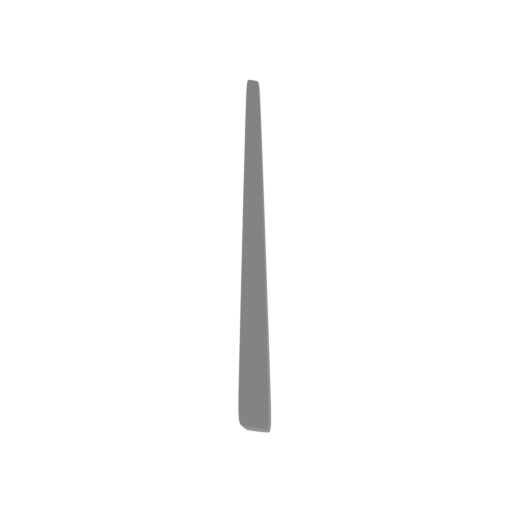

5_pin_1_L (repaired).stl
0.07 MiB 10 min <1 m 4 x 3 x 48 Download
6_pin_2_L (repaired).stl
0.06 MiB 6 min <1 m 4 x 2 x 34 Download

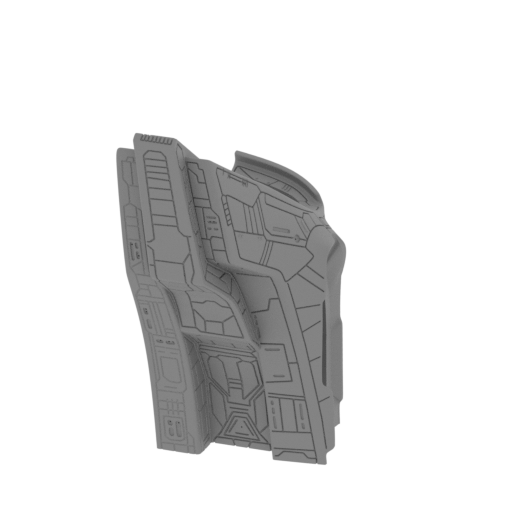

7_nose_hull_1_L (repaired ).stl
41.78 MiB 59 h 21 min 38 m 81 x 142 x 157 Download

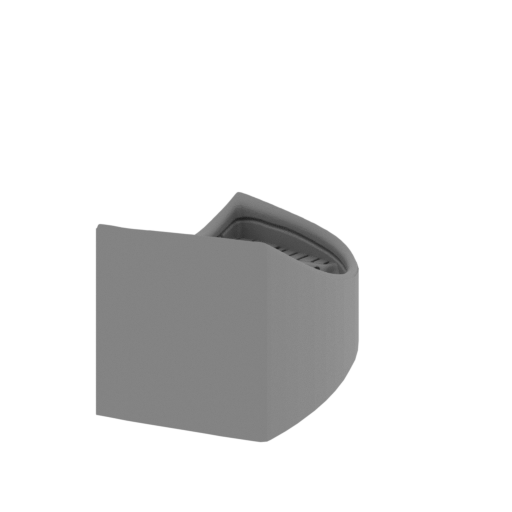

8_nose_cap_front_L (repai red).stl
2.46 MiB 3 h 9 min 1 m 32 x 60 x 33 Download

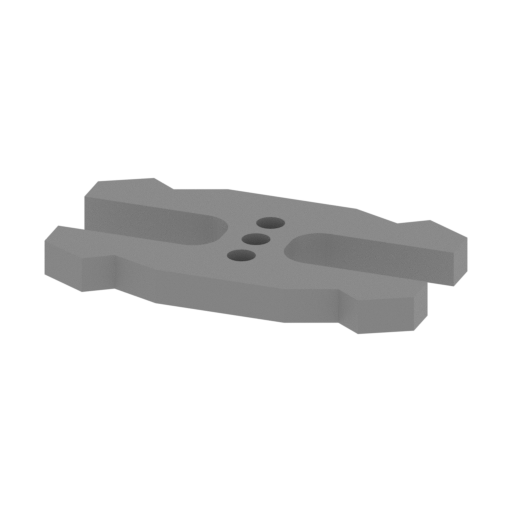

9_Ge_lock_10H_x65 (repair ed).stl
0.03 MiB 4 min <1 m 18 x 10 x 2 Download

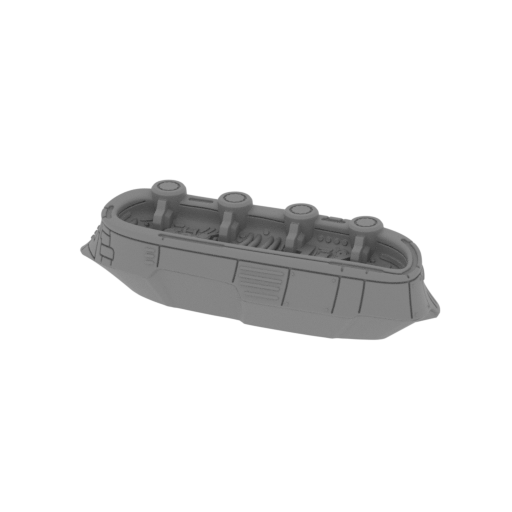

12_nose_cap_side_1_R (rep aired).stl
7.21 MiB 7 h 49 min 5 m 119 x 47 x 30 Download

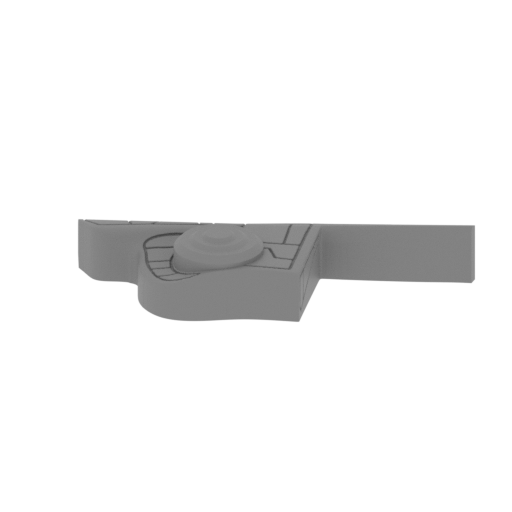

13_nose_cap_side_2_R (rep aired).stl
4.09 MiB 2 h 59 min 2 m 93 x 47 x 17 Download

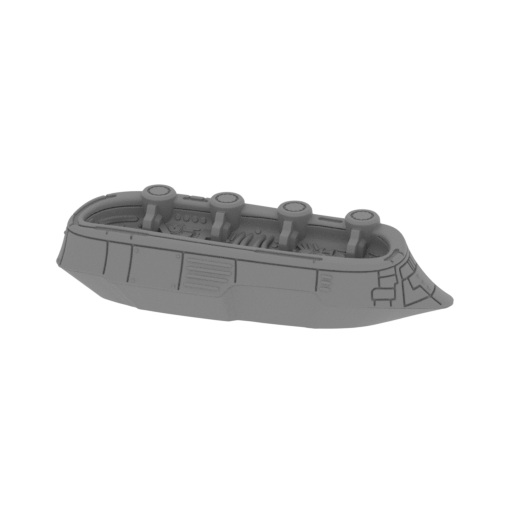

14_nose_cap_side_1_L (rep aired).stl
7.22 MiB 7 h 50 min 5 m 119 x 47 x 30 Download

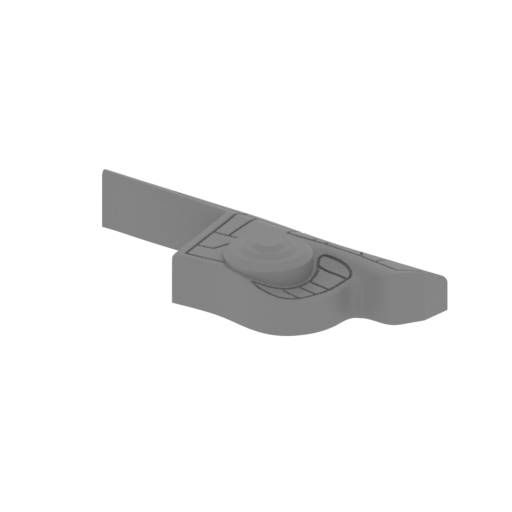

15_nose_cap_side_2_L (rep aired).stl
4.09 MiB 2 h 42 min 2 m 93 x 47 x 17 Download

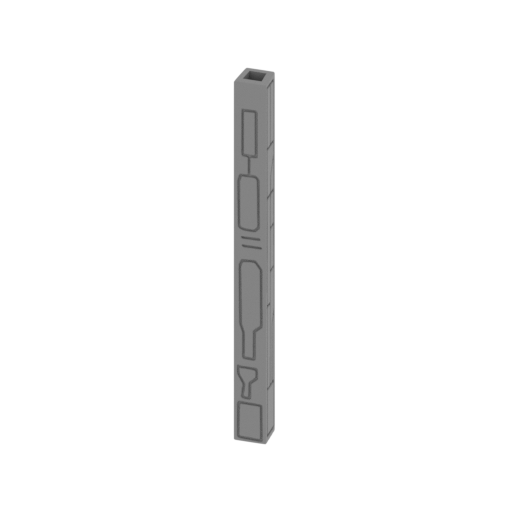

16_beam_R (repaired).stl
1.97 MiB 3 h 3 min 1 m 9 x 9 x 100 Download

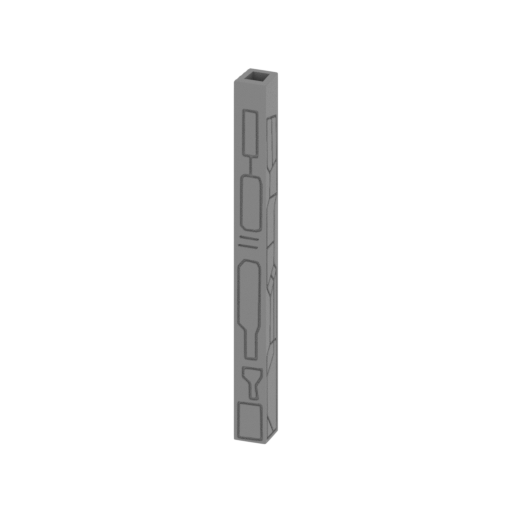

17_beam_L (repaired).stl
1.97 MiB 2 h 1 m 9 x 9 x 100 Download

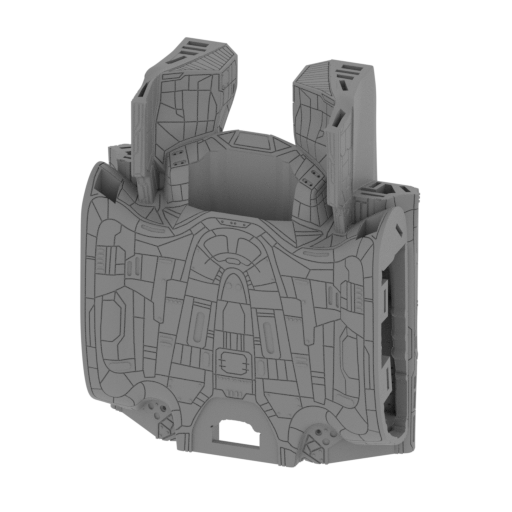

18_center_hull (repaired) .stl
45.75 MiB 67 h 2 min 40 m 129 x 60 x 153 Download

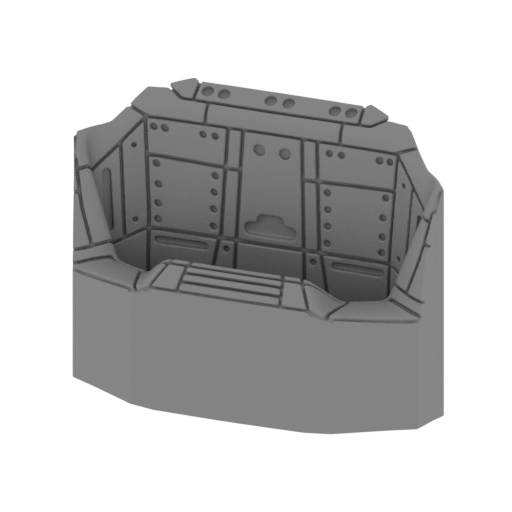

19_center_hull_exit (repa ired).stl
3.68 MiB 1 h 42 min 1 m 46 x 19 x 34 Download

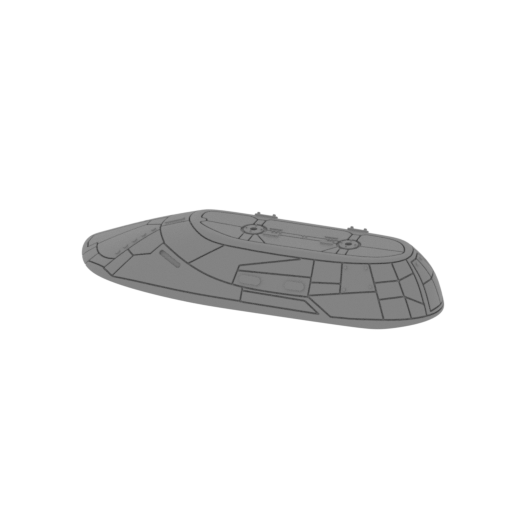

20_center_hull_cap_2_R (r epaired).stl
5.73 MiB 4 h 11 min 2 m 104 x 34 x 17 Download

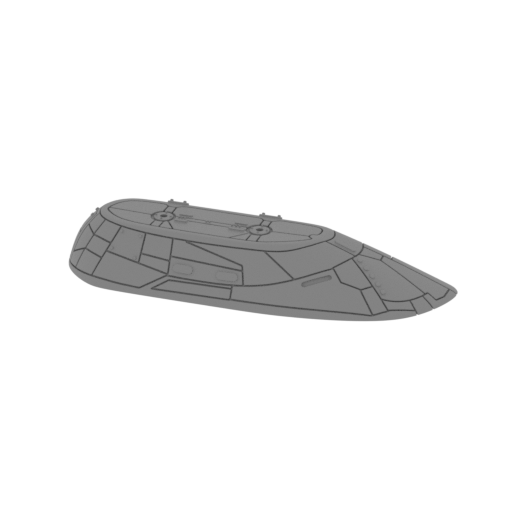

21_center_hull_cap_2_L (r epaired).stl
5.73 MiB 4 h 9 min 2 m 104 x 34 x 17 Download

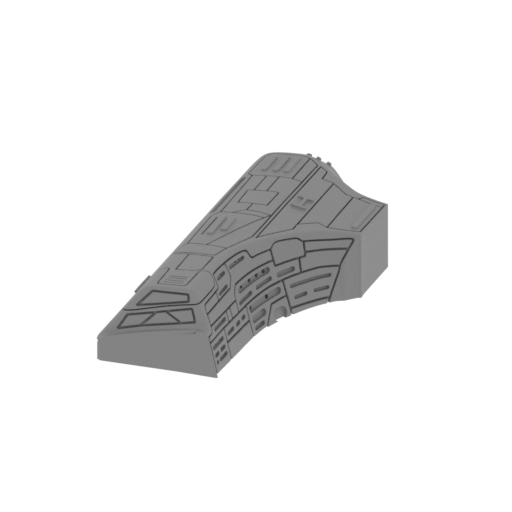

22_center_hull_cap_3_R (r epaired).stl
3.71 MiB 2 h 55 min 2 m 35 x 70 x 16 Download

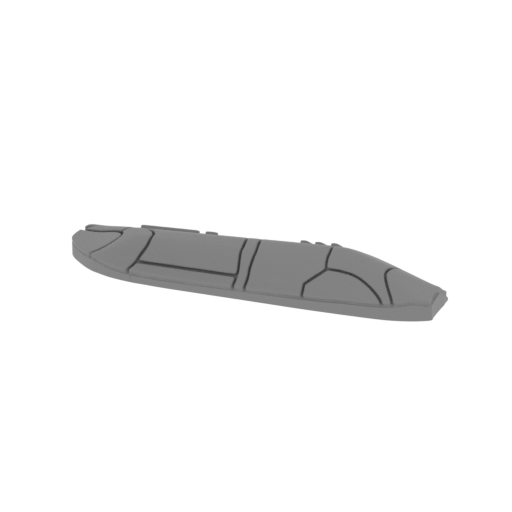

23_center_hull_cap_1_R (r epaired).stl
1.08 MiB 24 min <1 m 49 x 12 x 7 Download

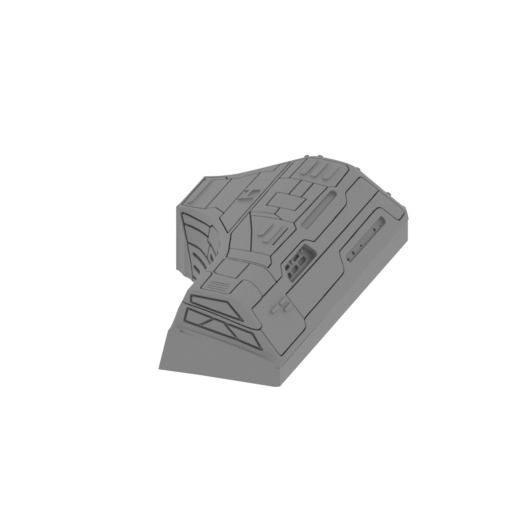

24_center_hull_cap_3_L (r epaired).stl
3.83 MiB 2 h 54 min 2 m 35 x 70 x 16 Download

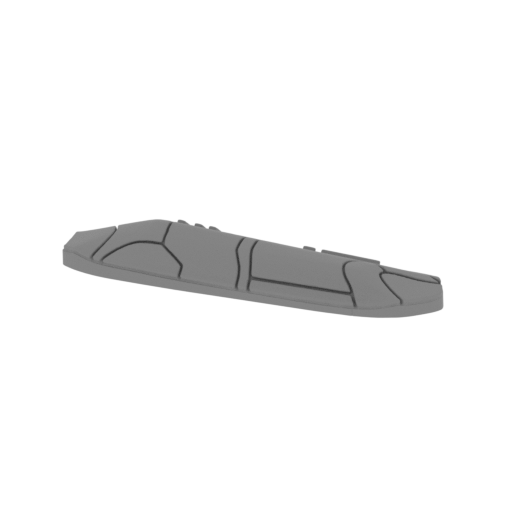

25_center_hull_cap_1_L (r epaired).stl
1.08 MiB 25 min <1 m 49 x 12 x 7 Download

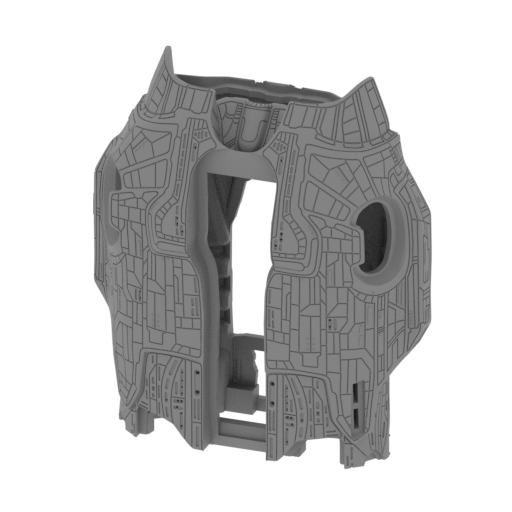

26_back_hull (repaired).s tl
71.27 MiB 83 h 44 min 51 m 156 x 69 x 173 Download

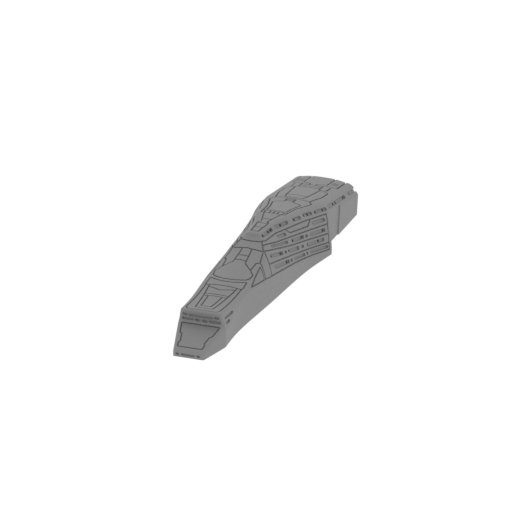

27_top_hull_2 (repaired). stl
10.92 MiB 7 h 7 min 4 m 37 x 158 x 24 Download

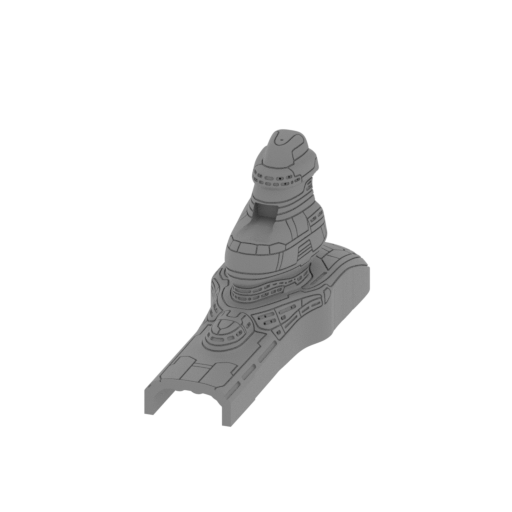

28_top_hull_1 (repaired). stl
18.16 MiB 10 h 45 min 6 m 40 x 125 x 62 Download

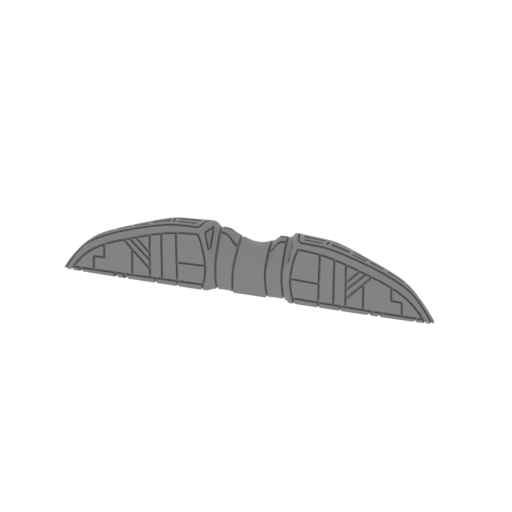

29_cabine_1 (repaired).st l
5.17 MiB 1 h 20 min 1 m 90 x 11 x 16 Download

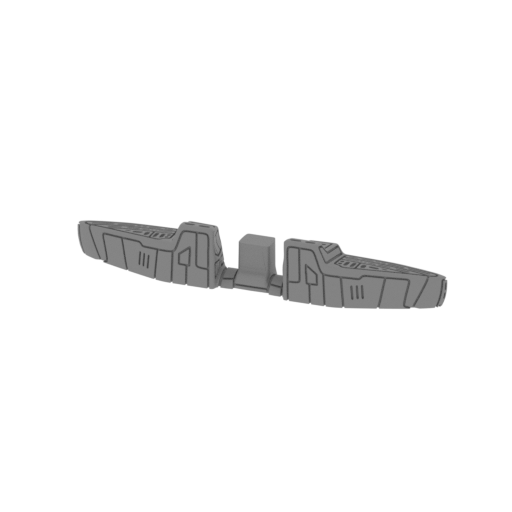

30_cabine_2 (repaired).st l
5.92 MiB 1 h 18 min 1 m 93 x 11 x 15 Download

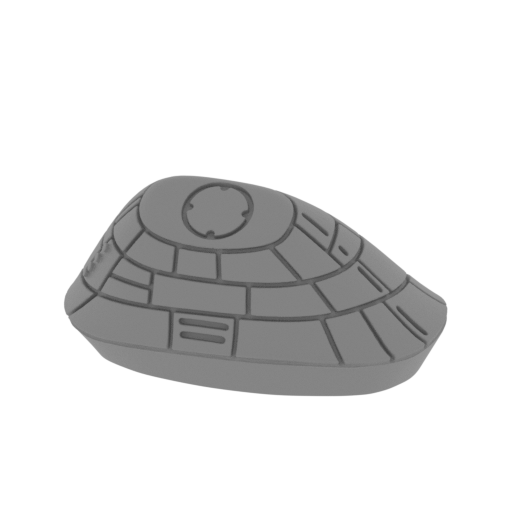

31_back_hull_cap_1_R (rep aired).stl
2.90 MiB 1 h 19 min 1 m 42 x 29 x 20 Download

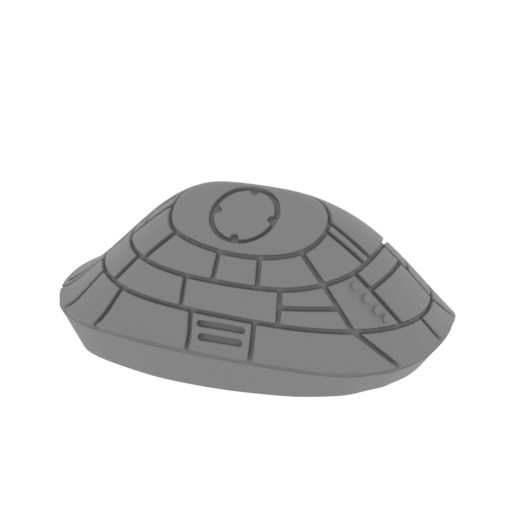

32_back_hull_cap_1_L (rep aired).stl
2.90 MiB 1 h 19 min 1 m 42 x 29 x 20 Download

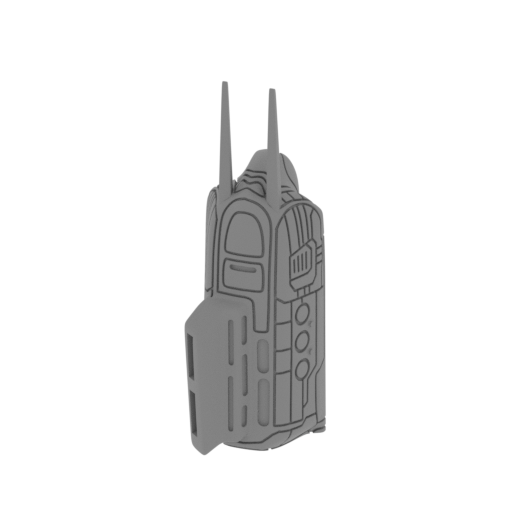

33_top_gun_1 (repaired).s tl
7.71 MiB 3 h 20 min 2 m 24 x 31 x 78 Download

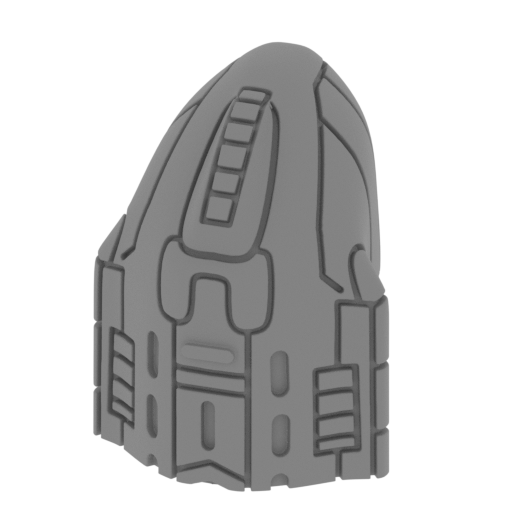

34_top_gun_2 (repaired).s tl
3.30 MiB 1 h 10 min 1 m 24 x 22 x 30 Download

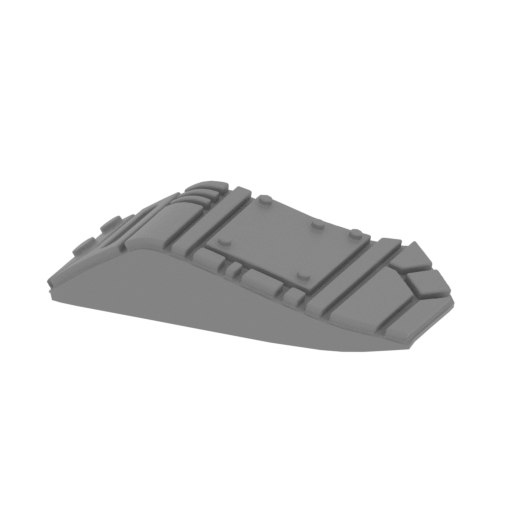

35_bot_hull_cap_R (repair ed).stl
0.38 MiB 16 min <1 m 29 x 15 x 6 Download

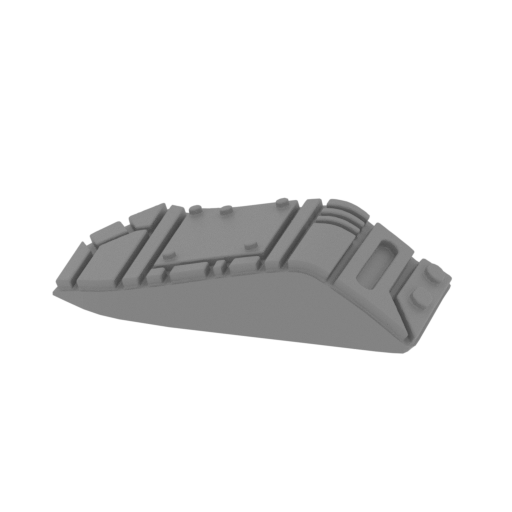

36_bot_hull_cap_L (repair ed).stl
0.38 MiB 17 min <1 m 29 x 15 x 6 Download

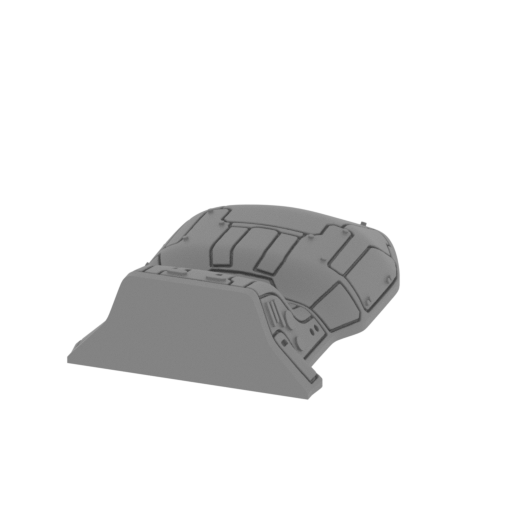

37_bot_hull_1 (repaired). stl
5.45 MiB 2 h 8 min 1 m 38 x 58 x 16 Download

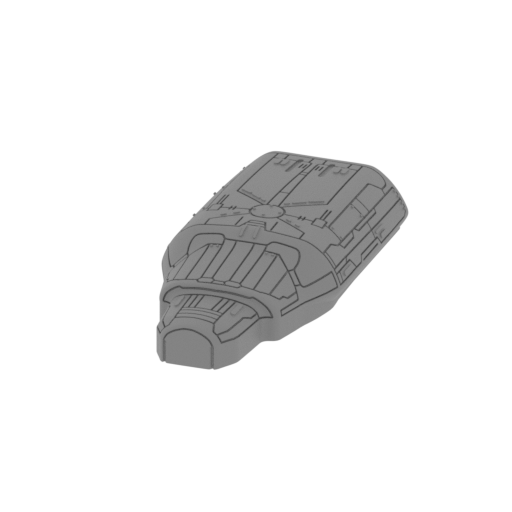

38_bot_hull_2 (repaired). stl
9.64 MiB 7 h 3 min 5 m 51 x 105 x 20 Download

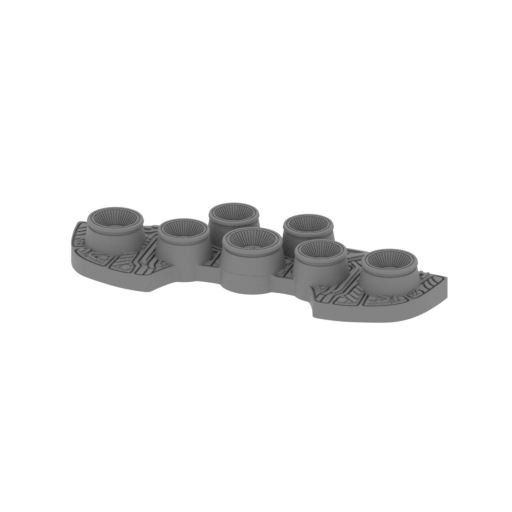

39_back_cap (repaired).st l
10.83 MiB 2 h 18 min 1 m 87 x 32 x 10 Download

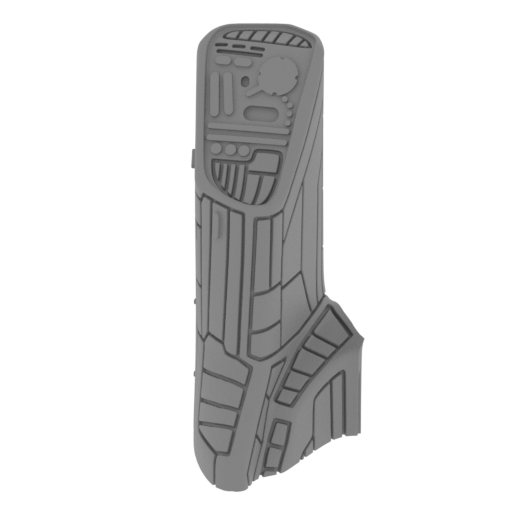

40_gun_1_R (repaired).stl
5.91 MiB 2 h 1 min 1 m 25 x 36 x 51 Download

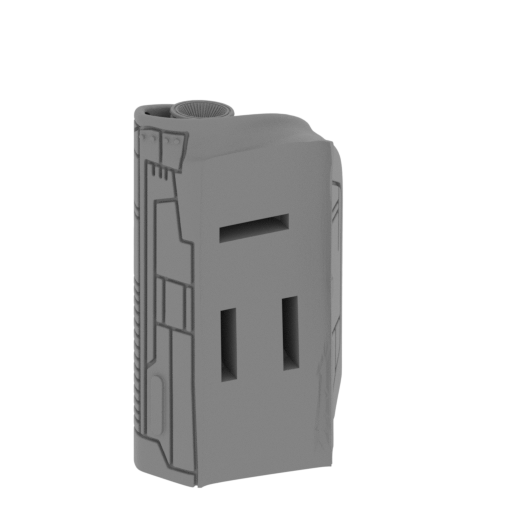

41_gun_2_R (repaired).stl
6.93 MiB 3 h 16 min 2 m 25 x 36 x 50 Download

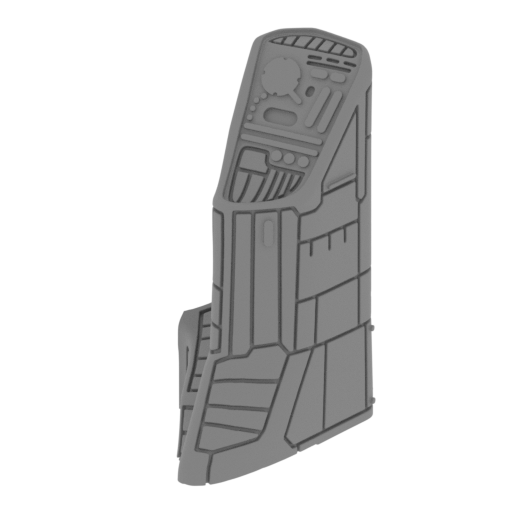

42_gun_1_L (repaired).stl
5.91 MiB 2 h 1 min 1 m 25 x 36 x 51 Download

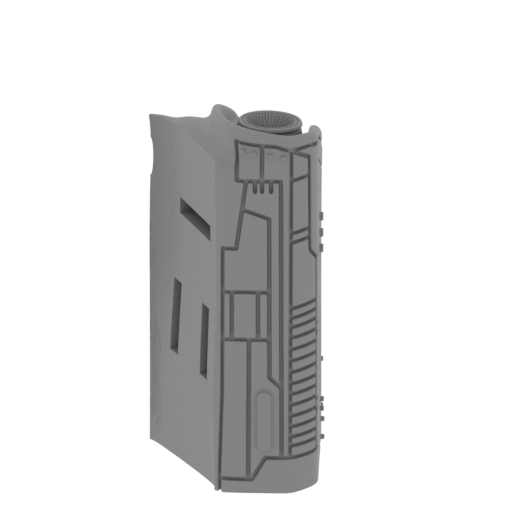

43_gun_2_L (repaired).stl
6.92 MiB 2 h 40 min 1 m 25 x 36 x 50 Download

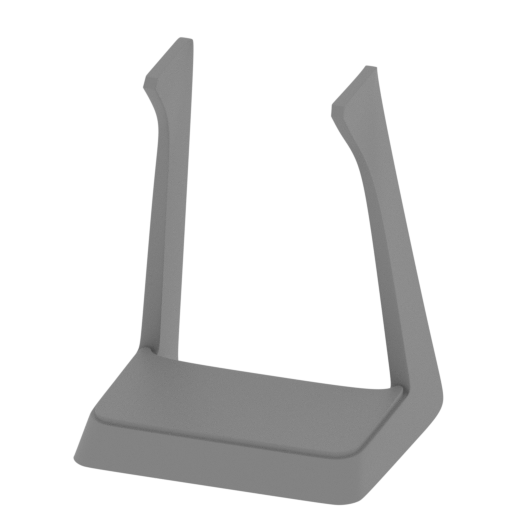

44_Platform_front (repair ed).stl
41.04 MiB 26 h 21 min 16 m 144 x 124 x 184 Download

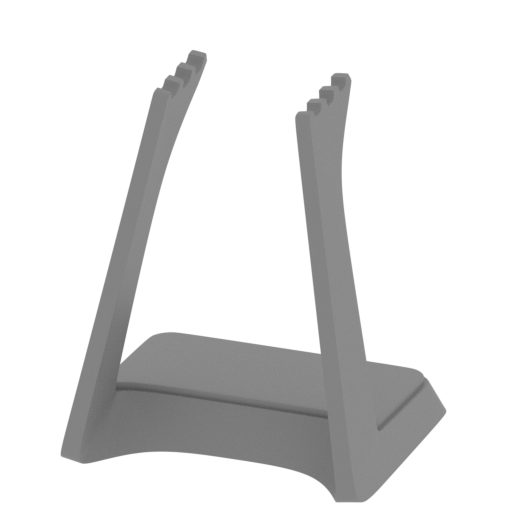

45_Platform_back (repaire d).stl
40.75 MiB 27 h 33 min 16 m 143 x 124 x 175 Download

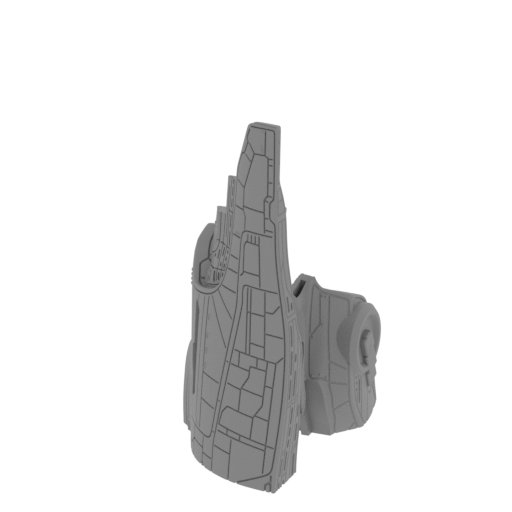

10_nose_hull_2_R (repaire d).stl
37.33 MiB 26 h 25 min 15 m 75 x 97 x 151 Download

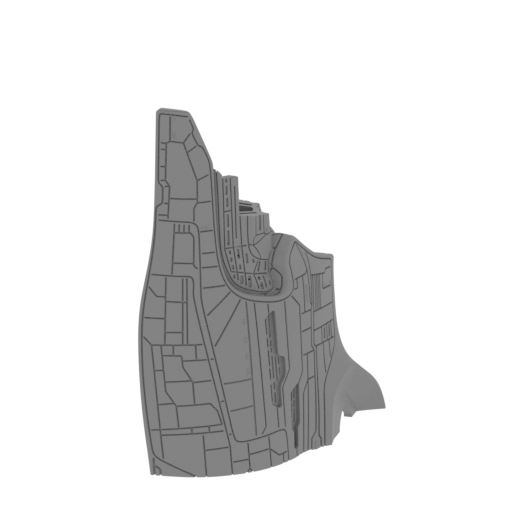

11_nose_hull_2_L (repaire d).stl
37.32 MiB 26 h 28 min 15 m 75 x 97 x 151 Download
...

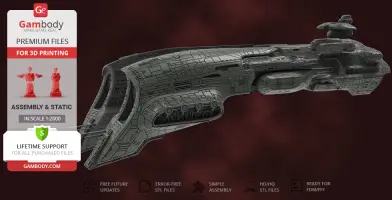

HISTORY OF MEGATHRON

Megathron is an enormous battleship of the Gallentean race. Its main battle feature is large hybrid turrets of a blaster type. Megathron is capable of inflicting huge damage upon other ships both in close combat and from quite a distance - that is how the battleship gained immense popularity in PvP. Due to its long-range properties the Mega is often used in clashes between players as the main striking force. There are lots of possible fittings on the Megathron: the player can use enhanced armour that gives the ship a good advantage on the front line in battle. The Mega can also carry multiple heavy combat drones or fit a big tank. Thanks to its 4 mid slots and 8 lows Megathron is extremely invulnerable. Though Megathron in EVE Online is quite slow - enough skills and experience can guarantee the player success in battlefield.

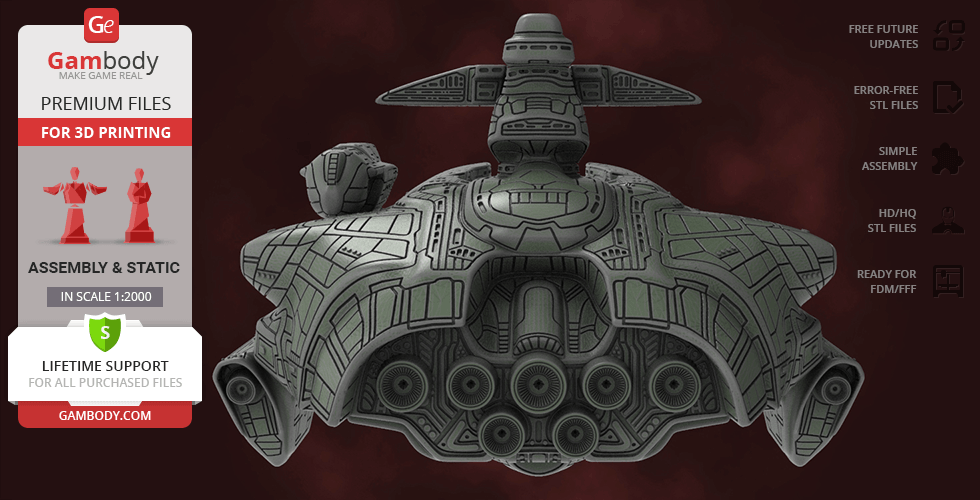

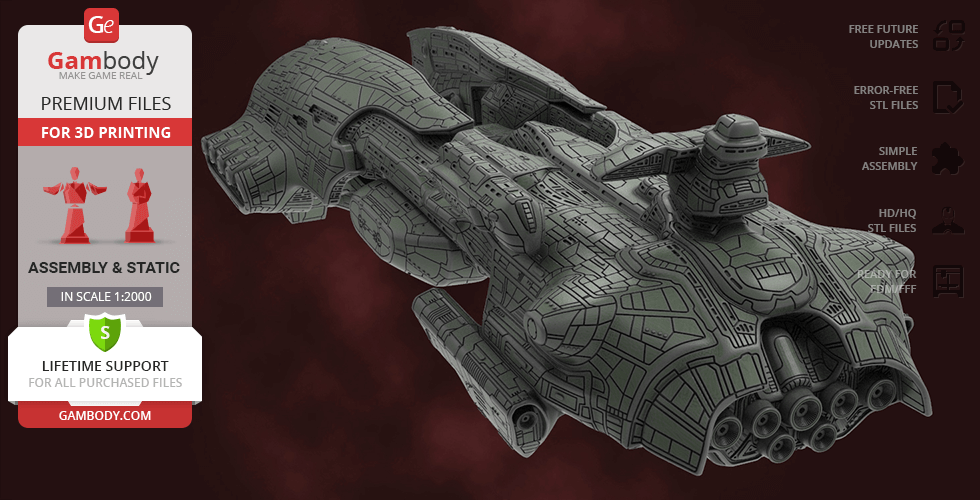

ABOUT THIS 3D MODEL

The model is saved in STL files, a format supported by most 3D printers

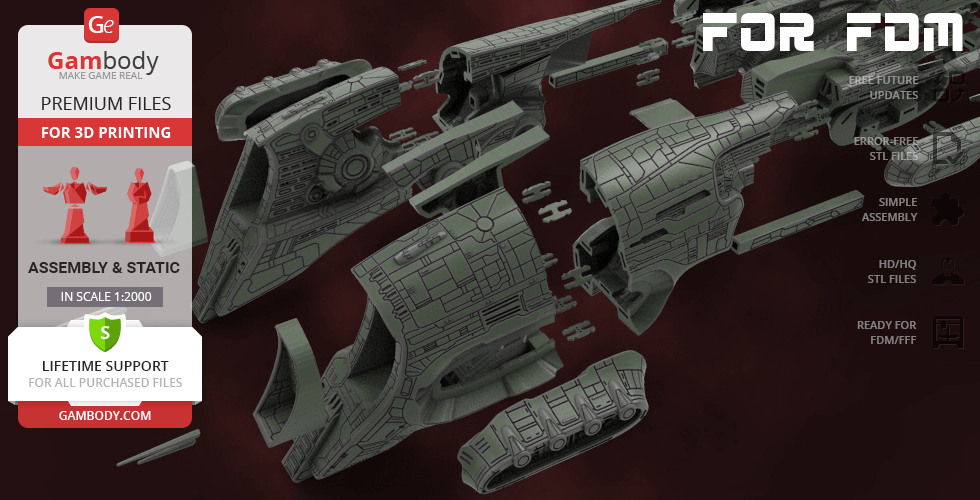

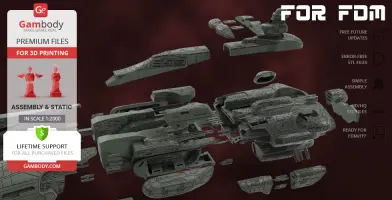

FFF/FDM version features:

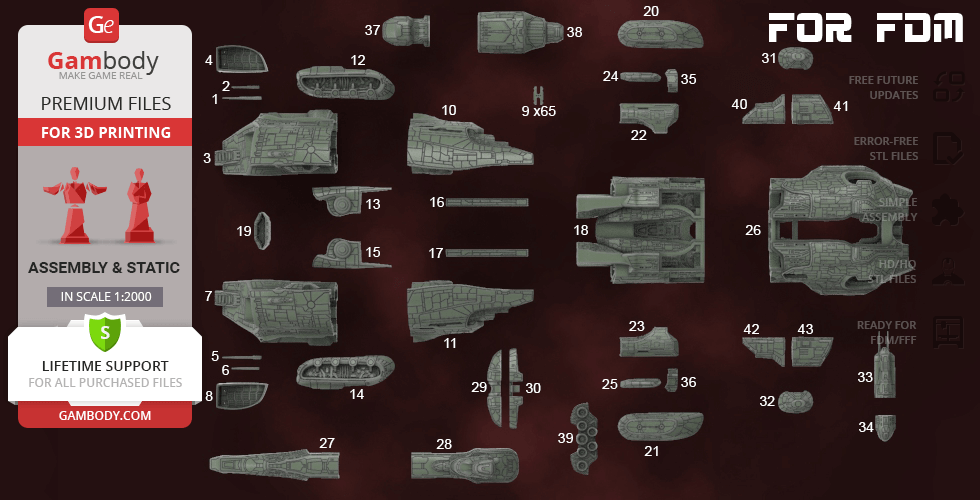

- Contain 45 parts;
- Assembly kit includes locks. One part of  Lock (9_Ge_lock_10H_(x65)) needs to be printed 65 times;
- Made with full equipment of turrets;
- Made with special stands for you to display all the ship’s intricate details from different angles or to make it look as if the battleship is flying.
- Made with windows and hollow parts so you can easily install diodes inside of the model to make it look even more spectacular.
- Made with enhanced detalization;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

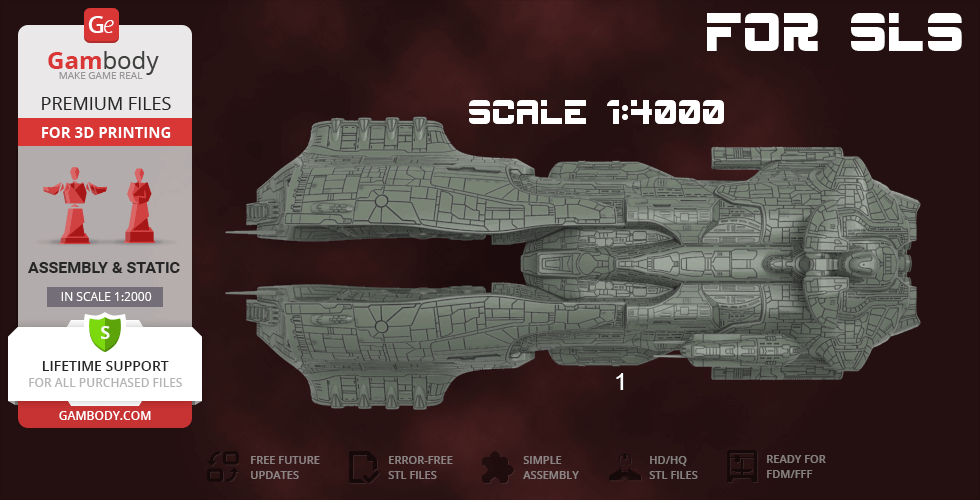

SLS version features:
- Same as FFF/FDM but smaller, also made as 1 part;

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CuraSimplify3D or Slic3r Software.

Scale: The model's scale was calculated from the Megathron's actual height that is 1083 m. The 3D printing model's chosen scale is 1/2000 for the FFF/FDM version and 1/4000 for the SLS version.

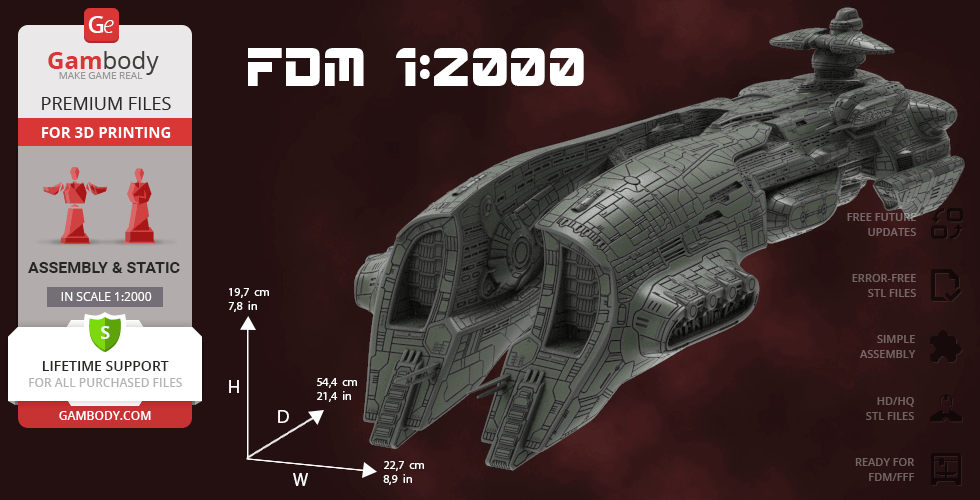

FFF/FDM version dimensions:
A printed model is 197 mm tall, 227 mm wide, 544 mm deep.

SLS version dimensions:
A printed model is 98.5 mm tall, 113.5 mm wide, 272 mm deep.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Megathron 3D Model for 3D printing which consist of 46 parts;
- 2 versions of files for this model for FFF/FDM, SLS;
- High-poly detailed model of Megathron​;
- Detailed settings that we provide for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get Model of Megathron for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial video on how to assemble Megathron​ 3D Printing Model at Gambody YouTube channel.

Also, you may like other Space Ships 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

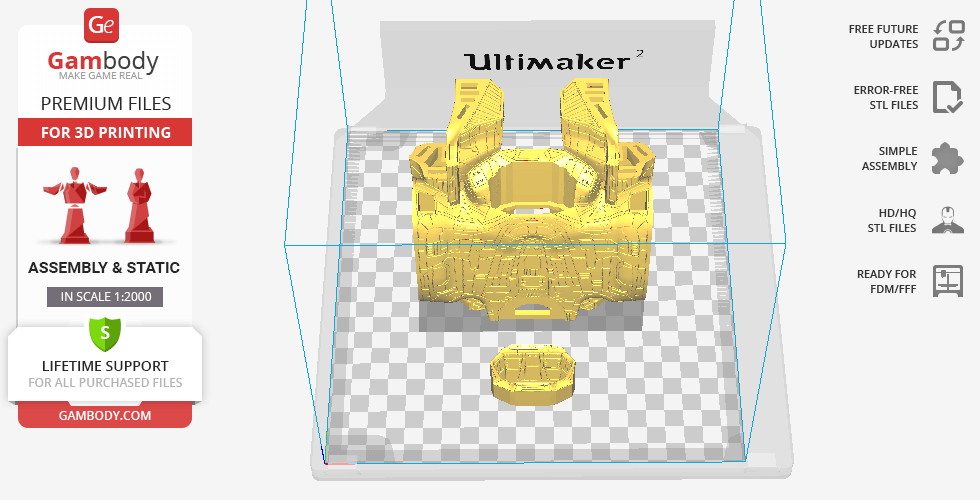

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
