Nebulon-B Frigate 3D Printing Model | Assembly

(5)
cm: 18 w x 60.1 d x 28.9 h
in: 7.087 w x 23.661 d x 11.378 h

Source Files

|

Description

|

Printing Details

This 3D model of Nebulon-B Frigate consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 2 versions of Nebulon-B Frigate STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase;
  • STL files of high-poly Nebulon-B Frigate Model for 3D printing consist of 54 files;
  • Sizes for:
  • FFF/FDM: 289 mm tall, 180 mm wide, 601 mm deep;
  • DLP/SLA: 145 mm tall, 90 mm wide, 300 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

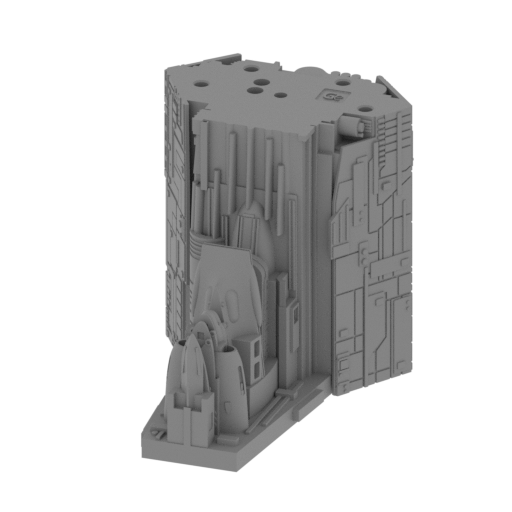

_02_spaceshipPart_b_FDM ( repaired).stl
39.71 MiB 32 h 46 min 17 m 78 x 116 x 86 Download

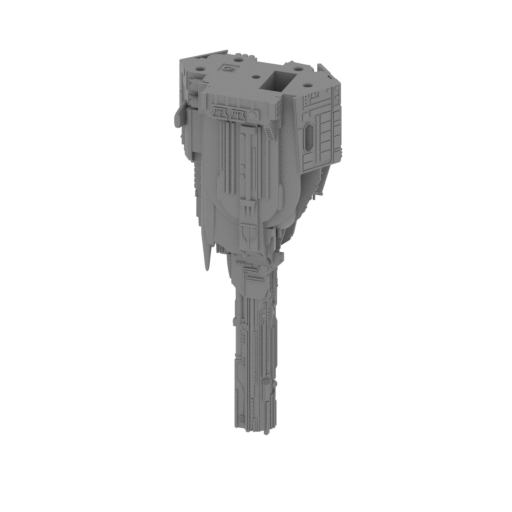

_03_spaceshipPart_c_FDM ( repaired).stl
39.24 MiB 22 h 17 min 10 m 77 x 52 x 177 Download

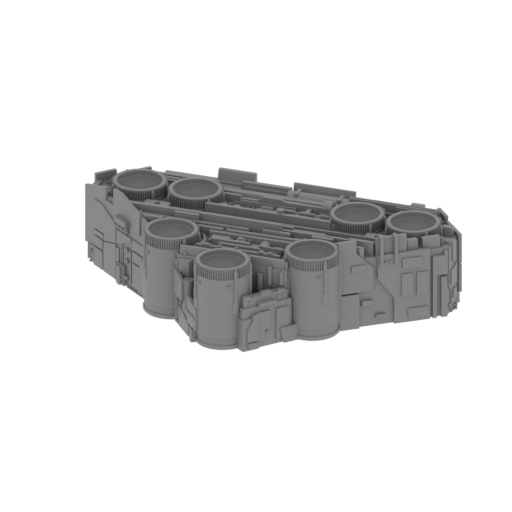

_05_spaceshipPart_e_FDM ( repaired).stl
24.49 MiB 13 h 13 min 6 m 112 x 73 x 28 Download

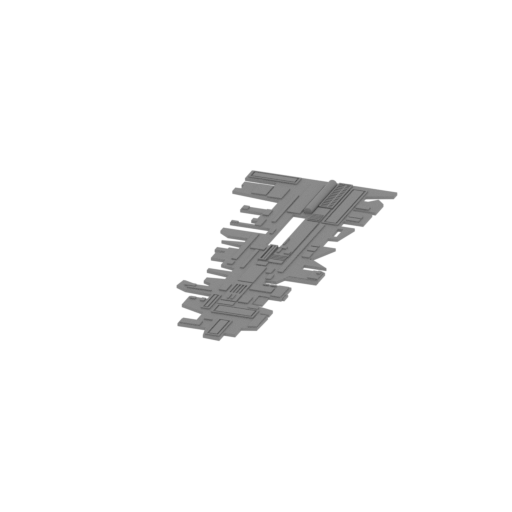

_06_spaceshipPart_f_FDM ( repaired).stl
0.69 MiB 1 h 55 min 1 m 56 x 141 x 3 Download

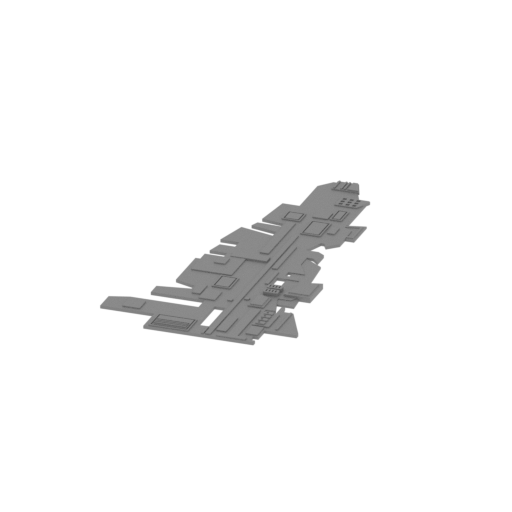

_07_spaceshipPart_g_FDM ( repaired).stl
0.46 MiB 2 h 6 min 1 m 74 x 139 x 3 Download

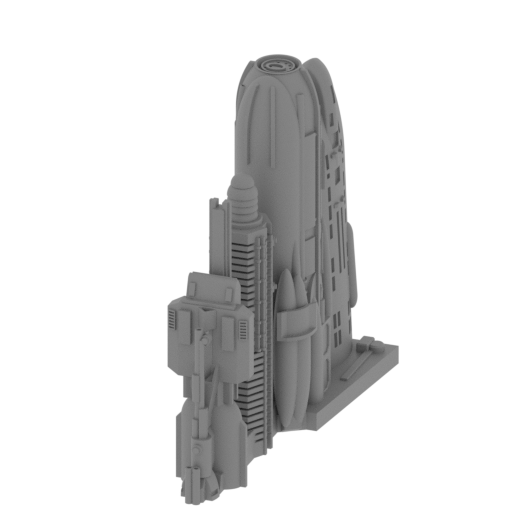

_08_spaceshipPart_h_FDM ( repaired).stl
58.64 MiB 8 h 1 min 4 m 31 x 76 x 73 Download

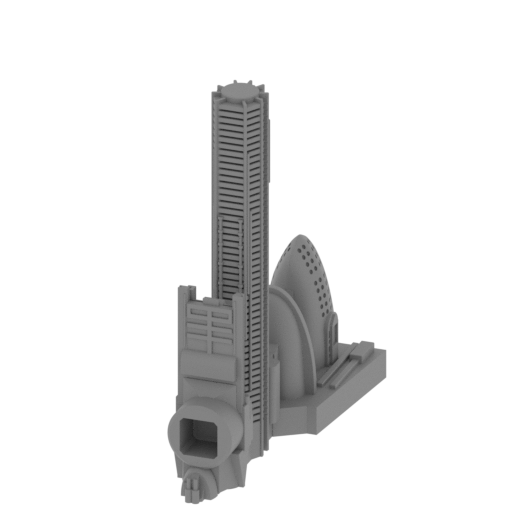

_09_spaceshipPart_i_FDM ( repaired).stl
16.96 MiB 5 h 17 min 2 m 30 x 73 x 80 Download

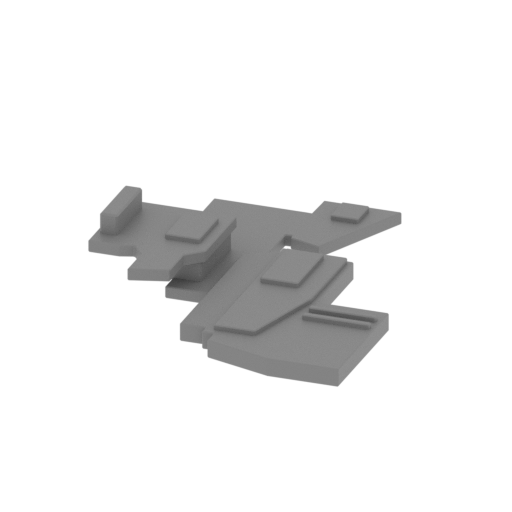

_10_spaceshipPart_j_FDM ( repaired).stl
0.06 MiB 21 min <1 m 30 x 36 x 7 Download

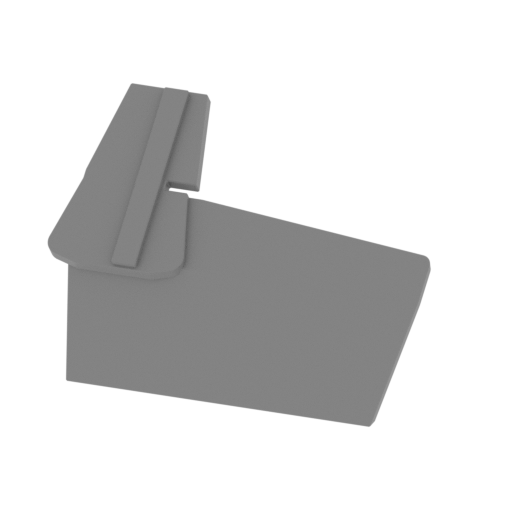

_11_spaceshipPart_k_FDM ( repaired).stl
0.06 MiB 22 min <1 m 25 x 11 x 18 Download

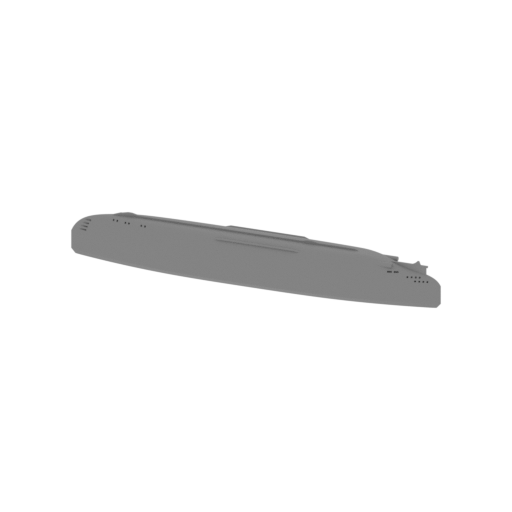

_12_spaceshipPart_l_FDM ( repaired).stl
1.70 MiB 1 h 4 min 1 m 99 x 11 x 13 Download

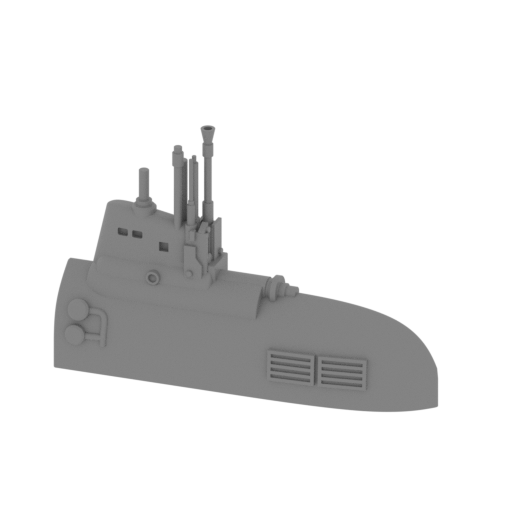

_13_spaceshipPart_m_FDM ( repaired).stl
6.83 MiB 1 h 33 min 1 m 61 x 18 x 41 Download

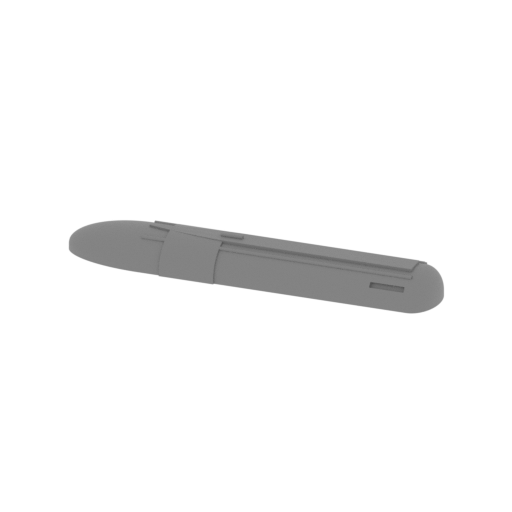

_14_spaceshipPart_n_FDM ( repaired).stl
7.45 MiB 58 min 1 m 81 x 16 x 8 Download

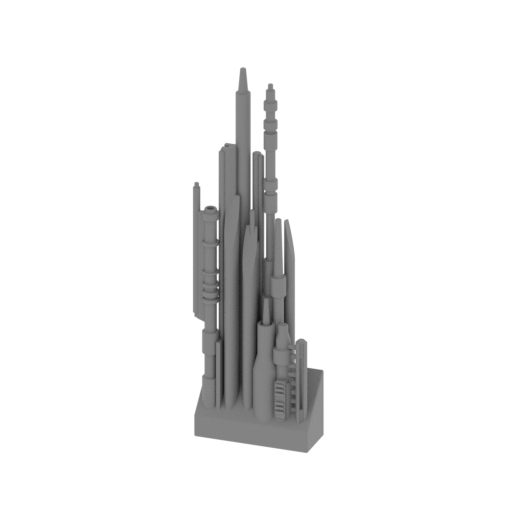

_15_antenna_a_FDM (repair ed).stl
3.98 MiB 1 h 48 min 1 m 24 x 9 x 73 Download

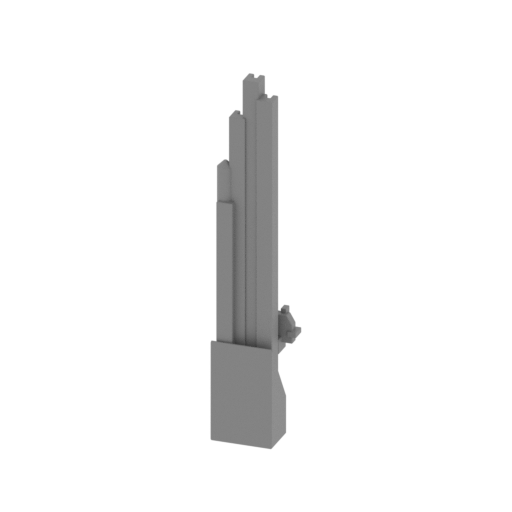

_16_antenna_b_FDM (repair ed).stl
0.38 MiB 26 min <1 m 8 x 6 x 41 Download

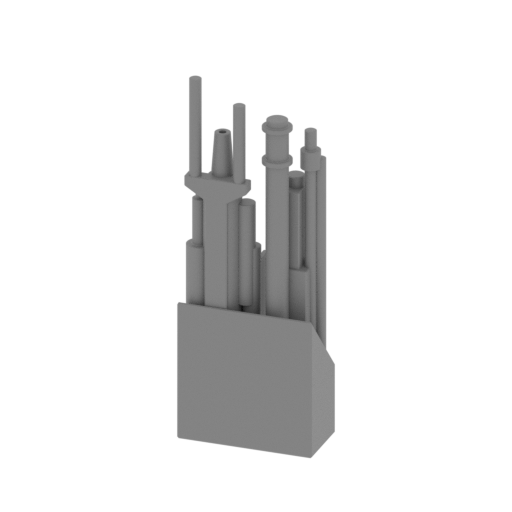

_17_antenna_c_FDM (repair ed).stl
1.34 MiB 30 min <1 m 12 x 6 x 32 Download

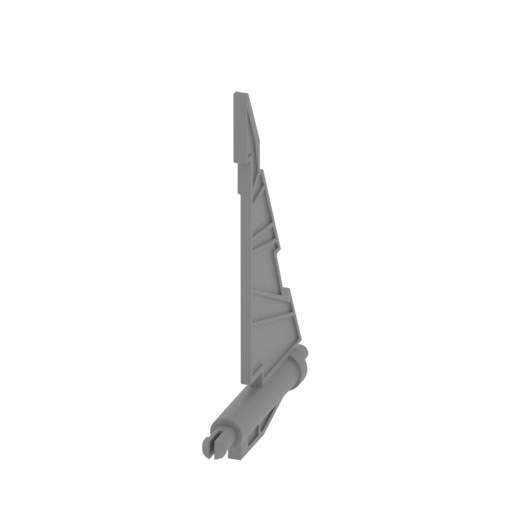

_18_spaceshipWing_a_L_FDM (repaired).stl
0.66 MiB 53 min <1 m 6 x 37 x 56 Download

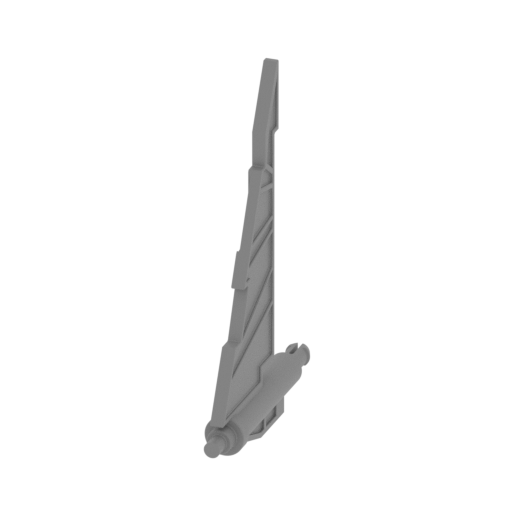

_19_spaceshipWing_b_R_FDM (repaired).stl
0.66 MiB 54 min <1 m 6 x 37 x 56 Download

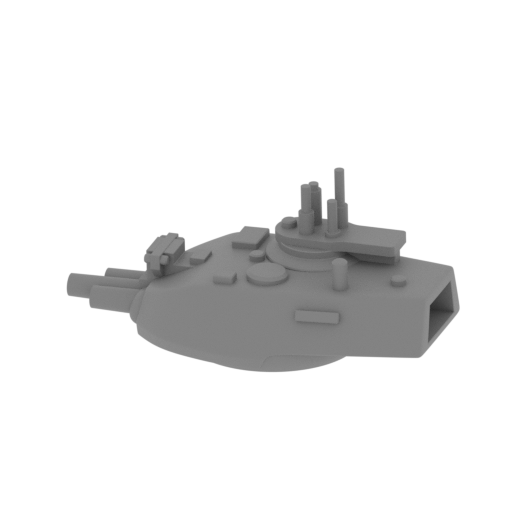

_20_deflectorShieldGenera tor_a_FDM (repaired).stl
4.91 MiB 15 min <1 m 25 x 13 x 11 Download

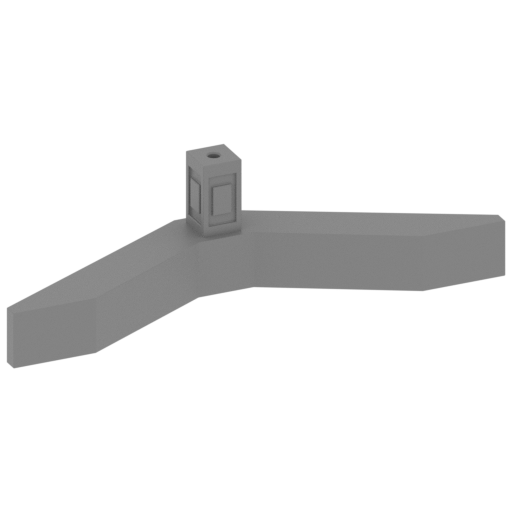

_21_standPart_a_X2_FDM (r epaired).stl
0.10 MiB 6 h 9 min 4 m 131 x 131 x 46 Download
_22_standPart_b_X2_FDM (r epaired).stl
0.24 MiB 4 h 36 min 2 m 164 x 14 x 14 Download

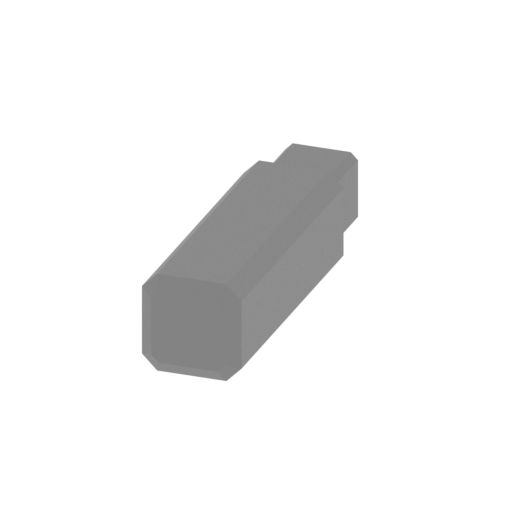

_23_standPart_c_FDM (repa ired).stl
0.01 MiB 30 min <1 m 11 x 41 x 11 Download

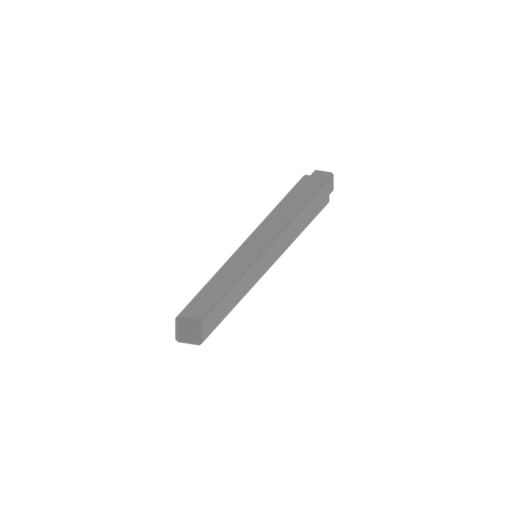

_24_standPart_d_FDM (repa ired).stl
0.02 MiB 1 h 47 min 1 m 11 x 149 x 11 Download

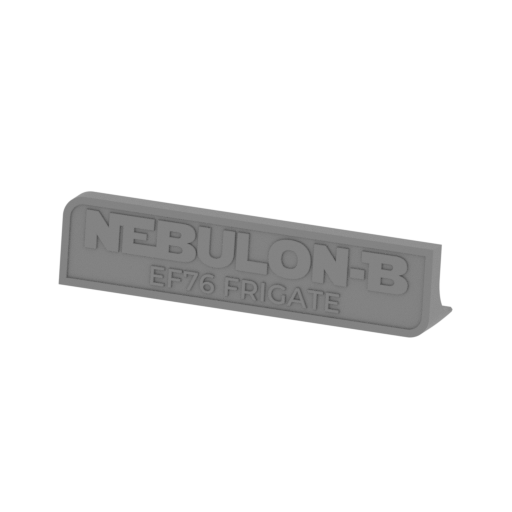

_25_standPart_e_FDM (repa ired).stl
0.91 MiB 8 h 36 min 5 m 160 x 30 x 37 Download

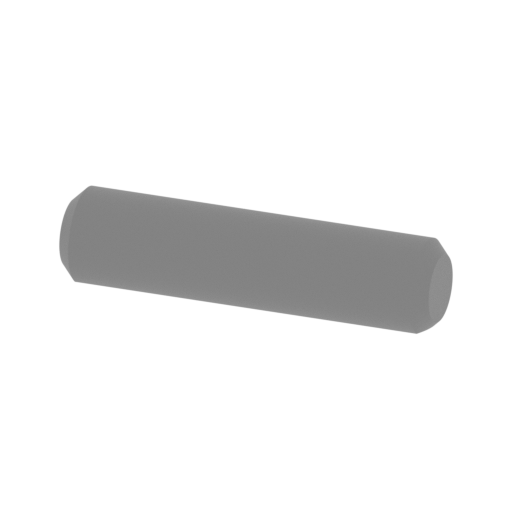

_26_pin_V1_X21_FDM (repai red).stl
0.17 MiB 4 min <1 m 16 x 4 x 4 Download

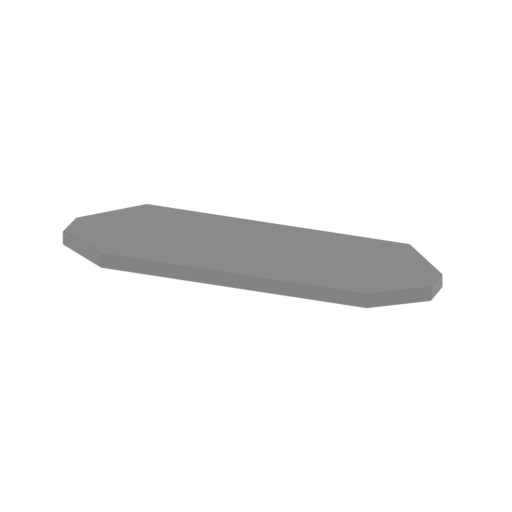

_27_glass_a_FDM (repaired ).stl
0.01 MiB 1 min <1 m 13 x 4 x 1 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

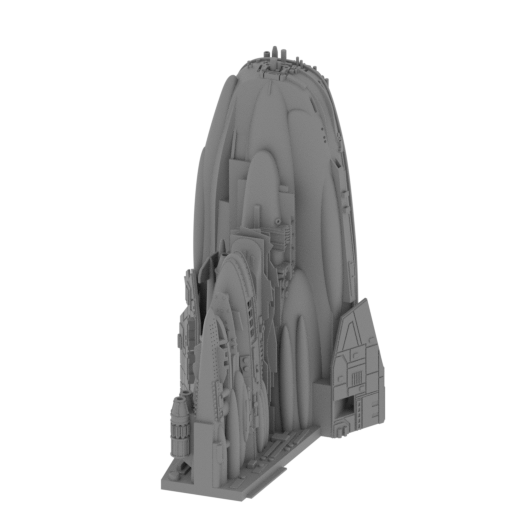

_01_spaceshipPart_a_FDM ( repaired).stl
83.59 MiB 40 h 12 min 18 m 77 x 114 x 140 Download

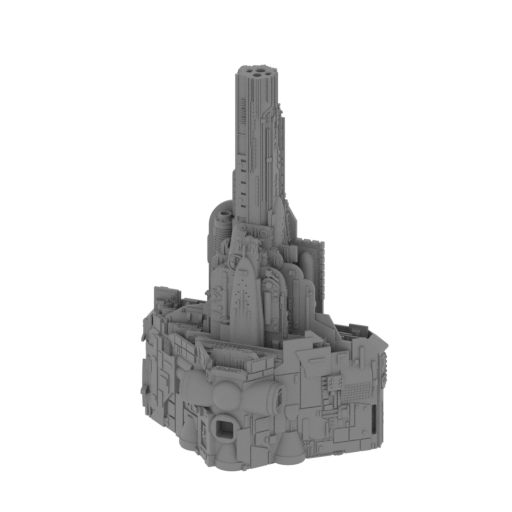

_04_spaceshipPart_d_FDM ( repaired).stl
72.70 MiB 42 h 30 min 21 m 114 x 87 x 174 Download
...

ABOUT THIS 3D MODEL

A distinctive feature of the Nebulon-B escort frigate is its multifunctionality as it can perform different roles, such as medical frigate, carrier, escort frigate, and search-and-rescue ship, among others. Nebulon-B, also known as a Rebel Cruiser, was involved in the Galactic Civil War under the command of the Alliance and served as a hospital ship, being capable of holding up to 700 patients on its board. These vessels were heavily armed, and their hangar bays allowed them to house several shuttles, and a squadron of TIE starfighters.

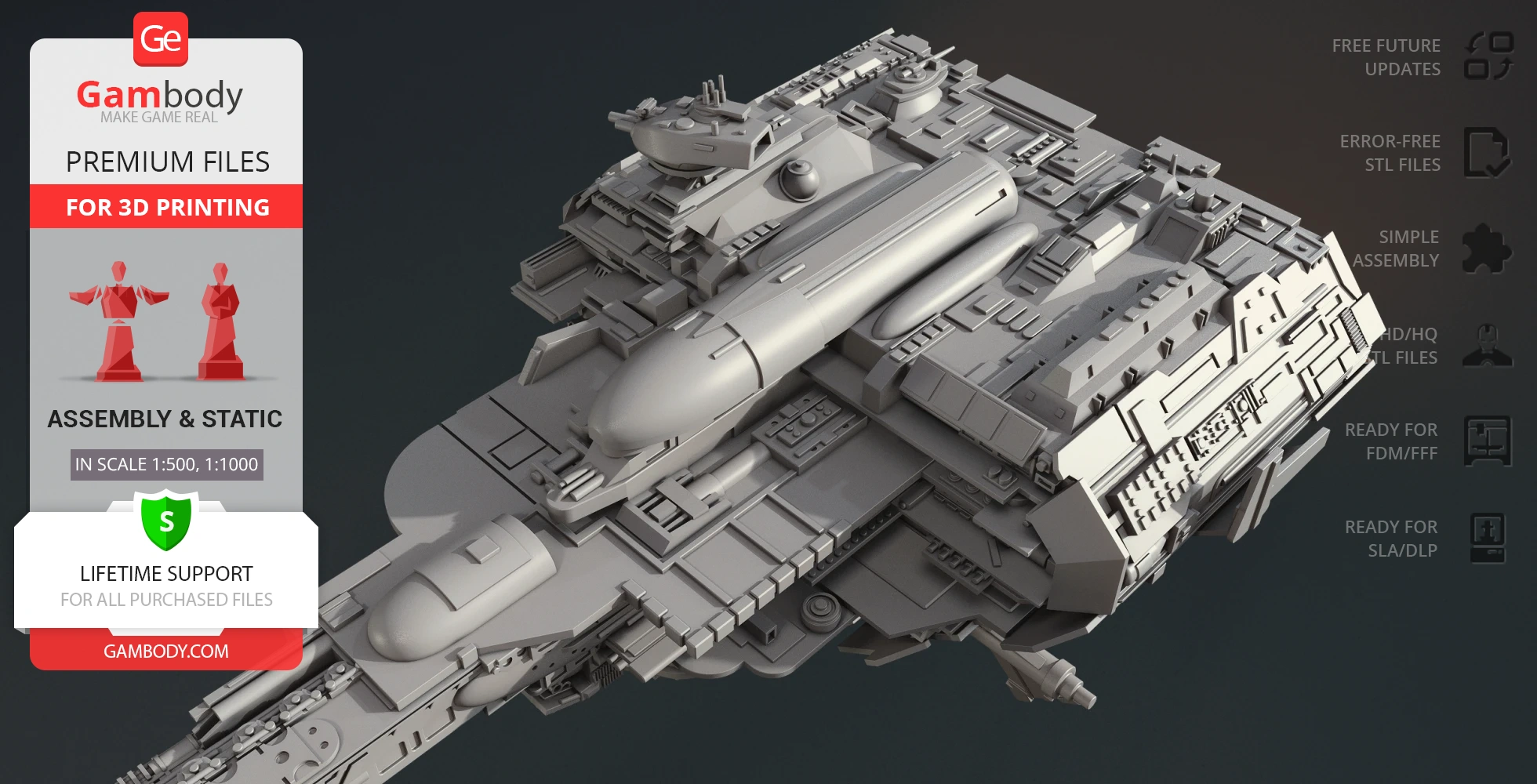

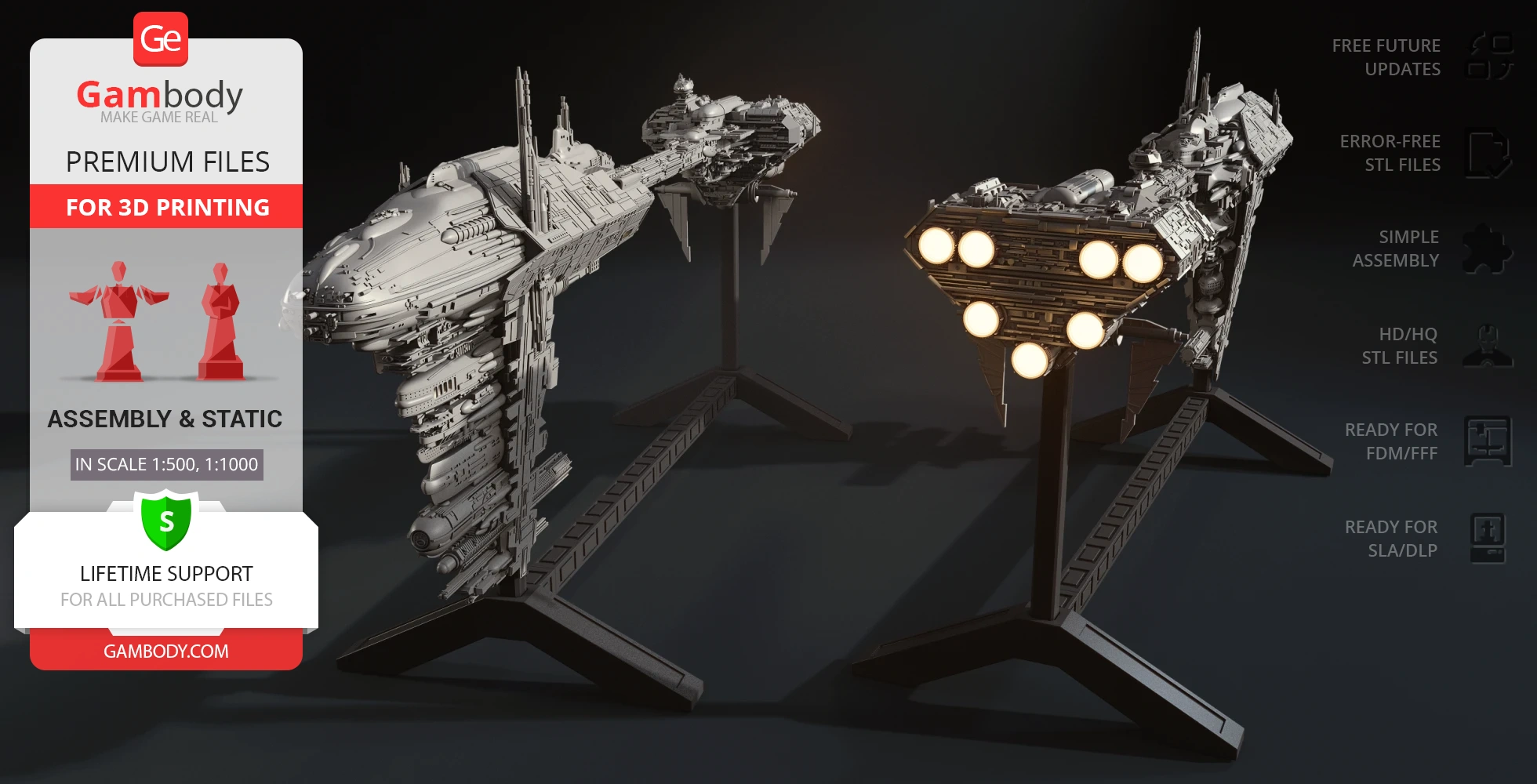

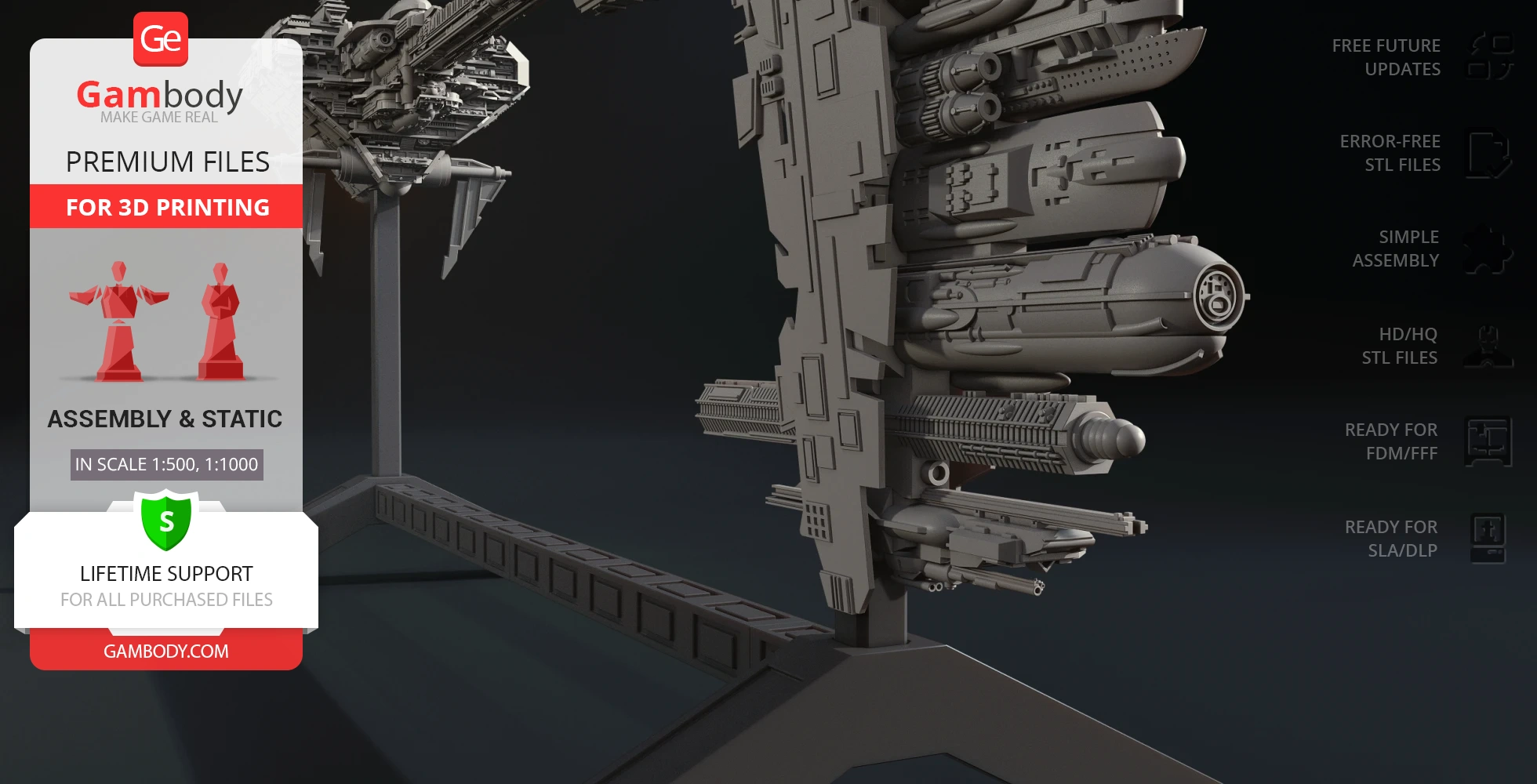

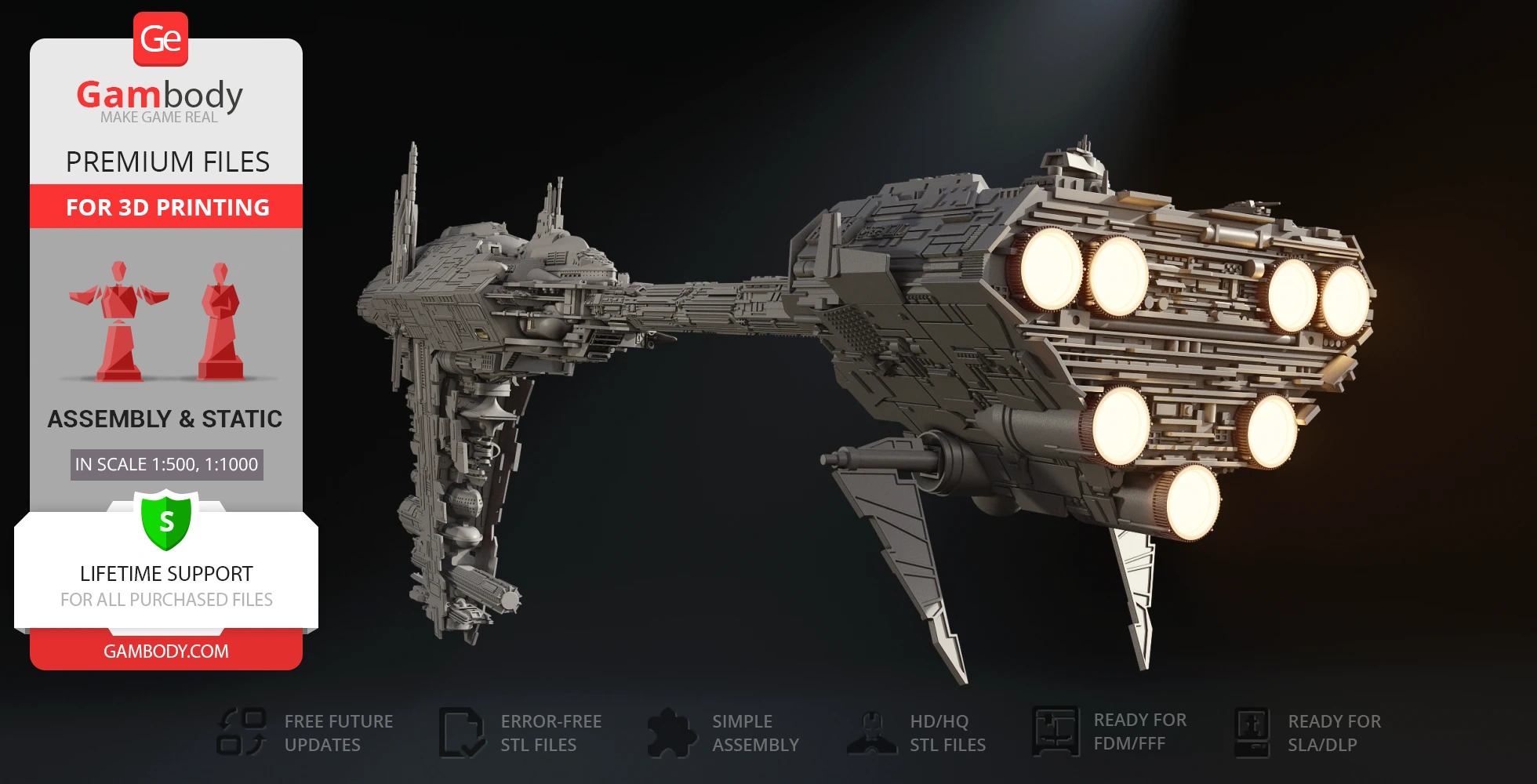

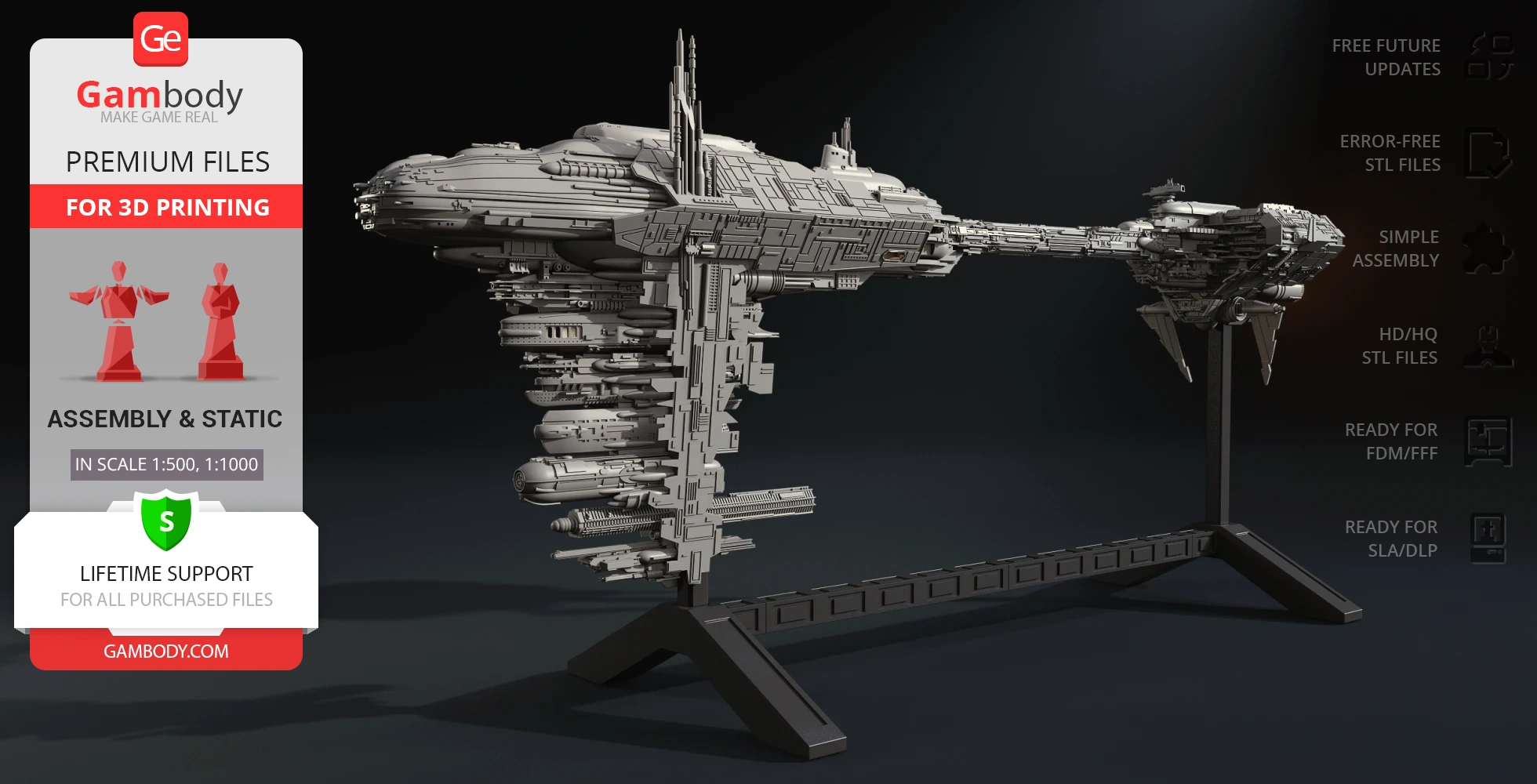

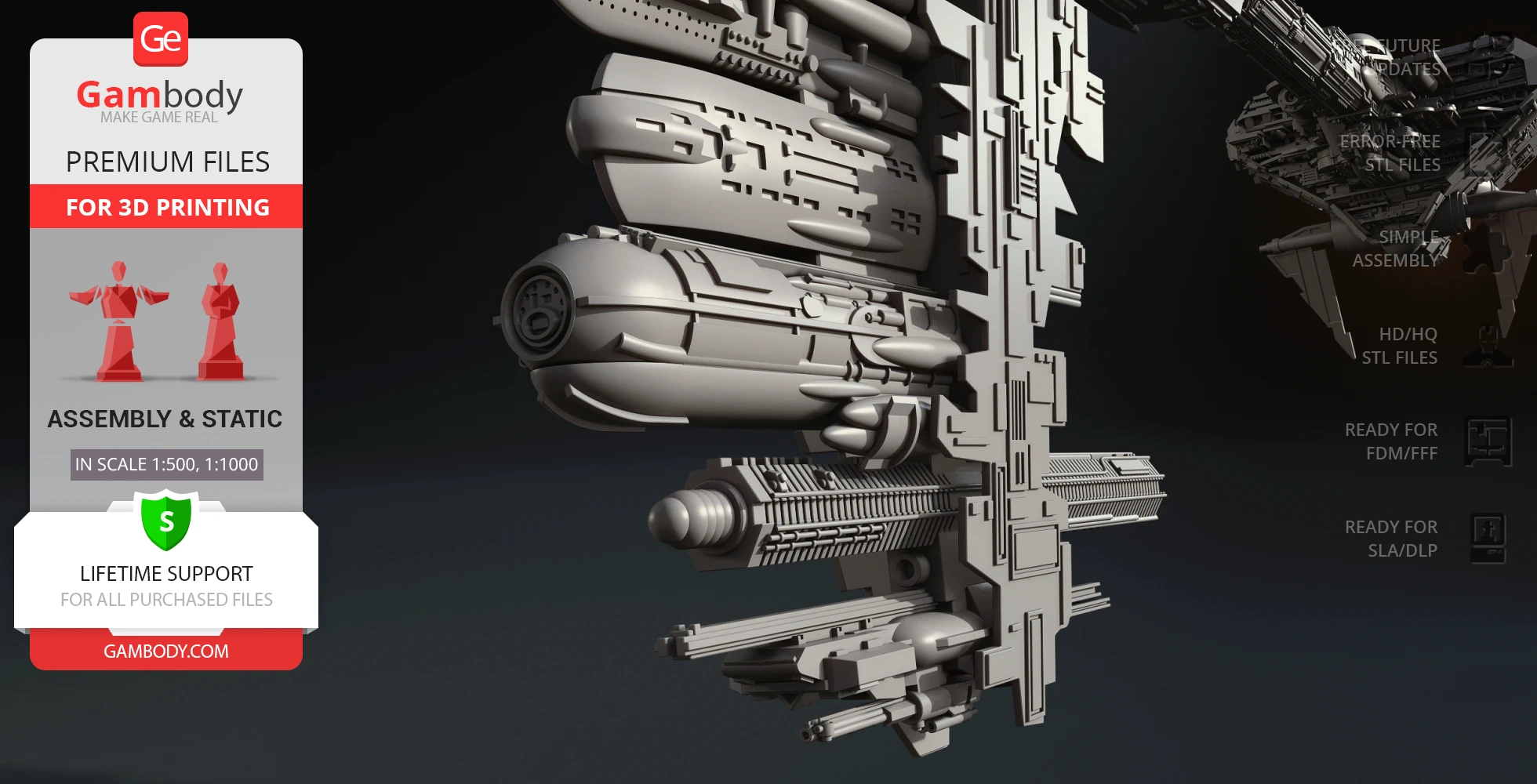

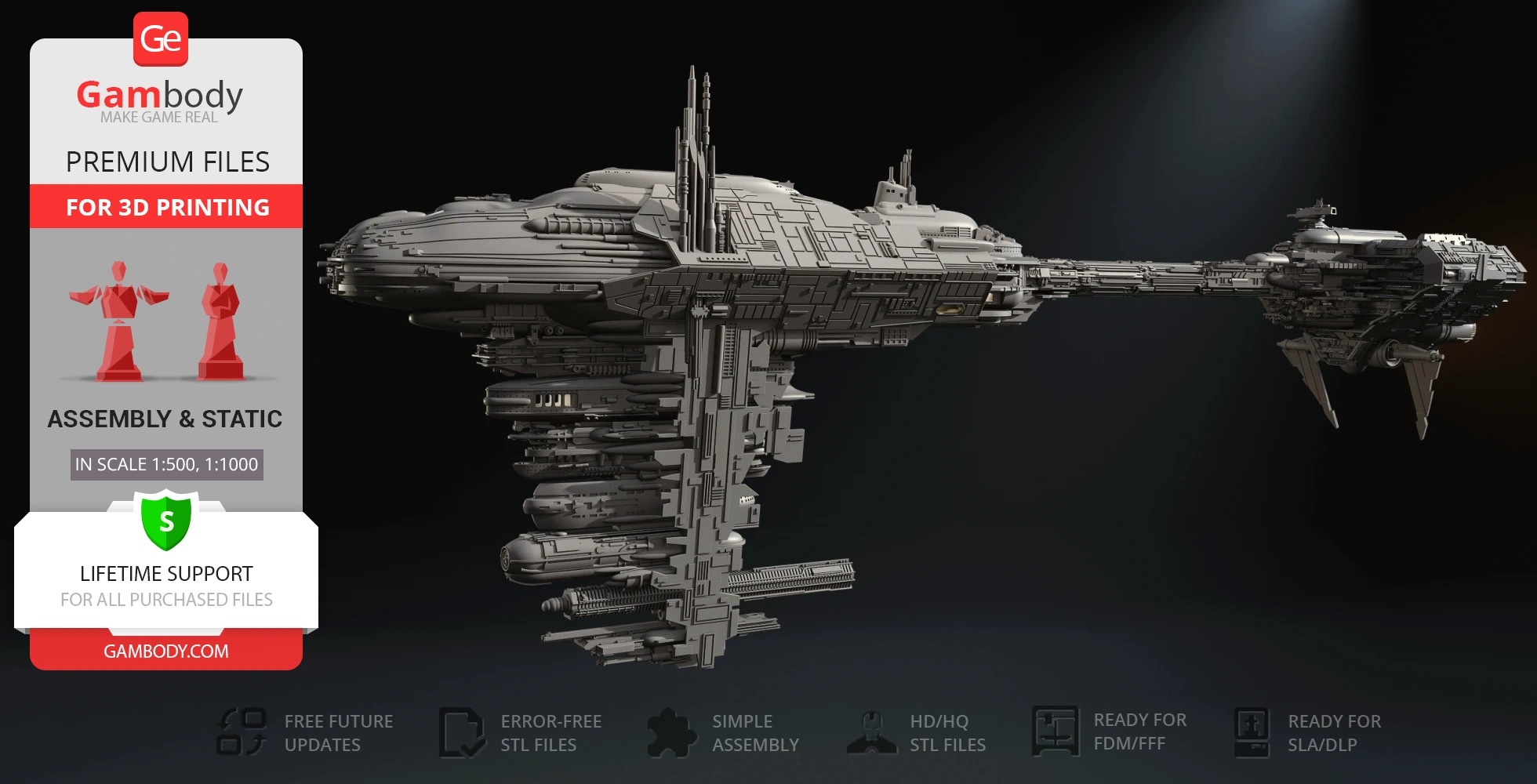

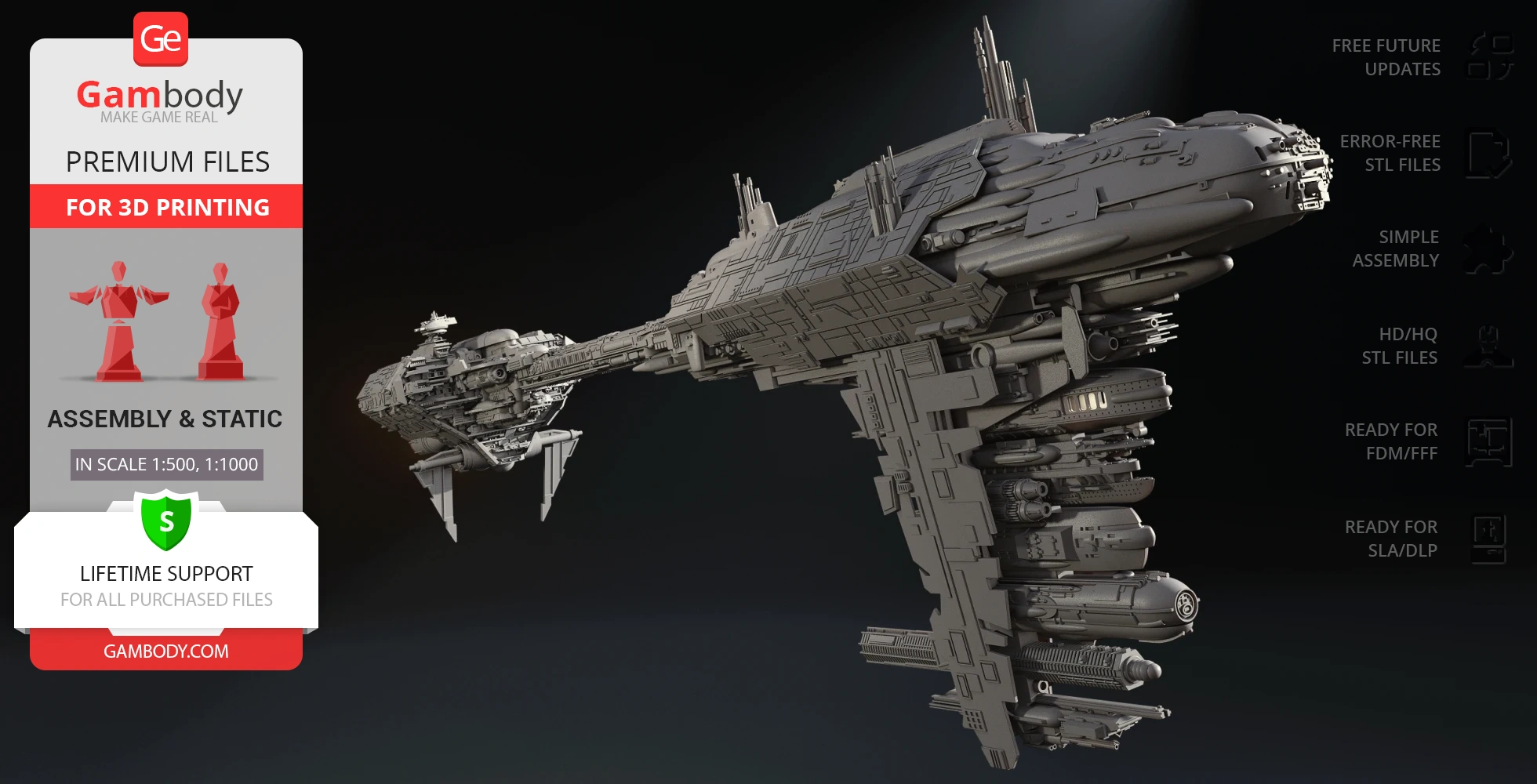

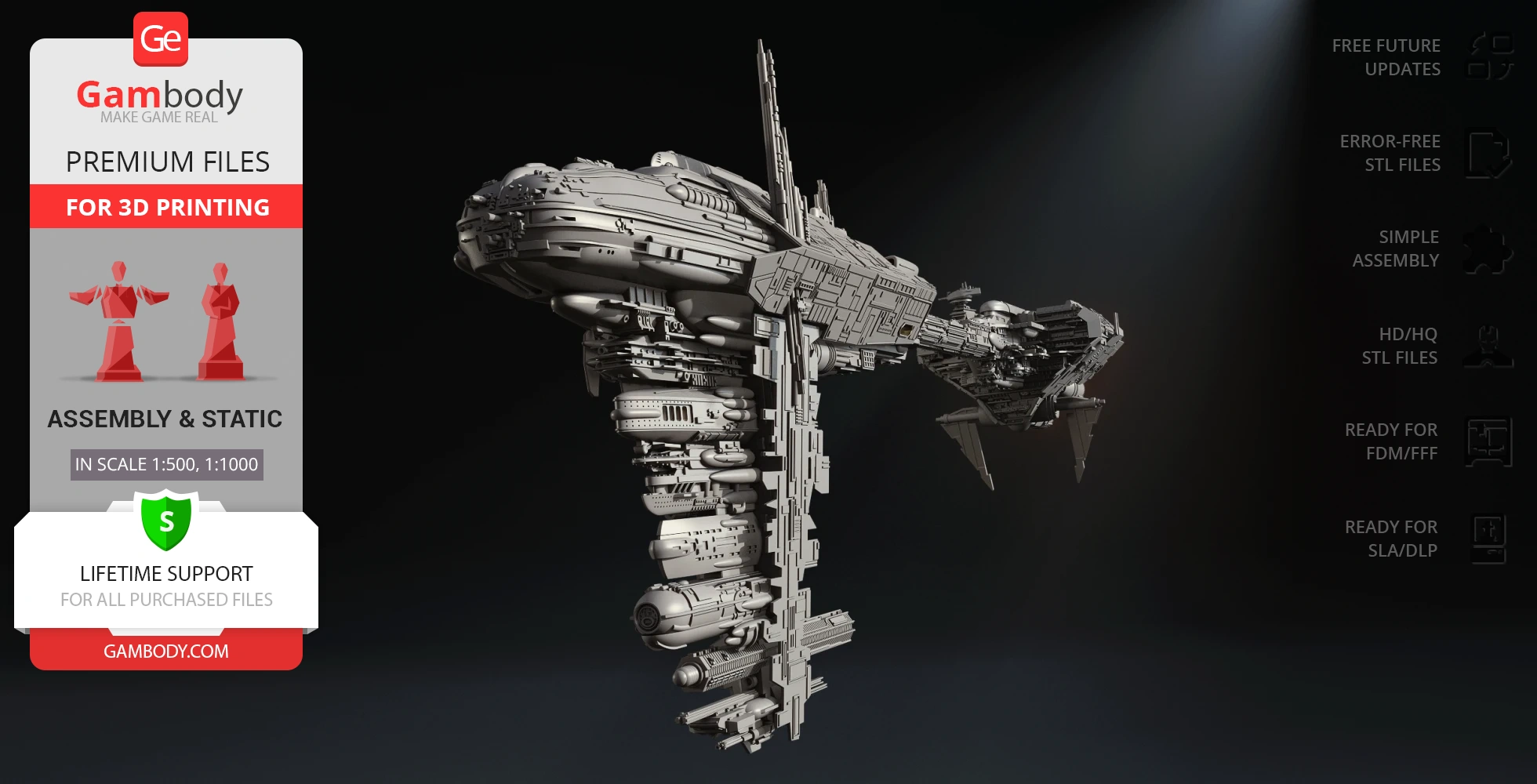

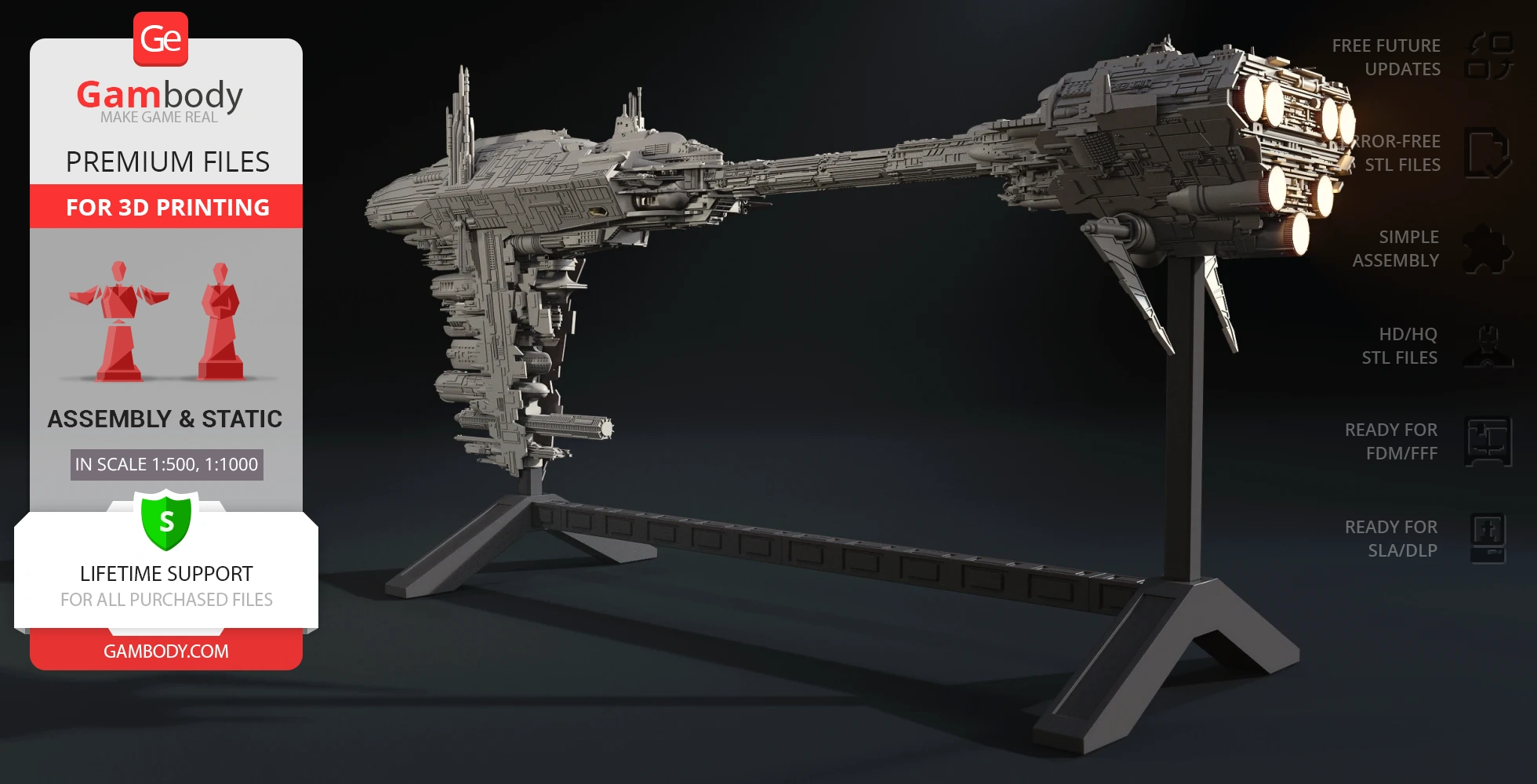

Our contributive 3D artist created the model of Nebulon-B for 3D printing trying to recreate the peculiarities of its design as closely as possible. The vessel has a very recognizable shape - it consists of a propulsion module with seven ion engines and a blade-like body connected by a cylindrical hull section. The body consists of a large number of subsections, each one with a different shape and function, and an armament complex, featuring turbo lasers, laser cannons, beam projectors, and missile launchers. Nebulon-B Frigate features several movable parts, there is an opportunity to illuminate the engines and some body sections. This spectacular model is a combination of high-quality files and a precise design, so 3D printing the frigate will bring infinite joyfulness!

ADAPTATION FOR 3D PRINTING

The Nebulon-B Frigate model for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 90 hours in total.

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the frigate was divided into convenient assembly parts.

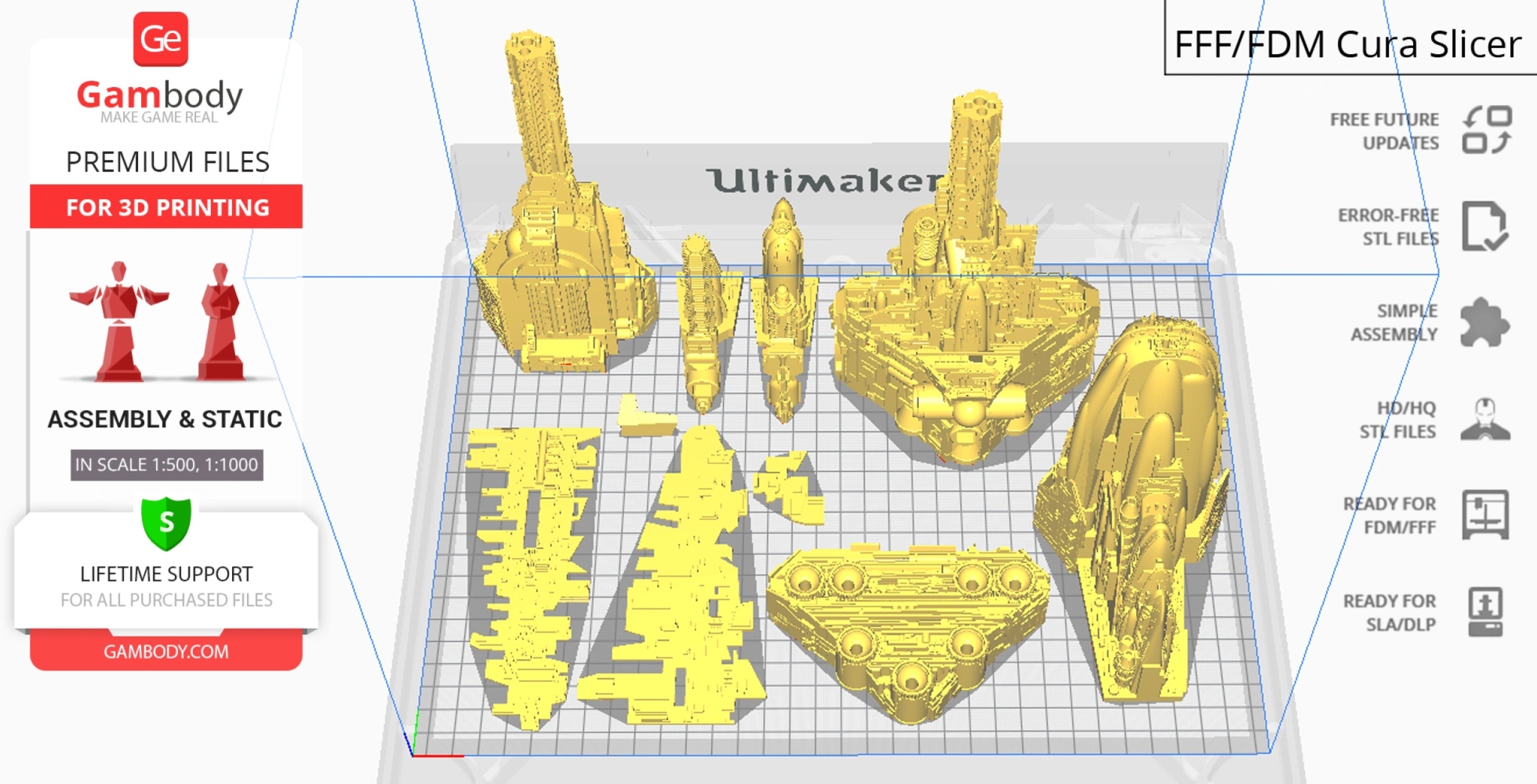

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Nebulon-B Frigate 3D printing model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

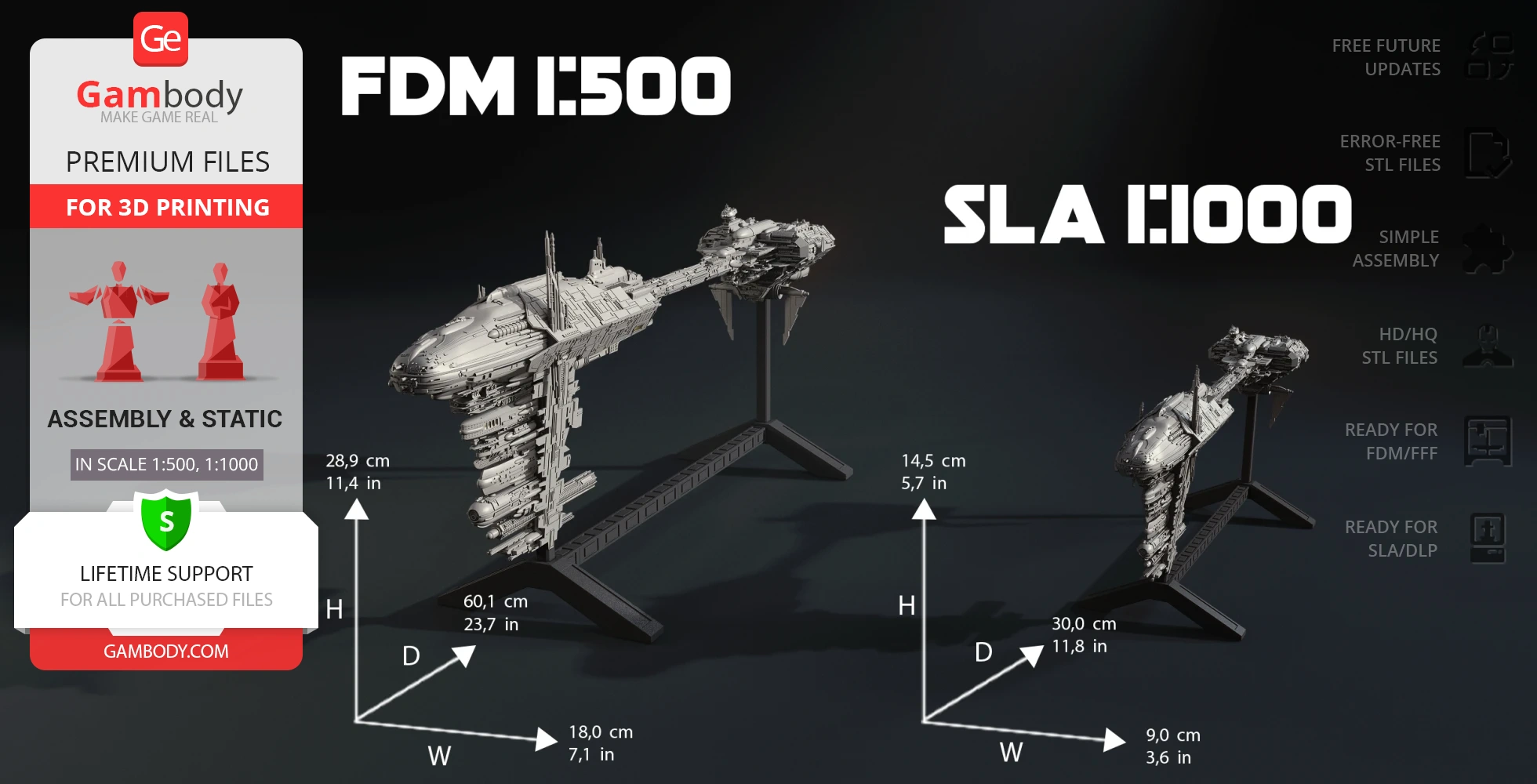

The model’s scale was calculated from the length of the Nebulon-B Frigate which is 300000 mm. The 3D printing model’s chosen scales are 1:500 for the FFF/FDM version and 1:1000 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

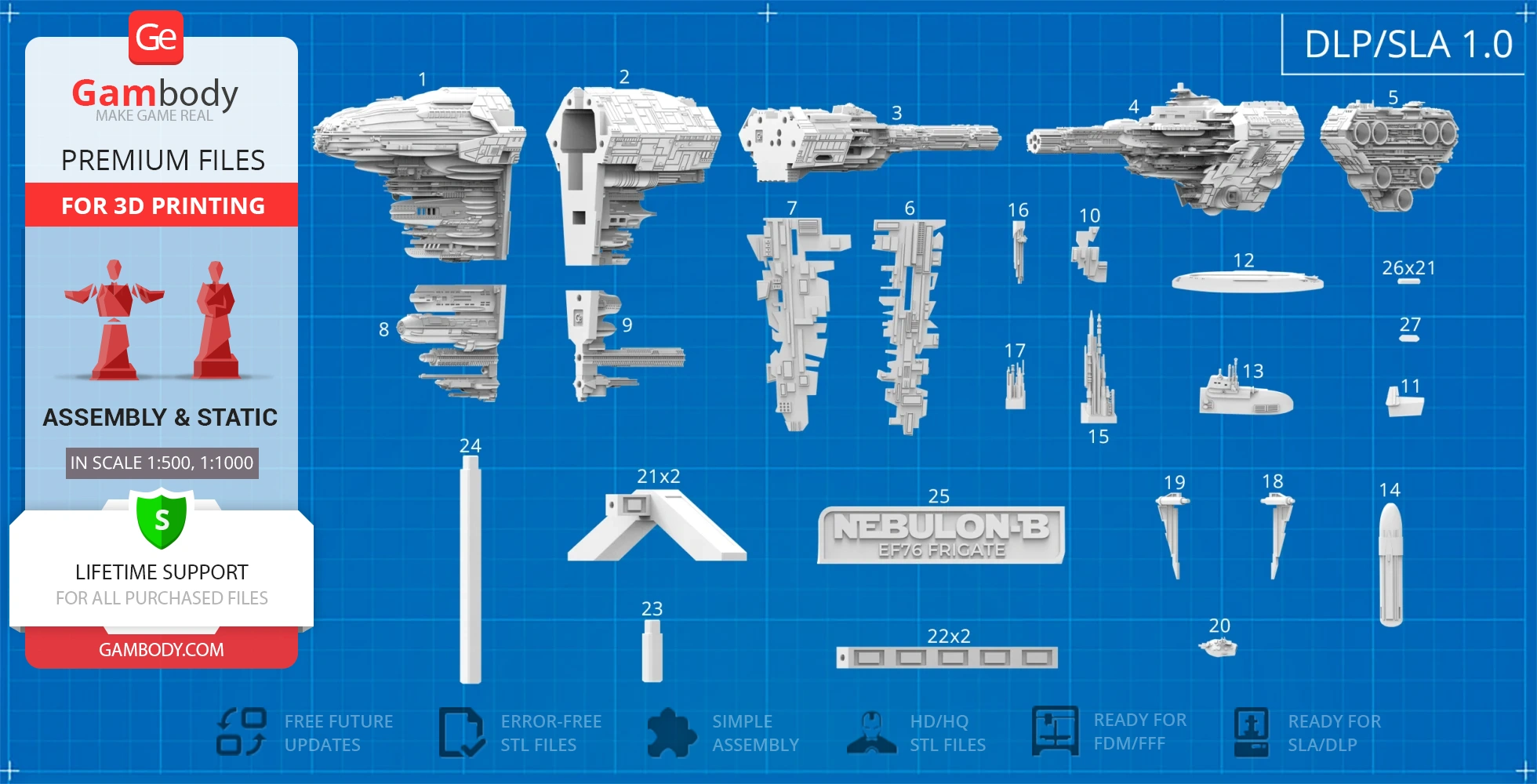

  • FFF/FDM 1.0, DLP/SLA 1.0 versions’ features:
  • Contain 27 parts each one;
  • A printed FFF/FDM version is 289 mm tall, 180 mm wide, 601 mm deep;
  • A printed DLP/SLA version is 145 mm tall, 90 mm wide, 300 mm deep;

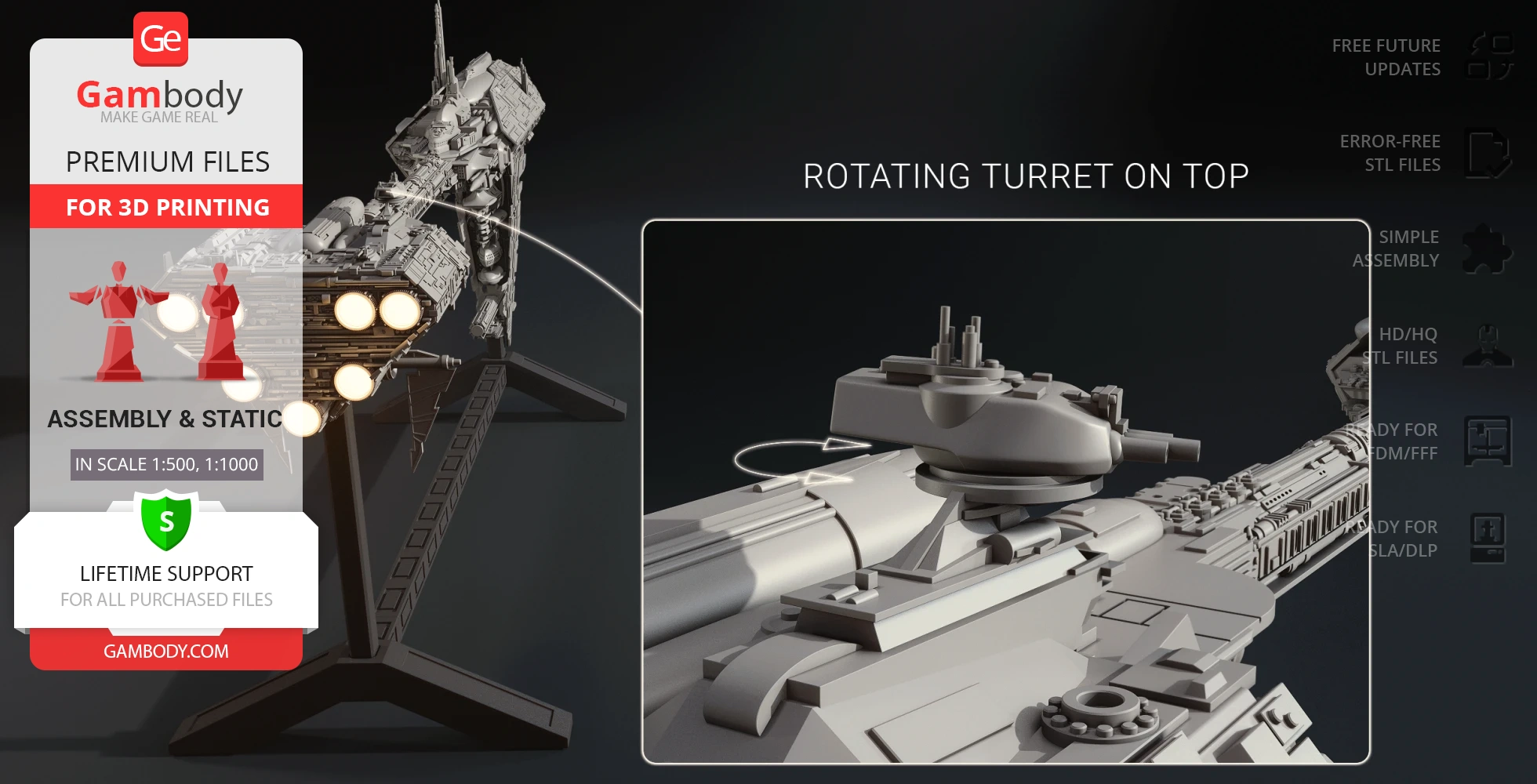

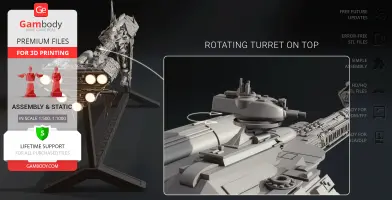

  • Rotating turret on top;

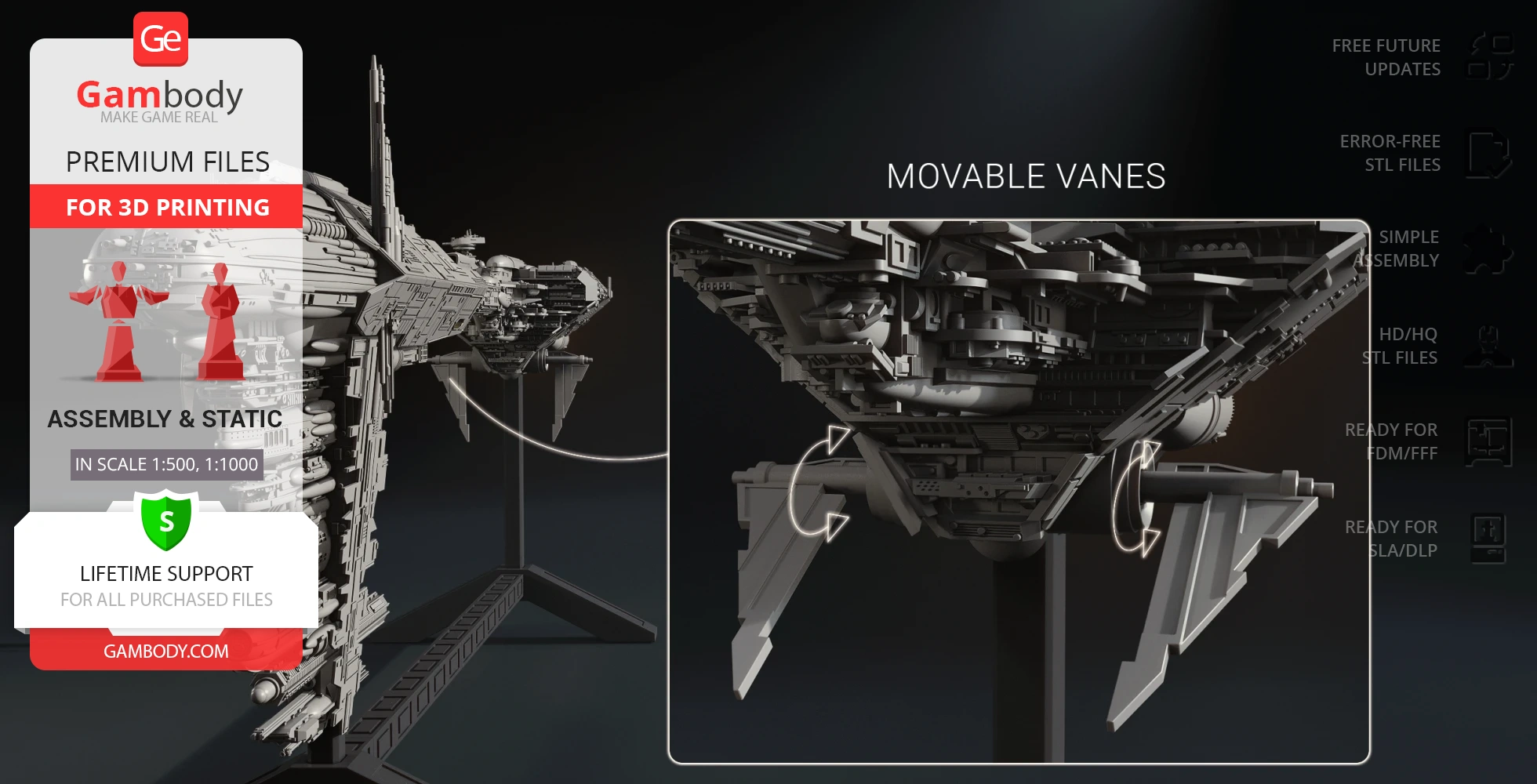

  • Movable vanes;

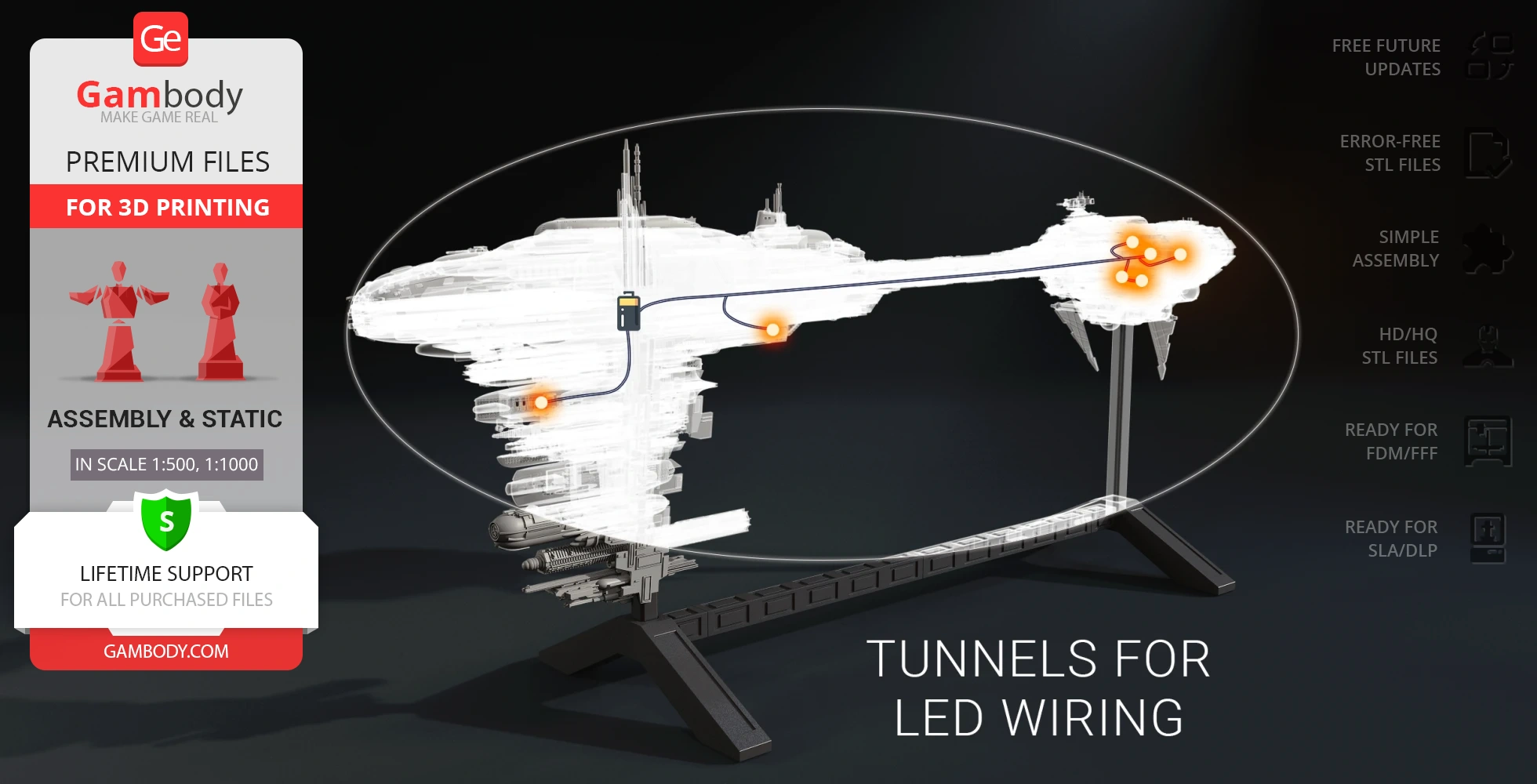

  • Tunnels for LED lights to illuminate the engines and some bays;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

You can get the Nebulon-B Frigate model for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble a Nebulon-B Frigate 3D Printing Model on Gambody YouTube channel.

Also, you may like other Star Wars 3D Printing Models.

________

FAQ

Generic

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

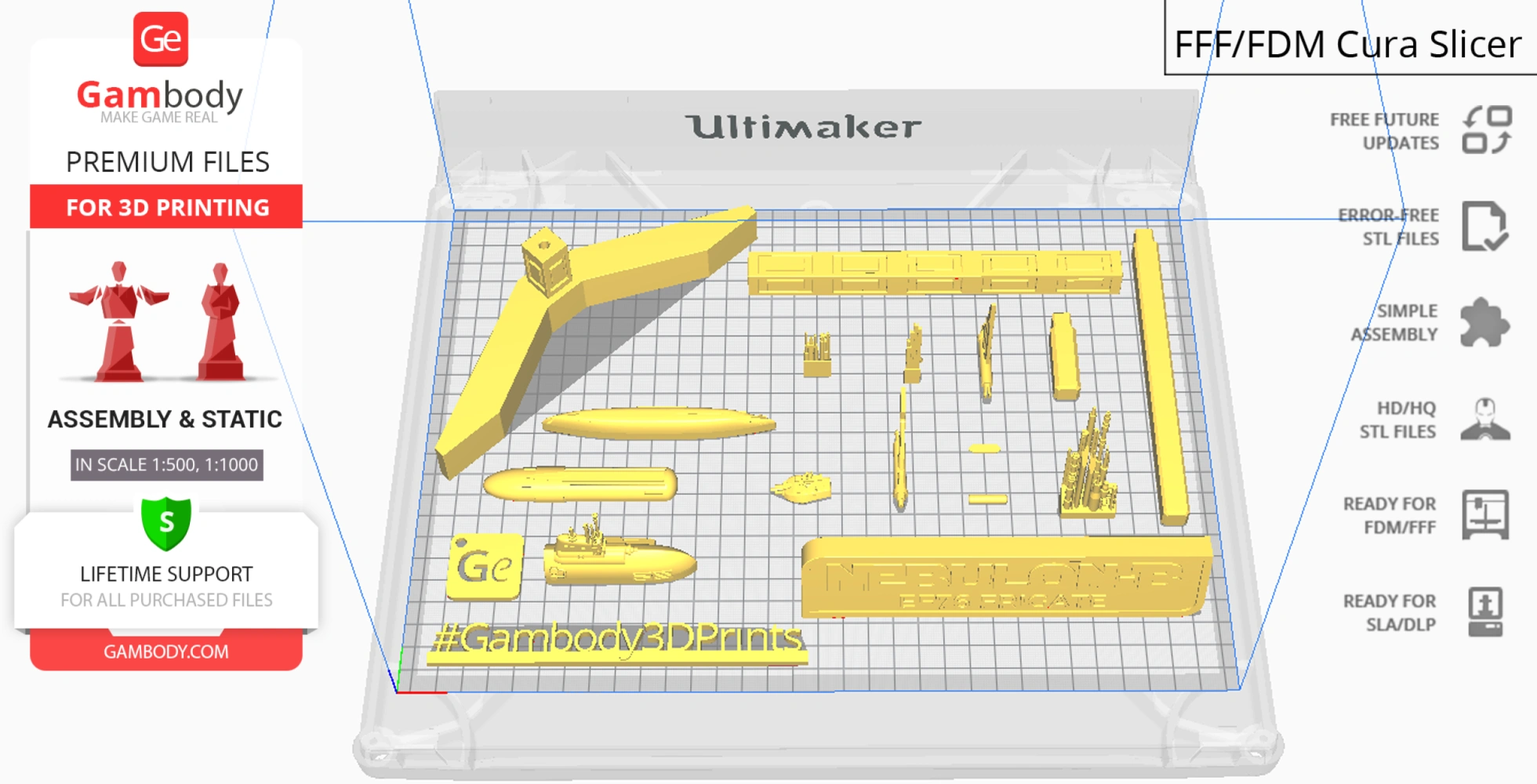

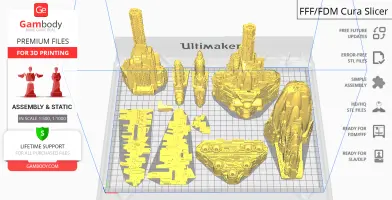

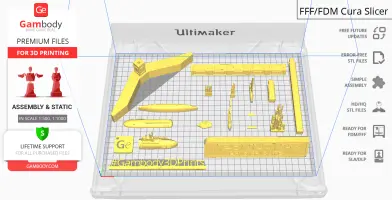

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
