Smaug the Golden 3D Printing Figurine | Assembly

(20)
cm: 40 w x 42 d x 25.2 h
in: 15.748 w x 16.535 d x 9.921 h

Source Files

|

Description

|

Printing Details

This 3D Figurine consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

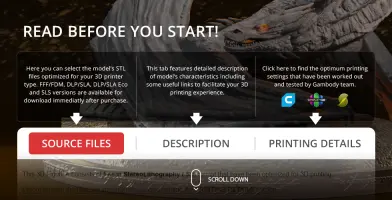

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Smaug the Golden 3D Printing Figurine comes in 4 versions for each 3D printer type (FFF/FDM, DLP/SLA, DLP/SLA Eco and SLS). Files for each version are available for download after the purchase.

Detailed information about this 3D printing figurine is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

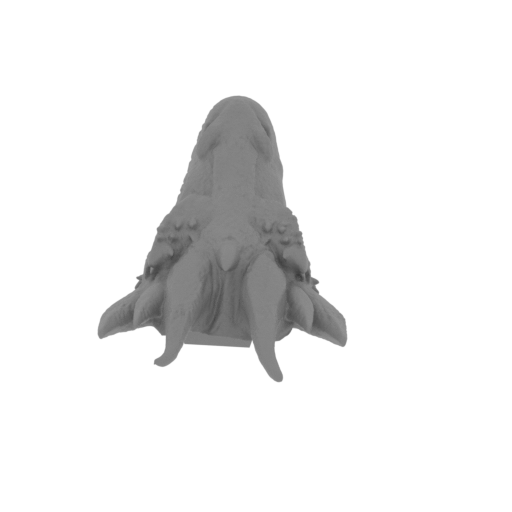

1_head_1_FDM(repaired).st l
11.32 MiB 3 h 39 min 2 m 50 x 77 x 33 Download

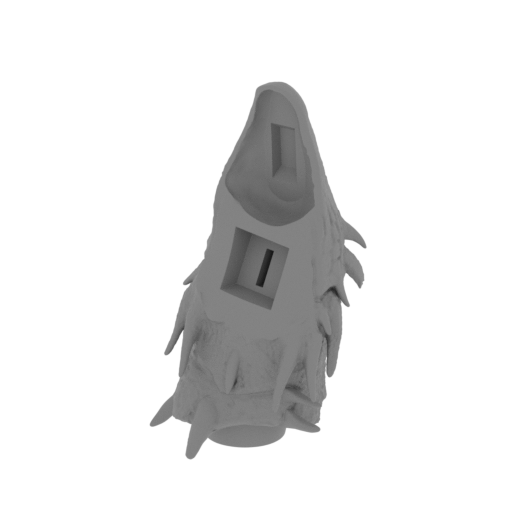

2_head_2_FDM(repaired).st l
11.55 MiB 7 h 39 min 4 m 51 x 47 x 101 Download

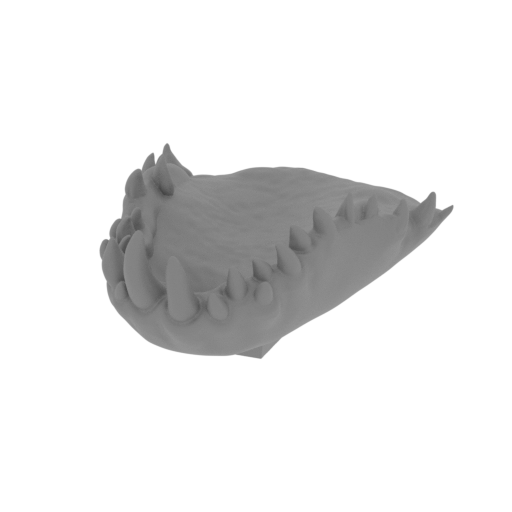

3_jaw_1_FDM(repaired).stl
12.66 MiB 18 min <1 m 17 x 22 x 11 Download

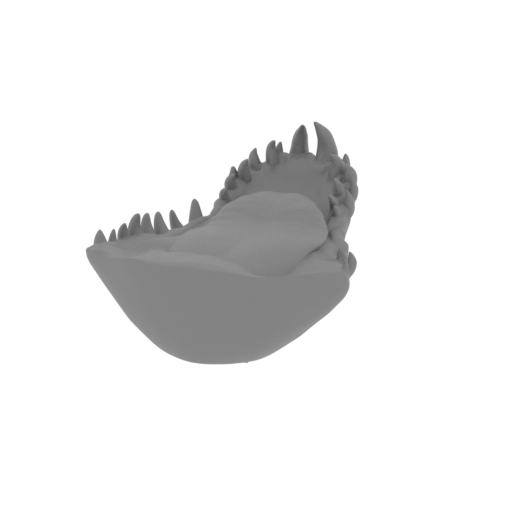

4_jaw_2_FDM(repaired).stl
12.76 MiB 49 min <1 m 26 x 38 x 15 Download

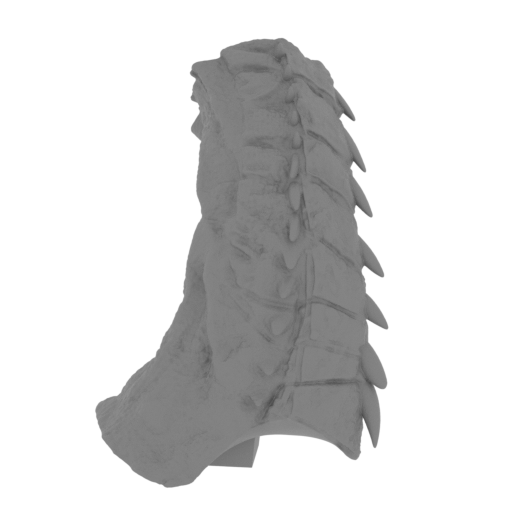

6_neck_2_FDM(repaired).st l
13.16 MiB 17 h 14 min 12 m 77 x 82 x 104 Download

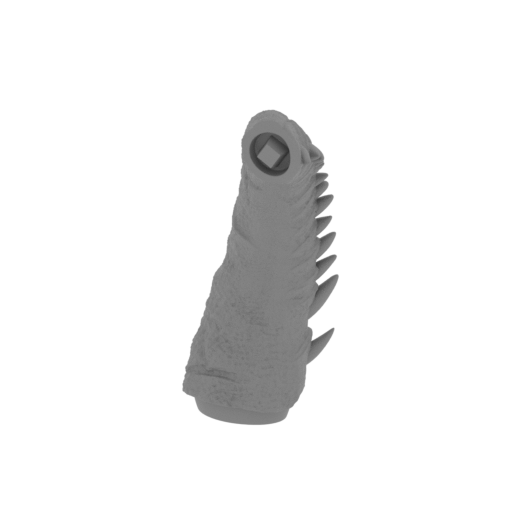

9_tail_2_FDM(repaired).st l
8.41 MiB 12 h 12 min 9 m 60 x 69 x 122 Download

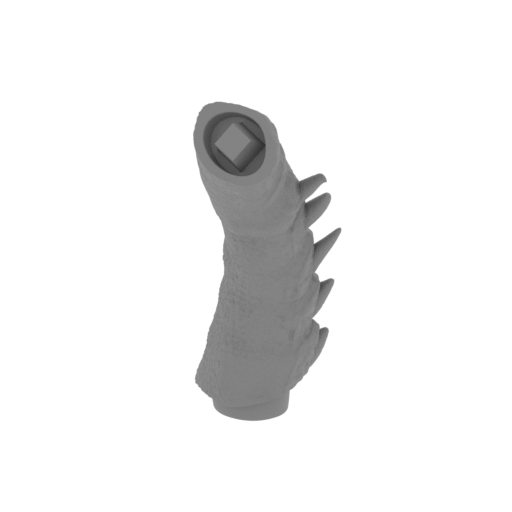

10_tail_3_FDM(repaired).s tl
10.46 MiB 2 h 48 min 2 m 31 x 43 x 68 Download

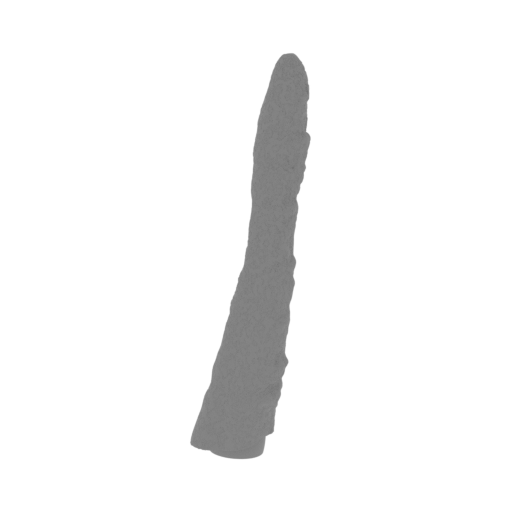

12_tail_5_FDM(repaired).s tl
11.85 MiB 1 h 33 min 1 m 20 x 31 x 80 Download

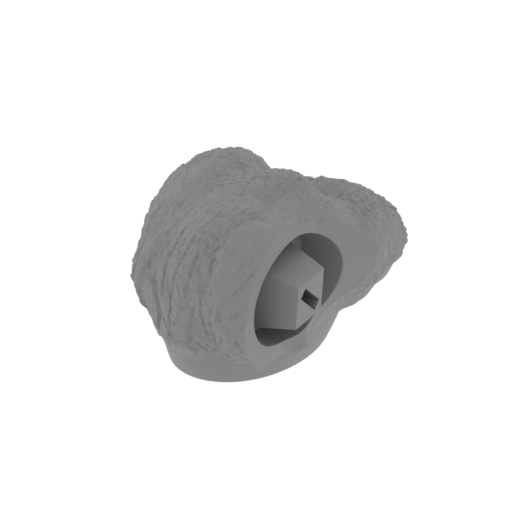

13_leg_L_1_FDM(repaired). stl
9.25 MiB 5 h 59 min 4 m 47 x 72 x 39 Download

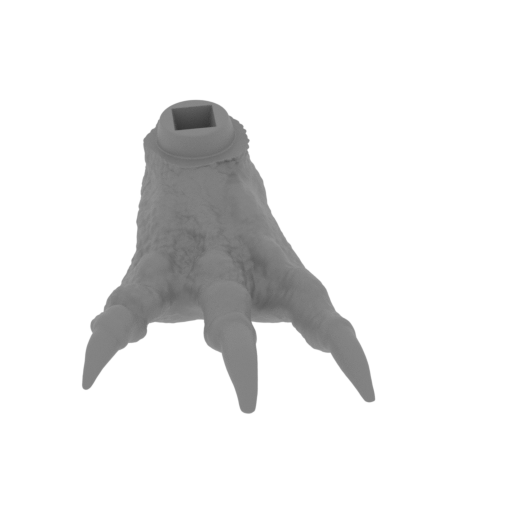

15_foot_L_FDM(repaired).s tl
10.03 MiB 2 h 8 min 1 m 53 x 62 x 27 Download

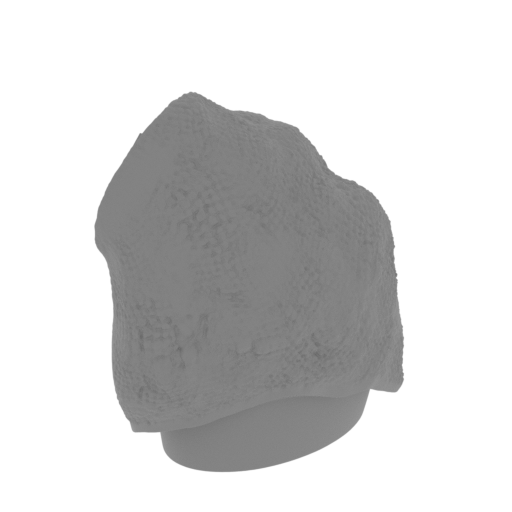

16_leg_R_1_FDM(repaired). stl
9.84 MiB 5 h 24 min 3 m 39 x 56 x 58 Download

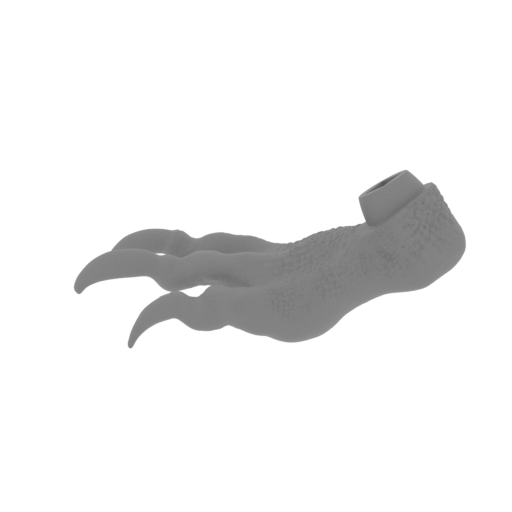

18_foot_R_FDM(repaired).s tl
12.17 MiB 2 h 5 min 1 m 71 x 44 x 30 Download

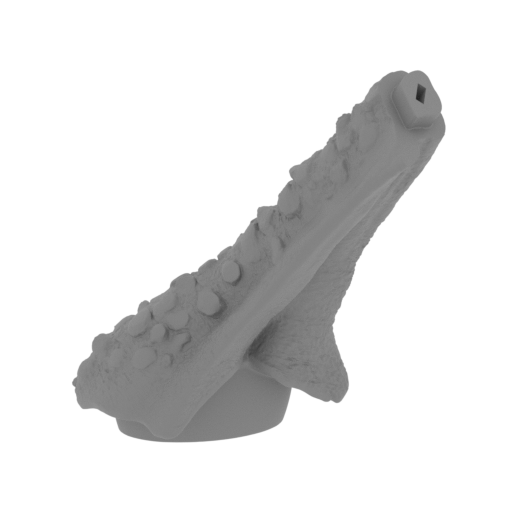

19_wing_L_1_FDM(repaired) .stl
7.76 MiB 8 h 22 min 5 m 84 x 47 x 88 Download

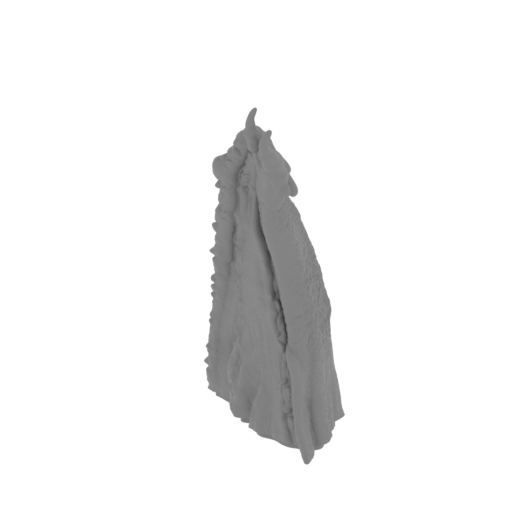

21_wing_L_3_FDM(repaired) .stl
9.81 MiB 9 h 13 min 5 m 60 x 67 x 147 Download

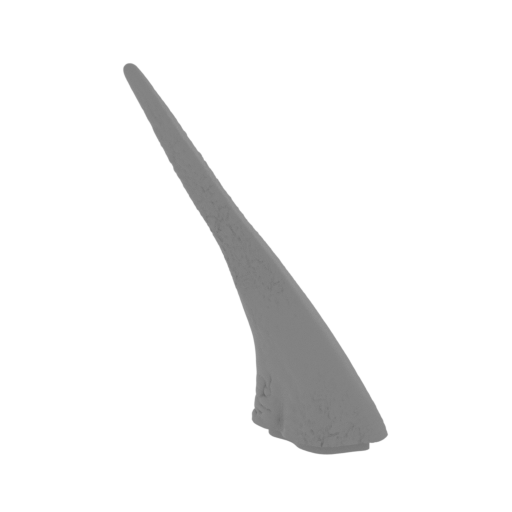

22_wing_L_4_FDM(repaired) .stl
5.09 MiB 1 h 46 min 1 m 66 x 18 x 96 Download

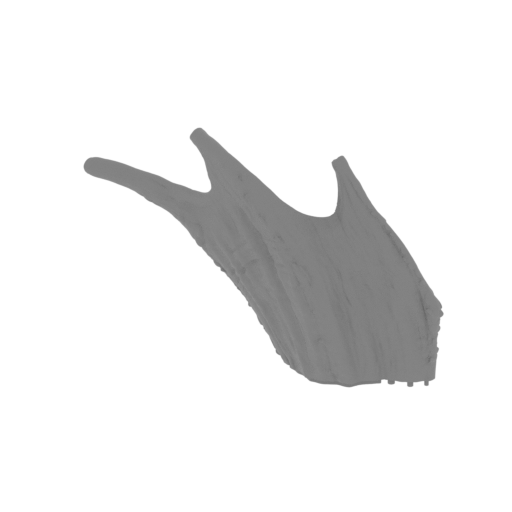

23_wing_L_5_FDM(repaired) .stl
9.57 MiB 20 h 56 min 12 m 222 x 53 x 140 Download

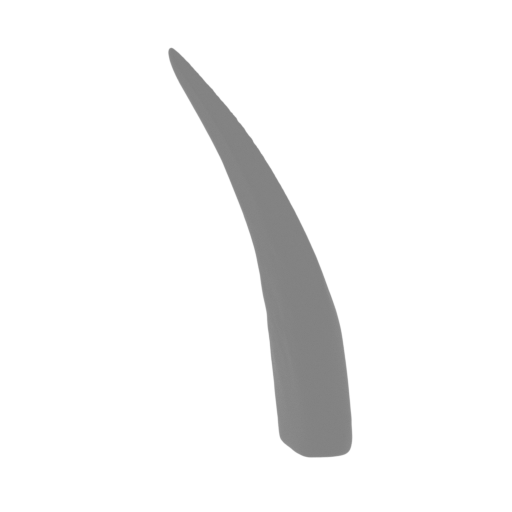

24_claws_L_1_FDM(repaired ).stl
1.48 MiB 11 min <1 m 17 x 6 x 32 Download

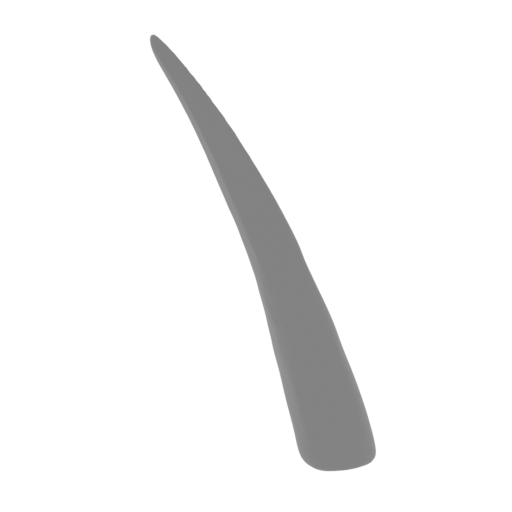

25_claws_L_2_FDM(repaired ).stl
1.41 MiB 11 min <1 m 20 x 10 x 30 Download

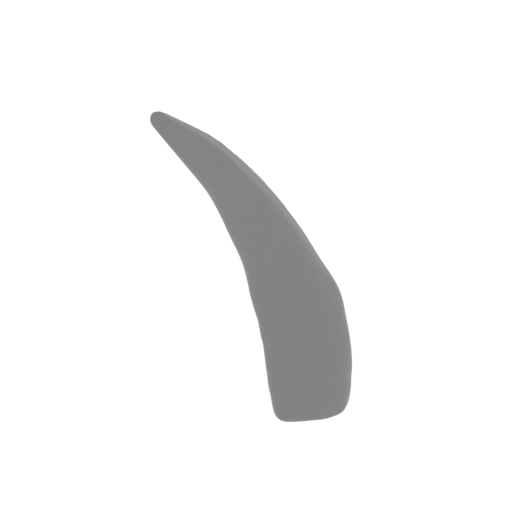

26_claws_L_3_FDM(repaired ).stl
1.27 MiB 9 min <1 m 10 x 17 x 27 Download

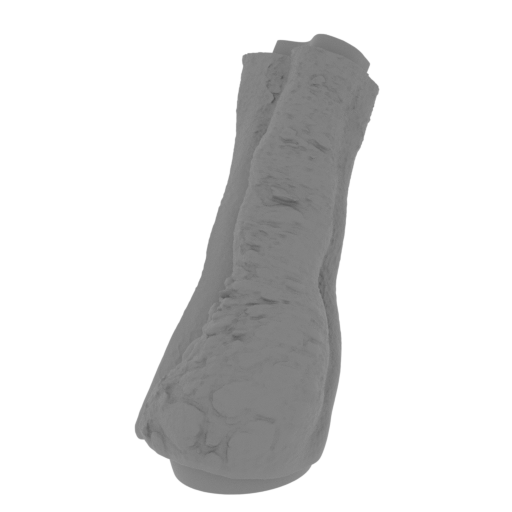

27_wing_R_1_FDM(repaired) .stl
7.10 MiB 9 h 9 min 6 m 48 x 84 x 94 Download

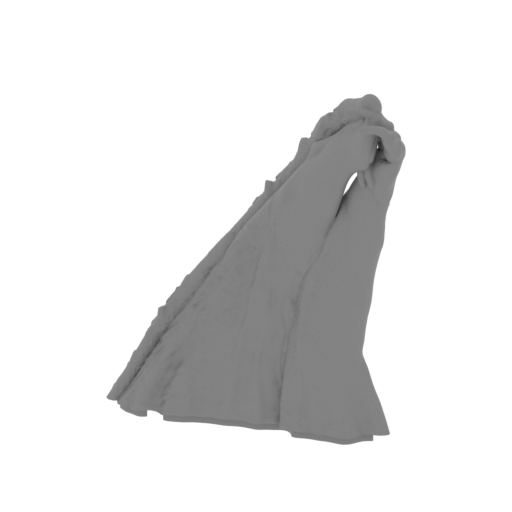

29_wing_R_3_FDM(repaired) .stl
10.75 MiB 10 h 30 min 6 m 115 x 39 x 137 Download

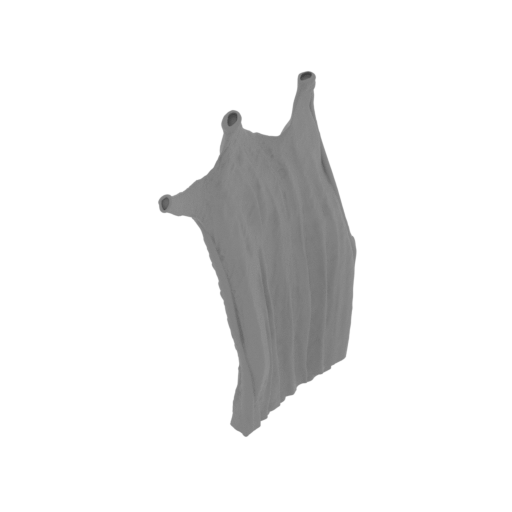

30_wing_R_4_FDM(repaired) .stl
9.59 MiB 20 h 2 min 12 m 41 x 183 x 161 Download

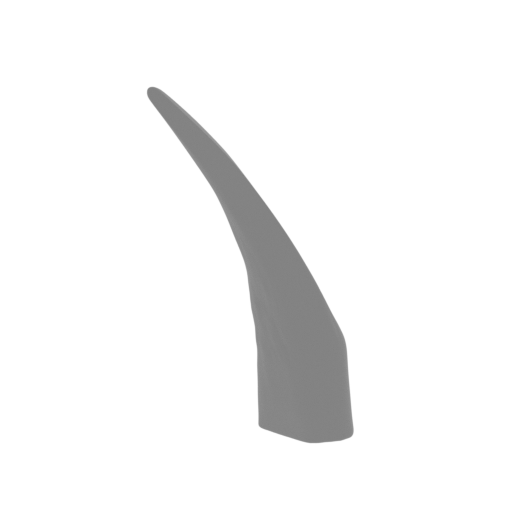

31_claws_R_1_FDM(repaired ).stl
1.04 MiB 8 min <1 m 13 x 9 x 27 Download

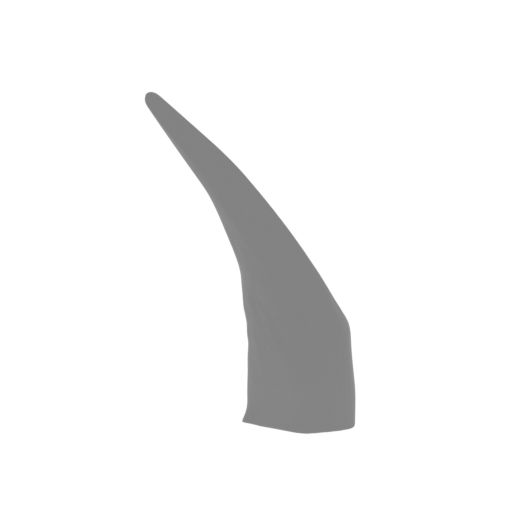

32_claws_R_2_FDM(repaired ).stl
1.04 MiB 9 min <1 m 12 x 11 x 27 Download

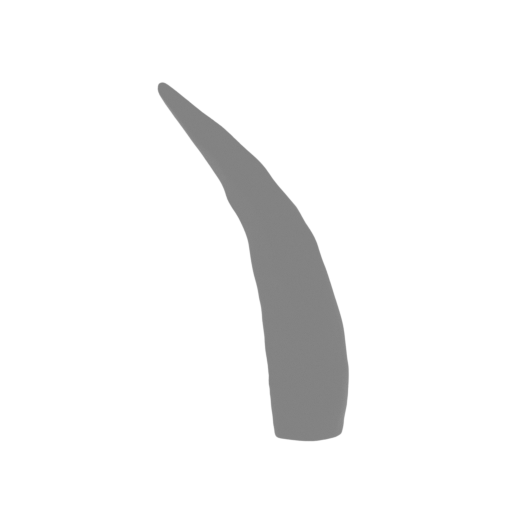

33_claws_R_3_FDM(repaired ).stl
1.24 MiB 11 min <1 m 15 x 9 x 34 Download

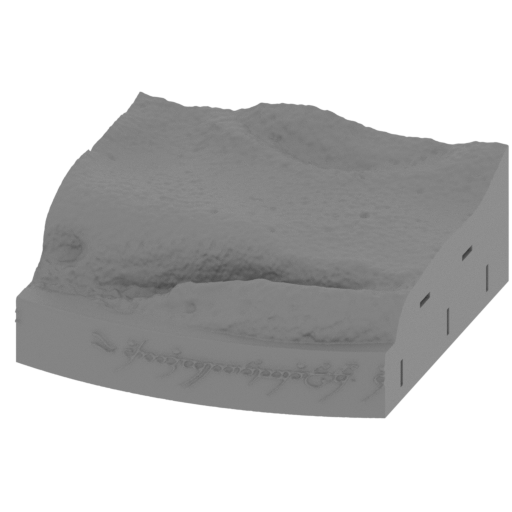

34_platform_1_FDM(repaire d).stl
17.23 MiB 43 h 9 min 25 m 133 x 133 x 54 Download

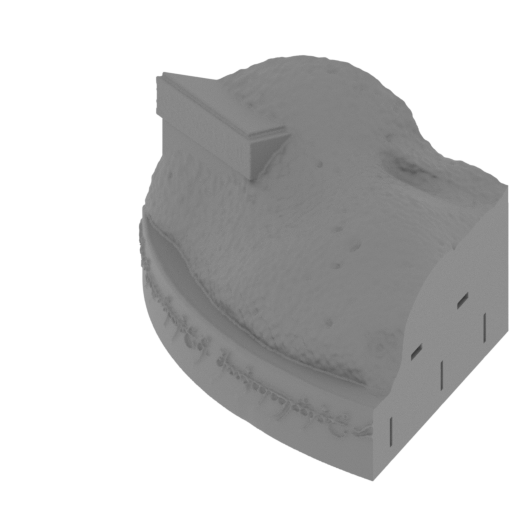

35_platform_2_FDM (repair ed).stl
15.21 MiB 31 h 17 min 18 m 121 x 122 x 83 Download

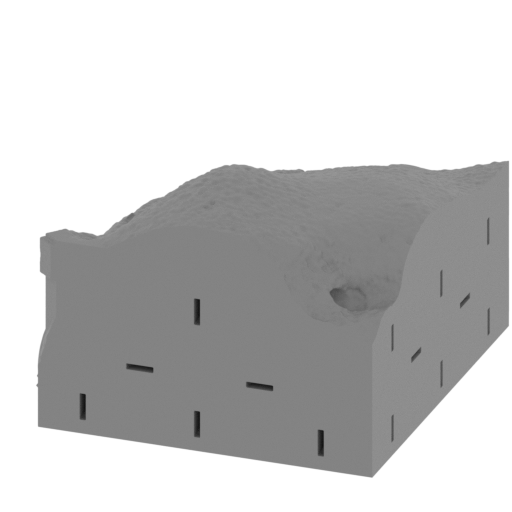

36_platform_3_FDM(repaire d).stl
18.53 MiB 63 h 19 min 37 m 133 x 133 x 87 Download

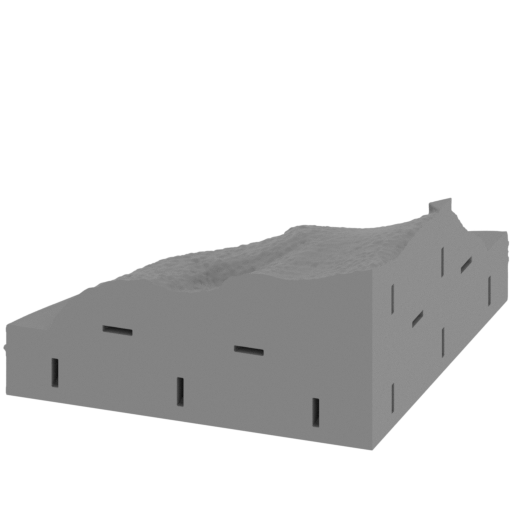

37_platform_4_FDM(repaire d).stl
14.36 MiB 25 h 20 min 15 m 122 x 122 x 61 Download

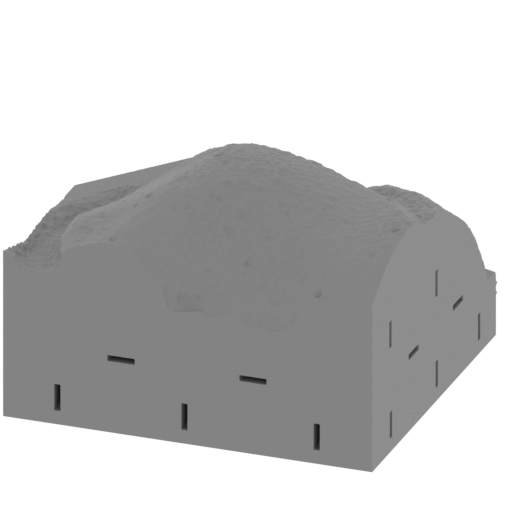

38_platform_5_FDM(repaire d).stl
18.15 MiB 60 h 12 min 36 m 133 x 133 x 83 Download

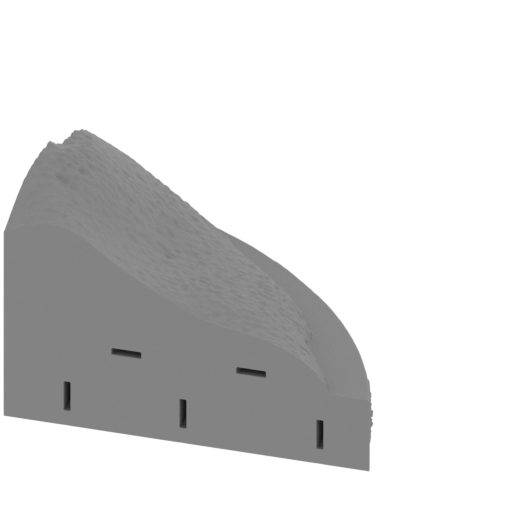

39_platform_6_FDM(repaire d).stl
13.28 MiB 27 h 41 min 16 m 121 x 122 x 76 Download

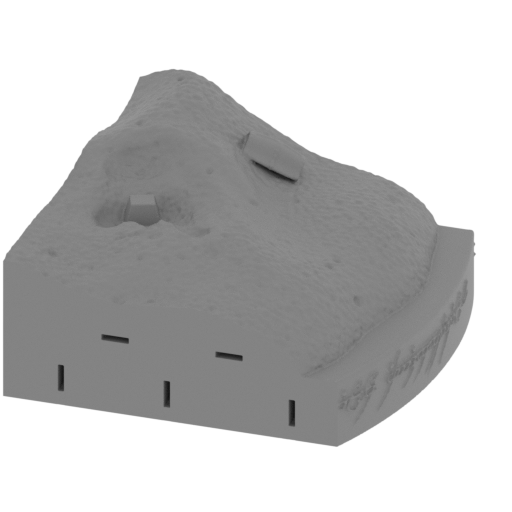

40_platform_7_FDM(repaire d).stl
15.30 MiB 48 h 37 min 28 m 133 x 133 x 68 Download

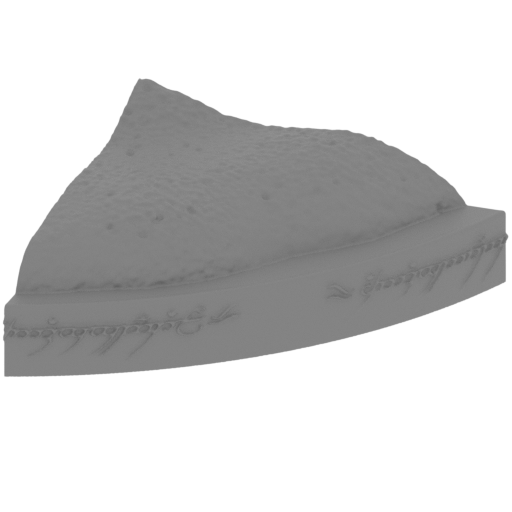

41_platform_8_FDM(repaire d).stl
12.77 MiB 22 h 55 min 13 m 122 x 122 x 50 Download

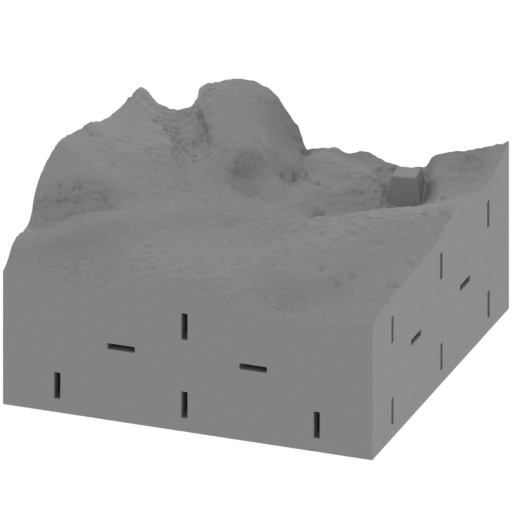

42_platform_9_FDM(repaire d).stl
19.22 MiB 60 h 24 min 35 m 133 x 133 x 74 Download

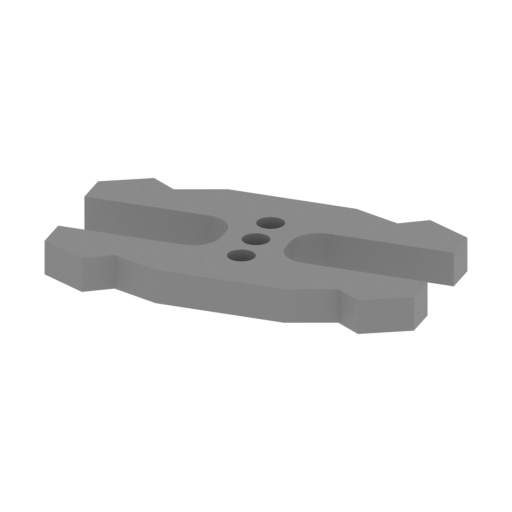

43_Ge_lock_10H(x74)_FDM(r epaired).stl
0.03 MiB 4 min <1 m 18 x 10 x 2 Download

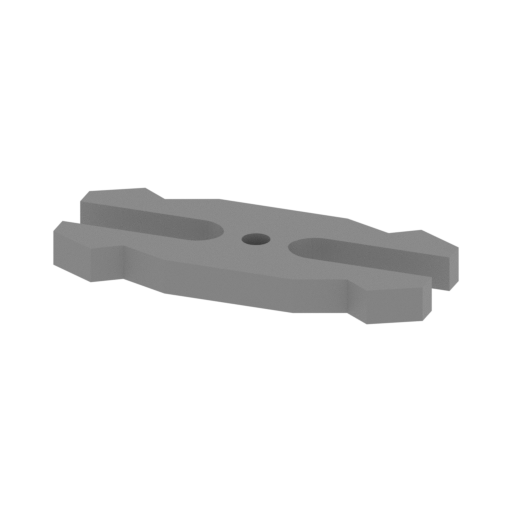

44_Ge_lock_7S(x13)_FDM(re paired).stl
0.02 MiB 3 min <1 m 18 x 7 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download

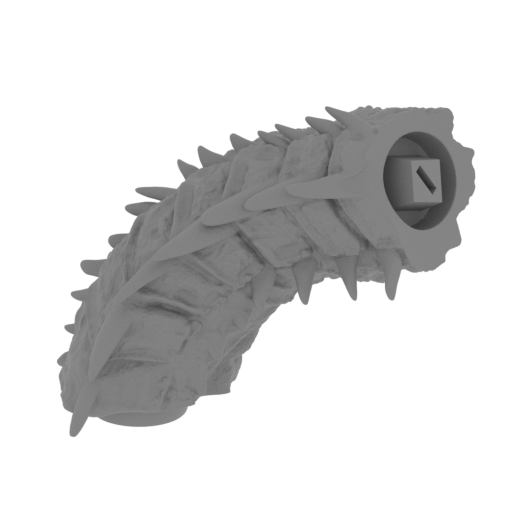

5_neck_1_FDM(repaired).st l
19.29 MiB 14 h 40 min 10 m 91 x 62 x 76 Download

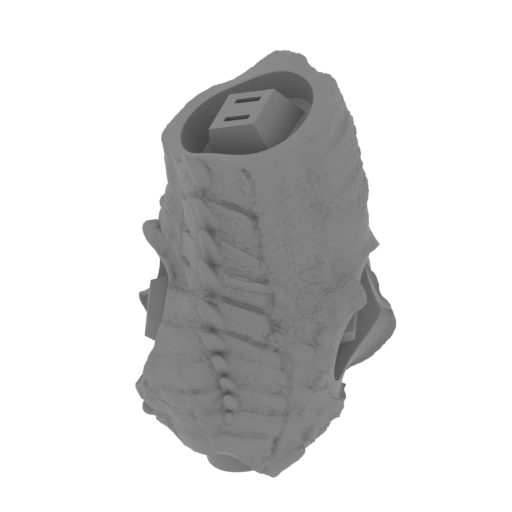

7_body_FDM(repaired).stl
22.47 MiB 36 h 20 min 22 m 80 x 103 x 125 Download

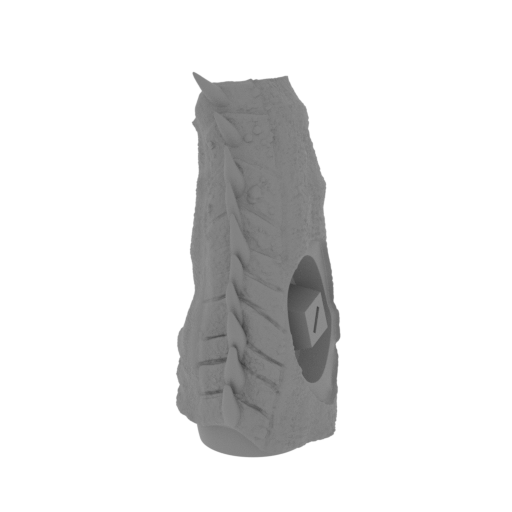

8_tail_1_FDM(repaired).st l
22.58 MiB 21 h 56 min 13 m 59 x 75 x 143 Download

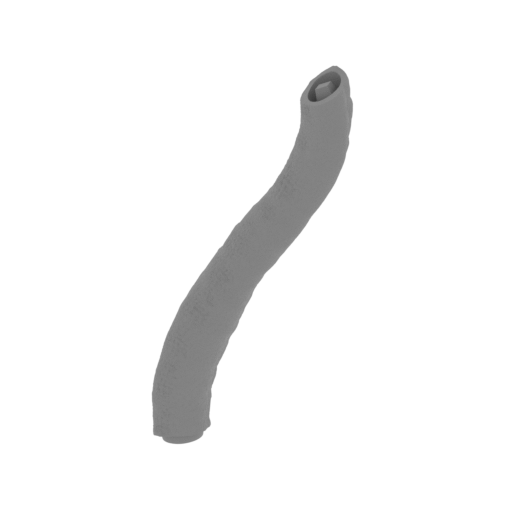

11_tail_4_FDM(repaired).s tl
19.79 MiB 3 h 10 min 2 m 51 x 31 x 106 Download

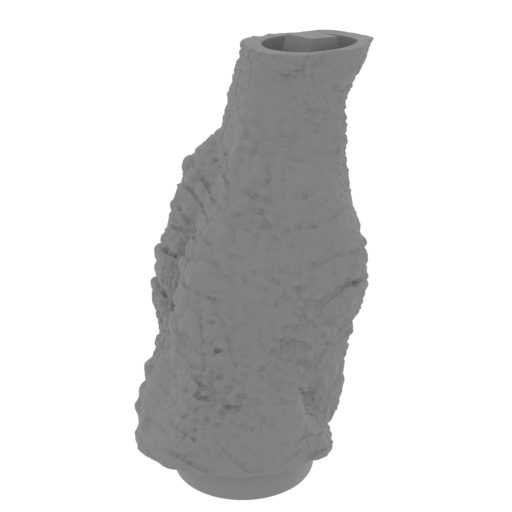

14_leg_L_2_FDM(repaired). stl
22.32 MiB 3 h 11 min 2 m 32 x 51 x 50 Download

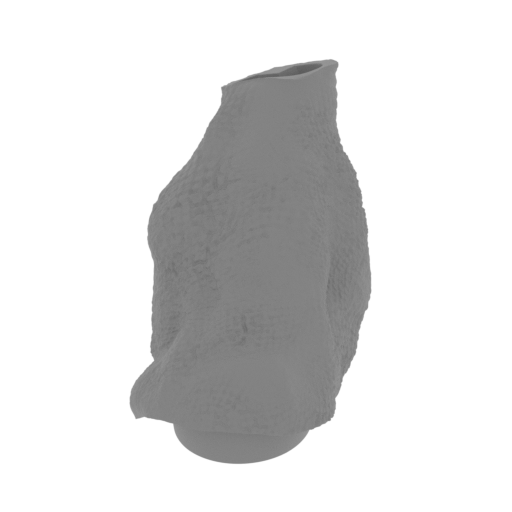

17_leg_R_2_FDM(repaired). stl
21.50 MiB 3 h 17 min 2 m 34 x 57 x 45 Download

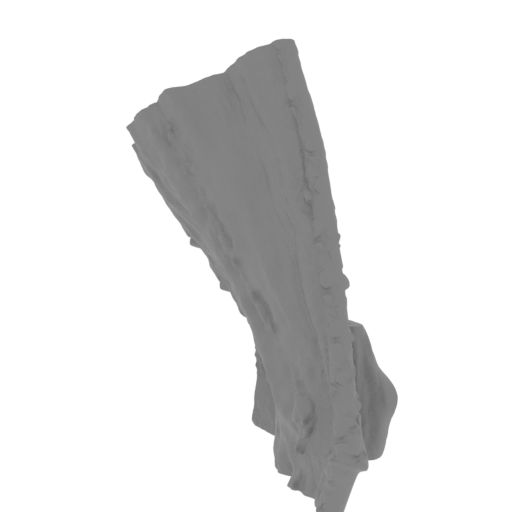

20_wing_L_2_FDM(repaired) .stl
16.45 MiB 21 h 8 min 12 m 120 x 121 x 129 Download

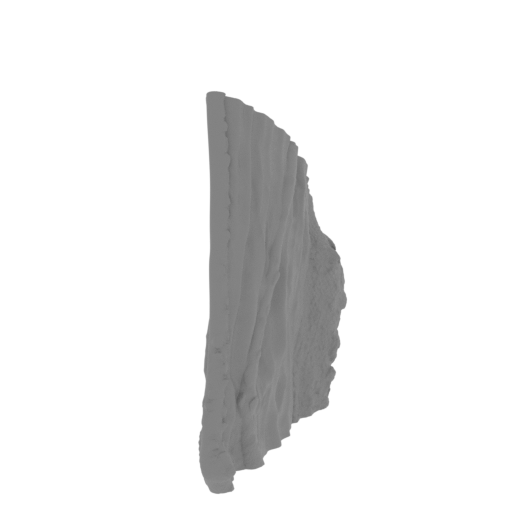

28_wing_R_2_FDM(repaired) .stl
14.54 MiB 15 h 34 min 9 m 38 x 128 x 152 Download
...

ABOUT THIS 3D FIGURINE

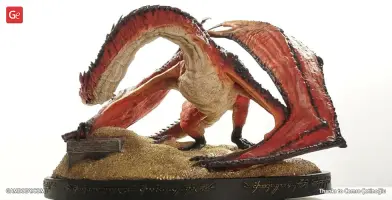

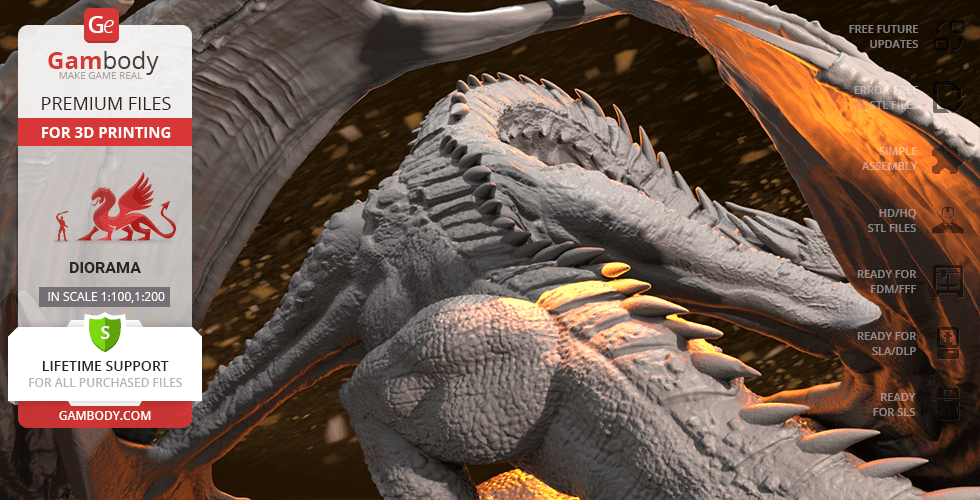

The notable fire drake of the Lonely Mountain or the last great dragon to exist is an essential part of any Middle-earth universe fan’s 3D printed collection. When choosing the setting to depict his Smaug the Golden figurine in, the author of the dragon for 3D printing most likely was drawing inspiration from the original illustration provided by J.R.R. Tolkien titled “Conversation with Smaug”. The dragon is pictured sprawled on the wealth of the inestimable hoard in the depth of his mountain lair. The Hobbit film trilogy, without doubt, did greatly facilitate the 3D artist’s creative process but nevertheless, the figurine's sculpting took its author 125 hours in total. One can suppose that the Smaug 3D printing figurine shows the beast a mere seconds after being awakened from his slumber by the group of curious Dwarves who had the audacity to claim the ancient treasure from the dragon. Smaug the Chiefest and Greatest of Calamities, as Bilbo once addressed the dragon, turned out to be much larger than the Dwarves had expected and just as greedy as one may assume. The way the Smaug for 3D printing is towering above his great treasures proves that he has no intention to let his guard down - the Lonely Mountain’s wealth belongs solely to its rightful possessor, the King under the Mountain.

ADAPTATION FOR 3D PRINTING

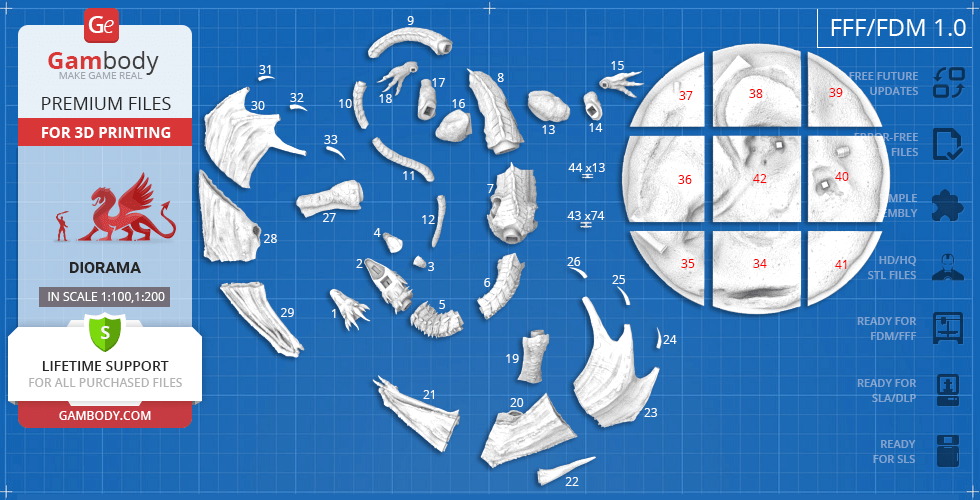

Smaug the Golden 3D printing figurine is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 46 hours in total. The model’s cutting was chosen by our team to minimise the amount of filament needed for generated support and some of the parts were hollowed out for you to save the resin. The figurine was divided into as many assembly parts as needed to fit even the smallest 3D printers' build plates and for you to nevertheless receive a large dragon after the assembly. The Smaug's head was split up for you to print the jaws preserving all the teeth's finest details. All the assembly parts are provided in STL files in recommended positions that were worked out so to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. All the parts have special connecting elements for you to assemble the figurine in the easiest way possible and there are locks provided to connect the details if you don’t want to glue the parts. It is especially convenient for those who are going to paint the model.

The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

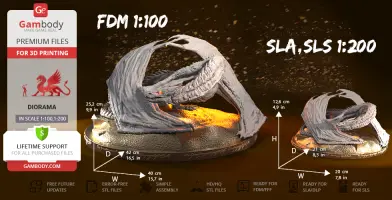

The model's scale was calculated from the dragon's actual length that is 130000 mm. The 3D printing figurine's chosen scale is 1/100 for the FFF/FDM version and 1/200 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

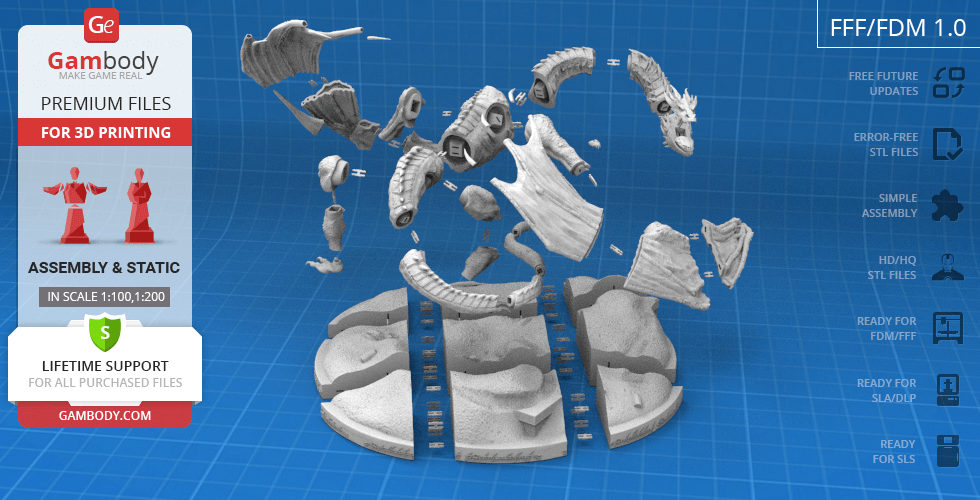

FFF/FDM version features:
- Contains 44 parts;
- A printed model is 252 mm tall, 400 mm wide, 420 mm deep;
- Assembly kit includes locks to connect the parts without glue. One lock 43_Ge_lock_10H(x74) needs to be printed 74 times. The second lock 44_Ge_lock_7S(x13)​ needs to be printed 13 times;
- Made with a platform to resemble the mountain of golden treasures;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

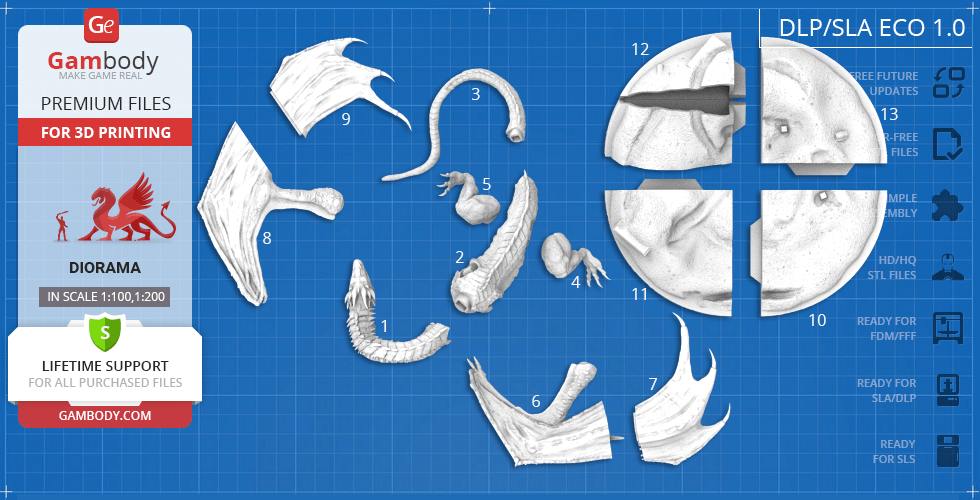

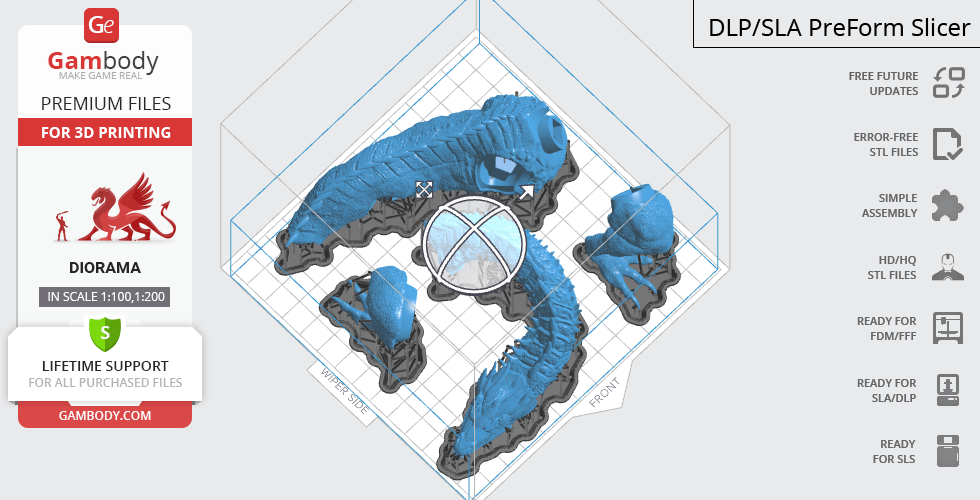

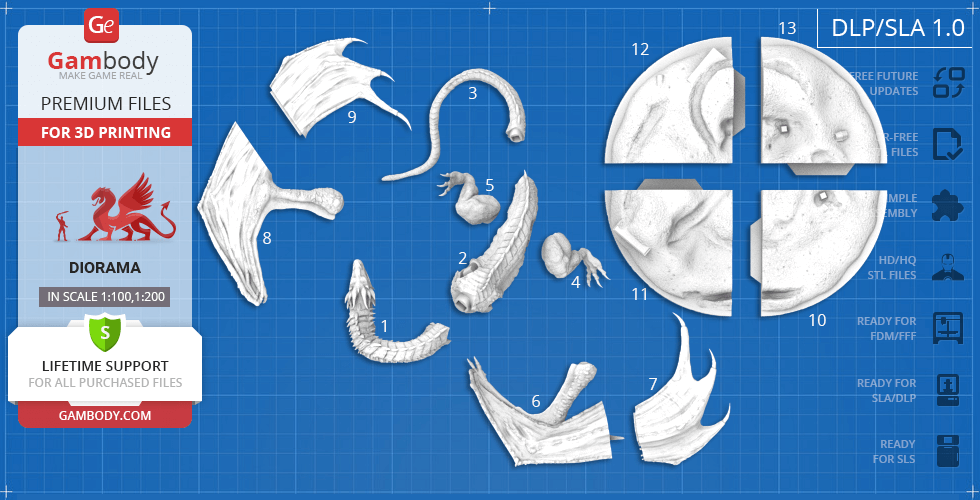

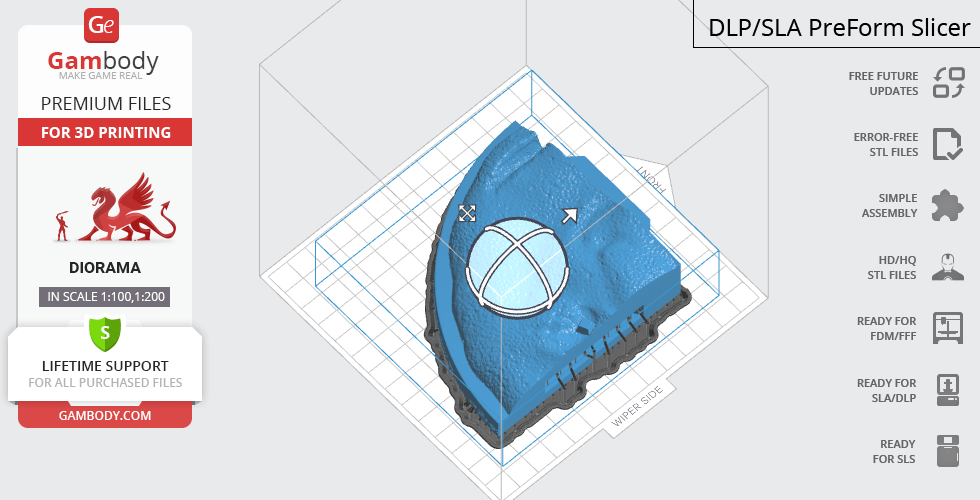

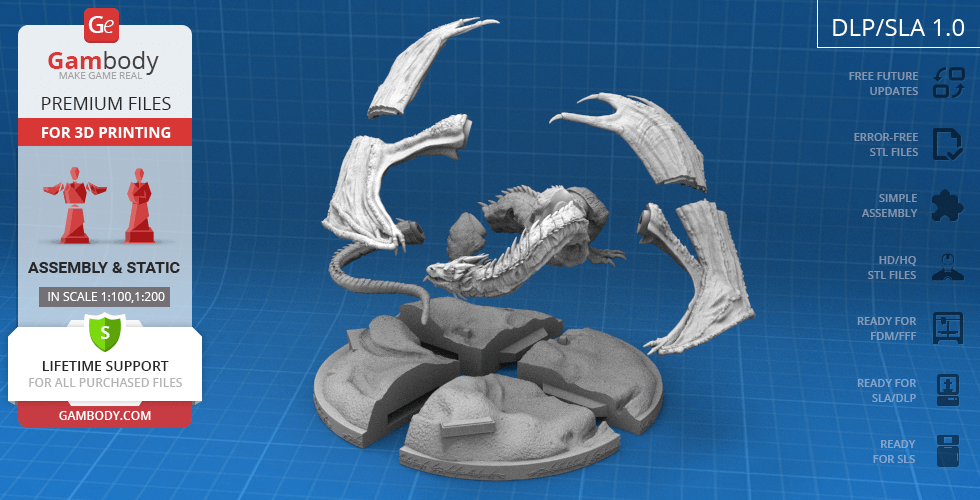

DLP/SLA version features:
- Contains 13 parts;
- A printed model is 126 mm tall, 200 mm wide, 210 mm deep;
- Made with a platform to resemble the mountain of golden treasures;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

DLP/SLA Eco version features:
- Same as the DLP/SLA version, but contains parts hollowed out to save resin.

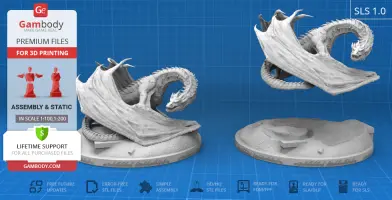

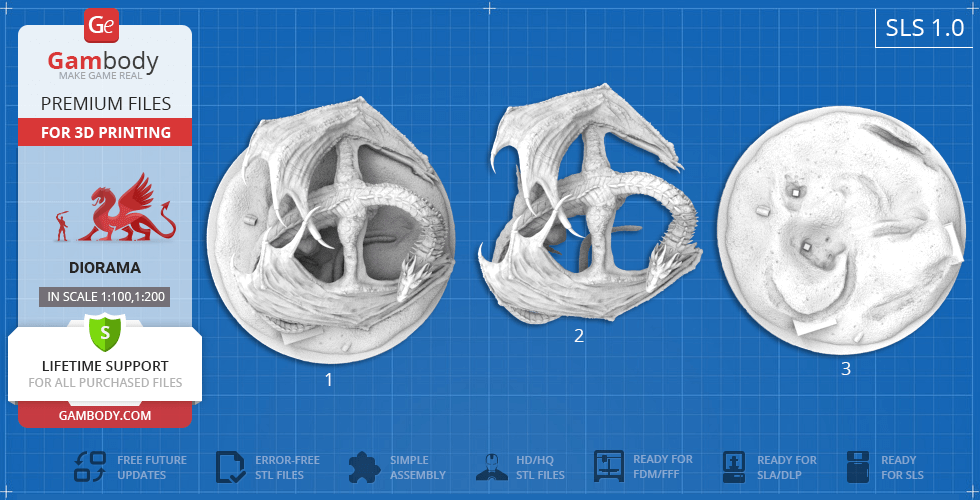

SLS version features:
- Same as DLP/SLA one but made as a solid figurine;
- Contains 3 parts - a one-piece model and the figurine with the platform separated.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Smaug the Golden 3D Figurine for 3D printing which consist of 73 parts;
- 4 versions of files for this model for FFF/FDM, DLP/SLA, DLP/SLA Eco and SLS;
- High-poly detailed figurine of Smaug the Golden;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the figurine of Smaug the Golden for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Smaug the Golden 3D Printing Figurine at Gambody YouTube channel.

Also, you may like other Lord of the Rings 3D Printing Figurines.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?

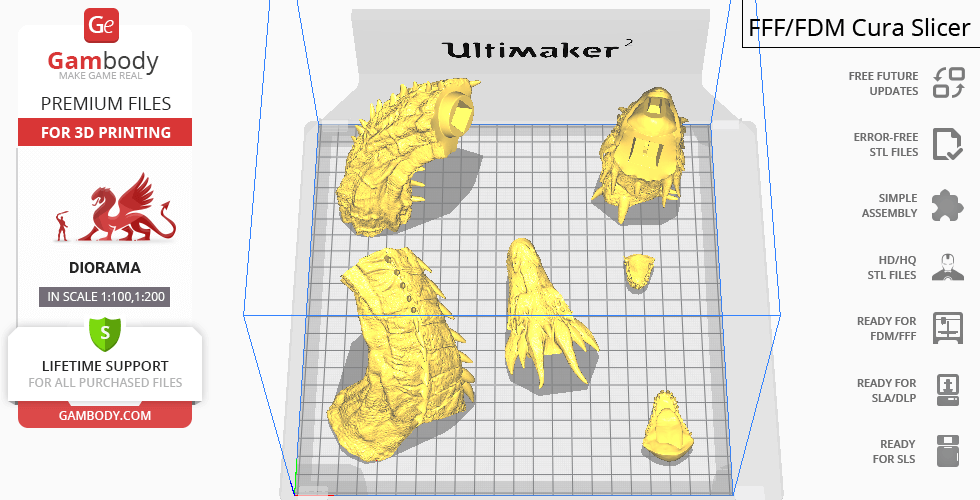

How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

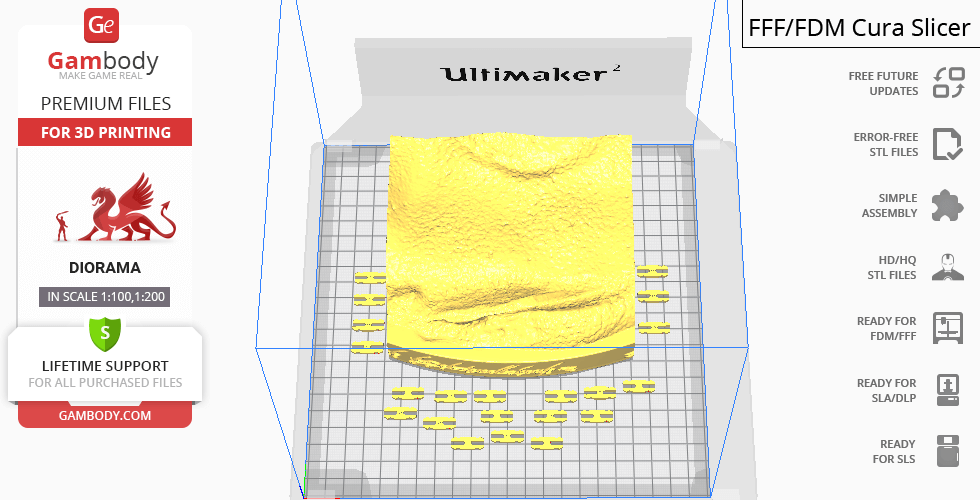

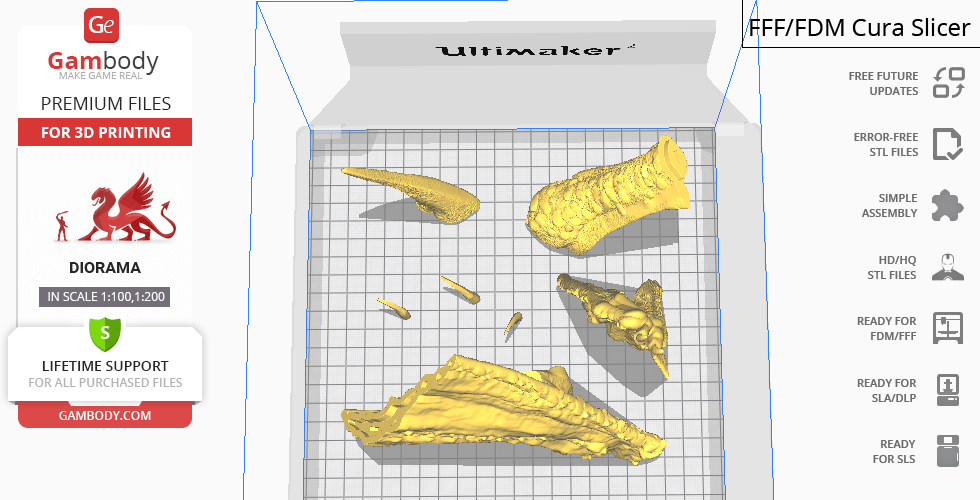

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
