Speeder Bike 3D Printing Model | Assembly + Action

cm: 13.6 w x 46.6 d x 15.2 h
in: 5.354 w x 18.346 d x 5.984 h

Source Files




Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Speeder Bike 3D Printing Model comes in 2 versions for FFF/FDM and DLP/SLA/SLS 3D printers. STL files of both versions are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
1_Nose_R_Fdm (repaired).s tl
25.64 MiB 5 h 53 min 3 m 46 x 157 x 23 Download
2_Nose_L_Fdm (repaired).s tl
25.57 MiB 5 h 52 min 3 m 46 x 157 x 23 Download
3_Tail_Fdm (repaired).stl
50.08 MiB 15 h 24 min 10 m Download
4_Seat_Fdm (repaired).stl
59.24 MiB 6 h 12 min 3 m Download
5_Engine_L_Fdm (repaired) .stl
9.61 MiB 2 h 16 min 1 m 94 x 26 x 16 Download
6_Engine_R_Fdm (repaired) .stl
9.64 MiB n.a.
94 x 31 x 16 Download
7_Rudder_Plank_1_R_Fdm (r epaired).stl
31.31 MiB 1 h 28 min 1 m Download
8_Rudder_Plank_2_R_Fdm (r epaired).stl
47.04 MiB 2 h 52 min 1 m Download
9_Rudder_Plank_2_L_Fdm (r epaired).stl
47.03 MiB 2 h 38 min 1 m Download
10_Rudder_Plank_1_L_Fdm ( repaired).stl
31.31 MiB 1 h 27 min 1 m 25 x 18 x 87 Download
11_Steering_Gear_1_Fdm (r epaired).stl
1.59 MiB 1 h 20 min 1 m 64 x 23 x 19 Download
12_Steering_Gear_2_Fdm (r epaired).stl
1.57 MiB 2 h 8 min 1 m 64 x 49 x 30 Download
13_Steering_Gear_3_Fdm (r epaired).stl
0.02 MiB 59 min <1 m 12 x 12 x 63 Download
14_Steering_Gear_4_Fdm (r epaired).stl
0.06 MiB 21 min <1 m 25 x 17 x 15 Download
15_Steering_Gear_5_Fdm (r epaired).stl
0.65 MiB 19 min <1 m 20 x 20 x 8 Download
16_Lever_1_L_Fdm (repaire d).stl
13.59 MiB 15 min <1 m 6 x 6 x 24 Download
17_Lever_1_R_Fdm (repaire d).stl
13.59 MiB 14 min <1 m 6 x 6 x 24 Download
18_Lever_2_L_Fdm (repaire d).stl
1.13 MiB 3 min <1 m 12 x 11 x 3 Download
19_Lever_2_R_Fdm (repaire d).stl
1.13 MiB 3 min <1 m 12 x 11 x 3 Download
20_Lever_3_L_Fdm (repaire d).stl
0.66 MiB 10 min <1 m 7 x 20 x 11 Download
21_Lever_3_R_Fdm (repaire d).stl
0.65 MiB 10 min <1 m 7 x 20 x 11 Download
22_Lever_4_L_Fdm (repaire d).stl
0.12 MiB 2 min <1 m 10 x 10 x 2 Download
23_Lever_4_R_Fdm (repaire d).stl
0.12 MiB 2 min <1 m 10 x 10 x 2 Download
24_Rudder_Nut_R_Fdm (repa ired).stl
0.53 MiB 5 min <1 m 9 x 9 x 6 Download
25_Rudder_Nut_L_Fdm (repa ired).stl
0.53 MiB 5 min <1 m 9 x 9 x 6 Download
26_Claw_Nose_Pipe_1_L_Fdm (repaired).stl
0.16 MiB 8 min <1 m 11 x 26 x 4 Download
27_Claw_Nose_Pipe_1_R_Fdm (repaired).stl
0.16 MiB 8 min <1 m 11 x 26 x 4 Download
28_Claw_Nose_Pipe_2_L_Fdm (repaired).stl
0.27 MiB 7 min <1 m 11 x 26 x 4 Download
29_Claw_Nose_Pipe_2_R_Fdm (repaired).stl
0.27 MiB 7 min <1 m 11 x 26 x 4 Download
30_Claw_Nose_Pipe_3_L_Fdm (repaired).stl
0.15 MiB 20 min <1 m 39 x 12 x 9 Download
31_Claw_Nose_Pipe_3_R_Fdm (repaired).stl
0.15 MiB 20 min <1 m 39 x 12 x 9 Download
32_Nose_Pipe_1_L_Fdm (rep aired).stl
0.77 MiB 33 min <1 m 16 x 146 x 4 Download
33_Nose_Pipe_1_R_Fdm (rep aired).stl
0.77 MiB 32 min <1 m Download
34_Nose_Pipe_2_L_Fdm (rep aired).stl
0.22 MiB 8 min <1 m 10 x 38 x 4 Download
35_Nose_Pipe_2_R_Fdm (rep aired).stl
0.22 MiB 8 min <1 m Download
36_Wing_2_L_Fdm (repaired ).stl
17.19 MiB 46 min <1 m 78 x 38 x 4 Download
37_Wing_2_R_Fdm (repaired ).stl
17.19 MiB 47 min <1 m Download
38_Wing_1_R_Fdm (repaired ).stl
17.59 MiB 1 h 2 min 1 m 24 x 47 x 30 Download
39_Wing_1_L_Fdm (repaired ).stl
17.59 MiB 1 h 1 min 1 m 24 x 47 x 30 Download
40_Wing_Nose_Fdm (repaire d).stl
1.14 MiB 47 min <1 m 38 x 13 x 21 Download
41_Wing_Joint_L_Fdm (repa ired).stl
0.02 MiB 7 min <1 m 16 x 10 x 8 Download
42_Wing_Joint_R_Fdm (repa ired).stl
0.02 MiB 7 min <1 m 16 x 10 x 8 Download
43_Center_Pipe_L_Fdm (rep aired).stl
1.50 MiB 1 h 10 min 1 m 79 x 26 x 34 Download
44_Center_Pipe_R_Fdm (rep aired).stl
2.58 MiB 26 min <1 m 29 x 15 x 20 Download
45_Engine_Fdm (repaired). stl
5.70 MiB 1 h 42 min 1 m 40 x 24 x 27 Download
46_Tail_Pipe_1_L_Fdm (rep aired).stl
2.48 MiB 42 min <1 m Download
47_Tail_Pipe_1_R_Fdm (rep aired).stl
2.64 MiB 50 min <1 m Download
48_Tail_Pipe_2_L_Fdm (rep aired).stl
0.85 MiB 24 min <1 m 53 x 141 x 17 Download
49_Tail_Pipe_2_R_Fdm (rep aired).stl
0.85 MiB 24 min <1 m 53 x 141 x 17 Download
50_Tail_Pipe_3_L_Fdm (rep aired).stl
0.66 MiB 22 min <1 m 33 x 69 x 4 Download
51_Tail_Pipe_3_R_Fdm (rep aired).stl
0.66 MiB 22 min <1 m Download
52_Tail_Pipe_R_Fdm (repai red).stl
0.50 MiB 13 min <1 m 51 x 26 x 3 Download
53_Treadle_L_Fdm (repaire d).stl
9.19 MiB 28 min <1 m 21 x 34 x 14 Download
54_Treadle_R_Fdm (repaire d).stl
9.23 MiB 28 min <1 m Download
55_Sole_L_Fdm (repaired). stl
4.27 MiB 6 min <1 m Download
56_Sole_R_Fdm (repaired). stl
4.27 MiB 6 min <1 m 10 x 30 x 1 Download
57_Tail_Frame_L_Fdm (repa ired).stl
7.96 MiB 1 h 20 min 1 m 75 x 42 x 8 Download
58_Tail_Frame_R_Fdm (repa ired).stl
7.96 MiB 1 h 18 min 1 m Download
59_Frame_Joint_L_Fdm (rep aired).stl
0.03 MiB 20 min <1 m 9 x 16 x 22 Download
60_Frame_Joint_R_Fdm (rep aired).stl
0.03 MiB 20 min <1 m Download
61_Stand_1_Fdm (repaired) .stl
5.26 MiB 2 h 24 min 1 m 72 x 22 x 56 Download
62_Stand_2_Fdm (repaired) .stl
6.65 MiB 2 h 36 min 1 m Download
55.94 MiB 3 h 56 min 2 m 31 x 51 x 46 Download
65_Bag_1_Fdm (repaired).s tl
28.16 MiB 3 h 51 min 2 m Download
66_Bag_2_Fdm (repaired).s tl
29.40 MiB 1 h 51 min 1 m 38 x 50 x 14 Download
67_Box_Fdm (repaired).stl
0.00 MiB 32 min <1 m Download
68_LeftBag_1_Fdm (repaire d).stl
31.52 MiB 3 h 19 min 2 m 19 x 49 x 32 Download
69_LeftBag_2_Fdm (repaire d).stl
5.66 MiB 50 min 1 m Download
70_Loop_R_1_Fdm (repaired ).stl
0.02 MiB 11 min <1 m 21 x 14 x 7 Download
71_Loop_R_2_Fdm (repaired ).stl
0.02 MiB 11 min <1 m 22 x 21 x 7 Download
72_Nose_Plug_L_Fdm (repai red).stl
0.43 MiB 9 min <1 m 13 x 9 x 9 Download
73_Nose_Plug_R_Fdm (repai red).stl
0.42 MiB 9 min <1 m 13 x 9 x 9 Download
74_Tail_Plug_1_Fdm (repai red).stl
0.36 MiB 7 min <1 m 11 x 7 x 7 Download
75_Tail_Plug_2_Fdm (repai red).stl
0.32 MiB 7 min <1 m 11 x 7 x 7 Download
76_Connector_1_Fdm (repai red).stl
0.79 MiB 1 h 7 min 1 m 123 x 41 x 9 Download
77_Connector_2_Fdm (repai red).stl
0.10 MiB 22 min <1 m 56 x 7 x 7 Download
78_Stand_M1_Fdm (repaired ).stl
7.19 MiB 14 h 45 min 8 m 136 x 78 x 50 Download
79_Stand_M2_Fdm (repaired ).stl
5.14 MiB 8 h 55 min 5 m 91 x 94 x 49 Download
80_Stand_M3_Fdm (repaired ).stl
10.86 MiB 29 h 27 min 17 m 115 x 94 x 91 Download
81_Stand_M4_Fdm (repaired ).stl
6.65 MiB 9 h 31 min 5 m 123 x 92 x 35 Download
82_Stand_M5_Fdm (repaired ).stl
7.87 MiB 16 h 13 min 9 m Download
83_Stand_M6_Fdm (repaired ).stl
11.35 MiB 26 h 31 min 15 m 121 x 90 x 74 Download
84_Stand_M7_Fdm (repaired ).stl
7.95 MiB 11 h 35 min 6 m 111 x 95 x 41 Download
85_Stand_M8_Fdm (repaired ).stl
6.12 MiB 8 h 22 min 4 m 133 x 92 x 16 Download
86_Stand_M9_Fdm (repaired ).stl
6.07 MiB 8 h 2 min 4 m 134 x 90 x 23 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download
1_1_Nose_R_Fdm (repaired) .stl
13.45 MiB 2 h 55 min 2 m Download
1_2_Nose_body_R_Fdm (repa ired).stl
12.34 MiB 3 h 15 min 2 m Download
2_1_Nose_L_Fdm (repaired) .stl
13.44 MiB 2 h 56 min 2 m 92 x 33 x 23 Download
2_2_Nose_body_L_Fdm (repa ired).stl
12.33 MiB 3 h 15 min 2 m Download
3_1_Tail_Fdm (repaired).s tl
23.62 MiB 5 h 7 min 3 m 44 x 30 x 94 Download
3_2_Body_Tail_Fdm (repair ed).stl
26.84 MiB 6 h 22 min 4 m 69 x 52 x 64 Download
0.03 MiB 4 min <1 m 18 x 10 x 2 Download
80_v2_Stand_M3_1_Fdm (rep aired).stl
5.01 MiB 16 h 6 min 9 m 98 x 109 x 55 Download
80_v2_Stand_M3_2_Fdm (rep aired).stl
6.76 MiB 16 h 37 min 9 m Download
83_v2_Stand_M6_1_Fdm (rep aired).stl
5.99 MiB 13 h 26 min 8 m Download
83_v2_Stand_M6_2_Fdm (rep aired).stl
5.84 MiB 16 h 7 min 9 m Download


Speeder Bike is a type of open-air repulsorlift vehicle with a long history in the world of the Star Wars franchise. Unlike a lot of highly sophisticated and elaborate crafts, speeder bikes were designed as light-weight and maneuvered units with minimal equipment that allowed them to achieve greater speed and agility. This embodiment of velocity and simplicity is highly appreciated in all circles - starting from military groups to mercenaries and criminal organizations. In the more recent installment of the space opera, the Mandalorian series, one of the speeder bikes comes in handy for the bounty hunter Din Djarin and his little Child companion. Inspired by their invigorating adventures and the crafty transportation device, our contributing 3D artist decided to recreate Mando’s speeder bike in the form of a model for 3D printing. The Speeder Bike 3D printing model is built with utmost authenticity. It is equipped with frontal vanes installed on the steering gear and connected to the outriggers. The body of the “rocket-powered scooter” fitted with the repulsorlift engine and a power generator has a highly detailed rear-set pilot seat. On both sides, you will find the foot pedals of the bike. The backside of the vehicle is flanked with two cargo tail bags, in one of which the adorable Baby Yoda miniature is nestled. Our contributing artist made sure to make the bike look canonically weathered and adorned its surface with chippings and rust marks. This 3D printing model is accompanied by two platform options, which will give you the chance to display it as if hovering above the surface of a planet or in a complete diorama with The Mandalorian 3D printing figurine. Your very own Speeder Bike 3D printing model is ready to hit the road!


Speeder Bike for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 42 hours in total. For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support the vehicle model was divided into many assembly parts, e.g. its rear-set pilot seat, two cargo tail bags, the Baby Yoda miniature, steering handles, pedals, repulsorlift engine, maneuver controls, directional steering vanes, etc. are provided as separate STL files. Various special mechanisms were introduced to ensure that the model has fully articulated elements in it, such as steering gear, pedals, steering handles etc. For you to display the Speeder Bike model alone, a special simple platform is provided and it is recommended to print the platform with transparent material. In order for you to complete The Mandalorian diorama, there is a bigger elaborate platform available that is divided into many parts to fit the build plates of the average 3D printers. All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and to make sure that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the Speeder Bike model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the actual height of Speeder Bike​ that is 3830 mm. The 3D printing model's chosen scale is 1/8 for the FFF/FDM version and 1/16 for the DLP/SLA/SLS version.


FFF/FDM 1.0 version features:
- Contains 86 parts;

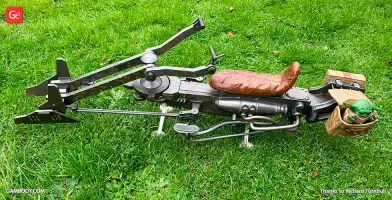

- A printed model is 152 mm tall, 136 mm wide, 466 mm deep;
- Assembly kit includes lock 63_Ge_Lock_x59 to connect the model's parts securely without glue that needs to be printed 74 times;
- The assembly of the model, as well as some decorative elements, require additional “wires” and "pins". These elements do not come in STL files but can be made out of short pieces of regular 1.75 PLA;
- The steering gear of the Bike is equipped with various articulated mechanisms that allow the independent movement of its separate elements;

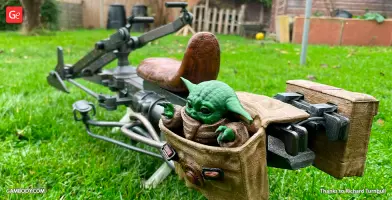

- One of the two cargo tail bags nestles the adorable Baby Yoda miniature that was adapted for the Speeder Bike model by Gambody team;

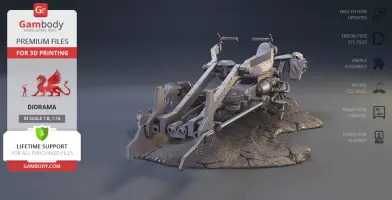

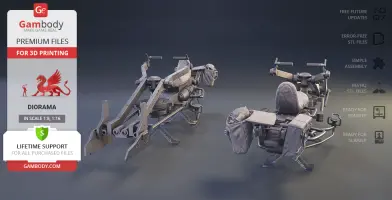

- Comes with two platform options: a simple one to be printed with transparent filament; the elaborate one to complete the diorama with The Mandalorian;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA/SLS 1.0 version features:
- Contains 16 parts;
- A printed model is 76 mm tall, 68 mm wide, 233 mm deep;
- One of the two cargo tail bags nestles the adorable Baby Yoda miniature that was adapted for the Speeder Bike model by Gambody team;
- Comes with two platform options: a simple one to be printed with transparent filament; the elaborate one to complete the diorama with The Mandalorian;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.


- STL files of Speeder Bike Model for 3D printing which consist of 102 parts;
- 2 versions of files for this model for FFF/FDM and DLP/SLA/SLS printers;
- High-poly detailed model of Speeder Bike;
Assembly Manual for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of Speeder Bike for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Speeder Bike 3D Printing Model at Gambody YouTube channel.

Also, you may like The Mandalorian 3D Printing Figurine, other Star Wars 3D Printing Models, as well as Baby Yoda 3D Printing Figurines.


Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)


You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Extruder 1 Temperature: 210
Heated Bed: 60

Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
  Detect thin walls: Check
  Detect bridging perimeters: Check
  Seam position: Random
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
  Infill/Perimeters overlap: 20%
  Bridge flow ratio: 0.95
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm


comments powered by Disqus

Similar items

Browse more newly listed 3D printings
