Chaos Space Marine Mask for 3D Printing | Static

(5)
cm: 16.3 w x 9.7 d x 19 h
in: 6.417 w x 3.819 d x 7.48 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

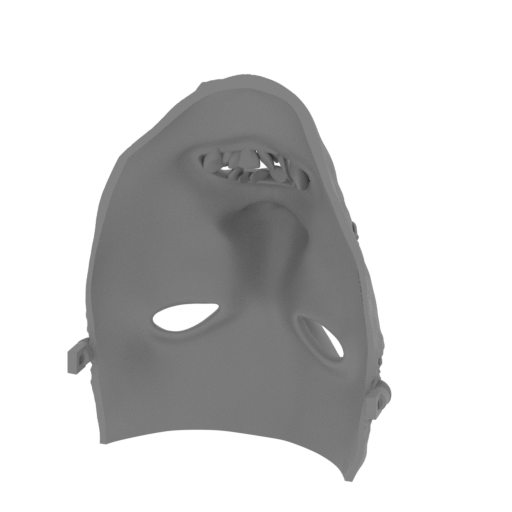

haos (repaired).stl
21.11 MiB 39 h 46 min 24 m 163 x 96 x 190 Download

Get ready for Halloween!

Now’s the right time to heat up your 3D printer and get it to printing a mask that will make all your friends envy you.

With this scary Chaos Space Marine Mask for 3D printing, you’ll win the Halloween mask competition from your block.

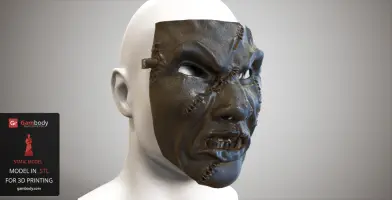

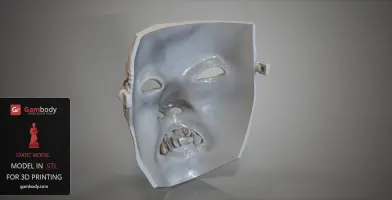

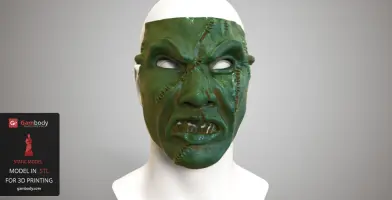

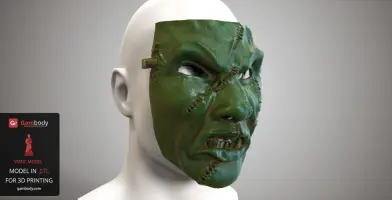

The mask is inspired by the Chaos Space Marine character and is stylized to reflect all its rage and fury. It is wearable and requires little support for printing. It is designed to be easily printed for the holiday.

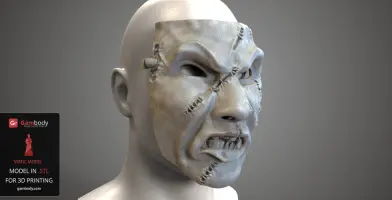

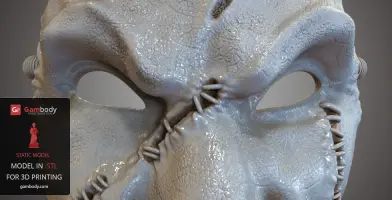

The 3D model is created in Autodesk Maya modeling program. It shows off scar marks and a furious face expression.

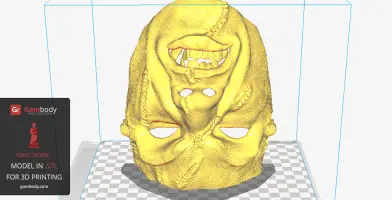

The Chaos Space Marine Mask for 3D printing consists of a single file. The file is saved in STL format and has been thoroughly checked in Netfabb, to provide a seamless printing experience. It can be easily handled both in CURA 15.06 and Simplify3D software.

The mask will be 163mm wide, 190mm tall, and 97mm deep.

It will take you 1 day and 13h and 26.7m of printing material to 3D print it.

The 3D printed video game character mask can be painted using any painting technique you like, to give it more reality.

If you’re a fan of the board game character and you fancy dressing up like him for Halloween, this mask will solve half of your problem.

Download Chaos Space Marine Mask for 3D printing by clicking the green Buy button in the top-right corner of the model’s picture slider. Proceed to checkout and provide your PayPal or credit card details. Download the file for the mask and start printing now to finish the job before the holiday.

Note: Now you can print the 3D files with 3DHubs directly from our website. Put the check mark in the box next to the file and click the Print with 3Dubs button.

Generic

This model was tested in Cura 15.06. To avoid printing problems, we recommend the following settings:

Quality

  • Layer height: 0.1mm*
  • Initial layer thickness: 0.3mm
  • Bottom/top pattern: lines
  • Skin perimeter line count: 0
  • Horizontal expansion: 0.04mm (when entering 0.04mm index, the 3D printer perceives the model as monolith, i.e. as having no hidden layers).

*Layer Height 0.1mm is recommended for a better quality for the printed model. However, the printing time will double.

Check this Simplify3D User Guidelines to avoid any 3D printing problems with this software.

The model has been tested and printed in PLA. In case you need advice where to get your filaments from, check our partner's website.

Speed setups:

  • Infill speed: 50mm/s
  • Outer shell speed : 30mm/s
  • Inner shell speed: 20mm/s
  • Top/bottom speed: 20mm/s
  • Support speed: 50mm/s
  • Travel speed: 150mm/s
  • Skirt speed: 30mm/s
  • Amount of slower layers: 4

Infill:

  • Infill pattern: Grid
  • Line distance: 3mm
  • Infill overlap: 20%
  • Infill layers: 0

Support:

  • Enable support: Check
  • Placement: Everywhere
  • Overhang angle: 30°
  • X/Y distance: 0.7mm
  • Top distance: 0.2mm
  • Bottom distance: 0.2mm
  • Stair step height: 0.5mm
  • Join distance: 0.7mm
  • Area smoothing: 0.6mm
  • Use towers: check
  • Pattern: Grid
  • Line distance: 1.5mm

Platform adhesion:

  • Type: Brim
  • Brim line count: 10 (up to 20, depending on the model’s height)

Other 3D printing recommendations:

Outer Shell Speed - 20mm/s and Support Speed - 40mm/s settings apply to avoid model deformation.  Apply other settings by default.

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
