Chopper 3D Printing Model | Assembly

(3)
cm: 19 w x 26 d x 26 h
in: 7.48 w x 10.236 d x 10.236 h

Source Files

|

Description

|

Printing Details

This 3D model of Chopper consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 2 versions of Chopper STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase;
  • STL files of high-poly Chopper Model for 3D printing consist of 119 files;
  • Sizes for:
  • FFF/FDM: 260 mm tall, 190 mm wide, 260 mm deep;
  • DLP/SLA: 130 mm tall, 95 mm wide, 130 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

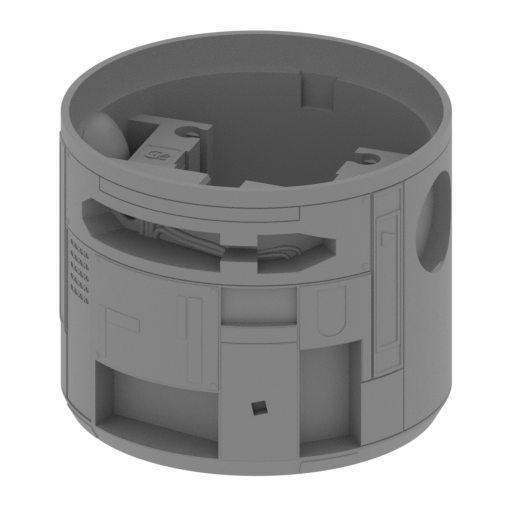

_01_bodyPart_a_Mid_FDM (r epaired).stl
15.90 MiB 45 h 15 min 24 m 115 x 116 x 93 Download

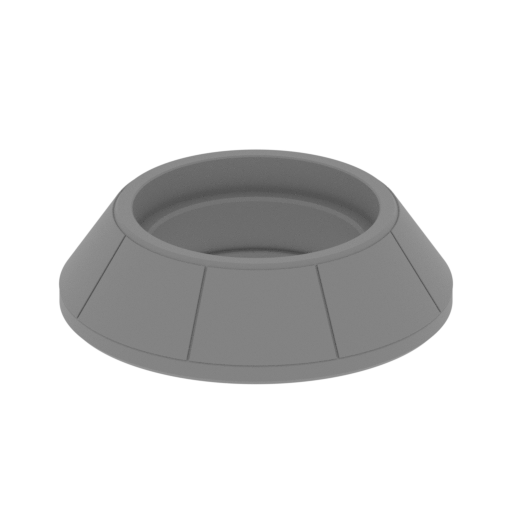

_02_bodyPart_b_Bot_FDM (r epaired).stl
1.47 MiB 4 h 41 min 3 m 79 x 79 x 22 Download

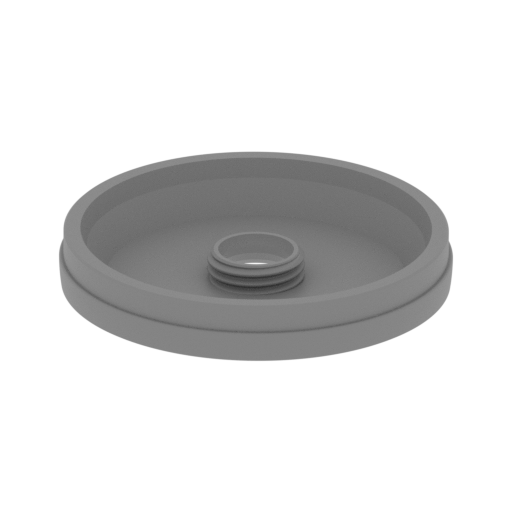

_03_headPart_a_FDM (repai red).stl
2.81 MiB 8 h 51 min 5 m 110 x 110 x 18 Download

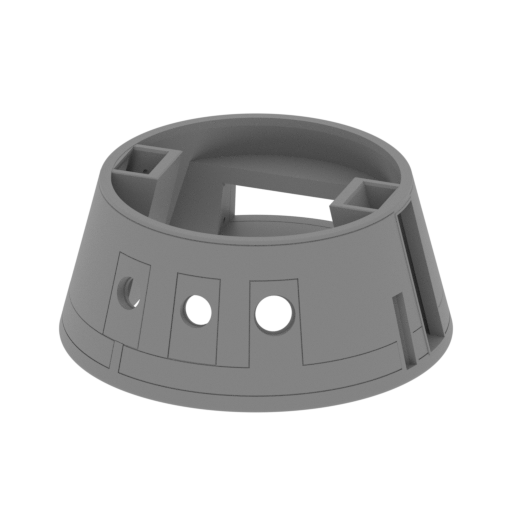

_04_headPart_b_FDM (repai red).stl
3.22 MiB 17 h 12 min 10 m 120 x 120 x 53 Download

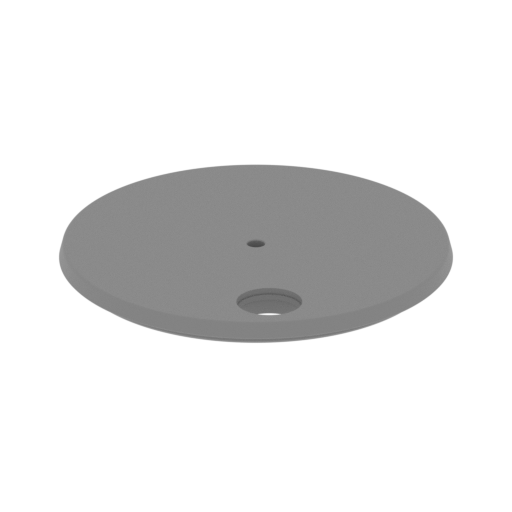

_05_head_Part_c_FDM (repa ired).stl
1.08 MiB 4 h 53 min 3 m 95 x 95 x 7 Download

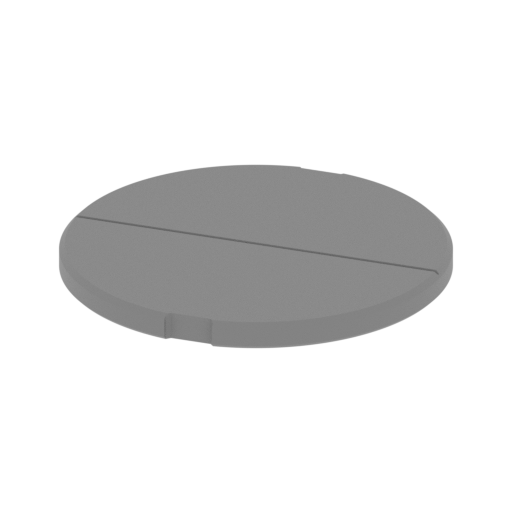

_06_bodyBottomCap_FDM (re paired).stl
0.67 MiB 58 min 1 m 49 x 49 x 3 Download

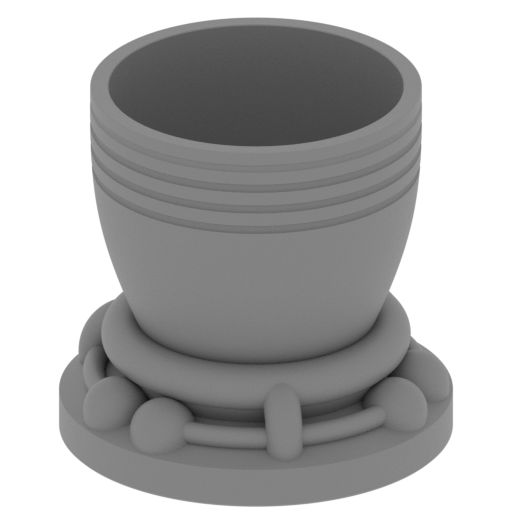

_07_rocketEngine_bot_FDM (repaired).stl
11.36 MiB 3 h 18 min 2 m 43 x 43 x 41 Download

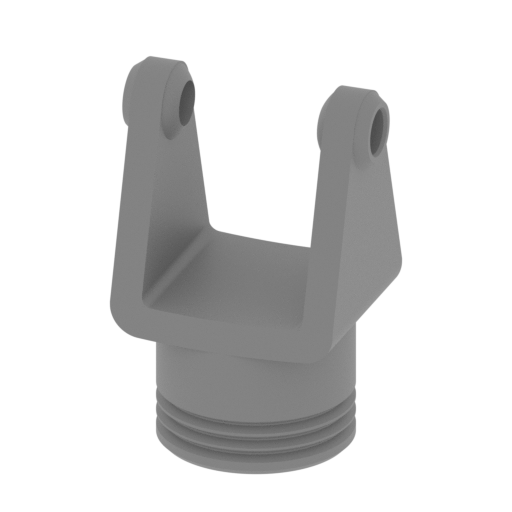

_08_wheelFrontPart_a_FDM (repaired).stl
1.04 MiB 1 h 24 min 1 m 24 x 18 x 36 Download

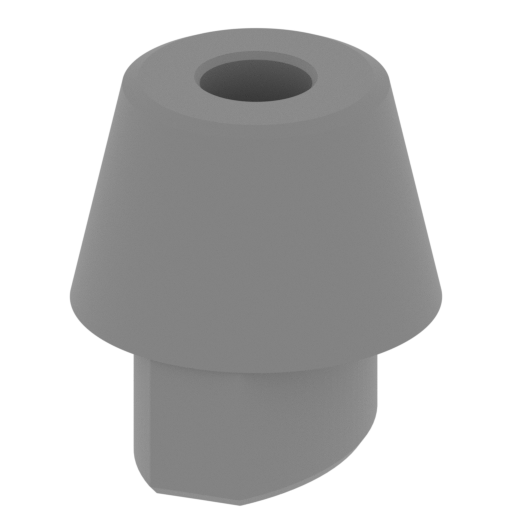

_09_wheelFrontPart_b_FDM (repaired).stl
1.02 MiB 1 h 17 min 1 m 27 x 27 x 28 Download

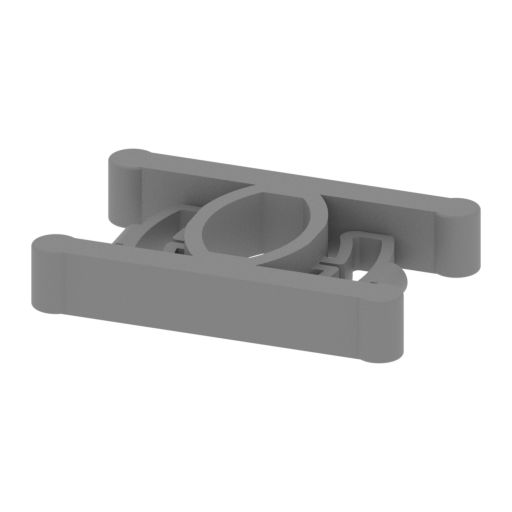

_10_wheelFrontPart_c_FDM (repaired).stl
2.70 MiB 2 h 12 min 1 m 64 x 44 x 11 Download

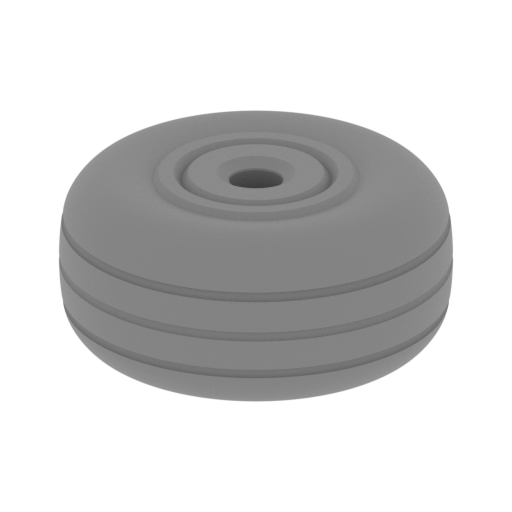

_11_wheelFront_FDM (repai red).stl
2.36 MiB 1 h 1 m 31 x 31 x 15 Download
_12_wheelFrontAxis_FDM (r epaired).stl
0.06 MiB 5 min <1 m 24 x 4 x 4 Download

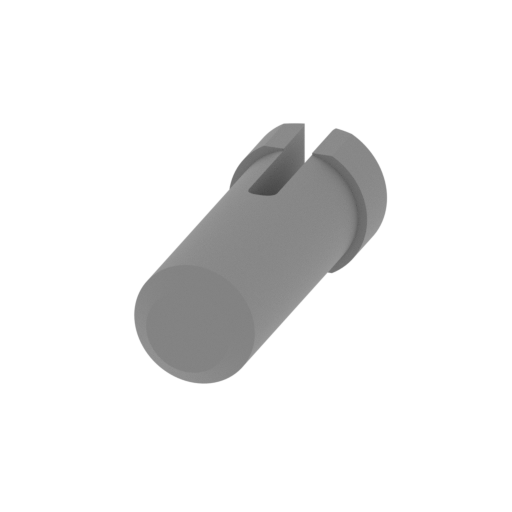

_13_wheelFrontPartConnect or_FDM (repaired).stl
0.15 MiB 11 min <1 m 8 x 23 x 7 Download

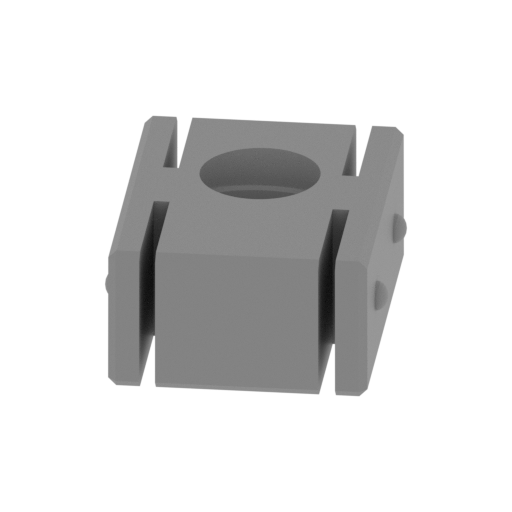

_14_headArmBase_X2_FDM (r epaired).stl
0.18 MiB 31 min <1 m 22 x 26 x 10 Download

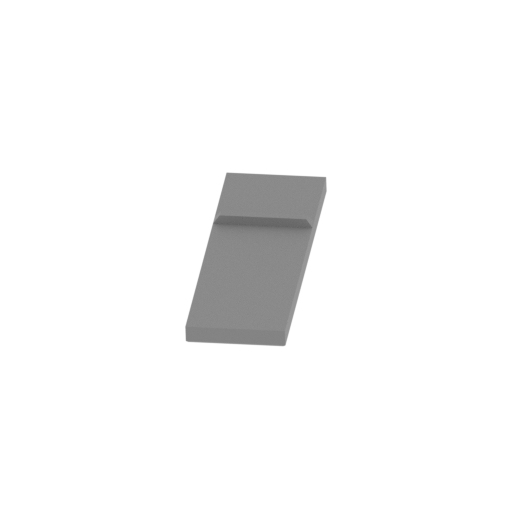

_15_headSideCap_X2_FDM (r epaired).stl
0.02 MiB 17 min <1 m 23 x 47 x 3 Download

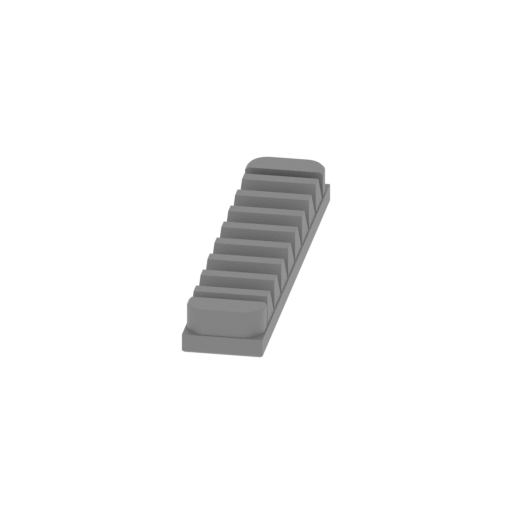

_16_headGlassRed_FDM (rep aired).stl
0.04 MiB 6 min <1 m 9 x 24 x 3 Download

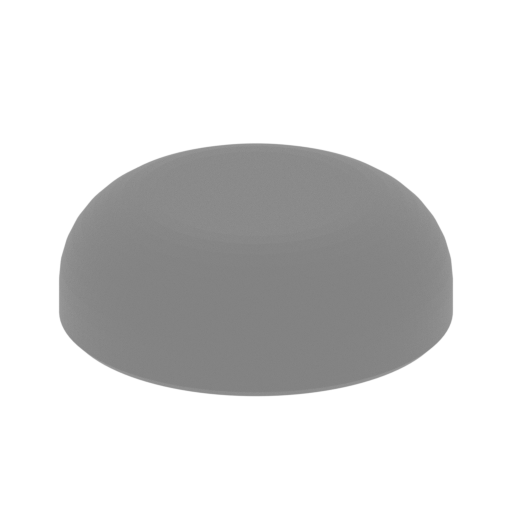

_17_headGlass_X3_FDM (rep aired).stl
0.15 MiB 2 min <1 m 7 x 7 x 3 Download

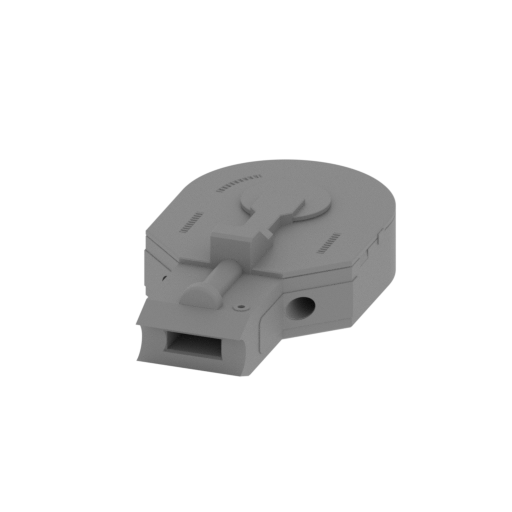

_18_leg_a_R_FDM (repaired ).stl
0.98 MiB 7 h 27 min 4 m 58 x 103 x 28 Download

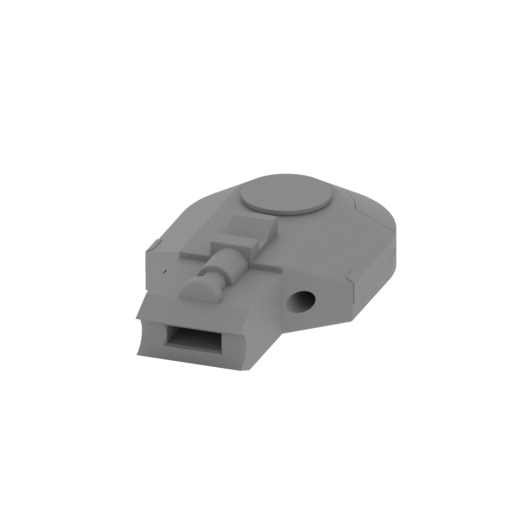

_19_leg_b_V1_L_FDM (repai red).stl
0.76 MiB 6 h 53 min 4 m 58 x 103 x 25 Download

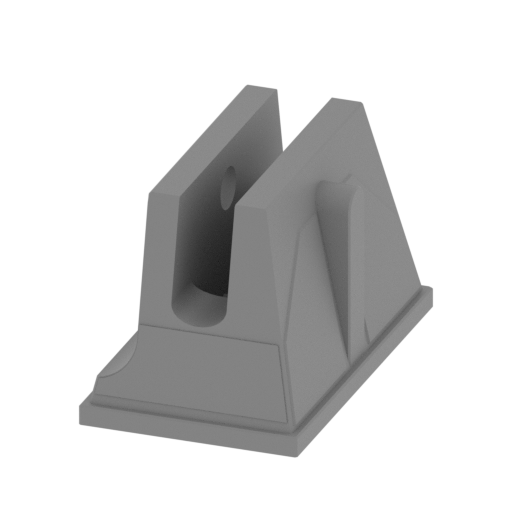

_20_footPart_a_L_FDM (rep aired).stl
0.42 MiB 6 h 44 min 4 m 43 x 73 x 44 Download

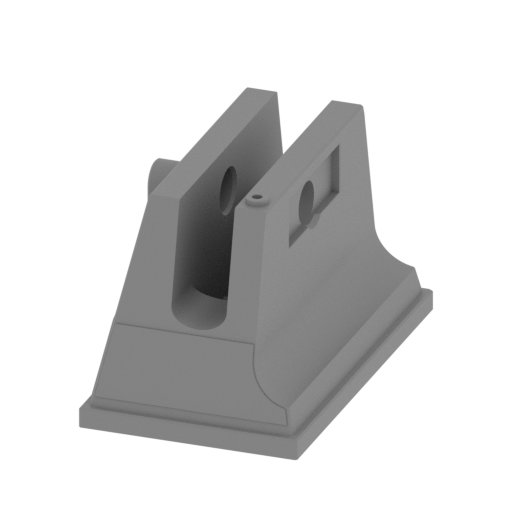

_21_footPart_b_R_FDM (rep aired).stl
0.57 MiB 6 h 46 min 4 m 43 x 73 x 45 Download

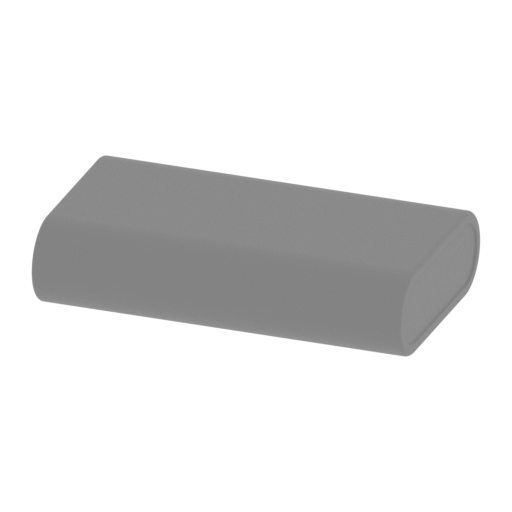

_22_footPart_d_R_FDM (rep aired).stl
0.62 MiB 3 h 36 min 2 m 70 x 42 x 16 Download

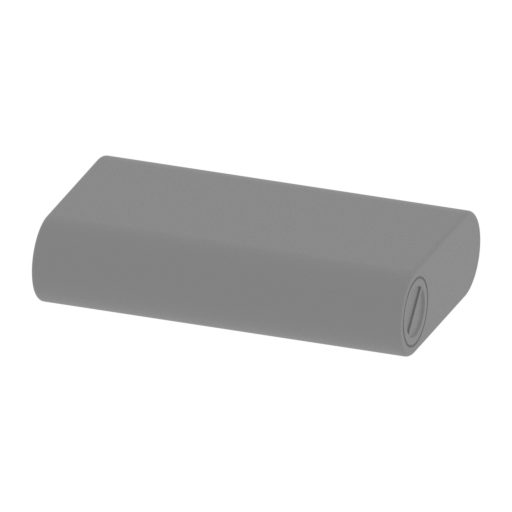

_23_footPart_c_L_FDM (rep aired).stl
0.62 MiB 3 h 37 min 2 m 70 x 42 x 16 Download

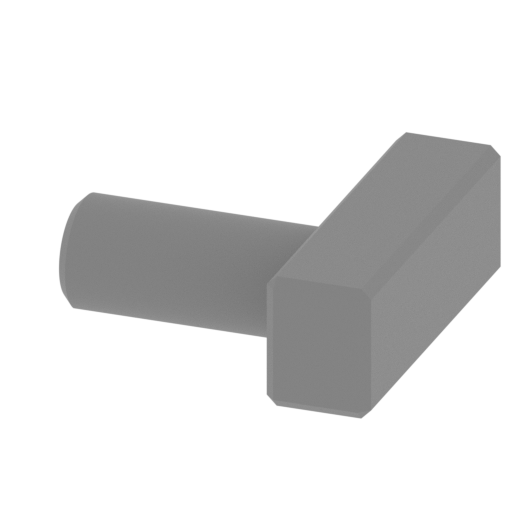

_24_footAxis_X2_FDM (repa ired).stl
0.10 MiB 22 min <1 m 26 x 27 x 10 Download

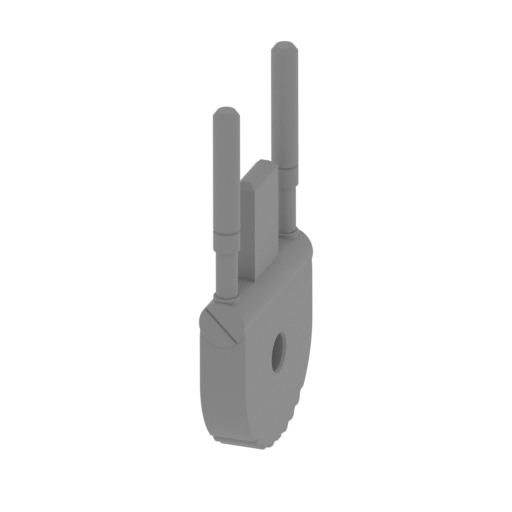

_25_footPart_e_X2_FDM (re paired).stl
1.57 MiB 2 h 39 min 1 m 11 x 44 x 85 Download

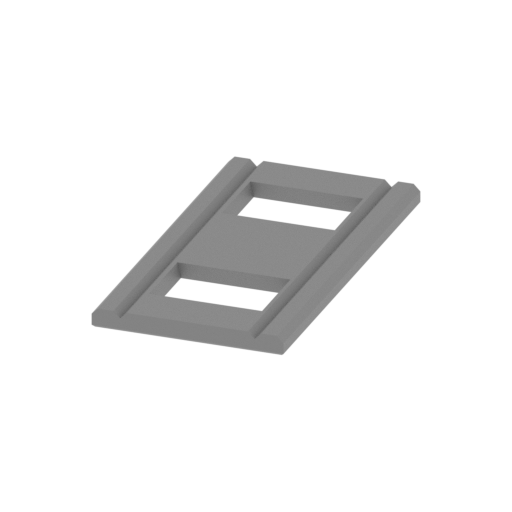

_26_footPart_f_X2_FDM (re paired).stl
0.02 MiB 1 h 1 min 1 m 34 x 66 x 4 Download

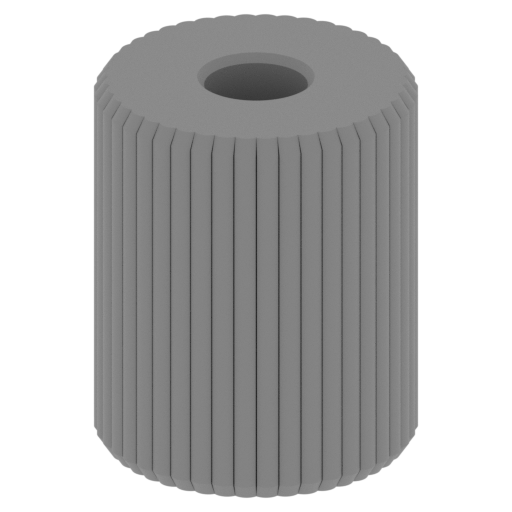

_27_footRoller_X4_FDM (re paired).stl
1.65 MiB 31 min <1 m 16 x 16 x 20 Download
_28_footRollerAxis_X4_FDM (repaired).stl
0.09 MiB 6 min <1 m 28 x 5 x 4 Download

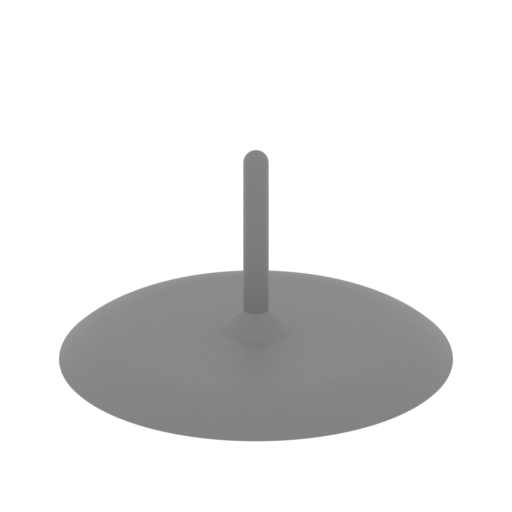

_29_antennaPart_a_FDM (re paired).stl
1.51 MiB 1 h 3 min 1 m 47 x 47 x 27 Download

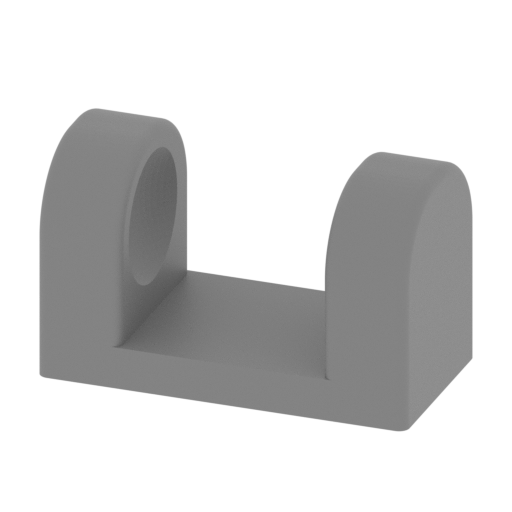

_30_antennaPart_b_FDM (re paired).stl
0.58 MiB 4 min <1 m 9 x 5 x 5 Download

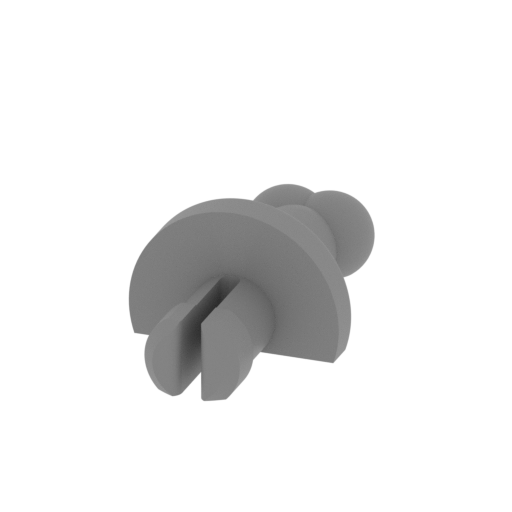

_31_antennaPart_c_FDM (re paired).stl
0.62 MiB 6 min <1 m 10 x 18 x 7 Download

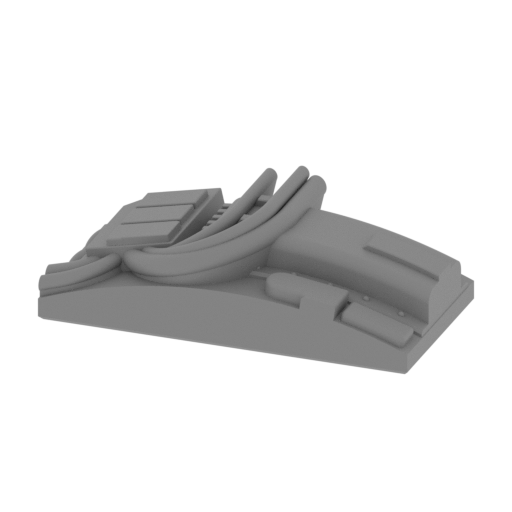

_32_bodyDecorPart_a_FDM ( repaired).stl
2.89 MiB 1 h 4 min 1 m 43 x 21 x 13 Download

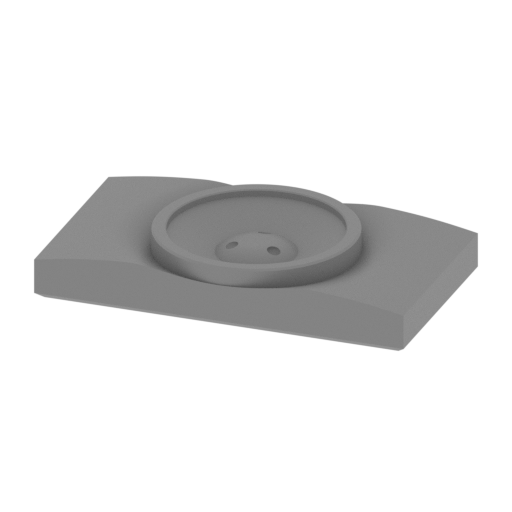

_33_bodyDecorPart_b_FDM ( repaired).stl
1.74 MiB 11 min <1 m 22 x 12 x 4 Download

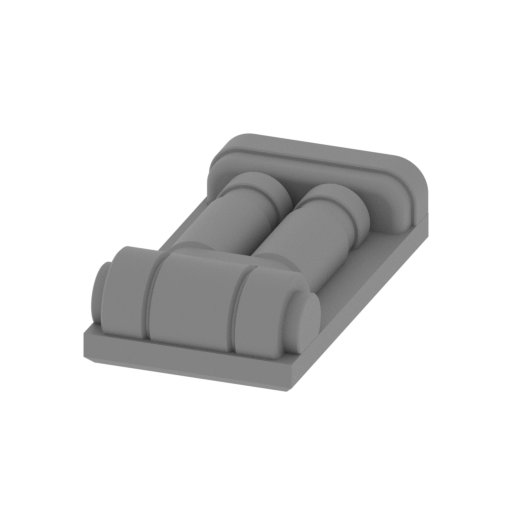

_34_bodyDecorPart_c_FDM ( repaired).stl
1.02 MiB 42 min <1 m 19 x 35 x 9 Download

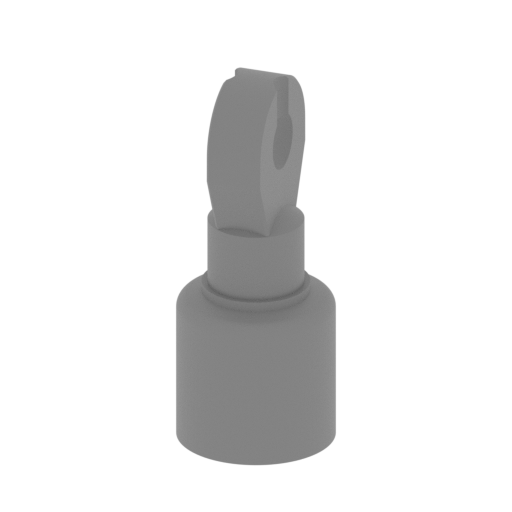

_35_headArmPart_a_X2_FDM (repaired).stl
0.38 MiB 18 min <1 m 10 x 10 x 24 Download

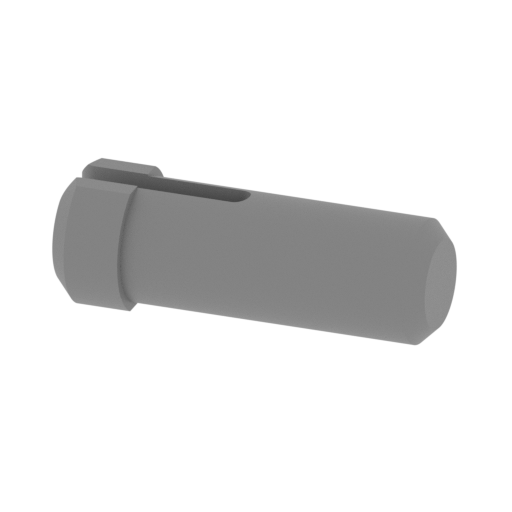

_36_headArmsConnector_X2_ FDM (repaired).stl
0.15 MiB 8 min <1 m 19 x 7 x 6 Download

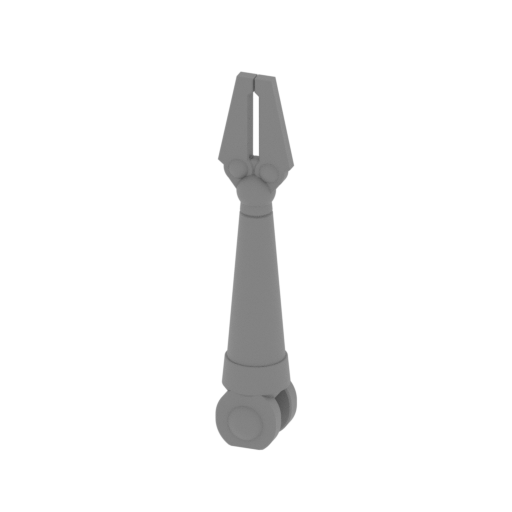

_37_headArmPart_b_V1_FDM (repaired).stl
5.37 MiB 51 min <1 m 11 x 12 x 54 Download

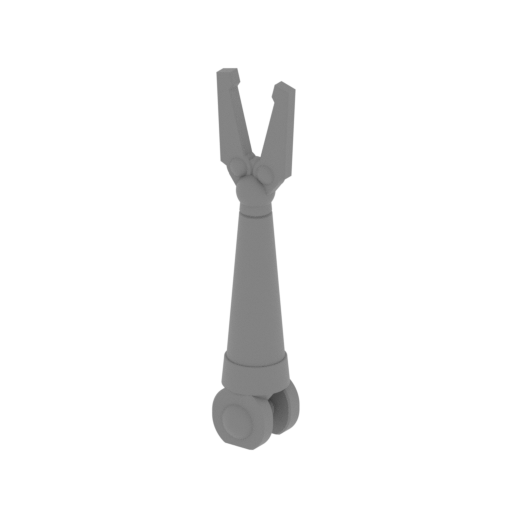

_38_headArmPart_b_V2_FDM (repaired).stl
5.37 MiB 51 min <1 m 12 x 11 x 54 Download

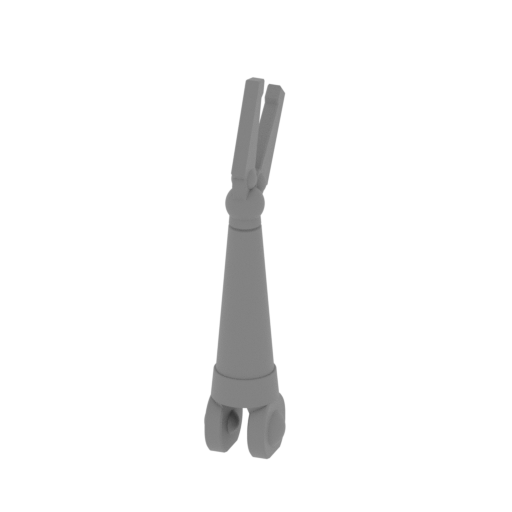

_39_headArmPart_b_V3_FDM (repaired).stl
5.37 MiB 51 min <1 m 12 x 18 x 54 Download

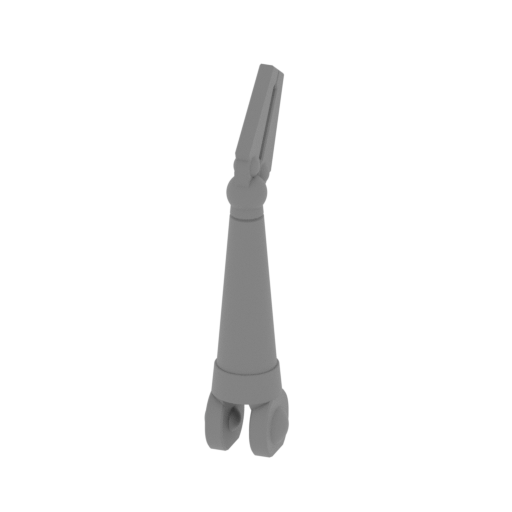

_40_headArmPart_b_V4_FDM (repaired).stl
5.36 MiB 45 min <1 m 12 x 17 x 52 Download

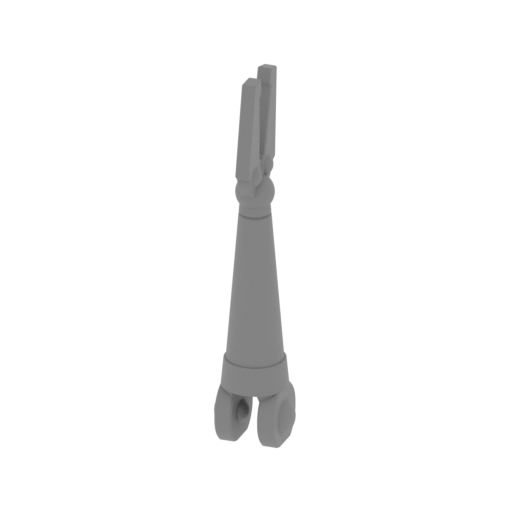

_41_headArmPart_b_V5_FDM (repaired).stl
5.37 MiB 51 min <1 m 12 x 11 x 54 Download

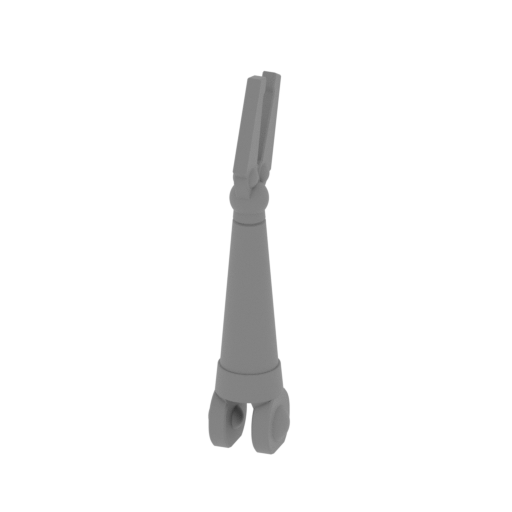

_42_headArmPart_b_V6_FDM (repaired).stl
5.37 MiB 51 min <1 m 12 x 15 x 54 Download

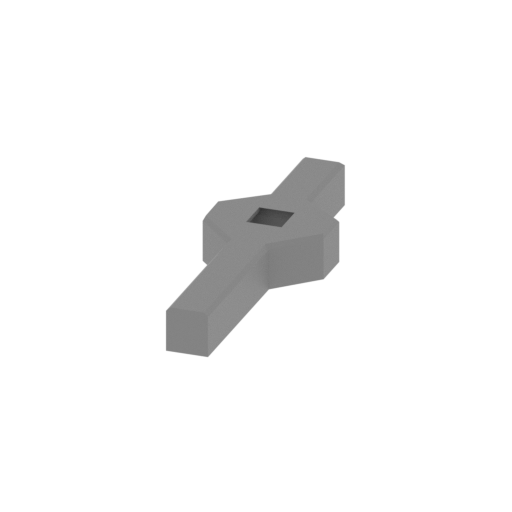

_43_headConnectorPart_a_F DM (repaired).stl
0.01 MiB 1 h 21 min 1 m 29 x 87 x 11 Download

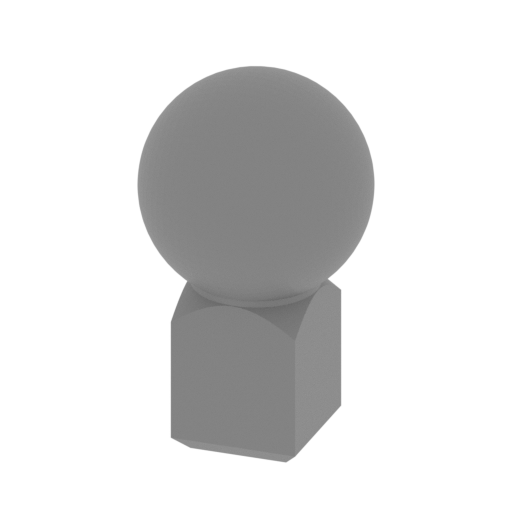

_44_headConnectorPart_b_F DM (repaired).stl
0.24 MiB 54 min <1 m 21 x 21 x 35 Download

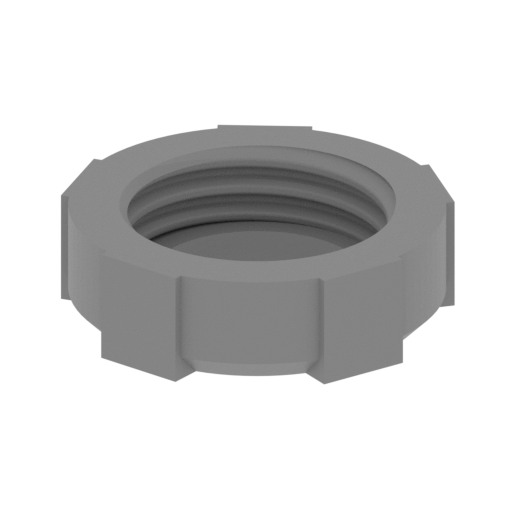

_45_headConnectorPart_c_F DM (repaired).stl
0.95 MiB 1 h 8 min 1 m 38 x 39 x 11 Download

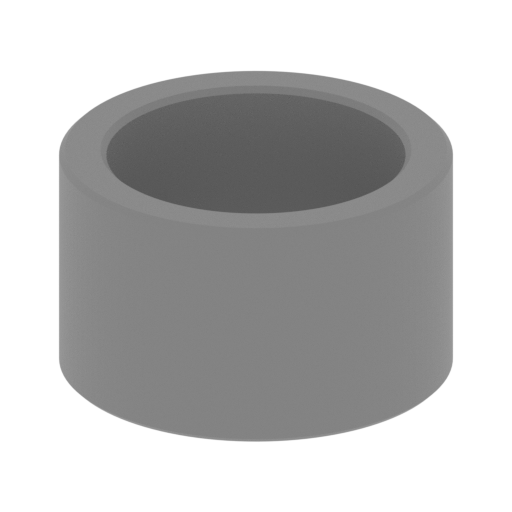

_46_headGlasFrame_a_X2_FD M (repaired).stl
0.09 MiB 8 min <1 m 10 x 10 x 6 Download

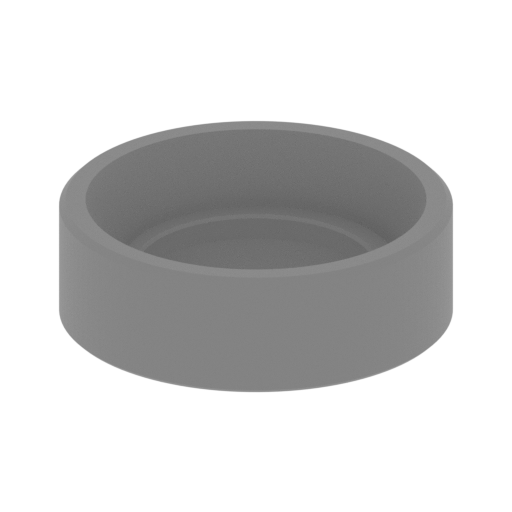

_47_headGlasFrame_b_FDM ( repaired).stl
0.11 MiB 5 min <1 m 13 x 13 x 4 Download

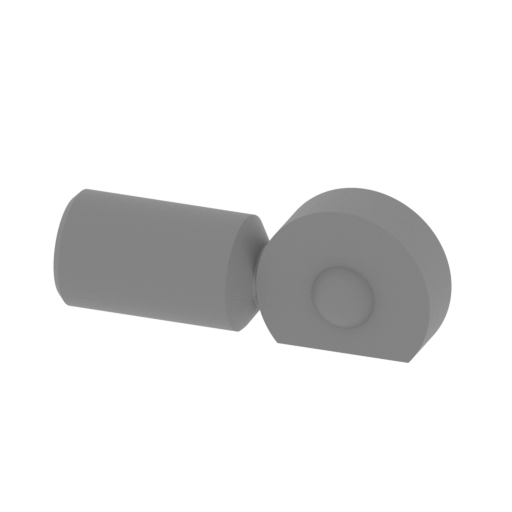

_48_manipulatorFrontPart_ d_FDM (repaired).stl
0.42 MiB 8 min <1 m 21 x 6 x 8 Download

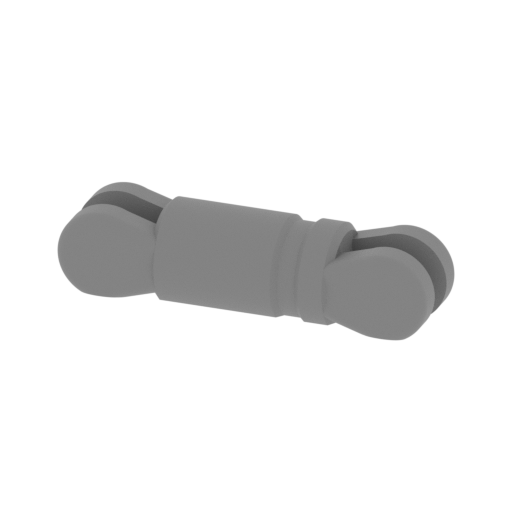

_49_manipulatorFrontPart_ c_FDM (repaired).stl
1.16 MiB 32 min <1 m 42 x 11 x 10 Download

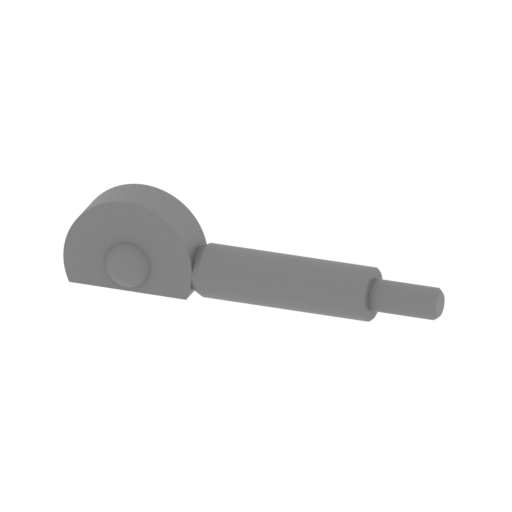

_50_manipulatorFrontPart_ b_FDM (repaired).stl
0.49 MiB 7 min <1 m 29 x 6 x 7 Download

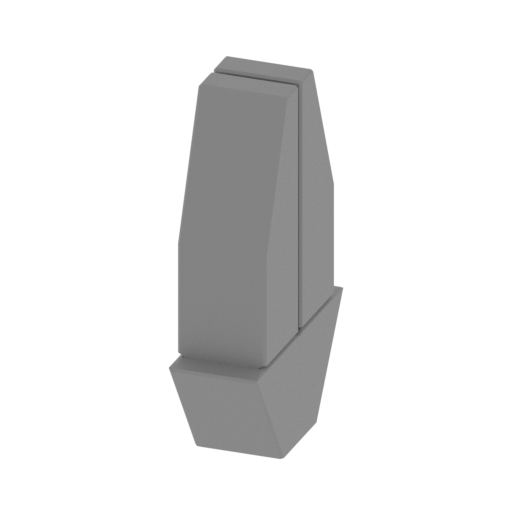

_51_manipulatorFrontPart_ a (repaired).stl
0.05 MiB 16 min <1 m 4 x 11 x 18 Download

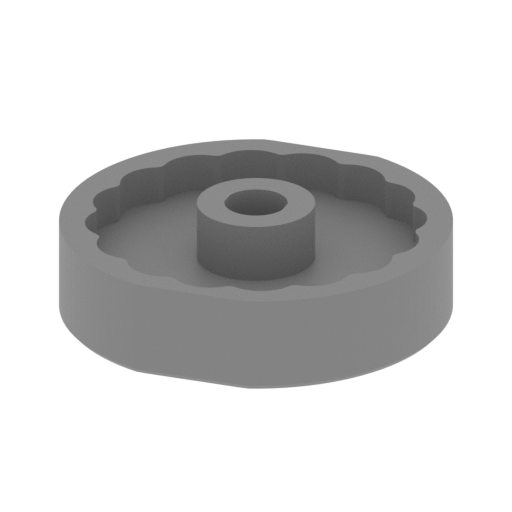

_52_legConnectorPart_a_X2 _FDM (repaired).stl
0.13 MiB 40 min <1 m 30 x 29 x 9 Download

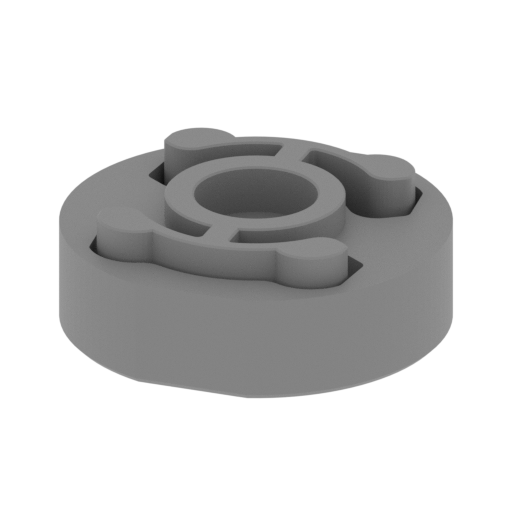

_53_legConnectorPart_b_X2 _FDM (repaired).stl
0.22 MiB 1 h 9 min <1 m 30 x 29 x 11 Download

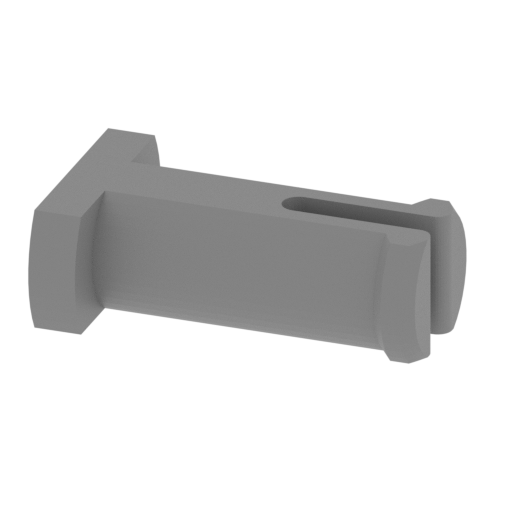

_54_legConnectorPart_c_X2 _FDM (repaired).stl
0.05 MiB 4 min <1 m 12 x 7 x 4 Download

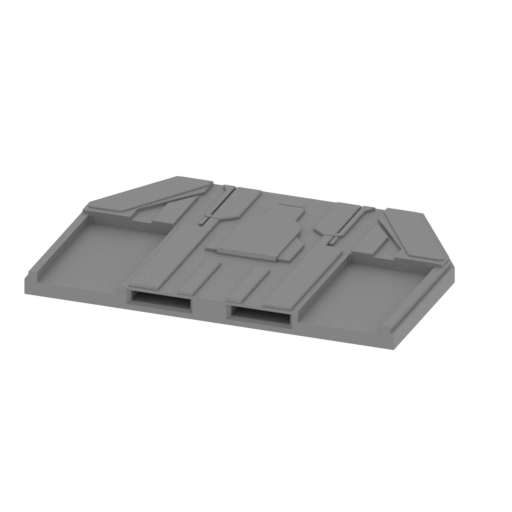

_56_standPart_b_FDM (repa ired).stl
0.25 MiB 23 h 18 min 13 m 190 x 130 x 15 Download

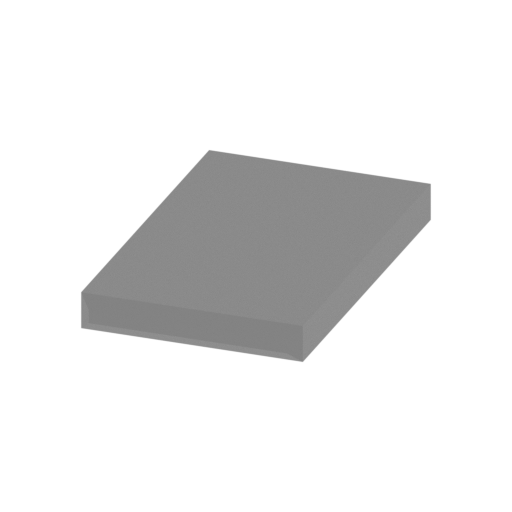

_57_standPin_X2_FDM (repa ired).stl
0.01 MiB 54 min 1 m 30 x 50 x 5 Download

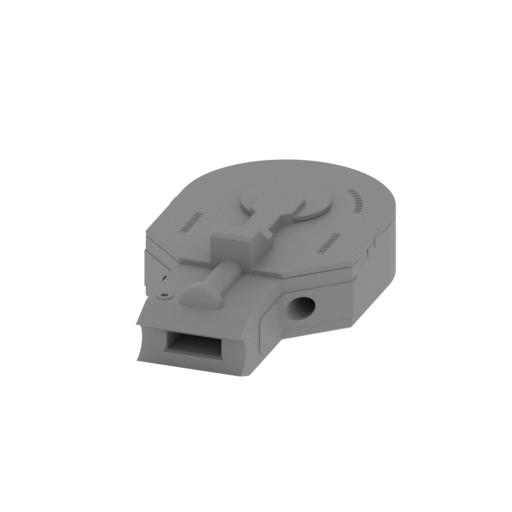

_58_leg_b_V2_L_FDM (repai red).stl
0.98 MiB 7 h 26 min 4 m 58 x 103 x 28 Download

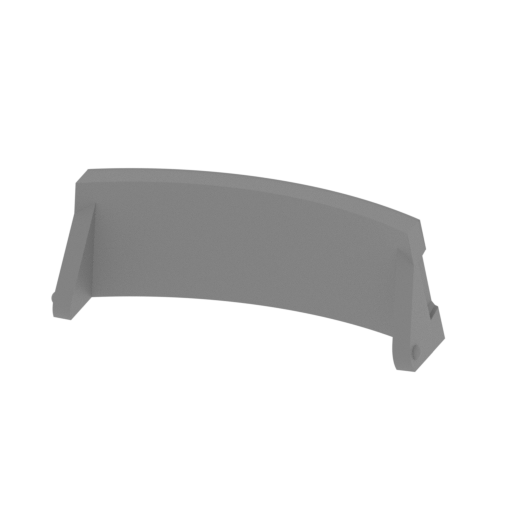

_59_headRearCap_FDM (repa ired).stl
0.38 MiB 45 min <1 m 52 x 19 x 19 Download

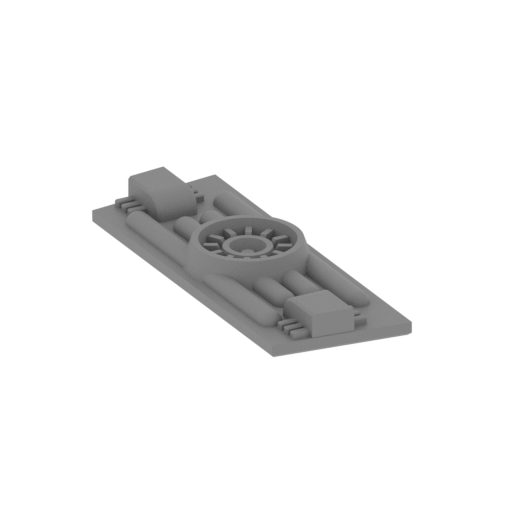

_60_headDecorpart_FDM (re paired).stl
0.97 MiB 42 min <1 m 49 x 46 x 5 Download

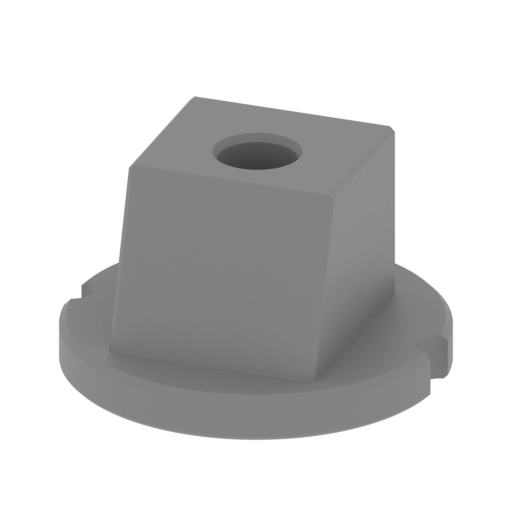

_61_headCamera_FDM (repai red).stl
0.19 MiB 14 min <1 m 16 x 16 x 9 Download

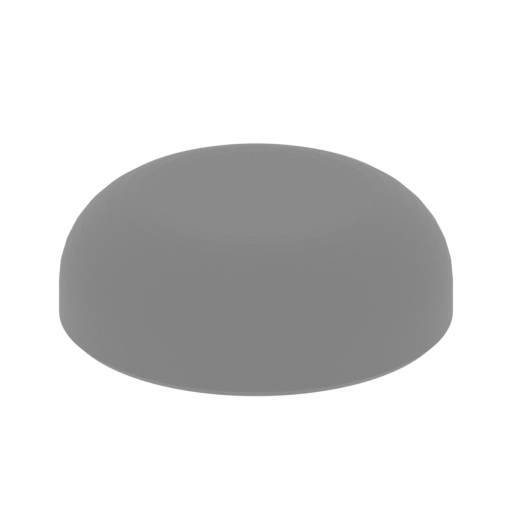

_62_headCameraGlass_FDM ( repaired).stl
0.15 MiB 2 min <1 m 5 x 5 x 2 Download

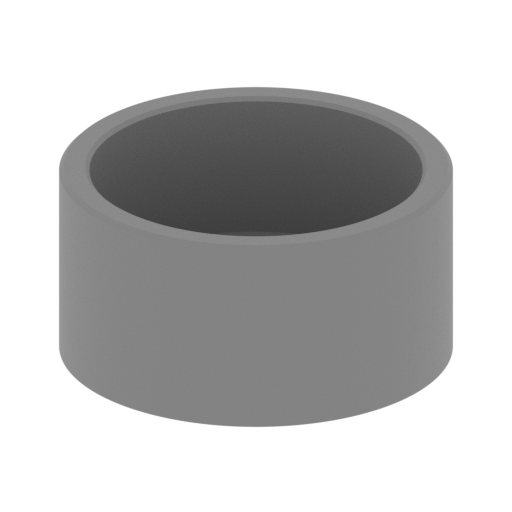

_63_headCamera_Connector_ FDM (repaired).stl
0.24 MiB 11 min <1 m 16 x 16 x 8 Download

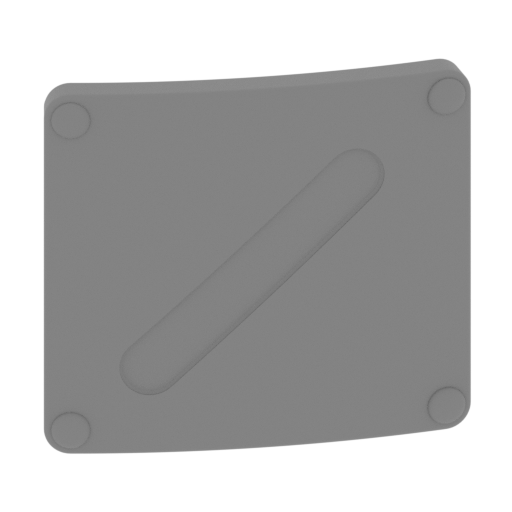

_64_bodyDecorPart_d_FDM ( repaired).stl
0.91 MiB 19 min <1 m 19 x 12 x 19 Download

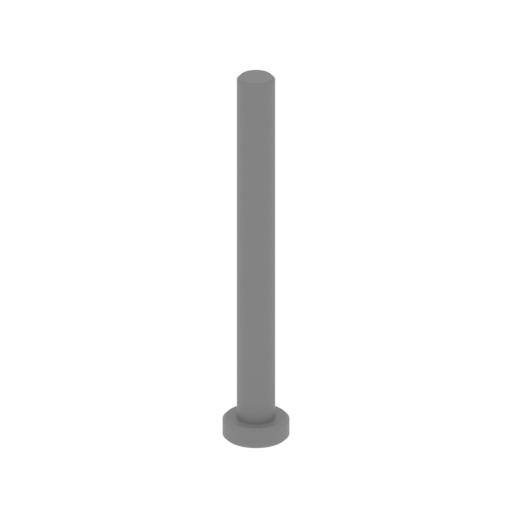

_65_headCameraPiston_FDM (repaired).stl
0.24 MiB 9 min <1 m 5 x 5 x 31 Download

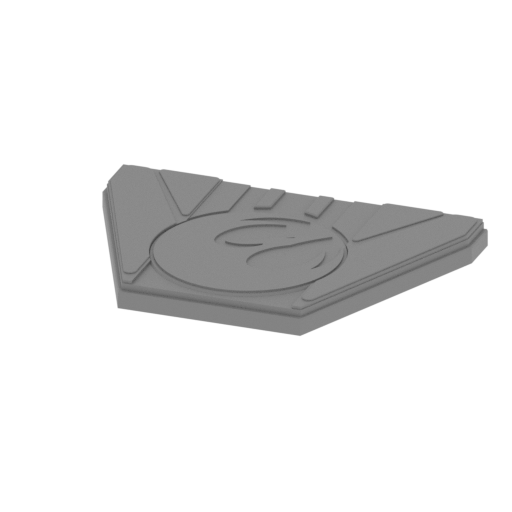

_66_standPart_a_V2_FDM (r epaired).stl
0.87 MiB 21 h 33 min 12 m 190 x 130 x 14 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

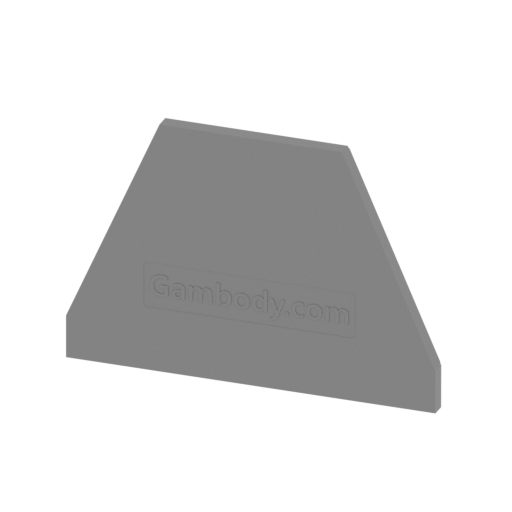

_55_standPart_a_V1_FDM (r epaired).stl
0.80 MiB 22 h 14 min 13 m 190 x 14 x 130 Download
...

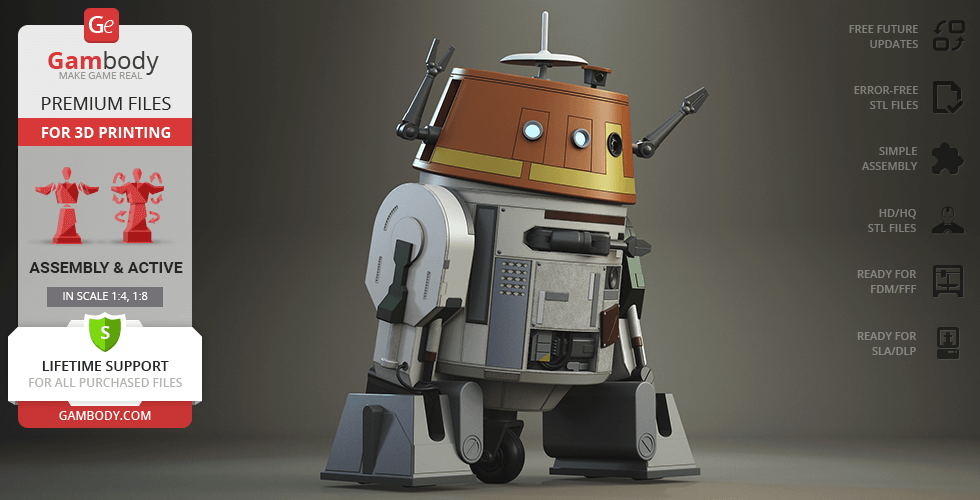

ABOUT THIS 3D MODEL

C1-10P astromech droid, also known as Chopper or simply Chop, is one of the members of the Spectres, a loyal friend and a true rebel who helped the Ghost to resist the Galactic Empire. Chopper has no mercy for his enemies, he doesn’t let down his friends and is always ready to tease them. If you happen to be in the Star Destroyer with Chop, try to keep him close, this brawler will definitely start looking for a way to blow up the spaceship as soon as possible.

Inspired by the argumentative, cantankerous, and mischievous character of Chopper, oud contributing 3D artists created this amazing model for 3D printing. C1-10P has great mechanical skills, the astromech droid is equipped with three grasping arms. Different from R2-D2, Chopper had a retractable wheel instead of a retractable leg. Another exclusive feature of Chop is a rocket booster that allows him to fly for short distances; the model features both a retractable wheel and a rocket engine nozzle, so you can choose the design you like. Chopper has a range of articulated parts, such as a rotating head, movable legs and feet, a retractable camera, and grasping hands. Don’t wait and start printing your favorite droid today!

ADAPTATION FOR 3D PRINTING

The Chopper model for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 93 hours in total.

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the astromech droid was divided into convenient assembly parts.

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Chopper 3D printing model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model’s scale was calculated from the height of Chopper which is 990 mm. The 3D printing model’s chosen scales are 1:4 for the FFF/FDM version and 1:8 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

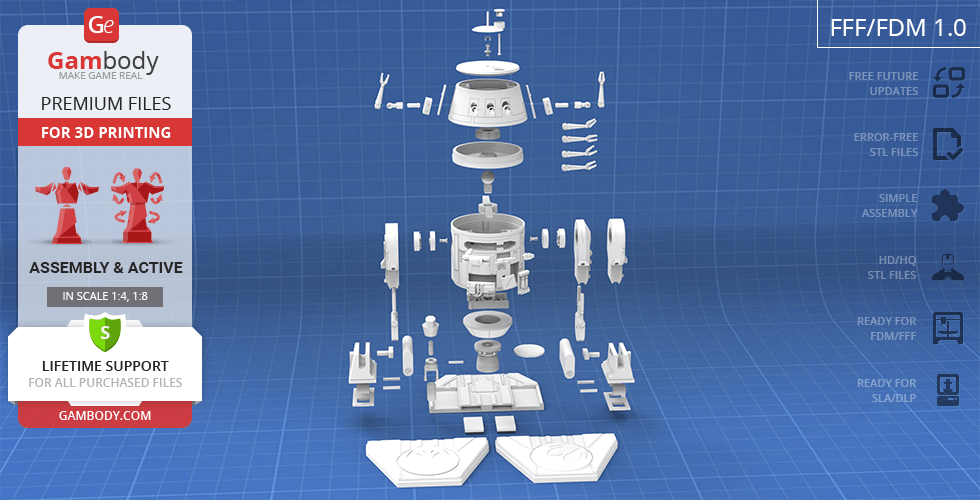

FFF/FDM 1.0 version features:

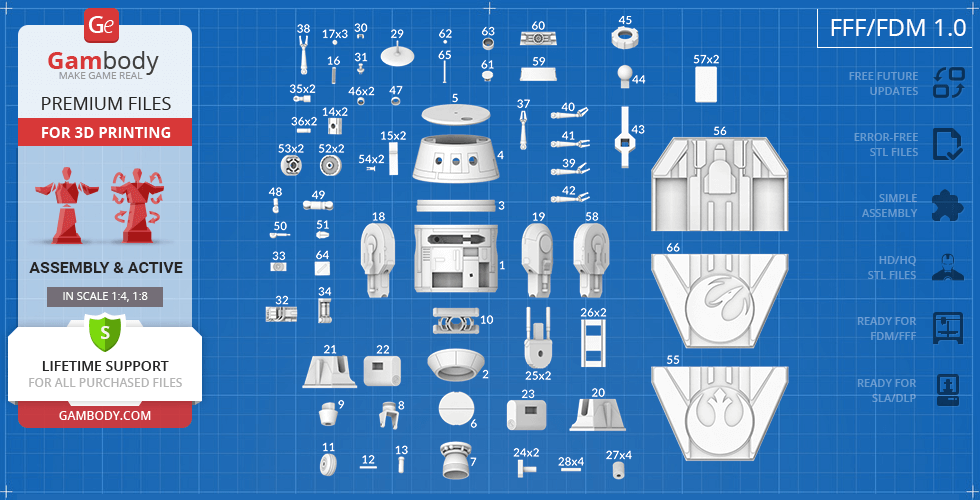

  • Contains 66 parts;

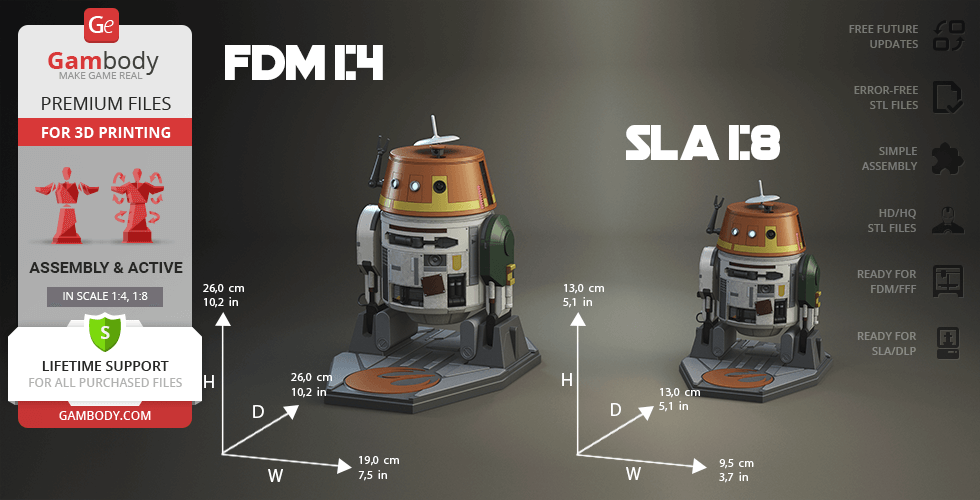

  • A printed model is 260 mm tall, 190 mm wide, 260 mm deep;

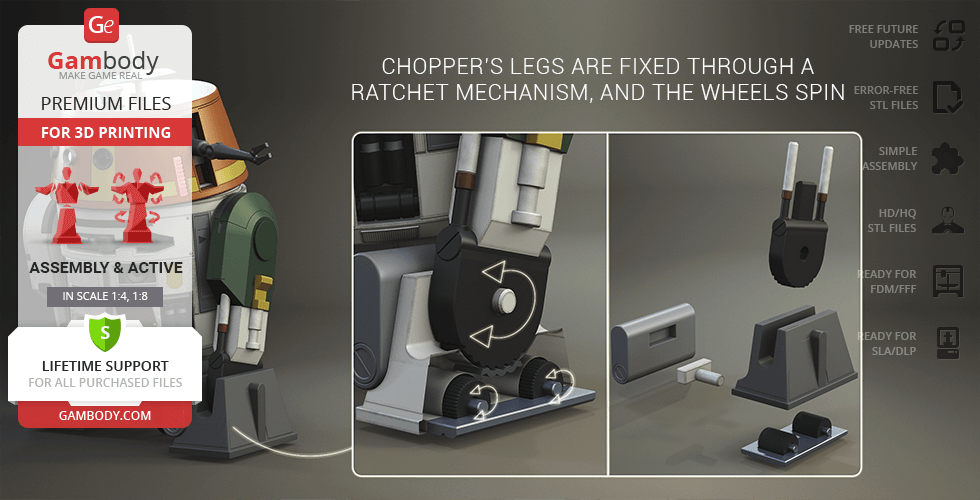

  • The legs are fixed through a ratchet mechanism, and the wheels spin;

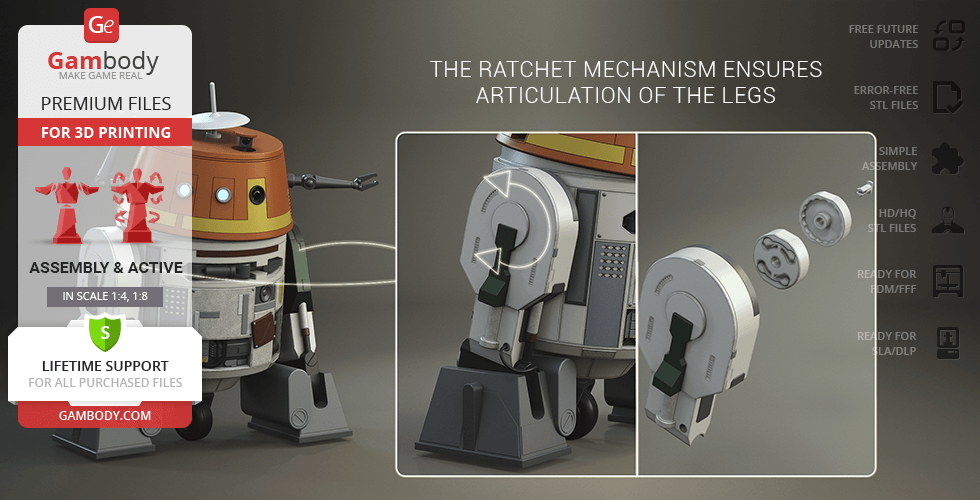

  • The ratchet mechanism ensures articulation of the legs;

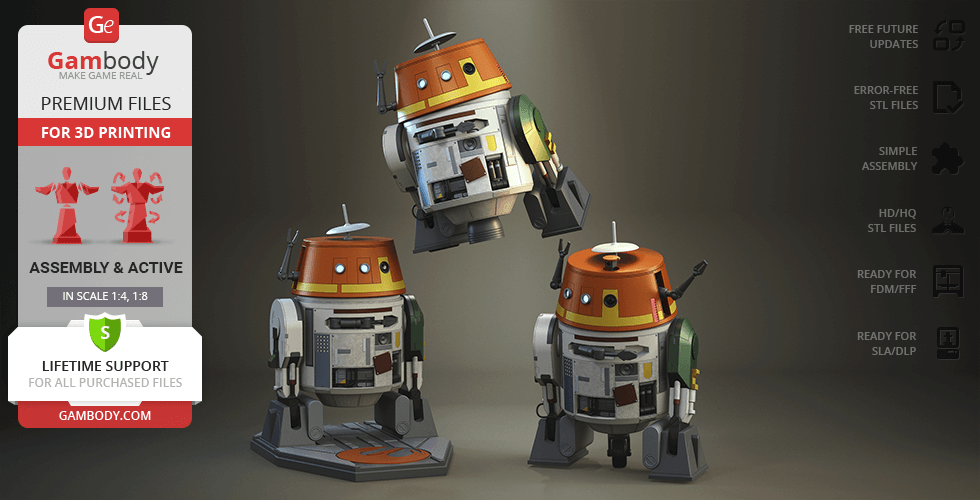

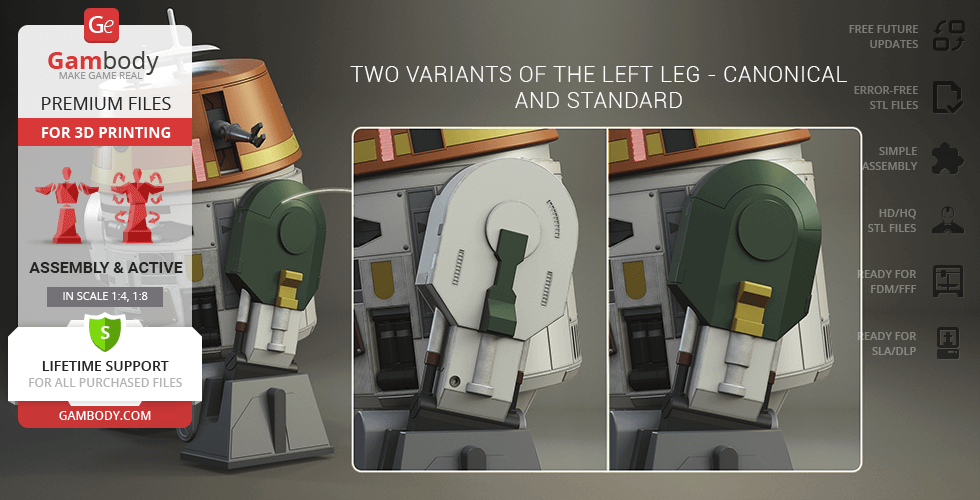

  • Two variants of the left leg - canonical and standard;

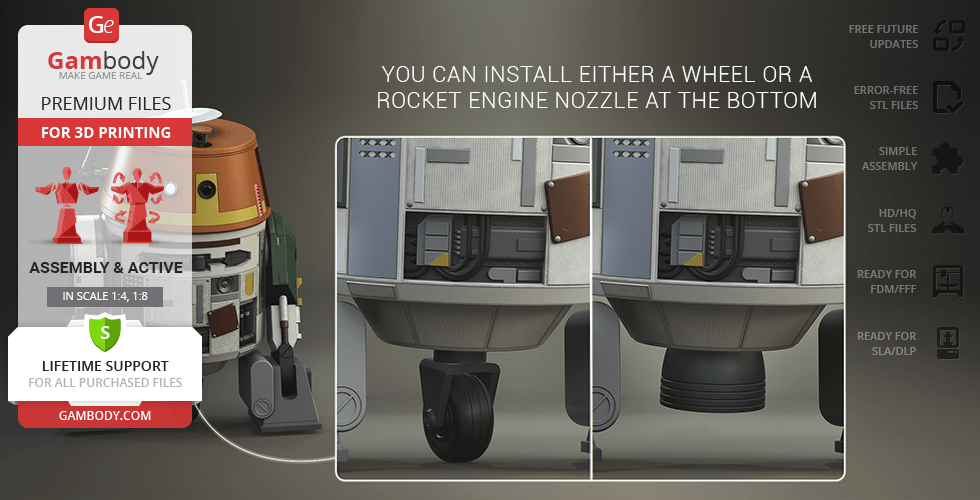

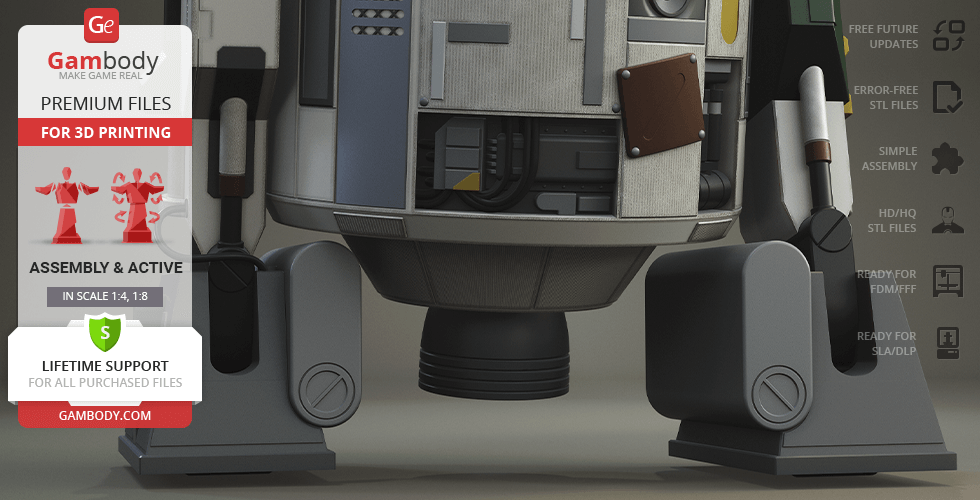

  • You can install either a wheel or a rocket engine nozzle at the bottom;

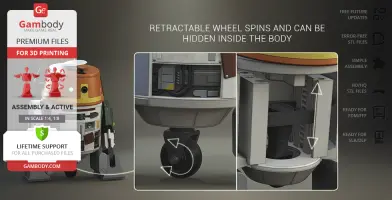

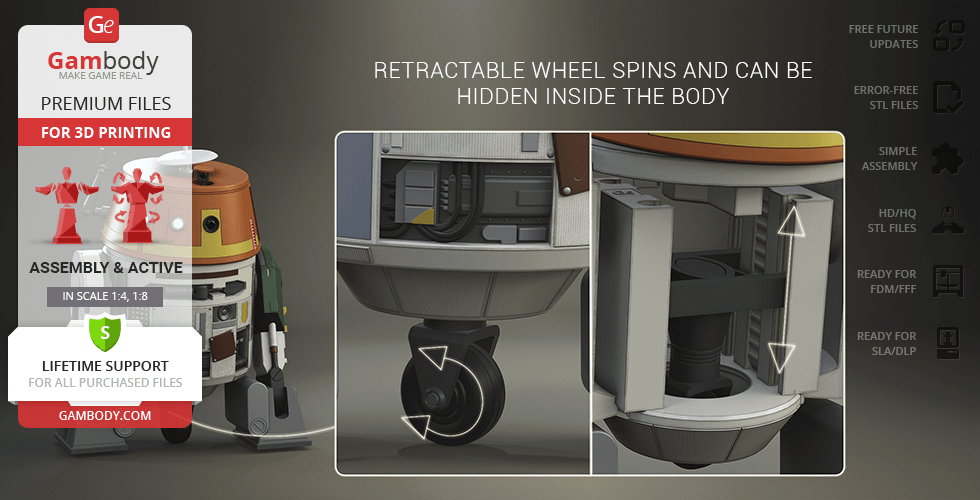

  • Retractable wheel spins and can be hidden inside the body;

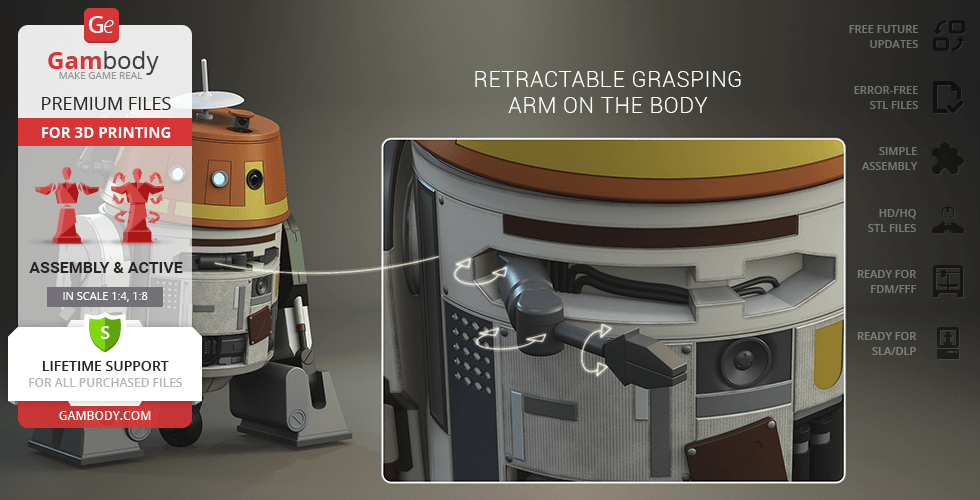

  • Retractable grasping arm on the body;

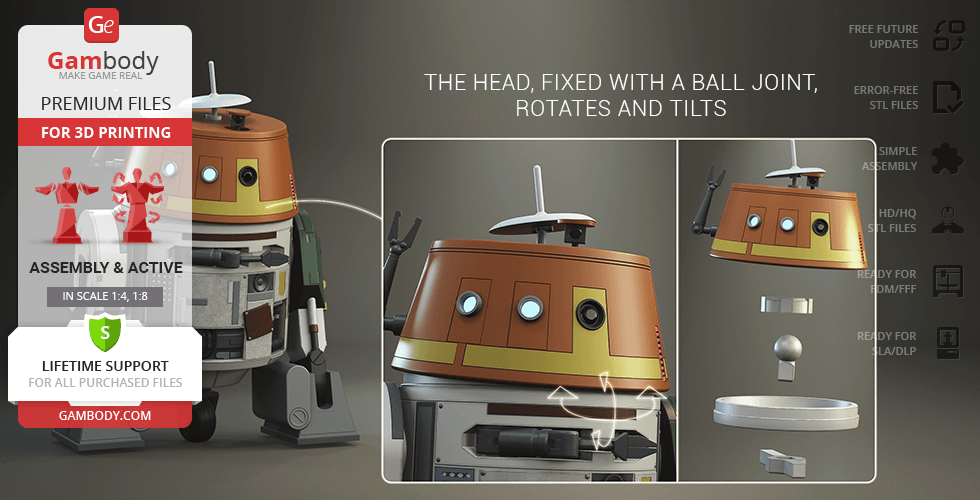

  • The head, fixed with a ball joint, rotates and tilts;

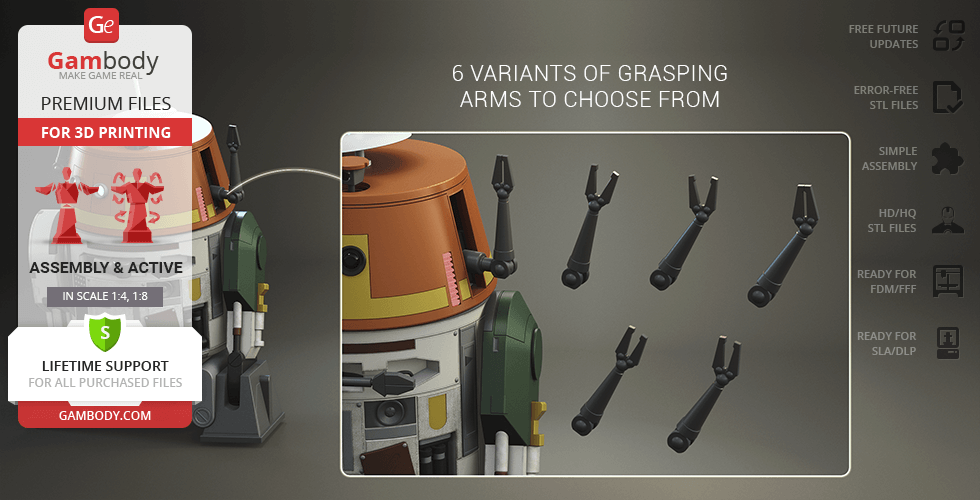

  • 6 variants of grasping arms to choose from;

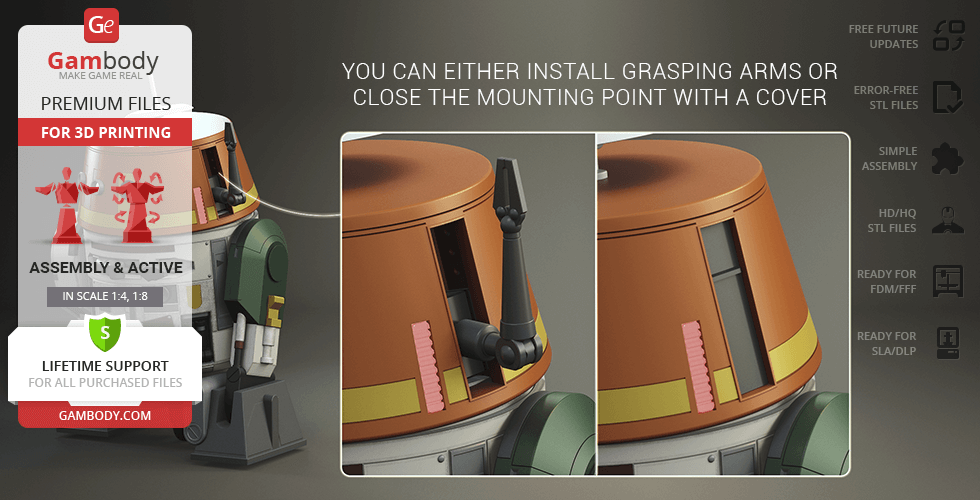

  • You can either install grasping arms or close the mounting point with a cover;

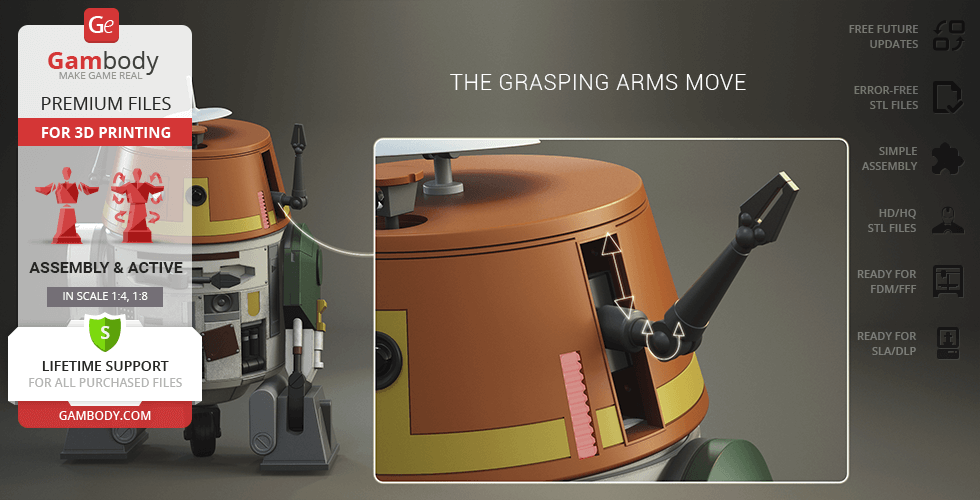

  • The grasping arms move;

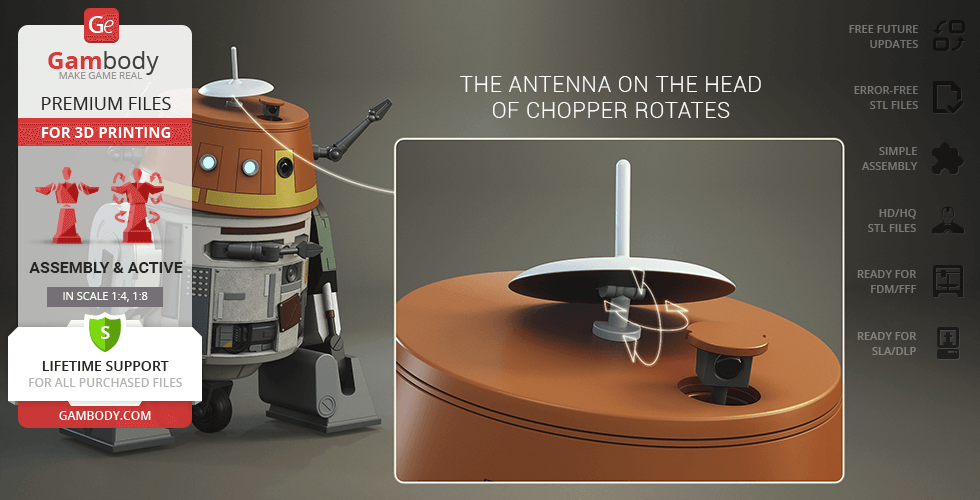

  • The antenna on the head of Chopper rotates;

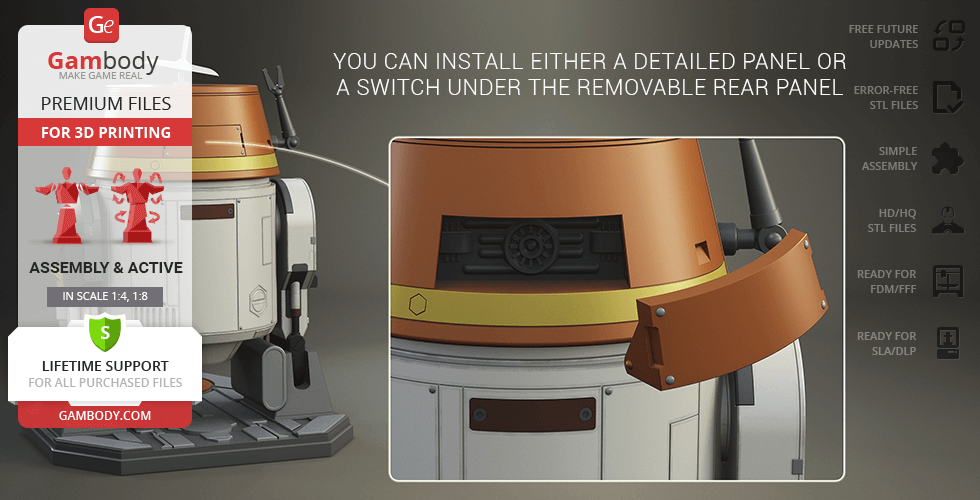

  • You can install either a detailed panel or a switch under the removable rear panel;

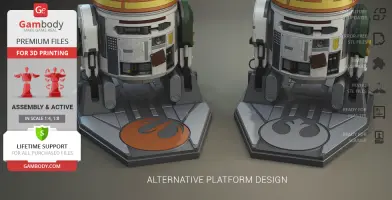

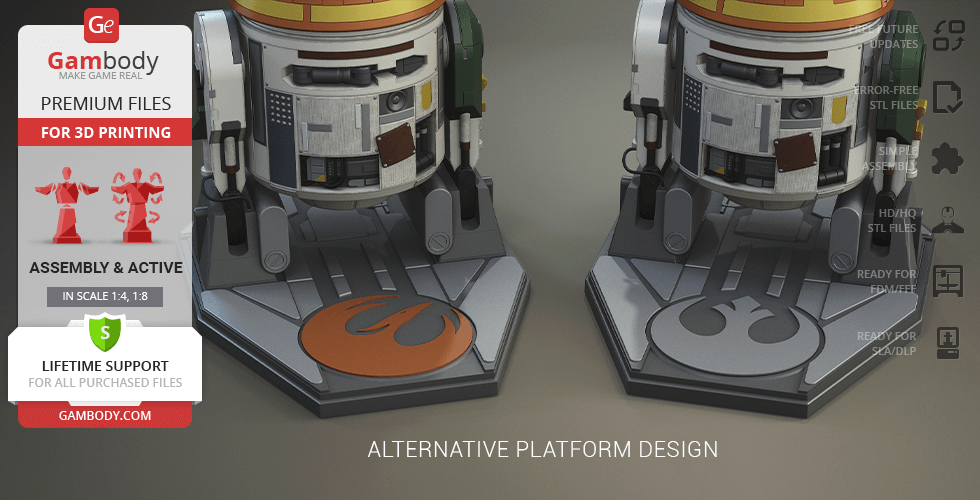

  • Alternative platform design;

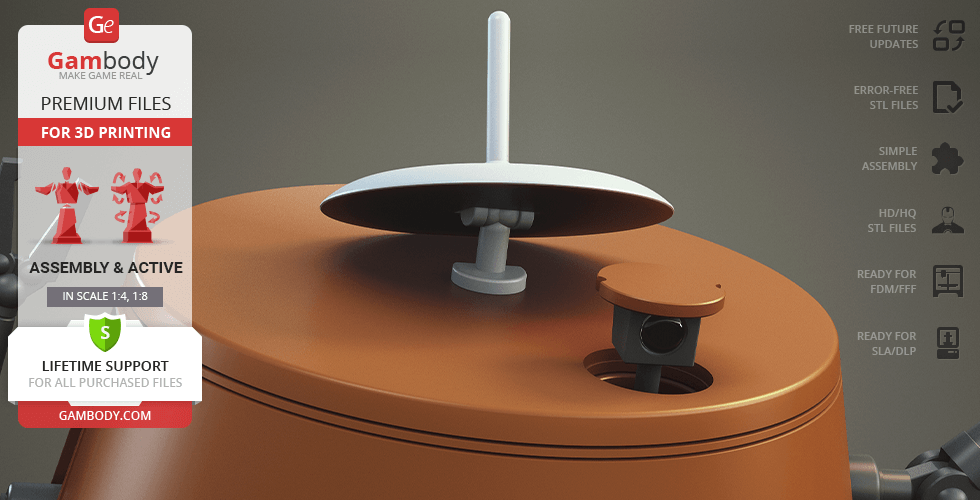

  • Retractable camera on top of the head;

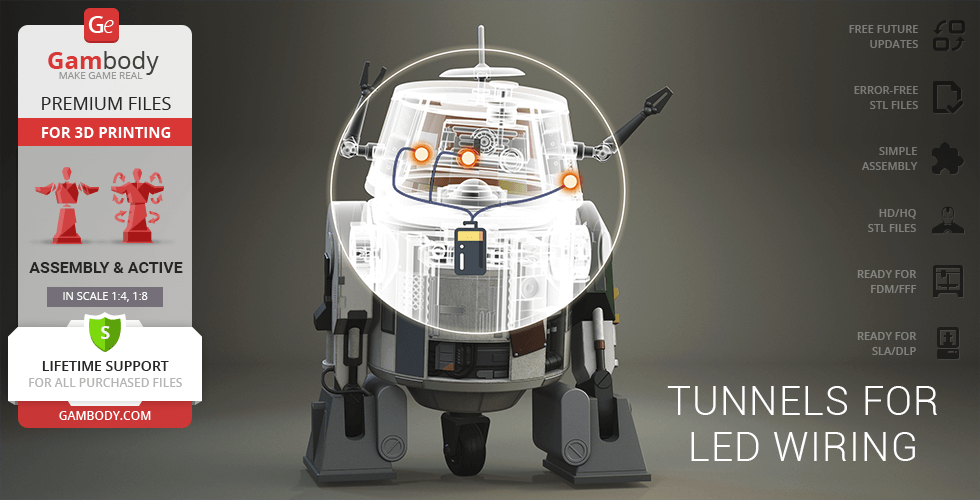

  • Tunnels for LED wiring;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

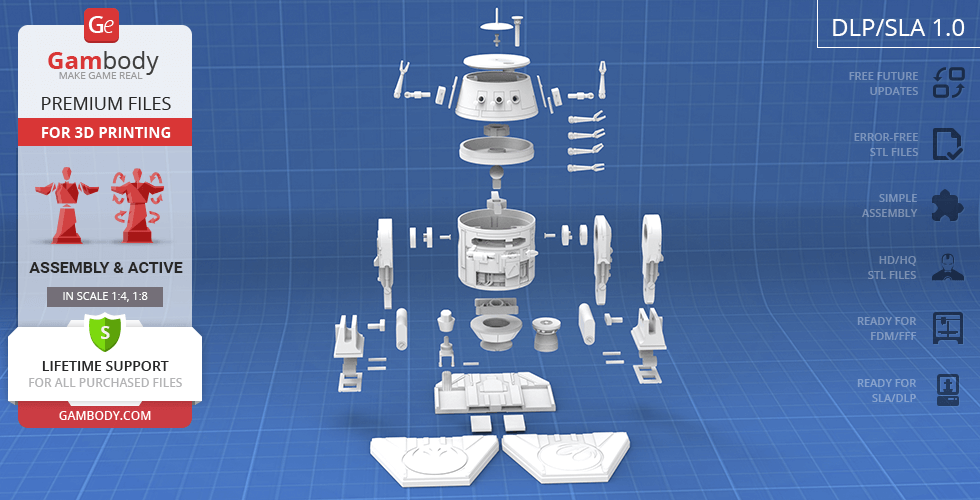

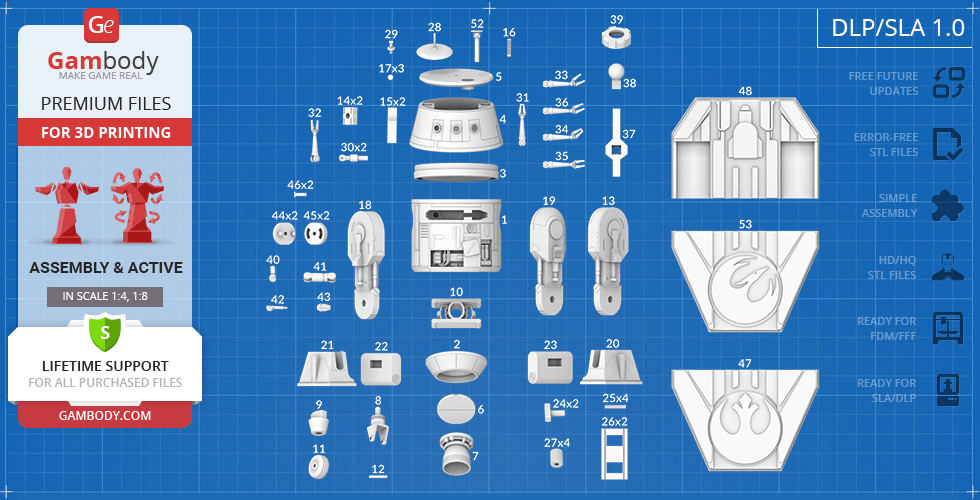

DLP/SLA 1.0 version features:

  • Contains 53 parts;
  • A printed model is 130 mm tall, 95 mm wide, 130 mm deep;
  • The legs are fixed through a ratchet mechanism, and the wheels spin;
  • The ratchet mechanism ensures articulation of the legs;
  • Two variants of the left leg - canonical and standard;
  • You can install either a wheel or a rocket engine nozzle at the bottom;
  • Retractable wheel spins and can be hidden inside the body;
  • Retractable grasping arm on the body;
  • The head, fixed with a ball joint, rotates and tilts;
  • 6 variants of grasping arms to choose from;
  • You can either install grasping arms or close the mounting point with a cover;
  • The grasping arms move;
  • The antenna on the head of Chopper rotates;
  • You can install either a detailed panel or a switch under the removable rear panel;
  • Alternative platform design;
  • Retractable camera on top of the head;
  • Tunnels for LED wiring;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the Chopper model for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble a Chopper 3D Printing Model on Gambody YouTube channel.

Also, you may like the R2-D2 3D Printing Model and other Star Wars 3D Printing Models.

________

FAQ

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

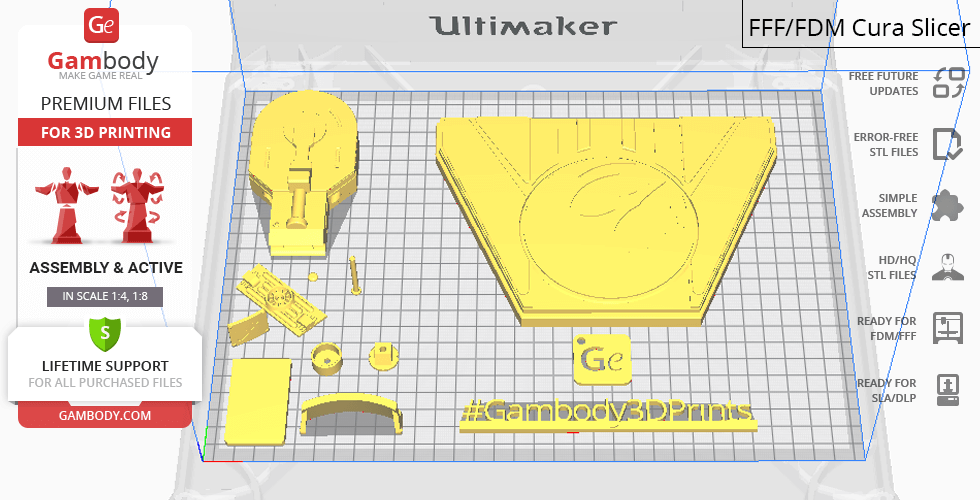

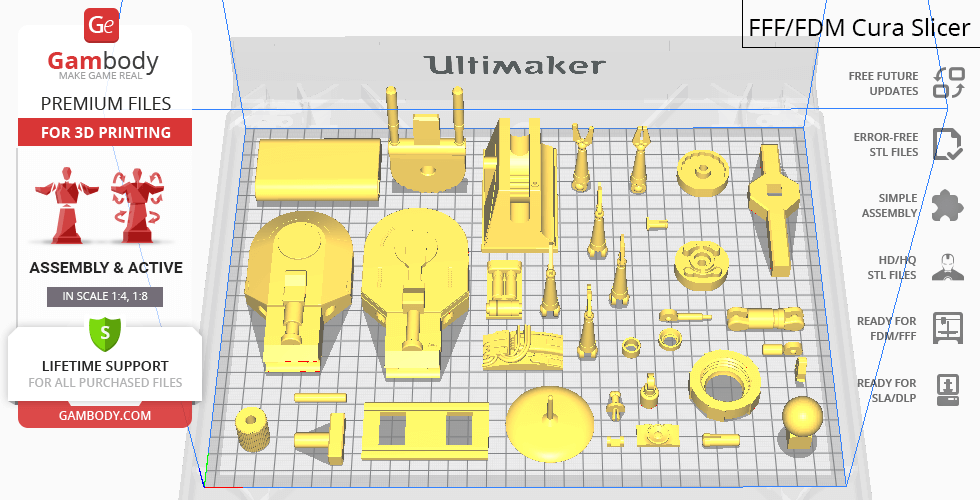

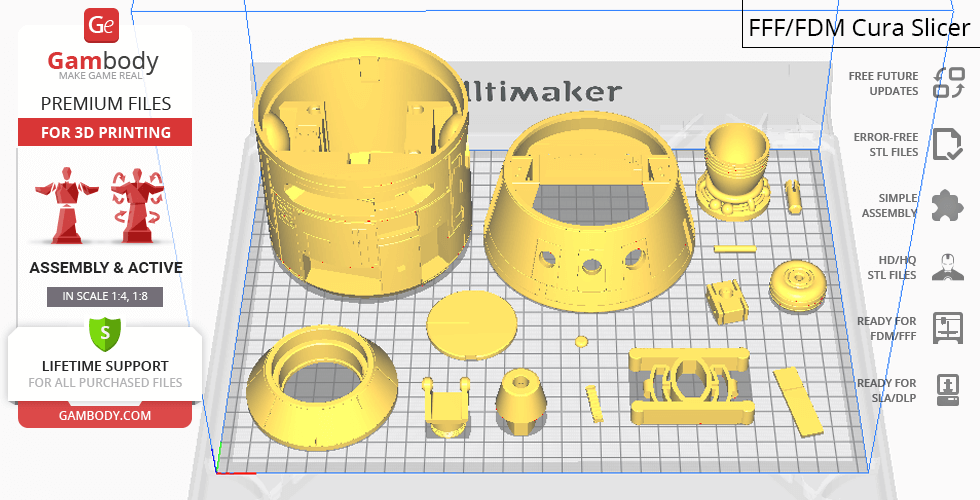

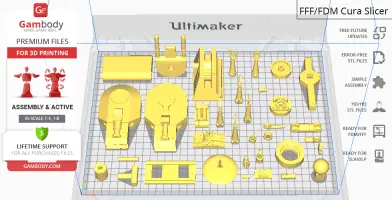

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
