R5-D4 3D Printing Model | Assembly + Action

(8)
cm: 38.2 w x 32.6 d x 36.4 h
in: 15.039 w x 12.835 d x 14.331 h

Source Files

|

Description

|

Printing Details

This 3D Model of R5-D4 Droid from Star Wars consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 2 versions of R5-D4 Droid STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase;
  • STL files of high-poly R5-D4 3D Model for 3D printing consist of 92 files;
  • Sizes for:
  • FFF/FDM: 364 mm tall, 382 mm wide, 326 mm deep;
  • DLP/SLA: 182 tall, 191 mm wide, 163 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.
  • Detailed information about this 3D printing model is available in the DESCRIPTION section.
File Name File Size Time / Filament Object Size
(x/y/z mm)

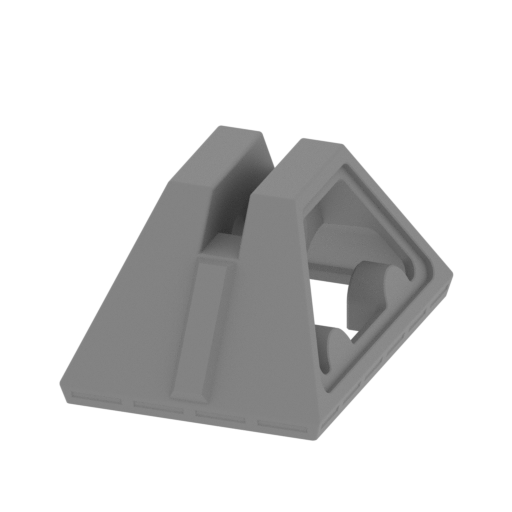

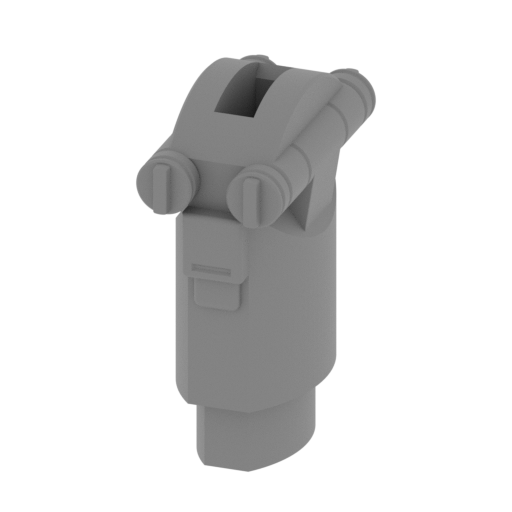

_001_leg_M_body_FDM.stl
3.66 MiB 4 h 35 min 3 m 44 x 63 x 33 Download

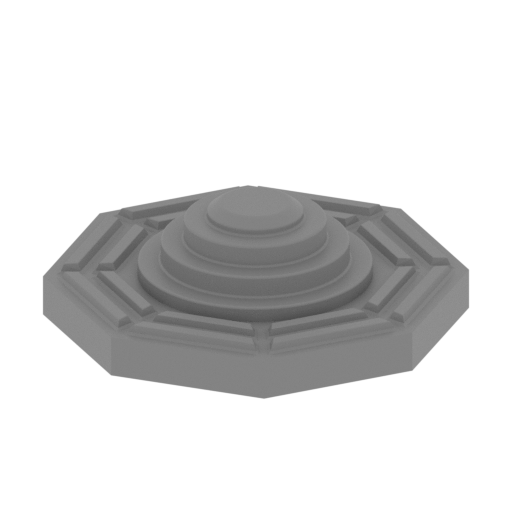

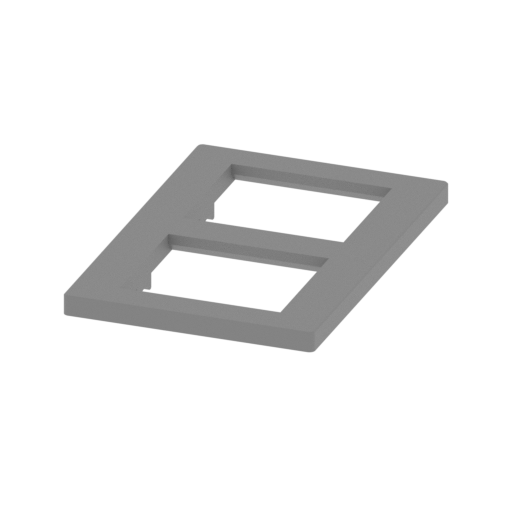

_002_leg_M_body_cap_a_FDM .stl
0.44 MiB 58 min 1 m 38 x 56 x 6 Download

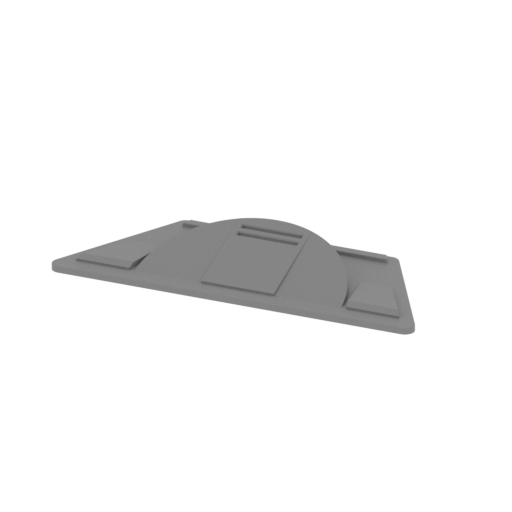

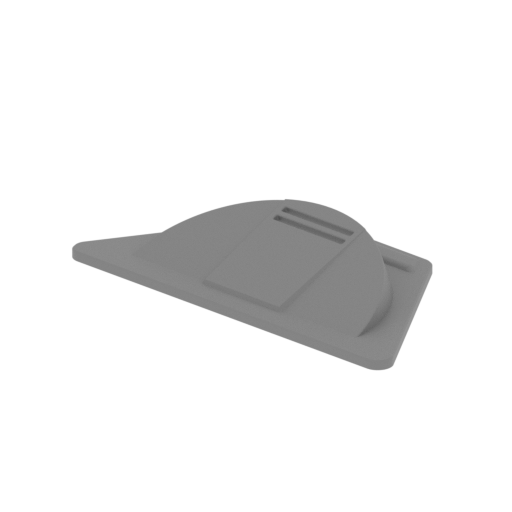

_003_leg_M_body_cap_b_x2_ FDM.stl
0.87 MiB 31 min <1 m 47 x 36 x 7 Download

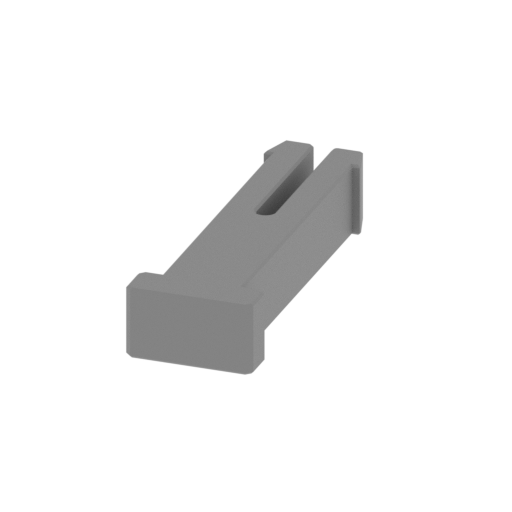

_004_leg_M_1_FDM.stl
4.55 MiB 4 h 25 min 3 m 23 x 43 x 57 Download
_005_leg_M_2_FDM.stl
2.70 MiB 2 h 11 min 1 m 64 x 44 x 11 Download

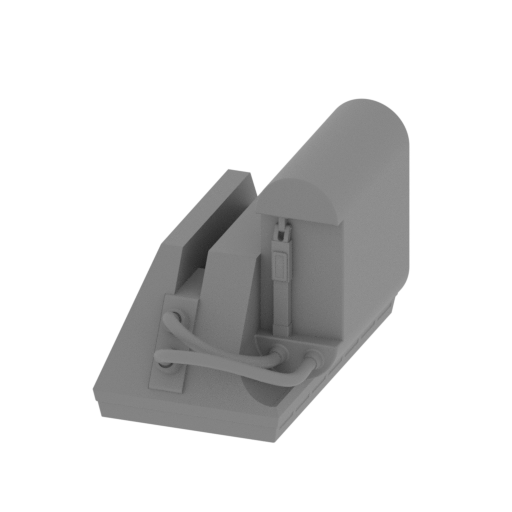

_006_leg_R_body_FDM.stl
4.60 MiB 12 h 3 min 7 m 53 x 89 x 59 Download

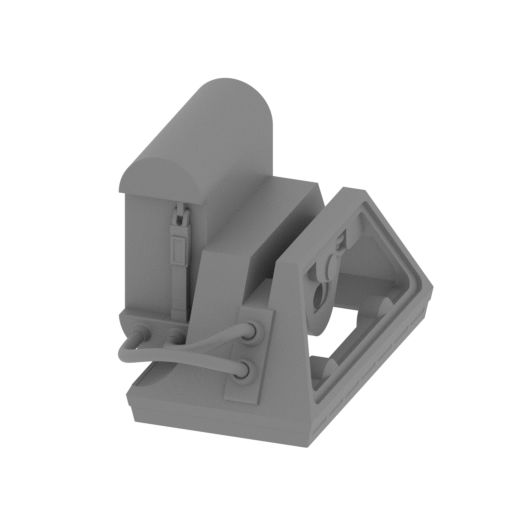

_007_leg_L_body_FDM.stl
4.60 MiB 11 h 53 min 7 m 53 x 89 x 59 Download

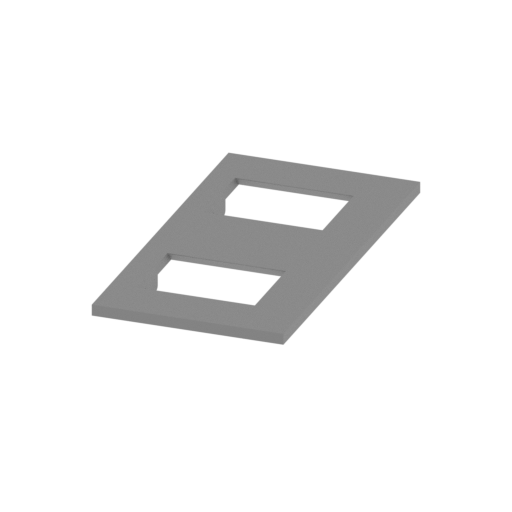

_008_leg_body_cap_a_FDM.s tl
0.17 MiB 1 h 22 min 1 m 38 x 73 x 5 Download
_009_leg_body_cap_x2_FDM. stl
0.32 MiB 47 min <1 m 70 x 30 x 7 Download

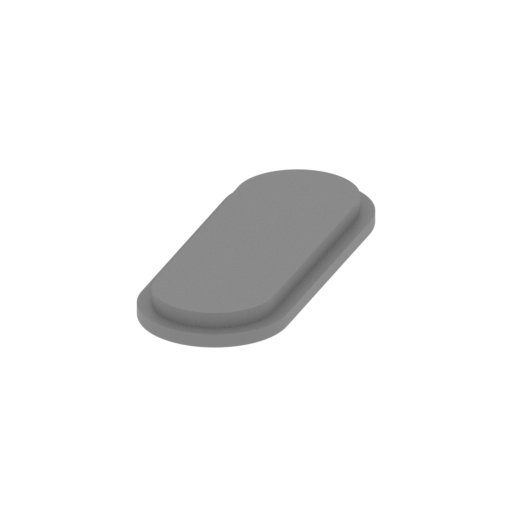

_010_leg_box_cap_c_x2_FDM .stl
0.70 MiB 30 min <1 m 20 x 50 x 4 Download

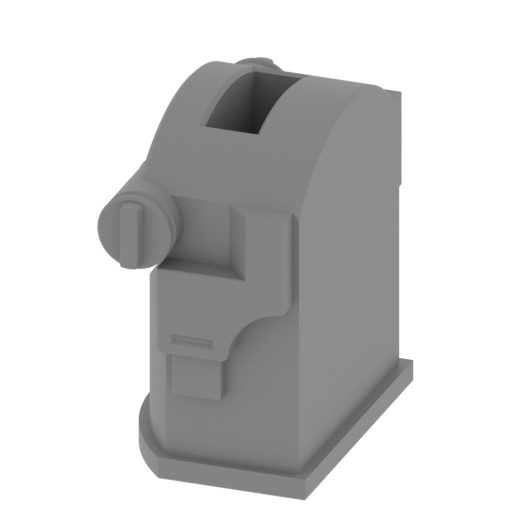

_011_leg_R_1_FDM.stl
1.06 MiB 3 h 2 min 2 m 24 x 43 x 41 Download

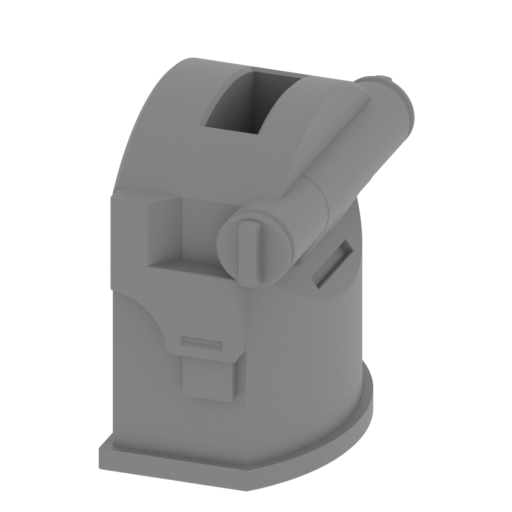

_012_leg_L_1_FDM.stl
1.06 MiB 3 h 3 min 2 m 24 x 43 x 41 Download
_013_leg_conenctor_1_x2_F DM.stl
0.14 MiB 13 min <1 m 11 x 31 x 6 Download
_014_leg_R_2_FDM.stl
13.44 MiB 6 h 35 min 4 m 49 x 113 x 22 Download
_015_leg_L_2_FDM.stl
13.44 MiB 6 h 33 min 4 m 49 x 113 x 22 Download

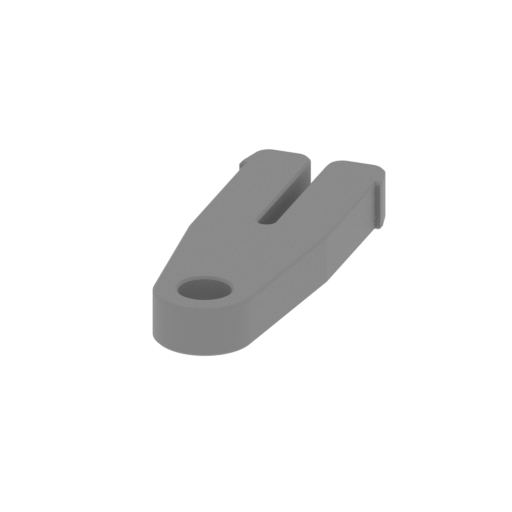

_016__legs_body_pin_x3_FD M.stl
0.20 MiB 30 min <1 m 17 x 45 x 6 Download
_017_leg_cap_a_x2_FDM.stl
1.85 MiB 8 min <1 m 6 x 30 x 5 Download
_018_leg_cap_b_x4_FDM.stl
0.54 MiB 4 min <1 m 7 x 7 x 5 Download

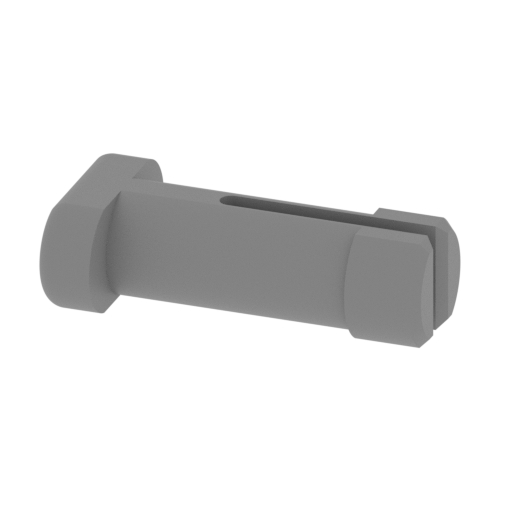

_019_legs_body_pin_x3_FDM .stl
0.48 MiB 9 min <1 m 20 x 11 x 6 Download

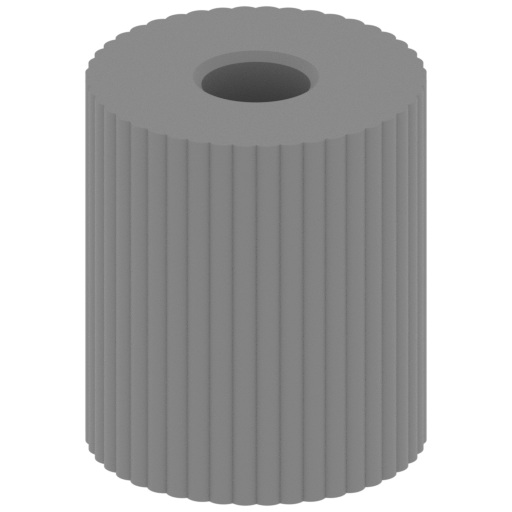

_020_legs_wheel_x6_FDM.st l
2.81 MiB 45 min <1 m 20 x 20 x 23 Download

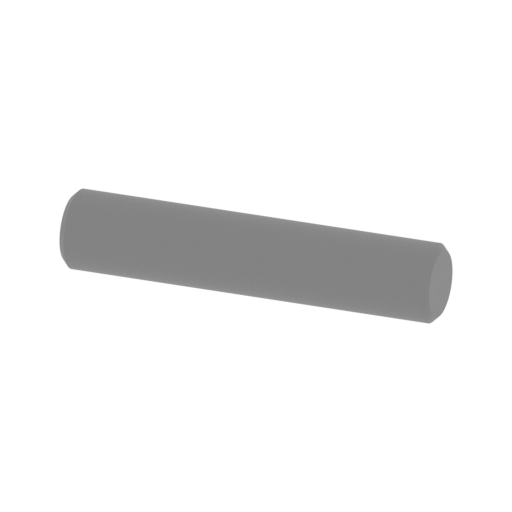

_021_Wheel_pin_X6_FDM.stl
0.14 MiB 9 min <1 m 29 x 6 x 6 Download

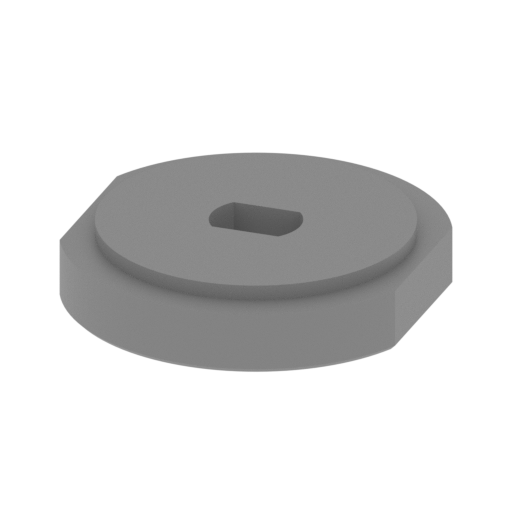

_022_leg_body_connector_1 _x2_FDM.stl
0.08 MiB 60 min 1 m 36 x 40 x 8 Download
_023_leg_body_connector_2 _x2_FDM.stl
0.26 MiB 20 min <1 m 24 x 23 x 6 Download

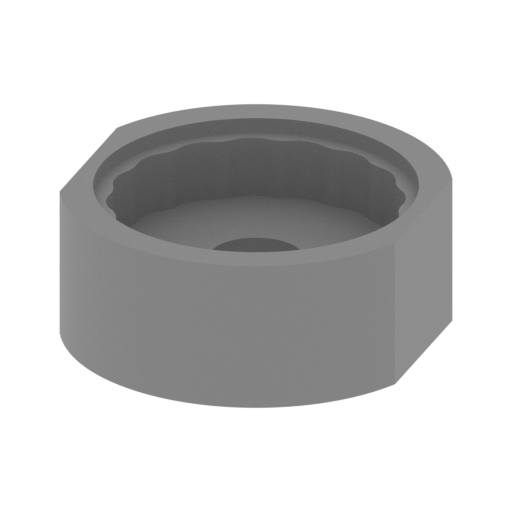

_024_leg_body_connector_3 _x2_FDM.stl
0.23 MiB 1 h 29 min 1 m 36 x 40 x 16 Download

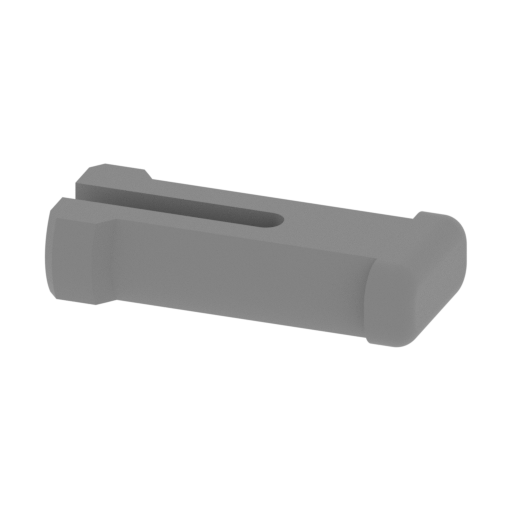

_025_leg_body_connector_4 _x2_FDM.stl
0.48 MiB 13 min <1 m 27 x 13 x 6 Download
_028_body_cap_a_x2_FDM.st l
0.83 MiB 10 min <1 m 17 x 17 x 5 Download

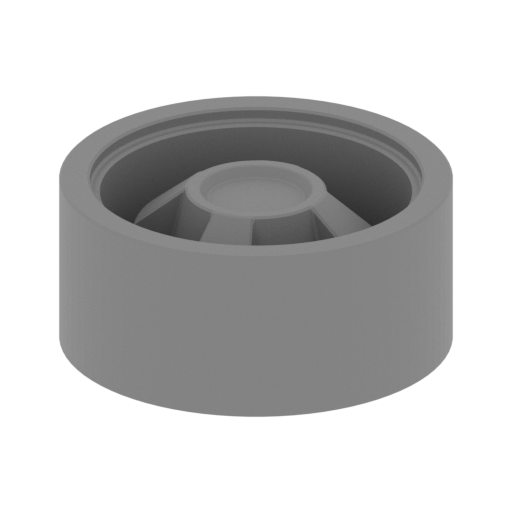

_029_body_cap_b_X2_FDM.st l
0.34 MiB 17 min <1 m 17 x 17 x 7 Download

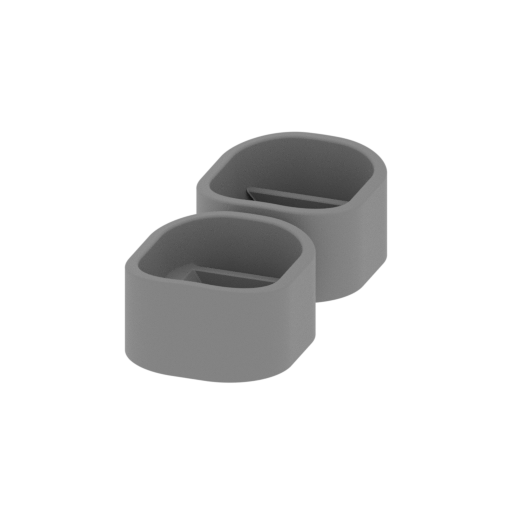

_030_body_cap_c_FDM .stl
1.05 MiB 1 h 1 min 1 m 19 x 43 x 11 Download

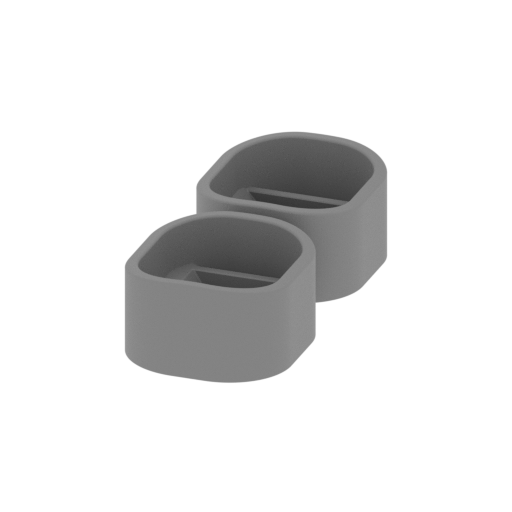

_030_body_cap_c_X2_FDM.st l
0.92 MiB 1 h 1 m 19 x 43 x 11 Download

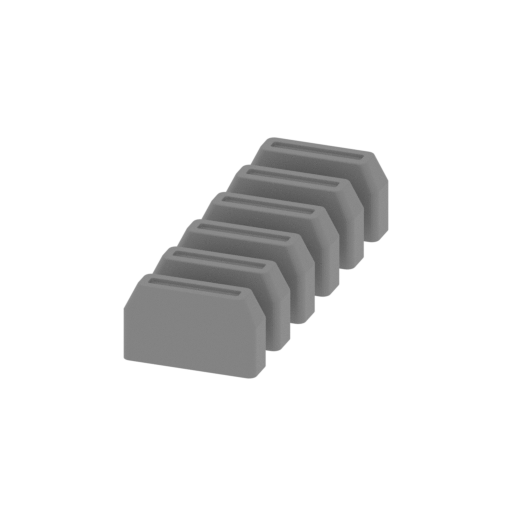

_033_body_cap_f_FDM.stl
0.25 MiB 14 min <1 m 10 x 27 x 6 Download
_034_body_door_R_FDM.stl
0.12 MiB 42 min <1 m 17 x 80 x 3 Download

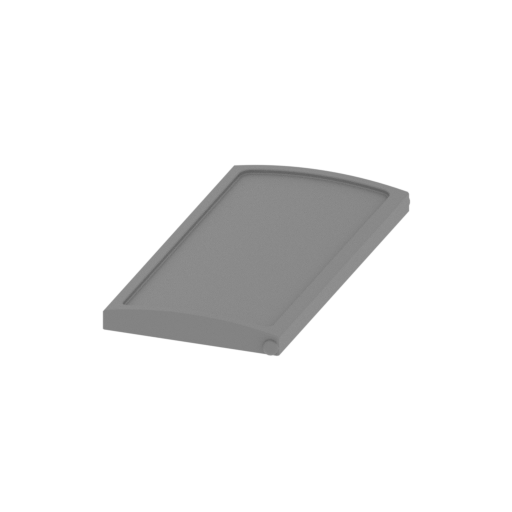

_035_body_door_M_FDM.stl
0.11 MiB 35 min <1 m 23 x 48 x 4 Download

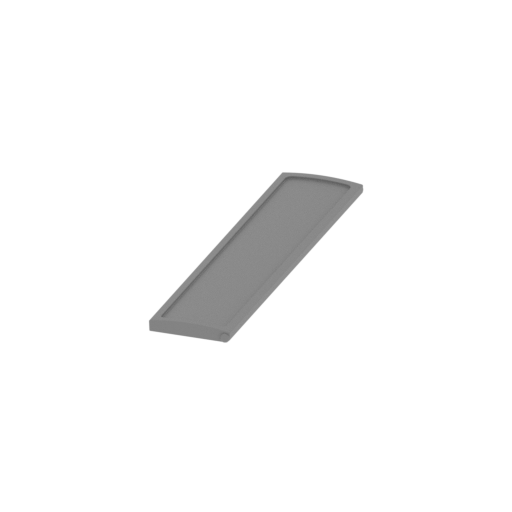

_036_body_door_L_FDM.stl
0.12 MiB 42 min <1 m 17 x 80 x 3 Download
_037_body_panel_R_FDM.stl
1.08 MiB 1 h 21 min 1 m 17 x 78 x 10 Download

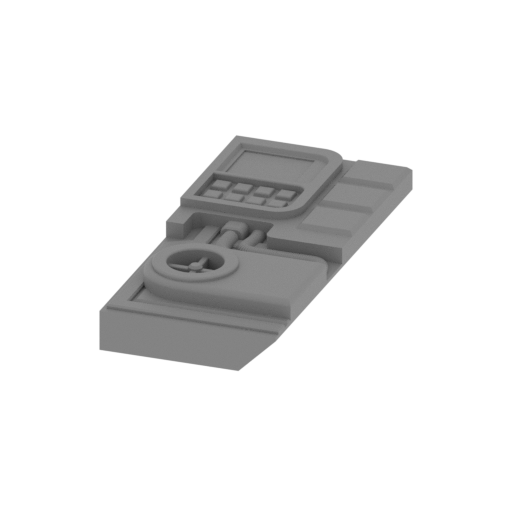

_038_body_panel_M_FDM.stl
3.32 MiB 55 min <1 m 22 x 46 x 8 Download

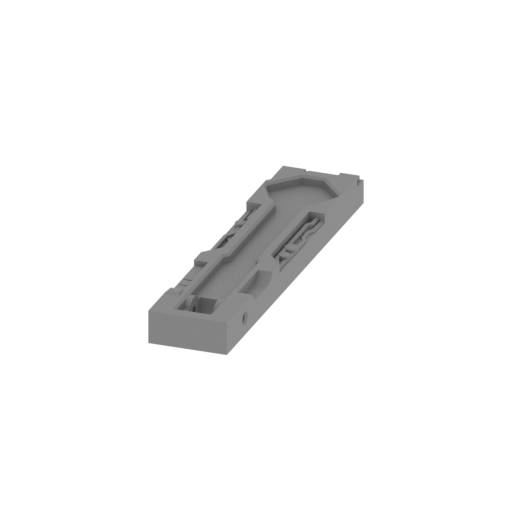

_039_body_panel_L_FDM.stl
0.29 MiB 1 h 9 min 1 m 17 x 78 x 7 Download

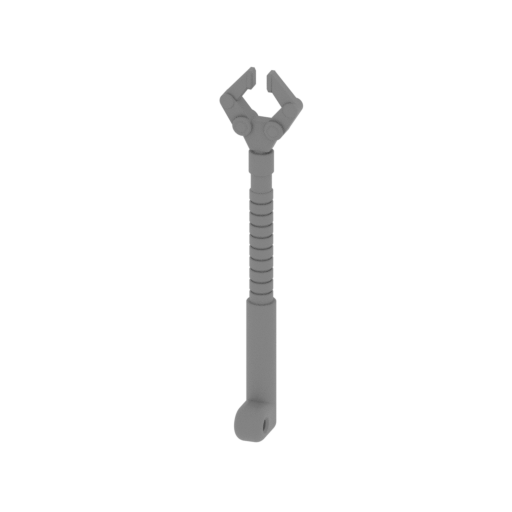

_040_Body_arm_FDM.stl
0.79 MiB 1 h 1 min <1 m 13 x 10 x 64 Download

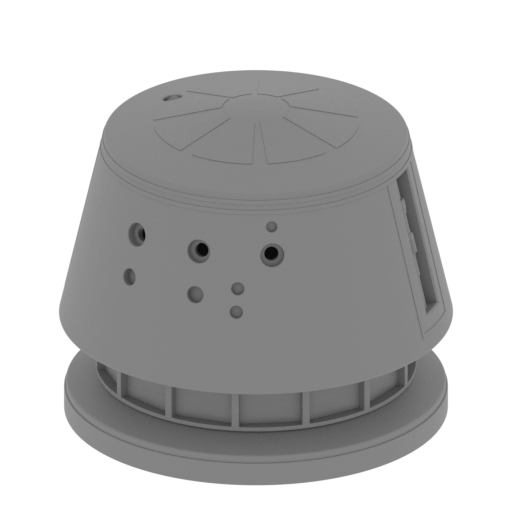

_041_Head_body_FDM.stl
14.75 MiB 55 h 33 min 43 m 115 x 115 x 97 Download
_042_Head_antenna_FDM.stl
0.70 MiB 27 min <1 m 6 x 8 x 66 Download

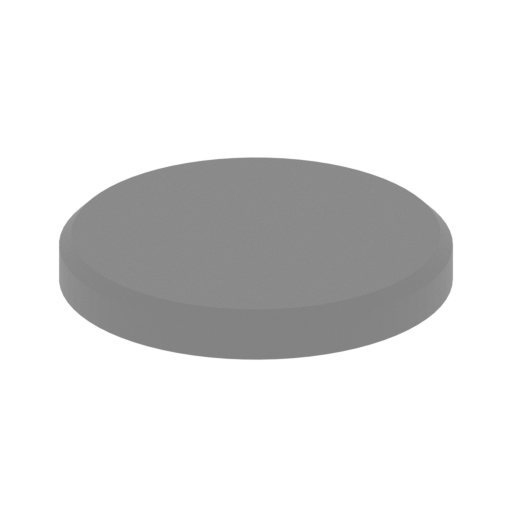

_044_Head_sensor_glass_x3 _FDM.stl
0.02 MiB 1 min <1 m 6 x 6 x 1 Download

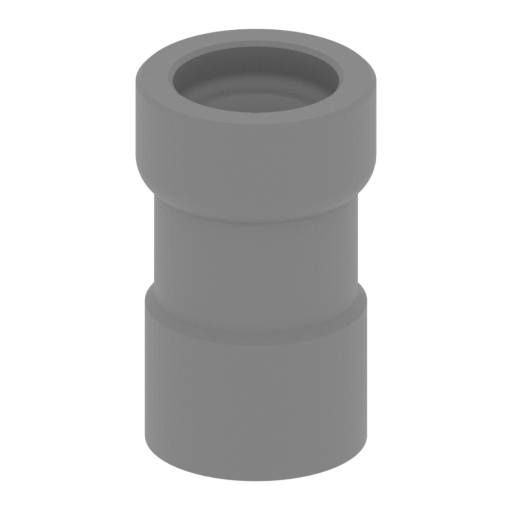

_045_Head_sensor_2_x2_FDM .stl
0.18 MiB 6 min <1 m 5 x 5 x 9 Download
_046_Head_sensor_3_FDM.st l
0.19 MiB 3 min <1 m 9 x 4 x 4 Download

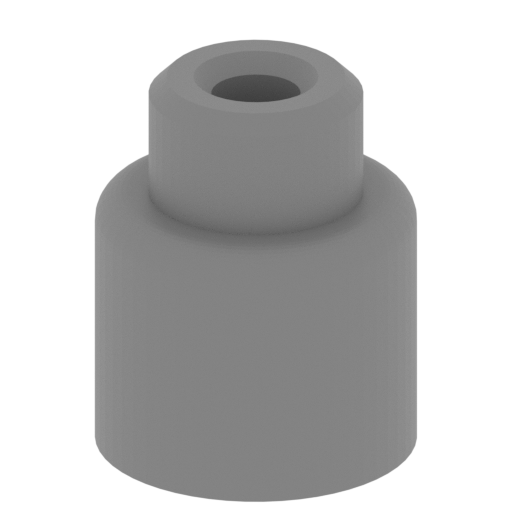

_046_Head_sensor_3_x2_FDM .stl
0.09 MiB 2 min <1 m 4 x 4 x 4 Download

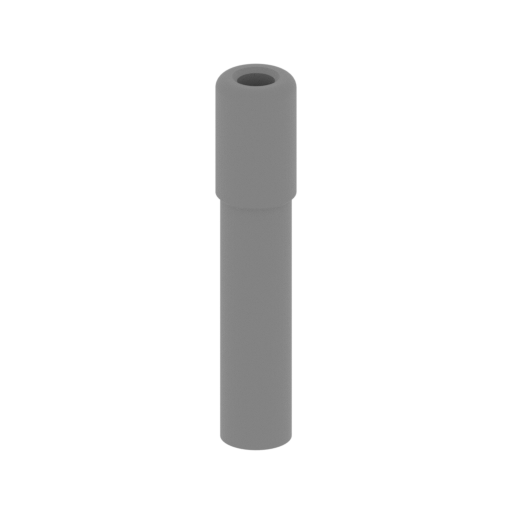

_047_Head_sensor_4_FDM.st l
0.11 MiB 5 min <1 m 3 x 3 x 17 Download

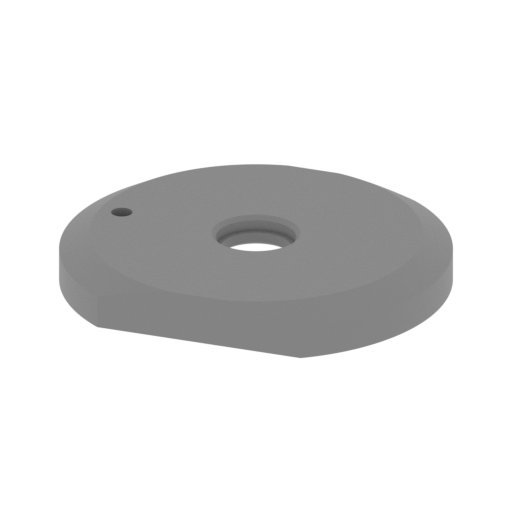

_048_head_bottom_cap_FDM. stl
0.81 MiB 5 h 38 min 3 m 91 x 76 x 12 Download

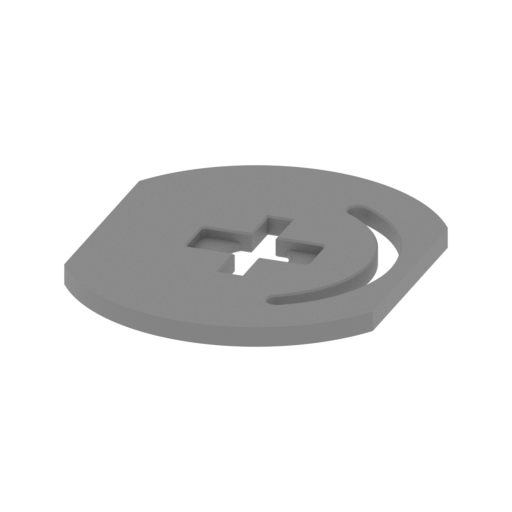

_049_body_top_FDM.stl
0.59 MiB 3 h 52 min 2 m 82 x 98 x 5 Download

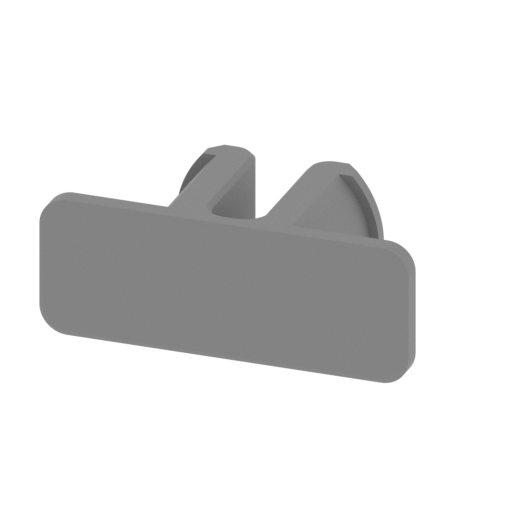

_050_head_pin_FDM.stl
0.17 MiB 25 min <1 m 32 x 15 x 12 Download

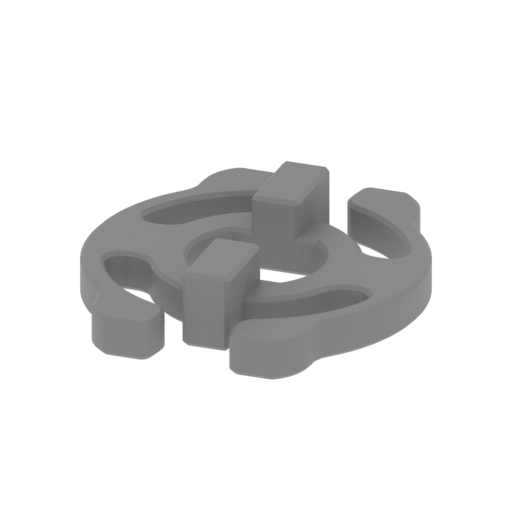

_051_head_gear_FDM.stl
0.41 MiB 52 min 1 m 42 x 47 x 10 Download
_052_Head_cap_x14_FDM.stl
0.63 MiB 10 min <1 m 18 x 3 x 11 Download

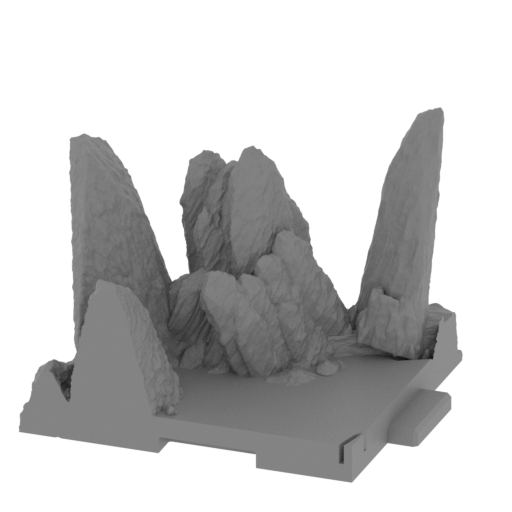

_053_stand_1_FDM.stl
16.78 MiB 69 h 49 min 39 m 189 x 165 x 144 Download

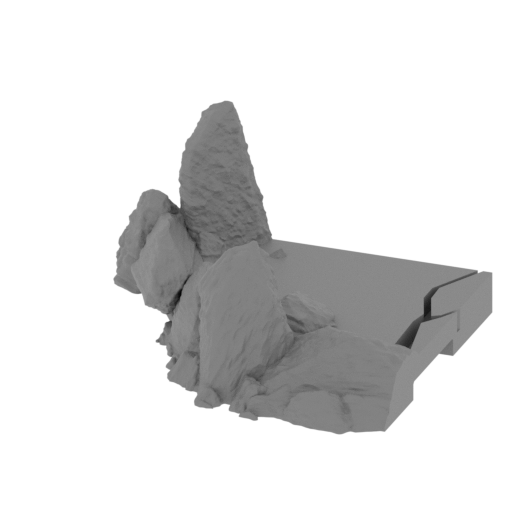

_054_stand_2_FDM.stl
7.16 MiB 34 h 43 min 20 m 172 x 160 x 82 Download

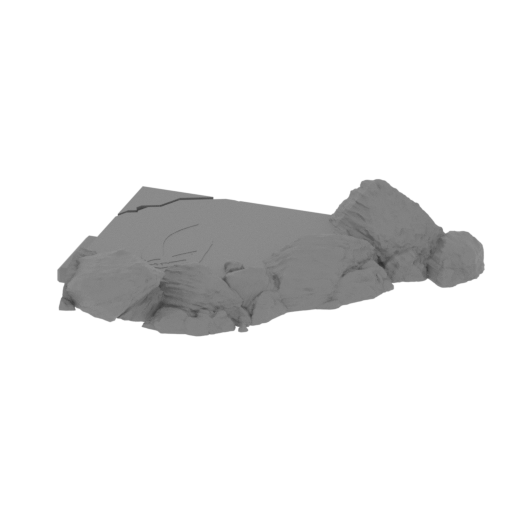

_055_stand_3_FDM.stl
11.27 MiB 32 h 24 min 18 m 221 x 150 x 46 Download

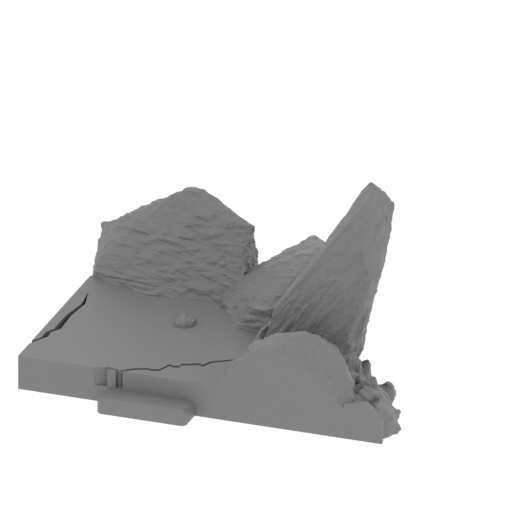

_056_stand_4_FDM.stl
13.19 MiB 56 h 25 min 32 m 207 x 191 x 118 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

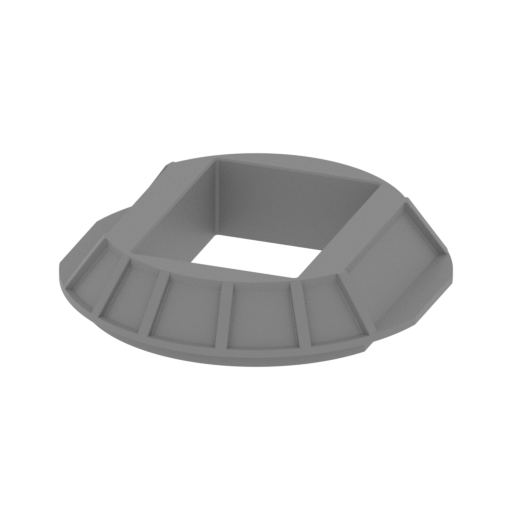

_027_body_bot_FDM.stl
3.96 MiB 7 h 53 min 5 m 99 x 103 x 22 Download

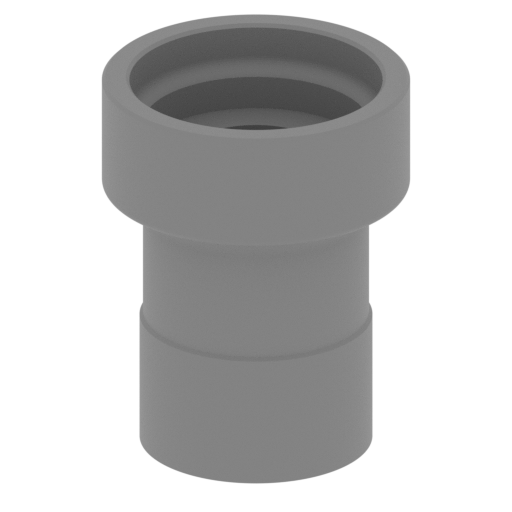

_043_Head_sensor_1_x3_FDM .stl
0.75 MiB 11 min <1 m 9 x 9 x 12 Download
_026_body_FDM (repaired). stl
9.66 MiB 71 h 35 min 42 m 112 x 113 x 119 Download

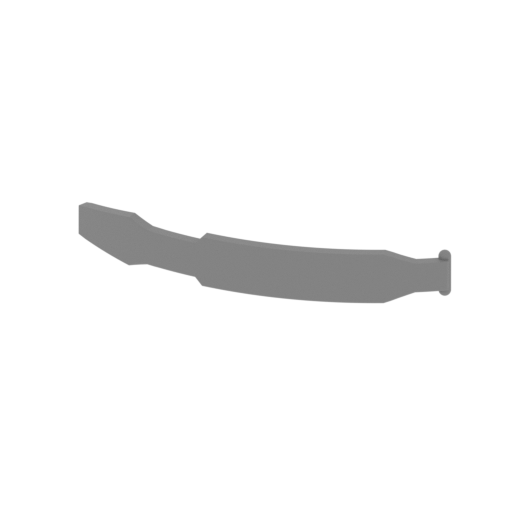

_031_body_cap_d_FDM (repa ired).stl
0.08 MiB 14 min <1 m 57 x 10 x 8 Download

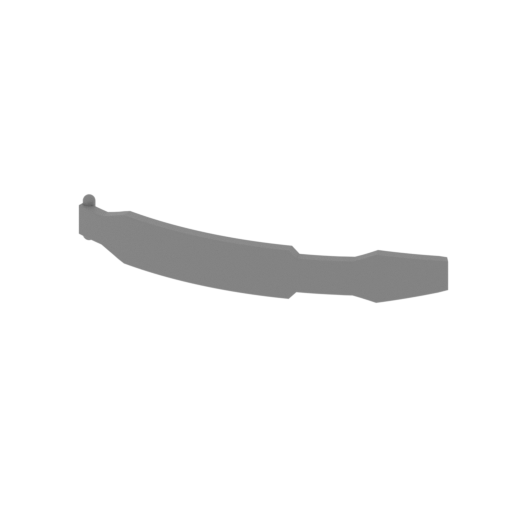

_032_body_cap_e_FDM (repa ired).stl
0.09 MiB 14 min <1 m 58 x 10 x 8 Download
...

ABOUT THIS 3D MODEL

Thank you, friend. You may have saved the galaxy today. I will never forget you

In the early days of the Galactic Civil War, this red white-striped astromech droid R5-D4 belonged to the group of Jawas on Tatooine planet. After 4 years on a sandcrawler, R5-D4 was redeemed by Owen Lars. But driven by the desire to save the fate of the Galaxy and help with the mission of R2-D2, “Red” deliberately sabotaged urging Owen Lars to buy R2-D2 instead. The heroism of the astromech is well-deserved and can not be denied!

Inspired by the prominent Star Wars robot character, our contributing 3D artist made this spectacular model for 3D printing. Printed astromech can be displayed on the Mandalore planet stylised stand. The tunnels in the droid’s body allow to hide a battery inside the model and introduce LED wiring to light up the projector ports. R5-D4 has active elements, its head rotates, legs are articulated and in the hidden compartment there is a retractable grasper arm. We know that you were waiting for R5-D4 and his time has come, enjoy!

ADAPTATION FOR 3D PRINTING

R5-D4 Droid for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 56 hours in total.

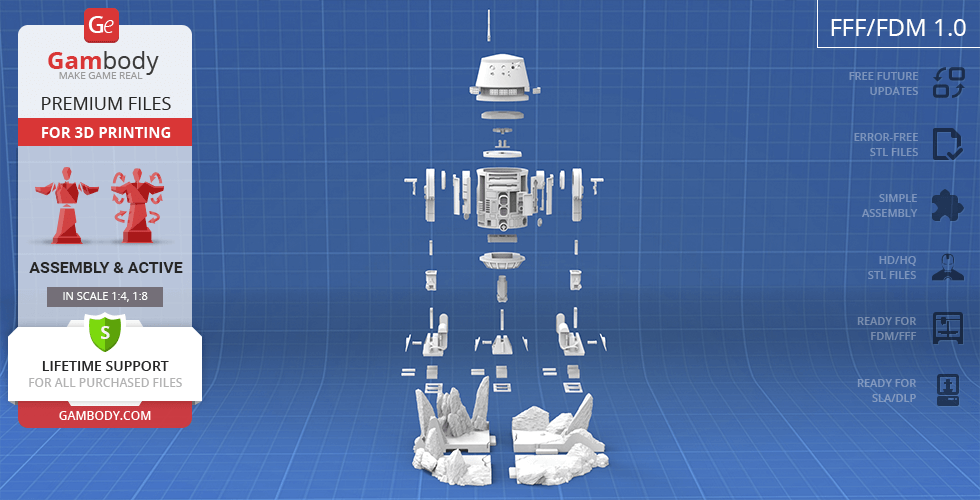

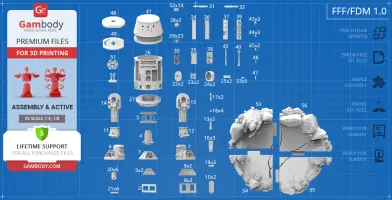

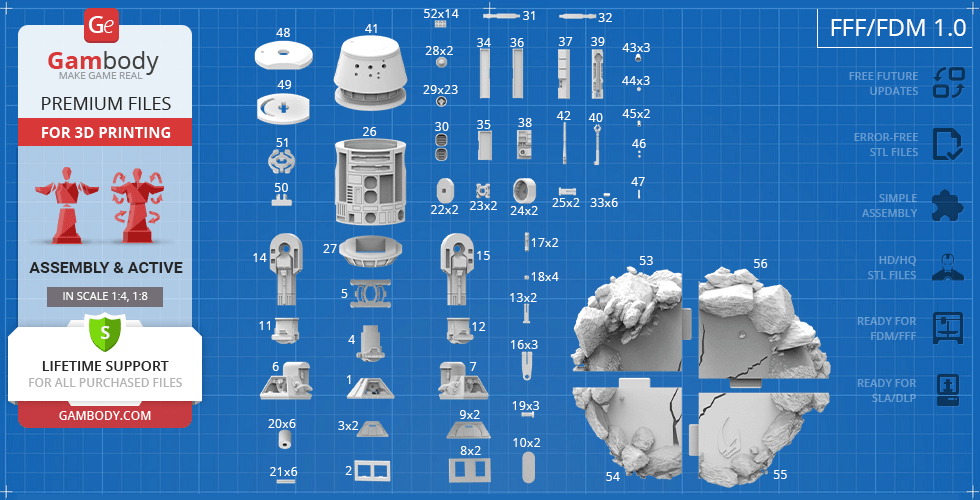

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the droid was divided into convenient assembly parts.

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the R5-D4 model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model’s scale was calculated from the length of the R5-D4 Droid which is 970 mm. The 3D printing model’s chosen scales are 1:4 for the FFF/FDM version and 1:8 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

FFF/FDM 1.0 version features:

  • Contains 56 parts;
  • A printed model is 364 mm tall, 382 mm wide, 326 mm deep;
  • The head of the droid rotates;
  • Fine manipulator arms fold;
  • Opening tool compartment;
  • Retractable grasper arm;
  • Articulated legs;
  • Joint mechanisms ensure articulation of the legs;
  • The retractable center leg can bend and can be extended through the special mechanism;
  • The wheels in the feet of R5-D4 spin;
  • Removable hatches to access the wheels;
  • Hidden diagnostic unit compartment;
  • The tunnels in the Droid’s body allow to hide a battery inside the model and introduce LED wiring to light up the projector ports;
  • Decorative Mandalore planet stylised stand;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA 1.0 version features:

  • Contains 36 parts;
  • A printed model is 182 mm tall, 191 mm wide, 163 mm deep;
  • The head of the droid rotates;
  • Fine manipulator arms fold;
  • Opening tool compartment;
  • Retractable grasper arm;
  • Articulated legs;
  • Joint mechanisms ensure articulation of the legs;
  • The retractable center leg can bend and can be extended through the special mechanism;
  • The wheels in the feet of R5-D4 spin;
  • Removable hatches to access the wheels;
  • Hidden diagnostic unit compartment;
  • The tunnels in the Droid’s body allow to hide a battery inside the model and introduce LED wiring to light up the projector ports;
  • Decorative Mandalore planet stylised stand;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the model of R5-D4 Droid for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble R5-D4 3D Printing Model on Gambody YouTube channel.

Also, you may like the R2-D2 3D Printing Model and Sandcrawler 3D Printing Model, and other Star Wars 3D printing models and figurines.
