Half Life Portal Gun

cm: 23.2 w x 22.5 d x 17.5 h
in: 9.134 w x 8.858 d x 6.89 h
Help us decide: Would you like to see this model in the Premium section?
What does this mean?
info
Voting explanation
This voting section lets you decide if this model should join our Premium section, known for its high-quality, exclusive models. Models garnering sufficient votes will receive Gambody’s expert moderation, including Ge-smart cutting and live-time support. Successful models will be placed in the Premium section and then promoted, while the original STLs will stay in the Stock section. Your vote directly influences the model's status, based on community preferences.
1.0%
Voted 1 of 100

Source Files

|

Description

|

Printing Details

STL files and the cutting of this model are preserved as created by the Author. This model was not moderated by Gambody, it is not subject to technical support by Gambody, and we do not offer any guarantees on the 3D printing results.

Stock models can only be purchased in an order separate from the Premium STL files by Gambody. If a Premium model is added to the Cart, the Stock models are deleted automatically, and vice versa.

You can read more about Stock models on Gambody's Blog.

The Author of the Stock model can provide technical support if they wish. All your questions, requests, wishes and remarks can be left in the comment section below.

Gambody Team can consider providing a Premium version of the model if highly requested.

File Name File Size Time / Filament Object Size
(x/y/z mm)

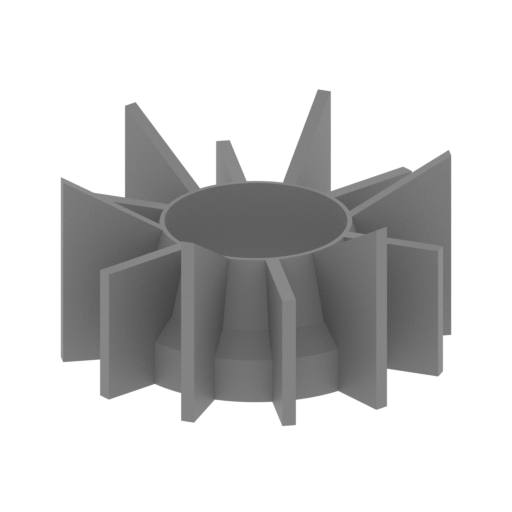

Portal_Gun_Barrel_Insert. STL
0.12 MiB n.a.
n.a.
2 x 2 x 1 Download

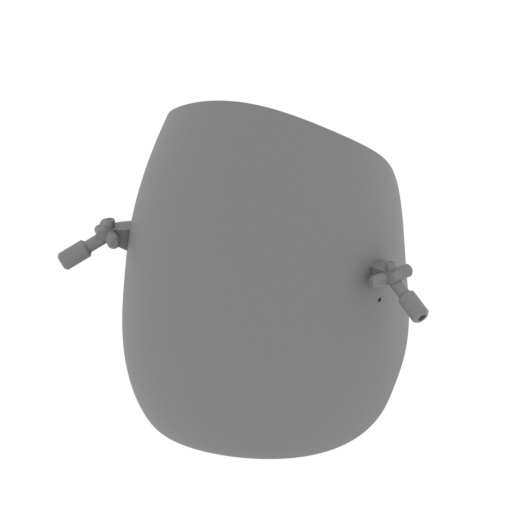

Portal_Gun_Bottom_Cover.S TL
3.52 MiB 2 min <1 m 8 x 5 x 7 Download

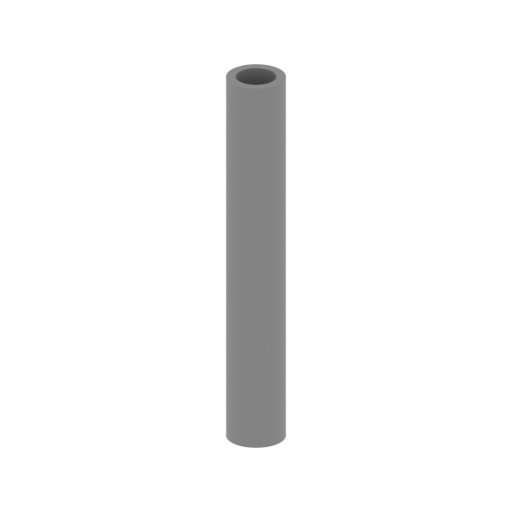

Portal_Gun_Center_Tube.ST L
0.04 MiB <1 m 1 x 1 x 4 Download

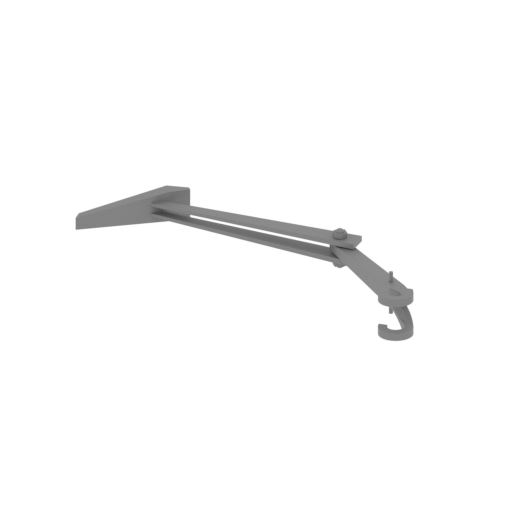

Portal_Gun_Claw.STL
0.24 MiB n.a.
n.a.
6 x 3 x 1 Download

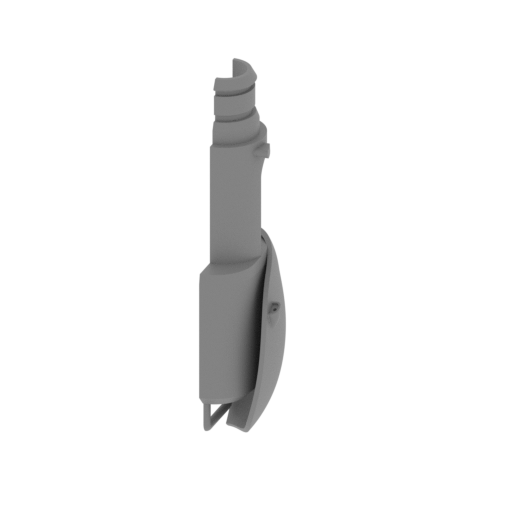

Portal_Gun_Left_Half.STL
2.04 MiB 11 min <1 m 3 x 6 x 19 Download

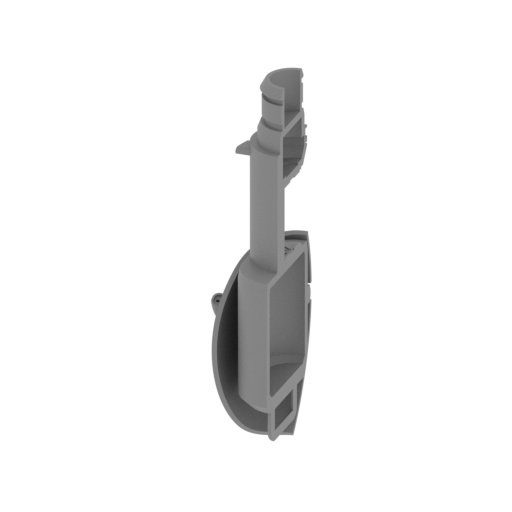

Portal_Gun_Right_Half.STL
2.28 MiB 10 min <1 m 3 x 6 x 19 Download

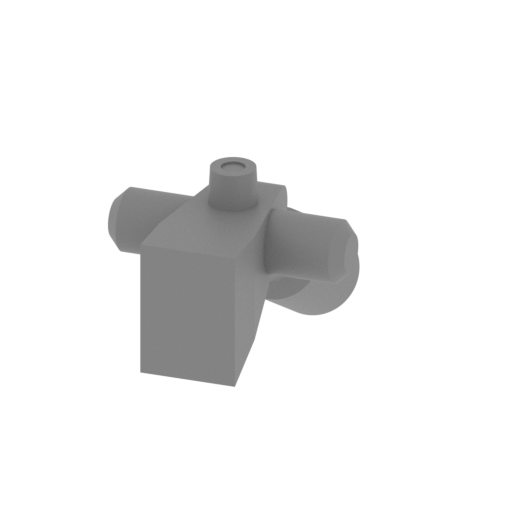

Portal_Gun_Top_Claw_Mount .STL
0.19 MiB n.a.
n.a.
1 x 2 x 1 Download

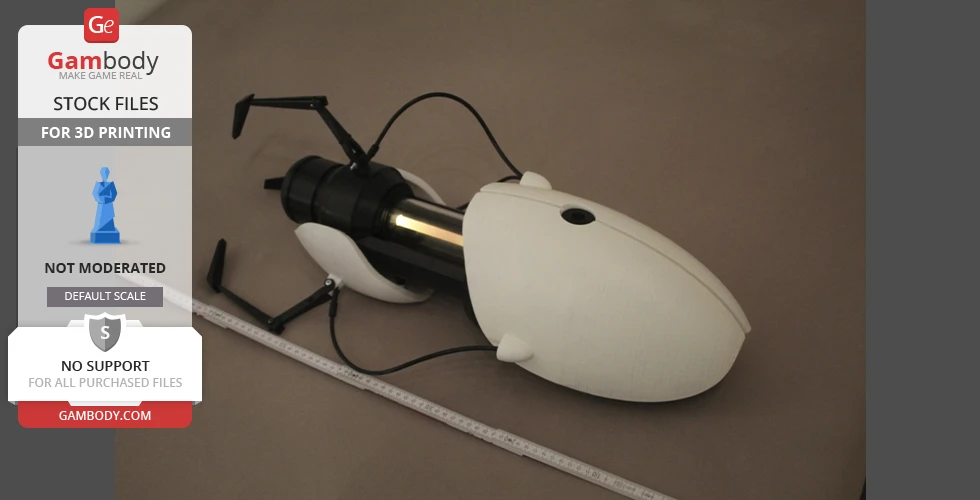

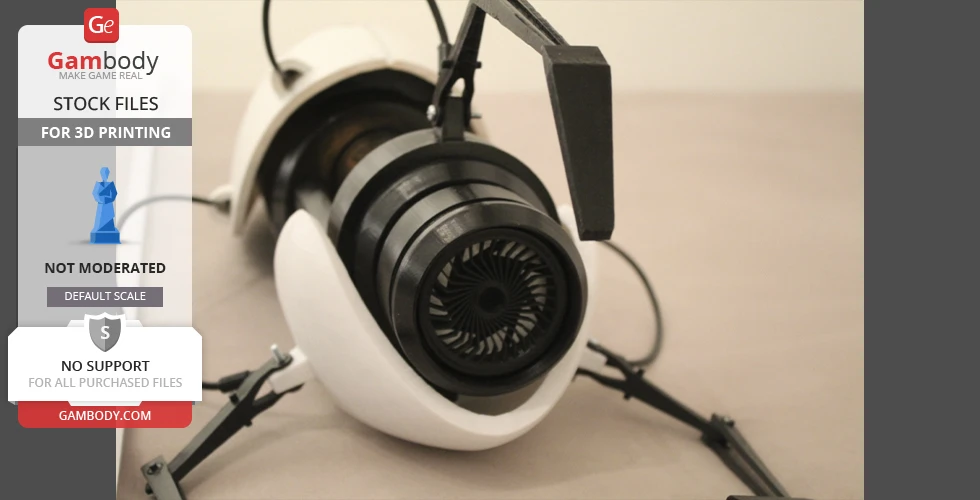

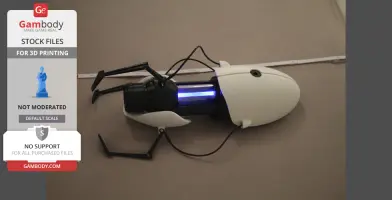

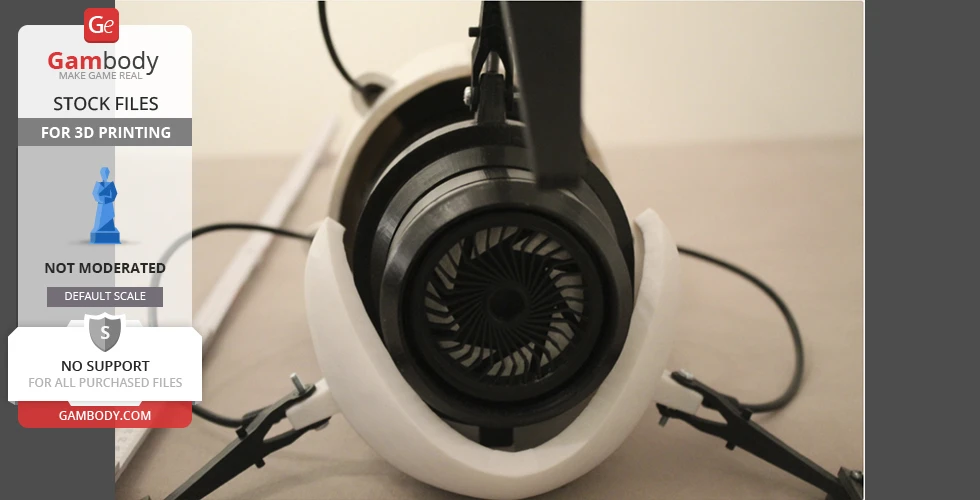

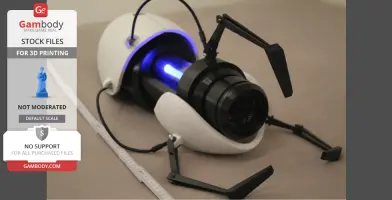

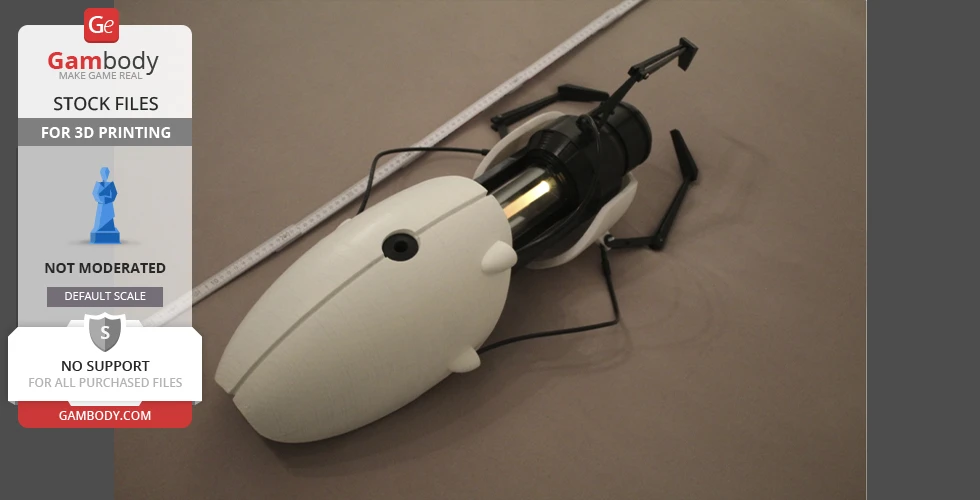

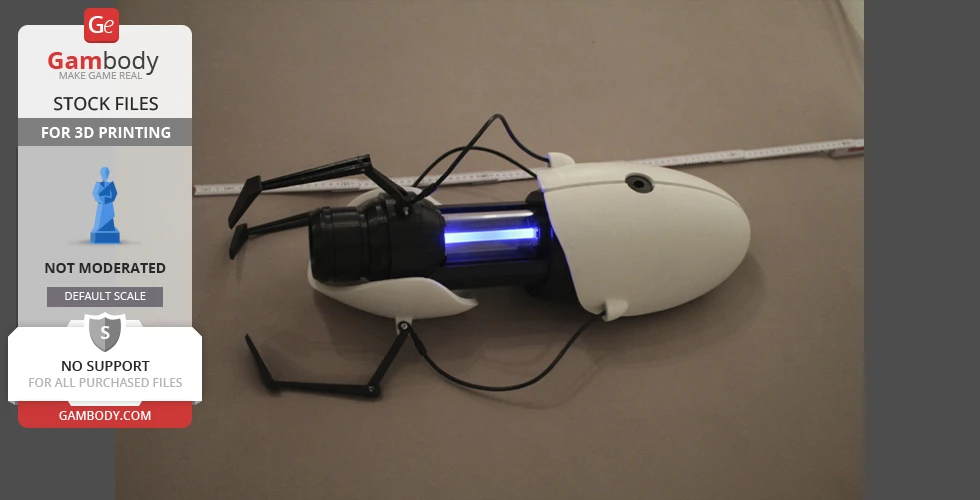

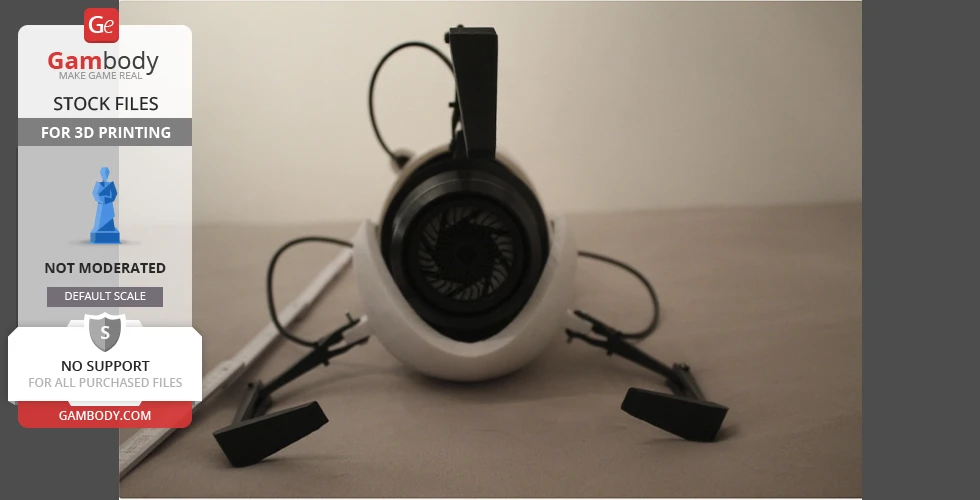

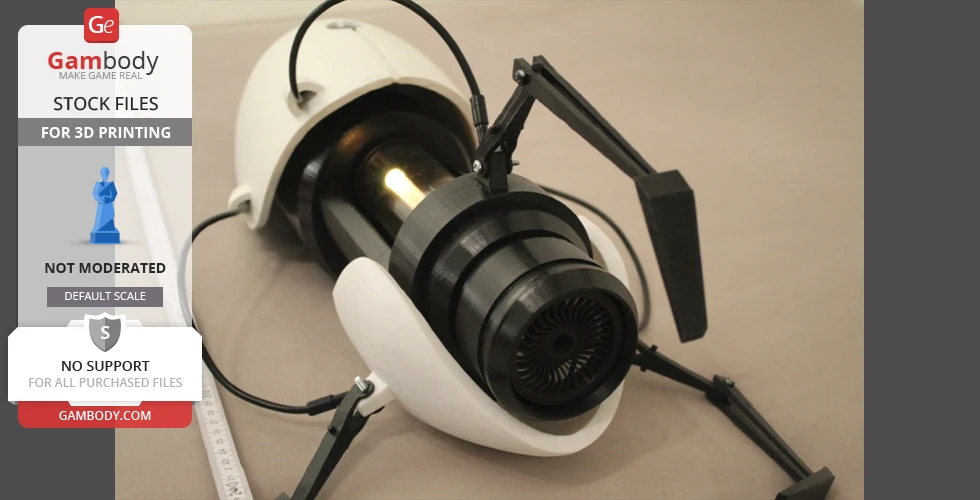

This is a live sized Portal Gun from the video game series Portal and Portal 2 from Valve.

After assembly it will be about 70 cm long which might seem small but trust me that thing is huge. There is more than enough room inside to fit all kinds of electronics. Everything from a few LEDs and simple wiring up to several Rasperry Pi's would fit. The Portal Gun is also designed so that you can take it far enough apart again in case you wanted to change the electronics at a later time.

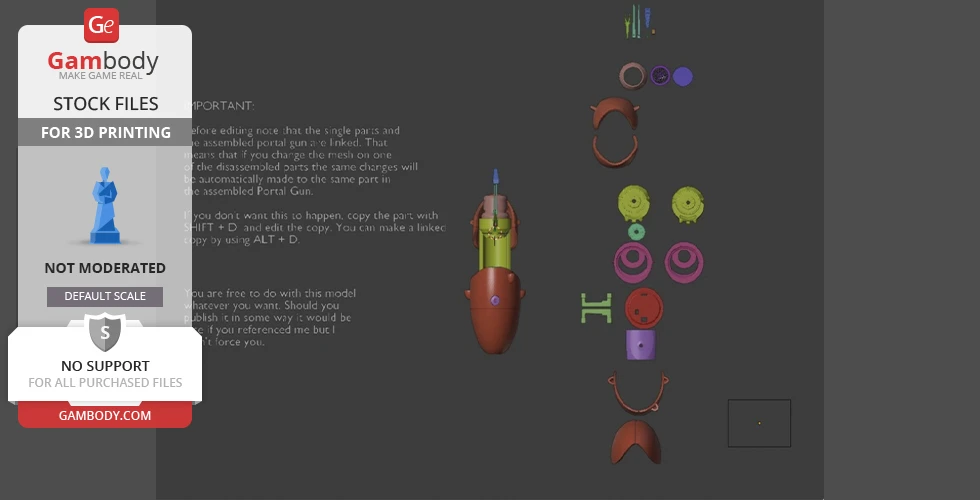

I created this entirely in Blender 2.8 beta.

Generic

  • ~ 1300g Black filament
  • ~ 750g White filament
  • Acryllic glass pipe (Outer diameter: 60mm, inner diameter: 59-54mm, length: 140mm)
  • 6x 20mm M4 Screw + Nut
  • 2x 10+mm M3 Screw
  • ~ 90cm of 5mm thick insulated black cable (doesn't have to be functional)
  • Hotglue stick (diameter: 12mm, length 16+cm) (Not used as glue)
  • Glue (Hotglue works for most things, normal plastic glue for smaller things)
  • Soldering Equipment (Not just for electronics if you want [1])
  • Electronics of choice [2]
  • Patience
