MWO Atlas 3D Printing Model | Assembly + Action

(18)
cm: 24.1 w x 13.1 d x 32.4 h
in: 9.488 w x 5.157 d x 12.756 h

Source Files

|

Description

|

Printing Details

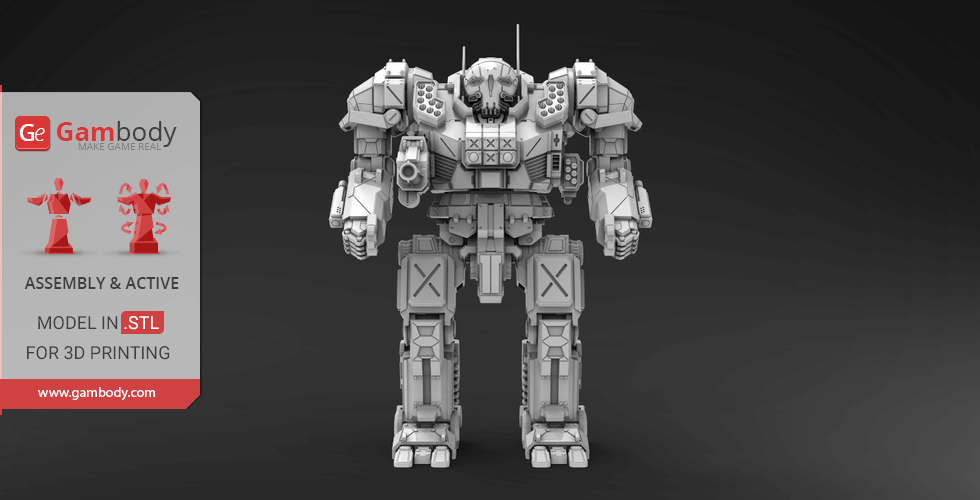

This 3D Model of MWO Atlas consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

2 updated + 1 initial version of MWO Atlas STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase

- STL files of high-poly MWO Atlas 3D Model for 3D printing
Sizes:
FFF/FDM: 324 mm tall, 241 mm wide, 131 mm deep
DLP/SLA/SLS: 194 mm tall, 145 mm wide, 79 mm deep

- Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.


Available versions:
- FFF/FDM 1.0 and FFF/FDM 2.0 versions - versions with outdated joints for filament printers;
- DLP/SLA/SLS 1.0 version - the latest version for resin printers;
- FFF/FDM 2.1 version - the latest updated version with fully reworked joints for filament printers.

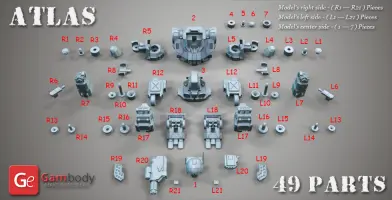

File Name File Size Time / Filament Object Size
(x/y/z mm)
Atlas_1 (repaired) (repai red).stl
3.48 MiB 3 h 1 min 2 m 33 x 37 x 58 Download
Atlas_2 (repaired) (repai red).stl
6.47 MiB 26 h 12 min 16 m 100 x 74 x 80 Download
Atlas_4 (repaired) (repai red).stl
0.26 MiB 20 min <1 m 19 x 19 x 10 Download
Atlas_5 (repaired) (repai red).stl
0.16 MiB 9 min <1 m 10 x 10 x 15 Download
Atlas_6 (repaired) (repai red).stl
0.27 MiB 13 min <1 m 13 x 13 x 9 Download
Atlas_7 (repaired) (repai red).stl
0.23 MiB 22 min <1 m 19 x 19 x 10 Download
Atlas_L1 (repaired) (repa ired).stl
0.24 MiB 17 min <1 m 15 x 15 x 10 Download
Atlas_L2 (repaired) (repa ired).stl
0.16 MiB 13 min <1 m 12 x 12 x 17 Download
Atlas_L3 (repaired) (repa ired).stl
0.26 MiB 26 min <1 m 21 x 21 x 12 Download
Atlas_L4 (repaired) (repa ired).stl
0.24 MiB 57 min 1 m 25 x 27 x 23 Download
Atlas_L5 (repaired) (repa ired).stl
3.36 MiB 5 h 2 min 3 m 77 x 49 x 41 Download
Atlas_L6 (repaired) (repa ired).stl
1.67 MiB 34 min <1 m 29 x 29 x 16 Download
Atlas_L7 (repaired) (repa ired).stl
3.68 MiB 4 h 6 min 2 m 26 x 31 x 78 Download
Atlas_L8 (repaired) (repa ired).stl
0.66 MiB 34 min <1 m 28 x 30 x 15 Download
Atlas_L9 (repaired) (repa ired).stl
0.60 MiB 15 min <1 m 17 x 16 x 9 Download
Atlas_L10 (repaired) (rep aired).stl
1.10 MiB 31 min <1 m 13 x 13 x 45 Download
Atlas_L11 (repaired) (rep aired).stl
0.20 MiB 20 min <1 m 18 x 18 x 12 Download
Atlas_L12 (repaired) (rep aired).stl
3.01 MiB 4 h 48 min 3 m 39 x 67 x 32 Download
Atlas_L13 (repaired) (rep aired).stl
0.38 MiB 10 min <1 m 15 x 15 x 6 Download
Atlas_L14 (repaired) (rep aired).stl
0.40 MiB 14 min <1 m 13 x 13 x 23 Download
Atlas_L15 (repaired) (rep aired).stl
0.38 MiB 22 min <1 m 20 x 20 x 9 Download
Atlas_L16 (repaired) (rep aired).stl
0.40 MiB 28 min <1 m 19 x 19 x 27 Download
Atlas_L17 (repaired) (rep aired).stl
3.05 MiB 6 h 40 min 4 m 35 x 46 x 71 Download
Atlas_L18 (repaired) (rep aired).stl
2.36 MiB 4 h 3 min 2 m 39 x 76 x 23 Download
Atlas_L19 (repaired) (rep aired).stl
4.14 MiB 44 min <1 m 19 x 34 x 10 Download
Atlas_L20 (repaired) (rep aired).stl
2.34 MiB 1 h 20 min 1 m 29 x 27 x 22 Download
Atlas_L21 (repaired) (rep aired).stl
0.24 MiB 8 min <1 m 8 x 7 x 8 Download
Atlas_R1 (repaired) (repa ired).stl
0.24 MiB 17 min <1 m 15 x 15 x 10 Download
Atlas_R2 (repaired) (repa ired).stl
0.16 MiB 13 min <1 m 12 x 12 x 17 Download
Atlas_R3 (repaired) (repa ired).stl
0.27 MiB 26 min <1 m 21 x 21 x 12 Download
Atlas_R4 (repaired) (repa ired).stl
0.23 MiB 57 min 1 m 25 x 27 x 23 Download
Atlas_R5 (repaired) (repa ired).stl
3.36 MiB 5 h 4 min 3 m 77 x 49 x 41 Download
Atlas_R6 (repaired) (repa ired).stl
1.67 MiB 35 min <1 m 29 x 29 x 16 Download
Atlas_R7 (repaired) (repa ired).stl
3.68 MiB 4 h 10 min 2 m 26 x 31 x 78 Download
Atlas_R8 (repaired) (repa ired).stl
0.66 MiB 34 min <1 m 28 x 30 x 15 Download
Atlas_R9 (repaired) (repa ired).stl
0.60 MiB 15 min <1 m 17 x 16 x 9 Download
Atlas_R10 (repaired) (rep aired).stl
1.10 MiB 31 min <1 m 13 x 13 x 45 Download
Atlas_R11 (repaired) (rep aired).stl
0.20 MiB 20 min <1 m 18 x 18 x 12 Download
Atlas_R12 (repaired) (rep aired).stl
3.01 MiB 4 h 49 min 3 m 39 x 67 x 32 Download
Atlas_R13 (repaired) (rep aired).stl
0.38 MiB 10 min <1 m 15 x 15 x 6 Download
Atlas_R14 (repaired) (rep aired).stl
0.40 MiB 14 min <1 m 13 x 13 x 23 Download
Atlas_R15 (repaired) (rep aired).stl
0.38 MiB 21 min <1 m 20 x 20 x 9 Download
Atlas_R16 (repaired) (rep aired).stl
0.40 MiB 28 min <1 m 19 x 19 x 27 Download
Atlas_R17 (repaired) (rep aired).stl
3.05 MiB 6 h 40 min 4 m 35 x 46 x 71 Download
Atlas_R18 (repaired) (rep aired).stl
2.36 MiB 4 h 2 min 2 m 39 x 76 x 23 Download
Atlas_R19 (repaired) (rep aired).stl
4.14 MiB 44 min <1 m 19 x 34 x 10 Download
Atlas_R20 (repaired) (rep aired).stl
2.63 MiB 2 h 55 min 2 m 39 x 74 x 20 Download
Atlas_R21 (repaired) (rep aired).stl
0.24 MiB 8 min <1 m 8 x 7 x 8 Download
3 (repaired).stl
4.82 MiB 8 h 37 min 5 m 75 x 54 x 65 Download
...

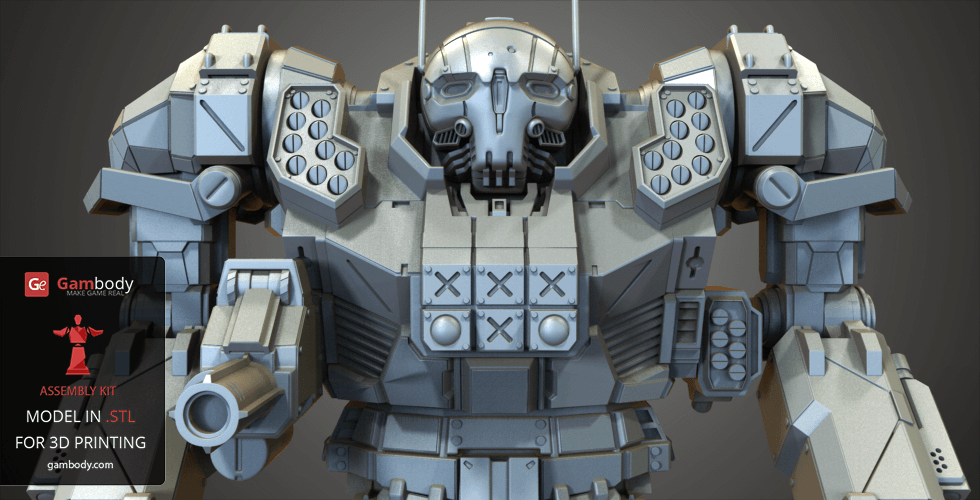

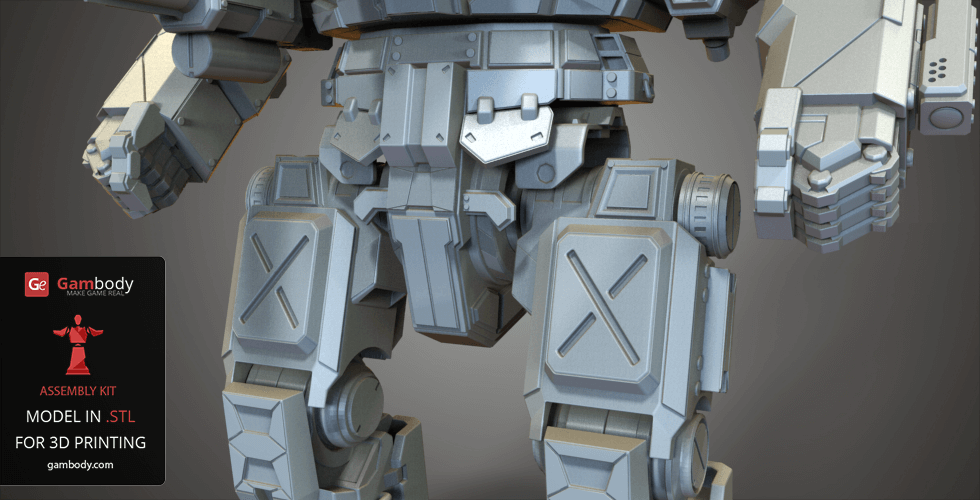

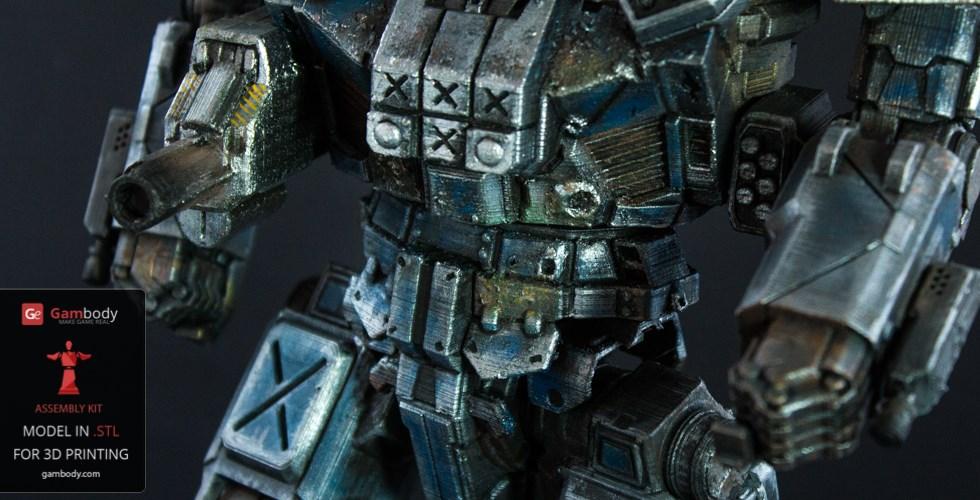

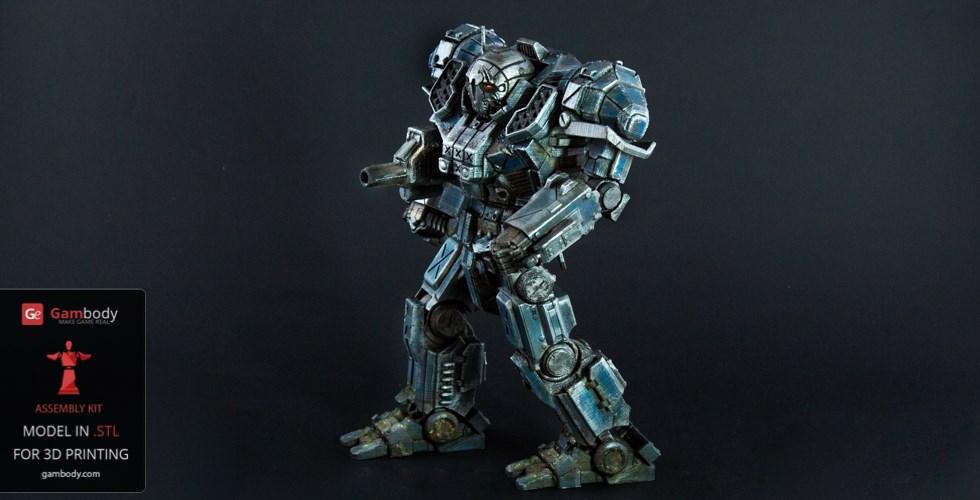

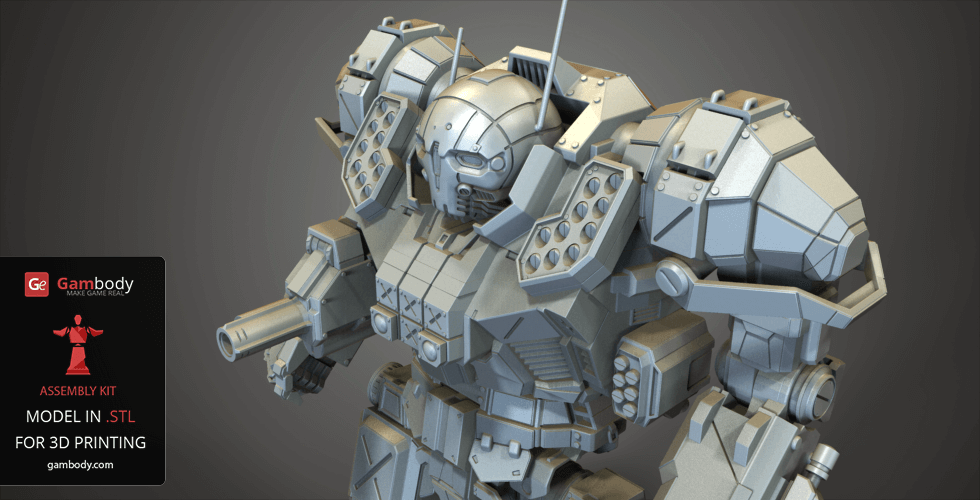

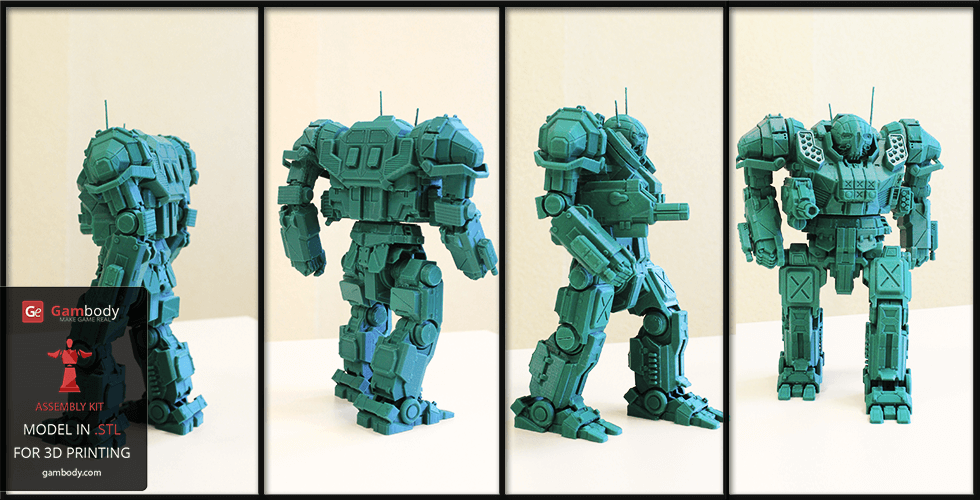

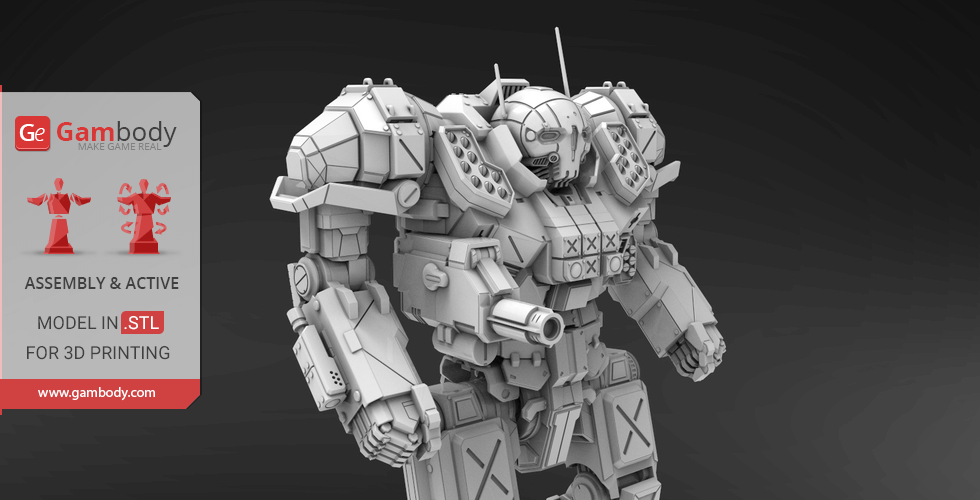

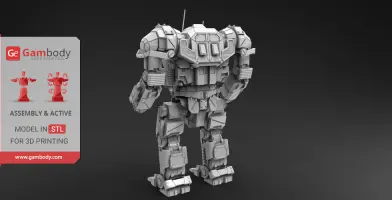

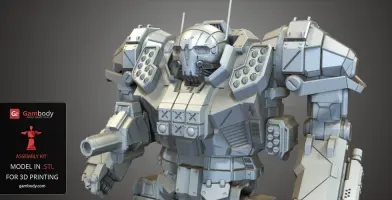

ABOUT THIS 3D MODEL

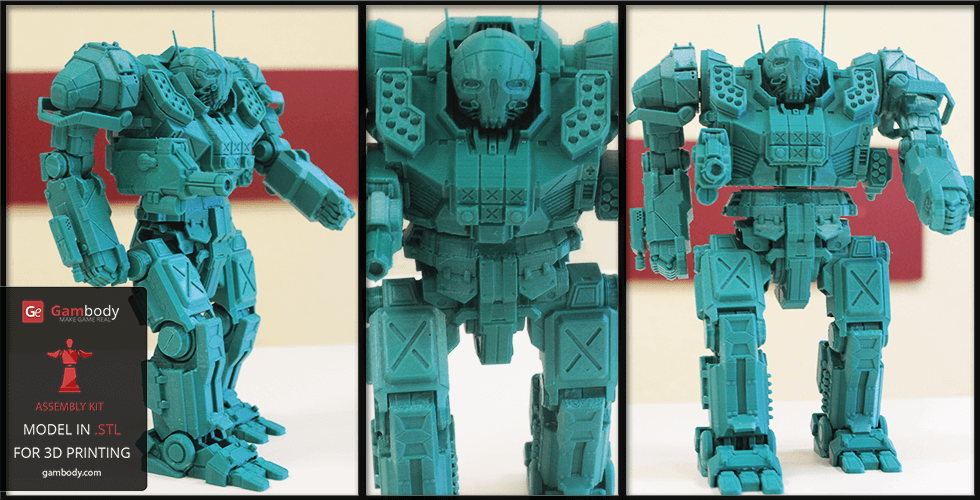

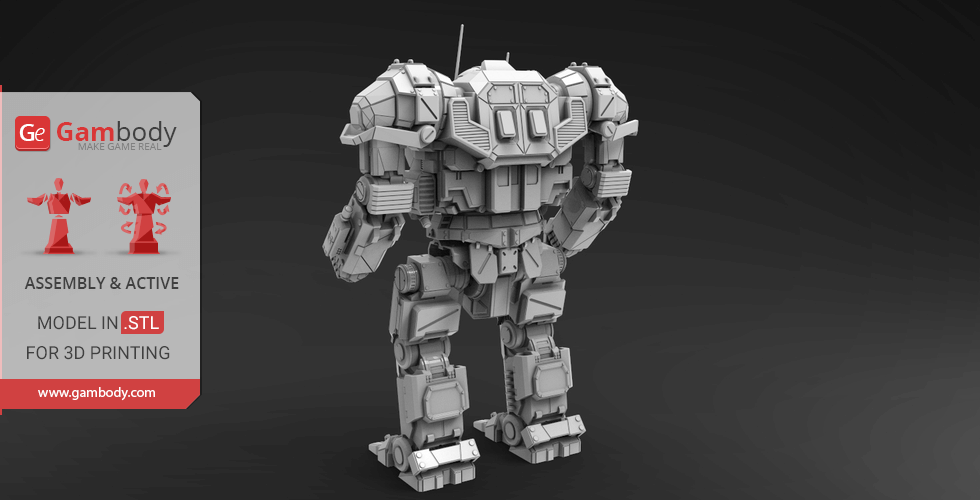

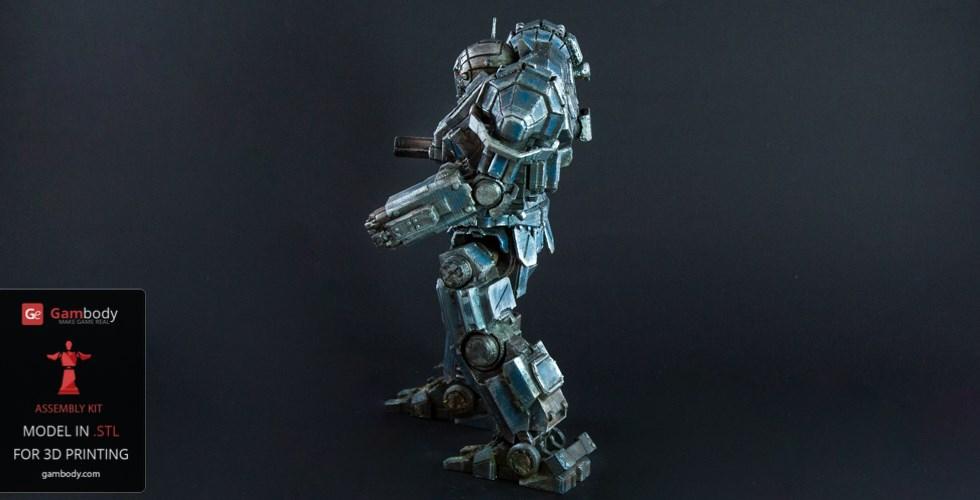

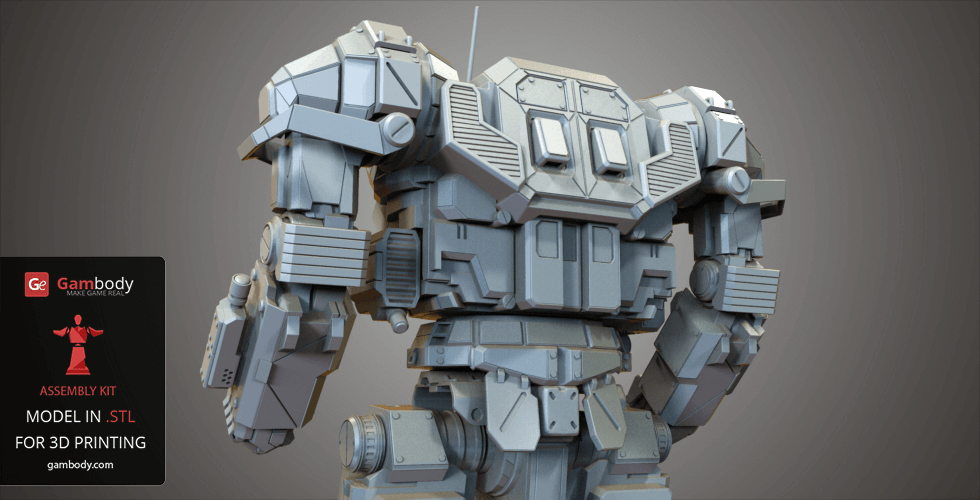

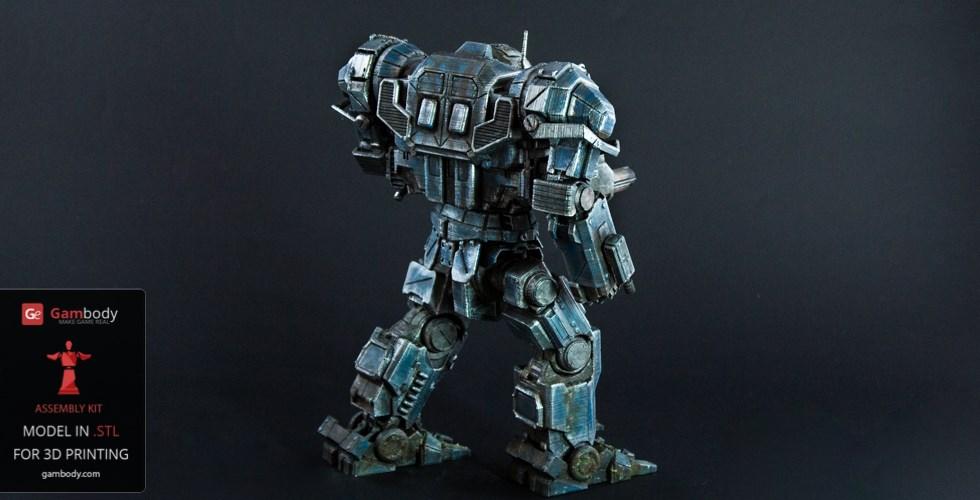

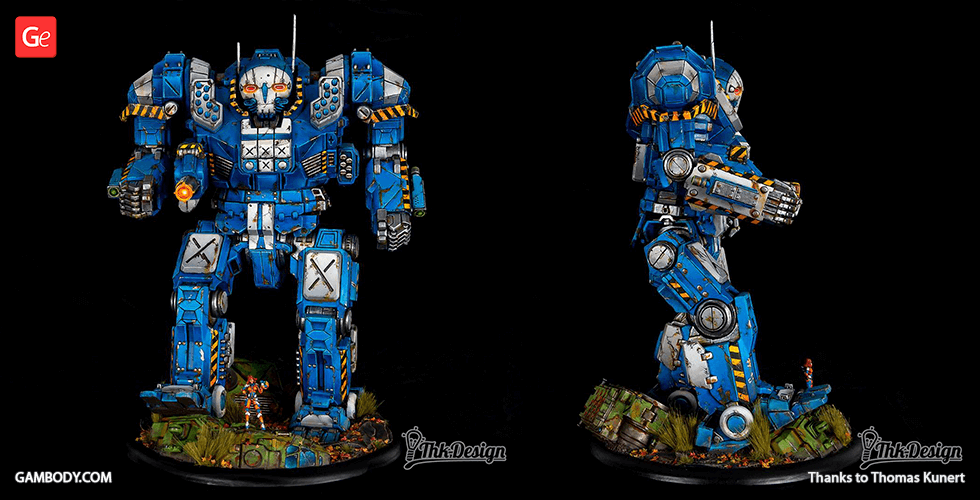

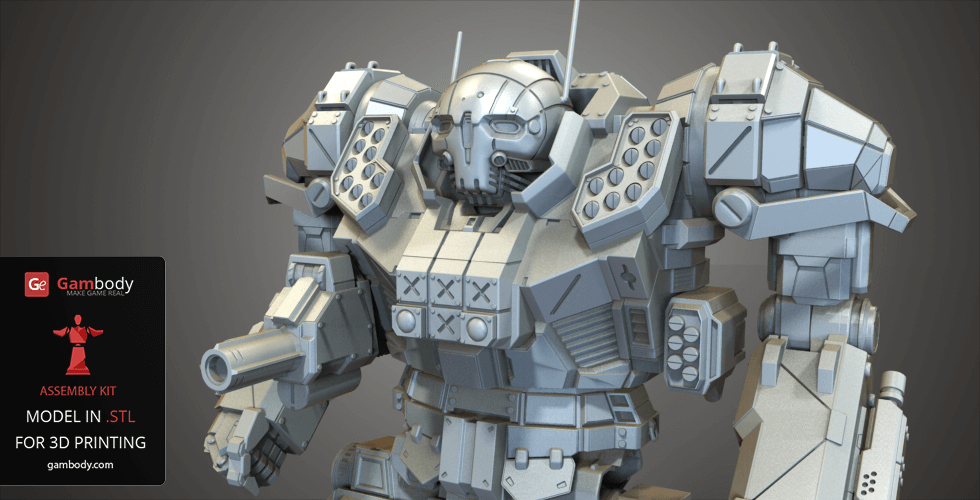

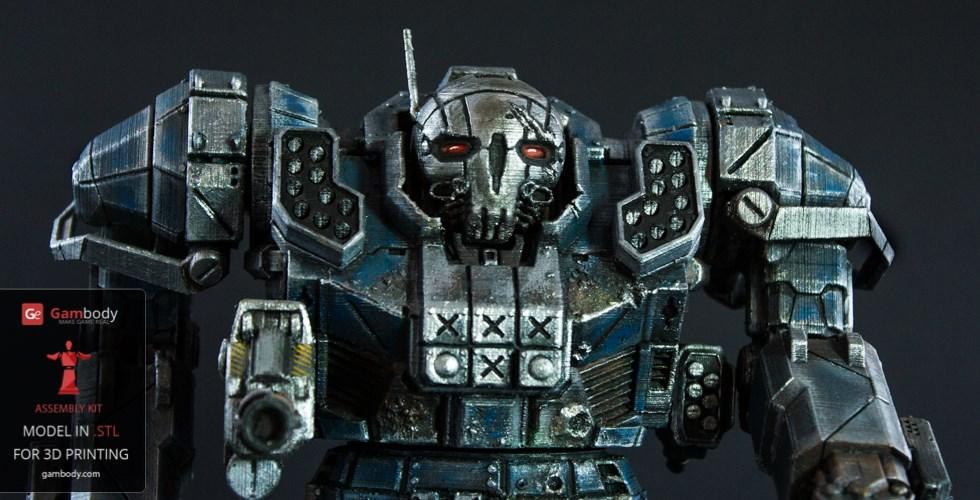

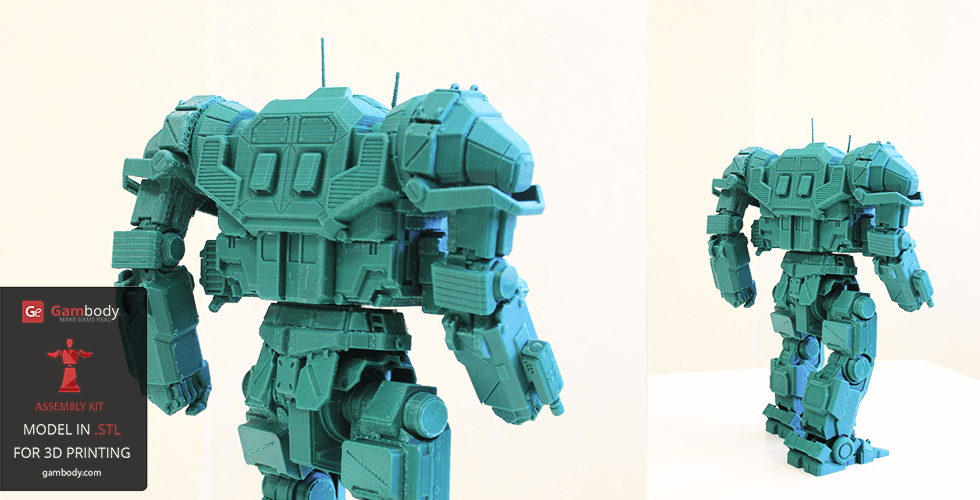

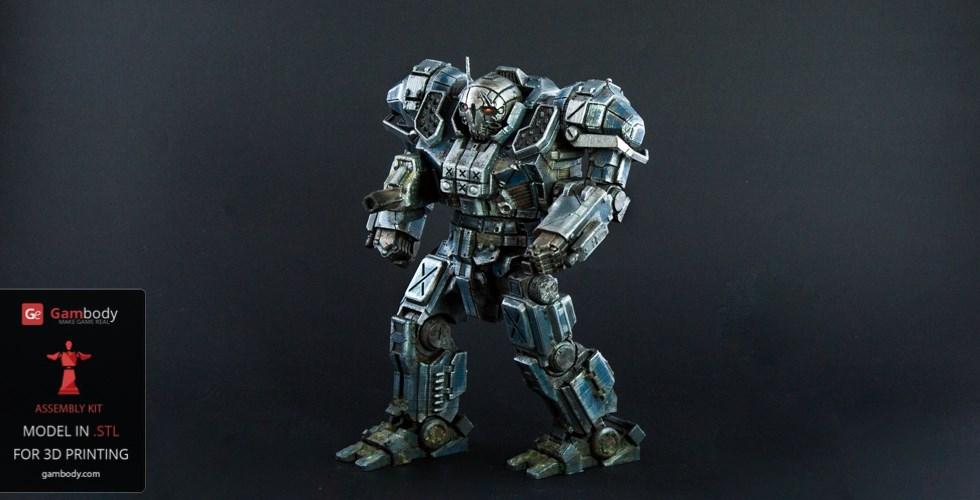

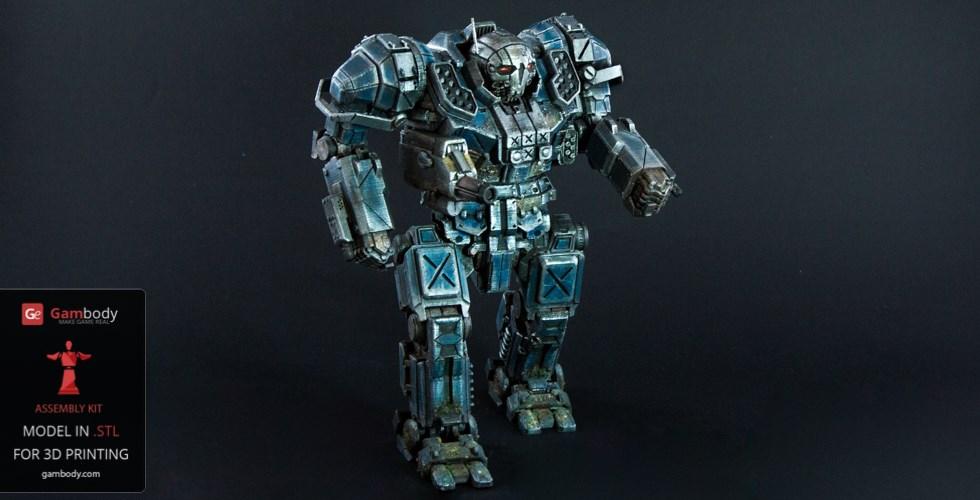

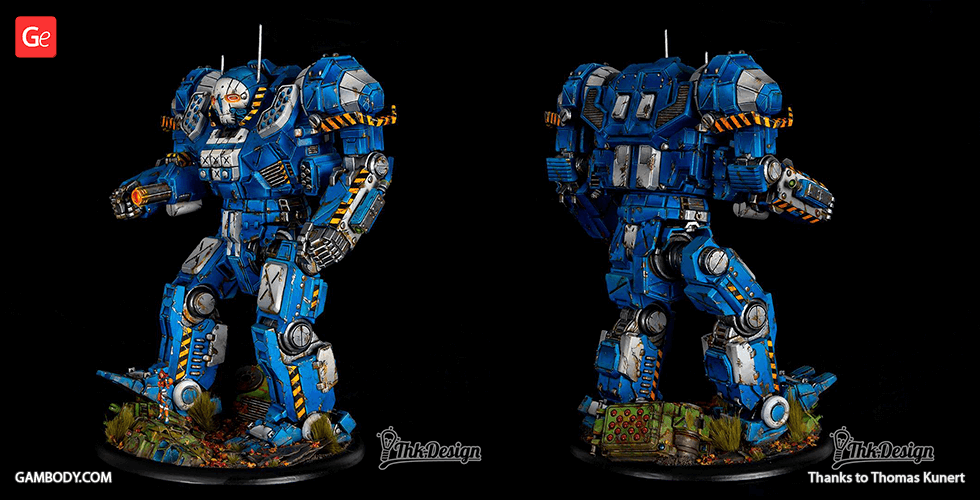

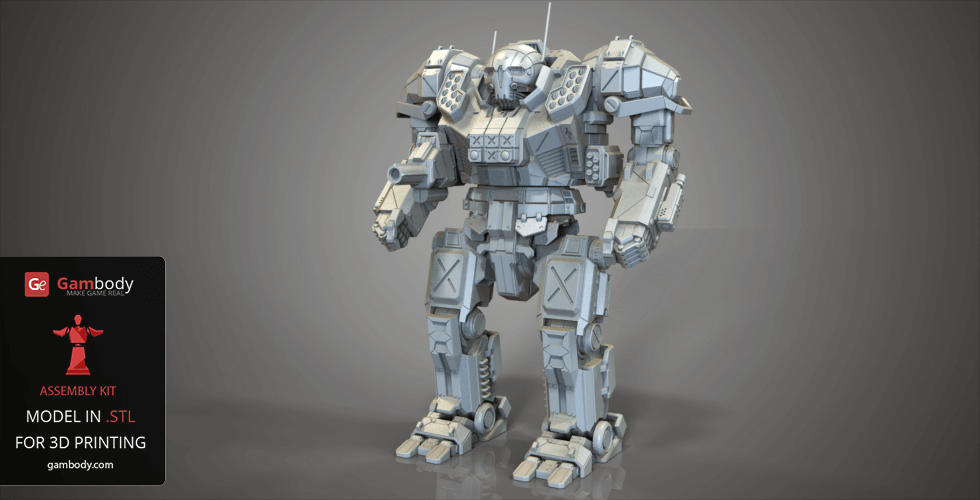

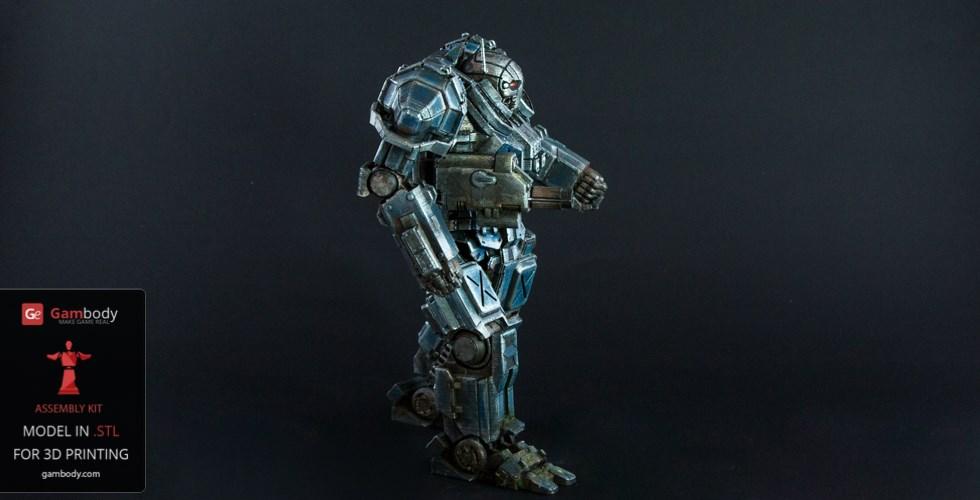

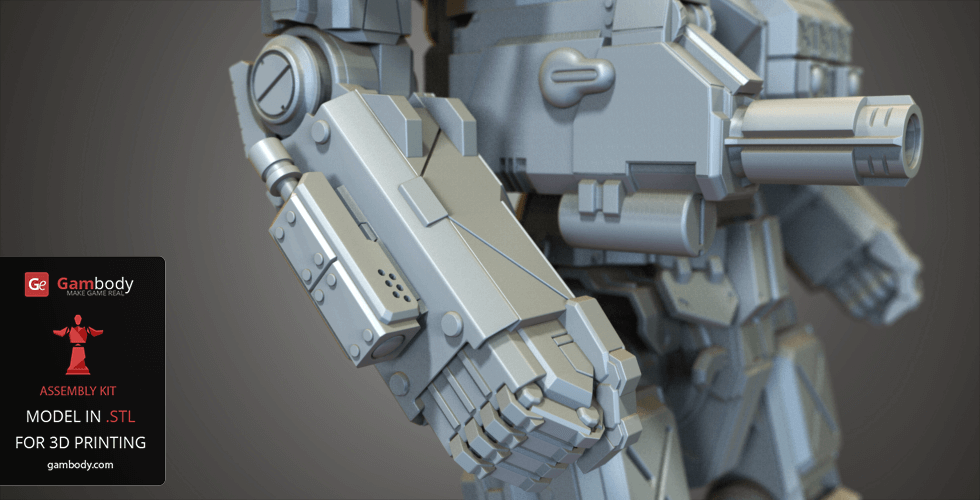

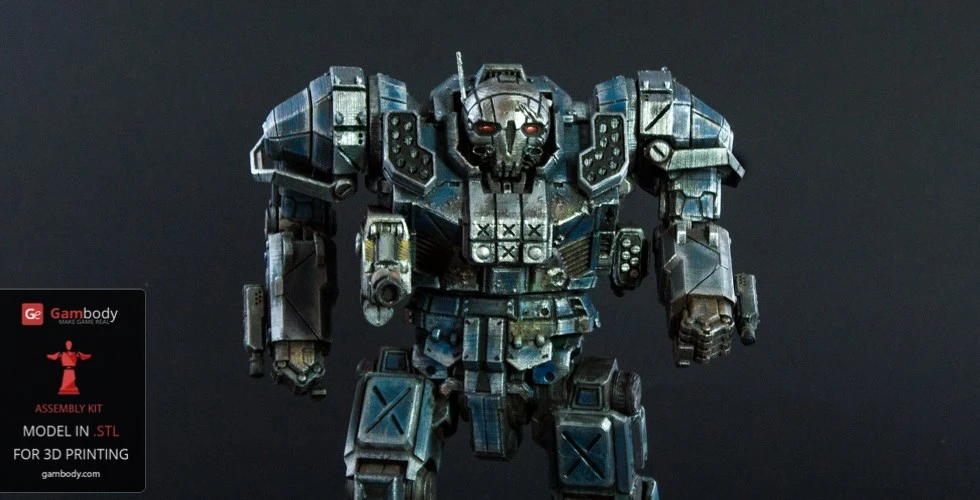

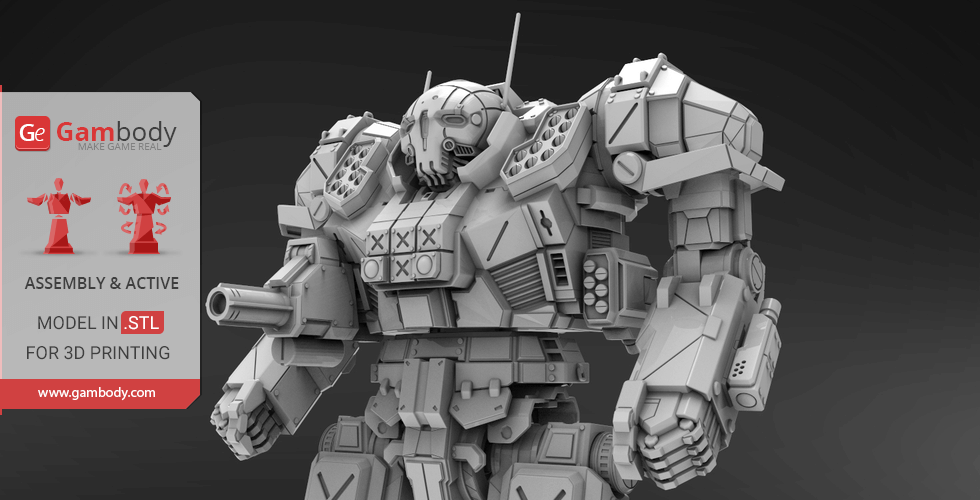

MWO Atlas 3D model is inspired by the most powerful and feared Mech of all time. Being equipped with an Autocannon 20 and Medium Lasers, the Mech can take down any lighter Mechs in one shot. This ability makes it sought after by fans of the video game, enabling them to gain additional power and an ally in their online BattleMech Universe.

ADAPTATION FOR 3D PRINTING

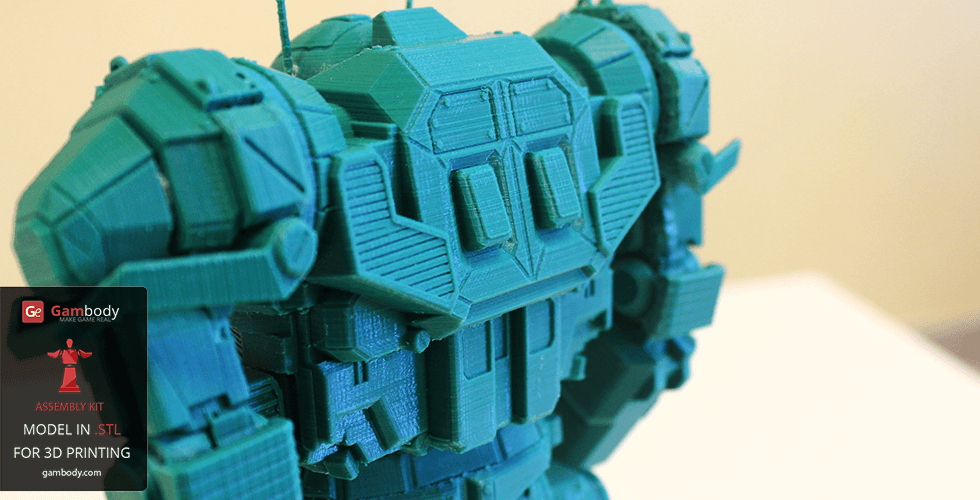

MWO Atlas for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 30 hours in total.

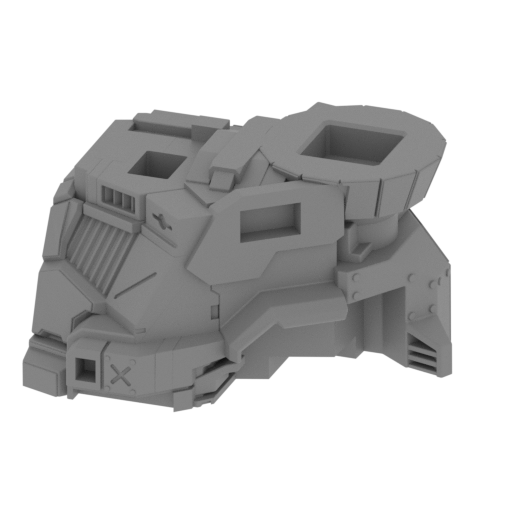

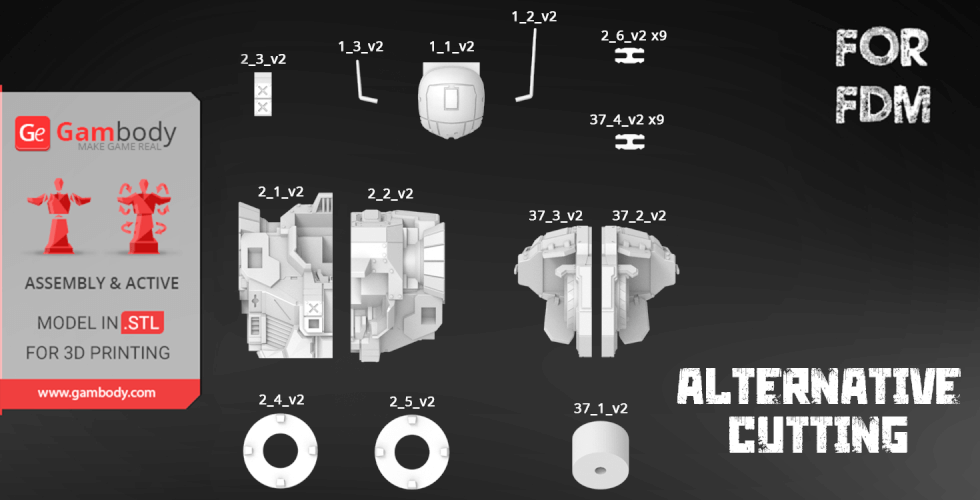

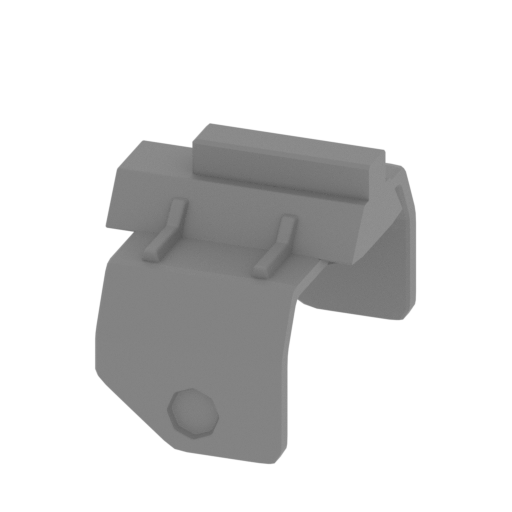

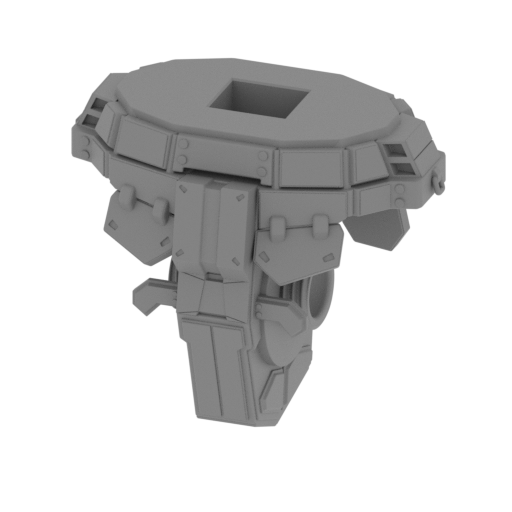

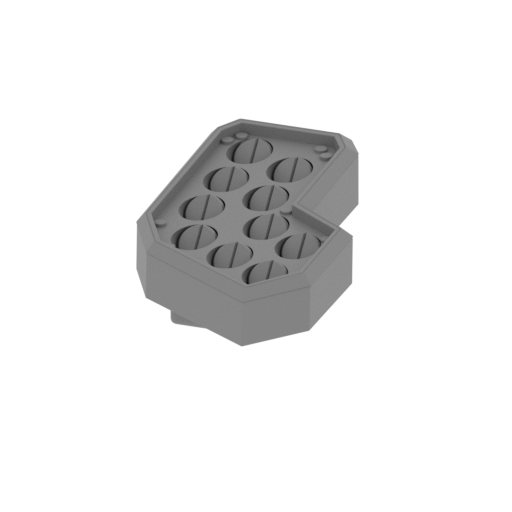

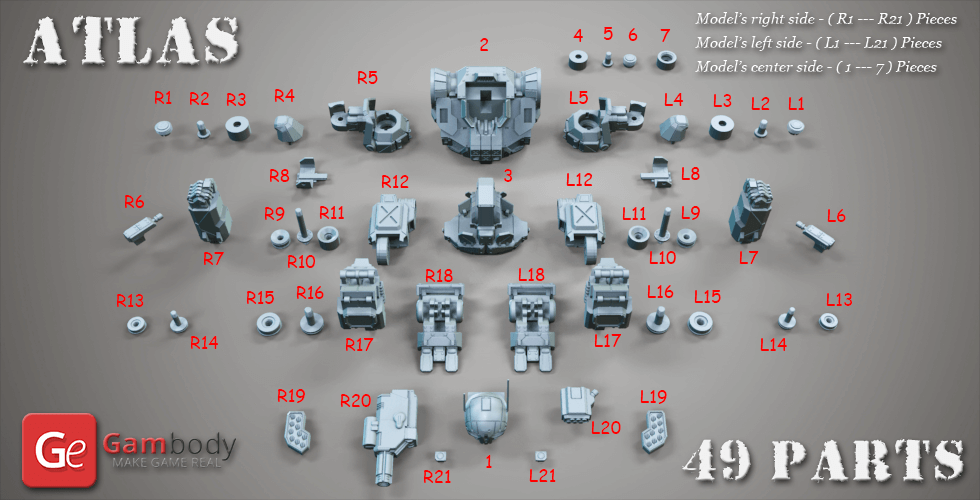

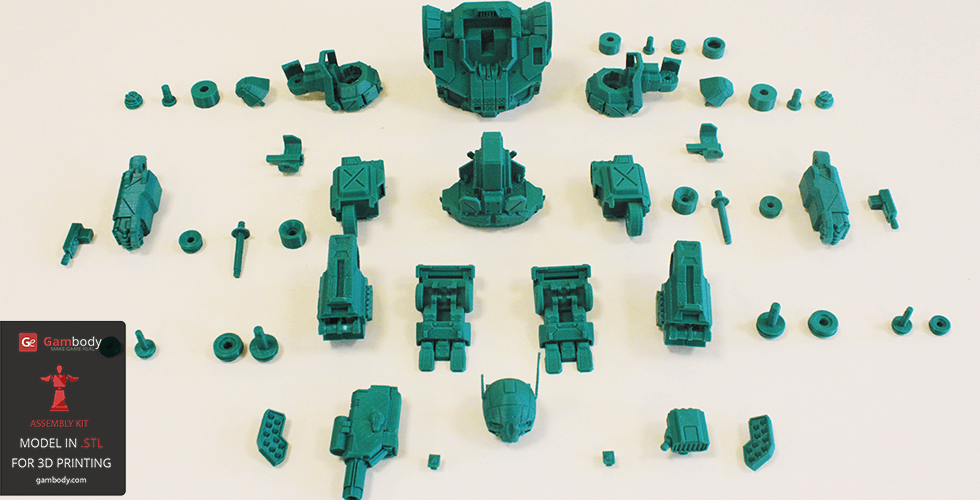

For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support, the MWO Atlas model was divided into many assembly parts.

All assembly parts in the FFF/FDM versions are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. We highly recommend that you get acquainted with the “Assembly video” before getting down to the MWO Atlas model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

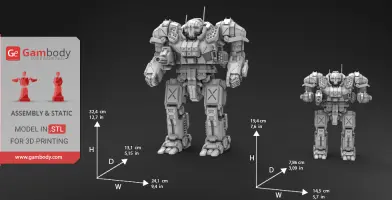

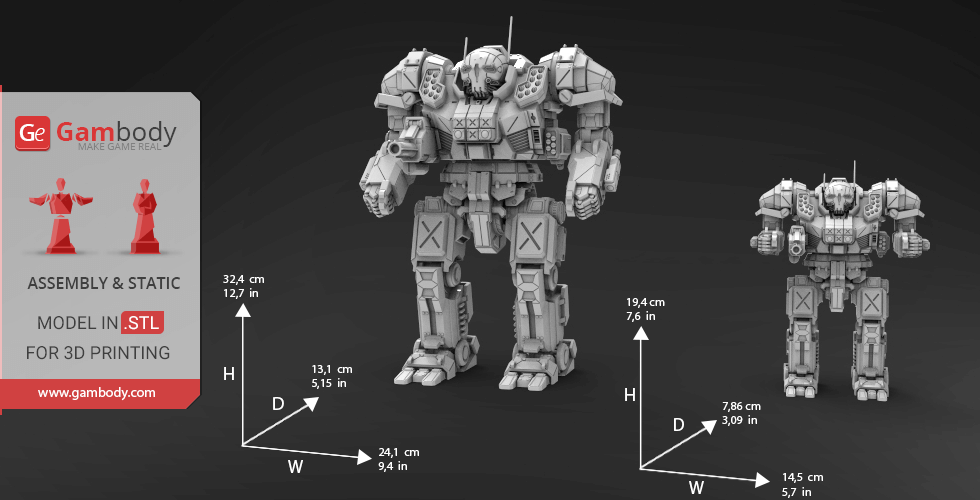

The 3D printing model’s chosen scales are 1:60 for the FFF/FDM version and 1:100 for the DLP/SLA version.

VERSIONS' SPECIFICATIONS

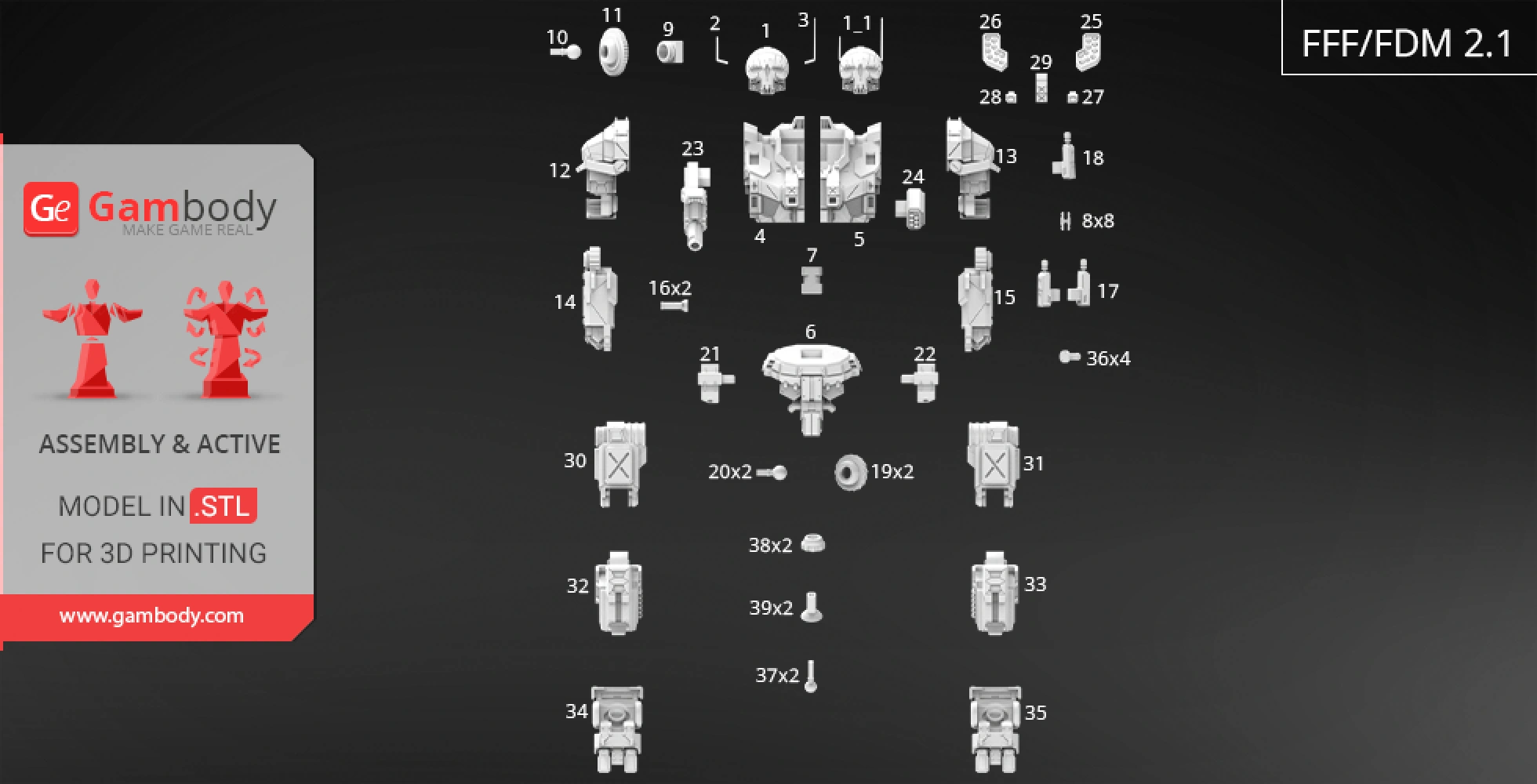

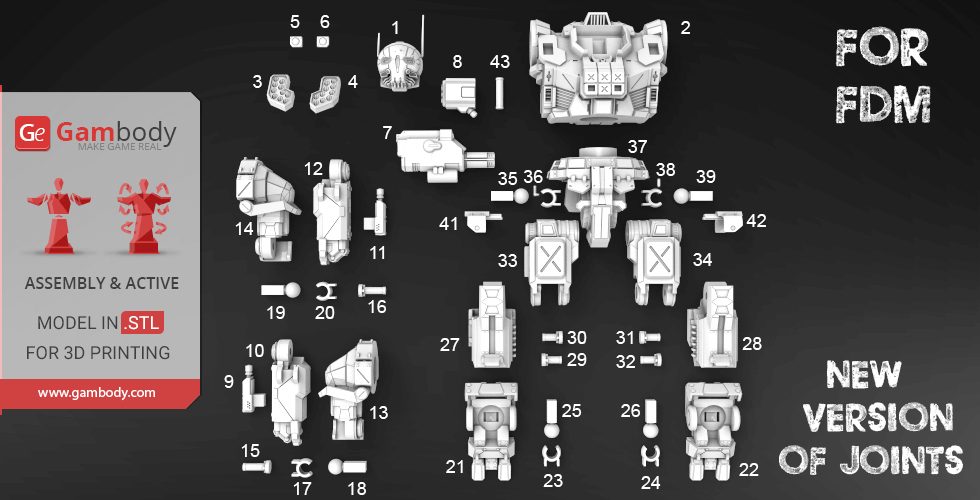

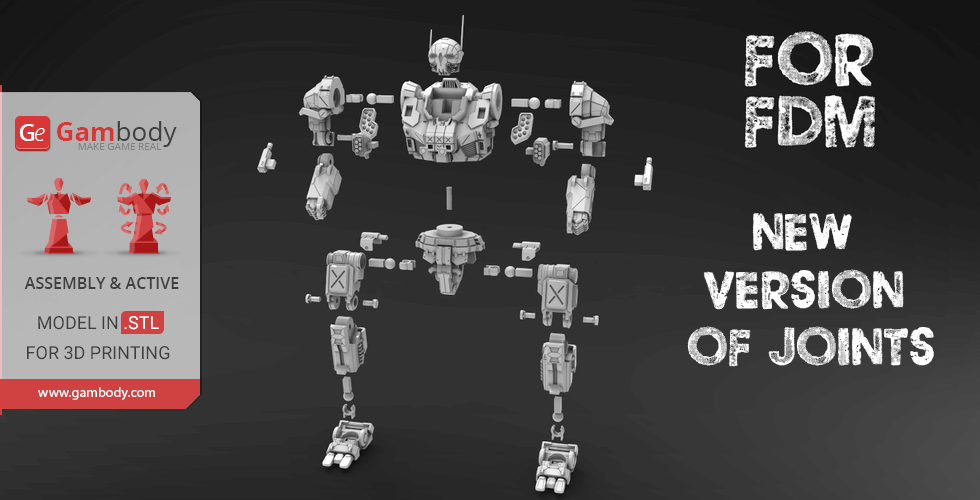

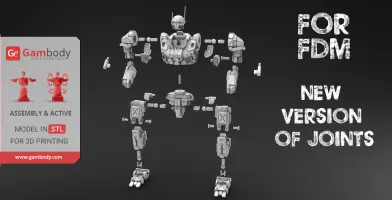

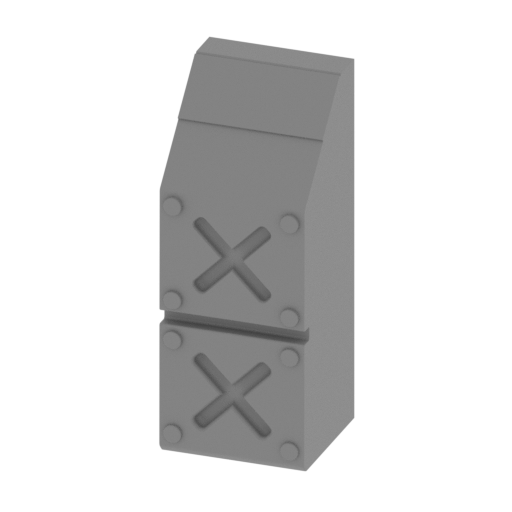

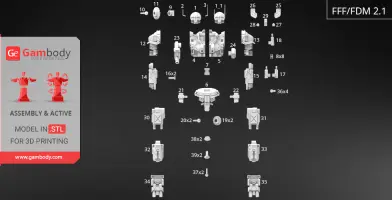

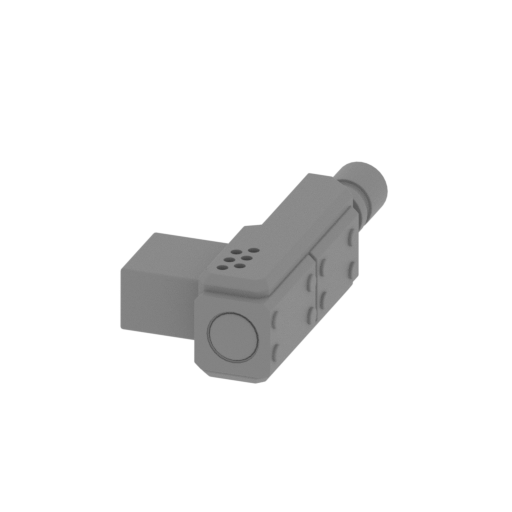

FFF/FDM 2.1 version features:
- Contains 39 parts;

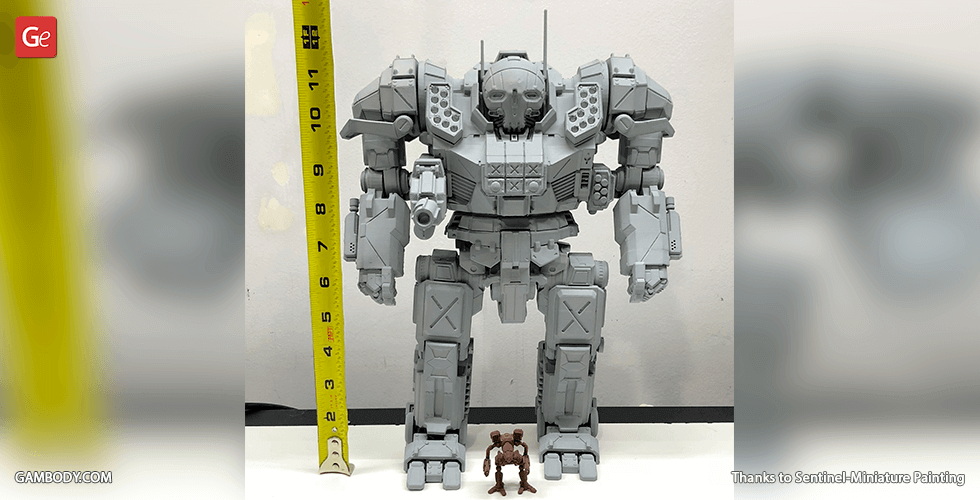

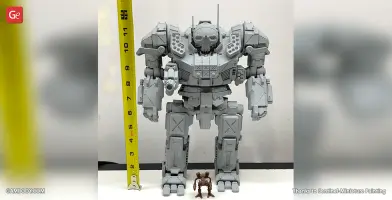

- A printed model stands 324 mm tall, 241 mm wide, 131 mm deep;
- Fully articulated model;

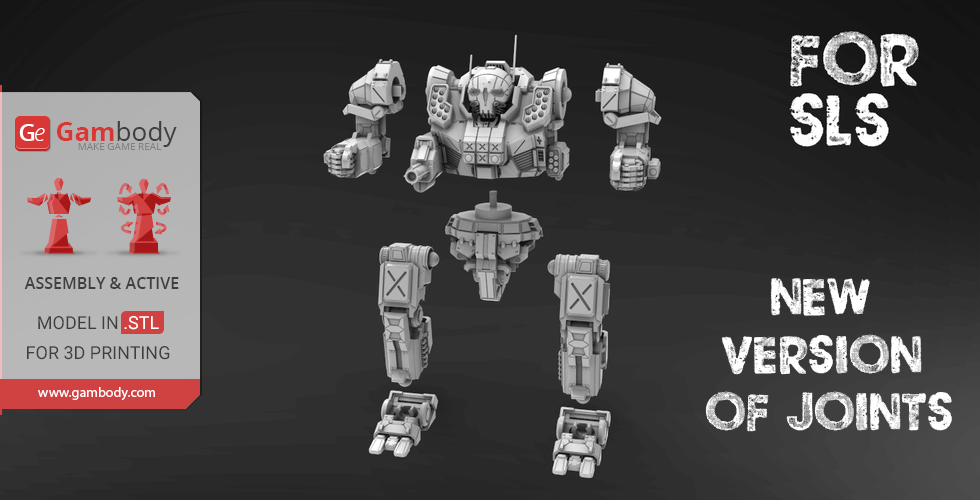

- Completely reworked joints;

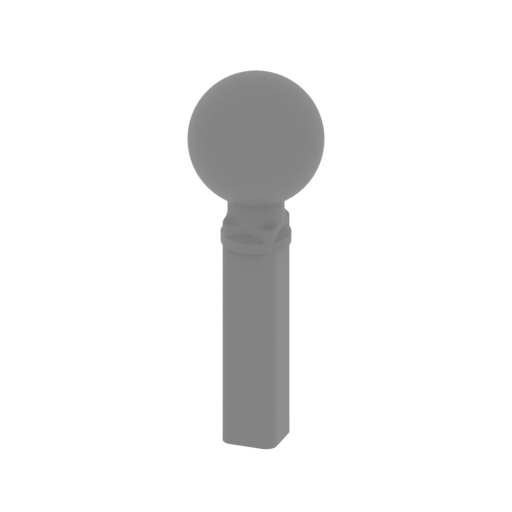

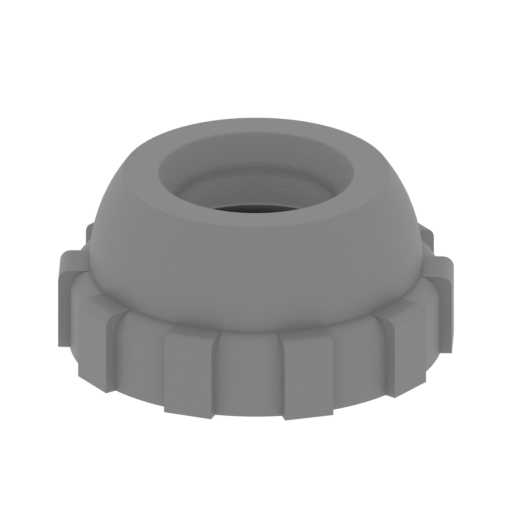

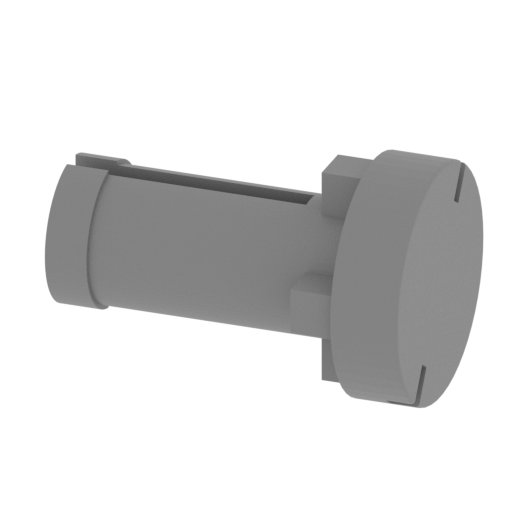

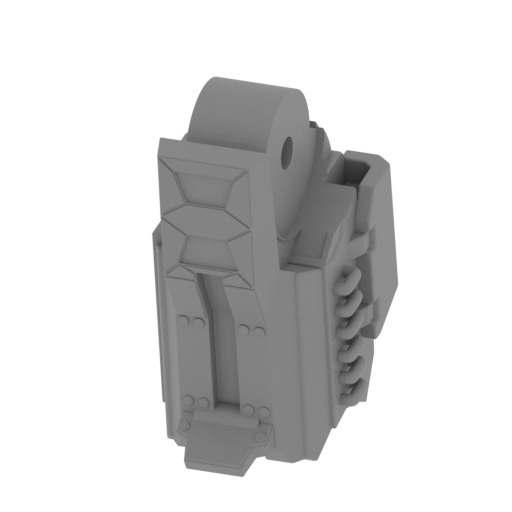

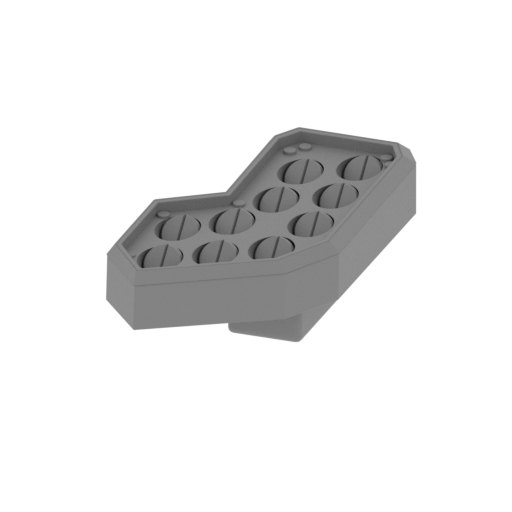

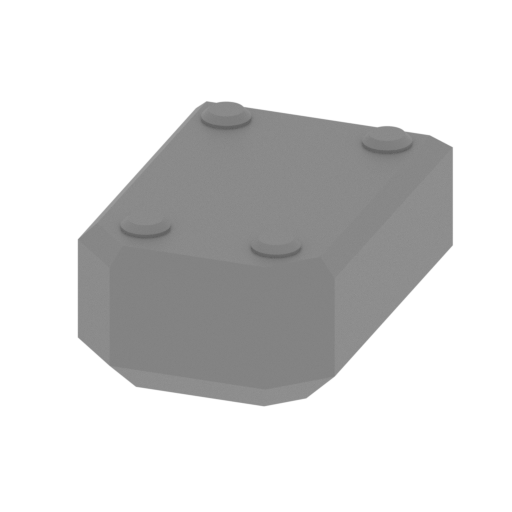

- The number of required printed copies of a part is indicated in the file's name - e.g. "36_kneeJoin_x4_FDM" needs to be printed 4 times;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

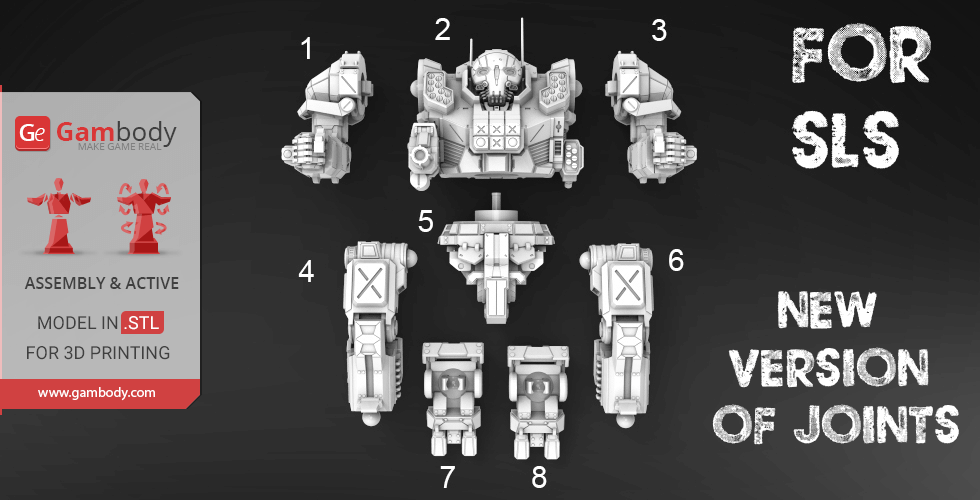

DLP/SLA/SLS 1.0 version features:
- Contains 9 parts;
- A printed model stands 194 mm tall, 145 mm wide, 79 mm deep;
- Fully articulated model;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

FFF/FDM 2.0 & FFF/FDM 1.0 versions features:
- The previous versions of MWO Atlas;
- Feature outdated joints.

You can get the model of MWO Atlas for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial video on how to assemble Atlas MWO 3D Printing Model on Gambody YouTube channel

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?



Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
  • All connectors should be printed at 100% Infill.

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
