Nautilus Submarine 3D Printing Model | Assembly + Active

(8)
cm: 10.2 w x 55 d x 15.5 h
in: 4.016 w x 21.654 d x 6.102 h

Source Files

|

Description

|

Printing Details

This 3D model of Nautilus Submarine inspired by the 20,000 Leagues Under the Sea universe consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

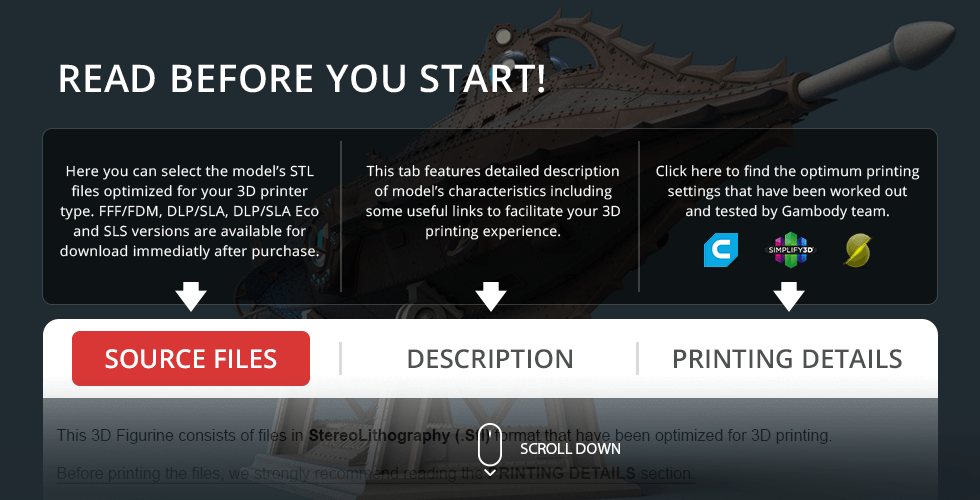

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 2 versions of the Nautilus STL files for FFF/FDMDLP/SLA 3D printers - files for each version are available for download after the purchase
  • STL files of high-poly Captain Nemo’s Nautilus 3D Model for 3D printing consist of 110 parts

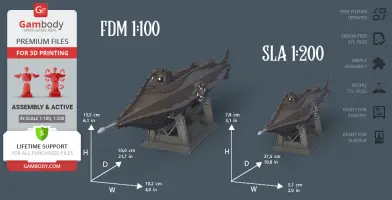

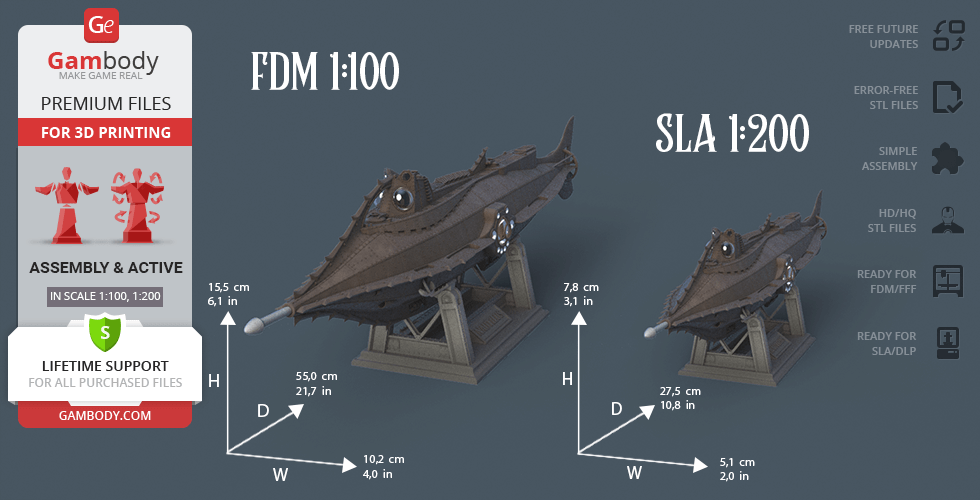

  • Sizes for:
  • FFF/FDM: 115 mm tall, 98 mm wide, 550 mm deep
  • FFF/FDM (on the platform): 155 mm tall, 102 mm wide, 550 mm deep
  • DLP/SLA: 58 mm tall, 49 mm wide, 275 mm deep
  • DLP/SLA (on the platform): 78 mm tall, 51 mm wide, 275 mm deep
  • Assembly Manual for FFF/FDM and DLP/SLA versions in PDF format
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
  • Full technical support from the Gambody Support Team

Detailed information about this 3D printing figurine is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

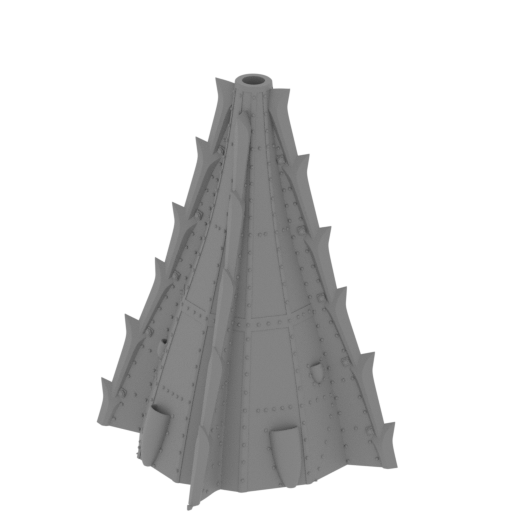

_01_bodyPartNose_a_FDM (r epaired).stl
53.63 MiB 9 h 22 min 4 m 75 x 91 x 91 Download

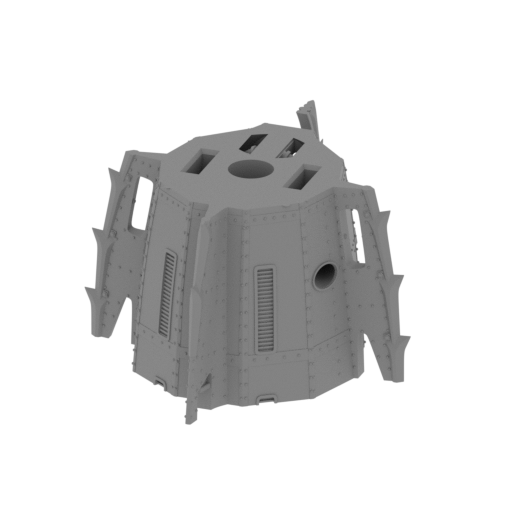

_02_bodyPartNose_b_FDM (r epaired).stl
89.15 MiB 20 h 4 min 10 m 98 x 111 x 57 Download

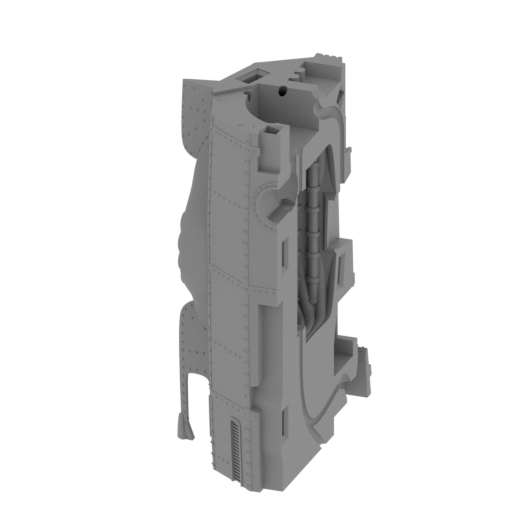

_03_bodyPartMid_L_FDM (re paired).stl
76.32 MiB 25 h 59 min 14 m 47 x 88 x 127 Download

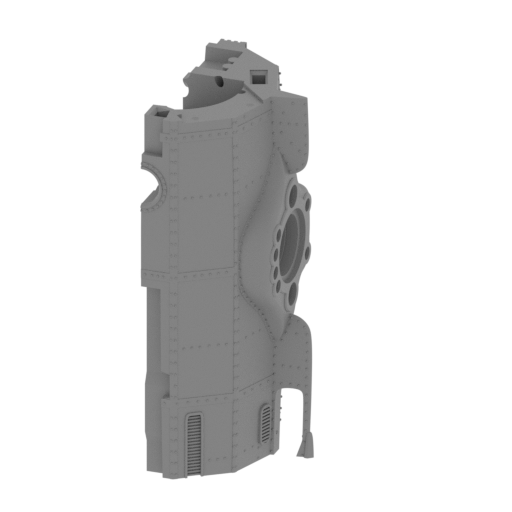

_04_bodyPartMid_R_FDM (re paired).stl
76.41 MiB 25 h 46 min 14 m 47 x 88 x 127 Download

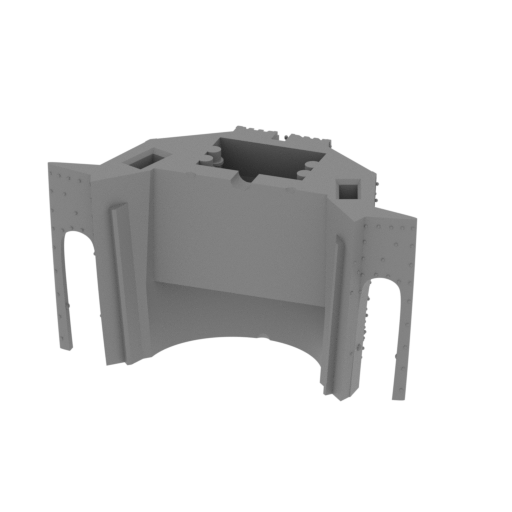

_05_bodyPart_MidT_FDM (re paired).stl
25.34 MiB 8 h 12 min 4 m 90 x 44 x 46 Download

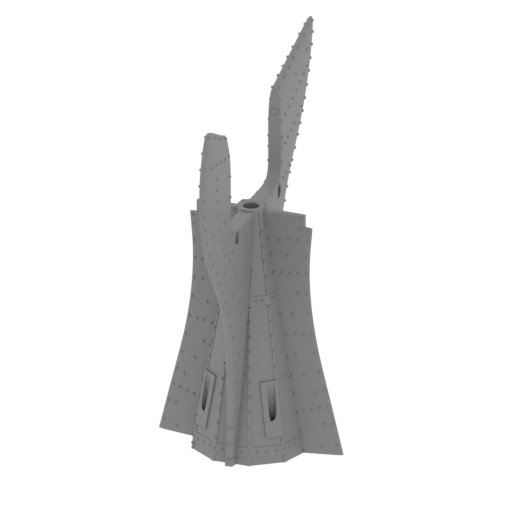

_07_bodyPartTail_b_FDM (r epaired).stl
39.33 MiB 5 h 29 min 3 m 52 x 85 x 104 Download

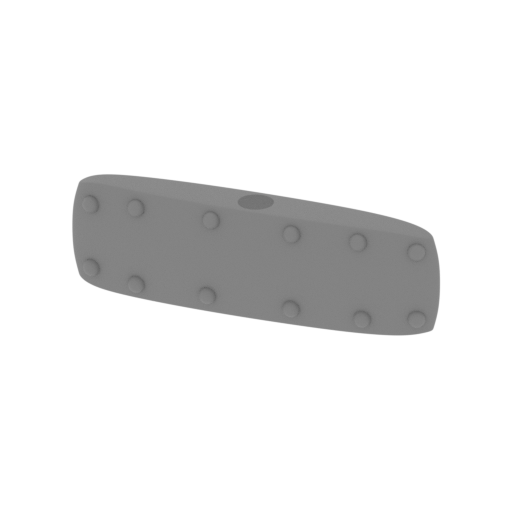

_08_elevator_a_X2_FDM (re paired).stl
3.32 MiB 5 min <1 m 18 x 3 x 5 Download

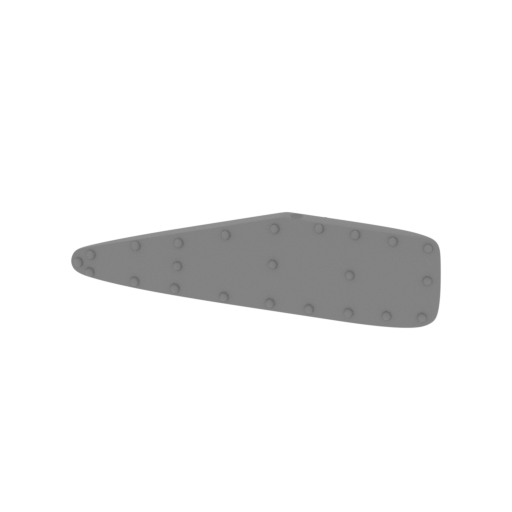

_09_elevator_b_X2_FDM (re paired).stl
5.48 MiB 9 min <1 m 34 x 4 x 9 Download

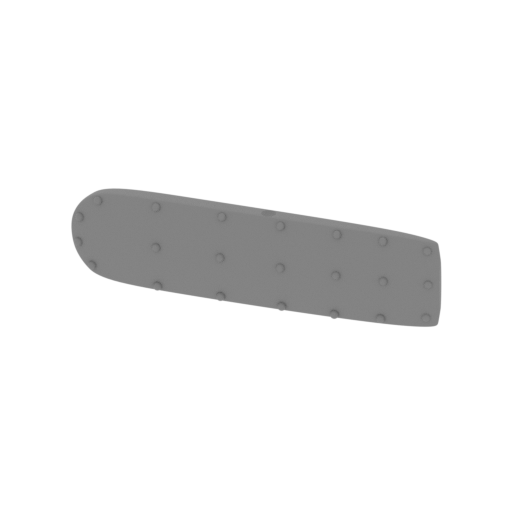

_10_elevator_c_X2_FDM (re paired).stl
3.01 MiB 10 min <1 m 36 x 4 x 9 Download

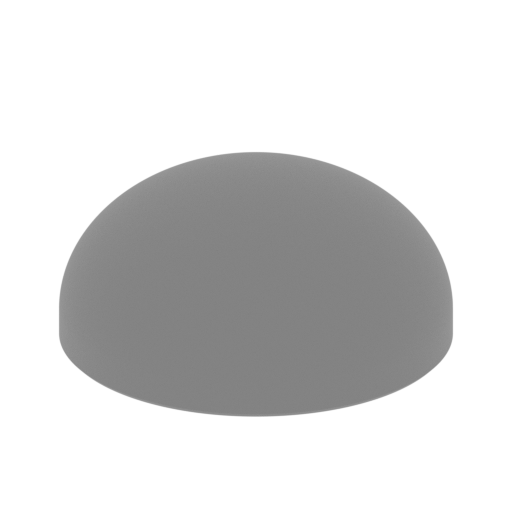

_11_cabinGlass_X2_FDM (re paired).stl
3.85 MiB 9 min <1 m 15 x 15 x 7 Download

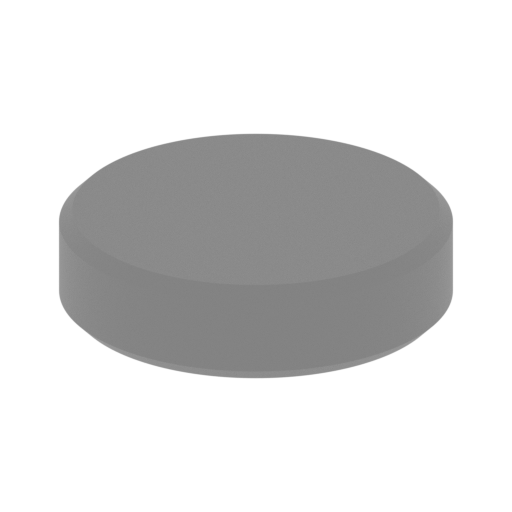

_12_lightFontGlass_T_X2_F DM (repaired).stl
0.07 MiB 1 min <1 m 5 x 5 x 1 Download

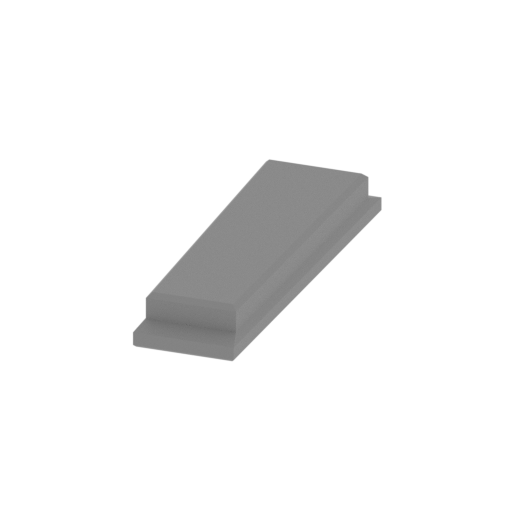

_13_interiorLightGlass_FD M (repaired).stl
0.01 MiB 4 min <1 m 6 x 19 x 2 Download

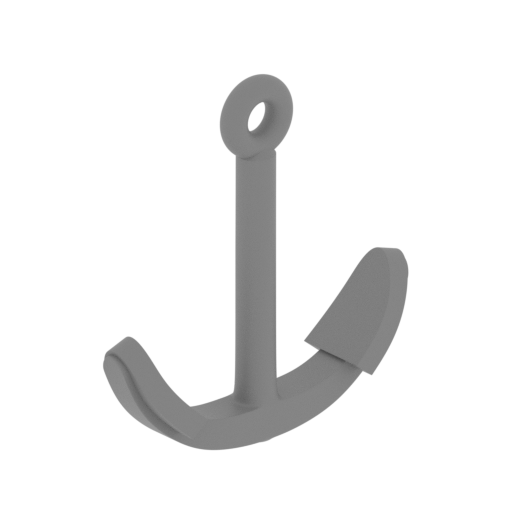

_14_anchor_V2_X2_FDM (rep aired).stl
4.97 MiB 12 min <1 m 11 x 17 x 20 Download

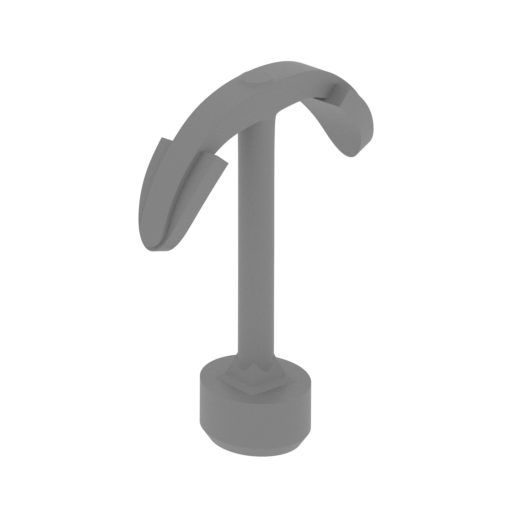

_15_anchorStatic_L_FDM (r epaired).stl
3.78 MiB 20 min <1 m 8 x 18 x 22 Download

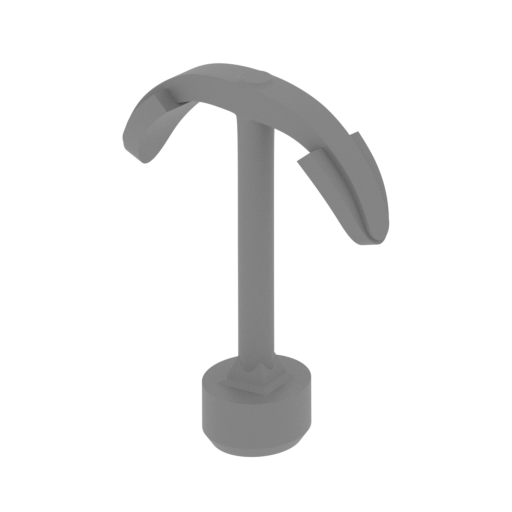

_16_anchorStatic_R_FDM (r epaired).stl
3.78 MiB 20 min <1 m 18 x 9 x 22 Download
_17_noseHarpoon_FDM (repa ired).stl
1.45 MiB 1 h 7 min <1 m 9 x 9 x 128 Download

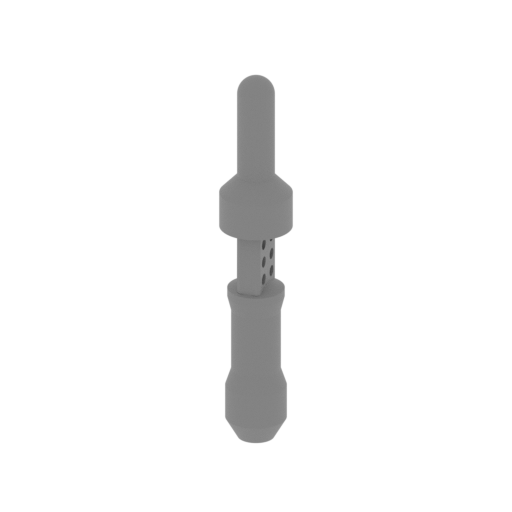

_18_anchorBobbin_FDM (rep aired).stl
0.68 MiB 1 h 11 min 1 m 13 x 13 x 67 Download

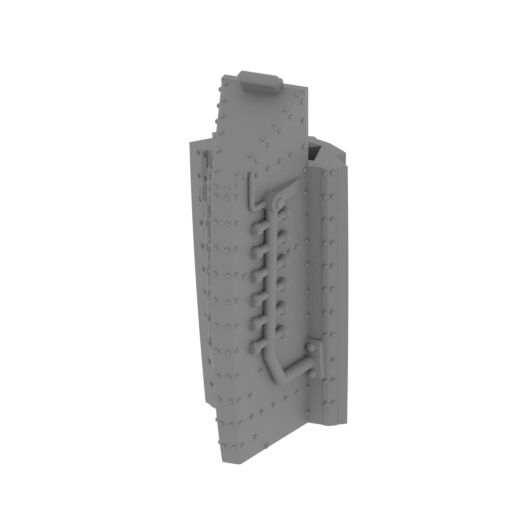

_19_bodyPart_MidBot_FDM ( repaired).stl
12.04 MiB 2 h 54 min 1 m 26 x 32 x 61 Download

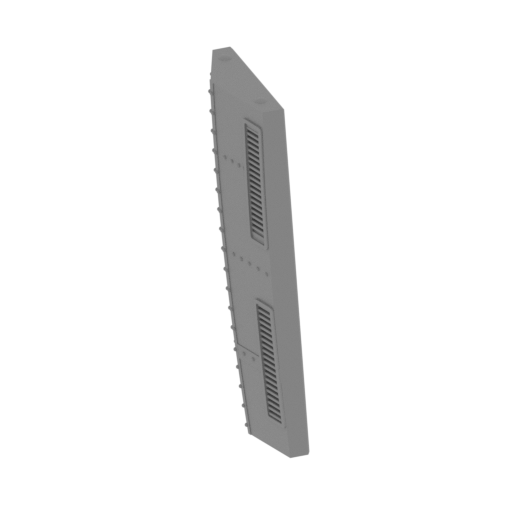

_20_batteryCap_R_FDM (rep aired).stl
5.33 MiB 2 h 14 min 1 m 25 x 28 x 74 Download

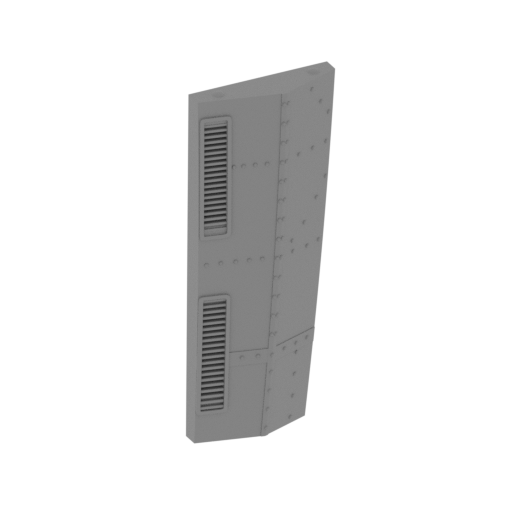

_21_batteryCap_L_FDM (rep aired).stl
5.34 MiB 2 h 10 min 1 m 25 x 28 x 74 Download

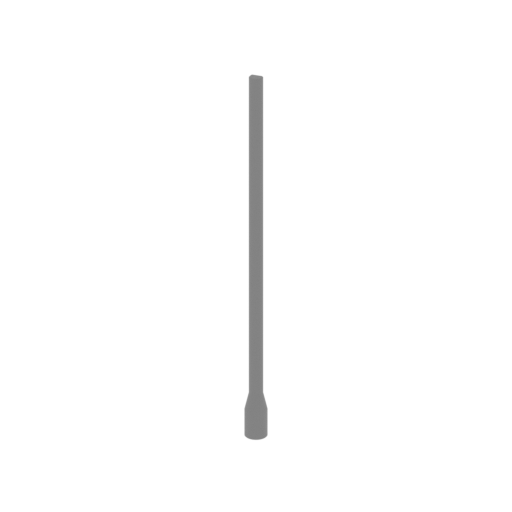

_22_propellerAxis_FDM (re paired).stl
0.25 MiB 48 min <1 m 6 x 6 x 111 Download

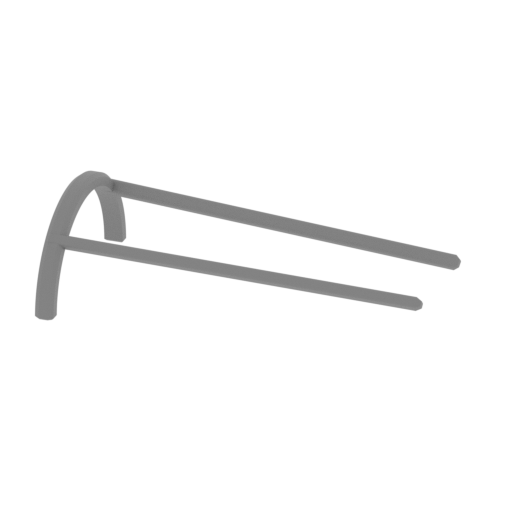

_23_bladeCoverPart_R_FDM (repaired).stl
0.32 MiB 45 min <1 m 63 x 35 x 17 Download

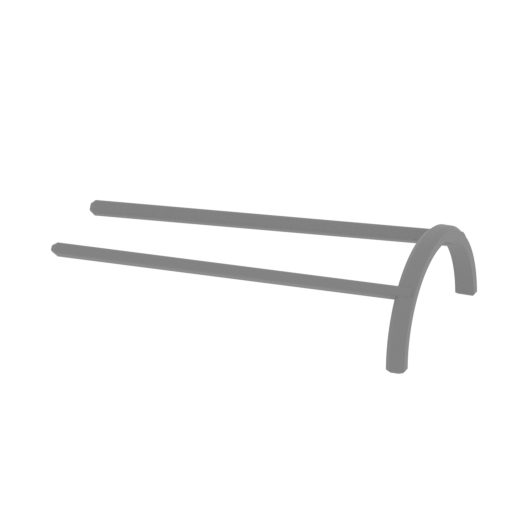

_24_bladeCoverPart_L_FDM (repaired).stl
0.32 MiB 46 min <1 m 63 x 35 x 17 Download

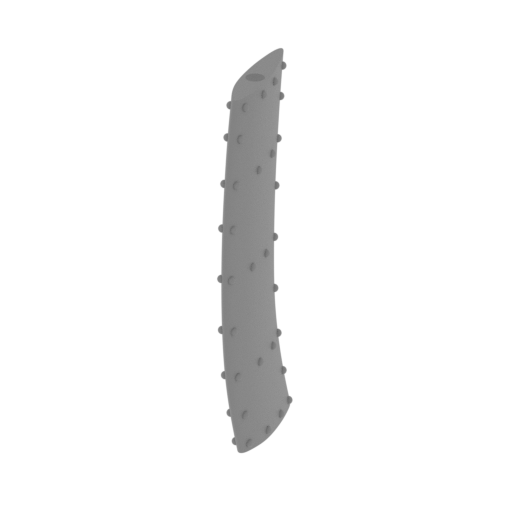

_25_rudder_FDM (repaired) .stl
2.97 MiB 23 min <1 m 4 x 18 x 38 Download

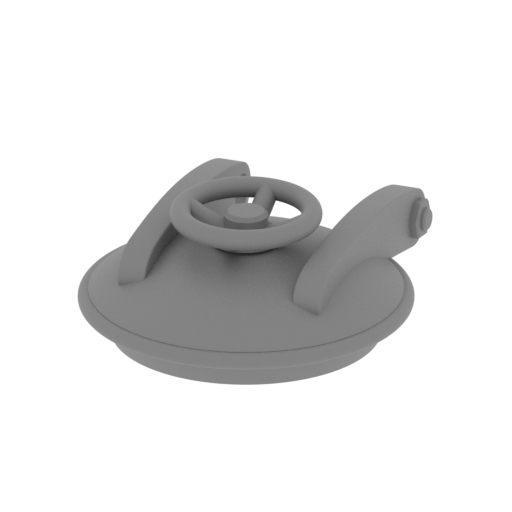

_26_hatch_F_FDM (repaired ).stl
5.22 MiB 8 min <1 m 13 x 16 x 6 Download

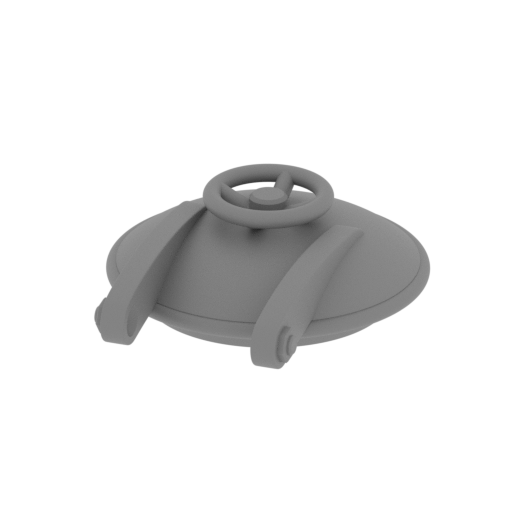

_27_hatch_Bot_FDM (repair ed).stl
5.01 MiB 9 min <1 m 15 x 18 x 6 Download

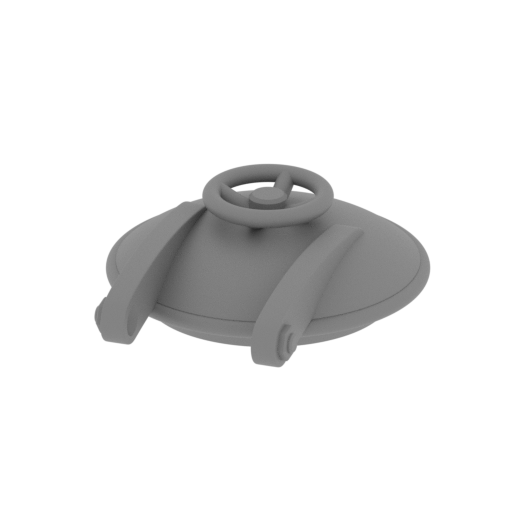

_28_hatch_Rr_FDM (repaire d).stl
5.01 MiB 9 min <1 m 15 x 18 x 6 Download

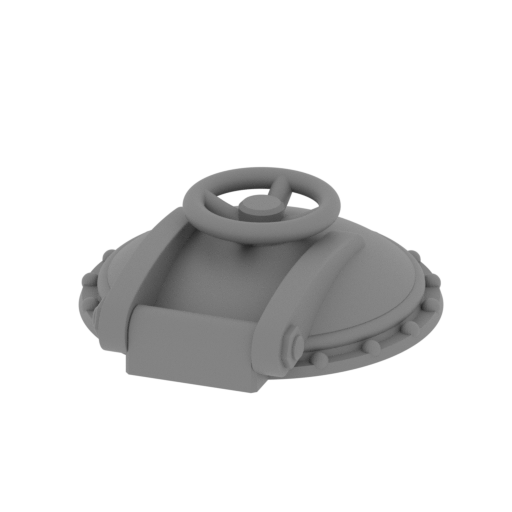

_29_hatch_T_FDM (repaired ).stl
4.74 MiB 8 min <1 m 14 x 15 x 5 Download

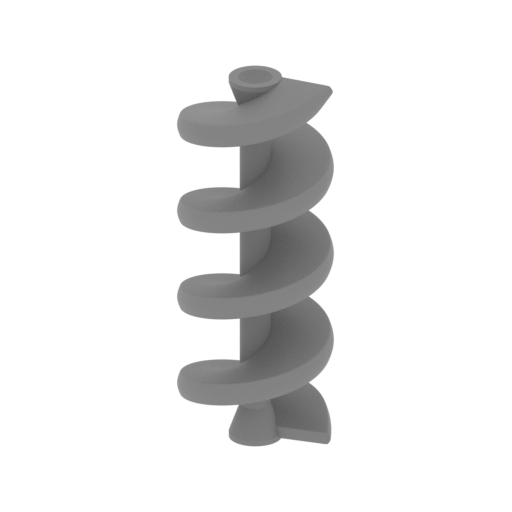

_30_helix_Bot_FDM (repair ed).stl
6.15 MiB 15 min <1 m 7 x 7 x 17 Download

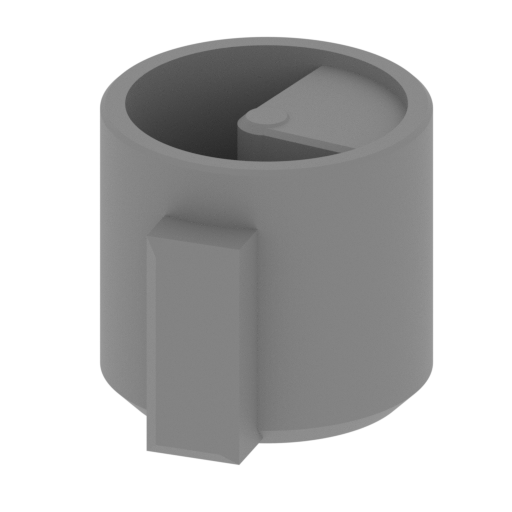

_31_cabinLadder_FDM (repa ired).stl
0.23 MiB 19 min <1 m 13 x 16 x 13 Download

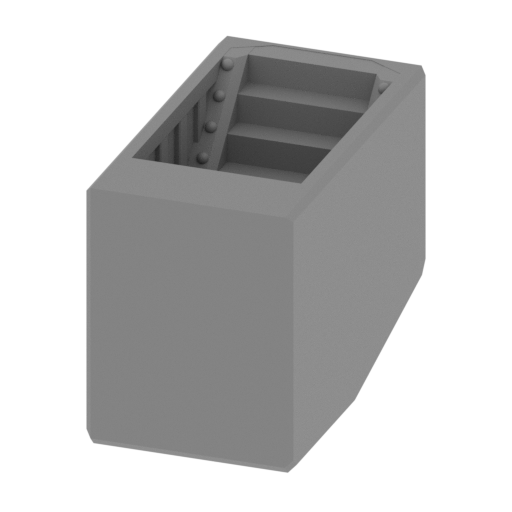

_32_ladderExit_FDM (repai red).stl
5.59 MiB 49 min <1 m 14 x 25 x 18 Download

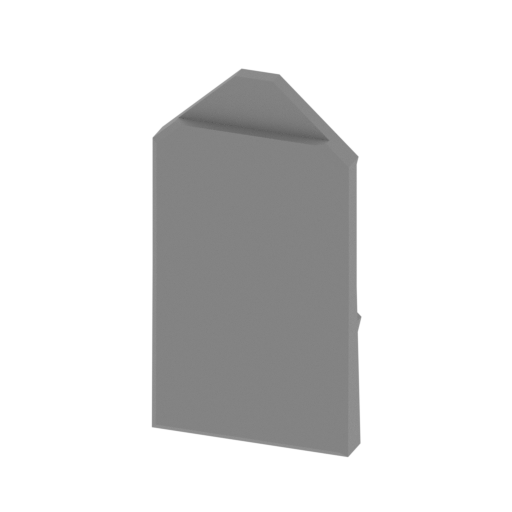

_33_exitDoorClose_FDM (re paired).stl
0.03 MiB 16 min <1 m 12 x 3 x 23 Download

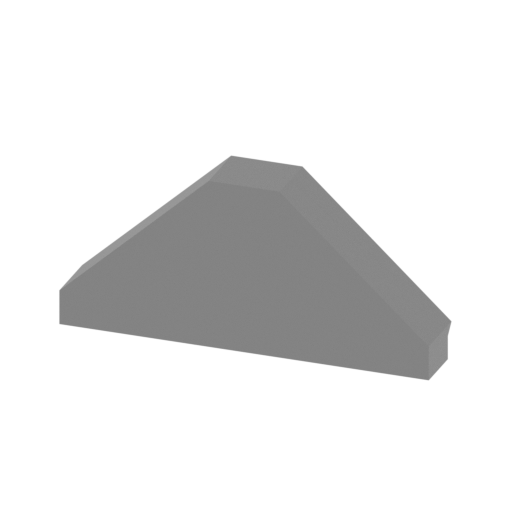

_34_exitDoorOpen_FDM (rep aired).stl
0.01 MiB 3 min <1 m 12 x 2 x 6 Download

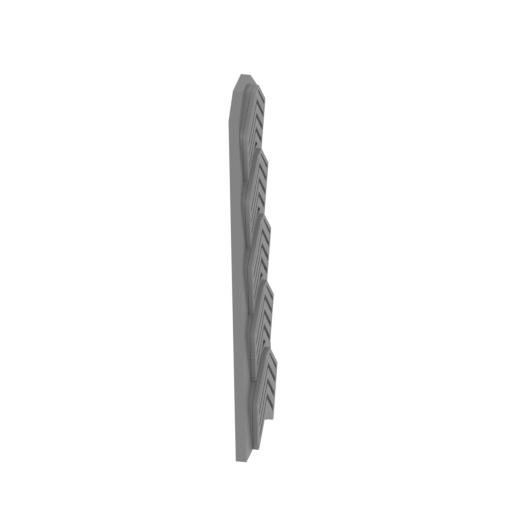

_35_panelDoorsClose_FDM ( repaired).stl
0.16 MiB 34 min <1 m 5 x 16 x 47 Download

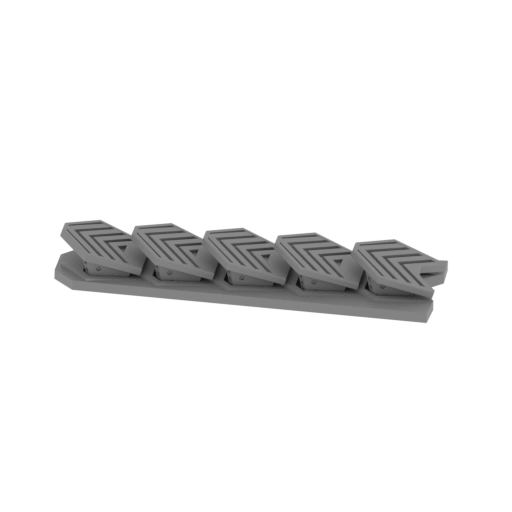

_36_panelDoorSOpen_FDM (r epaired).stl
2.44 MiB 35 min <1 m 47 x 21 x 6 Download

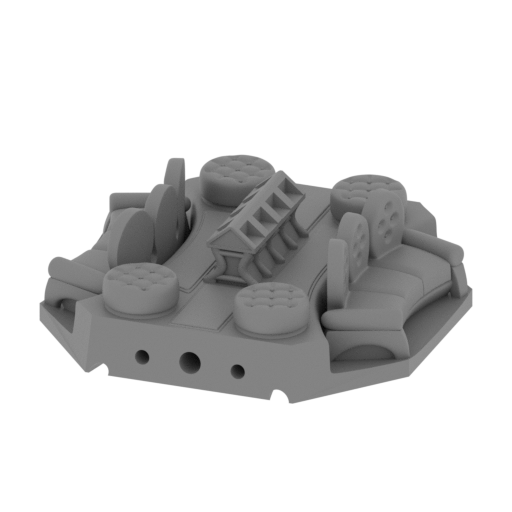

_37_interior_FDM (repaire d).stl
50.35 MiB 3 h 27 min 2 m 51 x 50 x 16 Download

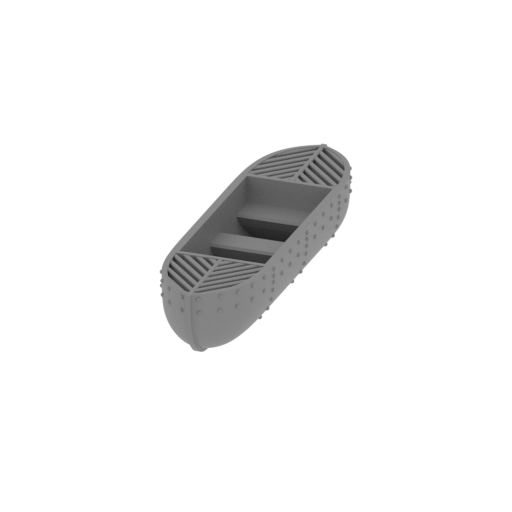

_38_boat_FDM (repaired).s tl
21.91 MiB 30 min <1 m 12 x 42 x 9 Download

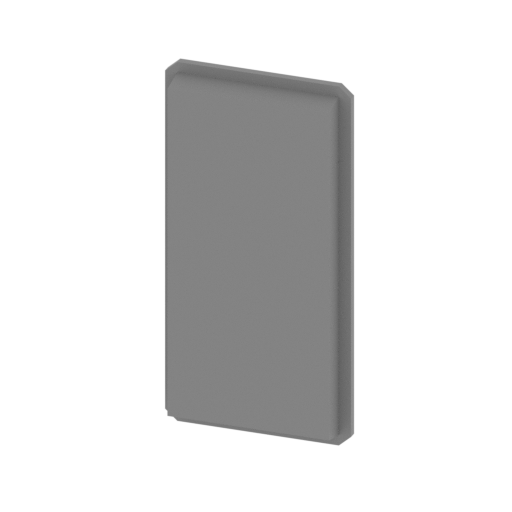

_39_boatCap_FDM (repaired ).stl
0.13 MiB 20 min <1 m 11 x 2 x 22 Download

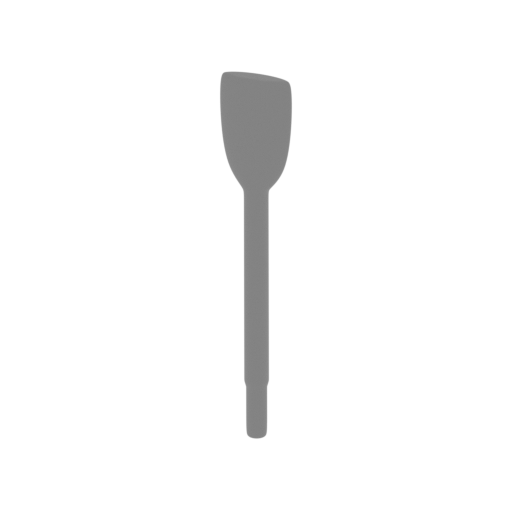

_40_boatOar_X2_FDM (repai red).stl
2.38 MiB 2 min <1 m 4 x 1 x 20 Download

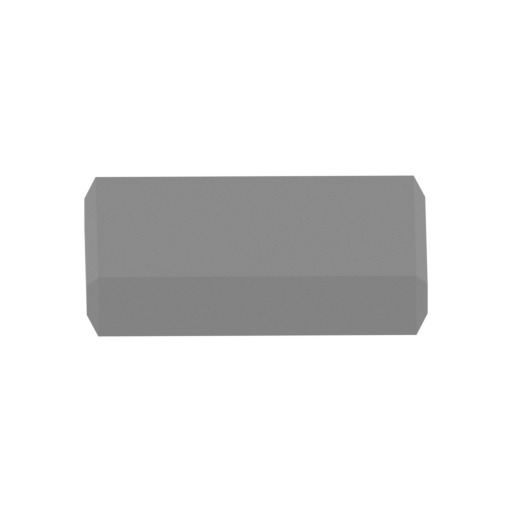

_41_pin_V1_X6_FDM (repair ed).stl
0.01 MiB 12 min <1 m 24 x 21 x 4 Download

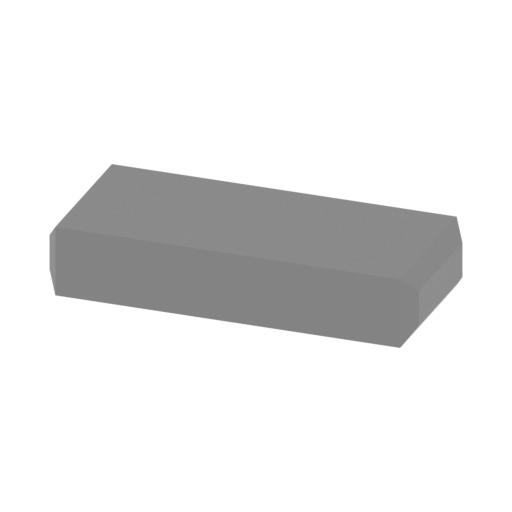

_42_pin_V2_X9_FDM (repair ed).stl
0.01 MiB 8 min <1 m 21 x 9 x 4 Download

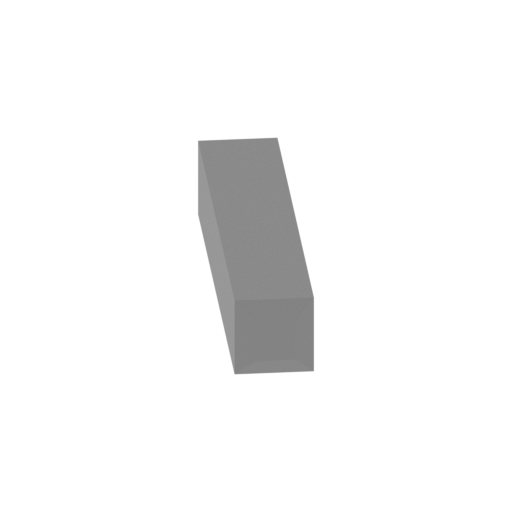

_43_pin_V3_X5_FDM (repair ed).stl
0.00 MiB 5 min <1 m 12 x 20 x 4 Download

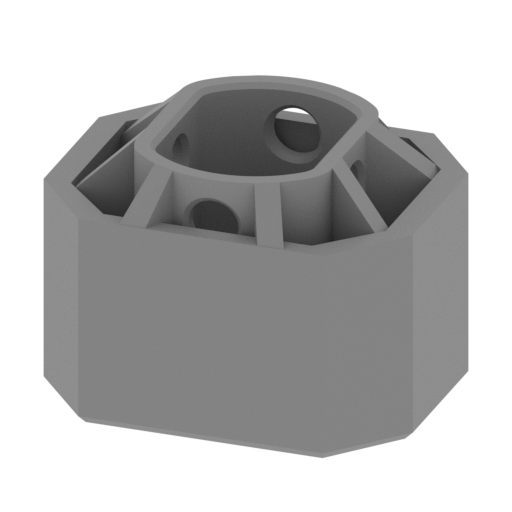

_44_engineFF180ShHolderOp tional_FDM (repaired).stl
0.63 MiB 2 h 56 min 1 m 37 x 30 x 26 Download

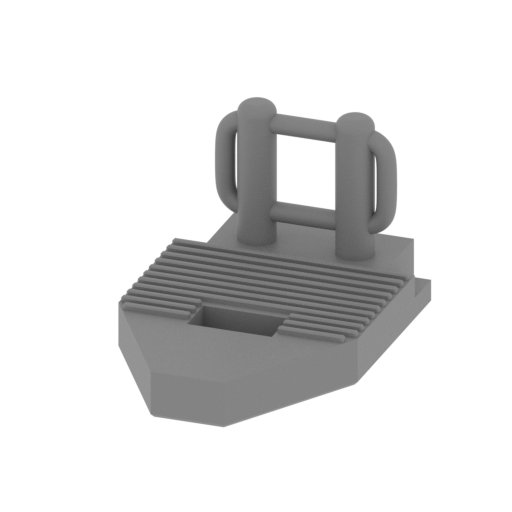

_45_cabinPart_FDM (repair ed).stl
1.65 MiB 11 min <1 m 12 x 18 x 9 Download

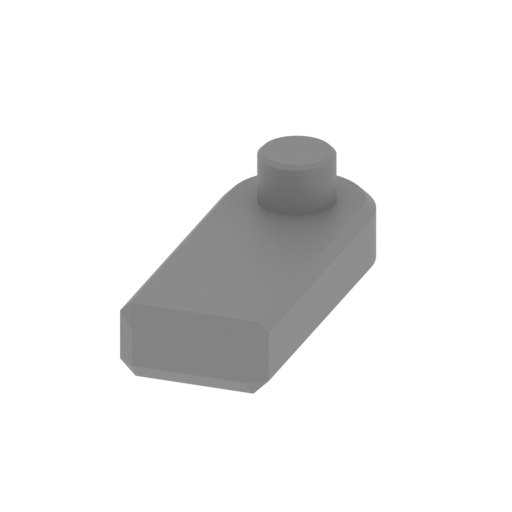

_46_steeringWheelAxis_FDM (repaired).stl
0.09 MiB 2 min <1 m 4 x 10 x 3 Download

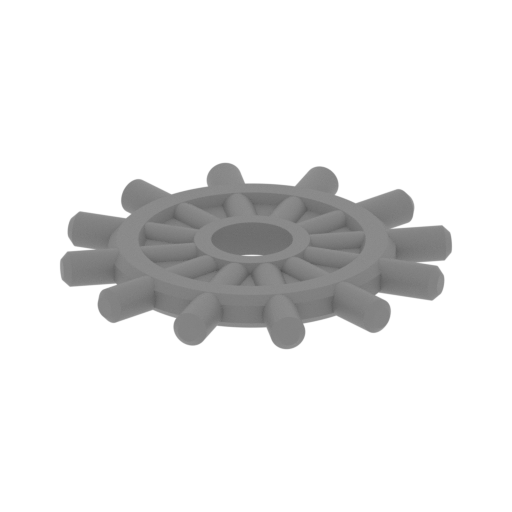

_47_steeringWheel_FDM (re paired).stl
1.08 MiB 2 min <1 m 11 x 11 x 1 Download

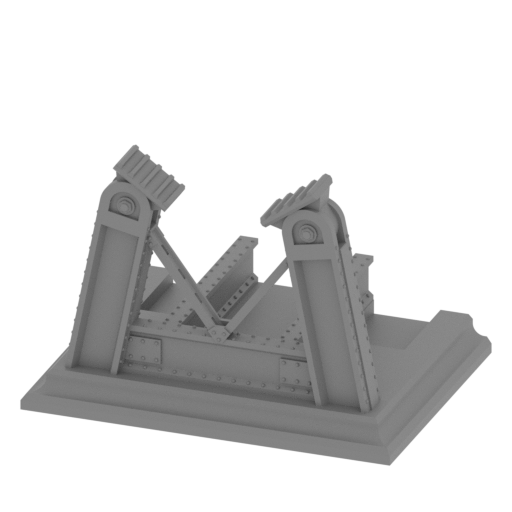

_48_standPart_a_V1_X2_FDM (repaired).stl
17.70 MiB 13 h 9 min 7 m 103 x 76 x 71 Download

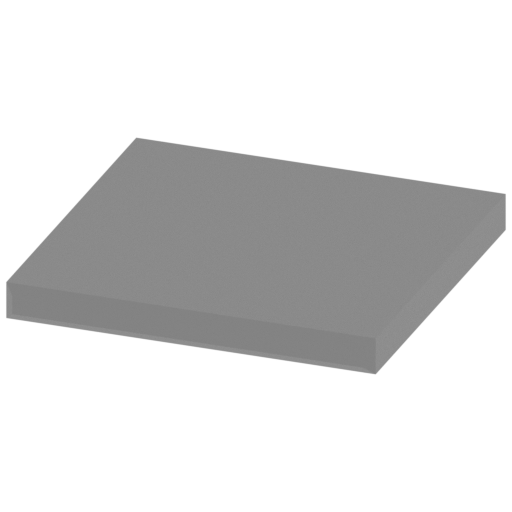

_49_standPin_V1 FDM (repa ired).stl
0.01 MiB 27 min <1 m 30 x 30 x 3 Download

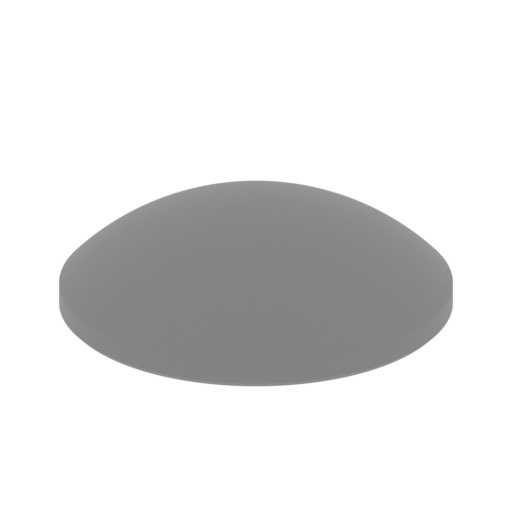

_50_bodyPartMidGlass_X2_F DM (repaired).stl
1.51 MiB 14 min <1 m 21 x 21 x 6 Download

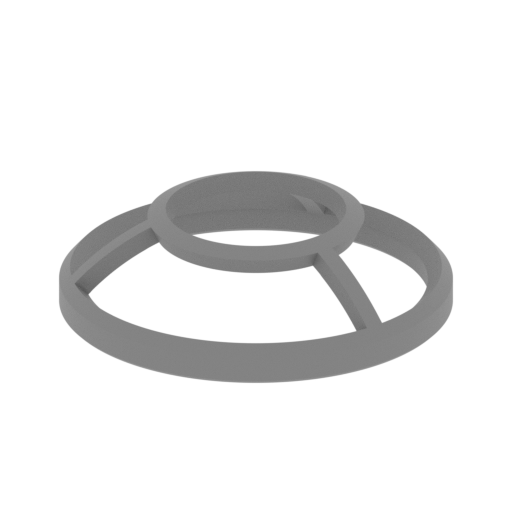

_51_bodyPartMidGlassFrame _X2_FDM (repaired).stl
0.87 MiB 10 min <1 m 24 x 24 x 6 Download

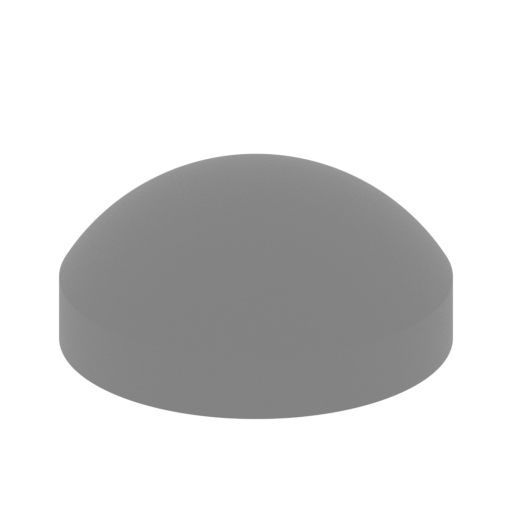

_52_bodyPartMidLightGlass _V1_X12_FDM (repaired).st l
0.84 MiB 1 min <1 m 4 x 4 x 2 Download

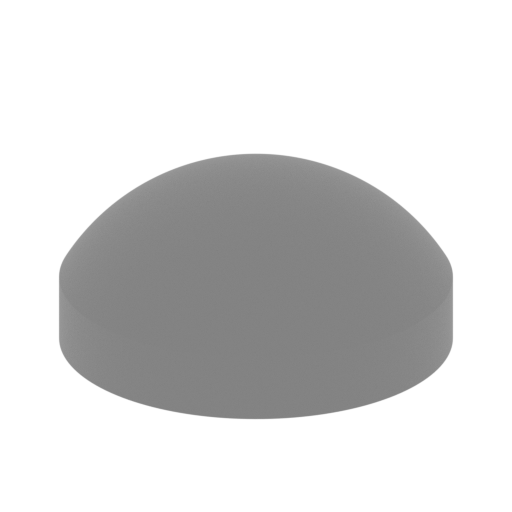

_53_bodyPartMidLightGlass _V2_X4_FDM (repaired).stl
0.84 MiB 3 min <1 m 7 x 7 x 3 Download

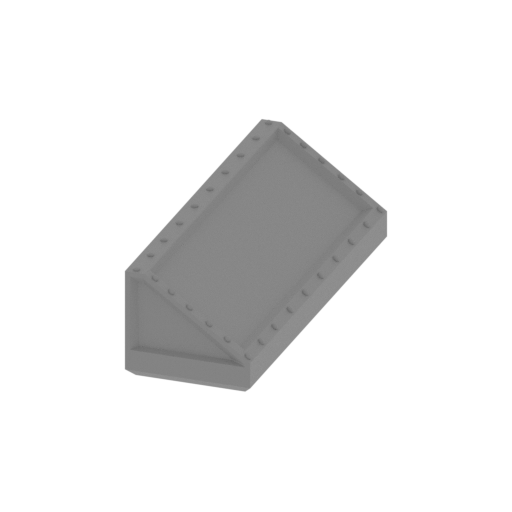

_54_standPartClear_b_X2_F DM (repaired).stl
1.48 MiB 1 h 11 min 1 m 18 x 54 x 16 Download

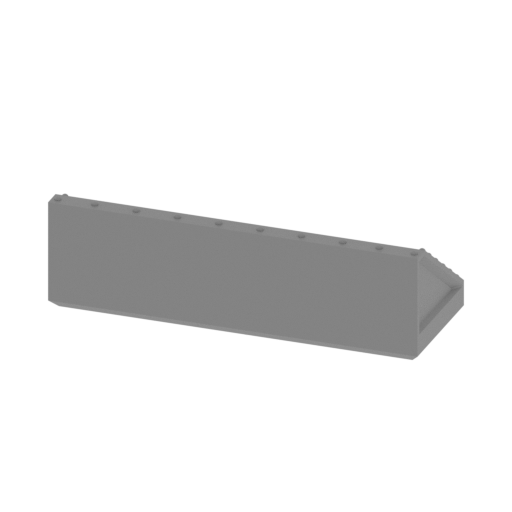

_55_standPartWithText_b_X 2_FDM (repaired).stl
1.85 MiB 1 h 15 min 1 m 54 x 18 x 16 Download

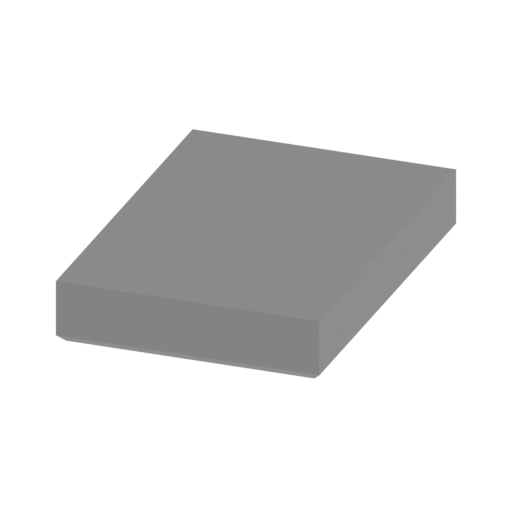

_56_cabinGlass_V2_FDM (re paired).stl
0.01 MiB 2 min <1 m 6 x 9 x 2 Download

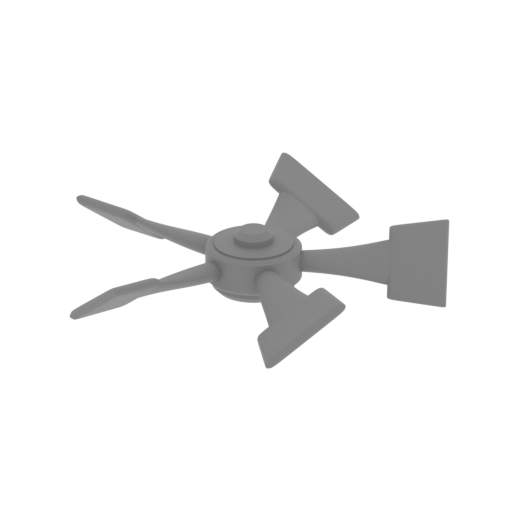

_57_blades_FDM (repaired) .stl
6.85 MiB 15 min <1 m 30 x 28 x 5 Download

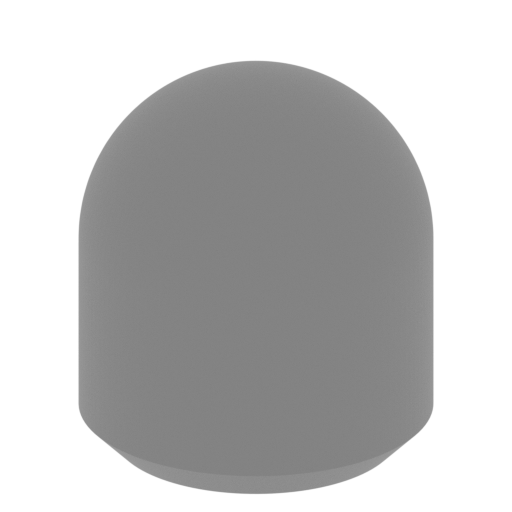

_58_lightTailGlass_FDM (r epaired).stl
0.71 MiB 2 min <1 m 4 x 4 x 4 Download

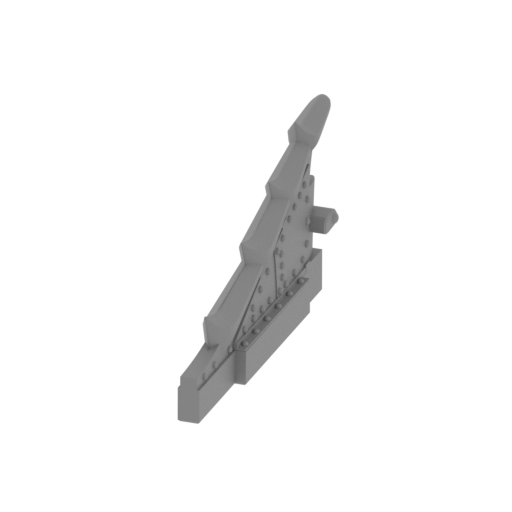

_59_fin_a_T (repaired).st l
9.57 MiB 29 min <1 m 7 x 43 x 22 Download

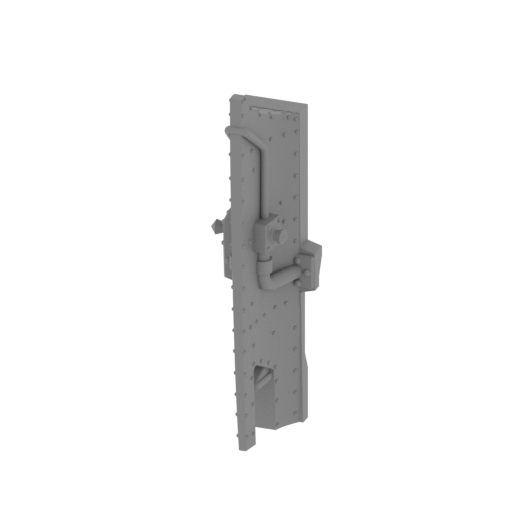

_60_fin_b_Bot (repaired). stl
12.34 MiB 2 h 26 min 1 m 19 x 24 x 77 Download

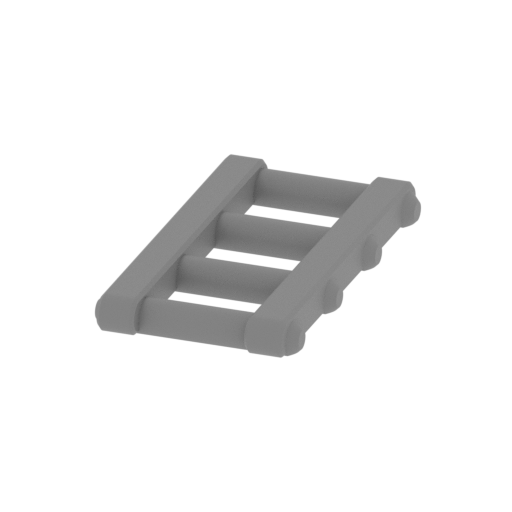

_61_ladder_V1_Bot (repair ed).stl
0.44 MiB 3 min <1 m 9 x 16 x 2 Download

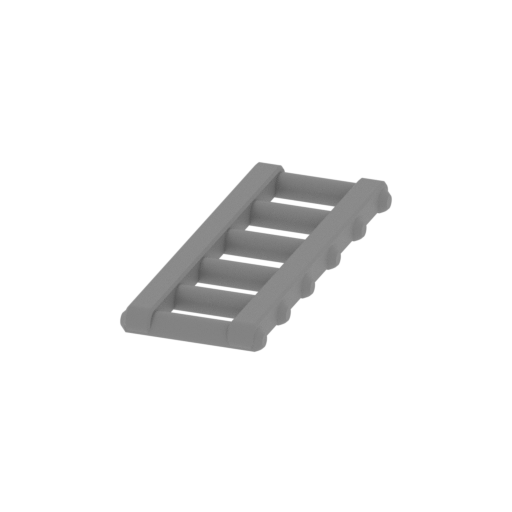

_62_ladder_V2_T_FDM (repa ired).stl
0.64 MiB 4 min <1 m 9 x 23 x 2 Download

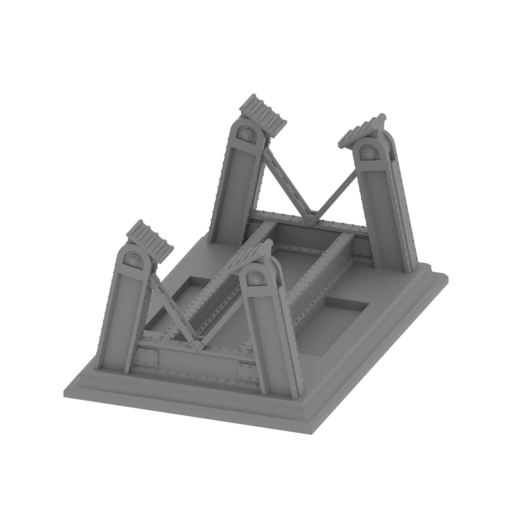

_63_stand_V2_FDM (repaire d).stl
34.81 MiB 25 h 53 min 13 m 103 x 153 x 71 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download

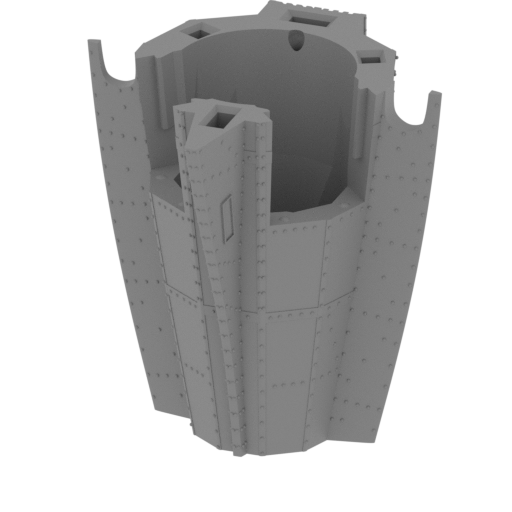

_06_bodyPartTail_a_FDM (r epaired).stl
52.23 MiB 13 h 46 min 7 m 84 x 83 x 87 Download
...

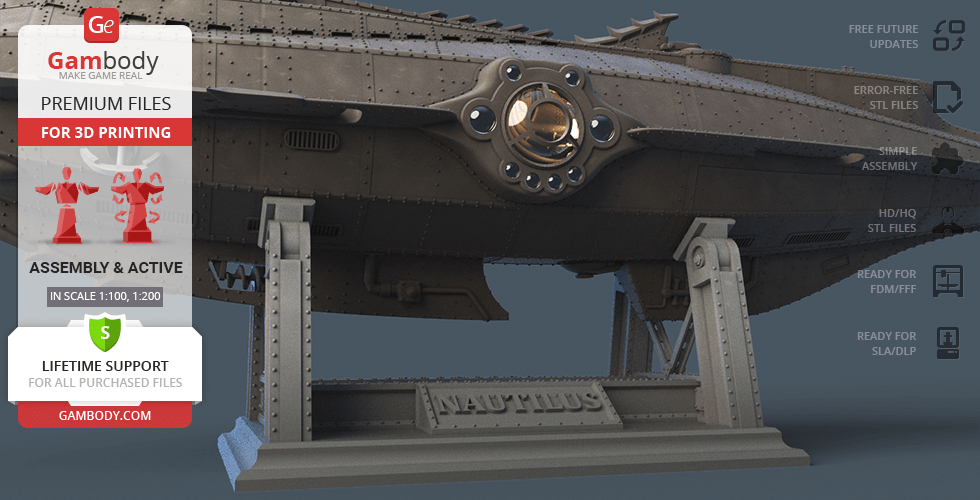

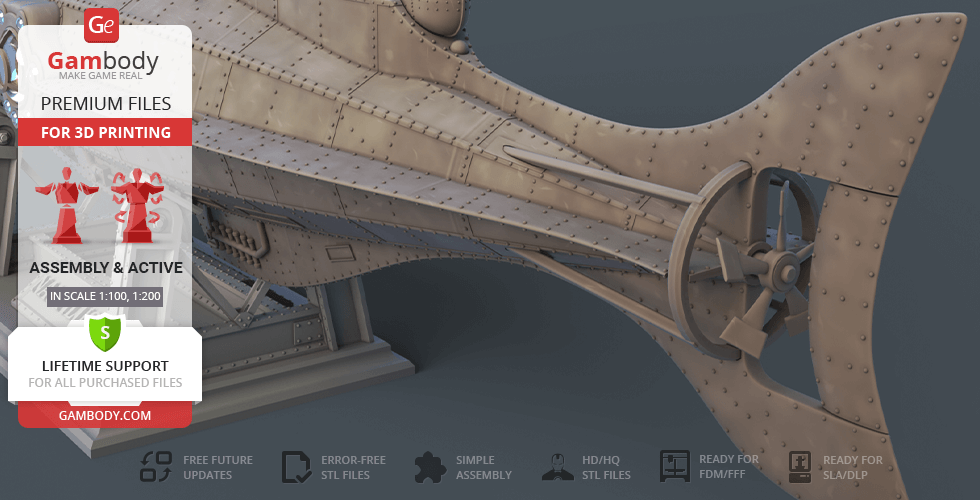

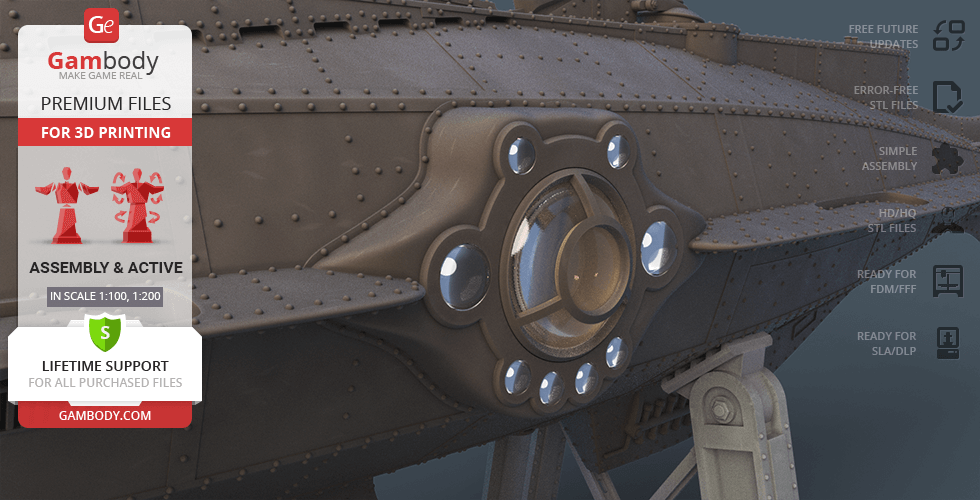

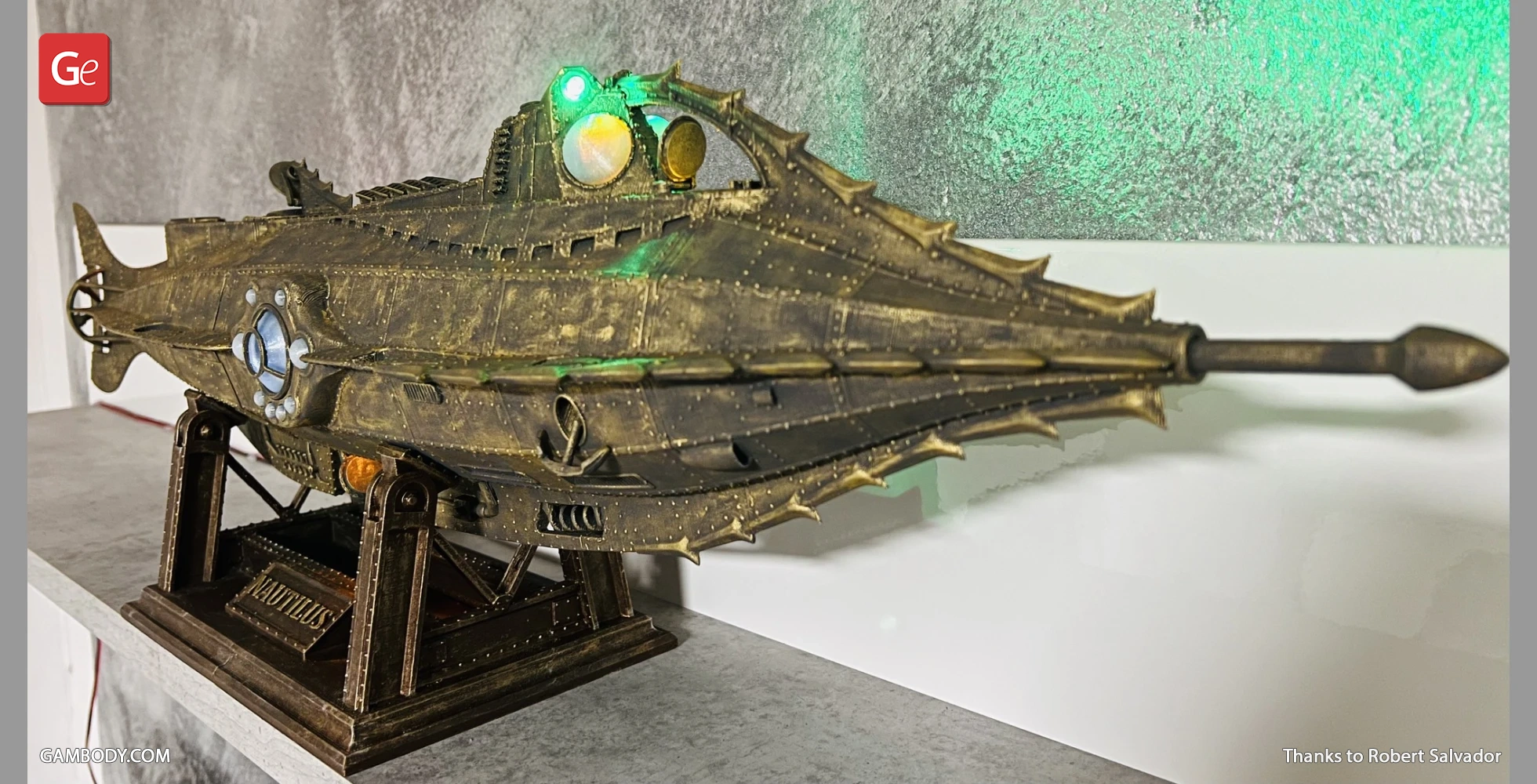

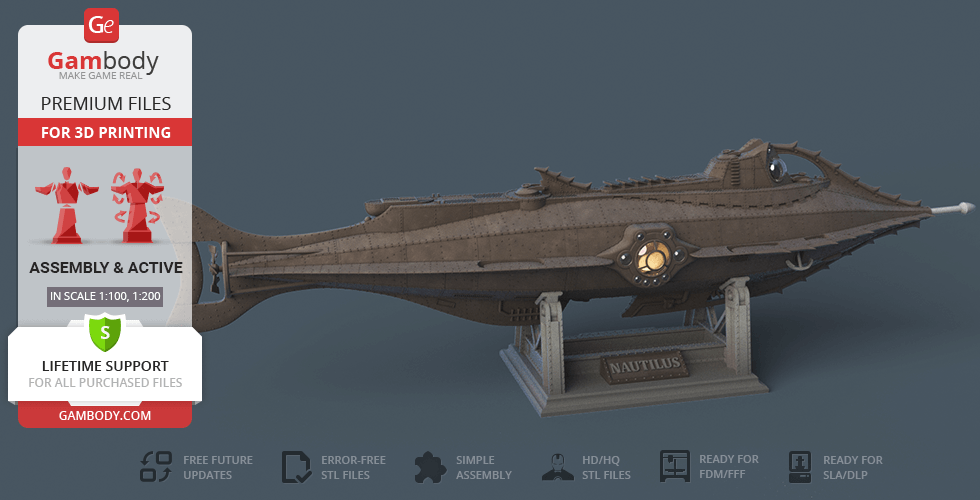

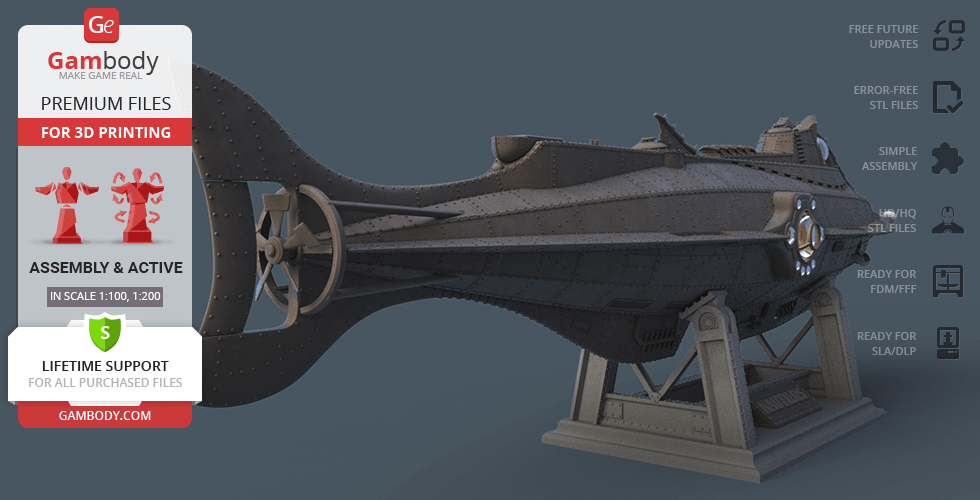

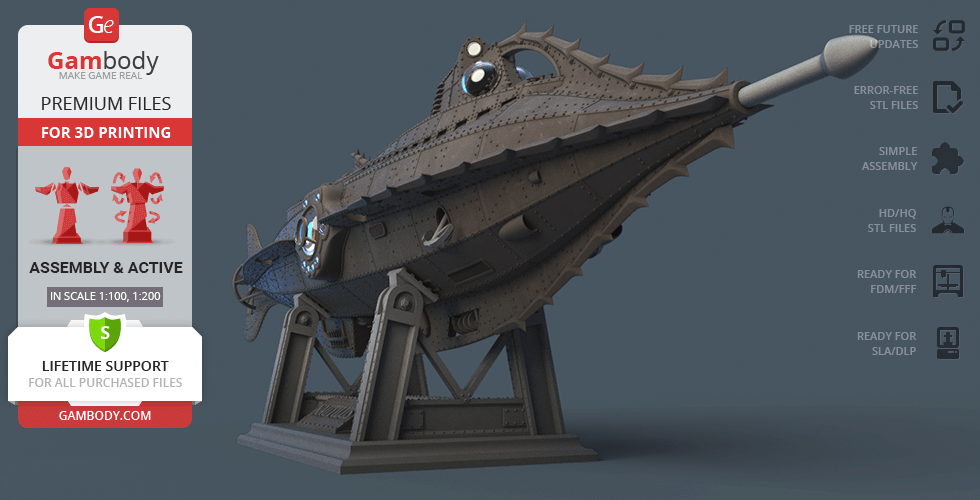

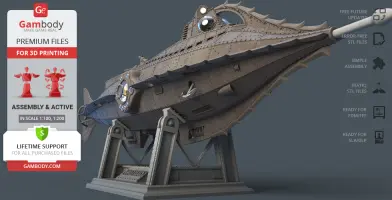

ABOUT THIS 3D MODEL

Although the logistical genius Captain Nemo had the parts manufactured and shipped to him in secret, you won’t need to build your Nautilus under the cover of darkness! The spectacular 3D printing model inspired by the heart of 20,000 Leagues Under the Sea sci-fi adventure film is now available in the form of STL files that can come to life in your 3D printing workshop.

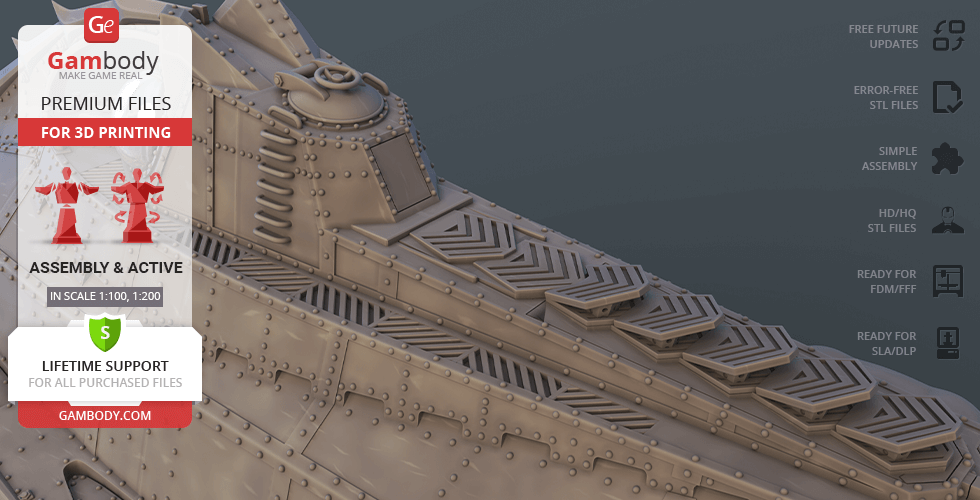

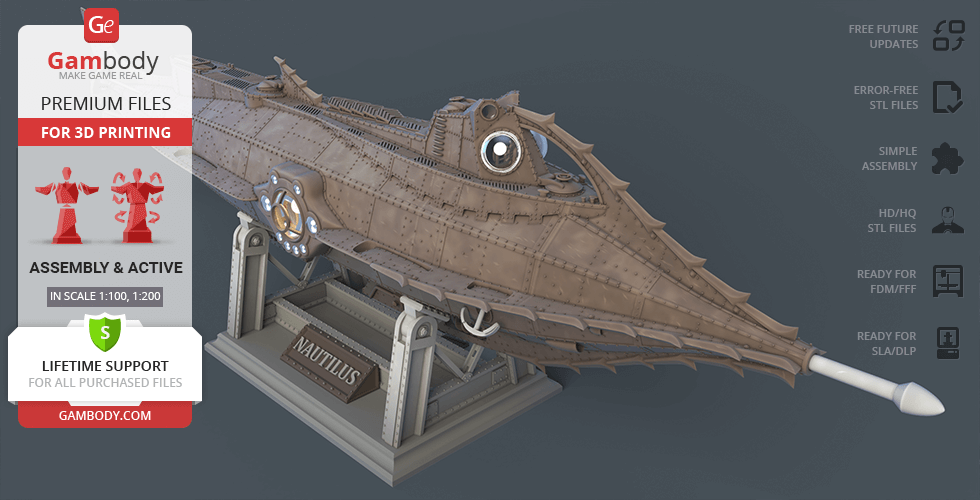

The ornate submarine has a unique design that makes it resemble an unknown marine master - its oblong body is sharpened with spikes and decorated with hundreds of rivets, and the illuminated portholes protrude as if the creature’s eyes. In addition to that, the vessel for 3D printing is enhanced with the detailed wheelhouse and salon interior, opening hatches that hide secrets underneath, and other peculiar elements. Savvy captains can explore the active elements of the Nautilus 3D model and even equip it with an engine to sail to distant lands!

ADAPTATION FOR 3D PRINTING

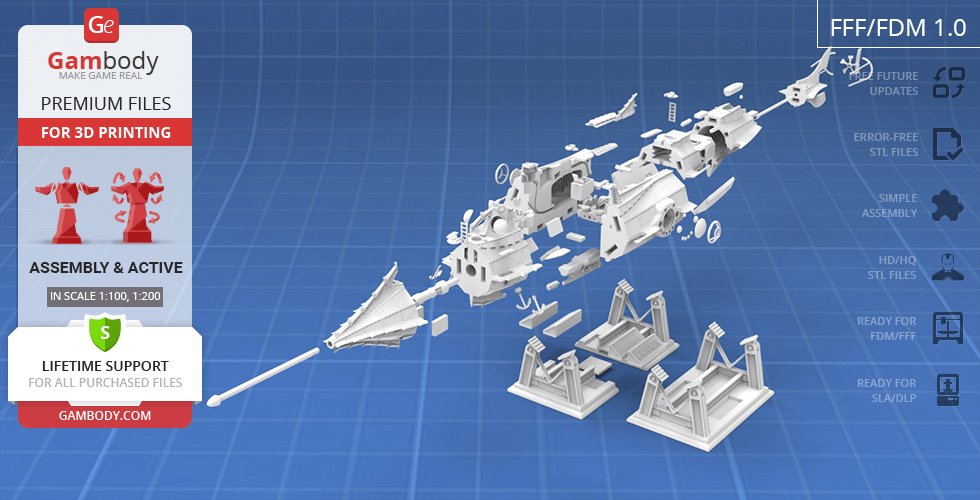

Nautilus Submarine for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 57 hours in total.

For you to receive the cleanest 3D printing result possible and minimize the amount of filament needed for generated support, the Nautilus Submarine was divided into convenient assembly parts.
All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. After downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the Nautilus Submarine model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

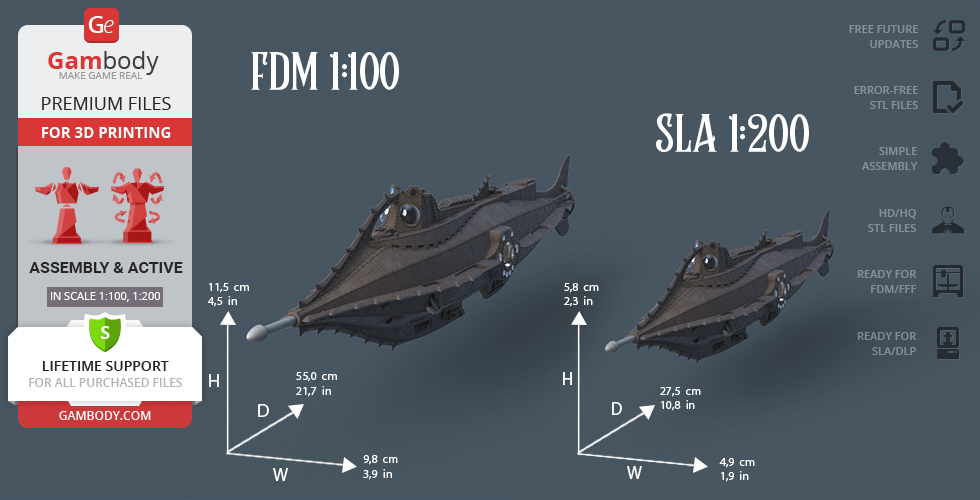

The model’s scale was calculated from the approximate length of the Nautilus Submarine - 55 000 mm. The 3D printing model’s chosen scales are 1/100 for the FFF/FDM version and 1/200 for the DLP/SLA version.

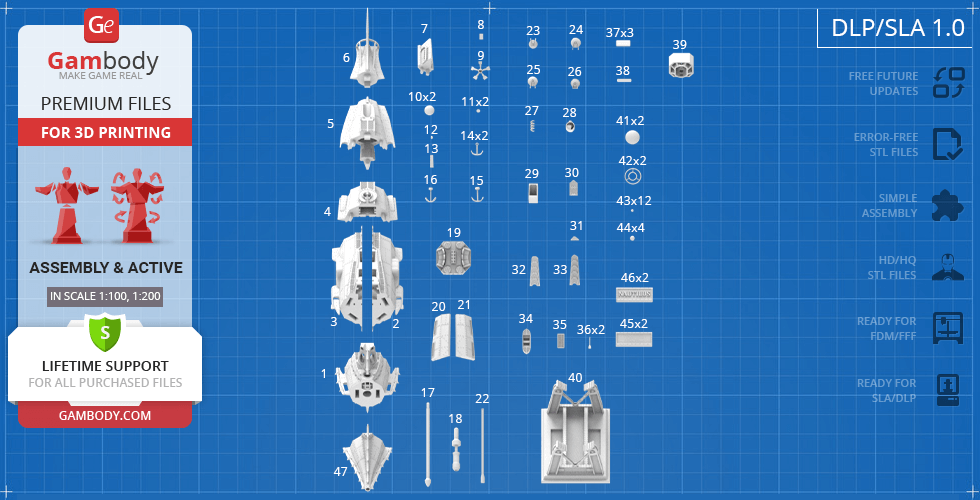

VERSIONS' SPECIFICATIONS

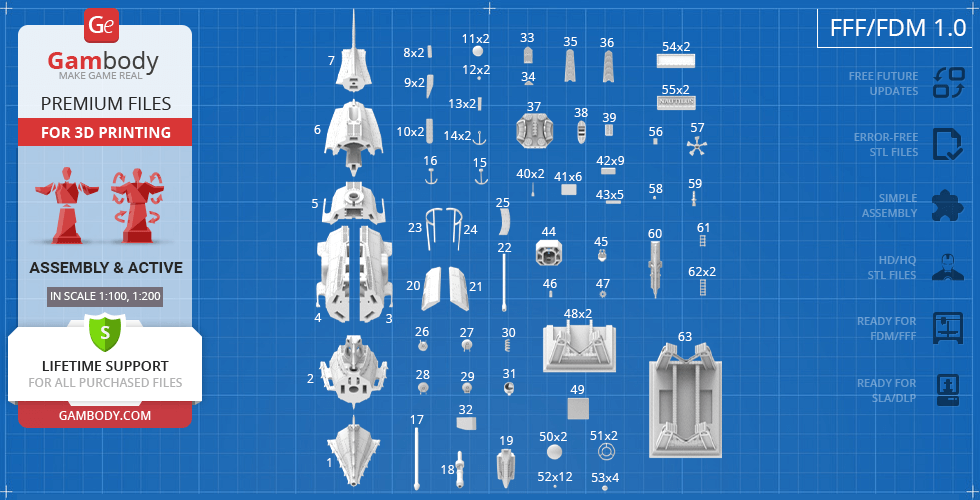

FFF/FDM 1.0 version features:
- Contains 63 parts;
- The printed model is 115 mm tall, 98 mm wide, 550 mm deep;
- The printed model on the platform is 155 mm tall, 102 mm wide, 550 mm deep;

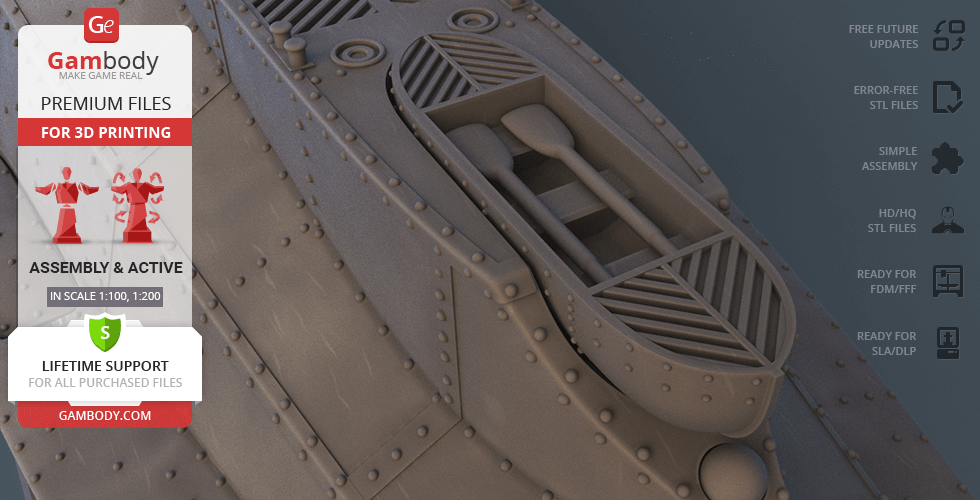

- Detachable boat with oars in it;
- Static and active anchor;
- Spin the harpoon on the axis to lower or lift the active anchor;
- Posable diving planes;

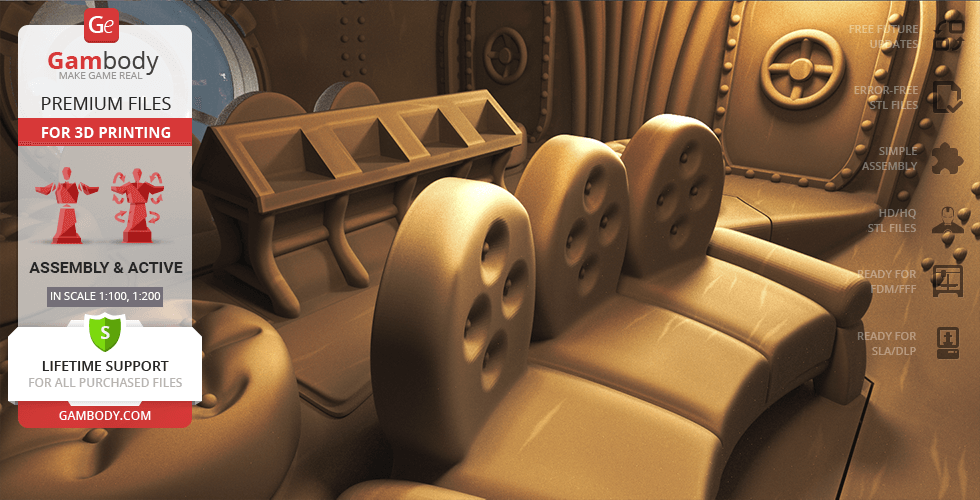

- Detailed wheelhouse and salon;
- Three opening hatches with hidden detail underneath;
- Two variants of the main hatch - open and closed;
- Two variants of the breather flaps - open and closed;
- Rotating propeller,
- Possibility for engine installation;

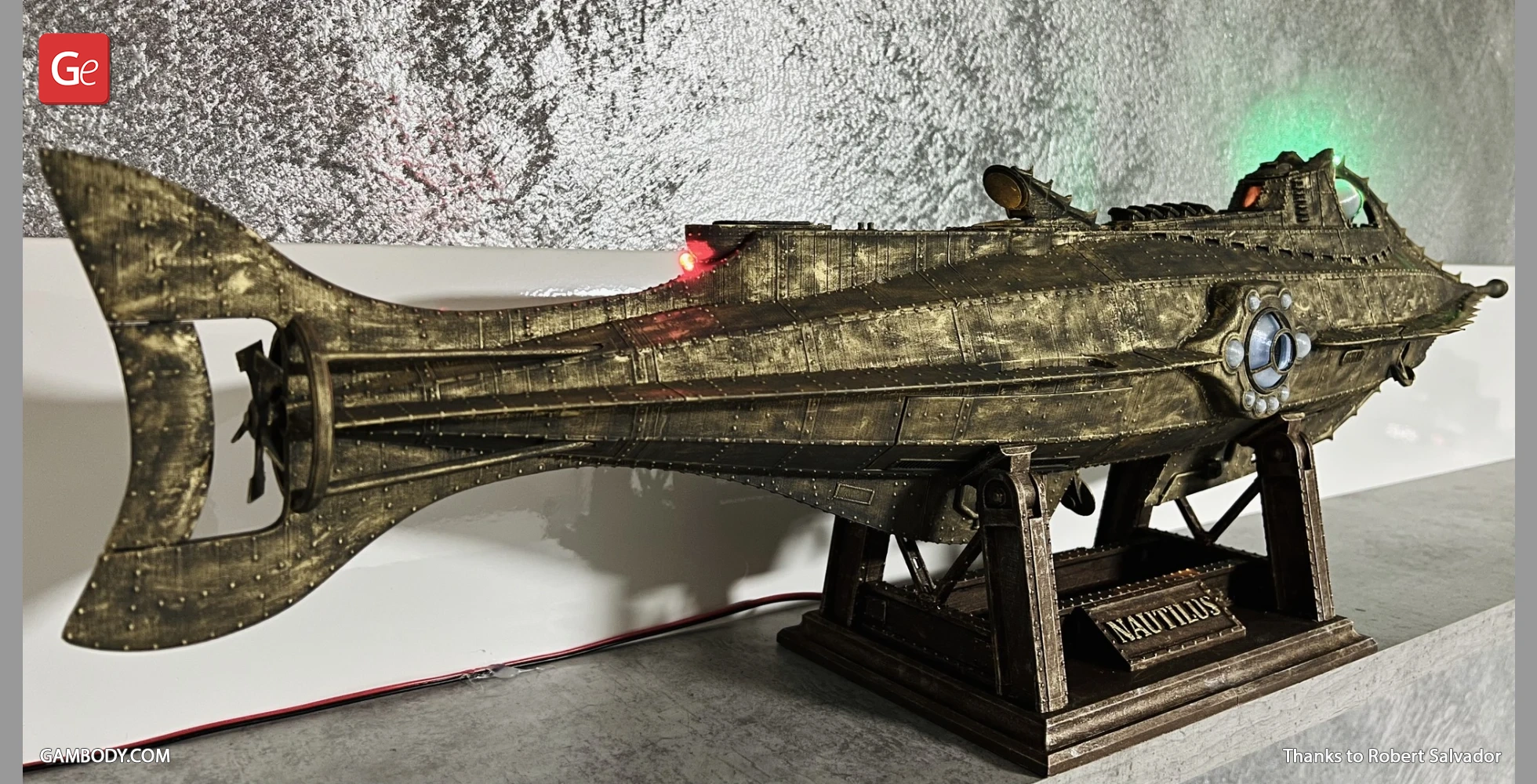

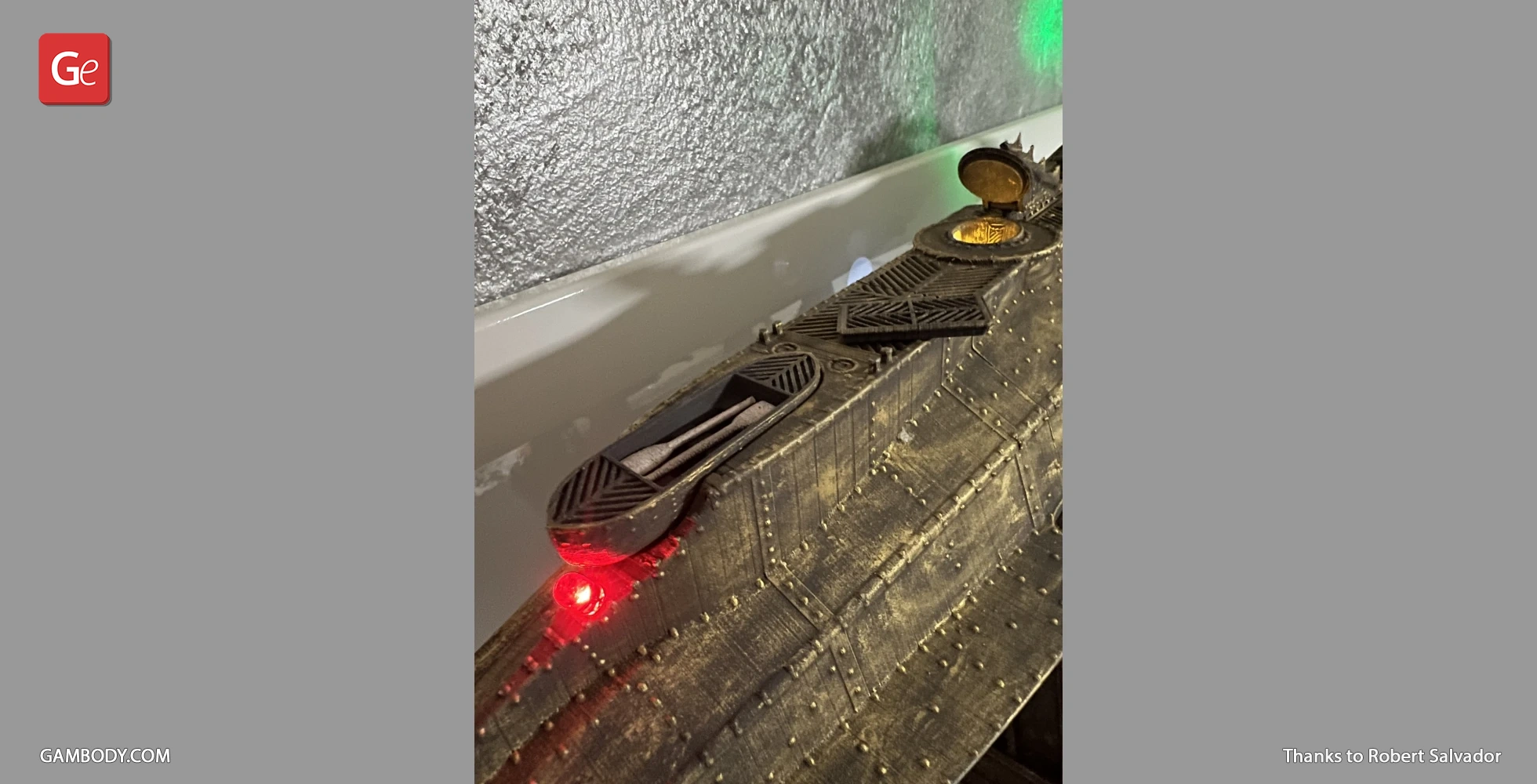

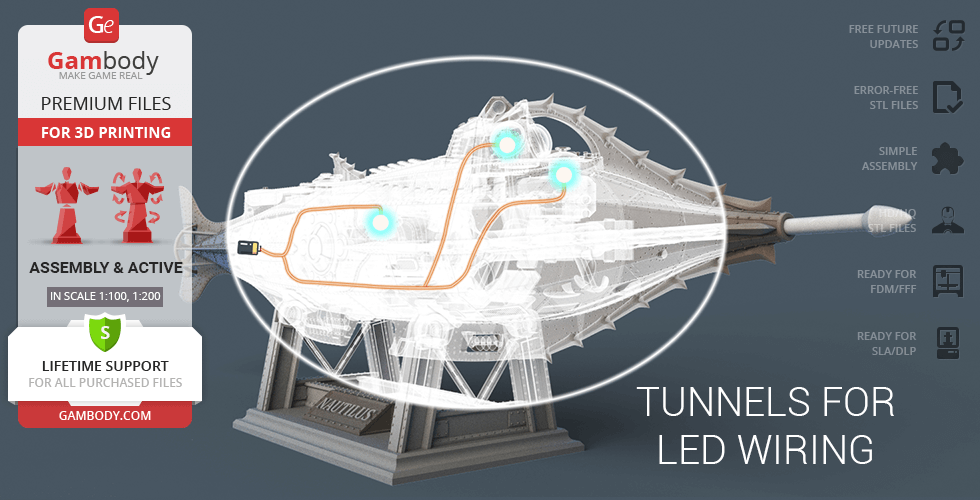

- Tunnels for LED wiring to light up the wheelhouse, salon, and interior under the main hatch;
- Removable panels to hide the battery, venting grills for the engine;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

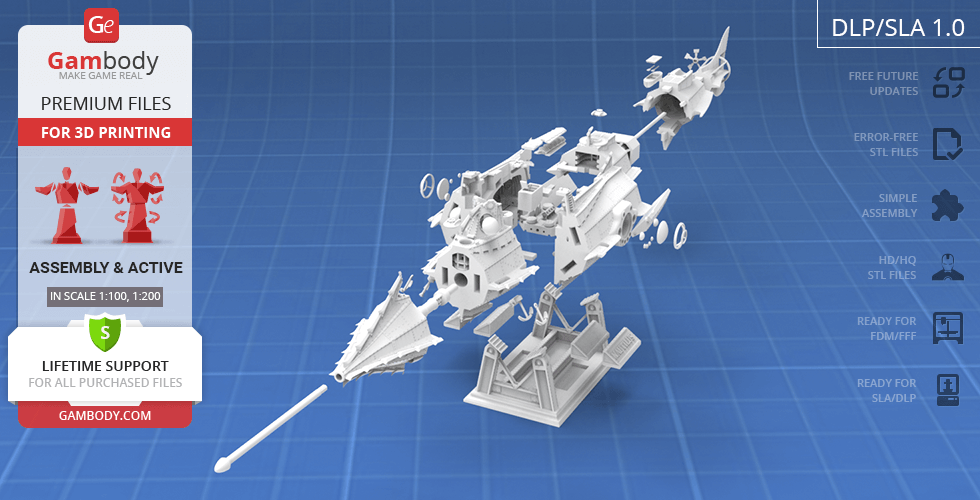

DLP/SLA 1.0 version features:
- Contains 47 parts;
- The printed model is 58 mm tall, 49 mm wide, 275 mm deep;
- The printed model on the platform is 78 mm tall, 51 mm wide, 275 mm deep;
- Detachable boat with oars in it;
- Static and active anchor;
- Spin the harpoon on the axis to lower or lift the active anchor;
- Detailed wheelhouse and salon;
- Three opening hatches with hidden detail underneath;
- Two variants of the main hatch - open and closed;
- Two variants of the breather flaps - open and closed;
- Rotating propeller,
- Possibility for engine installation;
- Tunnels for LED wiring to light up the wheelhouse, salon, and interior under the main hatch;
- Removable panels to hide the battery, venting grills for the engine;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the model of Nautilus Submarine for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Nautilus Submarine 3D Printing Model at Gambody YouTube channel.

Also, you may like other Fiction models for 3D Printing.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r, PrusaSlicer and Bambu Lab software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
