Thunderbird 2 3D Printing Model | Assembly

(5)
cm: 44.8 w x 57.4 d x 28.6 h
in: 17.638 w x 22.598 d x 11.26 h

Source Files

|

Description

|

Printing Details

This 3D Model of Thunderbird 2 consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 2 versions of Thunderbird 2 STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase;
  • STL files of high-poly Thunderbird 2 3D Model for 3D printing consist of 145 files;

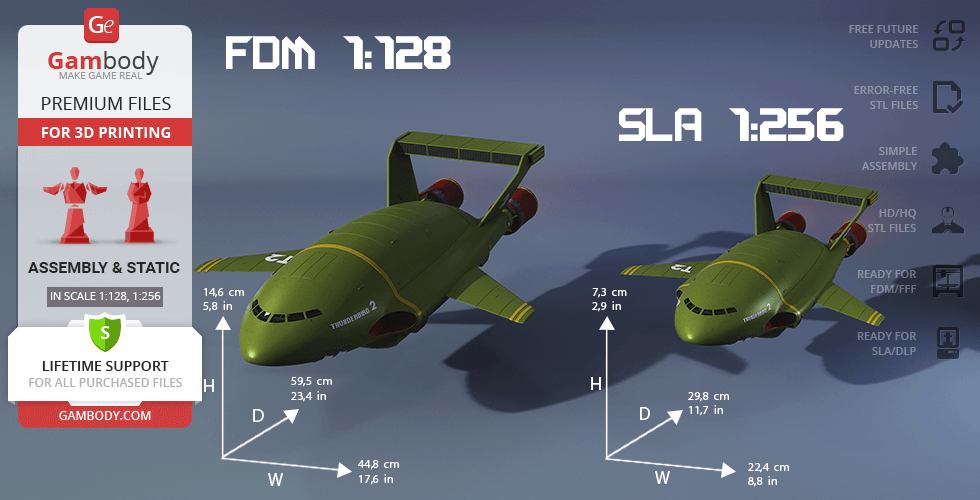

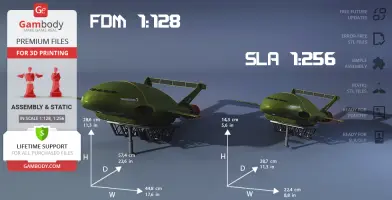

  • Sizes for:

FFF/FDM: 146 mm tall, 448 mm wide, 595 mm deep;

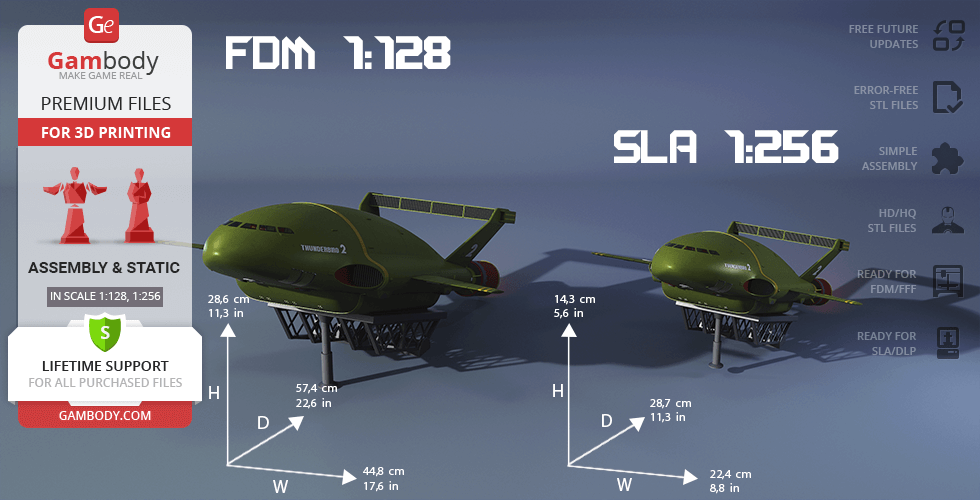

FFF/FDM on the platform: 286 mm tall, 448 mm wide, 574 mm deep;

DLP/SLA: 73 mm tall, 224 mm wide, 298 mm deep;

DLP/SLA on the platform: 143 mm tall, 224 mm wide, 287 mm deep.

  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

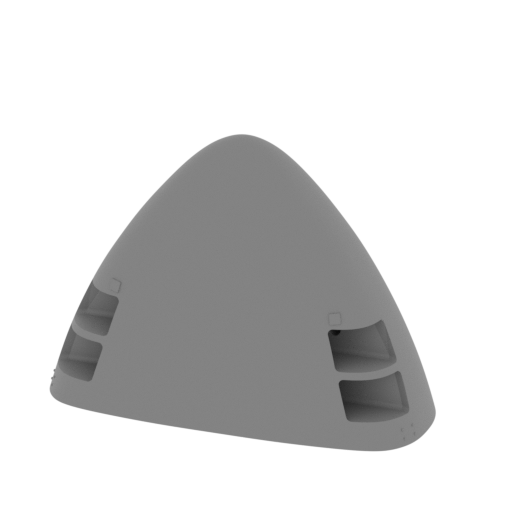

_02_bodyPartClear_a_FDM ( repaired).stl
11.89 MiB 27 h 31 min 14 m 138 x 83 x 102 Download

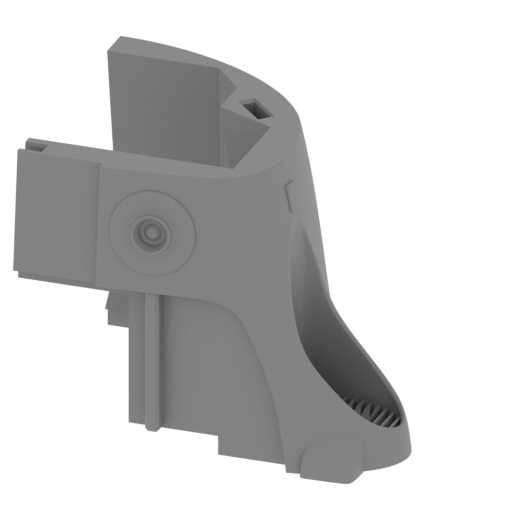

_03_bodyPartClear_b_L_FDM (repaired).stl
1.99 MiB 16 h 31 min 10 m 106 x 96 x 81 Download

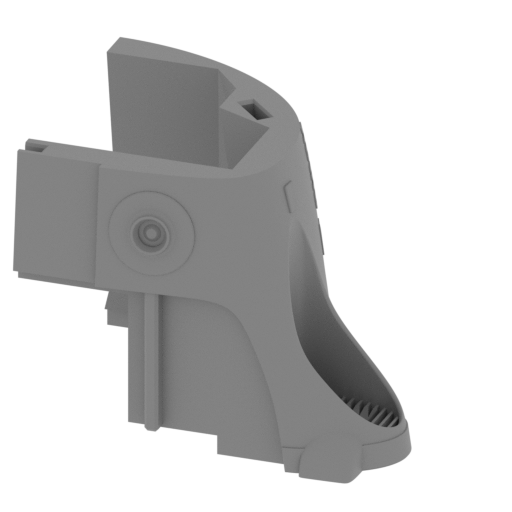

_04_bodyPartPattern_b_L_F DM (repaired).stl
2.49 MiB 16 h 40 min 10 m 107 x 97 x 81 Download
_05_bodyPartClear_c_R_FDM (repaired).stl
2.01 MiB 16 h 19 min 10 m 106 x 96 x 81 Download

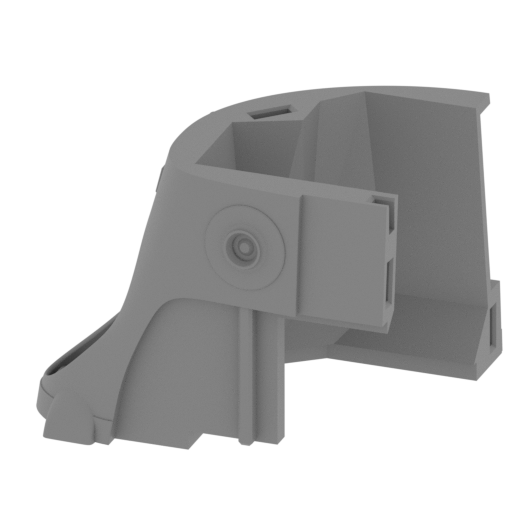

_06_bodyPartPattern_c_R_F DM (repaired).stl
2.45 MiB 16 h 26 min 10 m 107 x 97 x 81 Download

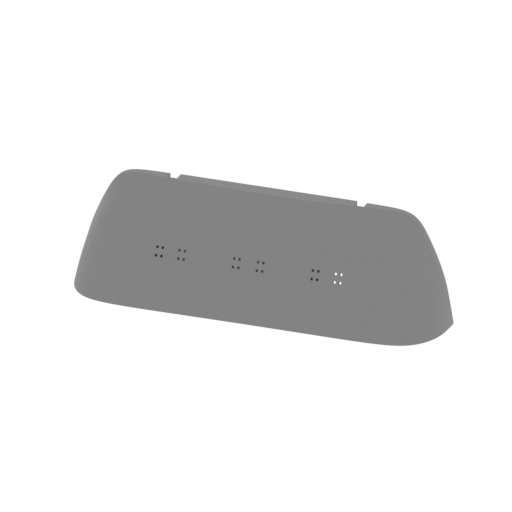

_07_bodyPartClear_d_Bot_F DM (repaired).stl
2.06 MiB 11 h 52 min 8 m 158 x 30 x 47 Download

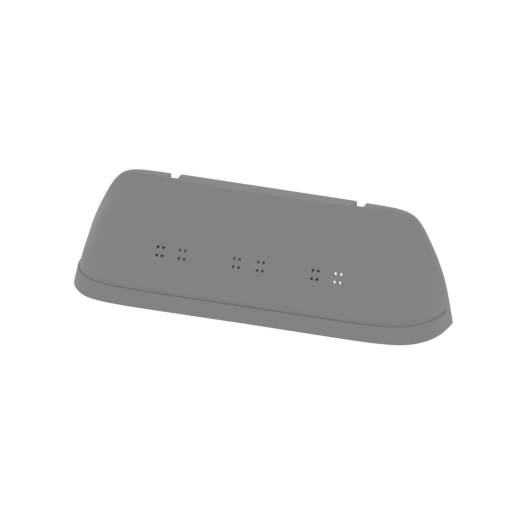

_08_bodyPartPattern_d_Bot _FDM (repaired).stl
2.40 MiB 11 h 57 min 8 m 158 x 31 x 47 Download
_09_bodyPartCap_a_Mid_FDM (repaired).stl
0.21 MiB 5 h 35 min 3 m 115 x 81 x 5 Download

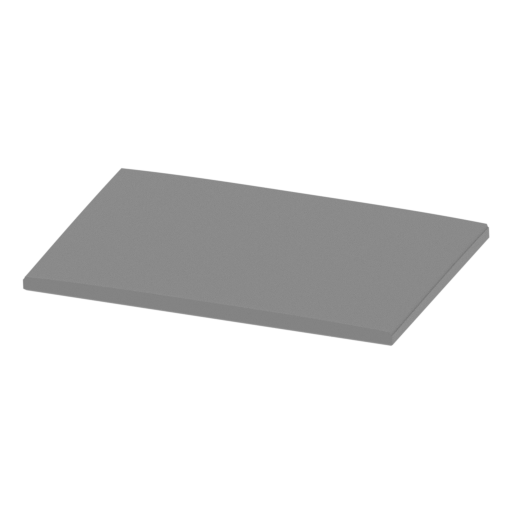

_10_bodyPartCap_c_Bot_FDM (repaired).stl
0.23 MiB 46 min <1 m 49 x 35 x 3 Download

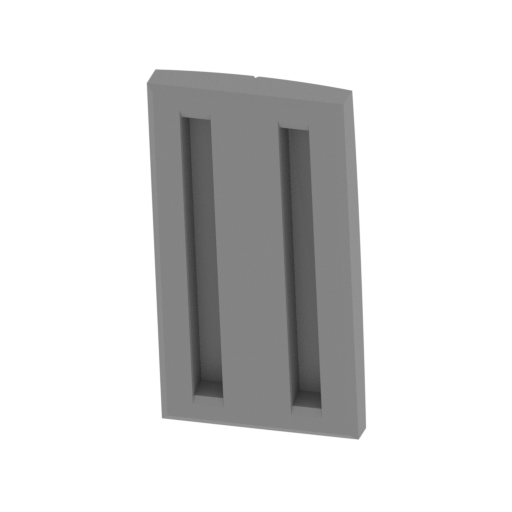

_11_bodyPartCap_b_T_FDM ( repaired).stl
0.17 MiB 1 h 33 min 1 m 30 x 17 x 56 Download

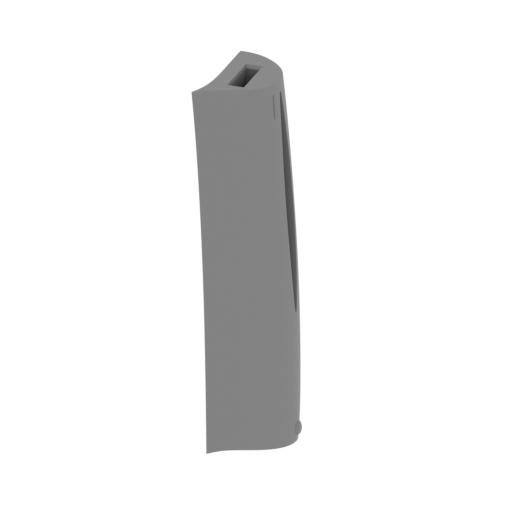

_12_bodyPart_e_L_FDM (rep aired).stl
2.82 MiB 11 h 44 min 7 m 39 x 48 x 163 Download

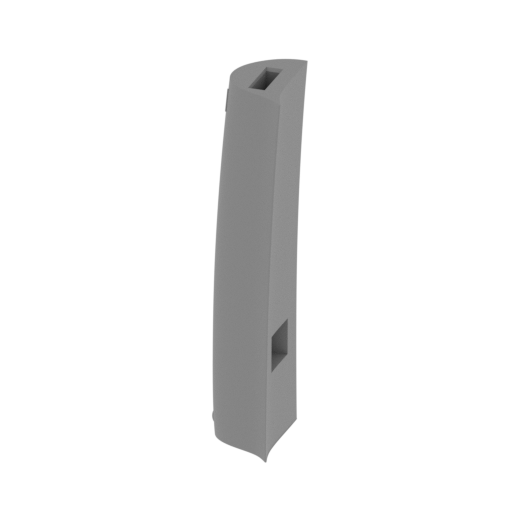

_13_bodyPart_f_R_FDM (rep aired).stl
2.81 MiB 11 h 53 min 7 m 39 x 48 x 163 Download

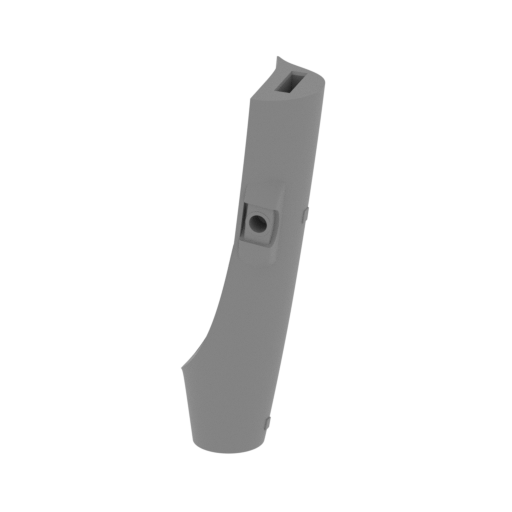

_14_bodyPart_g_L_FDM (rep aired).stl
3.49 MiB 12 h 14 min 7 m 62 x 50 x 170 Download

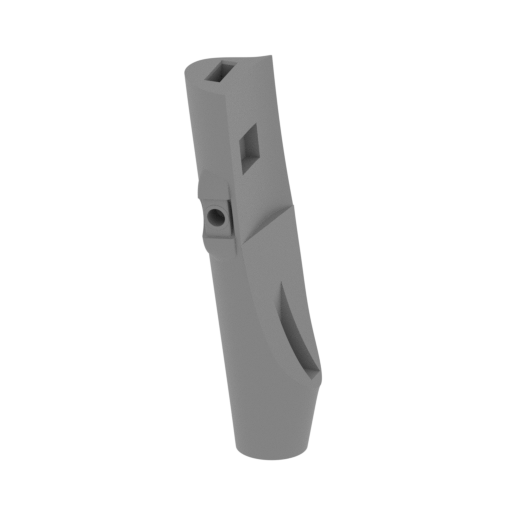

_15_bodyPart_h_R_FDM (rep aired).stl
3.50 MiB 12 h 35 min 7 m 63 x 50 x 170 Download

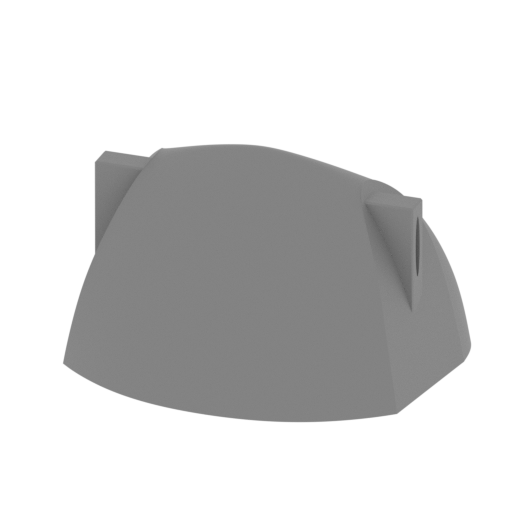

_16_bodyPart_i_Rr_FDM (re paired).stl
4.58 MiB 23 h 26 min 13 m 133 x 96 x 77 Download

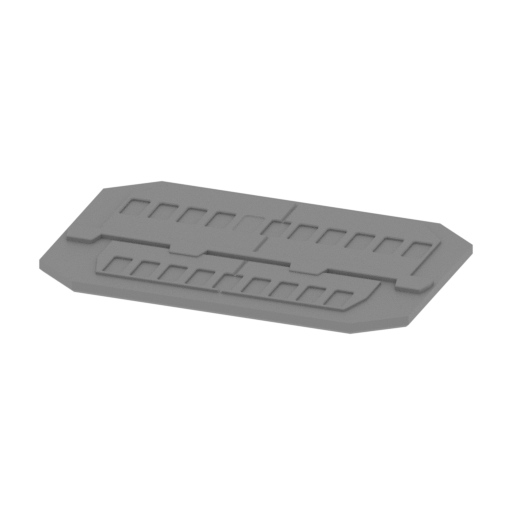

_17_bodyPartCap_d_Rr_FDM (repaired).stl
0.13 MiB 5 h 14 min 3 m 115 x 76 x 5 Download

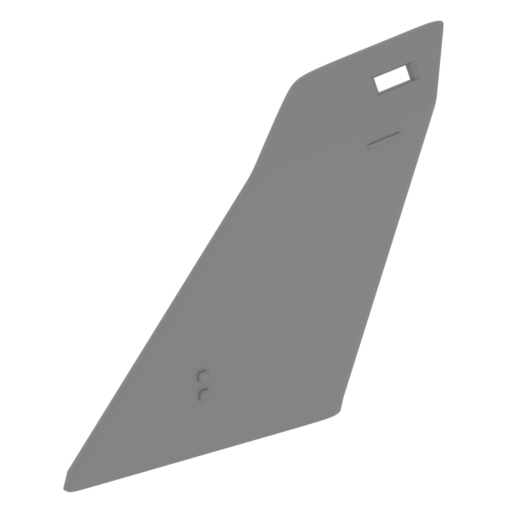

_18_tailFinClear_a_L_FDM (repaired).stl
1.30 MiB 4 h 20 min 2 m 70 x 101 x 101 Download

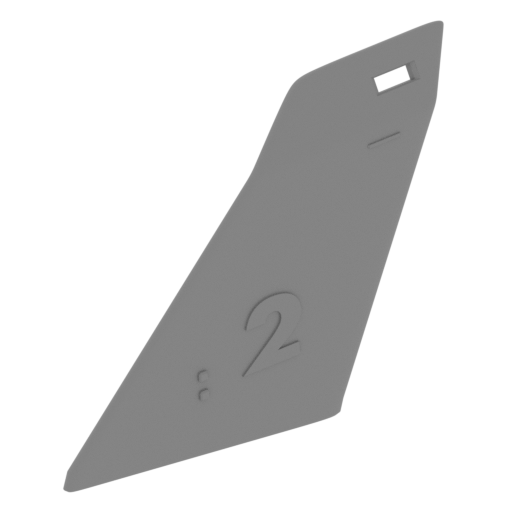

_19_tailFinWithText_a_L_F DM (repaired).stl
1.35 MiB 4 h 25 min 2 m 70 x 101 x 101 Download

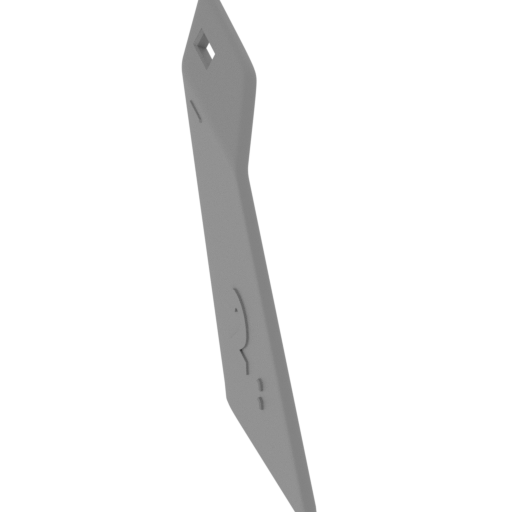

_20_tailFinWithText_b_R_F DM (repaired).stl
1.35 MiB 4 h 35 min 2 m 70 x 101 x 101 Download
_21_tailFinClear_b_R_FDM (repaired).stl
1.30 MiB 4 h 27 min 2 m 70 x 101 x 101 Download

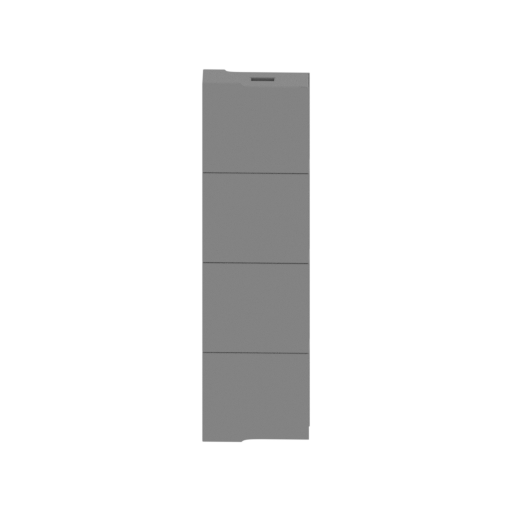

_22_finEnginesPart_a_FDM (repaired).stl
5.88 MiB 18 h 31 min 10 m 55 x 33 x 193 Download

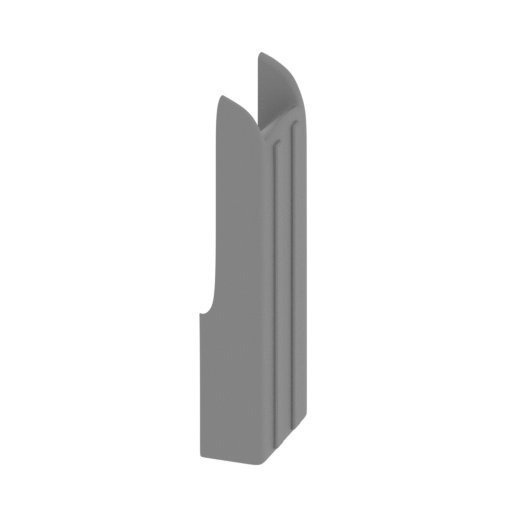

_23_finEnginesPartPattern _b_FDM (repaired).stl
1.11 MiB 48 min <1 m 9 x 17 x 47 Download

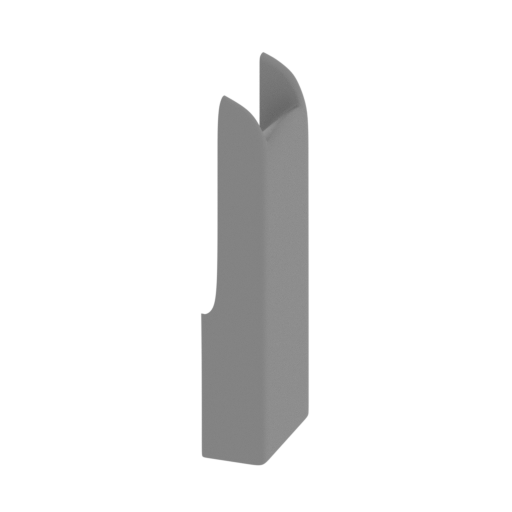

_24_finEnginesPartClear_b _FDM (repaired).stl
1.09 MiB 47 min <1 m 8 x 17 x 47 Download

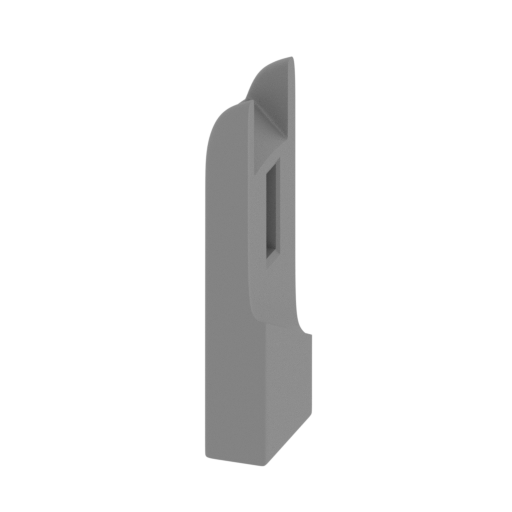

_25_finEnginesPartPattern _c_FDM (repaired).stl
1.11 MiB 48 min <1 m 9 x 17 x 47 Download

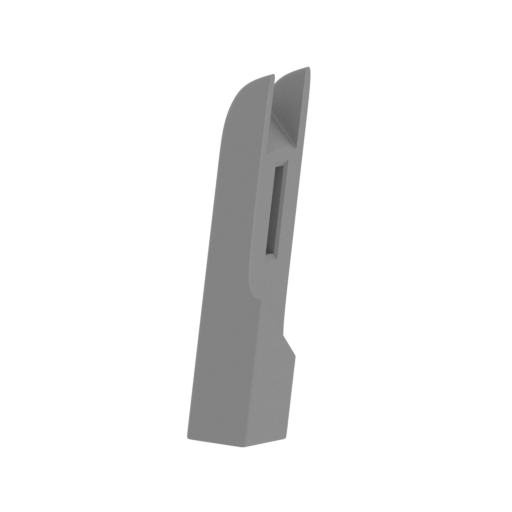

_26_finEnginesPartClear_c _FDM (repaired).stl
1.10 MiB 53 min <1 m 8 x 30 x 50 Download

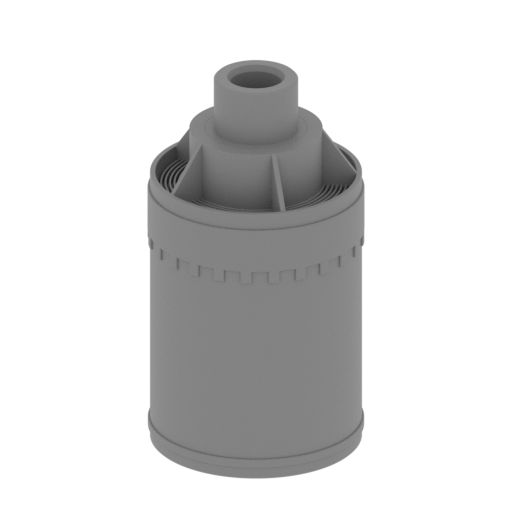

_27_engineBody_X2_FDM (re paired).stl
2.82 MiB 7 h 46 min 4 m 50 x 50 x 91 Download

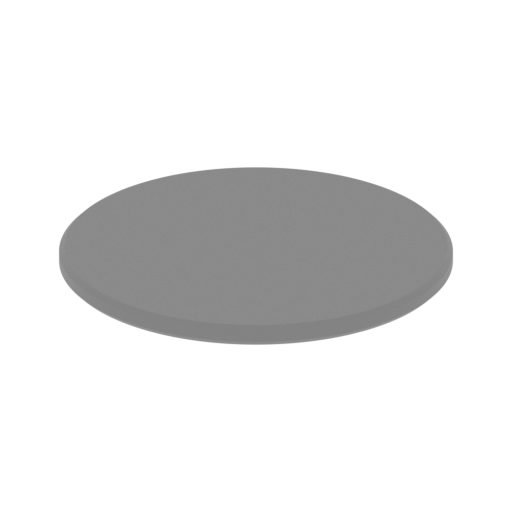

_28_engineGlass_X2_FDM (r epaired).stl
0.11 MiB 44 min <1 m 46 x 46 x 3 Download

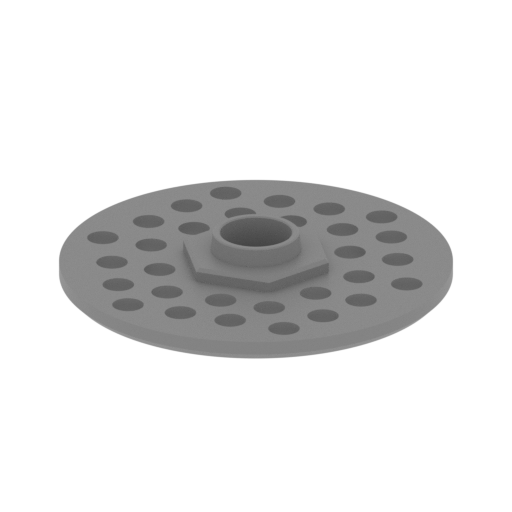

_29_enginePart_X2_FDM (re paired).stl
0.63 MiB 50 min <1 m 46 x 46 x 6 Download

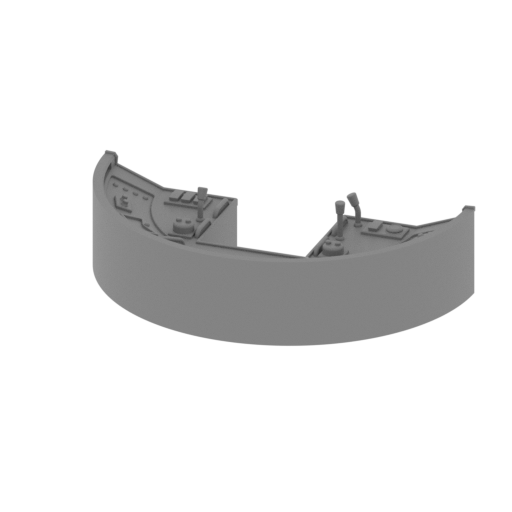

_31_dashboard_FDM (repair ed).stl
8.32 MiB 1 h 26 min 1 m 55 x 28 x 14 Download

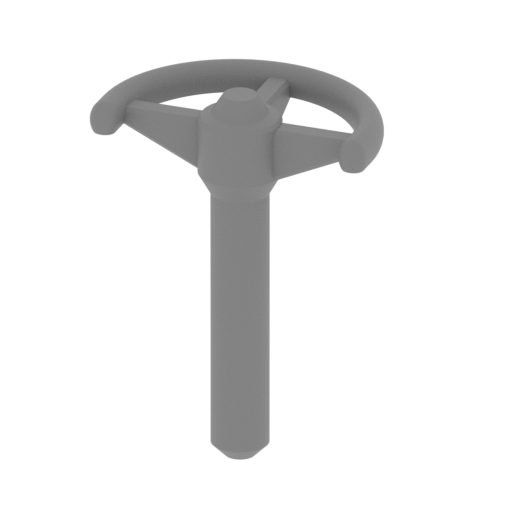

_32_stearingWheel_FDM (re paired).stl
0.55 MiB 9 min <1 m 10 x 6 x 13 Download

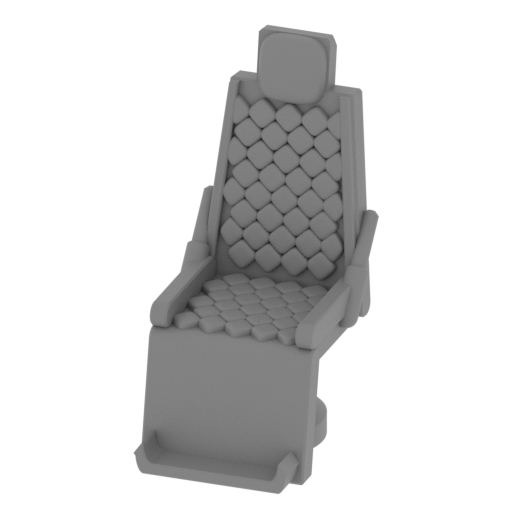

_33_pilotSeat_FDM (repair ed).stl
2.61 MiB 17 min <1 m 10 x 14 x 20 Download

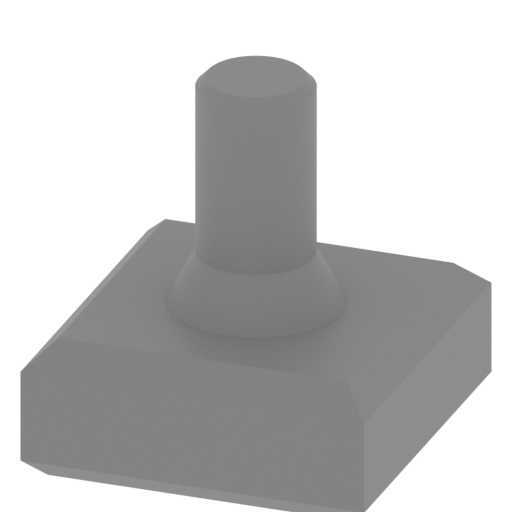

_34_cokpitSeatPin_X2_FDM (repaired).stl
0.04 MiB 4 min <1 m 7 x 7 x 8 Download

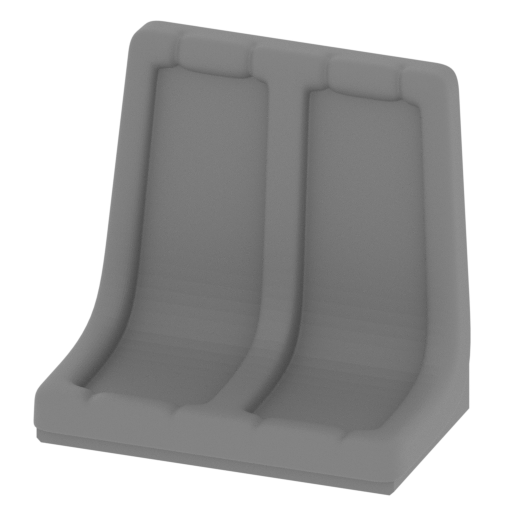

_35_cokpitSeat_X2_FDM (re paired).stl
2.55 MiB 15 min <1 m 14 x 9 x 13 Download

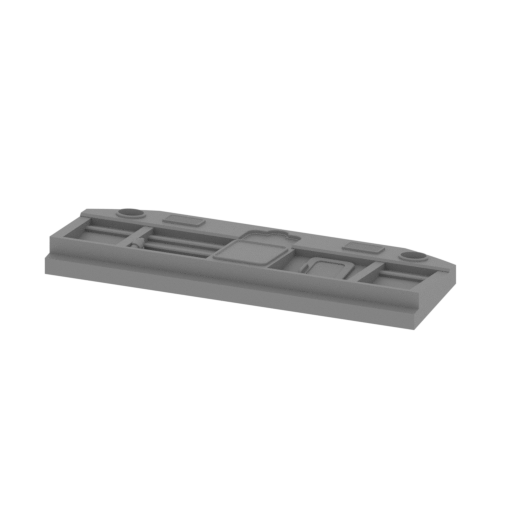

_36_cokpitWall_FDM (repai red).stl
1.81 MiB 1 h 58 min 1 m 82 x 32 x 8 Download

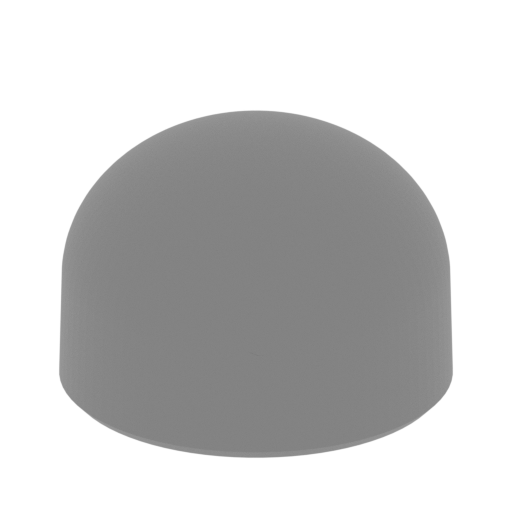

_37_cockpitLampGlass_X2_F DM (repaired).stl
0.33 MiB 2 min <1 m 5 x 5 x 4 Download

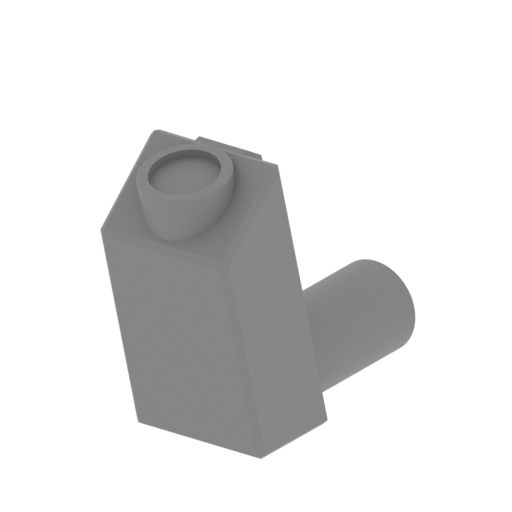

_38_noseSideCamera_X4_FDM (repaired).stl
0.12 MiB 10 min <1 m 9 x 16 x 13 Download

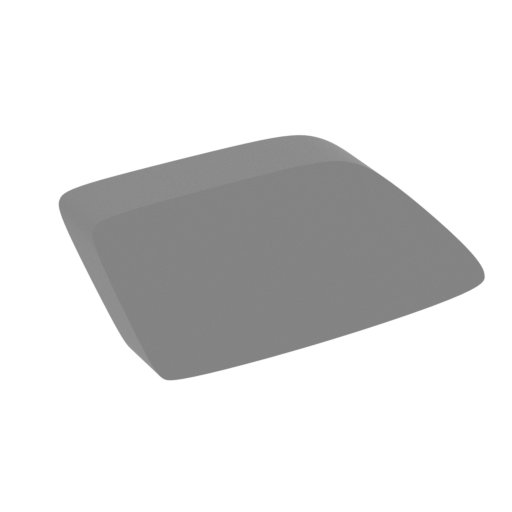

_39_cokcpitGlass_a_FDM (r epaired).stl
0.06 MiB 8 min <1 m 17 x 18 x 5 Download

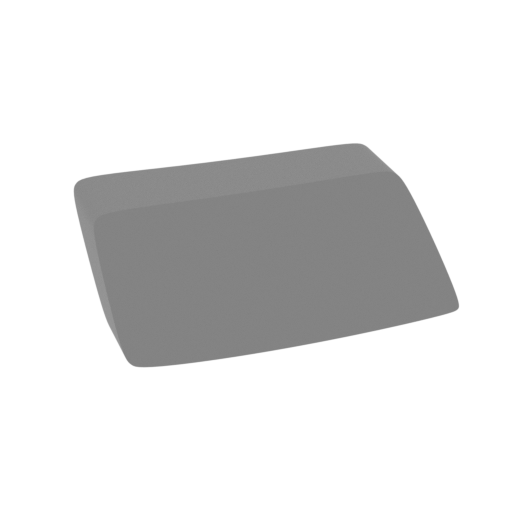

_40_cokcpitGlass_b_FDM (r epaired).stl
0.08 MiB 10 min <1 m 20 x 20 x 5 Download

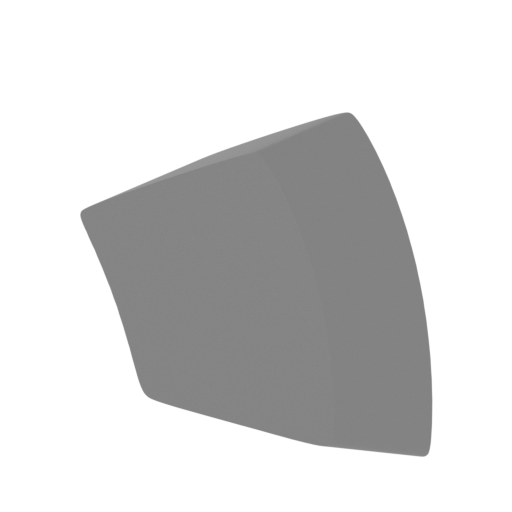

_41_cokcpitGlass_c_FDM (r epaired).stl
0.08 MiB 9 min <1 m 17 x 5 x 17 Download

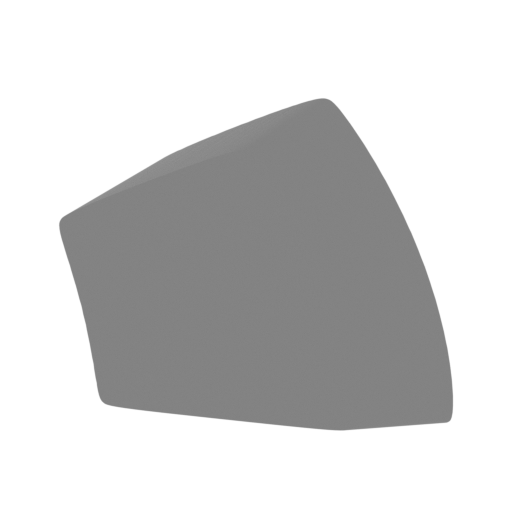

_42_cokcpitGlass_d_FDM (r epaired).stl
0.08 MiB 8 min <1 m 18 x 4 x 16 Download

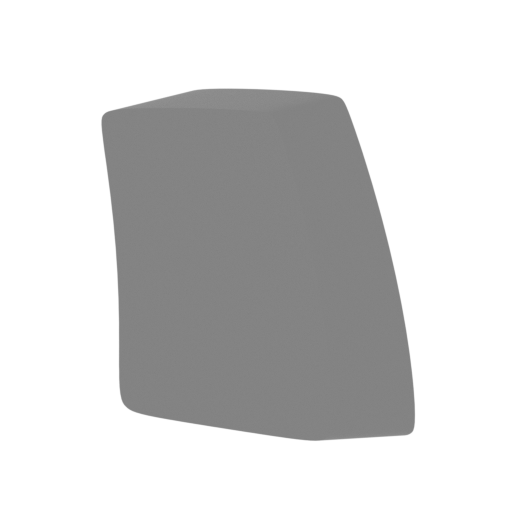

_43_cokcpitGlass_e_FDM (r epaired).stl
0.08 MiB 9 min <1 m 14 x 5 x 18 Download

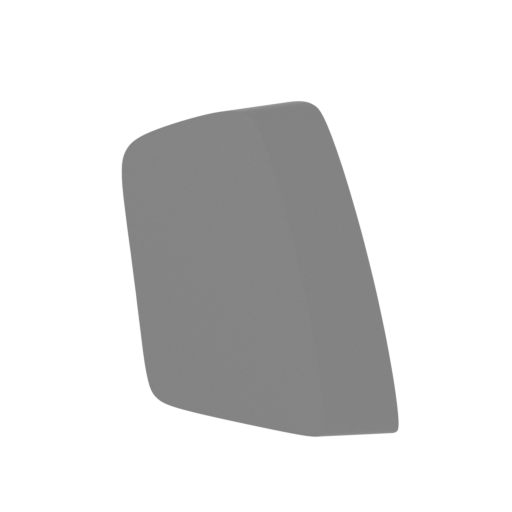

_44_cokcpitGlass_f_FDM (r epaired).stl
0.06 MiB 8 min <1 m 12 x 6 x 18 Download

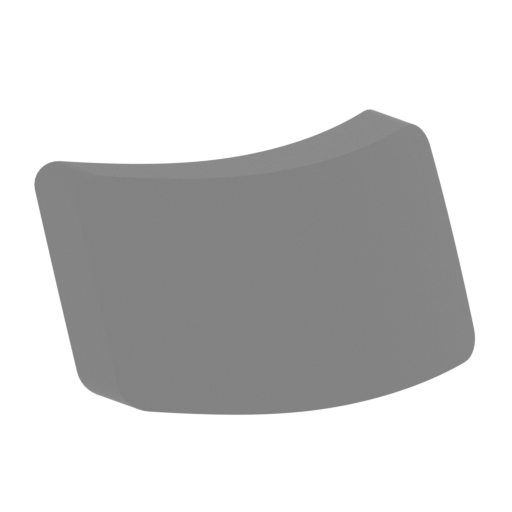

_45_noseGlass_a_L_FDM (re paired).stl
0.22 MiB 15 min <1 m 24 x 18 x 15 Download

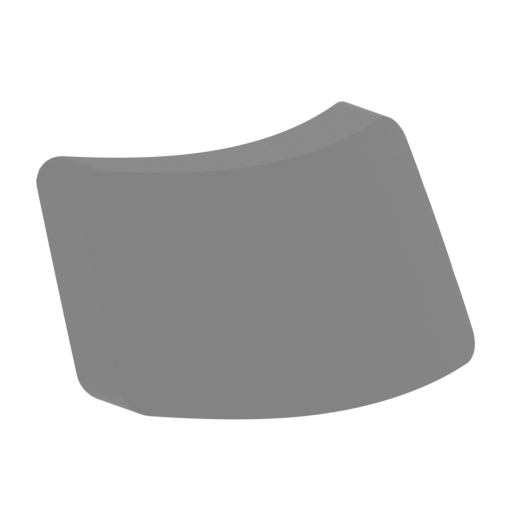

_46_noseGlass_b_L_FDM (re paired).stl
0.23 MiB 15 min <1 m 24 x 19 x 15 Download

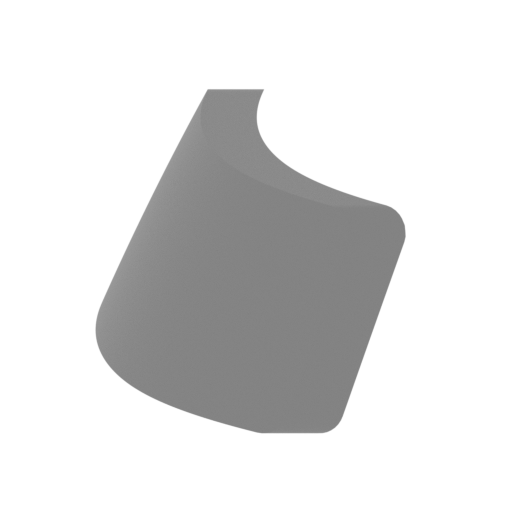

_47_noseGlass_c_R_FDM (re paired).stl
0.23 MiB 15 min <1 m 24 x 19 x 15 Download

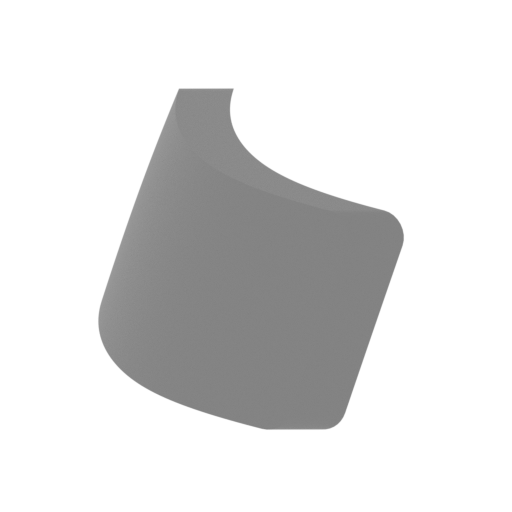

_48_noseGlass_d_R_FDM (re paired).stl
0.22 MiB 15 min <1 m 24 x 18 x 15 Download

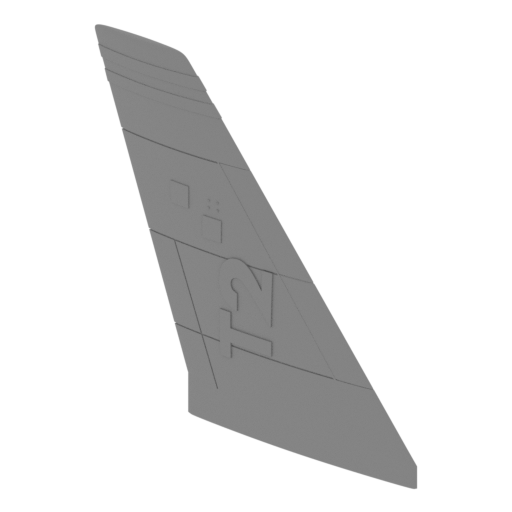

_49_wingWithText_a_L_FDM (repaired).stl
3.88 MiB 5 h 16 min 3 m 132 x 46 x 132 Download

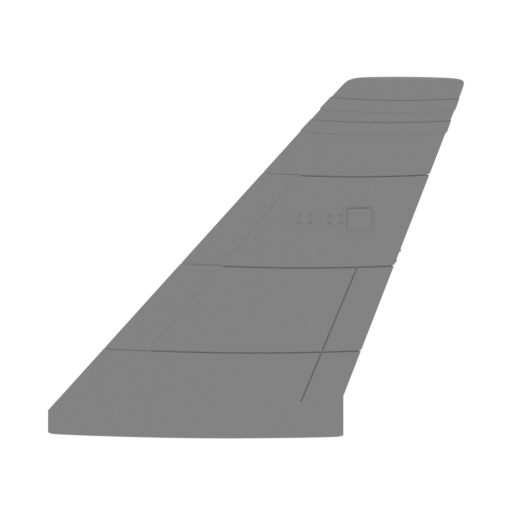

_50_wingWithText_b_R_FDM (repaired).stl
3.92 MiB 5 h 17 min 3 m 132 x 46 x 132 Download

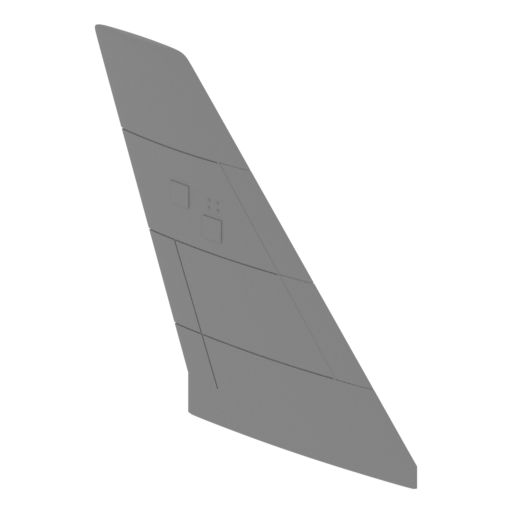

_51_wingClear_a_L_FDM (re paired).stl
3.29 MiB 4 h 50 min 3 m 132 x 46 x 132 Download

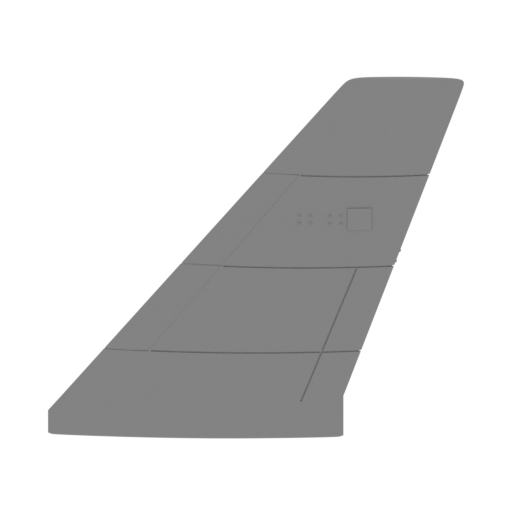

_52_wingClear_b_R_FDM (re paired).stl
3.33 MiB 4 h 50 min 3 m 132 x 46 x 132 Download

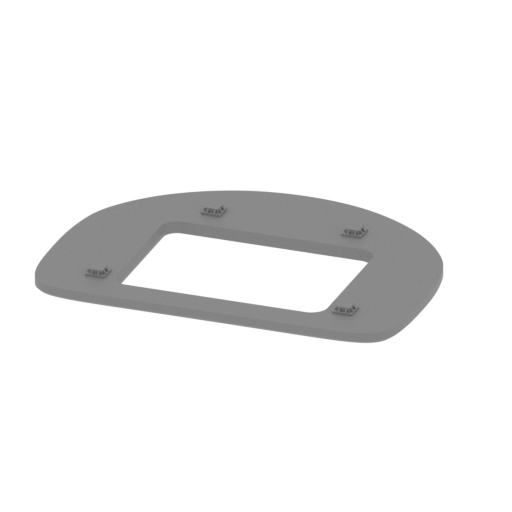

_54_hangarPart_d_FDM (rep aired).stl
0.27 MiB 5 h 34 min 3 m 150 x 113 x 7 Download

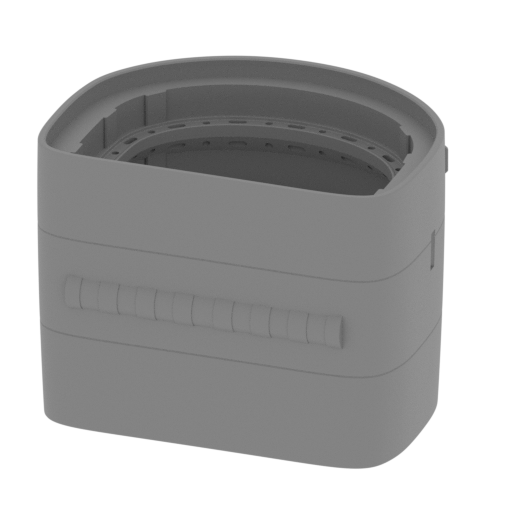

_55_hangarPart_a_FDM (rep aired).stl
11.50 MiB 66 h 37 min 35 m 157 x 124 x 119 Download

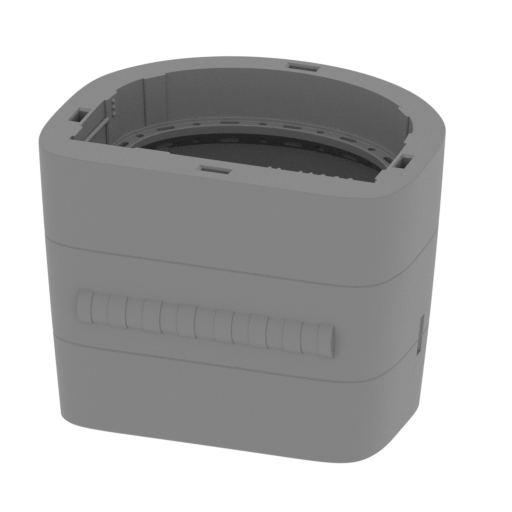

_56_hangarPart_b_FDM (rep aired).stl
13.17 MiB 64 h 55 min 36 m 152 x 122 x 114 Download

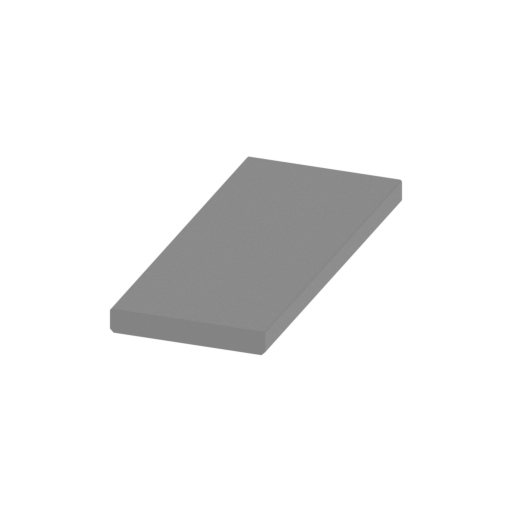

_58_hangarPart_c_FDM (rep aired).stl
0.01 MiB 1 h 56 min 1 m 36 x 86 x 6 Download

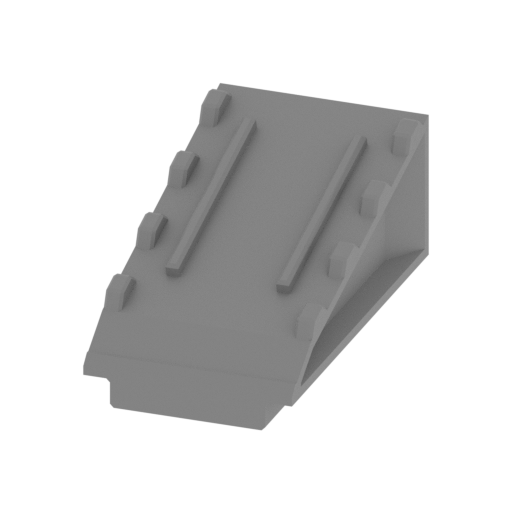

_59_hangarBoatRailPart_b_ FDM (repaired).stl
0.07 MiB 9 h 13 min 5 m 49 x 86 x 42 Download

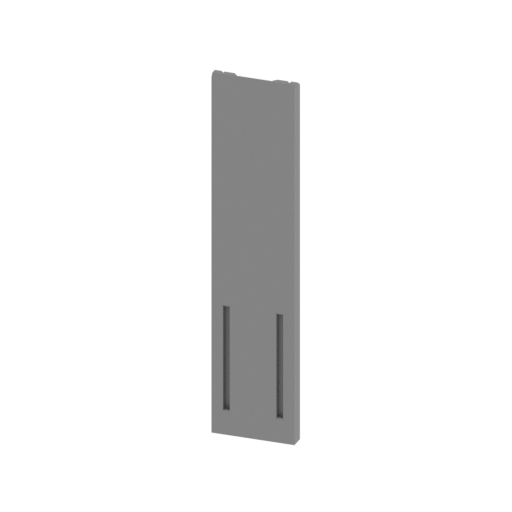

_60_hangarBoatRailPart_a_ FDM (repaired).stl
0.07 MiB 5 h 22 min 3 m 40 x 8 x 177 Download

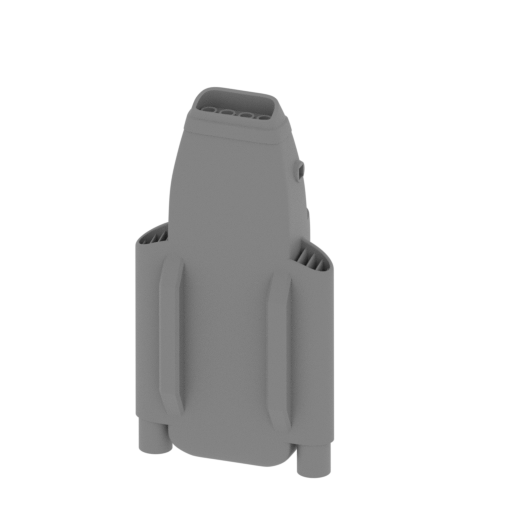

_61_thunderbird4BodyPart_ a_V1_FDM (repaired).stl
8.38 MiB 3 h 60 min 2 m 39 x 37 x 73 Download

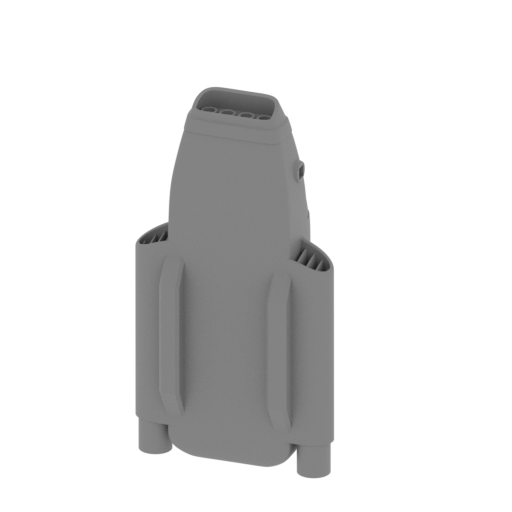

_62_thunderbird4BodyPart_ a_V2_FDM (repaired).stl
8.42 MiB 4 h 1 min 2 m 39 x 37 x 73 Download

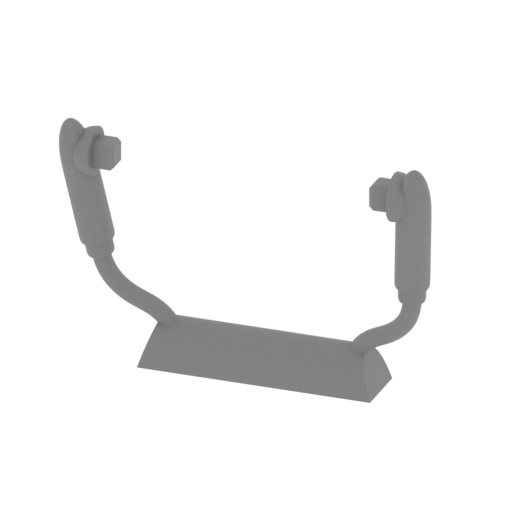

_63_thunderbird4BodyPart_ b_FDM (repaired).stl
2.61 MiB 22 min <1 m 30 x 9 x 21 Download

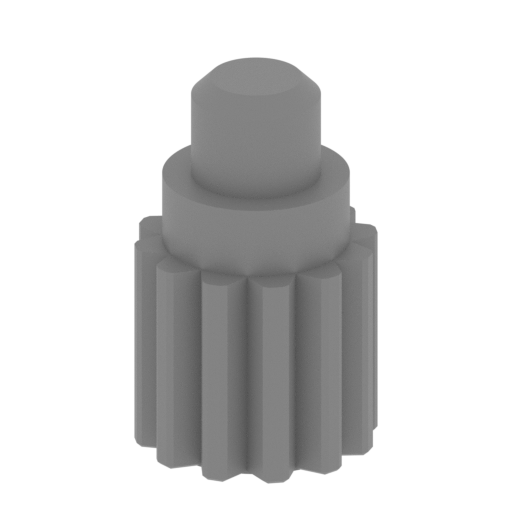

_64_thunderbird4BodyPart_ c_X2_FDM (repaired).stl
0.24 MiB 11 min <1 m 8 x 8 x 13 Download

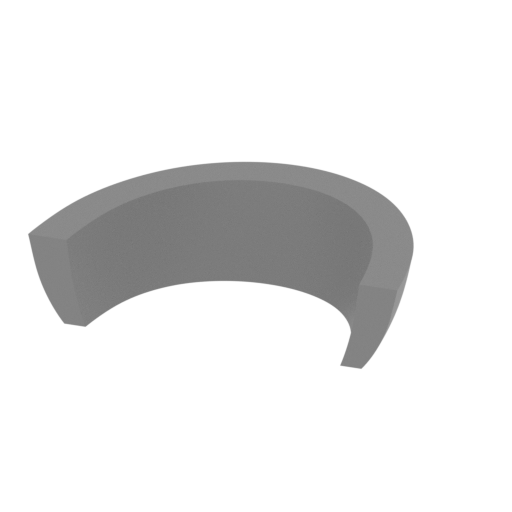

_65_thunderbird4BodyGlass _FDM (repaired).stl
0.37 MiB 7 min <1 m 23 x 15 x 5 Download

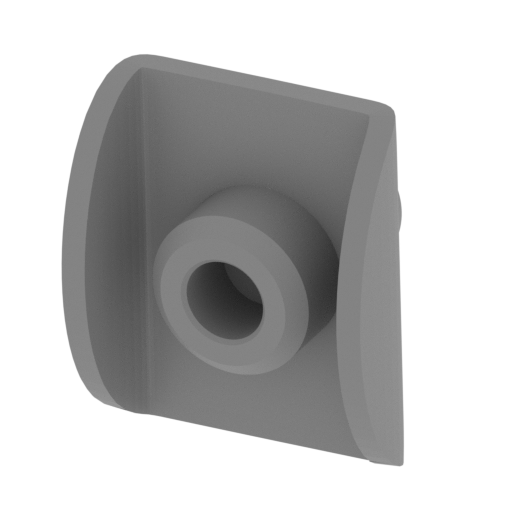

_66_landingGearStand_V2_X 4_FDM (repaired).stl
0.59 MiB 27 min <1 m 15 x 13 x 18 Download

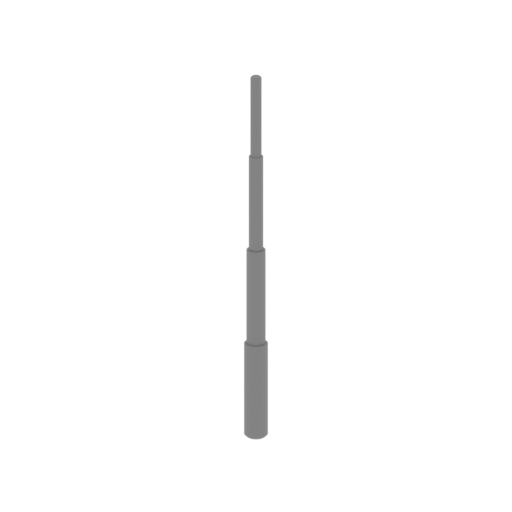

_67_landingGearPiston_V1_ X4_FDM (repaired).stl
0.29 MiB 1 h 20 min <1 m 8 x 8 x 134 Download

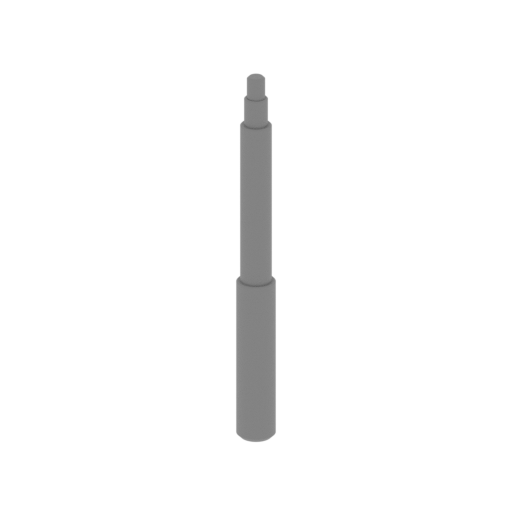

_68_landingGearPiston_V2_ FDM (repaired).stl
0.23 MiB 58 min <1 m 8 x 8 x 80 Download

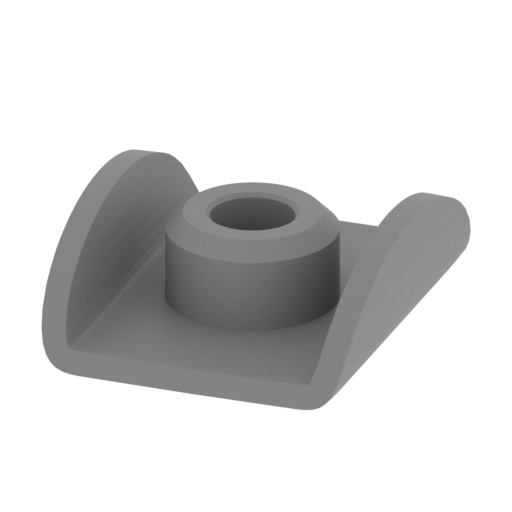

_69_landingGearStand_V1_X 4_FDM (repaired).stl
0.27 MiB 12 min <1 m 15 x 18 x 6 Download

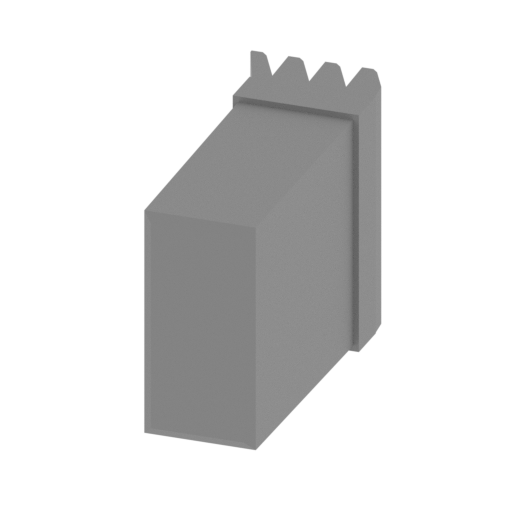

_70_pinBody_V1_X2_FDM (re paired).stl
0.02 MiB 29 min <1 m 10 x 26 x 17 Download

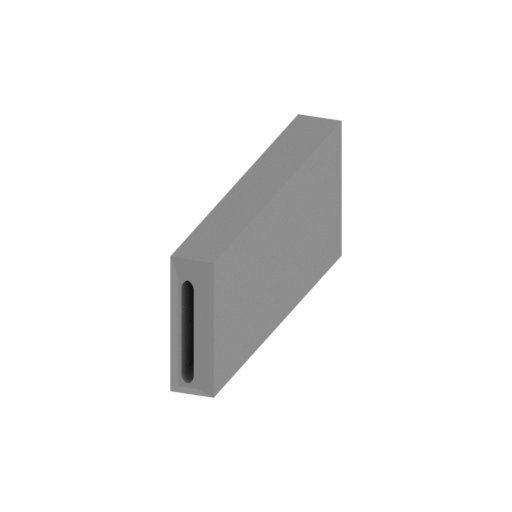

_71_pinBody_V2_X2_FDM (re paired).stl
0.05 MiB 1 h 3 min 1 m 6 x 54 x 20 Download

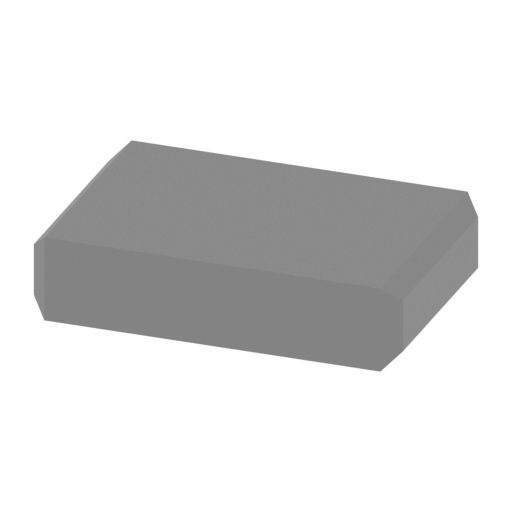

_72_pinBody_V3_X11_FDM (r epaired).stl
0.01 MiB 8 min <1 m 17 x 11 x 4 Download

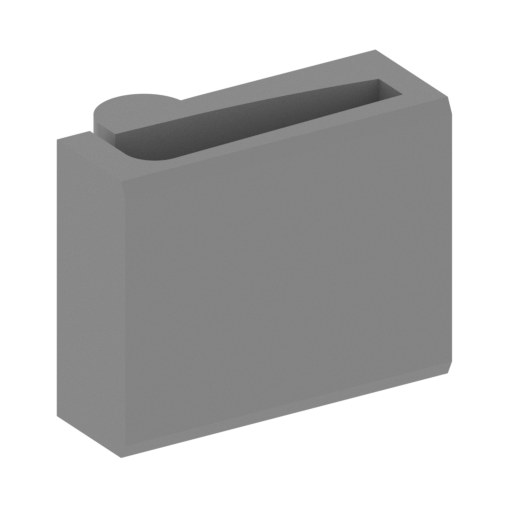

_73_hangarLock_X4_FDM (re paired).stl
0.03 MiB 22 min <1 m 18 x 21 x 16 Download

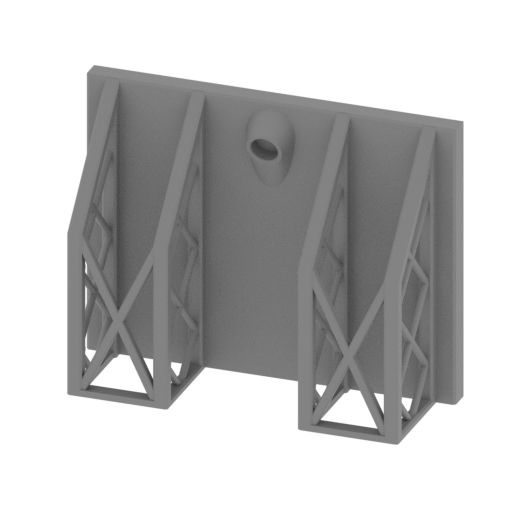

_74_standPart_a_FDM (repa ired).stl
1.96 MiB 20 h 11 m 142 x 49 x 108 Download

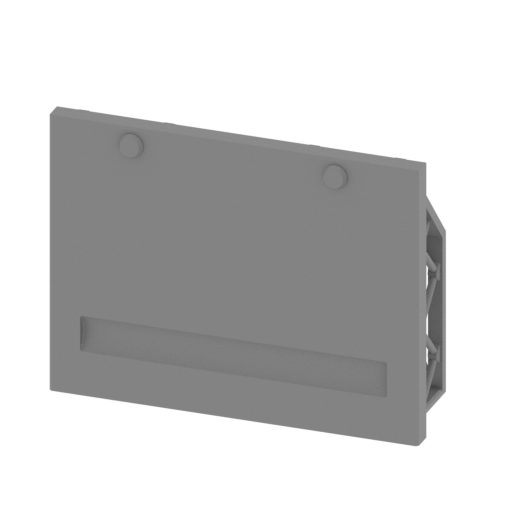

_75_standPart_b_FDM (repa ired).stl
1.95 MiB 19 h 53 min 10 m 142 x 52 x 108 Download

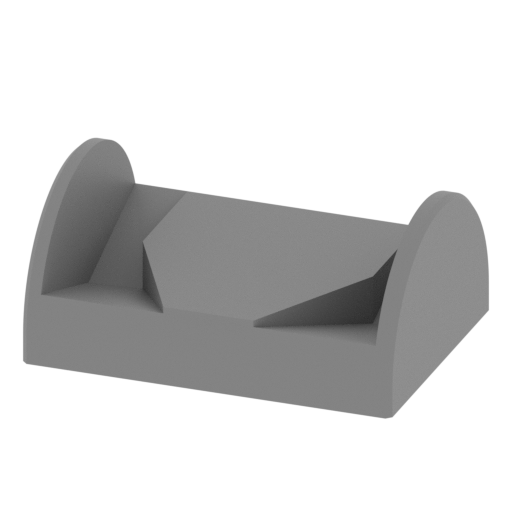

_76_standPart_c_X2_FDM (r epaired).stl
0.05 MiB 1 h 37 min 1 m 43 x 31 x 19 Download

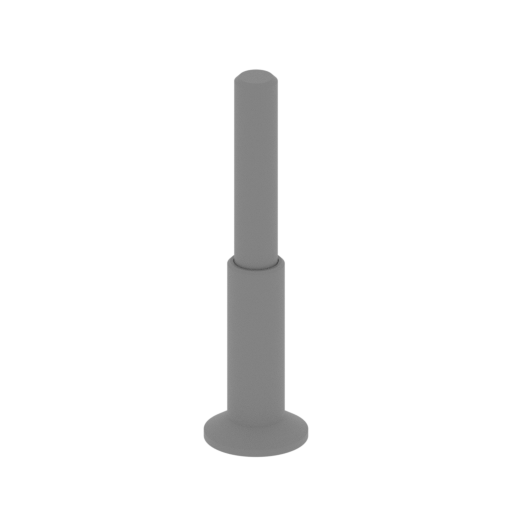

_77_standPart_d_FDM (repa ired).stl
0.27 MiB 1 h 31 min 1 m 24 x 24 x 90 Download

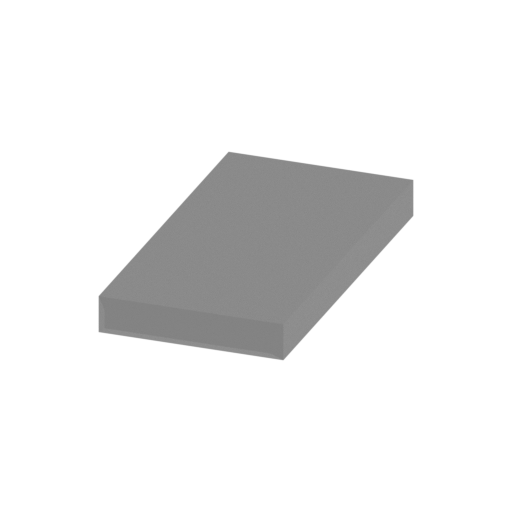

_78_standPin_X2_FDM (repa ired).stl
0.01 MiB 28 min <1 m 20 x 40 x 4 Download

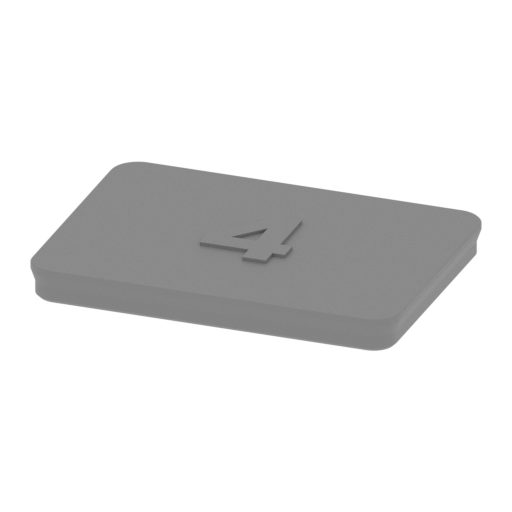

_53_hangarCap_FDM (repair ed).stl
0.09 MiB 3 h 56 min 2 m 86 x 62 x 9 Download

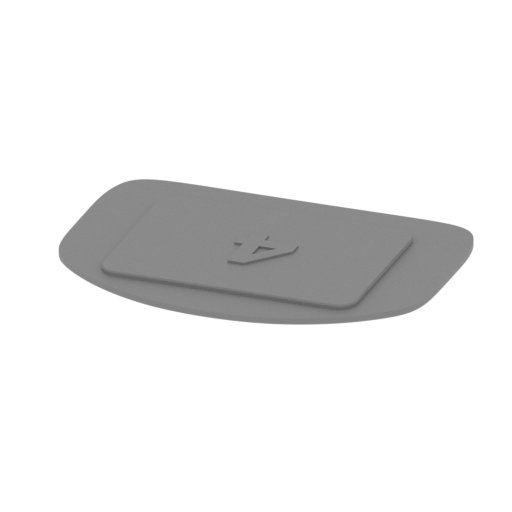

_57_hangarPart_e_FDM (rep aired).stl
0.22 MiB 4 h 58 min 3 m 125 x 90 x 5 Download

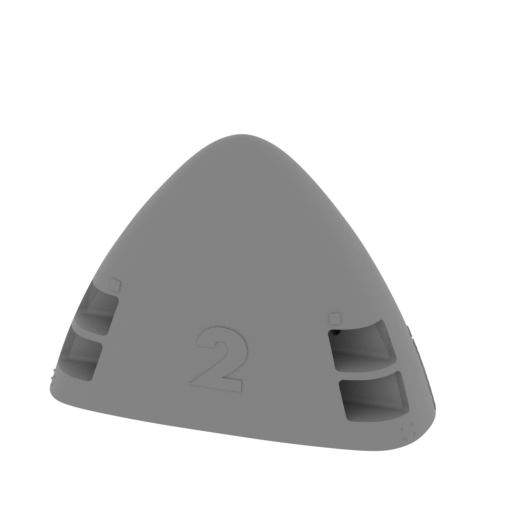

_01_bodyPartPattern_a_FDM (repaired).stl
12.45 MiB 27 h 30 min 14 m 138 x 83 x 102 Download

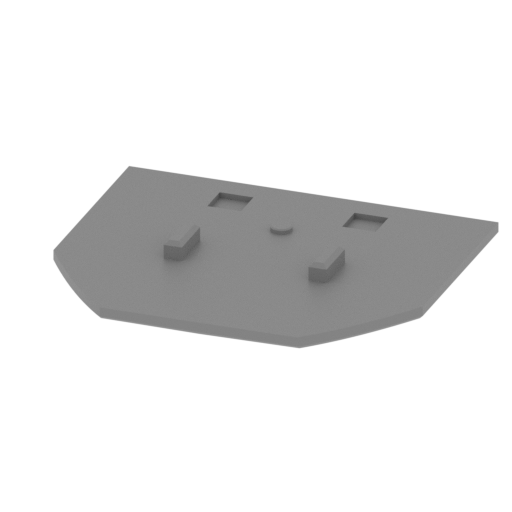

_30_cockpitFloor_FDM (rep aired).stl
0.16 MiB 2 h 34 min 1 m 82 x 69 x 7 Download
...

ABOUT THIS 3D MODEL

Gerry Anderson is famous for his futuristic television programmes, in the 1960s and 1970s he filmed his well-known series including Thunderbirds, Space: 1999, UFO, Supercar, Fireball XL5, Stingray, Joe 90. Thunderbirds were especially popular, these series featured a big variety of futuristic air, land and sea vehicles and machines. The most advanced machines, “Thunderbirds”, belonged to the International Rescue organisation and were used during their rescues. Thunderbird 2,  a heavy-duty transporter aircraft, could carry rescue equipment to the danger zone in one of 6 pods; this super-fast VTOL aircraft was used in most earth-based rescue missions.

Thunderbird 2 inspired our contributing 3D artist to create this amazing model for 3D printing. The transporter has several display options, it can be mounted on a platform or hydraulic legs, the hangar is detachable and can be placed under the transporter or separately. Hangar serves as a base for Thunderbird 4 submarine, which is included in the files and makes this outstanding model even more authentic! You can choose between the clear and marked hull, there are tunnels for LEDs to illuminate bow and tail sections. We know you were waiting for it so please welcome the most iconic Thunderbirds machines of all!

ADAPTATION FOR 3D PRINTING

Thunderbird 2 for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 49 hours in total.

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the transporter was divided into convenient assembly parts.

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Thunderbird 2 model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model’s scale was calculated from the length of the Thunderbird 2 which is 76000 mm. The 3D printing model’s chosen scales are 1:128 for the FFF/FDM version and 1:256 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

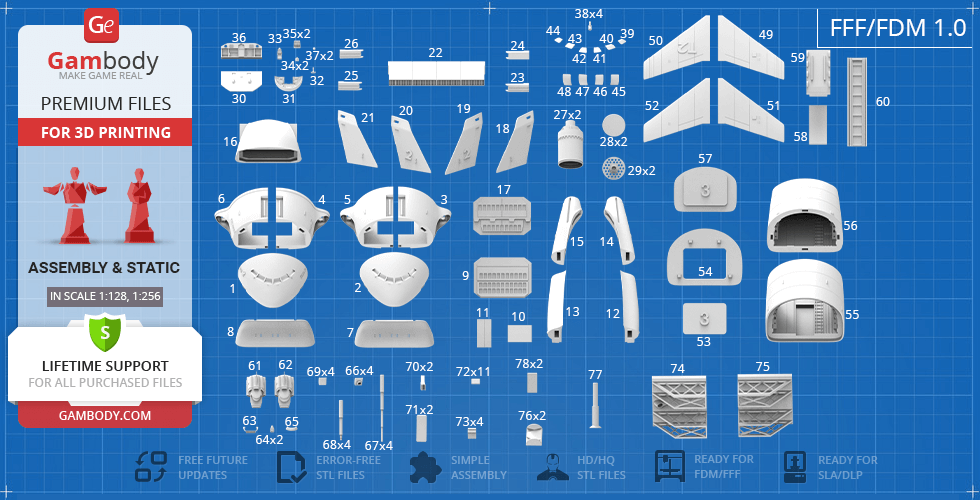

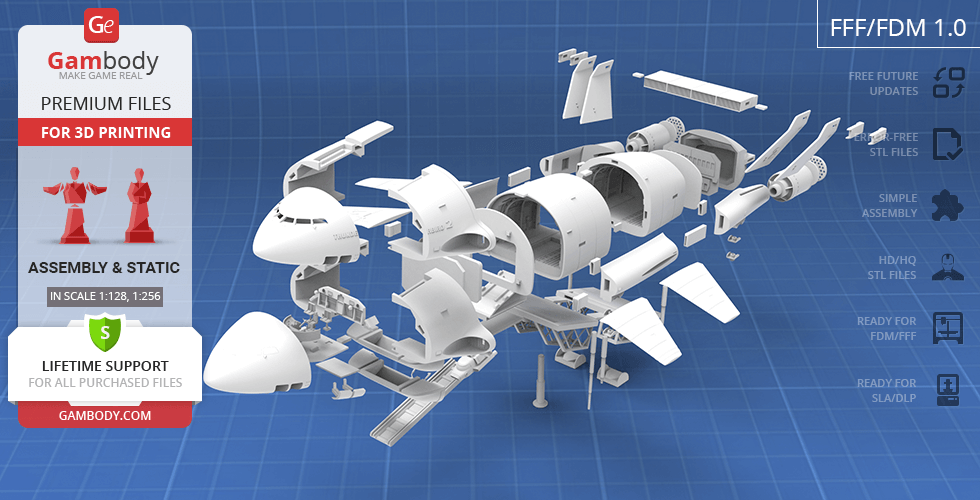

FFF/FDM 1.0 version features:

  • Contains 78 parts;
  • A printed model is 146 mm tall, 448 mm wide, 595 mm deep;
  • A printed model on the platform is 286 mm tall, 448 mm wide, 574 mm deep;
  • Two hull options - with the line and lettering and clear;

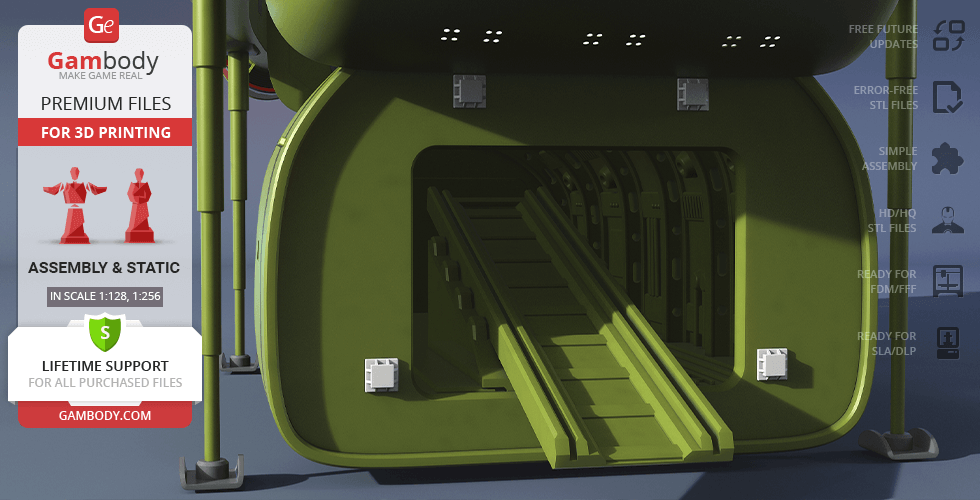

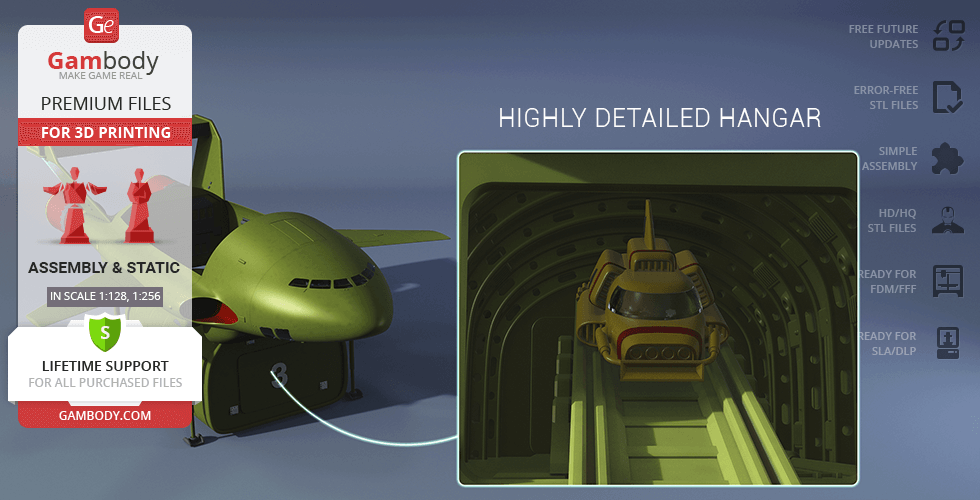

  • Highly detailed hangar;

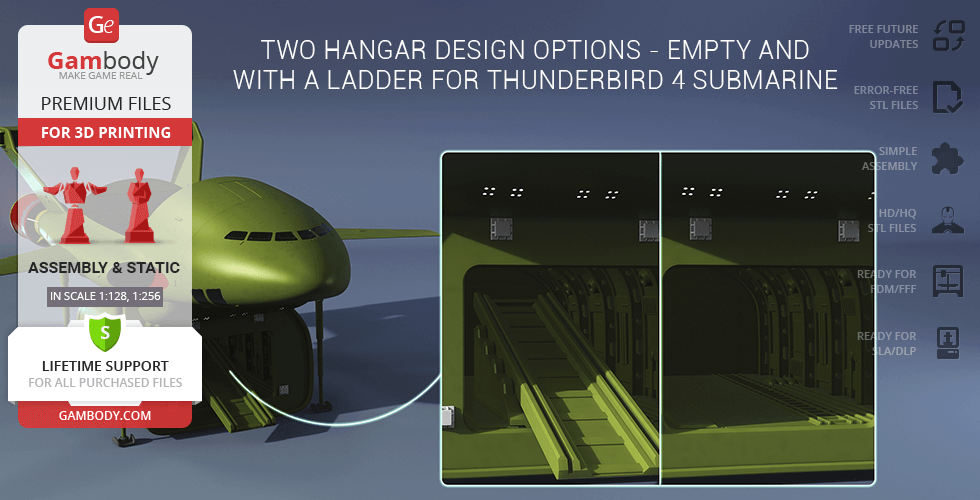

  • Two hangar design options - empty and with a ladder for Thunderbird 4 submarine;

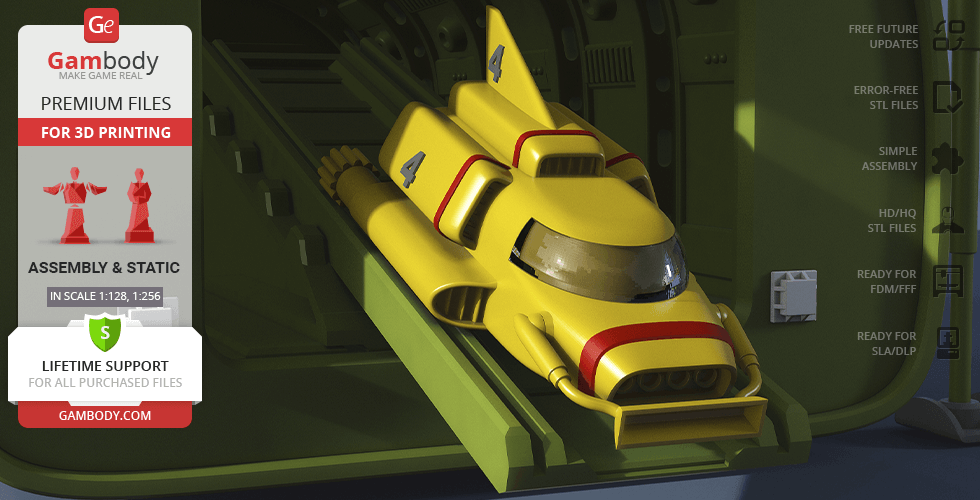

  • Thunderbird 4 has two hull design options - solid and with a transparent cockpit glass;

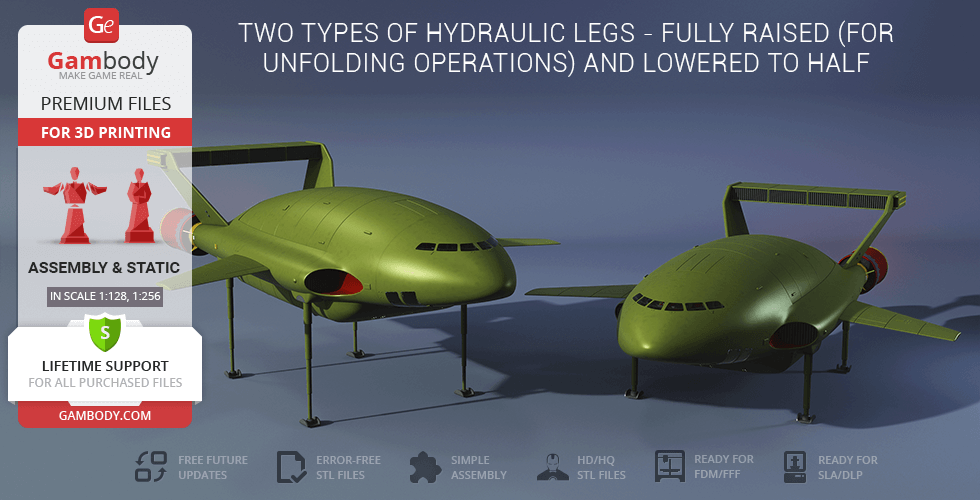

  • Two types of hydraulic legs - fully raised (for unfolding operations) and lowered to half;
  • The transporter can be mounted on an angled platform or the hydraulic legs;
  • Two options for covers - solid and with nozzles for hydraulic legs;
  • Detachable hangar;

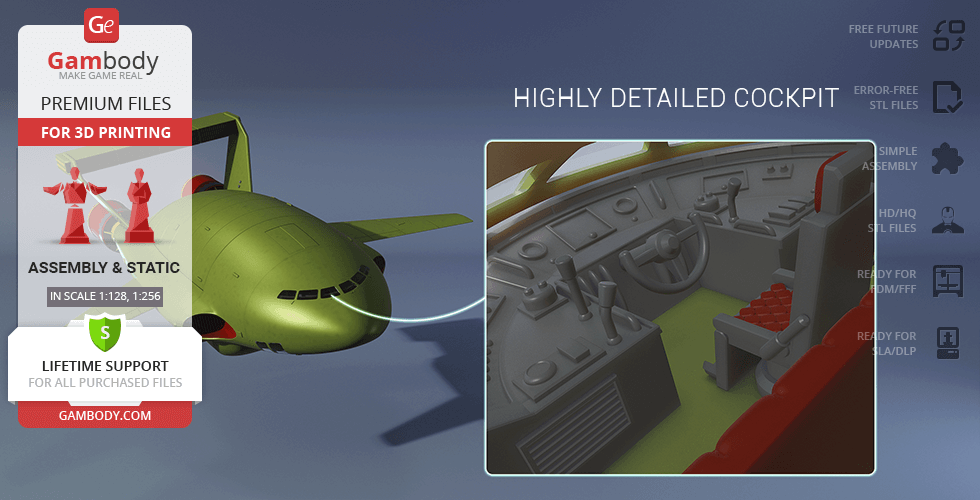

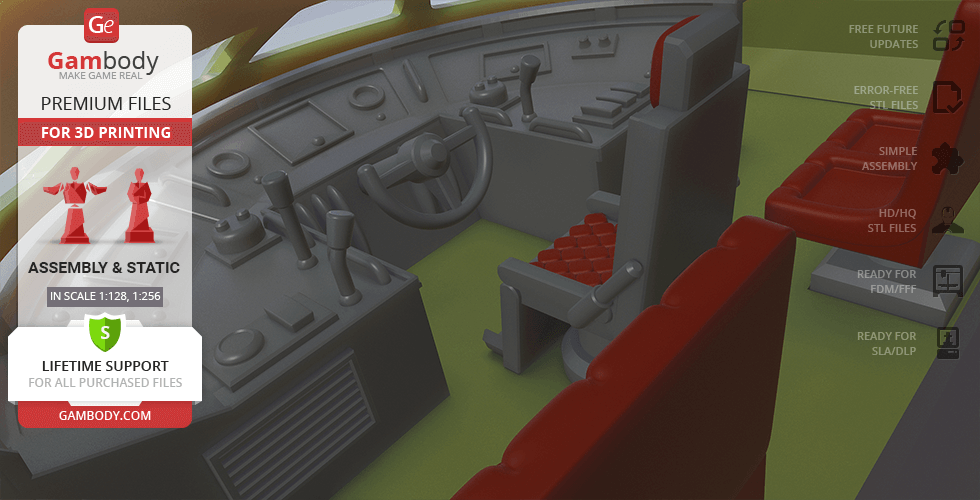

  • Highly detailed cockpit;

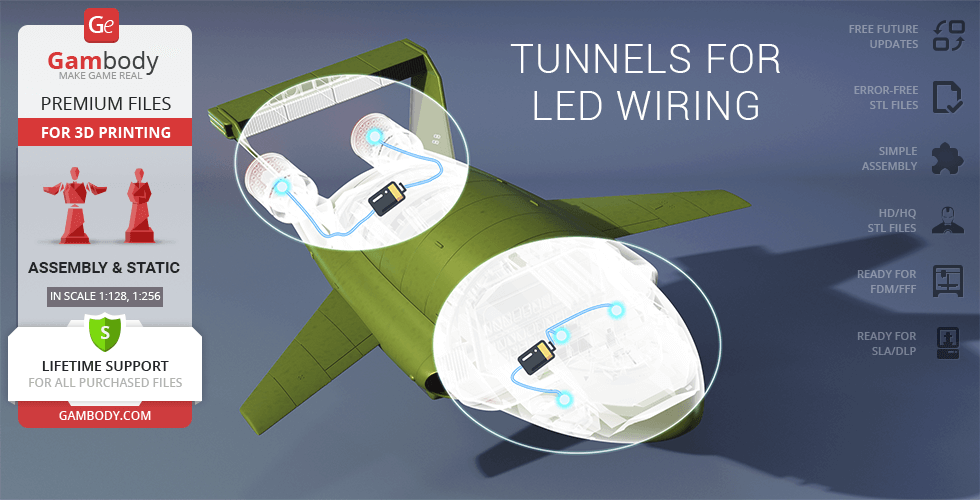

  • There are tunnels inside the transporter for you to introduce LED wiring;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

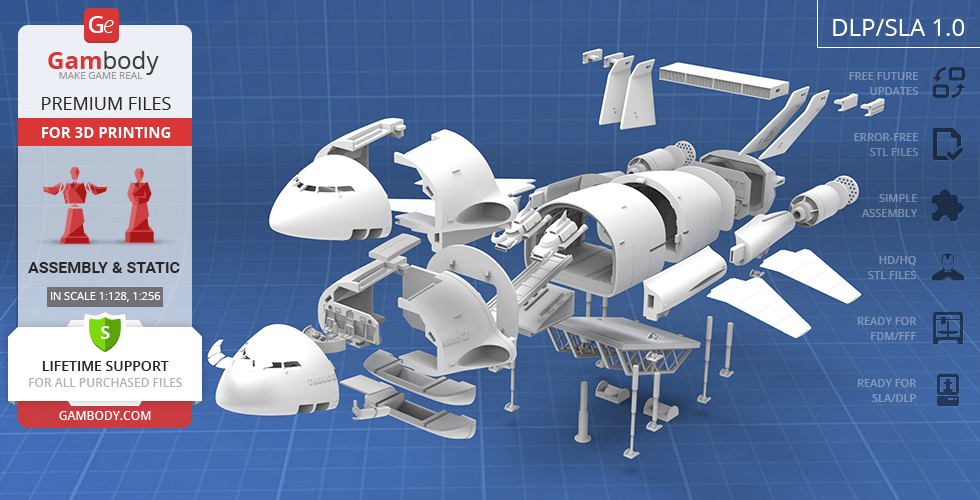

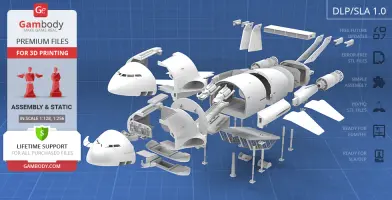

DLP/SLA 1.0 version features:

  • Contains 67 parts;
  • A printed model is 73 mm tall, 224 mm wide, 298 mm deep;
  • A printed model is 143 mm tall, 224 mm wide, 287 mm deep;
  • Two hull options - with the line and lettering and clear;
  • Highly detailed hangar;
  • Two hangar design options - empty and with a ladder for Thunderbird 4 submarine;
  • Thunderbird 4 has two hull design options - solid and with a transparent cockpit glass;
  • Two types of hydraulic legs - fully raised (for unfolding operations) and lowered to half;
  • The transporter can be mounted on an angled platform or the hydraulic legs;
  • Two options for covers - solid and with nozzles for hydraulic legs;
  • Detachable hangar;
  • Highly detailed cockpit;
  • There are tunnels inside the transporter for you to introduce LED wiring;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

You can get the model of Thunderbird 2 for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Thunderbird 2 3D Printing Model on Gambody YouTube channel.

Also, you may like the SHADO Skydiver and Eagle Transporter 3D printing models.

________

FAQ:

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
  • All connectors should be printed at 100% Infill.

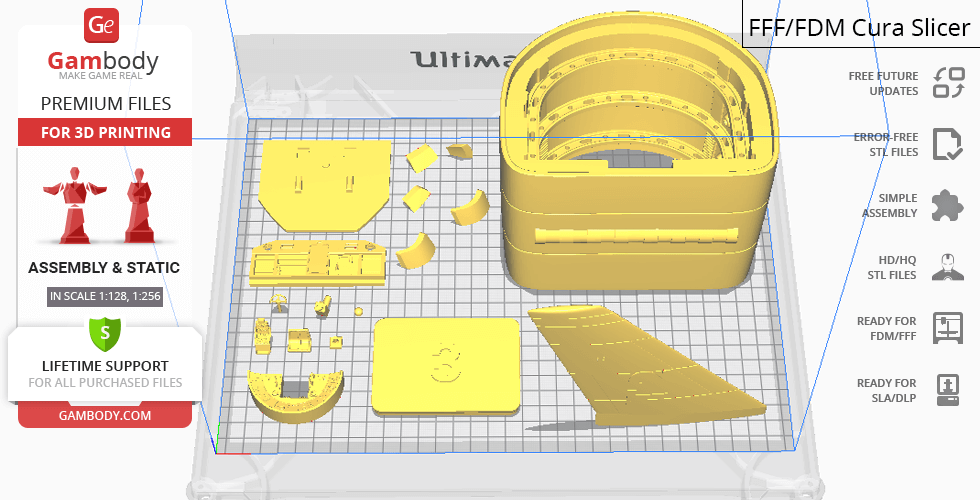

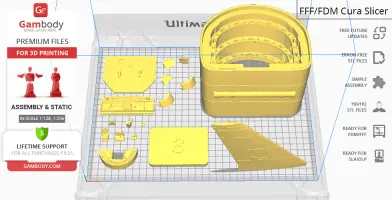

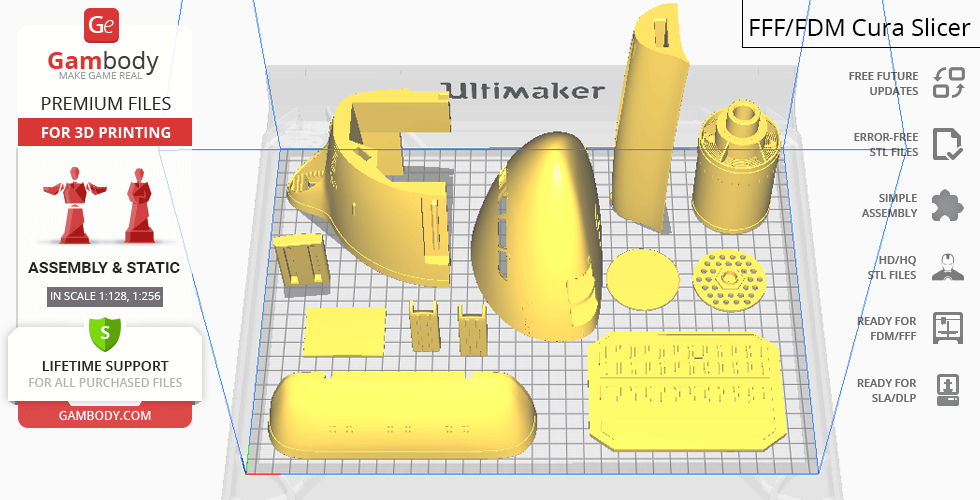

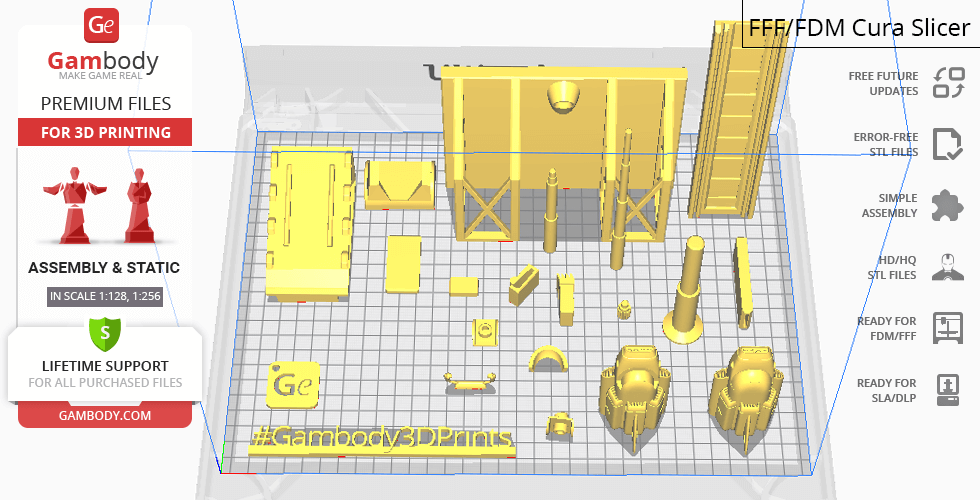

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
