3D model format
Stereolithography (.stl), Wavefront OBJ (.obj)
Total files
Slicer settings
not available
Mesh error check
not specified
Support
Provided by 3D Artist (optional)
Update requests
Subject to 3D Artist’s discretion
Model versions
FFF/FDM
Assembly method
not specified
Features
DLP/SLA
Assembly method
not specified
Features
Additional details
Part of diorama
No
Special pack included
No
You will get instant access to the STL files of STL File Description — Steampunk Dolphin Wall Hook (print-ready) after completing your purchase. Simply add the model to your cart and check out using PayPal, credit or debit card, Apple Pay, Google Pay, Alipay, or other available payment methods.
Watch the assembly video for STL File Description — Steampunk Dolphin Wall Hook (print-ready), and explore more tutorials, behind-the-scenes content, 3D printing timelapses, and painting guides on the official Gambody YouTube channel.
This 3D model comes with StereoLithography (.STL) files optimized for 3D printing. You'll get digital files, not a physical product
Before printing, take a look at Printing Details for recommended settings and tips to achieve better results.
STL File Description — Steampunk Dolphin Wall Hook (print-ready) includes 2 version(s) for the supported 3D printer type(s): FFF/FDM, DLP/SLA. Files are available for download after purchase.
See the Description and Specifications sections for more details about this model.

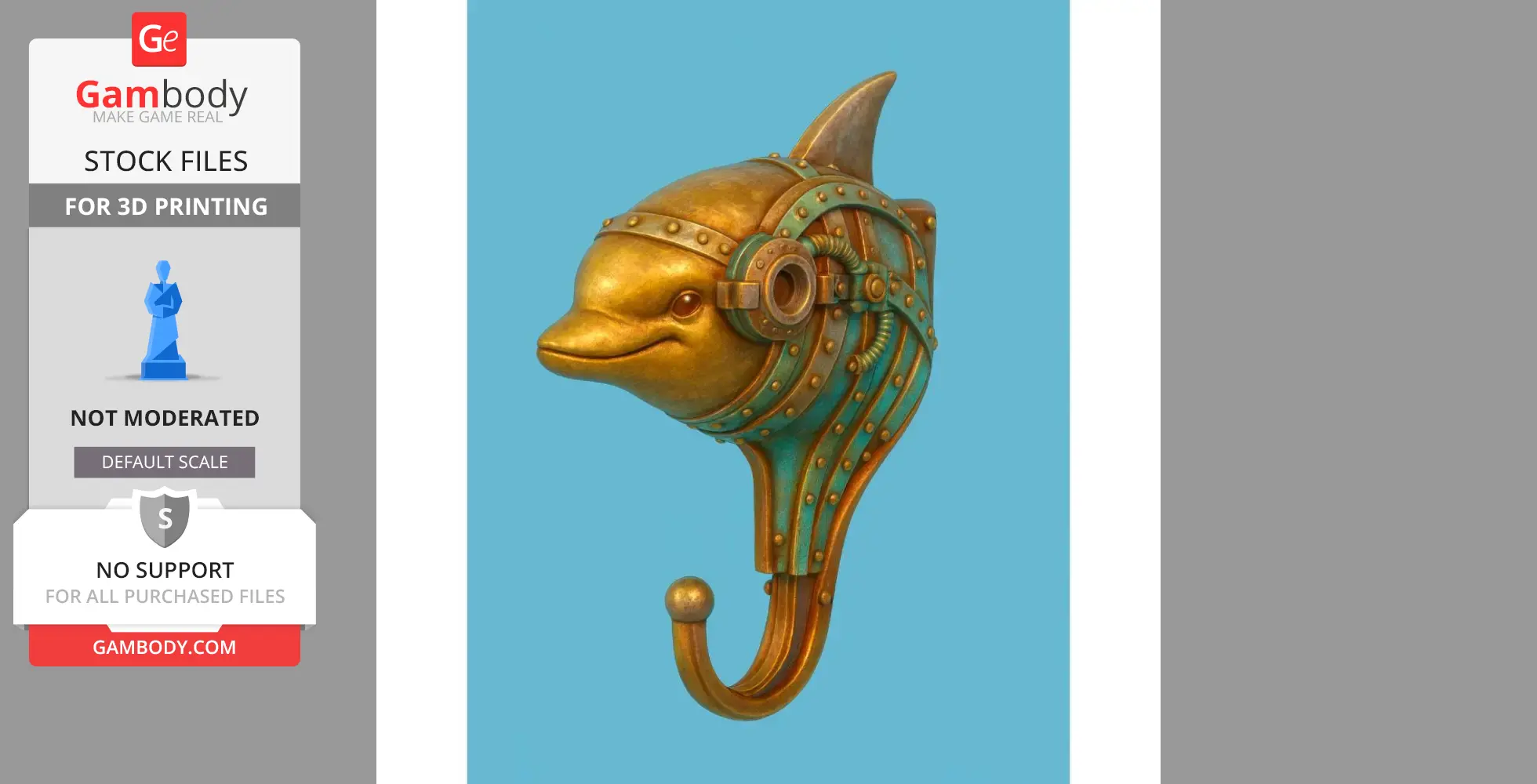

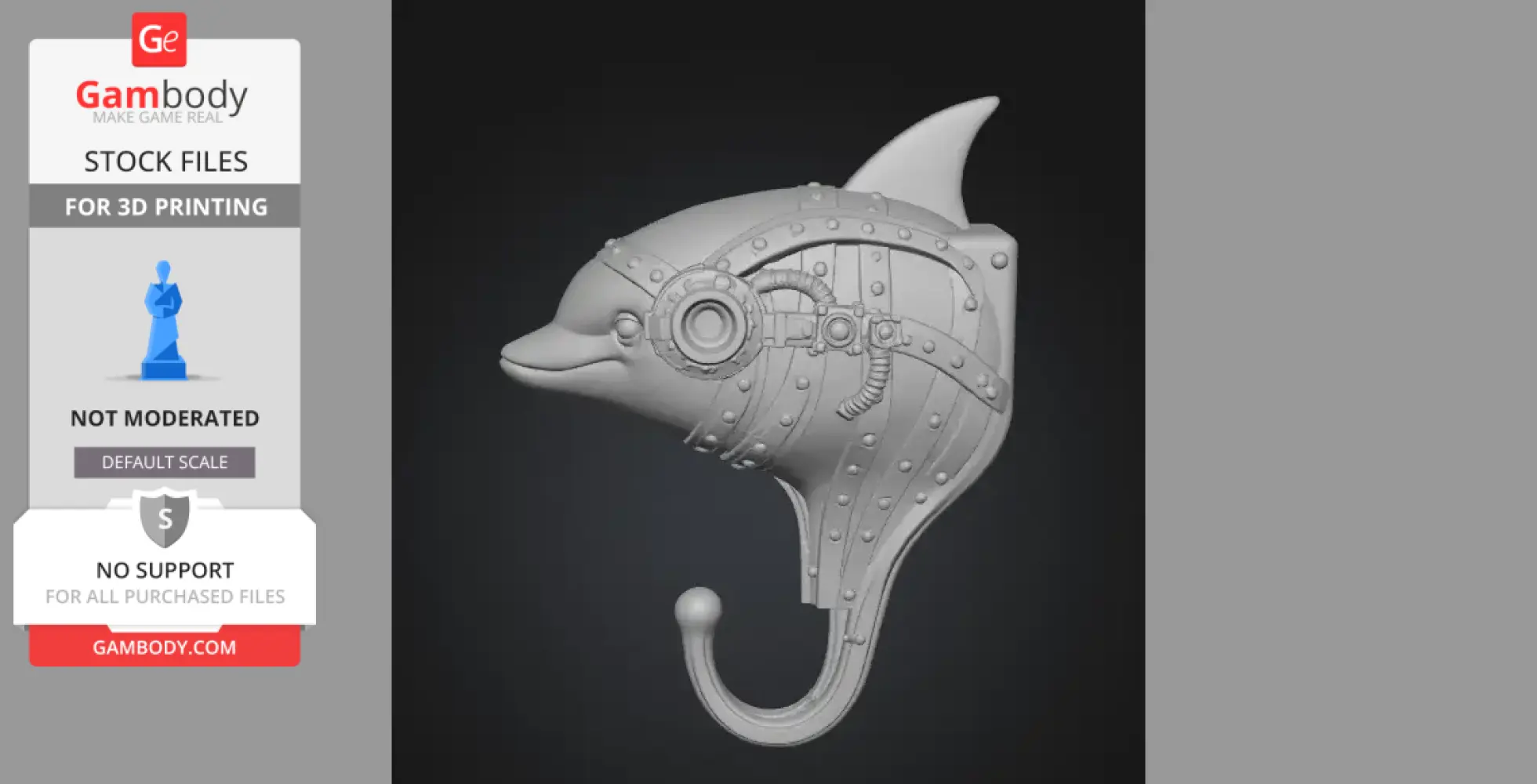

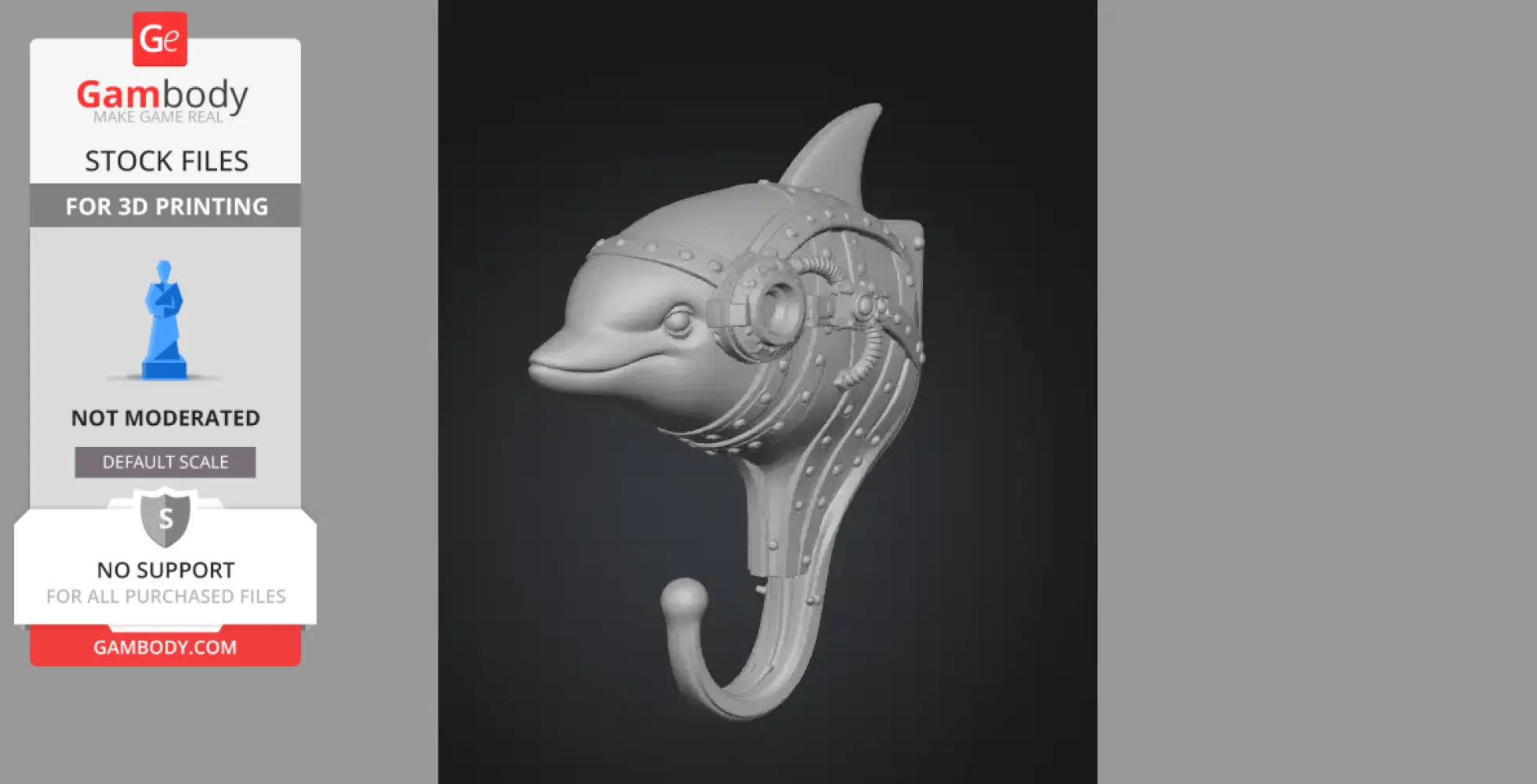

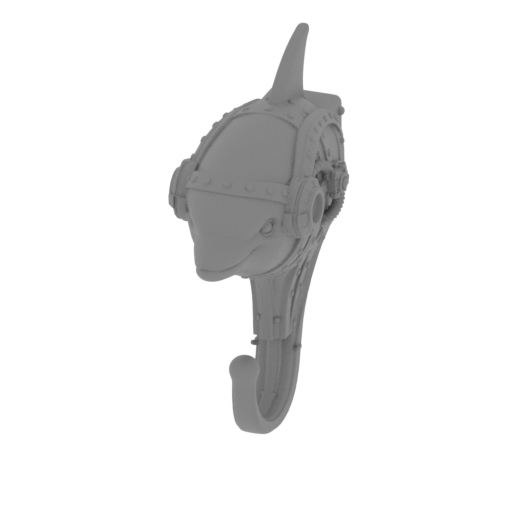

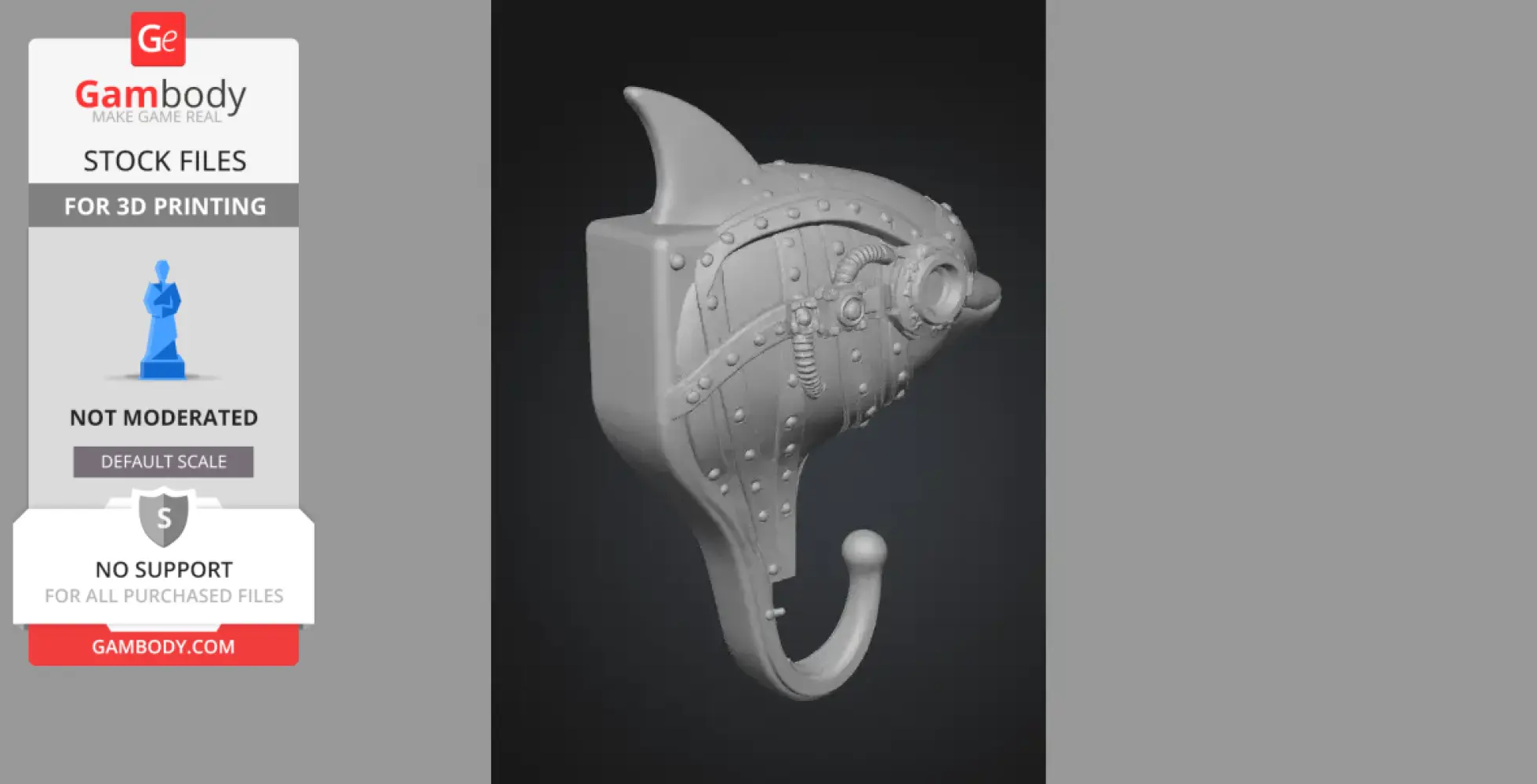

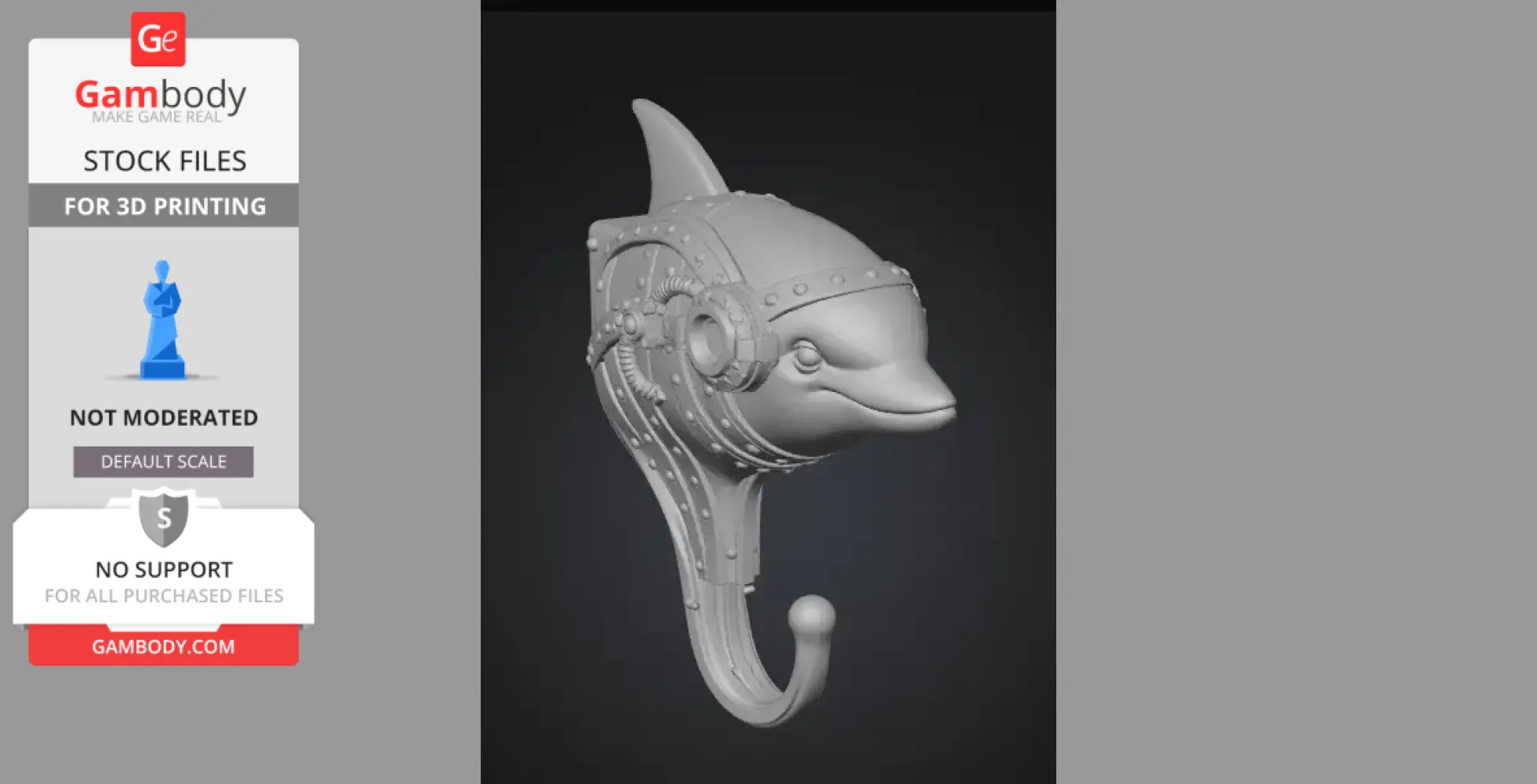

High-detail steampunk dolphin head that transitions into a functional wall hook. The sculpture includes riveted armour plates, mechanical tubing and a monocle-like eye piece. The mesh is prepared as a single watertight object suitable for printing and finishing to metallic looks (gold / bronze / silver / verdigris patina).
Features
- Watertight (closed) mesh suitable for printing
- Manifold geometry, single connected component (one solid piece)
- Fine surface detail preserved (scales / rivets / tubing) — best with high-resolution printing
- Mounting plate/back face prepared to sit flat against wall with screw holes (or add your own)
- Hook curvature sized for small items (glasses, keys, light jackets) — check scale before print
Example technical metadata (replace with your exact export values)
- Format: Binary STL
- Units: mm
- Bounding box (W × D × H): (example) 95 × 85 × 210 mm (change to match export)
- Triangle count: ~70k–140k (high detail)
- File size: ~10–40 MB (binary)
- Watertight: Yes
- Manifold: Yes
Print recommendations
Best printer
- SLA/LCD/DLP (resin) — recommended for highest fidelity of the small mechanical details and smooth surfaces.
- Layer height: 25–50 µm
- Orientation: tilt ~10–20° to minimize supports on the front of the head and show detail; place back (flat) toward build plate or use minimal tree supports.
- Supports: tree supports under the hook tip, under chin and small overhangs — minimize contact points on highly detailed surfaces.
- Hollowing: optional — if hollowing, use 2–3 mm shell and add at least one drain/vent hole (3–5 mm) on the back or bottom.
- FDM (filament) — workable but expect loss of tiny detail; use fine nozzle.
- Nozzle: 0.25–0.4 mm
- Layer height: 0.10–0.15 mm
- Walls/perimeters: 3–4 perimeters
- Infill: 15–25% for stability (can be higher if load of hook expected)
- Orientation: mount the flat back plate to the bed if possible (use a raft/adhesion) or print on side to preserve head detail.
- Supports: essential under the hook curve and under chin — use support blockers on face to reduce scarring.
