Premium Stock

BattleMech Male Pilots 3D Printing Files for SLS/SLA | Static

(4)
cm: 1.21 w x 1.11 d x 3.24 h
in: 0.476 w x 0.437 d x 1.276 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

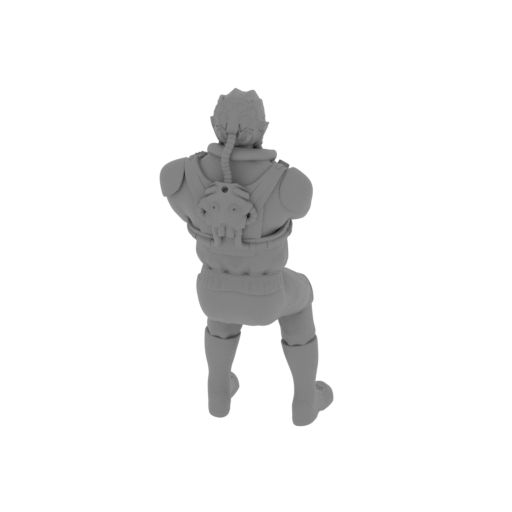

20_mm_fin_sit (repaired). stl
58.19 MiB 12 min <1 m 7 x 9 x 17 Download

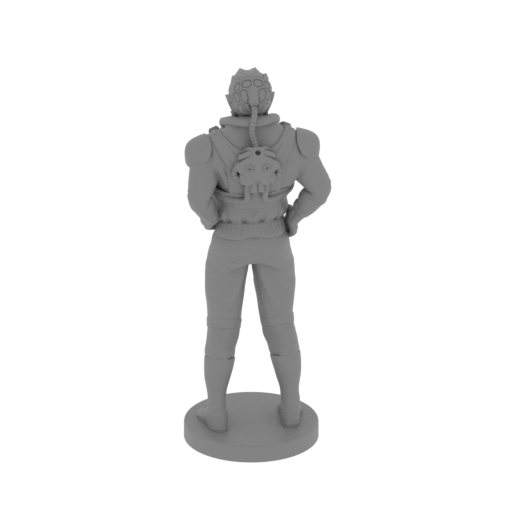

20_mm_fin_st (repaired).s tl
64.21 MiB n.a.
n.a.
7 x 7 x 20 Download

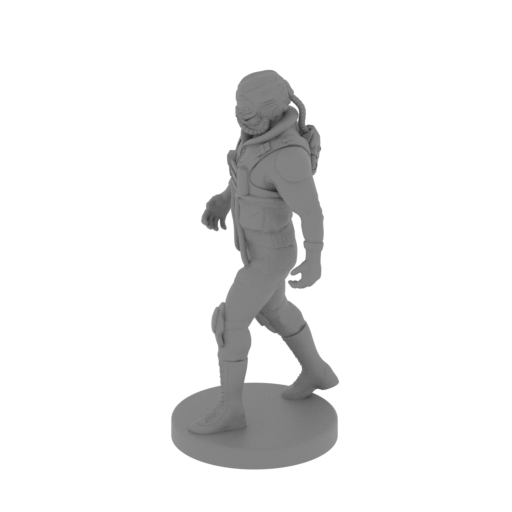

20_mm_fin_wk (repaired).s tl
63.69 MiB n.a.
n.a.
9 x 8 x 20 Download

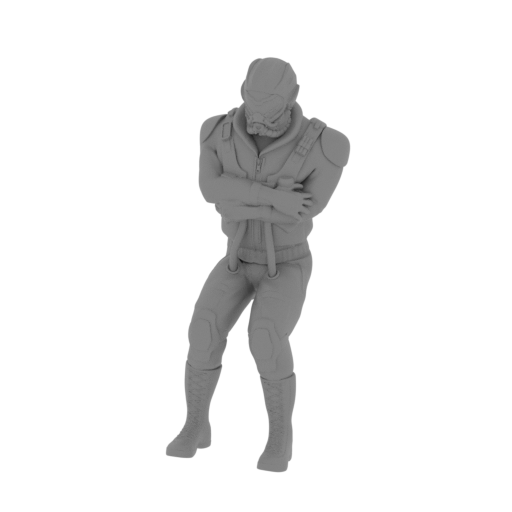

fin_sit (repaired).stl
58.44 MiB 27 min <1 m 11 x 14 x 27 Download

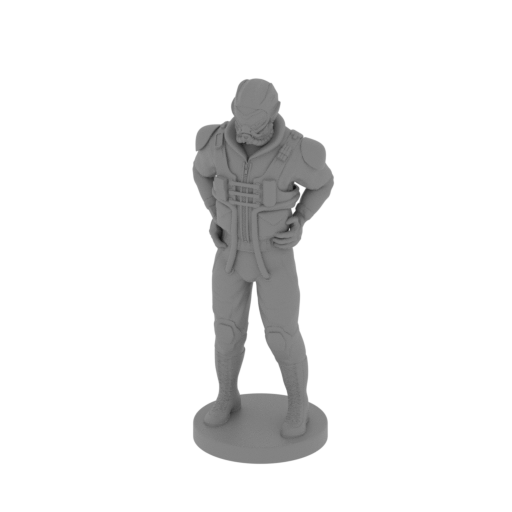

fin_st (repaired).stl
64.35 MiB n.a.
n.a.
12 x 11 x 32 Download

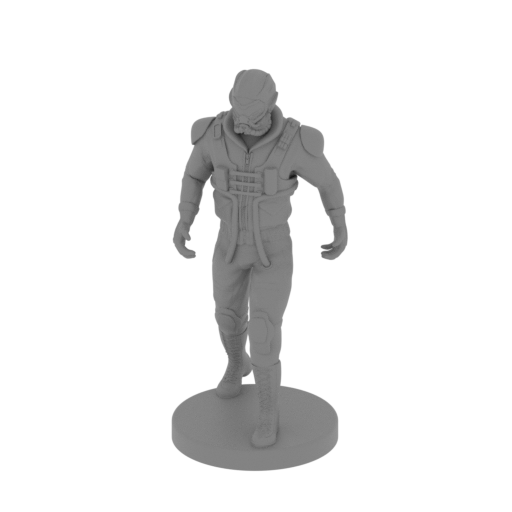

fin_wk (repaired).stl
63.74 MiB n.a.
n.a.
14 x 14 x 33 Download

We all have been wondering for a long time about who sat inside the mech’s cockpit and maneuvered it. Now you can find the answer looking at the new Mech Pilot 3D Model! Put it near your mech and compare its size with the size of a pilot. It will make your combat look even more mighty and powerful.

Though the pilots never appeared in MechWarrior Online Video Game, the artist imagined how they could look according to fan-art pictures from the Internet. It is natural that the players are interested in how the people who control the mechs look like and what they wear.

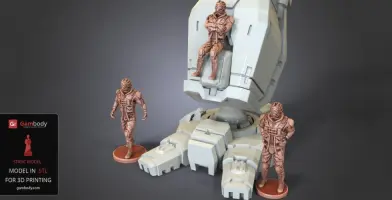

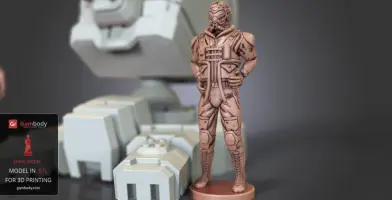

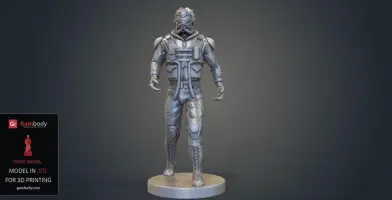

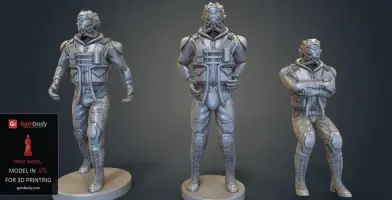

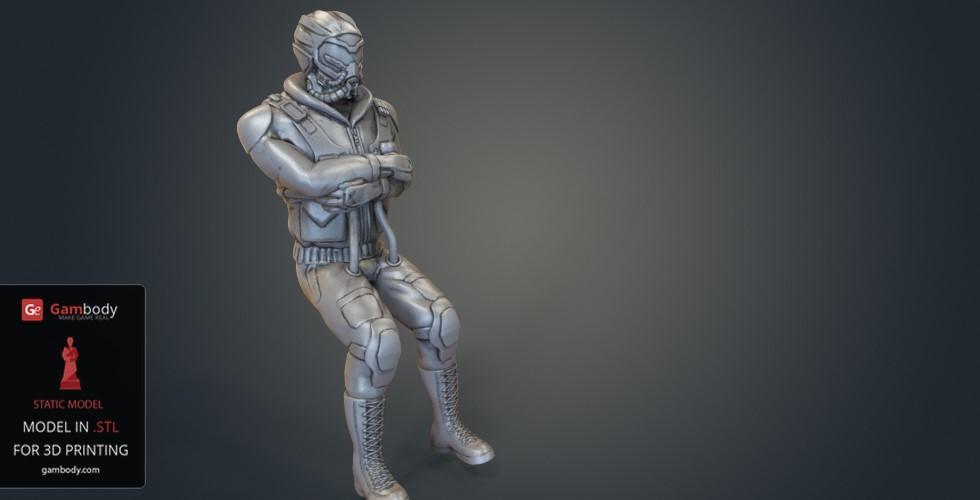

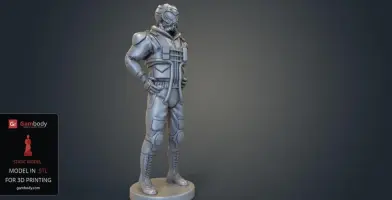

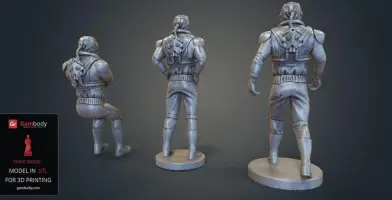

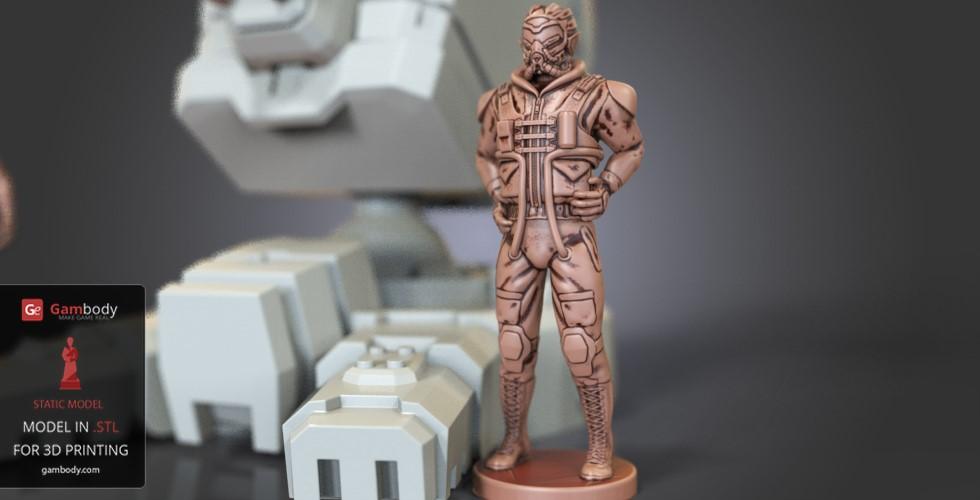

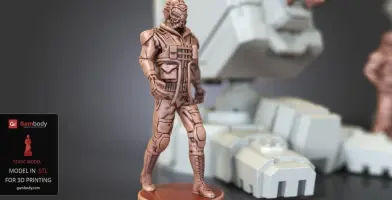

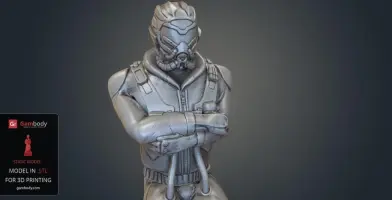

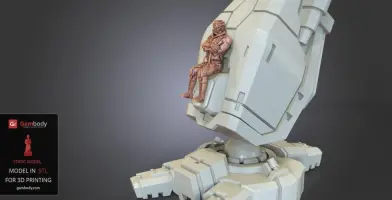

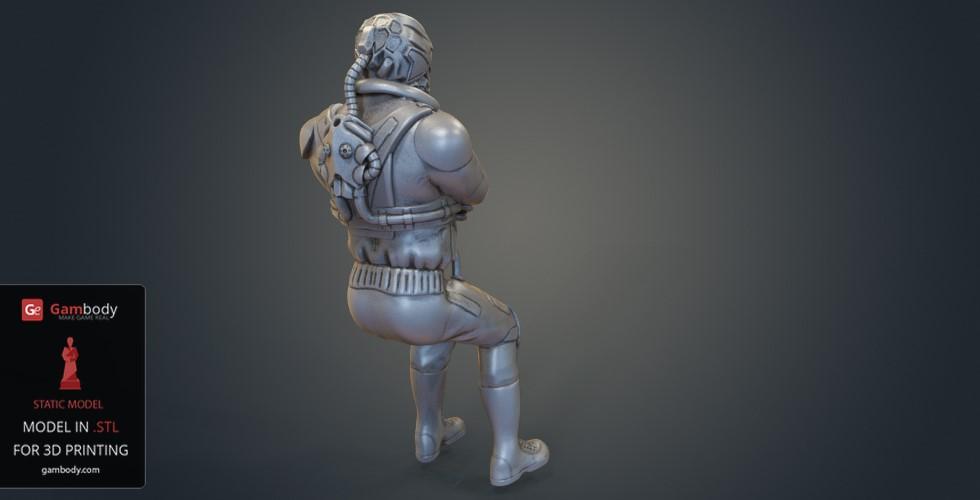

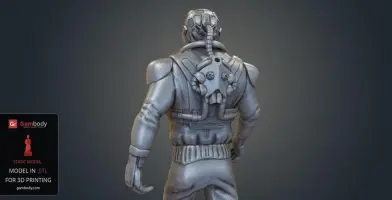

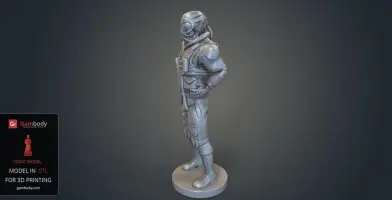

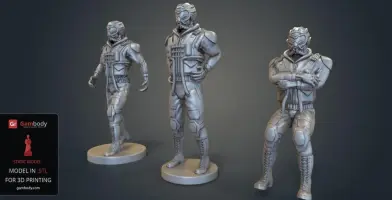

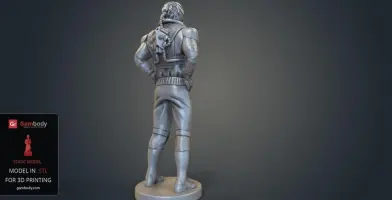

This model represents a pilot whose height is average for a man. There are three variants of 3D printing figurines. Two of them are standing (one stands still and the other one is featured in walking position) and the third one is designed to sit on a mech’s shoulder. They all are male, but soon a female figurine will also be released, don’t miss it! The Battlemech Male Pilots wear a cooling vest and a helmet to look their best near the machine. They are a perfect complement to your mech 3D model, no matter which one you choose - Atlas, Zeus or one of the dozen other mechs released by Gambody.

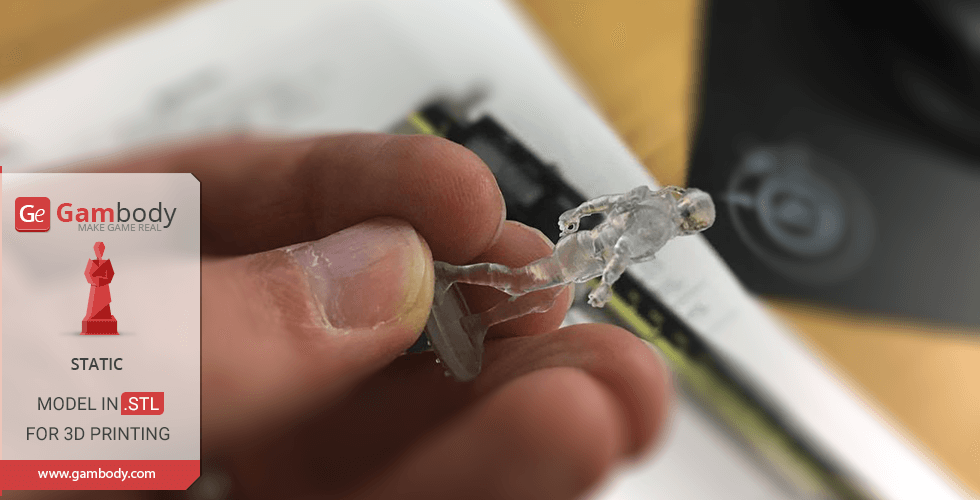

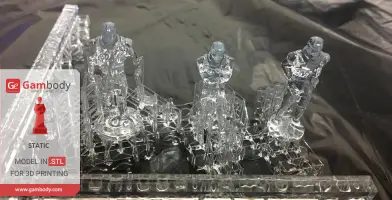

To 3D print Mech Pilot Model you should use STL/SLA printer. This is due to the model’s size after printing - it’ll stand only 3 cm tall. But in spite of the size, it is still worked up to the last detail.

To see Mech Pilot Model from all sides watch a presentation video at Gambody YouTube channel.

Buy Mech Pilot Male 3D Model right now! Just click the green Buy button in the top-right corner of the model's page. You can pay with PayPal or your credit card.

_____________________________________
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

If you want to 3D print this miniature on an FDM 3D printer, we recommend scaling the model up three times and use the CURA 2.3.1 settings below.

Quality

Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Shell

Wall Thickness: 0.8 mm
Wall Line Count: 2
Top/Bottom Thickness: 0.8 mm
Top Thickness: 0.8 mm
Top Layers: 8
Bottom Thickness: 0.8 mm
Bottom Layers: 8
Top/Bottom Pattern: Lines
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
Compensate Outer Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check
Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest

Infill

Infill Density: 25%
Infill Line Distance: 3.2 mm
Infill Pattern: Grid
Infill Overlap Percentage: 10%
Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check

Material

Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Standby Temperature: 175°C
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
Nozzle Switch Retract Speed: 20 mm/s
Nozzle Switch Prime Speed: 20 mm/s

Speed

Print Speed: 60 mm/s
Infill Speed: 80 mm/s
Wall Speed: 30 mm/s
Outer Wall Speed: 30 mm/s
Inner Wall Speed: 60 mm/s
Top/Bottom Speed 15 mm/s
Support Speed: 60 mm/s
Support Infill Speed: 60 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 15 mm/s
Initial Layer Print Speed: 15 mm/s
Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed 15 mm/s
Maximum Z Speed: 0 mm/s

Travel

Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm

Cooling

Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Regular Fan Speed at Height: 0.3 mm
Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support

Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 30°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 30 %
Support Line Distance: 1.3333 mm
Support Z Distance: 0.1 mm
Support Top Distance: 0.1 mm
Support Bottom Distance: 0.1 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion

Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
Brim Line Count: 20
Brim Only on Outside: Check

Mesh Fixes

Union Overlapping Volumes: Check

Special Modes

Print Sequence: All at Once
Surface Mode: Normal

Experimental

Extra Skin Wall Count: 0

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
