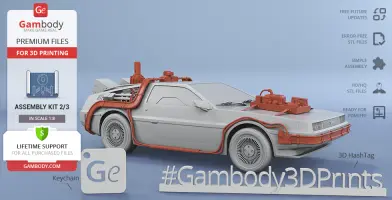

DeLorean 3D Printing Model | Assembly Kit 2: Engines, Mr Fusion, Active Suspension

(10)
cm: 23.4 w x 52.7 d x 15.4 h
in: 9.213 w x 20.748 d x 6.063 h

Source Files

|

Description

|

Printing Details

This 3D printing assembly kit consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

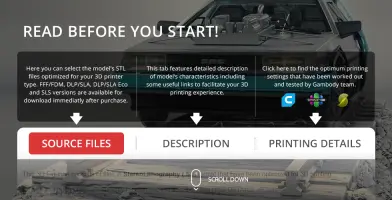

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

DeLorean 3D Printing Model | Assembly Kit 2: Engines, Mr Fusion, Active Suspension comes in 1 version for FFF/FDM 3D printers. Files are available for download immediately after the purchase.

Detailed information about this 3D printing assembly kit is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

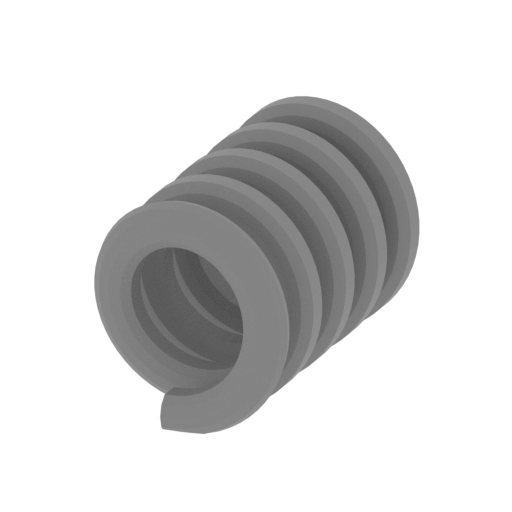

as_1_shock_spring_front_R (repaired).stl
0.30 MiB 30 min <1 m 15 x 23 x 13 Download

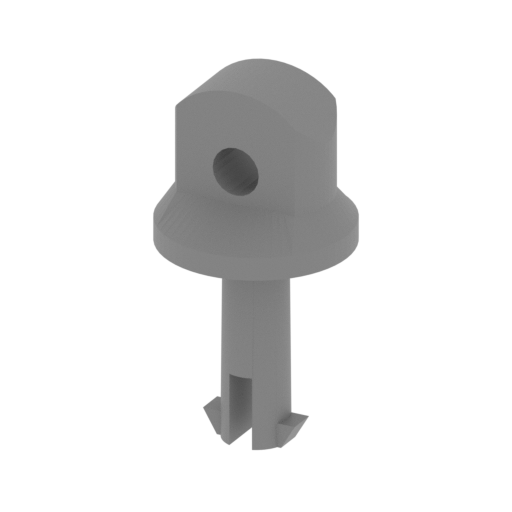

as_2_shocks_in_front_R (r epaired).stl
0.06 MiB 23 min <1 m 12 x 12 x 23 Download
as_3_shocks_out_front_R ( repaired).stl
0.08 MiB 27 min <1 m 11 x 11 x 23 Download

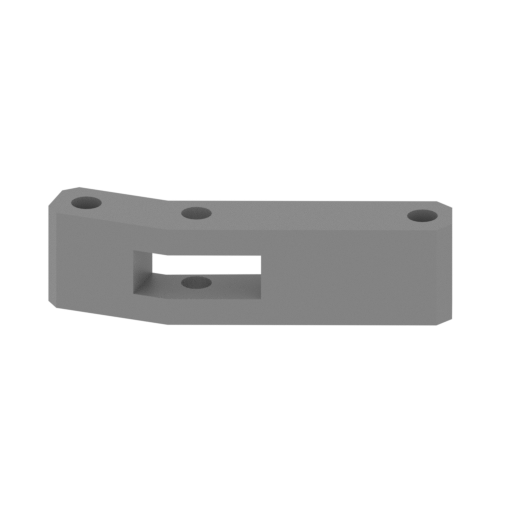

as_4_susp_beam_front_bot_ R (repaired).stl
0.03 MiB 26 min <1 m 38 x 15 x 10 Download

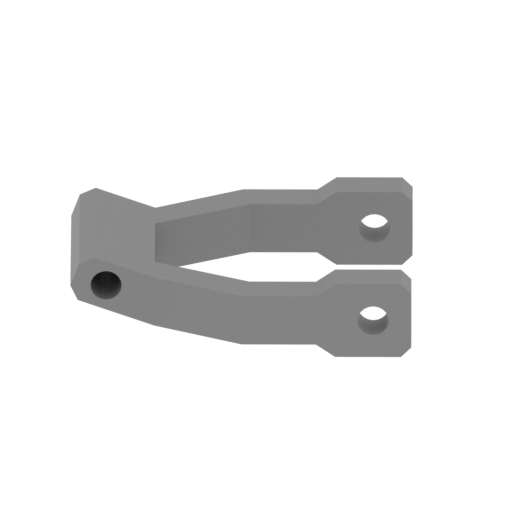

as_5_susp_beam_front_top_ R (repaired).stl
0.03 MiB 27 min <1 m 38 x 30 x 8 Download

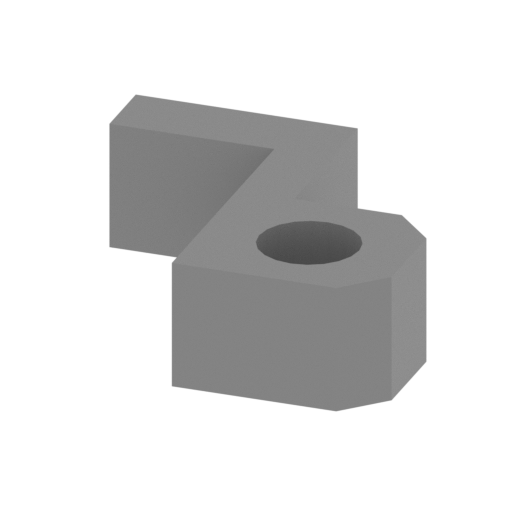

as_6_sub_bearing_front_R (repaired).stl
0.01 MiB 4 min <1 m 11 x 10 x 4 Download
as_7_bearing_front_R (rep aired).stl
1.47 MiB 1 h 35 min 1 m 46 x 46 x 9 Download

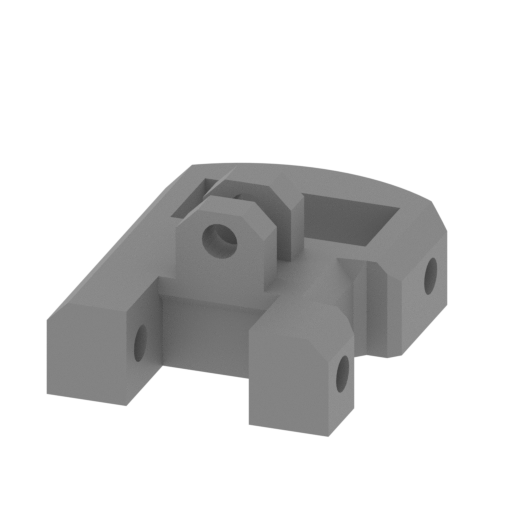

as_8_sub_wheel_front_R (r epaired).stl
0.04 MiB 42 min <1 m 24 x 31 x 14 Download

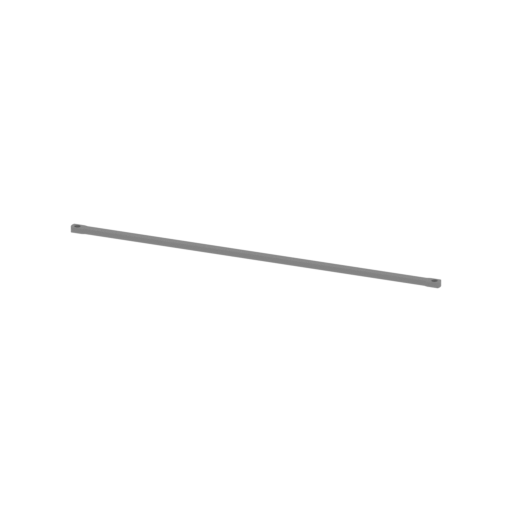

as_9_wheels_beam_front (r epaired).stl
0.05 MiB 29 min <1 m 178 x 6 x 3 Download

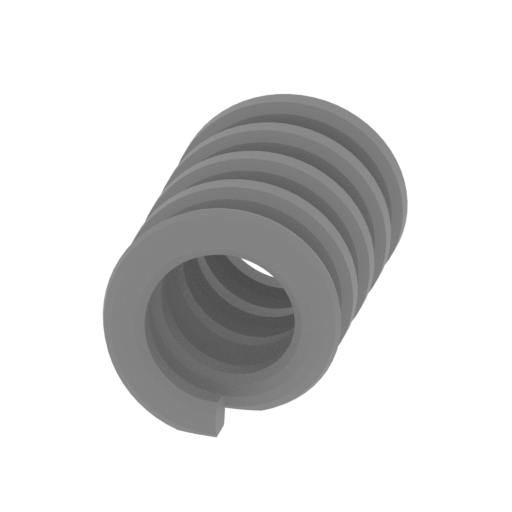

as_10_shock_spring_front_ L (repaired).stl
0.30 MiB 30 min <1 m 15 x 23 x 13 Download

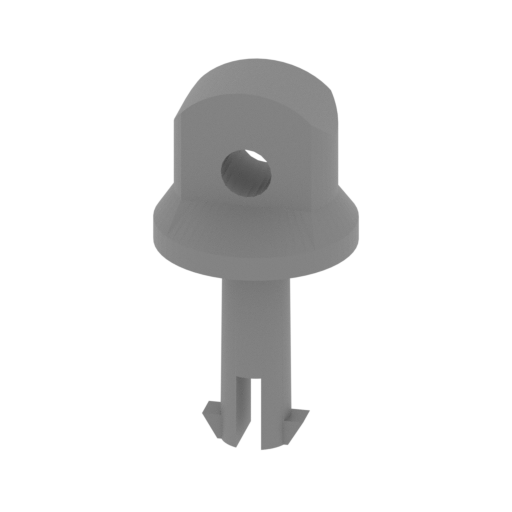

as_11_shocks_in_front_L ( repaired).stl
0.06 MiB 23 min <1 m 12 x 12 x 23 Download

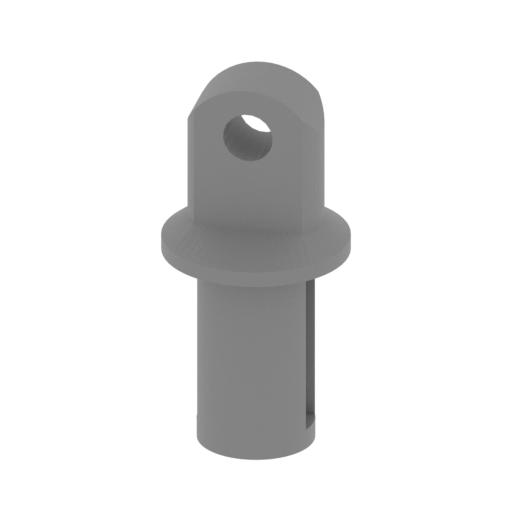

as_12_shocks_out_front_L (repaired).stl
0.08 MiB 25 min <1 m 11 x 11 x 23 Download

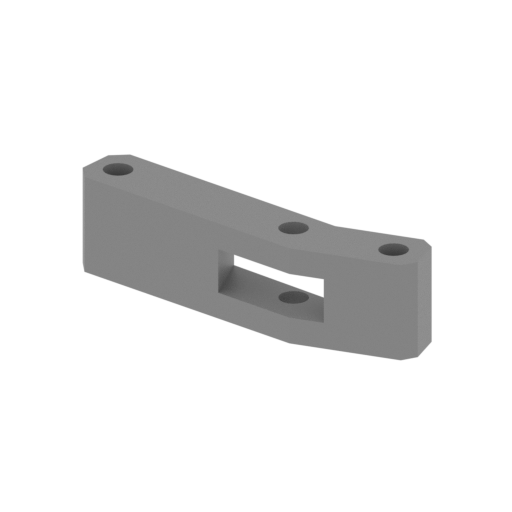

as_13_susp_beam_front_bot _L (repaired).stl
0.03 MiB 26 min <1 m 38 x 15 x 10 Download

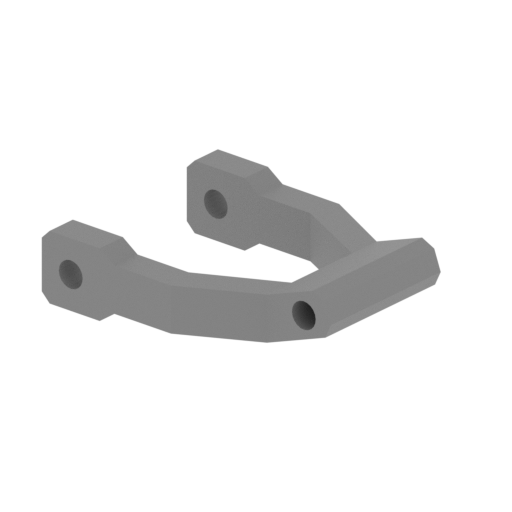

as_14_susp_beam_front_top _L (repaired).stl
0.03 MiB 27 min <1 m 38 x 30 x 8 Download

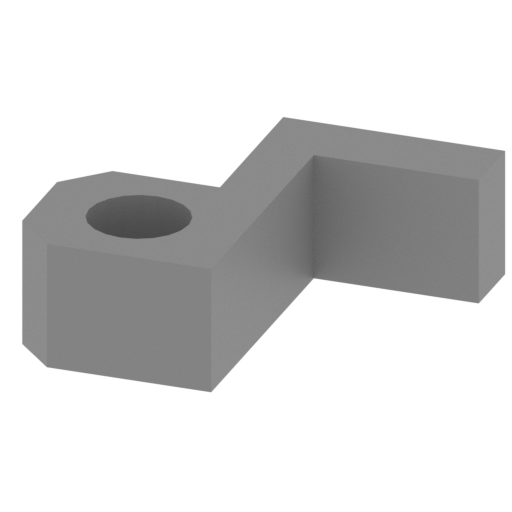

as_15_sub_bearing_front_L (repaired).stl
0.01 MiB 4 min <1 m 11 x 10 x 4 Download

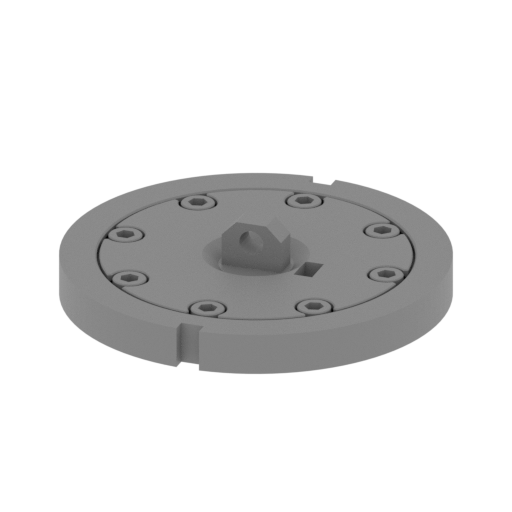

as_16_bearing_front_L (re paired).stl
1.47 MiB 1 h 35 min 1 m 46 x 46 x 9 Download

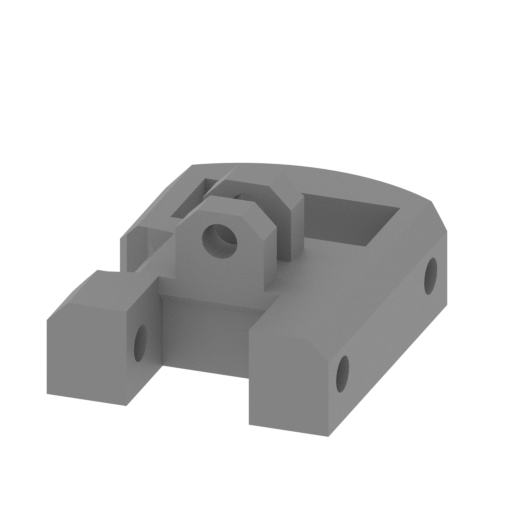

as_17_sub_wheel_front_L ( repaired).stl
0.04 MiB 43 min <1 m 24 x 31 x 14 Download

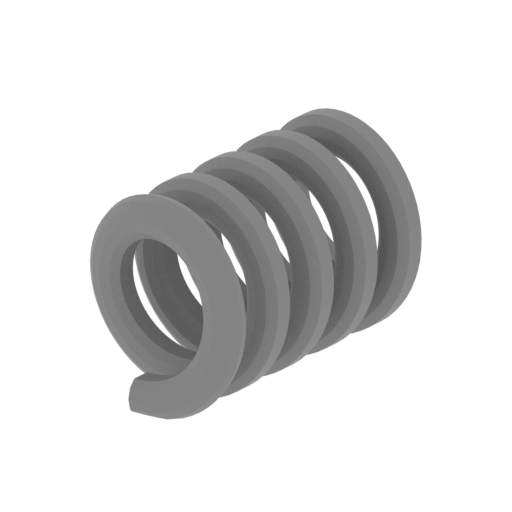

as_18_shock_spring_back_R (repaired).stl
0.30 MiB 30 min <1 m 18 x 24 x 13 Download

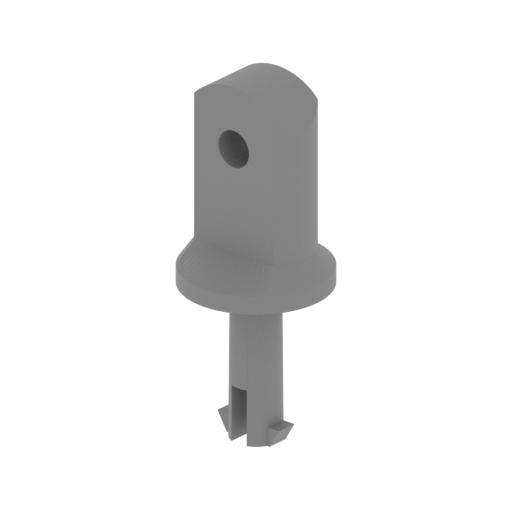

as_19_shocks_in_back_R (r epaired).stl
0.07 MiB 30 min <1 m 12 x 12 x 29 Download

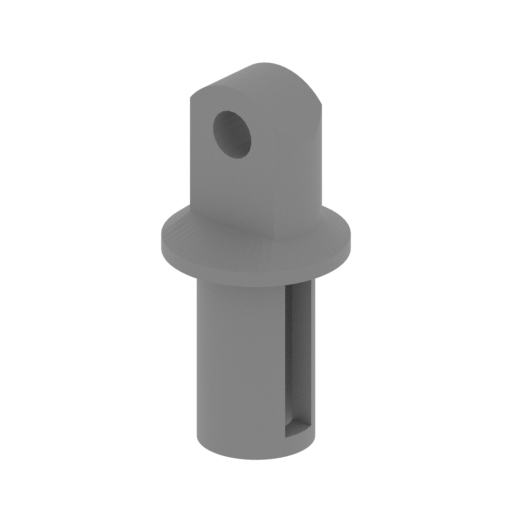

as_20_shocks_out_back_R ( repaired).stl
0.08 MiB 25 min <1 m 11 x 11 x 23 Download

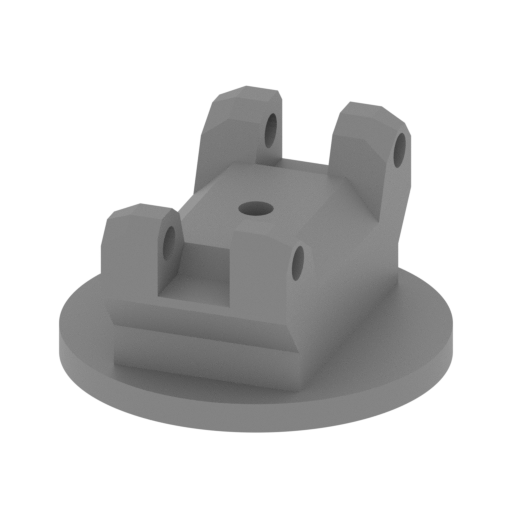

as_21_sub_wheel_back_R (r epaired).stl
0.07 MiB 1 h 8 min 1 m 33 x 33 x 18 Download

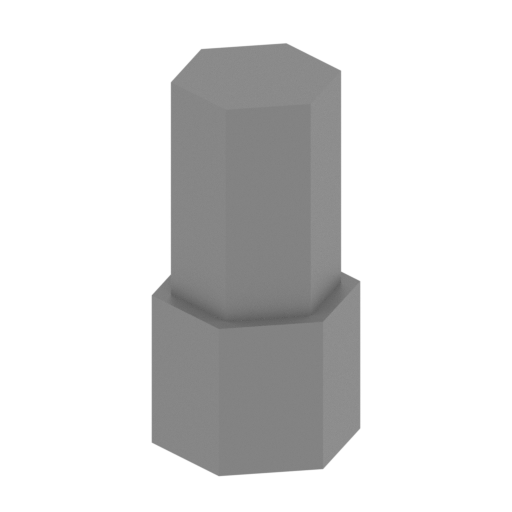

as_22_bearing_connector_b ack_R (repaired).stl
0.00 MiB 14 min <1 m 8 x 9 x 17 Download

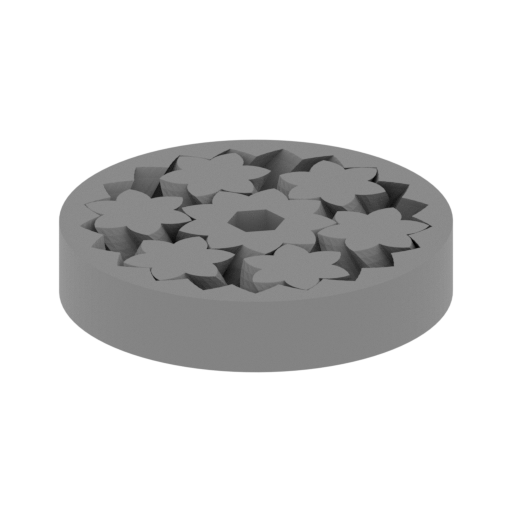

as_23_bearing_back_R (rep aired).stl
0.96 MiB 2 h 31 min 1 m 51 x 51 x 10 Download

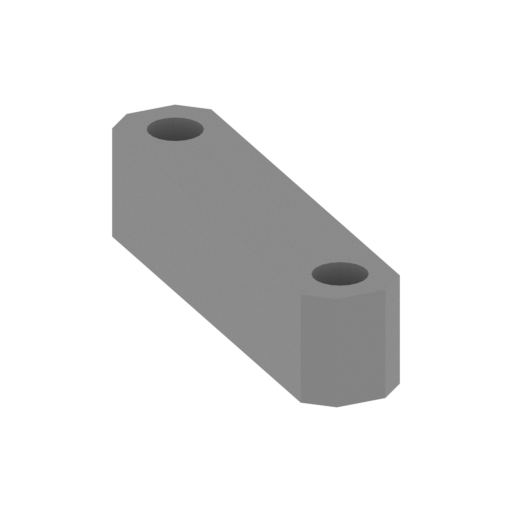

as_24_susp_beam_back_top_ R (repaired).stl
0.03 MiB 10 min <1 m 21 x 20 x 6 Download

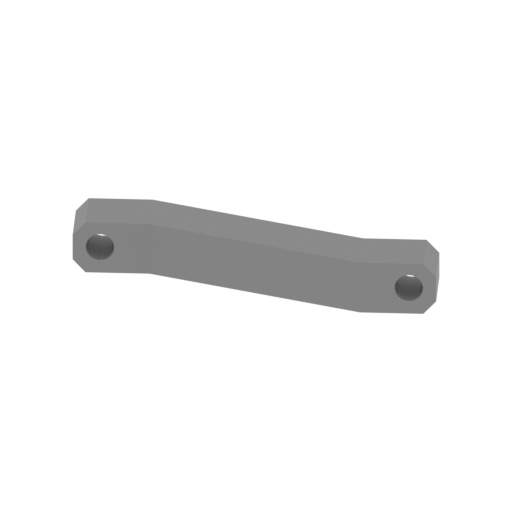

as_25_susp_beam_back_bot_ R (repaired).stl
0.01 MiB 15 min <1 m 41 x 9 x 6 Download

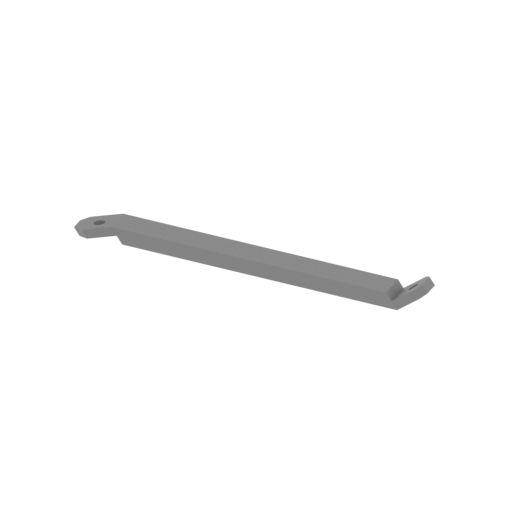

as_26_susp_beam_back_cent er_R (repaired).stl
0.02 MiB 36 min <1 m 97 x 22 x 7 Download

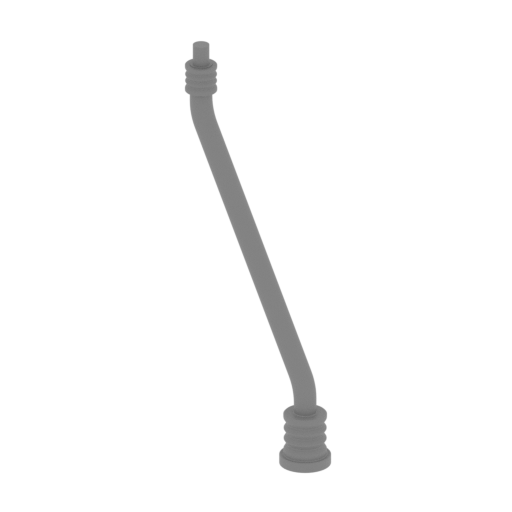

as_27_susp_beam_engine_bo t_R (repaired).stl
0.25 MiB 36 min <1 m 26 x 19 x 54 Download

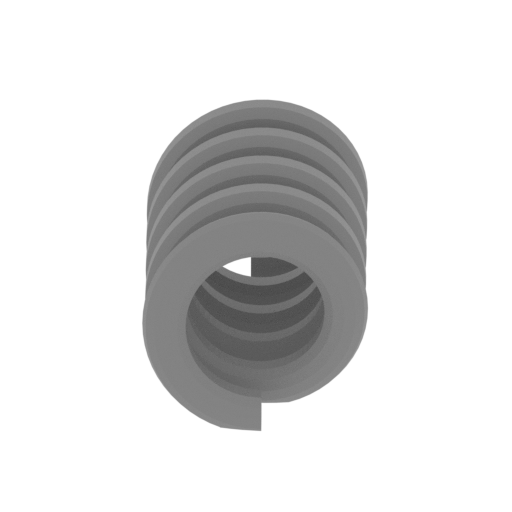

as_28_shock_spring_back_L (repaired).stl
0.30 MiB 30 min <1 m 18 x 24 x 13 Download

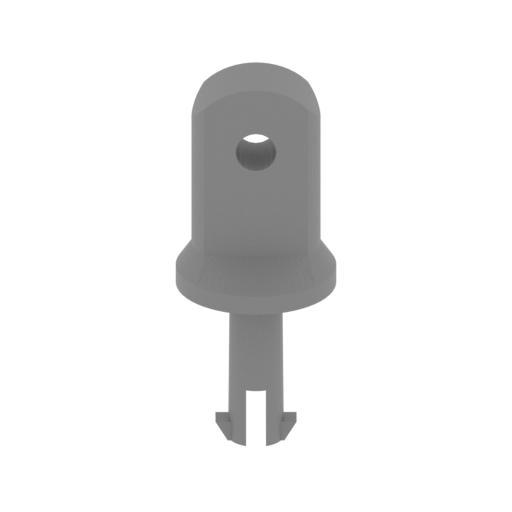

as_29_shocks_in_back_L (r epaired).stl
0.07 MiB 30 min <1 m 12 x 12 x 29 Download

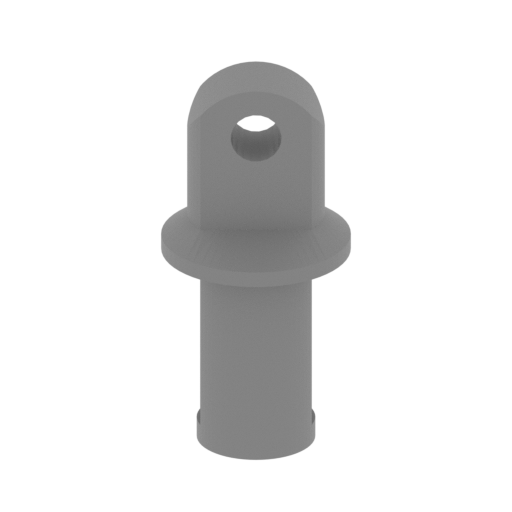

as_30_shocks_out_back_L ( repaired).stl
0.08 MiB 26 min <1 m 11 x 11 x 23 Download
as_31_sub_wheel_back_L (r epaired).stl
0.07 MiB 1 h 8 min 1 m 33 x 33 x 18 Download

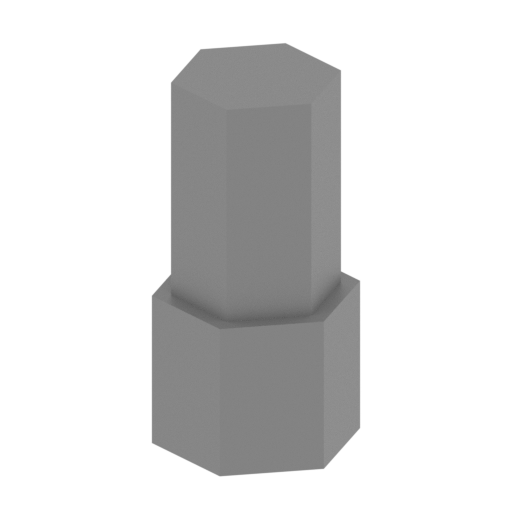

as_32_bearing_connector_b ack_L (repaired).stl
0.00 MiB 14 min <1 m 8 x 9 x 17 Download

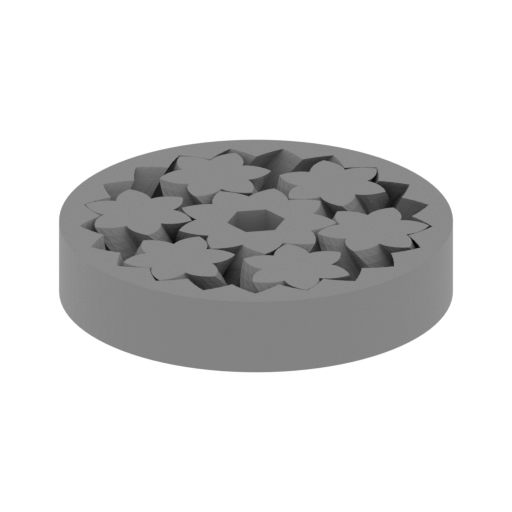

as_33_bearing_back_L (rep aired).stl
0.96 MiB 2 h 31 min 1 m 51 x 51 x 10 Download

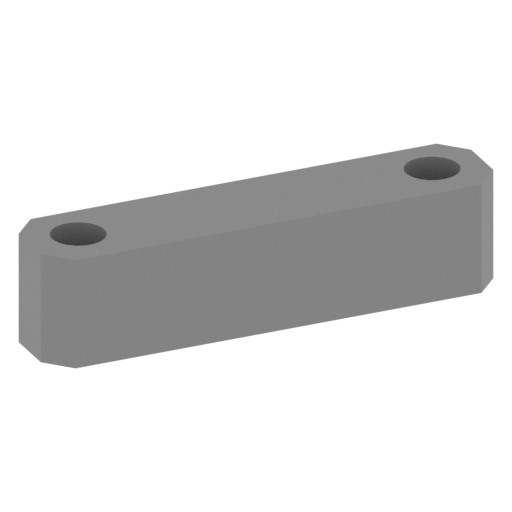

as_34_susp_beam_back_top_ L (repaired).stl
0.03 MiB 9 min <1 m 21 x 20 x 6 Download

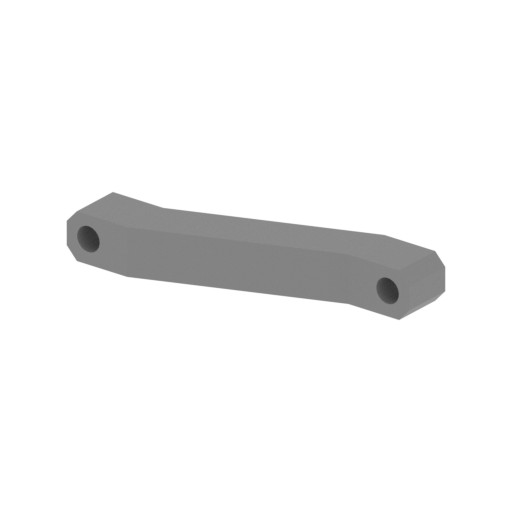

as_35_susp_beam_back_bot_ L (repaired).stl
0.01 MiB 15 min <1 m 41 x 9 x 6 Download
as_36_susp_beam_back_cent er_L (repaired).stl
0.02 MiB 36 min <1 m 97 x 22 x 7 Download

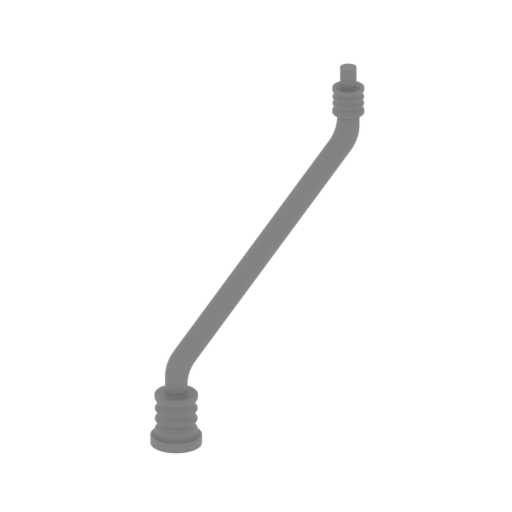

as_37_susp_beam_engine_bo t_L (repaired).stl
0.25 MiB 35 min <1 m 26 x 19 x 54 Download

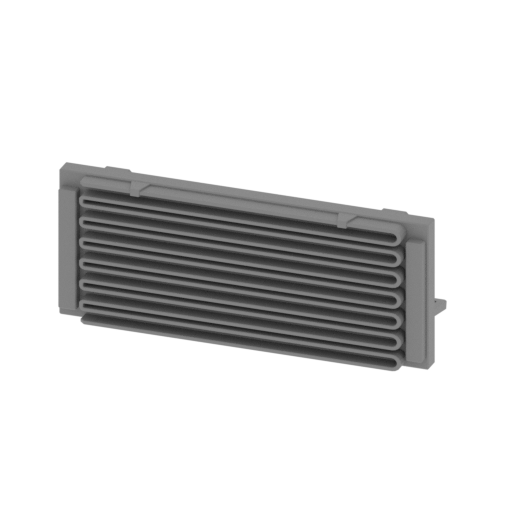

ce_1_radiator (repaired). stl
4.44 MiB 5 h 57 min 3 m 83 x 23 x 33 Download

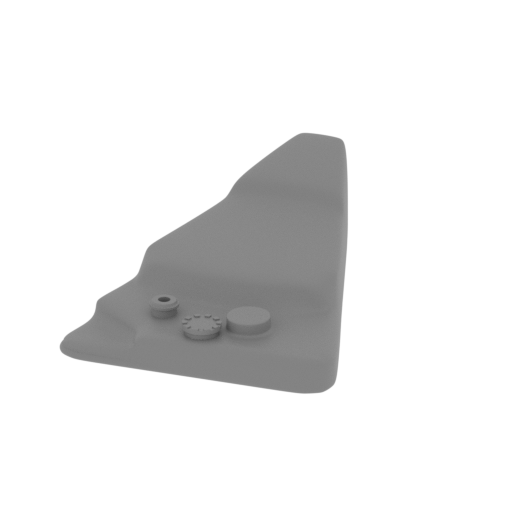

ce_2_tank (repaired).stl
5.32 MiB 4 h 33 min 3 m 68 x 92 x 25 Download

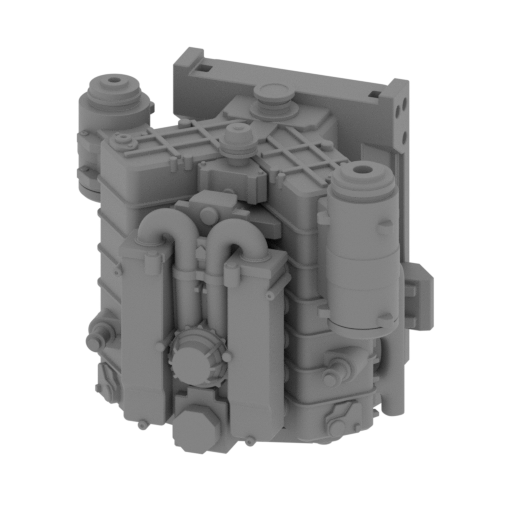

ce_3_engine_2 (repaired). stl
10.79 MiB 20 h 60 min 11 m 78 x 72 x 67 Download

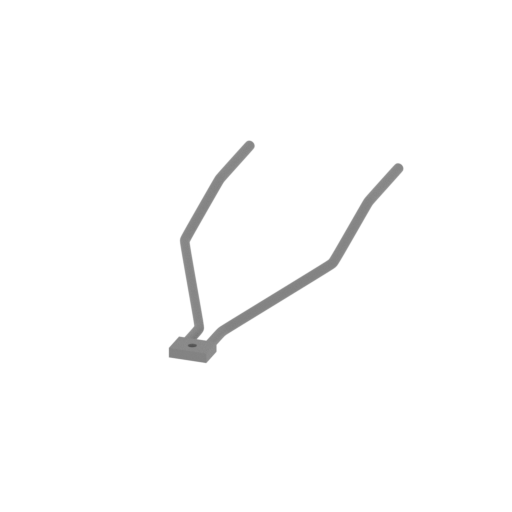

ce_5_engine_pipes (repair ed).stl
0.59 MiB 1 h 22 min 1 m 54 x 126 x 20 Download

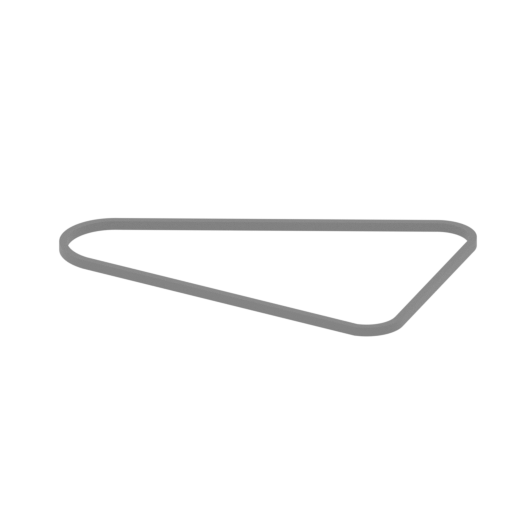

ce_6_engine_belt_1 (repai red).stl
0.04 MiB 3 min <1 m 41 x 29 x 1 Download

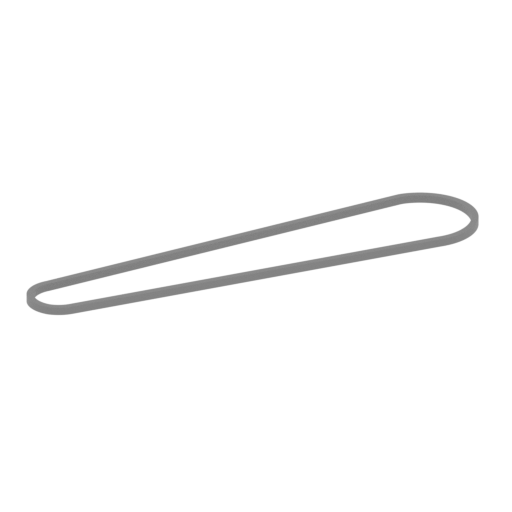

ce_7_engine_belt_2 (repai red).stl
0.04 MiB 3 min <1 m 42 x 46 x 1 Download

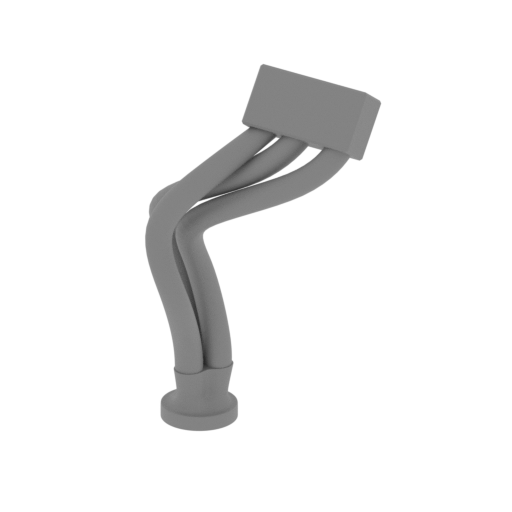

ce_8_exhaust_5_L (repaire d).stl
2.35 MiB 57 min <1 m 27 x 14 x 43 Download

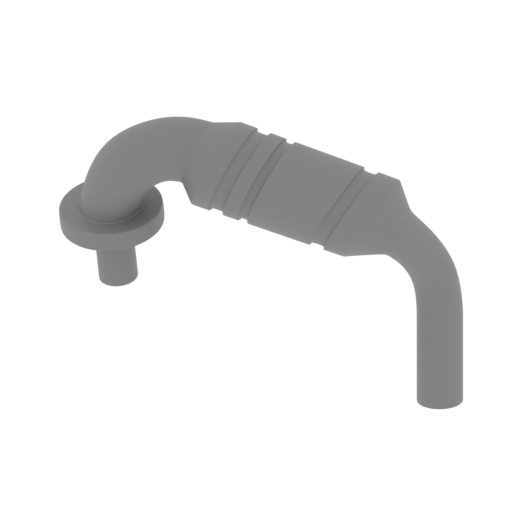

ce_9_exhaust_4_L (repaire d).stl
2.39 MiB 34 min <1 m 32 x 14 x 26 Download

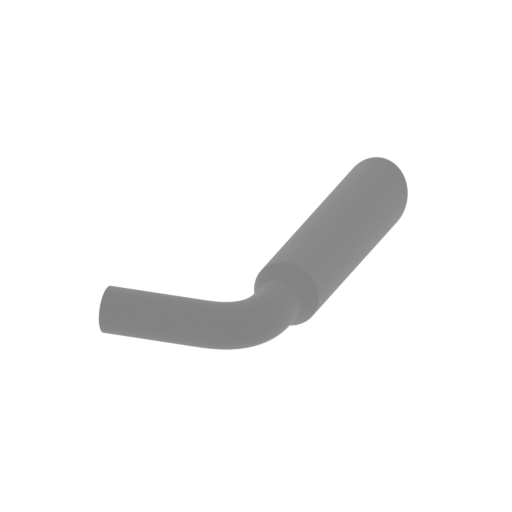

ce_10_exhaust_2 (repaired ).stl
0.21 MiB 18 min <1 m 19 x 40 x 7 Download

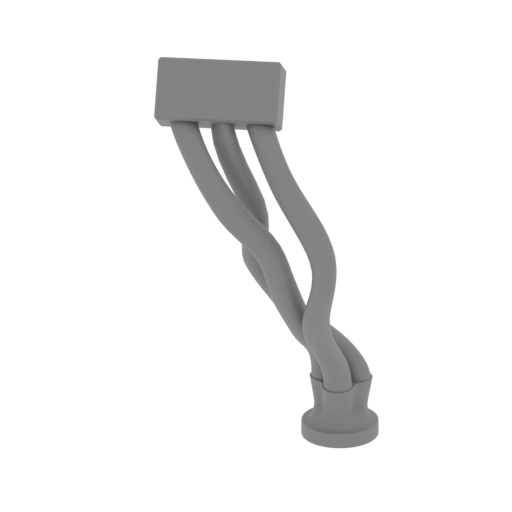

ce_11_exhaust_5_R (repair ed).stl
2.30 MiB 52 min <1 m 25 x 16 x 43 Download

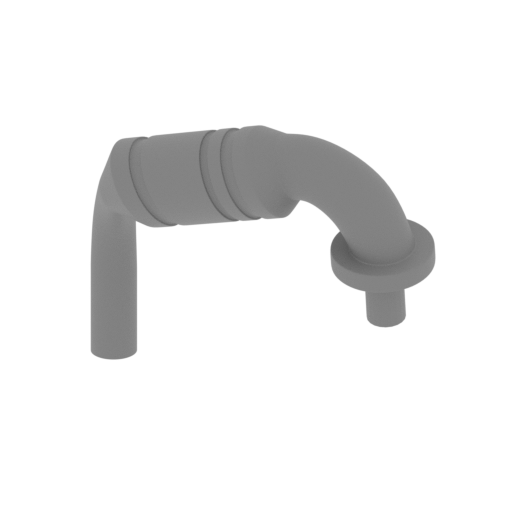

ce_12_exhaust_4_R (repair ed).stl
2.39 MiB 34 min <1 m 32 x 14 x 26 Download

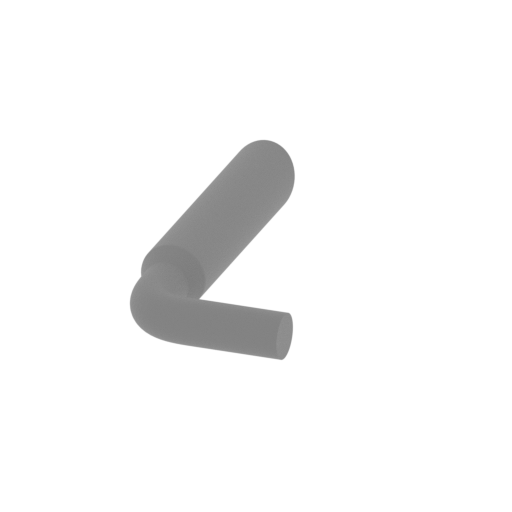

ce_13_exhaust_3 (repaired ).stl
0.21 MiB 18 min <1 m 19 x 40 x 7 Download

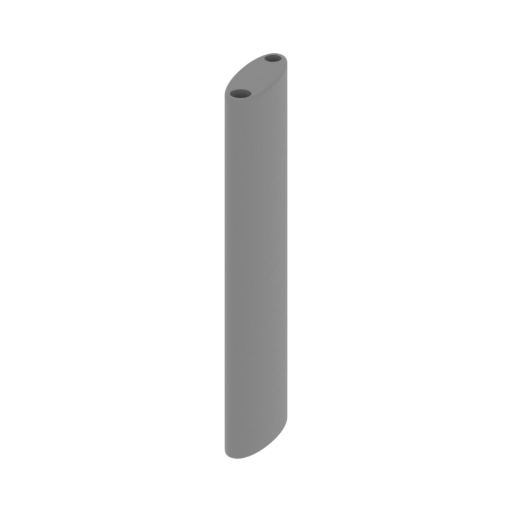

ce_14_exhaust_1 (repaired ).stl
0.27 MiB 2 h 10 min 1 m 11 x 30 x 91 Download

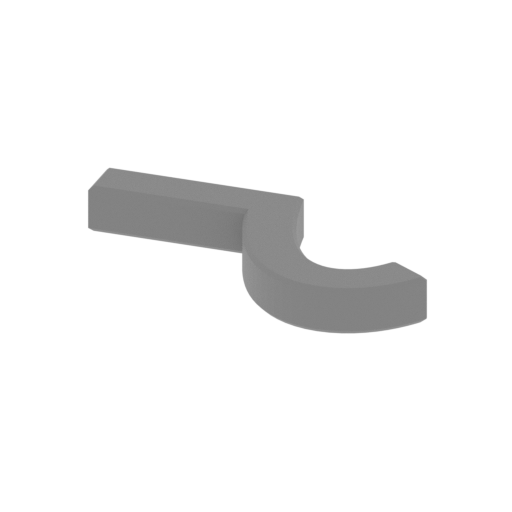

ce_15_exhaust_mount_2 (re paired).stl
0.03 MiB 4 min <1 m 22 x 11 x 3 Download

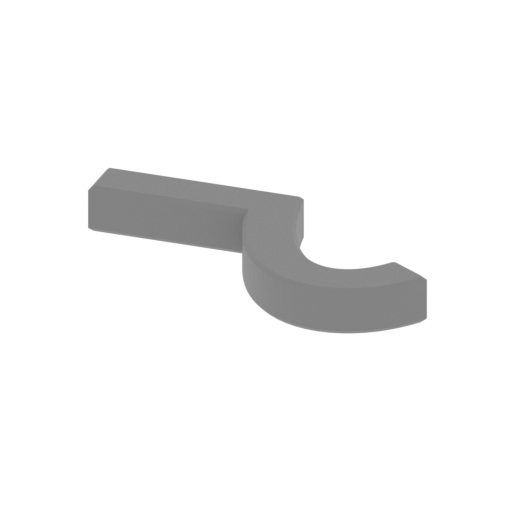

ce_16_exhaust_mount_1 (re paired).stl
0.03 MiB 4 min <1 m 22 x 11 x 3 Download

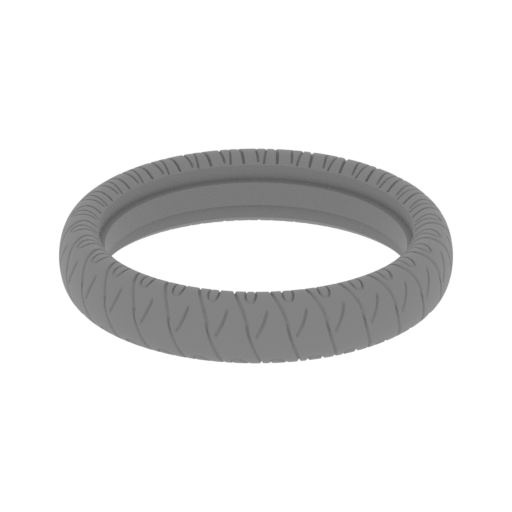

lc_1_spare_tire_flex (rep aired).stl
11.26 MiB 1 h 31 min 1 m 57 x 57 x 11 Download

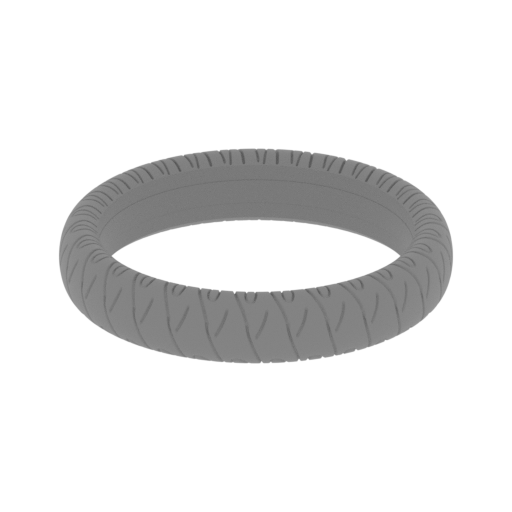

lc_2_spare_tire_plastic ( repaired).stl
8.81 MiB 1 h 22 min 1 m 57 x 57 x 11 Download

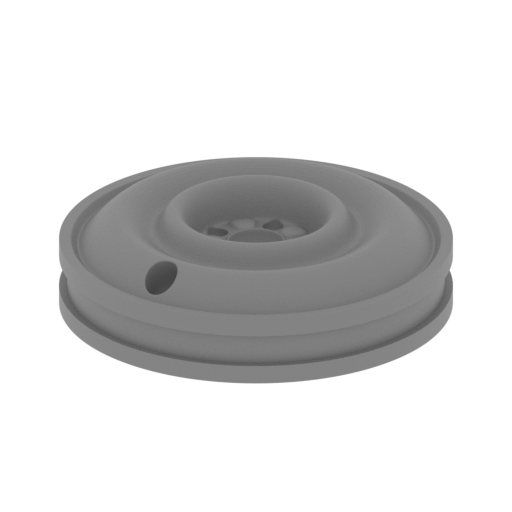

lc_3_spare_disk (repaired ).stl
3.55 MiB 1 h 47 min 1 m 46 x 46 x 12 Download

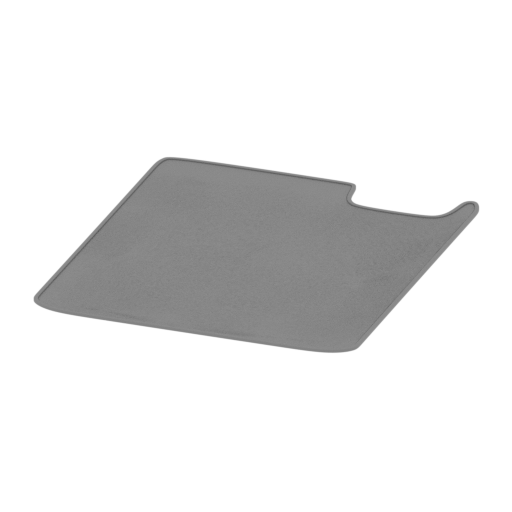

lc_4_under_hood_carpet (r epaired).stl
17.66 MiB 2 h 35 min 1 m 105 x 119 x 1 Download
te_1_external_engine_stri pes_x4 (repaired).stl
0.71 MiB 5 min <1 m 51 x 5 x 6 Download

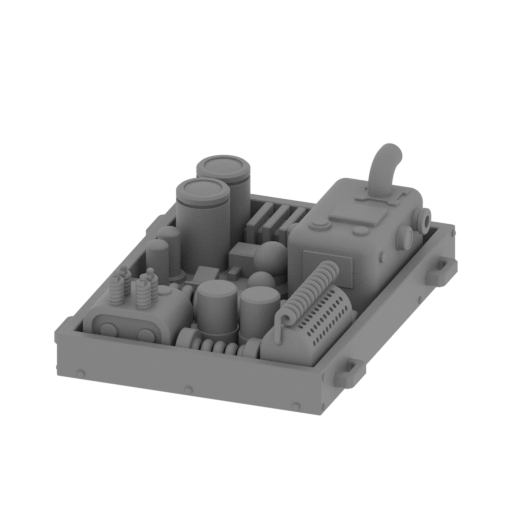

te_2_external_engine (rep aired).stl
7.41 MiB 9 h 15 min 5 m 73 x 90 x 33 Download

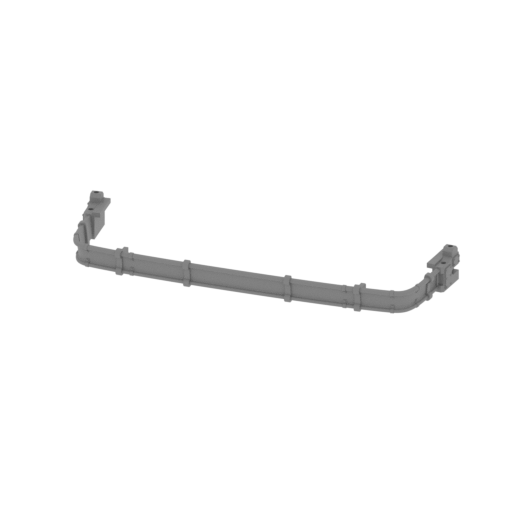

te_3_coil_front (repaired ).stl
7.73 MiB 4 h 6 min 2 m 212 x 64 x 21 Download

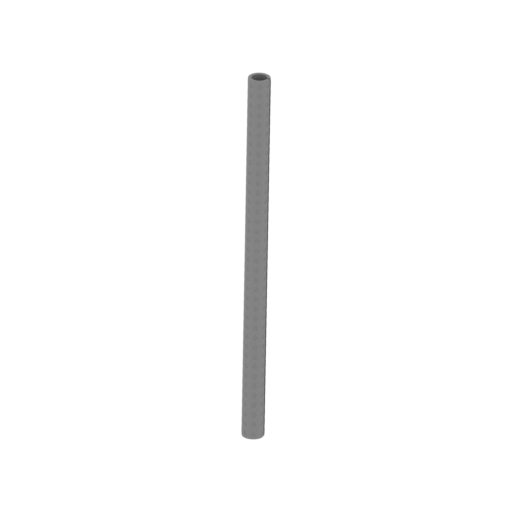

te_4_panels_pipes_case_R (repaired).stl
5.98 MiB 1 h 23 min <1 m 8 x 7 x 109 Download

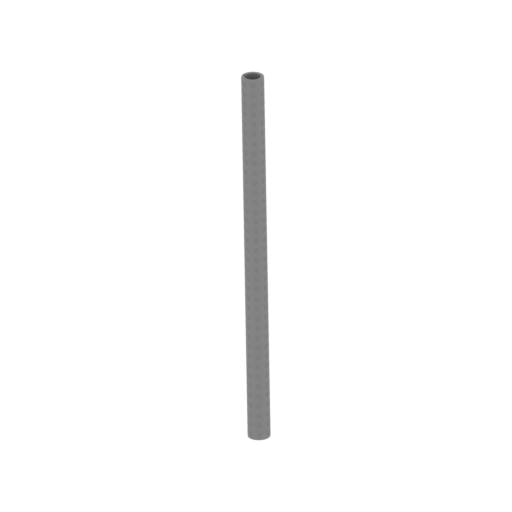

te_5_panels_pipes_case_L (repaired).stl
5.98 MiB 1 h 23 min <1 m 8 x 7 x 109 Download

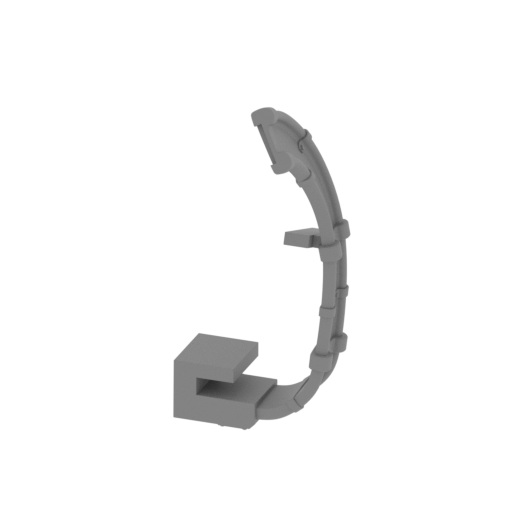

te_6_coil_back_b_L (repai red).stl
4.40 MiB 3 h 13 min 2 m 40 x 41 x 89 Download

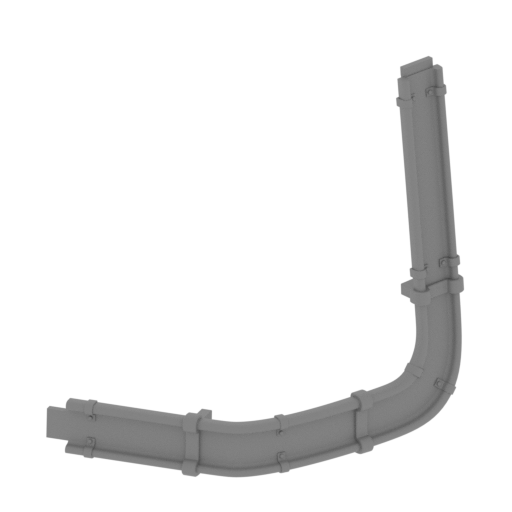

te_7_coil_back_a_L (repai red).stl
5.69 MiB 3 h 34 min 1 m 93 x 63 x 100 Download

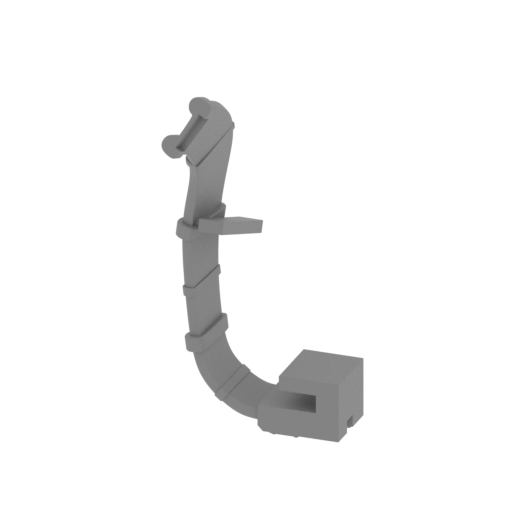

te_8_coil_back_b_R (repai red).stl
4.40 MiB 3 h 16 min 2 m 40 x 41 x 89 Download

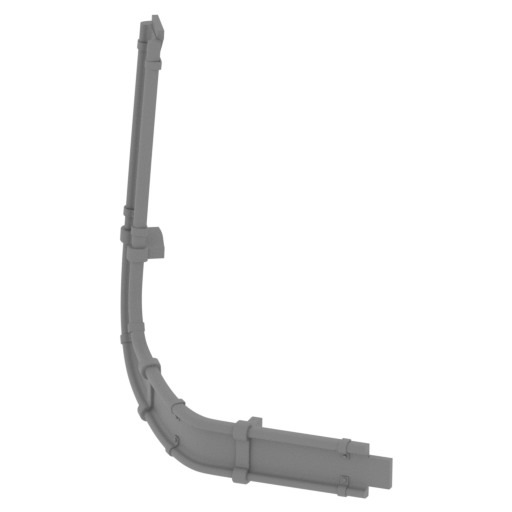

te_9_coil_back_a_R (repai red).stl
5.69 MiB 3 h 36 min 1 m 93 x 63 x 100 Download

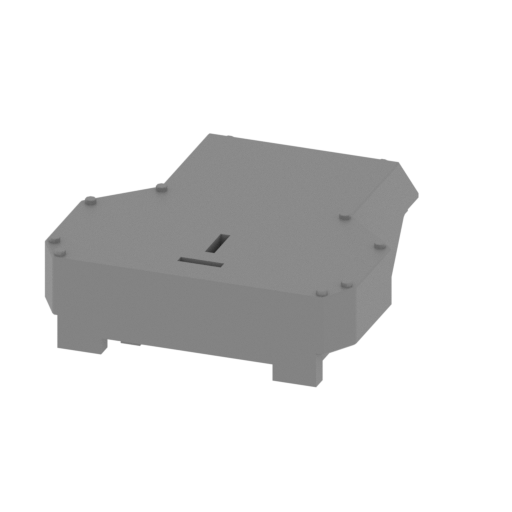

te_10_time_engine_top_a_p art_2_3 (repaired).stl
0.08 MiB 8 h 28 min 6 m 70 x 83 x 27 Download

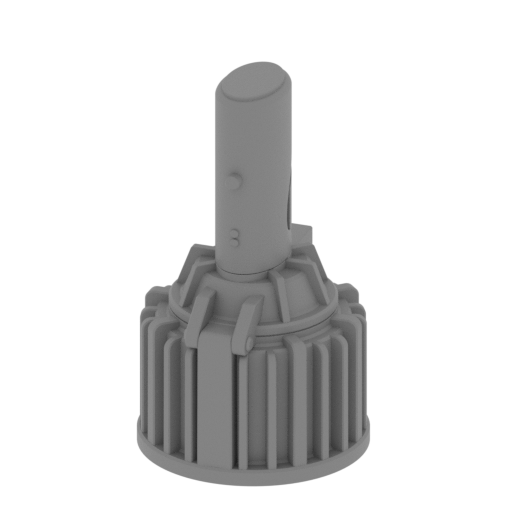

te_11_time_engine_top_b_p art_2_3 (repaired).stl
3.80 MiB 2 h 46 min 1 m 34 x 36 x 57 Download

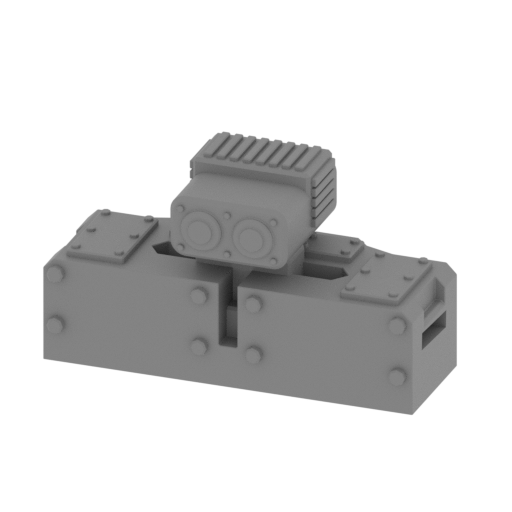

te_12_top_hub (repaired). stl
0.51 MiB 1 h 47 min 1 m 45 x 21 x 25 Download

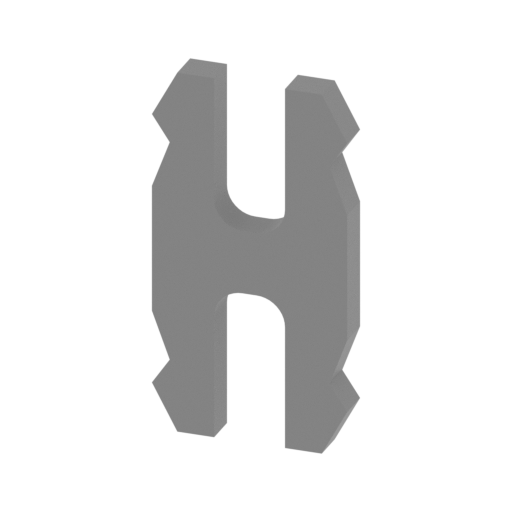

Ge_lock_10H x 5 (repaired ).stl
0.03 MiB 10 min <1 m 10 x 2 x 18 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download

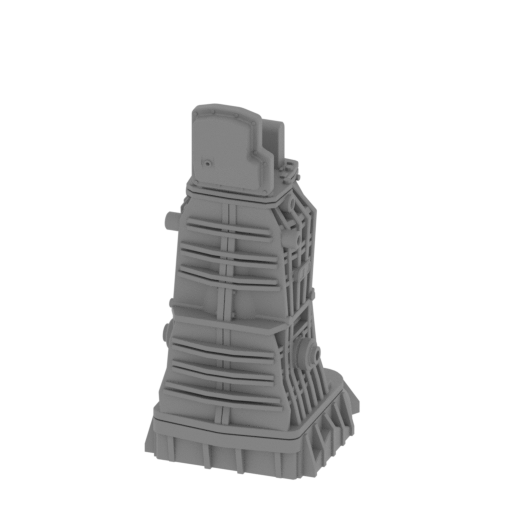

ce_4_engine_1 (repaired). stl
3.95 MiB 7 h 37 min 4 m 40 x 45 x 86 Download
...

ABOUT THIS 3D MODEL

According to the genius inventor Emmett “Doc” Brown, time-travel recipe is as easy as pie: Mr Fusion fuel processor converts garbage to power for the flux capacitor and the flight circuits which help generate 1.21 gigawatts of power needed to travel to any point in time. Well, we may understand what Mr Fusion is, we have enough household waste to feed it for sure and the author of the model did prepare a flux capacitor for 3D printing but what the hell is a gigawatt? All jokes aside, the time-travelling might be fiction now but we are totally convinced that Doc from 1985 would be stunned by the opportunities that 3D printing technology may bring. For example, this assembly kit comprises elements that will help your 3D printing DeLorean acquire all the essential parts both of an ordinary car and a time-travelling device. The Mr Fusion here replaces the nuclear fission reactor and the car’s exterior receives its futuristic flux coils. There is also a microchip for the time circuit controls that is fastened to the hood that the fictional car received at the beginning of the trilogy’s last instalment. While the microchip may as well include vacuum tubes, the 3D printing car’s engine parts impress with the meticulous attention to fine details and the author’s striving for realism. The things might be heavy in the future but creating your own time-travelling DeLorean has never been easier - just order the STL files!

ADAPTATION FOR 3D PRINTING

While working on the Assembly Kit 2 of the DeLorean model, Gambody team made sure to make both model’s “time travelling” decorative elements and mechanic parts of the car as true to life as possible. Flux coils around the car’s body were separated for you to be able to print them in transparent filament and illuminate with rope light. All essential elements comprising the DMC’s engine like the radiator, exhaust pipes and hooks, gas tank, alternator and compressor belts etc. were “taken off” the car’s frame and are to be printed and assembled separately. The most careful attention was dedicated to the gem of this assembly kit - an active suspension that comprises the finest elements for you to assemble an extremely realistic rolling chassis. There were also prepared two different types of bearings for front and rear wheels of the 3D printing car. The reason why the front bearings are thinner is to allow for the simultaneous movement of front wheels with the help of a steering rack that was also introduced. All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. The model's assembly requires additional "pins" to secure the parts of the 3D printed car. These pins do not come in STL files but can be made out of short pieces of regular 2.85 PLA, screws or wire of an appropriate diameter. We highly recommend that you watch "Assembly video" in the photo preview section before assembling the DeLorean time machine. When downloading any file that comprises the kit you will also receive "Assembly Manual" in PDF format.

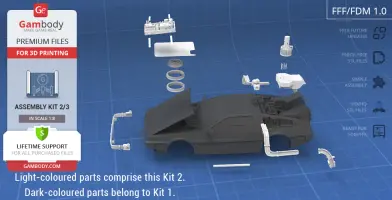

This is the description of the model's Assembly Kit 2: Engines, Mr Fusion, Active Suspension. Standard Assembly Kit 1 and additional Kit 3 can be ordered as separate items as well.

SPECIFICATION OF THE ASSEMBLY KIT 2: External Engine, Mr Fusion, Active Suspension

- The 3D printing model's chosen scale is 1:8 and it was calculated from the actual length of the DMC DeLorean car that is 4216 mm;

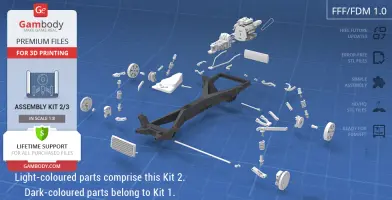

- Contains 70 parts that comprise the engines, outer coils, active suspension, bearings etc. elements of the 3D printing time machine;
- A printed 1:8 DeLorean is 154 mm tall, 234 mm wide, 527 mm deep;
- Assembly kit includes lock Ge_lock_10H x 5 to attach the model's parts securely without glue that needs to be printed 5 times

TE - Time Travel Engine:
Mr Fusion fuel processor placed on a hatch replaces the nuclear fission reactor from Kit 1;
- The box on the hood or the microchip for the time circuit controls is "fastened" to the hood with belts;
- Flux coils around the car body can be printed in transparent filament and illuminated with rope light;

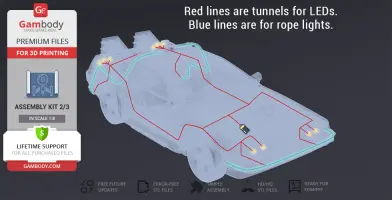

- The wires connecting the time-travel engine parts are secured underneath the doors with hollow pipes;
- Blue wires do not come in STL files - 1.75mm PLA plastic can be used instead;

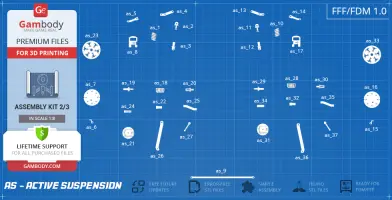

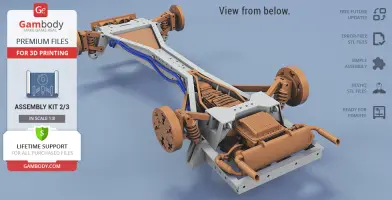

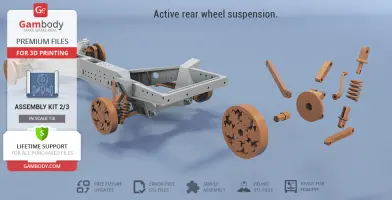

AS - Active suspension:
- The car's chassis can be assembled into the rolling one with the help of active suspension system;
- A spring, shock assembly, link, track rod, brake disc etc. form the basis of the car's active suspension;

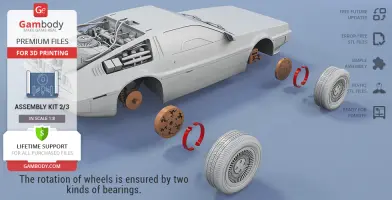

- Rear wheels are equipped with rotating gear bearings that are easily printed one-piece;

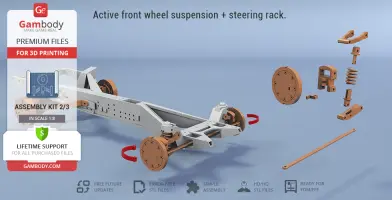

- The front of the frame is equipped with a steering rack​ that allows the simultaneous movement of front wheels;
- The rotation of the front wheels is ensured by special thin bearings that are also to be printed one-piece;

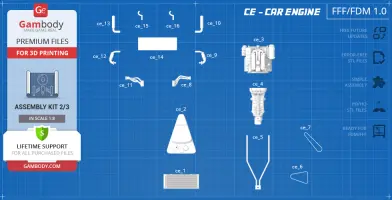

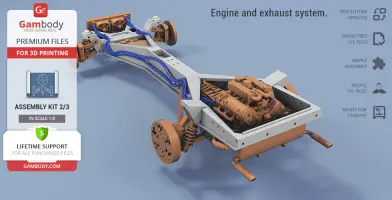

CE - Car engine:
- Highly-detailed transmission case and engine are placed on the separated engine pipes;
Alternator belt and compressor belt to put over the pulleys;
- Complete exhaust system with exhaust pipes and hooks to secure the exhaust system underneath the frame;
- The radiator is to be secured at the front of the frame;
- Similar to DMC-12, the car's gas tank is to be placed in the middle of the frame;

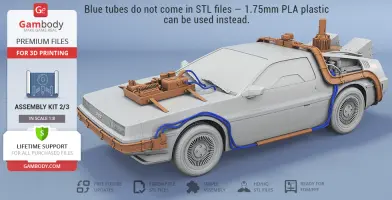

- Blue tubes do not come in STL files - 1.75mm PLA plastic can be used instead;

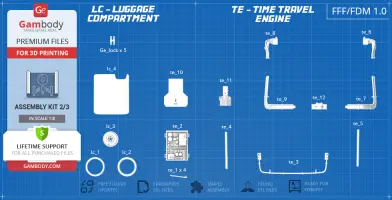

LC - Luggage compartment:
- A spare wheel (tyre + rim) is to be placed into its designated place in the luggage compartment interior;

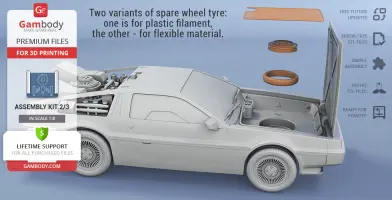

- Two variants of spare wheel tyre to choose from: one is meant for plastic filament, the other is hollow for flexible material;
- A cover to place over the luggage compartment.

ADDITIONAL DELOREAN 3D MODEL KITS:

Kit 1: Standard Assembly Kit

Kit 3: Car Interior, Wheels and Platforms

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of DeLorean Model Assembly Kit 2 for 3D Printing which consist of 70 parts;
- Assembly Kit 2 that consists of engines, outer coils, active suspension, bearings;
- High-poly detailed model of DeLorean in Kit 2;
- Assembly Manual in PDF format;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get DeLorean Model Assembly Kit 2 for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble DeLorean 3D Printing Model | Assembly Kit 2: Engines, Mr Fusion, Active Suspension at Gambody YouTube channel.

Also, you may like Marty McFly and Doc Brown 3D Printing Figurines.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
  • All connectors should be printed at 100% Infill.

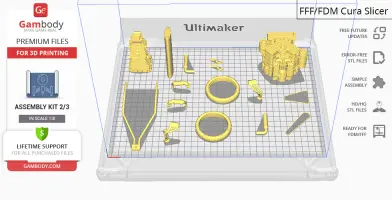

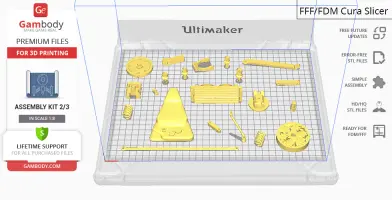

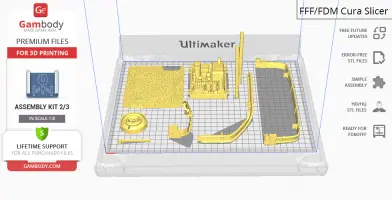

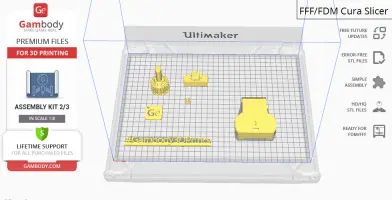

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
