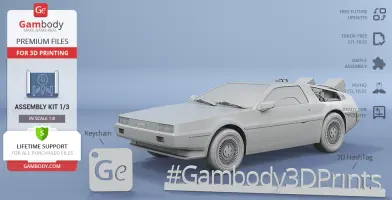

DeLorean 3D Printing Model | Standard Assembly Kit 1

(28)
cm: 23.4 w x 52.7 d x 15.4 h
in: 9.213 w x 20.748 d x 6.063 h

Source Files

|

Description

|

Printing Details

This 3D printing assembly kit consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

DeLorean 3D Printing Model | Standard Assembly Kit 1 comes in 1 version for FFF/FDM 3D printers. Files are available for download immediately after the purchase.

WHAT WILL YOU GET AFTER PURCHASE?

  • STL files of DeLorean Model Standard Assembly Kit 1 for 3D Printing which consist of 88 parts;
  • Standard Assembly Kit that consists of basic time machine parts;
  • High-poly detailed model of DeLorean in Standard Kit;
  • Assembly Manual in PDF format;

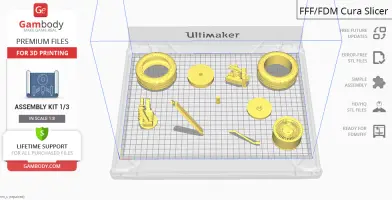

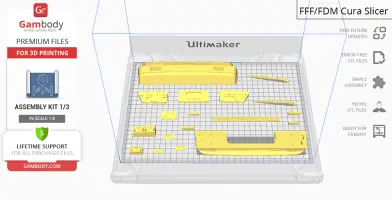

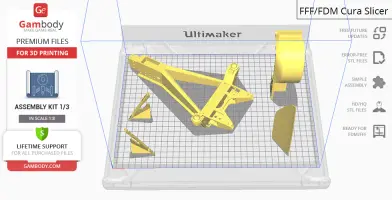

  • Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing assembly kit is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

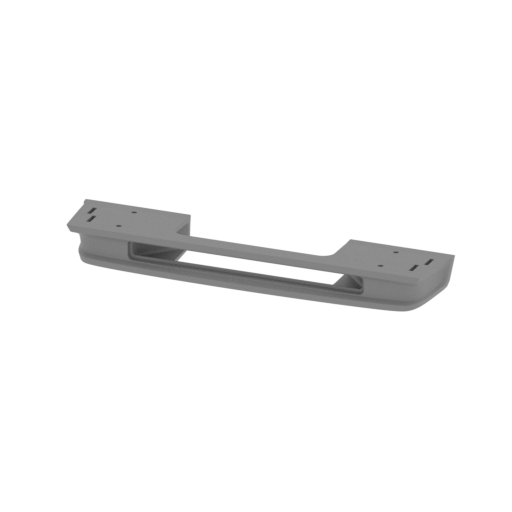

bl_1_bumper_b (repaired). stl
25.77 MiB 8 h 52 min 5 m 197 x 42 x 20 Download

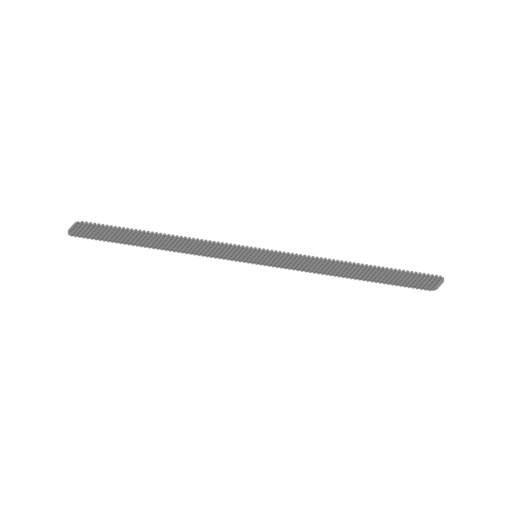

bl_2_bumper_b_grid (repai red).stl
1.99 MiB 18 min <1 m 126 x 11 x 1 Download

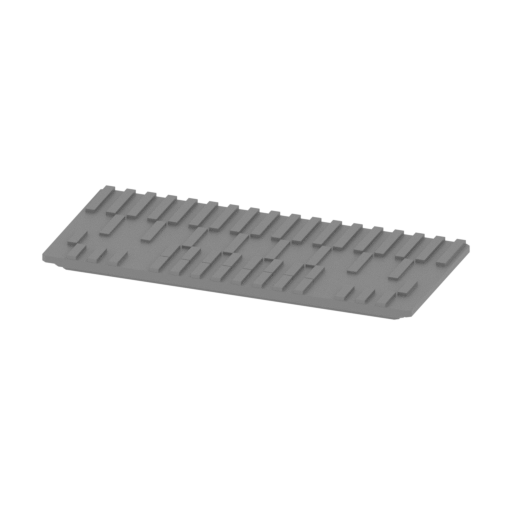

bl_3_headlight_front_glas s_b_1 (repaired).stl
0.38 MiB 3 min <1 m 19 x 8 x 1 Download

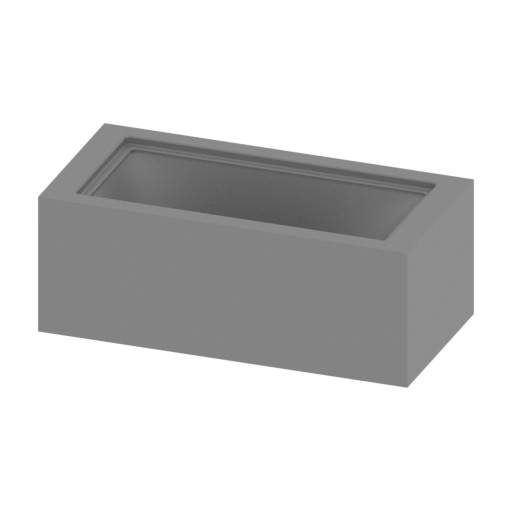

bl_4_headlight_front_b_R (repaired).stl
0.57 MiB 17 min <1 m 23 x 11 x 9 Download

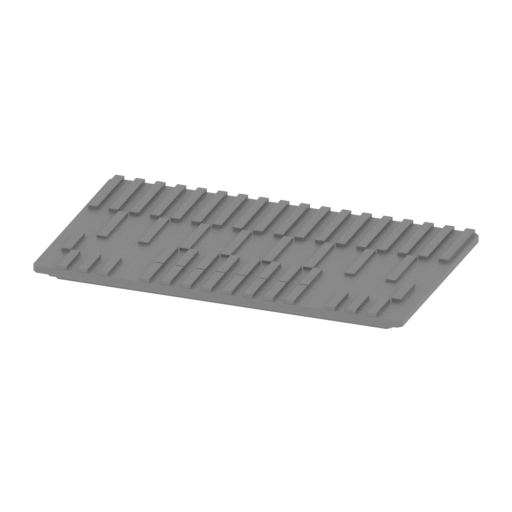

bl_5_headlight_front_glas s_a_1 (repaired).stl
0.38 MiB 4 min <1 m 18 x 10 x 1 Download
bl_6_headlight_front_glas s_a_2 (repaired).stl
0.38 MiB 3 min <1 m 18 x 10 x 1 Download

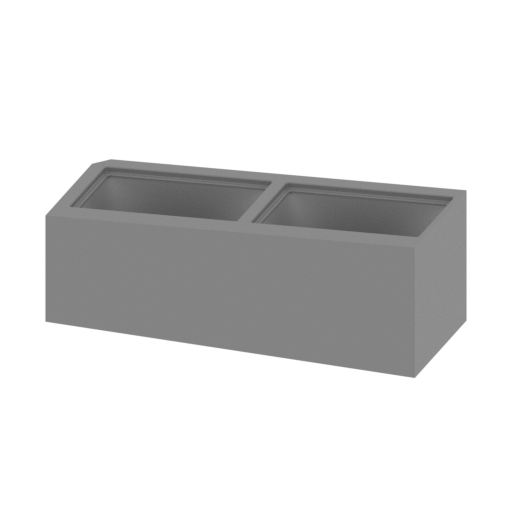

bl_7_headlight_front_a_R (repaired).stl
1.34 MiB 51 min <1 m 40 x 15 x 14 Download

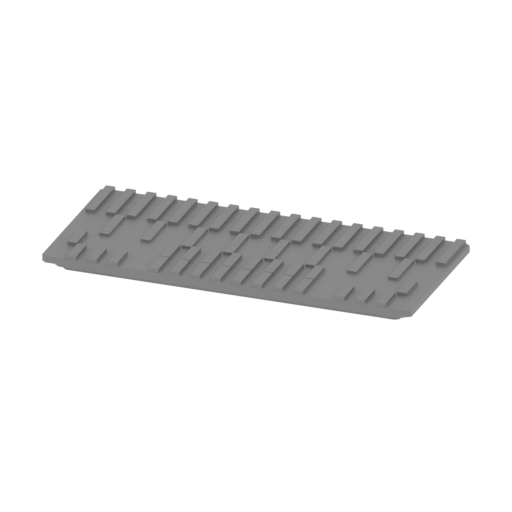

bl_8_headlight_front_glas s_b_2 (repaired).stl
0.38 MiB 3 min <1 m 19 x 8 x 1 Download

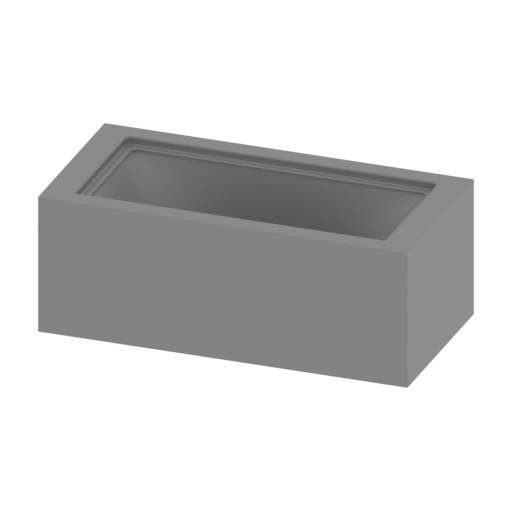

bl_9_headlight_front_b_L (repaired).stl
0.57 MiB 17 min <1 m 23 x 11 x 9 Download
bl_10_headlight_front_gla ss_a_3 (repaired).stl
0.38 MiB 3 min <1 m 18 x 10 x 1 Download

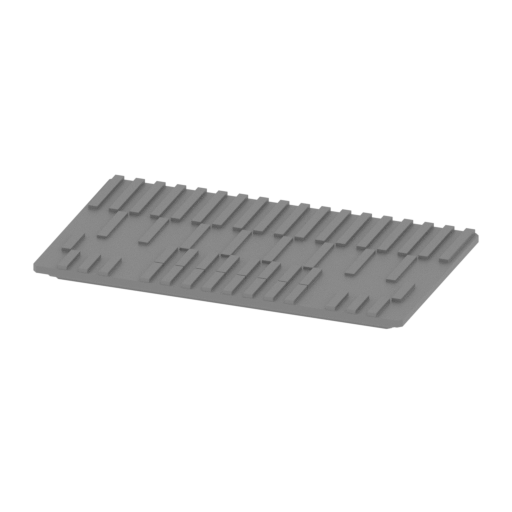

bl_11_headlight_front_gla ss_a_4 (repaired).stl
0.38 MiB 4 min <1 m 18 x 10 x 1 Download

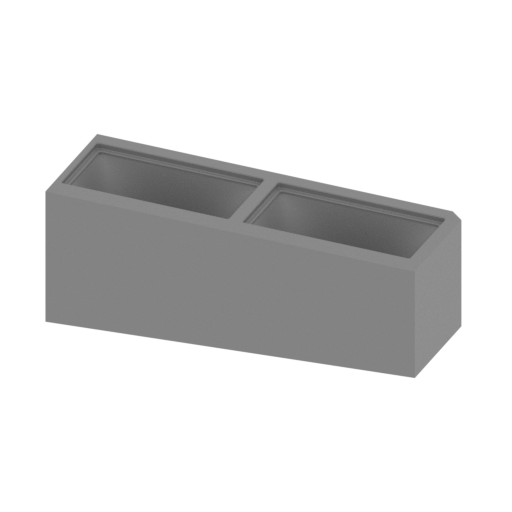

bl_12_headlight_front_a_L (repaired).stl
1.34 MiB 51 min <1 m 40 x 15 x 14 Download

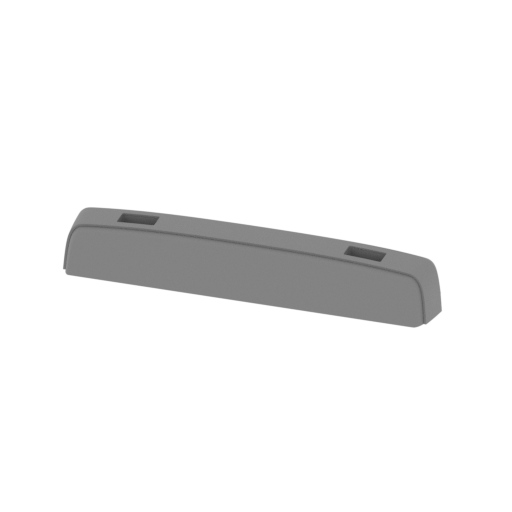

bl_13_bumper_a (repaired) .stl
12.08 MiB 14 h 41 min 9 m 195 x 44 x 31 Download

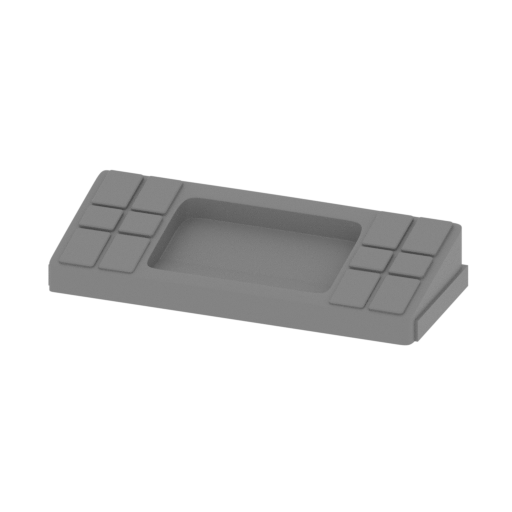

bl_14_headlight_back_Cent er (repaired).stl
2.29 MiB 1 h 2 min 1 m 57 x 23 x 10 Download

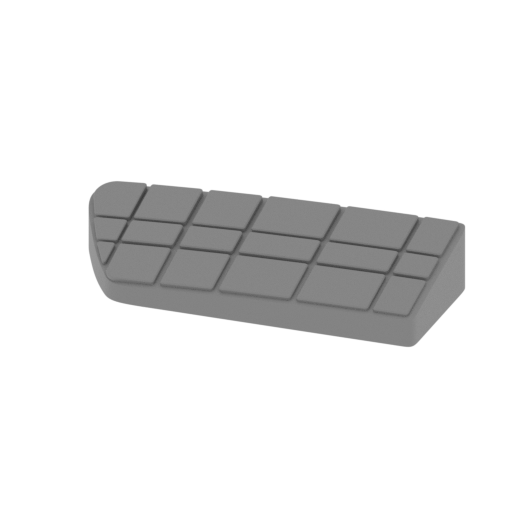

bl_15_headlight_back_R (r epaired).stl
1.28 MiB 1 h 1 min 1 m 56 x 23 x 10 Download

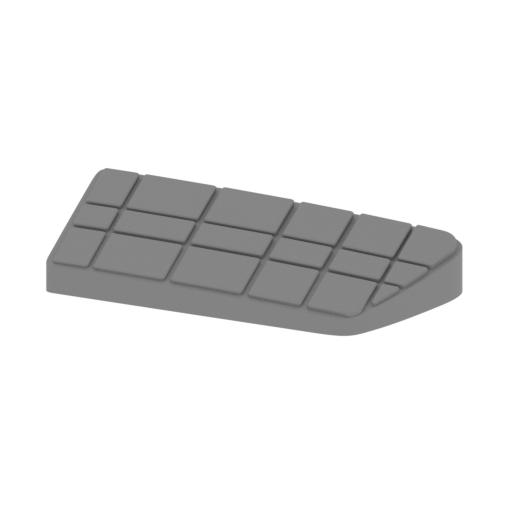

bl_16_headlight_back_L (r epaired).stl
1.28 MiB 1 h 1 min 1 m 56 x 23 x 10 Download

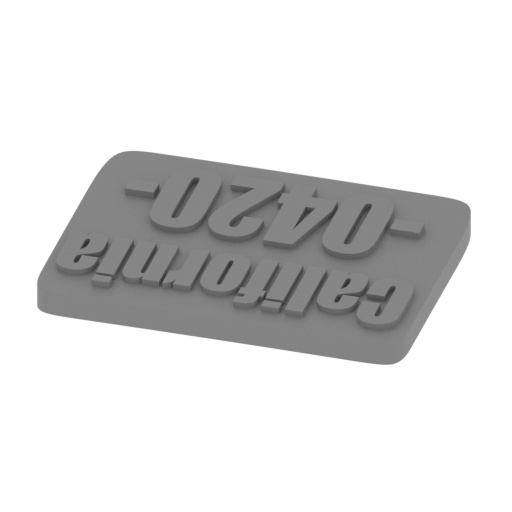

bl_17_headlight_back_plat e (repaired).stl
1.28 MiB 23 min <1 m 28 x 17 x 6 Download

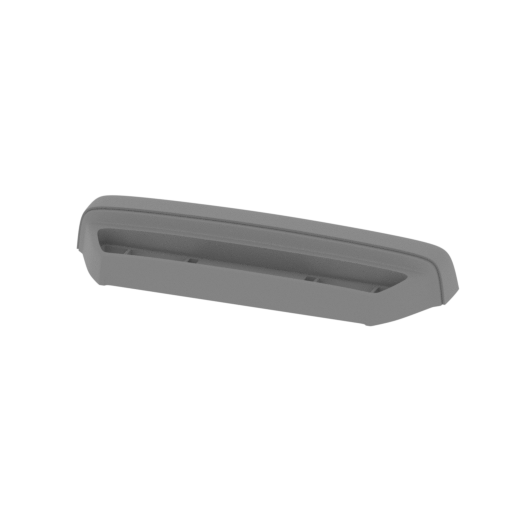

bl_18_bumper_c (repaired) .stl
6.60 MiB 15 h 7 min 9 m 201 x 62 x 29 Download

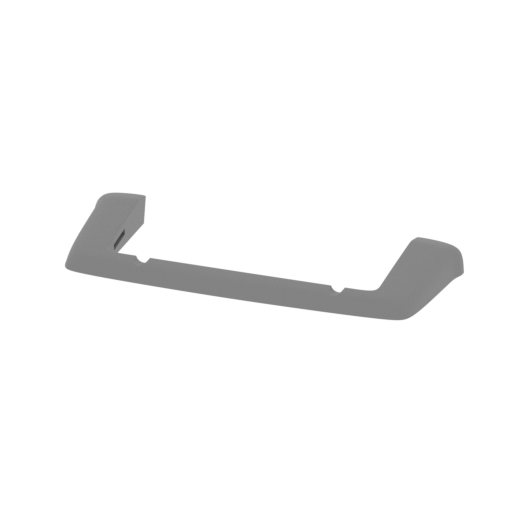

bl_19_bumper_d (repaired) .stl
6.00 MiB 6 h 4 min 3 m 204 x 75 x 17 Download
bl_20_headlight_side_back _R (repaired).stl
0.07 MiB 7 min <1 m 23 x 3 x 7 Download

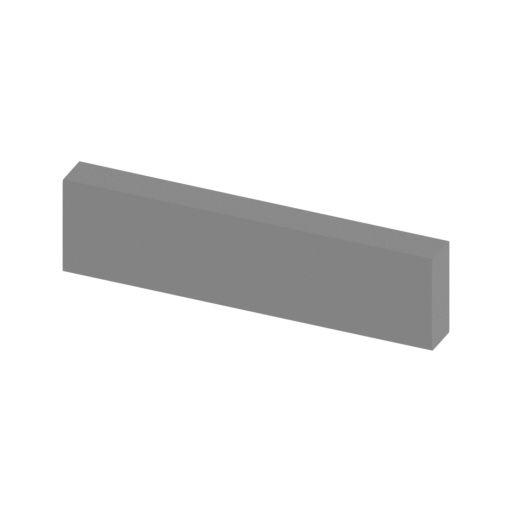

bl_21_headlight_side_back _L (repaired).stl
0.07 MiB 7 min <1 m 23 x 3 x 7 Download

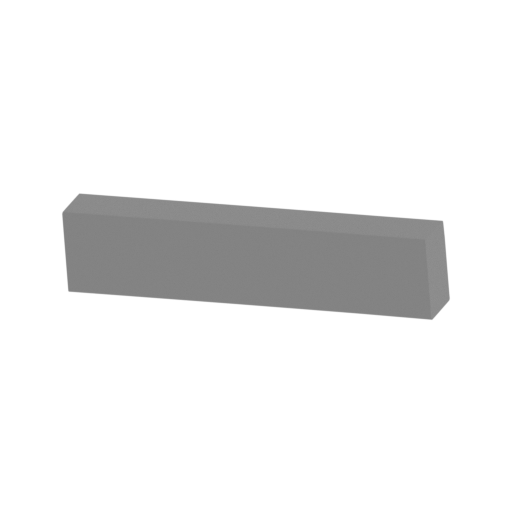

bl_22_headlight_side_fron t_L (repaired).stl
0.04 MiB 6 min <1 m 21 x 3 x 6 Download

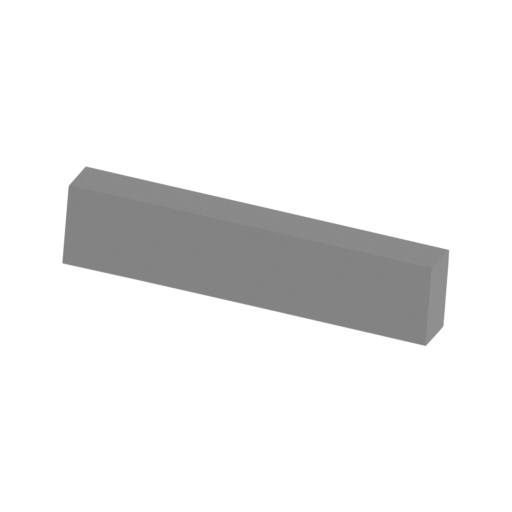

bl_23_headlight_side_fron t_R (repaired).stl
0.04 MiB 6 min <1 m 21 x 3 x 6 Download
cb_1_doorstep_L (repaired ).stl
5.80 MiB 2 h 37 min 2 m 15 x 210 x 17 Download
cb_2_doorstep_R (repaired ).stl
5.80 MiB 2 h 45 min 2 m 15 x 210 x 17 Download

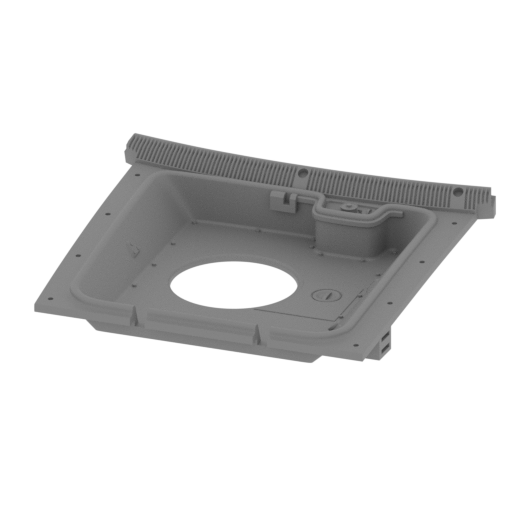

cb_3_under_hood (repaired ).stl
23.01 MiB 25 h 28 min 17 m 183 x 153 x 33 Download

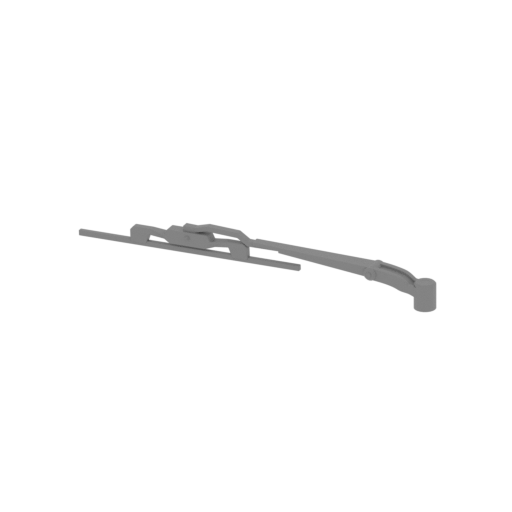

cb_4_wiper_1 (repaired).s tl
0.33 MiB 21 min <1 m 84 x 11 x 9 Download

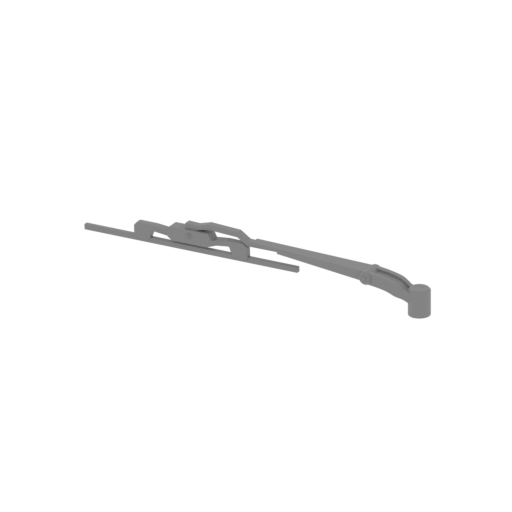

cb_5_wiper_2 (repaired).s tl
0.33 MiB 21 min <1 m 83 x 18 x 9 Download

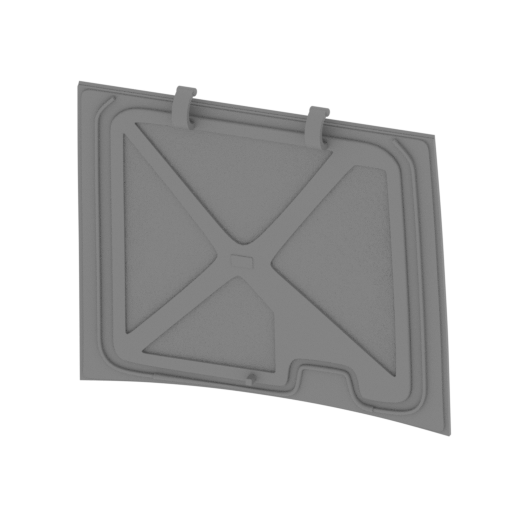

cb_6_hood (repaired).stl
14.99 MiB 17 h 42 min 11 m 169 x 25 x 152 Download

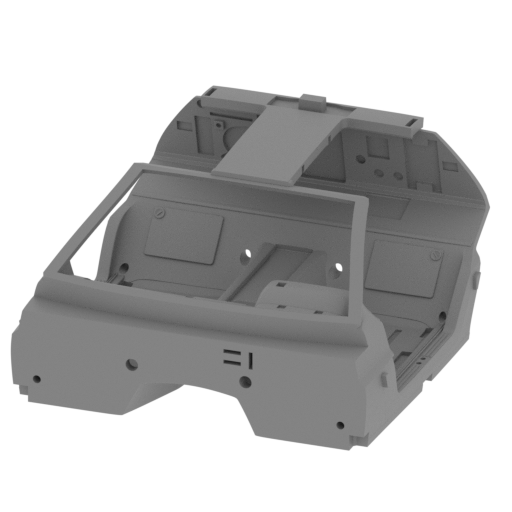

cb_7_cockpit_frame (repai red).stl
43.57 MiB 125 h 1 min 98 m 208 x 205 x 110 Download

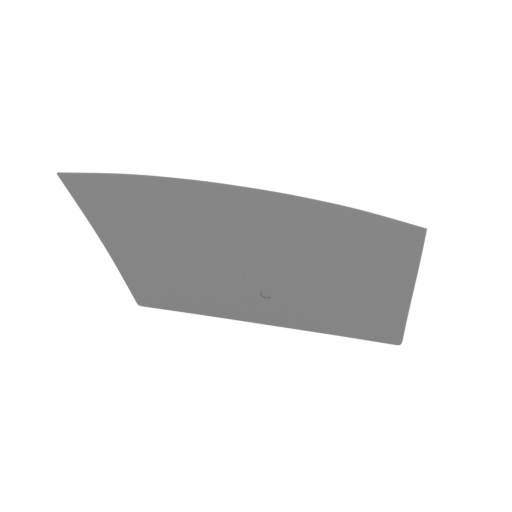

cb_8_window_front (repair ed).stl
2.08 MiB 3 h 35 min 3 m 176 x 39 x 83 Download

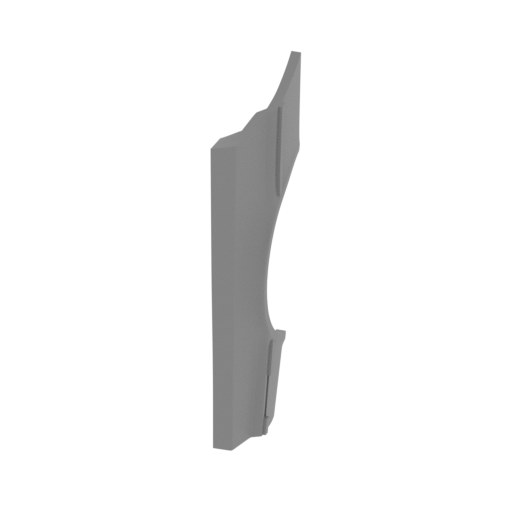

cb_9_panel_a_L (repaired) .stl
16.61 MiB 8 h 9 min 5 m 25 x 60 x 168 Download

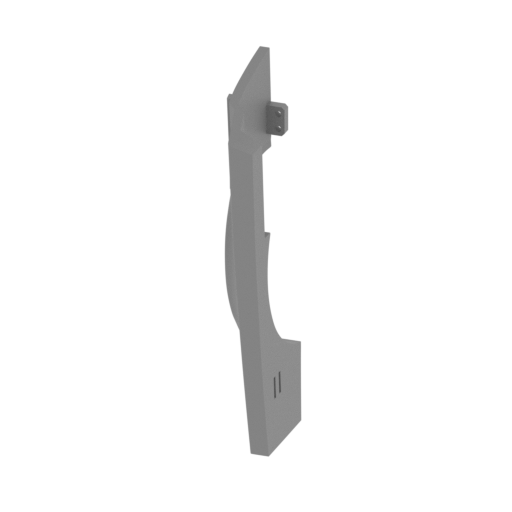

cb_10_panel_a_R (repaired ).stl
16.62 MiB 8 h 4 min 5 m 25 x 60 x 168 Download

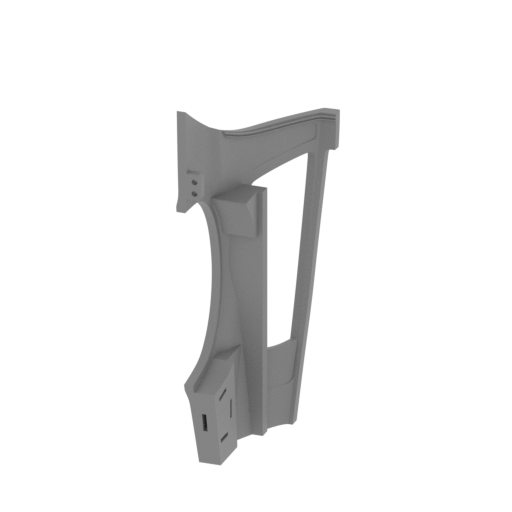

cb_11_panel_b_R (repaired ).stl
19.12 MiB 14 h 42 min 9 m 49 x 102 x 189 Download

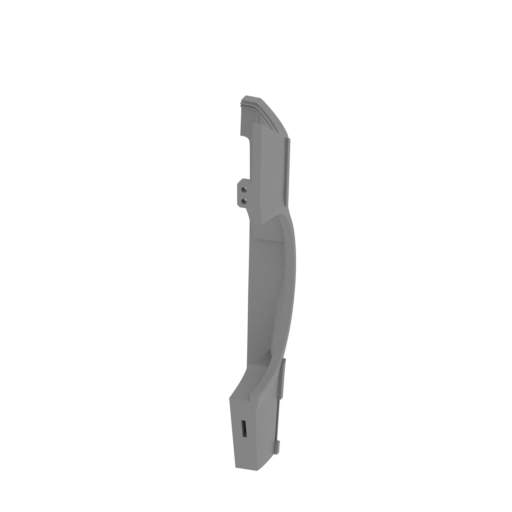

cb_12_panel_b_L (repaired ).stl
19.11 MiB 14 h 42 min 9 m 49 x 102 x 189 Download

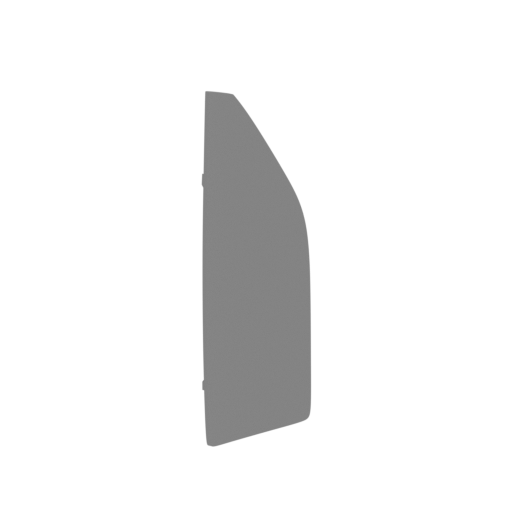

cb_13_window_R (repaired) .stl
1.13 MiB 2 h 29 min 1 m 26 x 35 x 131 Download

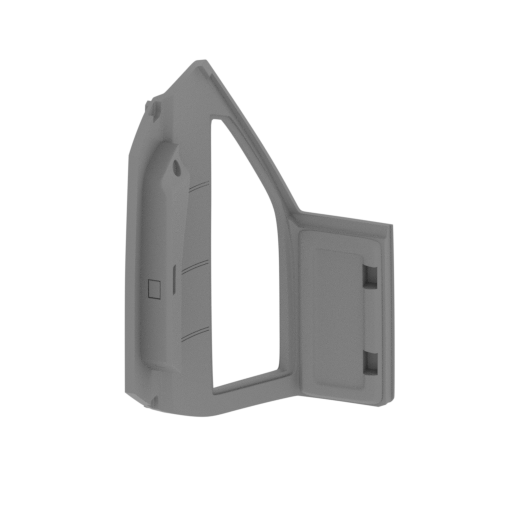

cb_14_door_R (repaired).s tl
13.25 MiB 14 h 31 min 8 m 87 x 102 x 167 Download

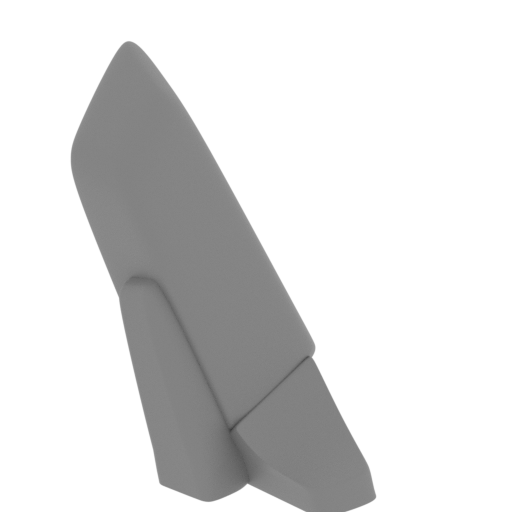

cb_15_mirror_R (repaired) .stl
1.76 MiB 36 min <1 m 23 x 23 x 27 Download

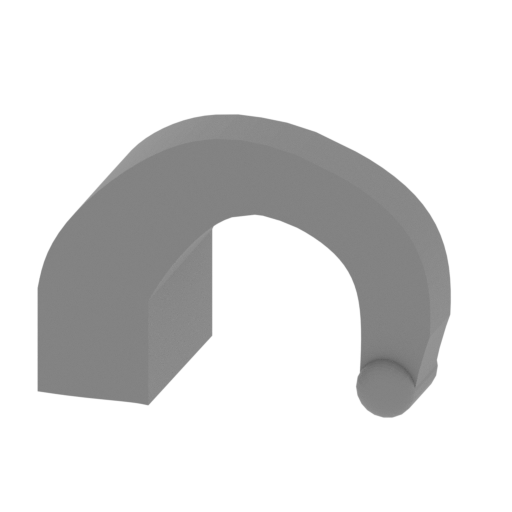

cb_16_door_R_connector_1 (repaired).stl
0.08 MiB 18 min <1 m 22 x 11 x 16 Download

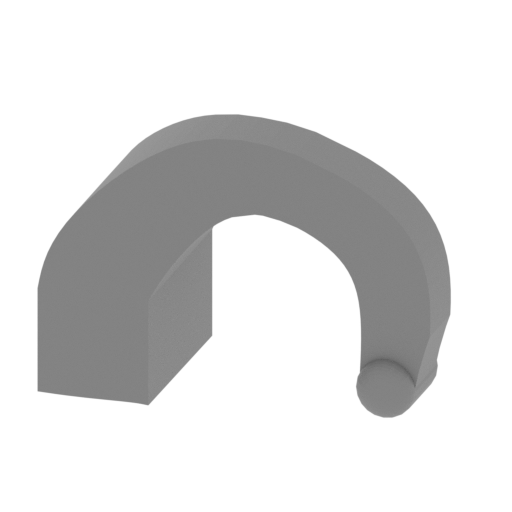

cb_17_door_R_connector_2 (repaired).stl
0.08 MiB 18 min <1 m 22 x 11 x 16 Download

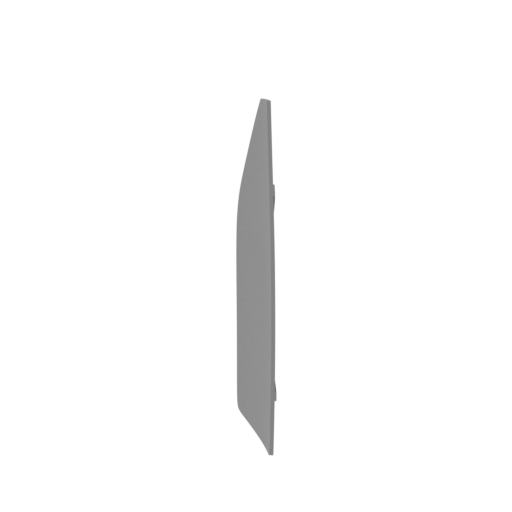

cb_18_window_L (repaired) .stl
1.13 MiB 2 h 27 min 1 m 26 x 35 x 131 Download

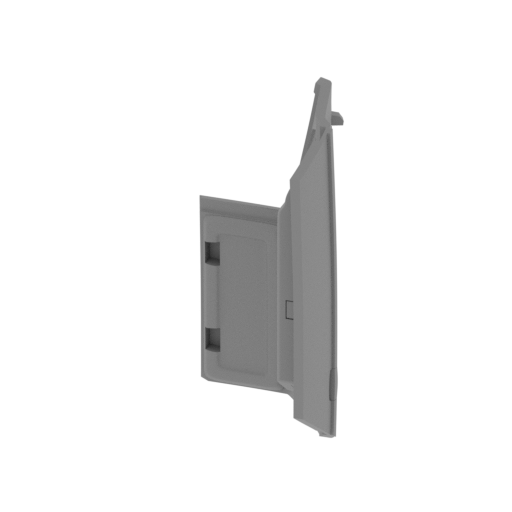

cb_19_door_L (repaired).s tl
13.25 MiB 14 h 31 min 8 m 87 x 102 x 167 Download

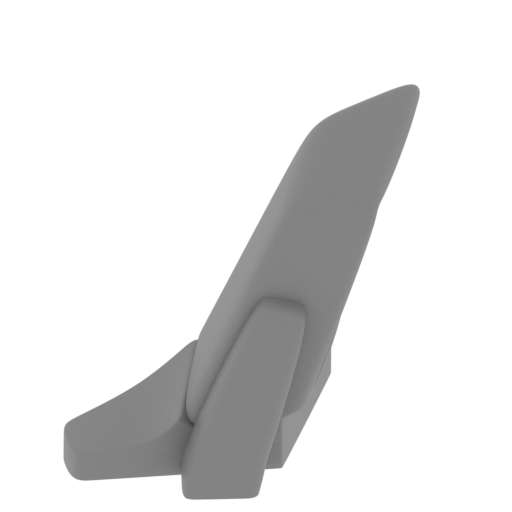

cb_20_mirror_L (repaired) .stl
1.76 MiB 36 min <1 m 23 x 23 x 27 Download
cb_21_door_L_connector_1 (repaired).stl
0.08 MiB 18 min <1 m 22 x 11 x 16 Download

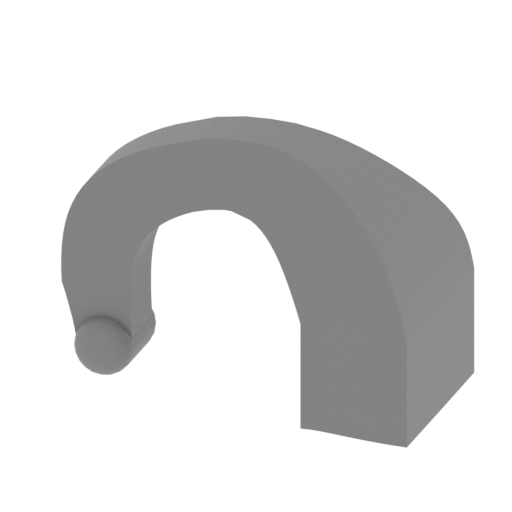

cb_22_door_L_connector_2 (repaired).stl
0.08 MiB 18 min <1 m 22 x 11 x 16 Download

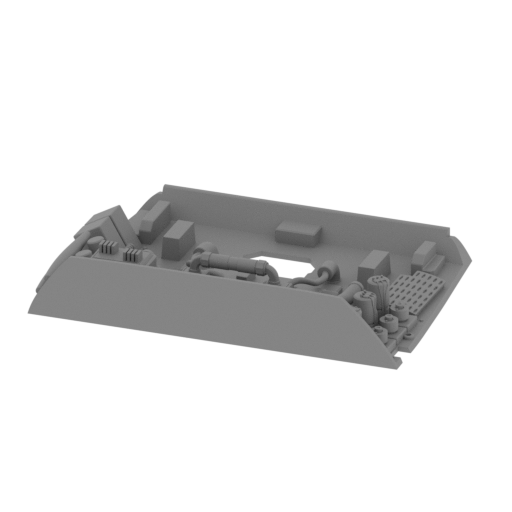

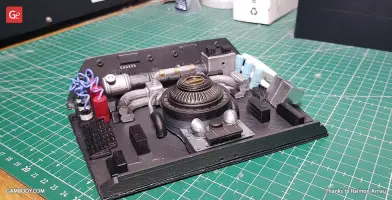

nr_1_time_engine_base (re paired).stl
16.99 MiB 28 h 55 min 15 m 184 x 139 x 38 Download

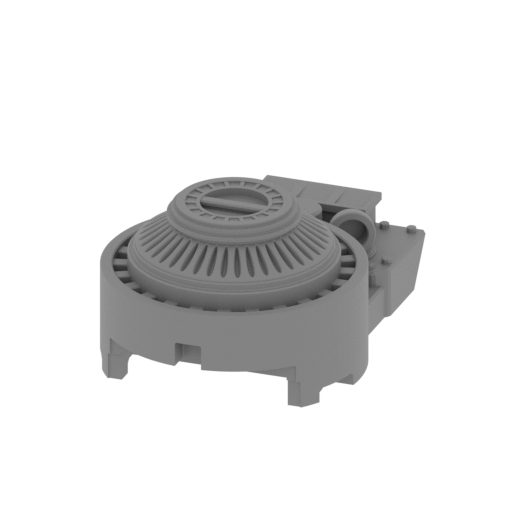

nr_2_time_engine_top_part _1 (repaired).stl
4.40 MiB 6 h 21 min 4 m 52 x 77 x 34 Download

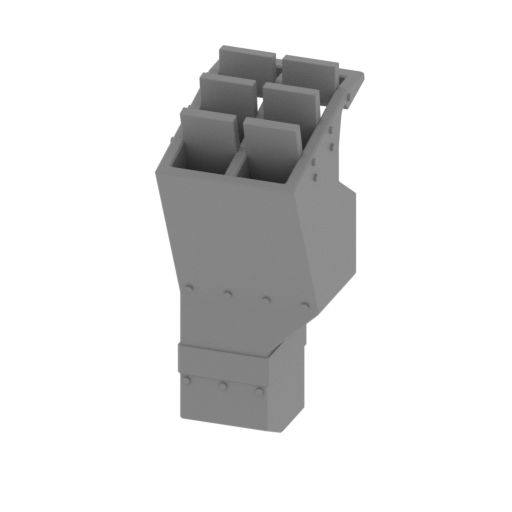

nr_3_time_engine_exhaust_ R (repaired).stl
0.21 MiB 11 h 27 min 7 m 42 x 54 x 102 Download

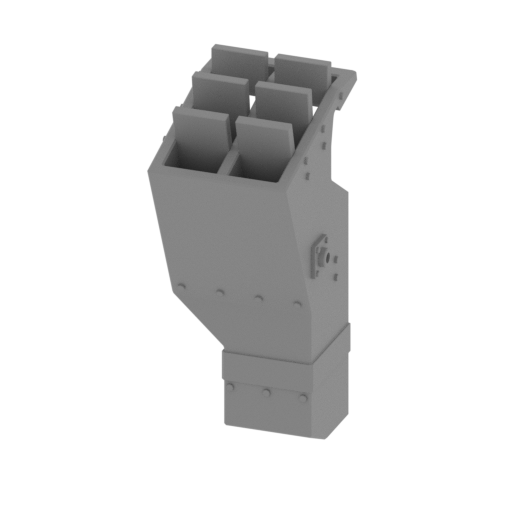

nr_4_time_engine_exhaust_ L (repaired).stl
0.21 MiB 11 h 28 min 7 m 42 x 54 x 102 Download

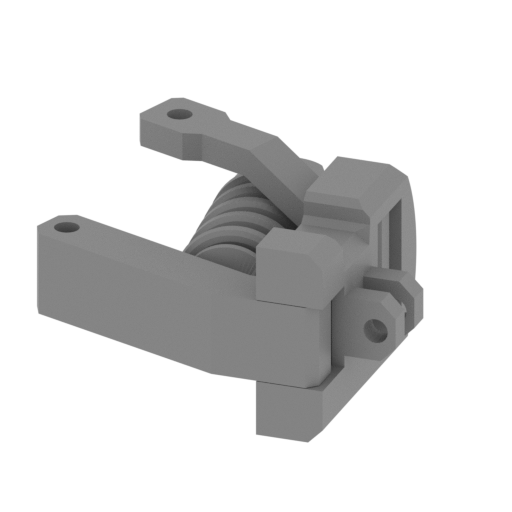

sw_1_susp_front_static_L (repaired).stl
0.57 MiB 2 h 50 min 1 m 45 x 44 x 25 Download

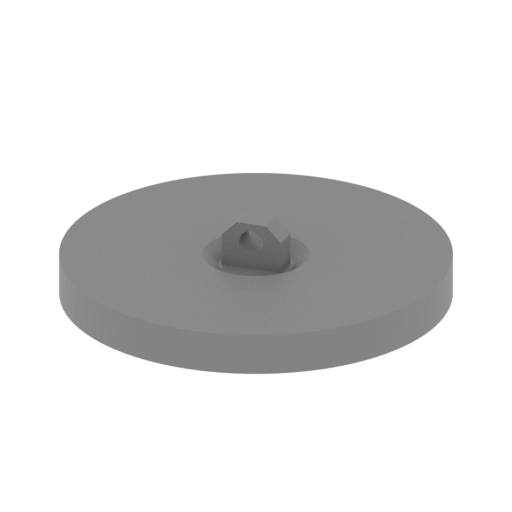

sw_2_bearing_static_front _L (repaired).stl
0.08 MiB 1 h 3 min 1 m 46 x 46 x 9 Download

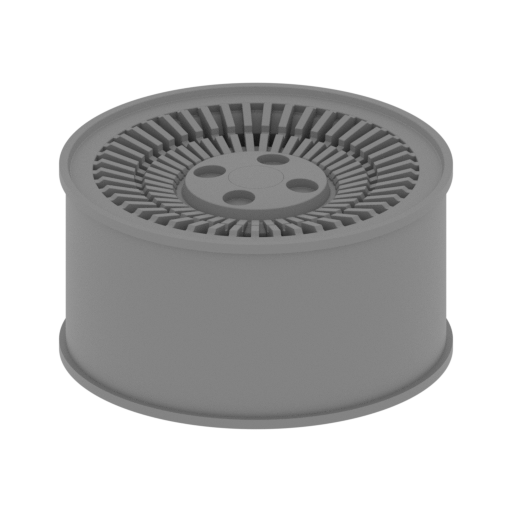

sw_3_wheel_front_L_part_1 _2 (repaired).stl
3.90 MiB 5 h 22 min 4 m 53 x 53 x 27 Download

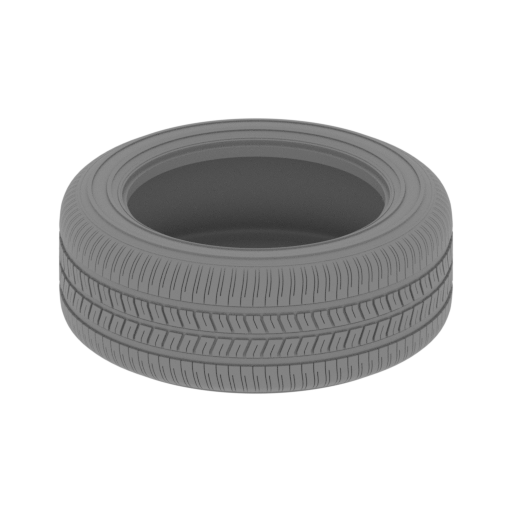

sw_4_tire_front_L_part_1_ 2_flex (repaired).stl
21.04 MiB 8 h 39 min 6 m 77 x 77 x 30 Download

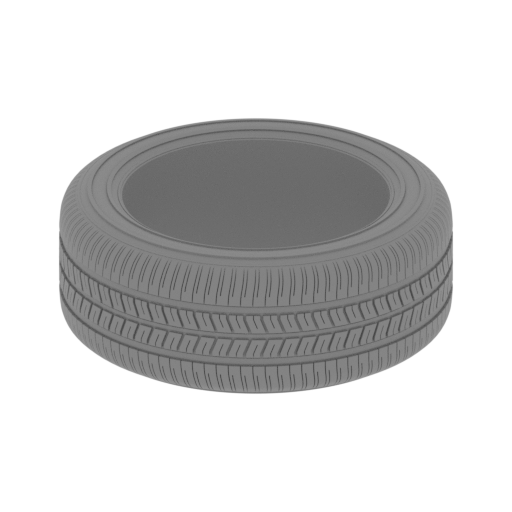

sw_5_tire_front_L_part_1_ 2_plastic (repaired).stl
18.46 MiB 6 h 55 min 4 m 77 x 77 x 30 Download

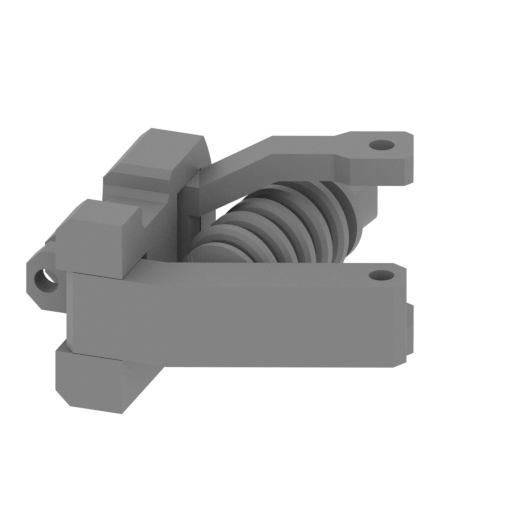

sw_6_susp_front_static_R (repaired).stl
0.57 MiB 2 h 53 min 1 m 45 x 44 x 25 Download

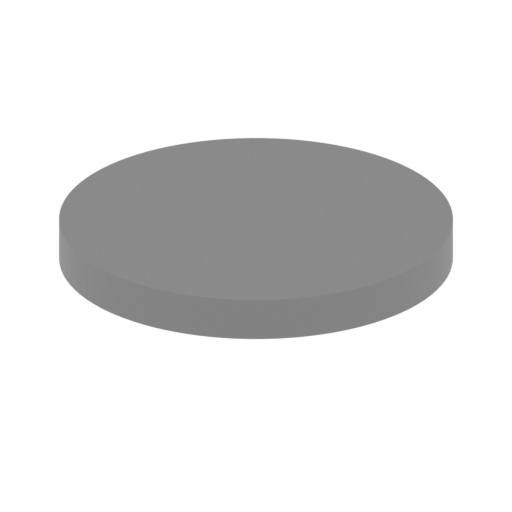

sw_7_bearing_static_front _R (repaired).stl
0.08 MiB 1 h 29 min 1 m 46 x 46 x 9 Download

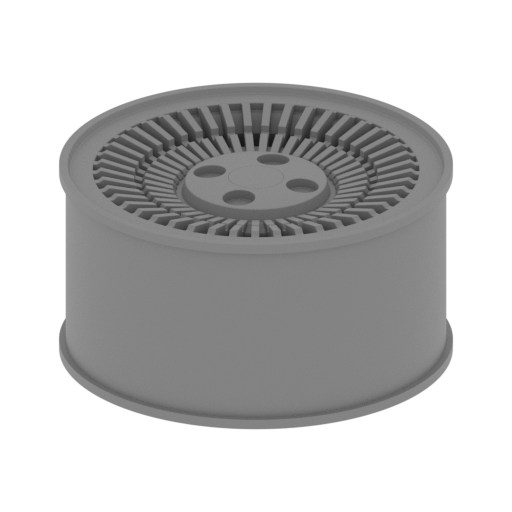

sw_8_wheel_front_R_part_1 _2 (repaired).stl
3.90 MiB 5 h 22 min 4 m 53 x 53 x 27 Download

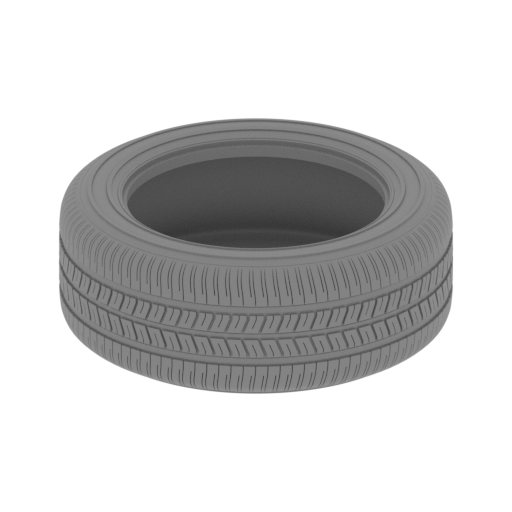

sw_9_tire_front_R_part_1_ 2_flex (repaired).stl
21.03 MiB 8 h 22 min 5 m 77 x 77 x 30 Download

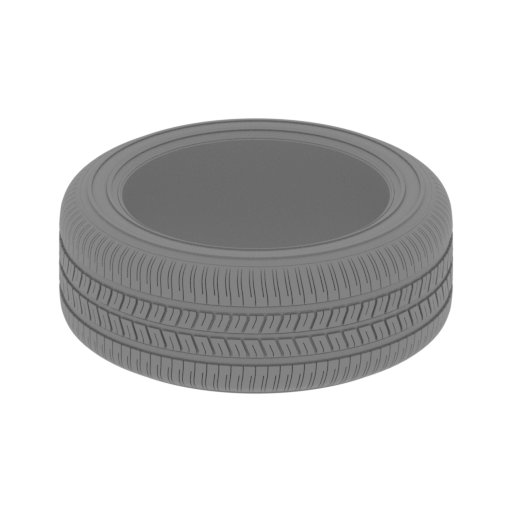

sw_10_tire_front_R_part_1 _2_plastic (repaired).stl
18.45 MiB 6 h 56 min 4 m 77 x 77 x 30 Download

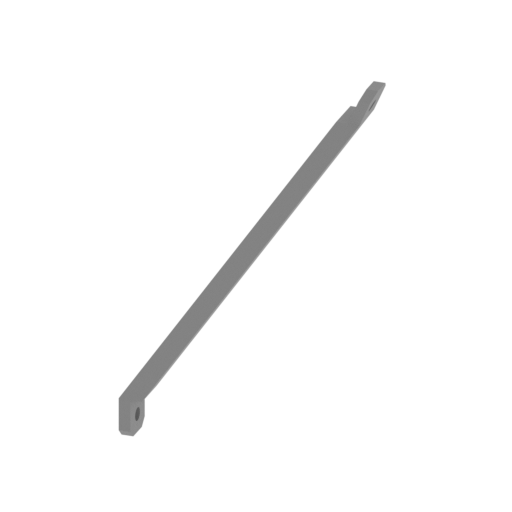

sw_11_susp_beam_front_cen ter_R (repaired).stl
0.02 MiB 1 h 19 min <1 m 53 x 22 x 82 Download

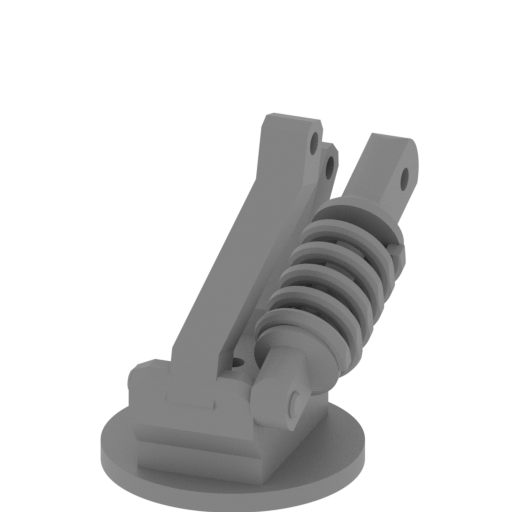

sw_12_susp_back_static_R (repaired).stl
0.60 MiB 3 h 6 min 1 m 34 x 48 x 49 Download

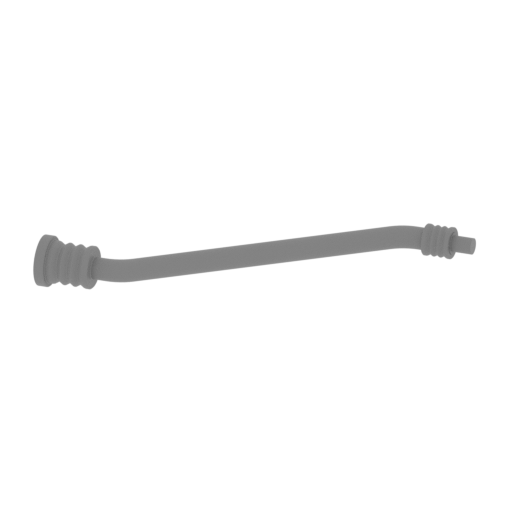

sw_13_susp_beam_engine_bo t_R (repaired).stl
0.25 MiB 18 min <1 m 54 x 30 x 7 Download

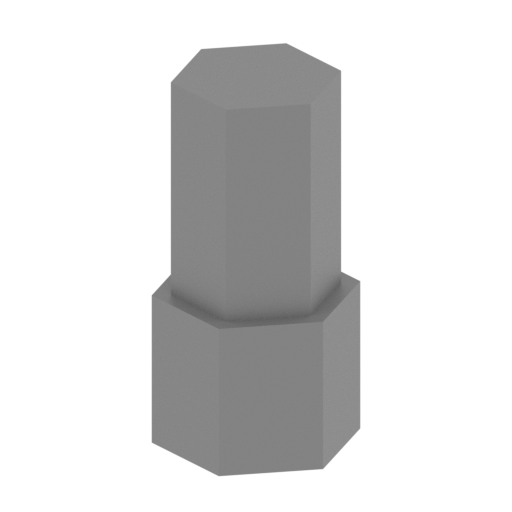

sw_14_bearing_connector_b ack_R (repaired).stl
0.00 MiB 14 min <1 m 8 x 9 x 17 Download
sw_15_bearing_static_back _R (repaired).stl
0.05 MiB 1 h 47 min 1 m 51 x 51 x 10 Download

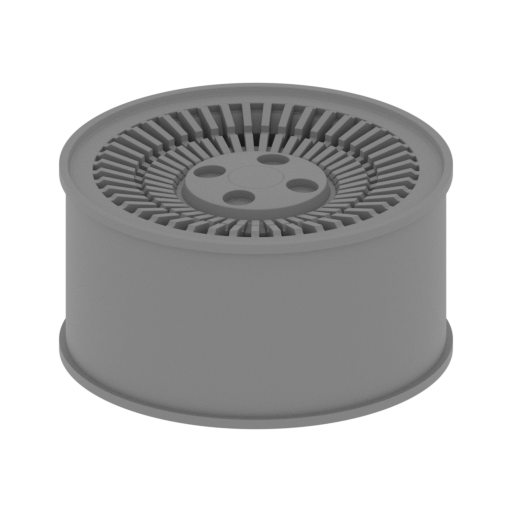

sw_16_wheel_back_R_part_1 _2 (repaired).stl
3.91 MiB 7 h 20 min 5 m 58 x 58 x 30 Download

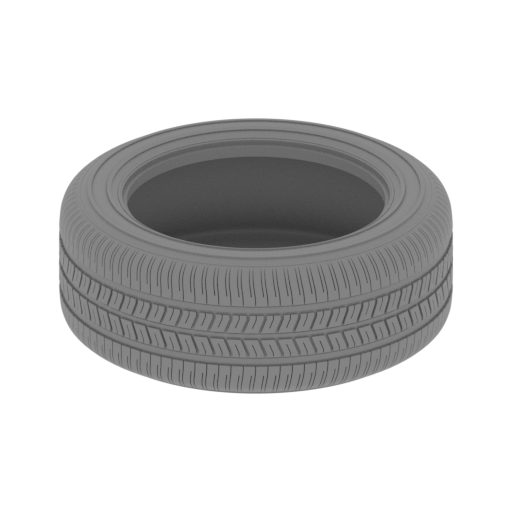

sw_17_tire_back_R_part_1_ 2_flex (repaired).stl
21.07 MiB 11 h 15 min 7 m 86 x 86 x 33 Download

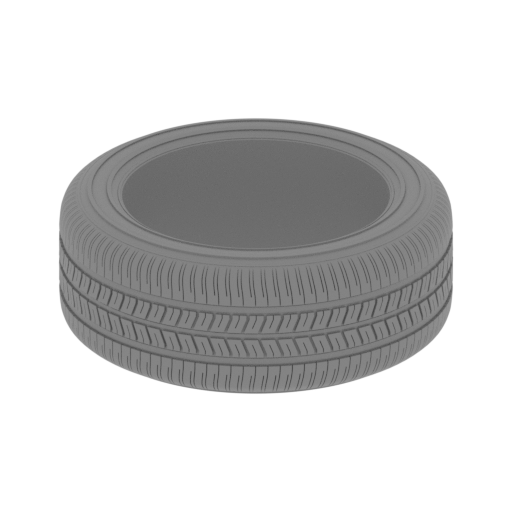

sw_18_tire_back_R_part_1_ 2_plastic (repaired).stl
18.49 MiB 9 h 21 min 5 m 86 x 86 x 33 Download

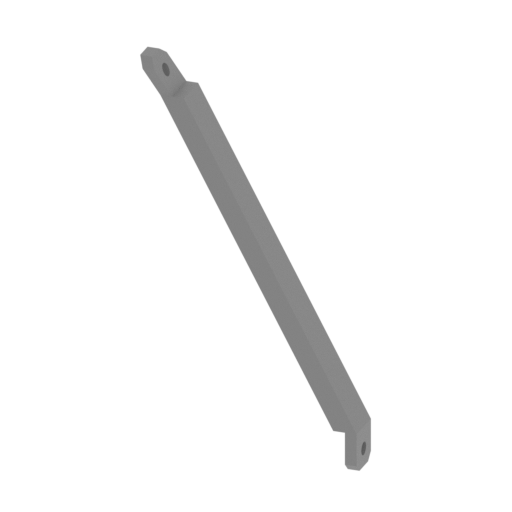

sw_19_susp_beam_front_cen ter_L (repaired).stl
0.02 MiB 1 h 19 min <1 m 53 x 22 x 82 Download

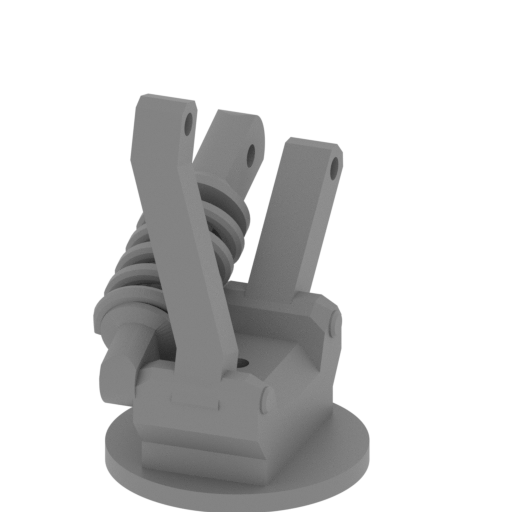

sw_20_susp_back_static_L (repaired).stl
0.60 MiB 3 h 7 min 1 m 34 x 48 x 49 Download

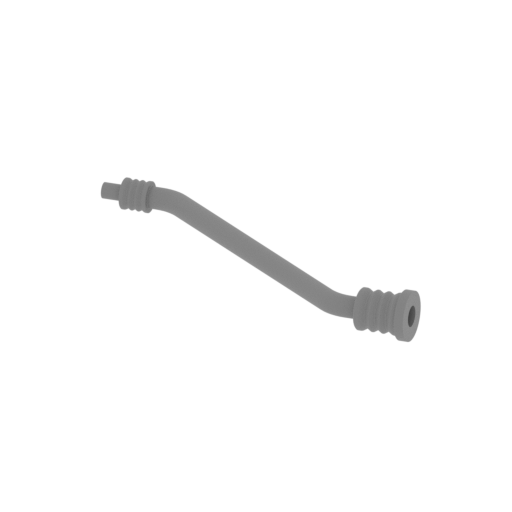

sw_21_susp_beam_engine_bo t_L (repaired).stl
0.25 MiB 18 min <1 m 54 x 30 x 7 Download

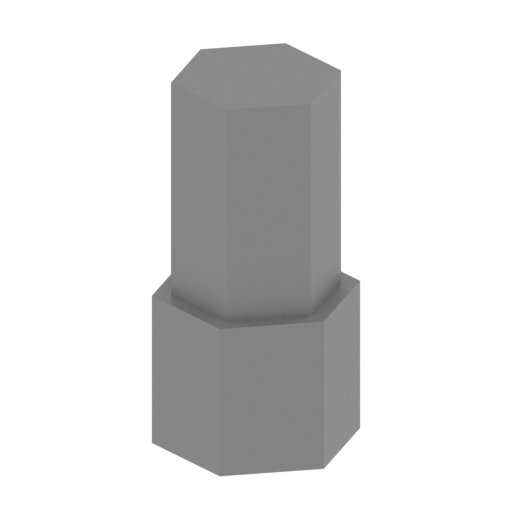

sw_22_bearing_connector_b ack_L (repaired).stl
0.00 MiB 14 min <1 m 8 x 9 x 17 Download

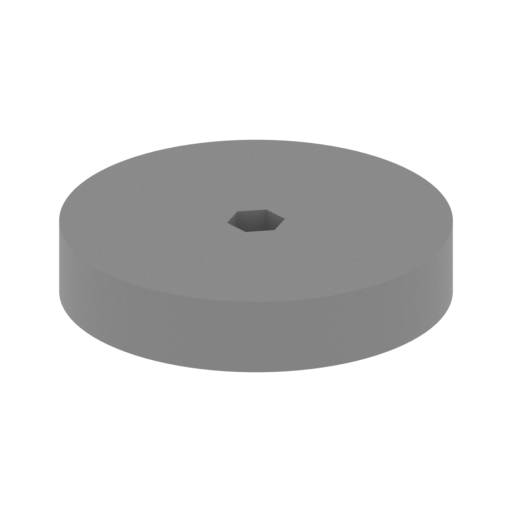

sw_23_bearing_static_back _L (repaired).stl
0.05 MiB 1 h 47 min 1 m 51 x 51 x 10 Download
sw_24_wheel_back_L_part_1 _2 (repaired).stl
3.90 MiB 7 h 20 min 5 m 58 x 58 x 30 Download

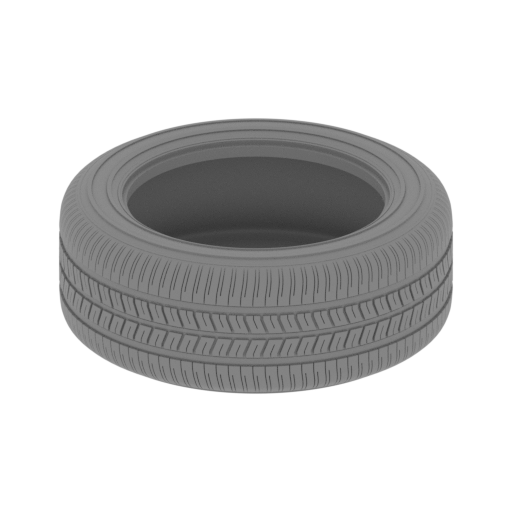

sw_25_tire_back_L_part_1_ 2_flex (repaired).stl
21.05 MiB 10 h 51 min 7 m 86 x 86 x 33 Download

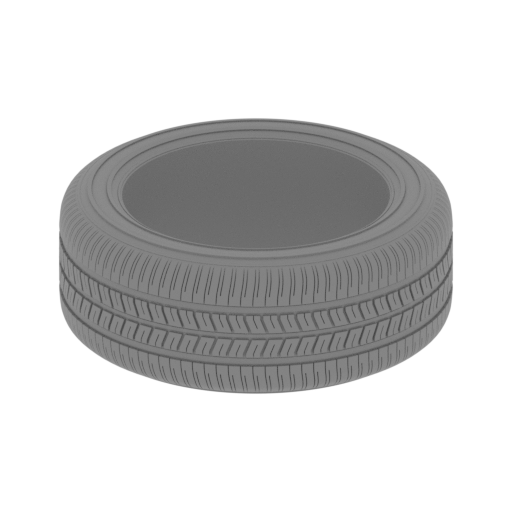

sw_26_tire_back_L_part_1_ 2_plastic (repaired).stl
18.48 MiB 9 h 9 min 5 m 86 x 86 x 33 Download

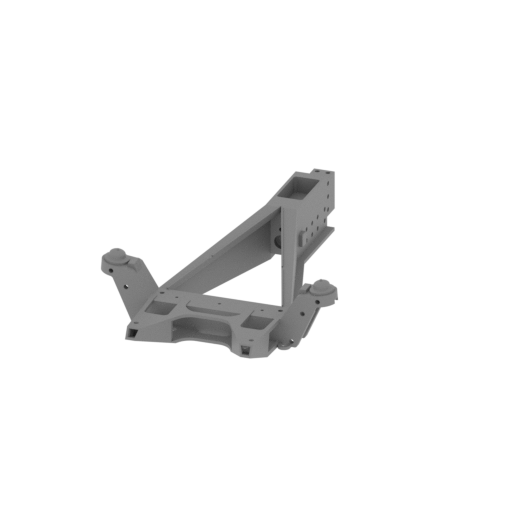

sw_27_frame_front (repair ed).stl
0.76 MiB 18 h 28 min 11 m 145 x 229 x 42 Download

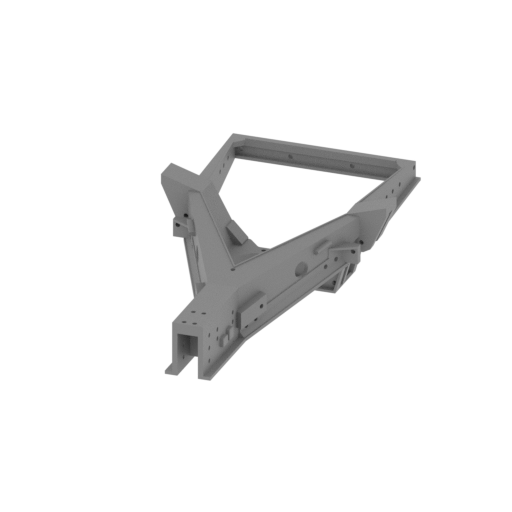

sw_28_frame_back (repaire d).stl
0.79 MiB 33 h 1 min 23 m 142 x 233 x 59 Download

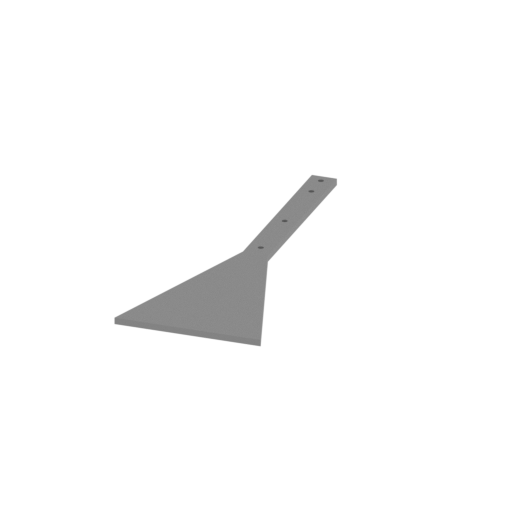

sw_29_bot_plate_tank (rep aired).stl
0.02 MiB 2 h 41 min 2 m 75 x 190 x 3 Download

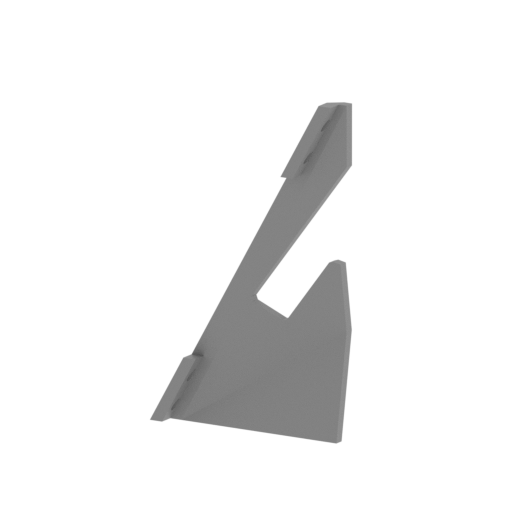

sw_30_bot_plate_back_a_L (repaired).stl
0.02 MiB 1 h 29 min 1 m 41 x 18 x 78 Download

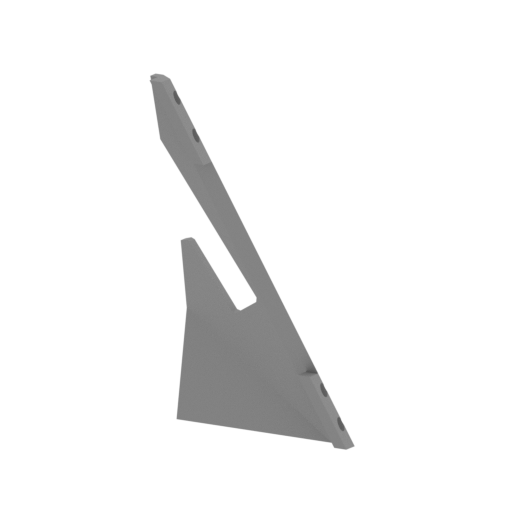

sw_31_bot_plate_back_a_R (repaired).stl
0.02 MiB 1 h 30 min 1 m 41 x 18 x 78 Download

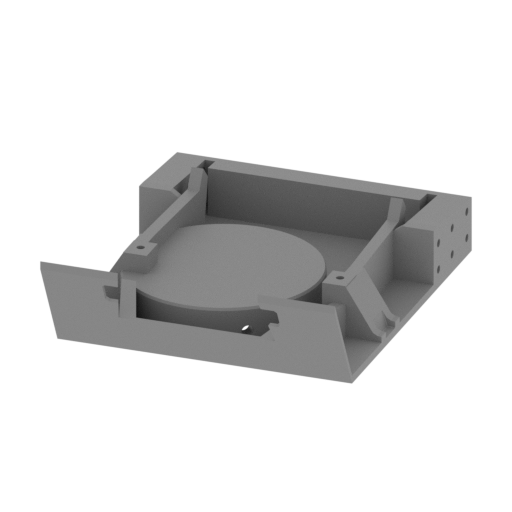

sw_32_bot_plate_front (re paired).stl
0.49 MiB 15 h 50 min 10 m 108 x 136 x 36 Download

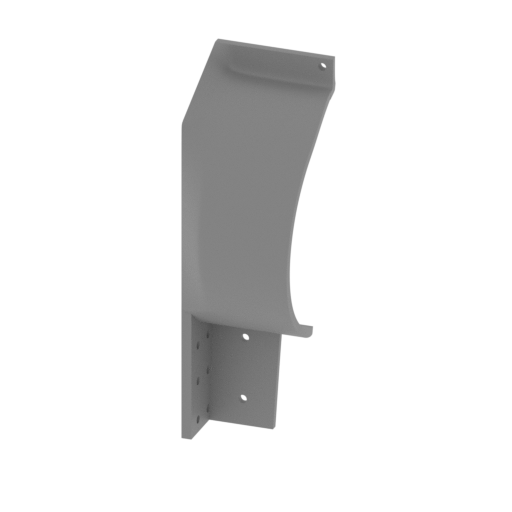

sw_33_bot_plate_front_a_L (repaired).stl
6.12 MiB 14 h 39 min 13 m 47 x 51 x 136 Download

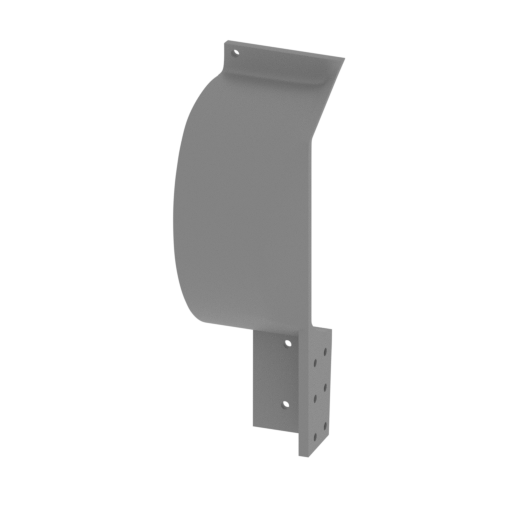

sw_34_bot_plate_front_a_R (repaired).stl
6.17 MiB 14 h 47 min 13 m 47 x 51 x 136 Download

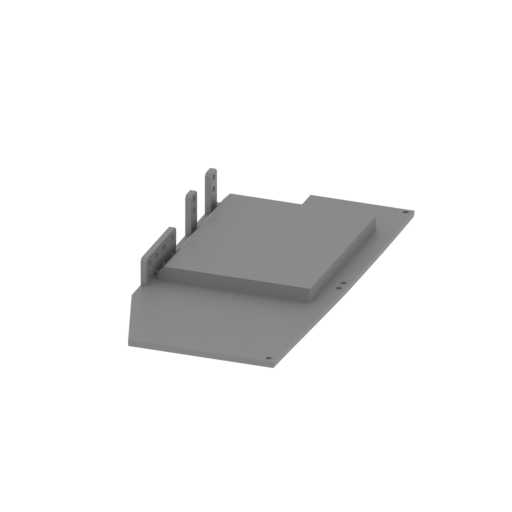

sw_35_bot_plate_center_L (repaired).stl
0.49 MiB 11 h 3 min 6 m 90 x 181 x 23 Download

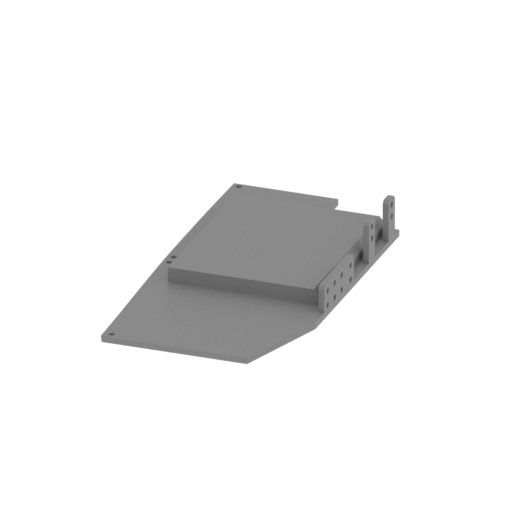

sw_36_bot_plate_center_R (repaired).stl
0.49 MiB 11 h 4 min 6 m 90 x 181 x 23 Download

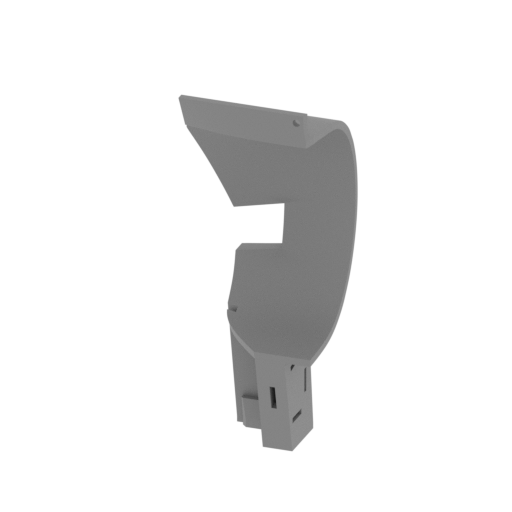

sw_37_bot_plate_back_b_L (repaired).stl
8.23 MiB 20 h 23 min 18 m 65 x 57 x 150 Download

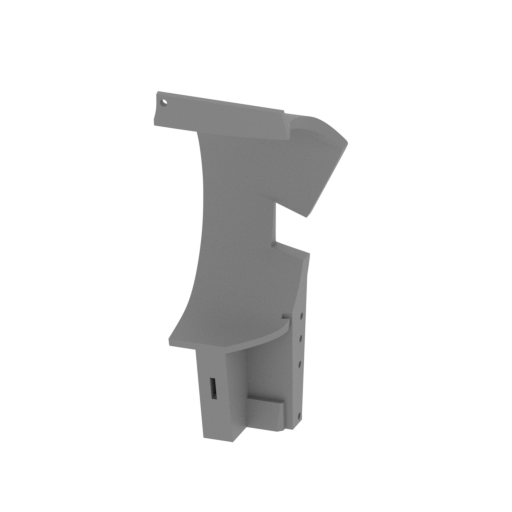

sw_38_bot_plate_back_b_R (repaired).stl
8.23 MiB 20 h 25 min 18 m 65 x 57 x 150 Download

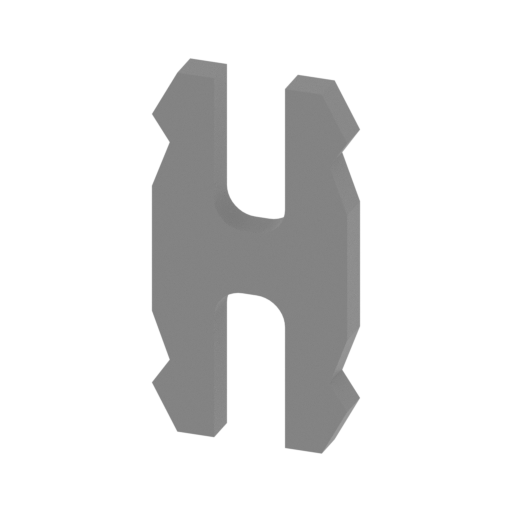

Ge_lock_10H x 36 (repaire d).stl
0.03 MiB 10 min <1 m 10 x 2 x 18 Download

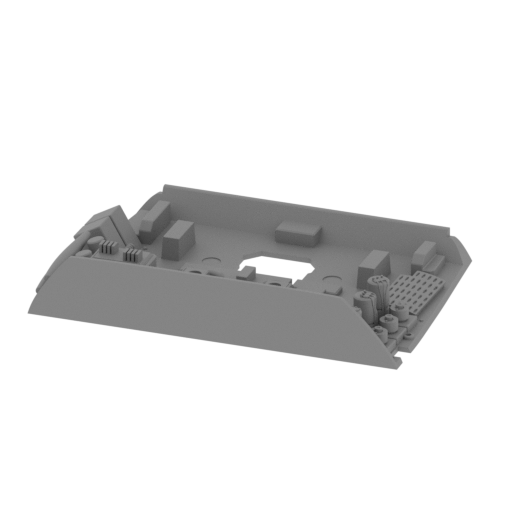

nr_1.1_base (repaired).st l
11.98 MiB 24 h 22 min 13 m 184 x 139 x 38 Download

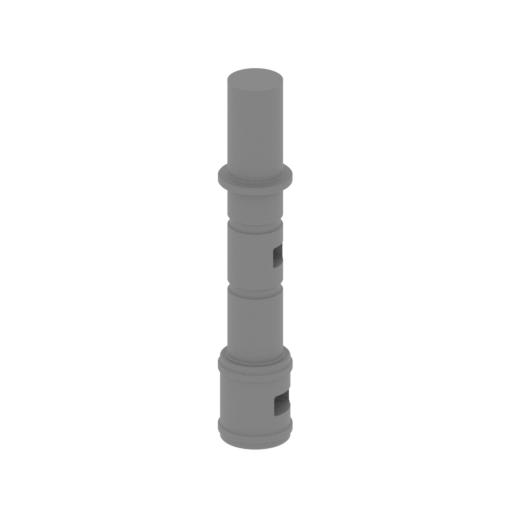

nr_1.2_pipe_a (repaired). stl
0.52 MiB 2 h 31 min 1 m 19 x 21 x 94 Download

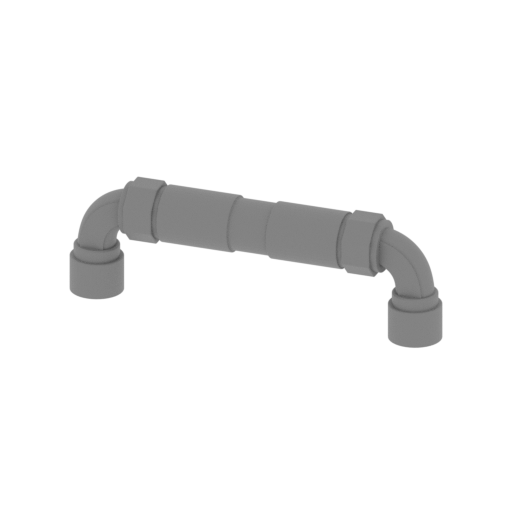

nr_1.3_pipe_b (repaired). stl
2.16 MiB 27 min <1 m 46 x 7 x 14 Download

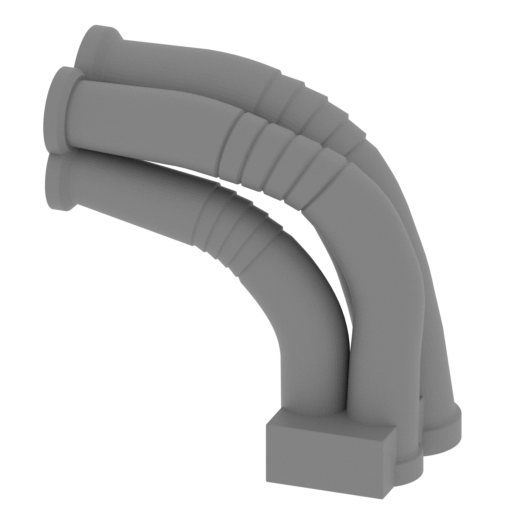

nr_1.4_pipe_c_L (repaired ).stl
0.76 MiB 55 min 1 m 29 x 15 x 29 Download

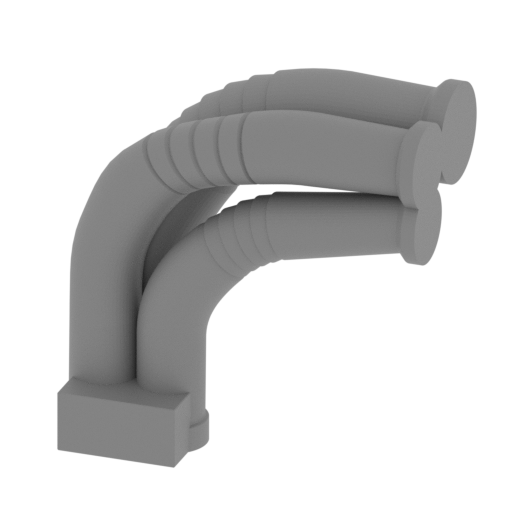

nr_1.5_pipe_c_R (repaired ).stl
0.76 MiB 55 min 1 m 29 x 15 x 29 Download

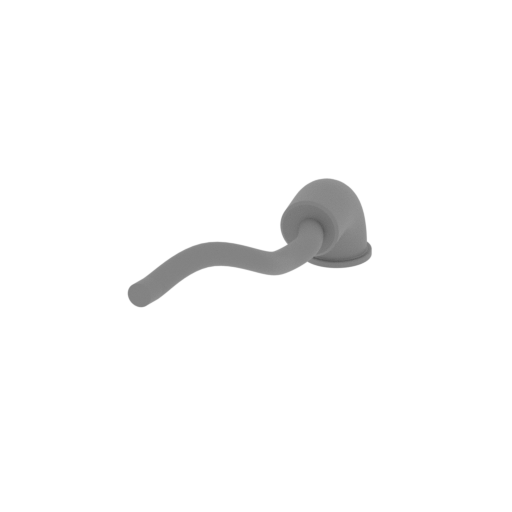

nr_1.6_pipe_d_L (repaired ).stl
0.42 MiB 23 min <1 m 16 x 49 x 15 Download

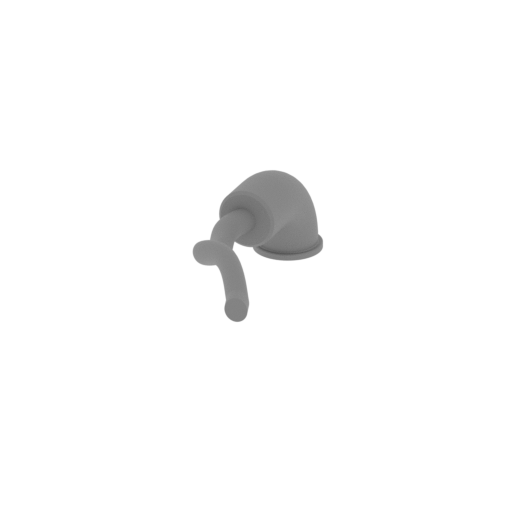

nr_1.7_pipe_d_R (repaired ).stl
0.42 MiB 24 min <1 m 16 x 49 x 15 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download

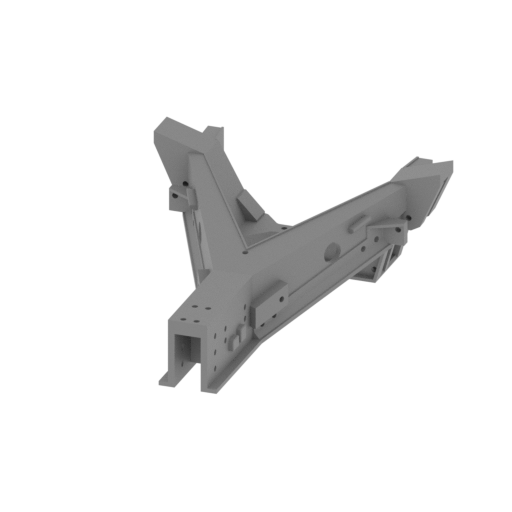

sw_28_1_frame_back_v2 (re paired).stl
0.77 MiB 25 h 39 min 17 m 142 x 183 x 59 Download

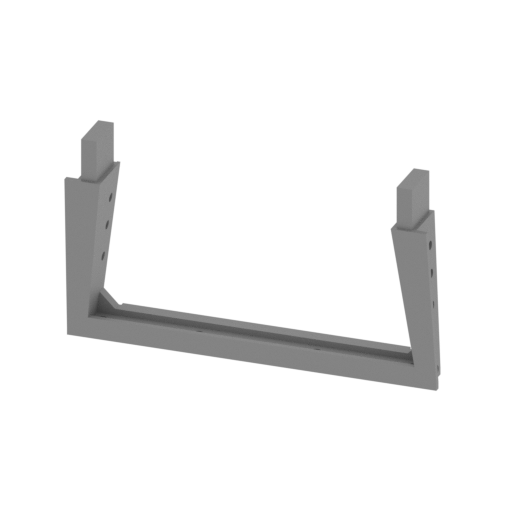

sw_28_2_frame_back_v2 (re paired).stl
0.14 MiB 4 h 2 min 2 m 121 x 19 x 69 Download

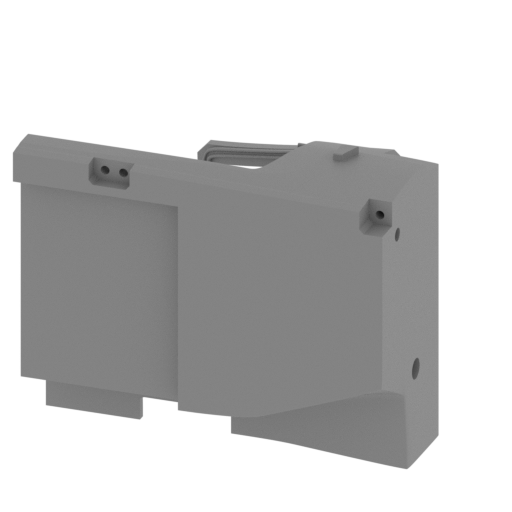

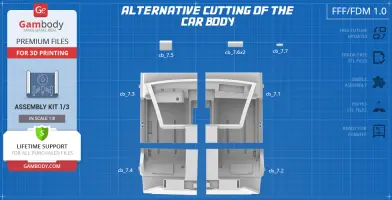

cb_7.1_front_R (repaired) .stl
12.70 MiB 37 h 15 min 26 m 124 x 106 x 103 Download

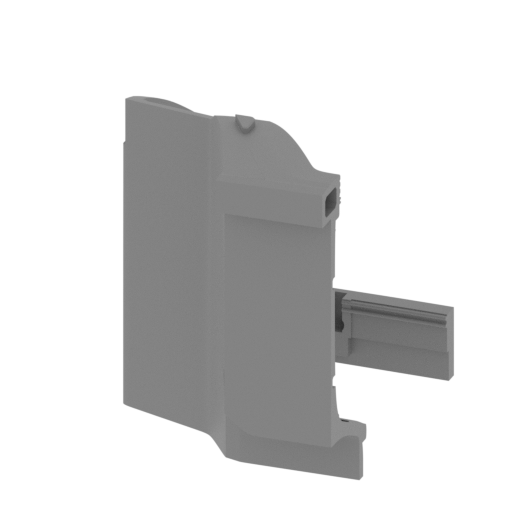

cb_7.2_back_R (repaired). stl
9.77 MiB 17 h 15 min 11 m 80 x 110 x 104 Download

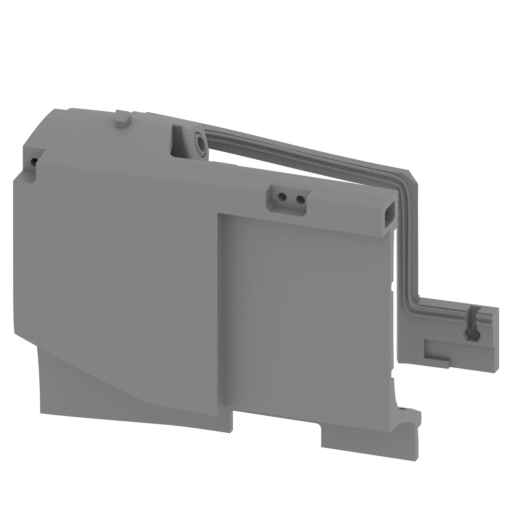

cb_7.3_front_L (repaired) .stl
13.68 MiB 39 h 42 min 27 m 124 x 106 x 103 Download

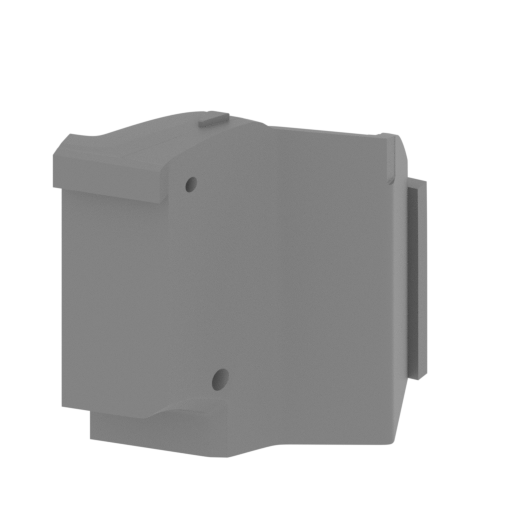

cb_7.4_back_L (repaired). stl
9.86 MiB 17 h 19 min 10 m 80 x 110 x 104 Download

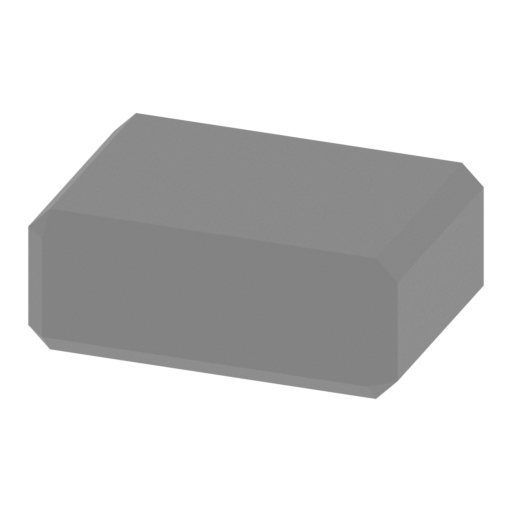

cb_7.5_beam_a (repaired). stl
0.01 MiB 21 min <1 m 22 x 16 x 9 Download

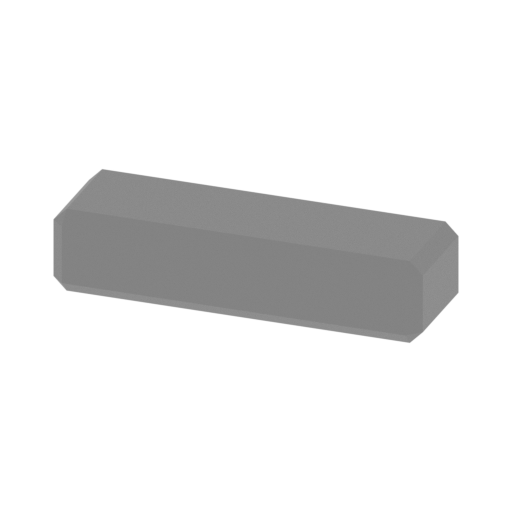

cb_7.6_beam_b_x2 (repaire d).stl
0.01 MiB 12 min <1 m 27 x 9 x 6 Download

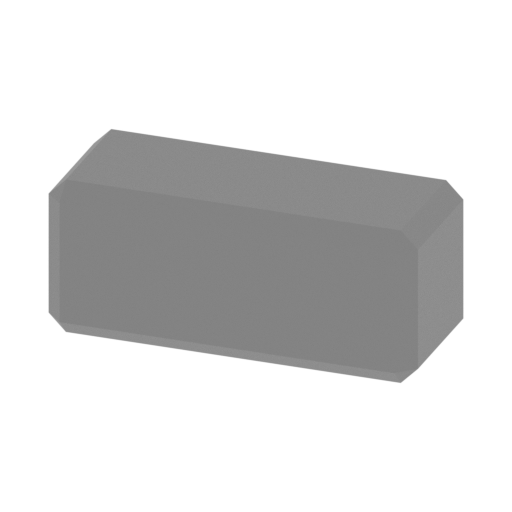

cb_7.7_beam_с (repaired) .stl
0.01 MiB 4 min <1 m 10 x 4 x 4 Download
...

ABOUT THIS 3D MODEL

The DeLorean Time Machine is a device invented by Dr Emmett Brown who used it together with Marty McFly and dog Einstein to travel through time within the iconic Back to the Future trilogy. Built from a 1982 DeLorean DMC-12 and fitted with a flux capacitor powered by plutonium, the vehicle surprised even its inventor having accelerated through the time with its tyres spinning and smoking. And now, by the efforts of one of our contributing 3D artists, you get an opportunity to build your very own DeLorean time machine by means of a 3D printer! The author of the model spent 290 hours working on the DeLorean for 3D printing and made sure to equip the DMC-12 with everything needed not only for time travel but also for an exciting and elaborate 3D printing vehicle project. During the first test Doc said, “If you're gonna build a time machine into a car, why not do it with some style?”. We completely agree with the creative scientist and encourage you to cast all hesitations aside and take up the DeLorean for 3D printing in order to recreate your favourite appearance of the time machine with the help of three kits available. Just make sure you reach exactly 88 miles per hour already during the first try!

ADAPTATION FOR 3D PRINTING

DeLorean 3D printing model is a highly-detailed assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 128 hours in total. In the course of the model’s preparation, Gambody team came up with 3 full kits of various assembly elements that will allow you to build a DeLorean time machine from either of the Back to the Future trilogy’s instalments and place your finished stylish DMC into one of the franchise’s iconic settings. In order to preserve the accurate likeness of an actual DMC-12 car, as well as Doc’s modified time machine, the model was divided into many parts that are to be assembled as if a real vehicle. Various special mechanisms were introduced into the model to make sure that the car’s opening parts like doors, windscreen wipers, hood, steering wheel etc. are movable. Taking into account the willingness of our customers to make their 3D printed DeLorean as impressive as possible, there were ensured tunnels for LEDs introduction and many elements like headlights, taillights sections, parking lights etc. are extracted and provided separately to be printed in a transparent filament. In order to give all BttF enthusiasts an opportunity to make the iconic vehicle true to life, all model’s sets of wheels, as well as the spare wheel stored in the luggage compartment, come with two variants of the tyre to choose from: one is meant for plastic filament, the other is hollow to be printed with flexible material. Decorative interior and exterior wiring do not come in STL files - 1.75mm PLA plastic or rope lights of your chosen colour can be used instead. All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. The model's assembly requires additional "pins" to secure the parts of the 3D printed car. These pins do not come in STL files but can be made out of short pieces of regular 2.85 PLA, screws or wire of an appropriate diameter. We highly recommend that you watch "Assembly video" in the photo preview section before assembling the DeLorean time machine. When downloading any file that comprises the kit you will also receive "Assembly Manual" in PDF format.

This is the description of the model's Standard Assembly Kit 1. Additional Kit 2 and Kit 3 can be ordered as separate items as well.

SPECIFICATION OF THE STANDARD KIT 1

  • The 3D printing model's chosen scale is 1:8 and it was calculated from the actual length of the DMC DeLorean car that is 4216 mm;
  • Contains 88 parts that comprise the basic configuration of the 3D printing time machine;
  • A printed 1:8 DeLorean is 154 mm tall, 234 mm wide, 527 mm deep;
  • Assembly kit includes lock Ge_lock_10H x 36 to attach the model's parts securely without glue that needs to be printed 36 times;

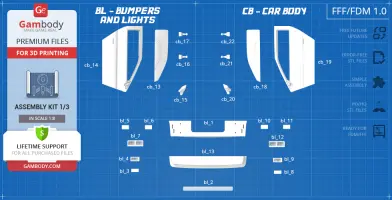

CB - Car Body:

  • DeLorean’s distinctive opening gullwing doors;
  • Windscreen and windows are provided separately to be printed with the transparent filament;
  • Opening hood to access the luggage compartment;
  • Articulated windscreen wipers;

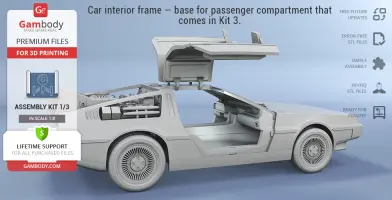

  • Car interior frame - floorplan forming the base for the potential passenger compartment that comes in Kit 3;

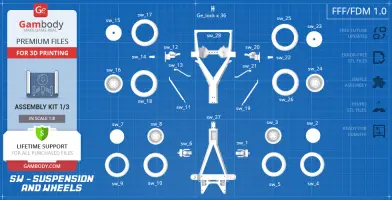

SW - Suspension and wheels:

  • Frame, upper frame and static suspension are an accurate likeness to Doc’s modified DMC-12;
  • Rim is to be inserted into the tyre and attached to the suspension with a pin and a gasket
  • Two variants of tyres: one is meant for plastic filament, the other is hollow for flexible material;

BL - Bumpers and Lights:

  • The front bumper has a "DMC" logo placed on a front grille;

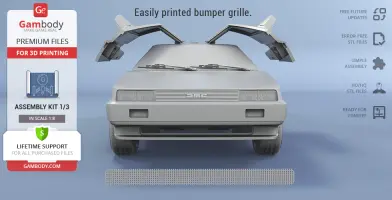

  • The lower bumper grille is easily printed as a one-piece assembly part;

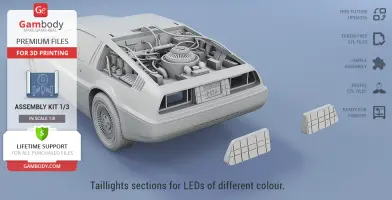

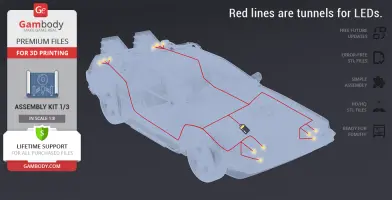

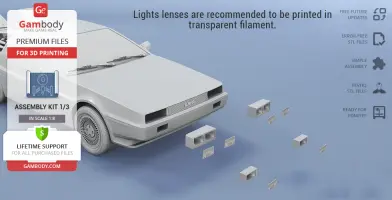

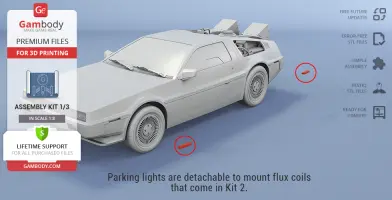

  • Headlights are extracted and provided separately to introduce LEDs into each section;
  • Headlight lenses also come separately to be printed in transparent filament to enhance the LED illumination;
  • The upper rear section has a separated numberplate;
  • Taillights are divided into several sections to print them with corresponding colours of transparent filament
  • The construction of the upper rear section also presupposes the introduction of LEDs;
  • Parking lights are extracted to print them with coloured filament;

NR - Nuclear Reactor:

  • Kit 1 features the nuclear fission reactor that was Doc's first modification of the car;
  • Has large steam vents, fuel elements, control rods etc.;
  • Blue tubes do not come in STL files - 1.75mm PLA plastic can be used instead.

ADDITIONAL DELOREAN 3D MODEL KITS:

Kit 2: Engines, Mr Fusion, Active Suspension

Kit 3: Car Interior, Wheels and Platforms

You can get DeLorean Model Standard Assembly Kit 1 for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble DeLorean 3D Printing Model | Standard Assembly Kit 1 at Gambody YouTube channel.

Also, you may like Marty McFly and Doc Brown 3D Printing Figurines.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
