Millennium Falcon Landing Gear, Platform 3D Printable Exterior Parts Kit 1

(20)

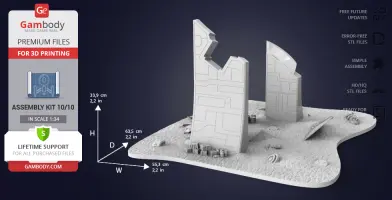

cm: 71.6 w x 100.6 d x 28.1 h
in: 28.189 w x 39.606 d x 11.063 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that has been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

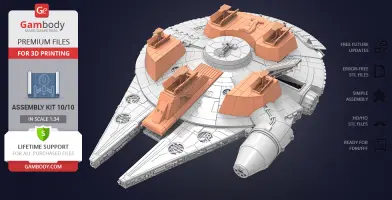

Version 1 and Version 2 for Millennium Falcon Exterior Parts Kit 1 3D Model optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files for FDM/FFF 3D printers - old version;
  • to print Version 2 STL files for FDM/FFF 3D printers - new version;
File Name File Size Time / Filament Object Size
(x/y/z mm)

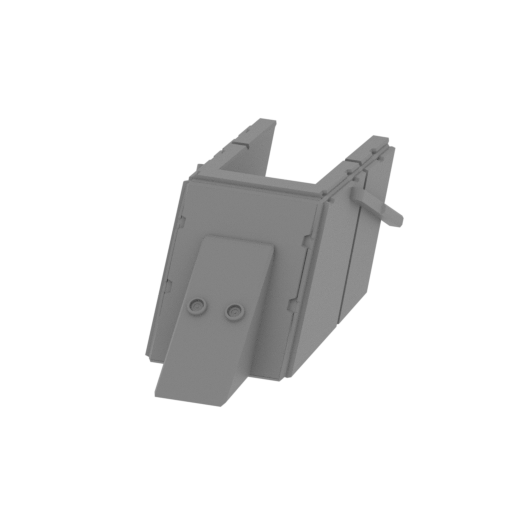

MF_C_01 (repaired) (repai red).stl
0.16 MiB 16 h 19 min 10 m 67 x 144 x 56 Download

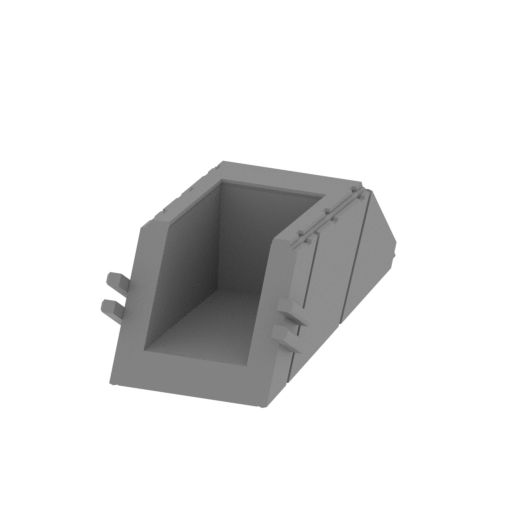

MF_C_02 (repaired) (repai red).stl
0.08 MiB 14 h 41 min 9 m 67 x 134 x 48 Download

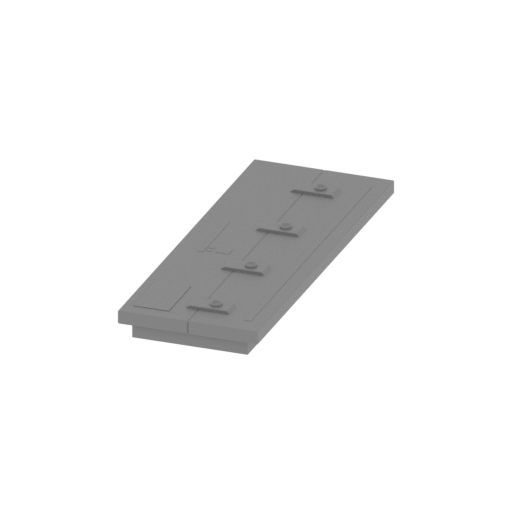

MF_C_03 (repaired) (repai red).stl
0.12 MiB 4 h 35 min 3 m 44 x 117 x 11 Download

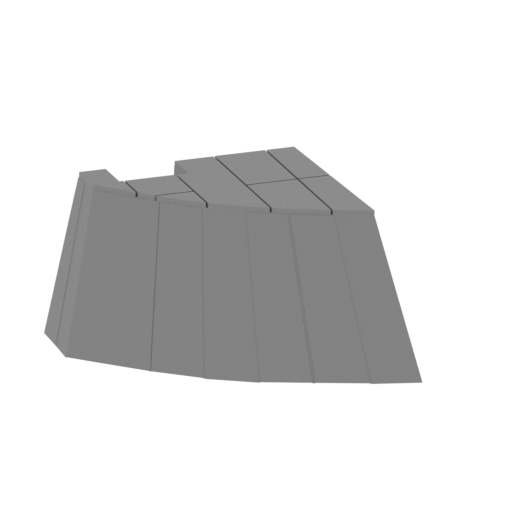

MF_C_04 (repaired) (repai red).stl
0.08 MiB 24 h 30 min 19 m 155 x 97 x 68 Download

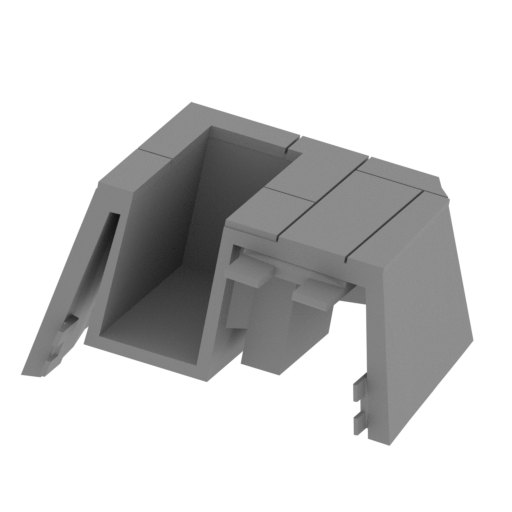

MF_C_05 (repaired) (repai red).stl
0.09 MiB 30 h 26 min 22 m 116 x 107 x 68 Download

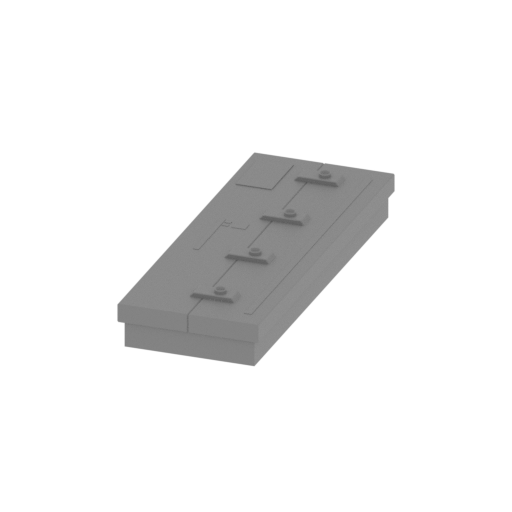

MF_C_06 (repaired) (repai red).stl
0.12 MiB 2 h 34 min 2 m 31 x 82 x 12 Download

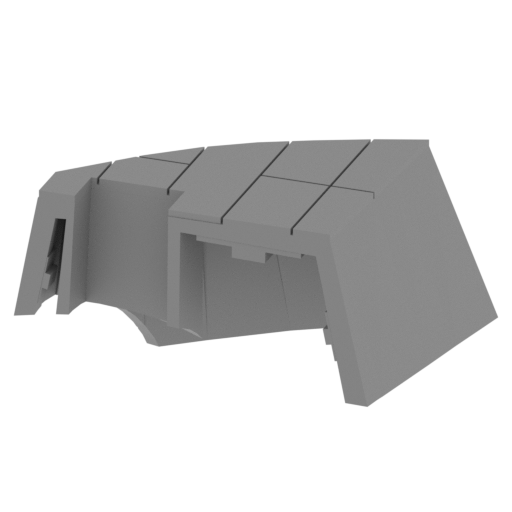

MF_C_07 (repaired) (repai red).stl
0.07 MiB 23 h 47 min 20 m 116 x 97 x 68 Download

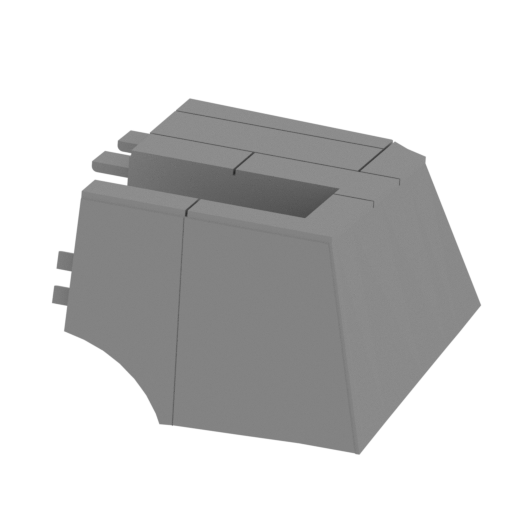

MF_C_08 (repaired) (repai red).stl
0.12 MiB 28 h 51 min 22 m 110 x 117 x 63 Download

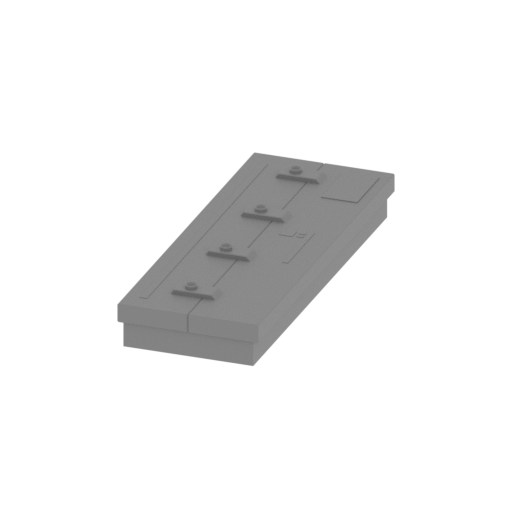

MF_C_09 (repaired) (repai red).stl
0.13 MiB 2 h 36 min 2 m 31 x 82 x 12 Download

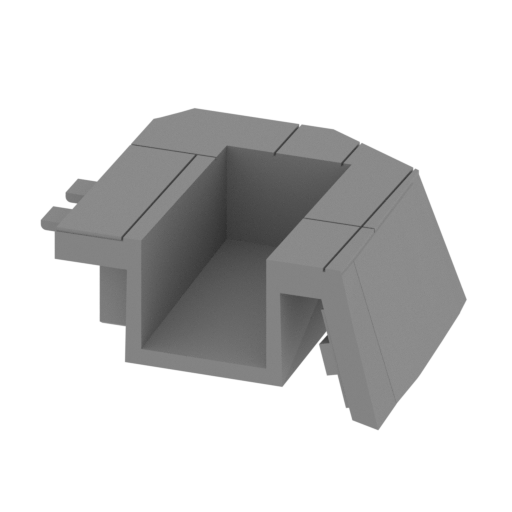

MF_C_10 (repaired) (repai red).stl
0.06 MiB 28 h 5 min 22 m 121 x 110 x 52 Download

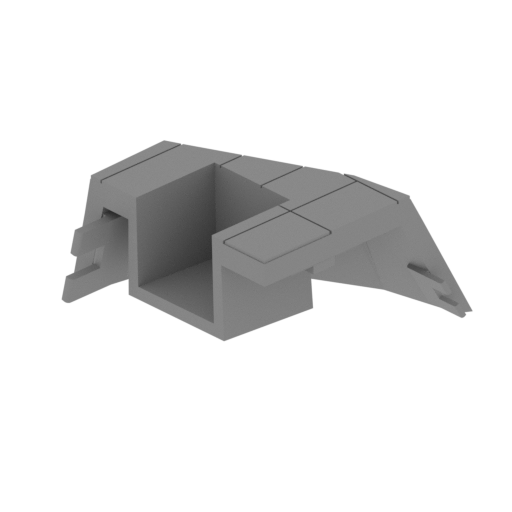

MF_C_11 (repaired) (repai red).stl
0.07 MiB 22 h 47 min 17 m 143 x 104 x 58 Download

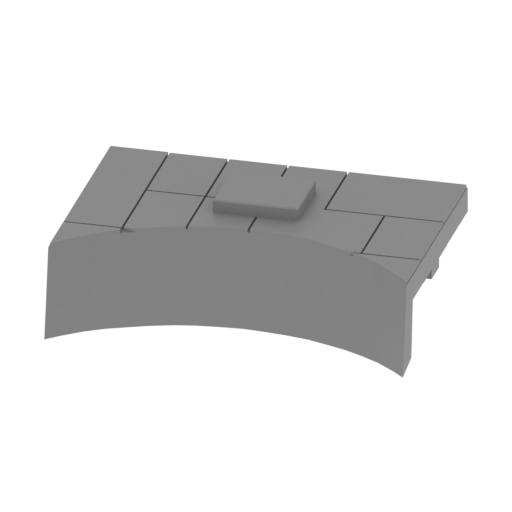

MF_C_12 (repaired) (repai red).stl
0.12 MiB 21 h 35 min 18 m 140 x 104 x 40 Download

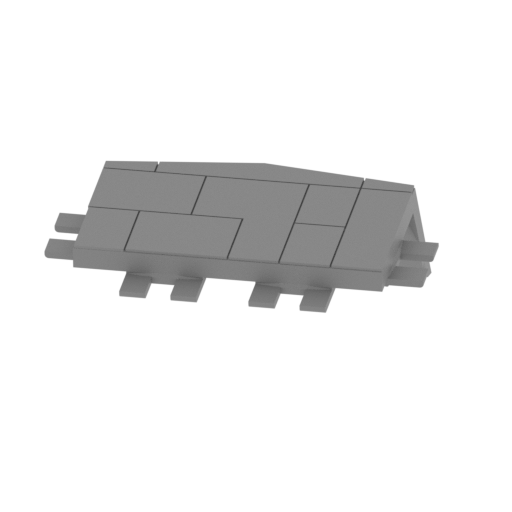

MF_C_13 (repaired) (repai red).stl
0.09 MiB 42 h 36 min 37 m 165 x 136 x 57 Download

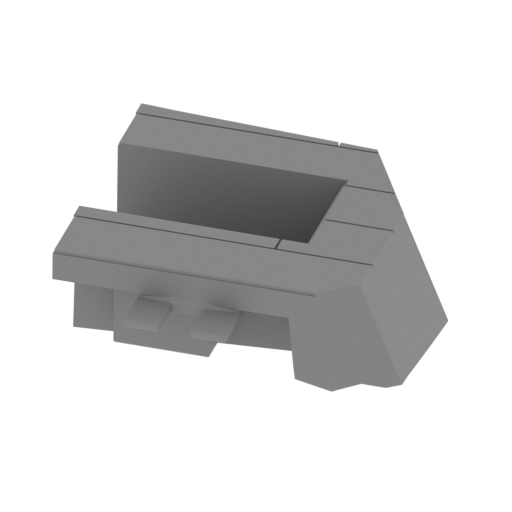

MF_C_14 (repaired) (repai red).stl
0.07 MiB 24 h 57 min 18 m 115 x 123 x 50 Download

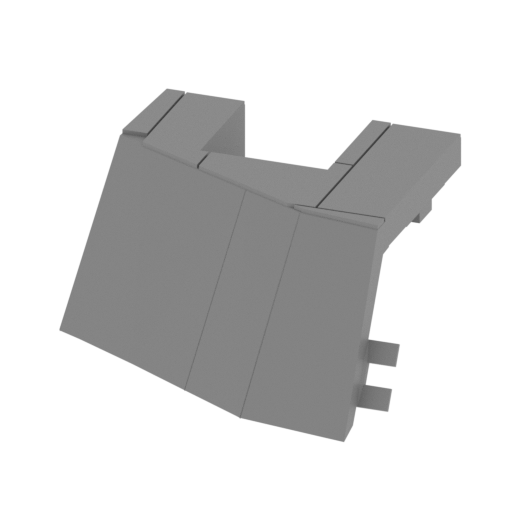

MF_C_15 (repaired) (repai red).stl
0.06 MiB 24 h 7 min 19 m 118 x 116 x 60 Download

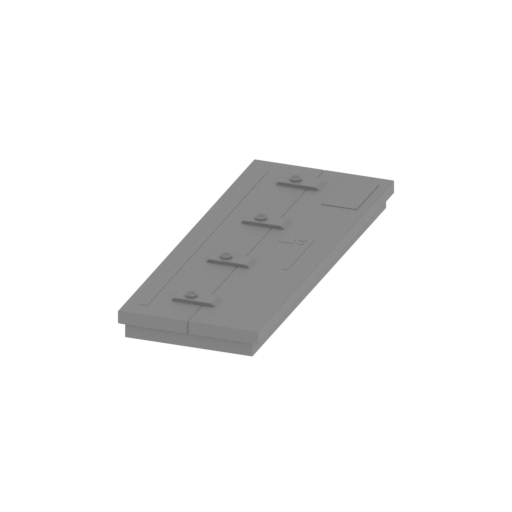

MF_C_16 (repaired) (repai red).stl
0.12 MiB 4 h 36 min 3 m 44 x 117 x 11 Download

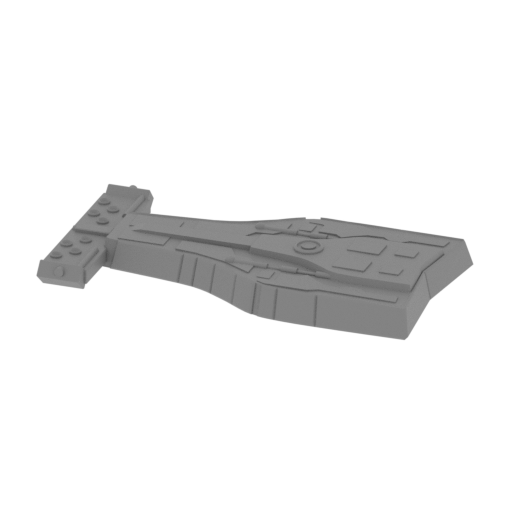

MF_C_17 (repaired) (repai red).stl
0.46 MiB 3 h 40 min 2 m 102 x 57 x 11 Download

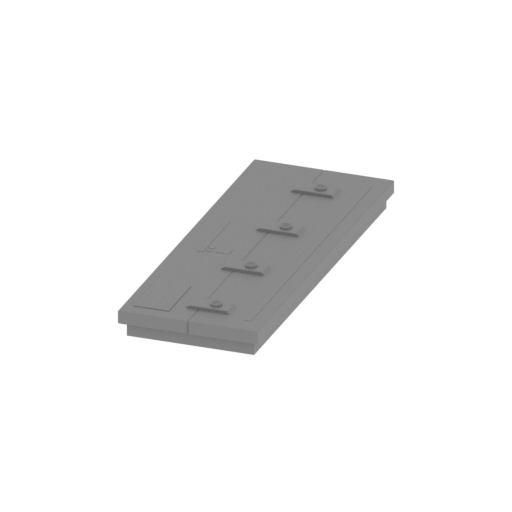

MF_C_18 (repaired) (repai red).stl
0.13 MiB 4 h 37 min 3 m 44 x 117 x 11 Download

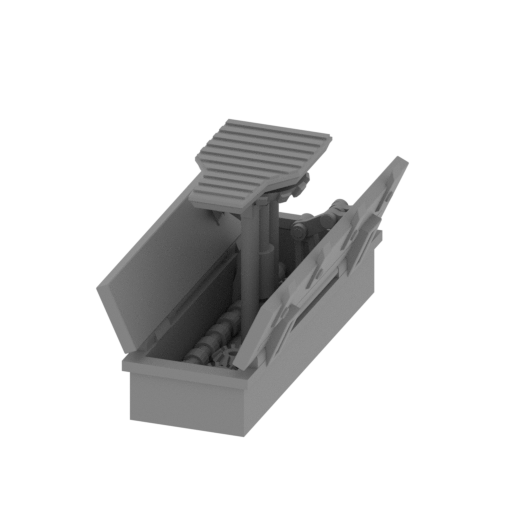

MF_C_19 (repaired) (repai red).stl
1.51 MiB 20 h 20 min 13 m 58 x 117 x 65 Download

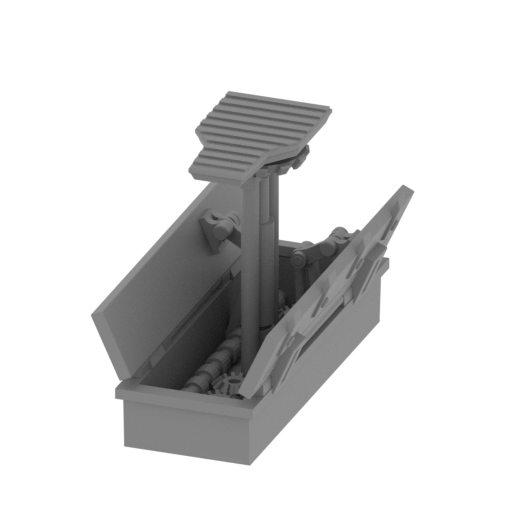

MF_C_20 (repaired) (repai red).stl
1.49 MiB 10 h 9 min 6 m 44 x 83 x 59 Download
MF_C_21 (repaired) (repai red).stl
1.50 MiB 10 h 8 min 6 m 44 x 83 x 59 Download

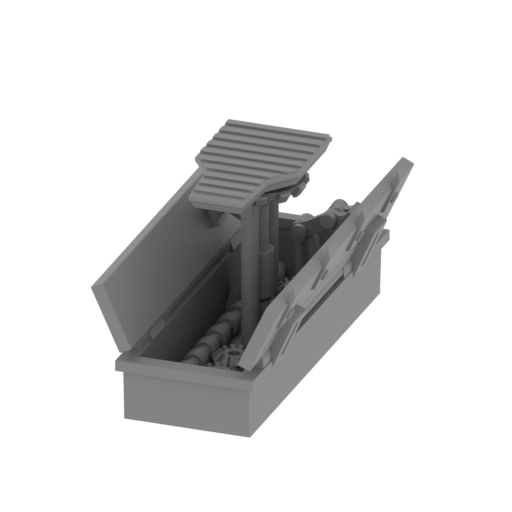

MF_C_22 (repaired) (repai red).stl
1.51 MiB 20 h 46 min 13 m 62 x 117 x 65 Download
MF_C_23 (repaired) (repai red).stl
1.50 MiB 20 h 49 min 13 m 62 x 117 x 65 Download

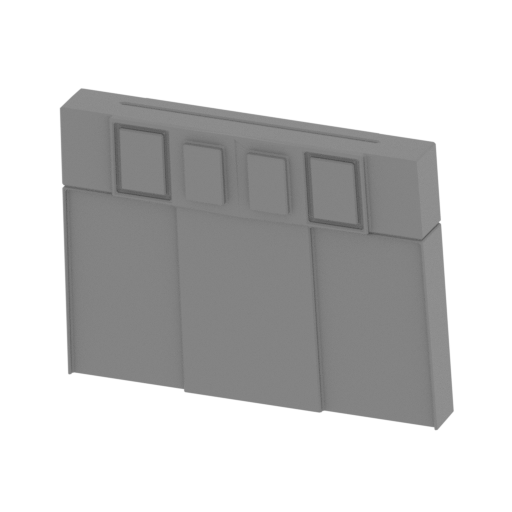

MF_D_24 (repaired) (repai red).stl
0.10 MiB 8 h 31 min 6 m 84 x 28 x 67 Download

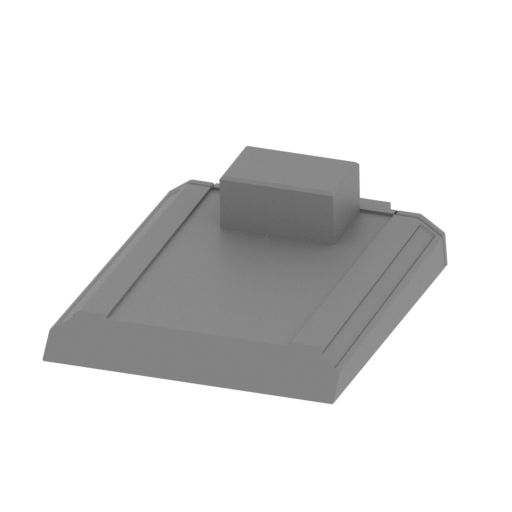

MF_D_25 (repaired) (repai red).stl
0.13 MiB 10 h 19 min 6 m 89 x 112 x 32 Download

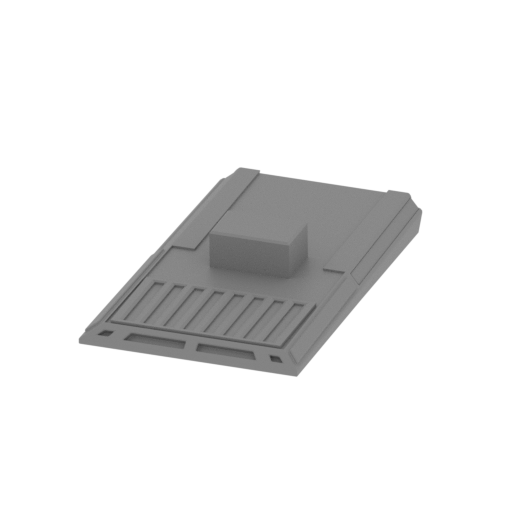

MF_D_26 (repaired) (repai red).stl
0.08 MiB 13 h 7 m 95 x 160 x 26 Download
...

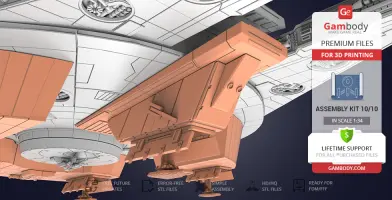

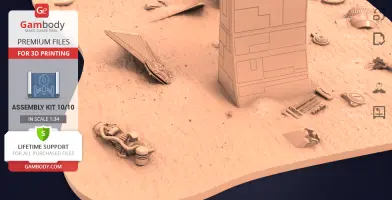

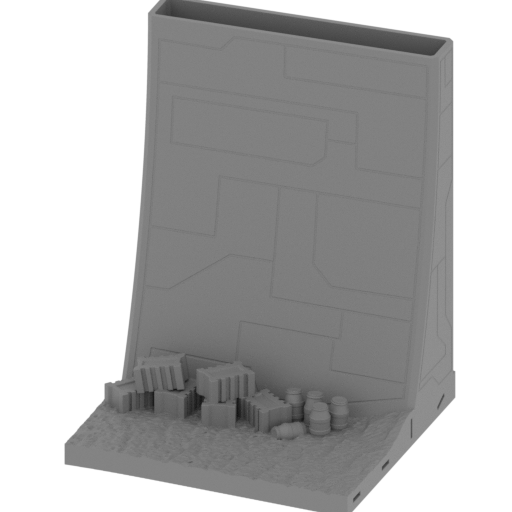

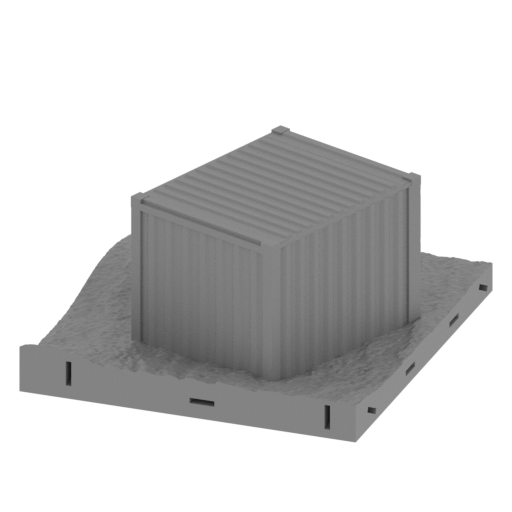

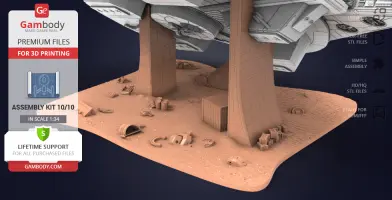

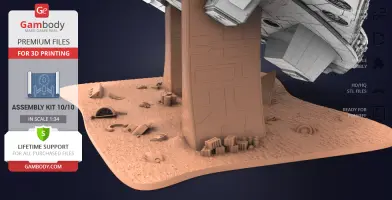

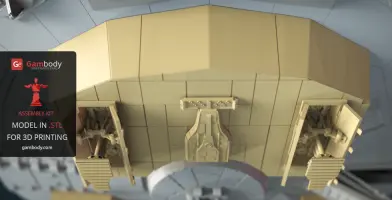

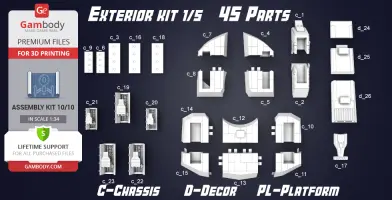

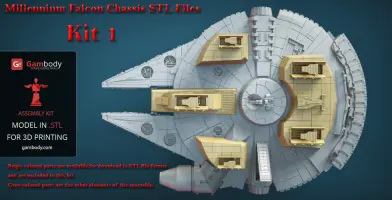

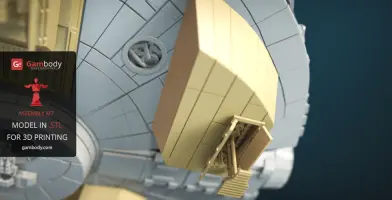

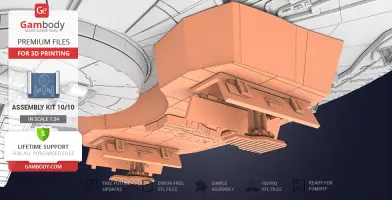

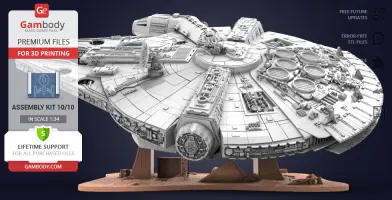

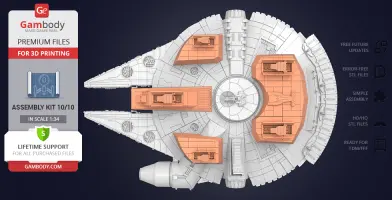

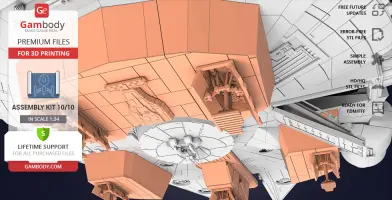

Millennium Falcon Landing Gear and Platform Kit 1 consists of additional parts to attach to the bottom hull of the Millennium Falcon 3D model. The landing gear and platform parts are available for download in Kit 1 to match the Millennium Falcon 3D model’s scale perfectly. Each landing gear is provided with door flaps on either side and the platform is made for you to display the huge 3D printed spaceship as if flying. The beige-coloured parts are the ones that can be downloaded, printed and mounted on your already 3D printed Millennium Falcon model.

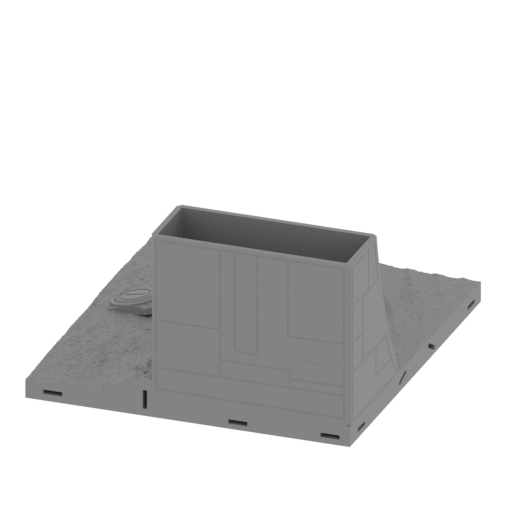

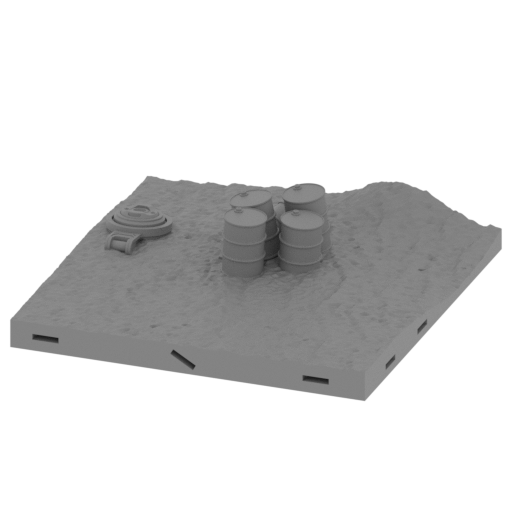

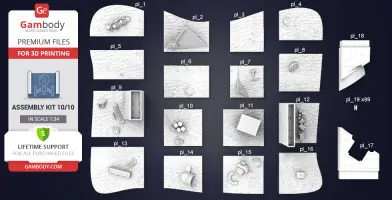

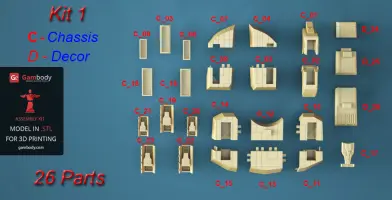

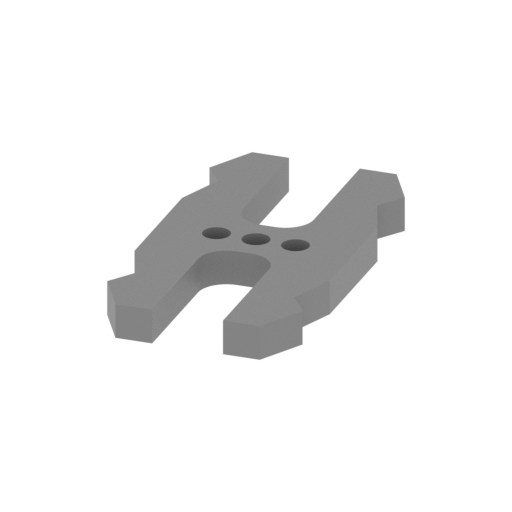

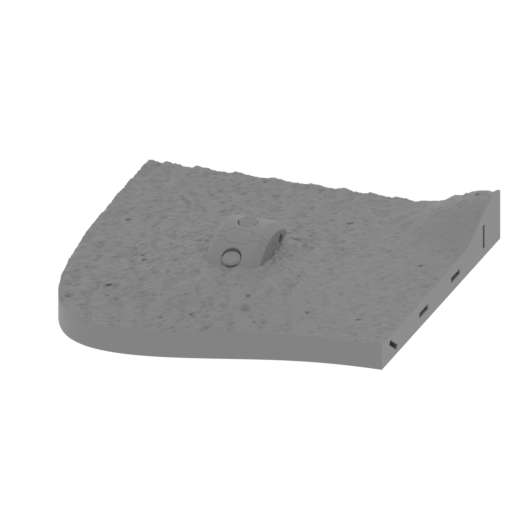

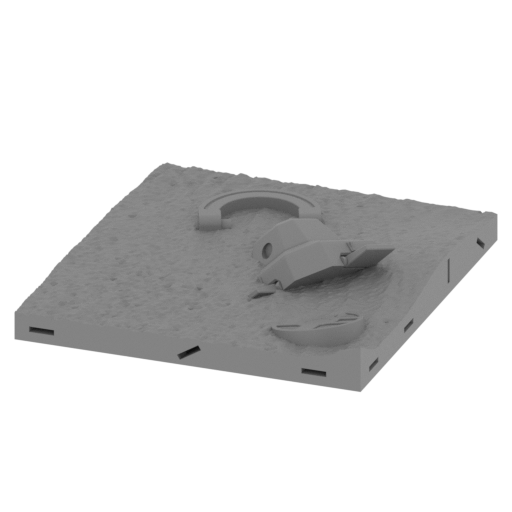

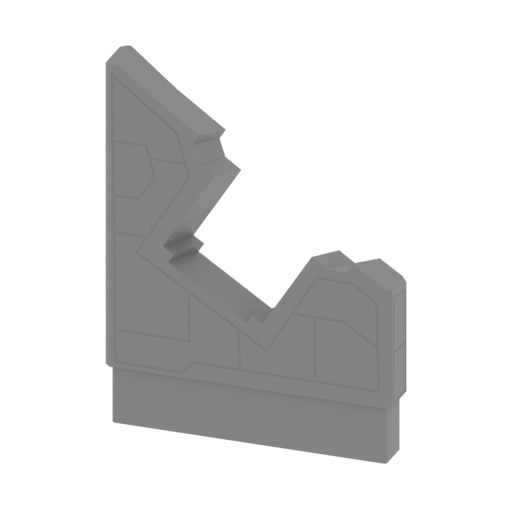

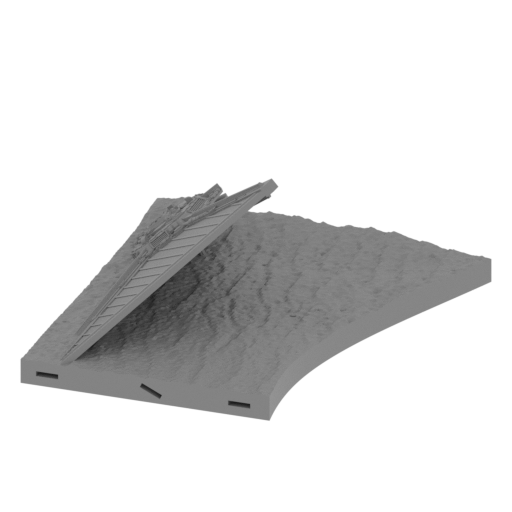

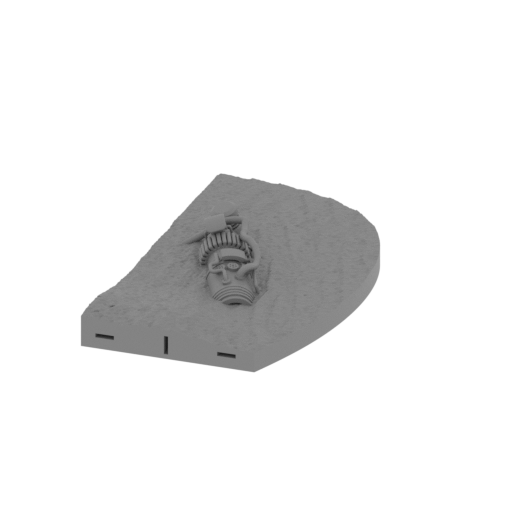

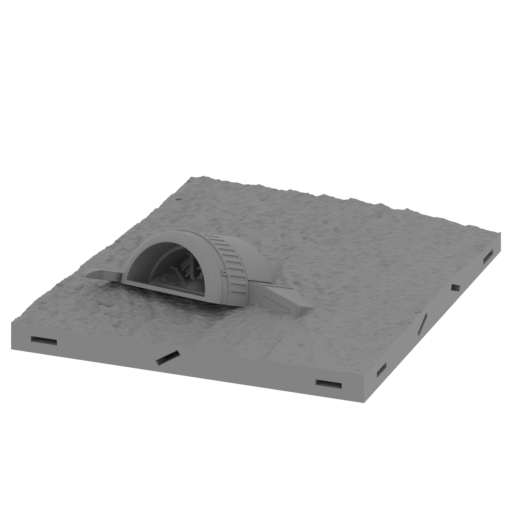

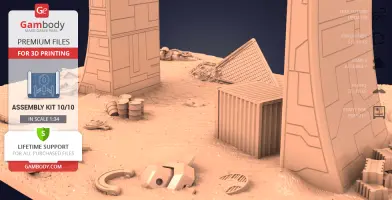

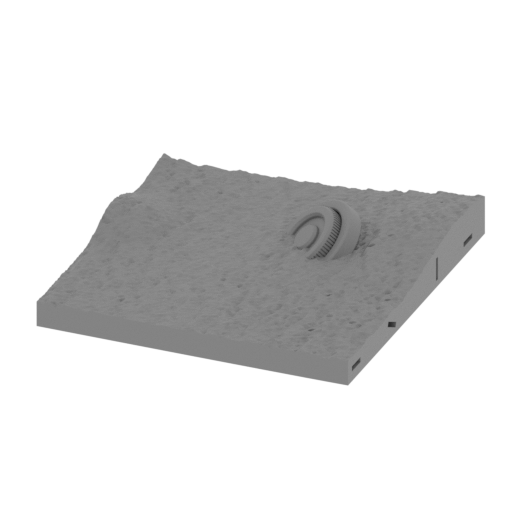

The chassis consists of 26 highly-detailed parts that are available in both FFF/FDM 1.0 and upgraded in FFF/FDM 2.0 versions. And the platform consisting of 19 assembly parts is available in the model's FFF/FDM 2.0 version.

The kit is designed to provide additional elements for your Millennium Falcon 3D printable model.

To buy Millennium Falcon STL files of the landing gear and the platform click “Buy” button in the top-right corner of the page. Proceed to checkout and once the payment is processed you will be able to download the files.

Watch the tutorial video on how to assemble this Kit at Gambody YouTube channel.

See other Millennium Falcon exterior kits:

Kit 2 - Engine Vents

Kit 3 - Gun, Antenna

Kit 4 - Tracery, Docking Ring

Kit 5 - Boarding Ramp, Gun

________________________

On 28.11.2016 the model files have been optimized and made solid. They now are adapted to be 3D printed using any slicing program. 3D model files are already available for purchase and download.

Generic

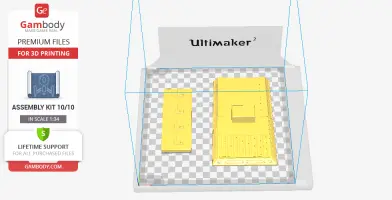

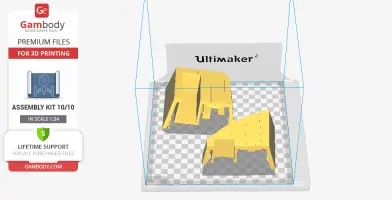

This model was tested in Cura 3.3.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for Cura and Simplify3D softwares.

Cura printing recommendations:

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 60 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m
