Millennium Falcon Engine Vents 3D Printable Exterior Parts Kit 2

(10)
cm: 71.6 w x 100.6 d x 28.1 h
in: 28.189 w x 39.606 d x 11.063 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Version 1 and Version 2 for Millennium Falcon Exterior Parts Kit 2 3D Model optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers - old version;
  • to print Version 2 STL files on FDM/FFF 3D printers - new version;
File Name File Size Time / Filament Object Size
(x/y/z mm)

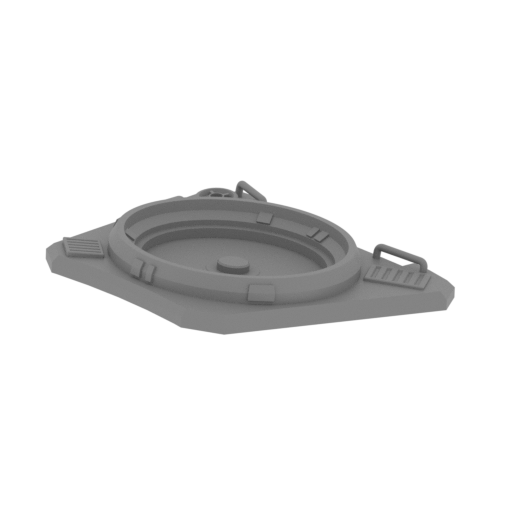

Ventilator_V_1 (repaired) (repaired).stl
0.32 MiB 5 h 12 min 3 m 83 x 90 x 20 Download

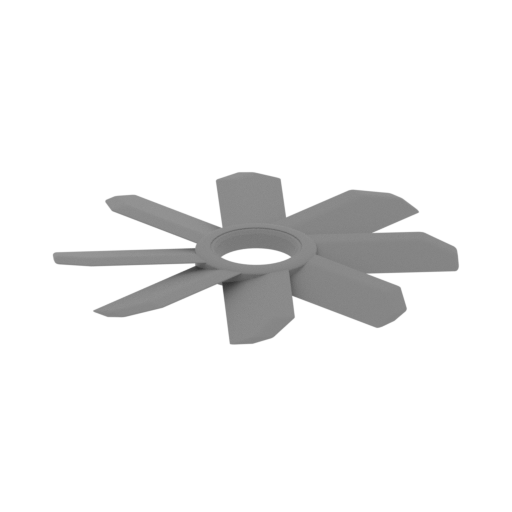

Ventilator_V_2 (repaired) (repaired).stl
0.26 MiB 1 h 13 min 1 m 48 x 48 x 10 Download
Ventilator_V_3 (repaired) (repaired).stl
0.25 MiB 1 h 50 min 1 m 64 x 64 x 12 Download

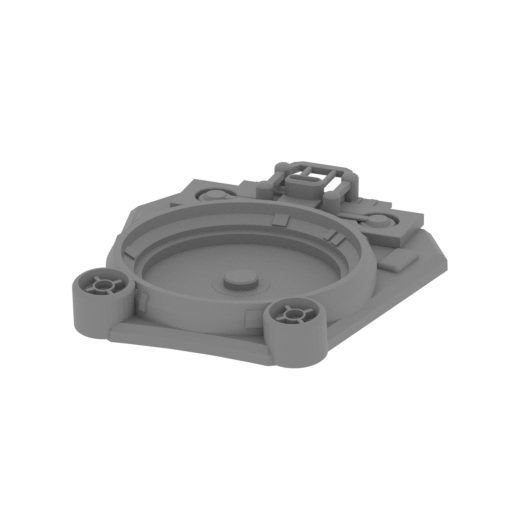

Ventilator_V_4 (repaired) (repaired).stl
0.50 MiB 4 h 37 min 3 m 70 x 86 x 18 Download
Ventilator_V_5 (repaired) (repaired).stl
0.26 MiB 43 min <1 m 41 x 40 x 9 Download

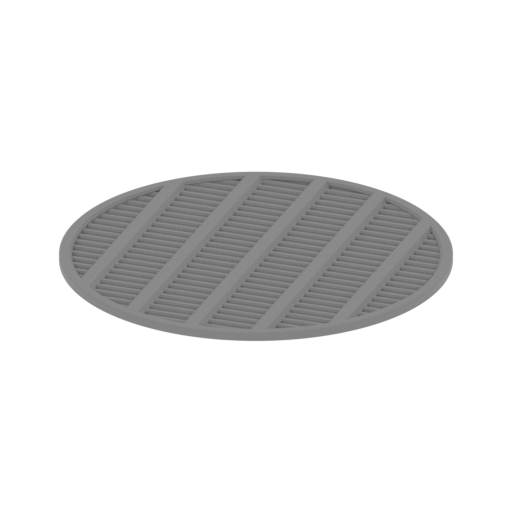

Ventilator_V_6 (repaired) (repaired).stl
0.23 MiB 1 h 22 min 1 m 54 x 54 x 11 Download
Ventilator_V_7 (repaired) (repaired).stl
0.32 MiB 5 h 15 min 3 m 84 x 89 x 20 Download
Ventilator_V_8 (repaired) (repaired).stl
0.26 MiB 1 h 10 min 1 m 48 x 48 x 10 Download
Ventilator_V_9 (repaired) (repaired).stl
0.25 MiB 1 h 51 min 1 m 64 x 64 x 12 Download

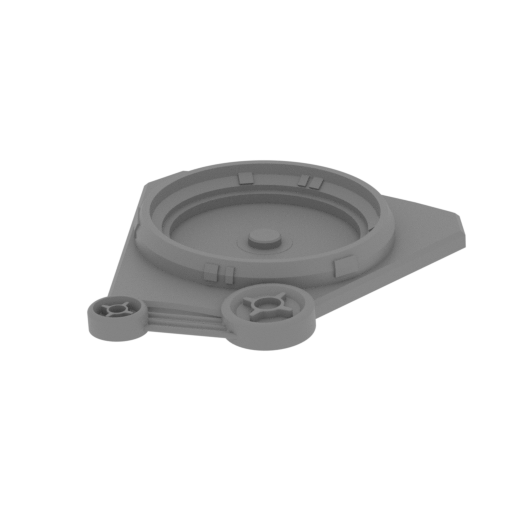

Ventilator_V_10 (repaired ) (repaired).stl
0.30 MiB 4 h 16 min 2 m 79 x 88 x 18 Download
Ventilator_V_11 (repaired ) (repaired).stl
0.26 MiB 1 h 10 min 1 m 48 x 48 x 10 Download
Ventilator_V_12 (repaired ) (repaired).stl
0.25 MiB 1 h 51 min 1 m 64 x 64 x 12 Download

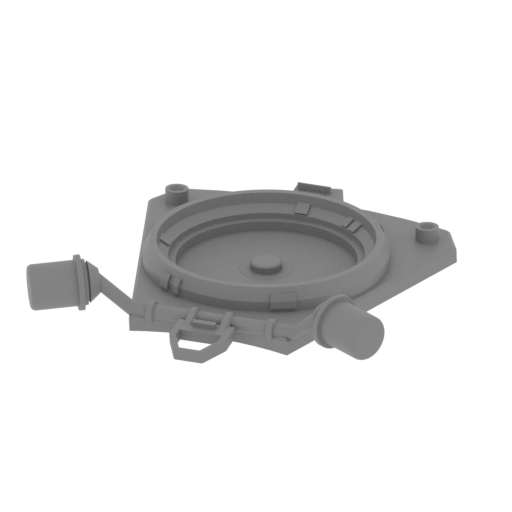

Ventilator_V_13 (repaired ) (repaired).stl
0.35 MiB 5 h 1 min 3 m 109 x 107 x 20 Download
Ventilator_V_14 (repaired ) (repaired).stl
0.26 MiB 1 h 9 min 1 m 49 x 49 x 10 Download
Ventilator_V_15 (repaired ) (repaired).stl
0.25 MiB 1 h 51 min 1 m 64 x 64 x 12 Download

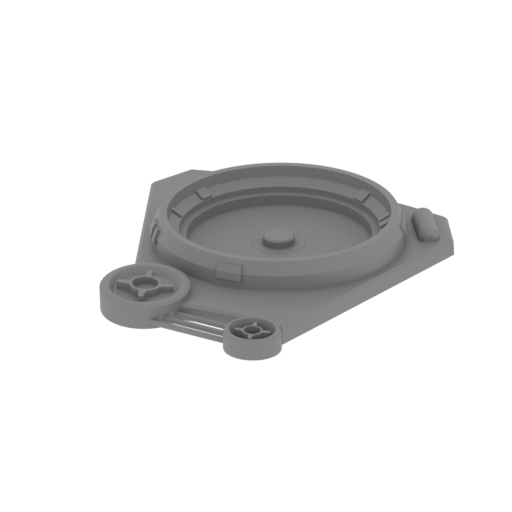

Ventilator_V_16 (repaired ) (repaired).stl
0.31 MiB 4 h 28 min 3 m 78 x 88 x 19 Download
Ventilator_V_17 (repaired ) (repaired).stl
0.26 MiB 1 h 10 min 1 m 48 x 48 x 10 Download
Ventilator_V_18 (repaired ) (repaired).stl
0.25 MiB 1 h 51 min 1 m 64 x 64 x 12 Download

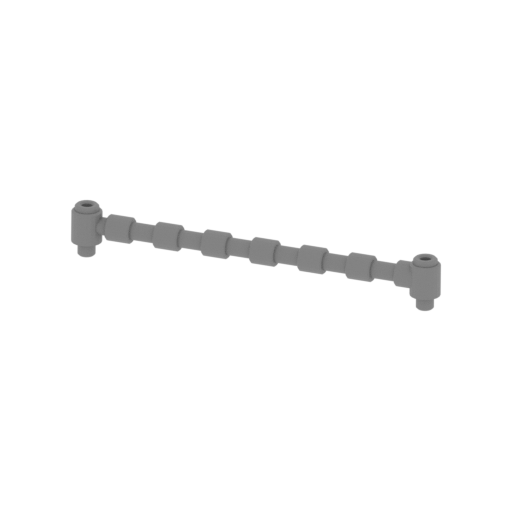

Ventilator_V_19 (repaired ) (repaired).stl
0.13 MiB 33 min <1 m 80 x 8 x 11 Download

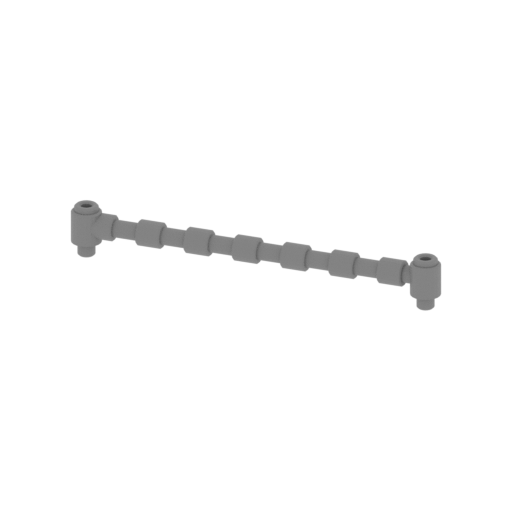

Ventilator_V_20 (repaired ) (repaired).stl
0.13 MiB 32 min <1 m 80 x 7 x 11 Download

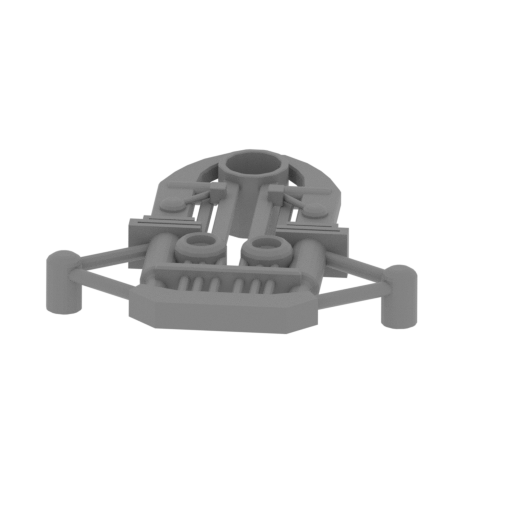

Ventilator_V_21 (repaired ) (repaired).stl
0.37 MiB 3 h 10 min 2 m 67 x 73 x 14 Download
...

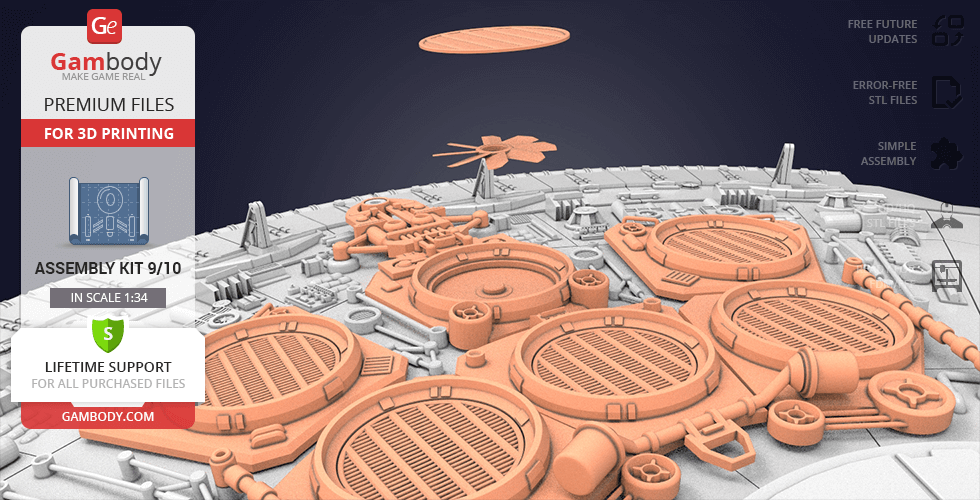

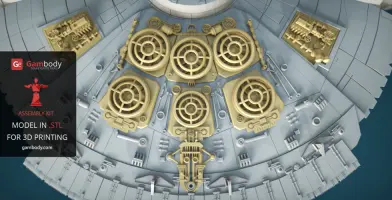

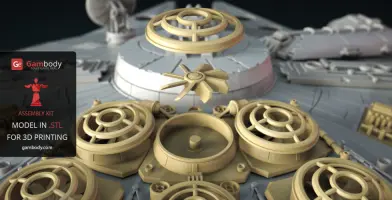

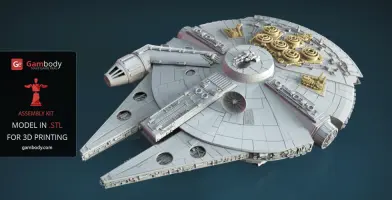

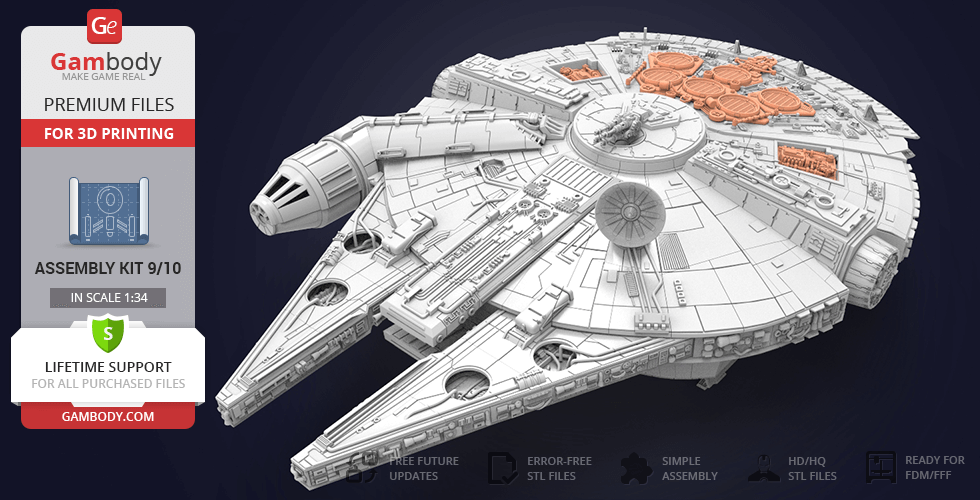

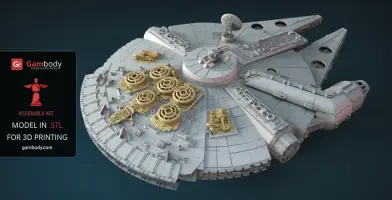

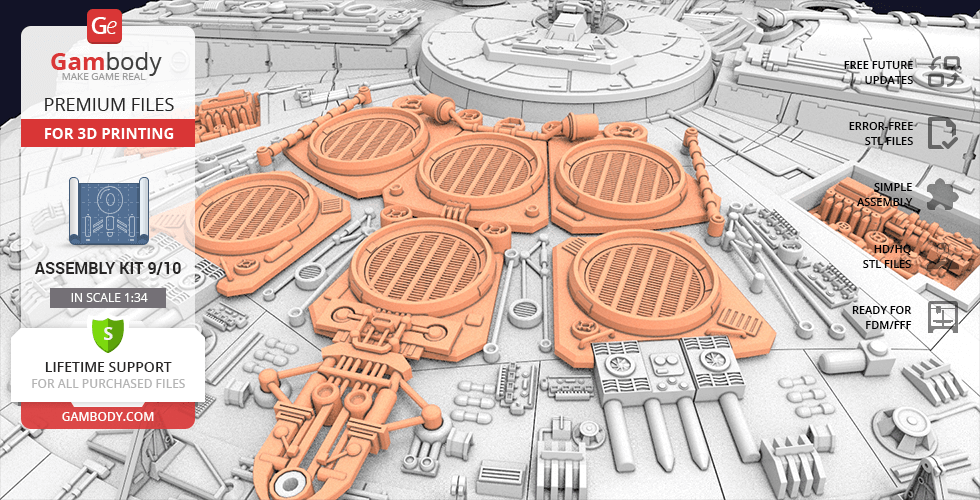

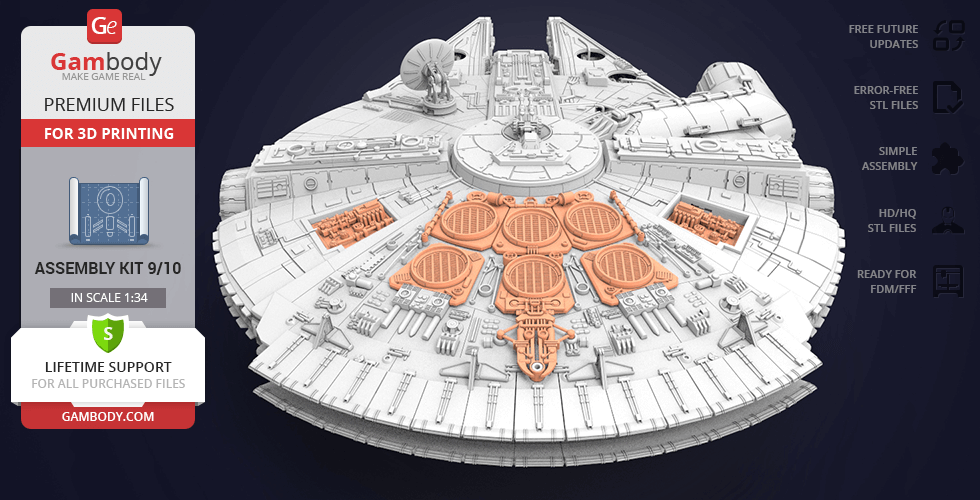

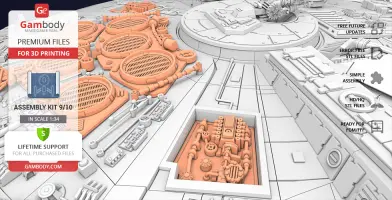

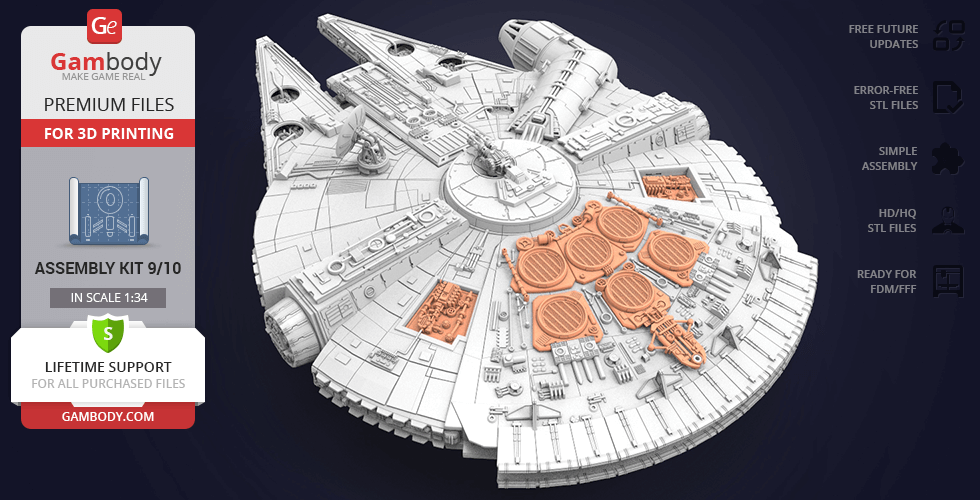

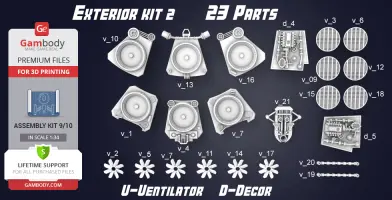

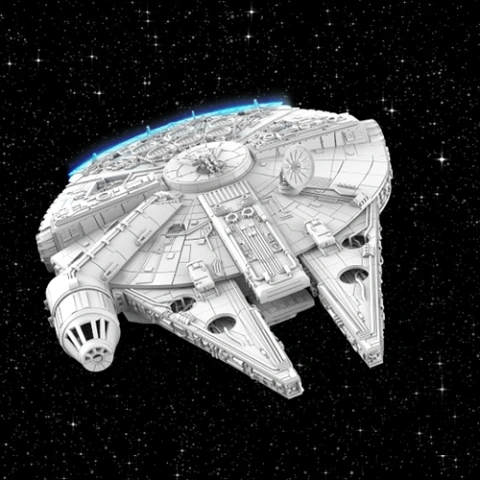

Millennium Falcon engine vents and décor 3D print parts come in kit 2 to be printed and mounted on the top hull of the Millennium Falcon 3D model. The entire ensemble consists of 6 upgraded design engine vents. Each vent is entirely detachable from the hull. Every part of the vent can be assembled and unassembled. The engine vents have nicely patterned cover screens, which can also be attached and detached.

The vents and décor parts are designed to match Millennium Falcon’s 3D model scale. The kit consists of 23 parts, available for download in STL file format. The files have been tested and are error-free. They have also been adapted for FFF/FDM printers.

To purchase Millennium Falcon Ventilators and décor kit 2 click of the “Buy” button in the top-right corner. Proceed to checkout; insert your PayPal or credit card details. Once the payment is processed you will be able to download the STL files of kit 2.

Watch the tutorial video on how to assemble this Kit at Gambody YouTube channel.

See other Millennium Falcon exterior kits:

Kit 1 -  Landing Gear

Kit 3 - Gun, Antenna

Kit 4 - Tracery, Docking Ring

Kit 5 - Boarding Ramp, Gun

Generic

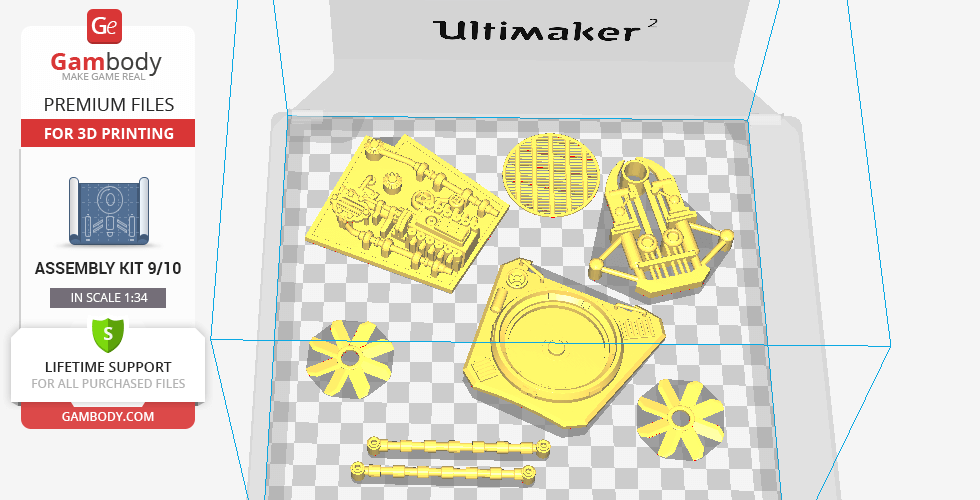

This model was tested in Cura 3.3.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for Cura and Simplify3D softwares.

Cura printing recommendations:

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 60 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m
