Guns Pack for Thunderbolt 3D Printing Models | Assembly

cm: 3.7 w x 4.8 d x 4.3 h
in: 1.457 w x 1.89 d x 1.693 h

Source Files




Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Guns Pack for Thunderbolt 3D Printing Models come in 1 version for FFF/FDM 3D Printers. Files for each version are available for download after the purchase.

Detailed information about this model is available in the DESCRIPTION section.

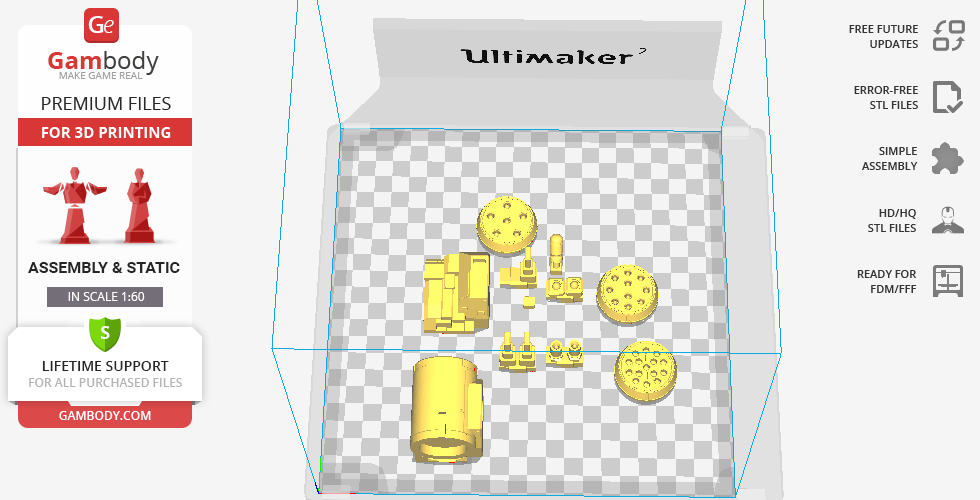

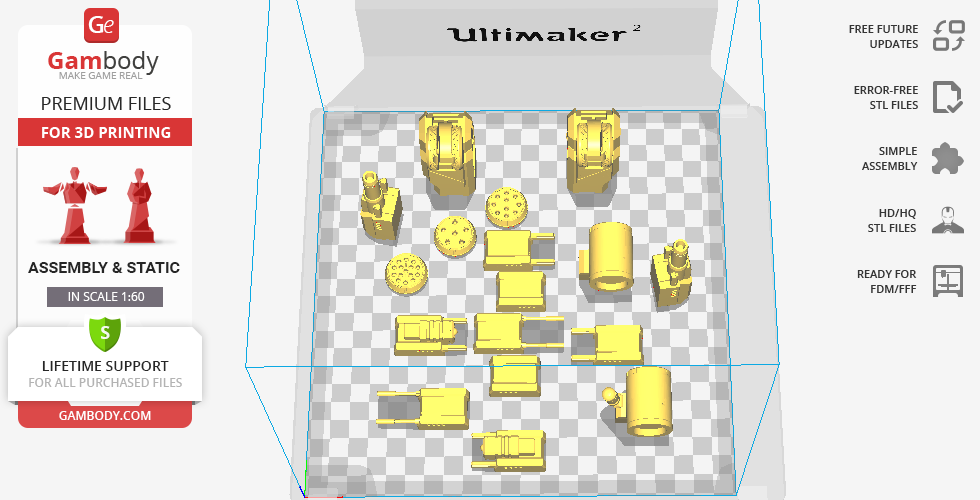

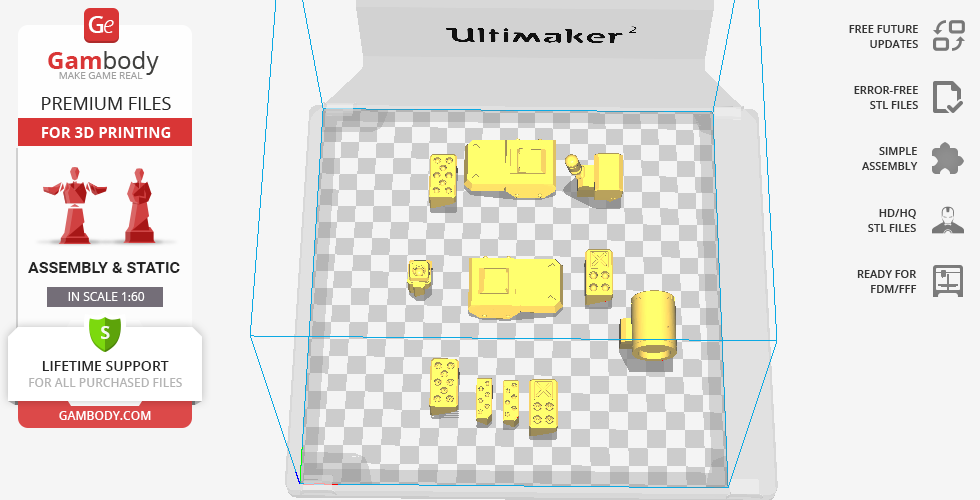

File Name File Size Time / Filament Object Size
(x/y/z mm)
1_gun_shoulder_base_a_R ( repaired).stl
1.00 MiB 5 h 28 min 3 m 38 x 48 x 43 Download
2_gun_shoulder_1a_R (repa ired).stl
0.77 MiB 1 h 14 min 1 m 35 x 35 x 13 Download
3_gun_shoulder_2a_R (repa ired).stl
0.93 MiB 1 h 11 min 1 m 35 x 35 x 13 Download
4_gun_shoulder_3a_R (repa ired).stl
1.29 MiB 1 h 15 min 1 m 35 x 35 x 13 Download
5_gun_shoulder_base_b_R ( repaired).stl
0.27 MiB 2 h 52 min 2 m 36 x 44 x 34 Download
6_gun_shoulder_base_b_ant en_R (repaired).stl
0.99 MiB 23 min <1 m 7 x 16 x 24 Download
7_gun_shoulder_base_b_cap _R (repaired).stl
0.02 MiB 4 min <1 m 7 x 6 x 4 Download
8_gun_shoulder_1b_R (repa ired).stl
0.29 MiB 21 min <1 m 21 x 12 x 14 Download
9_gun_shoulder_2b_R (repa ired).stl
0.25 MiB 24 min <1 m 21 x 12 x 19 Download
10_gun_shoulder_3b_R (rep aired).stl
0.06 MiB 34 min <1 m 21 x 12 x 36 Download
11_gun_shoulder_4b_R (rep aired).stl
0.10 MiB 42 min <1 m 21 x 12 x 36 Download
12_body_gun_a_R (repaired ).stl
0.13 MiB 32 min <1 m 13 x 19 x 22 Download
13_body_gun_b_R (repaired ).stl
0.51 MiB 54 min 1 m 15 x 27 x 22 Download
14_body_gun_c_R (repaired ).stl
0.35 MiB 54 min 1 m 15 x 27 x 22 Download
15_body_gun_d_R (repaired ).stl
1.26 MiB 55 min 1 m 15 x 27 x 21 Download
16_body_gun_e_R (repaired ).stl
0.55 MiB 55 min 1 m 15 x 27 x 21 Download
17_body_gun_f_L (repaired ).stl
0.66 MiB 25 min <1 m 8 x 22 x 16 Download
18_body_gun_g_L (repaired ).stl
0.42 MiB 24 min <1 m 8 x 22 x 16 Download
19_arm_shield_R (repaired ).stl
0.06 MiB 1 h 55 min 1 m 51 x 37 x 13 Download
20_arm_shield_L (repaired ).stl
0.06 MiB 1 h 55 min 1 m 51 x 37 x 13 Download
21_gun_shoulder_base_a_L (repaired).stl
1.02 MiB 1 h 25 min 1 m 32 x 22 x 39 Download
22_gun_shoulder_base_b_L (repaired).stl
0.84 MiB 2 h 32 min 1 m 28 x 31 x 39 Download
23_gun_shoulder_1b_L (rep aired).stl
0.77 MiB 31 min <1 m 23 x 23 x 9 Download
24_gun_shoulder_2b_L (rep aired).stl
0.93 MiB 28 min <1 m 23 x 23 x 9 Download
25_gun_shoulder_3b_L (rep aired).stl
1.29 MiB 30 min <1 m 23 x 23 x 9 Download
26_gun_shoulder_base_c_L (repaired).stl
1.84 MiB 2 h 50 min 2 m 36 x 31 x 39 Download
27_hand_base_R (repaired) .stl
0.96 MiB 4 h 46 min 3 m 28 x 39 x 67 Download
28_hand_gun_1_R (repaired ).stl
0.09 MiB 34 min <1 m 27 x 20 x 11 Download
29_hand_gun_2_R (repaired ).stl
0.12 MiB 41 min <1 m 39 x 20 x 11 Download
30_hand_gun_3_R (repaired ).stl
0.18 MiB 44 min <1 m 48 x 20 x 11 Download
31_hand_gun_4_R (repaired ).stl
0.27 MiB 1 h 30 min 1 m 21 x 21 x 66 Download
32_hand_gun_5_R (repaired ).stl
0.24 MiB 56 min 1 m 39 x 20 x 16 Download
33_hand_base_L (repaired) .stl
0.98 MiB 4 h 40 min 3 m 28 x 39 x 67 Download
34_hand_gun_1_L (repaired ).stl
0.09 MiB 34 min <1 m 27 x 20 x 11 Download
35_hand_gun_2_L (repaired ).stl
0.12 MiB 41 min <1 m 39 x 20 x 11 Download
36_hand_gun_3_L (repaired ).stl
0.18 MiB 44 min <1 m 48 x 20 x 11 Download
37_hand_gun_4_L (repaired ).stl
0.27 MiB 1 h 29 min 1 m 21 x 21 x 66 Download
38_hand_gun_5_L (repaired ).stl
0.24 MiB 56 min 1 m 39 x 20 x 16 Download


All the most popular weapon packs for Thunderbolt MechWarrior are presented to your attention, using which will give you an opportunity to assemble your robot with any desired set of armament. Here you will also find its most expensive and powerful set called “Top Dog” or TDR-5S-T. Moreover, now you can equip your robot with weapons from other equally popular sets, such as: 5S, 5SS, 9S, 9SE and many others. Here is a complete list of weapons:
Heat Sinks
Double Heat Sinks
Gauss Rifle
Medium Lasers
Machine Guns
Short Range Missile 6
Medium-Range Missiles 40
Light Particle Projection Cannons
Particle Projection Cannons
ER MED Laser
Pulse Lasers


The model is saved in STL files, a format supported by most 3D printers

- Contain 38 parts;
- Contain Top Dog set;
- Contain Lasers Pack;
- Contain Medium Lasers Pack;
- Contain Particle Projection Cannons Pack
- Contain Pulse Lasers;
- Contain Heat Sinks Pack;
- All parts are divided in such way that you will print them with the smallest amount of supports.

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for Cura. or Simplify3D Software.

Scale: MWO Thunderbolt actual height is 14500 mm.. The scale of this models made 1/60 for FFF/FDM version.


- STL files of Guns Pack for Thunderbolt​ 3D Model for 3D printing which consist of 38 parts;
- Specially adapted files for FFF/FDM 3D Printers;
- High-poly detailed models of Guns for Thunderbolt​ ;
- Detailed settings that we provide for Cura . and Simplify3D for the best print;
- Full technical support from the Gambody Support Team.

You can get Models of Guns Pack for Thunderbolt​ for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Guns Pack for Thunderbolt​ 3D Printing Model at Gambody YouTube channel.

Here you can find Thunderbolt 3D Printing Model. Also, you may like other Mechs 3D Printing Models.


Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?


Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at


You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Extruder 1 Temperature: 210
Heated Bed: 60

Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
  Detect thin walls: Check
  Detect bridging perimeters: Check
  Seam position: Random
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
  Infill/Perimeters overlap: 20%
  Bridge flow ratio: 0.95
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm
