Type-11 Shuttlecraft 3D Printing Model | Assembly

(7)
cm: 27.8 w x 51.4 d x 11.5 h
in: 10.945 w x 20.236 d x 4.528 h

Source Files

|

Description

|

Printing Details

This 3D Model of Type-11 Shuttlecraft inspired by Star Trek consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

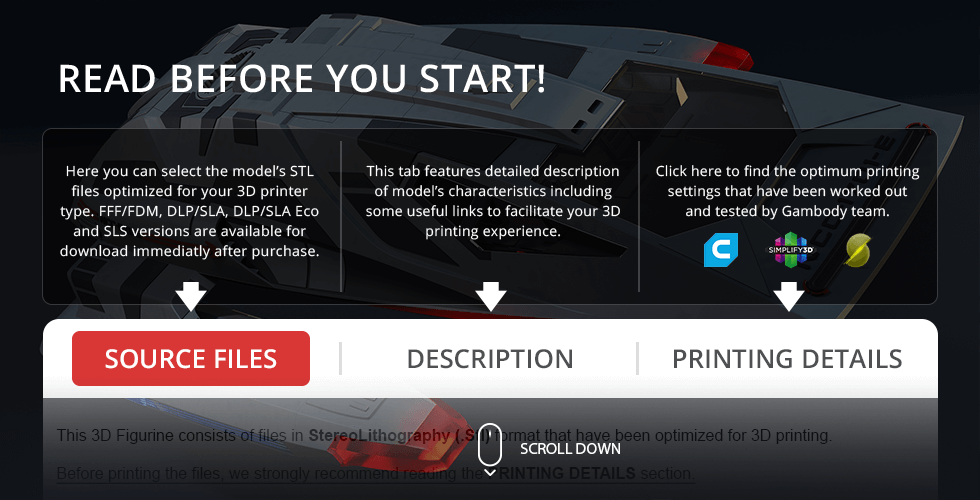

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

2 versions of Type-11 Shuttlecraft STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase

- STL files of high-poly Star Trek Type 11 Shuttle 3D Model for 3D printing consist of 115 files

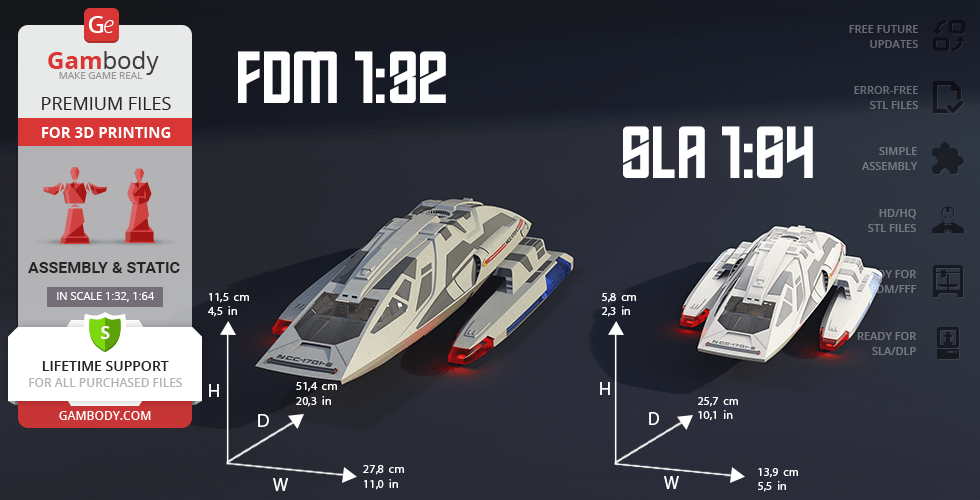

Sizes:

FFF/FDM: 115 mm tall, 278 mm wide, 514 mm deep
DLP/SLA: 58 mm tall, 139 mm wide, 257 mm deep

Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format
- Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

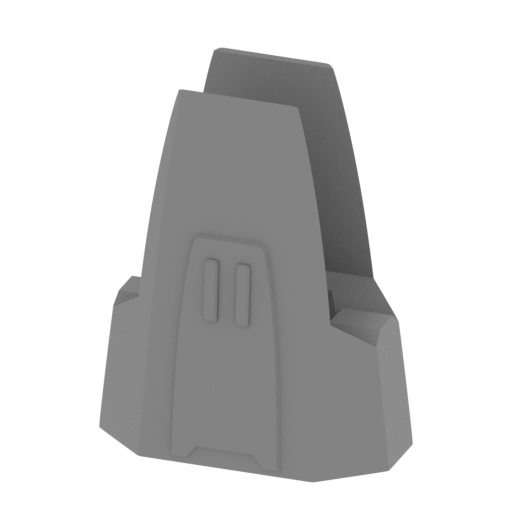

_10_enginePart_a_X2_FDM ( repaired).stl
2.63 MiB 3 h 31 min 2 m 50 x 30 x 63 Download
_11_enginePartClear_b_L_F DM (repaired).stl
0.85 MiB 13 h 55 min 9 m 59 x 40 x 128 Download

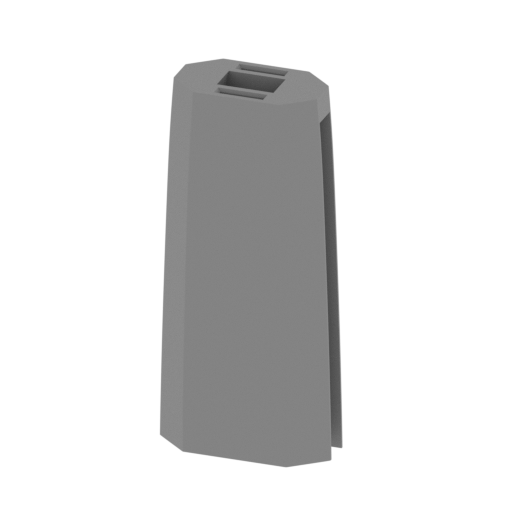

_12_enginePartClear_b_R_F DM (repaired).stl
0.85 MiB 13 h 57 min 9 m 59 x 40 x 128 Download

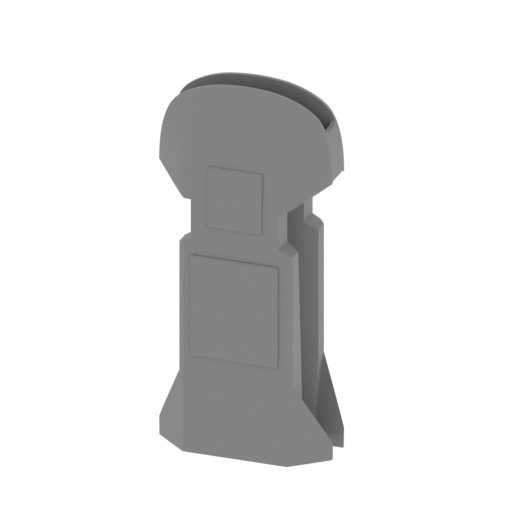

_13_engineParCleart_c_L_F DM (repaired).stl
1.33 MiB 14 h 54 min 10 m 59 x 41 x 127 Download
_14_enginePartClear_c_R_F DM (repaired).stl
1.33 MiB 14 h 44 min 10 m 59 x 41 x 127 Download

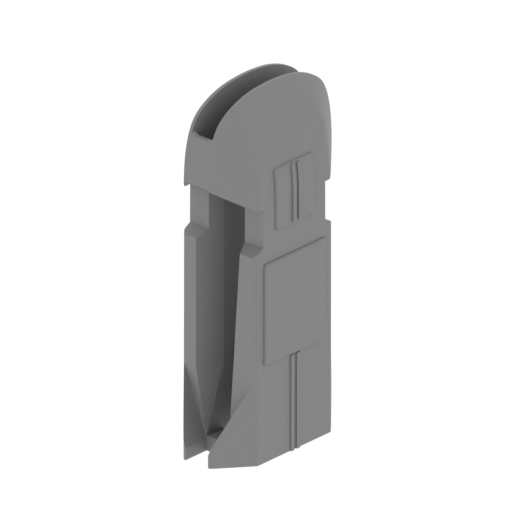

_16_engineParWithText_c_L _FDM (repaired).stl
1.50 MiB 15 h 24 min 10 m 43 x 59 x 127 Download

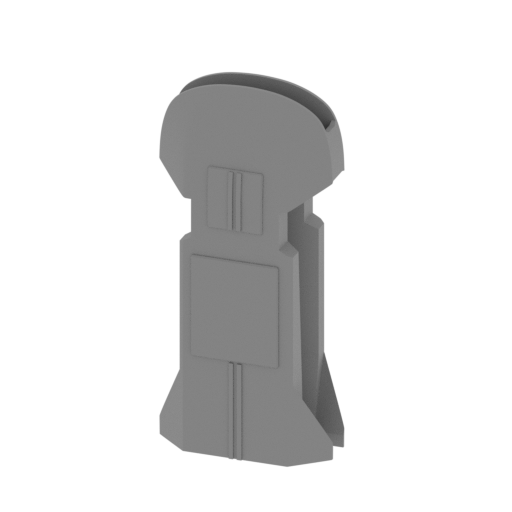

_18_enginePartWithText_c_ R_FDM (repaired).stl
1.50 MiB 15 h 20 min 10 m 59 x 42 x 127 Download

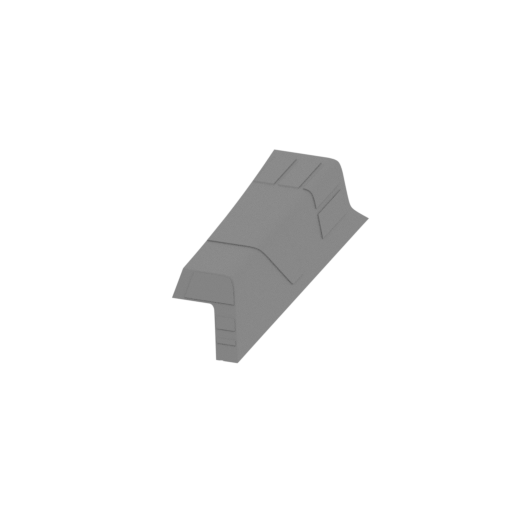

_19_enginePilon_L_FDM (re paired).stl
1.65 MiB 6 h 24 min 4 m 39 x 143 x 20 Download

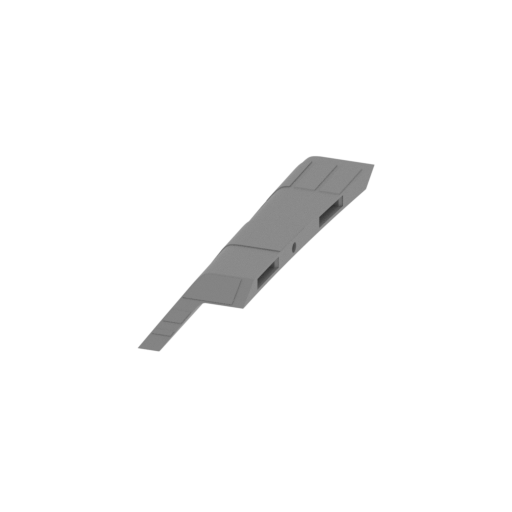

_20_enginePilon_R_FDM (re paired).stl
1.65 MiB 6 h 23 min 4 m 39 x 143 x 20 Download

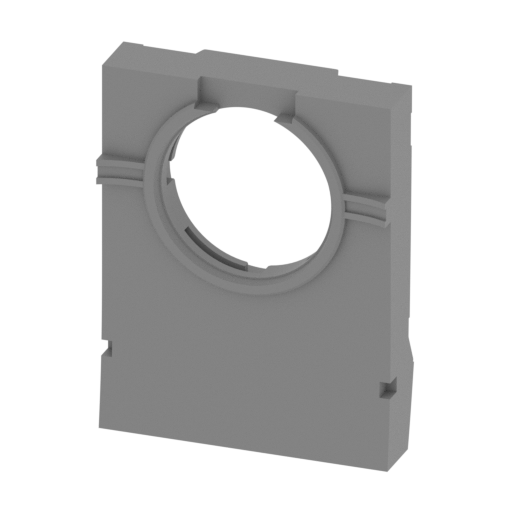

_21_bodyPartCap_b_T_FDM ( repaired).stl
1.97 MiB 5 h 49 min 3 m 58 x 17 x 74 Download

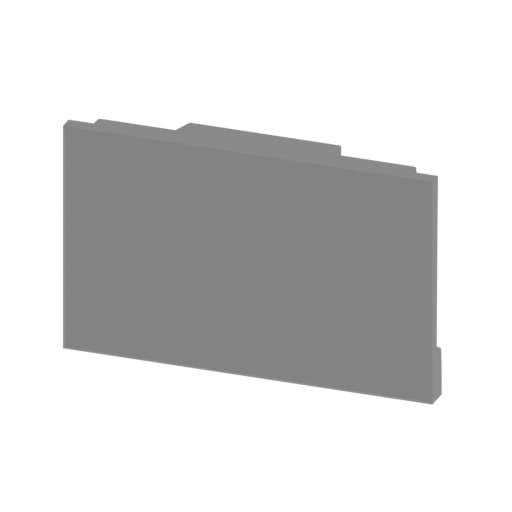

_22_batteryCap_FDM (repai red).stl
0.42 MiB 1 h 19 min 1 m 57 x 8 x 36 Download

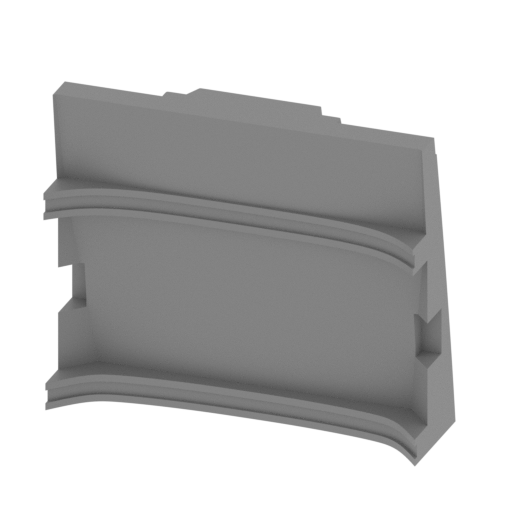

_23_bodyPartCap_a_FrontT_ FDM (repaired).stl
3.06 MiB 4 h 37 min 3 m 67 x 27 x 57 Download

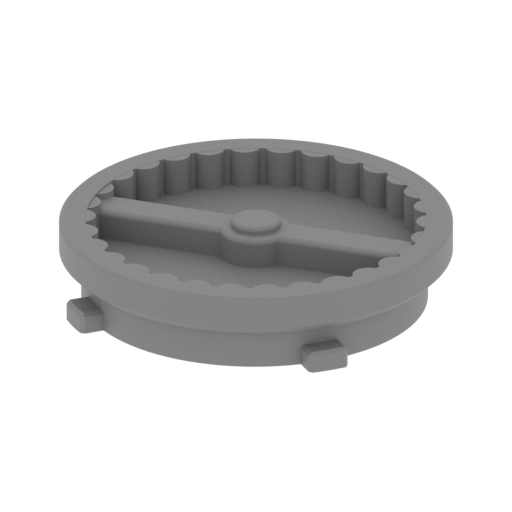

_24_bodyCap_T_FDM (repair ed).stl
0.84 MiB 57 min 1 m 38 x 38 x 8 Download

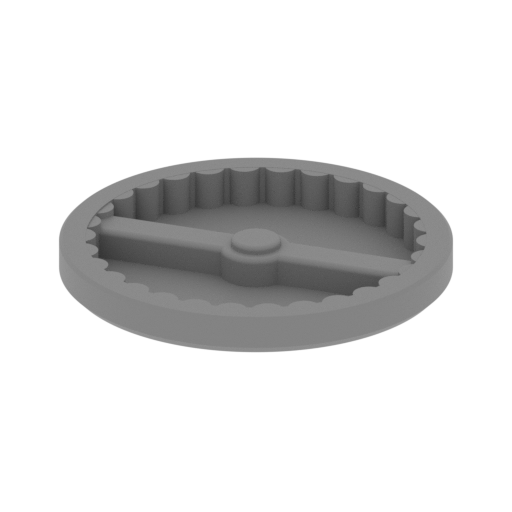

_25_bodyCap_Bot_FDM (repa ired).stl
0.81 MiB 23 min <1 m 38 x 38 x 4 Download

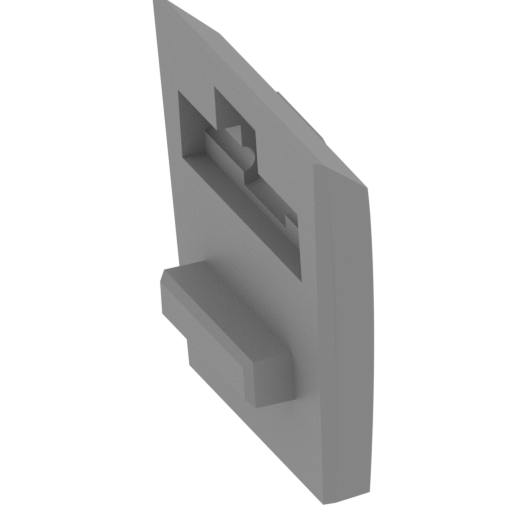

_26_doorBackPartCap_FDM ( repaired).stl
0.28 MiB 57 min 1 m 26 x 28 x 31 Download

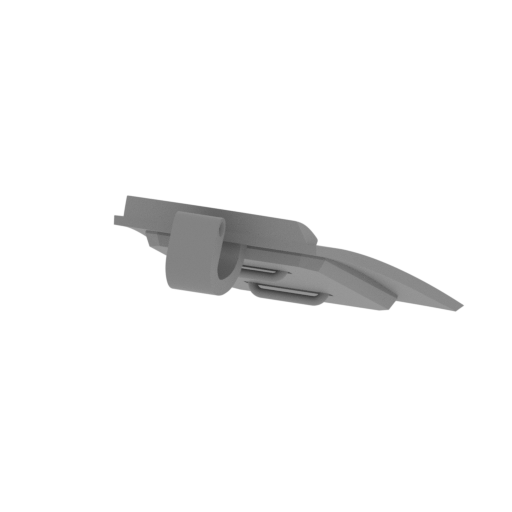

_27_doorBack_FDM (repaire d).stl
5.86 MiB 4 h 40 min 3 m 53 x 69 x 40 Download

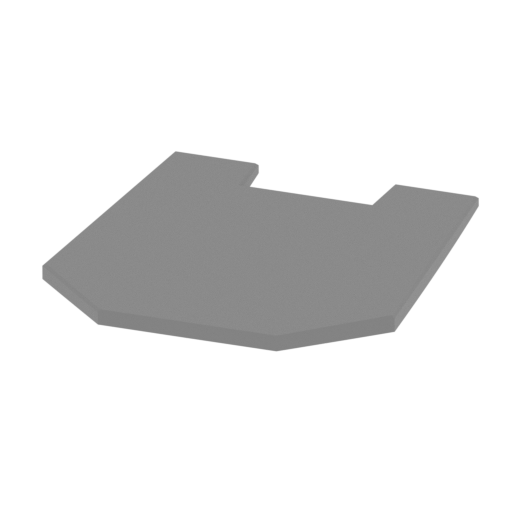

_28_cockpitGlass_a_F_FDM (repaired).stl
0.18 MiB 2 h 53 min 2 m 77 x 81 x 4 Download

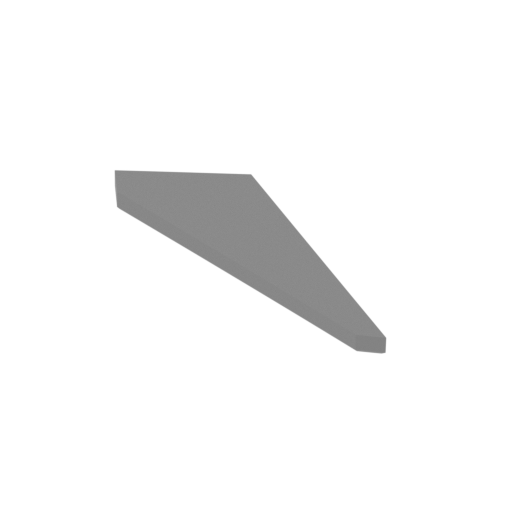

_29_cockpitGlass_d_R_FDM (repaired).stl
2.28 MiB 32 min <1 m 62 x 51 x 4 Download

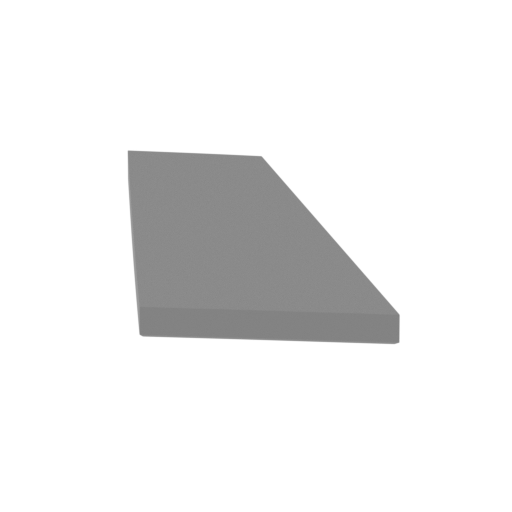

_30_cockpitGlass_e_R_FDM (repaired).stl
1.26 MiB 12 min <1 m 29 x 29 x 3 Download

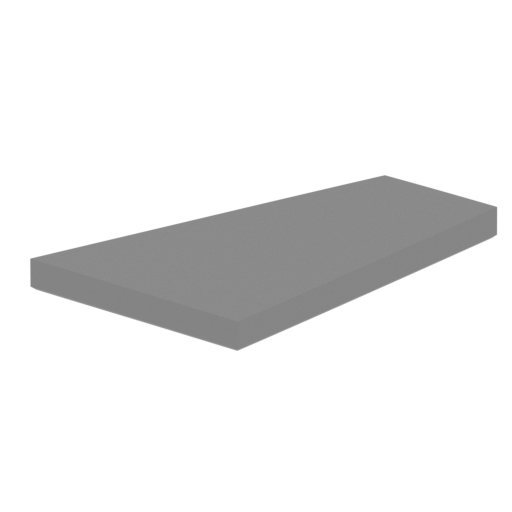

_31_cockpitGlass_c_L_FDM (repaired).stl
1.26 MiB 12 min <1 m 29 x 29 x 3 Download

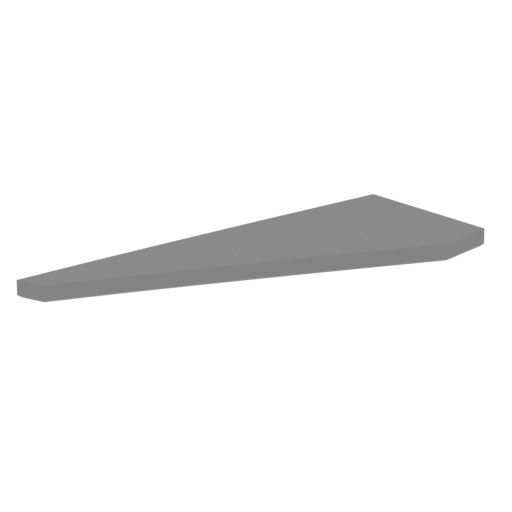

_32_cockpitGlass_b_L_FDM (repaired).stl
2.28 MiB 31 min <1 m 62 x 51 x 3 Download

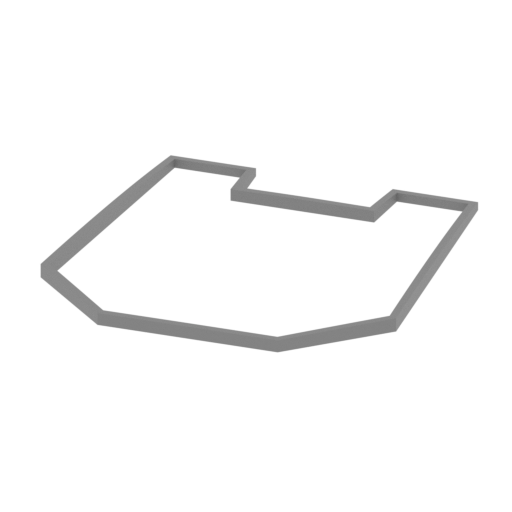

_33_cockpitGlassFrame_a_F _FDM (repaired).stl
0.09 MiB 17 min <1 m 77 x 80 x 3 Download

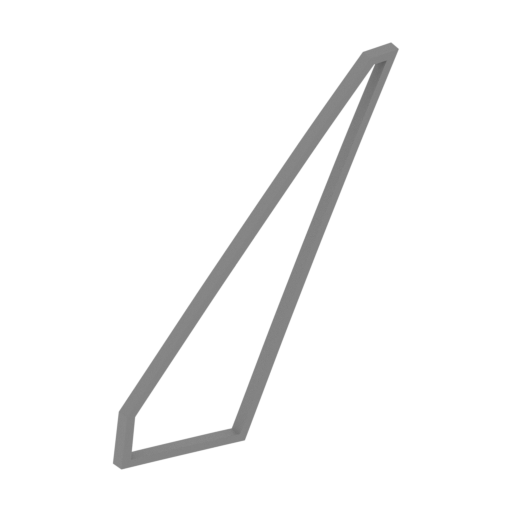

_34_cockpitGlassFrame_d_R _FDM (repaired).stl
2.49 MiB 53 min <1 m 33 x 37 x 59 Download

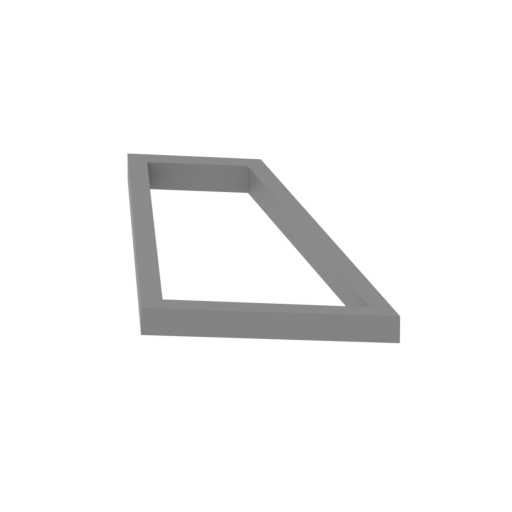

_35_cockpitGlassFrame_e_R _FDM (repaired).stl
0.88 MiB 5 min <1 m 29 x 29 x 2 Download

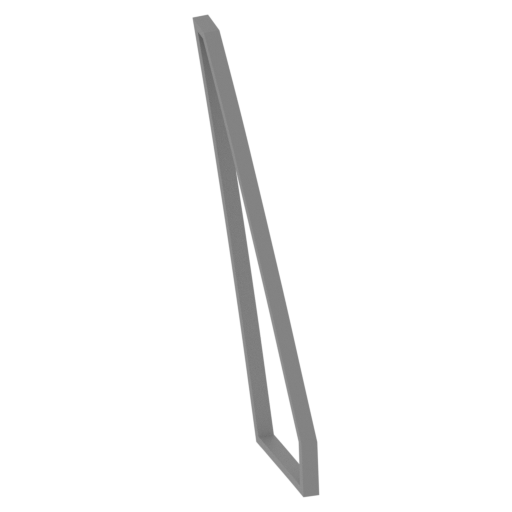

_36_cockpitGlassFrame_b_L _FDM (repaired).stl
2.49 MiB 49 min <1 m 33 x 37 x 59 Download

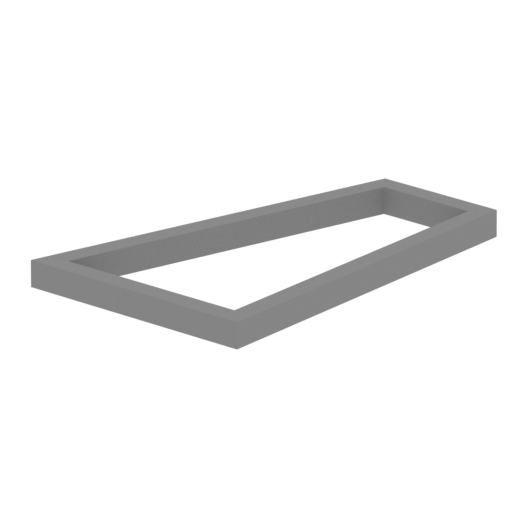

_37_cockpitGlassFrame_c_L _FDM (repaired).stl
0.88 MiB 5 min <1 m 29 x 29 x 2 Download

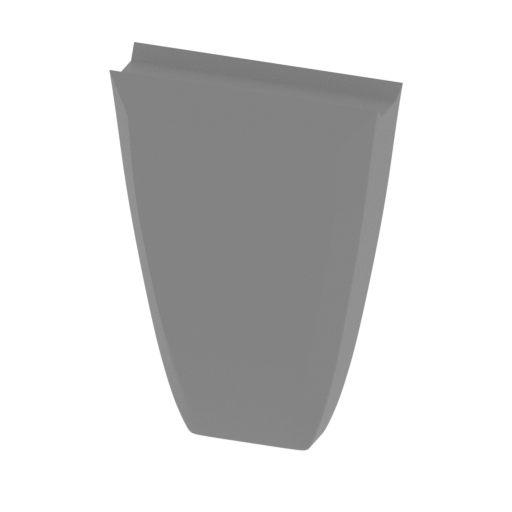

_38_engineGlassRed_X2_FDM (repaired).stl
1.26 MiB 2 h 16 min 1 m 41 x 19 x 57 Download

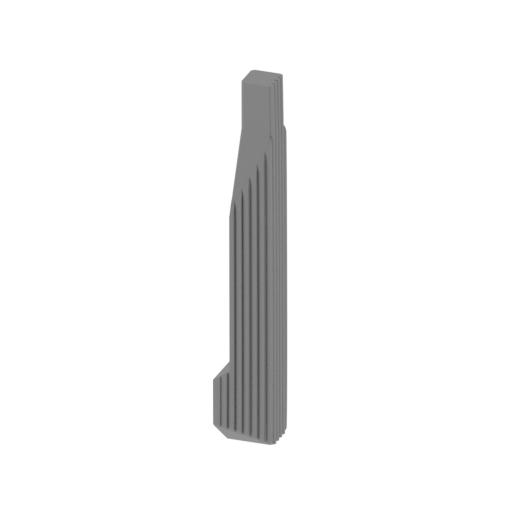

_39_engineGlassBlue_a_X4_ FDM (repaired).stl
2.28 MiB 3 h 18 min 1 m 14 x 31 x 108 Download

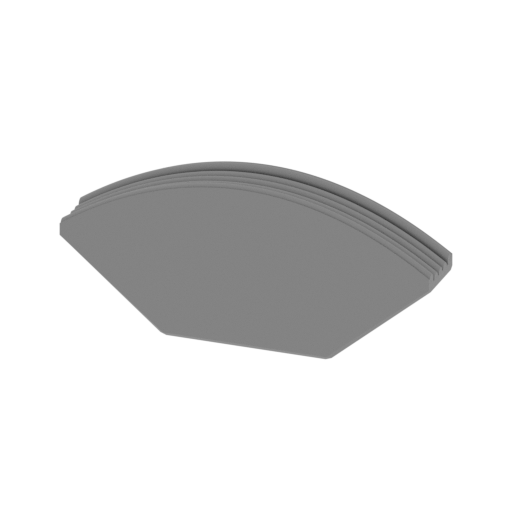

_40_engineGlassBlue_b_X2_ FDM (repaired).stl
1.39 MiB 1 h 4 min 1 m 51 x 9 x 23 Download

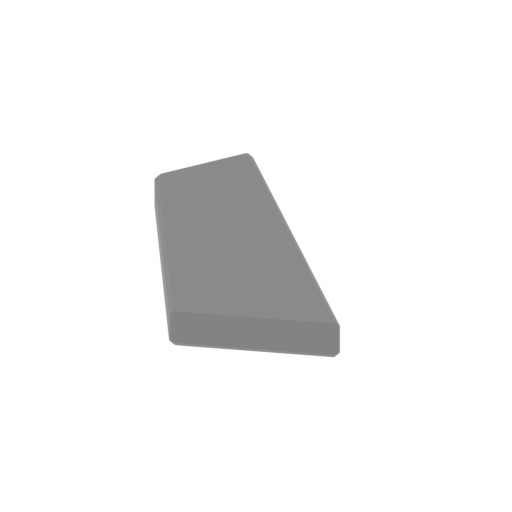

_41_cockpitPanelGlass_a_X 2_FDM (repaired).stl
0.08 MiB 4 min <1 m 15 x 20 x 2 Download

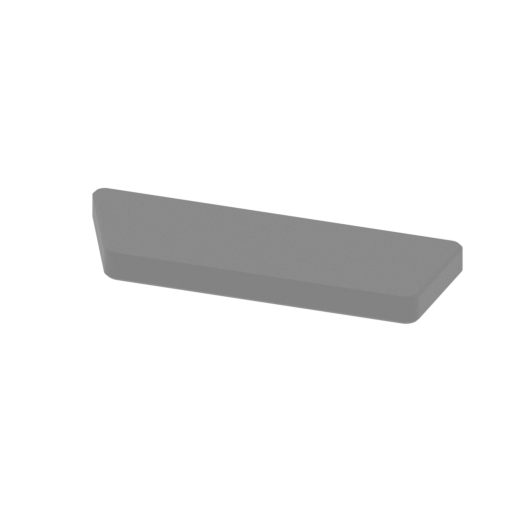

_42_cockpitPanelGlass_b_X 2_FDM (repaired).stl
0.05 MiB 5 min <1 m 22 x 9 x 2 Download

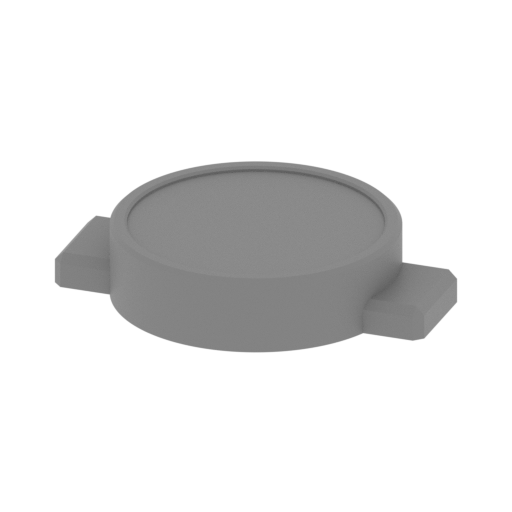

_43_interiorPart_b_FDM (r epaired).stl
0.15 MiB 55 min 1 m 46 x 34 x 9 Download

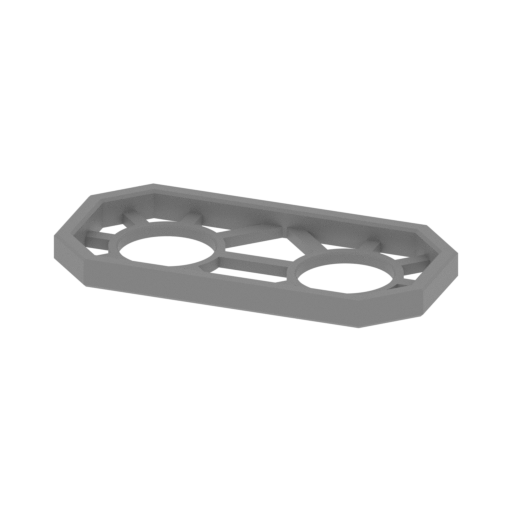

_44_transporterFrame_X2_F DM (repaired).stl
0.27 MiB 19 min <1 m 46 x 24 x 4 Download

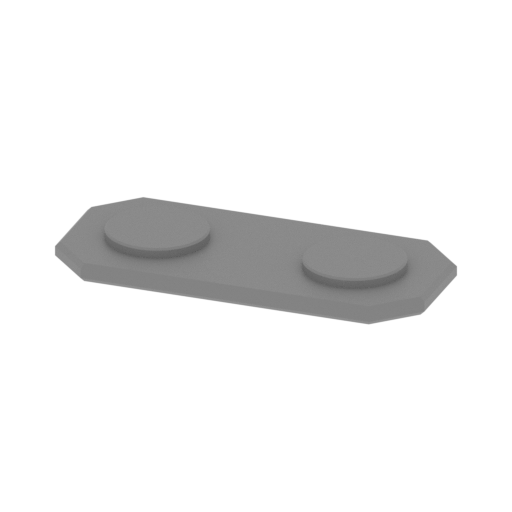

_45_transporterGlass_X2_F DM (repaired).stl
0.16 MiB 24 min <1 m 42 x 19 x 3 Download

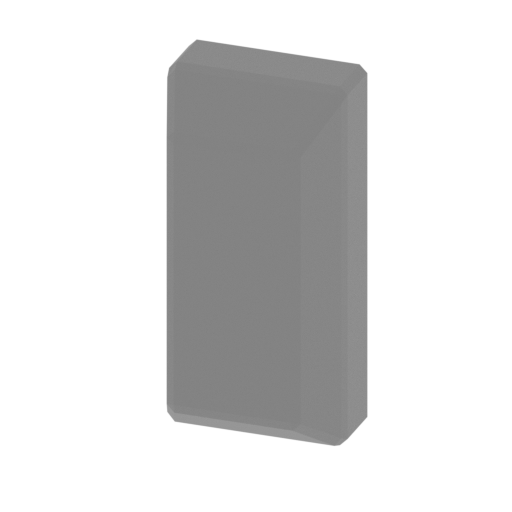

_46_alarmGlassRed_X2_FDM (repaired).stl
0.04 MiB 5 min <1 m 5 x 4 x 10 Download

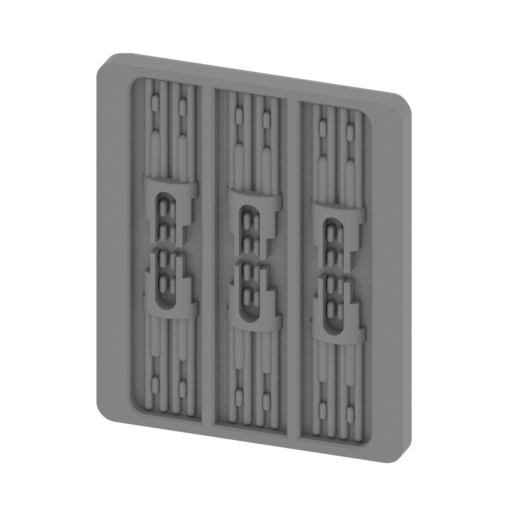

_47_warpPanel_FDM (repair ed).stl
25.25 MiB 1 h 30 min 1 m 35 x 4 x 43 Download

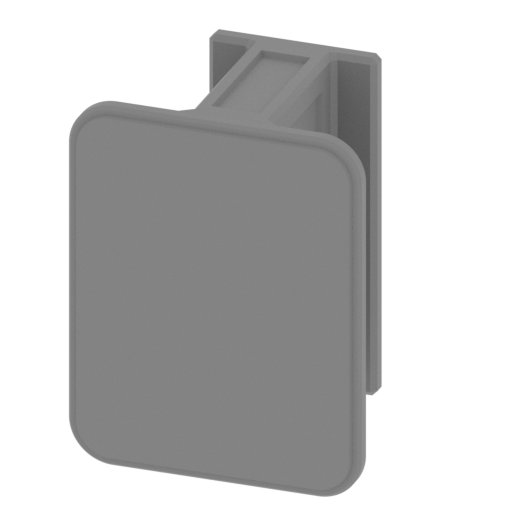

_48_interiorTable_FDM (re paired).stl
0.23 MiB 1 h 2 min 1 m 27 x 22 x 34 Download

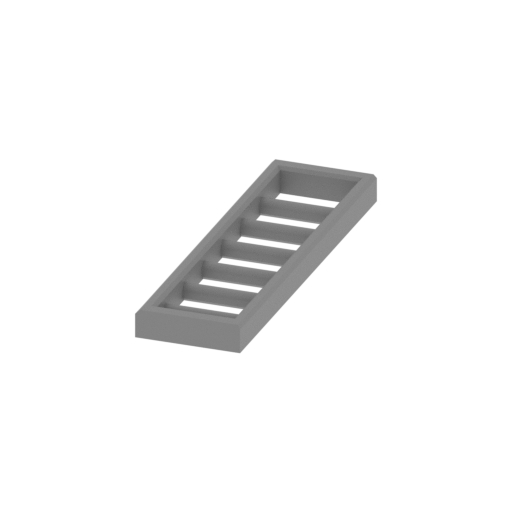

_49_interiorLadder_FDM (r epaired).stl
0.13 MiB 33 min <1 m 19 x 68 x 5 Download

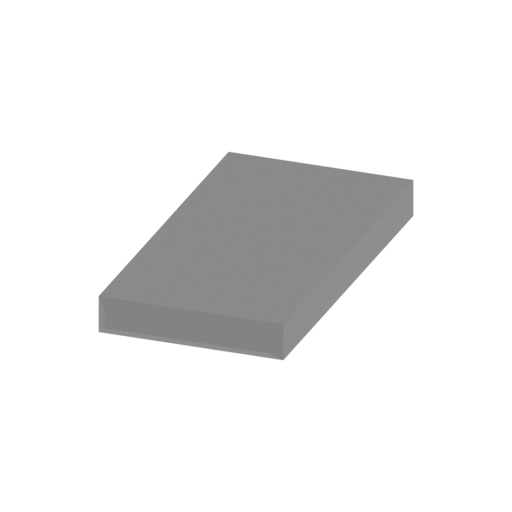

_50_pin_V1_X9_FDM (repair ed).stl
0.01 MiB 14 min <1 m 15 x 30 x 3 Download

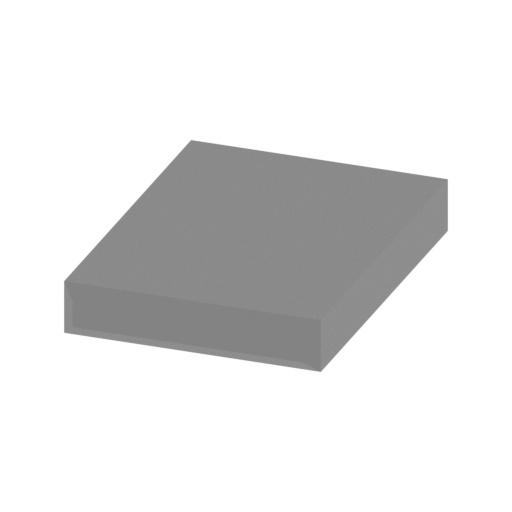

_51_pin_V2_X12_FDM (repai red).stl
0.01 MiB 19 min <1 m 19 x 28 x 4 Download

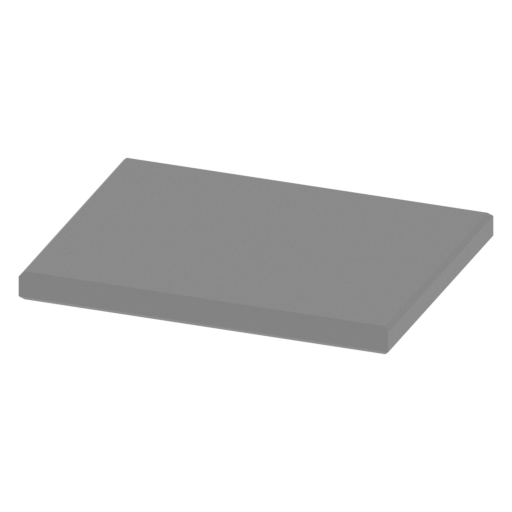

_52_interiorLightGlass_FD M (repaired).stl
0.01 MiB 34 min <1 m 38 x 30 x 3 Download
_53_planeText_FDM1 (repai red).stl
1.50 MiB 2 h 3 min 1 m 102 x 21 x 19 Download

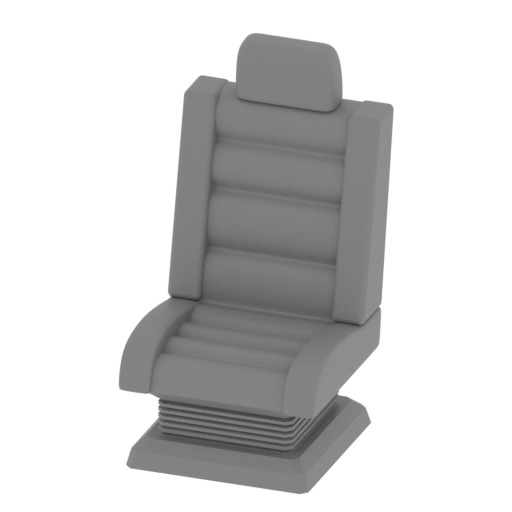

_54_seat_X8_FDM (repaired ).stl
2.97 MiB 32 min <1 m 15 x 16 x 27 Download

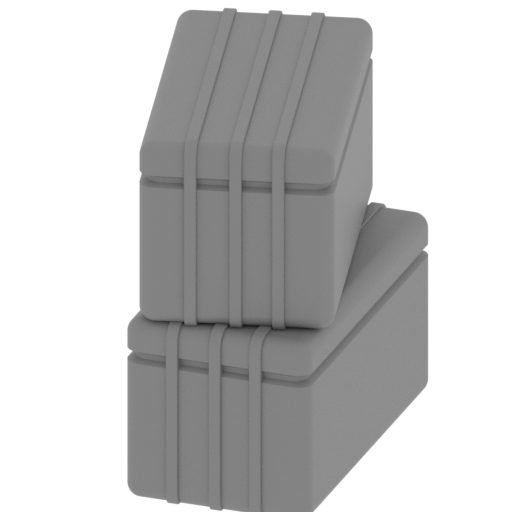

_55_box_FDM (repaired).st l
1.09 MiB 1 h 3 min 1 m 18 x 26 x 27 Download

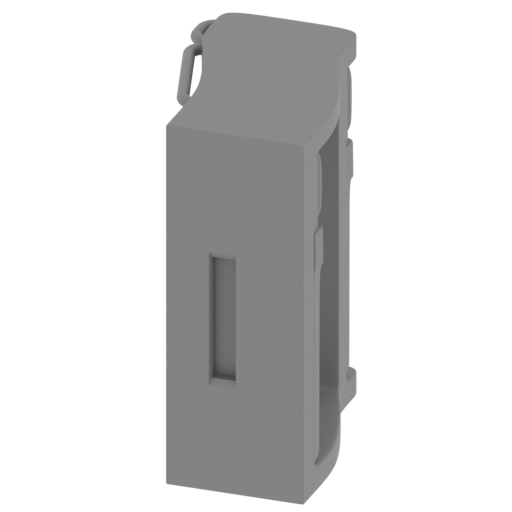

_56_interiorPart_b_FDM (r epaired).stl
12.50 MiB 3 h 43 min 2 m 26 x 35 x 49 Download

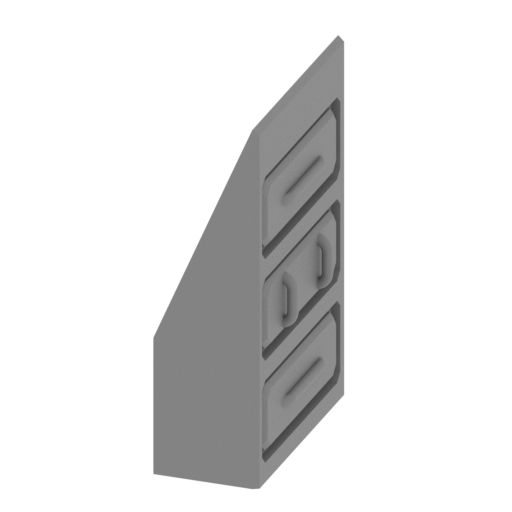

_57_interiorPart_a_FDM (r epaired).stl
0.69 MiB 1 h 49 min 1 m 15 x 30 x 48 Download

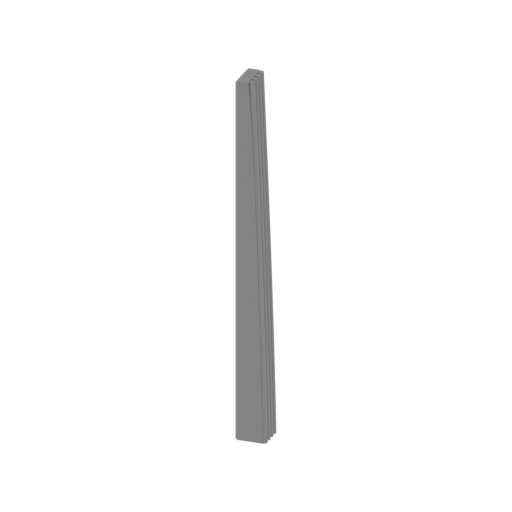

_58_engineGlassBlue_c_X4_ FDM (repaired).stl
0.68 MiB 1 h 43 min 1 m 9 x 9 x 109 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
_15_enginePartWithText_b_ L_FDM (repaired).stl
1.41 MiB 15 h 9 m 59 x 41 x 128 Download

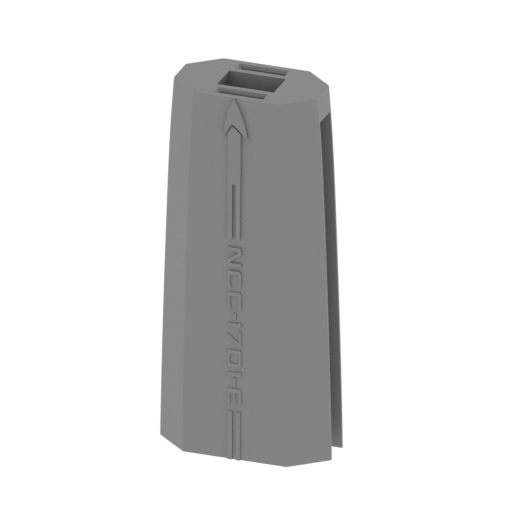

_17_enginePartWithText_b_ R_FDM (repaired).stl
1.41 MiB 14 h 58 min 9 m 59 x 41 x 128 Download

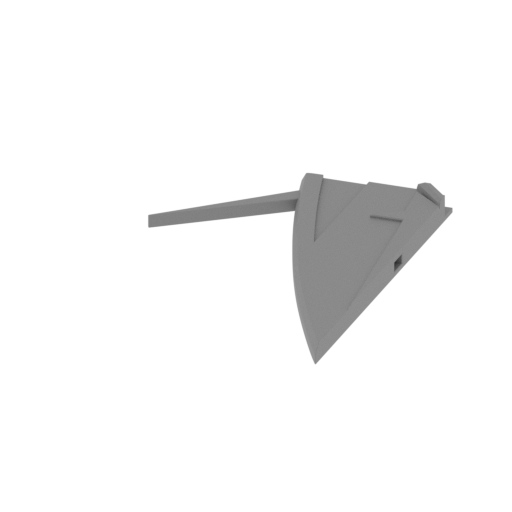

_59_standPart_a_FDM (repa ired).stl
0.25 MiB 8 h 33 min 5 m 136 x 196 x 14 Download

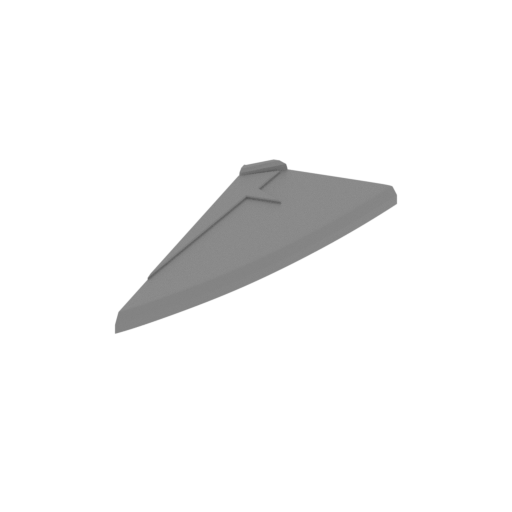

_60_standPart_b_FDM (repa ired).stl
0.19 MiB 8 h 5 min 5 m 77 x 196 x 14 Download

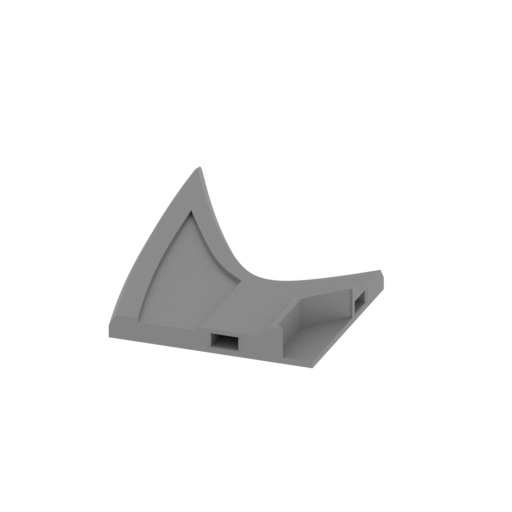

_61_standPart_c_FDM (repa ired).stl
0.27 MiB 6 h 13 min 4 m 98 x 145 x 14 Download

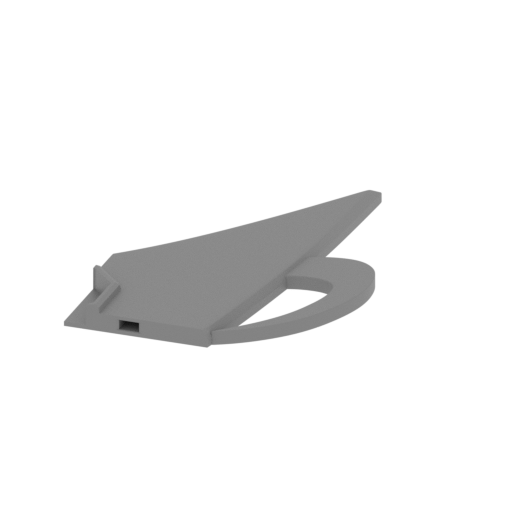

_62_standPart_d_FDM (repa ired).stl
0.26 MiB 11 h 28 min 7 m 133 x 199 x 14 Download

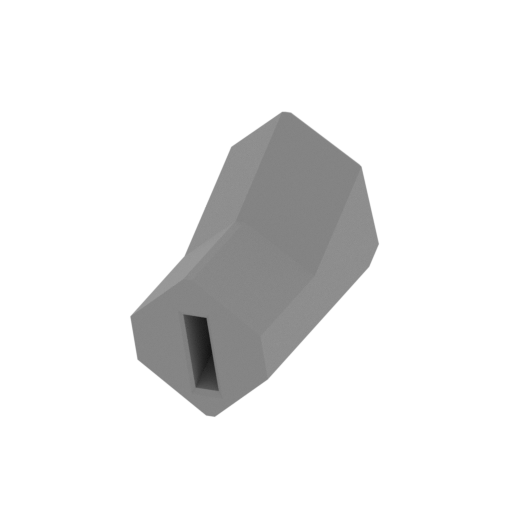

_63_standPart_e_FDM (repa ired).stl
0.01 MiB 5 h 3 m 29 x 83 x 51 Download

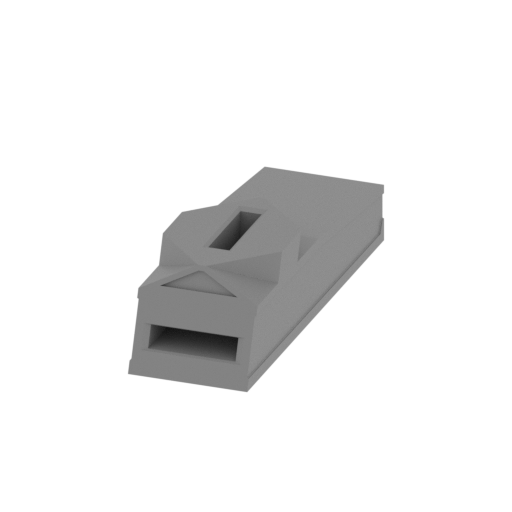

_64_standPart_f_FDM (repa ired).stl
0.02 MiB 4 h 34 min 3 m 29 x 91 x 26 Download

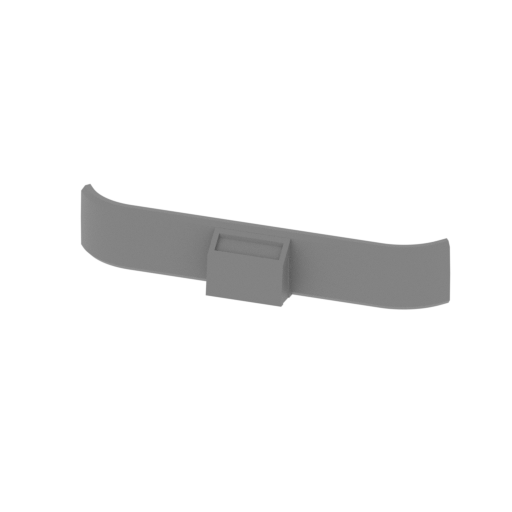

_65_standPart_g_FDM (repa ired).stl
0.09 MiB 2 h 28 min 2 m 144 x 26 x 25 Download
_66_standPart_h_FDM (repa ired).stl
0.08 MiB 3 h 11 min 2 m 124 x 21 x 29 Download

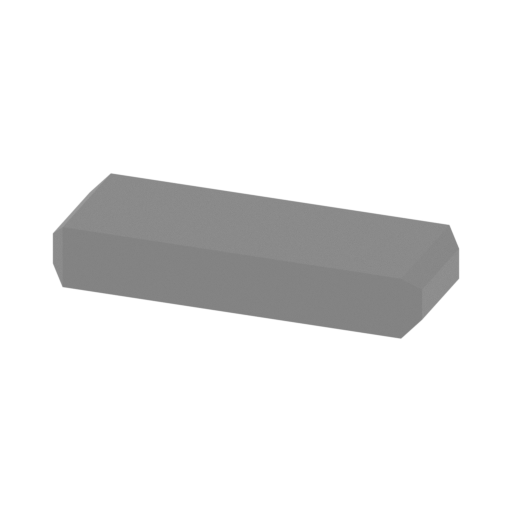

_67_standPin_V1_X4_FDM (r epaired).stl
0.01 MiB 14 min <1 m 30 x 11 x 5 Download

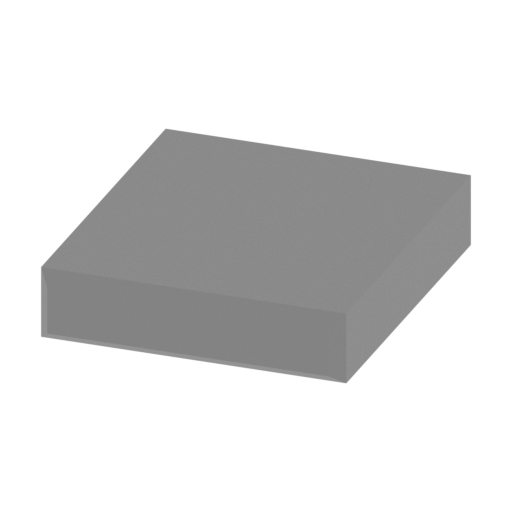

_68_standPin_V2_X3_FDM (r epaired).stl
0.01 MiB 22 min <1 m 21 x 26 x 5 Download

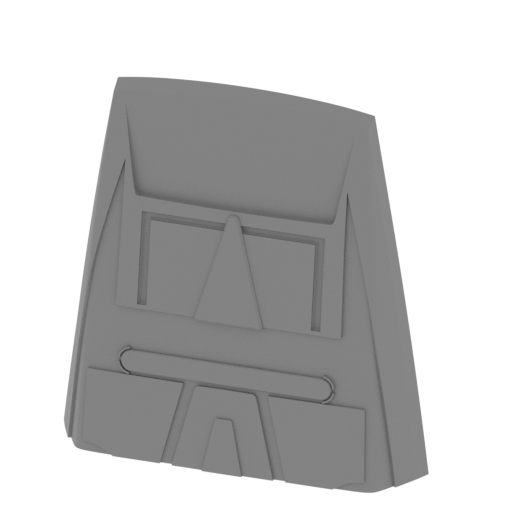

_01_bodyPartClear_a_F_FDM _FDM (repaired).stl
14.06 MiB 37 h 6 min 22 m 139 x 71 x 141 Download

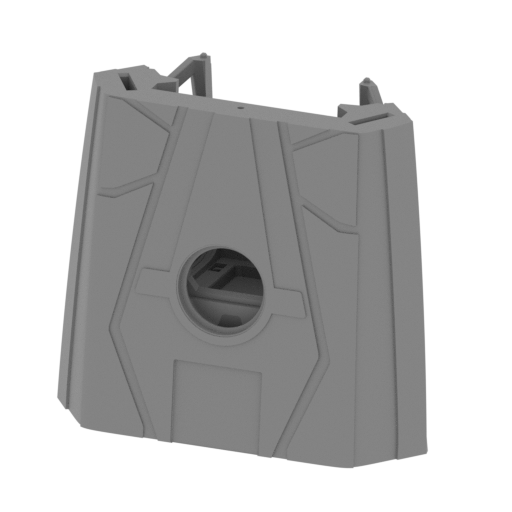

_02_bodyPart_b_F_FDM (rep aired).stl
16.72 MiB 86 h 21 min 55 m 161 x 98 x 150 Download

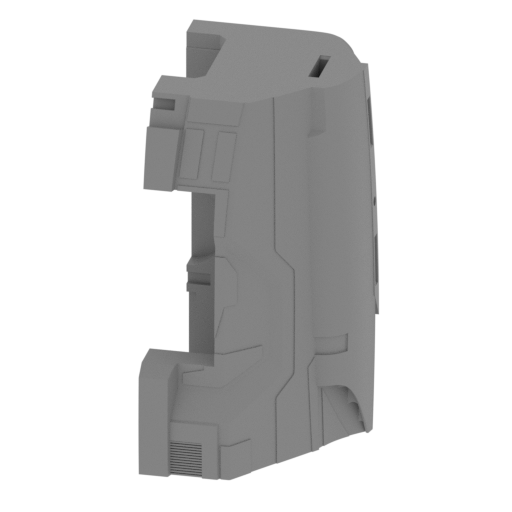

_03_bodyPartClear_c_L_FDM (repaired).stl
7.47 MiB 58 h 40 min 41 m 85 x 104 x 156 Download

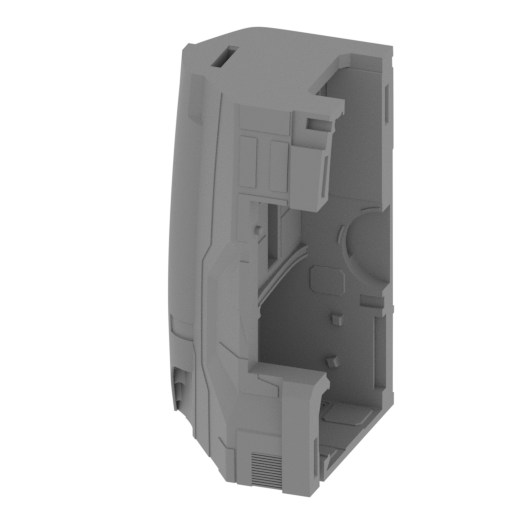

_04_bodyPartClear_d_R_FDM (repaired).stl
7.15 MiB 57 h 58 min 40 m 82 x 98 x 156 Download
_05_bodyPartClear_e_Rr_FD M (repaired).stl
9.30 MiB 29 h 13 min 16 m 154 x 74 x 75 Download
_06_bodyPartWithText_a_F_ FDM_FDM (repaired).stl
14.50 MiB 37 h 28 min 22 m 139 x 71 x 141 Download

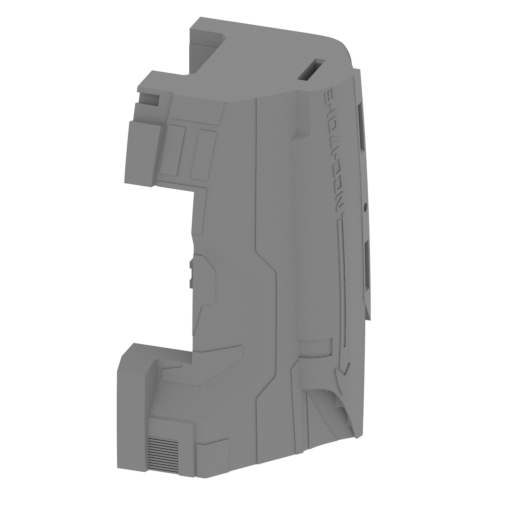

_07_bodyPartWithText_c_L_ FDM (repaired).stl
8.12 MiB 59 h 41 m 82 x 98 x 156 Download

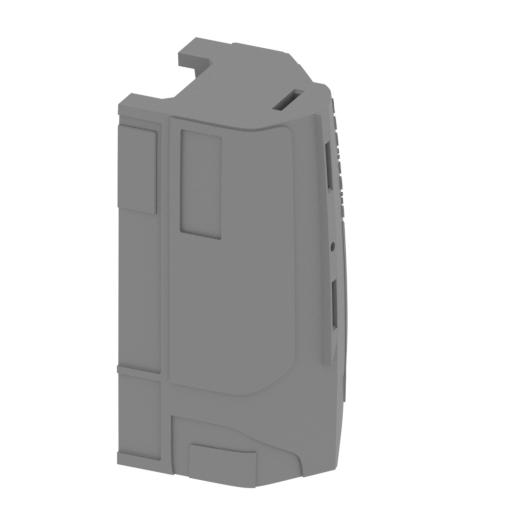

_08_bodyPartWithText_d_R_ FDM (repaired).stl
7.81 MiB 58 h 42 min 40 m 84 x 102 x 156 Download

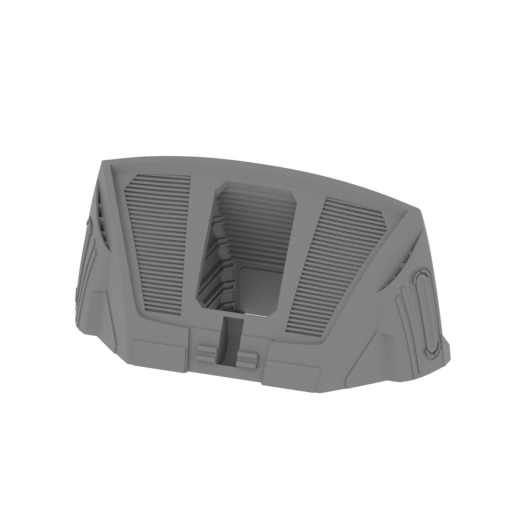

_09_bodyPartWithText_e_Rr _FDM (repaired).stl
9.56 MiB 29 h 10 min 16 m 154 x 74 x 75 Download
...

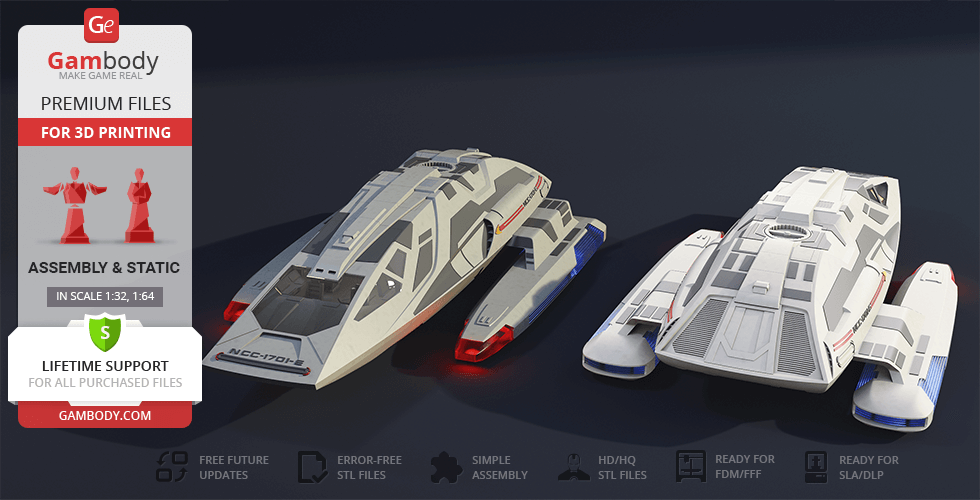

ABOUT THIS 3D MODEL

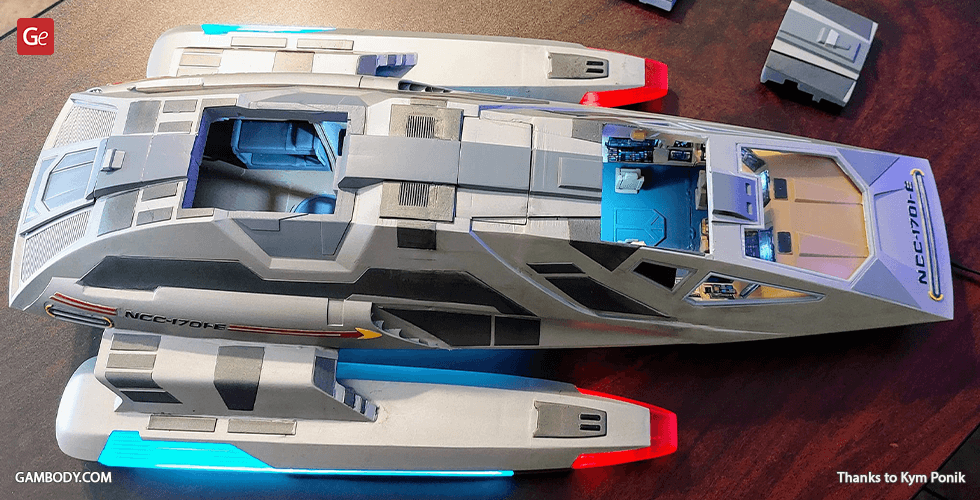

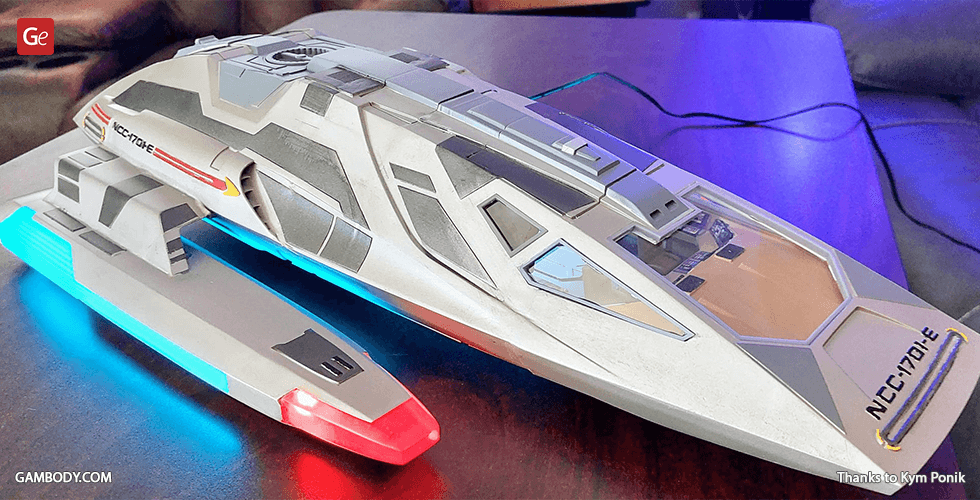

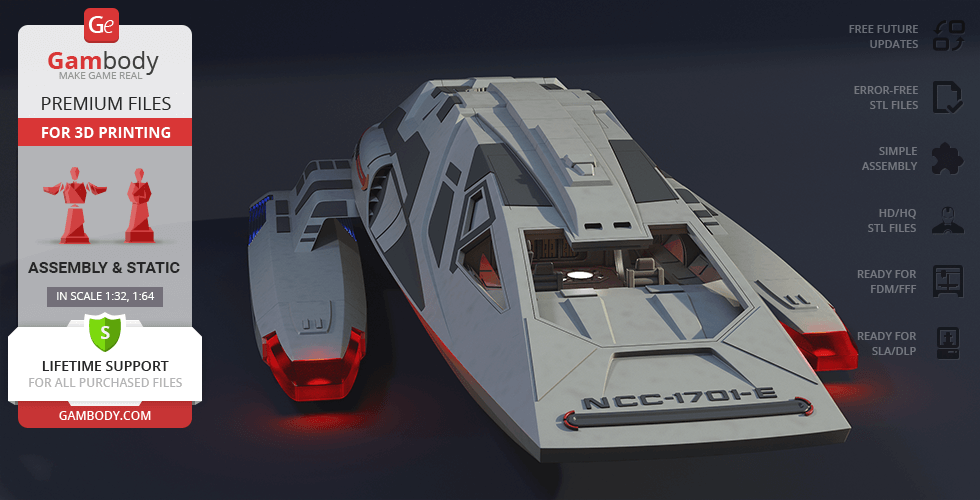

Type-11 shuttlecraft was yet another Federation Starfleet’s beautiful invention to assist intergalactic missions within the Star Trek universe. Most famously, it was assigned to the USS Enterprise NCC-1701-E and participated in the capturing of Data in orbit of Ba'ku. The convenient craft, just like its predecessors, comprised a compact body and two engine nacelles attached to the ventral sides. What was concealed inside it, you can find out with the new Type-11 Shuttlecraft model for 3D printing!

Type-11 Shuttlecraft 3D Printing Model has an immensely detailed design that invites you in. Apart from a classic sleek body with elegant ridges and aerodynamic nacelles, it has an incredible interior. The cockpit and the aft compartment are equipped with seats, control panels, bunk beds, and a table for your crew’s dining and meeting needs. The interior can be observed through the large window and accessed through removable panels and a number of opening hatches. Are you ready for this 3D printing trip?

ADAPTATION FOR 3D PRINTING

Type-11 Shuttlecraft for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 27 hours in total.

For you to receive the cleanest 3D printing result possible and minimize the amount of filament needed for generated support, the ship was divided into convenient assembly parts.

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the Type-11 Shuttlecraft model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model’s scale was calculated from the length of the Type-11 Shuttlecraft which is 16 000 mm. The 3D printing model’s chosen scales are 1:32 for the FFF/FDM version and 1:64 for the DLP/SLA version.

VERSIONS' SPECIFICATIONS

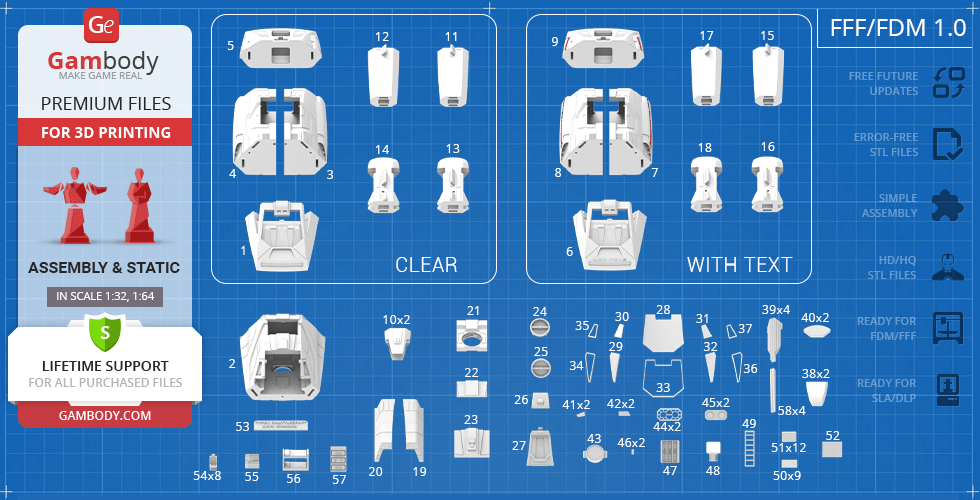

FFF/FDM 1.0 version features:

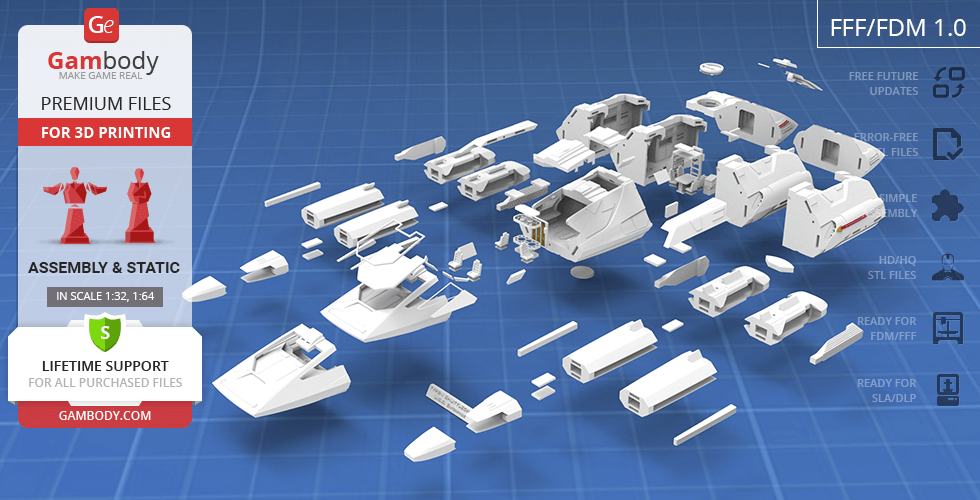

- Contains 58 parts;
- A printed model is 115 mm tall, 278 mm wide, 514 mm deep;
- Two hull variants - with raised markings and clean;
- Two window variants - simple window frame and with insertable glass;
- You can cut out the window from a 0.5 mm plastic sheet and install it into the window frame;
- Removable panel to access the interior;

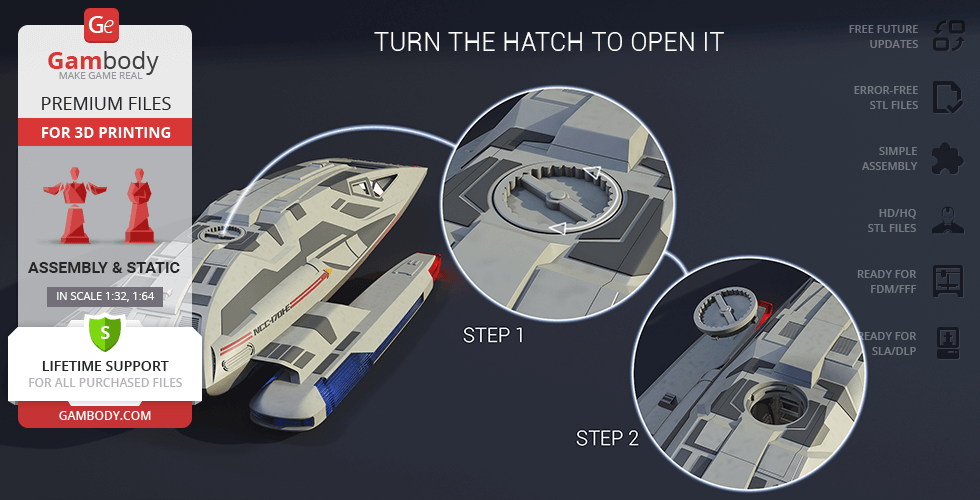

- Turn the dorsal hatch to open it;
- Opening clamshell exterior hatch;

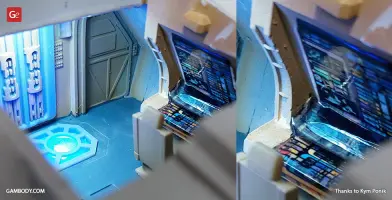

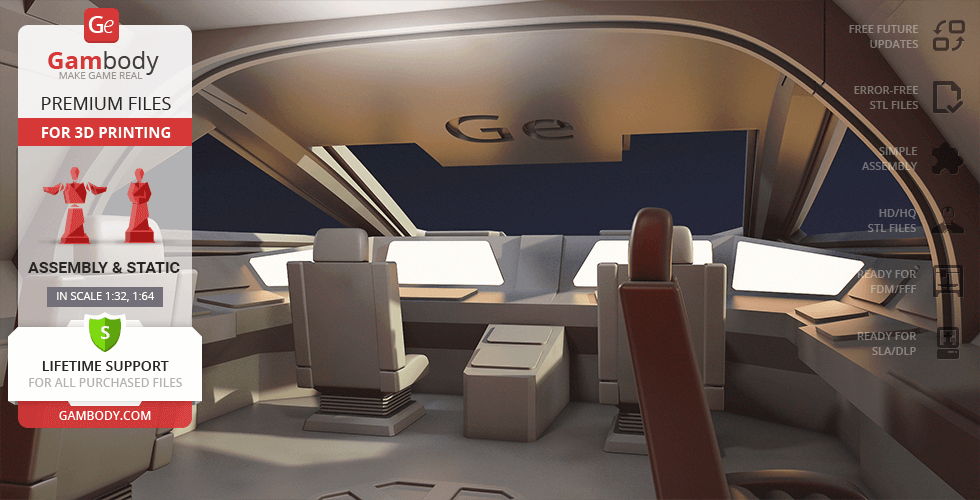

- Highly detailed cockpit;

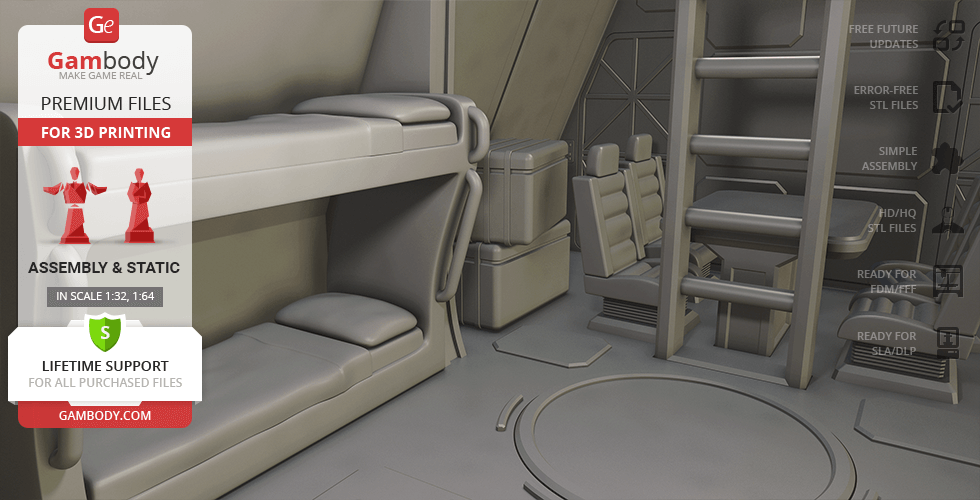

- Authentic aft compartment;
- Nameplate for your display;

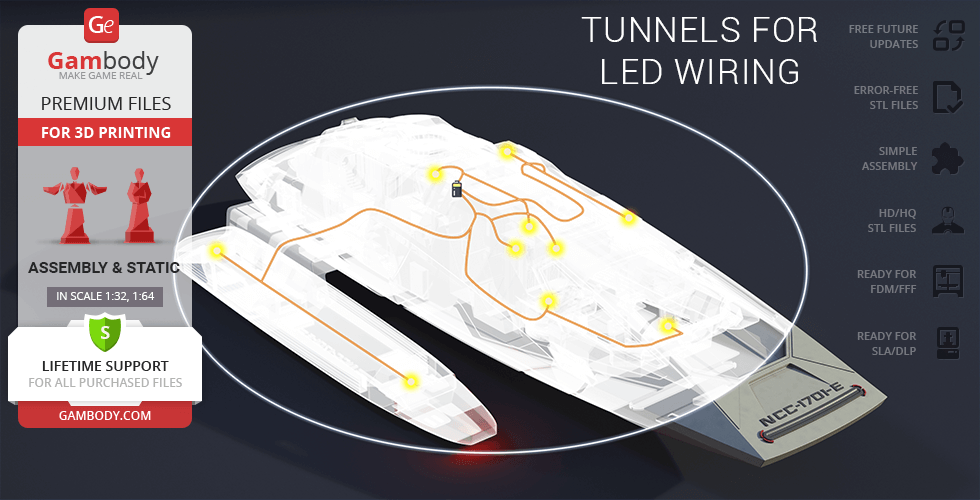

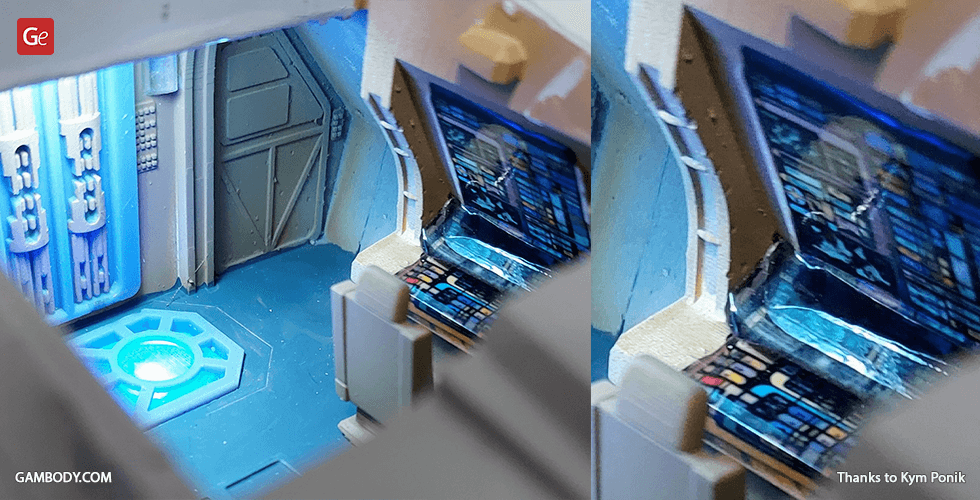

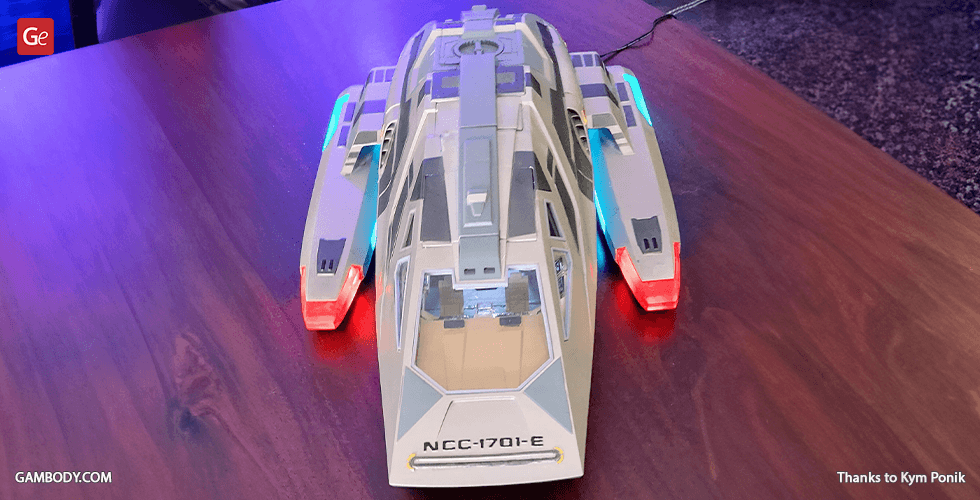

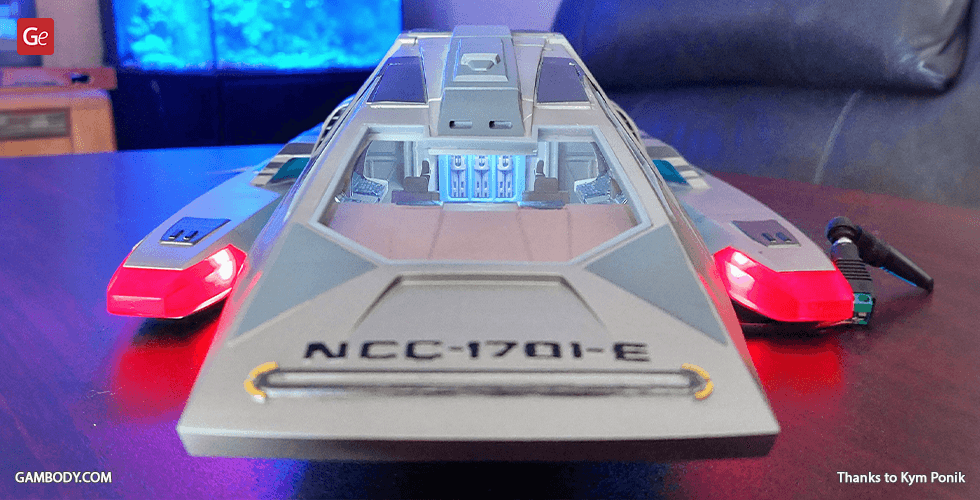

Tunnels for LED wiring are provided to light up the cockpit, several spots in the aft compartment, and the nacelles; the battery can be stored in the central compartment and the removable panel in the underside of the craft is provided for your convenience;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

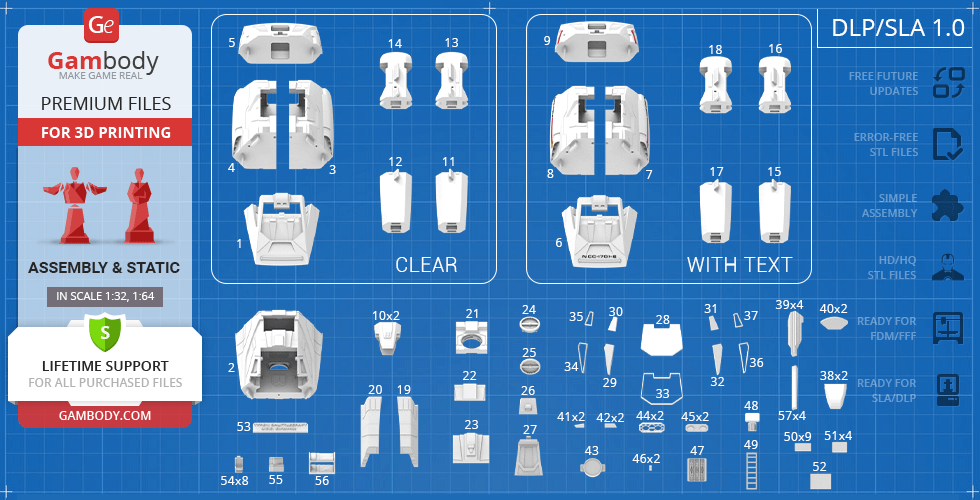

DLP/SLA 1.0 version features:
- Contains 57 parts;
- A printed model is 58 mm tall, 139 mm wide, 257 mm deep;
Two hull variants - with raised markings and clean;
- Two window variants - simple window frame and with insertable glass;
- You can cut out the window from a 0.5 mm plastic sheet and install it into the window frame;
- Removable panel to access the interior;
- Turn the dorsal hatch to open it;
- Opening clamshell exterior hatch;
- Highly detailed cockpit;
- Authentic aft compartment;
- Nameplate for your display;
Tunnels for LED wiring are provided to light up the cockpit, several spots in the aft compartment, and the nacelles; the battery can be stored in the central compartment and the removable panel in the underside of the craft is provided for your convenience;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the model of Type-11 Shuttlecraft for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Type-11 Shuttlecraft 3D Printing Model at Gambody YouTube channel.

Also, you may like the USS Enterprise NCC-1701-E and USS Enterprise NCC-1701 3D Printing Models, and other Space Ships for 3D Printing.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
  • All connectors should be printed at 100% Infill.

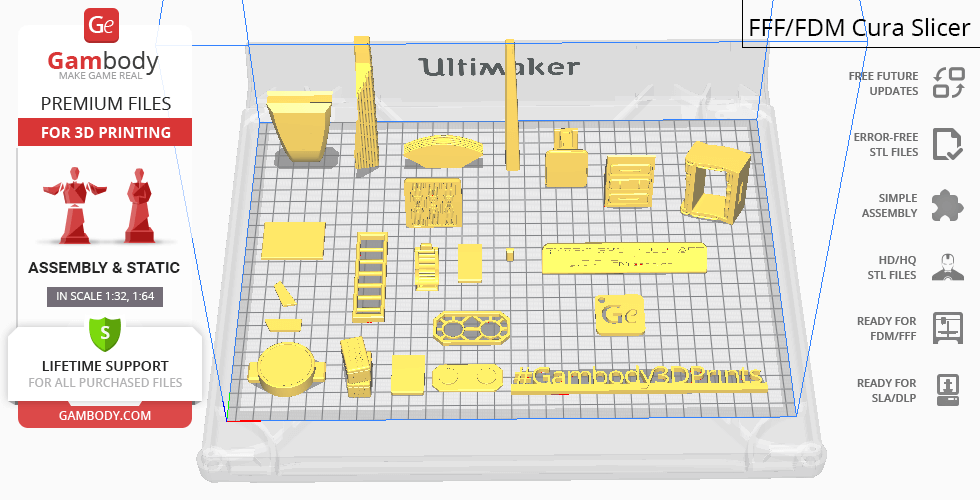

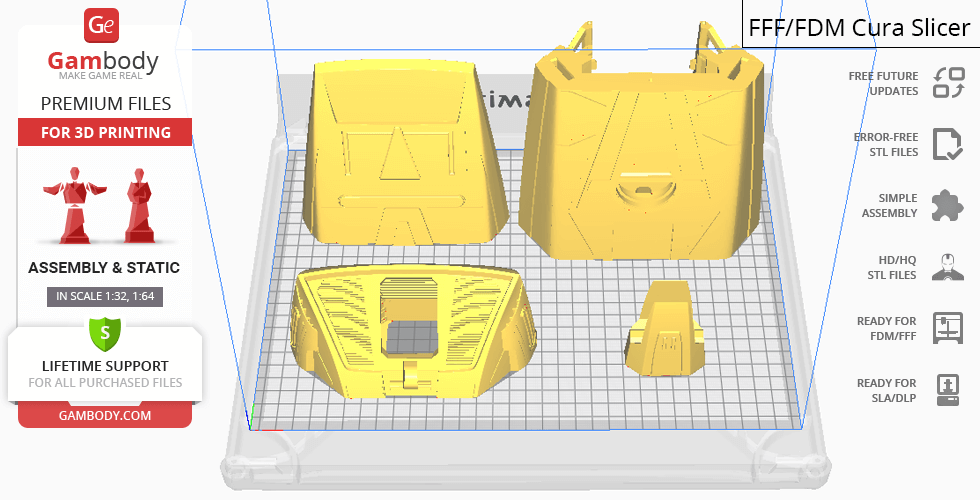

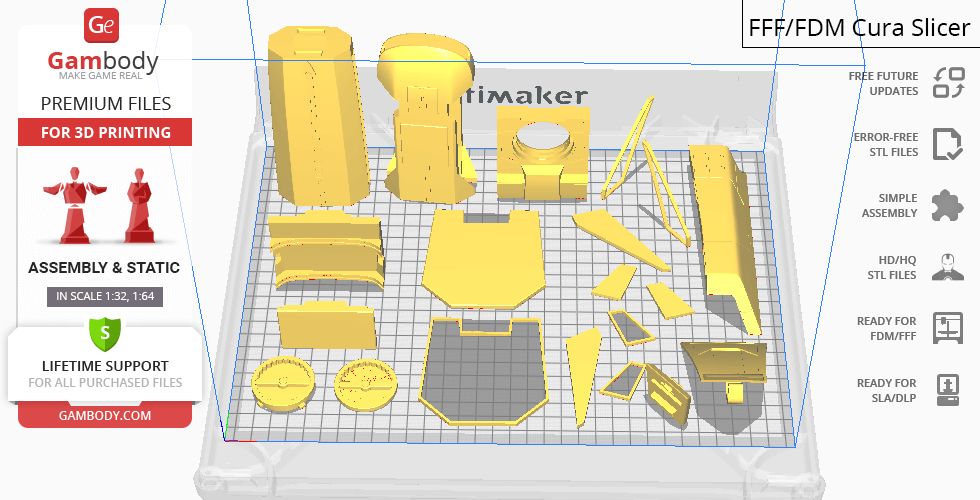

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
