Vulcan Tank 3D Printing Model | Assembly

cm: 17.4 w x 22.7 d x 13.4 h
in: 6.85 w x 8.937 d x 5.276 h

Source Files




Printing Details

This 3D Figurine consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Vulcan Tank 3D Printing Model comes in 5 versions for each 3D printer type (FFF/FDM, DLP/SLA and SLS). Files for each version are available for download after the purchase.

Detailed information about this model is available in the DESCRIPTION section.

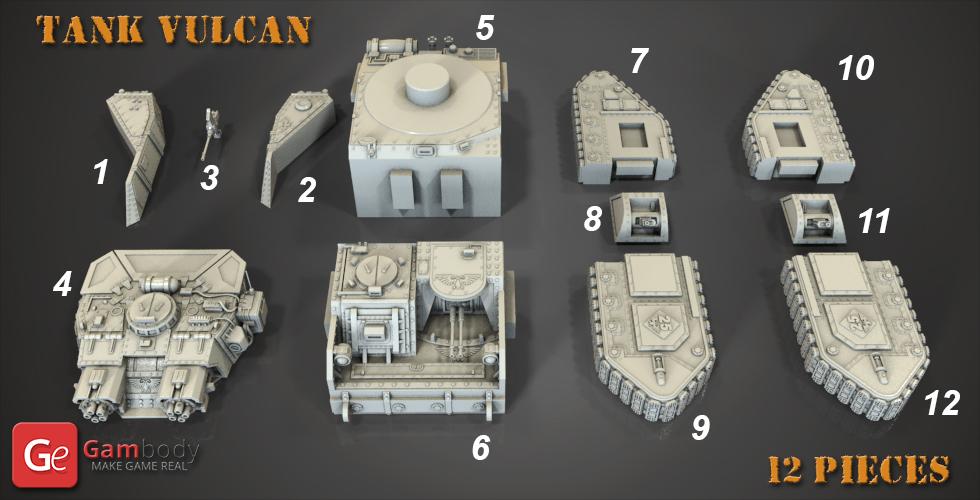

File Name File Size Time / Filament Object Size
(x/y/z mm)
vulcan_1 (repaired).stl
1.98 MiB 5 h 51 min 3 m 52 x 147 x 27 Download
vulcan_2 (repaired).stl
3.71 MiB 5 h 32 min 3 m 52 x 127 x 29 Download
vulcan_3 (repaired).stl
1.04 MiB 52 min <1 m 9 x 58 x 34 Download
vulcan_4 (repaired).stl
13.27 MiB 29 h 47 min 18 m 133 x 128 x 52 Download
vulcan_5 (repaired).stl
33.08 MiB 81 h 15 min 73 m 125 x 166 x 86 Download
vulcan_6 (repaired).stl
25.99 MiB 41 h 57 min 33 m 128 x 109 x 68 Download
vulcan_7 (repaired).stl
5.04 MiB 14 h 7 min 8 m 79 x 124 x 25 Download
vulcan_8 (repaired).stl
1.13 MiB 3 h 26 min 2 m 41 x 52 x 31 Download
vulcan_9 (repaired).stl
7.45 MiB 16 h 2 min 9 m 79 x 129 x 27 Download
vulcan_10 (repaired).stl
5.03 MiB 14 h 7 min 8 m 79 x 124 x 25 Download
vulcan_11 (repaired).stl
1.13 MiB 3 h 28 min 2 m 41 x 52 x 31 Download
vulcan_12 (repaired).stl
7.44 MiB 16 h 1 min 9 m 79 x 129 x 27 Download

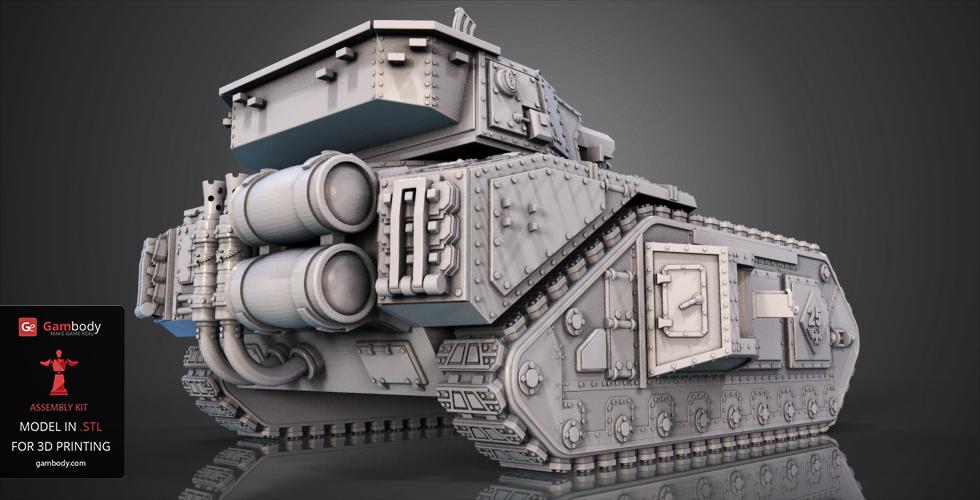

Vulcan Tank for 3D printing is inspired by the heavily armoured main battle tank from the popular tabletop game. If you want to expand your collection of mini battle vehicles, you can’t leave this 3D model out.

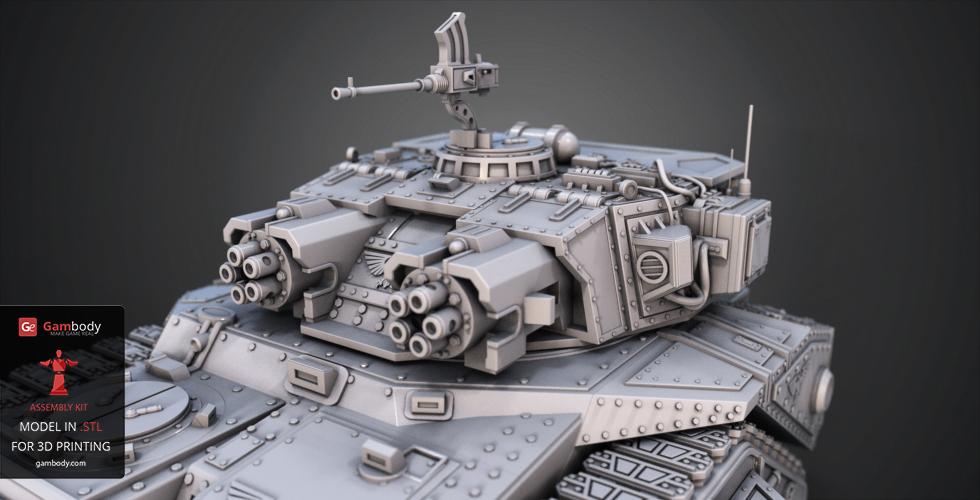

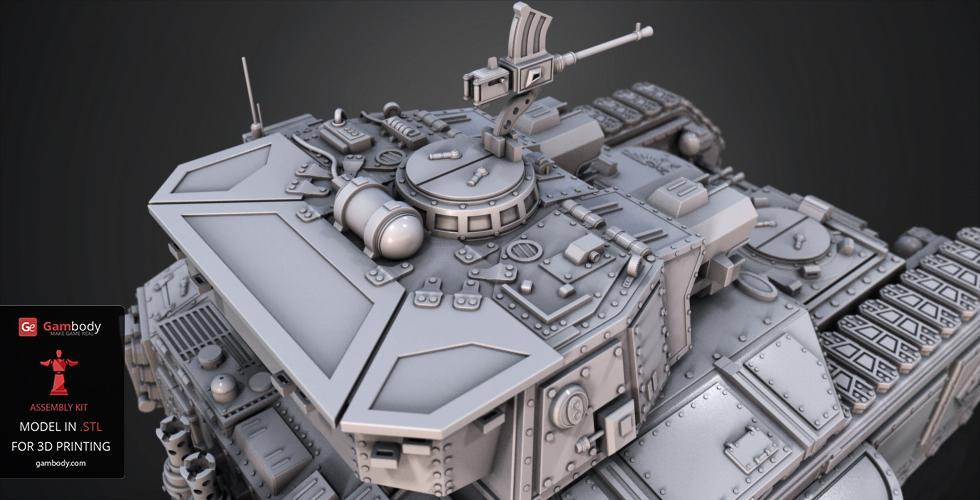

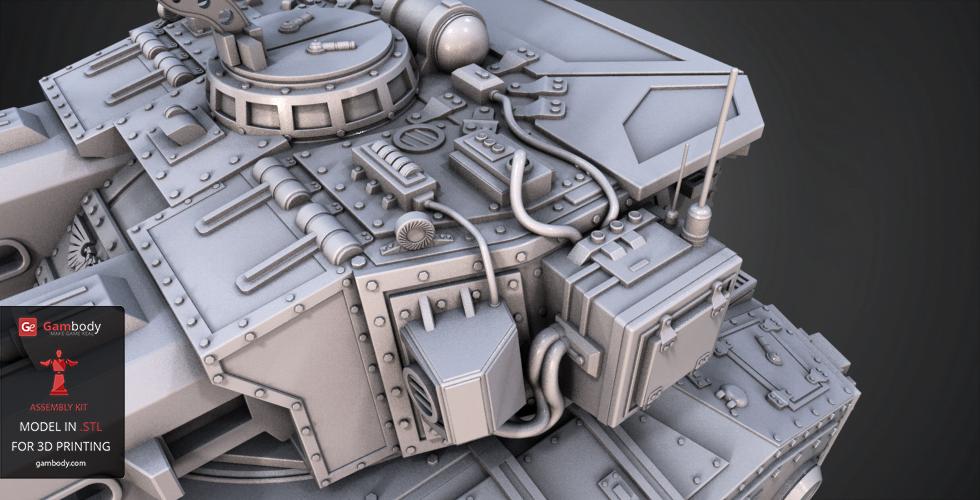

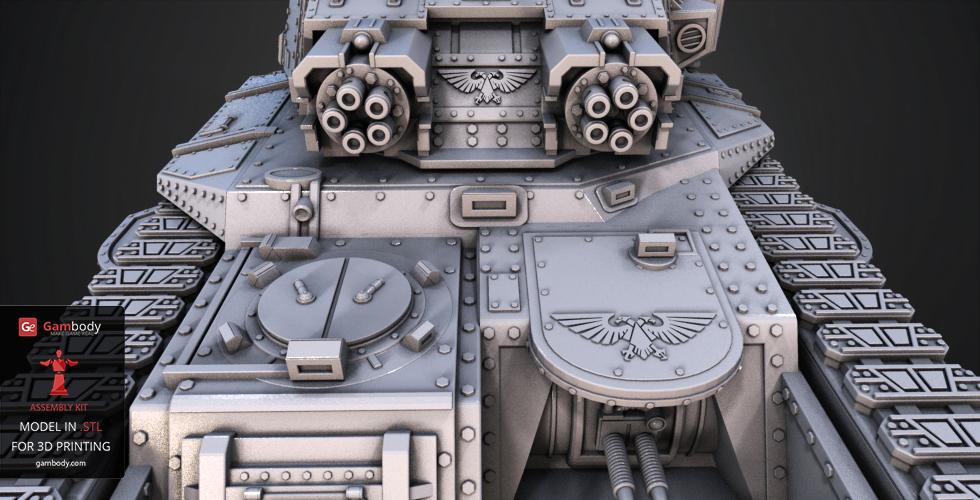

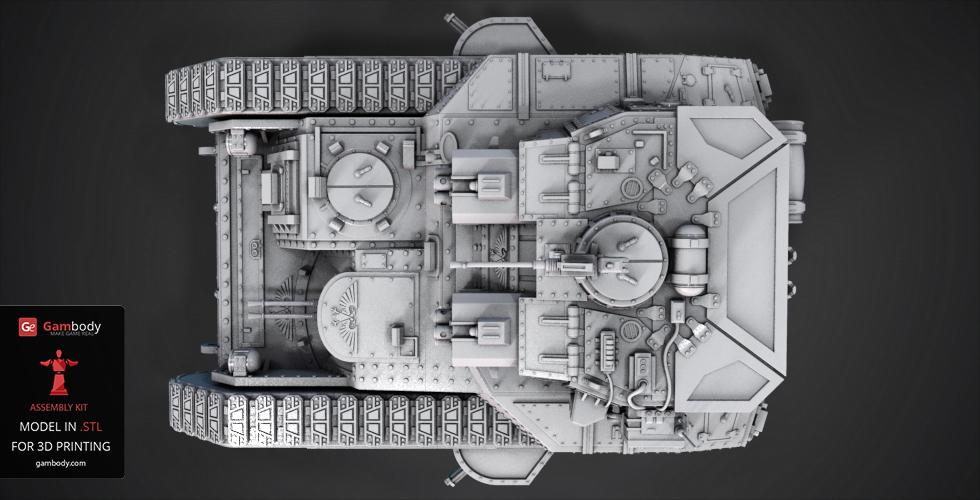

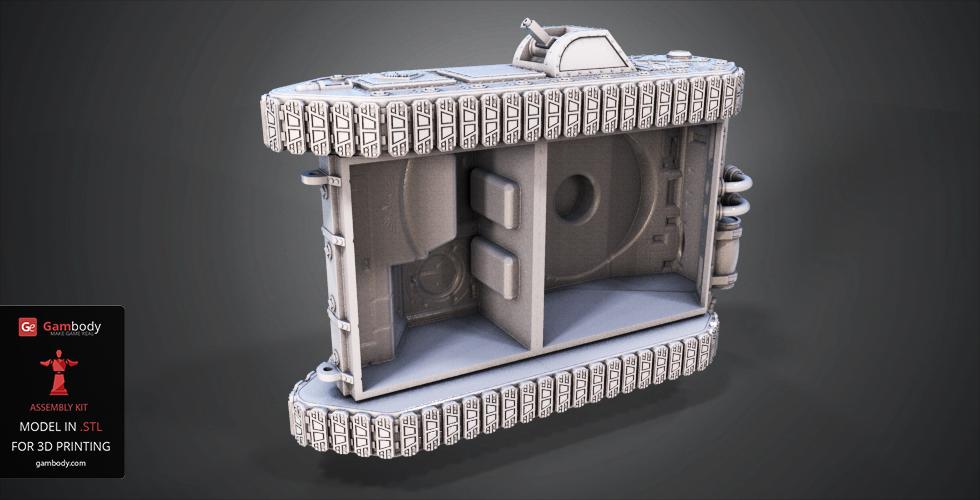

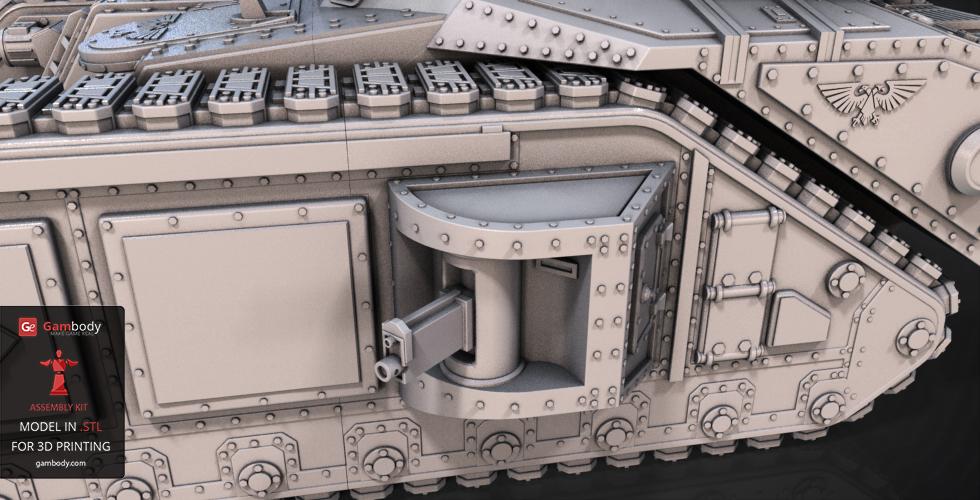

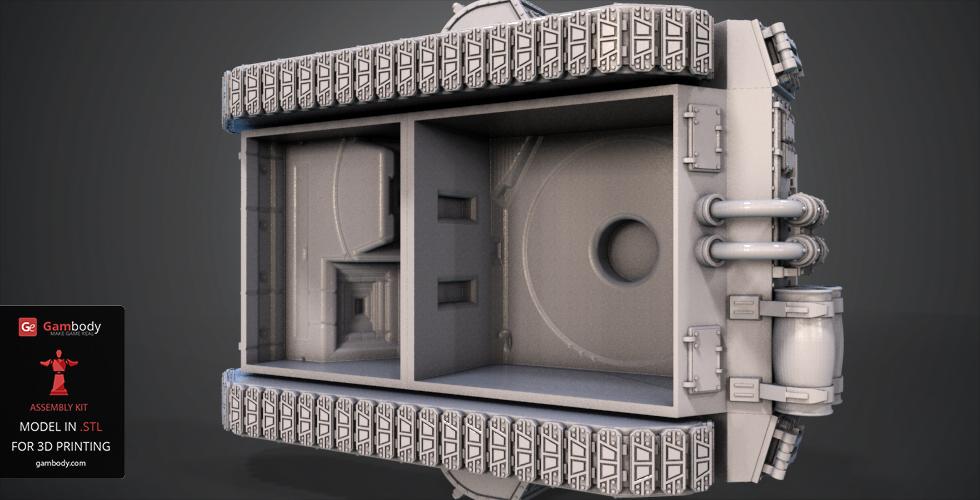

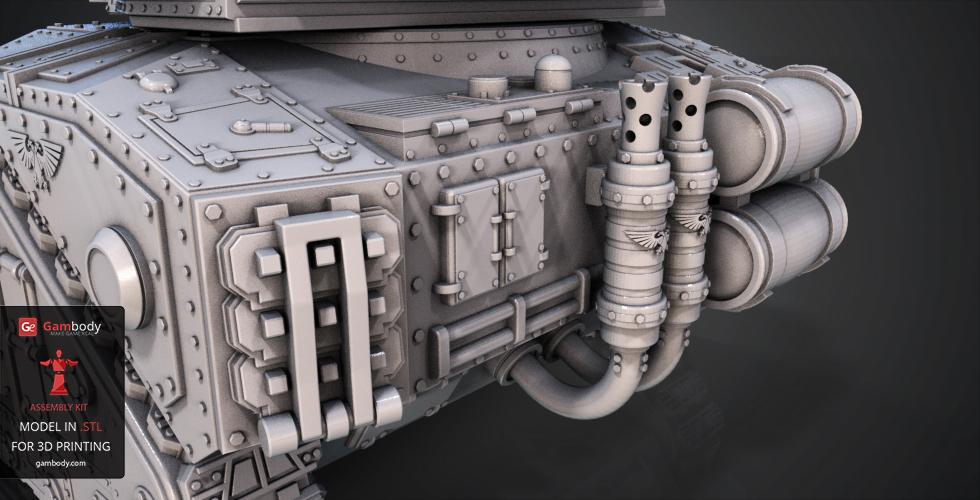

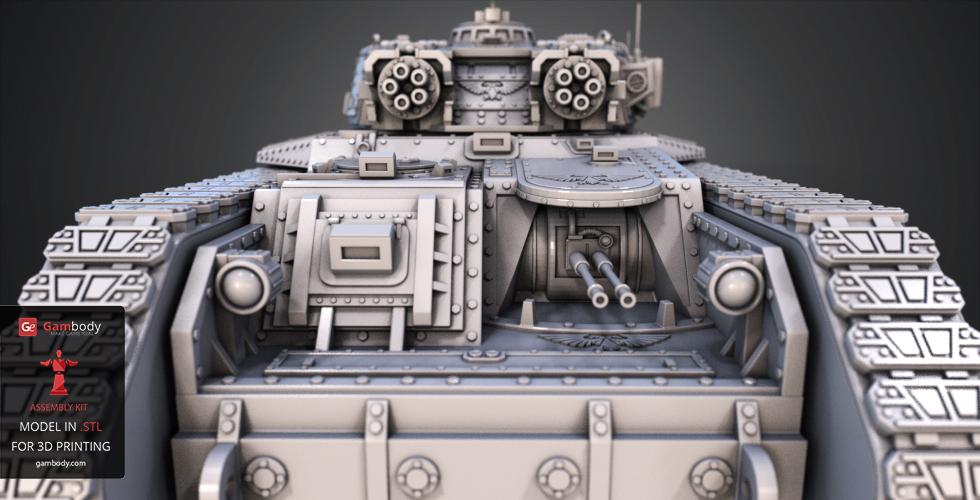

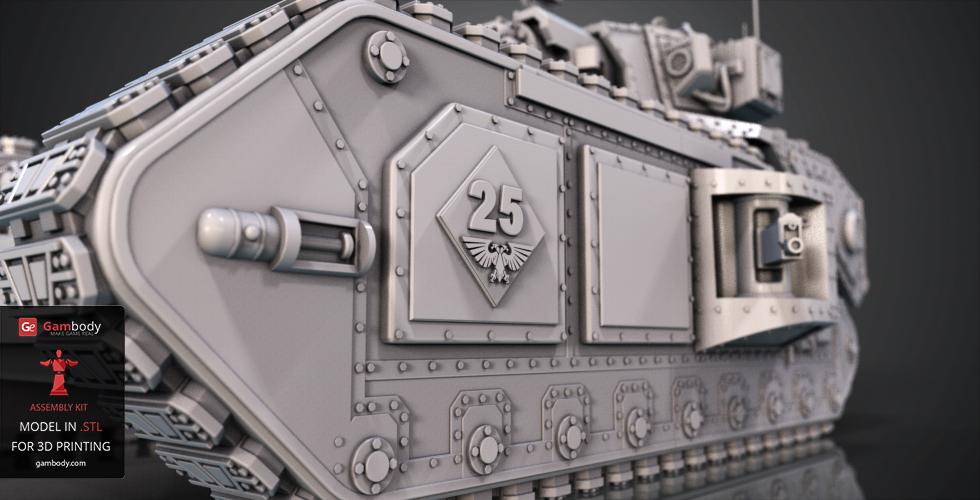

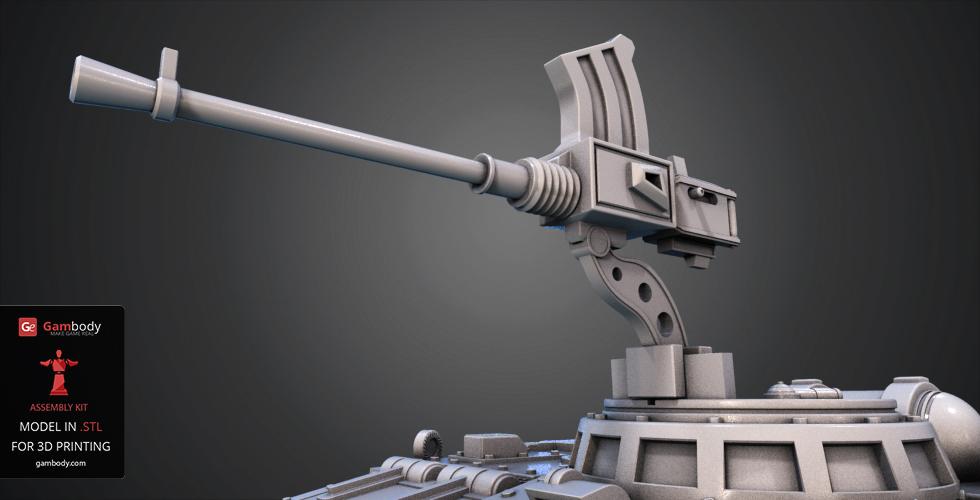

Enhanced with intricate details and fine design lines, the Vulcan 3D model is an assembly 3D model split into 12 parts. The largest parts of the 3D model use little infill. This means that you will be able to save on printing filament. This applies to SLS/SLA 3D printers.

The entire model was modeled in Autodesk Maya and ZBrush modeling programs. It is converted to STL file format. The files are checked and corrected in Netfabb and can be easily handled in any slicing program.

For you convenience, you can download some sample files to test print before buying all the STL files of the 3D model.

Click the video icon to the far right of the model’s picture slider to watch the video for the model’s assembly. Follow the instructions for an easy and correct assembly process.

After being 3D printed, Vulcan 3D model will stand 214 mm wide, 166 mm tall, and 280 mm depth.

Buy Vulcan Tank 3D model STL files by clicking the green Buy button in the top-right corner of the model’s page. Continue to checkout. Pay securely with your PayPal account or credit and download the STL files in a .zip folder.

3D print the model directly from our website with our partners: 3DHubs or Treatstock. Select the files you want to 3D print and click the Print with 3DHubs or Print with Treatstock buttons.

Check Merkava 2 Tank, Malcador Infernus Tank, and T-62 Russian Tank heavy armoured tanks made for 3D printing.


On 15.08.2018 have been added 4 new versions.

The model was completely redone. Here is the list of changes:
1. Changed the cutting of the model for more comfortable printing with the smallest amount of supports.
2. Reworked assembly of the model and Locks were added for connecting the parts.
3. Increased detalization, as well as worked out small technical details in order to maximize the repeat of the game analog model.
4. This update was divided into 4 versions, for comfortable printing on different types of printers. The SLS version of Vulcan Tank was divided into 2 new scale versions of 1:72 and 1:96.

One part of Lock (2_Ge_lock_10H_(x78)) you need to print 78 times.

New sizes of this model:

FFF/FDM 2.0 version 1:48 Scale dimensions:
After being printed will stand - 134 mm tall, 174 mm wide, 227 mm deep;

DLP/SLA 1.0 version 1:72 Scale dimensions:
After being printed will stand - 89 mm tall, 115 mm wide, 151 mm deep;

SLS 1.0 version 1:72 Scale dimensions:
After being printed will stand - 89 mm tall, 115 mm wide, 151 mm deep;

SLS 1.0 version 1:96 Scale dimensions:
After being printed will stand - 67 mm tall, 86 mm wide, 113 mm deep;

There are 17 parts for FFF/FDM 2.0 version, 11 parts for DLP/SLA 1.0 version and 2 parts for each SLS 1.0 versions.

STL files are already available for download in “Source files” tab for (FFF/FDM 2.0), (DLP/SLA 1.0), (SLS 1.0 (1:72 Scale)), (SLS 1.0 (1:96 Scale)).

Watch the tutorial video on how to assemble new Vulcan Tank​ 3D Printing Model at Gambody YouTube channel.


Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine


This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for Cura and Simplify3D softwares.

Cura printing recommendations:

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
     Support Infill Speed: 45 mm/s
Travel Speed: 60 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Extruder 1 Temperature: 210
Heated Bed: 60

Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Unsupported area threshold: 20.0 sq m
