This 3D printing design of The Last Engineer from the Alien universe consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

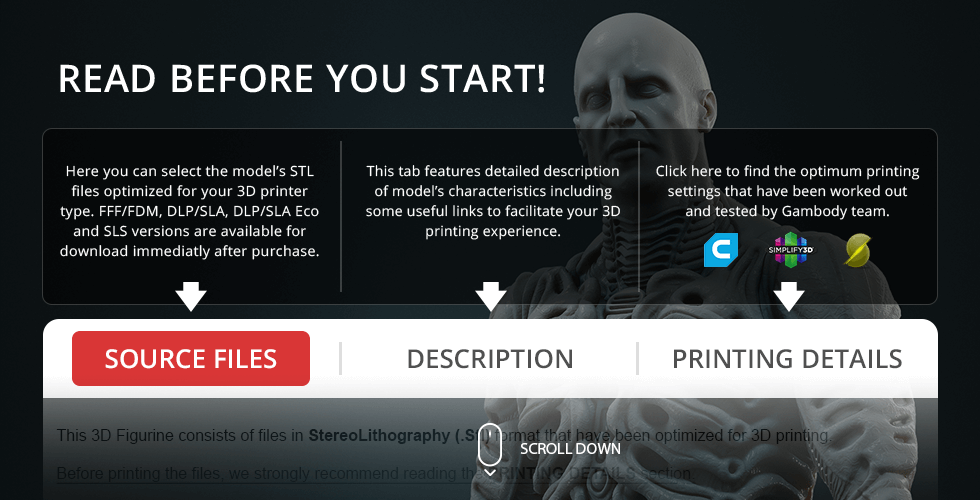

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

4 versions of The Last Engineer STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco, and SLS — files for all versions are available for download after the purchase;
STL files of high-poly The Last Engineer model for 3D printing consist of 24 files;
Sizes for:
FFF/FDM: 316 mm tall, 135 mm wide, 138 mm deep;
DLP/SLA/SLS: 158 mm tall, 68 mm wide, 69 mm deep;
Assembly Manual for 1.0 FFF/FDM and 1.0 DLP/SLA versions in PDF and video formats;
Detailed settings that we provide as a recommendation for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer for the best print;
Full technical support from the Gambody Support Team.

Detailed information about these 3D printer STL files is available in the DESCRIPTION section.


	File Name	File Size	Time / Filament	Object Size (x/y/z mm)

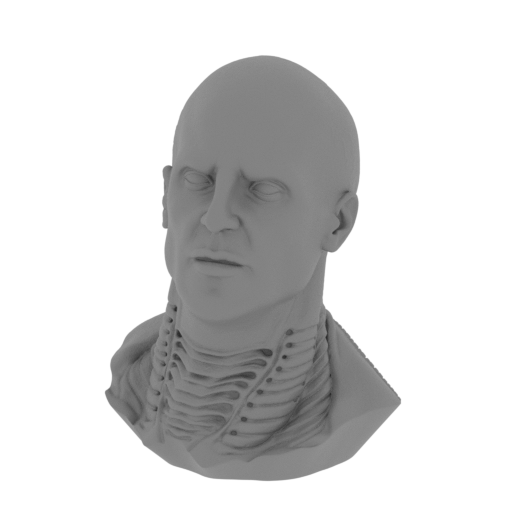

	1_head_FDM(repaired).stl	43.03 MiB	3 h 51 min 2 m	44 x 40 x 56	Download

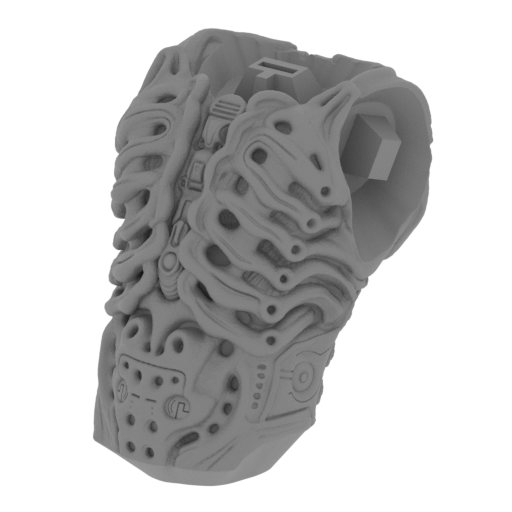

	2_body_FDM(repaired).stl	55.90 MiB	21 h 39 min 13 m	69 x 76 x 86	Download

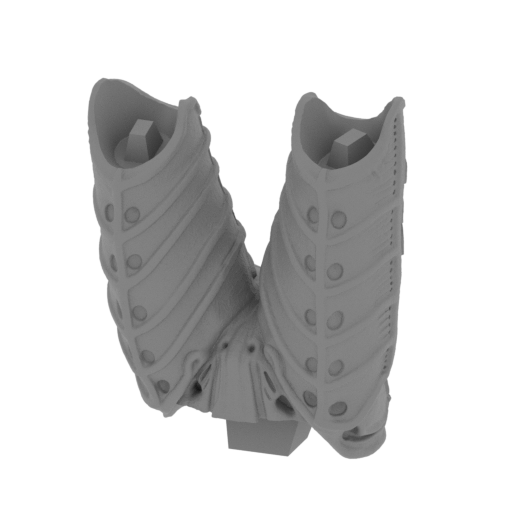

	3_legs_FDM(repaired).stl	56.02 MiB	15 h 43 min 9 m	73 x 51 x 90	Download

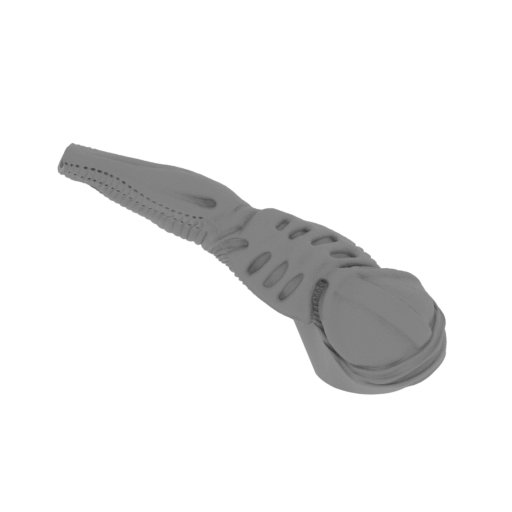

	4_arm_R_FDM(repaired).stl	33.63 MiB	5 h 8 min 3 m	92 x 34 x 54	Download

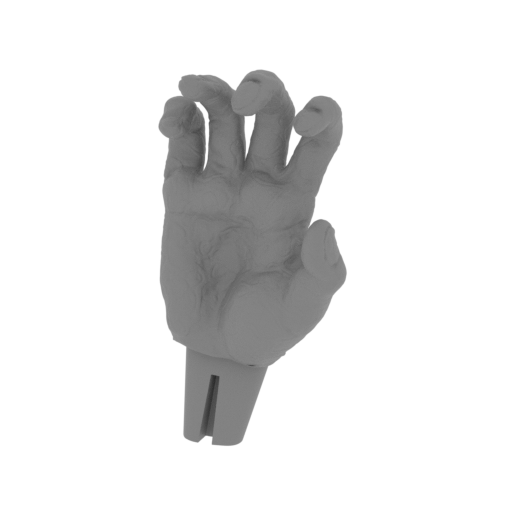

	5_hand_R_FDM(repaired).st l	26.49 MiB	47 min <1 m	21 x 14 x 37	Download

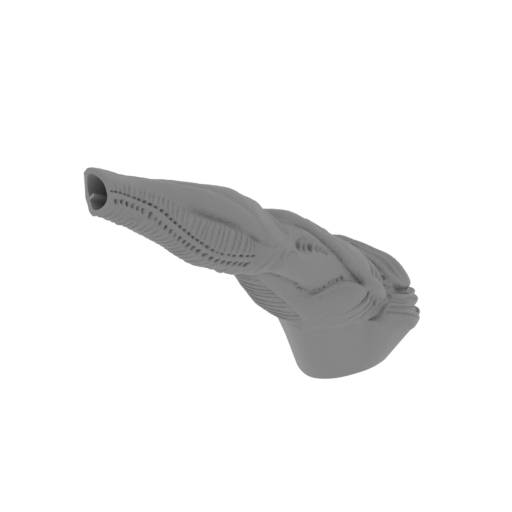

	6_arm_L_FDM(repaired).stl	31.33 MiB	4 h 58 min 3 m	51 x 80 x 61	Download

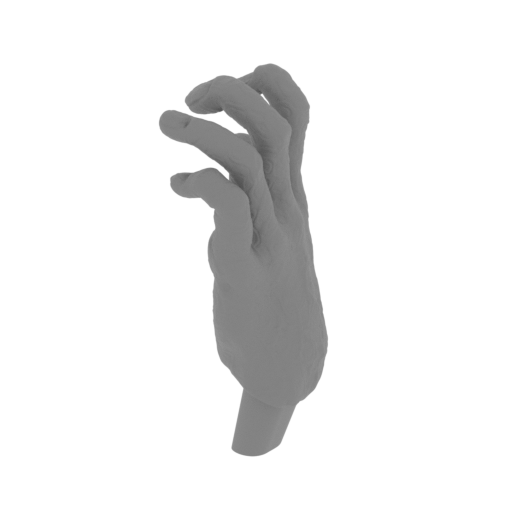

	7_hand_L_FDM(repaired).st l	23.50 MiB	48 min <1 m	14 x 23 x 37	Download

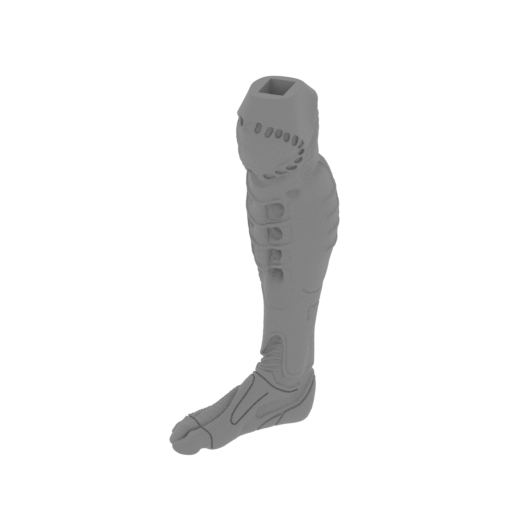

	8_foot_R_FDM(repaired).st l	37.25 MiB	5 h 60 min 4 m	40 x 43 x 104	Download

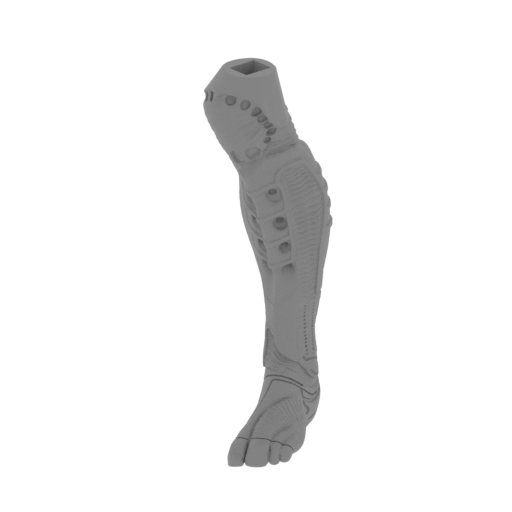

	9_foot_L_FDM(repaired).st l	36.20 MiB	6 h 11 min 4 m	32 x 51 x 105	Download

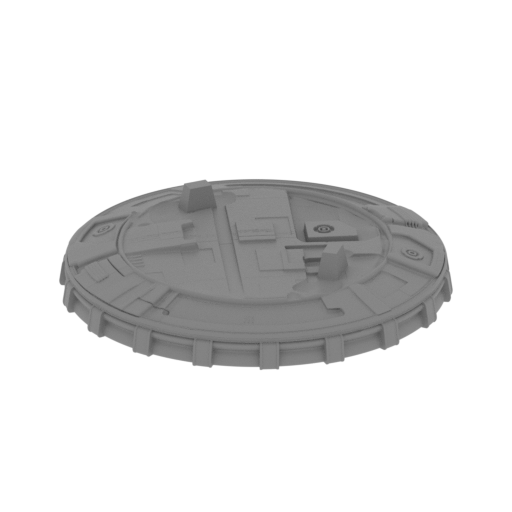

	10_platform_FDM(repaired) .stl	52.87 MiB	19 h 17 min 10 m	135 x 136 x 26	Download
	11_ge_lock_10H(x2)_FDM(re paired).stl	0.03 MiB	4 min <1 m	10 x 18 x 2	Download

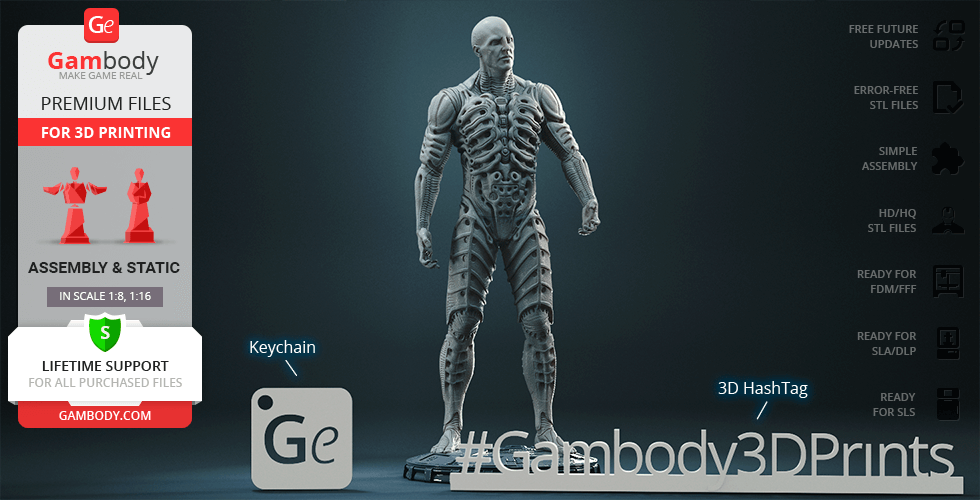

	Keychain (repaired).stl	0.35 MiB	23 min <1 m	30 x 30 x 2	Download
	Tag (repaired).stl	1.70 MiB	1 h 18 min 1 m	150 x 18 x 5	Download
...

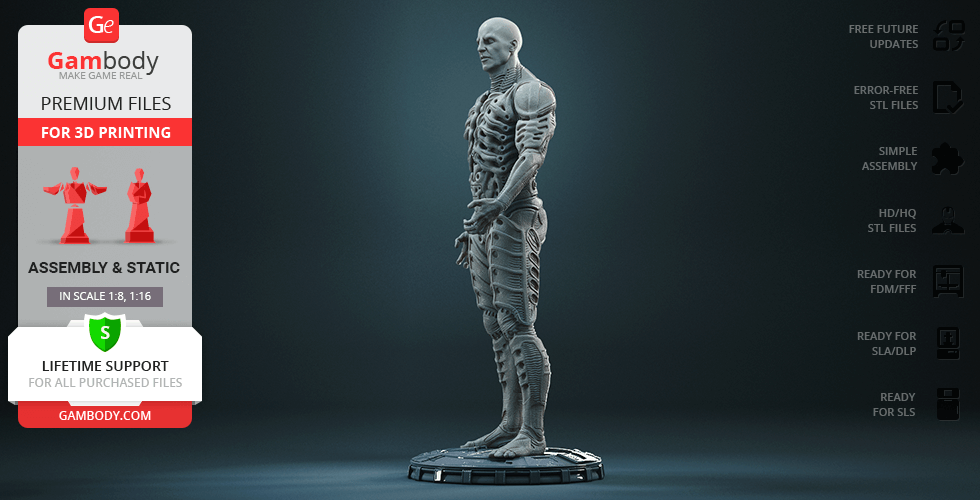

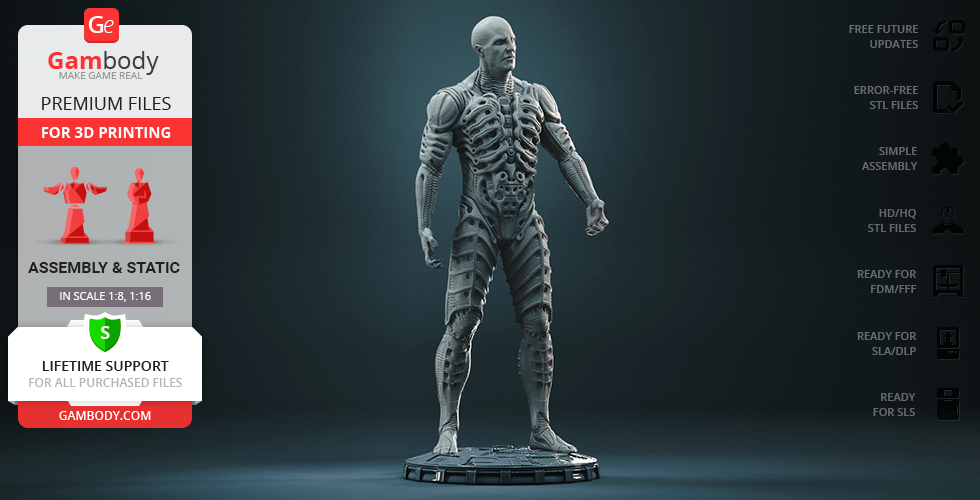

ABOUT THIS 3D MODEL

The Engineers, who are also known as Pilots, Space Jockeys, or Ossians, are an ancient alien species, credited with the "engineering" of the human race. The large pale-white humanoid beings first appeared in the fifth instalment in the Alien franchise, Prometheus, and instantly aroused fear in sci-fi fans.

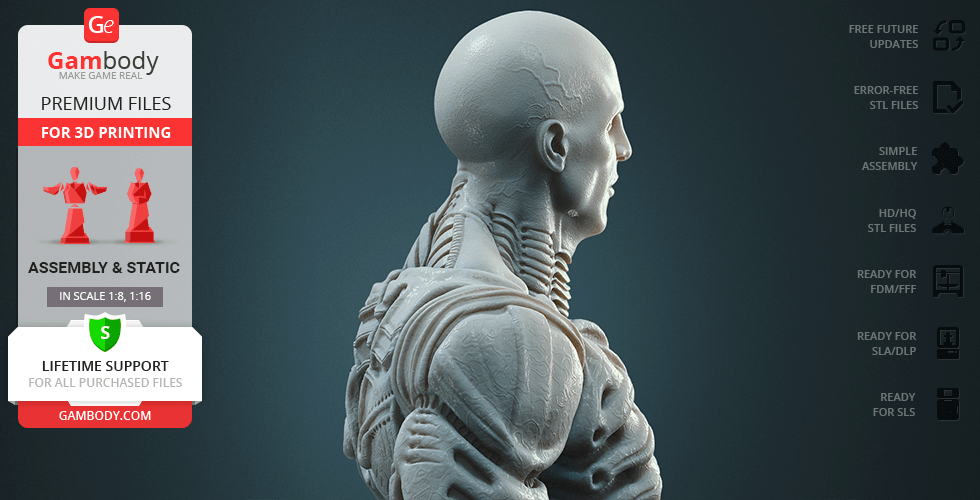

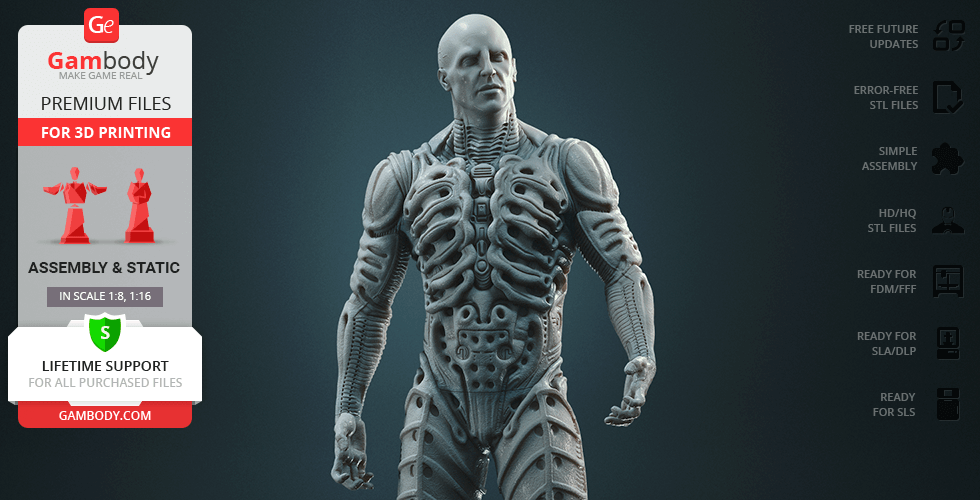

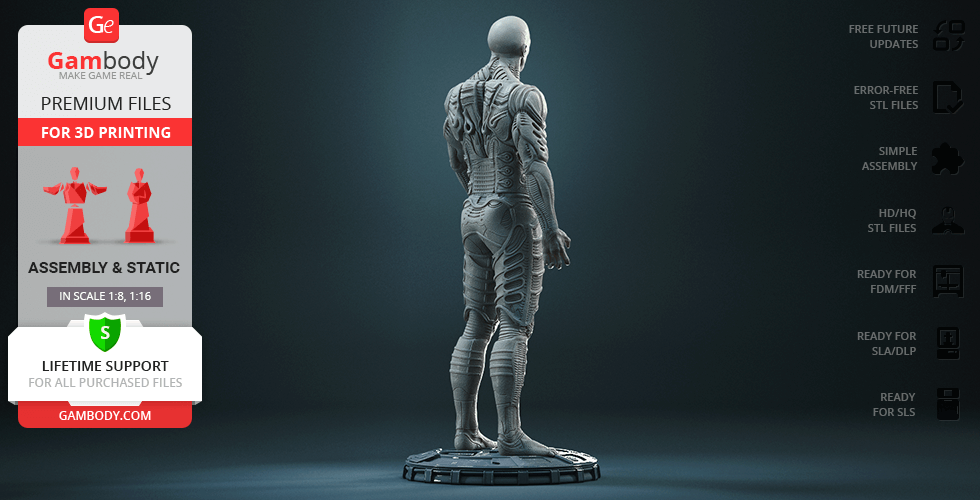

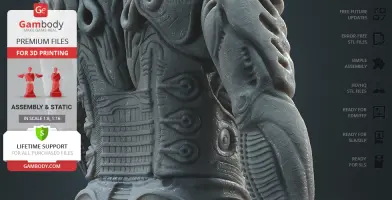

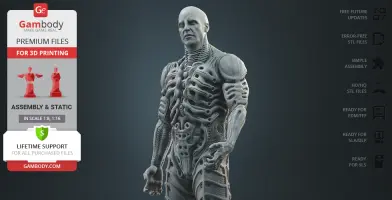

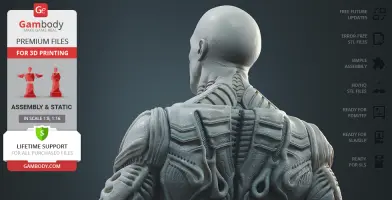

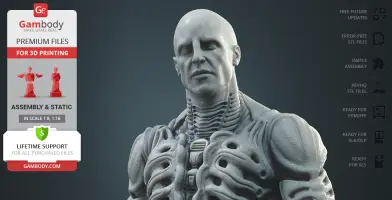

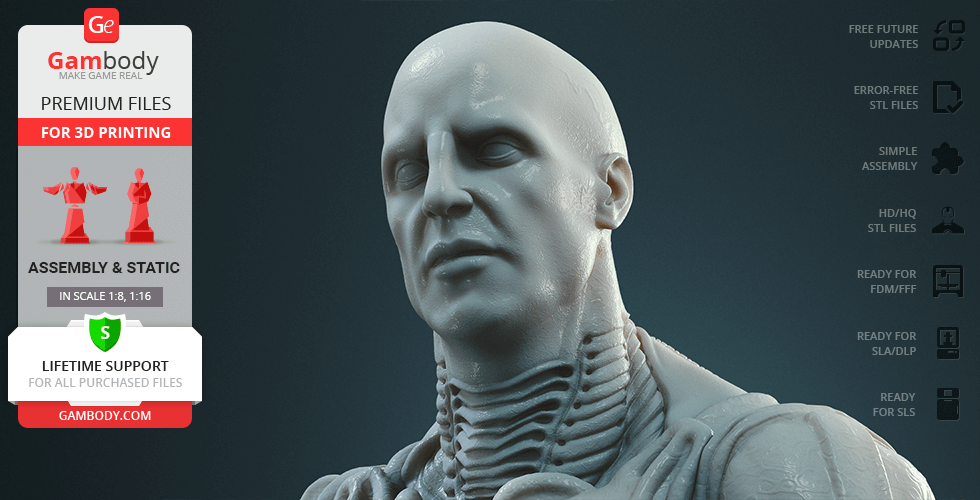

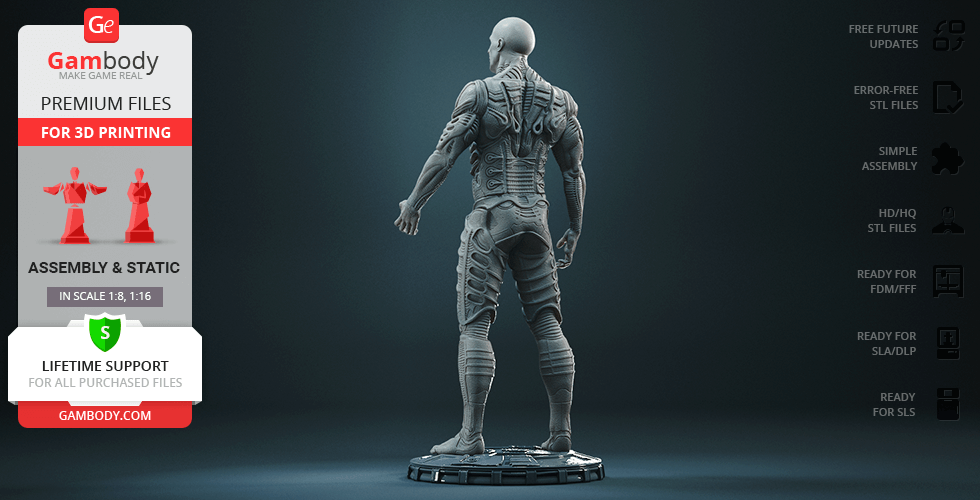

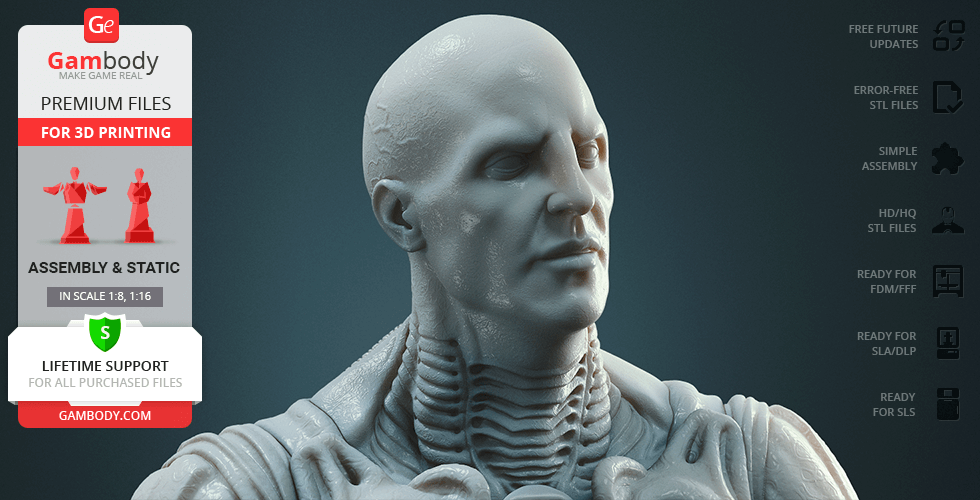

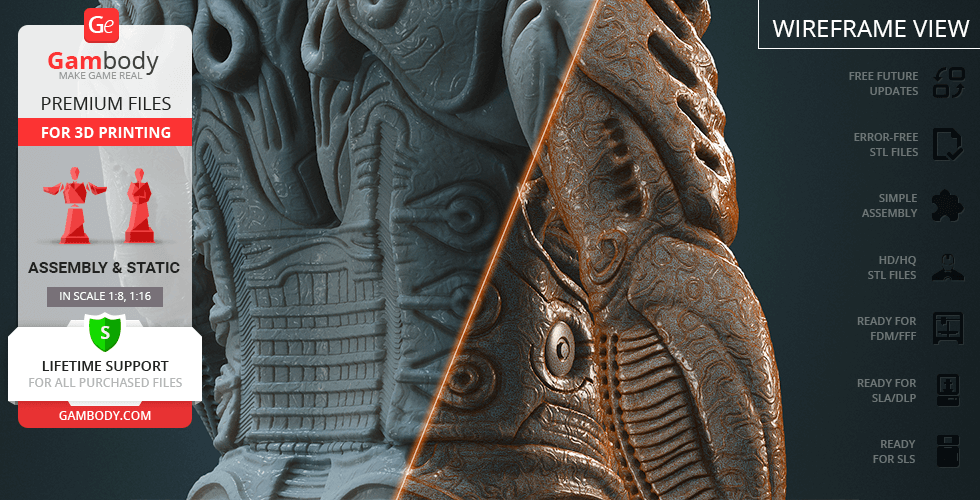

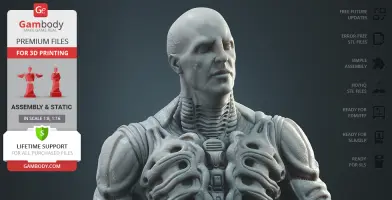

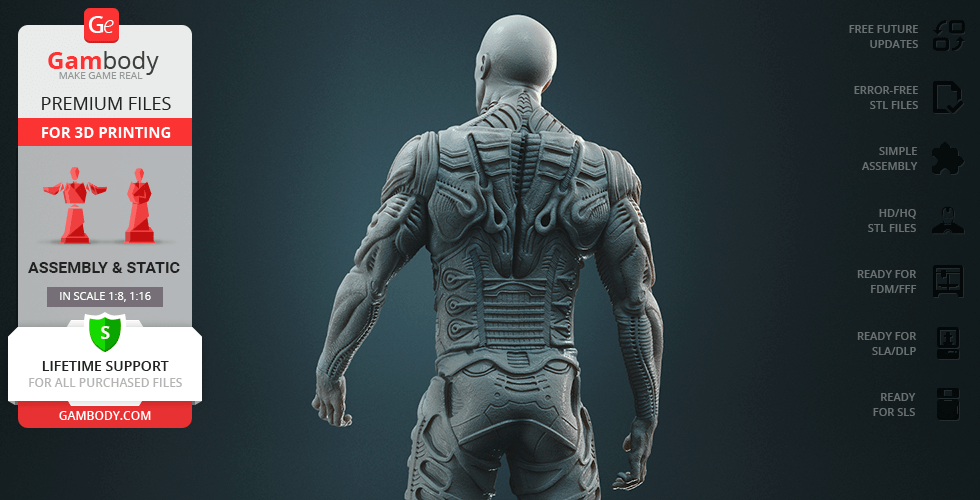

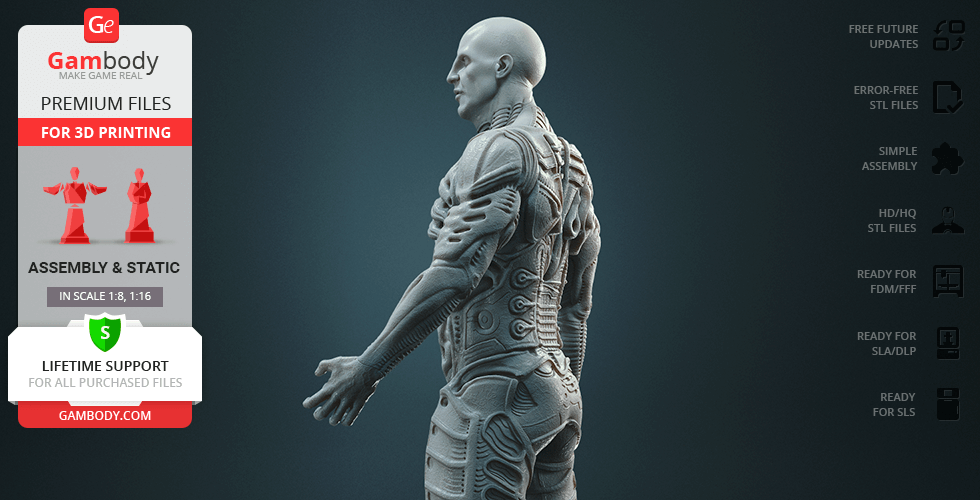

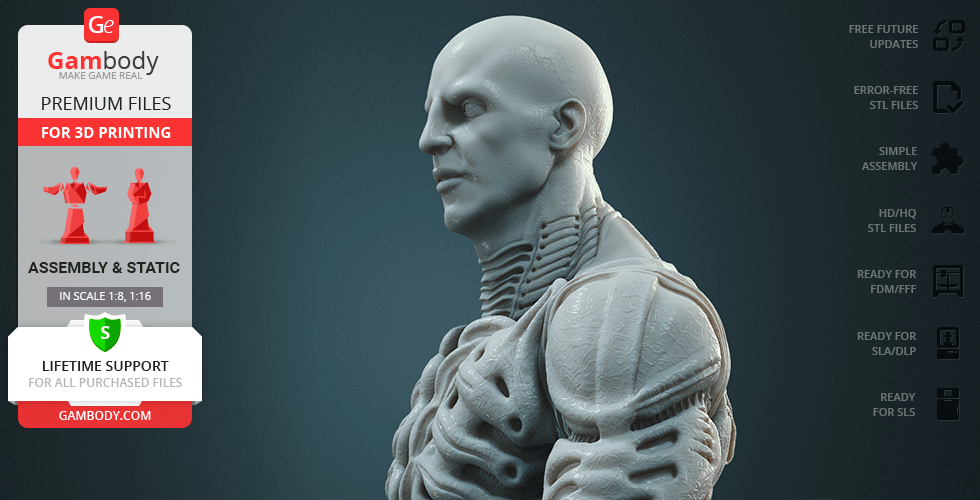

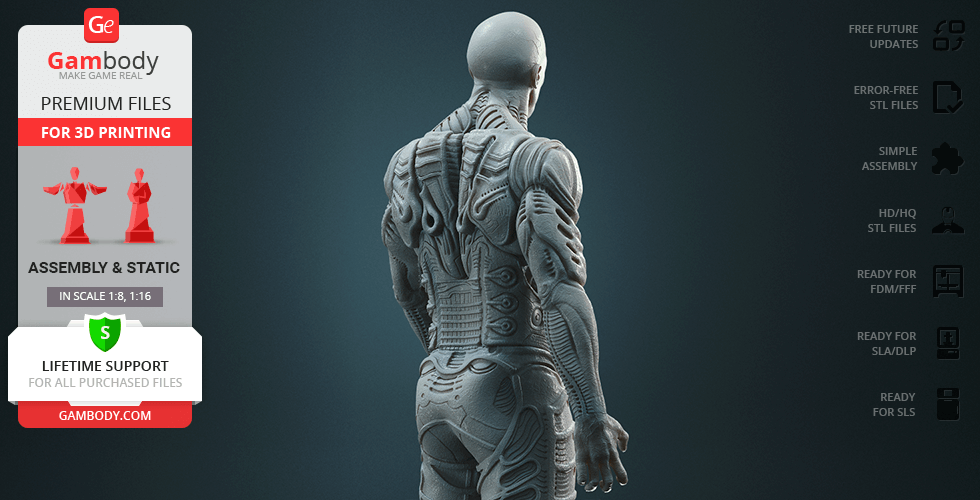

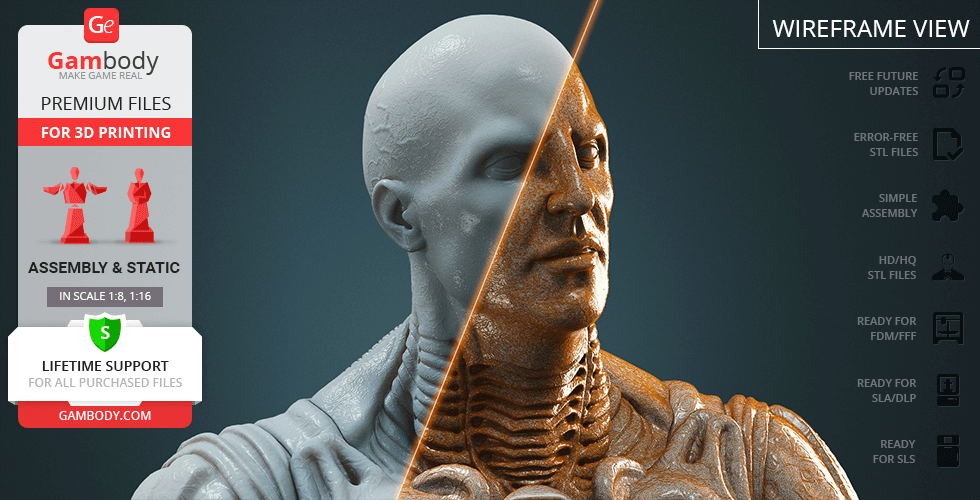

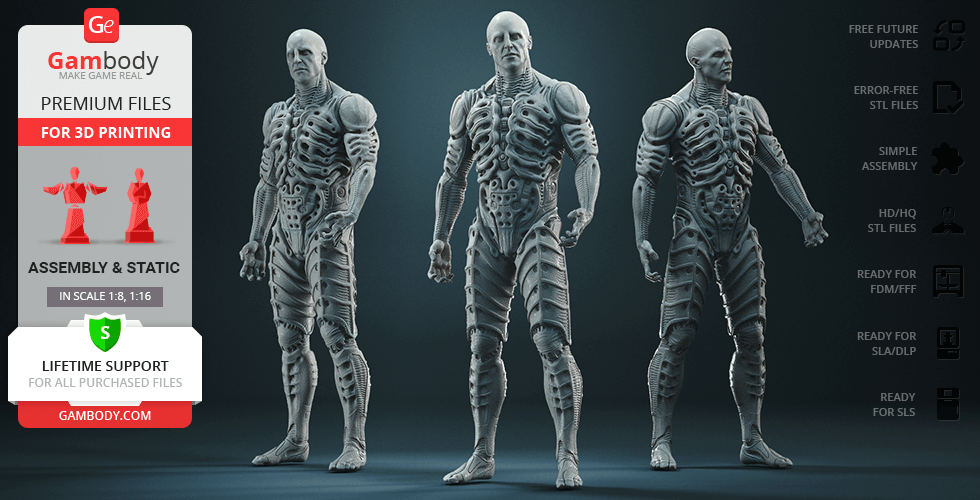

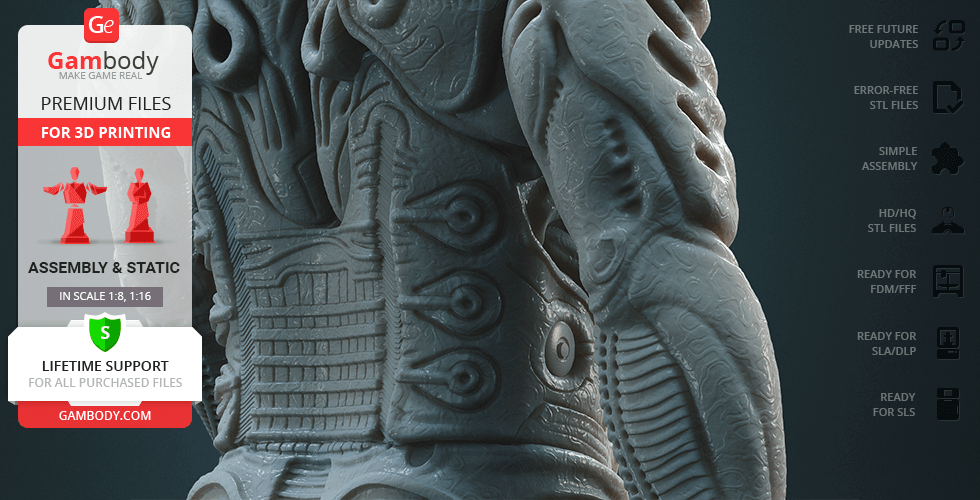

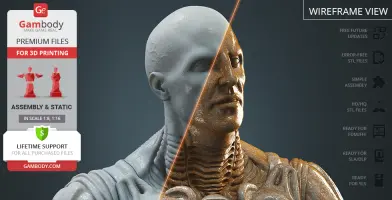

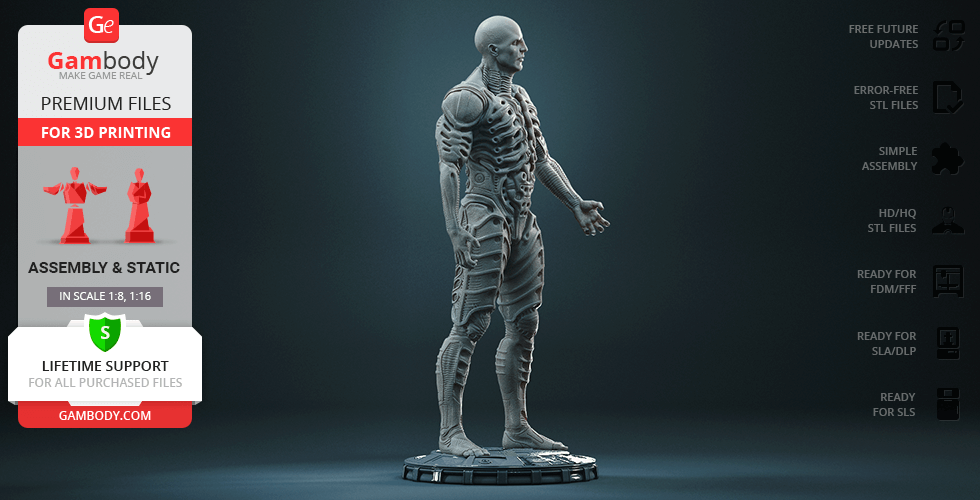

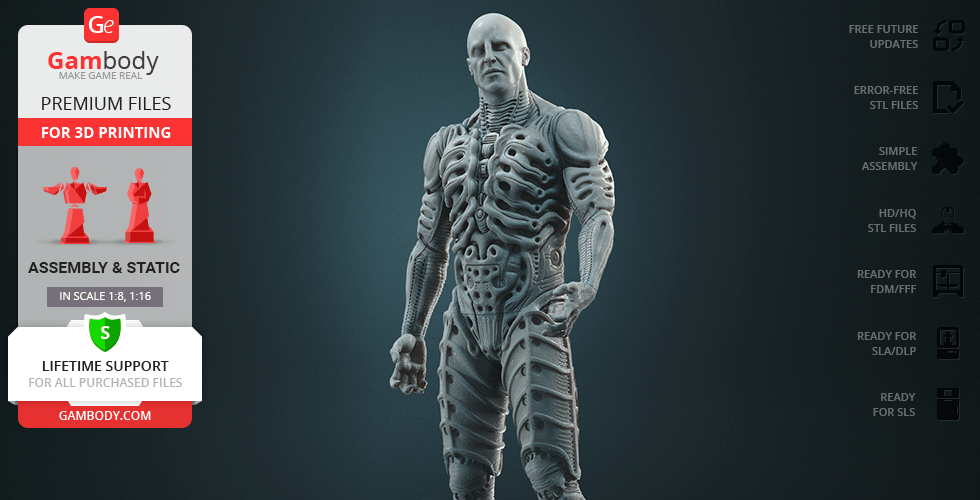

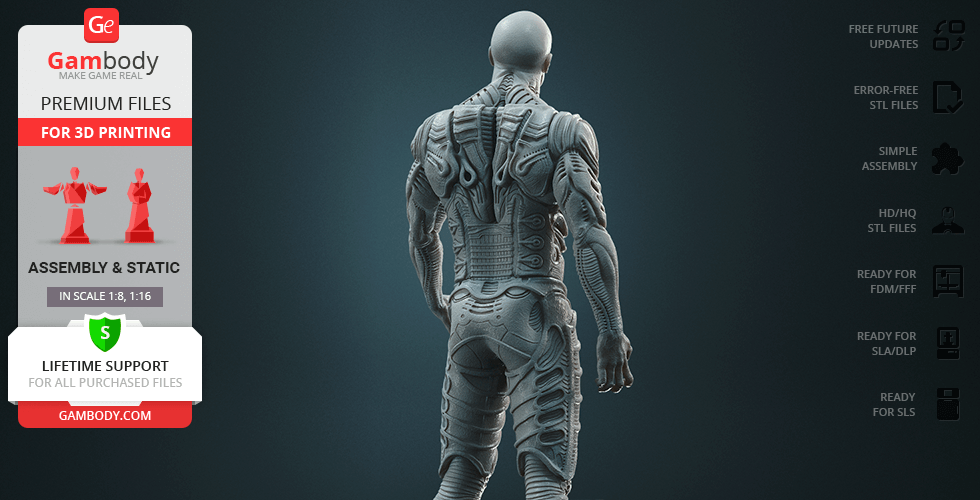

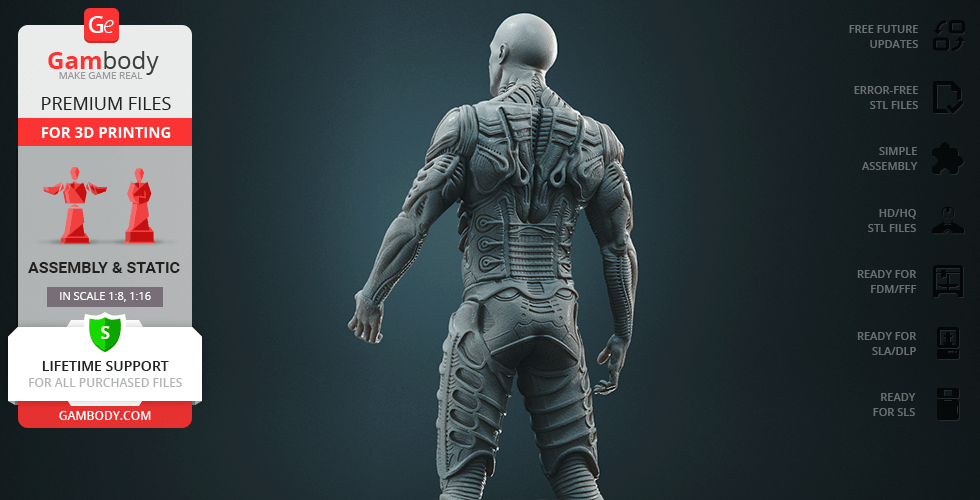

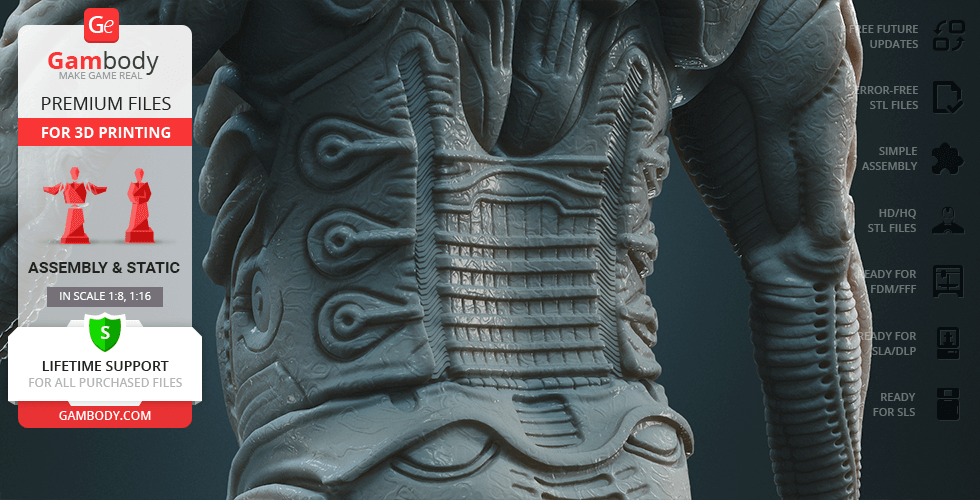

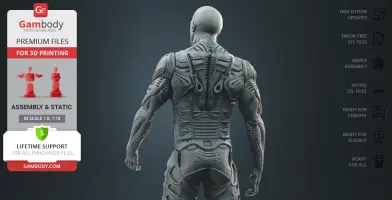

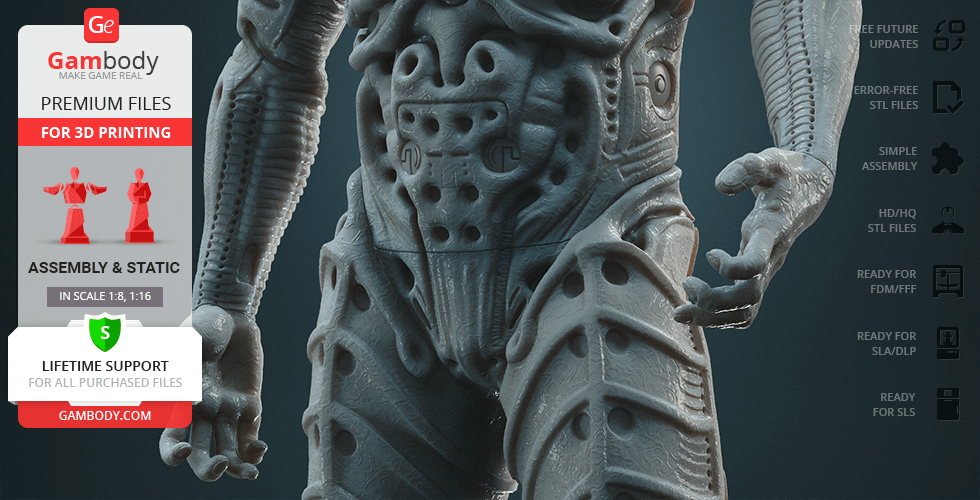

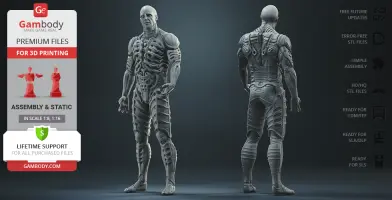

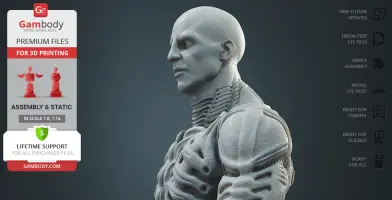

Our contributing 3D artist decided to depict the Last Engineer whom the Prometheus' crew awaked from hypersleep inside the Engineer Temple. The completion of the 3D printing project took its author circa 140 hours in total and resulted in an extremely realistic 3D model of the extraterrestrial “Space Jockey”. The humanoid alien for 3D printing is outfitted with a highly detailed biomechanical pressure suit that emphasizes Engineer's incredible musculature. The 3D printing Ossian is hairless and if you take a closer look at the model's head, you will be able to see tiny veins visible underneath his skin.

ADAPTATION FOR 3D PRINTING

The Last Engineer 3D printing design is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 34 hours. The model's anatomy and proportions were thoroughly reviewed during the moderation process for the humanoid extraterrestrial being to be depicted harmoniously in the intended pose.

The model’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the model must be connected, the model was cut along the contour of the Engineer's Bio-Suit seams.

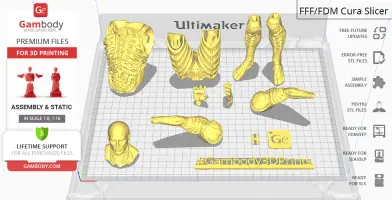

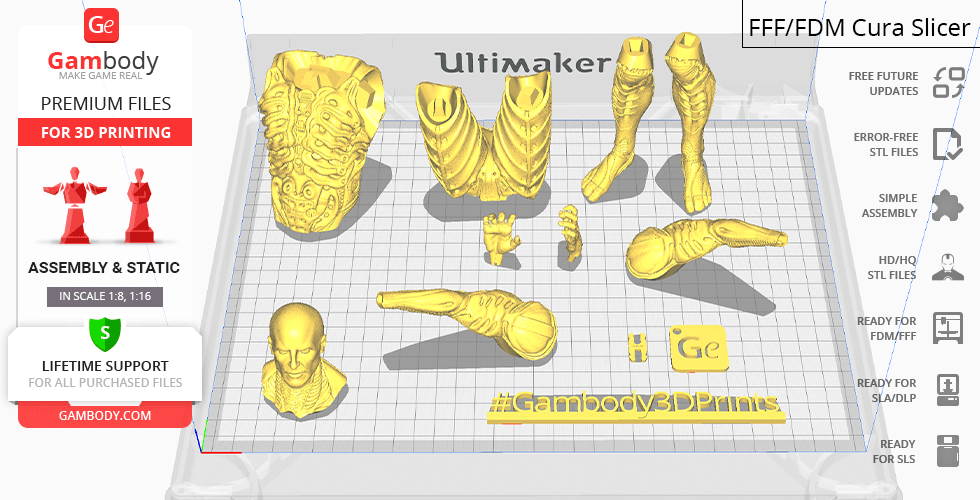

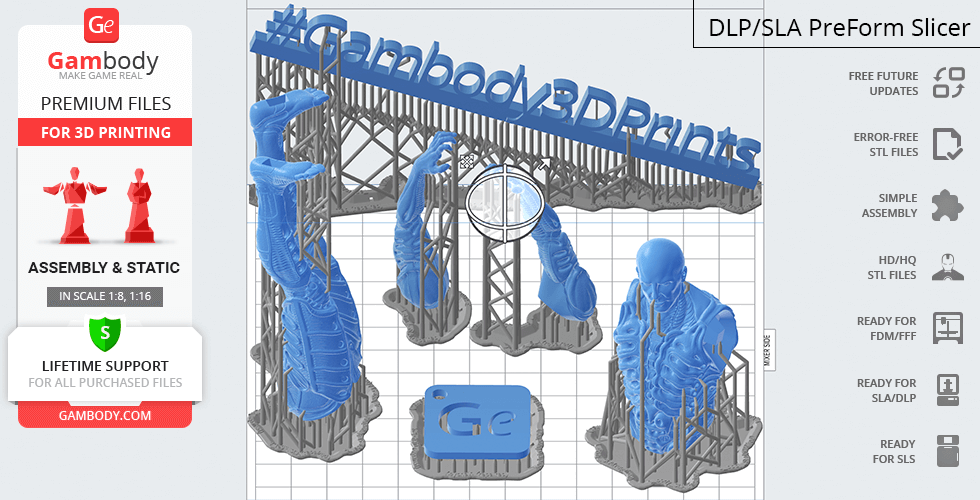

All assembly parts come in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for 1.0 FFF/FDM and 1.0 DLP/SLA versions in PDF format.

The 3D print model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

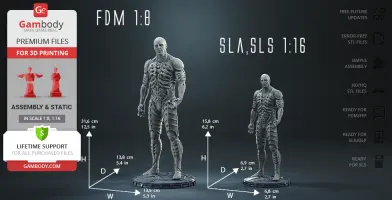

The model's scale was calculated from Engineer's approximate height which is 2400 mm. The 3D printing design's chosen scale is 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

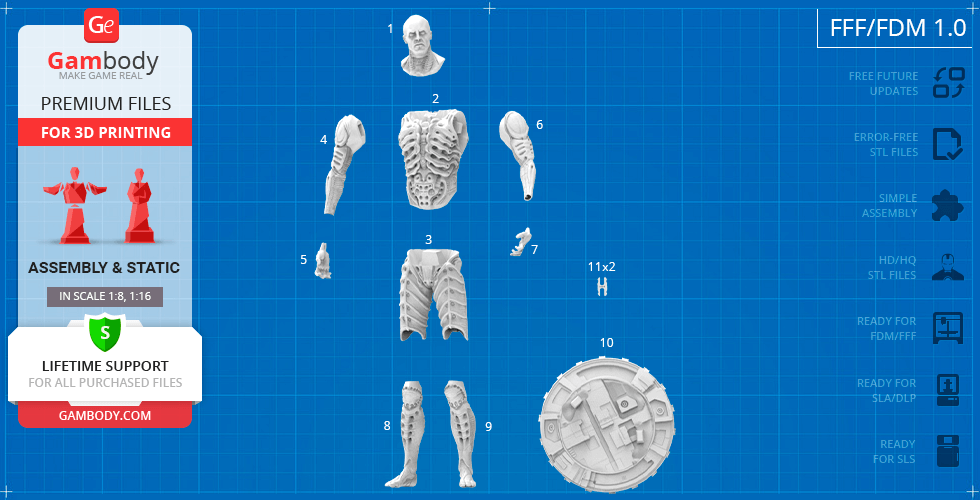

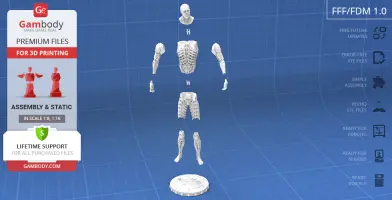

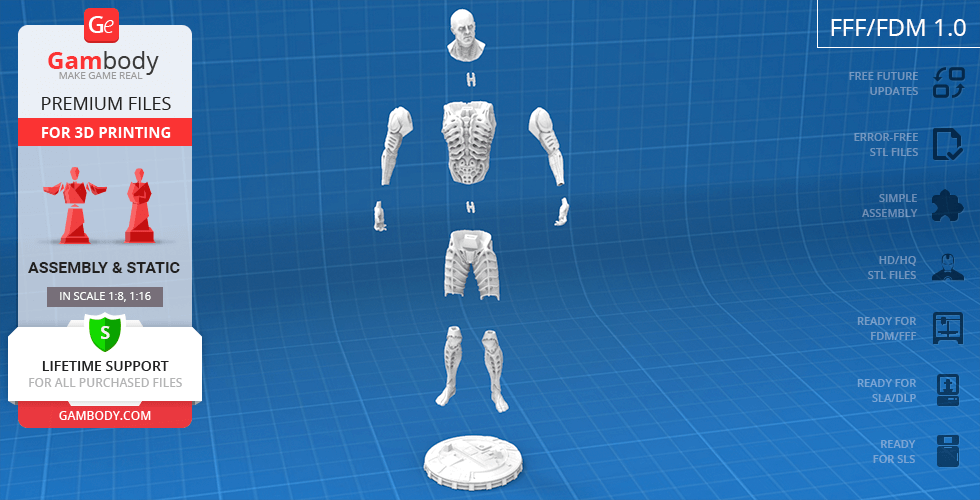

1.0 FFF/FDM version features:

Contains 11 parts;
A printed model is 316 mm tall, 135 mm wide, 138 mm deep;
The assembly kit includes lock 11_ge_lock_10H(x2)_FDM to attach the model's parts securely without glue that needs to be printed twice;
All parts are divided in such a way that you will print them with the smallest number of support structures.

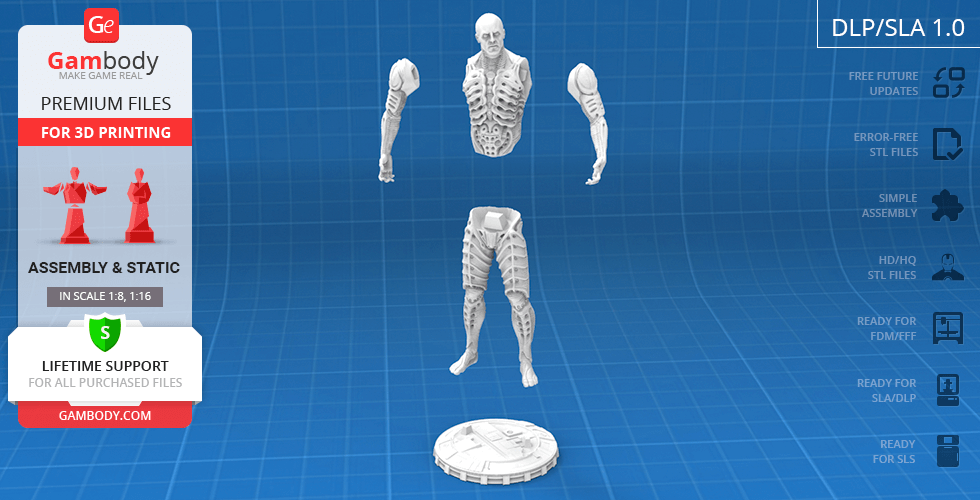

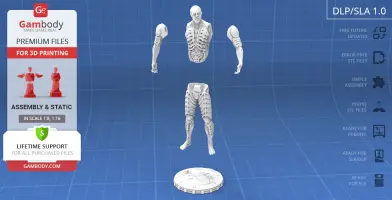

1.0 DLP/SLA version features:

Contains 5 parts;
A printed model is 158 mm tall, 68 mm wide, 69 mm deep;

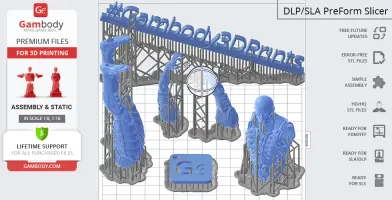

All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

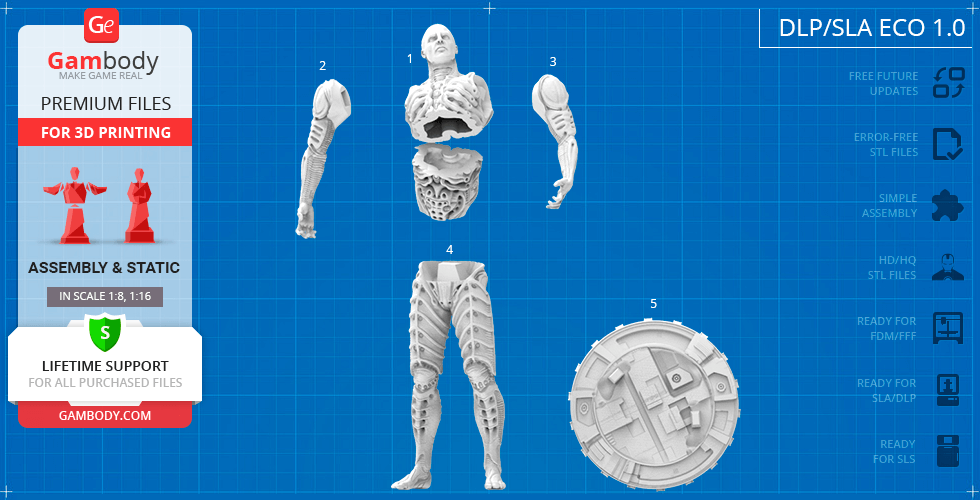

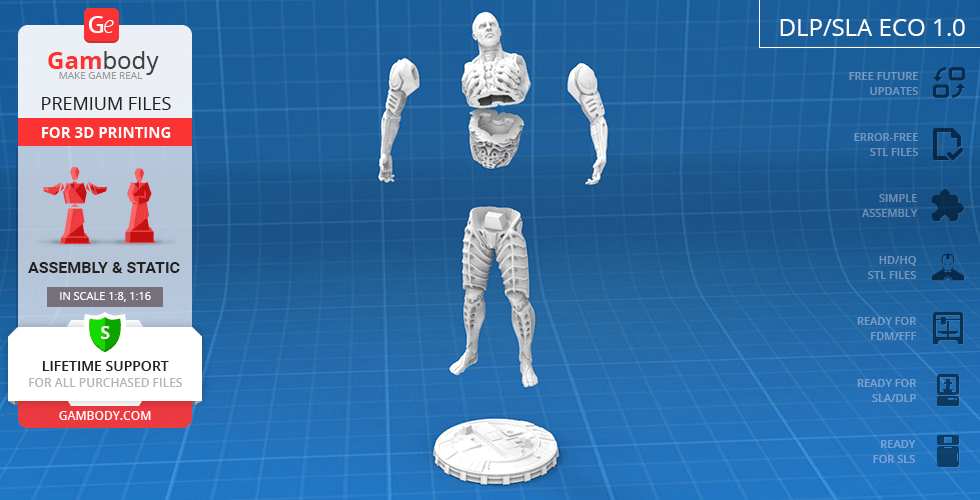

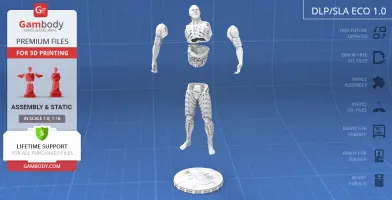

1.0 DLP/SLA Eco version features:

Contains 5 parts;
A printed model is 158 mm tall, 68 mm wide, 69 mm deep;
Contains some hollowed out parts to save resin.

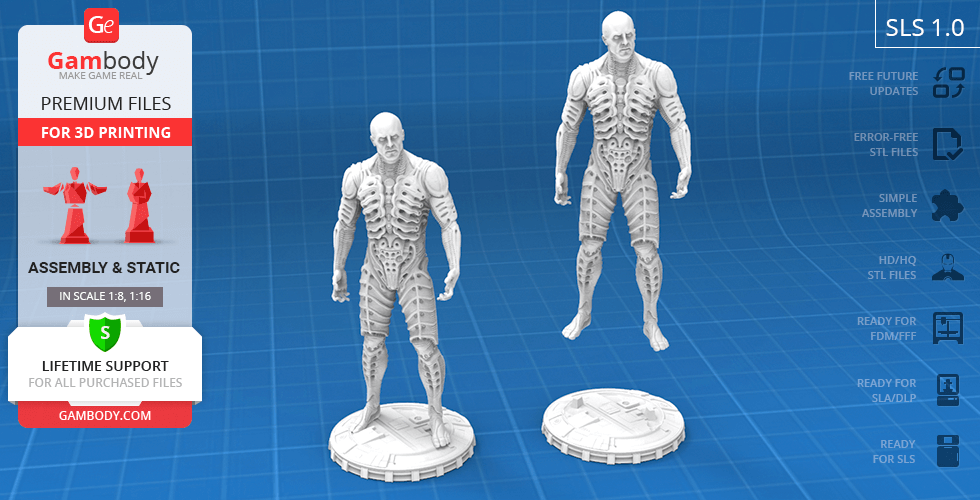

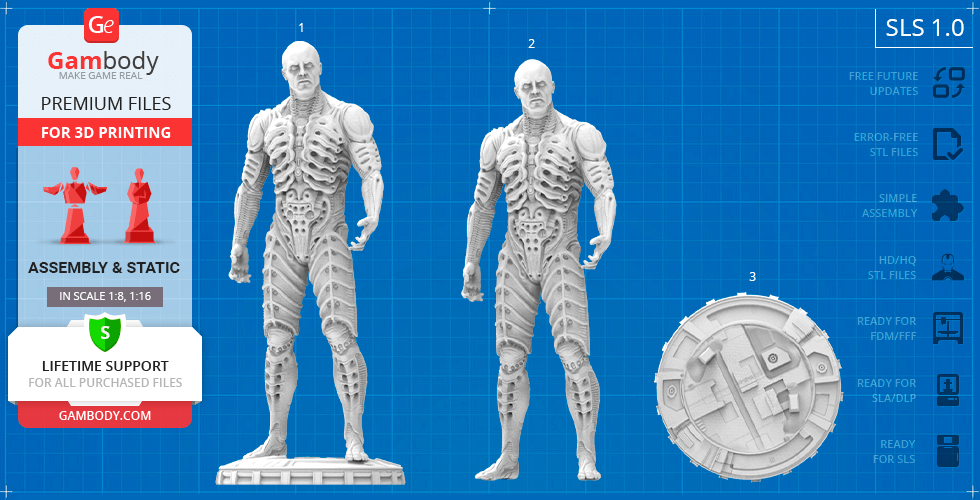

1.0 SLS version features:

Made as a solid one-piece Engineer model;
A printed model is 158 mm tall, 68 mm wide, 69 mm deep;
Contains 3 parts - a solid Engineer model, and the model with the platform separated.

You can get the STL Files of The Last Engineer 3D Print Model immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the 3D Printed The Last Engineer Model from the provided 3D Print Files at Gambody YouTube channel.

Also, you may like other Alien vs Predator 3D Print Models.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.
