Sentry Turret 3D Printing Model | Assembly

(11)
cm: 7.9 w x 13.2 d x 19 h
in: 3.11 w x 5.197 d x 7.48 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Sentry Turret 3D Printing Model comes in 4 versions for each 3D printer type (FFF/FDM, DLP/SLA and SLS). Files for each version are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
1 (repaired).stl
6.95 MiB 2 h 39 min 1 m 19 x 33 x 75 Download
2 (repaired).stl
0.41 MiB 4 min <1 m 8 x 8 x 5 Download
3 (repaired).stl
6.76 MiB 2 h 3 min 1 m 26 x 27 x 57 Download
4 (repaired).stl
6.76 MiB 2 h 1 min 1 m 27 x 27 x 57 Download
5 (repaired).stl
4.54 MiB 33 min <1 m 8 x 63 x 20 Download
6 (repaired).stl
4.55 MiB 32 min <1 m 8 x 63 x 20 Download
7 (repaired).stl
4.81 MiB 1 h 8 min 1 m 13 x 59 x 31 Download
8 (repaired).stl
0.35 MiB 7 h 2 min 4 m 134 x 108 x 86 Download
9 (repaired).stl
0.36 MiB 7 h 46 min 5 m 170 x 16 x 89 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D MODEL

Sentry Turret, also known as The Aperture Science Sentry Turret is the autonomous gun platform commonly seen as an obstacle to the Test Subject in the Portal video game series. A miniature tripod robot with a single red eye serves as a guard of the maintenance areas and tends to speak politely in a child-like voice. But one should not be fooled into believing that small turret is here to help out! On the contrary, the sentry has dual machine guns which are put into operation immediately as the gun platform tracks a target in its visual sight. Once the target can no longer be located with the turret’s laser targeting beam, the gun platform goes into the standby sleeping mode concealing the deadly weapons under the two plates on either side of the body. The author of the Sentry Turret model for 3D printing depicted the gun platform with each side of its arms open, baring two machine guns ready to fire. The common way to disable the turret is knocking it over by hitting with any other object or picking up and dropping the sentry. While this can be an easy and acceptable method to avoid the obstacle in the portal universe, we are sure that having printed the tripod robot on a 3D printer you will treat it with care and proudly showcase among your figurines collection.

ADAPTATION FOR 3D PRINTING (FFF/FDM 1.0, DLP/SLA 2.0, SLS 1.0)

Sentry Turret model for 3D printing is a static assembly model and its updating and adaptation for 3D printing took Gambody team 15 hours in total. Due to the fact that this model was first released on Gambody in 2016 as a 9-part version for high-resolution 3D printers, for all the Portal series fans to achieve the cleanest printing result possible, the model was cut into more assembly parts and optimised for different types of 3D printers. With the same purpose, such smaller model’s parts as antennae, eye and both ‘arms’ are now provided as separate assembly pieces. In order to minimise the amount of filament needed for generated support tripod’s legs were also cut into six parts. For the platform to fit even the smallest build plates, it was divided into four pieces with the circle resembling Aperture Laboratories logo design extracted. All the assembly parts are provided in STL files in recommended positions that were worked out so to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the Sentry Turret's actual height that is 1300 mm. The 3D printing model's chosen scale is 1/8 for the FFF/FDM version and 1/16 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

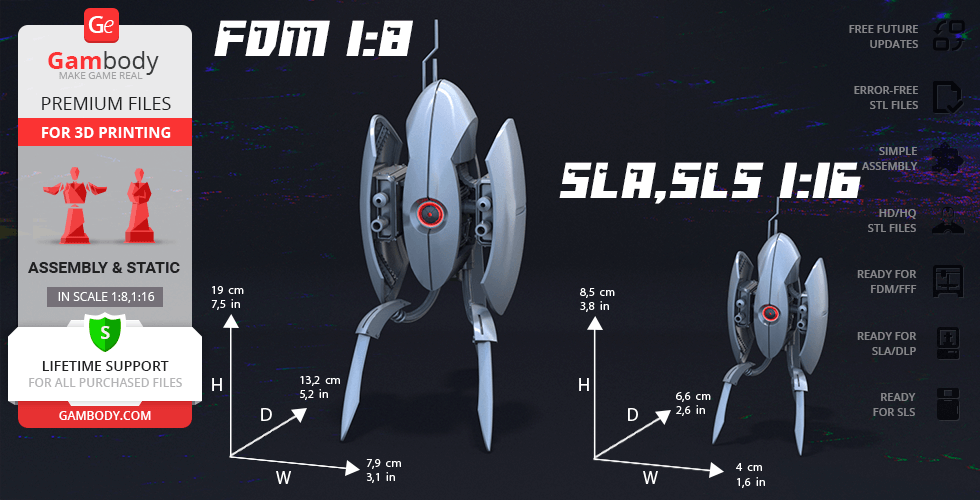

FFF/FDM 1.0 version features:
- Contains 19 parts;
- A printed model is 190 mm tall, 79 mm wide, 132 mm deep;
- Assembly kit includes locks to connect parts securely without glue. One lock 19_Ge_lock_10H_x16 needs to be printed 16 times;

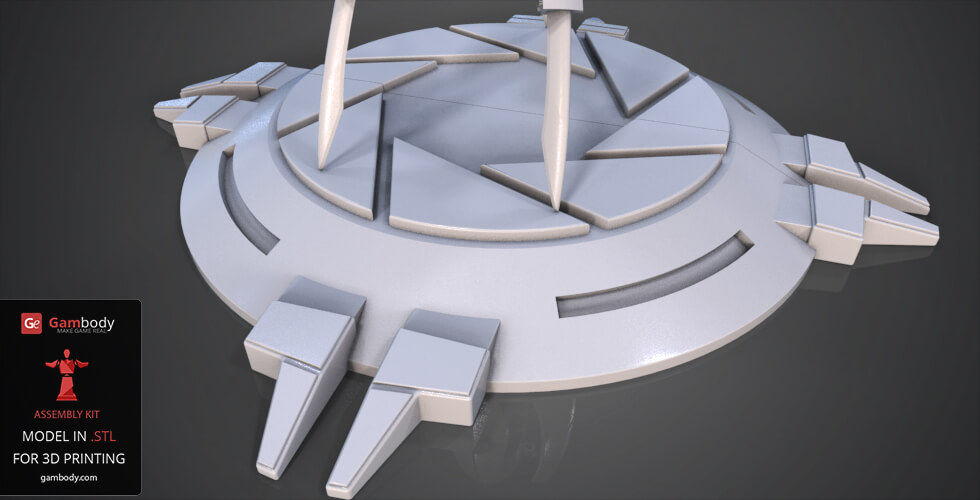

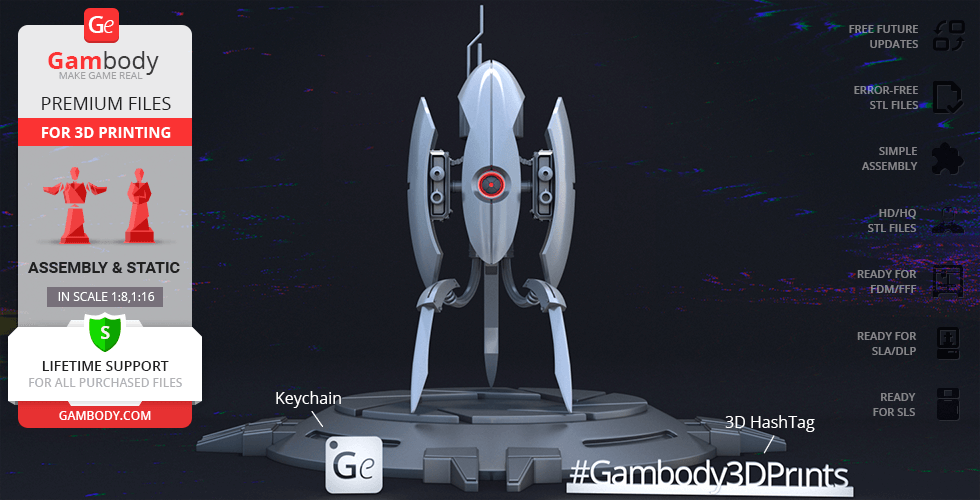

- Made with a platform resembling the Aperture Laboratories logo design;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA 1.0 version features:
- Contains 9 parts;
- A printed model is 128 mm tall, 168 mm wide, 168 mm deep;
- Made with a platform resembling the Aperture Laboratories logo design;
- The scale of the model is indeterminate.

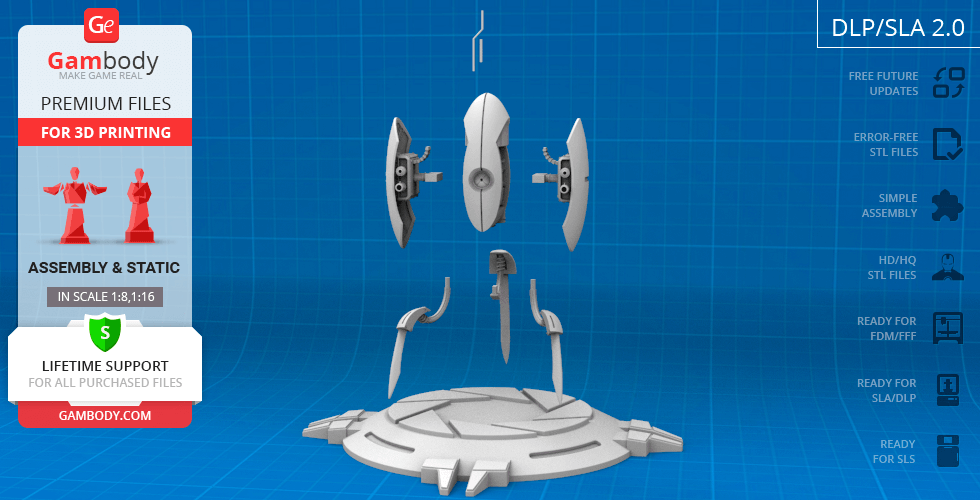

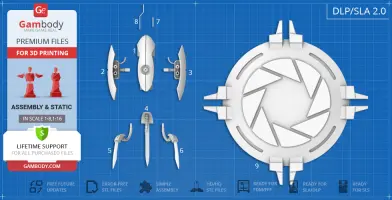

DLP/SLA 2.0 version features:
- Contains 9 parts;
- A printed model is 85 mm tall, 40 mm wide, 66 mm deep;
- Made with a platform resembling the Aperture Laboratories logo design;
- Contains some hollowed out parts to save resin.

SLS 1.0 version features:
- Contains 2 parts - a one-piece model with the platform separated.
- Made as a solid one-piece model;
- A printed model is 85 mm tall, 40 mm wide, 66 mm deep;

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Sentry Turret​ Model for 3D printing which consist of 39 parts;
- 4 versions of files for this model for FFF/FDM, DLP/SLA and SLS printers;
- High-poly detailed model of Sentry Turret​;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of Sentry Turret​ for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Sentry Turret​ 3D Printing Model at Gambody YouTube channel.

Also, you may like the other Robots 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

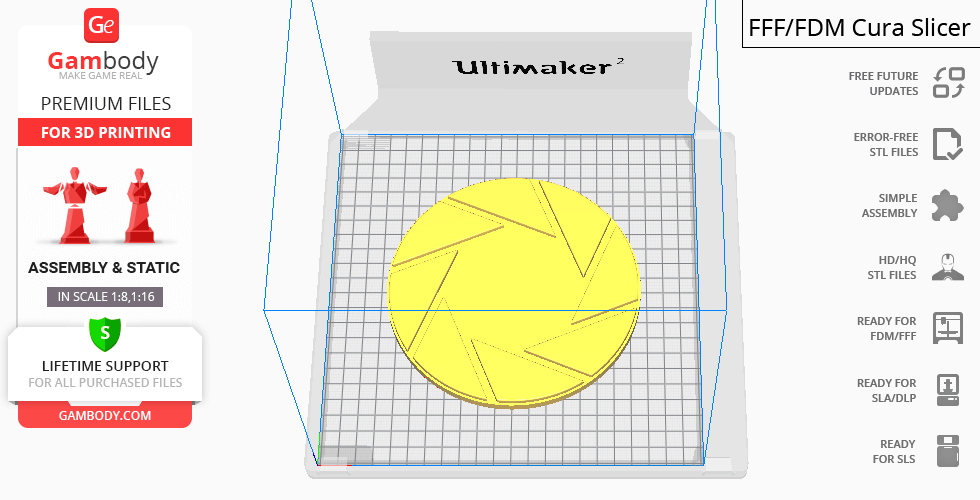

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for CuraSimplify3D and Slic3r softwares.
