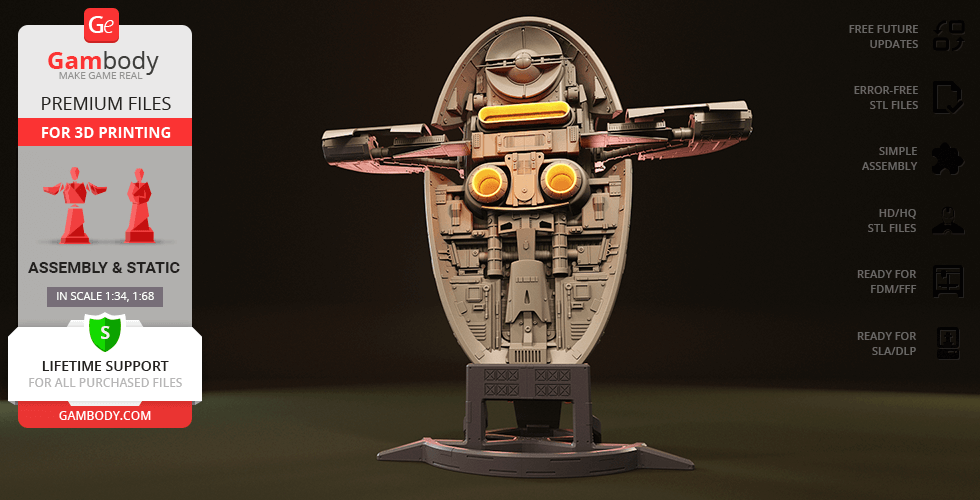

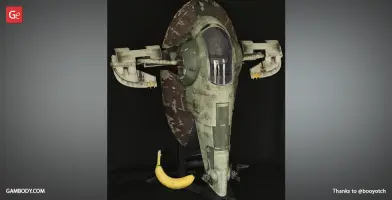

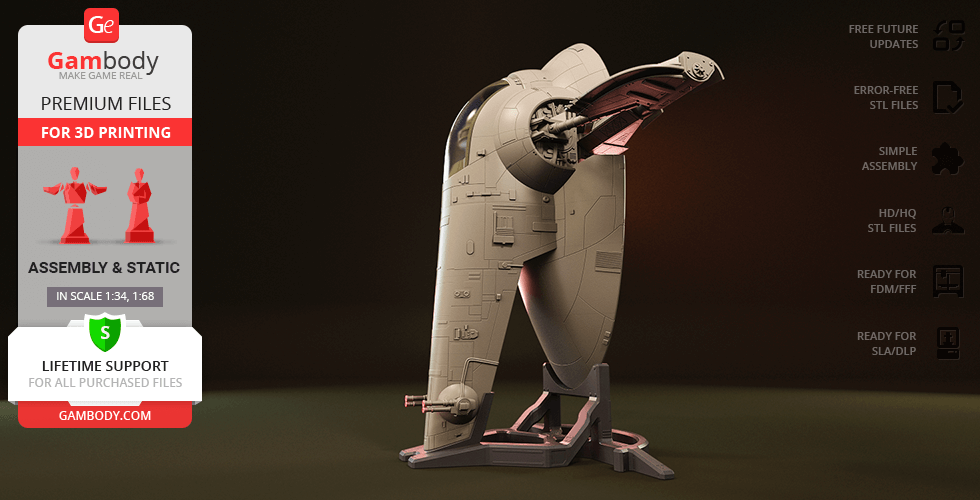

Slave I 3D Printing Model | Assembly

(18)

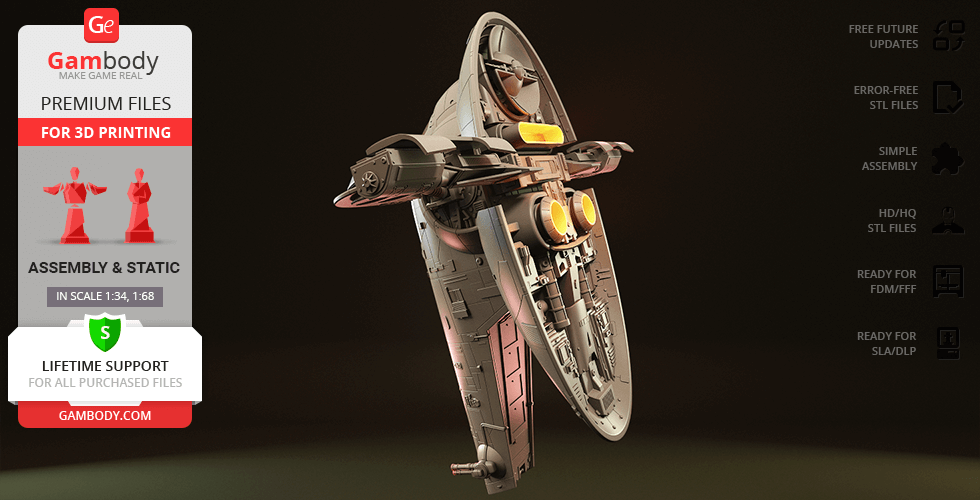

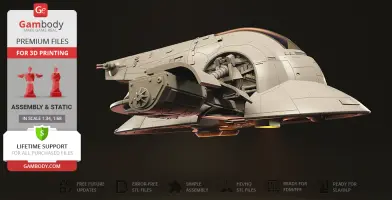

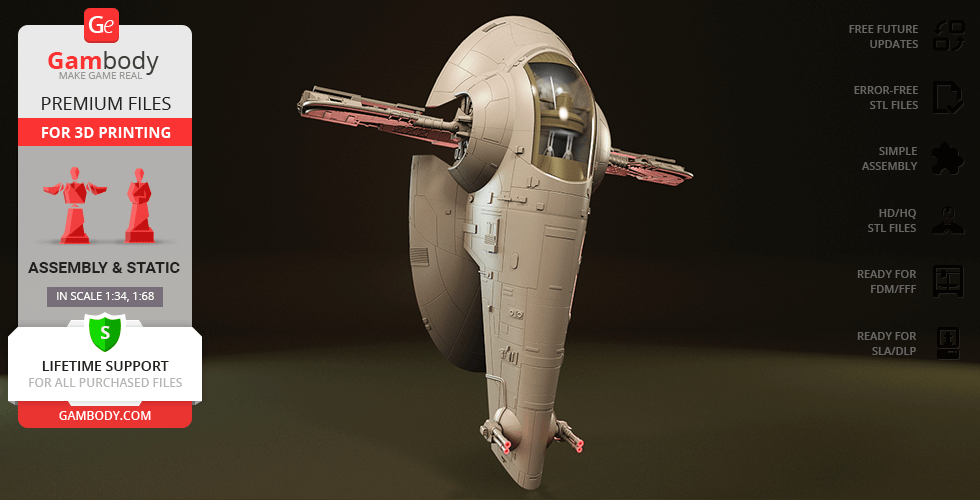

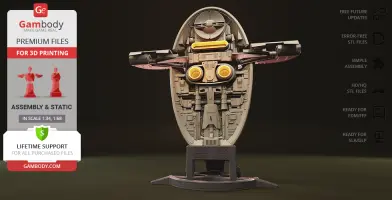

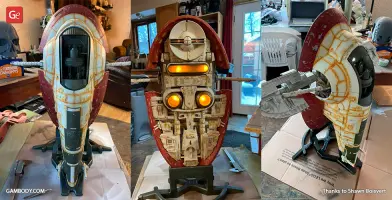

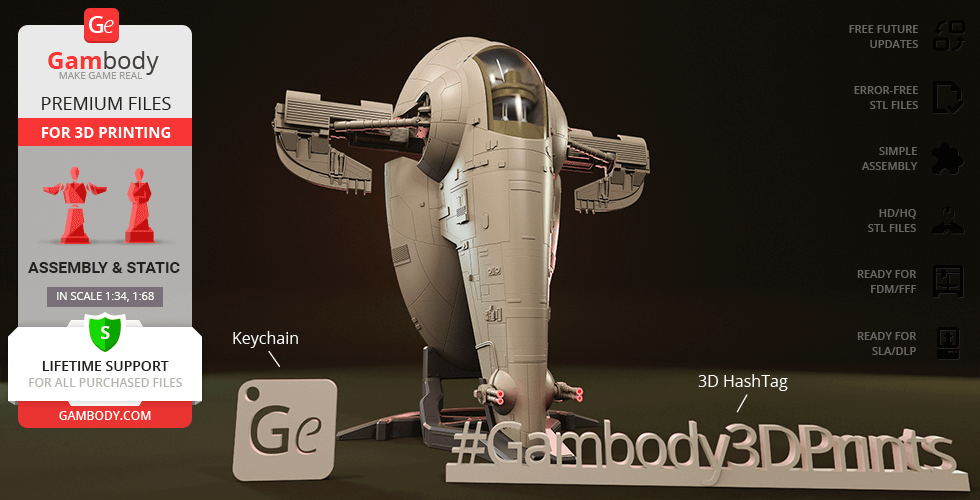

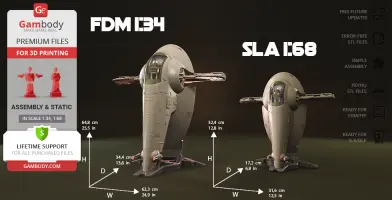

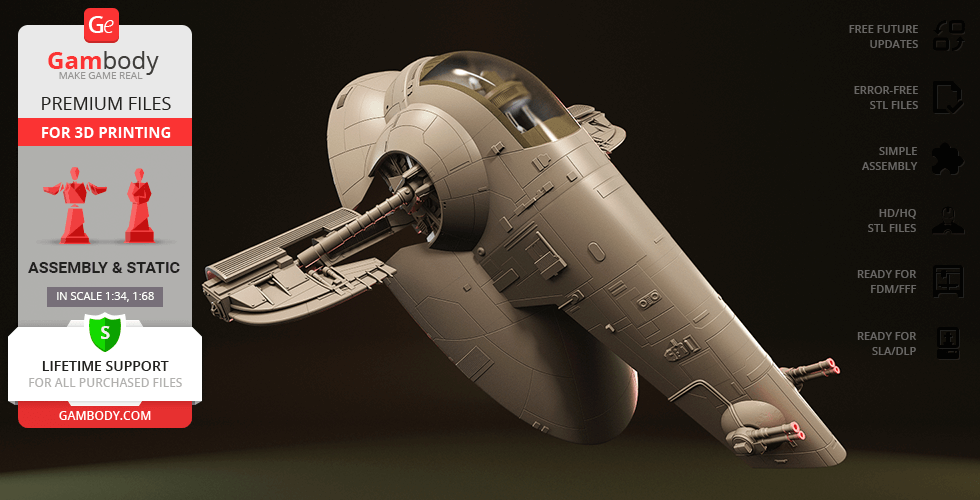

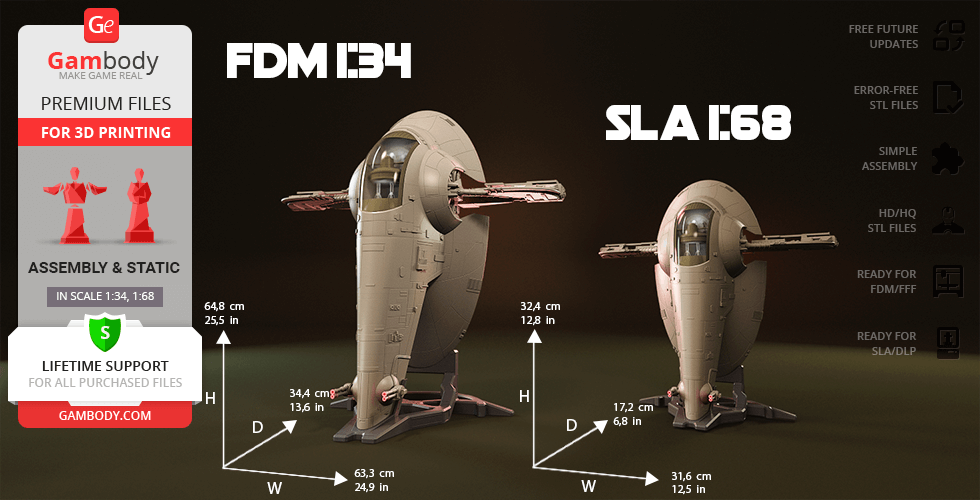

cm: 63.3 w x 34.4 d x 64.8 h
in: 24.921 w x 13.543 d x 25.512 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Slave I 3D Printing Model comes in 2 versions for each 3D printer type (FFF/FDM and DLP/SLA/SLS). Files for each version are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

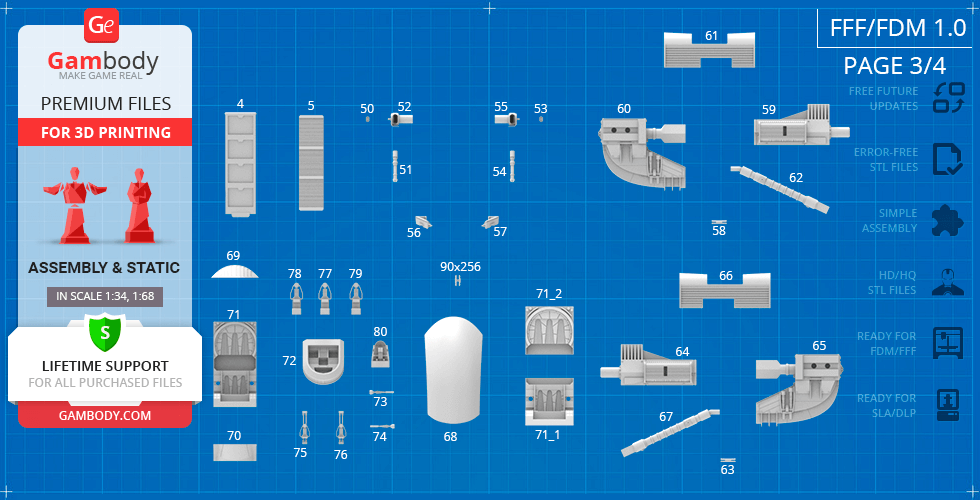

File Name File Size Time / Filament Object Size
(x/y/z mm)

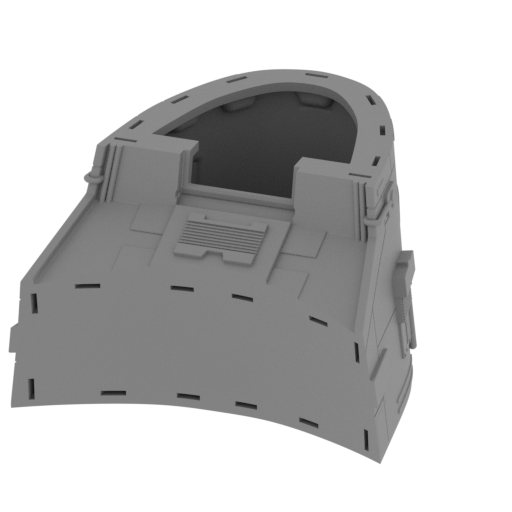

1_hull_tail_a_FDM (repair ed).stl
32.69 MiB 70 h 46 min 52 m 162 x 152 x 102 Download
2_hull_tail_b_FDM (repair ed).stl
27.93 MiB 32 h 12 min 21 m 121 x 107 x 105 Download
3_hull_tail_c_FDM (repair ed).stl
42.53 MiB 36 h 6 min 26 m 91 x 91 x 125 Download

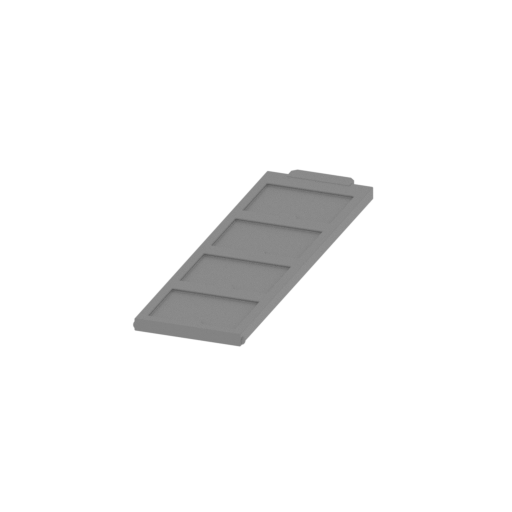

4_hull_door_a_FDM (repair ed).stl
0.22 MiB 5 h 44 min 4 m 53 x 176 x 6 Download
5_hull_door_b_FDM (repair ed).stl
0.27 MiB 3 h 56 min 2 m 41 x 160 x 5 Download

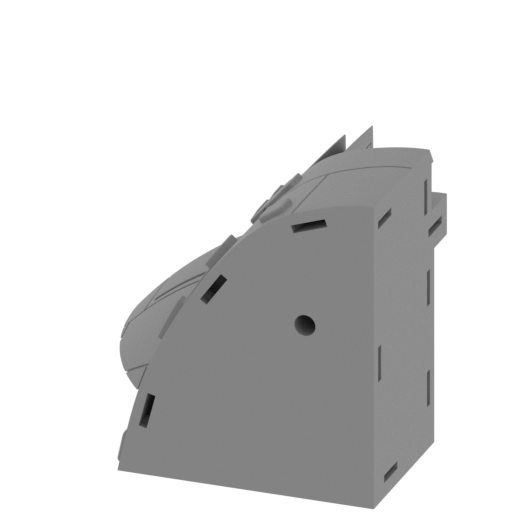

6_hull_cabine_bot_a_R_FDM (repaired).stl
15.57 MiB 23 h 44 min 14 m 101 x 99 x 85 Download

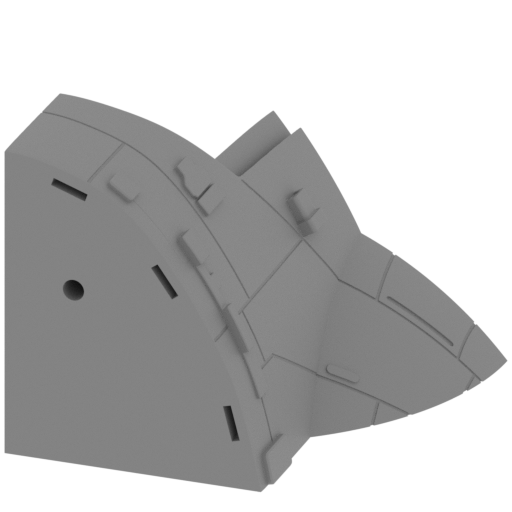

7_hull_cabine_bot_a_L_FDM (repaired).stl
15.58 MiB 23 h 55 min 14 m 101 x 99 x 85 Download

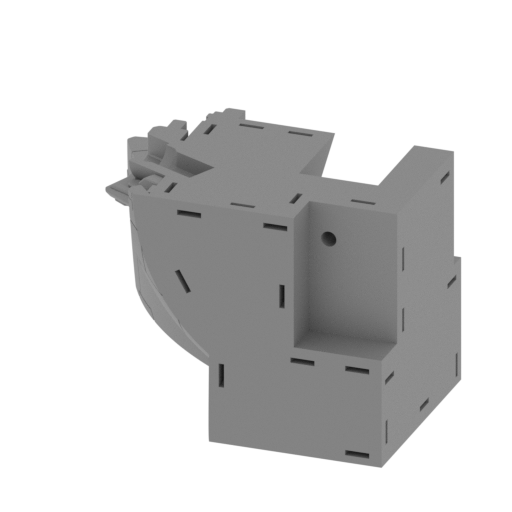

8_hull_cabine_bot_b_R_FDM (repaired).stl
8.96 MiB 53 h 7 min 31 m 150 x 130 x 99 Download

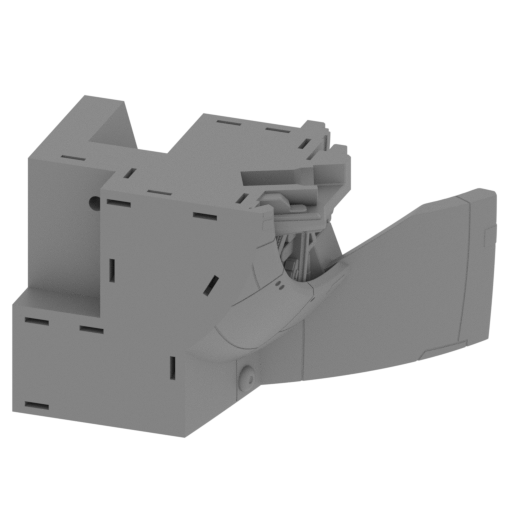

9_hull_cabine_bot_b_L_FDM (repaired).stl
8.97 MiB 53 h 8 min 31 m 150 x 130 x 99 Download

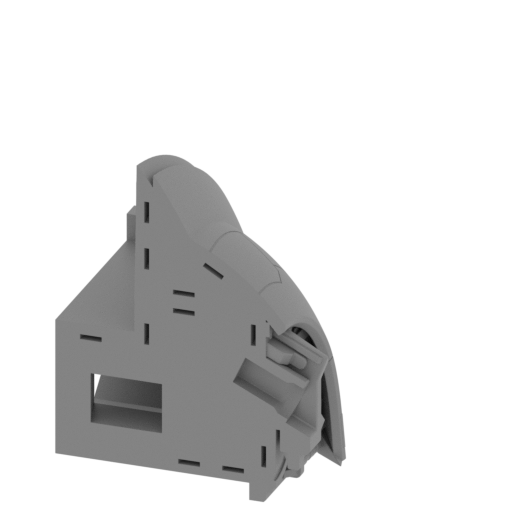

10_hull_cabine_top_R_FDM (repaired).stl
22.71 MiB 68 h 59 min 45 m 120 x 167 x 148 Download

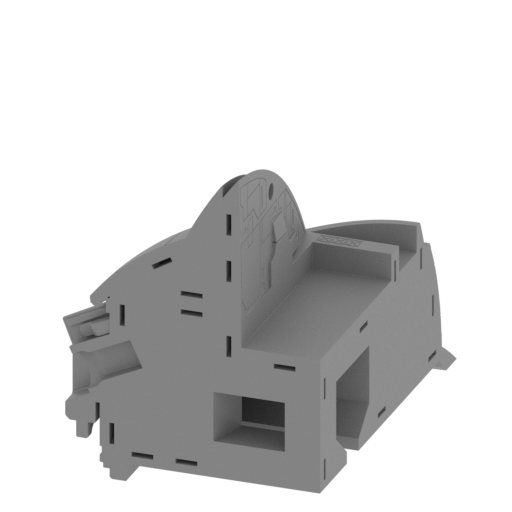

11_hull_cabine_top_L_FDM (repaired).stl
22.71 MiB 68 h 49 min 45 m 120 x 167 x 148 Download

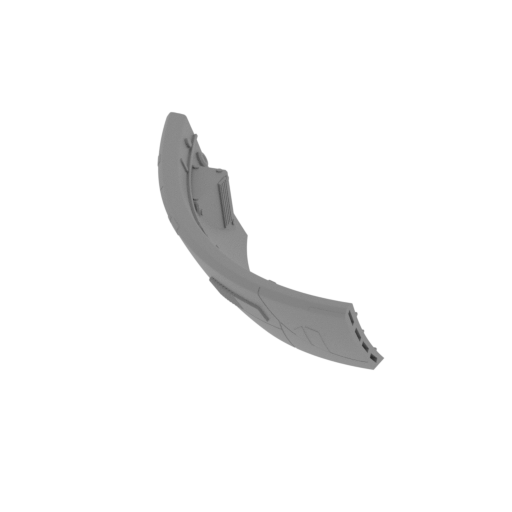

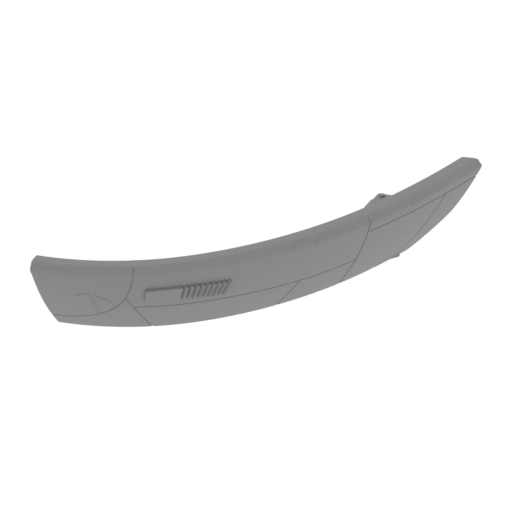

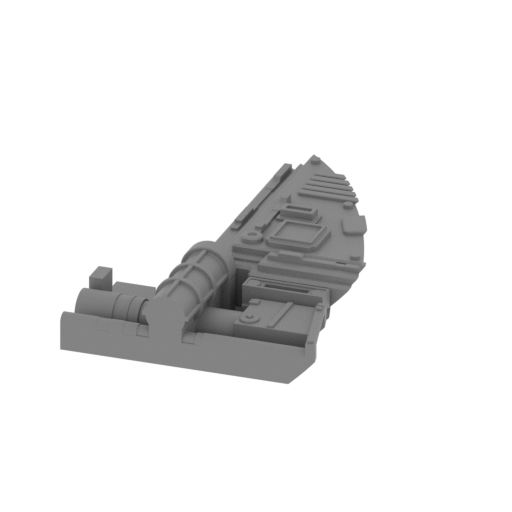

12_hull_plate_top_R_FDM ( repaired).stl
6.36 MiB 12 h 31 min 7 m 142 x 166 x 42 Download
13_hull_plate_top_L_FDM ( repaired).stl
6.36 MiB 12 h 33 min 7 m 142 x 166 x 42 Download
14_hull_plate_center_R_FD M (repaired).stl
3.97 MiB 20 h 38 min 12 m 147 x 99 x 60 Download

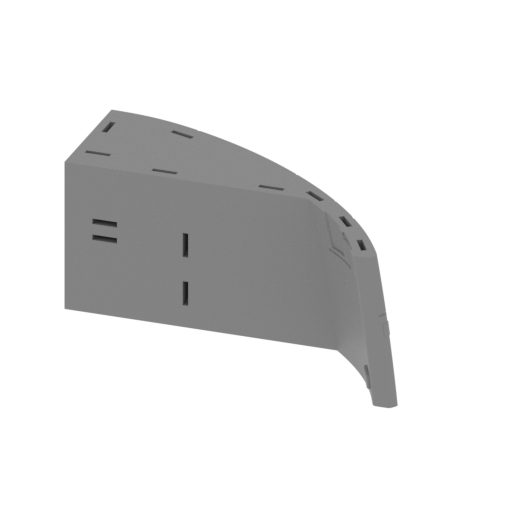

15_hull_plate_center_L_FD M (repaired).stl
3.97 MiB 20 h 42 min 12 m 147 x 99 x 60 Download

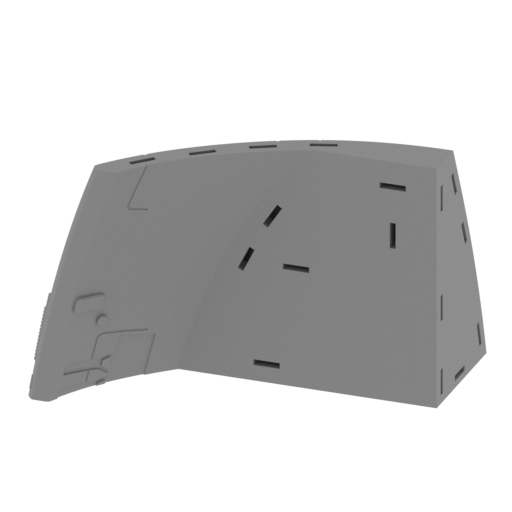

16_hull_plate_bot_a_R_FDM (repaired).stl
6.47 MiB 21 h 8 min 12 m 138 x 93 x 92 Download

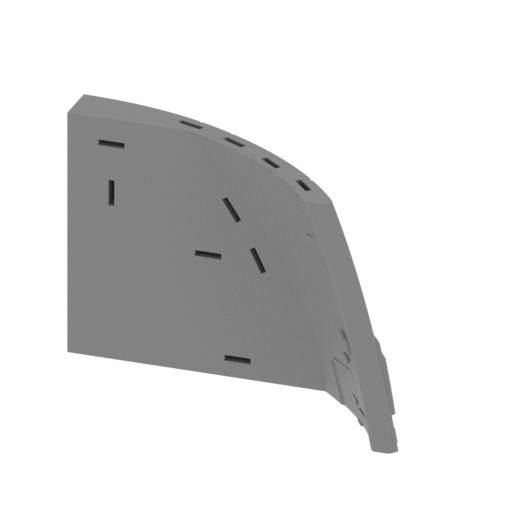

17_hull_plate_bot_a_L_FDM (repaired).stl
6.47 MiB 21 h 9 min 12 m 138 x 93 x 92 Download
18_hull_plate_bot_b_R_FDM (repaired).stl
4.26 MiB 10 h 10 min 6 m 114 x 59 x 106 Download

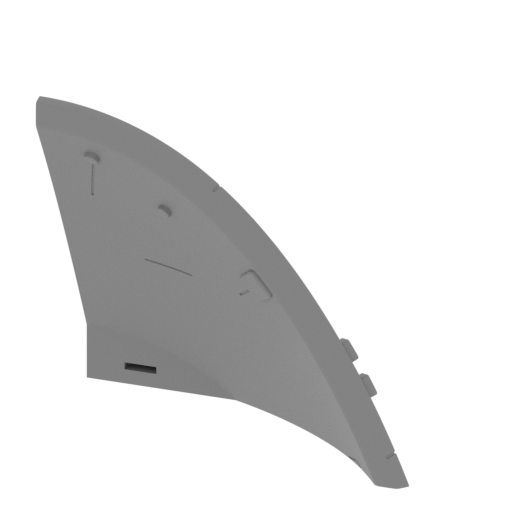

19_hull_plate_bot_b_L_FDM (repaired).stl
4.26 MiB 10 h 12 min 6 m 114 x 59 x 106 Download

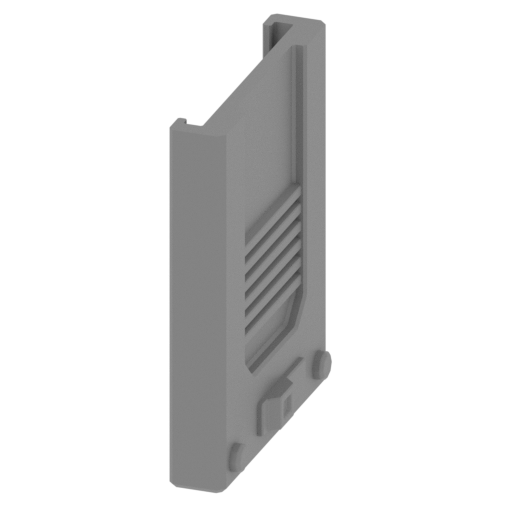

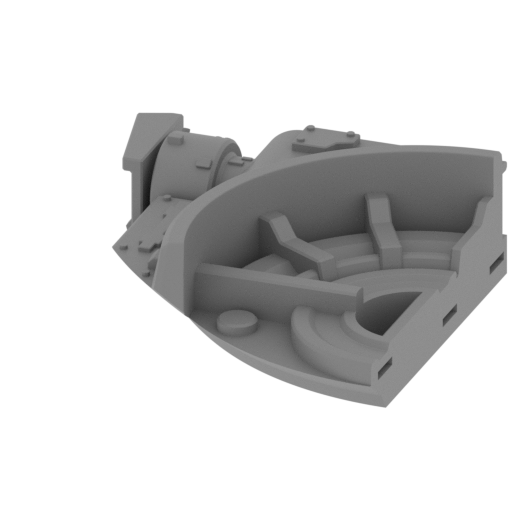

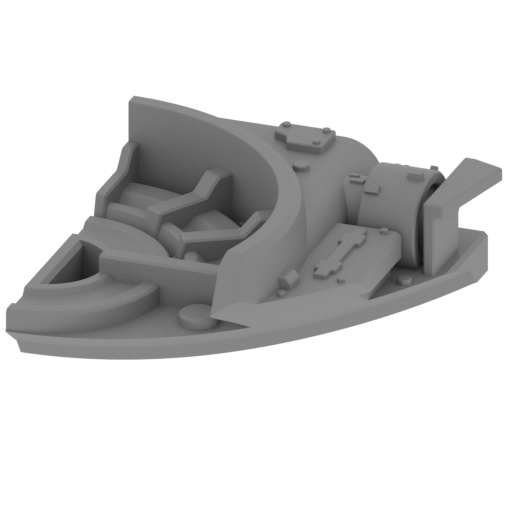

20_engine_top_a_R_FDM (re paired).stl
3.32 MiB 12 h 7 min 7 m 92 x 94 x 34 Download
21_engine_top_a_L_FDM (re paired).stl
3.32 MiB 12 h 6 min 7 m 92 x 94 x 34 Download

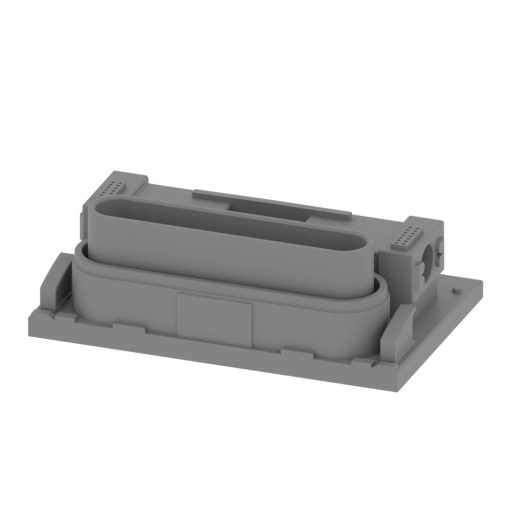

22_engine_top_b_FDM (repa ired).stl
5.86 MiB 39 h 43 min 24 m 175 x 111 x 59 Download
23_engine_top_b_cap_R_FDM (repaired).stl
0.10 MiB 57 min 1 m 8 x 31 x 40 Download

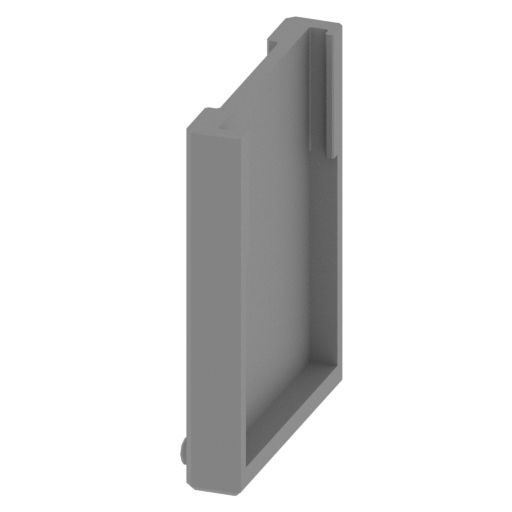

24_engine_top_b_cap_L_FDM (repaired).stl
0.10 MiB 57 min 1 m 8 x 31 x 40 Download
25_engine_droid_R_FDM (re paired).stl
4.49 MiB 12 min <1 m 13 x 13 x 10 Download

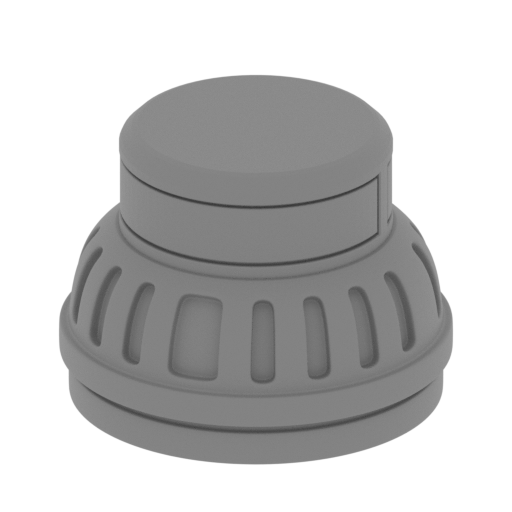

26_engine_droid_L_FDM (re paired).stl
4.49 MiB 12 min <1 m 13 x 13 x 10 Download

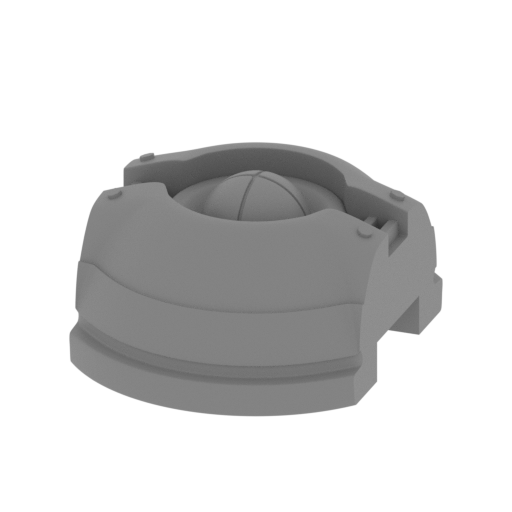

27_engine_droid_front_FDM (repaired).stl
4.08 MiB 12 min <1 m 13 x 17 x 8 Download

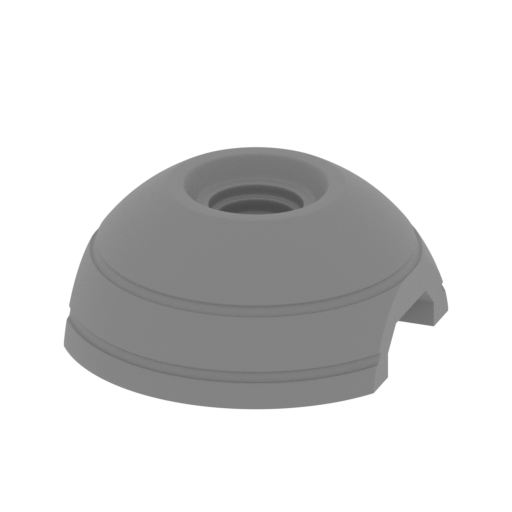

28_engine_droid_back_FDM (repaired).stl
2.71 MiB 9 min <1 m 13 x 15 x 6 Download

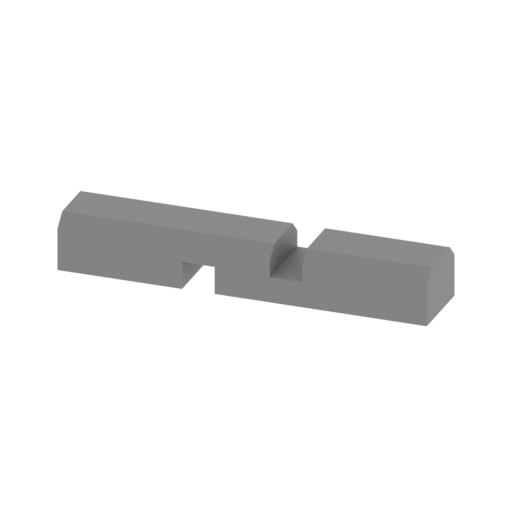

29_engine_droid_beam_FDM (repaired).stl
0.01 MiB 6 min <1 m 25 x 5 x 4 Download

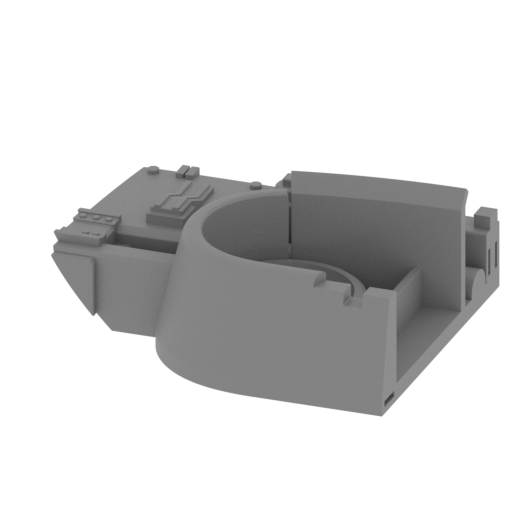

30_engine_center_a_R_FDM (repaired).stl
19.16 MiB 22 h 58 min 13 m 136 x 116 x 51 Download
31_engine_center_a_L_FDM (repaired).stl
19.16 MiB 22 h 59 min 13 m 136 x 116 x 51 Download

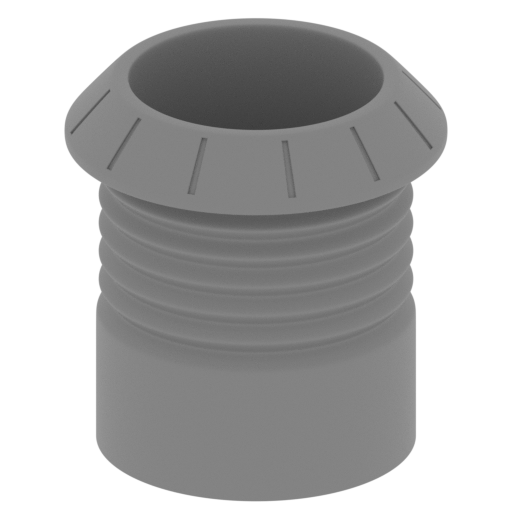

32_engine_center_b_R_FDM (repaired).stl
17.30 MiB 8 h 9 min 6 m 57 x 57 x 58 Download
33_engine_center_b_L_FDM (repaired).stl
17.30 MiB 8 h 9 min 6 m 57 x 57 x 58 Download

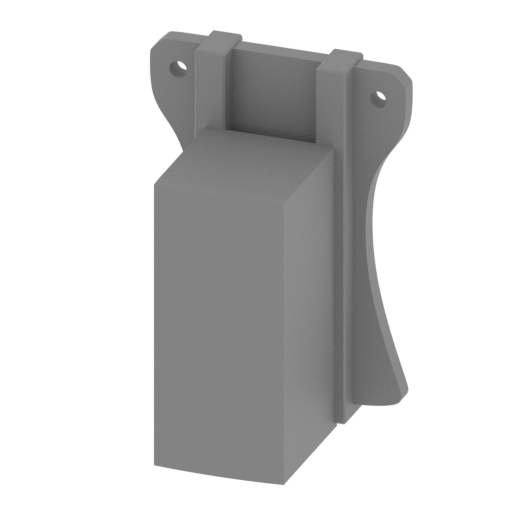

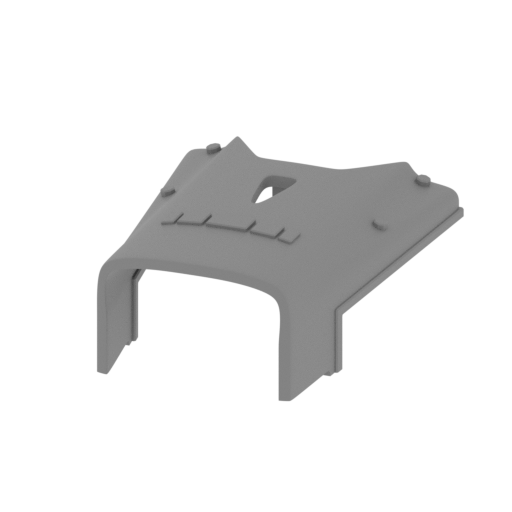

34_engine_center_c_FDM (r epaired).stl
1.47 MiB 7 h 51 min 5 m 56 x 44 x 81 Download

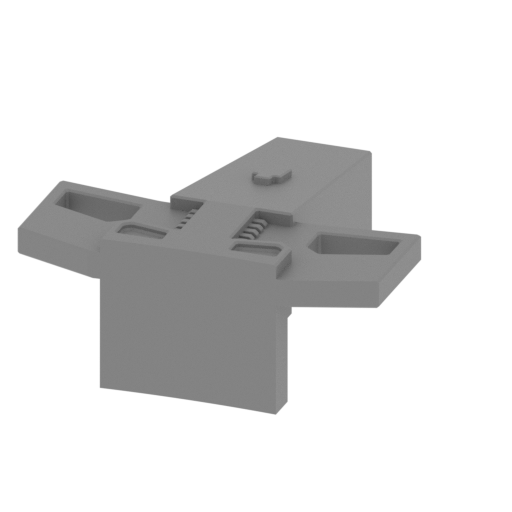

35_engine_center_d_FDM (r epaired).stl
0.15 MiB 7 h 60 min 6 m 79 x 81 x 36 Download
36_engine_bot_a_R_FDM (re paired).stl
2.57 MiB 19 h 11 min 11 m 113 x 164 x 34 Download
37_engine_bot_a_L_FDM (re paired).stl
2.55 MiB 19 h 10 min 11 m 113 x 164 x 34 Download
38_engine_bot_b_R_FDM (re paired).stl
0.10 MiB 29 min <1 m 40 x 34 x 6 Download
39_engine_bot_b_L_FDM (re paired).stl
0.10 MiB 30 min <1 m 40 x 34 x 6 Download
40_engine_bot_c_FDM (repa ired).stl
11.11 MiB 9 h 2 min 8 m 67 x 88 x 33 Download

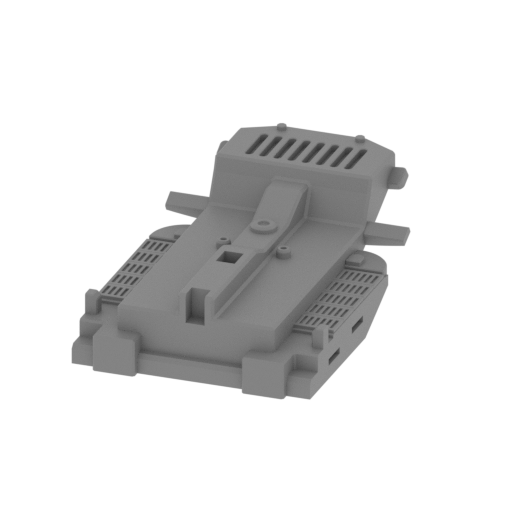

41_engine_bot_d_FDM (repa ired).stl
1.22 MiB 14 h 21 min 9 m 78 x 120 x 36 Download

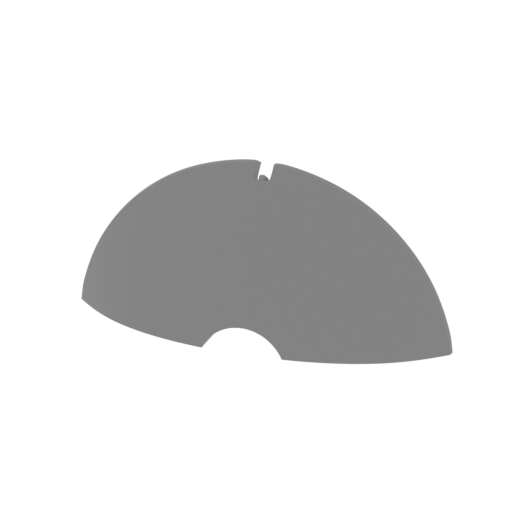

42_engine_top_radar_top_F DM (repaired).stl
12.41 MiB 4 h 28 min 3 m 117 x 25 x 53 Download

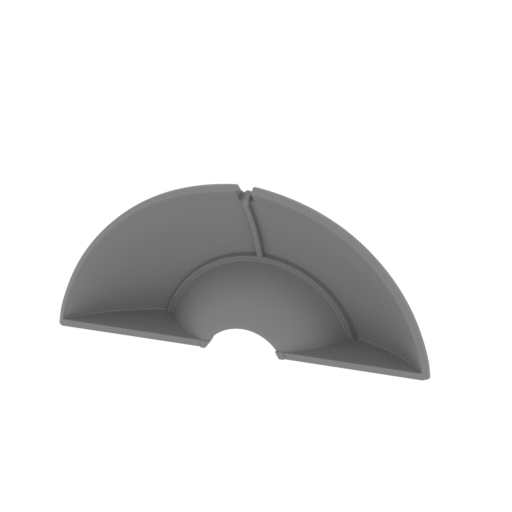

43_engine_top_radar_bot_F DM (repaired).stl
12.41 MiB 4 h 27 min 3 m 117 x 25 x 53 Download
44_engine_top_radar_anten _L_FDM (repaired).stl
0.22 MiB 38 min <1 m 8 x 9 x 72 Download

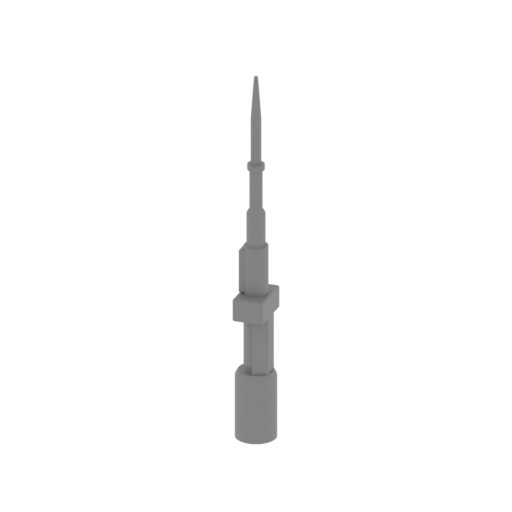

45_engine_top_radar_anten _R_FDM (repaired).stl
0.22 MiB 38 min <1 m 8 x 9 x 72 Download

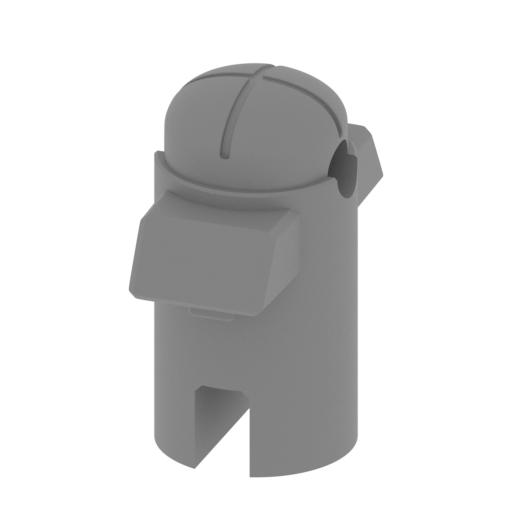

46_engine_top_randar_base _FDM (repaired).stl
2.79 MiB 3 h 48 min 3 m 28 x 50 x 54 Download
47_engine_top_b_window_FD M (repaired).stl
0.08 MiB 1 h 3 min 1 m 127 x 20 x 2 Download
48_engine_center_b_glass_ R_FDM (repaired).stl
0.17 MiB 27 min <1 m 37 x 37 x 2 Download
49_engine_center_b_glass_ L_FDM (repaired).stl
0.17 MiB 27 min <1 m 37 x 37 x 2 Download

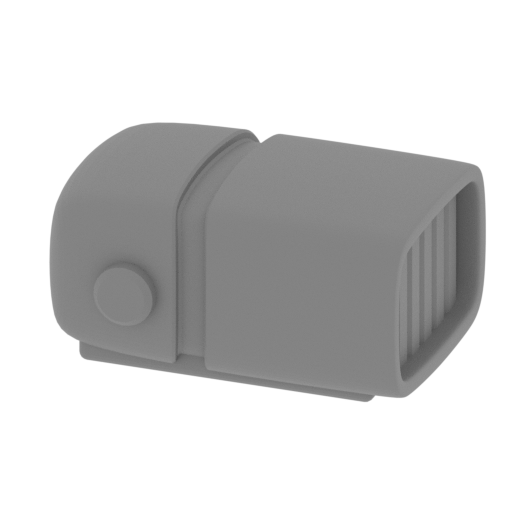

50_gun_a_1_R_FDM (repaire d).stl
0.64 MiB 9 min <1 m 12 x 10 x 6 Download
51_gun_a_2_R_FDM (repaire d).stl
1.71 MiB 1 h 11 min 1 m 9 x 16 x 50 Download
52_gun_a_3_R_FDM (repaire d).stl
6.25 MiB 2 h 27 min 2 m 36 x 23 x 41 Download

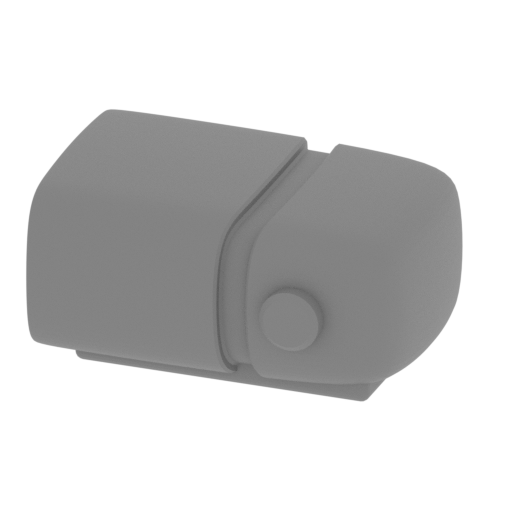

53_gun_a_1_L_FDM (repaire d).stl
0.64 MiB 9 min <1 m 12 x 10 x 6 Download

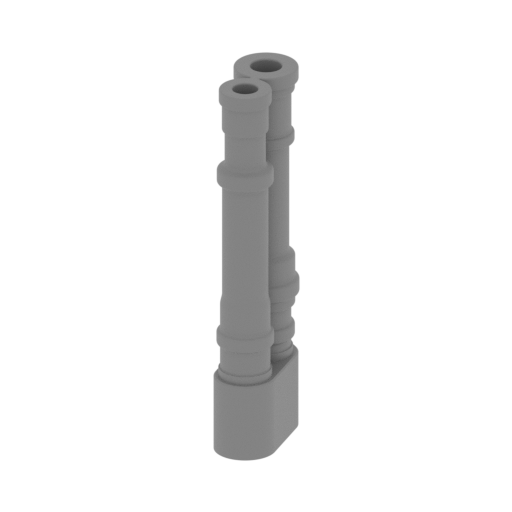

54_gun_a_2_L_FDM (repaire d).stl
1.71 MiB 1 h 14 min 1 m 9 x 16 x 50 Download

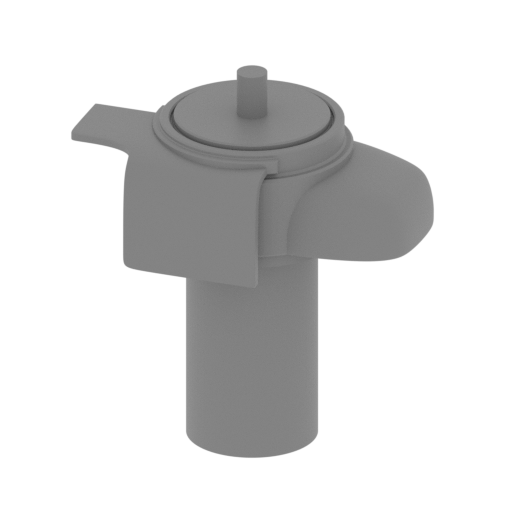

55_gun_a_3_L_FDM (repaire d).stl
6.30 MiB 2 h 27 min 2 m 36 x 23 x 41 Download

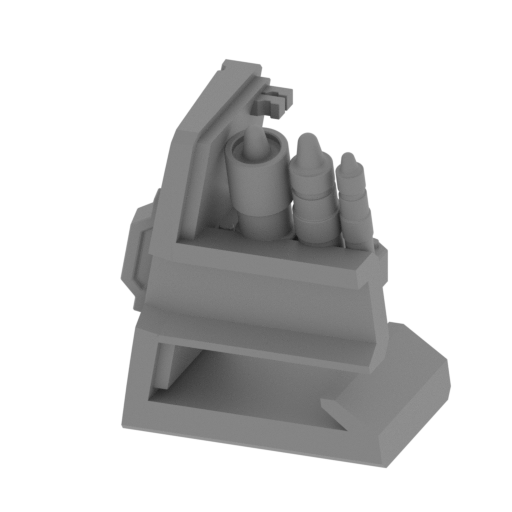

56_gun_b_R_FDM (repaired) .stl
1.51 MiB 47 min <1 m 20 x 21 x 26 Download

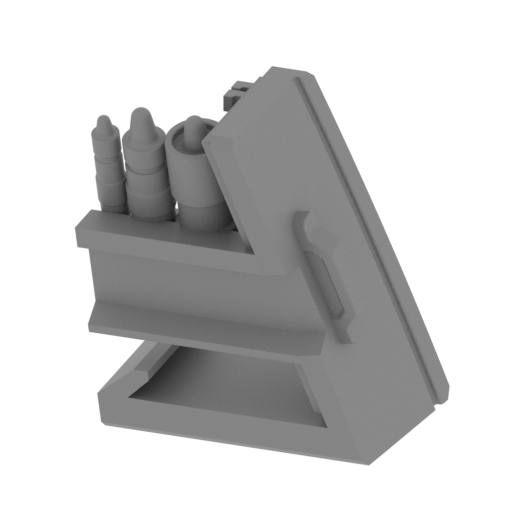

57_gun_b_L_FDM (repaired) .stl
1.51 MiB 47 min <1 m 20 x 21 x 26 Download
58_wing_connector_R_FDM ( repaired).stl
0.08 MiB 10 min <1 m 25 x 6 x 6 Download

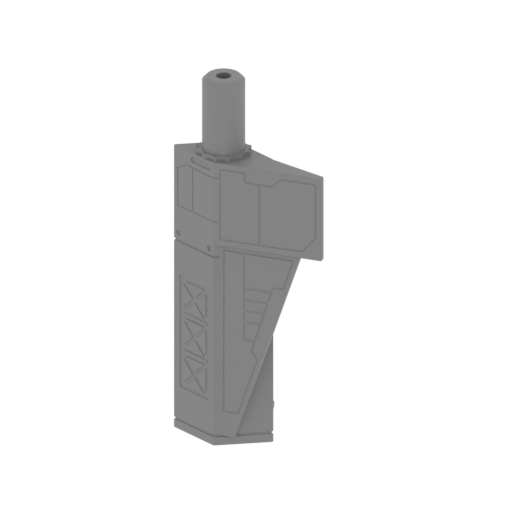

59_wing_a_R_FDM (repaired ).stl
8.73 MiB 15 h 7 min 9 m 68 x 31 x 159 Download
60_wing_b_R_FDM (repaired ).stl
35.66 MiB 27 h 5 min 18 m 120 x 37 x 145 Download
61_wing_c_R_FDM (repaired ).stl
12.09 MiB 8 h 22 min 5 m 58 x 26 x 151 Download

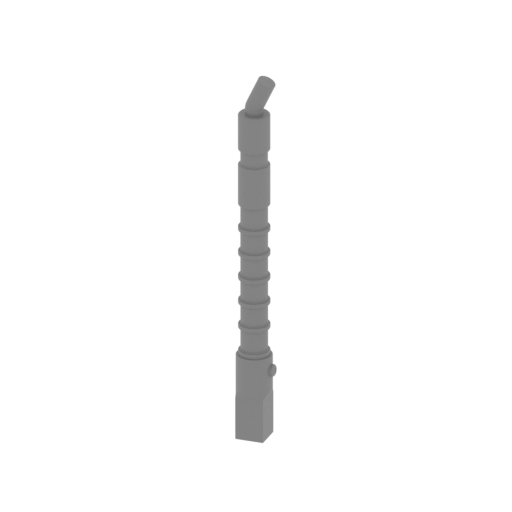

62_wing_d_R_FDM (repaired ).stl
1.70 MiB 3 h 27 min 2 m 18 x 17 x 177 Download

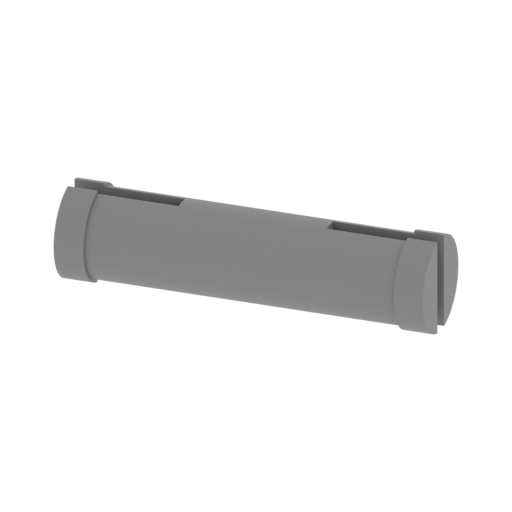

63_wing_connector_L_FDM ( repaired).stl
0.08 MiB 10 min <1 m 25 x 6 x 6 Download
64_wing_a_L_FDM (repaired ).stl
8.72 MiB 14 h 56 min 9 m 68 x 31 x 159 Download

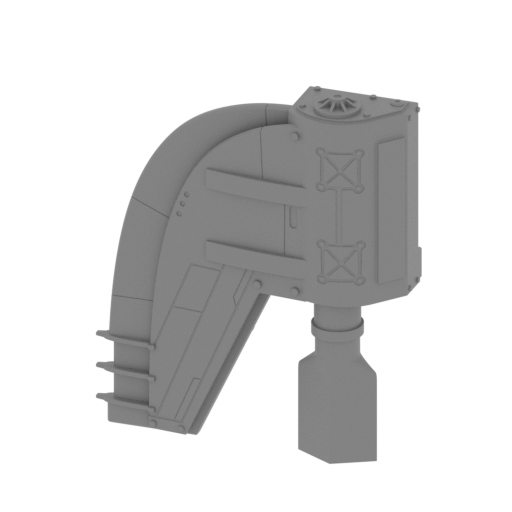

65_wing_b_L_FDM (repaired ).stl
35.66 MiB 26 h 52 min 18 m 120 x 37 x 145 Download

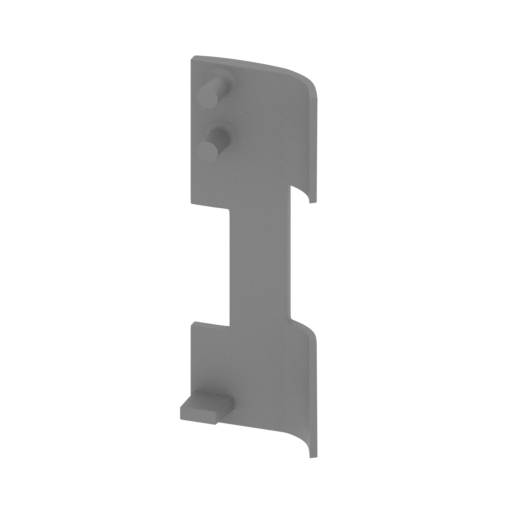

66_wing_c_L_FDM (repaired ).stl
12.09 MiB 9 h 15 min 5 m 58 x 26 x 151 Download
67_wing_d_L_FDM (repaired ).stl
1.70 MiB 3 h 21 min 2 m 18 x 17 x 177 Download

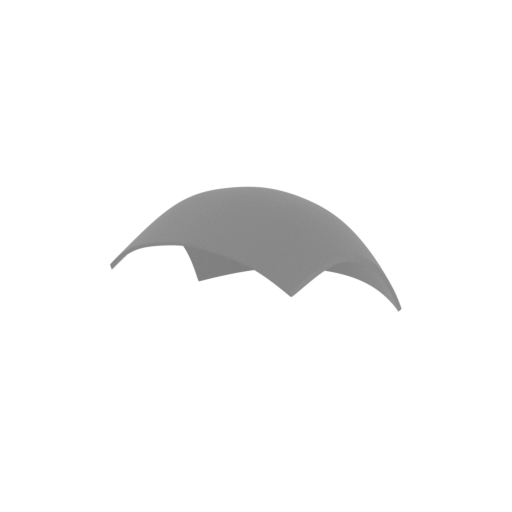

68_cockpit_glass_FDM (rep aired).stl
5.03 MiB 42 h 48 min 40 m 96 x 177 x 87 Download
69_cockpit_a_FDM (repaire d).stl
5.35 MiB 2 h 47 min 2 m 80 x 21 x 43 Download
70_cockpit_b_FDM (repaire d).stl
8.97 MiB 1 h 41 min 1 m 72 x 21 x 28 Download
71_cockpit_base_FDM (repa ired).stl
0.97 MiB 16 h 12 min 9 m 71 x 141 x 72 Download
72_cockpit_plate_FDM (rep aired).stl
19.50 MiB 9 h 6 min 6 m 69 x 26 x 77 Download
73_cockpit_pipe_R_FDM (re paired).stl
0.44 MiB 20 min <1 m 7 x 7 x 41 Download

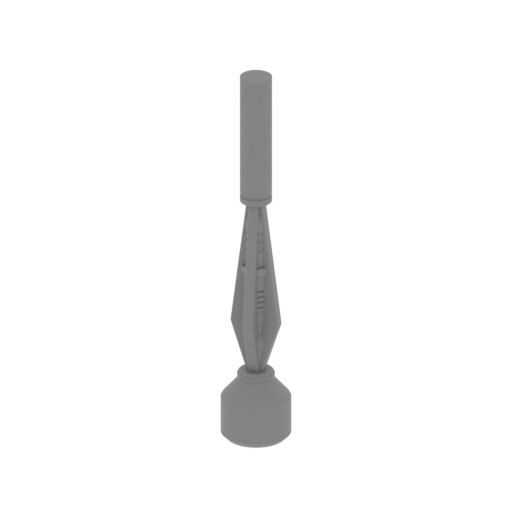

74_cockpit_pipe_L_FDM (re paired).stl
0.44 MiB 14 min <1 m 7 x 7 x 41 Download

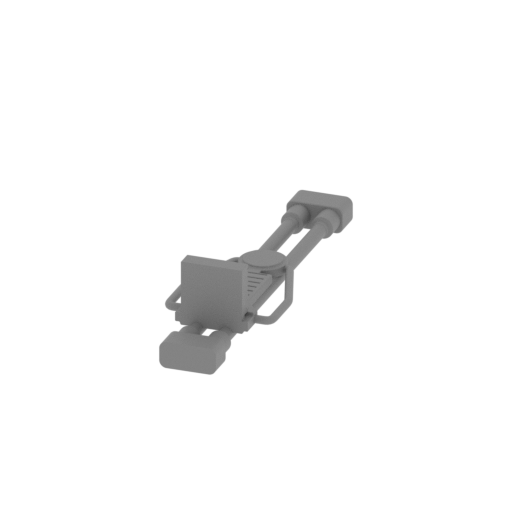

75_cockpit_beam_R_FDM (re paired).stl
0.86 MiB 26 min <1 m 17 x 55 x 12 Download
76_cockpit_beam_L_FDM (re paired).stl
0.86 MiB 26 min <1 m 17 x 55 x 12 Download

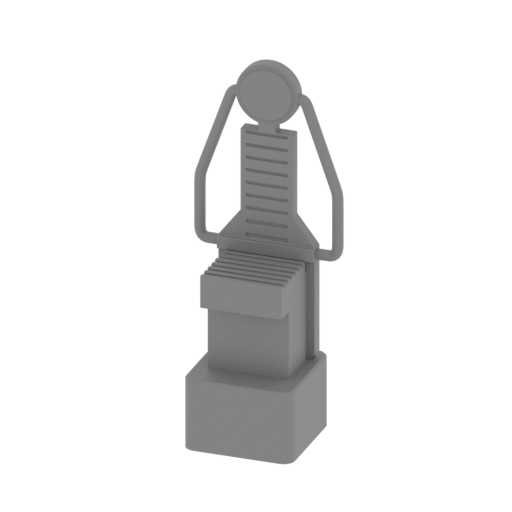

77_cockpit_chair_1_FDM (r epaired).stl
0.36 MiB 1 h 3 min <1 m 21 x 15 x 53 Download
78_cockpit_chair_2_FDM (r epaired).stl
0.36 MiB 1 h 5 min <1 m 21 x 15 x 53 Download
79_cockpit_chair_3_FDM (r epaired).stl
0.36 MiB 1 h 3 min <1 m 21 x 15 x 53 Download

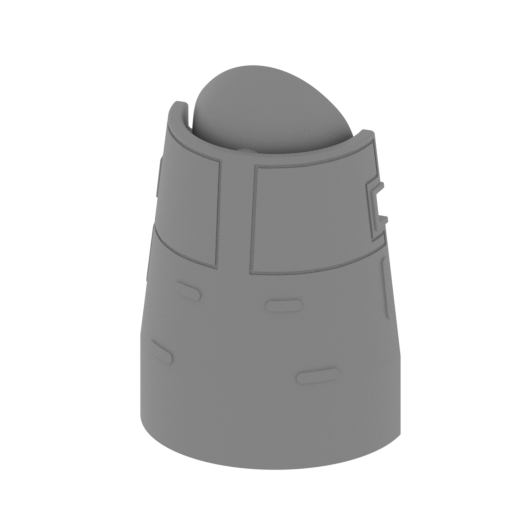

80_cockpit_control_FDM (r epaired).stl
6.49 MiB 1 h 36 min 1 m 30 x 18 x 44 Download

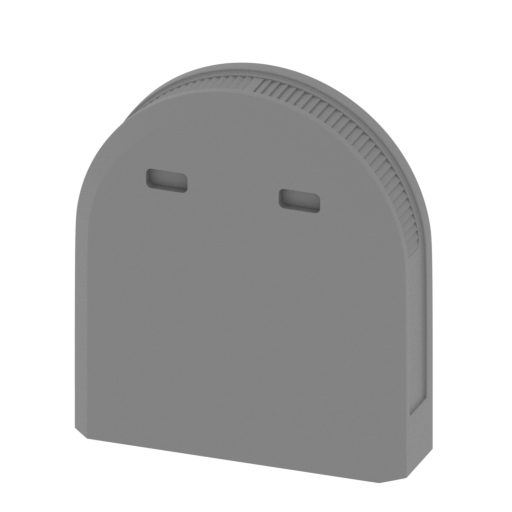

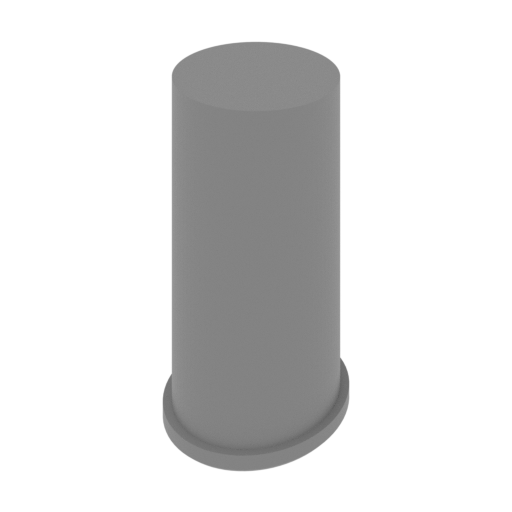

89_platform_tail_cap_FDM (repaired).stl
0.14 MiB 27 min <1 m 13 x 13 x 27 Download

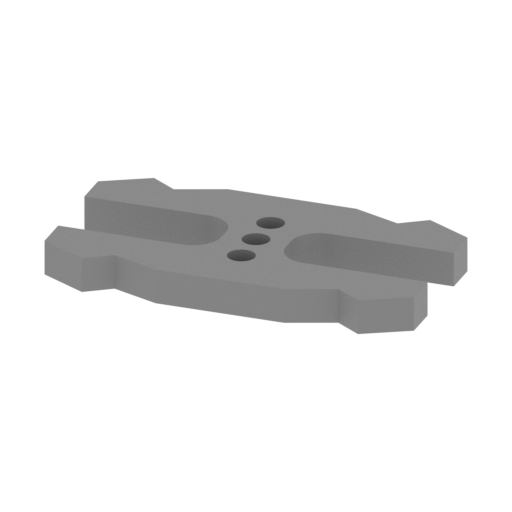

90_Ge_lock_10H_x256_FDM ( repaired).stl
0.03 MiB 4 min <1 m 18 x 10 x 2 Download

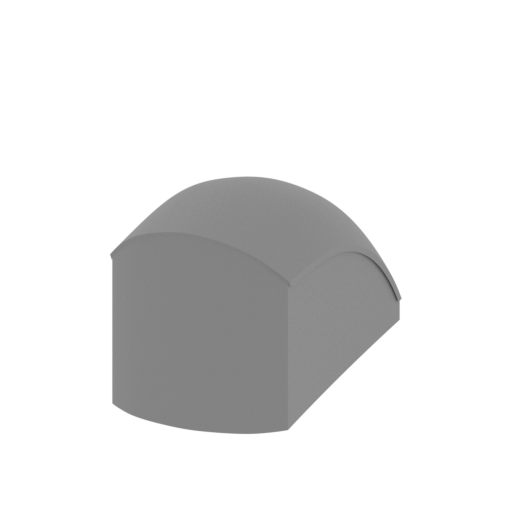

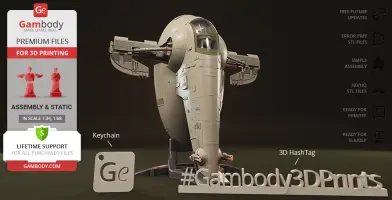

Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download

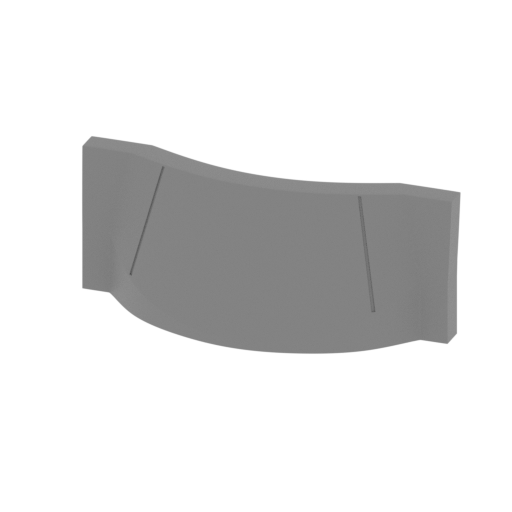

Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download

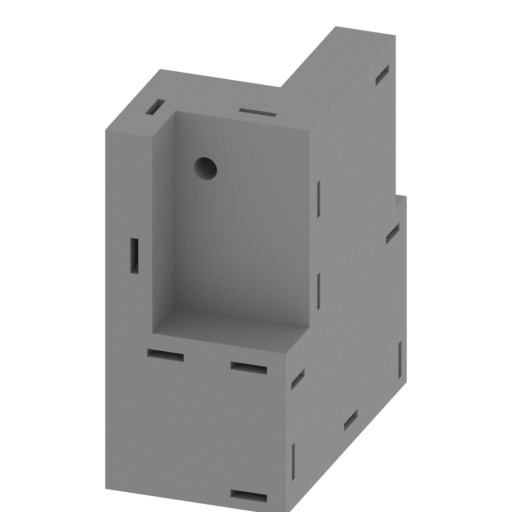

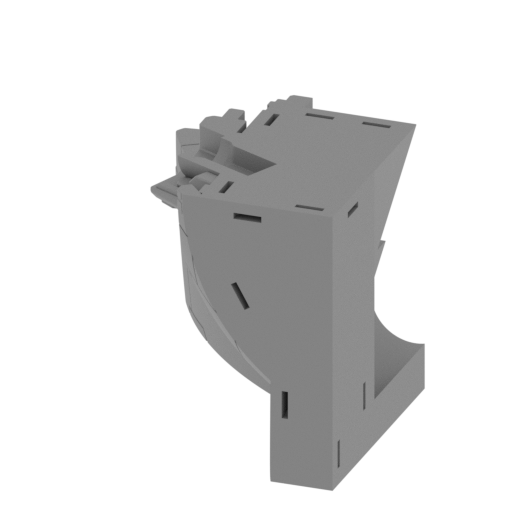

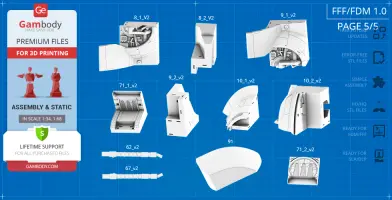

8_1_hull_cabine_bot_b_R_v 2_FDM (repaired).stl
8.64 MiB 33 h 10 min 20 m 102 x 130 x 99 Download
8_2_hull_cabine_bot_b_R_v 2_FDM (repaired).stl
0.57 MiB 21 h 8 min 12 m 48 x 87 x 99 Download

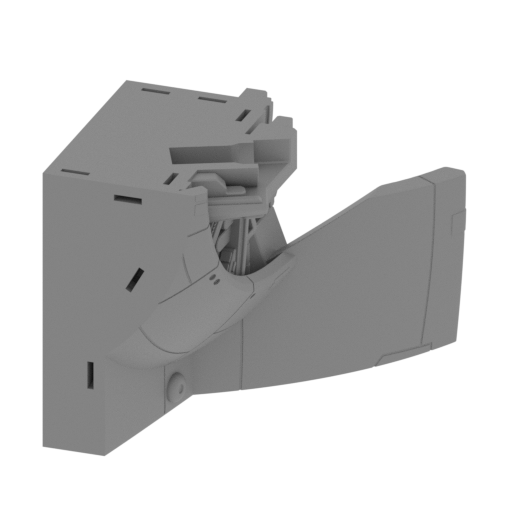

9_1_hull_cabine_bot_b_L_v 2_FDM (repaired).stl
8.63 MiB 33 h 11 min 20 m 102 x 130 x 99 Download
9_2_hull_cabine_bot_b_L_v 2_FDM (repaired).stl
0.57 MiB 21 h 51 min 12 m 48 x 87 x 99 Download

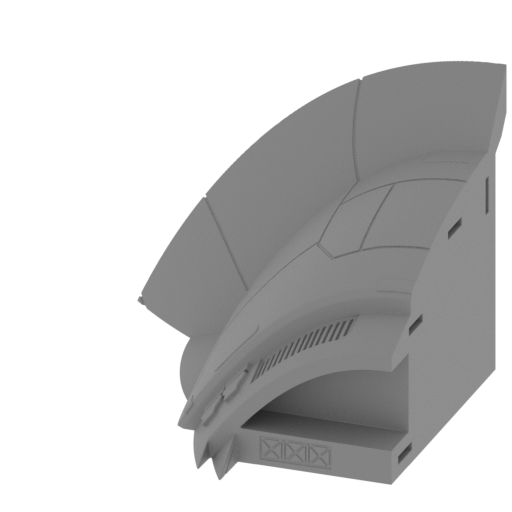

10_1_hull_cabine_top_R_v2 _FDM (repaired).stl
6.93 MiB 16 h 15 min 9 m 98 x 95 x 80 Download

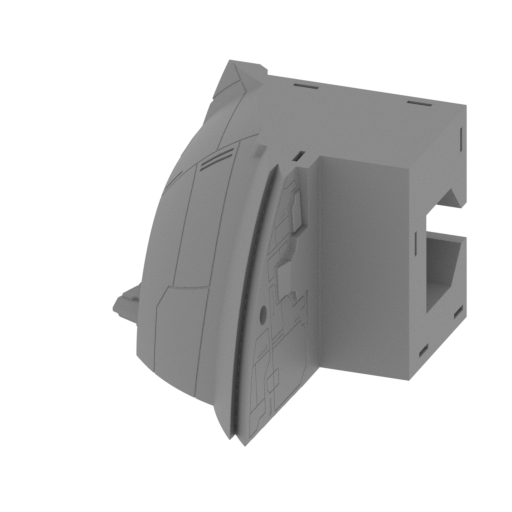

10_2_hull_cabine_top_R_v2 _FDM (repaired).stl
16.05 MiB 49 h 19 min 31 m 120 x 148 x 87 Download

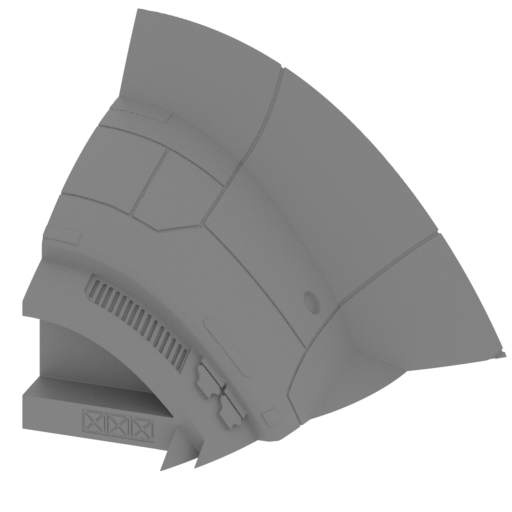

11_1_hull_cabine_top_L_v2 _FDM (repaired).stl
6.93 MiB 16 h 13 min 9 m 98 x 95 x 80 Download

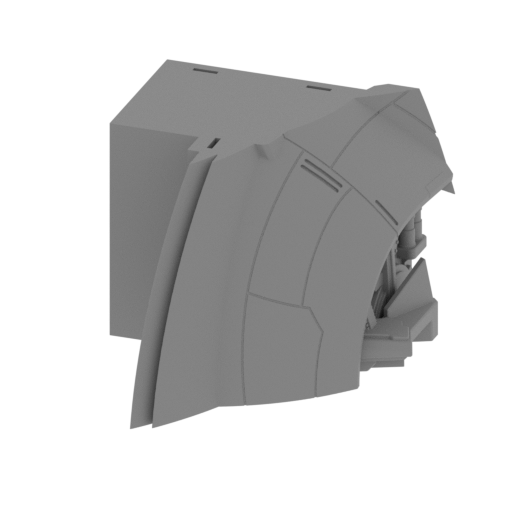

11_2_hull_cabine_top_L_v2 _FDM (repaired).stl
16.05 MiB 49 h 21 min 31 m 120 x 148 x 87 Download

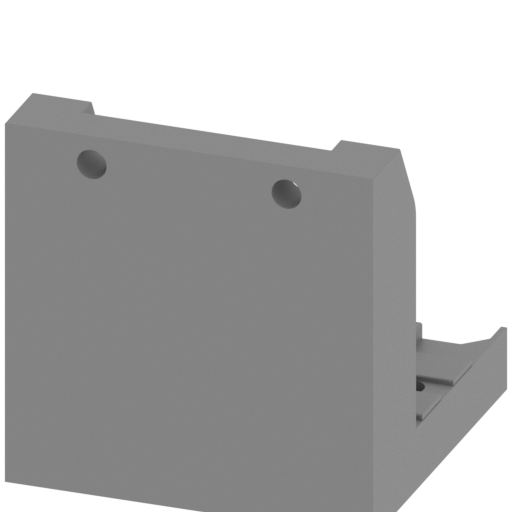

71_1_cockpit_base_v2_FDM (repaired).stl
0.46 MiB 11 h 4 min 6 m 71 x 70 x 72 Download

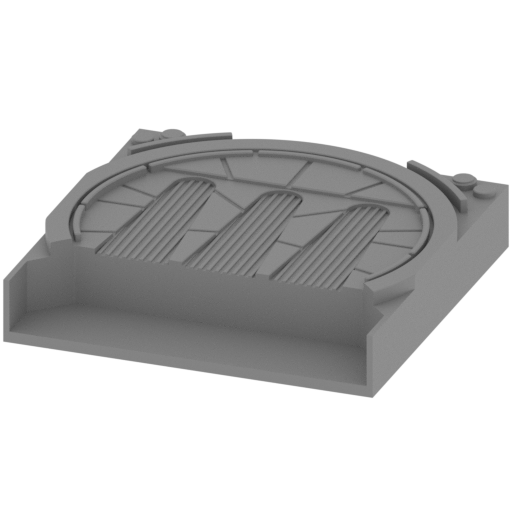

71_2_cockpit_base_v2_FDM (repaired).stl
0.81 MiB 5 h 6 min 3 m 71 x 71 x 15 Download

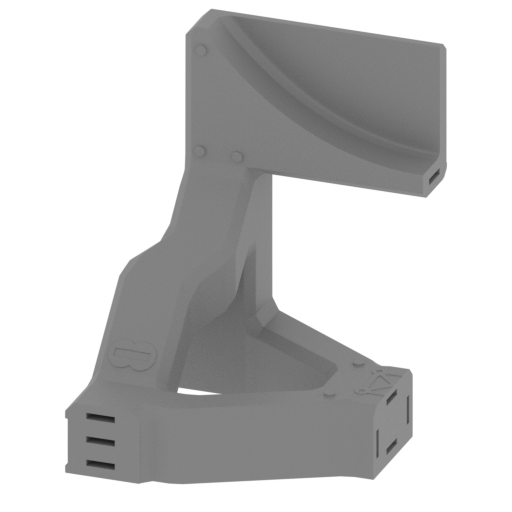

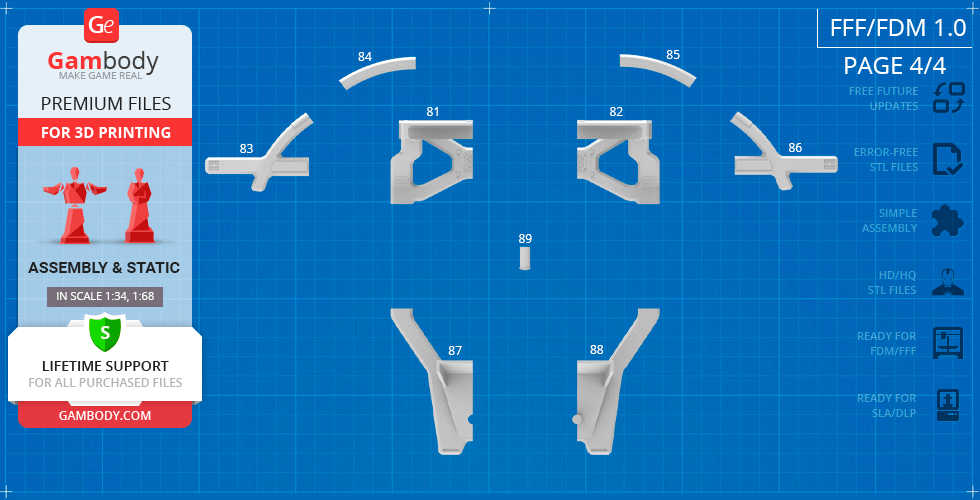

81_platform_center_R_FDM (repaired).stl
13.43 MiB 24 h 32 min 16 m 95 x 97 x 127 Download

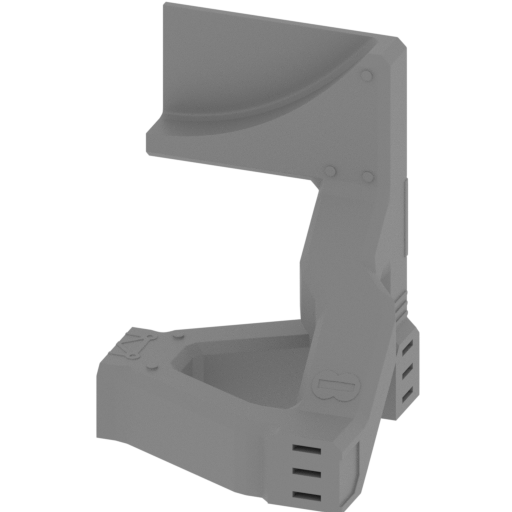

82_platform_center_L_FDM (repaired).stl
13.43 MiB 24 h 41 min 16 m 95 x 97 x 127 Download

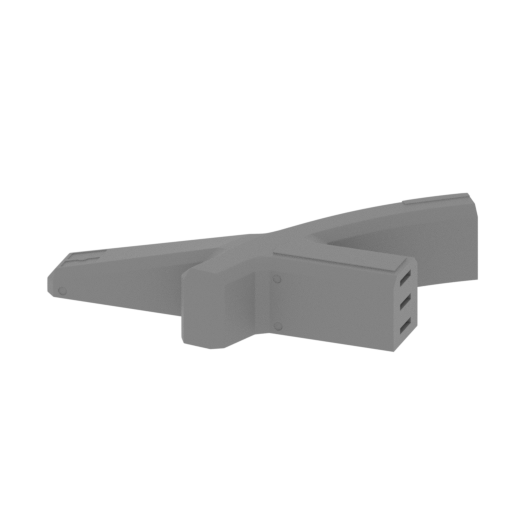

83_platform_back_a_R_FDM (repaired).stl
5.38 MiB 7 h 14 min 4 m 125 x 92 x 26 Download

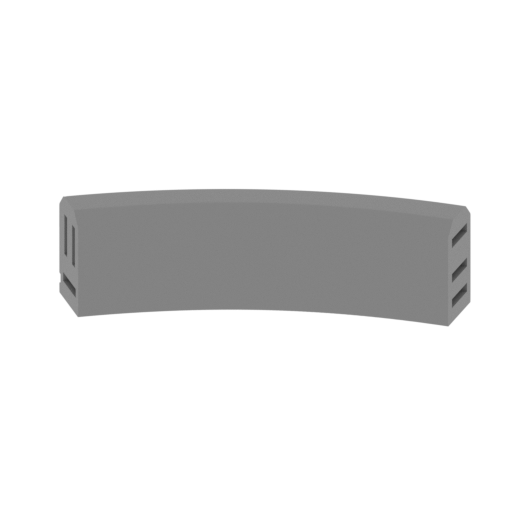

84_platform_back_b_R_FDM (repaired).stl

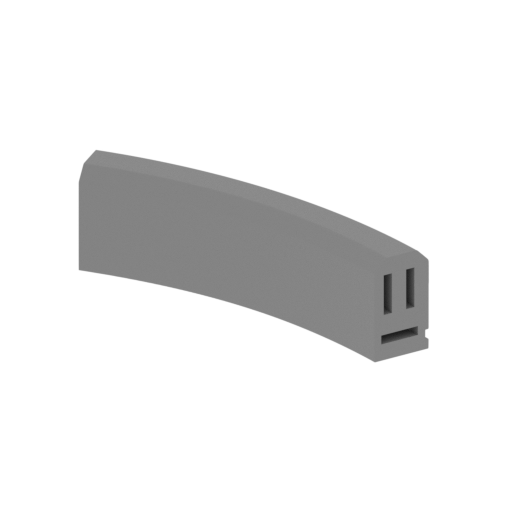

2.58 MiB 3 h 13 min 2 m 89 x 39 x 25 Download
85_platform_back_b_L_FDM (repaired).stl
2.58 MiB 3 h 10 min 2 m 89 x 39 x 25 Download

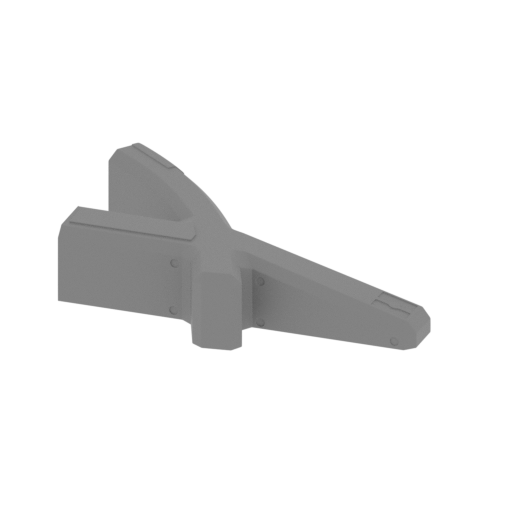

86_platform_back_a_L_FDM (repaired).stl
5.38 MiB 7 h 17 min 4 m 125 x 92 x 26 Download

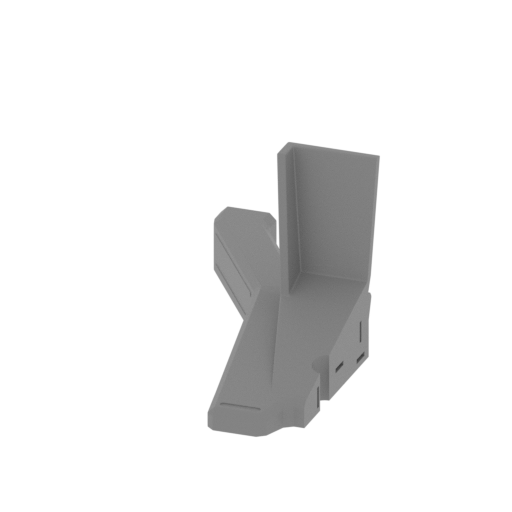

87_platform_front_R_FDM ( repaired).stl
6.28 MiB 12 h 53 min 7 m 95 x 169 x 89 Download

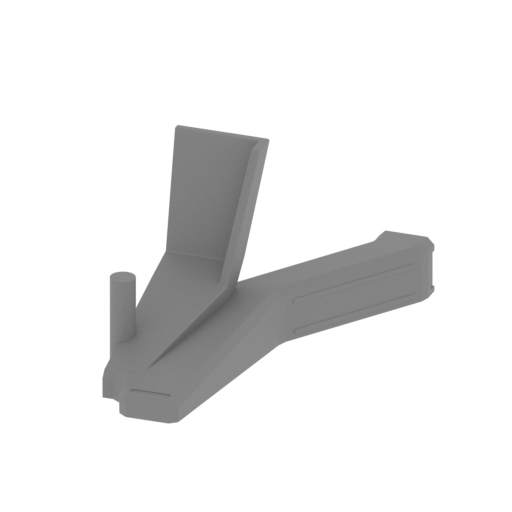

88_platform_front_L_FDM ( repaired).stl
6.30 MiB 13 h 28 min 8 m 101 x 169 x 89 Download
_62_wing_d_R_FDM_v2 (repa ired).stl
1.69 MiB 4 h 11 min 2 m 18 x 17 x 177 Download

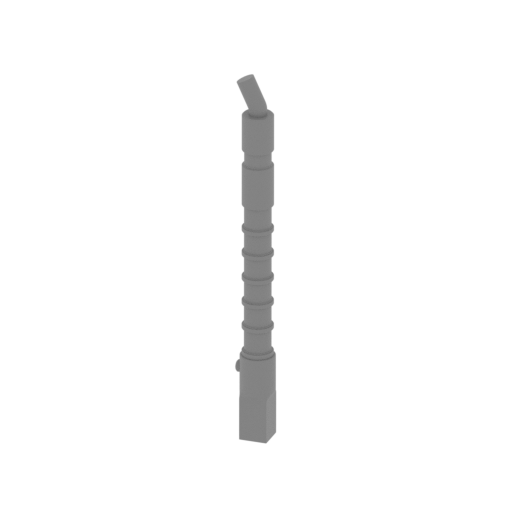

_67_wing_d_L_FDM_v2 (repa ired).stl
1.69 MiB 3 h 24 min 2 m 18 x 17 x 177 Download
...

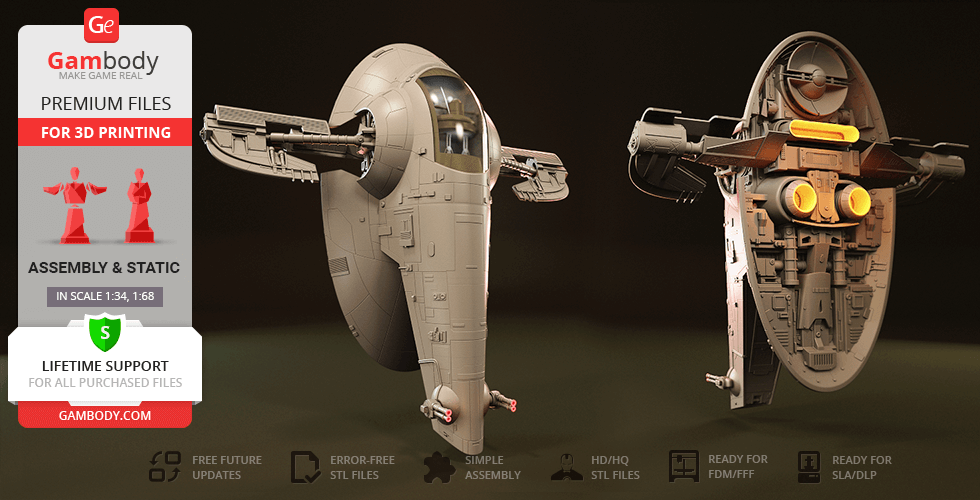

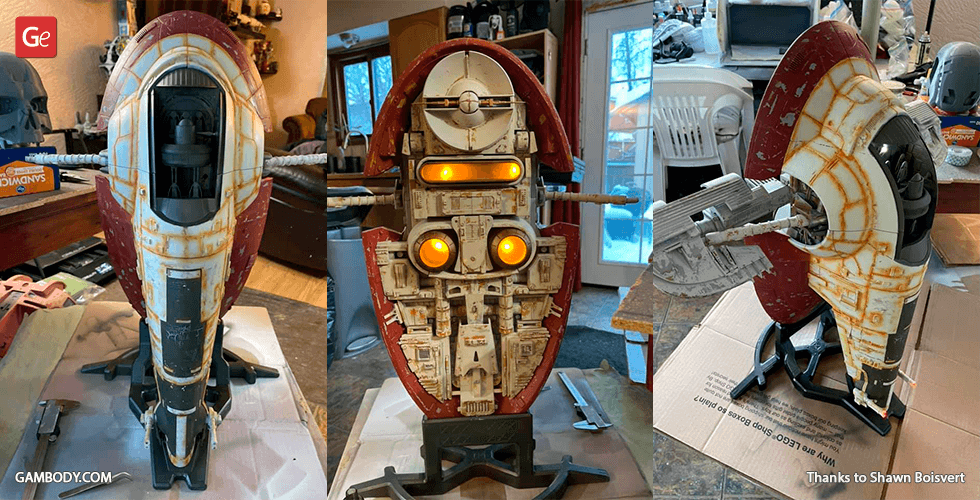

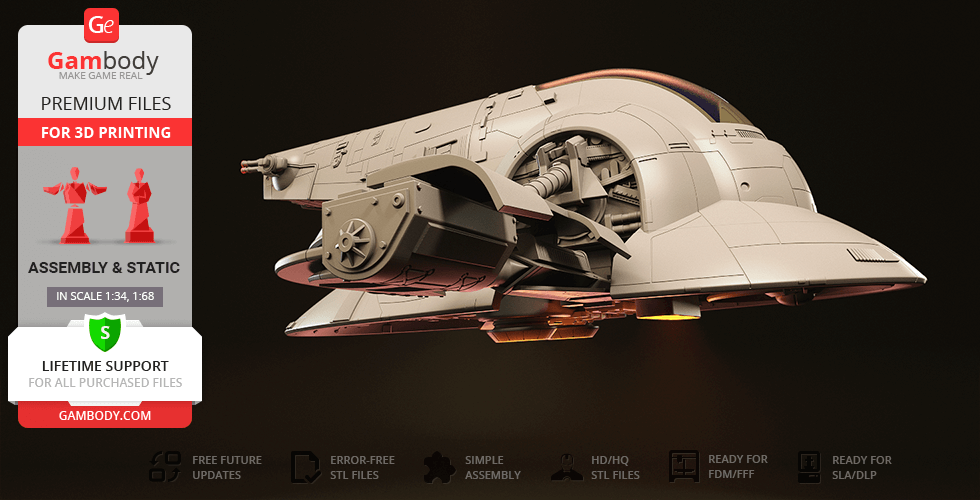

ABOUT THIS 3D MODEL

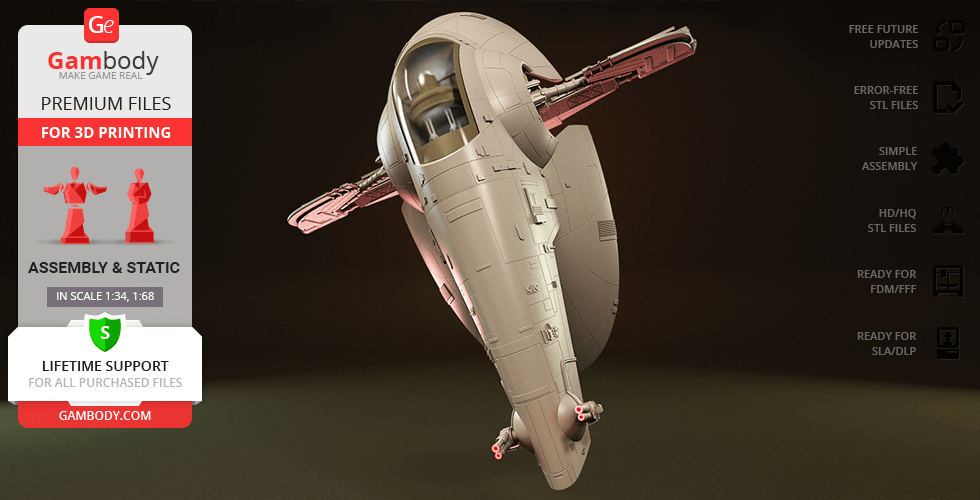

Slave I​ is a grandiose vehicle that was originally known as a Firespray-31-class patrol and attack craft, which was produced by the Kuat Drive Yards and used as a prisoner transport. One of the prototypes was later stolen by the infamous Jango Fett, who retrofitted it with various equipment to serve as his manoeuvred vessel. After Jango’s death, the vehicle was inherited by his cloned son Boba Fett and became a fear-instilling symbol of one of the deadliest bounty hunters one wouldn’t want to ever encounter. Among the broad fanbase of the Star Wars franchise, Slave I​ is also known as the spacecraft used to transport carbon-frozen Han Solo from Cloud City to Jabba the Hutt. Deriving inspiration from this legendary vessel, our contributing 3D artist spent around 175 hours to recreate Slave I​ for your collection. The Slave I​ 3D Printing Model’s immense elongated body reminiscent of a radar dish is riddled with lots of intricate details, two authentic stabilizer fins are attached to it. The bottom surface of the spacecraft on which it resides when idle features huge ion thrusters that help the ship propel so smoothly. A concealed minelayer that launches seismic charges could also come in handy if you are confronted with vicious enemies. Among the ship’s capable weaponry you will find the twin blaster cannons and concussion missile launchers located in the tail of the ship. This impressive machine can be operated from the highly-detailed cockpit, which our contributing 3D artist furnished with the utmost attention. The Slave I​ 3D Printing Model can be displayed sitting down or standing upright as if mid-flight with the help of a special platform, which will help you create an impeccable installation. So hurry up and get down to printing – the luxurious bounties are already waiting for you!

ADAPTATION FOR 3D PRINTING

Slave I​ for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 70 hours in total. For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support the spacecraft model was divided into many assembly parts, e.g. its stabilizer fins, twin blaster cannons, missile launchers, ion thrusters, tail hatch, etc. are provided as separate STL files. Various special mechanisms were introduced to ensure that the model has fully articulated elements in it (please, see “Versions’ Specifications”). For you to display the Slave I​ model upwards as if mid-flight, a special platform is provided. In order for the platform to fit the build plates of the average 3D printers, it was divided into several assembly parts. All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the Slave 1 model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the actual height of Slave I​ that is 21500 mm. The 3D printing model's chosen scale is 1/34 for the FFF/FDM version and 1/68 for the DLP/SLA/SLS version.

VERSIONS' SPECIFICATIONS

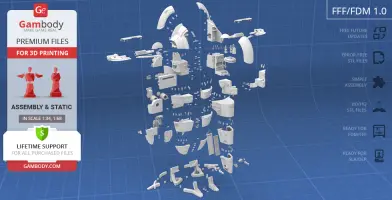

FFF/FDM 1.0 version features:
- Contains 90 parts;
- A printed model is 648 mm tall, 633 mm wide, 344 mm deep;
- Assembly kit includes lock 90_Ge_lock_10H_x256 to connect the model's parts securely without glue that needs to be printed 256 times;

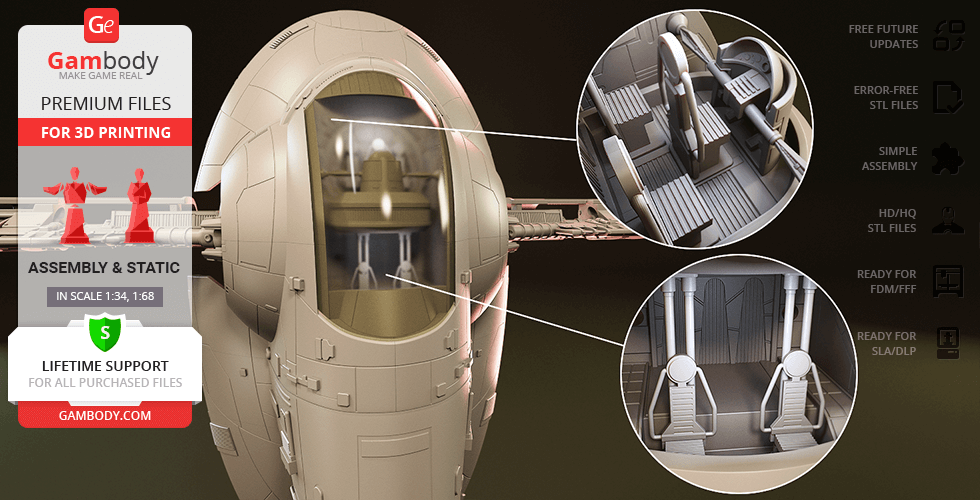

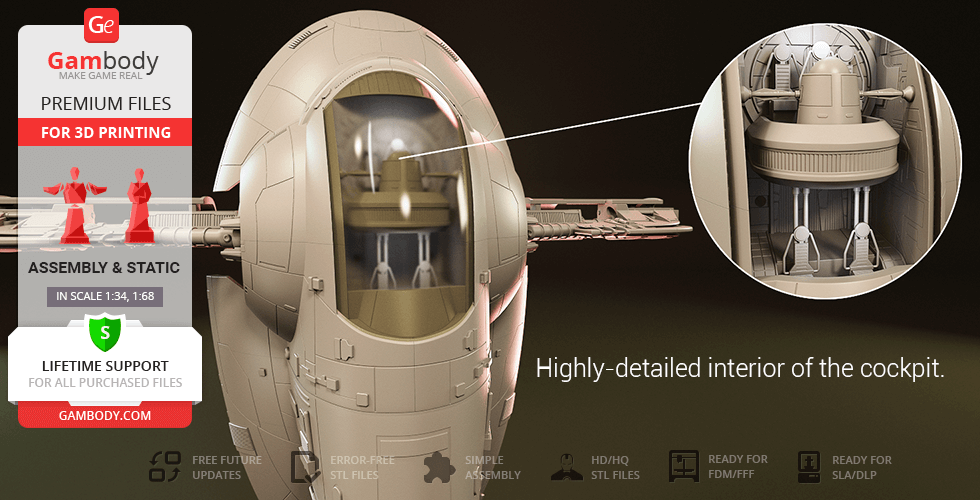

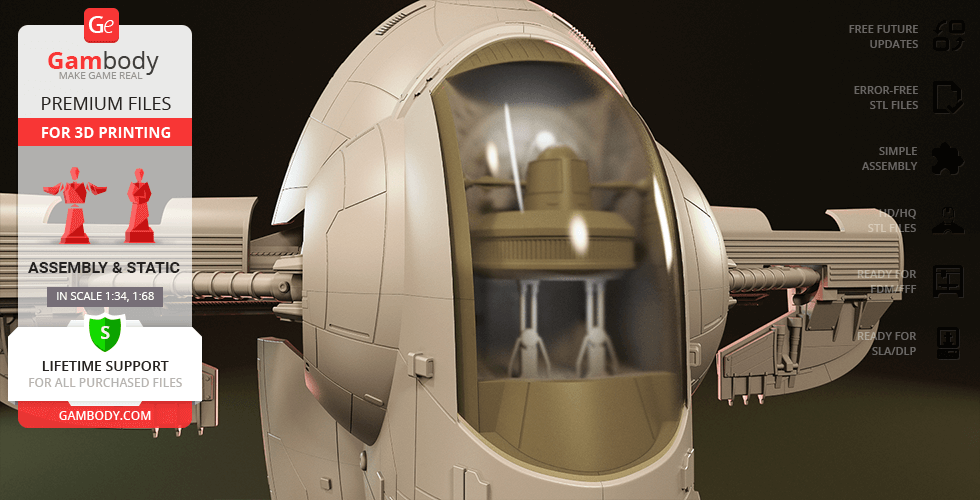

- Highly-detailed interior of the cockpit;

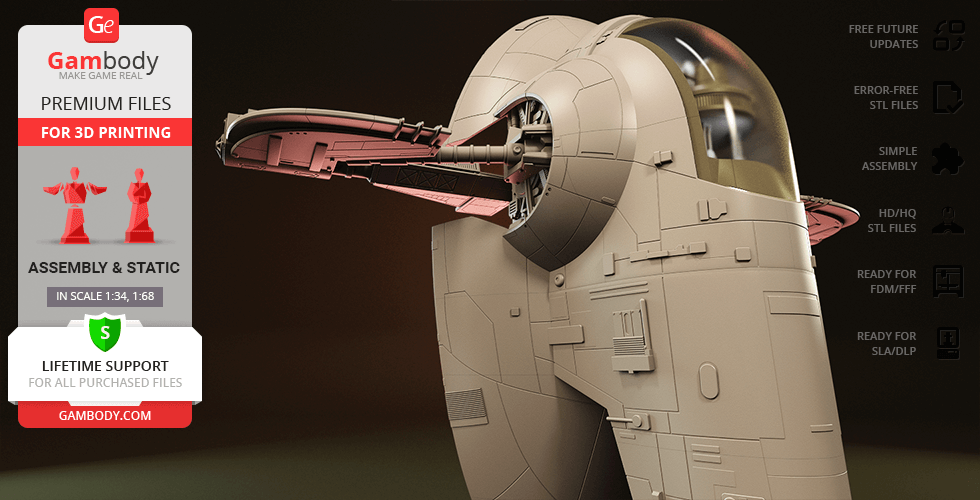

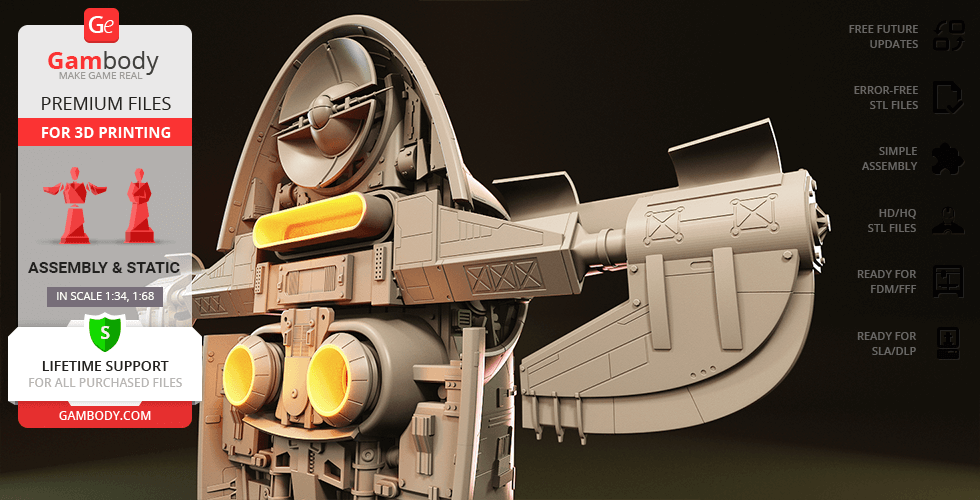

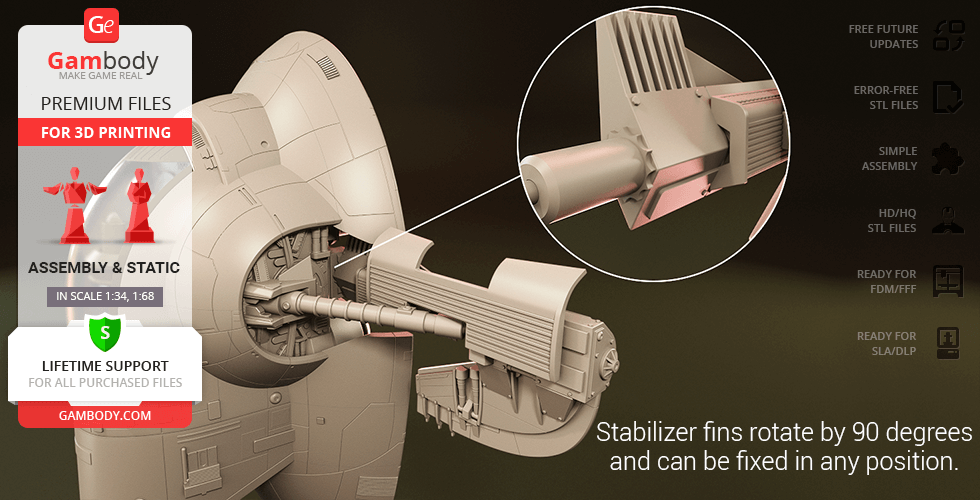

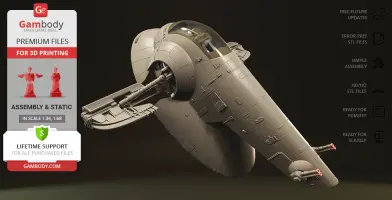

- Stabilizer fins rotate by 90 degrees and can hold any position you may choose;

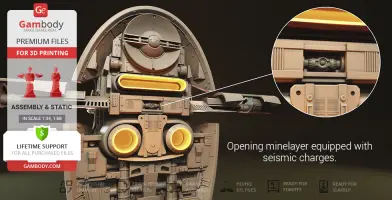

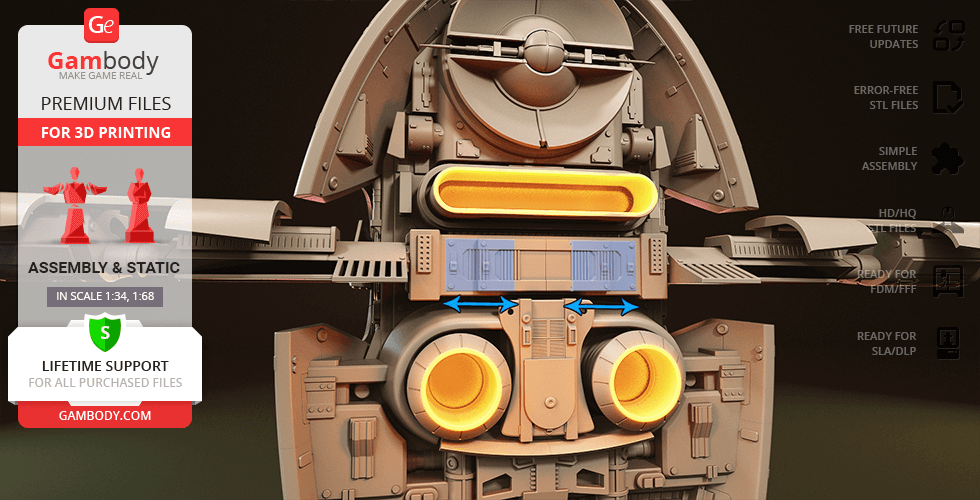

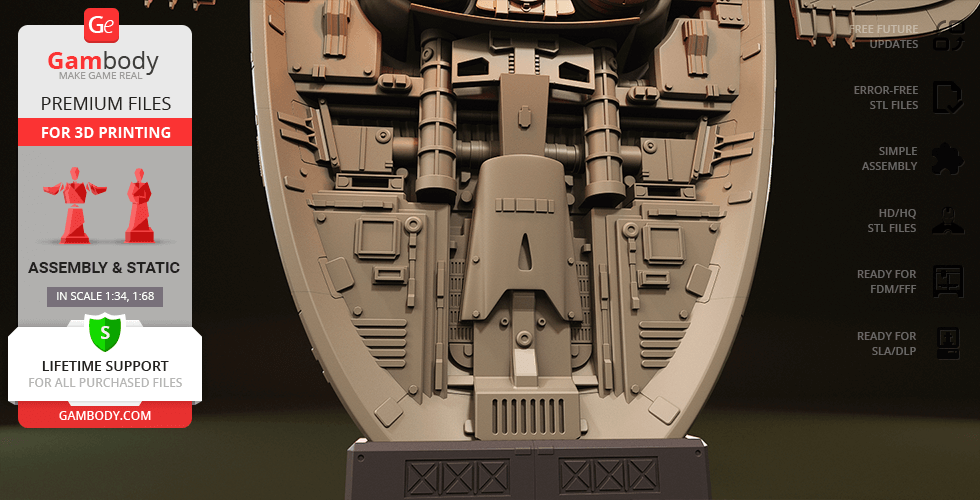

- The sliding doors of the minelayer open to display seismic charges;

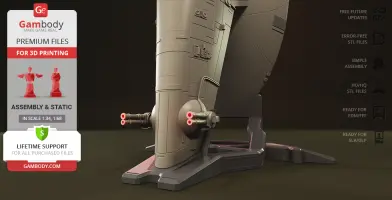

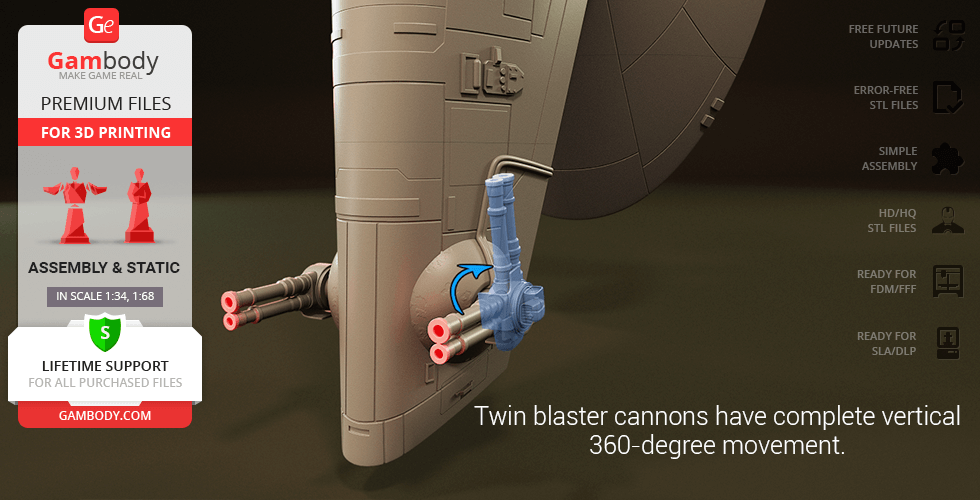

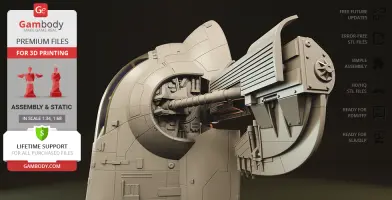

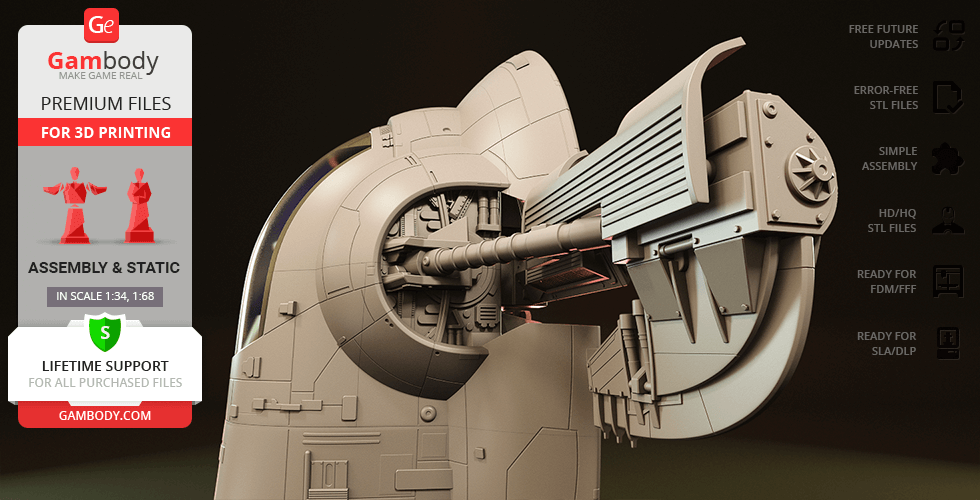

- Twin blaster cannons have complete vertical 360-degree movement;

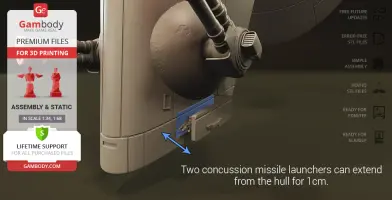

- Two concussion missile launchers can extend from the hull for 1cm;
- Special holes were made in the cockpit console to install the cockpit pipes;

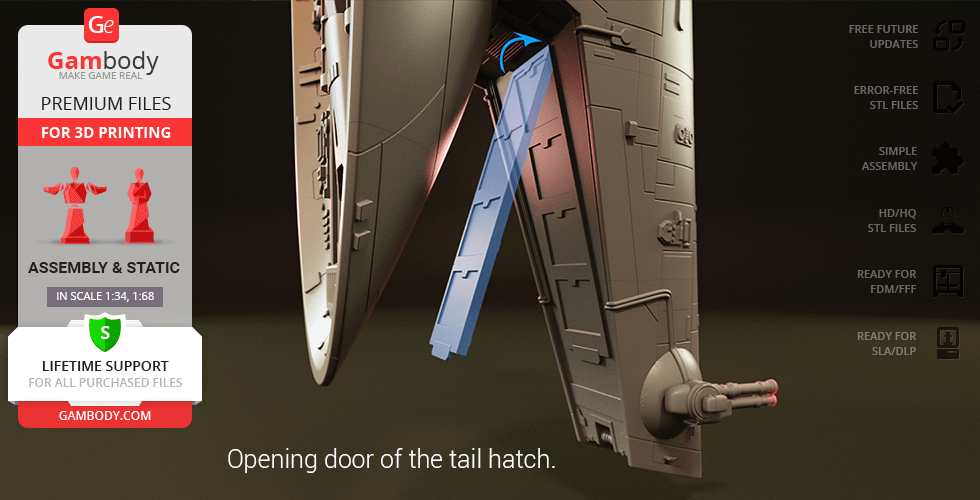

- The tail hatch opens to store your precious cargo inside the hollow compartment;

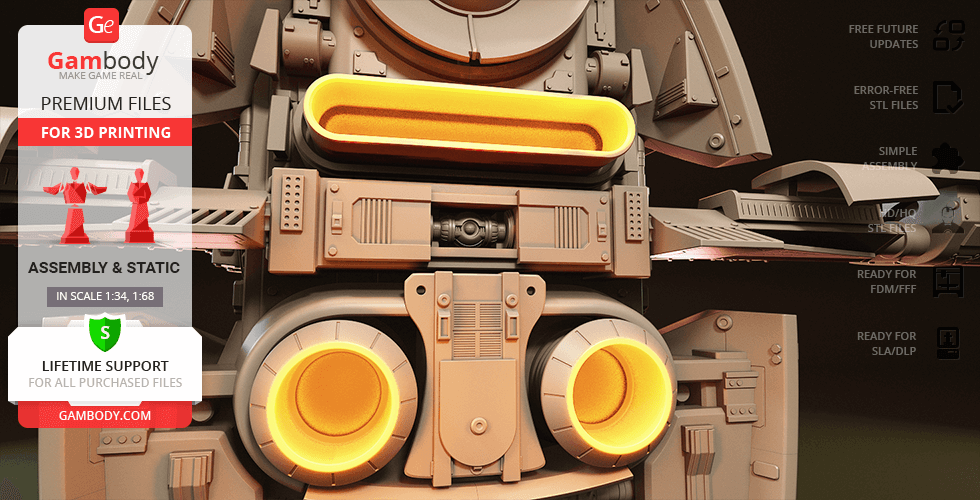

- Windows of the cockpit and covers of the ion thrusters are provided separately to be printed with the transparent filament;

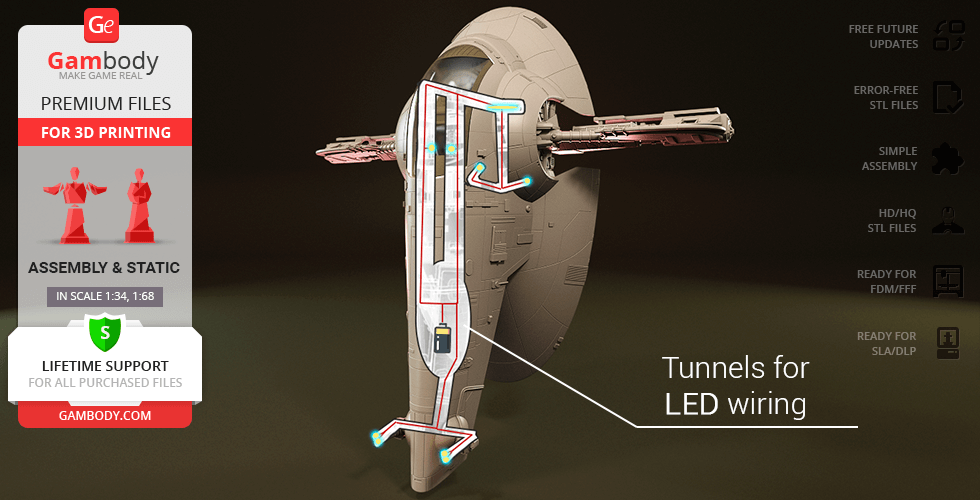

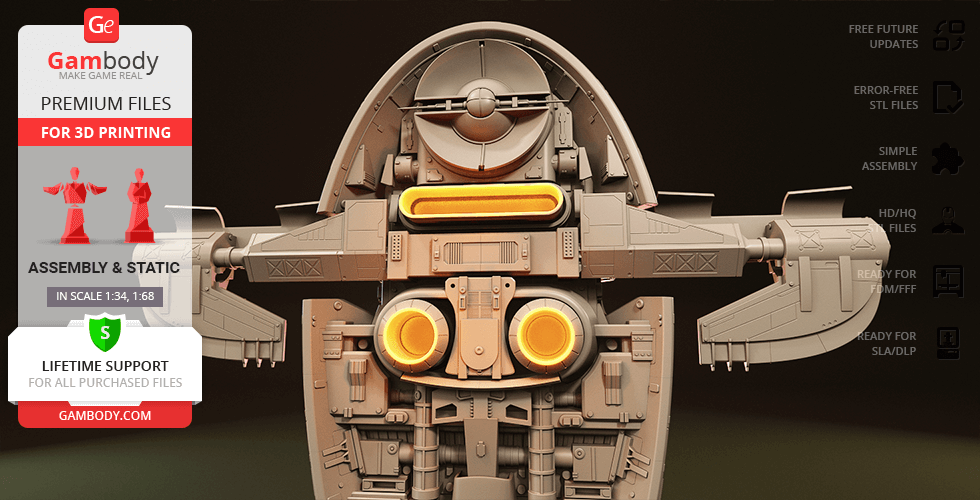

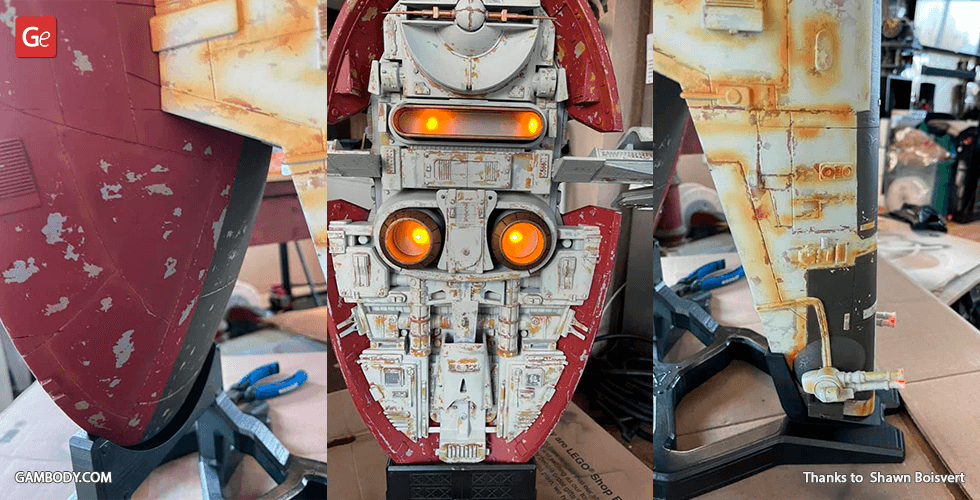

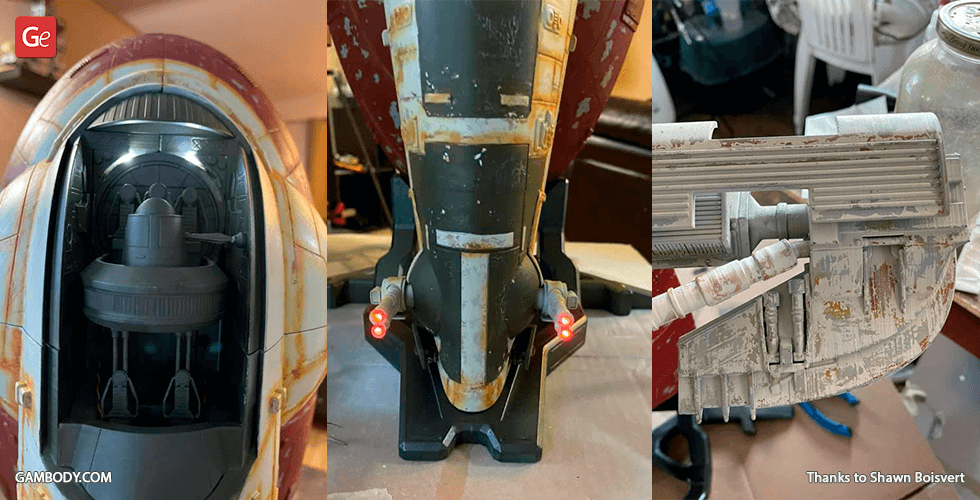

- Tunnels throughout the ship’s body are provided for LED wiring to light up the twin blaster cannons, cockpit, ion thrusters; a spot to hide the battery is provided inside the body;

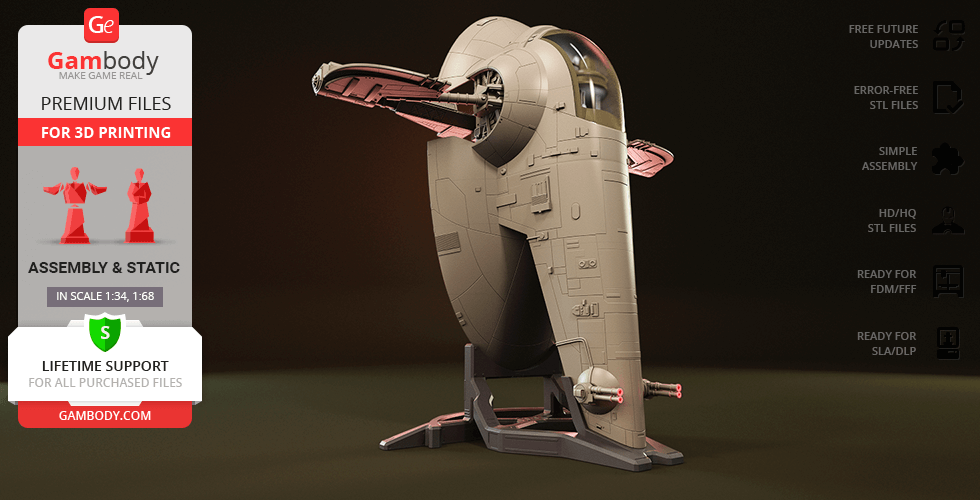

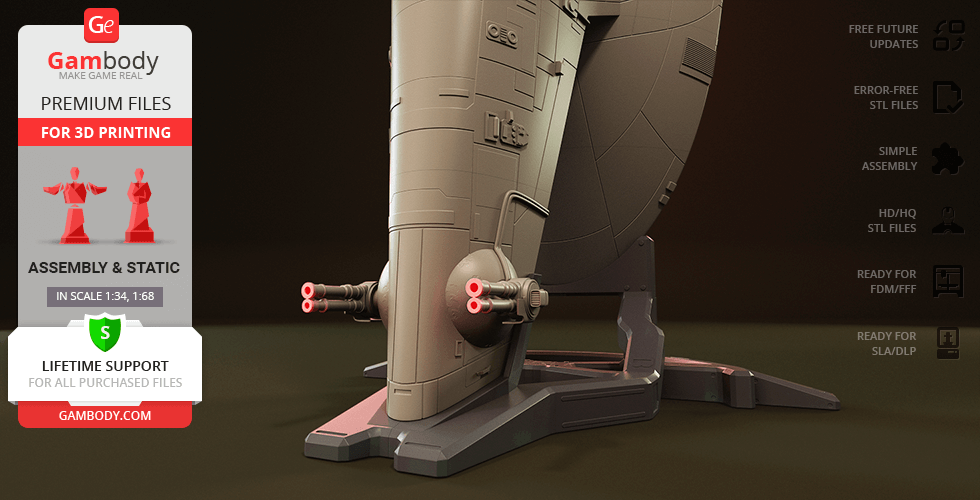

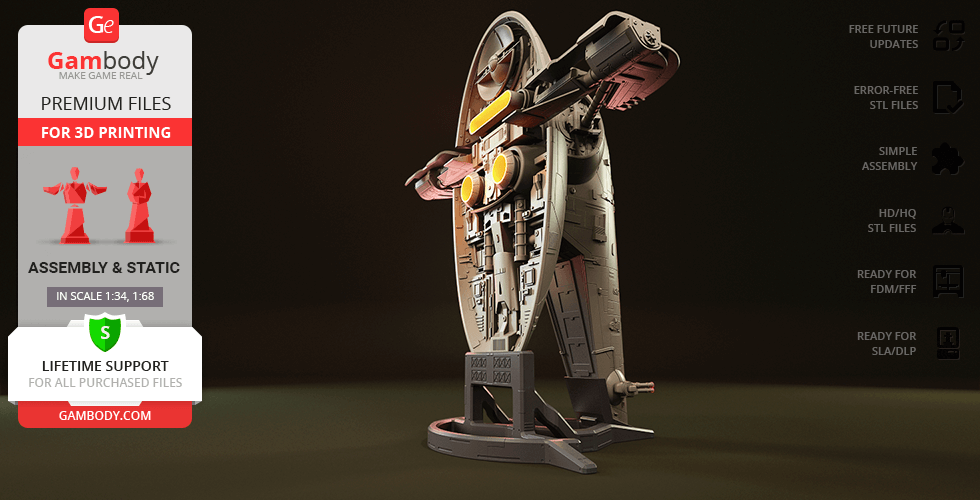

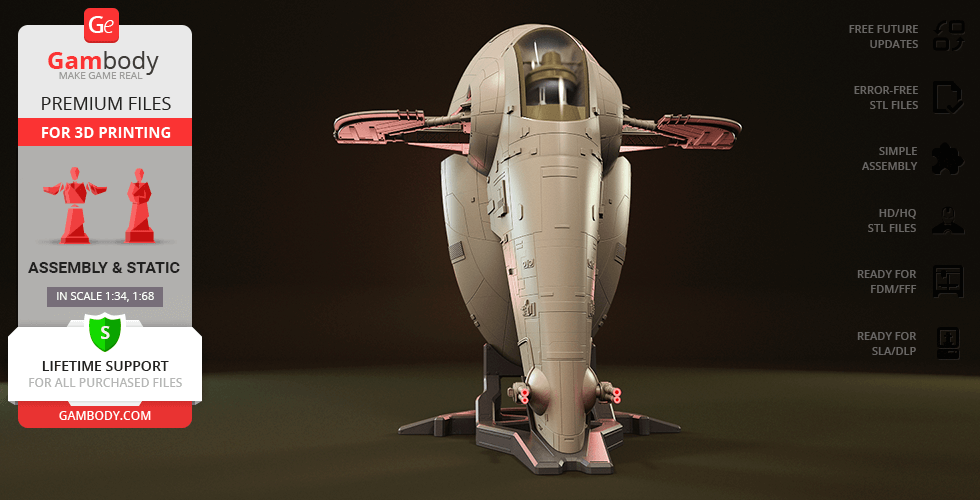

- The platform is designed to help position the Slave 1 craft upwards as if mid-flight;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

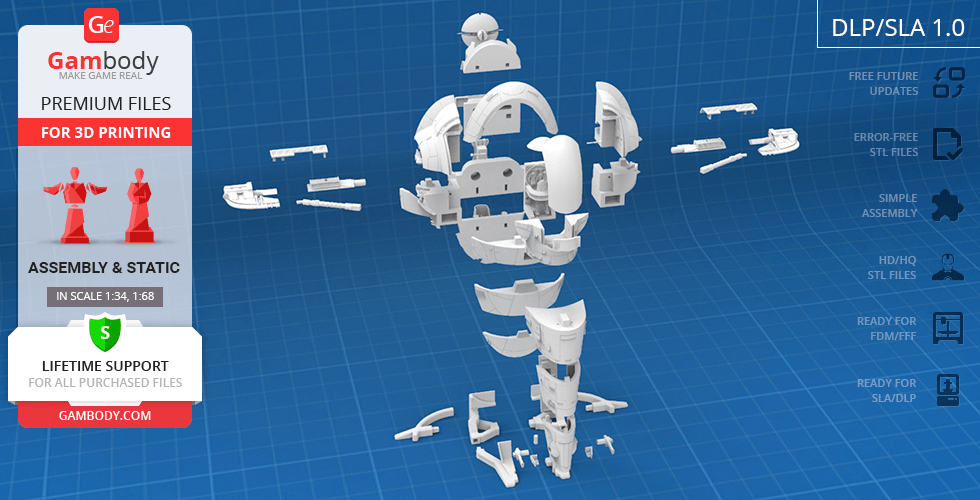

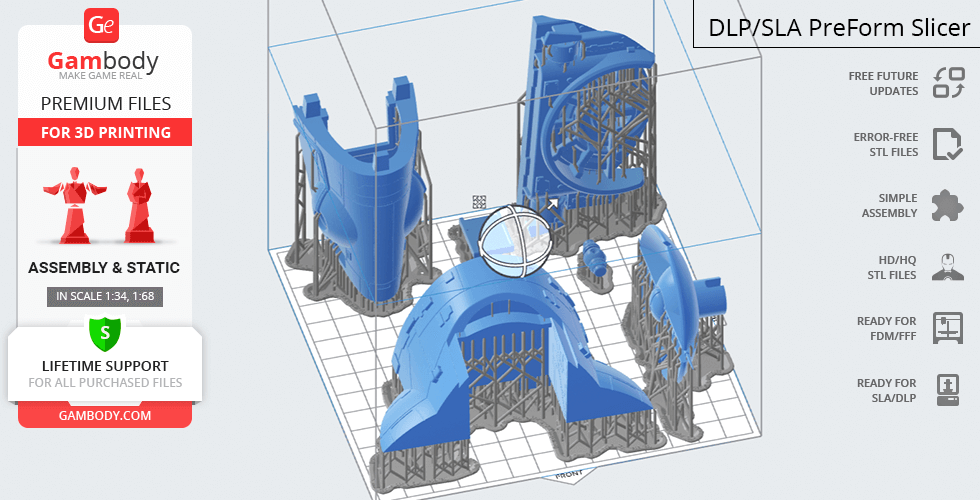

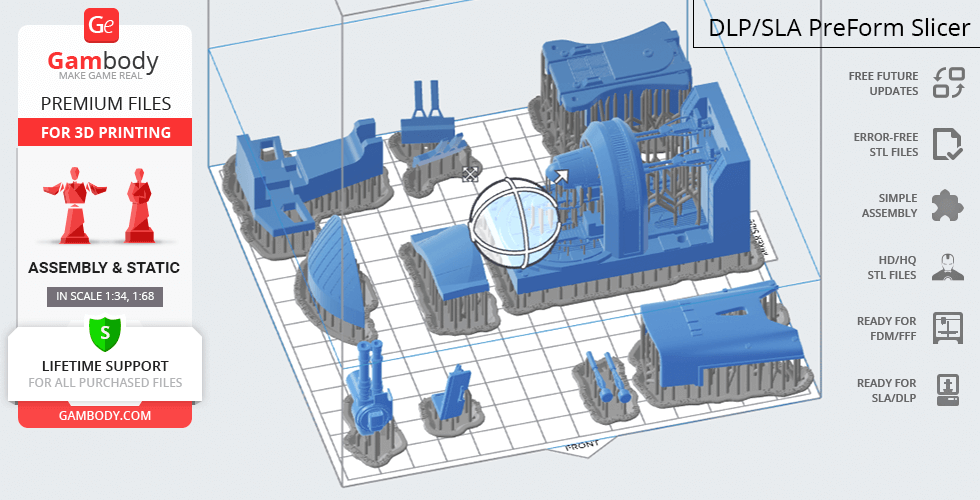

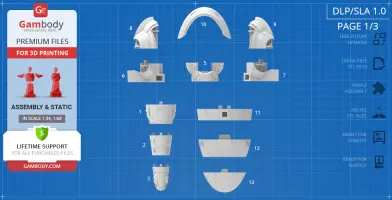

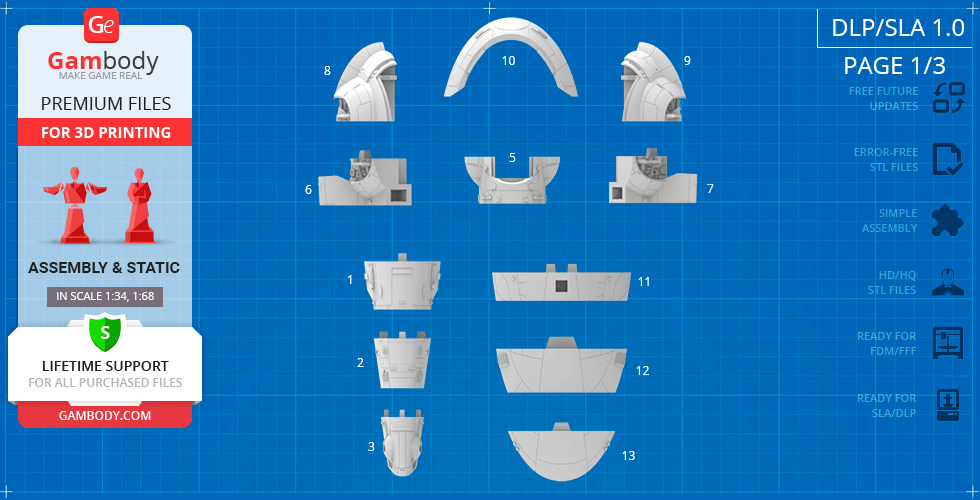

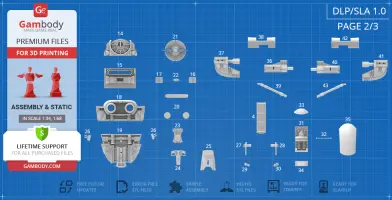

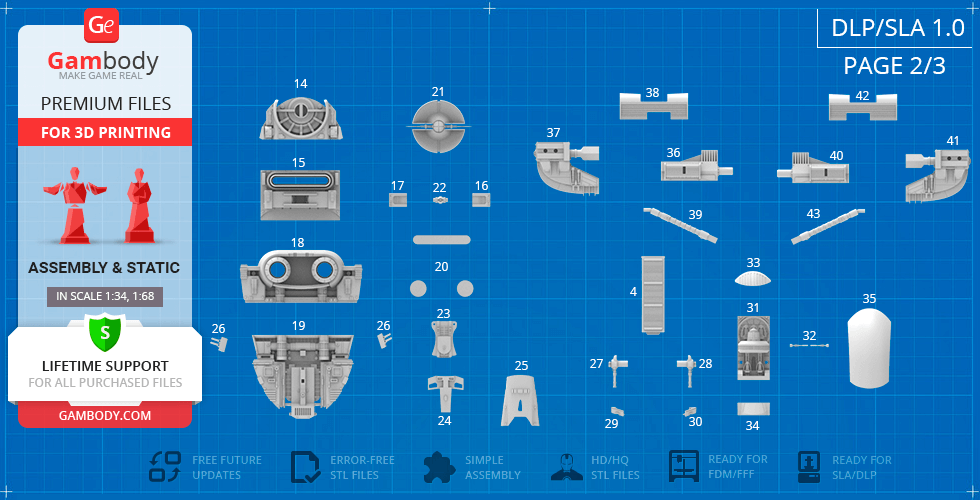

DLP/SLA/SLS 1.0 version features:
- Contains 50 parts;
- A printed model is 324 mm tall, 316 mm wide, 172mm deep;

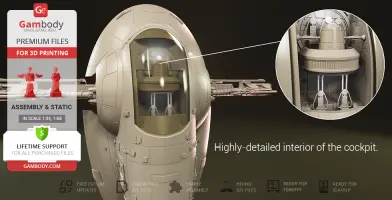

- Highly-detailed interior of the cockpit;
- Stabilizer fins rotate by 90 degrees and can hold any position you may choose;
- The sliding doors of the minelayer open to display seismic charges;
- Twin blaster cannons have complete vertical 360-degree movement;
- Two concussion missile launchers can extend from the hull for 1cm;
- Special holes were made in the cockpit console to install the cockpit pipes;
- The tail hatch opens to store your precious cargo inside the hollow compartment;
- Windows of the cockpit and covers of the ion thrusters are provided separately to be printed with the transparent filament;
- Tunnels throughout the ship’s body are provided for LED wiring to light up the twin blaster cannons, cockpit, ion thrusters; a spot to hide the battery is provided inside the body;

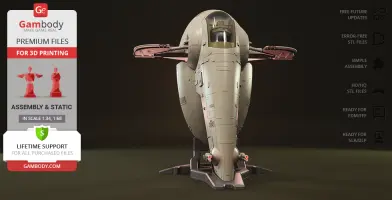

- The platform is designed to help position the Slave 1 craft upwards as if mid-flight;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

WHAT WILL YOU GET AFTER PURCHASE?

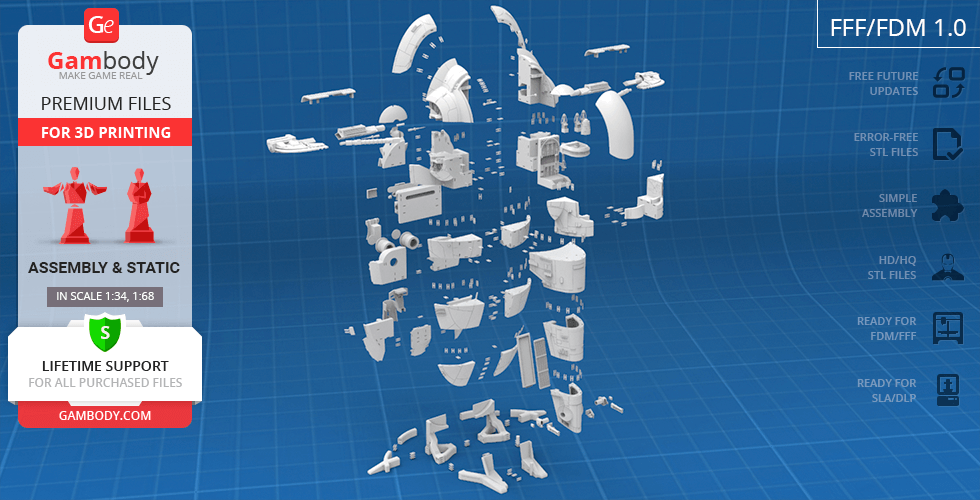

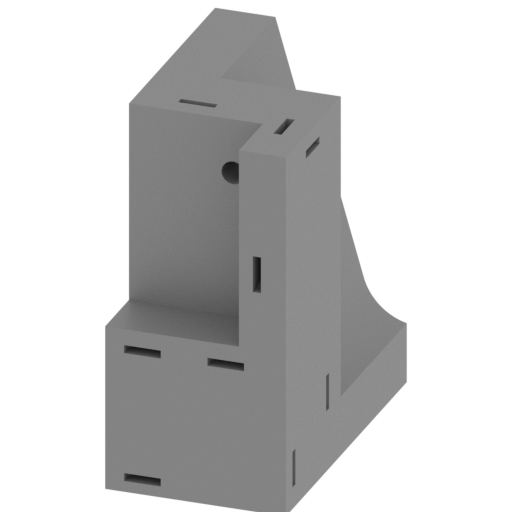

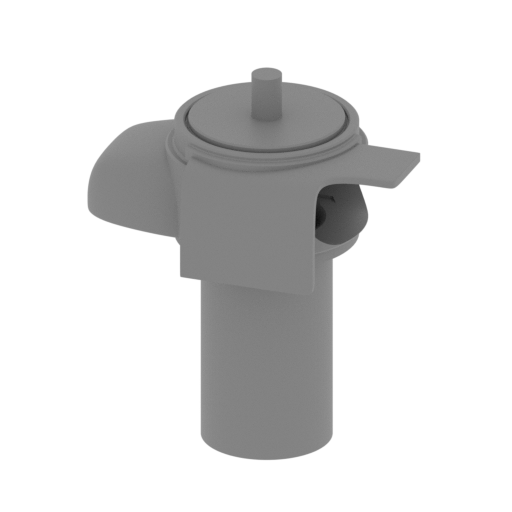

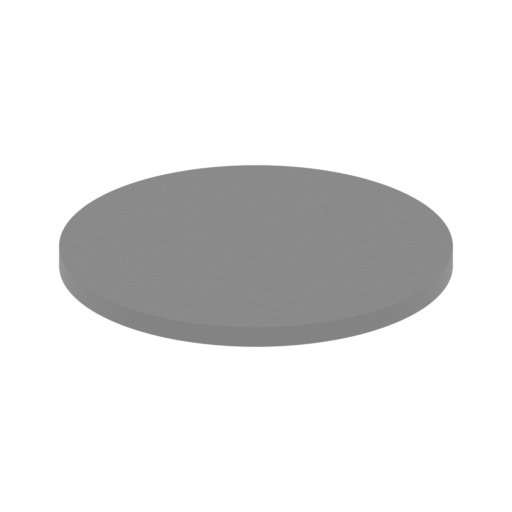

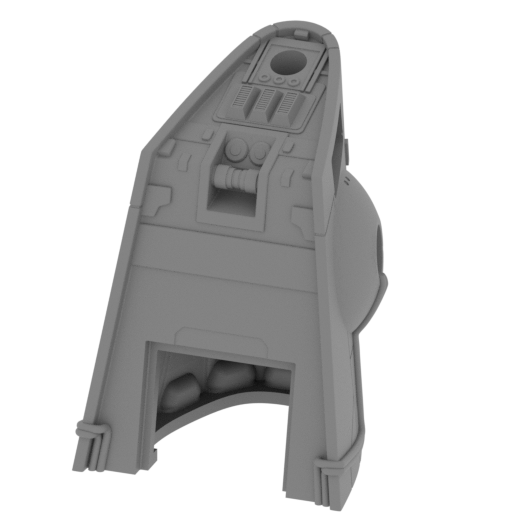

- STL files of Slave I​ Model for 3D printing which consist of 140 parts;

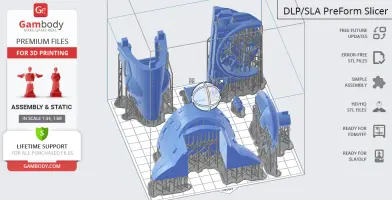

- 2 versions of files for this model for FFF/FDM and DLP/SLA/SLS printers;
- High-poly detailed model of Slave I;

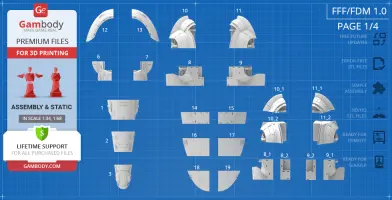

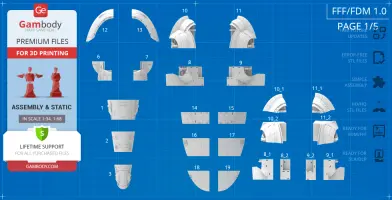

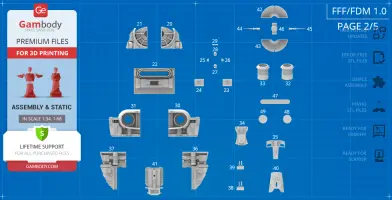

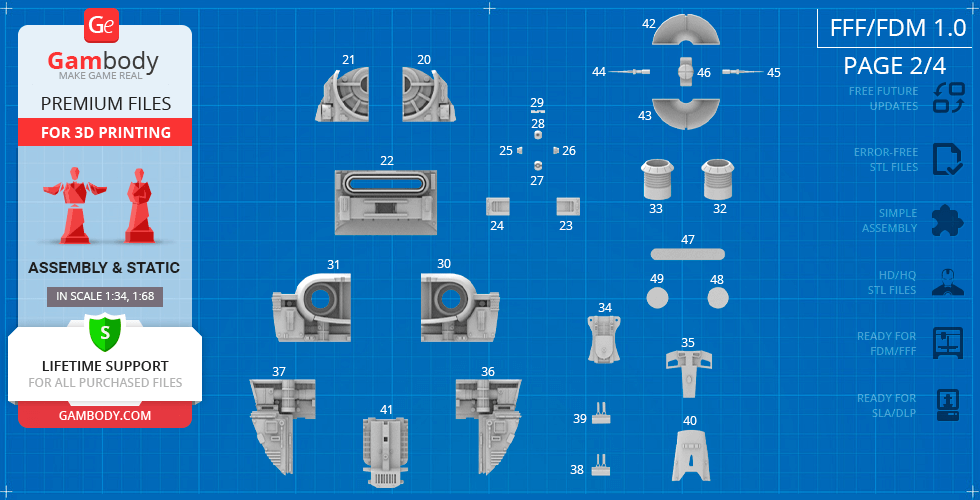

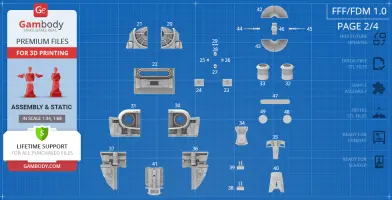

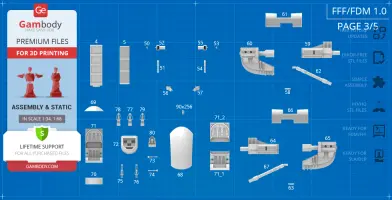

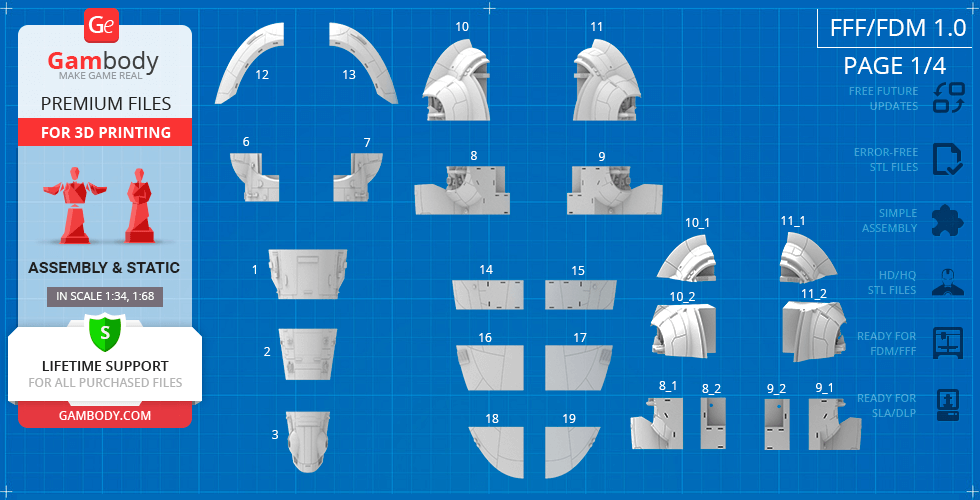

Assembly Manual for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of Slave I for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Slave I 3D Printing Model at Gambody YouTube channel.

Also, you may like other Star Wars 3D Printing Models, as well as other Space Ships 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

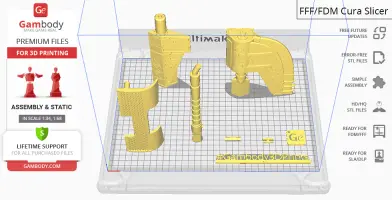

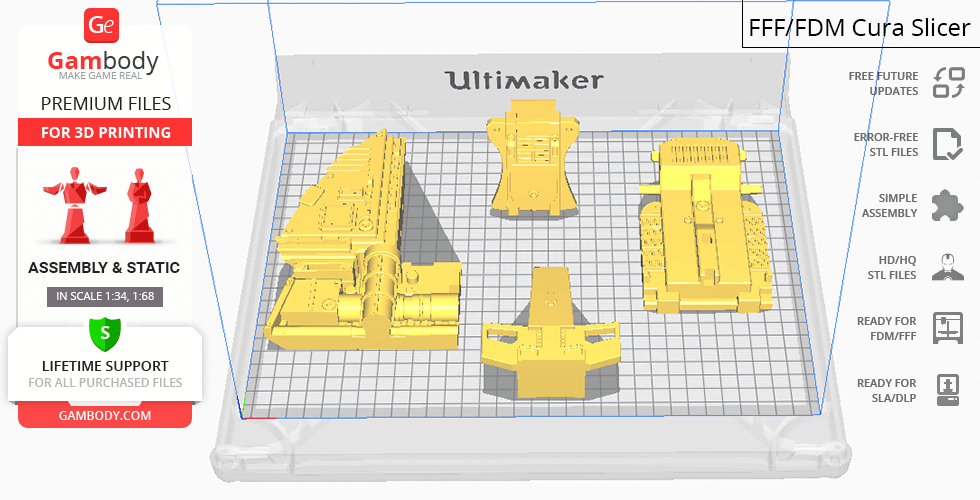

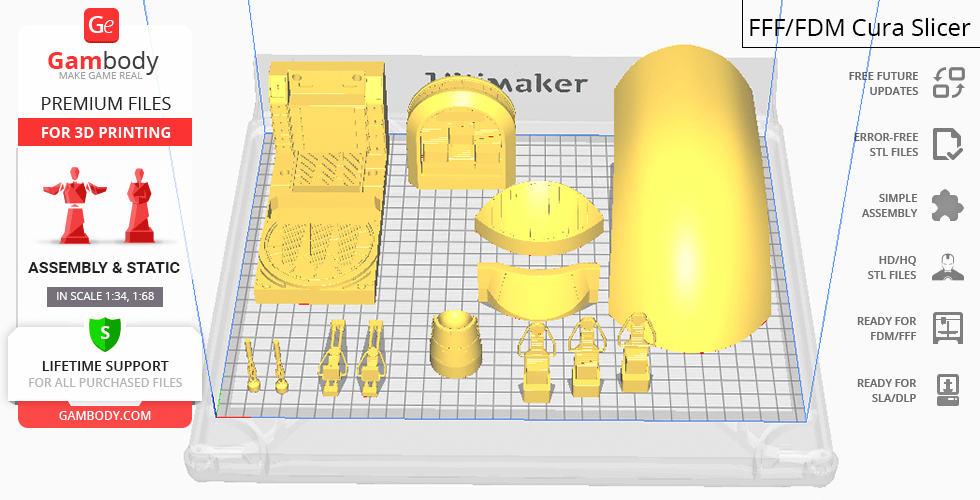

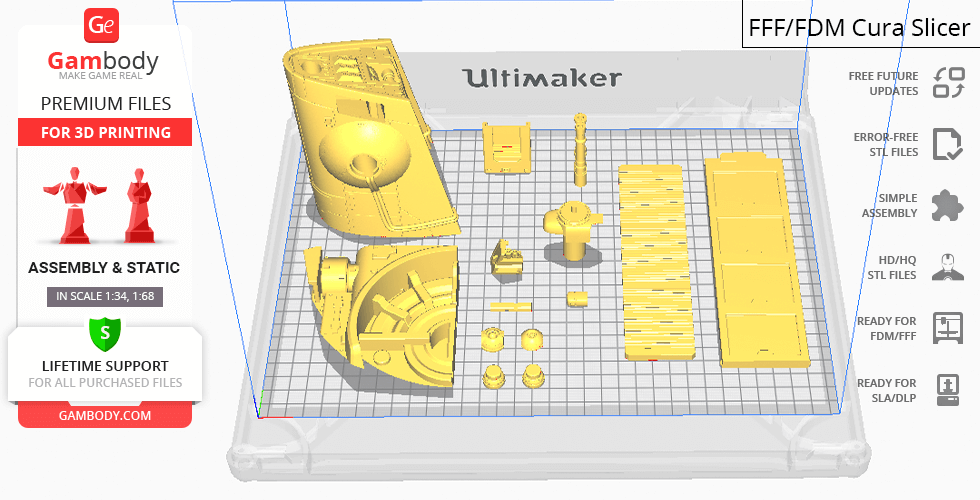

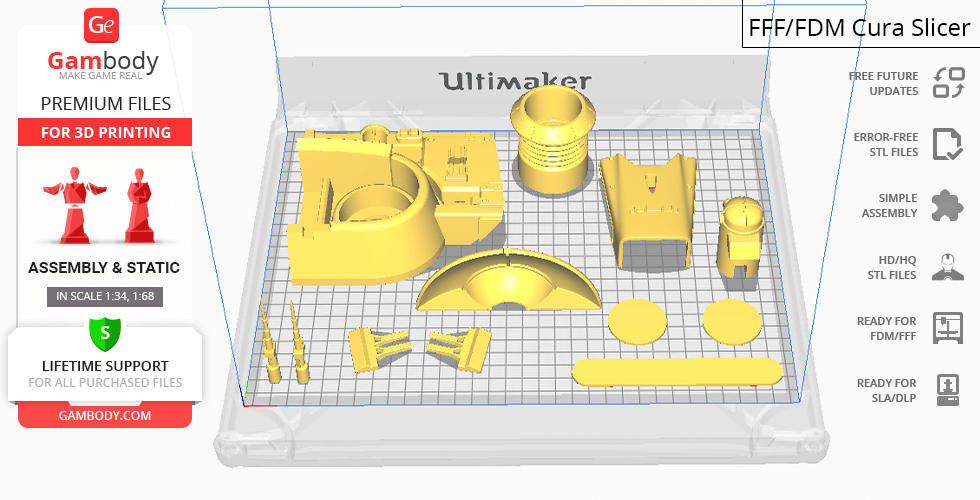

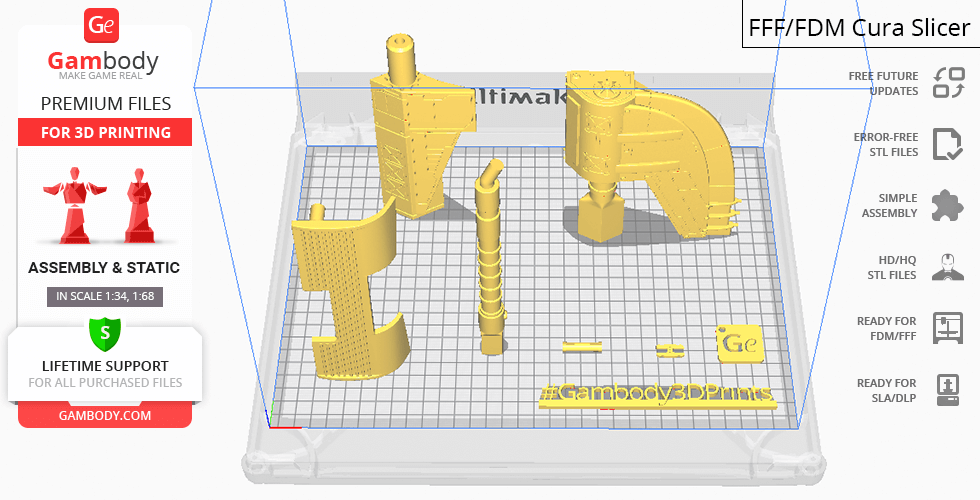

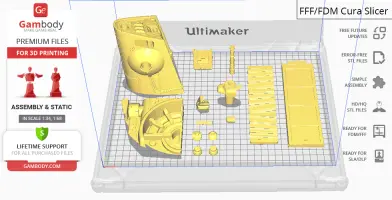

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90Ëš
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments
