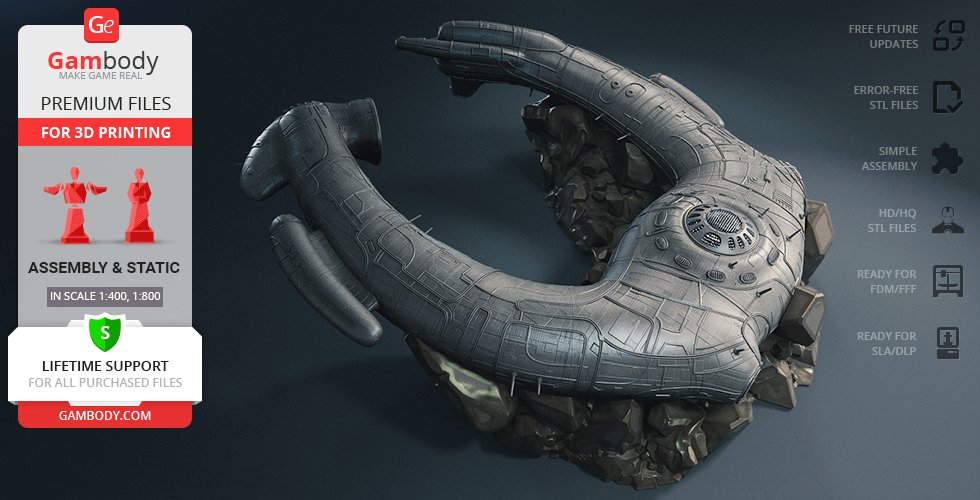

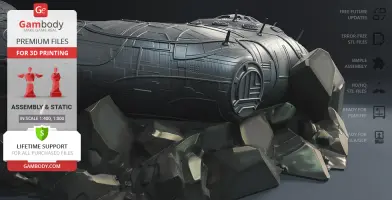

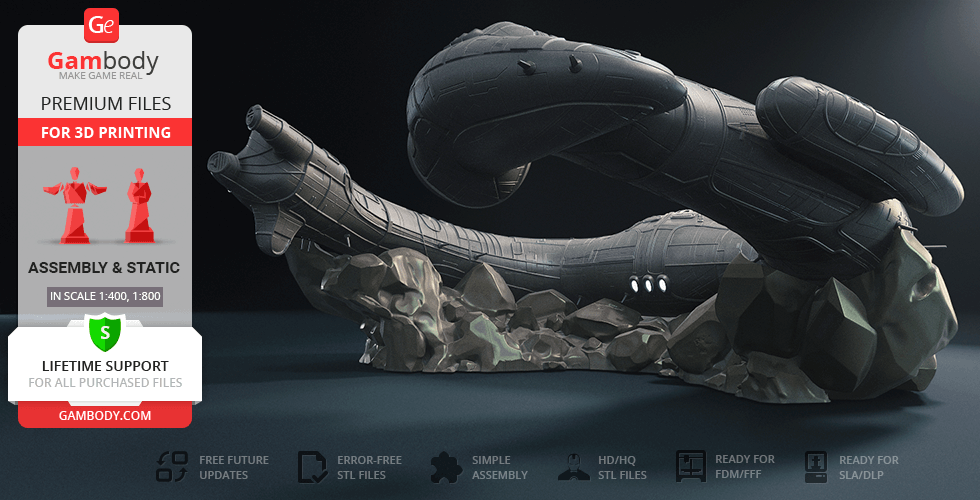

Engineer Juggernaut 3D Printing Model | Assembly

(3)
cm: 48 w x 46.9 d x 13.3 h
in: 18.898 w x 18.465 d x 5.236 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

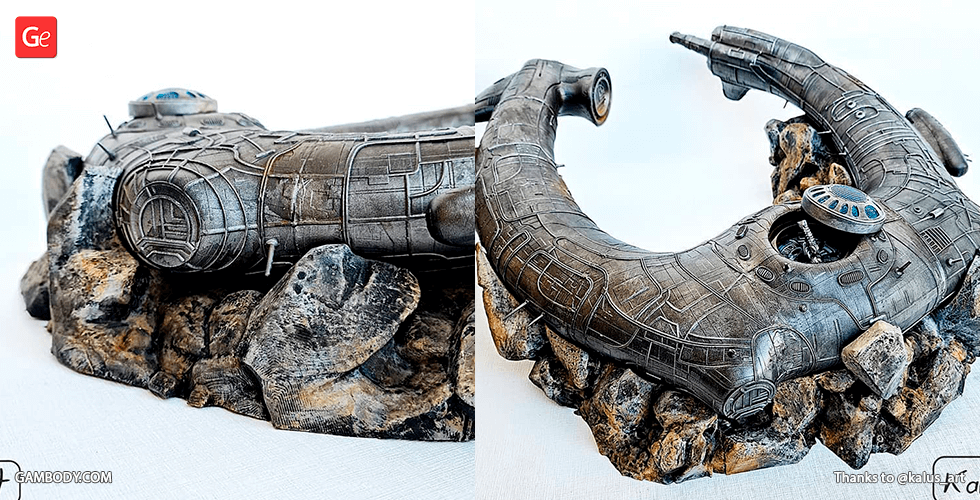

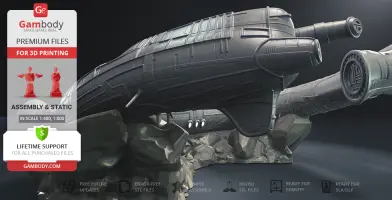

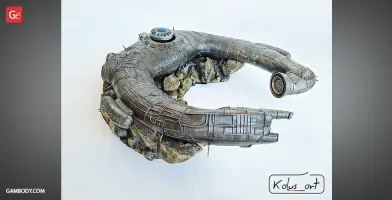

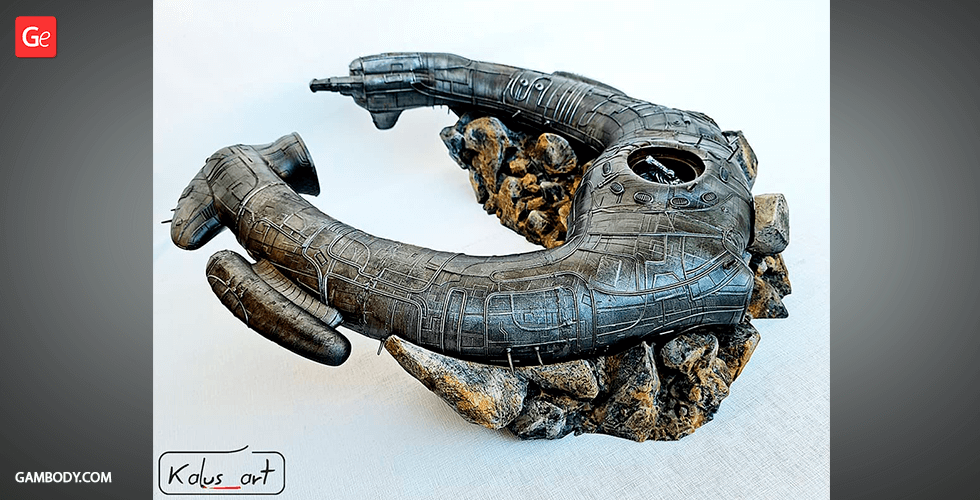

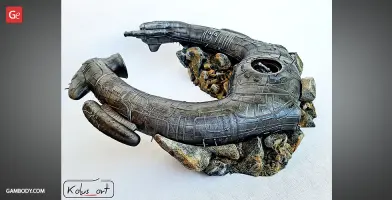

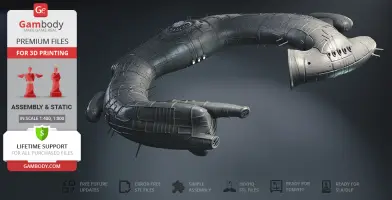

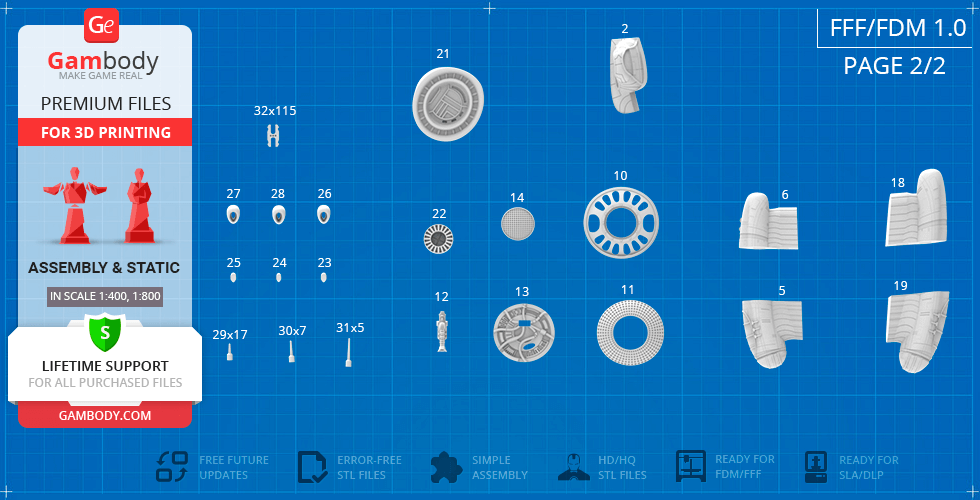

- 2 versions of Engineer Juggernaut STL files for FFF/FDM and DLP/SLA/SLS - files for both versions are available for download after the purchase

- STL files of high-poly Engineer Juggernaut 3D Model for 3D printing consist of 67 parts
- Sizes:
FFF/FDM: 133 mm tall, 480 mm wide, 469 mm deep

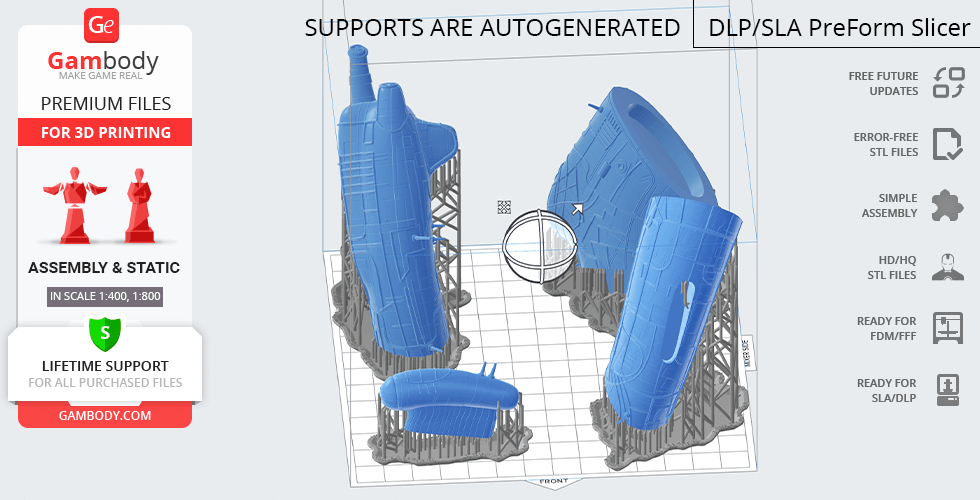

DLP/SLA/SLS: 67 mm tall, 240 mm wide, 235 mm deep

Assembly Manual for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format
- Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

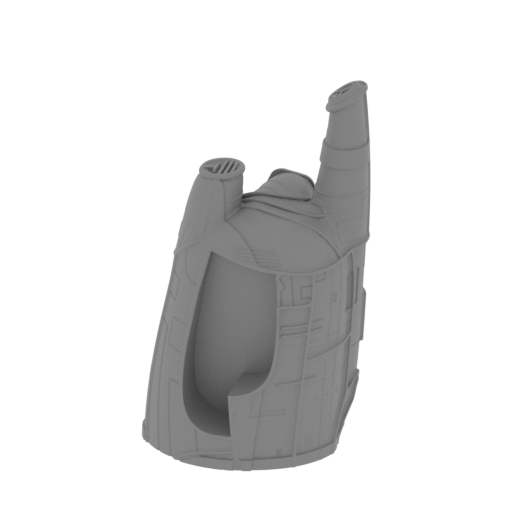

_1_Base_R_5_Fdm (repaired ).stl
30.45 MiB 20 h 5 min 11 m 72 x 65 x 127 Download

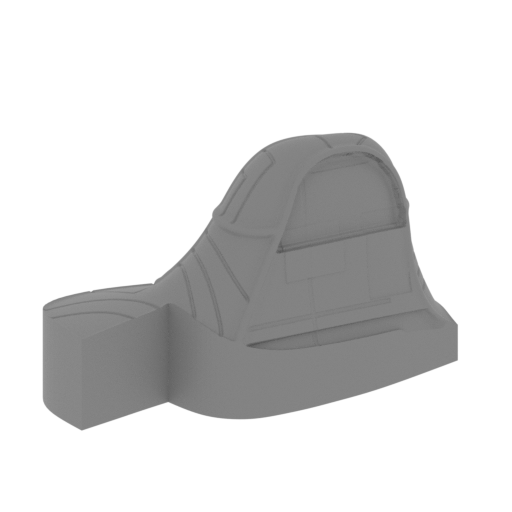

_2_Base_R_2_Fdm (repaired ).stl
8.47 MiB 2 h 27 min 1 m 52 x 57 x 36 Download

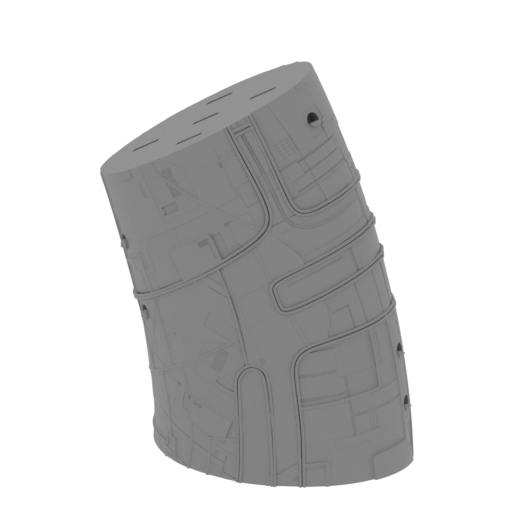

_3_Base_L_2_Fdm (repaired ).stl
39.63 MiB 32 h 15 min 19 m 105 x 71 x 122 Download

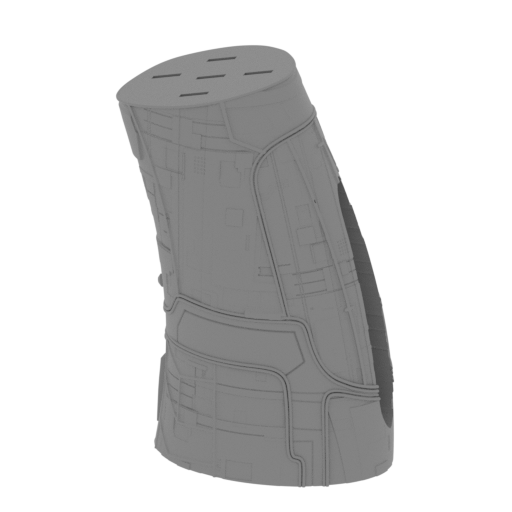

_4_Base_L_3_Fdm (repaired ).stl
38.31 MiB 27 h 48 min 16 m 96 x 70 x 124 Download

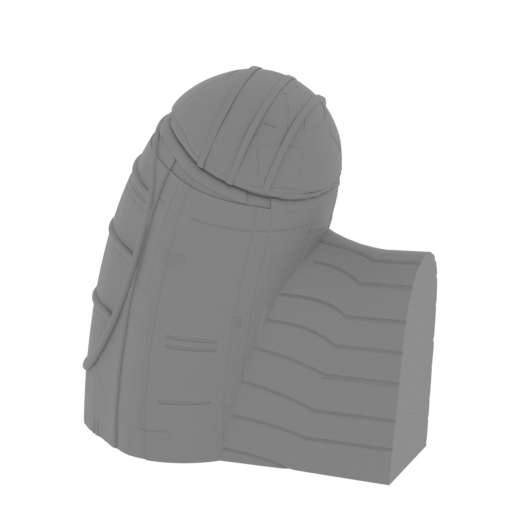

_5_Capsule_R_1_Fdm (repai red).stl
16.01 MiB 3 h 23 min 2 m 50 x 27 x 55 Download

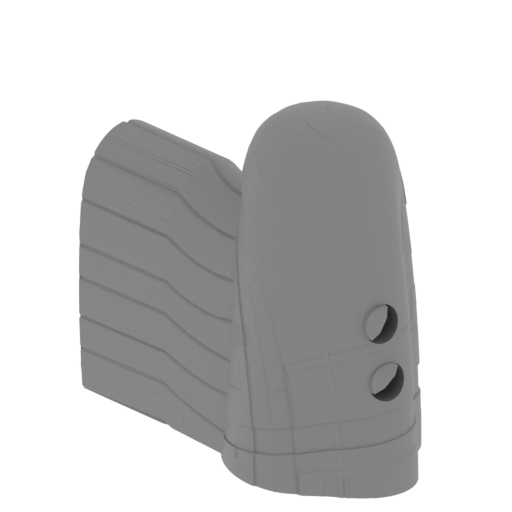

_6_Capsule_R_2_Fdm (repai red).stl
11.85 MiB 2 h 23 min 1 m 47 x 33 x 45 Download

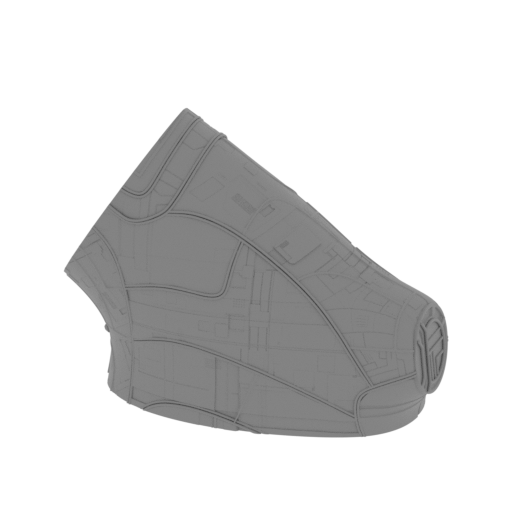

_7_Base_L_1_Fdm (repaired ).stl
38.54 MiB 42 h 51 min 24 m 149 x 75 x 112 Download

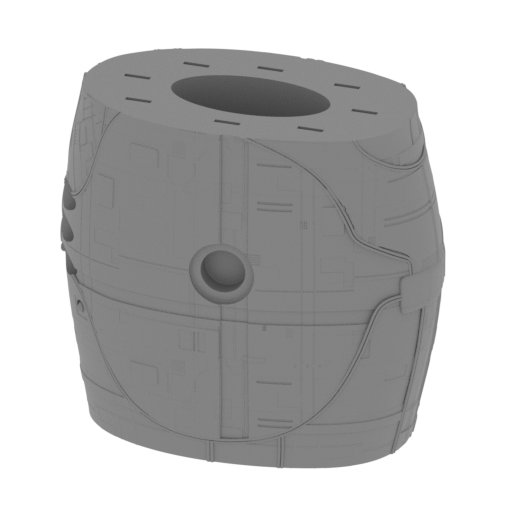

_8_Mid_Fdm (repaired).stl
52.98 MiB 71 h 30 min 42 m 143 x 85 x 130 Download

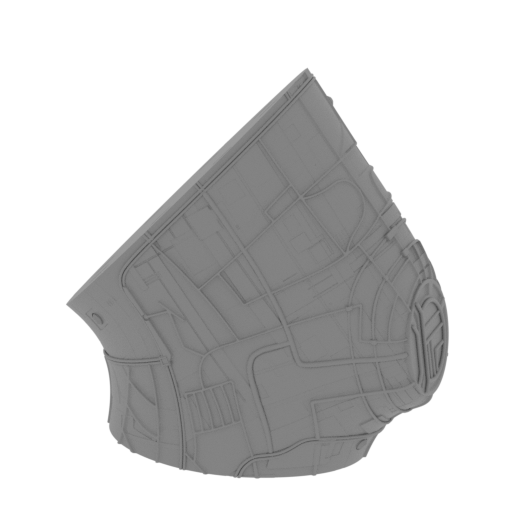

_9_Base_R_1_Fdm (repaired ).stl
42.62 MiB 44 h 13 min 25 m 130 x 73 x 130 Download

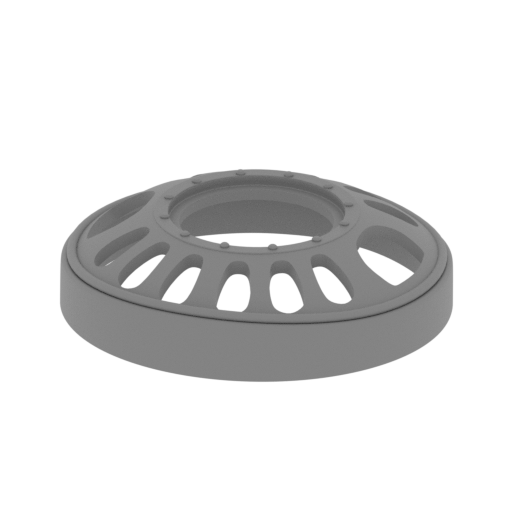

_10_Window_Frame_Fdm (rep aired).stl
2.22 MiB 3 h 2 m 61 x 58 x 16 Download

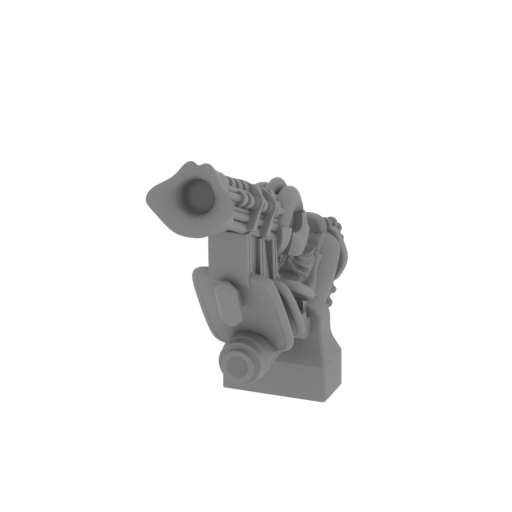

_12_Jocey_1_Fdm (repaired ).stl
17.88 MiB 52 min <1 m 9 x 33 x 29 Download

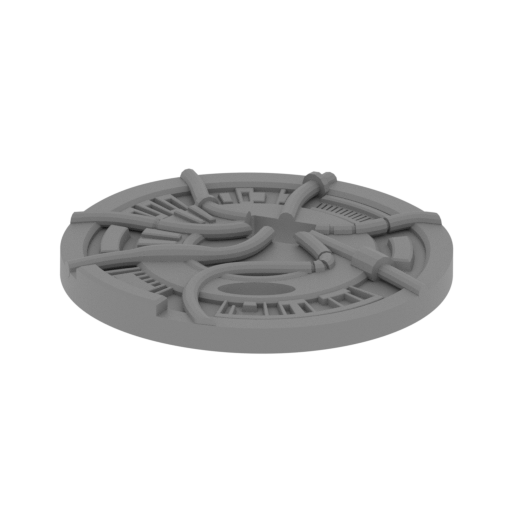

_13_Jocey_2_Fdm (repaired ).stl
1.07 MiB 1 h 25 min 1 m 50 x 48 x 5 Download

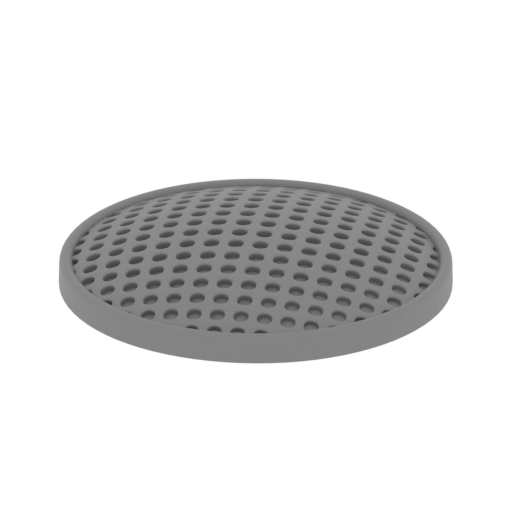

_14_Window_1_Fdm (repaire d).stl
3.39 MiB 26 min <1 m 27 x 27 x 4 Download

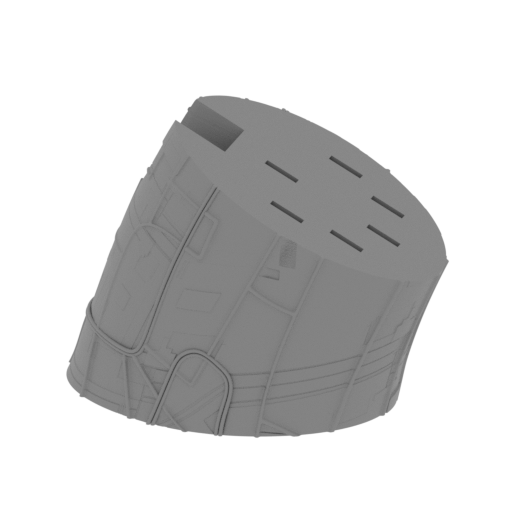

_15_Base_R_2_Fdm (repaire d).stl
34.61 MiB 18 h 45 min 11 m 104 x 67 x 76 Download

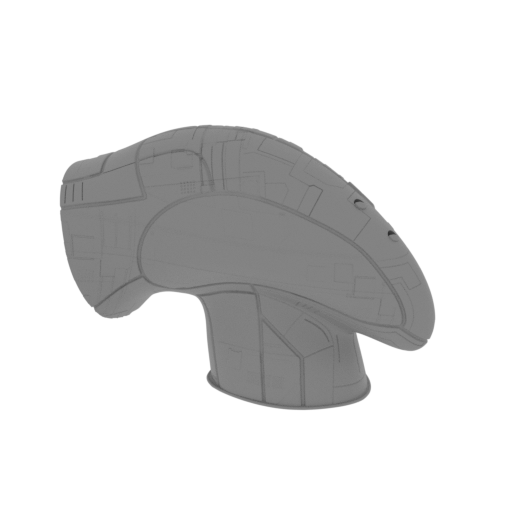

_16_Base_L_4_Fdm (repaire d).stl
21.04 MiB 26 h 47 min 16 m 139 x 66 x 91 Download

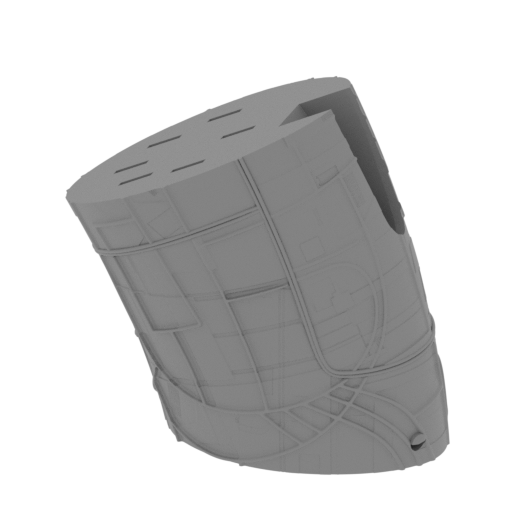

_17_Base_R_3_Fdm (repaire d).stl
35.67 MiB 23 h 48 min 14 m 96 x 69 x 99 Download

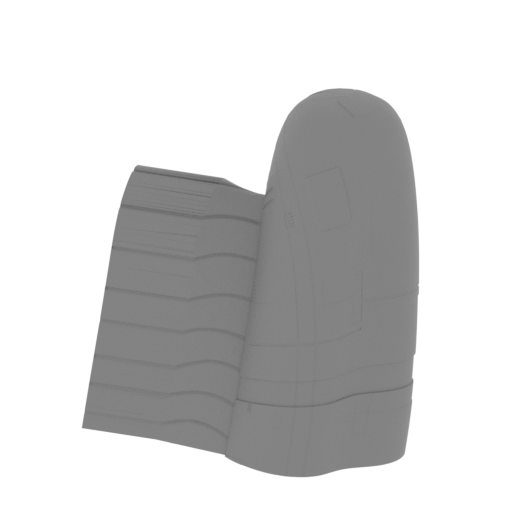

_18_Capsule_L_1_Fdm (repa ired).stl
12.23 MiB 2 h 49 min 2 m 52 x 25 x 59 Download

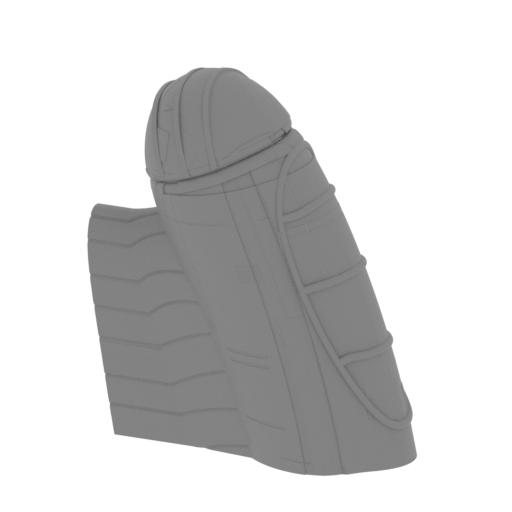

_19_Capsule_R_2_Fdm (repa ired).stl
15.25 MiB 4 h 18 min 2 m 55 x 27 x 64 Download

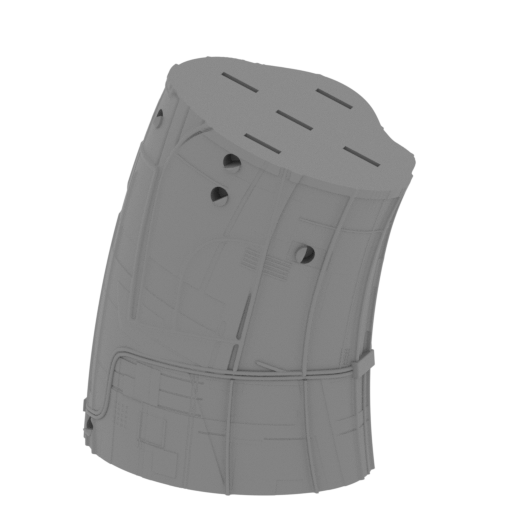

_20_Base_R_4_Fdm (repaire d).stl
28.95 MiB 20 h 46 min 12 m 79 x 71 x 95 Download

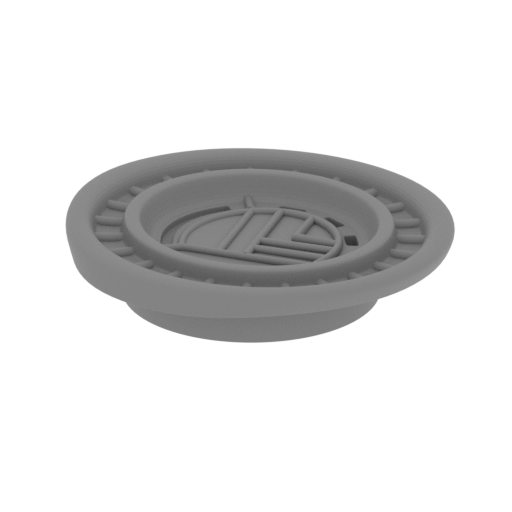

_21_Cyl_B_Fdm (repaired). stl
1.87 MiB 3 h 23 min 2 m 62 x 58 x 12 Download

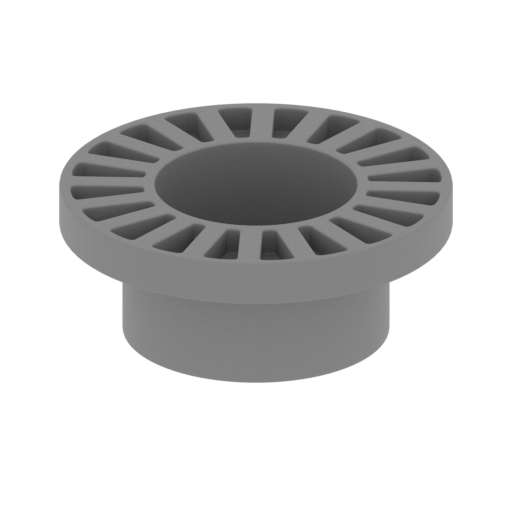

_22_Cyl_S_Fdm (repaired). stl
3.73 MiB 42 min <1 m 24 x 24 x 10 Download

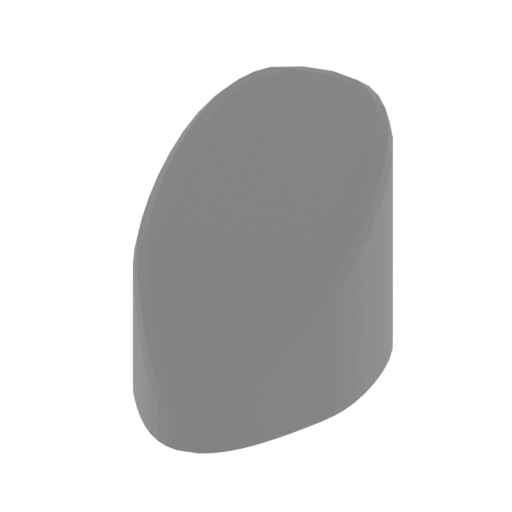

_23_Nozzle_Win_1_Fdm (rep aired).stl
0.03 MiB 3 min <1 m 5 x 8 x 5 Download

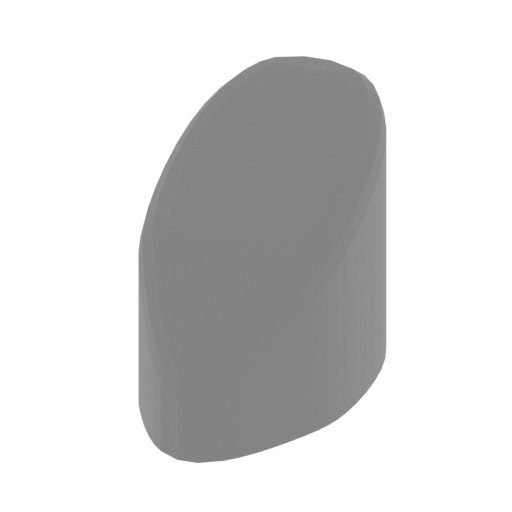

_24_Nozzle_Win_2_Fdm (rep aired).stl
0.03 MiB 3 min <1 m 4 x 7 x 5 Download
_25_Nozzle_Win_3_Fdm (rep aired).stl
0.03 MiB 3 min <1 m 5 x 8 x 5 Download

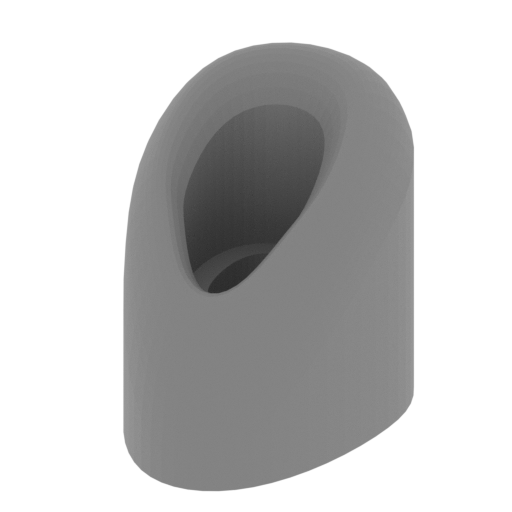

_26_Nozzle_3_Fdm (repaire d).stl
0.09 MiB 13 min <1 m 11 x 15 x 13 Download

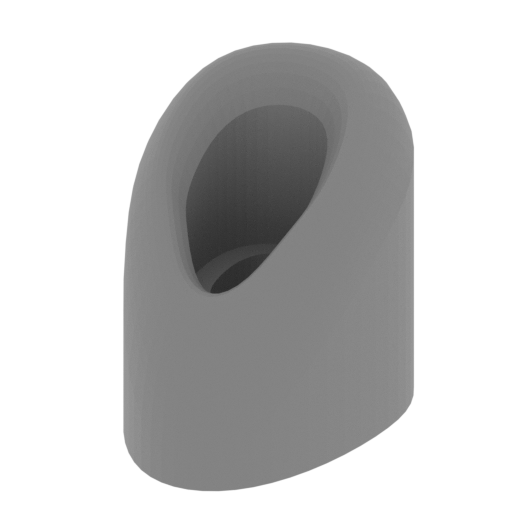

_27_Nozzle_1_Fdm (repaire d).stl
0.09 MiB 13 min <1 m 11 x 15 x 13 Download

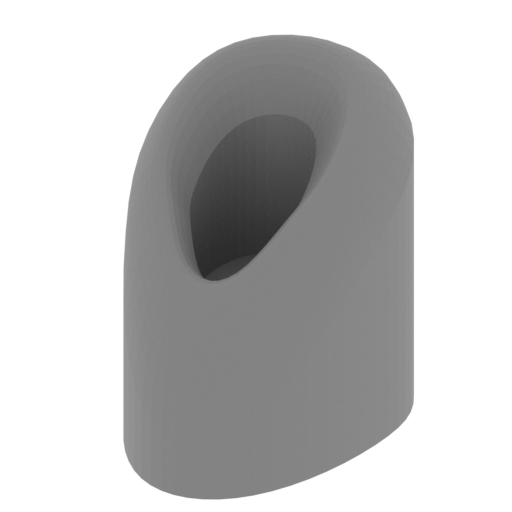

_28_Nozzle_2_Fdm (repaire d).stl
0.10 MiB 14 min <1 m 11 x 15 x 14 Download

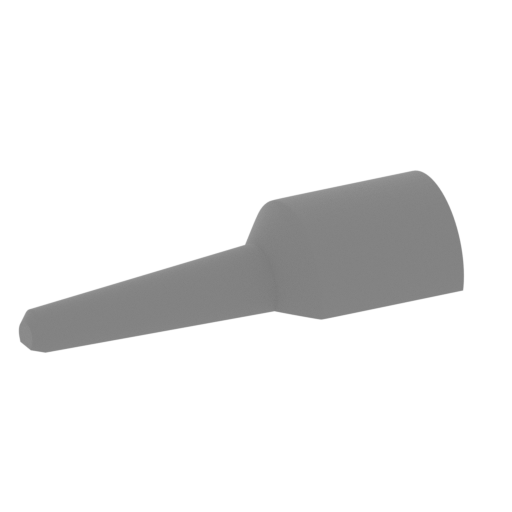

_29_Antenna_3_x17_Fdm (re paired).stl
0.11 MiB 2 min <1 m 11 x 12 x 3 Download

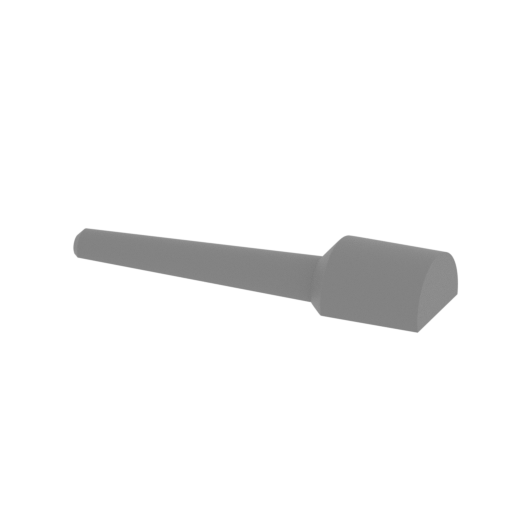

_30_Antenna_2_x7_Fdm (rep aired).stl
0.14 MiB 3 min <1 m 18 x 5 x 3 Download

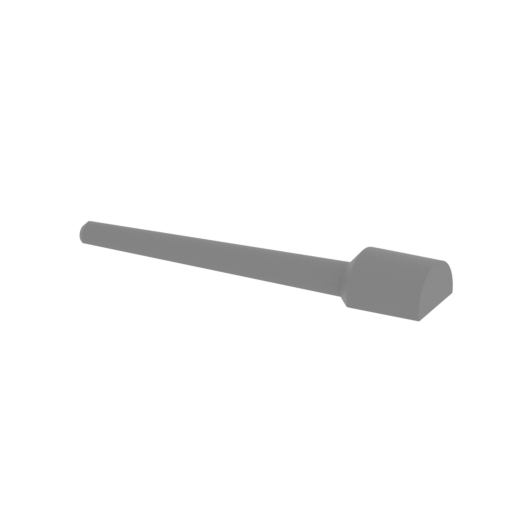

_31_Antenna_1_x5_Fdm (rep aired).stl
0.14 MiB 3 min <1 m 23 x 5 x 3 Download

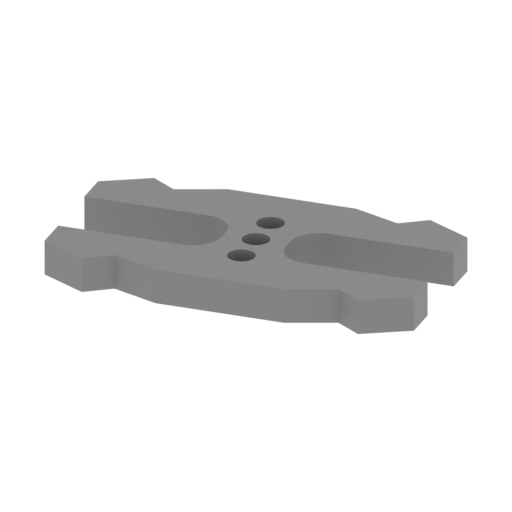

_32_Ge_Lock_x115_Fdm (rep aired).stl
0.03 MiB 4 min <1 m 18 x 10 x 2 Download

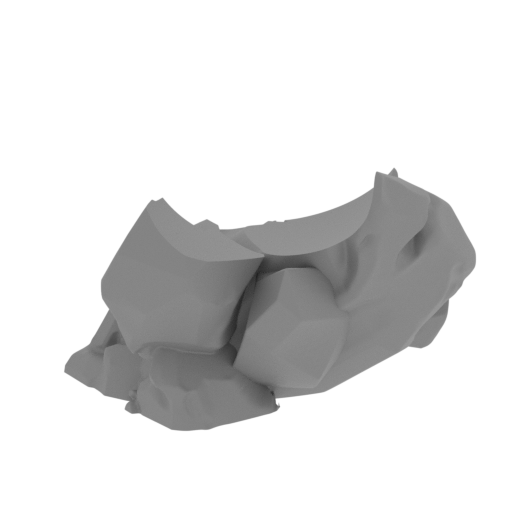

_33_Stand_1_Fdm (repaired ).stl
8.16 MiB 27 h 54 min 16 m 128 x 129 x 96 Download

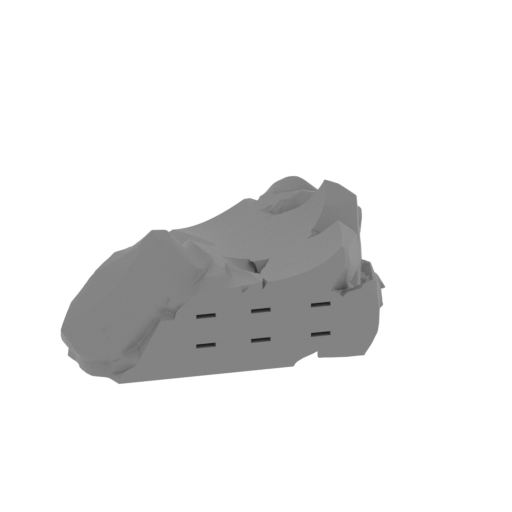

_34_Stand_2_Fdm (repaired ).stl
12.92 MiB 40 h 53 min 23 m 142 x 191 x 69 Download

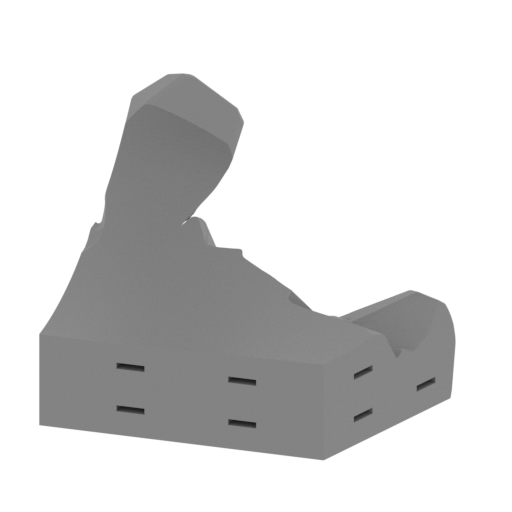

_35_Stand_3_Fdm (repaired ).stl
6.45 MiB 26 h 8 min 15 m 132 x 113 x 94 Download

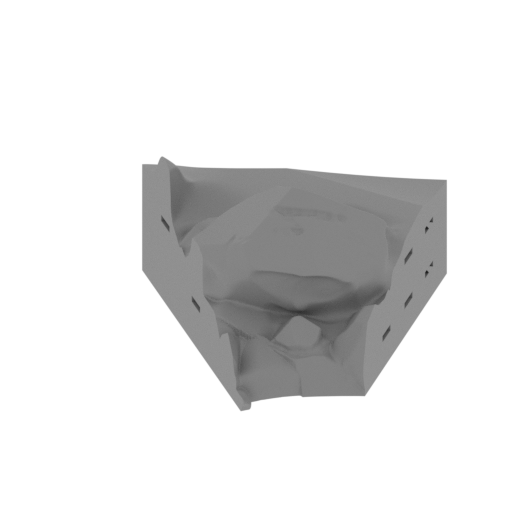

_36_Stand_4_Fdm (repaired ).stl
5.07 MiB 17 h 59 min 10 m 102 x 128 x 53 Download

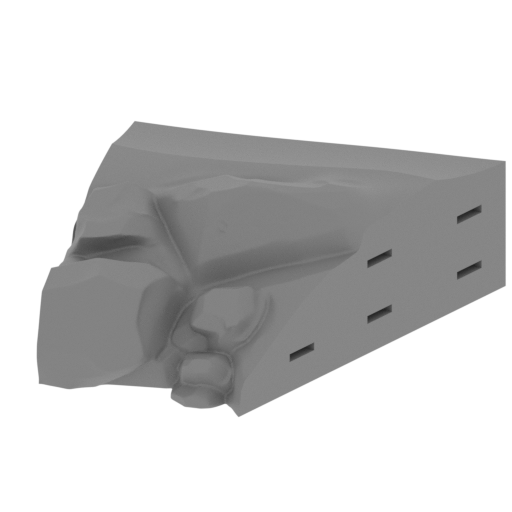

_37_Stand_5_Fdm (repaired ).stl
3.87 MiB 17 h 49 min 10 m 99 x 101 x 44 Download

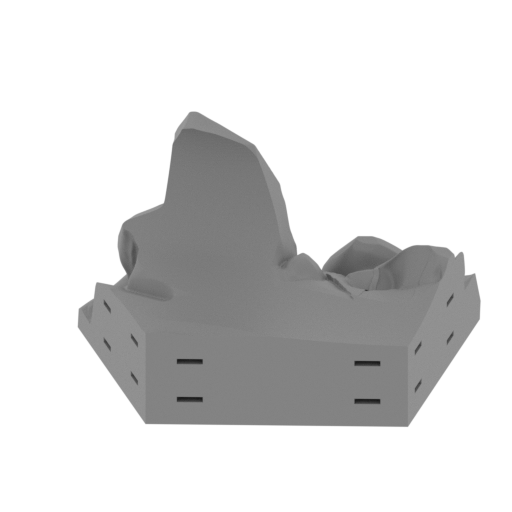

_38_Stand_6_Fdm (repaired ).stl
7.98 MiB 32 h 53 min 19 m 148 x 135 x 88 Download

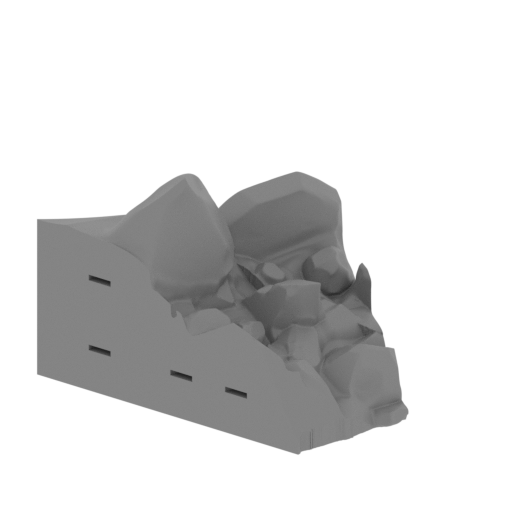

_39_Stand_7_Fdm (repaired ).stl
9.50 MiB 28 h 39 min 16 m 139 x 141 x 83 Download

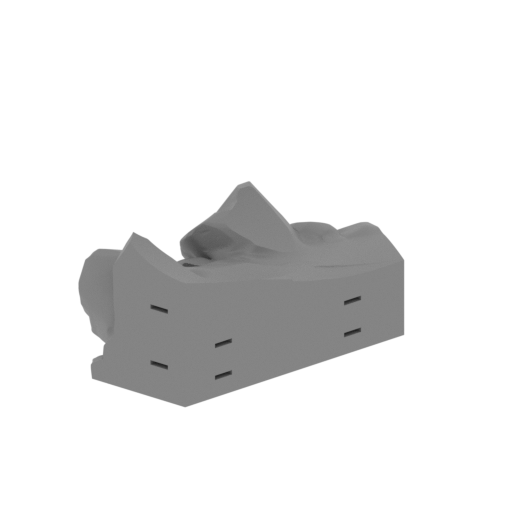

_40_Stand_8_Fdm (repaired ).stl
8.51 MiB 33 h 58 min 19 m 127 x 176 x 74 Download
_41_Stand_9_Fdm (repaired ).stl
10.35 MiB 23 h 9 min 15 m 107 x 115 x 94 Download

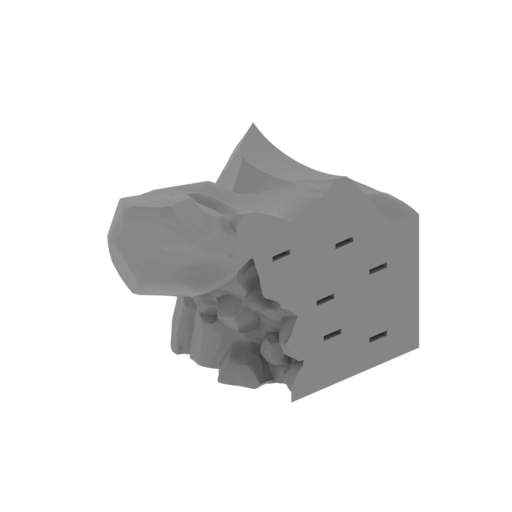

_42_Stand_10_Fdm (repaire d).stl
10.44 MiB 35 h 54 min 22 m 98 x 150 x 101 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

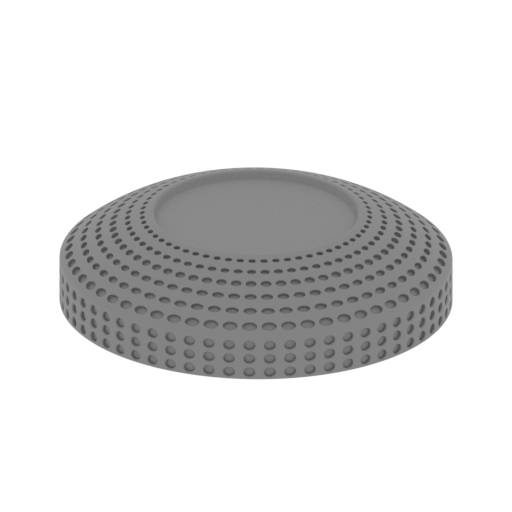

_11_Window_2_Fdm (repaire d).stl
23.15 MiB 2 h 50 min 2 m 54 x 53 x 13 Download
...

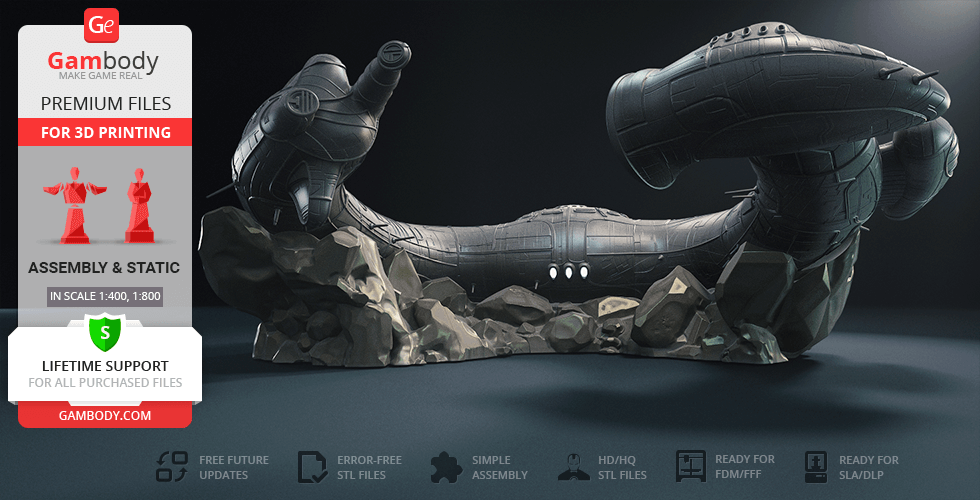

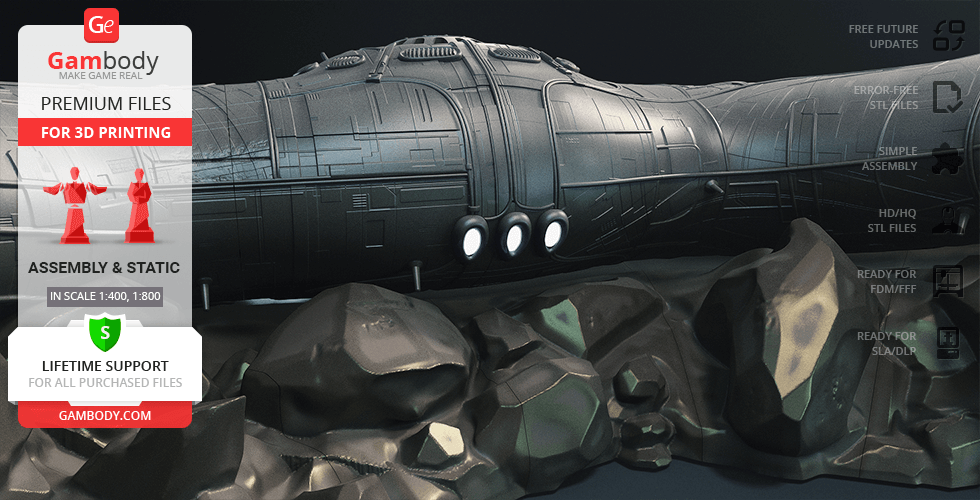

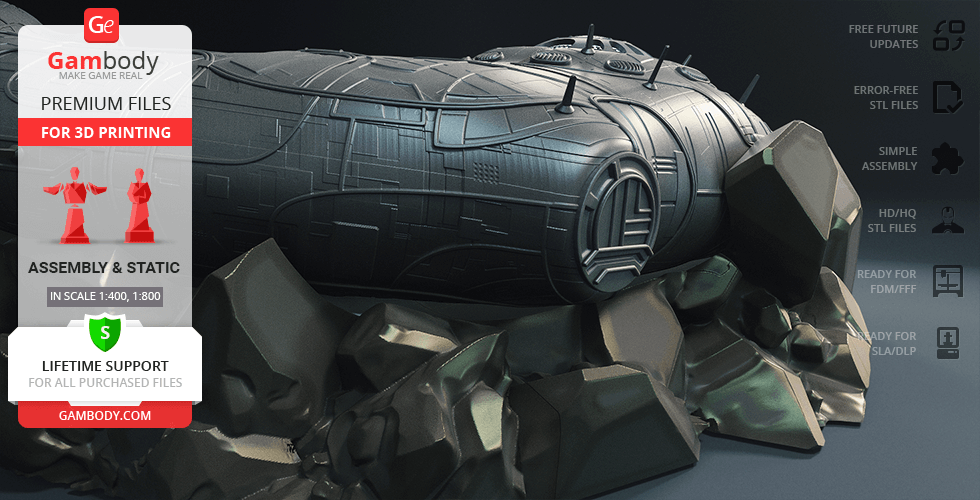

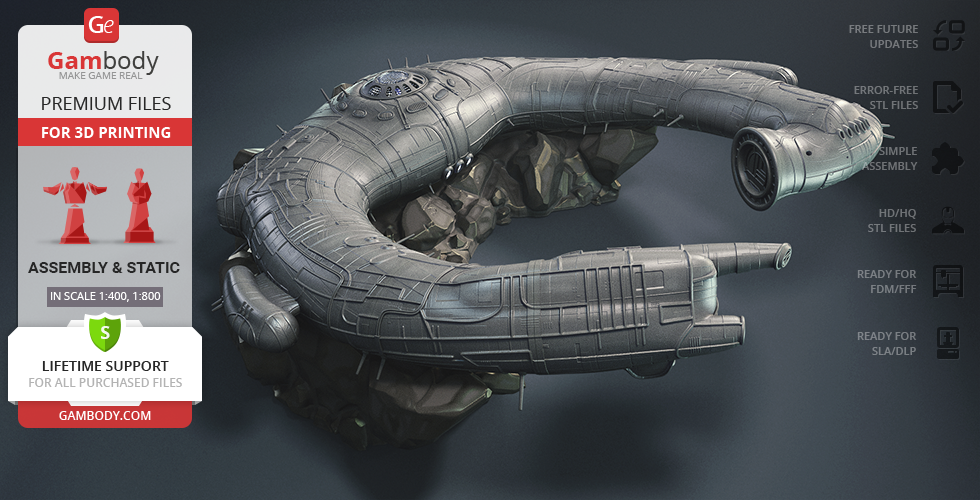

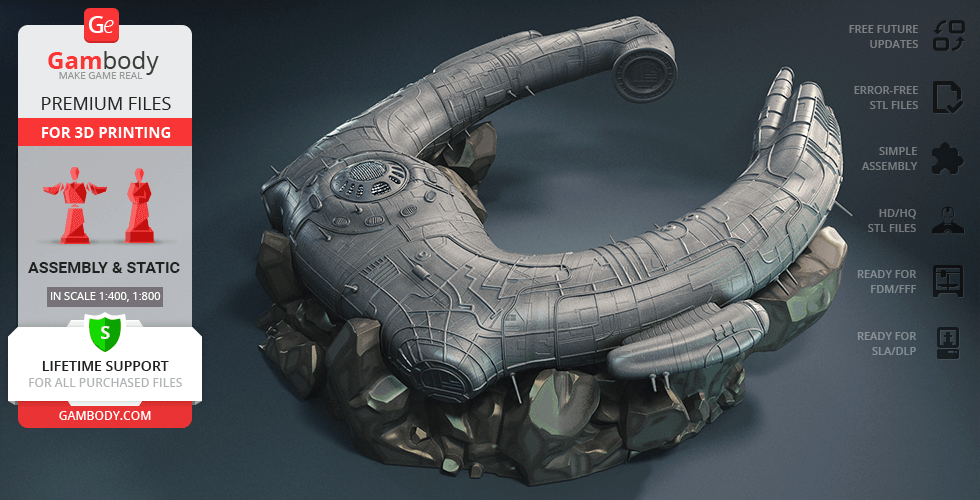

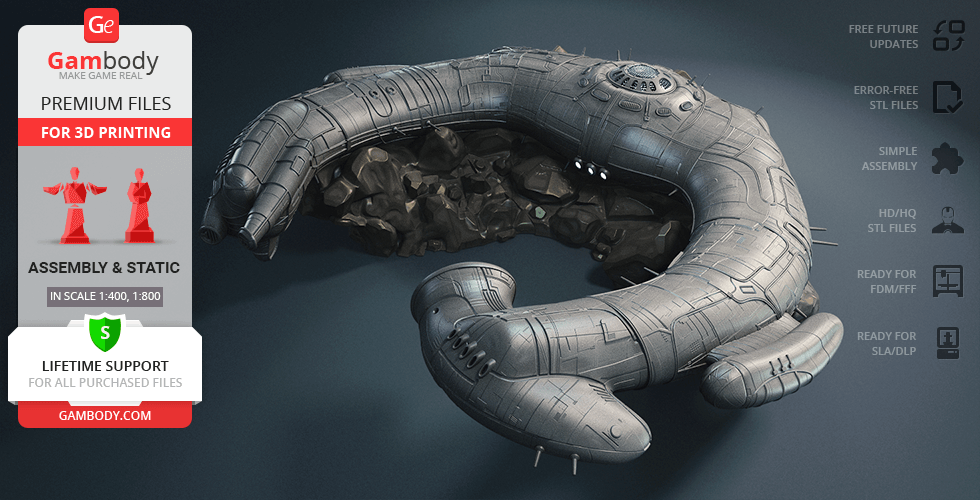

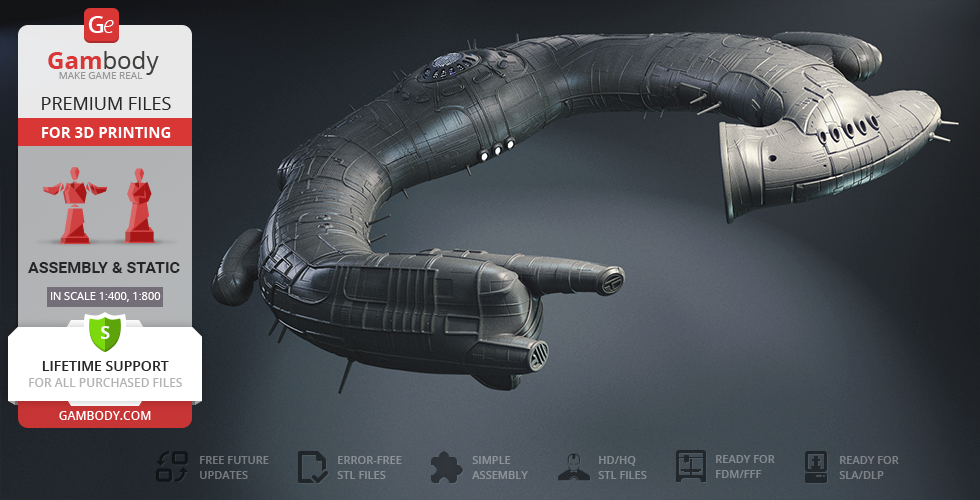

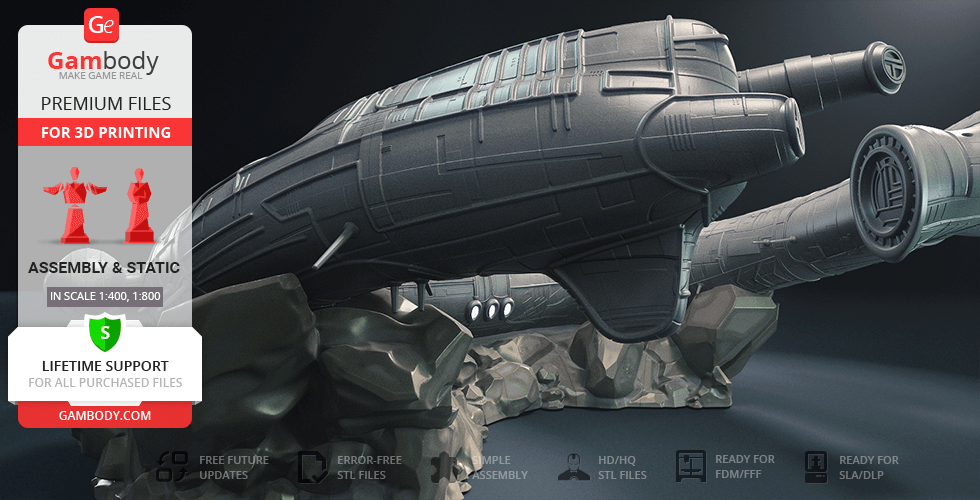

ABOUT THIS 3D MODEL

Led by a warning signal transmitted somewhere from the Acheron, or the LV-426, the crew of USCSS Nostromo enters the derelict ship that was believed to have crashed on this distant moon several millennia ago. Several dozens of years prior, USCSS Prometheus crew sets off for the exploration of LV-223 moon where the archaeologists find another Space Jockey Juggernaut with a hostile Last Engineer on board. Having reactivated the Engineer vessel, the Last Space Jockey heads for Earth to carry out his original mission to wipe out the human race. This scene from the 2012 Prometheus movie was the moment we’ve got to observe the incredible Engineer Juggernaut in all its glory!

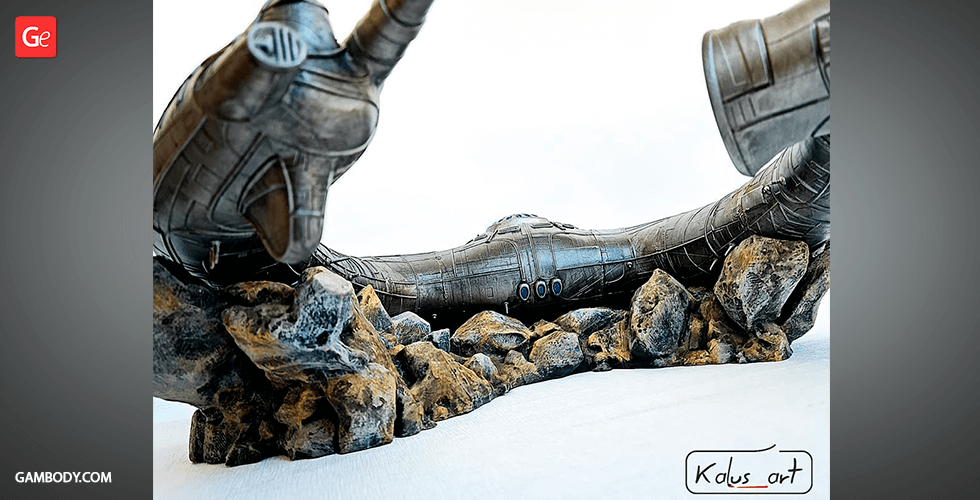

Thrilled to enlarge one’s AvP fleet with yet another incredible craft, our contributing 3D artist worked tirelessly on the preparation of the ancient extraterrestrial vessel. The giant, asymmetrical craft for 3D printing can be displayed as a 1979 Alien derelict - there is a base to imitate the mountain range on LV-426 moon and even a fossilized Engineer near the command chair inside the cockpit! At the same time, you can always recreate the activated Juggernaut from the chilling Prometheus scene and hang up your Engineer craft as if it is taking off!

ADAPTATION FOR 3D PRINTING

Engineer Juggernaut for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 37 hours in total. For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support the port and starboard prongs of the spacecraft model were divided into ten assembly parts. Moreover, the craft’s cockpit, command chair, many small antennas, etc. are provided as separate STL files as well.

All assembly parts are provided in STL files of FFF/FDM version in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the Engineer Juggernaut model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the width of the Juggernaut which is 116600 mm. The 3D printing model's chosen scale is 1:400 for the FFF/FDM version and 1:800 for the DLP/SLA/SLS version.

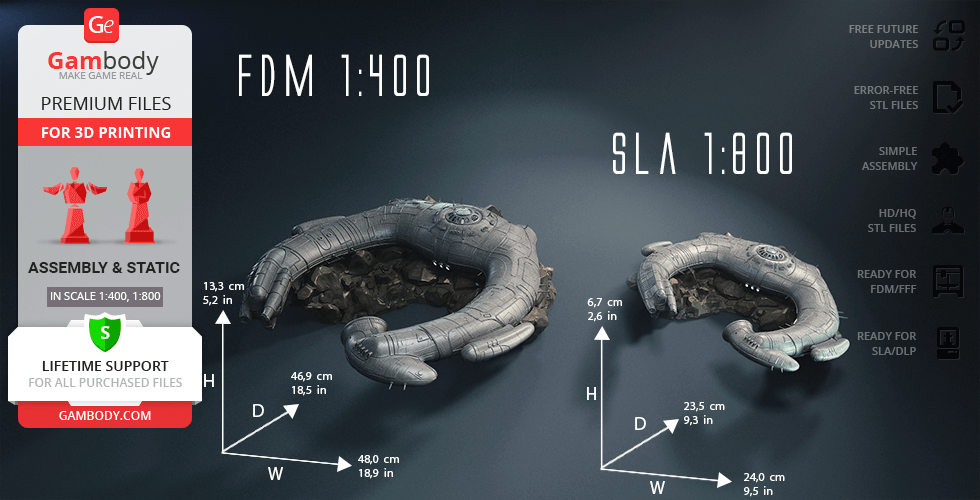

VERSIONS' SPECIFICATIONS

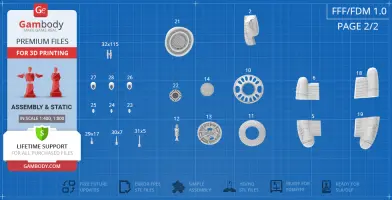

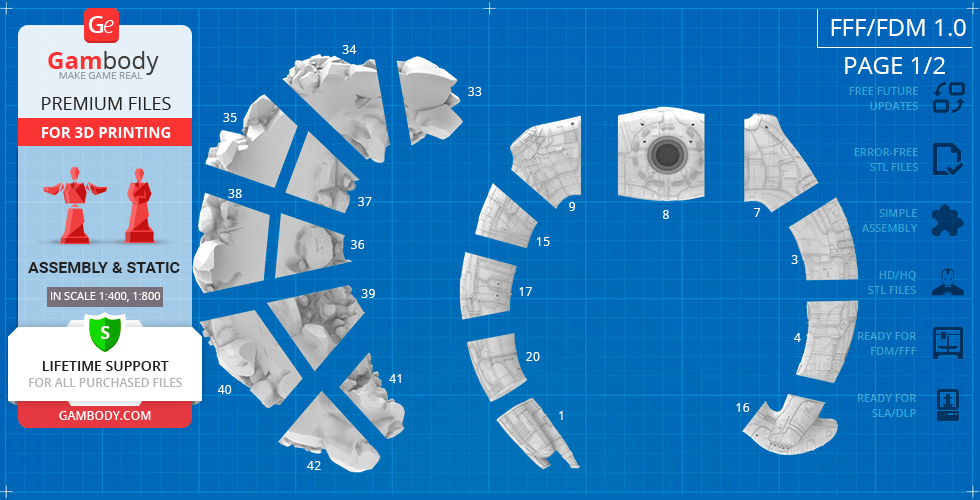

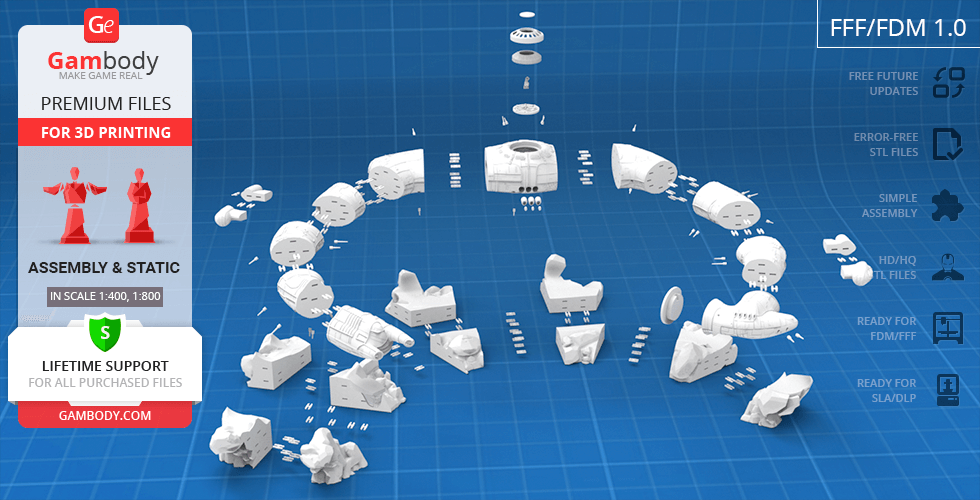

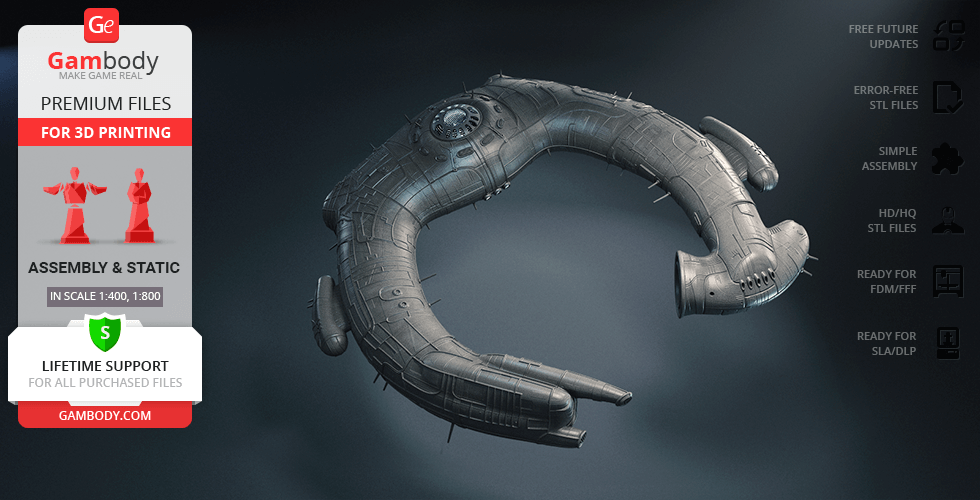

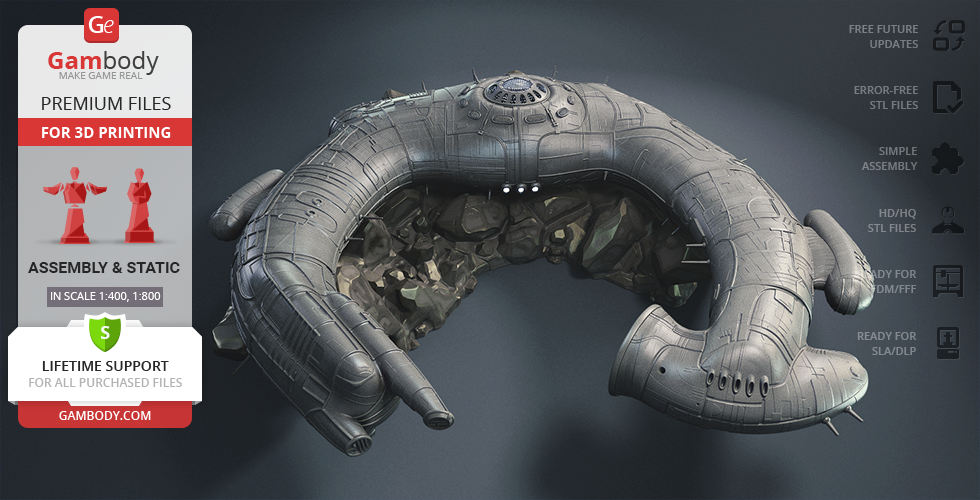

FFF/FDM 1.0 version features:

  • - Contains 42 parts;
  • - A printed ship is 133 mm tall, 480 mm wide, 469 mm deep;
  • - Assembly kit includes lock 32_Ge_Lock_x115_Fdm to connect parts securely without glue that needs to be printed 115 times;

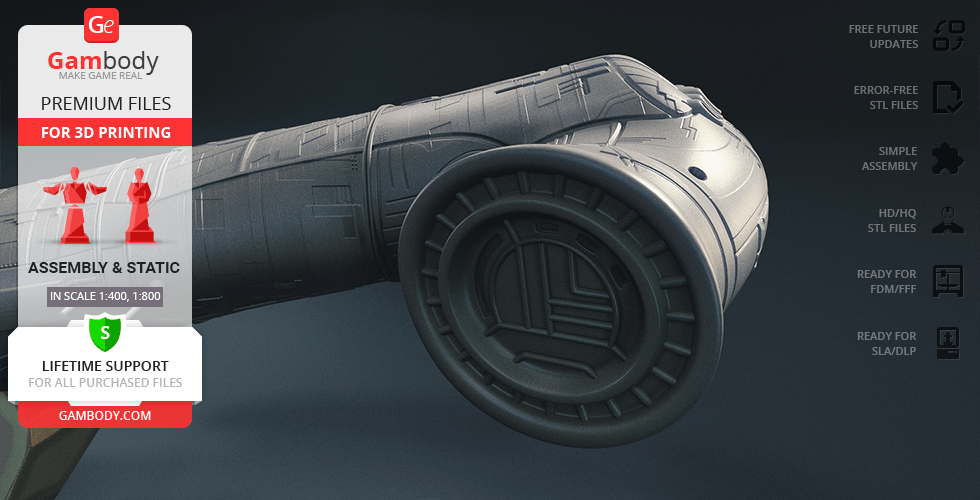

  • Highly-detailed exterior of the craft with authentic patterns;

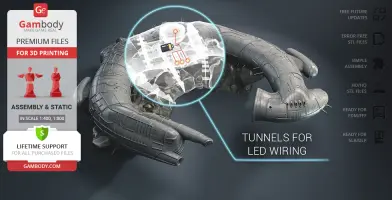

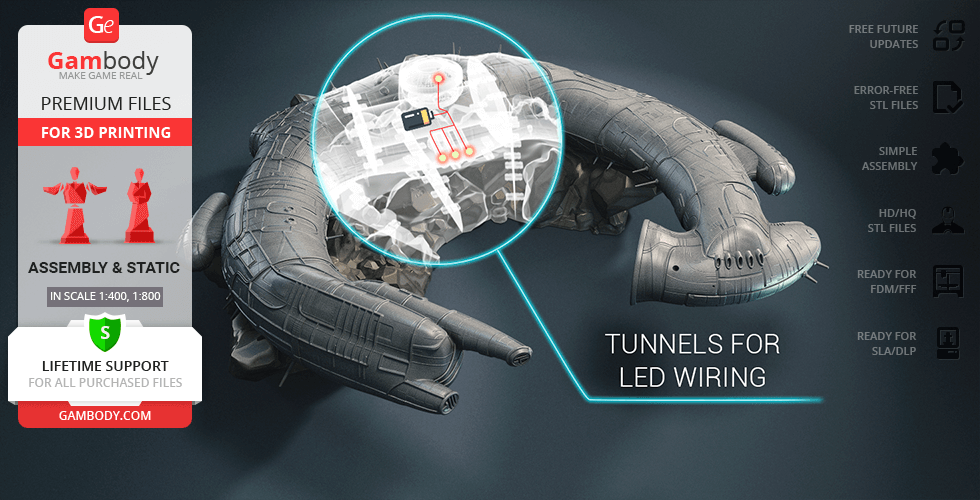

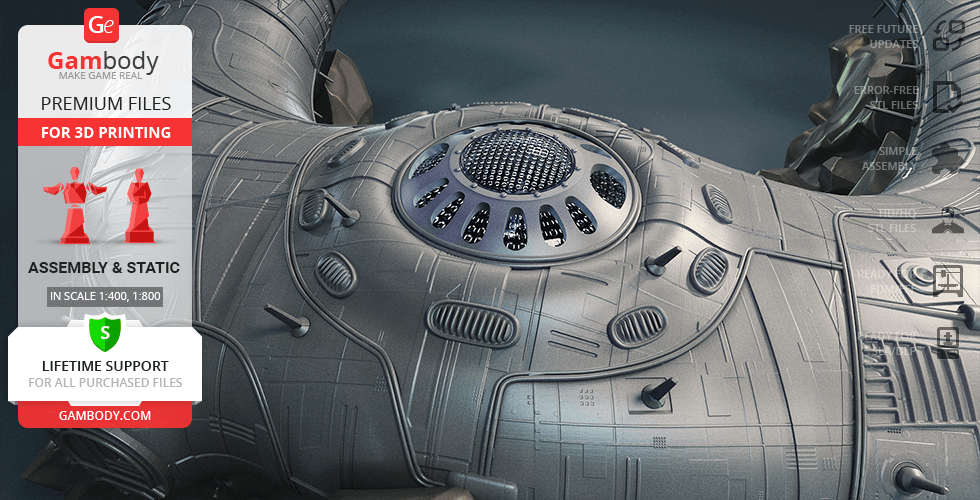

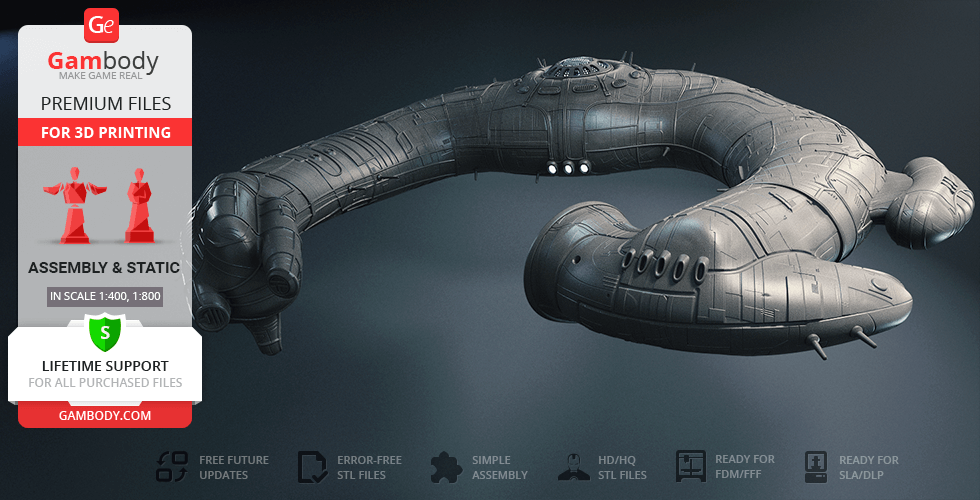

  • - Model is made hollow for you to introduce LED wiring and light up the giant cockpit room and three large openings near ground level between two horns;

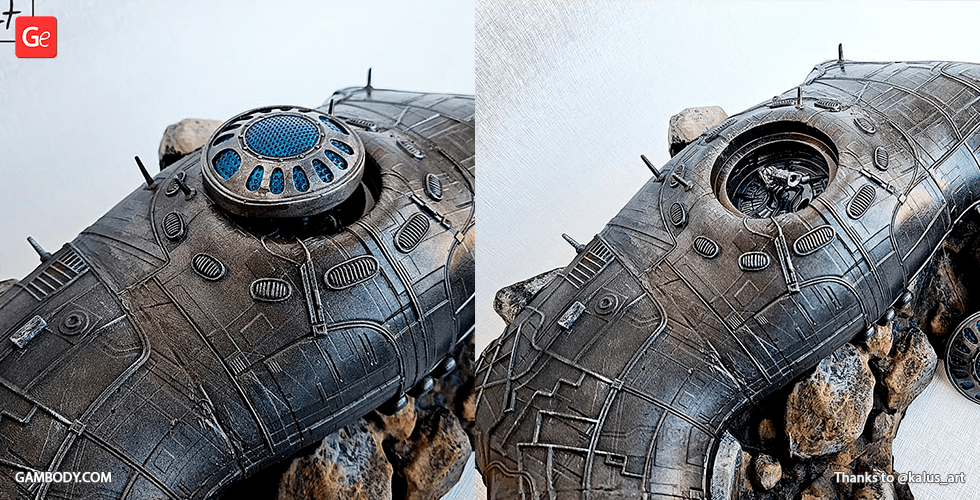

  • - The cockpit cover and openings' lids are separated to be printed with transparent material;

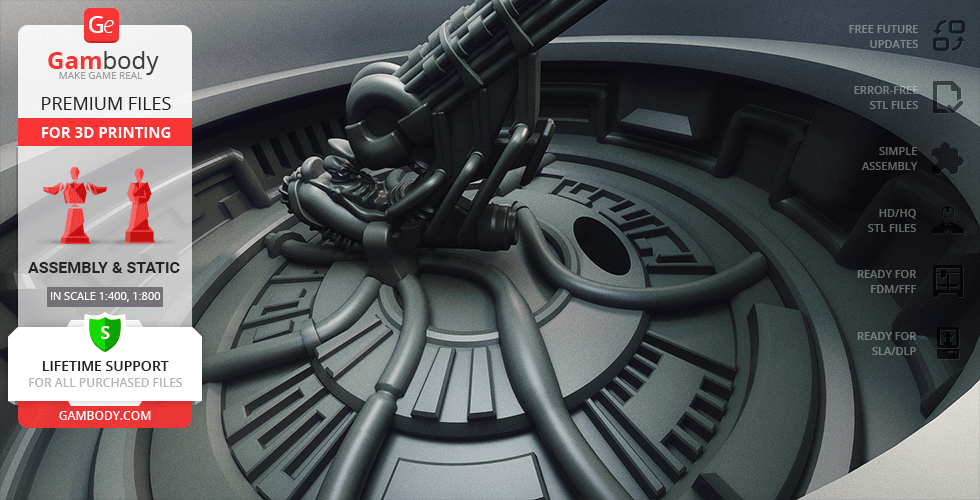

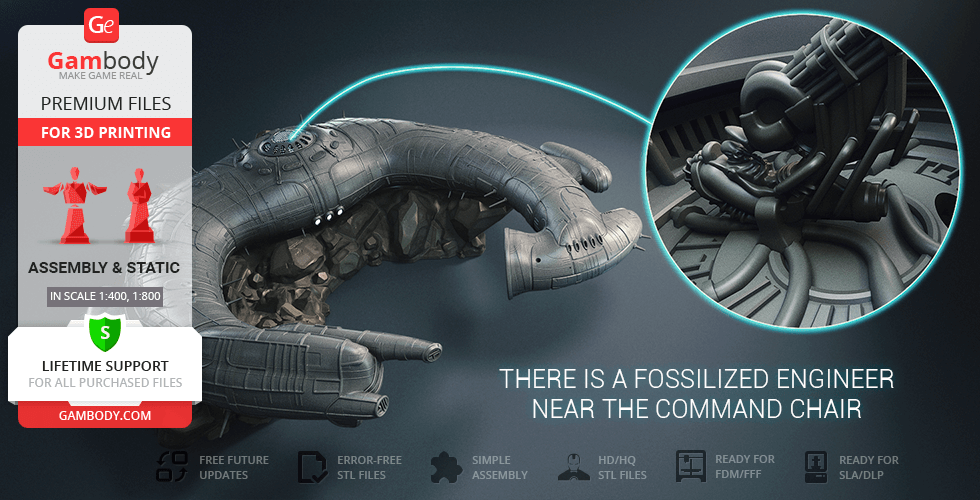

  • - There is a fossilized Engineer near the command chair;

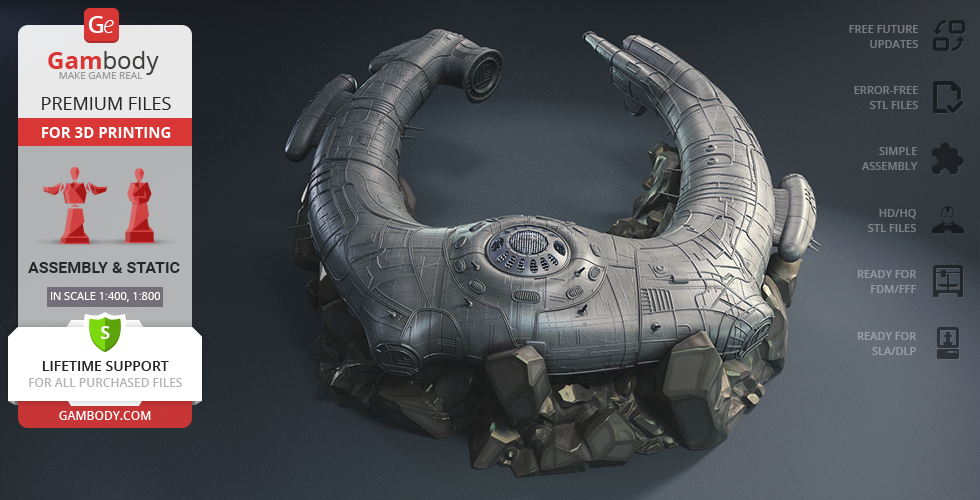

  • - Made with a special platform to resemble the mountain range on LV-426 moon;
  • - All parts are divided in such a way that you will print them with the smallest number of support structures.

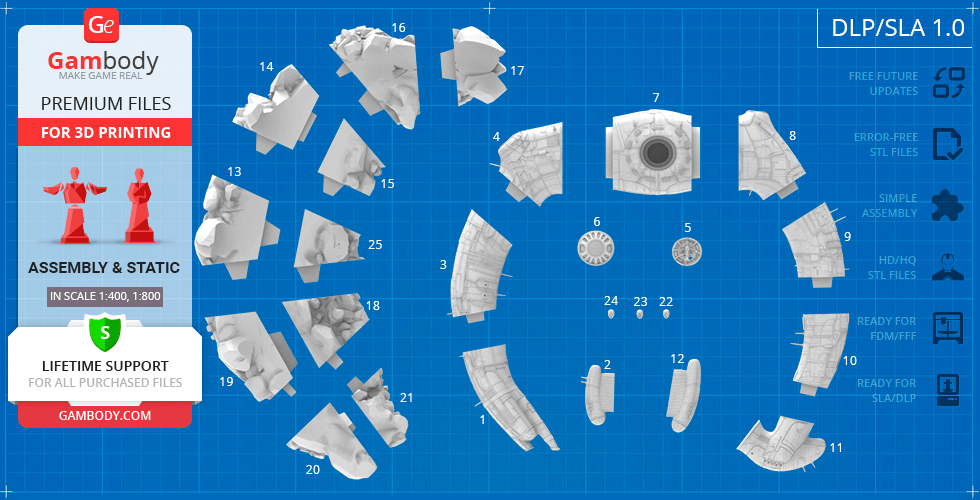

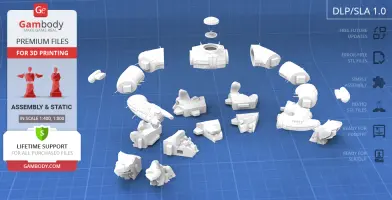

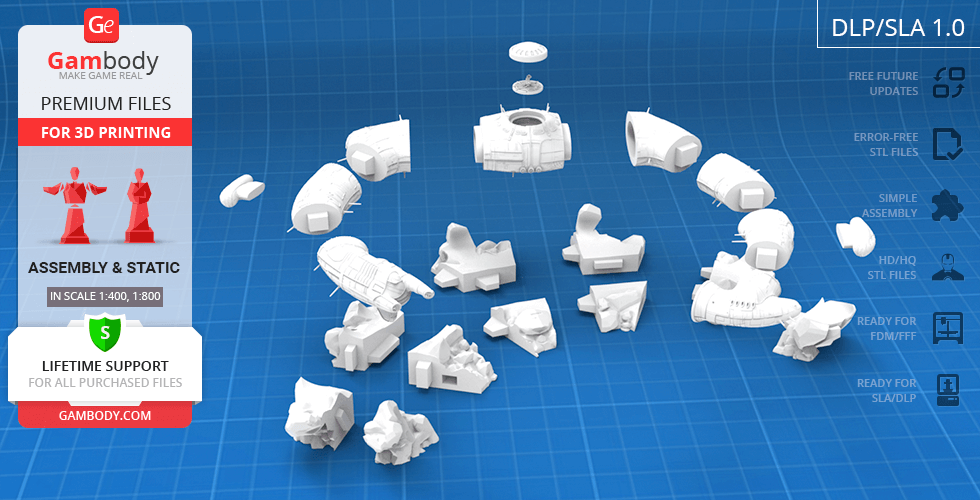

DLP/SLA/SLS 1.0 version features:

  • - Contains 25 parts;
  • - A printed ship is 67 mm tall, 240 mm wide, 235 mm deep;
  • Highly-detailed exterior of the craft with authentic patterns;
  • - Model is made hollow for you to introduce LED wiring and light up the giant cockpit room and three large openings near ground level between two horns;
  • - The cockpit cover is separated to be printed with transparent material;
  • - There is a fossilized Engineer near the command chair;
  • - Made with a special platform to resemble the mountain range on LV-426 moon;

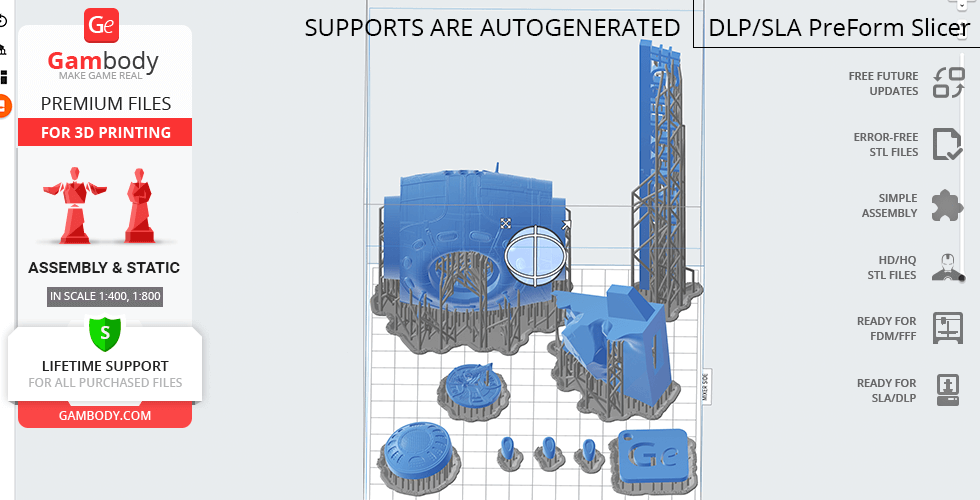

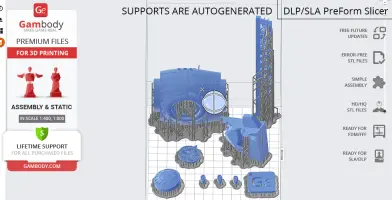

  • - All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the model of Engineer Juggernaut for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Engineer Juggernaut 3D Printing Model at Gambody YouTube channel.

Also, you may like other AvP Models for 3D Printing, as well as other Space Ships 3D Printing Models.

_______FAQ: Where can I print a model if I have no printer?Prometheus JuggernautHow to get started with 3D printing?How to set up my 3D printer?How to choose right 3D model print bed positioning? How to paint printed figurine?

Generic

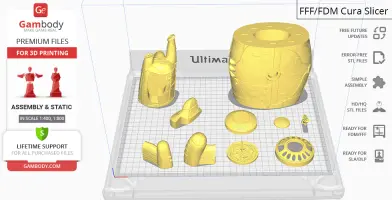

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

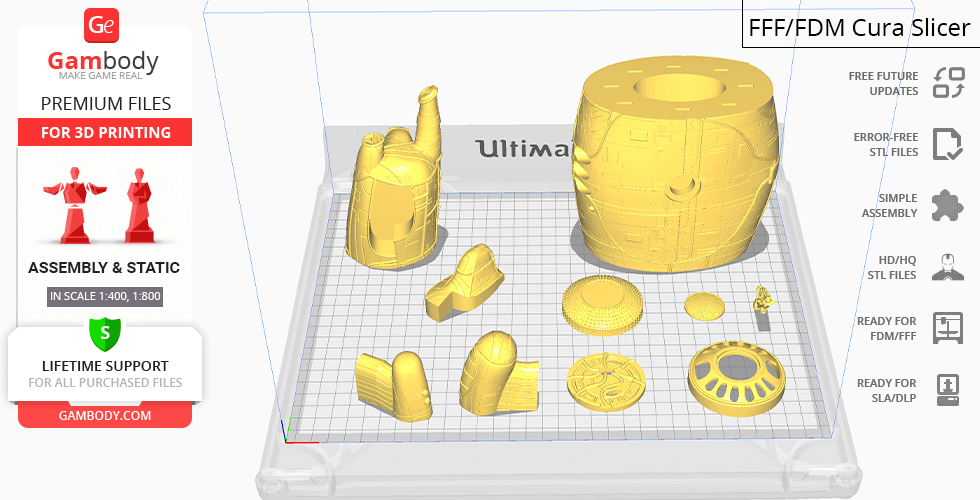

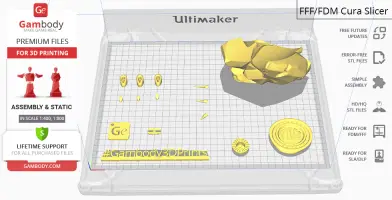

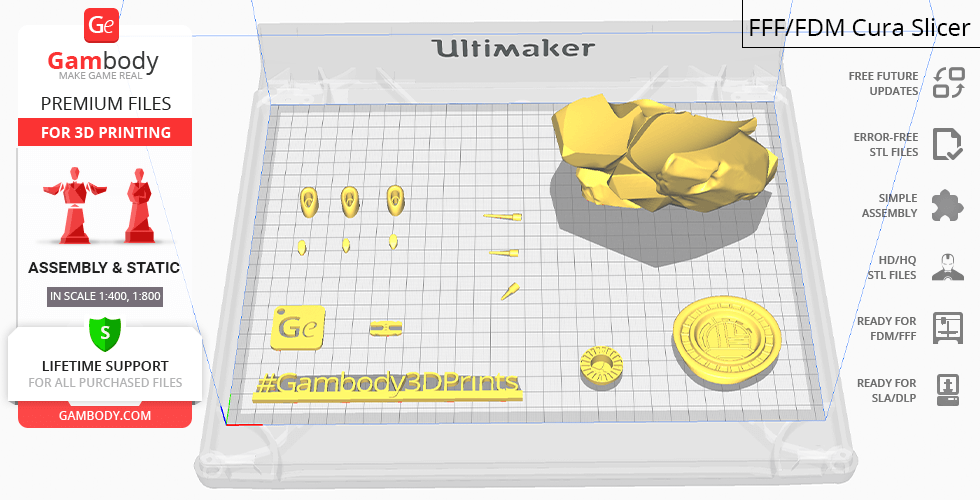

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
