Maximilian 3D Printing Model | Assembly + Active

(4)
cm: 15.9 w x 13.2 d x 28.3 h
in: 6.26 w x 5.197 d x 11.142 h

Source Files

|

Description

|

Printing Details

This 3D Model of Maximilian from the Black Hole consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

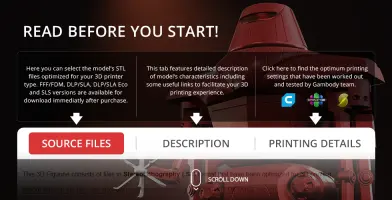

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 2 versions of Maximilian STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase;
  • STL files of high-poly Maximilian 3D Model for 3D printing consist of 70 files;
  • Sizes for:

- FFF/FDM: 255 mm tall, 159 mm wide, 109 mm deep;

- FFF/FDM (on the platform): 283 mm tall, 159 mm wide, 132 mm deep;

- DLP/SLA: 127 mm tall, 79 wide, 55 mm deep;

- DLP/SLA (on the platform): 142 mm tall, 79 wide, 66 mm deep;

  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

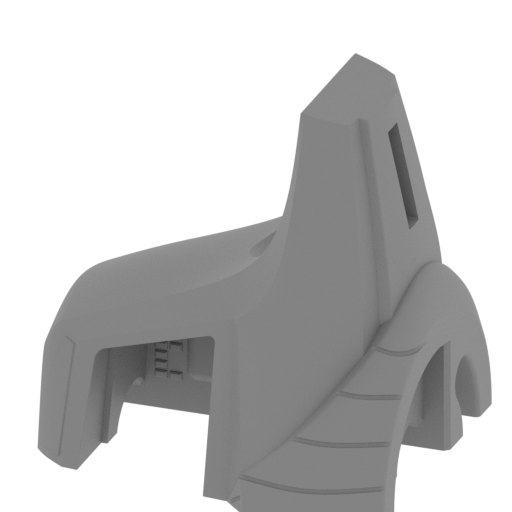

_001_mainBody_R_FDM.stl
54.35 MiB 13 h 22 min 8 m 73 x 73 x 74 Download

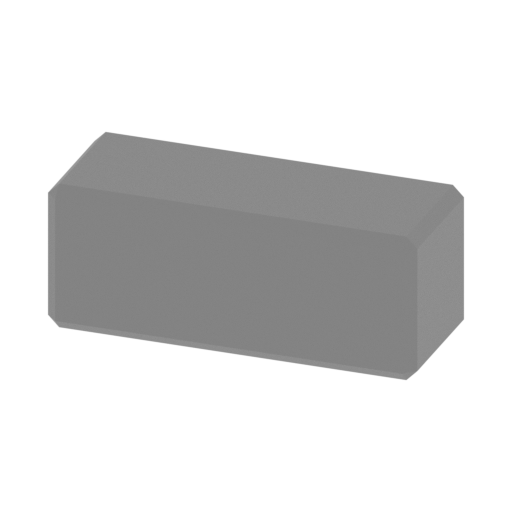

_002_bodyPin_x7_FDM.stl
0.01 MiB 4 min <1 m 10 x 4 x 4 Download

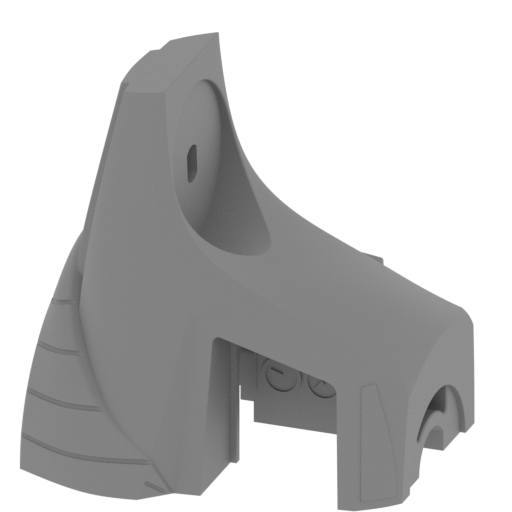

_003_mainBody_L_FDM.stl
54.28 MiB 13 h 26 min 8 m 73 x 73 x 74 Download

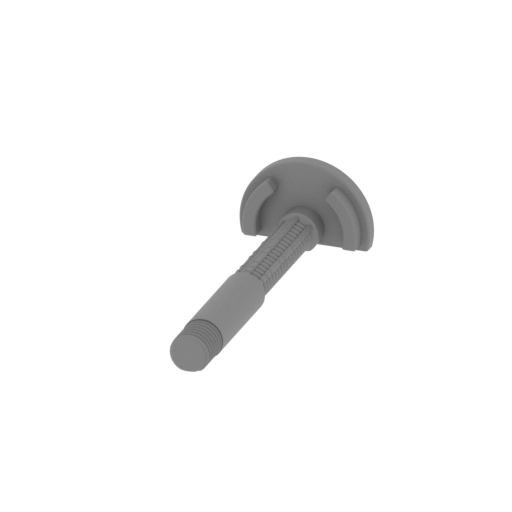

_004_spine_FDM.stl
27.49 MiB 2 h 56 min 2 m 45 x 128 x 28 Download

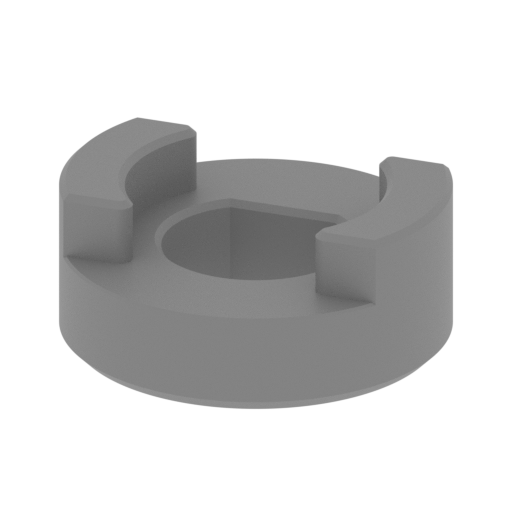

_005_spineShim_FDM.stl
0.60 MiB 41 min <1 m 30 x 30 x 13 Download

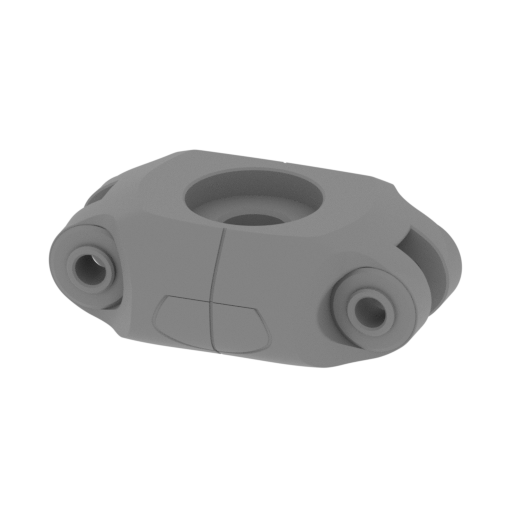

_006_pelvis_FDM.stl
25.29 MiB 8 h 45 min 5 m 86 x 57 x 30 Download

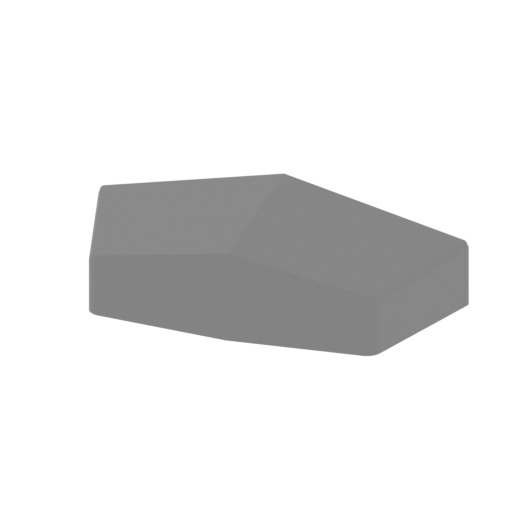

_007_bodyCup_FDM.stl
1.43 MiB 2 h 18 min 2 m 60 x 26 x 17 Download

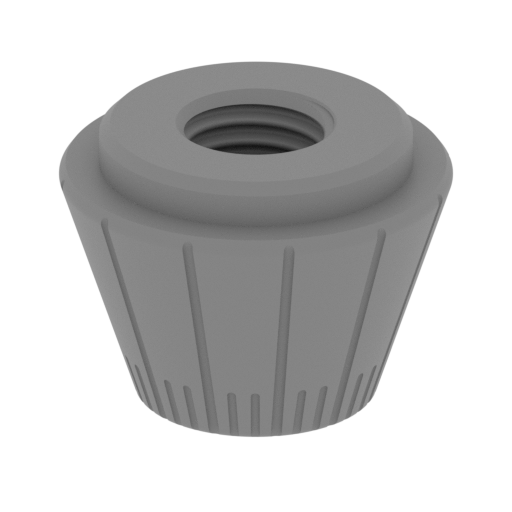

_008_pelvisNut_FDM.stl
25.20 MiB 1 h 50 min 1 m 35 x 35 x 26 Download

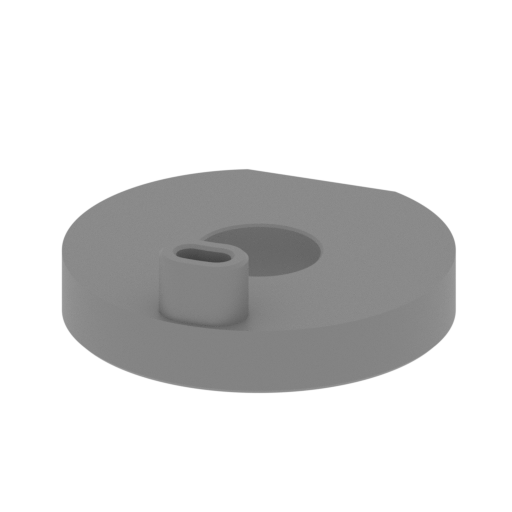

_009_head_1_FDM.stl
1.08 MiB 1 h 50 min 1 m 46 x 44 x 16 Download

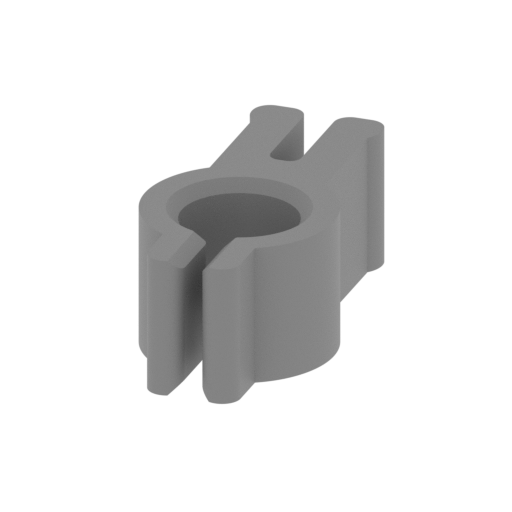

_010_head_led_Holder_FDM. stl
0.31 MiB 6 min <1 m 8 x 16 x 6 Download

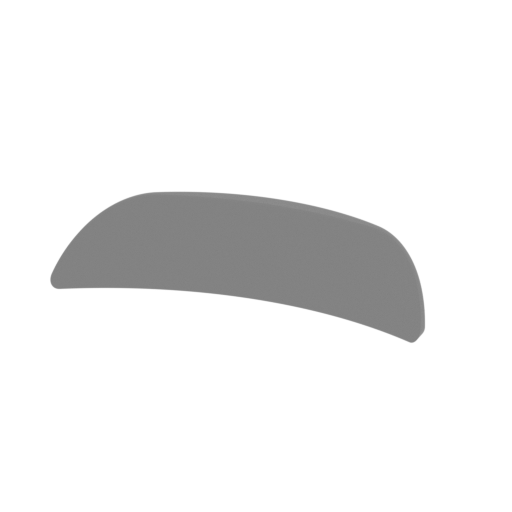

_011_head_glass_FDM.stl
1.14 MiB 7 min <1 m 28 x 9 x 6 Download

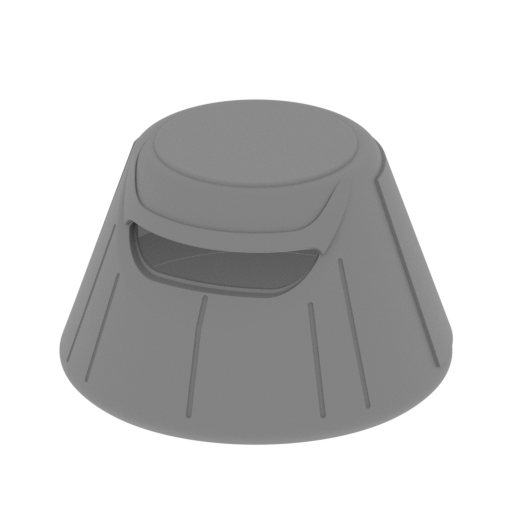

_012_head_2_FDM.stl
13.75 MiB 4 h 46 min 3 m 54 x 54 x 34 Download

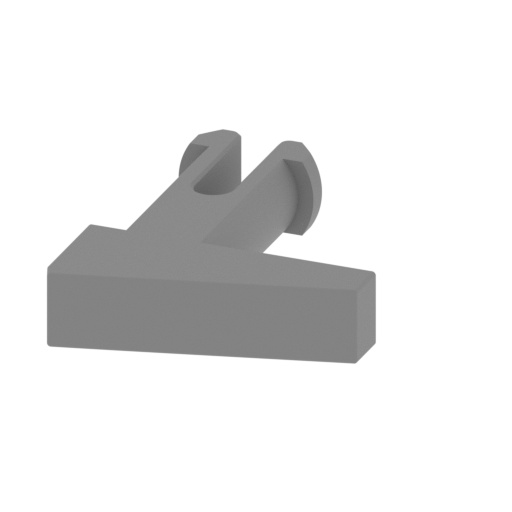

_013_shoulder_pin_L_FDM.s tl
0.53 MiB 11 min <1 m 19 x 24 x 5 Download

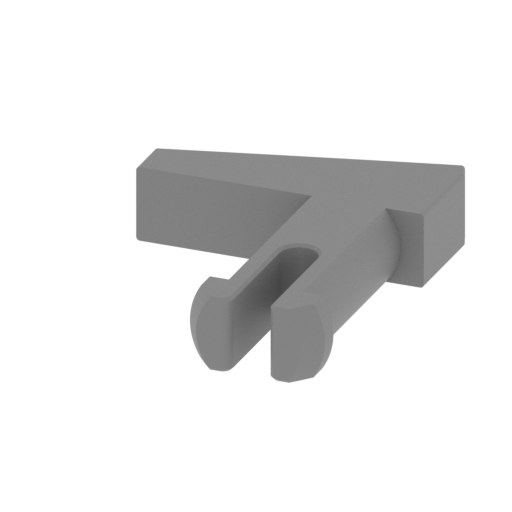

_014_shoulder_pin_R_FDM.s tl
0.53 MiB 11 min <1 m 19 x 24 x 5 Download

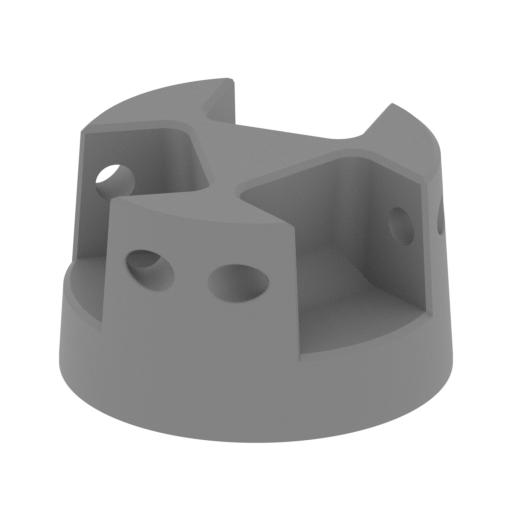

_015_Arm_1_x2_FDM.stl
4.62 MiB 1 h 28 min 1 m 32 x 32 x 19 Download

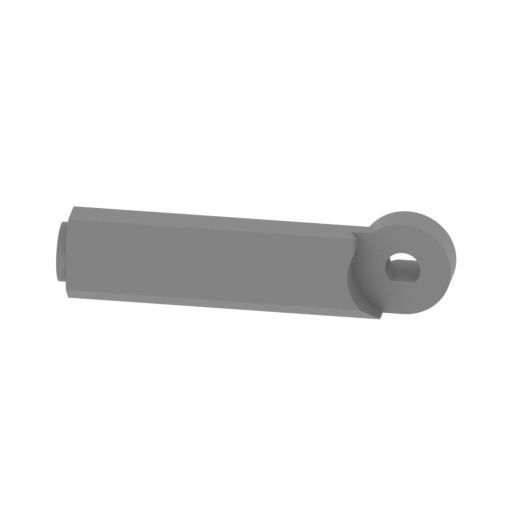

_017_forearm_1_FDM.stl
0.62 MiB 21 min <1 m 39 x 15 x 10 Download

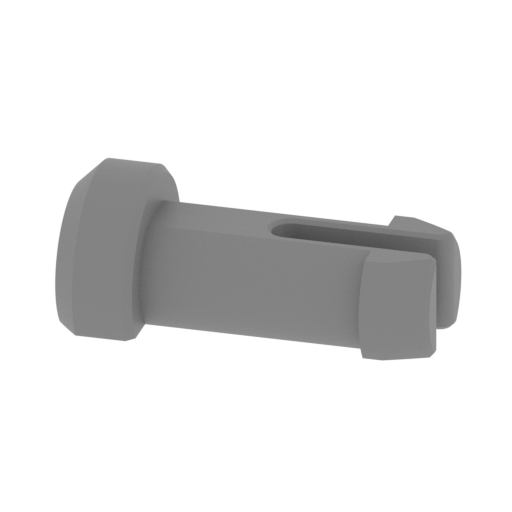

_018_elbow_pin_Ń…6_FDM.st l
0.16 MiB 3 min <1 m 10 x 5 x 4 Download

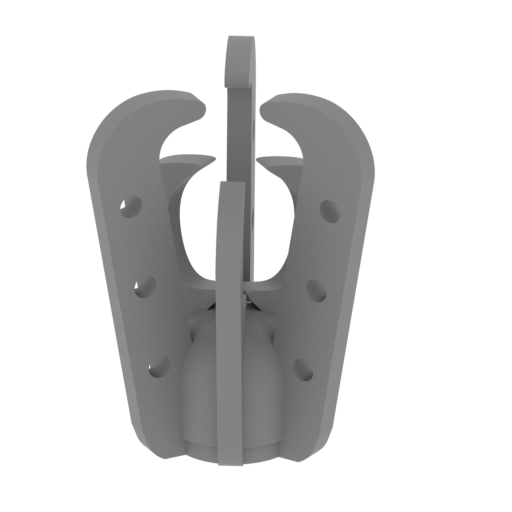

_019_hand_1_FDM.stl
1.44 MiB 22 min <1 m 14 x 14 x 19 Download

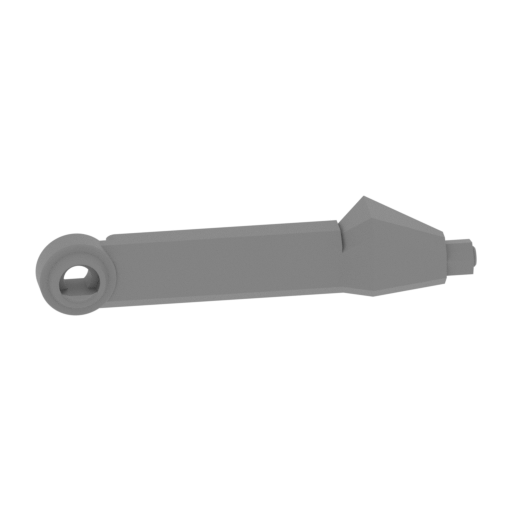

_020_forearm_2_FDM.stl
0.55 MiB 27 min <1 m 50 x 32 x 11 Download

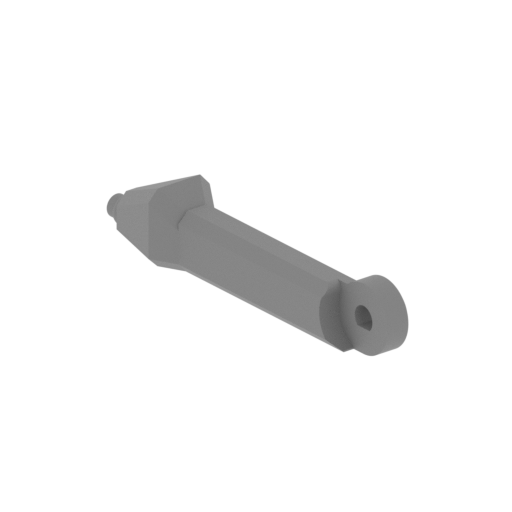

_021_forearm_3_FDM.stl
0.80 MiB 28 min <1 m 50 x 30 x 11 Download

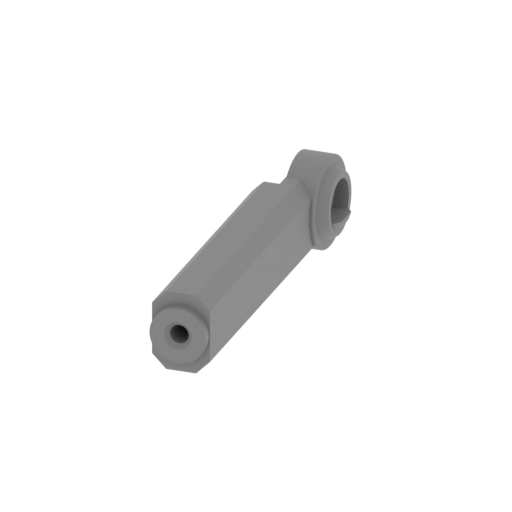

_022_forearm_4_FDM.stl
0.62 MiB 22 min <1 m 8 x 40 x 10 Download

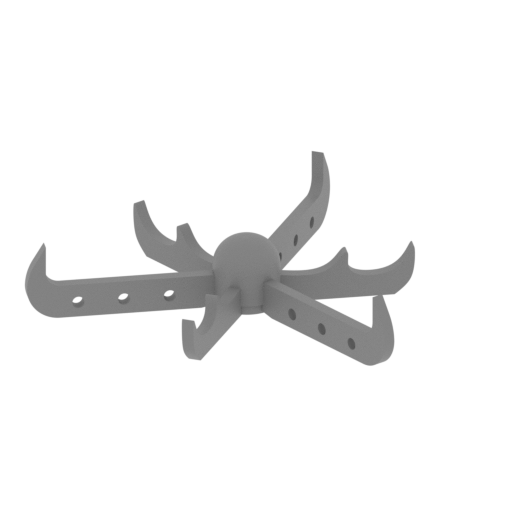

_023_hand_2_FDM.stl
1.58 MiB 17 min <1 m 38 x 38 x 8 Download
_024_forearm_5_FDM.stl
0.55 MiB 27 min <1 m 50 x 30 x 11 Download

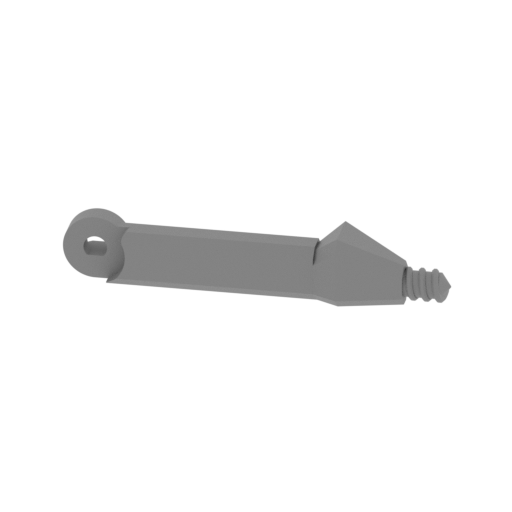

_025_forearm_6_FDM.stl
3.26 MiB 29 min <1 m 59 x 13 x 11 Download

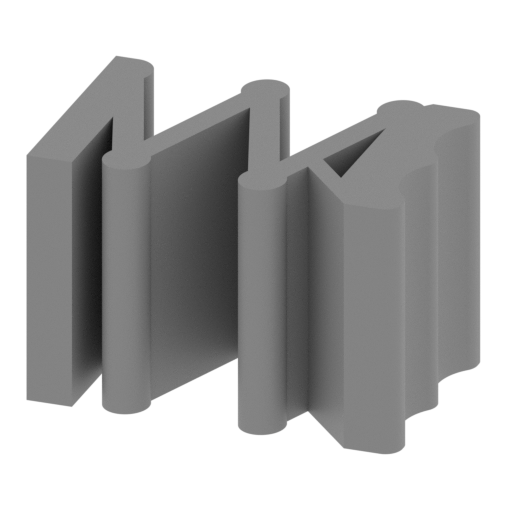

_026_pelvis_string_x2_FDM .stl
0.41 MiB 24 min <1 m 15 x 10 x 10 Download

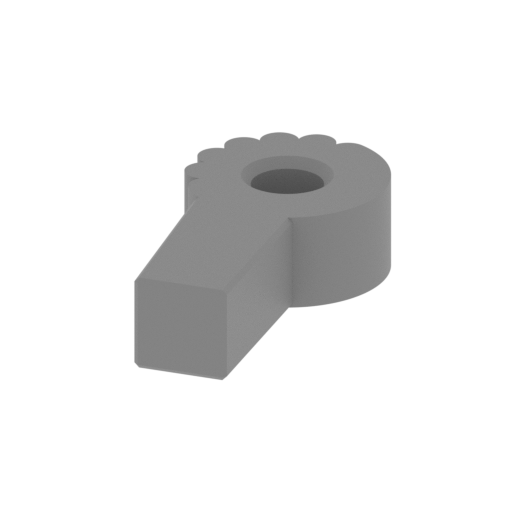

_027_leg_1_L_FDM.stl
0.52 MiB 34 min <1 m 21 x 40 x 10 Download

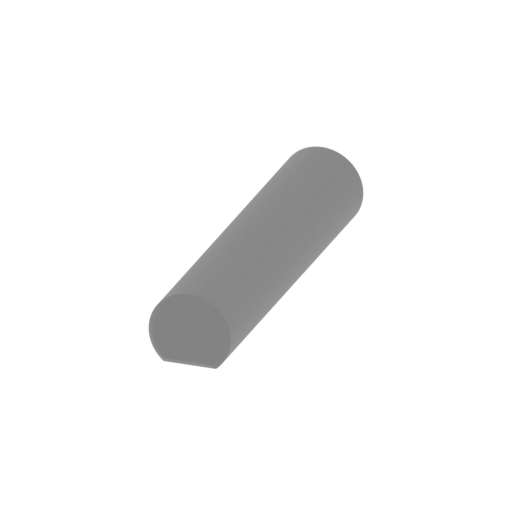

_028_leg_pin_x2_FDM.stl
0.27 MiB 11 min <1 m 7 x 32 x 6 Download

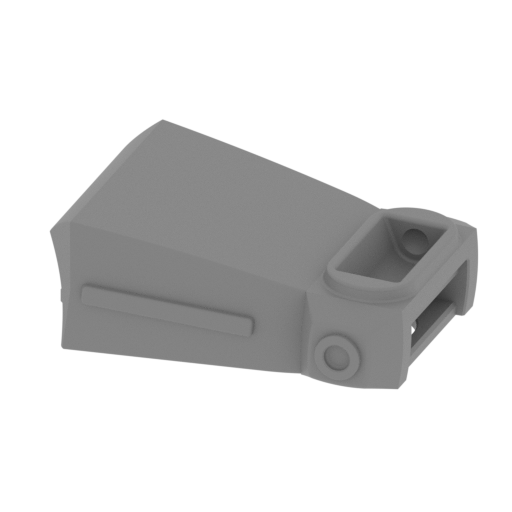

_029_leg_2_x2_FDM.stl
10.42 MiB 3 h 53 min 2 m 58 x 45 x 21 Download

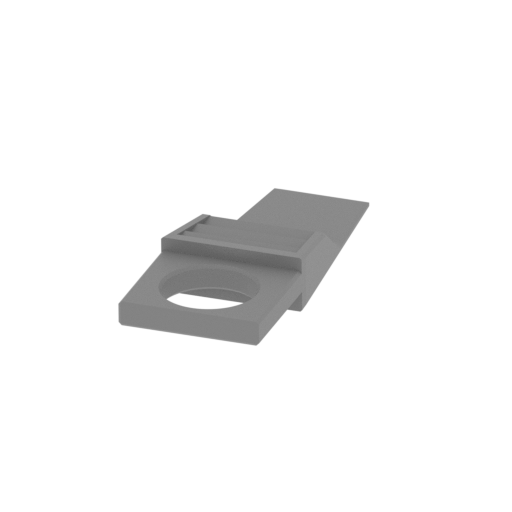

_030_leg_3_X2_FDM.stl
1.13 MiB 1 h 14 min 1 m 24 x 63 x 12 Download

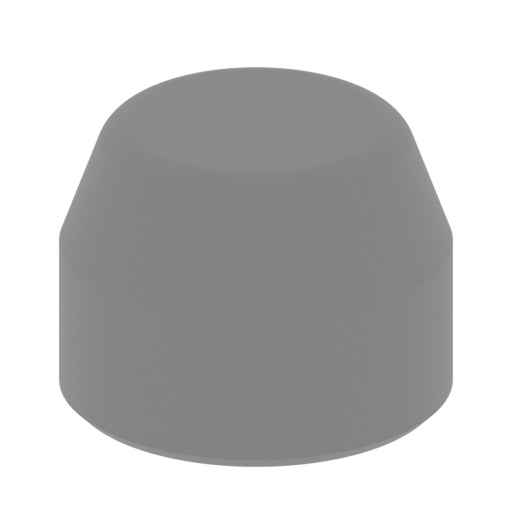

_031_leg_4_x2_FDM.stl
0.77 MiB 13 min <1 m 15 x 15 x 11 Download

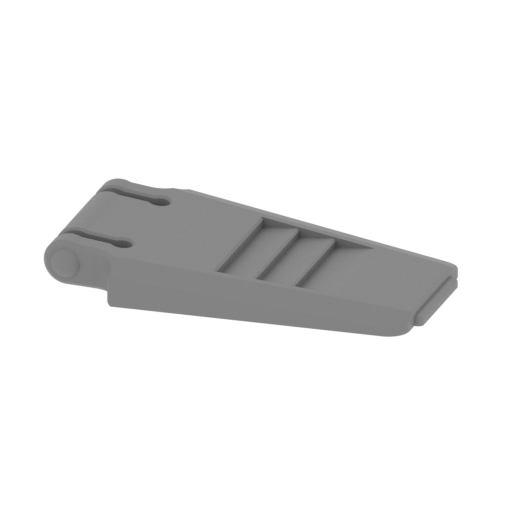

_032_legwind_x2_FDM.stl
2.16 MiB 47 min <1 m 49 x 29 x 6 Download

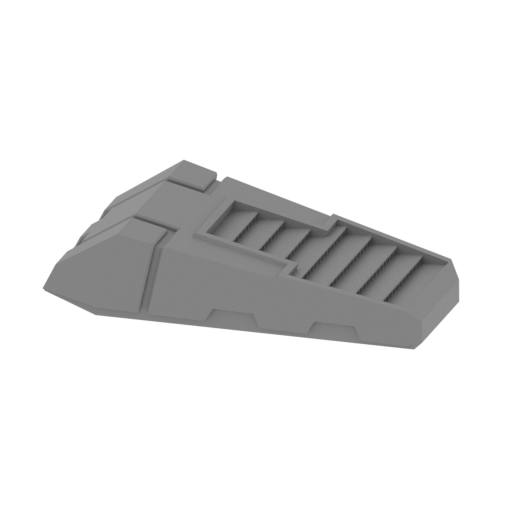

_033_leg_5_x2_FDM.stl
0.34 MiB 2 h 20 min 1 m 64 x 32 x 15 Download

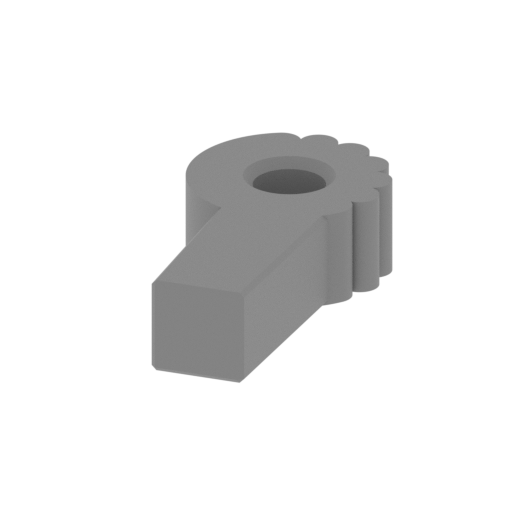

_034_leg_1_R_FDM.stl
0.52 MiB 36 min <1 m 21 x 40 x 10 Download

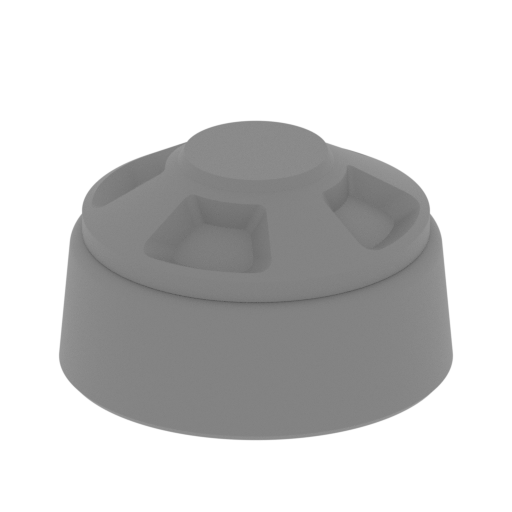

_035_pelvis_cup_x4.stl
1.26 MiB 17 min <1 m 18 x 18 x 11 Download

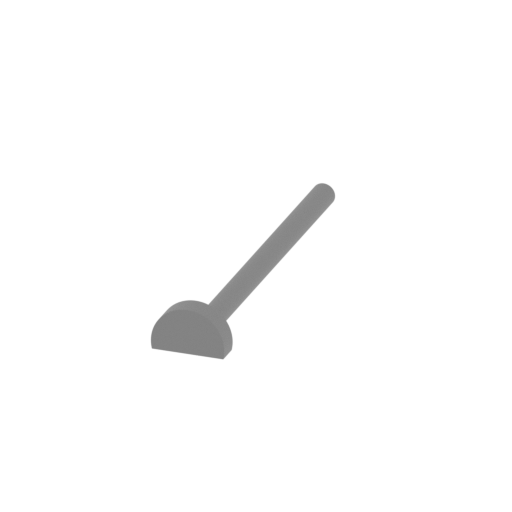

_036_stand_1_FDM.stl
1.07 MiB 1 h 6 min 1 m 26 x 131 x 16 Download

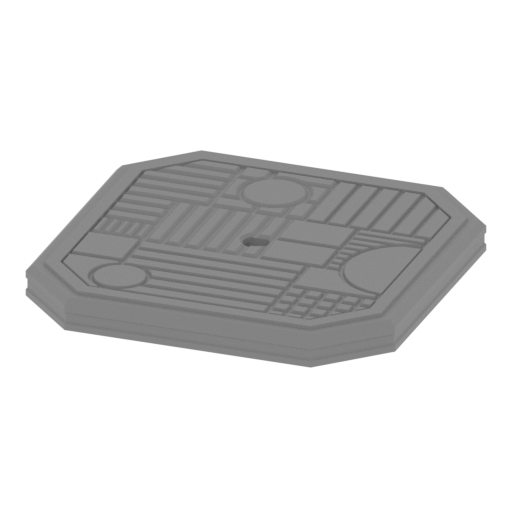

_037_stand_2_FDM.stl
1.58 MiB 13 h 43 min 8 m 120 x 120 x 11 Download

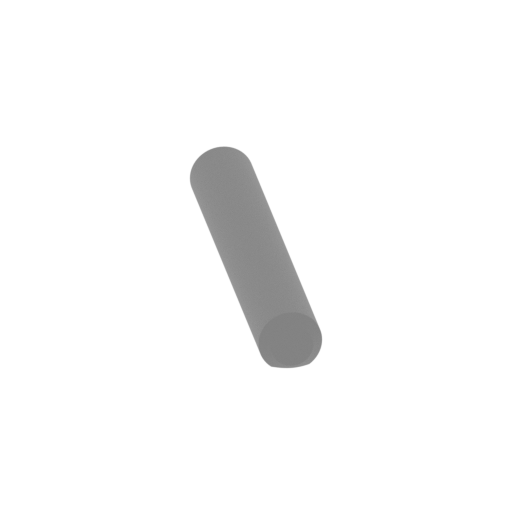

_038_Filament_d3_FDM.stl
0.07 MiB 3 min <1 m 12 x 18 x 3 Download
_039_Filament_D1.75_FDM.s tl
0.04 MiB 2 min <1 m 14 x 2 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
_016_Arm_2_L_x3_FDM.stl
0.47 MiB 44 min <1 m 58 x 13 x 13 Download

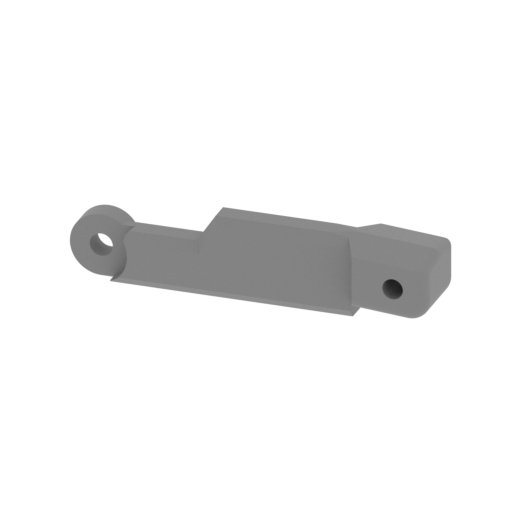

_016_Arm_2_R_x3_FDM.stl
0.47 MiB 44 min <1 m 58 x 13 x 13 Download
...

ABOUT THIS 3D MODEL

The Black Hole 1979 tells us a story of a Palomino spaceship, that on his way back to Earth discovered another ship that had been assumed missing, USS Cygnus. The crew of Cygnus consists of Dr. Reinhardt, his sinister bodyguard robot Maximilian and the army of faceless sentry robots. Maximilian is the one who executes criminal commands of the doctor and murders the expedition's civilian leader of Palomino, Durant, and the diminutive robot B.O.B.

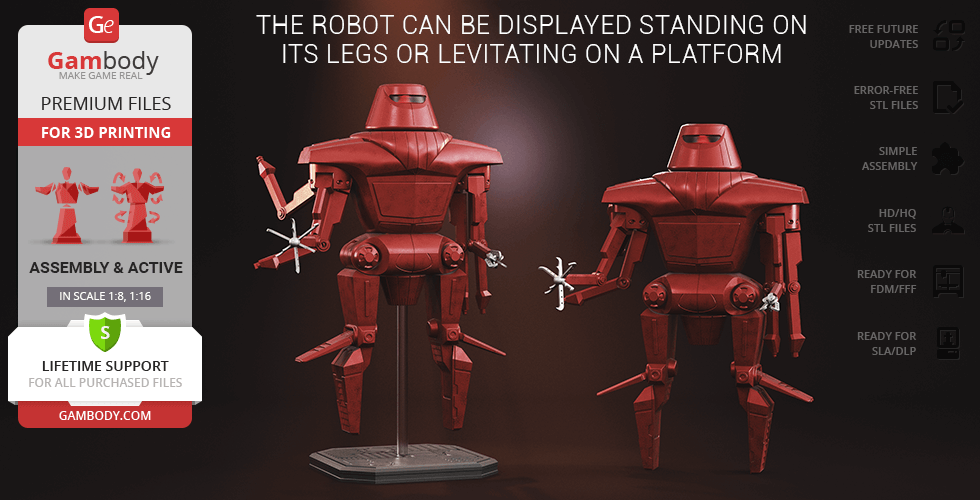

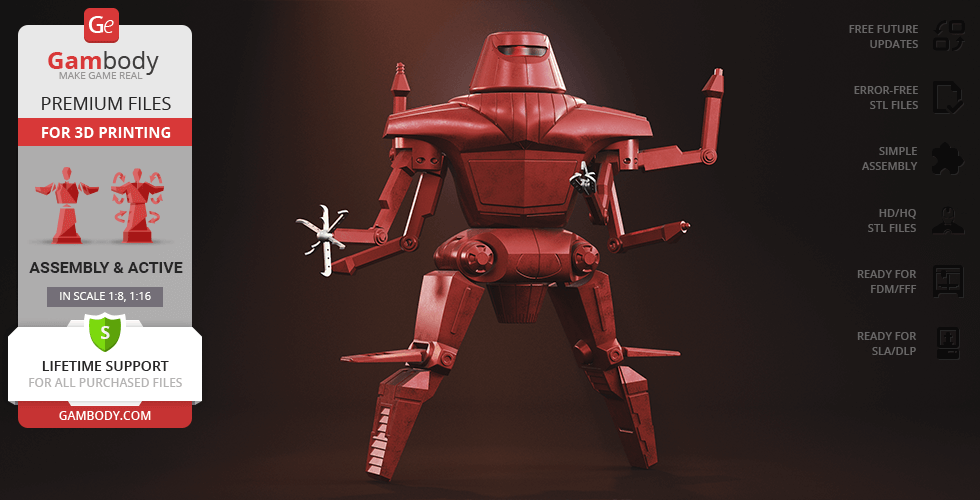

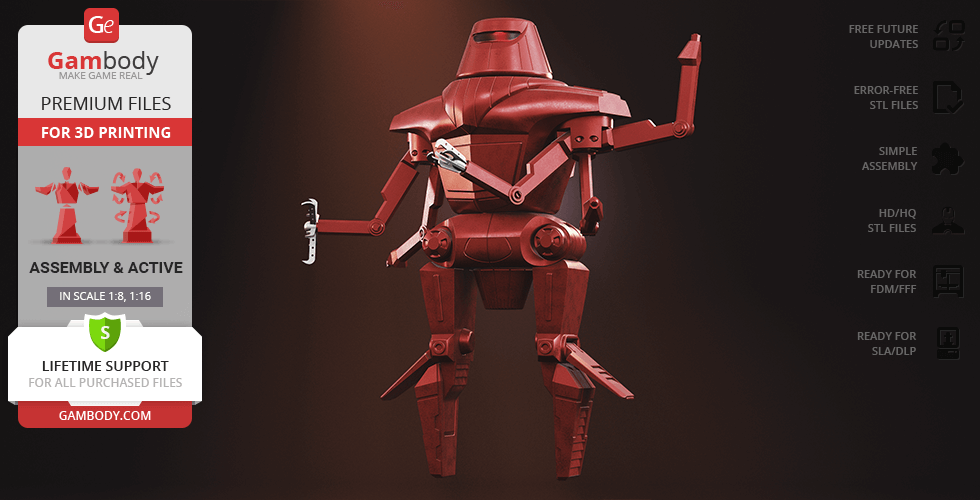

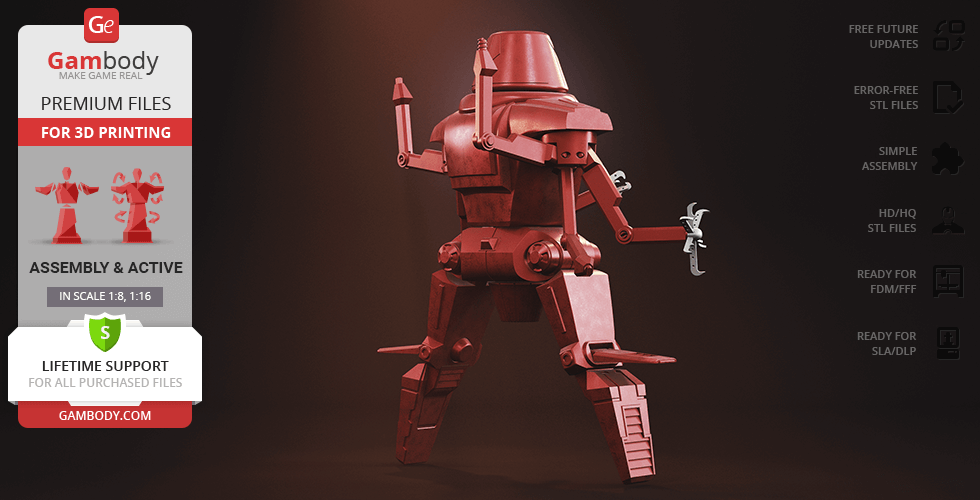

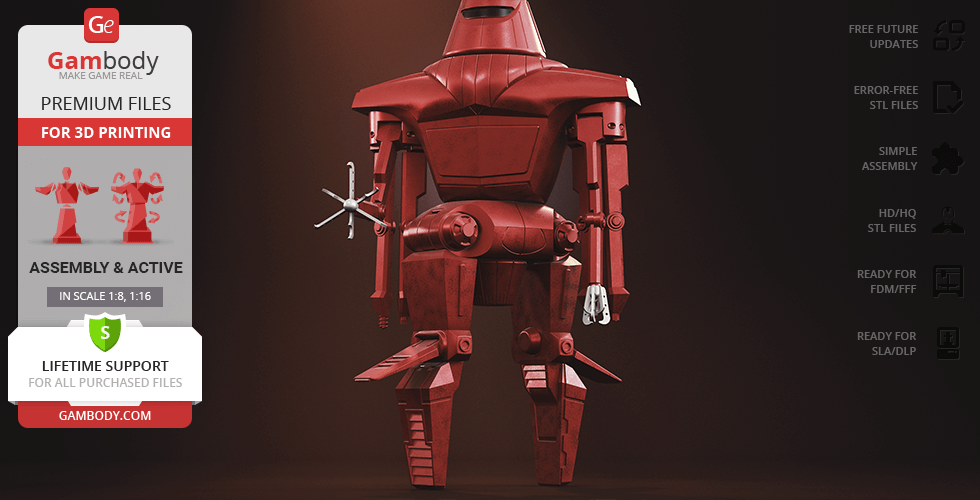

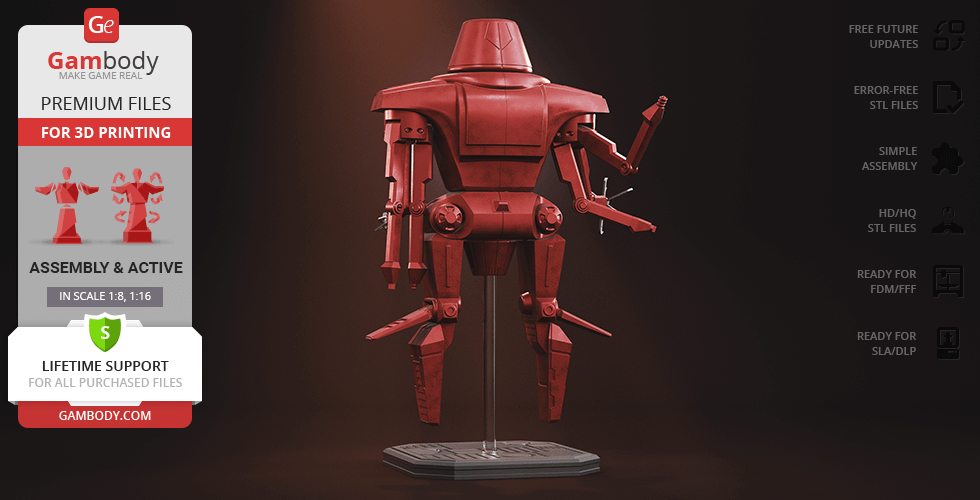

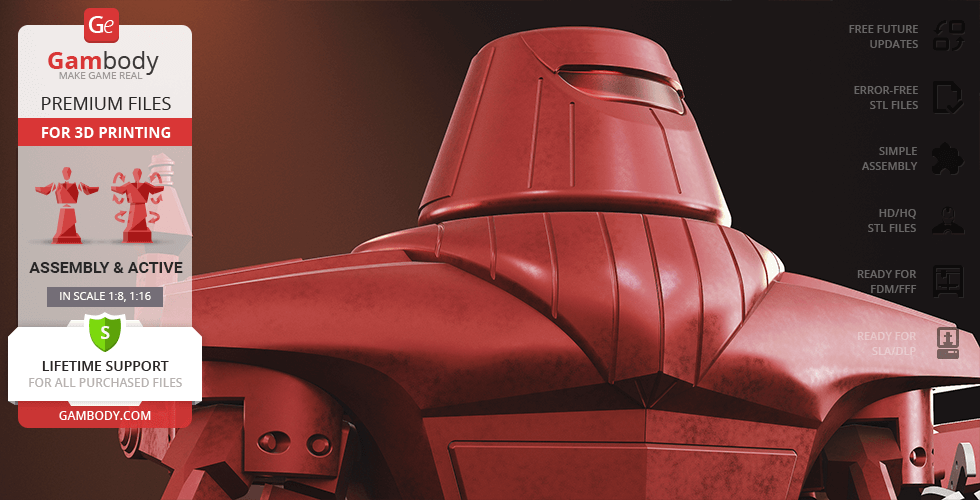

Inspired by the secondary antagonist of the Black Hole science-fiction film, our contributing 3D artist created this outstanding model for 3D printing. The Mystery Monster has articulated elements such as arms, legs, torso and head. There is an option to mount a LED light inside the head of the robot. Maximilian 3D printing figurine has 6 arms in disposal, a pair of hands is equipped with spinning bladed claws. The red eerie robot can be displayed either standing on his legs or levitating on a platform, recalling movie scenes. A great way to place the model among your collectibles!

ADAPTATION FOR 3D PRINTING

Maximilian for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 43 hours in total.

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the robot was divided into convenient assembly parts.

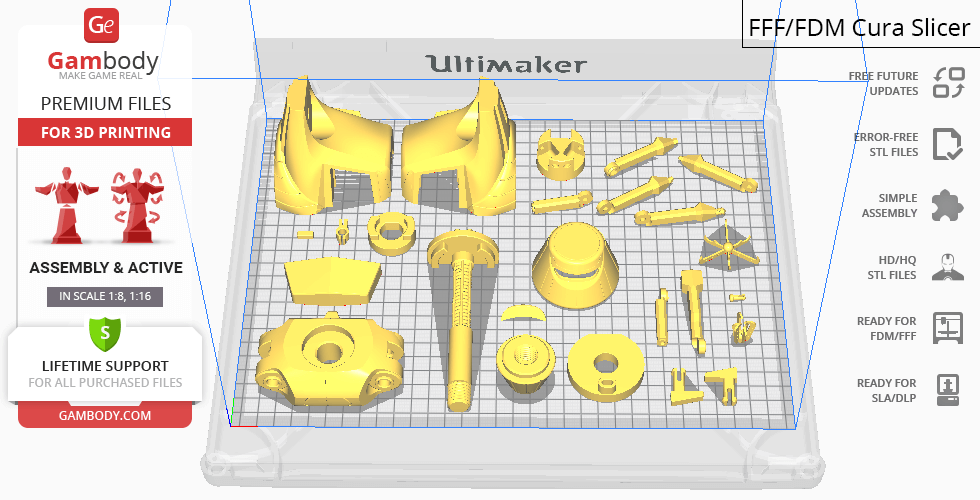

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Maximilian model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

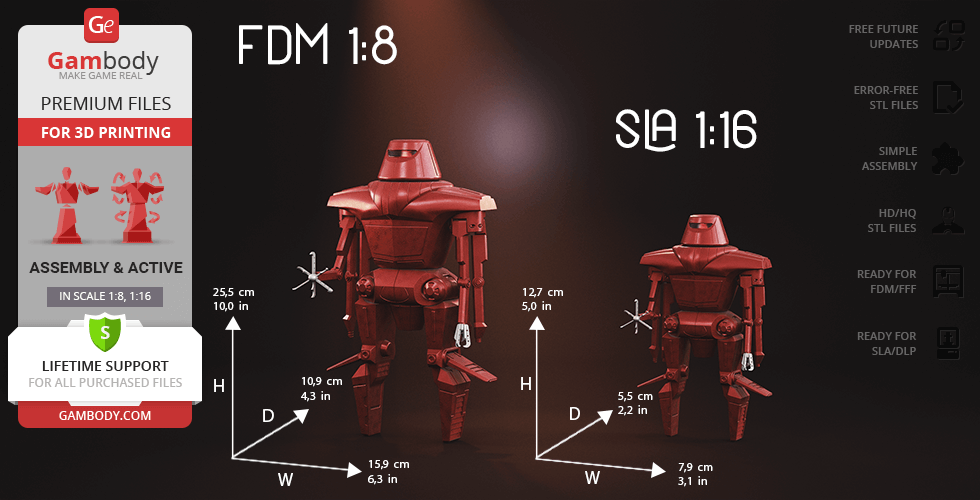

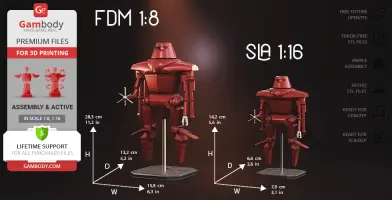

The model’s scale was calculated from the height of the Maximilian. The 3D printing model’s chosen scales are 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

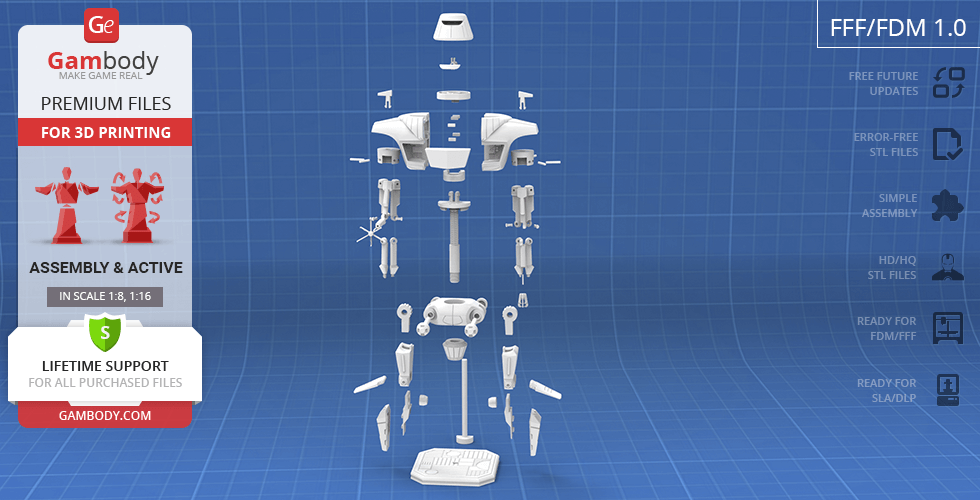

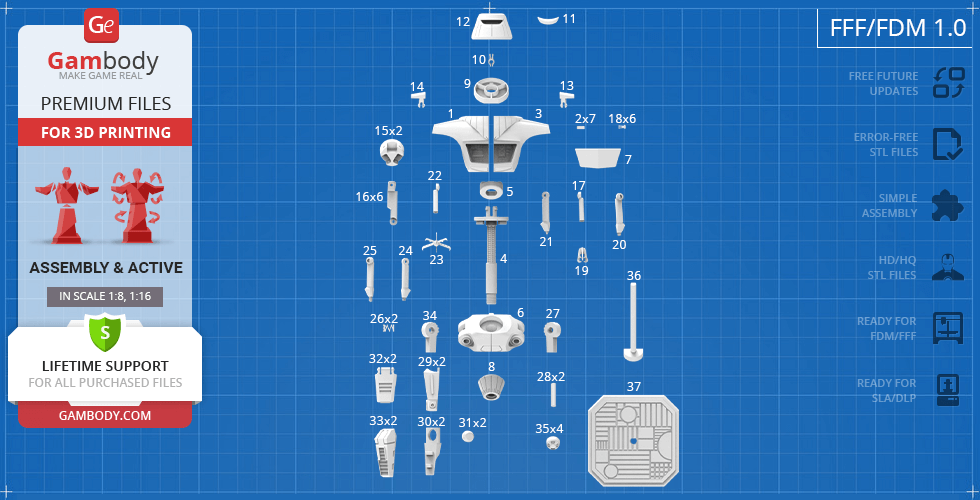

FFF/FDM 1.0 version features:

  • Contains 37 parts;
  • A printed model is 255 mm tall, 159 mm wide, 109 mm deep;
  • A printed model on the platform is 283 mm tall, 159 mm wide, 132 mm deep;

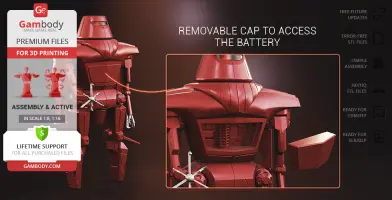

  • Removable cap to access the battery;

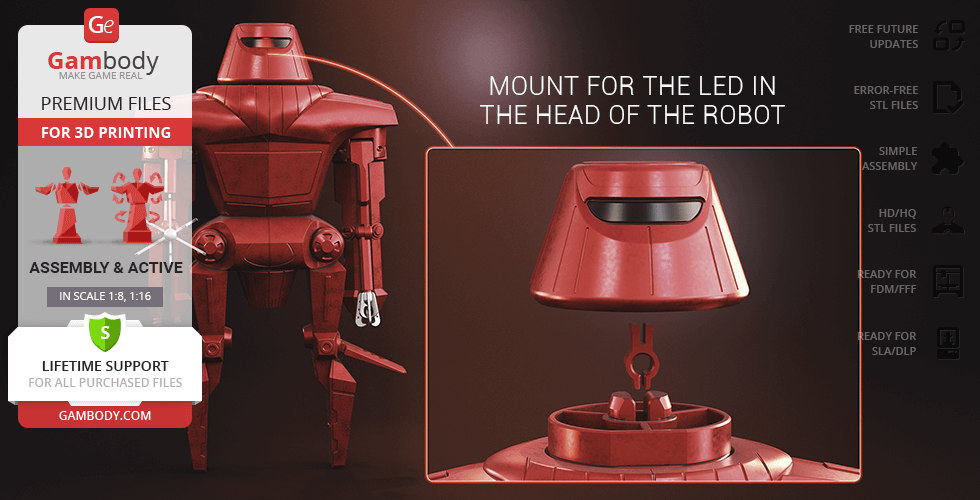

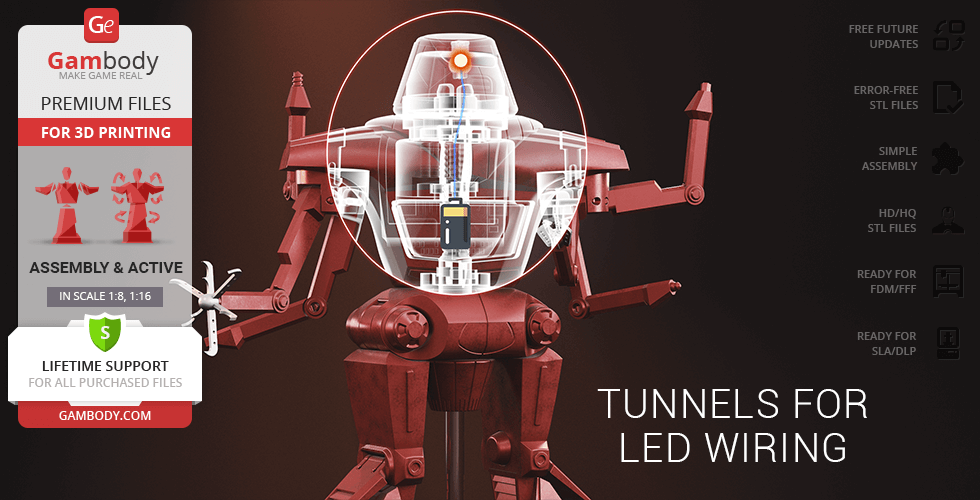

  • Mount for the LED in the head of the robot;

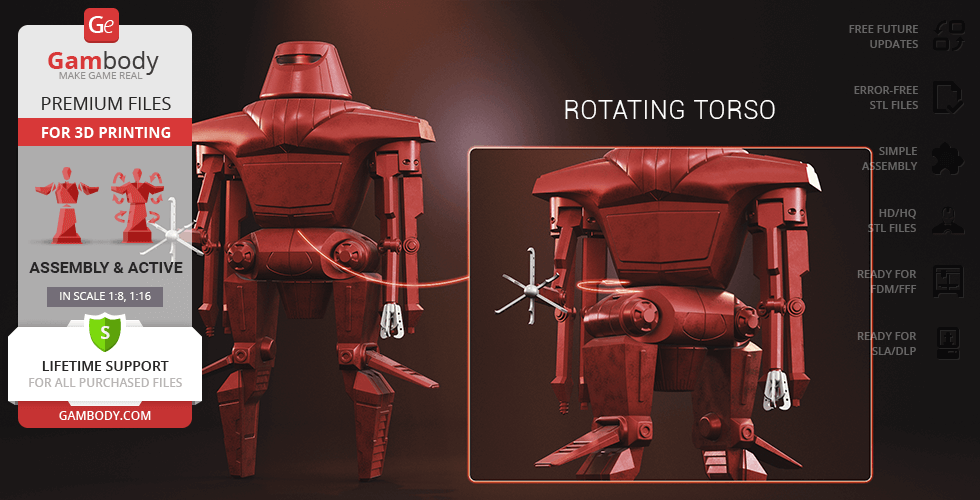

  • Rotating torso;

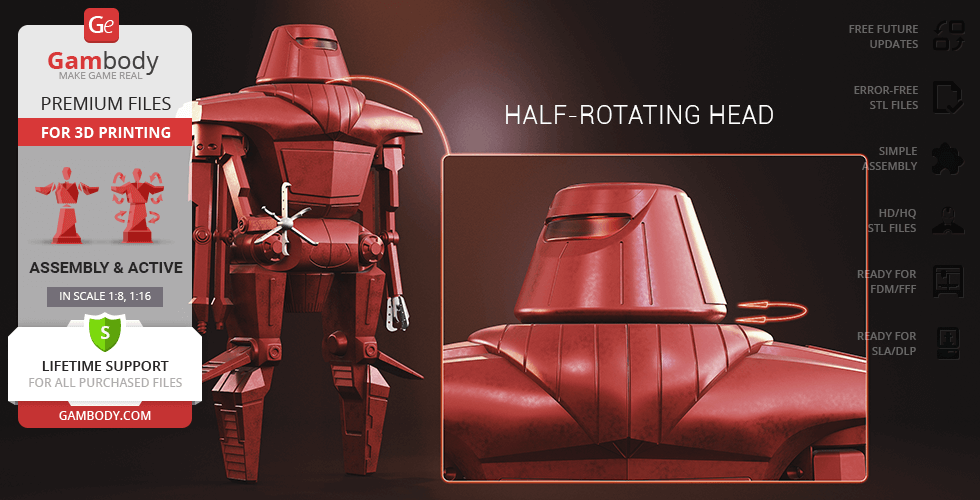

  • Half-rotating head;

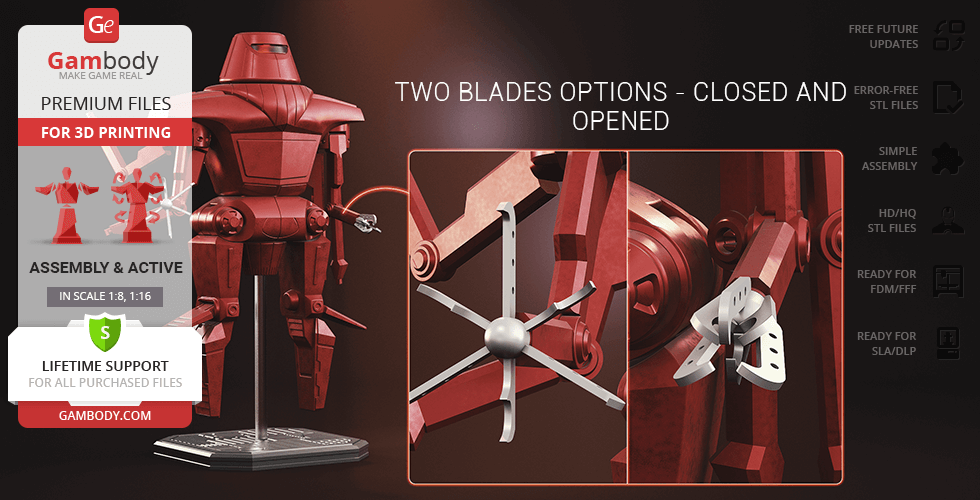

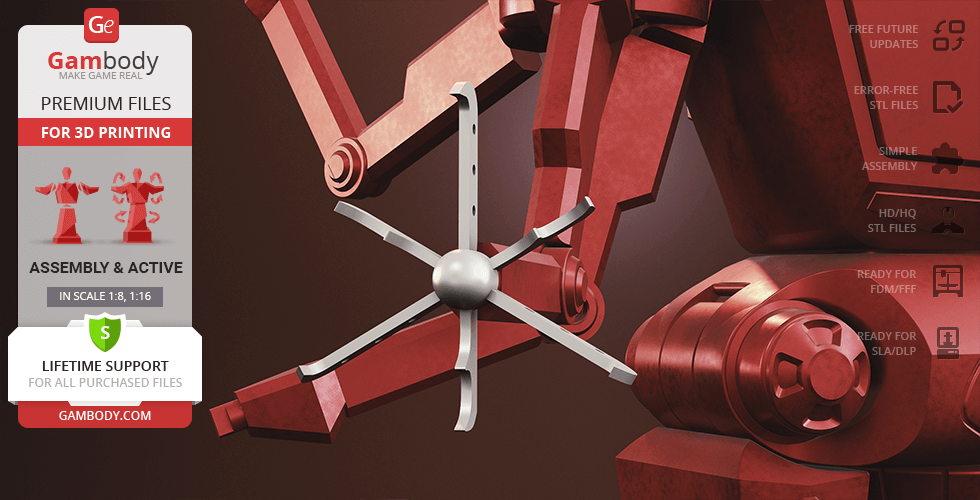

  • Two blades options - closed and opened;

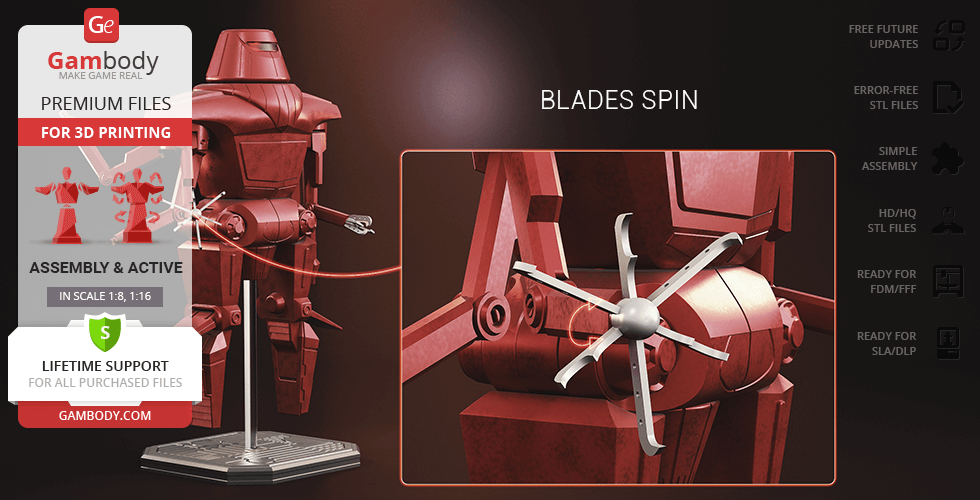

  • Blades spin;

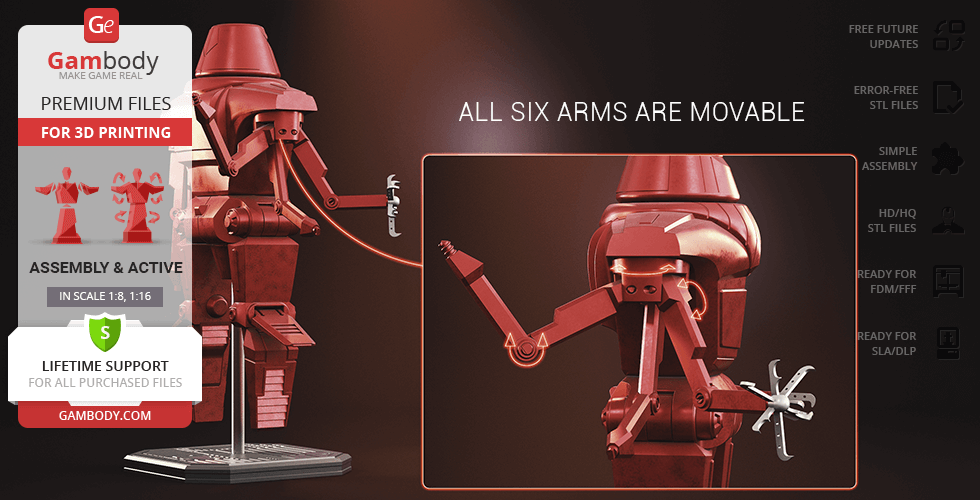

  • All six arms are movable;

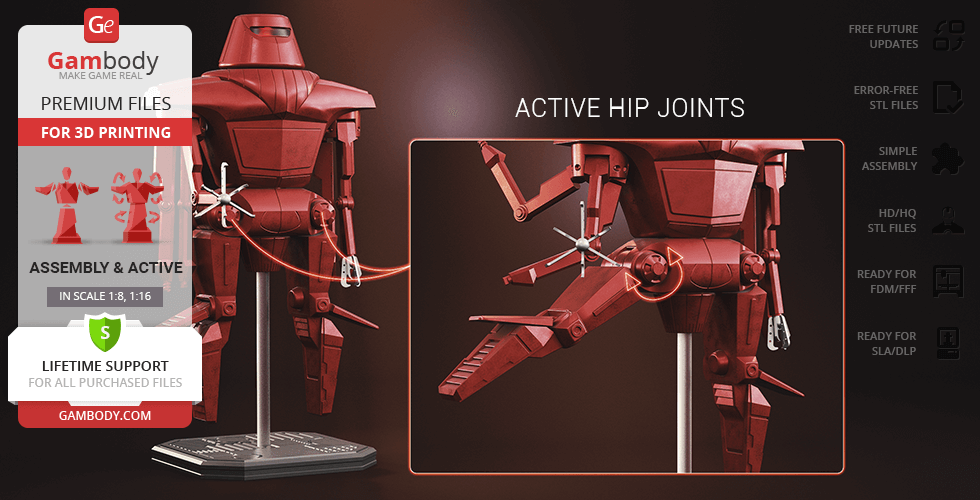

  • Active hip joints;

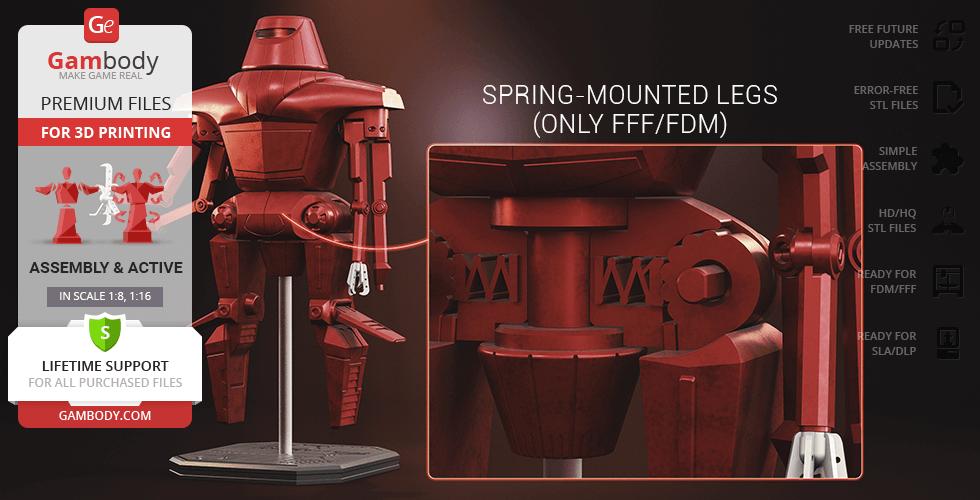

  • Spring-mounted legs;

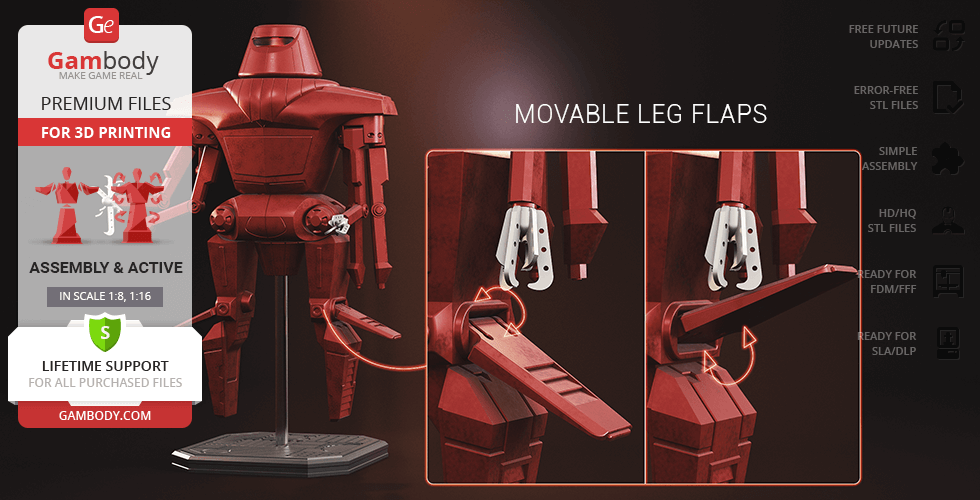

  • Movable leg flaps;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

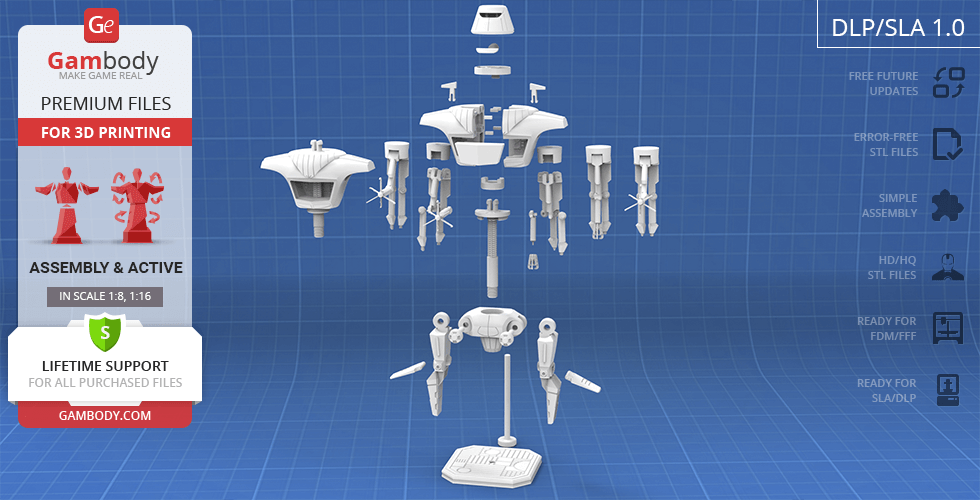

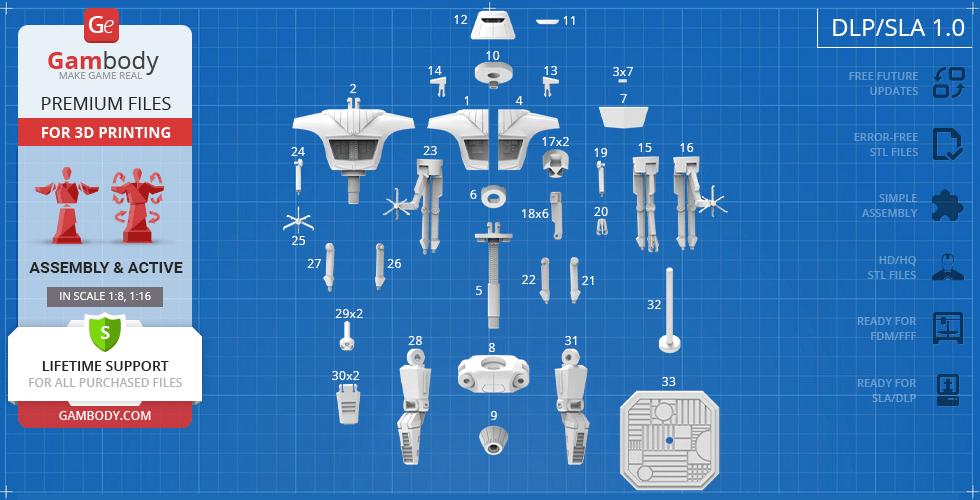

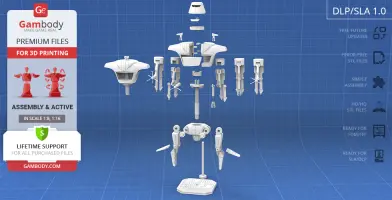

DLP/SLA 1.0 version features:

  • Contains 33 parts;
  • A printed model is 127 mm tall, 79 wide, 55 mm deep;
  • A printed model on the platform is 142 mm tall, 79 wide, 66 mm deep;
  • Removable cap to access the battery;
  • Mount for the LED in the head of the robot;
  • Rotating torso;
  • Half-rotating head;
  • Two blades options - closed and opened;
  • Blades spin;
  • All six arms are movable;

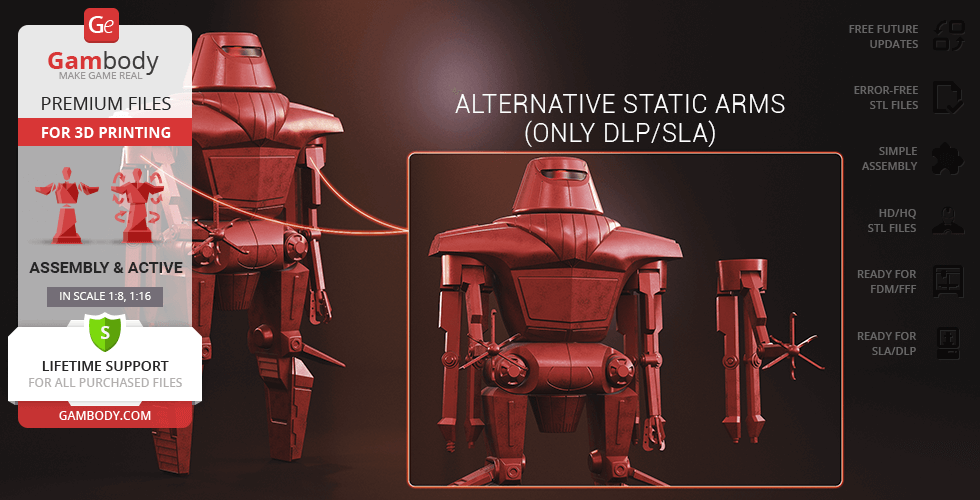

  • Alternative static arms;

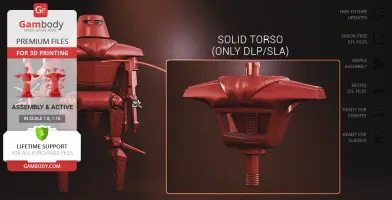

  • Solid torso;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the model of Maximilian for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Maximilian 3D Printing Model on Gambody YouTube channel.

Also, you may like other Robot models for 3D Printing.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
  • All connectors should be printed at 100% Infill.

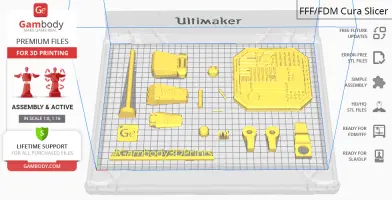

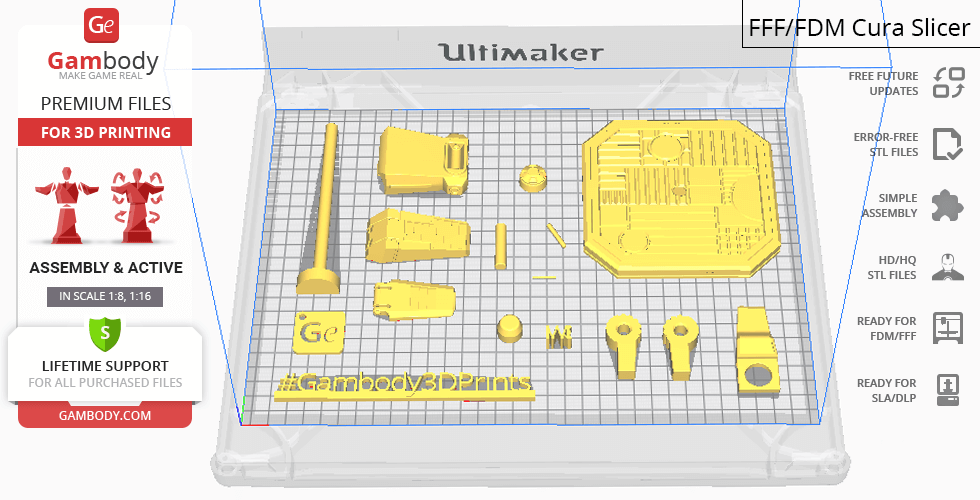

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
